Axial Load Behavior of Ultrahigh Strength Concrete-Filled Steel Tube Columns of Various Geometric and Reinforcement Configurations

Abstract

This paper presents the behavior of concrete-filled steel tube (CFST) columns infilled with fiber-reinforced self-consolidating ultrahigh strength concrete (UHSC) subjected to axial concentric monotonic loading to failure. UHSC is expected to improve ease of fabrication, strength, and ductility of CFST columns. Seventeen columns having varying geometric properties such as tube wall thickness, cross-sectional shape (circular, rectangular, and square), and slenderness were constructed and tested by applying load through both steel tube and concrete core. Circular columns were further distinguished by the presence or absence of main and hoop steel reinforcing bars in the core concrete. Axial load-displacement response, axial/transverse strain development, and failure modes were recorded during the loading history to analyze the performance. Experimental confined concrete strength and axial strength of UHSC-filled CFST columns were compared with those obtained from three suggested analytical models and three code-based design procedures including Eurocode 4, Canadian CAN/CSA S16, and American AISC. Analytical models were found to over-predict the confined concrete strength and the axial strength of CFST columns. Canadian and American codes were found to be most applicable for predicting axial strength of UHSC-filled CFST columns while remaining conservative.

1. Introduction

Concrete-filled steel tube (CFST) columns provide structural benefits such as increasing strength and ductility compared with normal reinforced concrete columns [1,2], and such characteristics are expected to be applicable to structures in seismic areas [3,4]. Advantages in CFST columns come from confinement of concrete by the steel tube wall [5]. Slenderness often has an effect on column capacity in general, and this has been found to be true in CFST columns as well. Columns with increasing slenderness “length-to-diameter ratio (L/D) for circular section” or “length-to-depth (minimum dimension) ratio (L/d) for rectangular section”, typically fail due to global buckling rather than steel yielding or local buckling. In the case of CFST columns, concrete confinement is not able to fully develop in slender columns [6]; thus, greater confinement is expected in shorter columns [7]. In addition, higher axial strength is expected to develop in CFST columns as compressive strength of core concrete increases due to confinement. Infill concrete plays a significant role in the structural behavior of filled tube columns. Circular columns are capable of achieving better confinement, and thus, higher strength compared with square columns [5,8]. The presence of steel bar reinforcements enables even higher strength and ductility in CFST columns [3,9]. Circular CFST columns have been studied by many authors in the past, and various analytical models and code provisions are based on CFST columns of circular cross-section.

Recent advancement in technology has developed high performance concretes (HPCs) with properties superior to those of ordinary concrete such as improved strength, ductility and self-consolidating characteristics. Fiber-reinforced ultrahigh-strength concrete (UHSC) with very high strength is an emerging class of HPCs [10,11,12]. To address the increase in stiffness typically observed as concrete compressive strength increases, steel fibers have been introduced in UHSC. The presence of steel fibers has been found to improve ductility characteristics in UHSC [10]. The ability for UHSC to self-consolidate allows for concrete to be placed with ease, where additional compaction and vibration are unnecessary.

Over the years, research has been conducted on CFST columns with various types of HPC infill [3,8,9]. In recent years, experimental and numerical research studies have been conducted on the CFST columns with UHSC infill including fire performance [13,14,15,16,17,18,19]. The structural performance of axially loaded CFST circular columns was investigated through finite element simulation of the load–deformation response, UHSC brittleness characteristic, and confinement effect using a new stress–strain model of confined UHSC [13]. CFST columns with UHSC exhibited similar fire performance compared to those with normal or high-strength concrete with respect to thermal expansion, axial contraction, and failure modes [14]. Adding 0.1% polypropylene fibers in UHSC was also found to be effective in preventing explosive spalling heated rapidly under the standard fire [13]. Concrete-filled double-tube columns were also investigated for potential application in multi-story and high-rise constructions [15]. Test results showed that UHSC-filled tubular columns achieved ultrahigh load-carrying capacities, but they could become brittle after the maximum load was attained. In addition, the ductility and strength of composite columns infilled with UHSC were improved by applying load only on the concrete core, adding steel fibers into the concrete core or increasing the steel contribution ratio. Comparison of test results indicates that the Eurocode 4 [20] approach underestimated the resistance by 14.6% if the confinement effect was not considered and by 3.5% if the confinement effect was considered for all the specimens involving UHSC [15]. Use of fiber-reinforced UHSC can add to the strength and ductility of CFST columns [14,15,16,17,18,19].

Despite previous research studies, more investigations are needed to study strength, deformation, and failure characteristics of circular, square, and rectangular UHSC-filled CFST columns with varying geometric parameters and presence or absence of longitudinal and hoop reinforcements in the core concrete. The confining effect of a steel tube on concrete core in presence or absence of hoop reinforcement in addition to longitudinal reinforcement needs to be investigated. There is a need to evaluate the performance of existing models for predicting the strength of confined concrete in UHSC-filled CFST columns of various cross-sectional shapes. Existing design codes have placed limits on the strength of steel and concrete due to limited test data and experience on the behavior of CFST columns with UHSC. The performance of existing code-based design procedures in predicting axial strength of UHSC infilled CFST columns also needs to be studied.

To address the above needs, a comprehensive research consisting of experimental and analytical investigations has been conducted on the axial load behavior of UHSC infilled CFST columns. This paper presents the results of these investigations. The influences of variables such as tube shape/dimension/thickness, slenderness ratio and presence or absence of longitudinal and hoop reinforcements on axial load–deformation responses, strain characteristics and failure modes are described. The performance of various code-based design equations such as European Eurocode 4 [20], Canadian CAN/CSA S16-09 [21], and American AISC [22] for strength prediction is evaluated. As a novel contribution of this study, analytical models for confined strength of UHSC and axial strength of CFST columns are derived based on existing models and their performance validated through comparison with test results. The findings of this research and the proposed analytical models will surely benefit engineers and researchers involving in the design and construction of UHSC infilled CFST columns.

2. Experimental Program

2.1. Column Sample Specifications

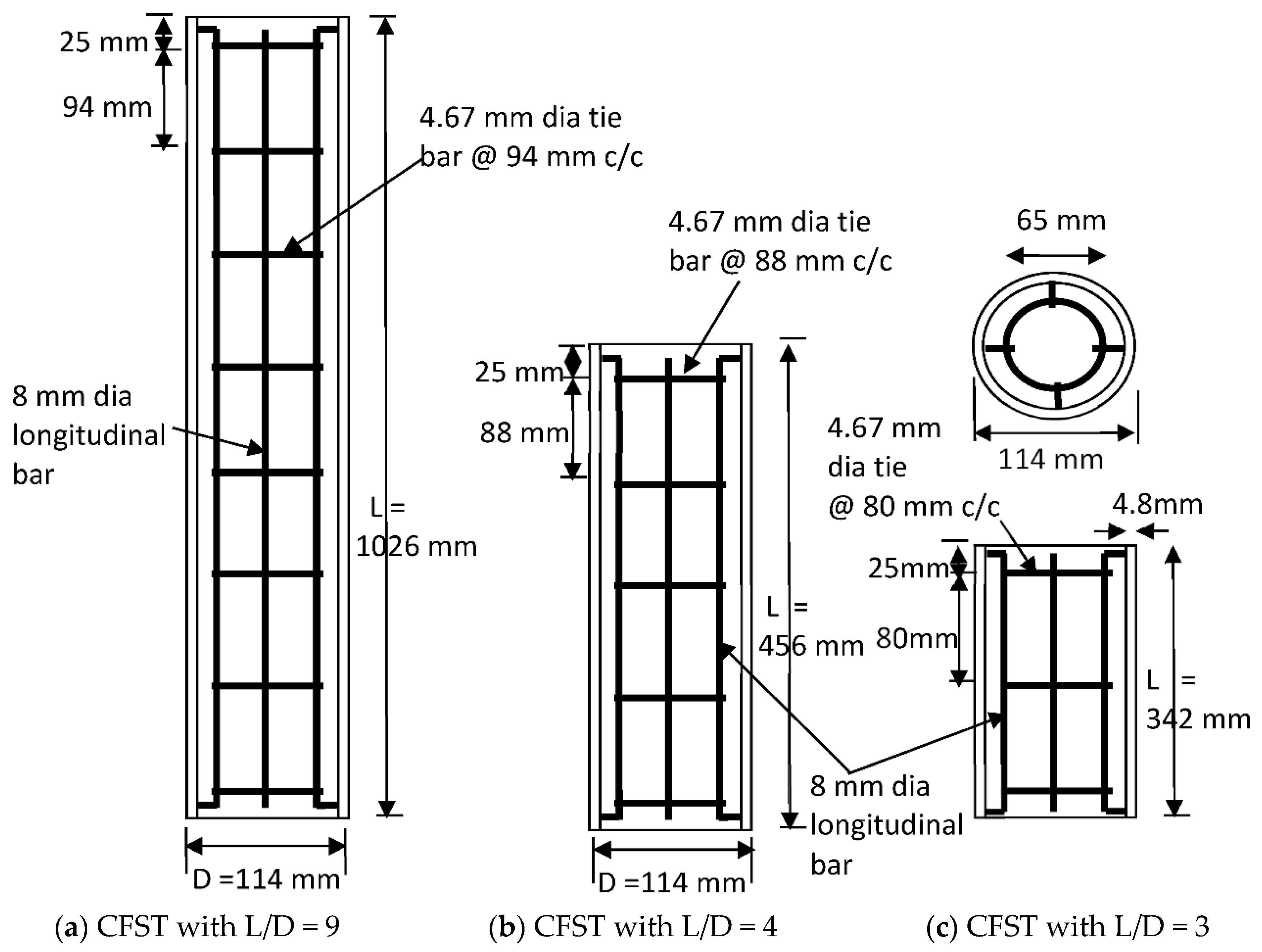

Seventeen CFST columns were prepared using circular (c), square (s), and rectangular (r) steel tubes with UHSC infill developed at Ryerson University. Detailed designations with geometric dimensions of columns such as tube thickness (t), diameter (D), breadth (b)/depth (d: smaller dimensions) of the cross-section, length/height (L), breadth-to-thickness ratio (b/t), diameter-to-thickness ratio (D/t), and slenderness (L/D or L/d) are presented in

Table 1. Geometric dimension and designations of CFST columns with test results.

Column Desig.	L, mm	t, mm	D, mm	b, mm	d, mm	D/t or b/t	L/D or L/d	Pexp, kN	Failure Mode
UcI-3	342	4.8	114	-	-	24	3	1681	Radial expansion
UcI-4	456	4.8	114	-	-	24	4	1610	Shear
UcI-9	1026	4.8	114	-	-	24	9	1573	Shear
UcII-3	342	4.8	114	-	-	24	3	1853	Radial expansion
UcII-4	456	4.8	114	-	-	24	4	1849	Shear
UcII-9	1026	4.8	114	-	-	24	9	1751	Global buckling
Ur-6	306	3.2	-	102	51	32	6	809	Shear
Ur-12	612	3.2	-	102	51	32	12	987	Shear
Ur-20	1020	3.2	-	102	51	32	20	754	Global buckling
Us4-3	306	3.2	-	102	102	32	3	1535	Radial expansion
Us4-6	612	3.2	-	102	102	32	6	1397	Local buckling
Us4-10	1020	3.2	-	102	102	32	10	1446	Local buckling
Us2-6	306	1.6	-	51	51	32	6	330	Shear
Us2-9	459	1.6	-	51	51	32	9	376	Shear
Us2-12	612	1.6	-	51	51	32	12	348	Shear
Us2-16	816	1.6	-	51	51	32	16	366	Global buckling
Us2-20	1020	1.6	-	51	51	32	20	326	Global buckling

L: length or height; t: tube wall thickness; D: tube outer diameter; b: breadth (larger dimension of rectangular section); d: depth (minimum dimension for rectangular section); b/t: diameter-to-thickness or depth-to-thickness ratio; L/D or L/d: slenderness ratio; P_exp: experimental axial load capacity/strength; U: UHSC; c: circular; s: square; r: rectangular; I and II: with and without longitudinal and hoop reinforcement, respectively.

.

Columns were designated by infill material (U—ultrahigh-strength concrete), column cross-sectional shape (c, s, or r) and Series I or Series II (without or with longitudinal and tie/hoop reinforcements, respectively for circular columns only). For example, UcII-9 represents Series II UHSC circular column with a L/D of 9. All square and rectangular columns are Series I columns and “I” was not used in their designations. For example, Us2-9 represents Series I square columns with a L/d ratio of 9. Circular columns were made of 114 mm diameter steel tubes with a thickness of 4.8 mm (Figure 1a–c), square columns were made of tubes with 51 × 51 × 1.6 mm and 102 × 102 × 3.2 mm cross-sections, and rectangular columns were made of 102 × 51 × 3.2 mm tubes (Table 1).

The effect of variables such as cross-sectional area, tube shape, tube thickness, and slenderness (as measured by L/D or L/d ratio) on behavior of CFST columns infilled with self-consolidating fiber-reinforced UHSC was investigated. In addition, four longitudinal bars and hoop reinforcements were incorporated in several Series II circular CFST columns. Longitudinal bars were bent at the ends in the configuration as shown in Figure 1a–c, where hoop/tie spacing and reinforcement specifications are given for circular Series II columns of varying height.

2.2. Specimen Casting, Curing, Instrumentation, and Testing

UHSC mix developed at Ryerson University made of Type 10 (GU) cement as per Canadian Standard Association (CSA) specifications, silica sand, silica fume, superplasticizer (SP), and 13 mm-long straight steel fibers with diameters of 0.2 mm were used. UHSC was mixed in a 150 L capacity shear mixer where water and superplasticizer were added to dry materials excluding steel fiber and mixed. Then steel fibers were added gradually on to the lubricated flowable mixture during further mixing for even distribution. After making, UHSC was poured directly into the steel tube without any manual compaction as the concrete was designed to consolidate under its own weight. Casting was done in a vertically upright position as shown in Figure 2a and UHSC was poured from the top of the specimen. During casting, control specimens in the form of 100 mm × 200 mm cylinders and prisms were also made to determine UHSC compressive and flexural strengths, respectively at the age of testing. After casting, column and control specimens were covered for 24 h to prevent moisture loss and then air cured until testing at 28 days.

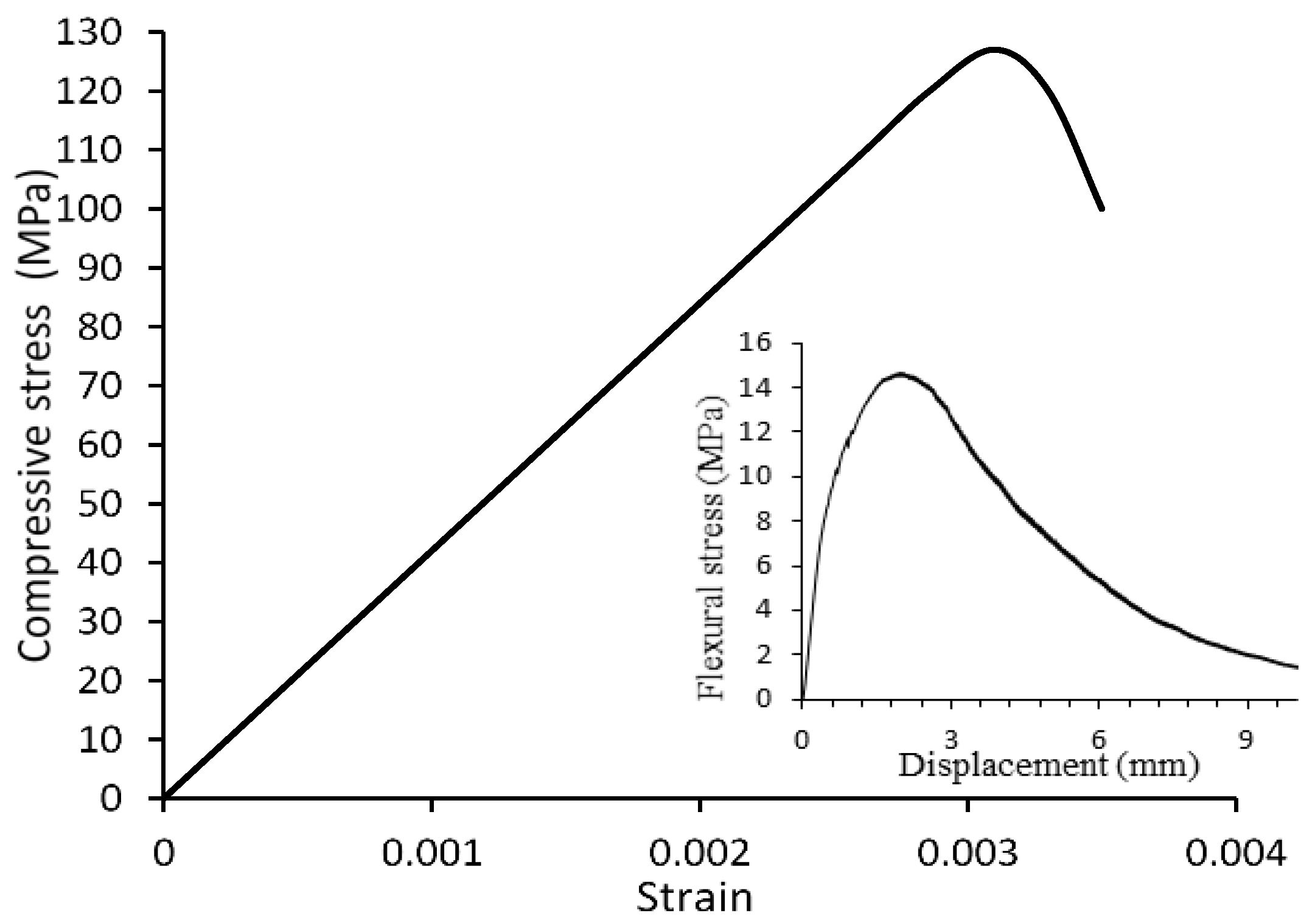

Figure 3 shows typical compressive stress-strain and flexural stress-displacement curves for UHSC. The mean 28-day cylinder compressive strength of UHSC (as derived from 15 specimens) was 130 ± 3 MPa. The yield strength and modulus of elasticity of steel tubes and reinforcing bars were also determined from coupon tests. The yield strengths of longitudinal and hoop reinforcements were 635 and 662 MPa, respectively. The yield strength of circular, rectangular, square (102 × 102 mm) and square (51 × 55 mm) tubes were 333, 372, 351, and 365 MPa, respectively while modulus of elasticity were 176, 236, 205, and 206 GPa, respectively.

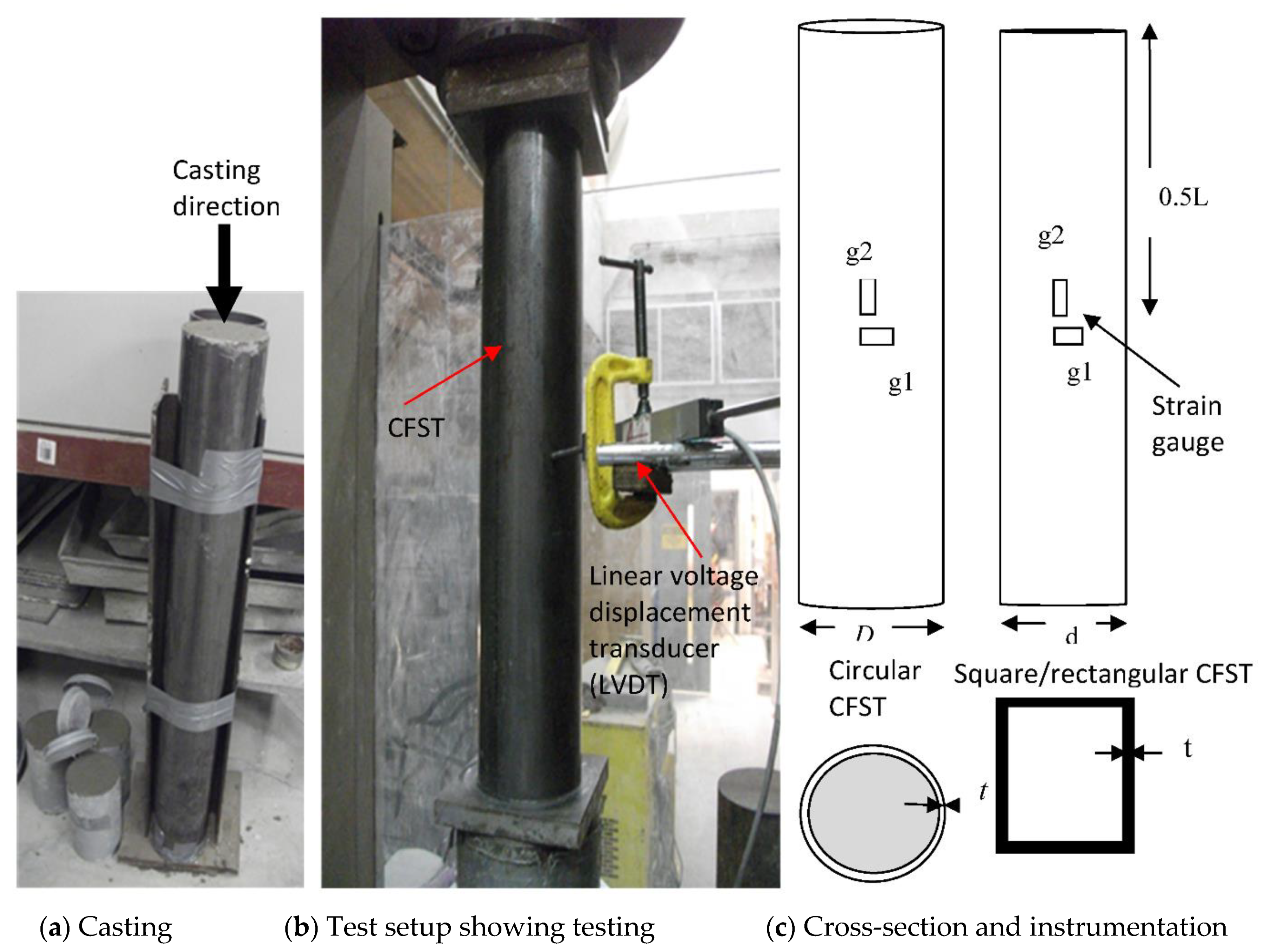

The test setup is shown in Figure 2b. Before testing at the age of 28 days, two strain gauges (g1 and g2) were installed on the sanded surface of steel tubes of circular and square/rectangular columns according to the configurations shown in Figure 2c in order to record lateral strain and axial strain, respectively, during testing. Linear voltage displacement transducers (LVDTs) were installed to measure lateral displacement of the columns (Figure 2b) while load and axial displacement were directly provided by the loading machine. The top and bottom surfaces of the columns were grinded flat in order to apply load evenly over the cross-section and to avoid undesired load eccentricity. In addition, in most of the columns, two axial strain gauges (g2) were installed on opposite faces of the steel tube. Equal axial strain development during initial stages of loading ensured concentric application of loading. The columns were loaded axially under static monotonic loading at a rate of 0.2 MPa/s under load control until failure. During loading history till failure, strains, load, and axial/lateral displacements were recorded through a computer-aided data acquisition system. In addition, buckling of steel tube and failure mode of column specimens were also observed.

3. Results and Discussion

3.1. Load-Displacement Responses and Failure Modes of CFST Columns

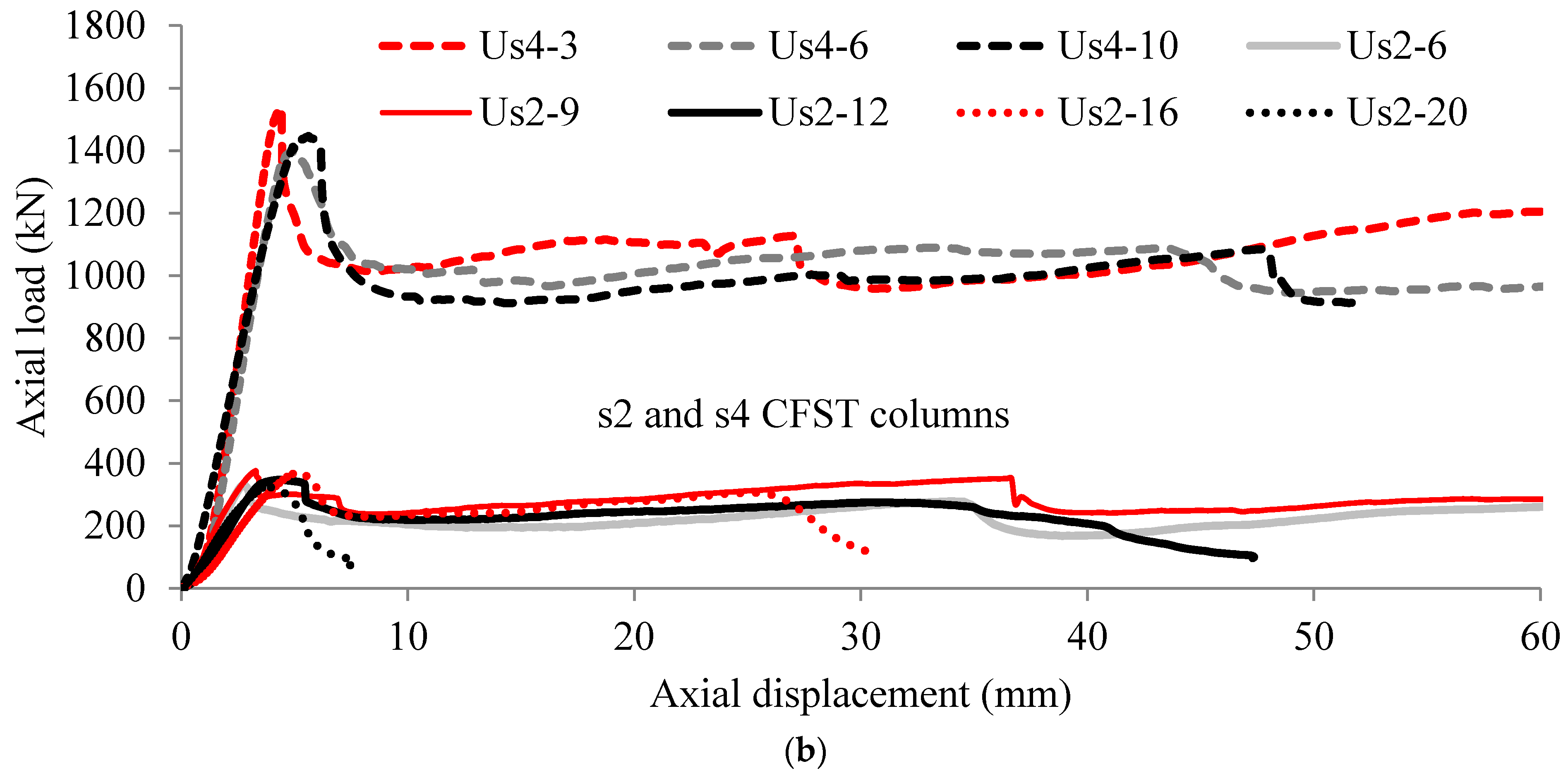

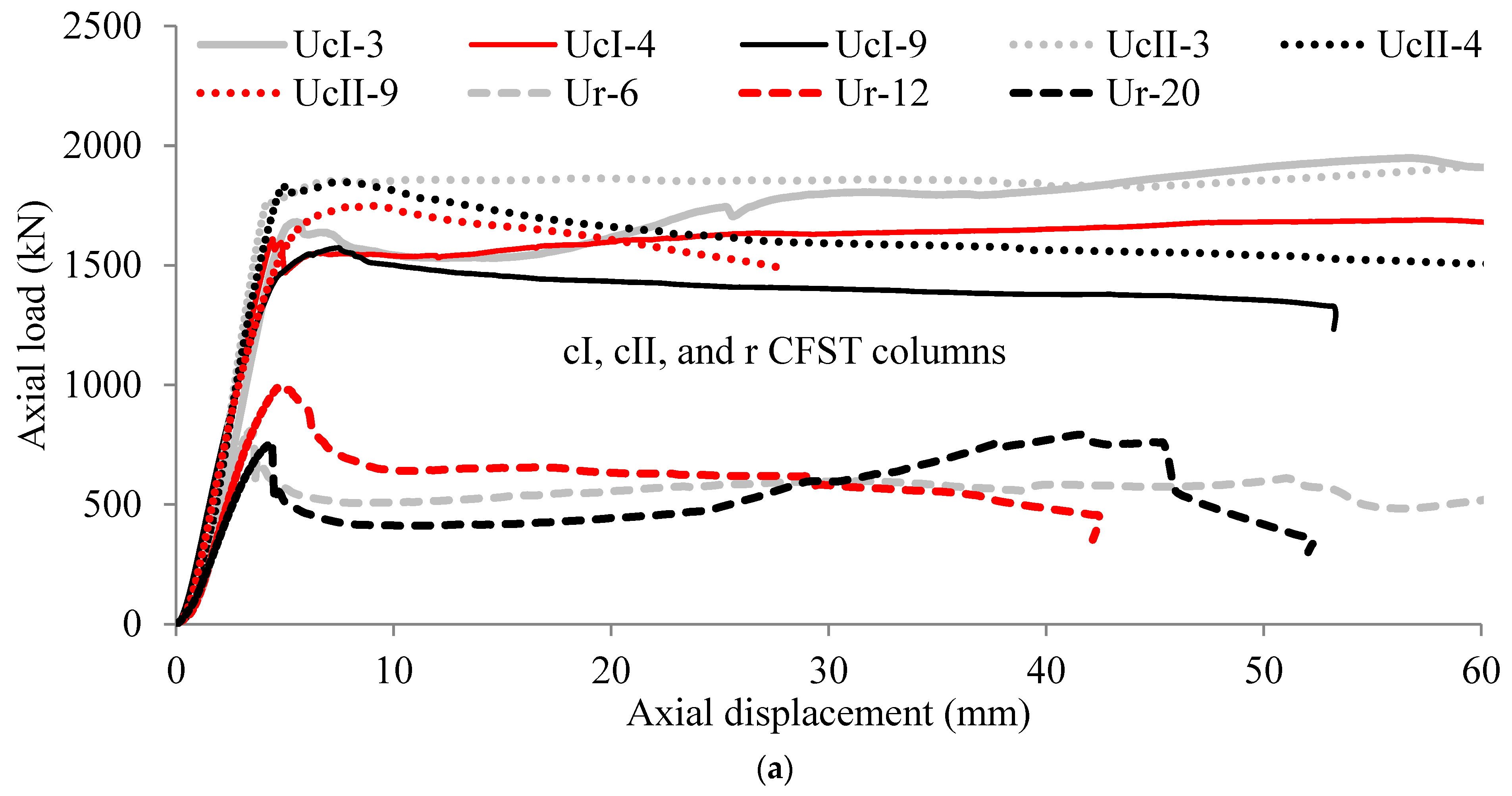

Axial load-displacement responses of UHSC-filled CFST columns are shown in Figure 4a,b. All columns displayed similar behavior up to the first peak load. The rising and falling of axial load in the responses are attributed to the formation of multiple cycles of local buckling and their stabilization in formation of successive local buckles as confirmed from previous research studies [3]. The first peak load always governed the maximum capacity of most of the columns, especially with square and rectangular cross-sections. Square and rectangular UHSC-filled columns behaved similarly, as a large decrease in axial load often occurred after the first peak load. However, CFST columns of circular cross-section and lower slenderness gained greater load capacity after the first peak load or had no significant first peak load at all as observed in Series II columns (Figure 2a). Circular columns showed greater ductility (in terms of post first peak deformation) compared with square and rectangular CFST infilled with UHSC (Figure 4a,b). The addition of bar reinforcements in Series II columns improved strength and ductility even more as observed in other studies [3].

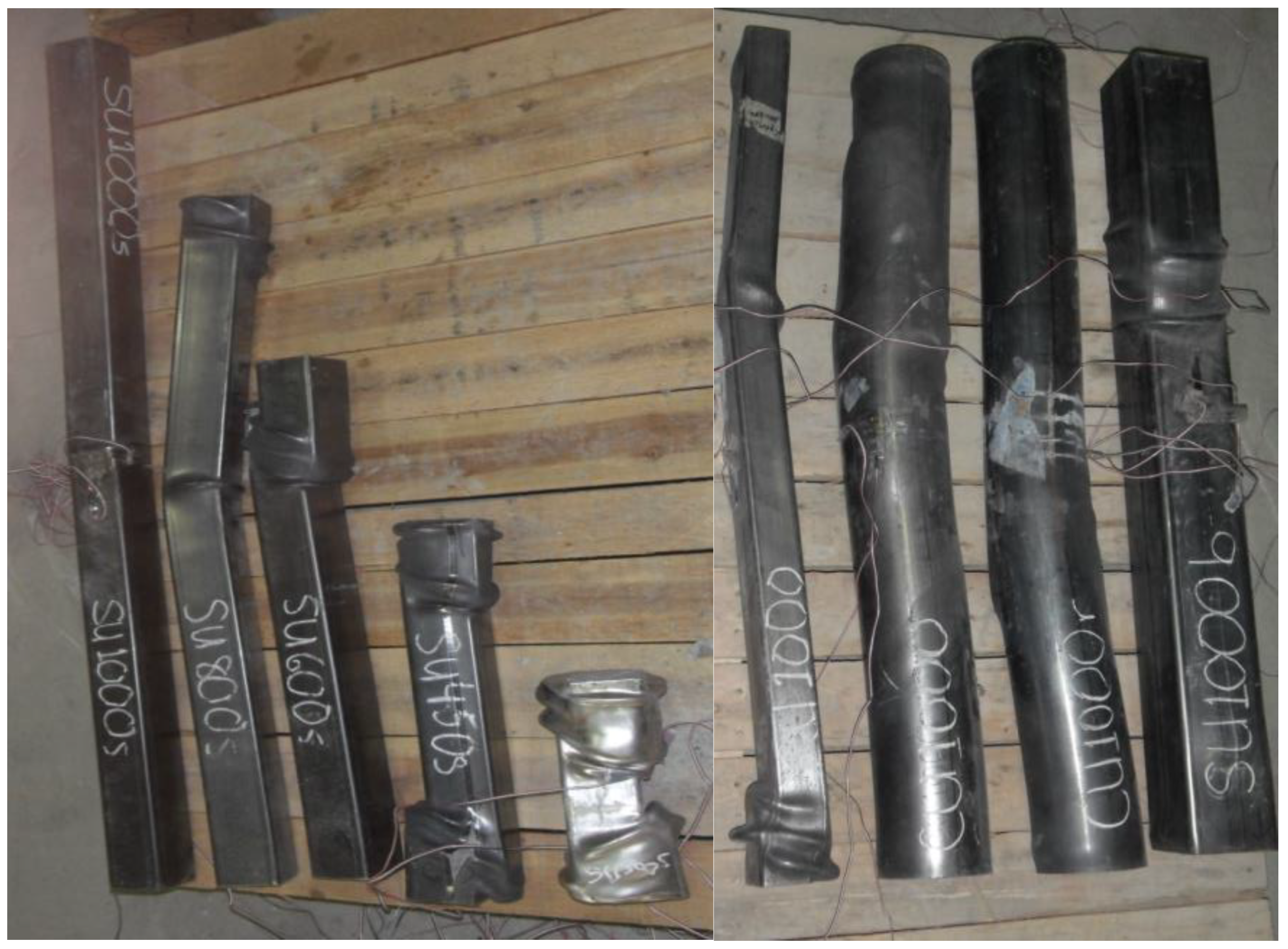

Figure 5 shows the failure modes of CFST columns. Table 1 summarizes failure modes and experimental axial capacity (P_u) of columns. Columns with slenderness ratios of 20 and 16 failed by global buckling at mid-height, and those with L/D ratios of 12, 10, 9, 6, and 4 often failed by shear and local buckling (Figure 5 and Table 1). All columns with a L/D ratio of 3 failed due to concrete radially expanding at mid-height, resulting in tearing of the steel wall. In general, slender columns failed due to global buckling while short columns (low slenderness) exhibited failure due to local buckling and plastic yielding of regions between local buckling showing significant bulging and tearing of steel. Experimental ultimate axial strength capacities were larger for columns with larger cross-sectional areas.

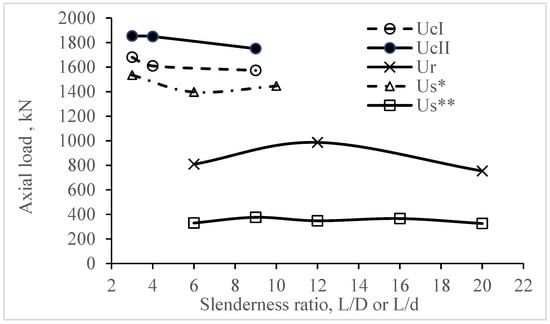

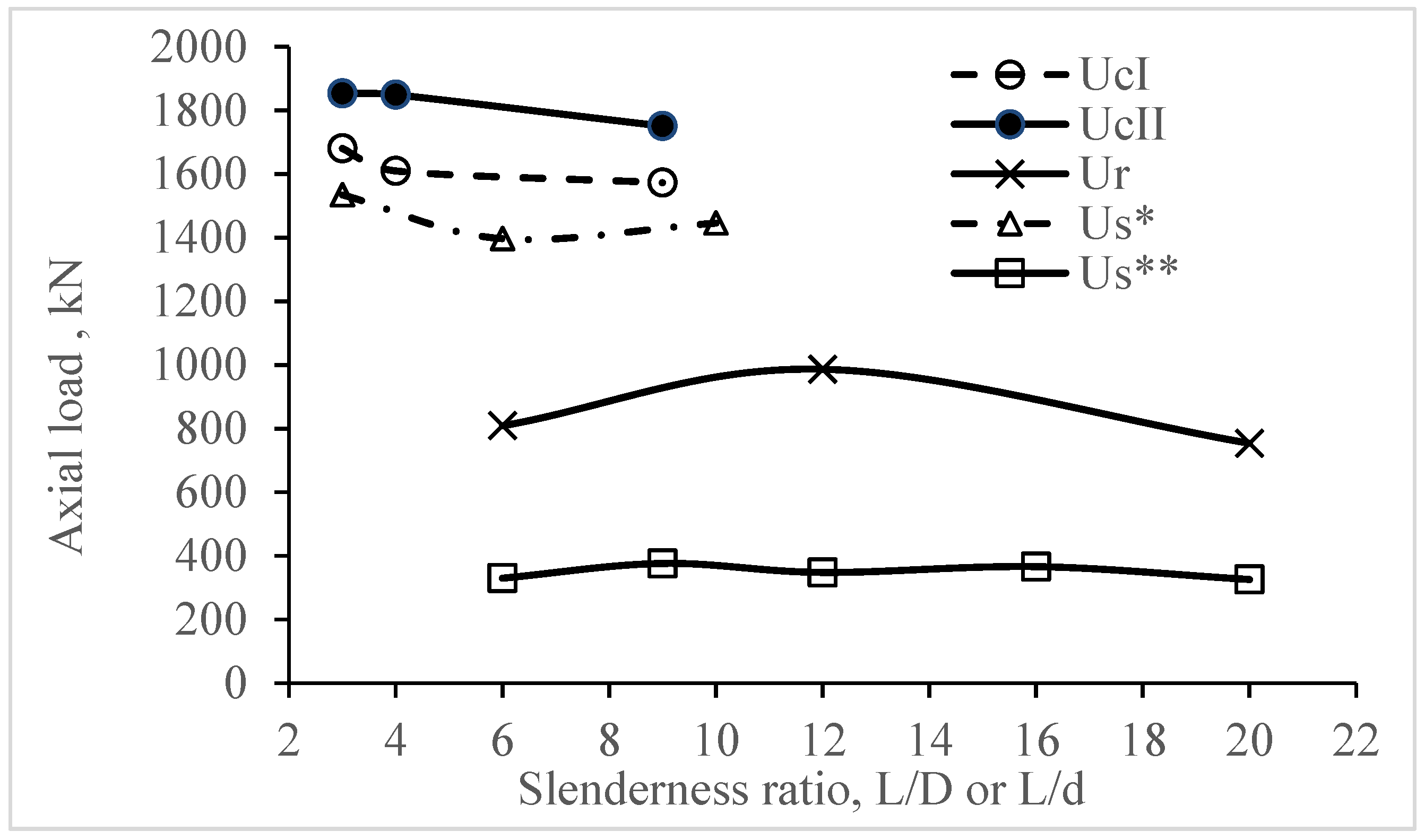

Figure 6 presents the variation of axial load capacity of CFST columns with slenderness (L/D and L/d). Axial load capacity generally decreased with the increase in slenderness. The presence of longitudinal reinforcement with hoop/ties (Series II) increased the axial load capacity of circular columns compared to Series I columns. Circular columns (cI) showed higher axial load capacity compared to their rectangular (r) counterparts. For circular UcI columns, axial strength decreased from 1681 to 1573 kN (6.4% decrease) while the UcII columns’ strength decreased from 1853 to 1751 kN (5.6% decrease) when the L/D ratio increased from 3 to 9. Circular CII columns exhibited higher (10 to 15%) strength than CI columns, as expected. Similar strength reduction was also observed for rectangular CI columns (Ur) (from 809 to 754 kN—a 6.8% decrease for L/d varying from 3 to 9) and for square (Us) columns (from 376 to 326 kN—a 13.3% decrease for L/d from 9 to 20).

Overall the axial strength of the columns depends on the combined effect of D/t, L/D or L/d, shape of the steel tube, and failure modes as observed in past research studies [5]. The confinement effect provided by the steel tube is demonstrated by the enhanced ultimate load capacity of UHSC infilled CFST columns using UHSC. However, matching of UHSC with a particular steel tube is necessary to effectively improve the ultimate load capacity of CFST columns as confirmed from other research studies [13,16].

3.2. Analysis of Stress-Strain Behavior in CFST Columns

3.2.1. Biaxial Stress Development and Confinement in CFST Columns

Under axial compression load, the concrete core of CFST columns begins to crack. After cracking, the concrete dilates creating lateral pressure on the steel tube. The concrete is under triaxial confinement from the presence of the steel tube, while the steel tube is under biaxial stress due to axial load and lateral hoop stresses developed from the concrete core pushing outwards on the tube wall. Therefore, biaxial yielding in steel can be modeled by the von-Mises failure criterion in Equation (1) [9,23].

$$f_{ys}^2={\sigma }_a^2+{\sigma }_h^2-{\sigma }_a{\sigma }_h$$

(1)

where ${\sigma }_a^{}=\beta f_{ys}^{}$, ${\sigma }_h^{}=\alpha f_{ys}^{}$.

The von-Mises yield stress (f_ys) is constant and taken as the steel tube yield strength. Each f_ys value corresponds to a different failure envelope. Axial stress and hoop stress denoted by σ_a and σ_h respectively can be obtained from experimental strain data. The various combinations of axial and transverse stresses contributing to biaxial yield stress forms the von-Mises stress path shown in Figure 7.

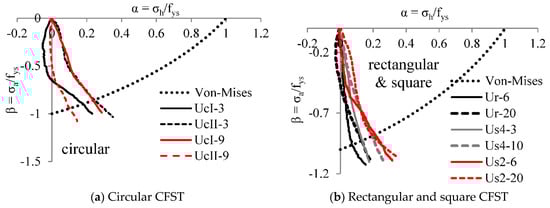

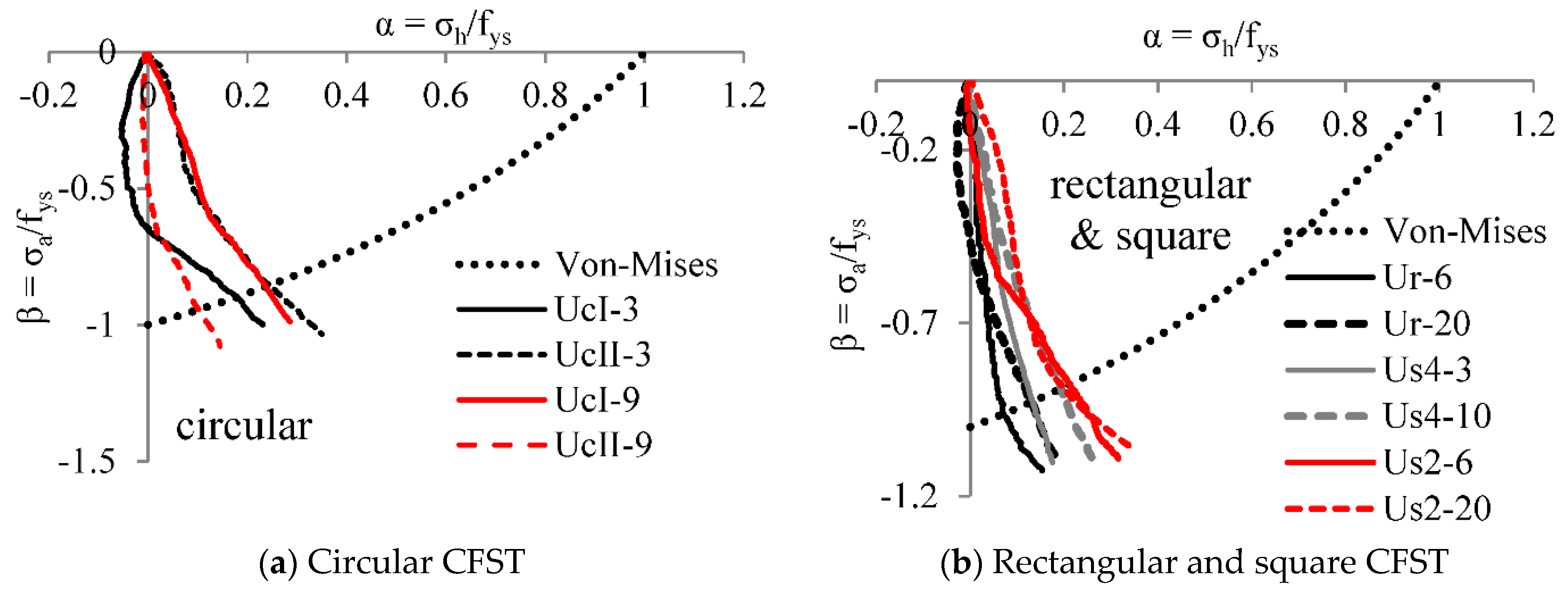

Development of biaxial stresses in UHSC CFST columns are compared in Figure 7a,b). The transverse stress factor and axial stress factor, α and β in Equation (1), can be determined at the location where experimental stresses intersect the theoretical von-Mises failure criterion. Axial stress factor (β) is found to be greater than transverse stress factor (α), as axial stresses develop in early stages of loading while transverse stresses develop after concrete begins to dilate and induce transverse stresses in the steel tube [24].

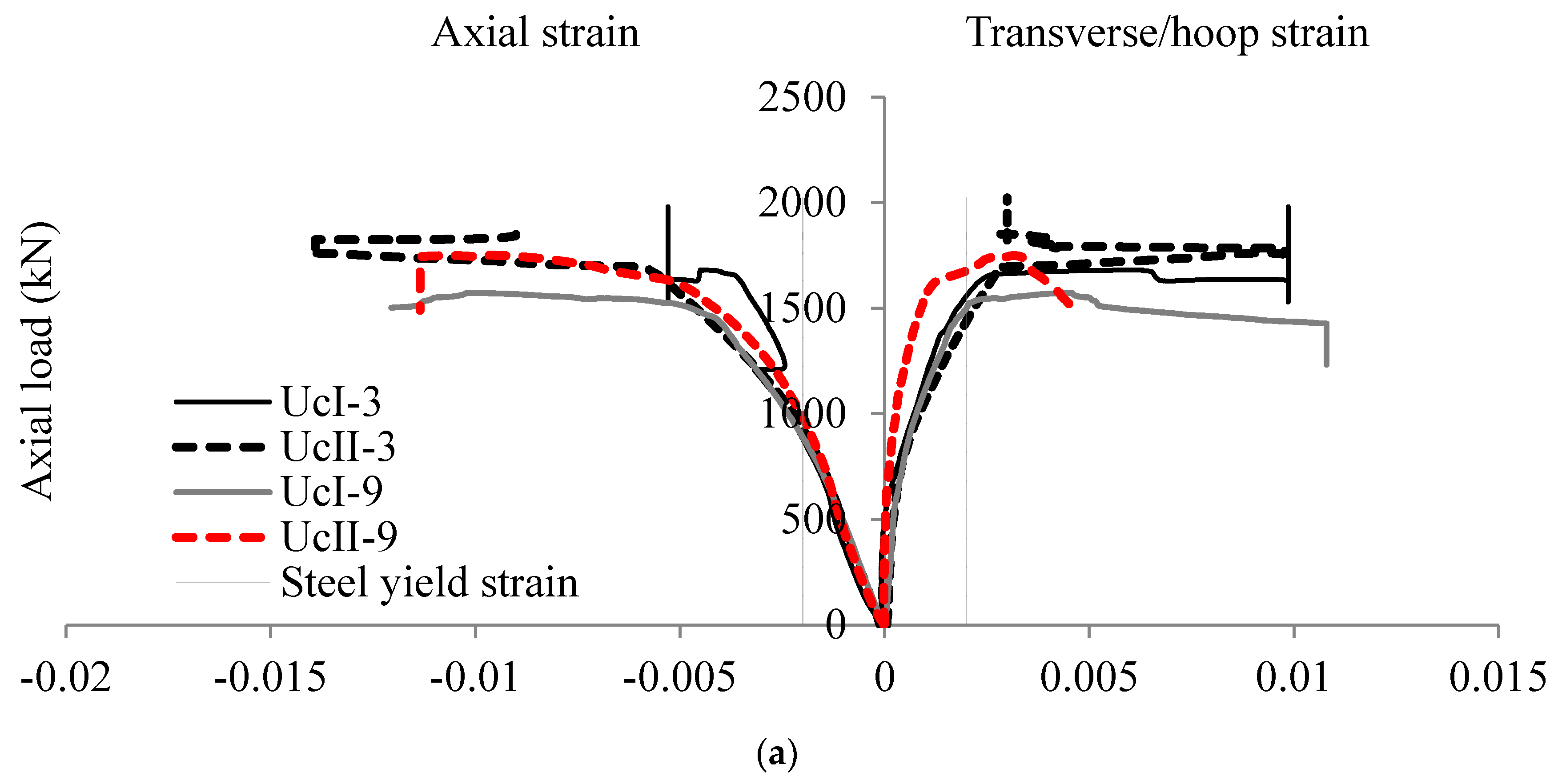

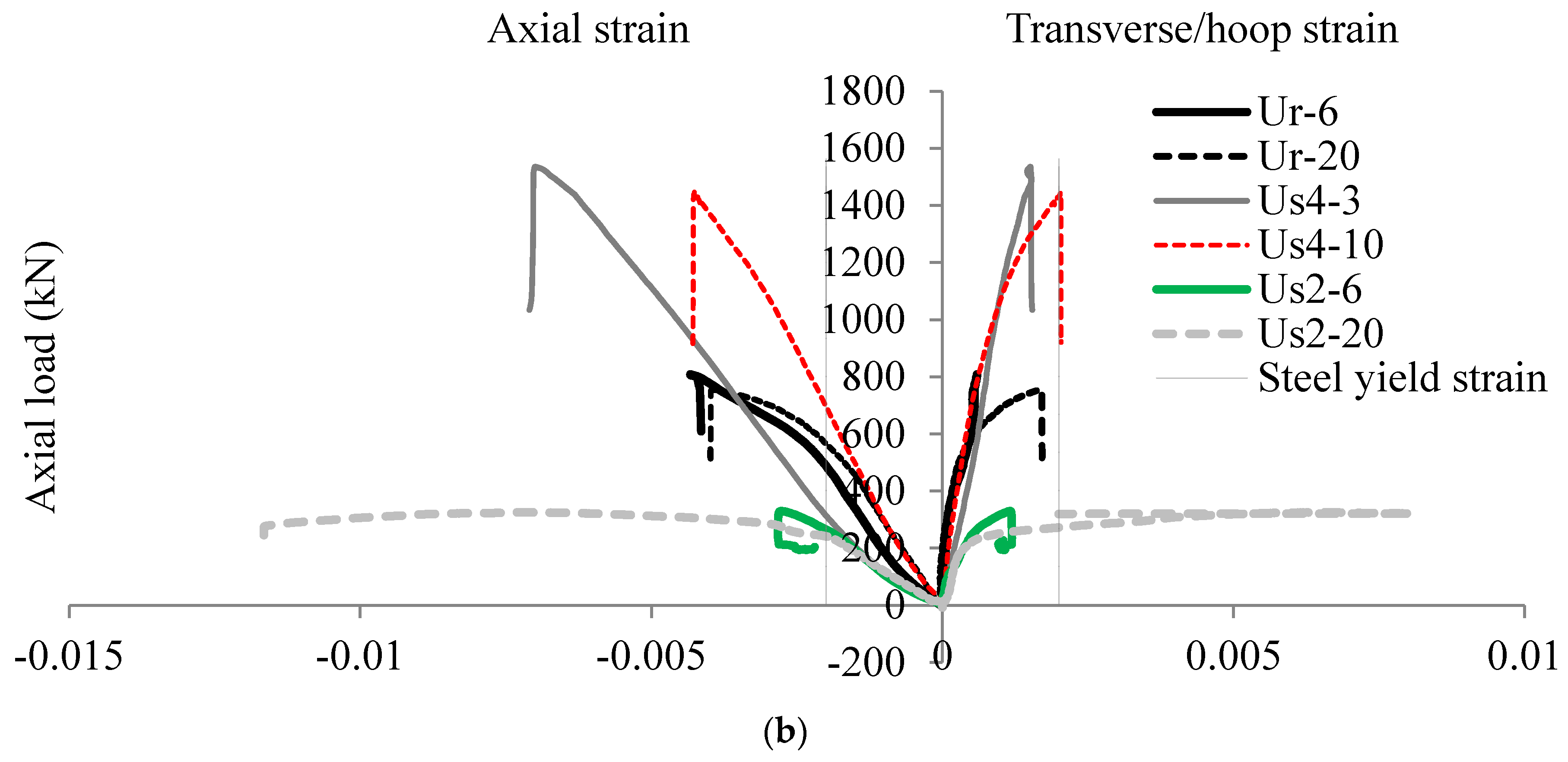

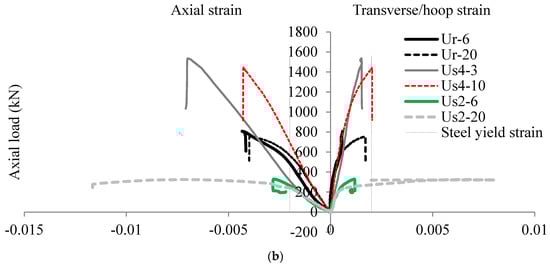

Figure 8a,b shows typical experimental axial and transverse (hoop) strain development in UHSC CFST columns, illustrating significantly greater axial strain development while transverse strain often did not reach theoretical steel yield strain for columns with high slenderness. Experimental stress factors α and β are presented in

Table 2. Stress factors.

Column Type	L/D or L/d		α		β
UcI	3	9	0.17	0.23	0.89	0.85
UcII	3	9	0.24	0.10	0.84	0.93
Ur	6	20	0.07	0.13	0.96	0.93
Us4	3	10	0.13	0.19	0.93	0.89
Us2	6	20	0.21	0.20	0.88	0.89

L/D: length-to-diameter ratio; L/d: length-to-depth ratio; α: transverse stress factor; β: axial stress factor.

for UHSC-filled CFST columns.

Table 3. Biaxial steel yielding and associated ductility in UHSC CFST columns.

Column	Pu, kN	εu	Pys, kN	εys	Pu/Pys	εu/εys
UcI-3	1681	−0.004486	761	−0.001682	2.21	2.67
UcI-9	1573	−0.010181	750	−0.001600	2.10	6.36
UcII-3	1853	−0.009041	778	−0.001594	2.38	5.67
UcII-9	1751	−0.009562	880	−0.001757	1.99	5.44
Ur-6	809	−0.004329	343	−0.001514	2.36	2.86
Ur-20	754	−0.003912	446	−0.001464	1.69	2.67
Us4-3	1535	−0.006991	224	−0.001589	6.85	4.40
Us4-10	1446	−0.004261	505	−0.001521	2.86	2.80
Us2-6	330	−0.002772	204	−0.001551	1.62	1.79
Us2-20	326	−0.007134	195	−0.001567	1.67	4.55

P_u: axial load capacity; ε_u: steel axial strain at axial load capacity; P_ys: axial load at biaxial steel yielding; ε_ys: axial strain at biaxial steel yielding.

summarizes the ultimate axial load (P_u), axial strain at ultimate axial load (ε_u), load at biaxial yielding (P_ys), and axial strain at biaxial yielding (ε_ys) of tested CFST columns infilled with UHSC. The point of biaxial yielding where P_ys and ε_ys are determined is based on von-Mises failure criterion described previously in Equation (1). ε_ys/ε_u ratios are found to be always greater than 1 as biaxial steel yielding always occurred before the axial capacity of the columns (Table 3). P_ys/P_u ratios indicate that the axial strength of CFST columns occurred between 1.99 and 6.85 times the load at biaxial yielding indicating that steel yielding was not the final cause of failure of CFST columns (Table 3). In all columns, steel yielded both uniaxially and biaxially before the failure. Shorter columns (with lower slenderness) had generally higher P_u/P_ys ratios compared to longer columns. Higher P_u/P_ys ratios (>1.0) show that the shorter columns had the ability to take relatively larger amount of additional load (even after the biaxial steel yielding) before failure which can be attributed to the higher ductility behavior of such columns.

3.2.2. Quantification of Lateral Stresses and Concrete Confinement

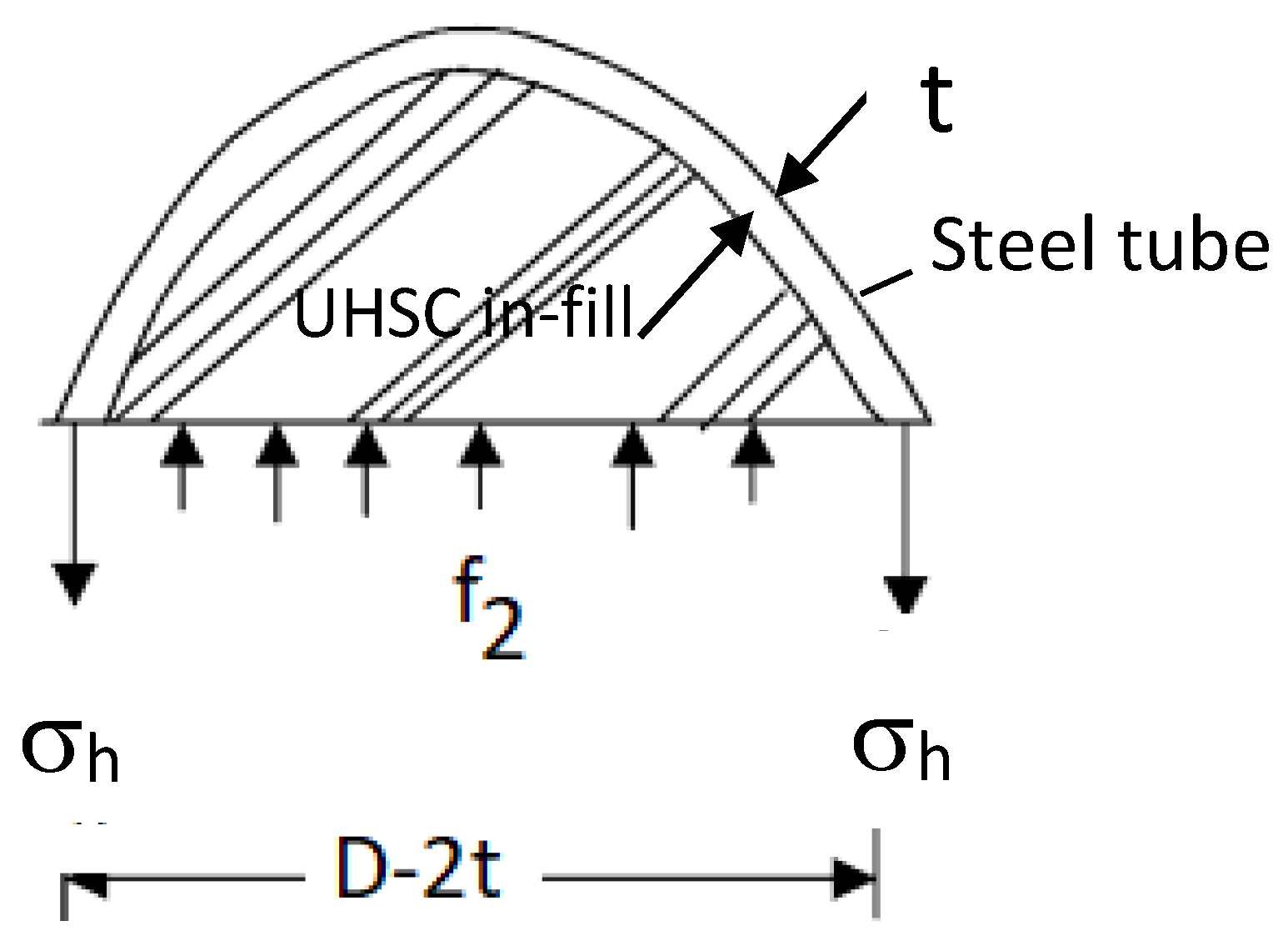

Lateral stress/pressure (f₂) developed in the steel tube as shown in Figure 9 can be calculated by Equation (2) [9,23]. As concrete crushes in order for lateral stresses to initialize on the steel tube, lateral pressure is expected to be at a maximum when steel yields. Hoop stress, σ_h, can be substituted from Equation (1) to (2), where α is obtained from experimental results.

$$f_2=\frac{2t}{D-2t}{\sigma }_h^{}=\frac{2t}{D-2t}\alpha f_{ys}$$

(2)

Lateral pressure (f₂) is related to the tube wall thickness (t) and equivalent outer diameter (D) of the cross-section (as the equation is designed for circular cross-sections, square or rectangular sections are converted to circular sections with equivalent area).

The maximum lateral pressure (f_2max) in CFST columns with additional confinement due to tie or hoop reinforcement can be calculated by Equation (3).

$$f_{2max}=\frac{2t}{D-2t}\alpha f_{ys}+\frac{2A_{sr}{f}_{yr}}{D_{c}s}$$

(3)

where A_sr and f_yr are area and yield strength of hoop/tie reinforcing bars and D_c is the diameter of concrete confined by hoops, and s is the hoop spacing.

Biaxial yielding of steel always occurred before the ultimate capacity of the column. Therefore, it can be assumed that CFST column ultimate capacity is associated with the maximum confined concrete strength. Total axial load (P) can be separated by the portion carried by concrete (P_c) and that carried by steel (P_s) as in Equation (4). Axial concrete stress (f_c) can be obtained from Equation (5) and P_s from Equation (6). A_s and A_c are the steel tube cross-sectional area and concrete core area respectively.

$$P=P_c+P_s$$

(4)

$$f_c=\frac{P_c}{A_c}=\frac{P-P_s}{A_c}$$

(5)

$$P_s=A_s{\sigma }_a=A_s{E}_t{\epsilon }_t$$

(6)

where A_s and A_c are the steel tube cross-sectional area and concrete core area respectively, ${\sigma }_a$ is the axial stress in steel tube, E_t and ε_t are the elastic modulus and axial strain in steel tube, respectively.

Load carried by the steel tube (P_s) can be calculated from the experimental axial steel tube strain (ε_t). Variation of concrete stress (f_c), which can be considered as experimental concrete confined strength during loading history can be calculated based on Equation (5). Typical concrete stress (f_c) vs. axial steel tube strain (ε_t) development during loading history for a CFST column is shown in Figure 10a,b. It can be observed that axial concrete stress decreased soon after a peak is reached in square and rectangular columns (Figure 10b) compared with circular ones (Figure 10a). Such a decrease in concrete axial stress after the peak is especially evident in columns with higher slenderness. This can be attributed to the difference in tube shape and thickness.

Total lateral stress on the steel (f_2max or f₂) calculated as per Equations (2) and (3) are presented in

Table 4. Quantified concrete confined strength.

Column	f′cc, MPa	f′cc/f′c	f2 or f2max, MPa
UcI-3	139	1.09	5.2
UcI-9	125	0.99	7.0
UcII-3	161	1.27	108.0
UcII-9	140	1.11	97.3
Ur-6	113	0.89	2.2
Ur-20	102	0.81	4.1
Us4-3	124	0.98	2.7
Us4-10	117	0.92	4.0
Us2-6	102	0.80	4.5
Us2-20	99	0.78	4.3

f′_cc: experimental confined concrete strength; f′_c: unconfined concrete control cylinder compressive strength; f_2max: maximum lateral pressure.

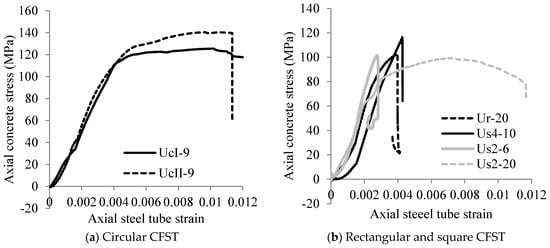

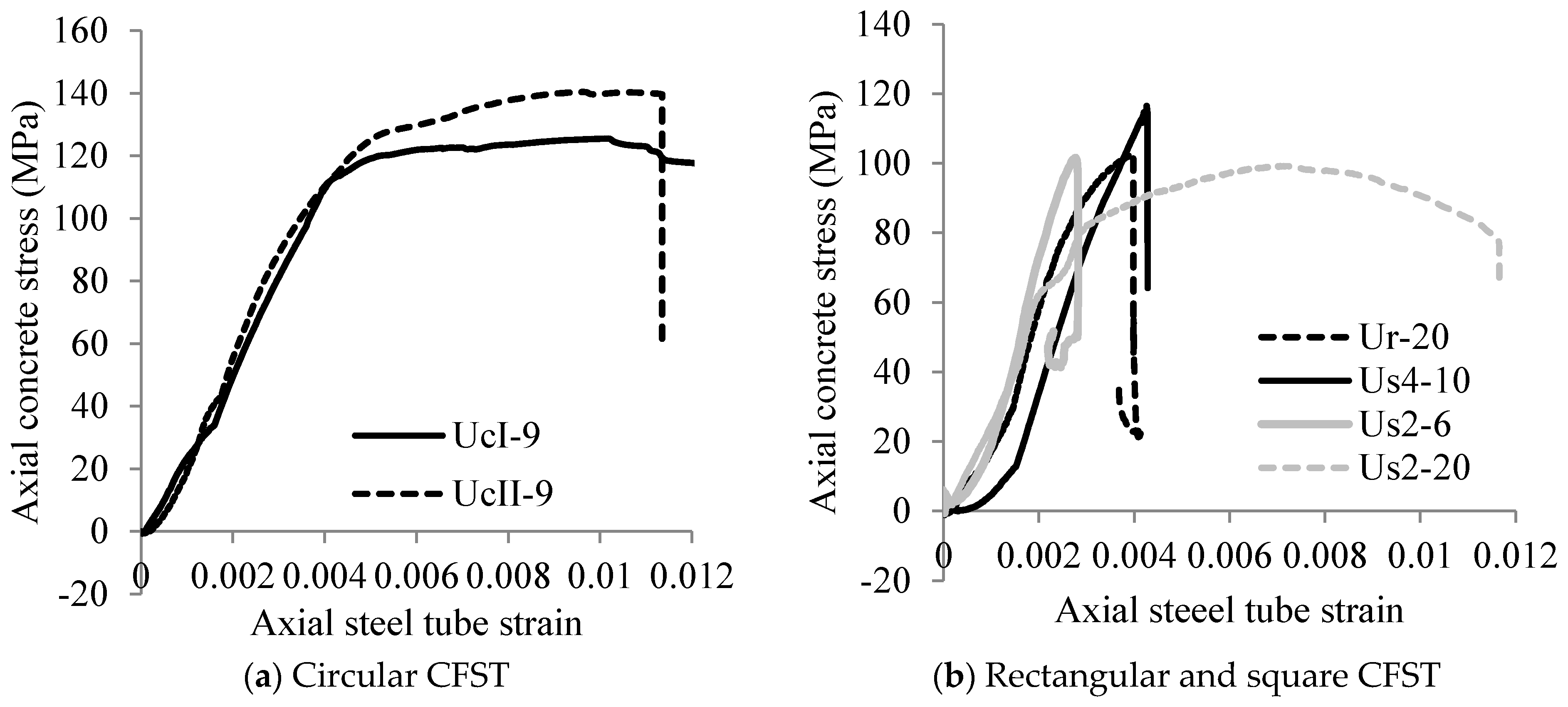

. From graphs such as shown in Figure 10, the f_c value at ultimate load can be extracted as experimental confined concrete strength (f′_cc) and are also presented in Table 4 for columns (of each group) having a minimum and maximum slenderness ratio. Confined concrete strength is then compared with concrete control cylinder compressive strength (f′_c) by f′_cc/f′_c ratios. The confined strength of UHSC-filled columns increased with the increase of steel tube thickness and also tended to decrease for UHSC-filled columns with higher slenderness. Series II columns allowed for greater confined concrete strength (f′_cc/f′_c values ranging between 1.17 and 1.27) and particularly high values of f_2max due to contributions from bar reinforcements (Table 4). On the other hand, square and circular columns showed lower confinement effects compared to circular ones as evident from the f′_cc/f′_c values ranging between 0.78 and 0.98. Overall f′_cc/ f′_c ratios for UHSC-filled steel tube columns ranged from 0.78 to 1.27. This has been observed by other researchers studying high-strength CFST columns [8]. It is expected that the use of high-strength steel will improve the effect of UHSC confinement [25].

4. Analytical Models for Confined Concrete Strength

Richart et al. [26], Mander et al. [27], and O’Shea and Bridge’s [28] models are modified for calculating confined strength of concrete in CFST columns. The total concrete confined strength (f′_cct) as presented in Equation (7) is considered as the summation of contributions derived from confining steel tube (f′_cc) and reinforcing hoops (f′_cch) where A_cc and A_cch are area confined by the steel tube and area confined by hoops respectively. The total concrete confined strength (f′_cct) models based on Richart et al. [26], Mander et al. [27], and O’Shea and Bridge [28] are presented with subscripts R, M, and O, respectively in Equations (8)–(10).

$${f^{\prime }}_{cct}={f^{\prime }}_{cc}\left(\frac{A_{cc}}{A_c}\right)+{f^{\prime }}_{cch}\left(\frac{A_{cch}}{A_c}\right)$$

(7)

$${f^{\prime }}_{cct\left(R\right)}=\frac{A_{cc}}{A_c}\left[{f^{\prime }}_c+8.2\frac{t\alpha f_{ys}}{D-2t}\right]+8.2\frac{A_{sr}{f}_{yr}}{D_{c}s}\frac{A_{cch}}{A_c}$$

(8)

$$\begin{gathered} {f^{\prime }}_{cct\left(M\right)}=\frac{A_{cc}{f^{\prime }}_c}{A_c}\left(2.254\sqrt{1+15.88\frac{t\alpha f_{ys}}{{f^{\prime }}_c\left(D-2t\right)}}-4\frac{t\alpha f_{ys}}{{f^{\prime }}_c\left(D-2t\right)}-1.254\right) \\ + \frac{A_{cch}{f^{\prime }}_c}{A_c}\left(2.254\sqrt{1+15.88\frac{A_{sr}{f}_{yr}}{{f^{\prime }}_c{D}_{c}s}}-4\frac{A_{sr}{f}_{yr}}{{f^{\prime }}_c{D}_{c}s}-0.254\right) \end{gathered}$$

(9)

$$\begin{gathered} {f^{\prime }}_{cct\left(O\right)}=\frac{A_{cc}{f^{\prime }}_c}{A_c}\left(2.172\sqrt{1+14.92\frac{t\alpha f_{ys}}{{f^{\prime }}_c\left(D-2t\right)}}-4\frac{t\alpha f_{ys}}{{f^{\prime }}_c\left(D-2t\right)}-1.228\right) \\ + \frac{A_{cch}{f^{\prime }}_c}{A_c}\left(2.172\sqrt{1+14.92\frac{A_{sr}{f}_{yr}}{{f^{\prime }}_c{D}_{c}s}}-4\frac{A_{sr}{f}_{yr}}{{f^{\prime }}_c{D}_{c}s}-0.228\right) \end{gathered}$$

(10)

The first part in Equations (8)–(10), represents contribution due to steel tube confinement and second part represents contribution due to hoop steel confinement (can be eliminated for Series I CFST columns where hoop reinforcements were not present). According to Equations (8)–(10), increased diameter of concrete confined by hoops (D_c) and hoop spacing (s) are expected to lower hoop confined concrete strength (f′_cch). In order for these equations to apply for CFST columns of square/rectangular cross-sections, diameter (D) must be calculated for a circle of equivalent area.

Performance of Confined Concrete Strength Models

In

Table 5. Validation of analytical models for confined concrete strength.

Column	Confined Concrete Strength (f′cct), MPa				Ratio of Confined Concrete Strength Theoretical/Test
	Test	Theoretical Models
		${{\mathit{f}}^{\prime }}_{\mathit{c}\mathit{c}\mathit{t}\left(\mathit{R}\right)}$ Equation (8)	${{\mathit{f}}^{\prime }}_{\mathit{c}\mathit{c}\mathit{t}\left(\mathit{M}\right)}$ Equation (9)	${{\mathit{f}}^{\prime }}_{\mathit{c}\mathit{c}\mathit{t}\left(\mathit{O}\right)}$ Equation (10)	Equation (8)	Equation (9)	Equation (10)
UcI-3	139	148	160	149	1.07	1.15	1.07
UcI-9	125	156	170	158	1.24	1.36	1.26
UcII-3	161	158	246	231	0.98	1.52	1.43
UcII-9	140	140	220	208	1.00	1.57	1.48
Ur-6	113	136	142	133	1.21	1.26	1.18
Ur-20	102	144	153	143	1.41	1.50	1.40
Us4-3	124	138	145	136	1.11	1.16	1.09
Us4-10	117	143	153	142	1.23	1.31	1.22
Us2-6	102	145	156	145	1.43	1.53	1.43
Us2-20	99	144	154	144	1.45	1.55	1.45

, total confined concrete strength (f′_cct) calculated based on analytical models (Equations (8)–(10)) and those derived from experiments (Table 4) are compared.

All models overpredicted confined concrete strength of square and rectangular CFST columns, as well as Series II columns infilled with UHSC. Experimental studies have shown that concrete confinement is most significant for CFST columns with a circular cross-section, due to better hoop stress development [29]. Therefore, converting square and rectangular cross-sections into equivalent circular sections overestimates the confinement effect in these columns. Theoretical/test ratios are especially high for columns infilled with UHSC with higher L/D ratios, as analytical models were not developed to account for global buckling failures. The Mander et al.-based model generally made slightly higher estimations compared with other models.

5. Development of Strength Models for CFST Columns

5.1. Code-Based Design Procedures for CFST Columns

Several design codes have incorporated procedures for CFST column strength calculations. Canadian, American, and European codes are studied herein and are briefly described as follows.

Compressive resistance of CFST columns (C_rc) is given in the CAN/CSA S16-09 [21] code by Equation (11).

$$C_{rc}=\left(\tau {\phi }_s{A}_s{f}_y+{\tau }^{\prime }{\alpha }_1{\phi }_c{A}_c{f^{\prime }}_c\right){\left(1+{\lambda }_{}^{2n}\right)}^{\raisebox{1ex}{$-1$}\!\left/ \!\raisebox{-1ex}{$n$}\right.}$$

(11)

Reduction factors ϕ_s and ϕ_c are equal to unity in order to compare with experimental results. The effects of slenderness and the diameter-to-thickness ratio are incorporated into τ and τ’ strength modification factors. An equivalent elastic modulus and moment of inertia for the composite section, EI_e, is calculated in order to obtain elastic critical load in determining relative slenderness, λ. α₁ = 0.85–0.0015f′_c, and n factor is taken with a value of 1.80.

The load capacity of CFST columns (P_n) as defined by the AISC [22] code is as follows in Equation (12).

$$P_n=\{\begin{array}{c}{P}_o\left({0.658}^{\frac{P_o}{P_e}}\right),\hspace{1em}0.44P_o\le P_e \\ 0.877P_e ,\hspace{1em}0.44P_o>P_e\end{array}$$

(12)

The cross-sectional shape is considered by a factor in P_o, where P_o is the sum of axial loads carried by the concrete core, steel tube, and bar reinforcements. The term, P_e, is the elastic critical load which incorporates an equivalent elastic modulus and moment of inertia for the composite section, and column boundary conditions, similar to the Canadian code.

Eurocode 4 [20] takes the sum of concrete, steel, and bar reinforcement cross-section contributions in Equation (13) to obtain the ultimate load capacity of CFST columns (N_pl,Rd). Reinforcement area and bar strength are denoted by A_sz and f_yr, respectively. The effect of confinement is considered by η_a and η_b modification factors.

$$N_{pl.Rd}={\eta }_a{A}_s{f}_y+{\eta }_b{A}_c{f^{\prime }}_c+A_{sz}{f}_{yr}$$

(13)

5.2. Suggested Analytical Models for the Strength of CFST Columns

Three analytical models for axial strength (N_a) of CFST columns (denoted by subscripts $N_{a\left(R\right)}$, $N_{a\left(M\right)}$, and $N_{a\left( O\right)}$ based on Equation (14) are derived by substituting f′_cc and f′_cch values from Richart et al. [26], Mander et al. [27], and O’Shea and Bridge [28], presented in Equations (8)–(10), respectively:

$$N_{a\left(R\right)}=N_{a\left(M\right)}=N_{a\left(O\right)}=\beta A_s{f}_{ys}+A_{cc}{f^{\prime }}_{cc}+A_{cch}{f^{\prime }}_{cch}+A_{ra}{f}_{yr}$$

(14)

where steel tube-sectional area, tube confined area, hoop confined area, area of longitudinal reinforcements, and axial stress factor (taken from experimental results) are denoted by A_s, A_cc, A_cch, A_ra, and β, respectively.

Equation (14) can be applied to Series I and Series II CFST columns, as terms corresponding to bar and hoop confined strength can be eliminated for columns without such reinforcements.

5.3. Performance of Strength Prediction Models and Identification of the Most Suitable Model

Table 6. Comparative study of strength prediction by analytical models.

Column Desig.	Axial Strength (kN)							Ratio of Strength (Test/Predicted) Pexp/Pp
	Test	Predicted (Equation (14))			Predicted by Codes Equations (11)–(13)
	Pexp	${\mathit{N}}_{\mathit{a}\left(\mathit{R}\right)}$	${\mathit{N}}_{\mathit{a}\left(\mathit{M}\right)}$	${\mathit{N}}_{\mathit{a}\left(\mathit{O}\right)}$	CSA [18]	AISC-LRFD [19]	EC4 [20]	$\frac{{\mathit{P}}_{\mathit{e}\mathit{x}\mathit{p}}}{{\mathit{N}}_{\mathit{a}\left(\mathit{R}\right)}}$	$\frac{{\mathit{P}}_{\mathit{e}\mathit{x}\mathit{p}}}{{\mathit{N}}_{\mathit{a}\left(\mathit{M}\right)}}$	$\frac{{\mathit{P}}_{\mathit{e}\mathit{x}\mathit{p}}}{{\mathit{N}}_{\mathit{a}\left(\mathit{O}\right)}}$	CSA	AISC	EC4
UcI-3	1681	1764	1864	1768	1624	1569	2029	0.95	0.90	0.95	1.04	1.07	0.83
UcI-4	1610	1776	1883	1785	1564	1541	1913	0.91	0.86	0.90	1.03	1.04	0.84
UcI-9	1573	1805	1929	1823	1382	1417	1858	0.87	0.82	0.86	1.14	1.11	0.85
UcII-3	1853	1950	2705	2576	1624	1692	2155	0.95	0.69	0.72	1.14	1.10	0.86
UcII-4	1849	1916	2655	2533	1564	1660	2039	0.97	0.70	0.73	1.18	1.11	0.91
UcII-9	1751	1840	2530	2427	1382	1516	1984	0.95	0.69	0.72	1.27	1.16	0.88
Ur-6	809	874	899	860	825	743	991	0.93	0.90	0.94	0.98	1.09	0.82
Ur-12	987	885	917	876	739	690	956	1.12	1.08	1.13	1.34	1.43	1.03
Ur-20	754	899	941	896	577	578	1115	0.84	0.80	0.84	1.31	1.30	0.68
Us4-3	1535	1633	1695	1610	1434	1370	1925	0.94	0.91	0.95	1.07	1.12	0.80
Us4-6	1397	1646	1720	1630	1366	1334	1809	0.85	0.81	0.86	1.02	1.05	0.77
Us4-10	1446	1665	1751	1657	1252	1251	1791	0.87	0.83	0.87	1.15	1.16	0.81
Us2-6	330	424	448	423	347	337	456	0.78	0.74	0.78	0.95	0.98	0.72
Us2-9	376	423	447	423	326	322	452	0.89	0.84	0.89	1.15	1.17	0.83
Us2-12	348	423	446	422	300	303	458	0.82	0.78	0.82	1.16	1.15	0.76
Us2-16	366	423	446	422	249	218	282	0.87	0.82	0.87	1.47	1.68	1.30
Us2-20	326	422	445	421	231	209	283	0.77	0.73	0.77	1.41	1.56	1.15
R: Richart et al.; M: Mander et al.; O: O’Shea and Bridge						Mean ratio		0.90	0.82	0.86	1.17	1.19	0.87

compares experimental axial load capacities (P_expt) of CFST columns with those predicted (P_p) from three theoretical models (Equation (14)) and three code-based models (CSA, AISC, and Eurocode 4). All the three models were found to overpredict the axial load capacities UHSC-filled CFST as the ratio of experimental to predicted values (P_exp/P_p) are found to be less than 1.0. This may be attributed to the overestimation of confined concrete strength especially for CFST columns with higher slenderness (L/D or L/d) ratios. Possible reasons for lower experimental concrete confined strength than theoretical might be due to high strength/stiffness of UHSC which prevented effective concrete dilation resulting in lower steel confinement.

The Mander et al. (M)-based model [27] typically resulted in higher overestimations (P_exp/P_p ranged between 0.73 and 1.08 with a mean value of 0.82), followed by the O’Shea and Bridge (O)-based model [28] (P_exp/P_p ranged between 0.77 and 1.13 with a mean value of 0.86), and the Richart et al. (R)-based model [26] (P_exp/P_p ranged between 0.77 and 1.12 with a mean value of 0.90). The Richart et al. (R)-based model performed especially well for columns with bar reinforcements. Although performance is quite similar among the three suggested analytical models, the Richart et al. (R)-based model predictions (with mean P_exp/P_p value of 0.90) are closer to the experimental results and can be used for design purposes by introducing a reduction factor of 0.90 and 0.75 for circular and square/rectangular UHSC based CFST columns, respectively.

Eurocode [20] followed a similar trend in overpredicting the axial load capacity of UHSC-filled CFST columns (with a mean P_exp/P_p value of 0.87) compared to the three suggested analytical models in Table 6. Alternatively, CSA [21] and AISC [22] models performed similarly well in underestimating axial capacity of UHSC-filled tube columns, although they become quite conservative as slenderness increased, particularly for Series I and Series II circular columns (although CSA provisions did not account for bar reinforcements). The AISC [22] model was found to be slightly more applicable to square CFST columns compared with that of the CSA design code, as the AISC model especially accounted for the effect of cross-sectional shape. CSA (with a mean P_exp/P_p value of 1.17) and AISC (with a mean P_exp/P_p value of 1.19) models performed well and can be used in predicting axial load capacity of UHSC-filled CFST columns within the range of geometric configurations used in this study.

6. Conclusions

This paper analyzed concrete-filled steel tube (CFST) columns with self-consolidating fiber-reinforced ultrahigh-strength concrete (UHSC) core material. Columns were tested under concentric axial compression loading to failure. Axial load-displacement behavior, stress-strain response, concrete confined strength, and axial load capacity/strength of CFST columns were studied and compared with analytical models and code-based design equations. The effects of cross-sectional shape and area, length-to-diameter (L/D) or length-to-depth (L/d) ratios, tube wall thickness (t), and longitudinal steel reinforcing bars with hoops were investigated for their effects on behavior of UHSC-filled tube columns. The following conclusions are drawn from this study.

• UHSC-filled CFST columns failed to exhibit different types of failure based on slenderness (L/D or L/d ratios). Failure modes included global buckling for slenderness ranging between 16 and 20, shear yielding associated with successive formation of local buckling for slenderness varying from 4 to 12, and radial expansion with tube tearing for slenderness of 3.
• Axial load-displacement responses of circular CFST columns generally showed multiple peaks and drops showing increase in load after each drop producing large post-peak deformation (ductility) before failure but the first peak always governed the load capacity. Square and rectangular columns displayed similar load-displacement responses exhibiting decrease in load after the first peak and lower ductility.
• Axial load capacity/strength generally decreased with the increase of slenderness and increased with the presence of longitudinal and hoop reinforcement. Circular columns showed higher axial load strength and ductility compared to their rectangular/square counterparts. The combined effect of D/t, L/D or L/d, steel tube geometry and failure modes governed the axial strength of CFST columns.
• Experimental UHSC confined strength increased with the increase of tube thickness, decreased for columns of higher slenderness and increased (by 11 to 27%) with the presence of longitudinal and hoop reinforcements. Existing analytical models overestimated the confined concrete strength resulting from tube and hoop confinement in CFST columns compared to those of experiments. This is attributed to overestimating the ability of UHSC to soften and dilate with progressive loading.
• Predicted axial strength from the three suggested analytical models were often greater than those obtained from experiments. This overestimation is attributed to the overprediction of confined UHSC strength and reduction factors are suggested for incorporation in analytical models for strength prediction.
• Eurocode 4 overpredicted the strength of CFST columns. Canadian CAN/CSA S16-09 and American AISC code provisions performed well, especially in estimating the strength of circular columns with or without bar/hoop reinforcements. The AISC code was especially good for square and rectangular UHSC-filled tube columns as it took into account cross-sectional shape.
