Article

Cost-Effective Design of IoT-Based Smart Household Distribution System

by
Musse Mohamud Ahmed
1,
Md Ohirul Qays
1,
Ahmed Abu-Siada
2,*,
S. M. Muyeen
3 and
Md Liton Hossain
2
1
Department of Electrical and Electronic Engineering, Faculty of Engineering, Universiti Malaysia Sarawak (UNIMAS), Kota Samarahan 94300, Malaysia
2
Discipline of Electrical and Computer Engineering, Curtin University, Kent Street, Bentley, Perth 6102, Australia
3
Department of Electrical Engineering, Qatar University, Doha 2713, Qatar
*
Author to whom correspondence should be addressed.
Designs 2021, 5(3), 55; https://doi.org/10.3390/designs5030055
Submission received: 27 June 2021 / Revised: 18 August 2021 / Accepted: 20 August 2021 / Published: 24 August 2021
(This article belongs to the Special Issue Smart Home Design)
Browse Figures
Versions Notes

Abstract

:
The Internet of Things (IoT) plays an indispensable role in present-day household electricity management. Nevertheless, practical development of cost-effective intelligent condition monitoring, protection, and control techniques for household distribution systems is still a challenging task. This paper is taking one step forward into a practical implementation of such techniques by developing an IoT Smart Household Distribution Board (ISHDB) to monitor and control various household smart appliances. The main function of the developed ISHDB is collecting and storing voltage, current, and power data and presenting them in a user-friendly way. The performance of the developed system is investigated under various residential electrical loads of different energy consumption profiles. In this regard, an Arduino-based working prototype is employed to gather the collected data into the ThingSpeak cloud through a Wi-Fi medium. Blynk mobile application is also implemented to facilitate real-time monitoring by individual consumers. Microprocessor technology is adopted to automate the process, and reduce hardware size and cost. Experimental results show that the developed system can be used effectively for real-time home energy management. It can also be used to detect any abnormal performance of the electrical appliances in real-time through monitoring their individual current and voltage waveforms. A comparison of the developed system and other existing techniques reveals the superiority of the proposed method in terms of the implementation cost and execution time.

1. Introduction

Worldwide energy demand has been significantly augmented over the last few years due to the increased population and rapid industrial advancement. As such, renewable energy sources have been widely employed at both industry and residential levels [1,2]. As a result, the traditional consumer market has been changed into prosumer-oriented market [3,4]. Thus, developing smart home systems to monitor and manage electrical energy has become essential [5]. Although a number of scholarly articles on the development of smart home systems have been published in the literature, developing a cost-effective prototype for the distribution board has not been given much attention. For instance, renewable energy-based smart home energy management system (HEMS) is presented in [6] to optimize the power generation and consumption. In [7], an internet of things (IoT)-related smart meter is explored to support voltage control strategies within the low voltage distribution system of 30 smart homes. Although the simulation analysis shows good performance, the proposed methodology can be only used to improve the user-friendly conditions.
An HEMS is proposed in [8,9] using dint of Bluetooth low energy and MATLAB simulation tool. However, wireless network is highly recommended over Bluetooth for real-world applications. To decrease the influence of wireless interference and unnecessary energy consumption, a smart home control network is presented in [10]. Although wireless sensors and power line communication are developed in this study, the system is implemented to manage lighting load only with a relatively high cost.
The Internet of Things technology facilitates power networks to analyse collected data, monitor power consumption, and enhance the energy efficiency [11,12,13]. The artificial intelligence (AI) aided IoT-Edge data is analysed in [14] for node-computing algorithm and storage mechanism comprising of tight coupling computation. Moreover, internet aided intelligent things are presented in [15] as an application for Melanoma cancer. A low-cost long range (LoRa) method is presented for smart home indoor localization to acquaint the advantages of IoT systems [16]. However, the accuracy of the LoRa method is potentially uncertain. The reliability and security of home IoT components are discussed in [17] via machine learning procedures.
Moreover, a web-based smart meter has been introduced in [18] for a wide-range of smart home systems applications. A hardware prototype is designed with the Arduino interfacing ESP8266 Wi-Fi module. To automate the smart home systems, several individual components such as Arduino Uno, ESP8266, and XBee are utilized in [19]. An android mobile application is suggested for the industrialization despite the exploration of the high speedy ThingSpeak website. In this concern, IoT-based domestic appliances are denoted in [20] using the ThingSpeak cloud. Besides, the Blynk application is explored in [21,22] as a user-friendly segment by means of Wi-Fi scheme.

2. Related Work in the Literature

A practical study on system-level aspects of IoT along with its emerging applications have been presented in [23]. In this study, the architecture and system-level issues of IoT are summarized to advance more progressive real-life IoT applications. The IoT technology is used in [24] to monitor the battery health condition through measuring some parameters such as temperature, humidity, voltage, and current. The ESP8266 Wi-Fi module is employed to observe the status of the investigated battery in real-time. This condition-based monitoring technique is very useful to enhance the battery’s efficiency and elongate its operational life. Advancement in smartphone technology has facilitated monitoring the performance of various smart appliances in real-time [25].
Based on IoT, a Self-Learning Home Management System (SHMS) is proposed in [26] to manage the energy consumption. Three management systems have been considered in this research including home energy, demand side, and supply side. However, the cost of the proposed working prototype is relatively high. Monitoring a smart home energy performance with the integration of IoT is presented in [27]. Towards incorporating a smart home energy management in the cloud-centric solution based on IoT, a holistic architecture is proposed in this study. A smart home system with the help of Web-of-Objects in addition to cloud architecture is presented in [28]. The proposed system can be controlled from anywhere and the collected data can be stored in the cloud. The designed system is performed in three individual steps. A water-tank and autonomous door security is controlled by the developed system to diminish the human interference and secure the access to home devices.
Table 1 summarizes the focus of the most recent papers in this area of research along with the focus of this paper. From the above discussion and Table 1, it can be concluded that a proper design of internet aided hardware prototype is crucial for individual users to effectively monitor the condition and performance of household appliances in real-time from anywhere. Hence, the main goal of this paper is to identify the characteristics of the smart household monitoring system associated with IoT facility. In this regard, a cost effective IoT smart household distribution board (ISHDB) is designed to visualize the consumption of the electricity and store the data into the ThingSpeak website. Additionally, the Blynk mobile application is employed to monitor the condition of various appliances by individual users in real-time.

3. System Concept

Cost effectiveness and easy installation are essential features to make any model competitive in the global market for home applications. In this paper, a schematic overview of the proposed low cost ISHDB system as shown in Figure 1a is proposed to hold such features [35,36,37]. The system consists of two core modules, namely a) a hardware interface module and b) a software communication module. An Arduino Uno microcontroller is settled at the heart of the system to interface an IoT website and the hardware module. All of the communication and controls of this system are passing over the microcontroller. The IoT based system records various data including voltage (V), current (I), and power (P) from the definite segments. These data can be displayed on a liquid crystal display (LCD) screen, web server, and mobile application. The data restrained by the sensors are explored in the control system which perceives the consumption of the household loads and disconnects any load once the set limit current or power has been surpassed. The entire flowchart of the proposed system is revealed in Figure 1b. In the first step, the proposed IoT-based system receives the V, I, and P data from the measuring sensors. These data can be visualized through LCD display, web server, and mobile application. The calculated power is compared with a predefined value based on the rating of the monitored device. If the measured power exceeds the set limit, the associated relay is activated to disconnect this device; otherwise, the normal operating condition is maintained. The pseudocode of the proposed method is detailed in Figure 1c to understand the implementation of the intended model.

4. System Design

The performance of the proposed ISHDB system is assessed through simulation and experimental analyses. Various software tools such as Proteus, Fritzing, and MATLAB/SIMULINK are used to develop the proposed model.

4.1. Simulation Model

The structure of the proposed ISHDB system is firstly developed using Proteus Professional Design Suite software, as shown in Figure 2a. The proposed model consists of AC power supply, Arduino Uno, sensors, two LCD screens, switches, and two different loads. The switches are assumed to mimic the operation of circuit breakers in real applications. The components are linked functionally so that they can operate according to the users’ commands. Before developing the hardware prototype and to avoid circuit complexity, the intended model is simulated further using Fritzing software. To get a better realization about the hardware connection configuration, the electronic elements are assembled using a breadboard as shown in Figure 2b.

4.2. Hardware Development

The hardware of the proposed ISHDB system is developed following the simulation design using Fritzing, Proteus, and Arduino IDE software tools. Figure 3a shows the developed hardware of the IoT-based smart household distribution board system inside a box while Figure 3b displays the outside part of the prototype. From Figure 3b, the consumer can monitor the voltage, current, and power consumption from the LCD screen. The block diagram of the developed hardware is shown in Figure 4. The designed distribution board comprises two lines associated to the house loads. An Arduino Uno is connected with two PZEM-004T sensors, an ESP8266 Wi-Fi module, a relay switch, and two I2C interfacing LCD monitors. To simplify the measurements and improve its accuracy, the method of definite sensor measurement (shunt type) was adopted as recommended by the manufacturers [38]. However, other measurement sensors of a better accuracy can be still used. Several precautions and safety schemes such as circuit breakers (CBs) and fuses are utilized while interfacing the AC power voltages and currents to low voltage electronic components. Although the loads are connected with the Arduino board through sensors, the commanding signal from Arduino switches turns the loads on or off to manage the power consumption.
In other words, the designed system acquaints a local controller which operates according to the power exceeding state. The value of 2 kW is assumed to be a threshold consumption limit in this hardware. As mentioned above, the measured voltage, current, and power data can be displayed on the LCD screen, ThingSpeak cloud, and Blynk mobile application. ThingSpeak cloud is employed in this paper as a medium to store and exhibit the data measured by various sensors. The ESP8266 Wi-Fi module is employed to receive and transmit the data from the sensors to the ThingSpeak web server that requires a sign in account. A channel is generated to visualise the data in the developed website. Albeit the internet speed can be an issue, this particular issue is avoided in this research using a short time span (15 s). In addition, the Blynk application is employed to monitor the usage wirelessly and remotely. The mobile app receives the sensors data through an ESP8266 Wi-fi module.

4.3. Measurement Accuracy, Safety, and Protection Precautions

To comply with the safety regulations of the buildings equipped with ISHDB system, residual-current device (RCD) is recommended and is used in the experimental setup. RCD performs tasks similar to the conventional circuit breaker that is able to quickly interrupt the electrical circuit in case of overcurrent situation to prevent serious damages to the ISHDB system and other appliances. In addition to the protection of the experimental prototype using RCD, a 10-A fuse is installed to protect the electronic components such as sensors, LCD monitor, and relay switch. With regards to the measurement accuracy, the collected signals are measured following the manufacturing recommendations. Within the specifications of working voltage 80~260 VAC, current range 0–100 A, rated power 22 kW, and operating frequency 45–65 Hz, the measuring accuracy is 1.0 grade [39].

4.4. Cost Estimation

The proposed ISHDB system is not only technically sound, but it is also cost-effective for the household applications. Despite several research papers published in the literature on the IoT-based smart HEMS [6,7,26,40,41], a detailed investigation of ISHDB prototype accompanied by an estimation of the implementation cost is barely provided. To estimate the cost of the working prototype precisely, several factors such as features of the used components, number of the electricity lines, and the nature and number of loads that it can manage have to be considered. Considering these aspects, the estimation cost of the complete prototype developed in this paper is about US $100. This is a low-cost product when compared with conventional ISHDB systems. The technical performance of the developed ISHDB system is investigated under various domestic electrical loads of different energy consumption profiles, as will be elaborated below.

5. Results and Discussions

The records of the proposed ISHDB system can be visualized through LCD screen, ThingSpeak website, and Blynk mobile application displays. The obtained results are reckoned in two individual parts for without IoT and with IoT factors, as discussed below:

5.1. Performance of ISHDB with and without Loads

The proposed ISHDB model has been tested with several household electrical appliances including fan, television, garment steamer, iron, and toaster. The purpose of the testing was to evaluate the accuracy of the designed system. The selected household electrical appliances were tested for some periods during which the voltage, current, and power consumption were recorded. The operating voltage for all of the tested household appliances was kept within the range 220 V to 240 V. The measurement is displayed on the LCD as shown in Figure 5a without load in which there is no current and power consumption, and in Figure 5b with a 915.9 W connected load. The detailed results for various tested loads are presented below.
The current and power profiles of a standing fan of a 55-W rated power are shown in Figure 6a for five minutes in which the current was being constant at 0.223 A. The speed of the fan was changed during the tested period which resulted in a change to the power consumption in the range of 50.1 W to 49.7 W. Figure 6b shows the results for a 105-W television (TV) with a 0.299-A constant current. The results reveal that the power consumption of the TV is within the range 65.80 W to 66.10 W. In the standby mode, the TV consumes about 0.5 W. Although the reading of the initial power consumed by the TV was about 99 W, it reduced after a few seconds to 66 W. The power consumed by a garment steamer was in the range 1780~1795 W as shown in Figure 6c. Moreover, the current fluctuated in the range 8.009 A to 8.069 A in two minutes. In this regard, the power was cut off for 10 s twice during this interval to maintain the temperature of the steamer following the change in the current profile.
The results for the 1000-W iron and 800-W toaster are shown in Figure 6d,e, respectively. In both cases, the power was automatically turned off for the last 10 s. For the tested iron, the power changed within the range 932 W to 915 W during the first 100 s. In contrast, the toaster took nearly 1 min and 50 s to toast two slices of bread with a power changing in the range 706.2 W and 698.6 W. The decreased reading may be attributed to an error within the appliance. The simulated AC voltage density is shown in Figure 7a while Figure 7b depicts the pure AC voltage signal. Nevertheless, for the low powered applications such as mobile phone or laptop charger and a small fan, the experimental result of the modified AC sine wave is as shown in Figure 7c.

5.2. ISHDB Tested with IoT Implementation

In the ThingSpeak-based web system, six field data have been proposed in the ThingSpeak channel. This includes: voltage line1 (field 1), current line 1 (field 2), power line 1 (field 3), voltage line 2 (field 4), current line 2 (field 5), and power line 2 (field 6). The channel status as shown in the web server was collected as revealed in Figure 8 and stored in the cloud. The channel was updated every minute to display each of the above six fields graphically and numerically as shown in Figure 8a–f. Additionally, in order to facilitate a user-friendly interface, a Blynk application has been developed. In this regard, Blynk project (ISHDB) accompanied by data screening (LCD) was created as shown in Figure 9a. Data of two fields (lines 1 and 2) are displayed in Figure 9b. These results demonstrate the effectiveness of the proposed method which is easy to implement for existing household systems. The proposed system was compared with other existing methods as shown in Table 2 to reveal the effectiveness of the developed ISHDB model. Compared to the several number of research papers on the IoT aided smart home applications, the proposed model in this paper shows superiority in terms of lowest cost and time-span.
The proposed method can also be used in renewable energy dependent devices as well as energy conversion systems [42,43,44,45,46,47,48,49,50]. It can also be adapted to monitor the condition of critical high voltage assets, power converters, and various flexible ac transmission system devices [51,52,53,54]. It is worth mentioning that the experimental measurements in this paper were conducted under ideal conditions in which signal noise and harmonic levels were not substantial. To facilitate the proposed system to function under highly polluted waveforms, a digital noise elimination technique such as the methods presented in [55,56,57] can be adopted. Moreover, the performance of the measurement sensors and other components involved in the system must be checked and calibrated regularly to detect any incipient malfunction and rectify it in a timely manner [58,59].

6. Conclusions

As the current residential homes are equipped with various smart appliances, energy management of such devices has become essential. An IoT-based smart household distribution board to monitor the performance of these appliances was developed in this study. The developed board can accurately monitor the current, voltage, and power consumption of several household appliances. Communication through Wi-Fi module has been presented where the measured data can be displayed on LCD, ThingSpeak web server, and Blynk mobile application. The complete prototype of the ISHDB was successfully developed and tested with some household appliances. The main conclusions of the experimental measurements can be summarized as below:
  • The graphical view through the ThingSpeak web server and the numerical data displayed on the Blynk apps are identical. Thus, the results confirm that the proposed system satisfies crucial requirements of calibration, accuracy, and communication.
  • The developed hardware can monitor the usage of electricity based on IoT and control the limit of power consumption. This feature enables users to monitor their appliances and promotes awareness on electricity consumption.
  • The proposed ISHDB is cost effective and is of small time-span relevance that enables it to provide good technical performance.
Further research is required to extend the application of the proposed system for additional functionalities such as IoT-aided AI methods for security purposes.

Author Contributions

Conceptualization, M.M.A. and M.O.Q.; methodology, M.O.Q.; software, M.O.Q.; validation, M.M.A. and M.O.Q.; formal analysis, A.A.-S.; investigation, M.M.A. and A.A.-S.; resources, M.O.Q.; data curation, M.M.A.; writing—original draft preparation, M.O.Q.; writing—review and editing, A.A.-S.; visualization, S.M.M.; supervision, M.L.H., A.A.-S.; project administration, M.M.A.; funding acquisition, A.A.-S. and M.M.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Higher Education (MHE), Malaysia and Universiti Malaysia Sarawak (UNIMAS) for Funding Project with the title of Simulation of Smart Grid-based Two-Way Communication Framework for the Wide Area Measurement, Project No: FRGS/1/2019/TK04/UNIMAS/01/1.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

The technical tasks were performed in Renewable Energy Lab, Universiti Malaysia Sarawak (UNIMAS).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zakaria, Z.; Kamarudin, S.K.; Abd Wahid, K.A.; Abu Hassan, S.H. The progress of fuel cell for malaysian residential consumption: Energy status and prospects to introduction as a renewable power generation system. Renew. Sustain. Energy Rev. 2021, 144, 110984. [Google Scholar] [CrossRef]
  2. Reka, S.S.; Venugopal, P.; Alhelou, H.H.; Siano, P.; Golshan, M.E.H. Real Time Demand Response Modeling for Residential Consumers in Smart Grid Considering Renewable Energy with Deep Learning Approach. IEEE Access 2021, 9, 56551–56562. [Google Scholar] [CrossRef]
  3. Oprea, S.V.; Bara, A.; Andreescu, A.I. Two Novel Blockchain-Based Market Settlement Mechanisms Embedded into Smart Contracts for Securely Trading Renewable Energy. IEEE Access 2020, 8, 212548–212556. [Google Scholar] [CrossRef]
  4. Narayan, S.; Doytch, N. An investigation of renewable and non-renewable energy consumption and economic growth nexus using industrial and residential energy consumption. Energy Econ. 2017, 68, 160–176. [Google Scholar] [CrossRef]
  5. Afzal, M.; Huang, Q.; Amin, W.; Umer, K.; Raza, A.; Naeem, M. Blockchain Enabled Distributed Demand Side Management in Community Energy System With Smart Homes. IEEE Access 2020, 8, 37428–37439. [Google Scholar] [CrossRef]
  6. Han, J.; Choi, C.S.; Park, W.K.; Lee, I.; Kim, S.H. Smart home energy management system including renewable energy based on ZigBee and PLC. IEEE Trans. Consum. Electron. 2014, 60, 198–202. [Google Scholar] [CrossRef]
  7. Alzate, E.B.; Bueno-Lopez, M.; Xie, J.; Strunz, K. Distribution System State Estimation to Support Coordinated Voltage-Control Strategies by Using Smart Meters. IEEE Trans. Power Syst. 2019, 34, 5198–5207. [Google Scholar] [CrossRef]
  8. Collotta, M.; Pau, G. A Novel Energy Management Approach for Smart Homes Using Bluetooth Low Energy. IEEE J. Sel. Areas Commun. 2015, 33, 2988–2996. [Google Scholar] [CrossRef]
  9. Collotta, M.; Pau, G. An Innovative Approach for Forecasting of Energy Requirements to Improve a Smart Home Management System Based on BLE. IEEE Trans. Green Commun. Netw. 2017, 1, 112–120. [Google Scholar] [CrossRef]
  10. Li, M.; Lin, H.J. Design and Implementation of Smart Home Control Systems Based on Wireless Sensor Networks and Power Line Communications. IEEE Trans. Ind. Electron. 2015, 62, 4430–4442. [Google Scholar] [CrossRef]
  11. Bedi, G.; Venayagamoorthy, G.K.; Singh, R.; Brooks, R.R.; Wang, K.-C. Review of Internet of Things (IoT) in Electric Power and Energy Systems. IEEE Internet Things J. 2018, 5, 847–870. [Google Scholar] [CrossRef]
  12. Shakerighadi, B.; Anvari-Moghaddam, A.; Vasquez, J.C.; Guerrero, J.M. Internet of things for modern energy systems: State-of-the-art, challenges, and open issues. Energies 2018, 11, 1252. [Google Scholar] [CrossRef] [Green Version]
  13. Tightiz, L.; Yang, H. A comprehensive review on IoT protocols’ features in smart grid communication. Energies 2020, 13, 2762. [Google Scholar] [CrossRef]
  14. Lv, Z.; Qiao, L.; Verma, S.; Kavita. AI-enabled IoT-Edge Data Analytics for Connected Living. ACM Trans. Internet Technol. 2021, 21, 1–20. [Google Scholar] [CrossRef]
  15. Polap, D. Analysis of Skin Marks through the Use of Intelligent Things. IEEE Access 2019, 7, 149355–149363. [Google Scholar] [CrossRef]
  16. Kim, K.; Li, S.; Heydariaan, M.; Smaoui, N.; Gnawali, O.; Suh, W.; Suh, M.J.; Kim, J.I. Feasibility of LoRa for Smart Home Indoor Localization. Appl. Sci. 2021, 11, 415. [Google Scholar] [CrossRef]
  17. Zainab, A.; Refaat, S.S.; Bouhali, O. Ensemble-based spam detection in smart home IOT devices time series data using machine learning techniques. Information 2020, 11, 344. [Google Scholar] [CrossRef]
  18. Makhanya, S.P.; Dogo, E.M.; Nwulu, N.I.; Damisa, U. A Smart Switch Control System Using ESP8266 Wi-Fi Module Integrated with an Android Application. In Proceedings of the 2019 IEEE 7th International Conference on Smart Energy Grid Engineering (SEGE), Oshawa, ON, Canada, 12–14 August 2019; pp. 125–128. [Google Scholar] [CrossRef]
  19. Sarah, A.; Ghozali, T.; Giano, G.; Mulyadi, M.; Octaviani, S.; Hikmaturokhman, A. Learning IoT: Basic Experiments of Home Automation using ESP8266, Arduino and XBee. In Proceedings of the 2020 IEEE International Conference on Smart Internet of Things (SmartIoT), Beijing, China, 14–16 August 2020; pp. 290–294. [Google Scholar] [CrossRef]
  20. Tawalbeh, N.; Abusamaha, H.M.; Al-Salaymeh, A. Domestic Appliances Scheduling Using BPSO and IoT. In Proceedings of the 2019 IEEE PES Innovative Smart Grid Technologies Europe (ISGT-Europe), Bucharest, Romania, 29 September–2 October 2019; pp. 1–5. [Google Scholar] [CrossRef]
  21. Durani, H.; Sheth, M.; Vaghasia, M.; Kotech, S. Smart Automated Home Application using IoT with Blynk App. In Proceedings of the 2018 Second International Conference on Inventive Communication and Computational Technologies (ICICCT), Coimbatore, India, 20–21 April 2018; pp. 393–397. [Google Scholar] [CrossRef]
  22. Serikul, P.; Nakpong, N.; Nakjuatong, N. Smart Farm Monitoring via the Blynk IoT Platform: Case Study: Humidity Monitoring and Data Recording. In Proceedings of the 2018 16th International Conference on ICT and Knowledge Engineering (ICT&KE), Bangkok, Thailand, 21–23 November 2018; pp. 70–75. [Google Scholar]
  23. Swamy, S.N.; Kota, S.R. An Empirical Study on System Level Aspects of Internet of Things (IoT). IEEE Access 2020, 8, 188082–188134. [Google Scholar] [CrossRef]
  24. Gayathri, M.S.; Ravishankar, A.N.; Kumaravel, S.; Ashok, S. Battery Condition Prognostic System using IoT in Smart Microgrids. In Proceedings of the 2018 3rd International Conference On Internet of Things: Smart Innovation and Usages (IoT-SIU), Bhimtal, India, 23–24 February 2018; Institute of Electrical and Electronics Engineers Inc.: Piscataway, NJ, USA, 2018. [Google Scholar]
  25. Tan, H.; Chung, I. Secure Authentication and Group Key Distribution Scheme for WBANs Based on Smartphone ECG Sensor. IEEE Access 2019, 7, 151459–151474. [Google Scholar] [CrossRef]
  26. Li, W.; Logenthiran, T.; Phan, V.T.; Woo, W.L. Implemented IoT-based self-learning home management system (SHMS) for Singapore. IEEE Internet Things J. 2018, 5, 2212–2219. [Google Scholar] [CrossRef]
  27. Risteska Stojkoska, B.L.; Trivodaliev, K.V. A review of Internet of Things for smart home: Challenges and solutions. J. Clean. Prod. 2017, 140, 1454–1464. [Google Scholar] [CrossRef]
  28. Iqbal, A.; Ullah, F.; Anwar, H.; Kwak, K.S.; Imran, M.; Jamal, W.; ur Rahman, A. Interoperable Internet-of-Things platform for smart home system using Web-of-Objects and cloud. Sustain. Cities Soc. 2018, 38, 636–646. [Google Scholar] [CrossRef]
  29. Zhihua, S. Design of Smart Home System Based on ZigBee. In Proceedings of the 2016 International Conference on Robots & Intelligent System (ICRIS), Zhangjiajie, China, 27–28 August 2016; IEEE: Piscataway, NJ, USA, 2016; pp. 167–170. [Google Scholar]
  30. Howedi, A.; Jwaid, A. Design and implementation prototype of a smart house system at low cost and multi-functional. In Proceedings of the 2016 Future Technologies Conference (FTC), San Francisco, CA, USA, 6–7 December 2016; IEEE: Piscataway, NJ, USA, 2016; pp. 876–884. [Google Scholar]
  31. Asadullah, M.; Ullah, K. Smart home automation system using Bluetooth technology. In Proceedings of the 2017 International Conference on Innovations in Electrical Engineering and Computational Technologies (ICIEECT), Karachi, Pakistan, 5–7 April 2017; IEEE: Piscataway, NJ, USA, 2017; pp. 1–6. [Google Scholar]
  32. Froiz-Míguez, I.; Fernández-Caramés, T.; Fraga-Lamas, P.; Castedo, L. Design, Implementation and Practical Evaluation of an IoT Home Automation System for Fog Computing Applications Based on MQTT and ZigBee-WiFi Sensor Nodes. Sensors 2018, 18, 2660. [Google Scholar] [CrossRef] [Green Version]
  33. Majeed, R.; Abdullah, N.A.; Ashraf, I.; Bin Zikria, Y.; Mushtaq, M.F.; Umer, M. An Intelligent, Secure, and Smart Home Automation System. Sci. Program. 2020, 2020, 4579291. [Google Scholar] [CrossRef]
  34. Stolojescu-crisan, C.; Crisan, C.; Butunoi, B.-P. An IoT-Based Smart Home Automation System. Sensors 2021, 21, 3784. [Google Scholar] [CrossRef]
  35. Mahalakshmi, G.; Vigneshwaran, M. IOT Based HOME AUTOMATION Using Arduino. Int. J. Eng. Adv. Res. Technol. 2018, 3, 386–390. [Google Scholar]
  36. Yildiz, S.; Burunkaya, M. Web Based Smart Meter for General Purpose Smart Home Systems with ESP8266. In Proceedings of the 2019 3rd International Symposium on Multidisciplinary Studies and Innovative Technologies (ISMSIT), Ankara, Turkey, 11–13 October 2019. [Google Scholar] [CrossRef]
  37. Ismaeel, A.G.; Kamal, M.Q. Worldwide auto-mobi: Arduino IoT home automation system for IR devices. In Proceedings of the 2017 International Conference on Current Research in Computer Science and Information Technology (ICCIT), Sulaymaniyah, Iraq, 26–27 April 2017; pp. 52–57. [Google Scholar] [CrossRef]
  38. InnovatorsGuru. PZEM-004T User Manual; InnovatorsGuru: Pune, India, 2019. [Google Scholar]
  39. PZEM-004T|Specification|Price|Arduino Library|Pinout. Available online: https://innovatorsguru.com/ac-digital-multifunction-meter-using-pzem-004t/ (accessed on 26 June 2021).
  40. Machorro-Cano, I.; Paredes-Valverde, M.A.; Alor-Hernandez, G.; Salas-Zárate, M.D.P.; Segura-Ozuna, M.G.; Sánchez-Cervantes, J.L. Pesshiot: Smart platform for monitoring and controlling smart home devices and sensors. In Communications in Computer and Information Science; Springer: Berlin/Heidelberg, Germany, 2019; Volume 1124, pp. 137–150. [Google Scholar]
  41. Paredes-Valverde, M.A.; Alor-Hernández, G.; García-Alcaráz, J.L.; Salas-Zárate, M.d.P.; Colombo-Mendoza, L.O.; Sánchez-Cervantes, J.L. IntelliHome: An internet of things-based system for electrical energy saving in smart home environment. Comput. Intell. 2020, 36, 203–224. [Google Scholar] [CrossRef]
  42. Qays, O.; Buswig, Y.; Basri, H.; Hossain, L.; Abu-siada, A.; Rahman, M.M.; Muyeen, S.M. An Intelligent Controlling Method for Battery Lifetime Increment Using State of Charge Estimation in PV-Battery Hybrid System. Appl. Sci. 2020, 10, 8799. [Google Scholar] [CrossRef]
  43. Qays, O.; Buswig, Y.; Anyi, M. Active Cell Balancing Control Method for Series-Connected Lithium-Ion Battery. Int. J. Innov. Technol. Explor. Eng. 2019, 8, 2424–2430. [Google Scholar] [CrossRef]
  44. Qays, O.; Yasmin, F.; Kamal, H.A. A Review on Improved Performance for Solar Photovoltaic Cells by Various Cooling Methods. J. Therm. Energy Syst. 2020, 5, 1–19. [Google Scholar] [CrossRef]
  45. Qays, O.; Buswig, Y.; Hossain, L.; Ieee, S.M.; Rahman, M.; Abu-siada, A.; Ieee, S.M.; Modeling, A.C. Active cell balancing control strategy for parallel connected LiFePO4 batteries. CSEE J. Power Energy Syst. 2020, 7, 86–92. [Google Scholar] [CrossRef]
  46. Hossain, E.; Zawad, M.; Rakibul Islam, K.H.; Akash, M.Q. Design a novel controller for stability analysis of microgrid by managing controllable load using load shaving and load shifting techniques; and optimizing cost analysis for energy storage system. Int. J. Renew. Energy Res. 2016, 6, 772–786. [Google Scholar]
  47. Yonis Buswig, Y.M.; Qays, O.; Affam, A.; Albalawi, H.; Othman, A.-K.; Julai, N.; Yi, S.S. Designing a control system based on SOC estimation of BMS for PV-Solar system. Int. J. Integr. Eng. 2020, 12, 148–157. [Google Scholar] [CrossRef]
  48. Qays, O.; Yasmin, F. Renewable energy production based on solar power and magnetic field prototype in Bangladesh. Int. J. Appl. Power Eng. 2020, 8, 29–35. [Google Scholar] [CrossRef]
  49. Ohirul Qays, M.; Buswig, Y.; Hossain, M.L.; Abu-Siada, A. Active Charge Balancing Strategy Using the State of Charge Estimation Technique for a PV-Battery Hybrid System. Energies 2020, 13, 3434. [Google Scholar] [CrossRef]
  50. Qays, O.; Buswig, Y.; Hossain, M.L.H.; Abu-Siada, A. Recent progress and future trends on state of charge estimation methods to improve battery-storage efficiency: A review. CSEE J. Power Energy Syst. 2020, 1, 1–12. [Google Scholar] [CrossRef]
  51. Hasan, M.M.; Abu-Siada, A.; Dahidah, M.S.A. A three-phase symmetrical DC-Link multilevel inverter with reduced number of DC Sources. IEEE Trans. Power Electron. 2018, 33, 8331–8340. [Google Scholar] [CrossRef] [Green Version]
  52. Hasan, M.M.; Abu-Siada, A.; Islam, S.M.; Dahidah, M.S.A. A New Cascaded Multilevel Inverter Topology with Galvanic Isolation. IEEE Trans. Ind. Appl. 2018, 54, 3463–3472. [Google Scholar] [CrossRef]
  53. Application of STATCOM to Improve the LVRT of DFIG during RSC Fire-through Fault|IEEE Conference Publication|IEEE Xplore. Available online: https://ieeexplore.ieee.org/document/6360266 (accessed on 29 May 2021).
  54. Alharbi, Y.M.; Shiddiq Yunus, A.M.; Abu-Siada, A. Application of STATCOM to improve the high-voltage-ride-through capability of wind turbine generator. In Proceedings of the 2011 IEEE PES Innovative Smart Grid Technologies, Perth, WA, Australia, 13–16 November 2011. [Google Scholar]
  55. Zhao, X.; Yao, C.; Zhou, Z.; Li, C.; Wang, X.; Zhu, T.; Abu-Siada, A. Experimental Evaluation of Transformer Internal Fault Detection Based on V-I Characteristics. IEEE Trans. Ind. Electron. 2020, 67, 4108–4119. [Google Scholar] [CrossRef]
  56. Li, Z.; Xiang, X.; Hu, T.; Abu-Siada, A.; Li, Z.; Xu, Y. An improved digital integral algorithm to enhance the measurement accuracy of Rogowski coil-based electronic transformers. Int. J. Electr. Power Energy Syst. 2020, 118, 105806. [Google Scholar] [CrossRef]
  57. Li, Z.; Zheng, Y.; Abu-Siada, A.; Lu, M.; Li, H.; Xu, Y. Online evaluation for the accuracy of electronic voltage transformer based on recursive principal components analysis. Energies 2020, 13, 5576. [Google Scholar] [CrossRef]
  58. Li, Z.; Du, Y.; Abu-Siada, A.; Bao, G.; Yu, J.; Hu, T.; Zhang, T. An Online Calibration System for Digital Input Electricity Meters Based on Improved Nuttall Window. IEEE Access 2018, 6, 71262–71270. [Google Scholar] [CrossRef]
  59. Li, Z.; Yu, C.; Abu-Siada, A.; Li, H.; Li, Z.; Zhang, T.; Xu, Y. An online correction system for electronic voltage transformers. Int. J. Electr. Power Energy Syst. 2021, 126, 106611. [Google Scholar] [CrossRef]
  60. Jabbar, W.A.; Kian, T.K.; Ramli, R.M.; Zubir, S.N.; Zamrizaman, N.S.M.; Balfaqih, M.; Shepelev, V.; Alharbi, S. Design and Fabrication of Smart Home with Internet of Things Enabled Automation System. IEEE Access 2019, 7, 144059–144074. [Google Scholar] [CrossRef]
  61. Singh, U.; Ansari, M.A. Smart Home Automation System Using Internet of Things. In Proceedings of the 2019 2nd International Conference on Power Energy, Environment and Intelligent Control (PEEIC), Greater Noida, India, 18–19 October 2019; pp. 144–149. [Google Scholar] [CrossRef]
Designs 05 00055 g001a 550Designs 05 00055 g001b 550

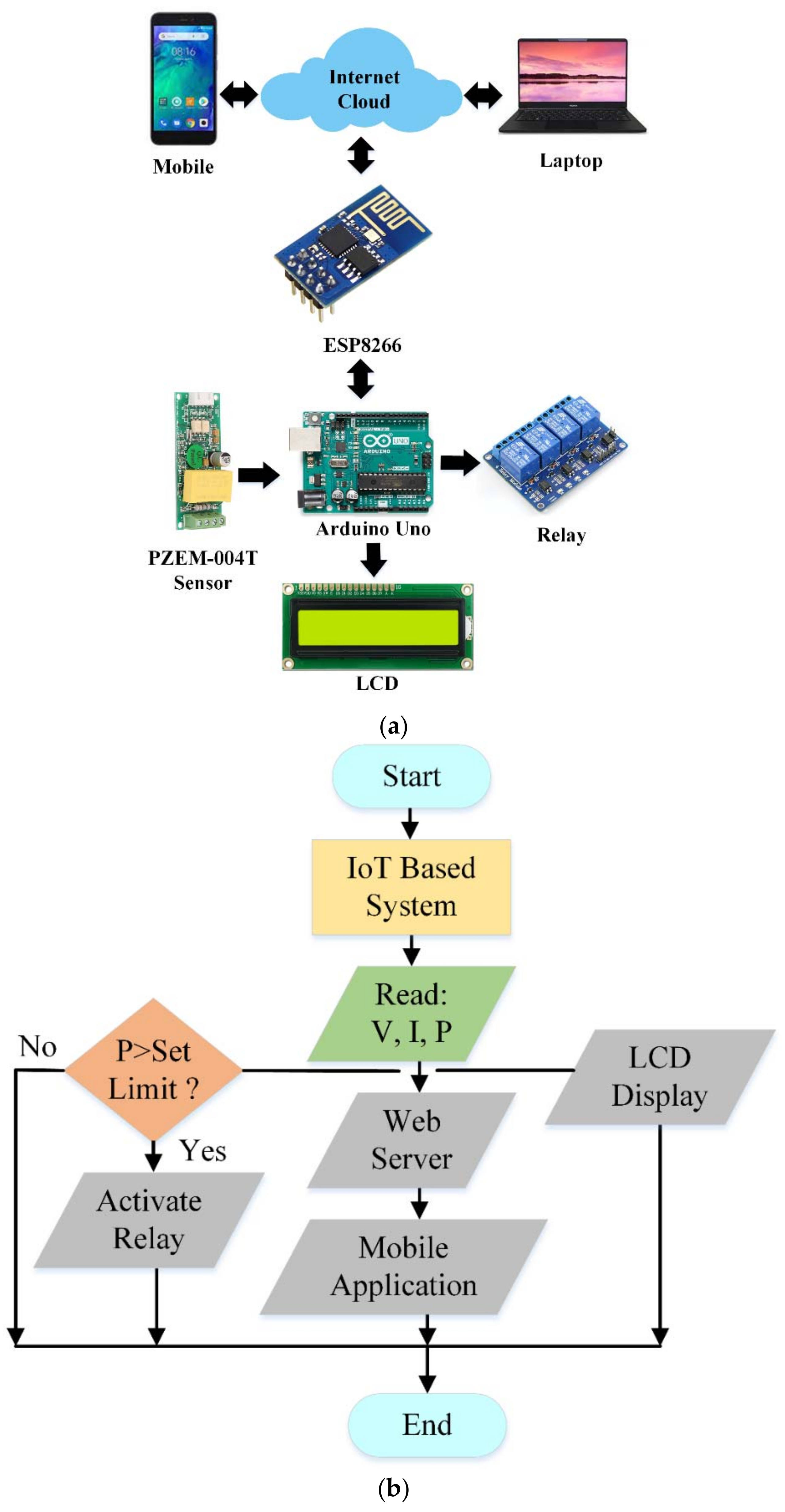

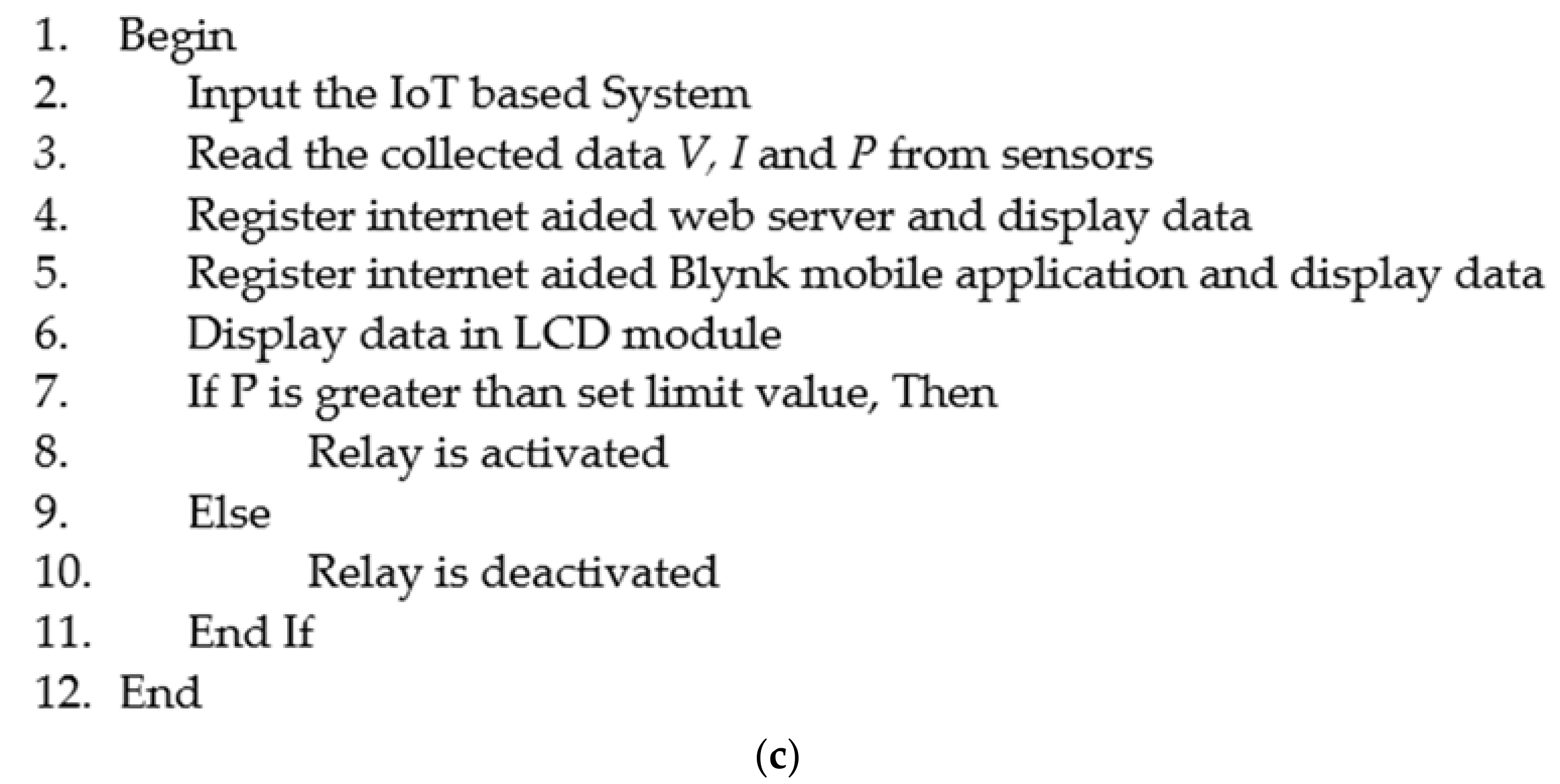

Figure 1. Proposed ISHDB system. (a) Schematic overview, (b) Flowchart, and (c) Pseudocode of the proposed method.
Figure 1. Proposed ISHDB system. (a) Schematic overview, (b) Flowchart, and (c) Pseudocode of the proposed method.
Designs 05 00055 g001aDesigns 05 00055 g001b
Designs 05 00055 g002a 550Designs 05 00055 g002b 550

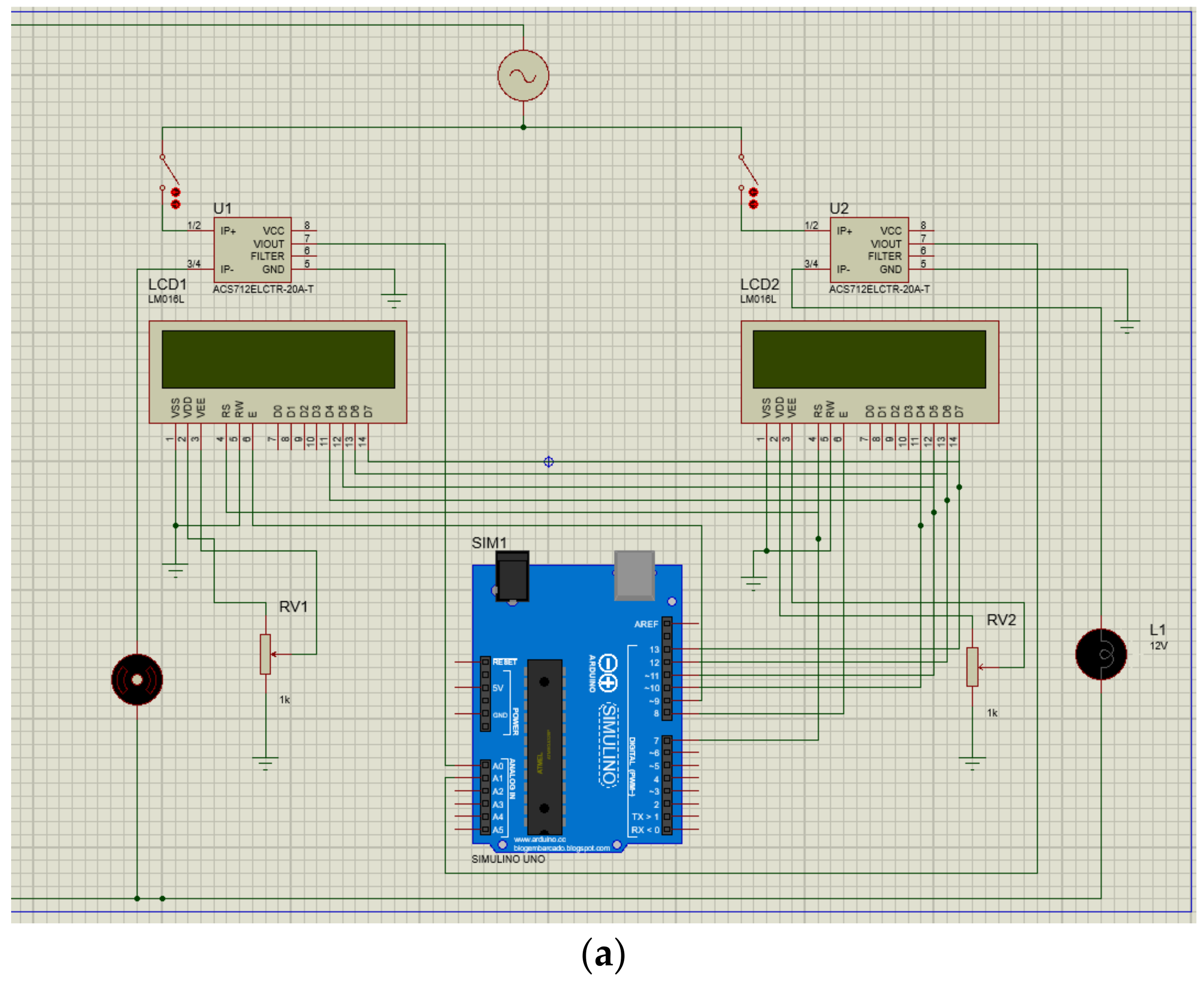

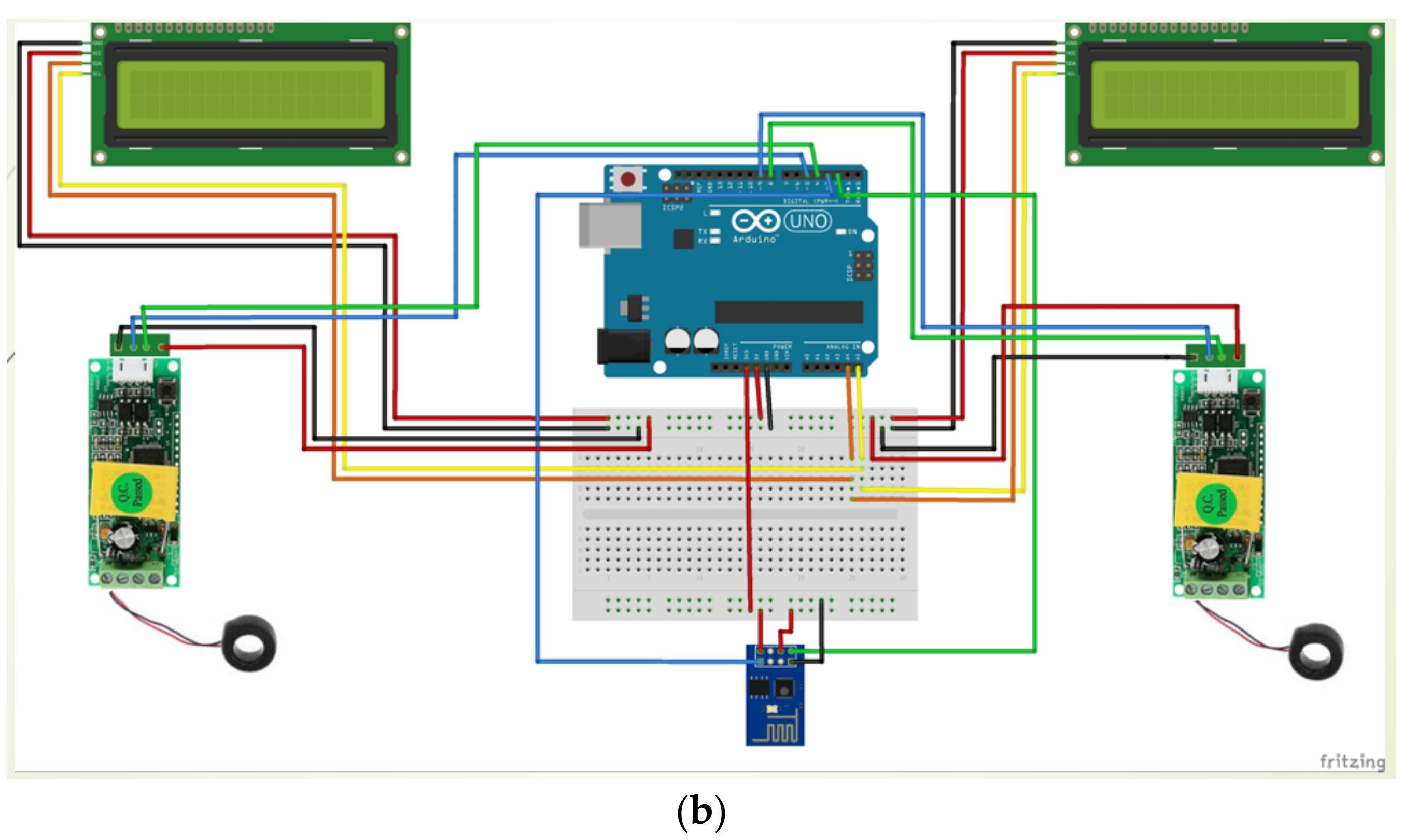

Figure 2. The simulation design of ISHDB in (a) Proteus and (b) Fritzing software.
Figure 2. The simulation design of ISHDB in (a) Proteus and (b) Fritzing software.
Designs 05 00055 g002aDesigns 05 00055 g002b
Designs 05 00055 g003 550

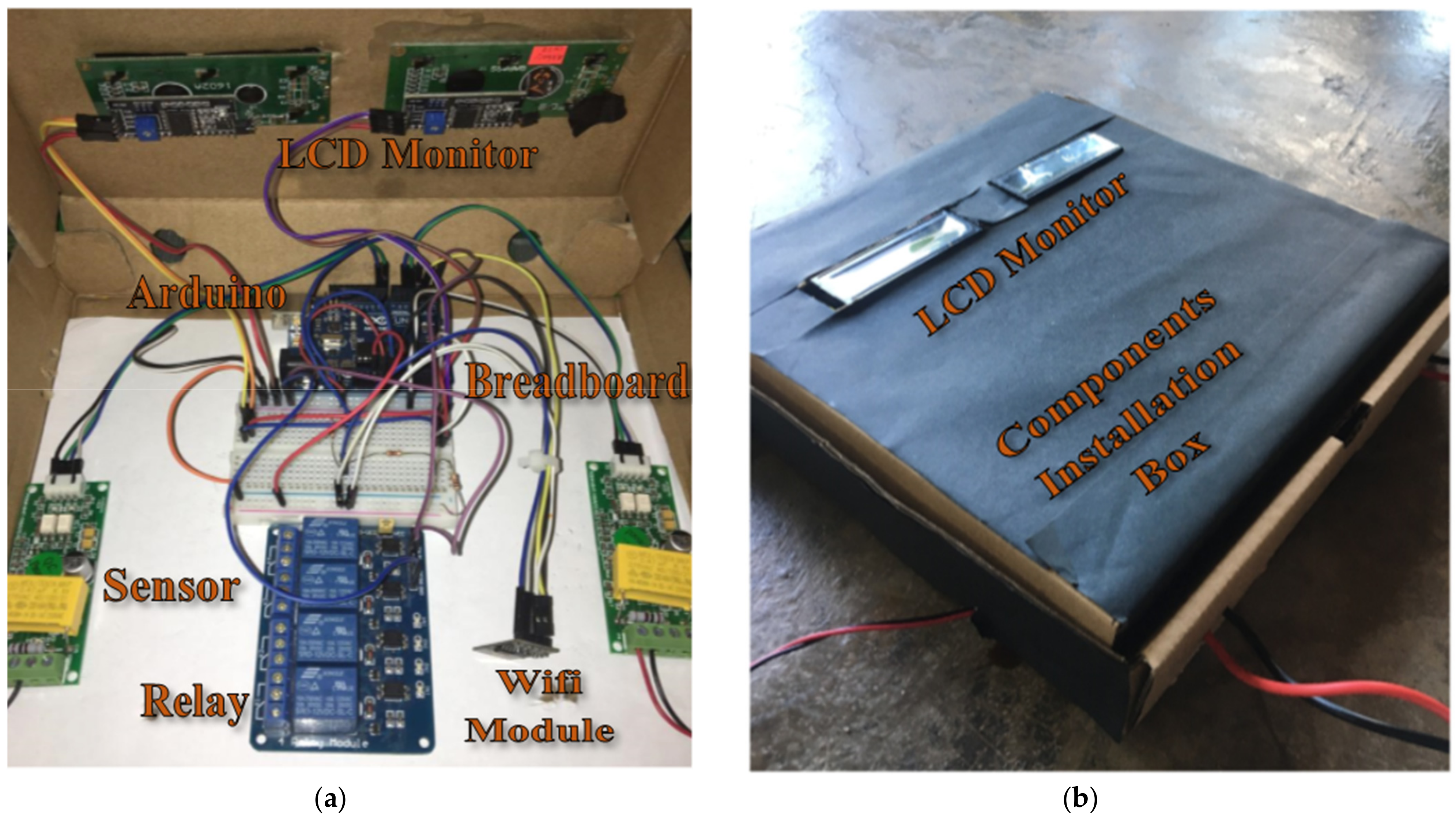

Figure 3. Developed ISHDB hardware prototype; (a) inside a box and (b) outside view.
Figure 3. Developed ISHDB hardware prototype; (a) inside a box and (b) outside view.
Designs 05 00055 g003
Designs 05 00055 g004 550

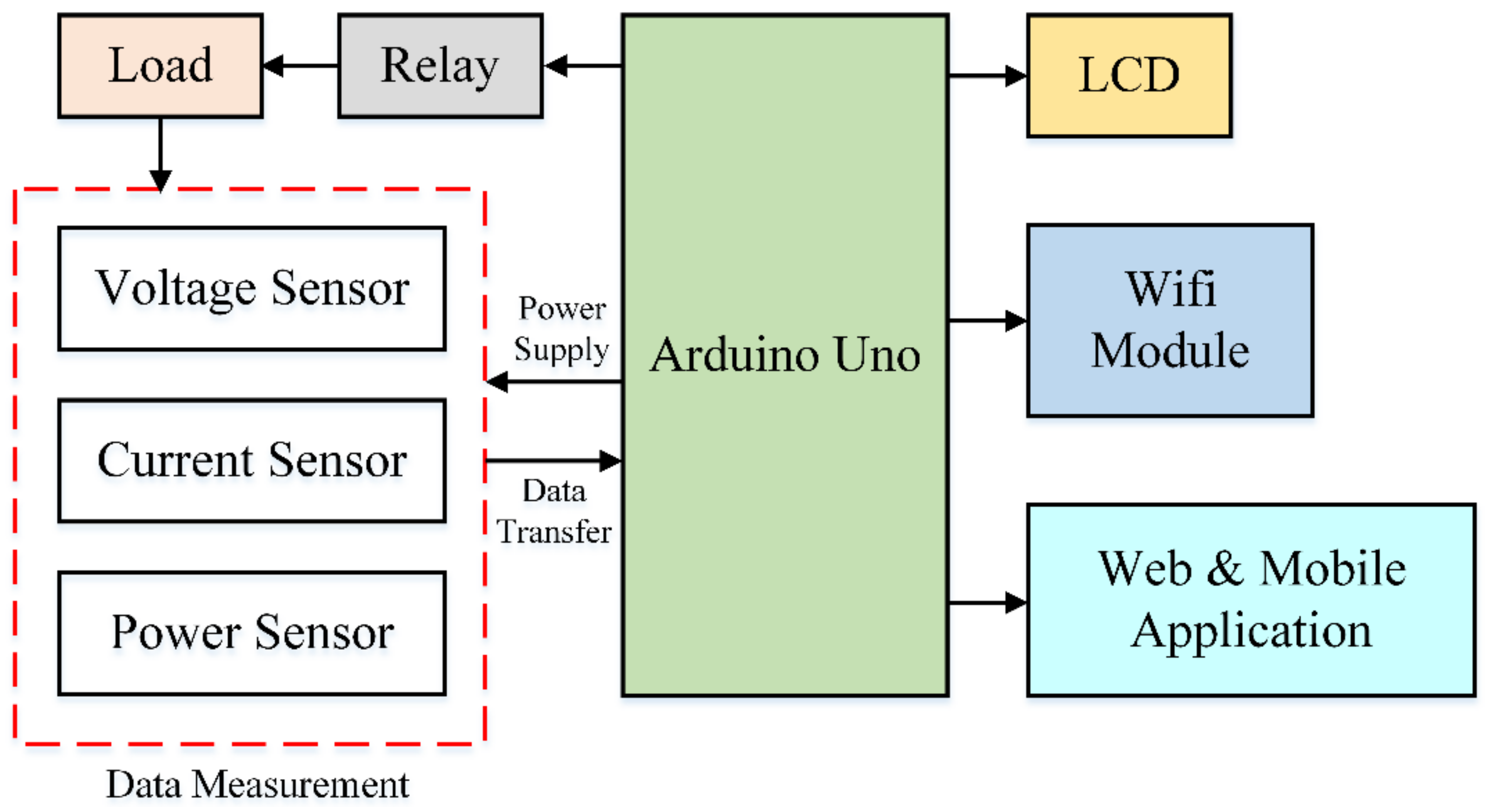

Figure 4. Block diagram of the developed ISHDB system.
Figure 4. Block diagram of the developed ISHDB system.
Designs 05 00055 g004
Designs 05 00055 g005 550

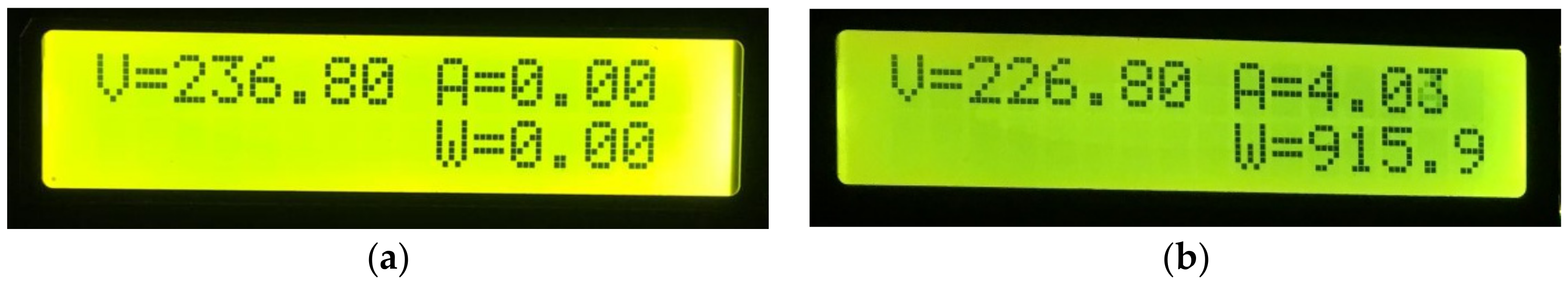

Figure 5. Measured data (a) without and (b) with connected load.
Figure 5. Measured data (a) without and (b) with connected load.
Designs 05 00055 g005
Designs 05 00055 g006a 550Designs 05 00055 g006b 550

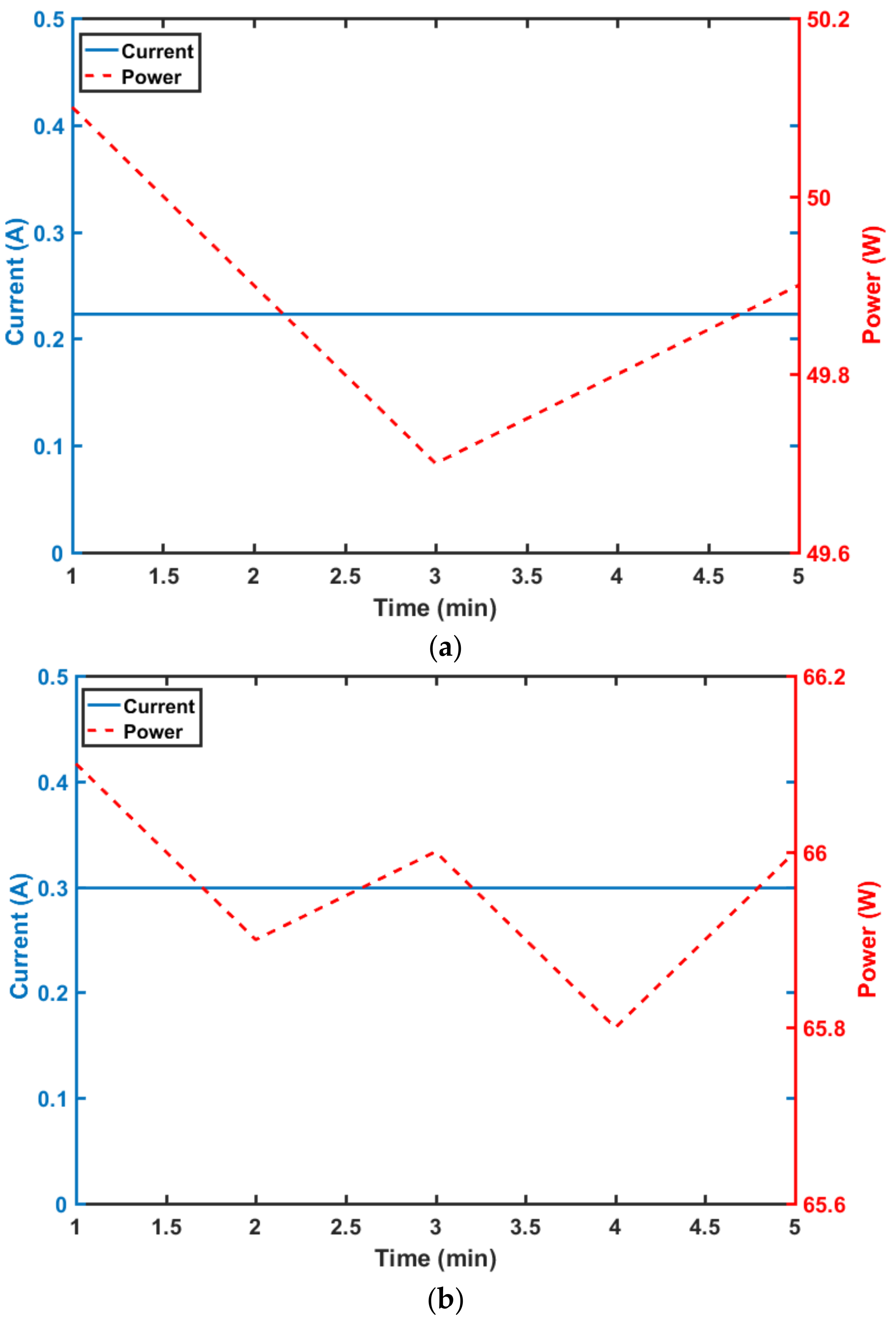

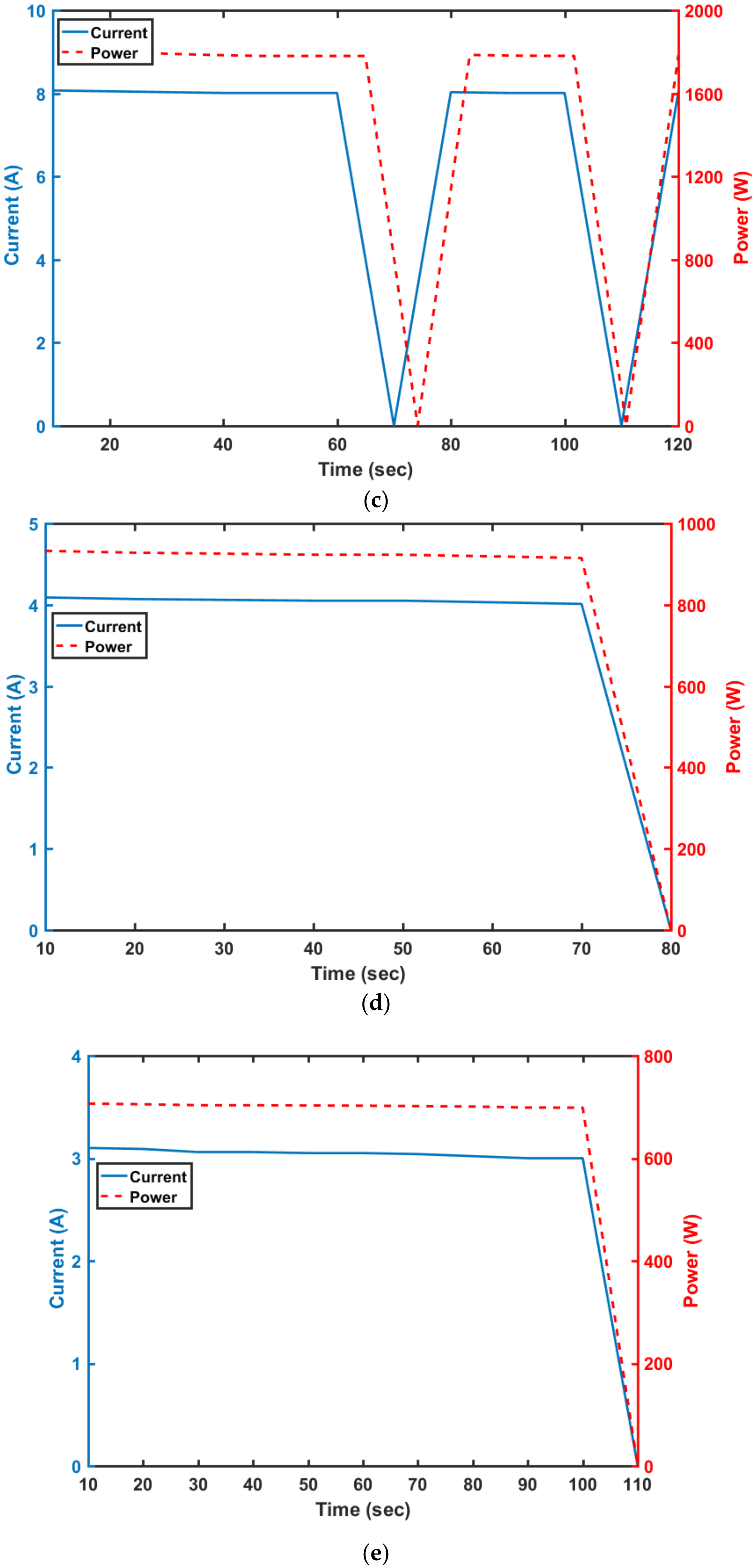

Figure 6. Experimental results for a (a) 55-W standing fan, (b) 105-W TV, (c) 1800-W garment steamer, (d) 1000-W iron, and (e) 800-W roaster.
Figure 6. Experimental results for a (a) 55-W standing fan, (b) 105-W TV, (c) 1800-W garment steamer, (d) 1000-W iron, and (e) 800-W roaster.
Designs 05 00055 g006aDesigns 05 00055 g006b
Designs 05 00055 g007 550

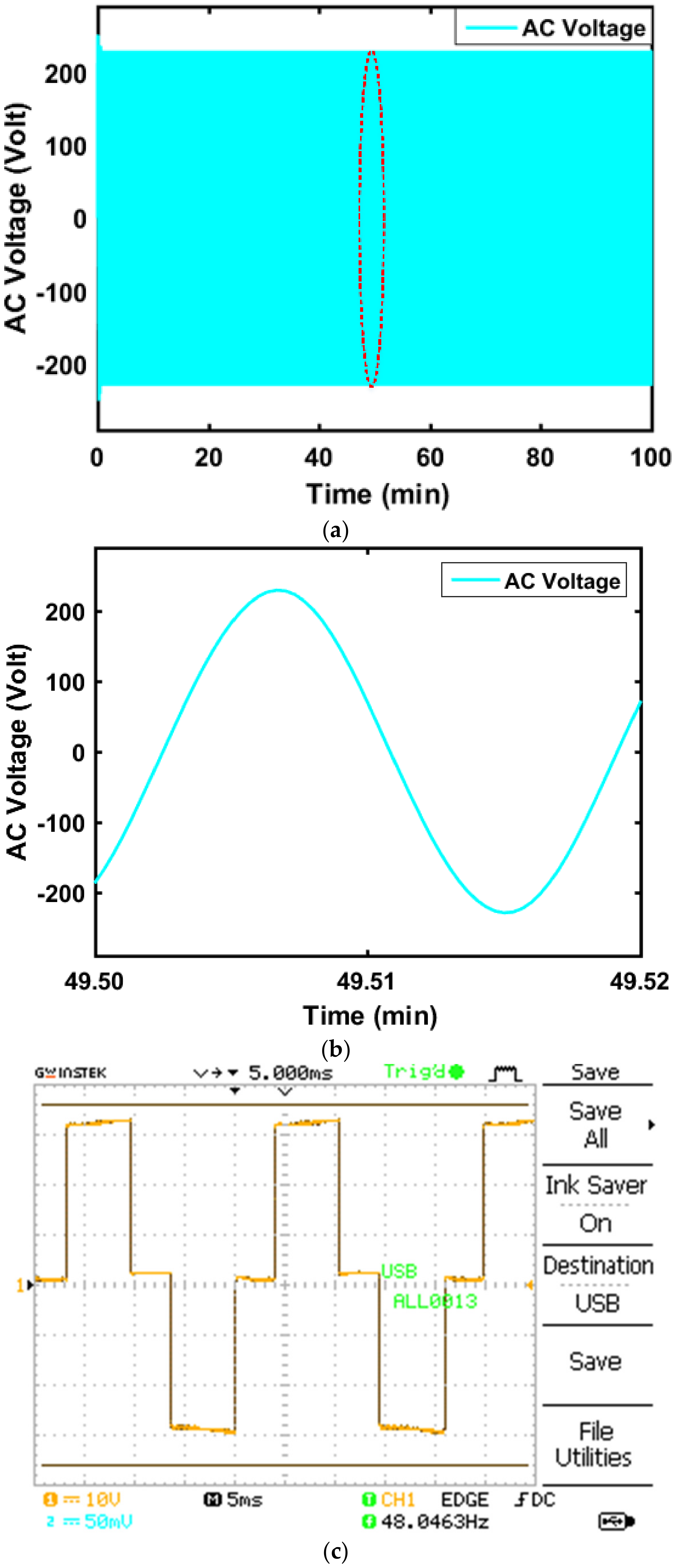

Figure 7. (a) AC voltage density, (b) Pure AC sine wave, and (c) Modified AC sine wave view on Oscilloscope.
Figure 7. (a) AC voltage density, (b) Pure AC sine wave, and (c) Modified AC sine wave view on Oscilloscope.
Designs 05 00055 g007
Designs 05 00055 g008a 550Designs 05 00055 g008b 550Designs 05 00055 g008c 550

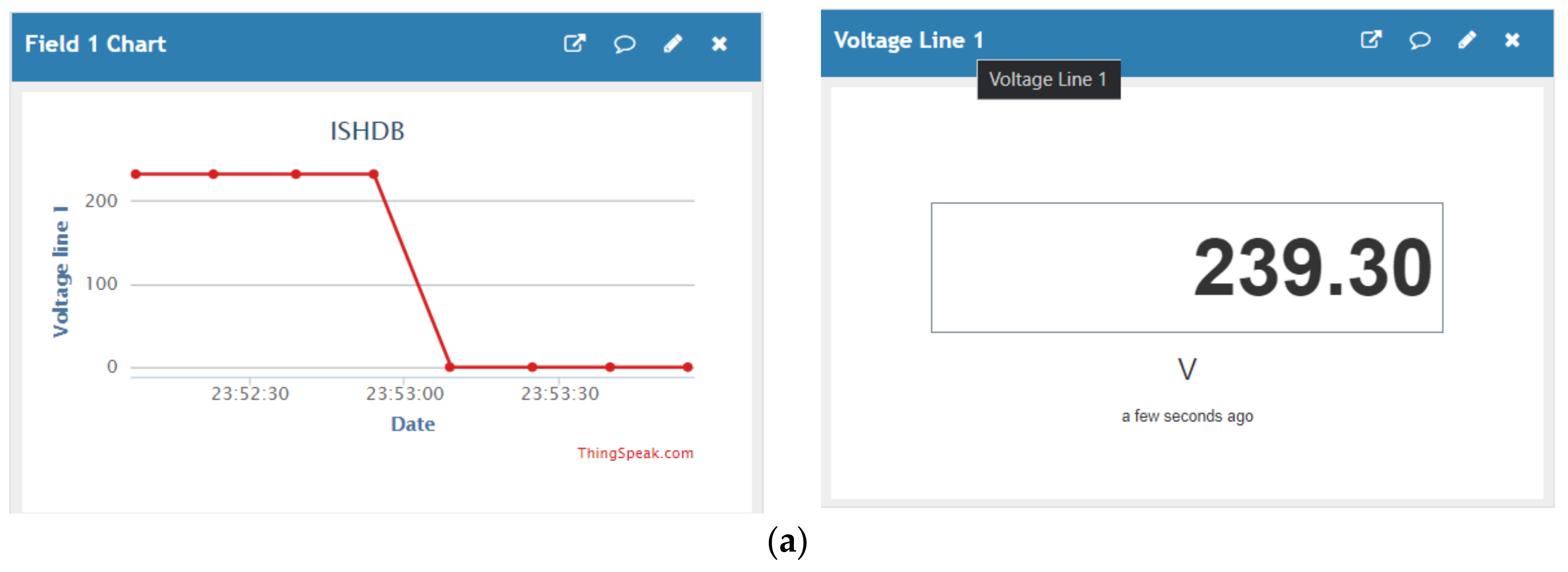

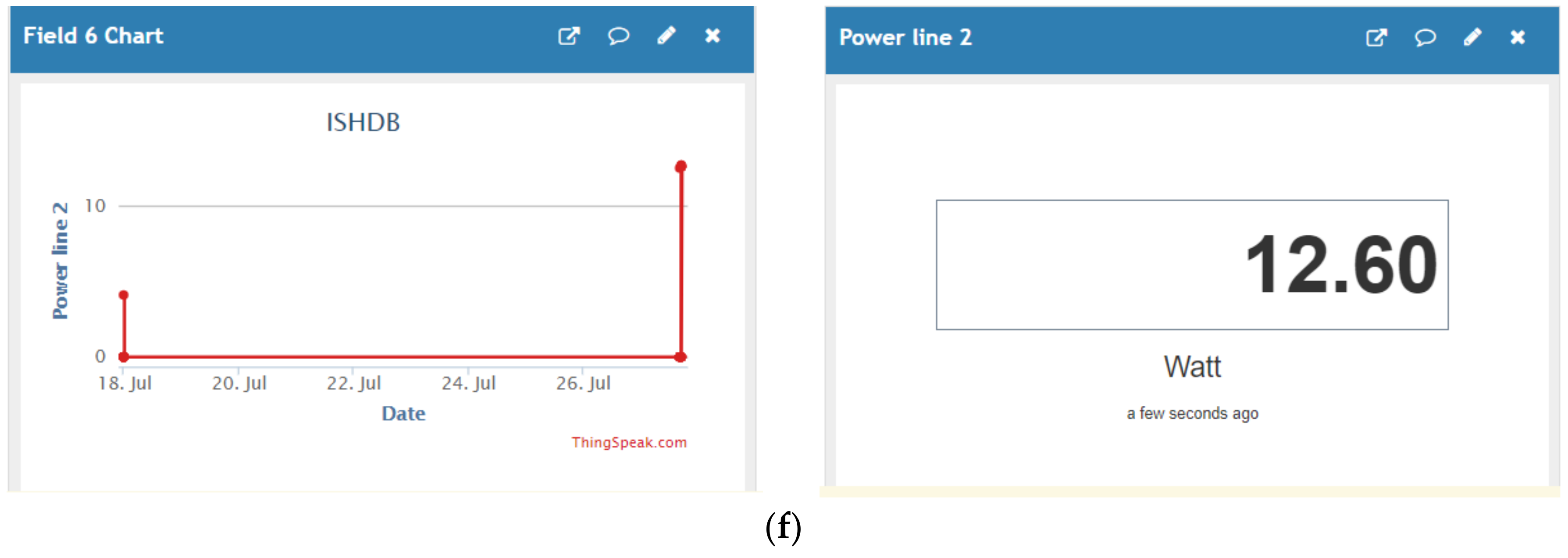

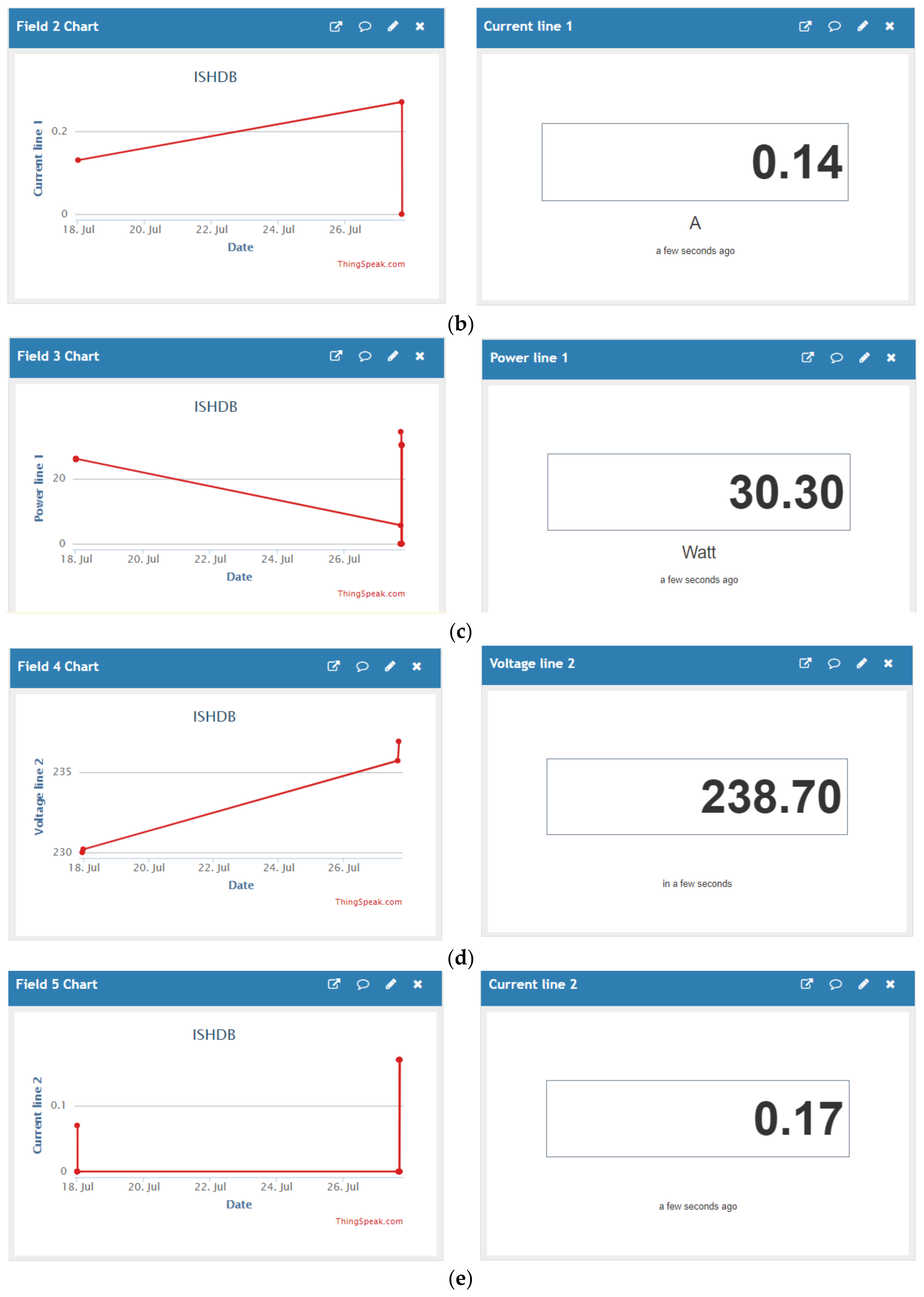

Figure 8. (a) Voltage of line 1 in field 1, (b) Current of line 1 in field 2, (c) Power of line 1 in field 3, (d) Voltage of line 2 in field 4, (e) Current of line 2 in field 5, and (f) Power of line 2 in field 6.
Figure 8. (a) Voltage of line 1 in field 1, (b) Current of line 1 in field 2, (c) Power of line 1 in field 3, (d) Voltage of line 2 in field 4, (e) Current of line 2 in field 5, and (f) Power of line 2 in field 6.
Designs 05 00055 g008aDesigns 05 00055 g008bDesigns 05 00055 g008c
Designs 05 00055 g009 550

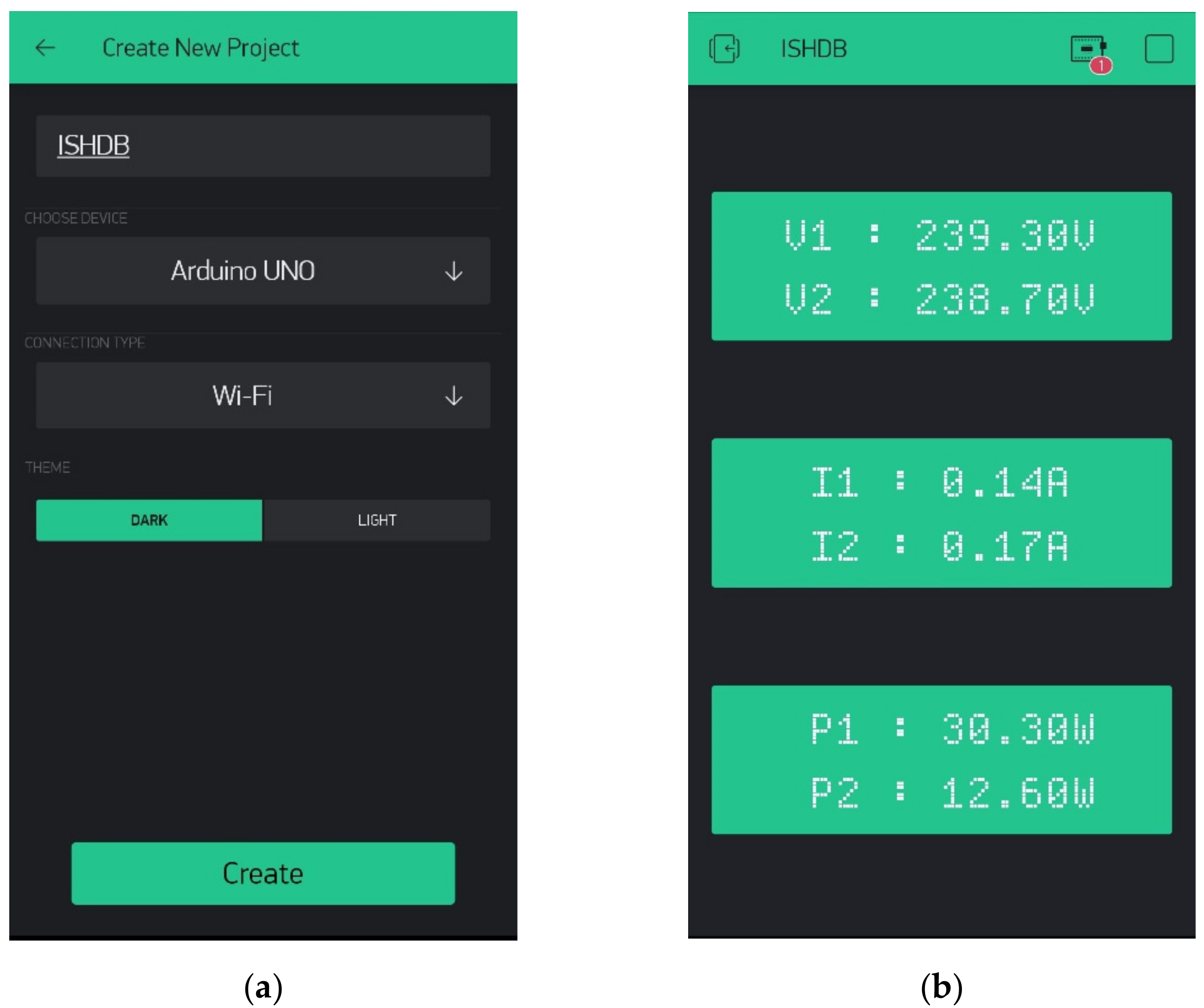

Figure 9. (a) Creating a new project in Blynk apps; (b) Complete visualisation of ISHDB parameters.
Figure 9. (a) Creating a new project in Blynk apps; (b) Complete visualisation of ISHDB parameters.
Designs 05 00055 g009
Table
Table 1. Survey on literature reviews.
Table 1. Survey on literature reviews.
YearReferenceFocus
2016[29]Monitor indoor appliances by ZigBee without actual implementation
2016[30]Indoor energy management by Bluetooth of a short range coverage
2017[31]Monitor indoor appliances by Bluetooth of a short range coverage
2018[32]Monitor home temperature and humidity
2020[33]Monitor home appliances by IoT
2021[34]IoT-aided home energy management
2021Proposed modelIoT-based smart household distribution board design
Table
Table 2. Comparison of the proposed method with other existing techniques.
Table 2. Comparison of the proposed method with other existing techniques.
ReferenceYearCommunicationControllerUser InterfaceApplicationsTime Span (s)Cost (US $)
[60]2018Wi-FiNodeMCUWeb-Based, Mobile AppHome appliances monitoring--
[61]2019Wi-FiNodeMCUWeb-BasedControl indoor appliances--
[33]2020GSMRaspberry PI, GSM ModuleGUI-based, Mobile AppHome appliances monitoring30-
[34]2021Wi-FiRaspberry PI, ESP8266Web-Based, Mobile AppHome security, energy management monitoring15140
Proposed Model in this paper2021Wi-FiArduino, ESP8266Web-Based, Mobile AppHome appliances monitoring, energy management15100
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ahmed, M.M.; Qays, M.O.; Abu-Siada, A.; Muyeen, S.M.; Hossain, M.L. Cost-Effective Design of IoT-Based Smart Household Distribution System. Designs 2021, 5, 55. https://doi.org/10.3390/designs5030055

AMA Style

Ahmed MM, Qays MO, Abu-Siada A, Muyeen SM, Hossain ML. Cost-Effective Design of IoT-Based Smart Household Distribution System. Designs. 2021; 5(3):55. https://doi.org/10.3390/designs5030055

Chicago/Turabian Style

Ahmed, Musse Mohamud, Md Ohirul Qays, Ahmed Abu-Siada, S. M. Muyeen, and Md Liton Hossain. 2021. "Cost-Effective Design of IoT-Based Smart Household Distribution System" Designs 5, no. 3: 55. https://doi.org/10.3390/designs5030055

APA Style

Ahmed, M. M., Qays, M. O., Abu-Siada, A., Muyeen, S. M., & Hossain, M. L. (2021). Cost-Effective Design of IoT-Based Smart Household Distribution System. Designs, 5(3), 55. https://doi.org/10.3390/designs5030055

Article Metrics

Back to TopTop
