Sonic Hedgehog and TDP-43 Participate in the Spontaneous Locomotor Recovery in a Mouse Model of Spinal Motoneuron Disease

Abstract

Several studies have attempted to repair the damaged spinal cord (SC) by stimulating neurogenesis or neuroplasticity, with limited success. Sonic hedgehog (Shh) is involved in neural induction and stem cell functioning, but recent findings also suggest its role in regeneration and functional recovery. Transactive response DNA-binding protein of 43 kDa (TDP-43) is a nuclear DNA/RNA binding protein involved in transcription and RNA processing. Recent findings have reported cytoplasmic inclusions containing TDP-43 in amyotrophic lateral sclerosis. Although substantial attention has been given to the toxic effects of this protein, the functional role of TDP-43 remains largely unclear. We used a mouse model of neurotoxic motoneuron depletion to study the role of the above-described factors in the compensatory changes occurring after the lesion. The injection of cholera toxin-B saporin into the gastrocnemius muscle caused a partial motoneuron death accompanied by an impairment of locomotion. Interestingly, motor activity was significantly restored as soon as one month later. Moreover, we observed an activity-dependent modification of Shh and synaptic proteins: synapsin-I and α-amino-3-hydroxy-5-methyl-4-isoxazolepropionate (AMPA) receptors. Notably, the motor performance of lesioned animals correlated with the expression of synapsin-I and Shh. Conversely, the expression of Shh significantly correlated with the levels of synapsin-I, GluR2, and TDP-43. The results suggest that Shh and TDP-43 are crucial parts of a complex mechanism of neuroplasticity in a mouse model of SC motoneuron disease.

1. Introduction

An emerging approach to central nervous system (CNS) repair after injury or neurodegeneration involves the activation of endogenous neural stem/precursor cells (NSCs/NPCs). Multipotent NSCs/NPCs are also present in the mammalian spinal cord (SC) [1,2] and they can be mobilized after SC injury (SCI), although their ability to generate neurons appears limited [2,3,4].

Another process that could be responsible for functional recovery after SCI is synaptic plasticity [5,6]. Previous studies in our laboratory have shown some mechanisms of SC plasticity in a mouse model of motoneuron depletion induced by intramuscular injection of the retrogradely transported, ribosome-inactivating toxin, cholera toxin-B saporin (CTB-Sap) [7,8,9,10,11,12].

The molecular regulation of adult neurogenesis has been widely explored [13,14,15]. Among these, Sonic hedgehog (Shh) is particularly interesting: it is a secreted glycoprotein promoting proliferation of NPCs and their differentiation to neurons and oligodendrocytes, during both development and adulthood [16,17,18]; moreover, emerging evidences suggest that it could be involved in synaptic plasticity [10,19,20,21].

Transactive response DNA-binding protein of 43 kDa (TDP-43) is a nuclear DNA/RNA-binding protein involved in transcription and RNA processing [22,23,24]. TDP-43 was identified in the cytoplasmic inclusions typically observed in neurons and glial cells in amyotrophic lateral sclerosis (ALS), frontotemporal lobar degeneration, and Alzheimer disease [23,25,26]. Therefore TDP-43 aggregates could have toxic effects on motoneurons, however, other studies have associated some effects on motoneurons to the loss of function of theTDP-43 [23,27,28,29]. For instance, it has been found that TDP-43 could be localized in the synapses, likely affecting the local RNA translation and acting as a neuronal activity-responsive factor [30,31]. Interestingly, TDP-43 could also have a role in the motoneuron synaptic function and plasticity [28,32,33,34].

Here, we sought to analyze the role of Shh and TDP-43 in modulating the SC plasticity in a mouse model of motoneuron degeneration obtained by CTB-Sap injection. In this model, the involvement of TDP-43 is particularly attractive, given the described role in neurodegenerative diseases including ALS. Moreover, given that Shh is known to regulate NSCs/NPCs function and SC plasticity [10,19,20], we wanted to test the hypothesis that Shh and TDP-43 could cooperate in modulating the spontaneous SC plasticity and the subsequent functional recovery after a partial removal of lumbar motoneurons. The worsening and the subsequent recovery of locomotion were evaluated after neurotoxic lesion, in relation to the expression levels of Shh and TDP-43. The results showed that the expression of synaptic proteins and Shh are linked to that of TDP-43. Moreover, their expression is activity-dependent and linked to the locomotor performance of lesioned animals.

2. Materials and Methods

Young adult male mice (n = 40) (Charles River, Strain 129, 5 weeks old) were used. Animal care and handling were done in accordance with the EU Directive 2010/63/EU, as well as with the Italian law D.lgs. 26/2014. All efforts were made to minimize the number of animals used and their suffering. Surgical procedures were performed under deep anesthesia where necessary (isoflurane).

2.1. Neurotoxin-Induced Motoneuron Depletion

Motoneuron depletion was induced by injection of CTB-Sap (Advanced Targeting Systems, San Diego, CA, USA) into the medial and lateral gastrocnemius muscles (3.0 µg/3.0 µL per muscle), as previously described [10]. After the bilateral injection of the toxin, mice were allowed to survive for either one week (LES-1wk, n = 9) or one month (LES-1mo, n = 9). Sham-lesioned animals received an equal dose of CTB-only vehicle, and they were then sacrificed at the same time-points as lesioned ones (SHAM-1wk, n = 4; SHAM-1mo, n = 4). In order to perform the histological evaluation of the effects of CTB-Sap, eight mice were injected unilaterally and then sacrificed at either one week (n = 4) or one month (n = 4) after the lesion. Finally, a group of intact mice were used as normal controls for western blot experiments (NC; n = 6).

2.2. Grid Walk Test

All animals, except the unilaterally lesioned ones, were subjected to grid walk test to evaluate motor activity after neurotoxic lesion. All tests were performed blind to animal treatments, starting the day before lesion, and then repeated at one week and at one month after toxin injection. Mice had to walk across a 50-cm long runway made of round metal bars placed at variable distance and moved at every trial to prevent habituation. The animals had to cross the runway three times per session. The number of footfalls relative to both hindlimbs at every crossing of the runway were counted and divided by the corresponding number of steps. Then, we calculated the mean values between test repetitions.

2.3. Immunohistochemical Analyses and Microscopy

Unilaterally CTB-Sap injected animals were perfused transcardially with phosphate-buffered 4% paraformaldehyde. The lumbar SCs were dissected out, post-fixed for 1 h, and then soaked overnight in a phosphate-buffered 20% sucrose solution at 4 °C. Then, 20-µm-thick horizontal sections were cut on a freezing microtome and immunostained by using the following primary antibodies: mouse anti-ChAT (Immunological Sciences, Roma, Italy; Cat. No. MAB10838; Dilution 1:400); rabbit anti-synapsin-I (Abcam plc, Cambridge, UK; Cat. No. AB18814; Dilution 1:600), or goat anti-Shh (Santa Cruz Biotechnology Inc., Dallas, TX, USA; Cat. No. sc-1194; Dilution 1:200). Briefly, sections were mounted on gelatin-coated slides, incubated for 1 h in 5% normal donkey serum and 0.3% Triton X100 in PBS, and then overnight at +4 °C with the primary antibody solution containing 0.2% Triton X100 and 2% normal donkey serum. Sections were then rinsed in PBS and incubated for 1 h with the appropriate Alexa Fluor 488 or 568 donkey anti-mouse, anti-rabbit, or anti-goat secondary antibodies (Thermo Fisher, Waltham, MA, USA; dilution 1:1000), in PBS plus 2% normal donkey serum and 0.2% Triton X100. Then, sections were washed in PBS and counterstained for 5 min with DAPI (Life Technologies, dilution 1:20,000) in PBS. Negative controls were made by omitting the primary antibody. Slides were coverslipped with Permafluor (Thermo Fisher) and stored at 4 °C in the dark. Other series of sections were stained with cresyl violet, dehydrated, and mounted on slides. The imaging of stained sections was carried out by means of bright field optical microscope or laser confocal microscope (Leica Microsystems S.p.A., Milano, Italy).

2.4. Western Blotting Quantification

After the last grid walk test session, bilaterally lesioned animals were sacrificed by decapitation. Lumbar SCs were dissected out and homogenized. Proteins (20 µg/sample) were separated on a 4–20% polyacrylamide gel and transferred to a nitrocellulose membrane. After blocking for 1 h with 5% non-fat dry milk, membranes were incubated for 2 h with one of the following primary antibodies: mouse anti-ChAT (Immunological Sciences Cat. No. MAB10838; Dilution 1:400), rabbit anti-synapsin-I (Abcam plc, Cat. No. AB18814; Dilution 1:1000), goat anti-Shh (Santa Cruz Biotechnology Inc., Cat. No. sc-1194; Dilution 1:500), goat anti-GluR2 (Santa Cruz Biotechnology Inc., Cat. No. sc-7610; Dilution 1:300), and rabbit anti-TDP43 (Cell Signaling, Danvers, MA, USA; Cat. No. 3449; Dilution 1:1000). Then, membranes were washed and incubated for 1 h with the appropriate peroxidase-conjugate goat anti-rabbit (Thermo Fisher; Cat. No. 1858415; Dilution 1:6000), goat anti-mouse (Thermo Fisher; Cat. No. 1858413; Dilution 1:6000), or rabbit anti-goat (Merck Millipore, Vimodrone, Italy; Cat. No. AP106P; Dilution 1:10,000) secondary antibodies. Peroxidase activity was developed by enhanced chemiluminescent substrate (Thermo Fisher; Cat. No. 34075) and acquired by an Uvitec Alliance LD2 (Uvitec, Cambridge, UK). Then, the protocol was repeated for quantification of actin, using a mouse anti-actin primary antibody (Merck Millipore, Cat. No. MAB1501; Dilution 1:700) followed by a goat anti-mouse secondary antibody (Thermo Fisher, Cat. No. 1858413; Dilution 1:5000). Digitalized grayscale images were used for optical density measurement by using ImageJ software. Density values were normalized to actin levels measured in the same membrane. All assays were performed in triplicate.

2.5. Statistical Analysis

Differences between lesioned and control groups in grid walk test and western blot data were evaluated by one-way ANOVA followed by Tukey’s post-hoc test.

In order to assess whether the motor performance could depend on the expression levels of the analyzed proteins, we performed linear regression and correlation. The same tests were used to verify if the expression levels of proteins were correlated with each other. p values of at least <0.05 were considered to be significant.

All analyses were performed by means of Systat 12 (Systat Software Inc., San Jose, CA, USA).

3. Results

All animals survived surgery, but two mice, belonging to the LES-1mo and SHAM-1wk groups, respectively, were excluded from the study due to surgical complications. Soon after CTB-Sap injection (2–3 days), mice showed a significant weakness of the hindlimbs, although they were still able to perform functional tests. Sham lesioned and normal groups did not differ from each other in terms of motor performance and western blot data. Therefore, these groups were pooled together in a single control group (CTRL).

3.1. Neurotoxic Motoneuron Depletion

The analysis of cresyl violet stained (Figure 1A,B) SC sections belonging to the unilaterally lesioned LES-1wk group demonstrated an evident motoneuron loss within the lumbar SC ventral horn (L4–L5 segments) ipsilaterally to the injected muscles (Figure 1B), as compared to the contralateral side (Figure 1A). The observed motoneuron depletion (about 35%, as estimated by counting cresyl-violet stained motoneuron profiles in four horizontal sections per animal) was similar at one month after the lesion, as shown previously [21].

3.2. Locomotor Activity after CTB-Sap Lesion

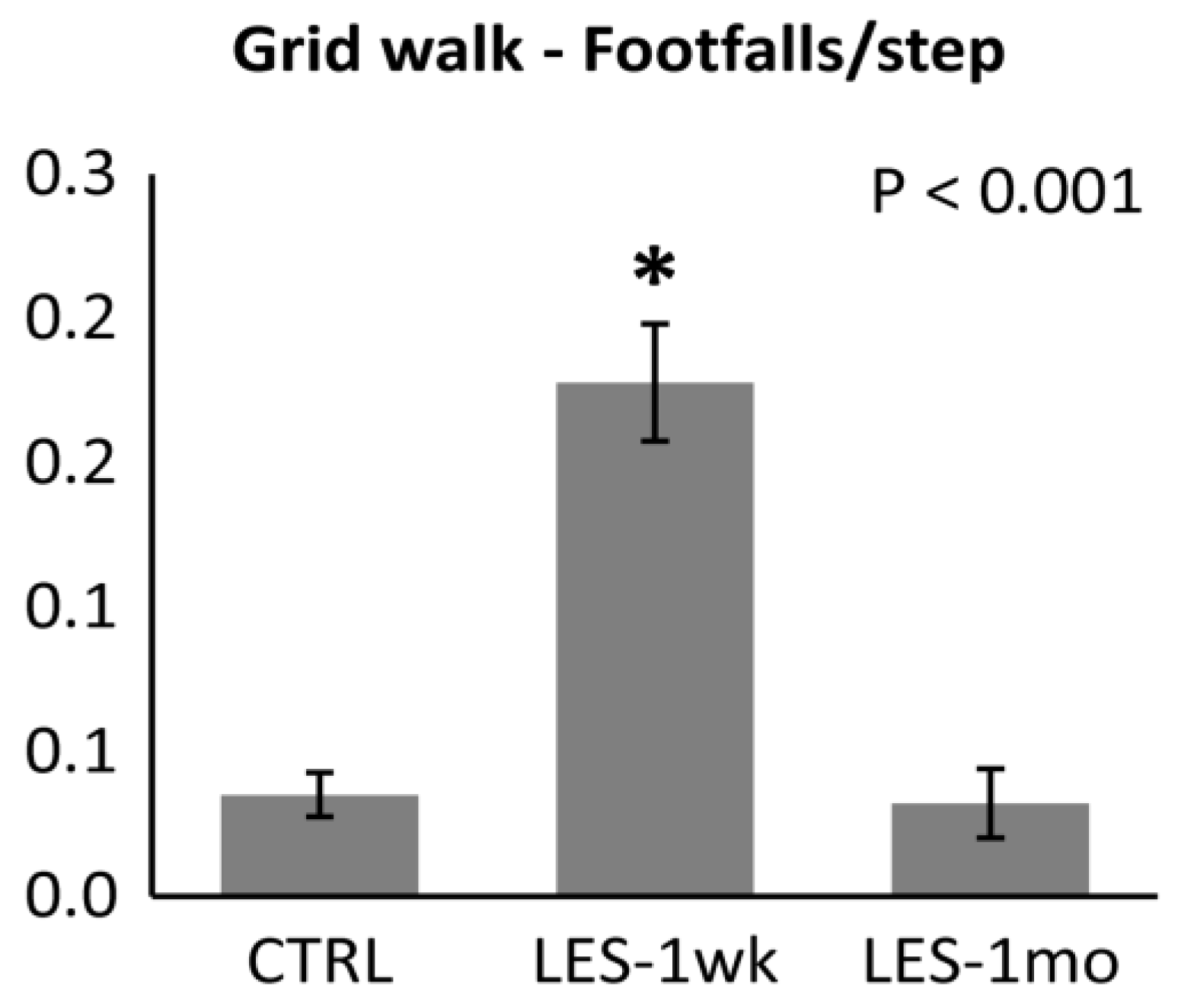

The neurotoxic lesion significantly affected the motor performance at the grid walk test (one-way ANOVA: p < 0.001; Figure 2). In particular, one week after the lesion, lesioned animals showed a five-fold increase of the number of footfalls/step (Tukey’s post-hoc test: p < 0.001; Figure 2). Interestingly, one month after the lesion, mice showed a significant 3.5-fold reduction of the number of errors (Tukey’s post-hoc test: p < 0.001; Figure 2), thus reaching a motor performance similar to control levels (Tukey’s post-hoc test: p > 0.05; Figure 2).

3.3. Protein Expression after CTB-Sap Lesion

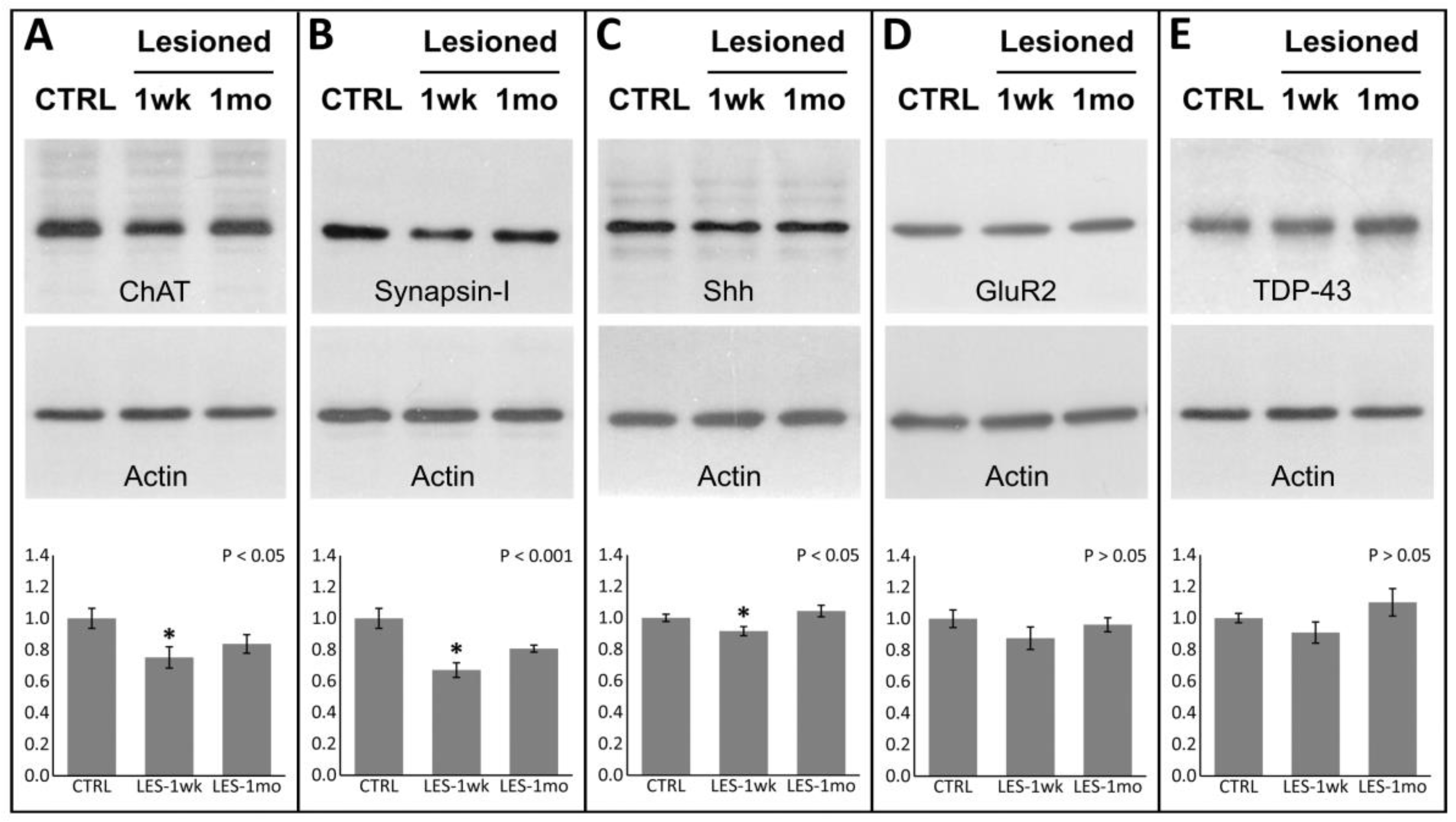

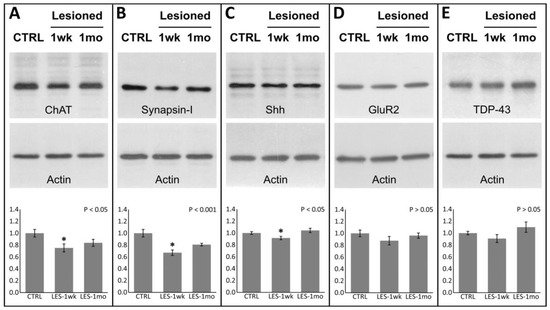

The analysis of western blot data revealed a significant (one-way ANOVA: p < 0.05; Figure 3A) 24 ± 6% decrease of the average ChAT expression at one week after the lesion (Tukey’s post-hoc test: p < 0.05; Figure 3A), which was restored to near-normal levels at one month (Tukey’s post-hoc test: p > 0.05; Figure 3A). Similarly, the mean expression levels of synapsin-I in the lumbar SC decreased by 33 ± 4% at one week (one-way ANOVA: p < 0.001; Tukey’s post-hoc test: p < 0.01; Figure 3B) and appeared similar to control levels at one month after the lesion (Tukey’s post-hoc test: p > 0.05; Figure 3B). Moreover, the average levels of Shh at one week after the lesion showed a small but significant decrease (one-way ANOVA: p < 0.05; Tukey’s post-hoc test: p < 0.05; Figure 3C) by 8 ± 3%, which significantly increased at one month (Tukey’s post-hoc test: p < 0.05; Figure 3C). Western blot data were confirmed by immunofluorescence, showing an evident though transient decrease of ChAT, synapsin-I, and Shh at one week after the lesion (Figure 4). Conversely, the average expression levels of both GluR2 and TDP-43 were unaffected by the CTB-Sap lesion (One way ANOVA: p > 0.05; Figure 3D,E).

3.4. Linkage between Protein Expression Levels and Motor Performance

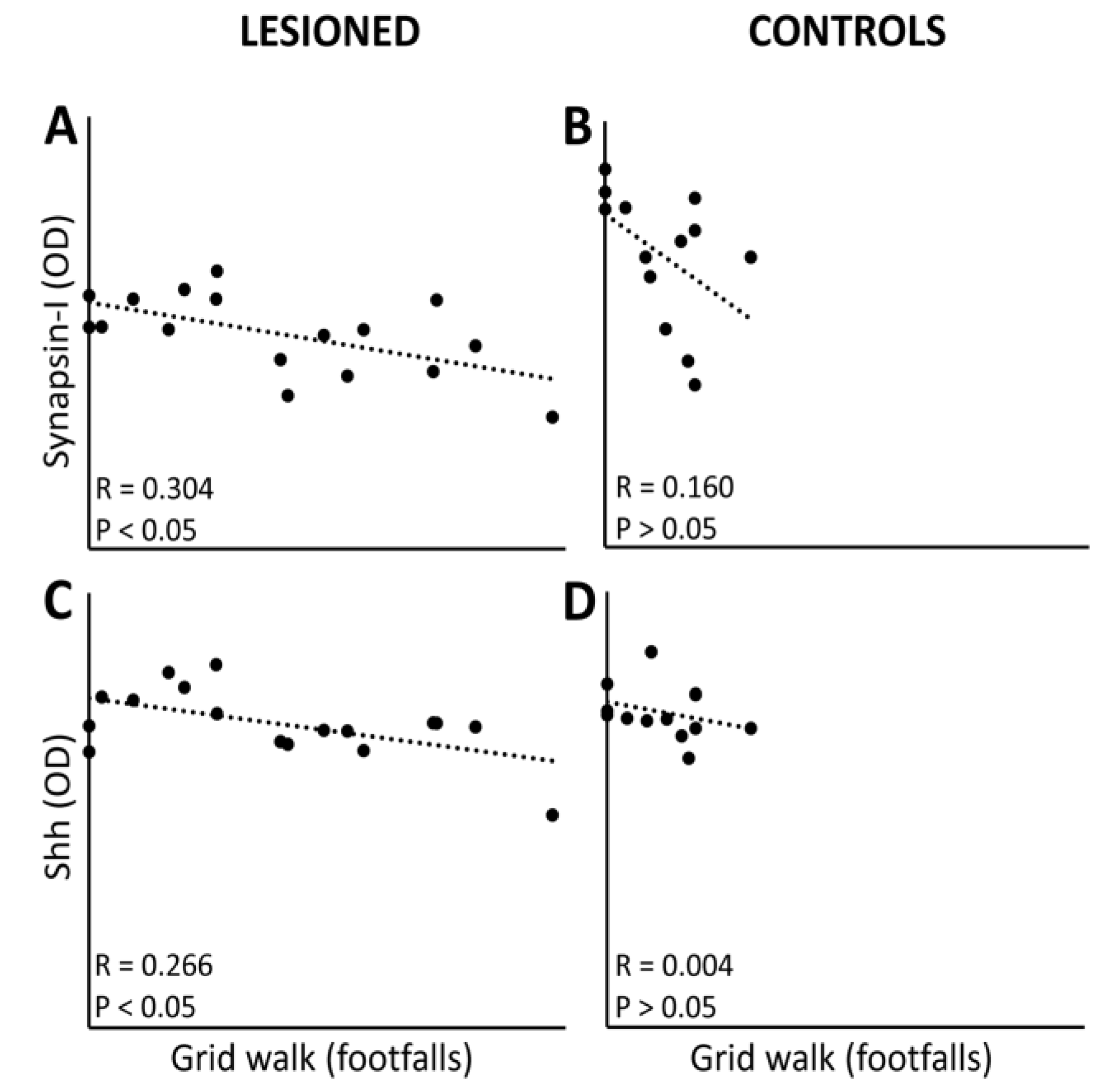

We sought to address the possibility that the worsening of functional performance after injury and/or the following recovery could be linked to the expression levels of the analyzed proteins in the lumbar SC. LES-1wk and LES-1mo groups were pooled together and the correlation between the functional performance at the grid walk test, as well as the expression levels of ChAT, synapsin-I, Shh, GluR2 and TDP-43 was carried out and the results are shown in Figure 5. Among the analyzed proteins, only synapsin-I (r = 0.304; p < 0.05; Figure 5A) and Shh (r = 0.266; p < 0.05; Figure 5C) were significantly correlated with grid walk performance in the lesioned animals, and the higher their expression levels, the better their locomotor ability appeared. Conversely, no significant correlations were found within the control group (Figure 5B,D).

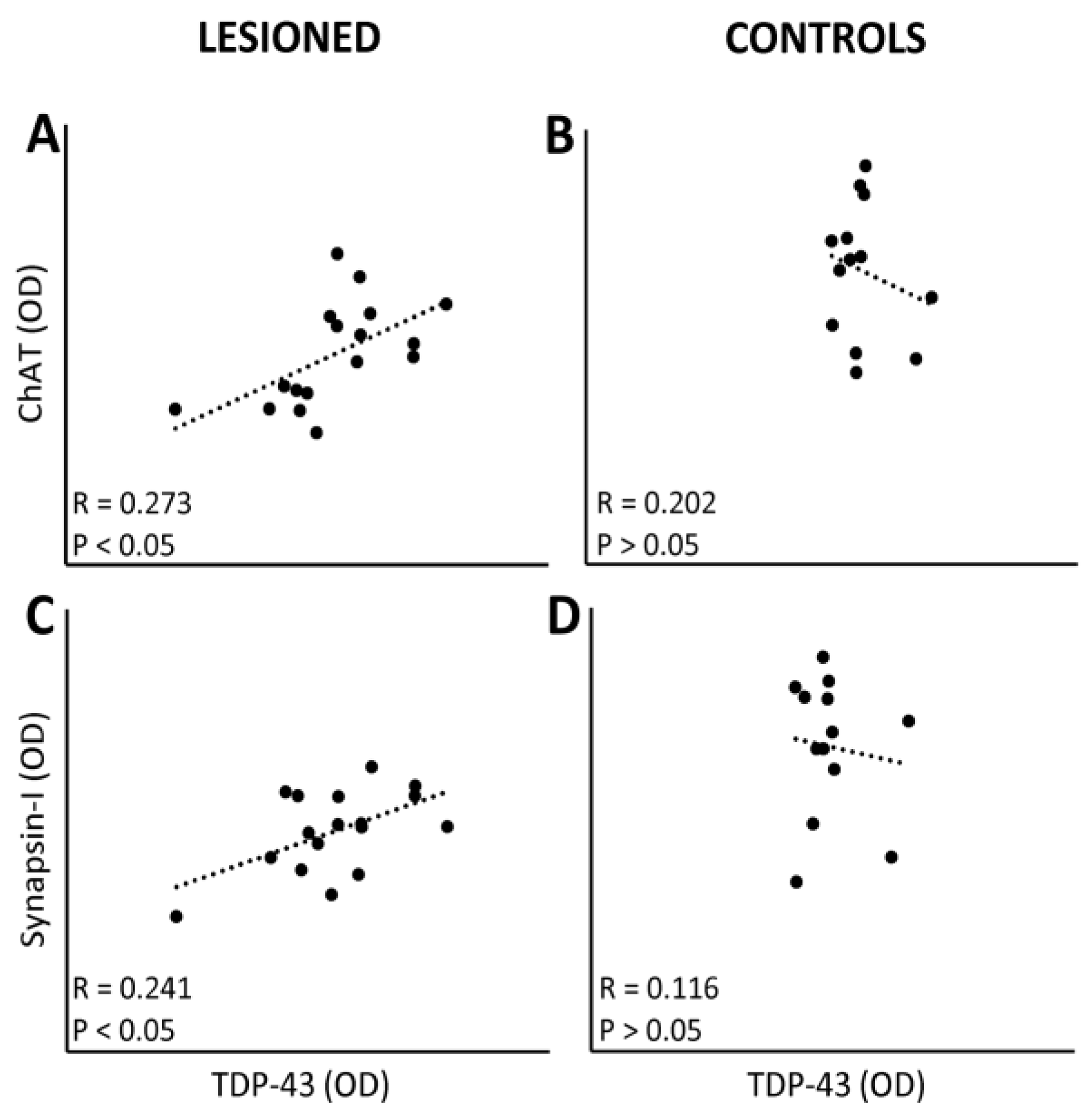

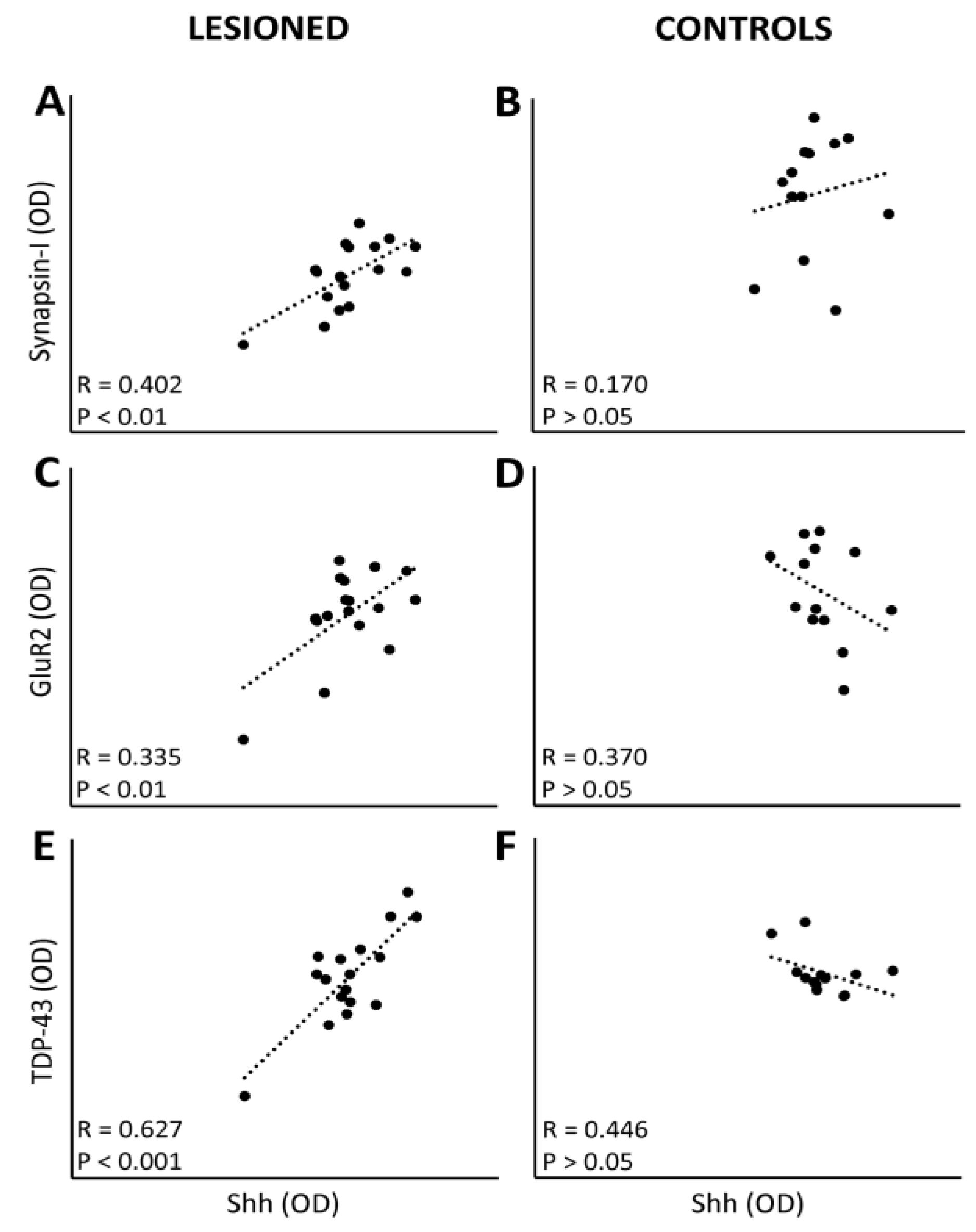

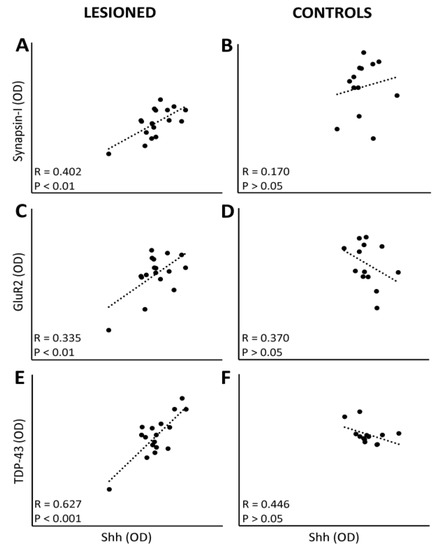

Then, we verified if the analyzed proteins could be associated with each other. The results showed that the expression levels of synapsin-I correlates with both Shh (r = 0.402; p < 0.01; Figure 6A) and TDP-43 (r = 0.241; p < 0.05; Figure 7C), and that Shh and TDP-43 strongly correlate with each other (r = 0.627; p < 0.001; Figure 6E), suggesting a role of both proteins in synaptic plasticity. Moreover, the expression levels of Shh correlate with those of GluR2 (r = 0.335; p < 0.01; Figure 6C), while the expression levels of TDP-43 also correlate with those of ChAT (r = 0.273; p < 0.05; Figure 7A). Again, all these correlations were significant only within the lesioned groups, whereas no associations between variables were found within the control group (Figure 6B,D,F and Figure 7B,D).

4. Discussion

In our previous studies [10,19,20,21], a neurotoxic model of SC motoneuron removal was developed in order to study the subsequent compensatory changes within the SC circuitry. The injection of CTB-Sap into the gastrocnemius muscle caused a partial motoneuron loss accompanied by the impairment of hindlimb function. The motoneuron depletion was accompanied by a decrease of ChAT expression within the lumbar SC at one week after the lesion. Given that the majority of acetylcholine release within the SC derives from the motoneuronal activity [35,36], it is expected that the observed downregulation of ChAT could be produced mainly by the motoneuron loss, and in part by the resulting disruption of spinal circuitry. One month after the lesion, the expression levels of ChAT were partially restored, probably as a result of the recovery of synaptic activity within the lumbar SC, which was accompanied by the improvement of motor performance, even though the motoneuron loss was permanent. Therefore, we can argue that the restoration of both ChAT expression and motor activity could be sustained by an increased activity of the spared motoneurons. Conversely, the increased motoneuron activity could probably be supported by an upregulation of synaptic efficacy within the surrounding spinal circuitry. This assumption is confirmed by the expression levels of synapsin-I in the lumbar SC, which decreased after lesion and then recovered, similarly to ChAT, at one month, in an activity-dependent fashion. In fact, synapsin-I is a synaptic vesicle protein whose synthesis and phosphorylation state have been linked to synaptic strength [37,38,39]. Similarly to ChAT and synapsin-I, Shh expression was downregulated at one week after the lesion and then restored at one month. This evidence suggests that the expression of these proteins could be activity-dependent and probably linked to a compensatory increase of neuronal activity after neurotoxic cell death and the consequent disruption of SC circuitry. The activity-dependent regulation of synapsin-I and Shh was confirmed by the correlation of their expression levels with the grid walk performance. The involvement of synapsin-I in functional recovery after SCI is well-known and it has been previously shown also in our lab, in models of both neurotoxic or traumatic SCI [6,10,40]. On the other hand, the role of Shh in synaptic plasticity is relatively novel and preliminary evidence from other studies have previously been provided by us [10,19]. Functional studies are still ongoing to confirm this hypothesis. Here, the involvement of Shh in synaptic plasticity was also suggested by its correlation with the expression levels of both synapsin-I and GluR2, which have pre- and post-synaptic roles in synaptic plasticity, respectively. Along with that of synapsin-I, the role of the AMPA receptor subunits in synaptic plasticity is important. In particular, it is known that the regulation of the calcium-permeable AMPA receptors is crucial for synaptic efficacy, and that the ion permeation is dependent on the amount of Q/R-unedited GluR2 subunits included in the AMPA channels [41,42]. For these reasons, the correlation with GluR2 subunit expression, observed in lesioned but not control animals, is noteworthy. Moreover, it is known that motoneurons in ALS have cytoplasmic inclusions of TDP-43 together with downregulation of the ADAR2 enzyme [27], with consequent alterations of GluR2 editing that make neurons more vulnerable to excitotoxic damage in ALS [43].

Moreover, the expression levels of ChAT, synapsin-I, and Shh correlate with those of TDP-43. This finding is novel and promising for a couple of reasons: for instance, it has been recently found that TDP-43 modulates the local translation of mRNAs at the synapse, thus participating in a complex regulation of synaptic strength [30,31]. Moreover, other recent findings have proven that the depletion of TDP-43 could cause locomotor deficits in Drosophila by affecting the synaptic function [28,32]. Interestingly, Shh seems to impact on synaptic plasticity by similar mechanisms, including the modification of the presynaptic terminal size, synaptic vesicle size, and postsynaptic currents [10,19,20,44]. Therefore, the strong correlation found between Shh and TDP-43 proteins could be due to a functional association, which requires a deeper investigation. It is noteworthy that this association is present only after lesion, although it is absent in normal conditions. The results together suggest differential roles of these proteins in the SC, in either physiological or pathological conditions.

Interestingly, as observed in our previous studies [10,21], a moderate cell proliferation occurred in the same SC area where neurotoxic removal of motoneurons took place. Double staining immunohistochemical studies have shown that virtually all of these proliferating cells were Glial Fibrillary Acidic Protein (GFAP)-positive astrocytes [10,21]. Glial reaction is a common response to tissue damage in the CNS [45,46], and our results indicate that this reaction could also occur after the neurotoxic degeneration of motoneuron, although its extent was limited, as demonstrated by the lack of GFAP increase in the lumbar SC after CTB-Sap lesion [21].

5. Conclusions

As previously mentioned, Shh is an important regulator of adult neurogenesis [16,18], so it is reasonable to assume that the observed downregulation of Shh could affect the glial reaction. It is therefore expected that an experimental overexpression of Shh signaling in the SC could increase NPCs proliferation, reduce glial reaction, and remove some of the factors that prevent neurogenesis. Moreover, the assumed participation of this factor in SC plasticity could be expected to result in multiple positive effects of such treatment to functional recovery. Given the increasing interest in TDP-43 in regards to several neurodegenerative diseases, including ALS [47,48], we believe that the elucidation of its physiological role in the SC would provide an important contribution. Moreover, we believe that further efforts to achieve SC repair by stimulating the intrinsic plastic potential of SC circuitries will produce interesting results.
