Maximum Power Point Tracking for Photovoltaic System by Using Fuzzy Neural Network

1
Basra Oil Training Institute, Basra 61001, Iraq
2
Department of Electrical Engineering, University of Misan, Misan 62001, Iraq
3
Department of Communication Engineering, Iraq University college, Basrah 61001, Iraq
4
School of Electrical Engineering and Computer Science, Faculty of Engineering and Informatics, University of Bradford, Bradford BD7 1DP, UK
*
Author to whom correspondence should be addressed.
Inventions 2019, 4(3), 33; https://doi.org/10.3390/inventions4030033
Received: 5 May 2019 / Revised: 12 June 2019 / Accepted: 24 June 2019 / Published: 26 June 2019

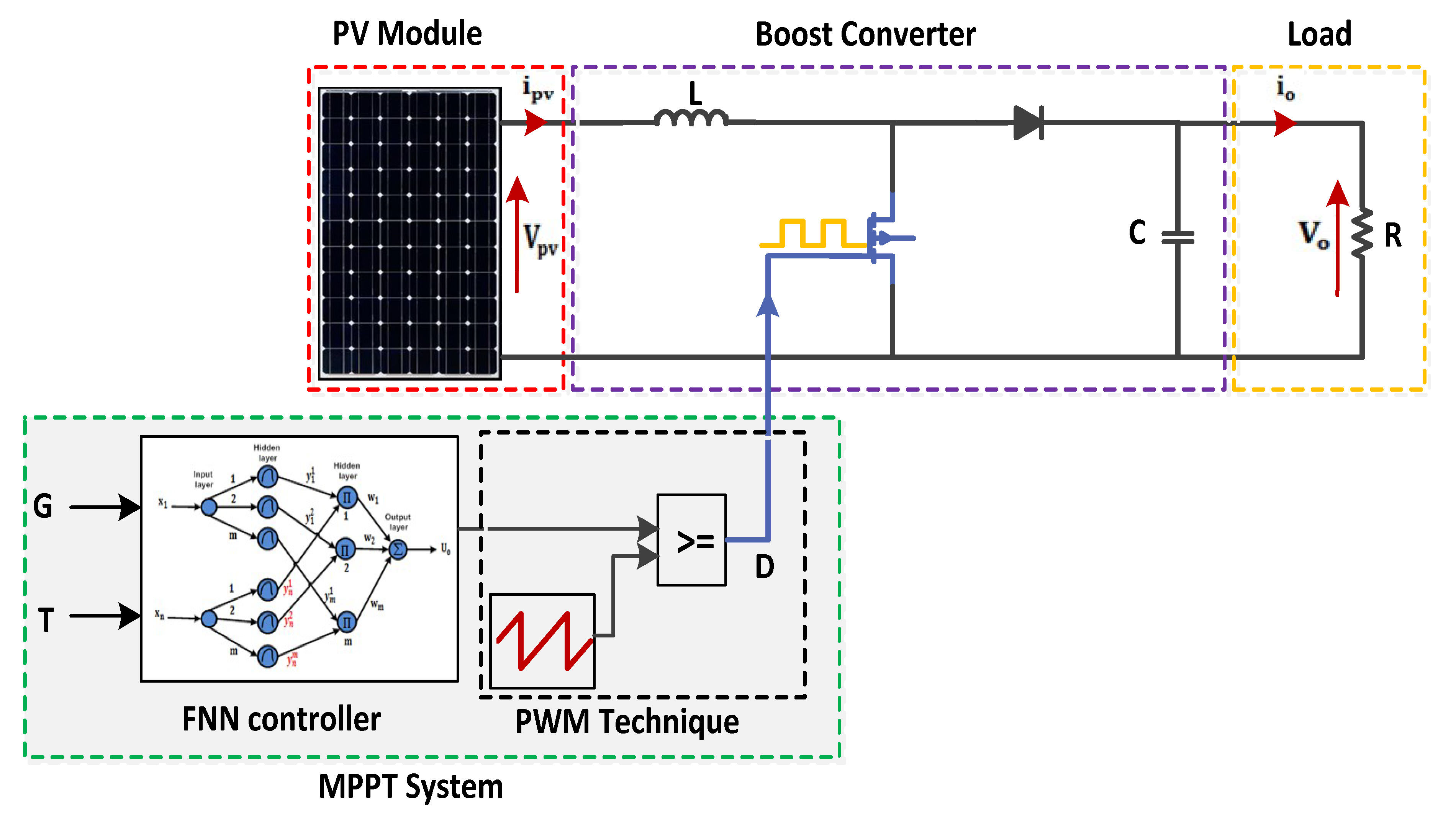

The electrical energy from the sun can be extracted using solar photovoltaic (PV) modules. This energy can be maximized if the connected load resistance matches that of the PV panel. In search of the optimum matching between the PV and the load resistance, the maximum power point tracking (MPPT) technique offers considerable potential. This paper aims to show how the modelling process of an efficient PV system with a DC load can be achieved using a fuzzy neural network (FNN) controller. This is applied via an innovative methodology, which senses the irradiance and temperature of the PV panel and produces an optimal value of duty ration for the boost converter to obtain the MPPT. The coefficients of this controller have been refined based upon previous data sets using the irradiance and temperature. A gradient descent algorithm is employed to improve the parameters of the FNN controller to achieve an optimal response. The validity of the PV system using the MPPT technique based on the FNN controller is further demonstrated via a series of experimental tests at different ambient conditions. The simulation results show how the MPPT technique based on the FNN controller is more effective in maintaining the optimal power values compared with conventional techniques. View Full-Text
Keywords: boost converter; fuzzy neural network controller; gradient descent algorithm; maximum power point tracking; photovoltaic system boost converter; fuzzy neural network controller; gradient descent algorithm; maximum power point tracking; photovoltaic system
