The Impact of Short-Range (Gaussian) Disorder Correlations on Superconducting Characteristics

Abstract

The pursuit of enhanced superconducting device performance has historically focused on minimizing disorder in materials. Recent research, however, challenges this conventional wisdom by exploring the unique characteristics of disordered materials. Following the studies, disorder is currently viewed as a design parameter that can be tuned. This shift in the paradigm has sparked an upsurge in research efforts, which demonstrates that disorder can significantly augment the superconductivity figures of merit. While almost all previous studies attended to the effects related to disorder strength, this article focuses on the impact of short-range disorder correlations that in real materials takes place, for example, due to lattice defects. The study shows that the degree of such correlations can strongly influence the superconducting characteristics.

1. Introduction

Minimizing disorder (static random potential of structural defects, impurities, etc.) in superconducting devices has traditionally been a focal point for enhancing their performance. Nevertheless, recent investigations conducted by multiple research groups [1,2,3] challenge the conventional wisdom, highlighting that the crystalline purity of materials is not the sole determinant for improving superconducting characteristics [4,5,6,7]. Novel strategies to enhance superconductivity now explore the unique characteristics of disordered materials as opposed to the complete elimination of disorder [8,9,10,11]. For instance, the presence of trap states in disordered systems may offer an effective means of enhancing the local order parameter by manipulating the matrix coupling elements, facilitating the concentration of Cooper pairs [12] as in the case of low-dimensional superconducting granular systems [13]. Disorder may also serve as a design parameter to control the local density of states in the vicinity of the Fermi level of superconducting materials [14,15,16]. This duality of the disorder impact has instigated further research to unravel its effects on superconducting characteristics, promising the development of a novel class of materials with highly sought-after attributes. In particular, manipulating the structural disorder can be employed as a controllable tool for tailoring the desired properties of superconducting materials [12,17,18,19,20].

This has led to the recent upsurge in scientific interest for studying the interplay between disorder and superconductivity in both the theoretical and experimental domains [21,22,23,24,25,26,27,28,29]. Prior research predominantly concentrated on investigating the impact of disorder strength to enhance the superconducting characteristics of materials. Consequently, we now acknowledge that disorder can significantly augment various superconductivity figures of merit. In particular, recent investigations demonstrated that remarkable enhancements in the superconducting properties of quasi-one-dimensional single crystals composed of weakly bonded MoSe chains and Na atoms are attributed to disorder [30]. Similarly, strong structural disorder leads to anomalously large improvements in superconductivity in TaS${}_2$ monolayers [31]. Disorder-related effects are believed to contribute to the substantial increase in the critical temperature in recently discovered NbSe${}_2$ superconducting monolayers [19]. Theoretical modeling by numerically solving microscopic theory equations in low-dimensional samples attributes this enhancement to the disorder-induced multi-fractal structure of electronic wave functions [2,3,12,32].

However, certain theoretical aspects of the disorder-related phenomena still remain unexplored. An important question that has received inadequate attention thus far pertains to a possible existence of disorder with spatial correlations (correlations in the positions of the imperfections). The prevailing theory of disordered superconductors heavily relies on spatially uncorrelated disorder, despite the fact that completely random disorder is rare in nature. In most materials, inhomogeneities reveal a certain spatially correlated structure. There is growing appreciation that such correlations can exert a profound influence on the fundamental properties of various disordered systems [33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59]. This problem is of relevance for understanding that the Anderson localization phenomenon in Bose–Einstein condensates, which determines their transport properties, is due to the presence of disorder [60,61,62,63,64].

Recently, the role of the long-range power law disorder correlations for zero-temperature superconducting characteristics was investigated [11]. The calculations have demonstrated that such correlations can alter the statistical properties of the Cooper pair correlations and the superconducting order parameter—the superconducting correlations are enhanced when the degree of the disorder correlations increases. In addition, researchers from the group led by A. Bianconi identified that within the superconductor lanthanum copper oxide, the arrangement of oxygen ions in the interstitial layers adjacent to the copper oxide adheres to a power law distribution. According to them, this distribution is a key determinant of the exceptional conduction characteristics exhibited by cuprates [65].

However, the impact of short-range Gaussian disorder correlations was beyond the scope of our previous work and has not been studied so far. In actual materials, short-range correlated disorder [66,67] can take place when the potential acting on electrons cased by lattice defects is spatially screened [68]. This study focuses on the effects introduced by short-range disorder correlations in superconducting systems. It demonstrates that such correlations significantly influence the superconducting characteristics that depend on the correlation degree. Their influence differs somewhat from that observed for the case of long-range power law correlations [69,70,71,72,73,74].

2. Model

To investigate the phenomenon of superconductivity characterized by s-wave pairing in the presence of correlated on-site disorder, we employ an attractive Hubbard model Hamiltonian, which is given by the following expression [75,76]:

$$\widehat{\mathcal{H}}=\sum _{i,j,\sigma }{t}_{ij}{\widehat{c}}_{i\sigma }^{†}{\widehat{c}}_{j\sigma }+\sum _{i,\sigma }(V_i-\mu ){\widehat{n}}_{i\sigma }-g\sum _{i,\sigma }{\widehat{n}}_{i\uparrow }{\widehat{n}}_{i\downarrow }.$$

(1)

In this equation, $\mu$ represents the chemical potential of the system, and ${\widehat{n}}_{i\sigma }={\widehat{c}}_{i\sigma }^{†}{\widehat{c}}_{i\sigma }$, where ${\widehat{c}}_{i\sigma }^{†}$ (${\widehat{c}}_{i\sigma }$) denotes the creation (annihilation) operator for an electron with spin $\sigma$ at site i within a two-dimensional lattice. The tunneling amplitude $t_{ij}$ is nonzero only for nearest neighbor sites, where $t_{ij}=-t$. The parameter $g>0$ represents the on-site coupling strength, and $V_i$ signifies the disorder potential. Our study focuses on a two-dimensional square lattice, and we use vector indices, with $i=(i_x,i_y)$, to denote lattice sites. From the Hamiltonian (1), we can derive the Bogoliubov–de Gennes (BdG) equations in a matrix form as shown in refs. [76,77]:

$$\left(\begin{array}{cc}\widehat{H}& \widehat{\mathsf{\Delta }}\\ {\widehat{\mathsf{\Delta }}}^{†}& -{\widehat{H}}^{†}\end{array}\right)\left(\begin{array}{c}\overrightarrow{u}\\ \overrightarrow{v}\end{array}\right)=E\left(\begin{array}{c}\overrightarrow{u}\\ \overrightarrow{v}\end{array}\right).$$

(2)

In this context, $\overrightarrow{u}$ and $\overrightarrow{v}$ are vectors with components $v_i=v\left({\mathbf{r}}_i\right)$ and $u_i=u\left({\mathbf{r}}_i\right)$, with ${\mathbf{r}}_i$ representing the position of lattice sites. The operators $\widehat{H}$ and $\widehat{\mathsf{\Delta }}$ have matrix elements defined as follows:

$$H_{ij}=t_{ij}+(V_i-\mu -U_i){\delta }_{ij},{\mathsf{\Delta }}_{ij}={\mathsf{\Delta }}_i{\delta }_{ij}.$$

Here, ${\delta }_{ij}$ is the Kronecker delta, and the order parameter ${\mathsf{\Delta }}_i$ and Hartree potential $U_i$ are determined through the self-consistency equations [22,78,79]:

$$\begin{array}{cc}\hfill & {\mathsf{\Delta }}_i=g\sum _n{u}_i^{\left(n\right)}{v}_i^{*\left(n\right)},\hfill \end{array}$$

(3)

$$\begin{array}{cc}\hfill & U_i=\frac{g}{2}\sum _{\sigma }\sum _n{\left|v_i^{\left(n\right)}\right|}^2,\hfill \end{array}$$

(4)

The Hartree self-consistency Equation (4) modifies the effective potential experienced by electrons in a disordered system. This modification plays a pivotal role when dealing with strong disorder and cannot be disregarded [21,80] as in the case of weakly disordered systems [81,82].

Disorder Model

Our computations are carried out utilizing a model that takes into consideration structural disorder, wherein the spatial correlations of the disorder potential in reciprocal space exhibit a Gaussian behavior as expressed by the equation:

$$S_V\left(q\right)\propto exp\left(-\frac{q^2{\alpha }^2}{2}\right).$$

(5)

We generate a spatial disorder potential series, denoted as $V_i$, indexed by $i=(i_x,i_y)$, with a spectral density function that satisfies the relation (5) using an improved version of the Fourier filtering method [83,84,85,86], summarized as the subsequent expression:

$$V_i\sim \frac{1}{N^2}\sum _{j_x,j_y=1}^{N/2}exp\left(-\frac{\left(q_{j_x}^2+q_{j_y}^2\right){\alpha }^2}{2}\right)cos\left({\mathbf{q}}_j{\mathbf{r}}_i+{\varphi }_j\right),$$

(6)

where ${\mathbf{q}}_j=(2\pi j_x/N,2\pi j_y/N)$ is a discrete inverse space vector with $j_{x,y}=1,\dots ,N$ and $q_j=\left|{\mathbf{q}}_j\right|$. Lastly, ${\varphi }_j$ denotes random phases that follow a uniform distribution in the interval $[0,2\pi )$. The amplitude of the disorder potential is characterized by the following quantity:

$$\mathcal{V}=\sqrt{\overline{V_i^2}},$$

(7)

where

$$\overline{V_i}=\frac{1}{N^2}\sum _i{\langle V_i\rangle }_s.$$

(8)

In this context, the numerical averaging represented by the overline is conducted over both lattice sites and the statistical distribution, with angular brackets ${\langle \cdots \rangle }_s$ denoting the statistical ensemble average. By construction, the resulting disorder correlation function has a short-range character. Moreover, it is Gaussian and stationary [83].

3. Results

In our research, we utilized a computational framework based on a square lattice with dimensions represented as $A=N\times N$, while incorporating periodic boundary conditions. To numerically solve the tight-binding Bogoliubov–de Gennes (BdG) Equation (2), we employed an iterative approach to ensure that the pairing self-consistency Equation (3) was satisfied within a predefined accuracy threshold [77,78]. For details of the numerical procedure employed, one can refer to [87,88,89]. For this study, we maintained a fixed lattice size of $N=24$, which we determined to be sufficiently large to minimize finite-sample artifacts [11]. We calculated the chemical potential $\mu$ to achieve an average electron density $n_e$ of 0.875 [21].

It is important to note that the fundamental findings in our study remain consistent regardless of the specific choice of $n_e$, as long as we operate far from the half-filling condition $n_e=1$ that brings an additional symmetry to the model. Our analysis was conducted within the strong pairing coupling regime $g=1t$ and with a very large Debye window, indicating that the coupling interactions encompassed all single-particle states. It is worth emphasizing that all energy quantities in our study are expressed in units of the hopping integral t.

Finally, we statistically averaged observable quantities over 20 independent realizations of disorder, with each set associated with specific values of $\mathcal{V}$ and $\alpha$. Further details about the numerical procedure used to construct the disorder potential can be found in ref. [11].

We generate various configurations of the disorder profile influenced by the disorder strength and the degree of disorder potential correlation, and address BdG equations to obtain the order parameter profile. For low disorder strength, the system possesses a predominantly uniform order parameter. As we introduce stronger correlations in the disorder, this uniformity becomes more pronounced, aligning with our prior findings on long-range correlations. When the disorder strength amplifies, the patterns exhibit higher contrast, signifying enhanced spatial variations in the order parameter [20]. As the disorder correlations intensify, the wavelength of these variations increases, in accordance with our observations in cases of disorder with power law correlations. Furthermore, comparing the result with the one obtained using a power law correlator, we notice that order parameter clusters are slightly smaller, and order parameter variability is slightly increased in the case of the Gaussian correlations.

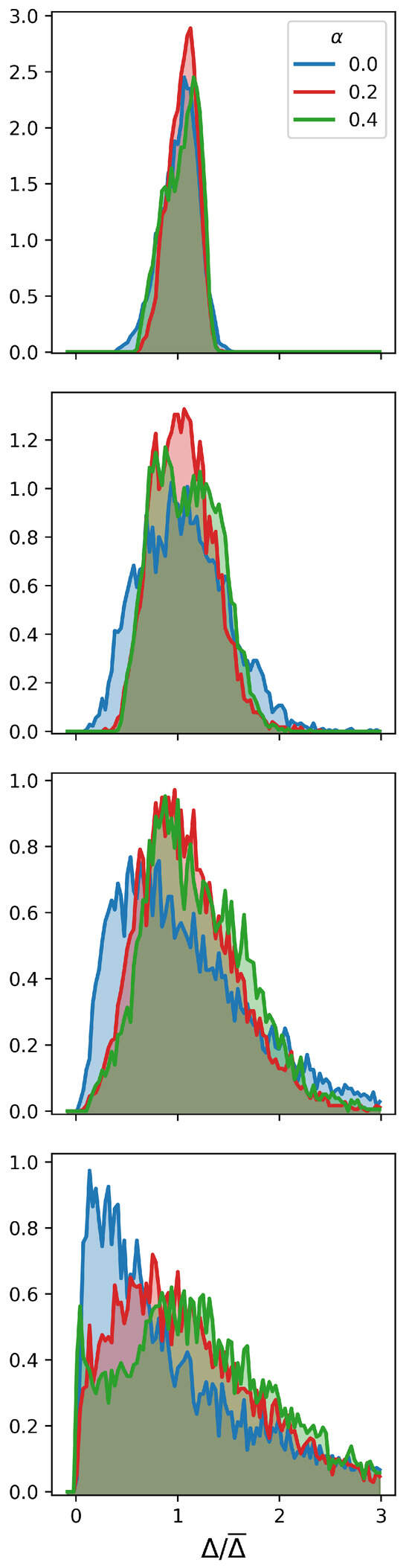

As a summary of these observations, Figure 1 displays the distribution of the absolute value of the order parameter ${\mathsf{\Delta }}_i$ for different levels of disorder strength $V=0.8;2.0;3.2;4.8$ arranged in rows. Different colors represent different $\alpha$ values: $0.0;0.2;0.4$. This distribution is shown as a function of the relative order parameter $\mathsf{\Delta }/\overline{\mathsf{\Delta }}$, where $\overline{\mathsf{\Delta }}=\overline{\left|{\mathsf{\Delta }}_i\right|}$ is the average order parameter. In a superconductor with uncorrelated disorder, this distribution is well described by the log-normal function.

At $\alpha =0$, the distribution $P\left(\mathsf{\Delta }\right)$ exhibits a single peak, with the order parameter $\mathsf{\Delta }$ approaching 0 as disorder increases. However, as disorder becomes short-range correlated and $\alpha \ne 0$, even in the presence of weak disorder, a second peak emerges in the distribution, particularly noticeable with larger $\alpha$ values. With increasing the disorder strength, both peaks shift towards $\mathsf{\Delta }=0$, but the second peak moves towards $\mathsf{\Delta }=0$ at a faster rate than the first peak. This leads to a distribution function with a narrow, prominent peak near $\mathsf{\Delta }=0$ and a broader peak at finite order parameter values. These results significantly differ from those obtained using a power law correlator, where a double-peak structure was only observed in cases of high disorder strength and degree of disorder correlations. Thus, for short-range disorder correlations, $P\left(\mathsf{\Delta }\right)$ begins to deviate from the lognormal form at smaller values of disorder strength and degree of correlations. Another distinction between these two correlators is that in the case of a power law correlator, $P\left(\mathsf{\Delta }\right)$ approaches a finite value as $\mathsf{\Delta }$ approaches 0 and has an opposite slope compared to the log-normal distribution. For the Gaussian correlator, however, $P\left(\mathsf{\Delta }\right)$ tends to 0 as $\mathsf{\Delta }$ approaches 0.

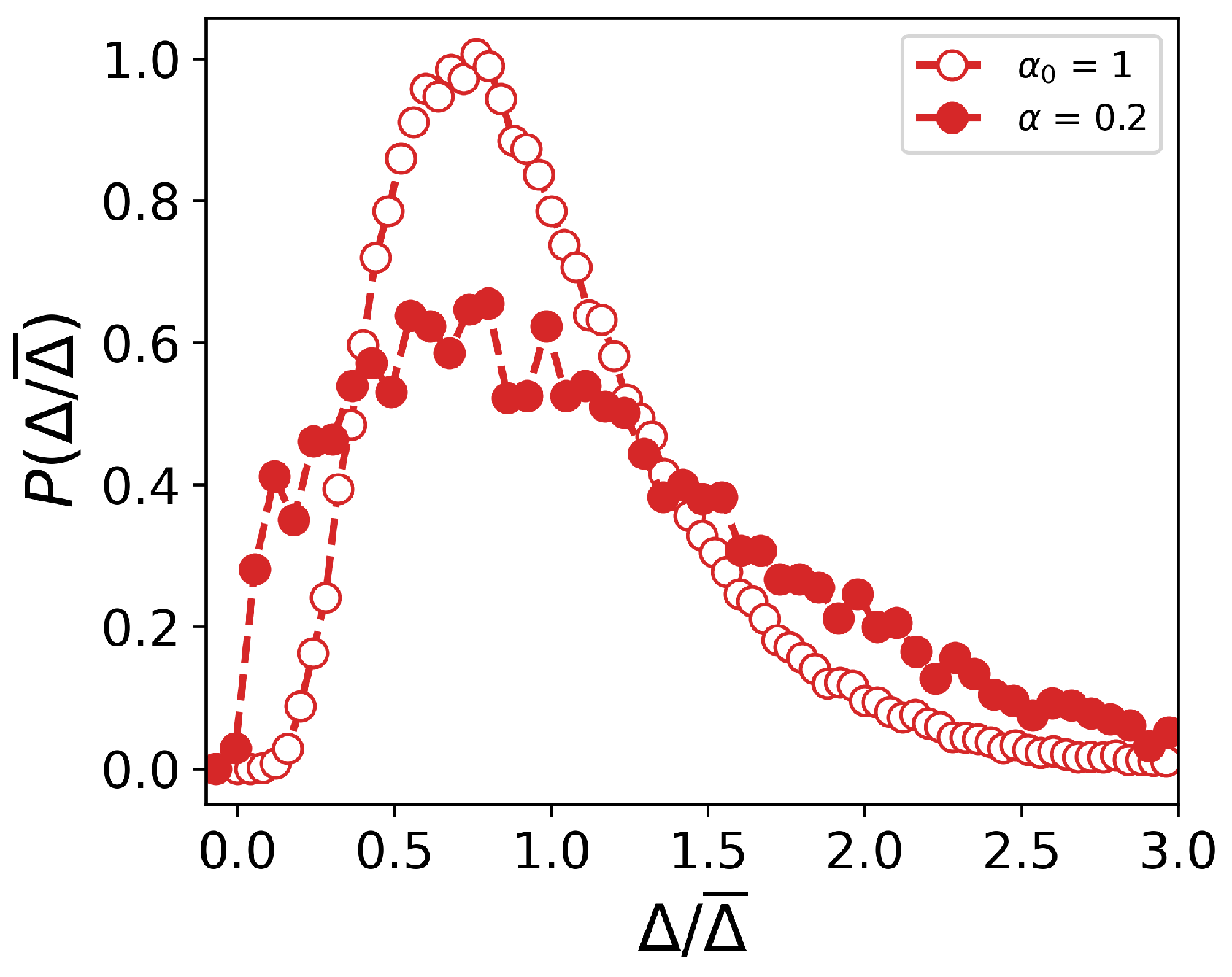

Figure 2 depicts the order parameter distribution in two models characterized by distinct spatial correlation decay laws: one following a power law and the other adhering to a Gaussian decay. Owing to the divergent physical meaning of $\alpha$ in the respective models, their absolute magnitudes differ. However, in both instances, $\alpha$ is chosen to ensure an equivalent effective correlation length. The findings reveal that under identical effective correlation lengths and disorder strengths, the model featuring Gaussian-correlated disorder manifests a broader order parameter distribution.

To quantify the spatial correlations of the order parameter, we introduce the correlation function $S_{\mathsf{\Delta }}\left({\mathbf{r}}_i,{\mathbf{r}}_j\right)$ defined as

$$S_{\mathsf{\Delta }}\left({\mathbf{r}}_i,{\mathbf{r}}_j\right)={\langle {\mathsf{\Delta }}_i^{*}{\mathsf{\Delta }}_j\rangle }_s=\sum _{nm}{〈u_i^{*\left(m\right)}{u}_j^{\left(n\right)}{v}_i^{*\left(m\right)}{v}_j^{\left(n\right)}〉}_s,$$

where $u_i^{\left(n\right)}$ and $v_i^{\left(n\right)}$ are eigenfunctions of the BdG Hamiltonian. In a homogeneous superconductor state, it approaches a constant equal to $|\overline{\mathsf{\Delta }}{|}^2$ at large distances, reflecting the off-diagonal long-range order in the mean-field approximation [90]. However, the disorder disrupts this long-range order and global superconducting correlations.

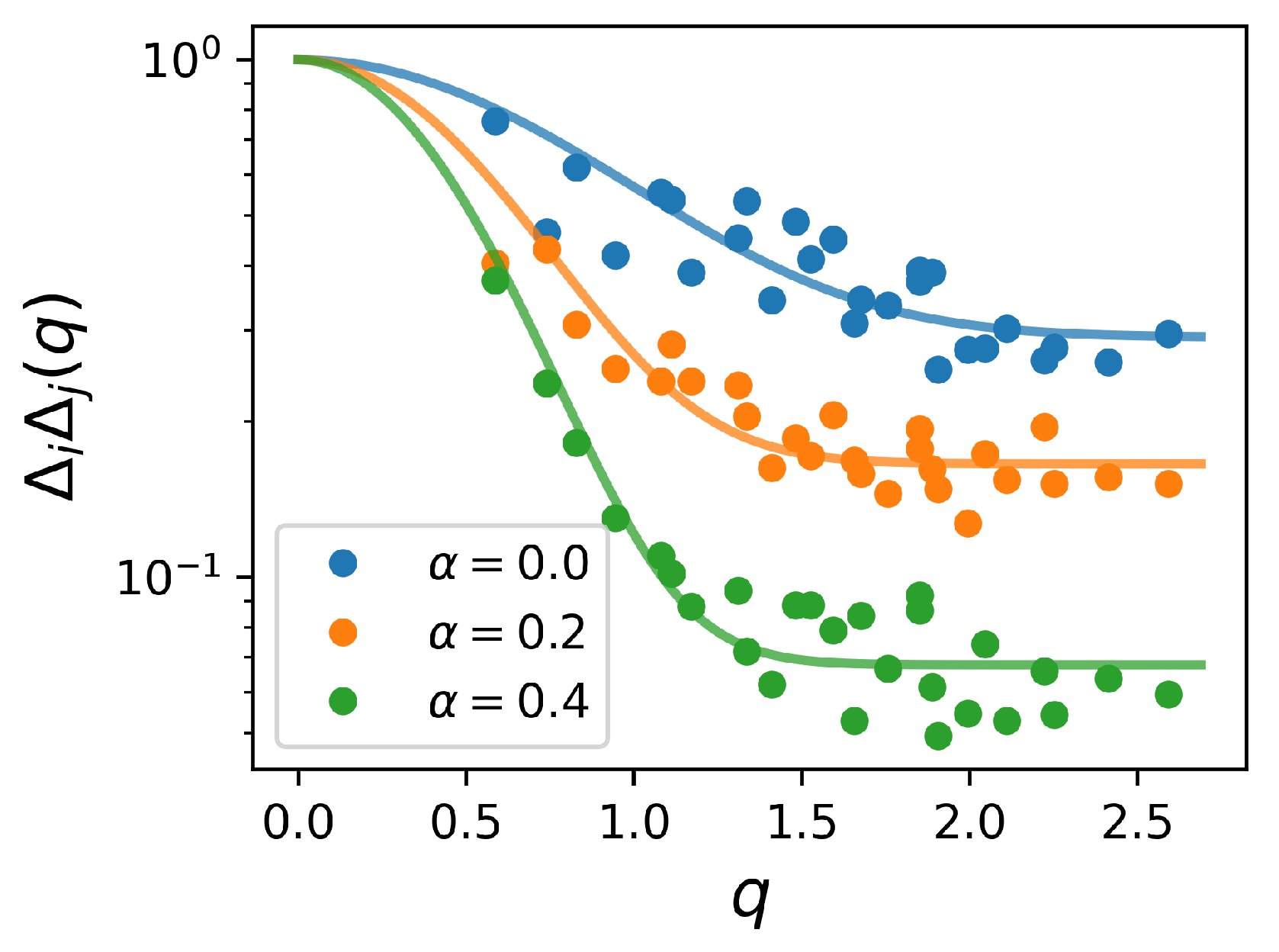

To quantitatively assess these correlations described by $S_{\mathsf{\Delta }}\left(r\right)$, we can analyze its Fourier transform, denoted as $S_{\mathsf{\Delta }}\left(q\right)$. Figure 3 displays this in a logarithmic scale, showing a Gaussian dependence. By fitting the Gaussian dependence

$$S_V\left(q\right)\propto exp\left(-\frac{q^2{\beta }^2}{2}\right),$$

(9)

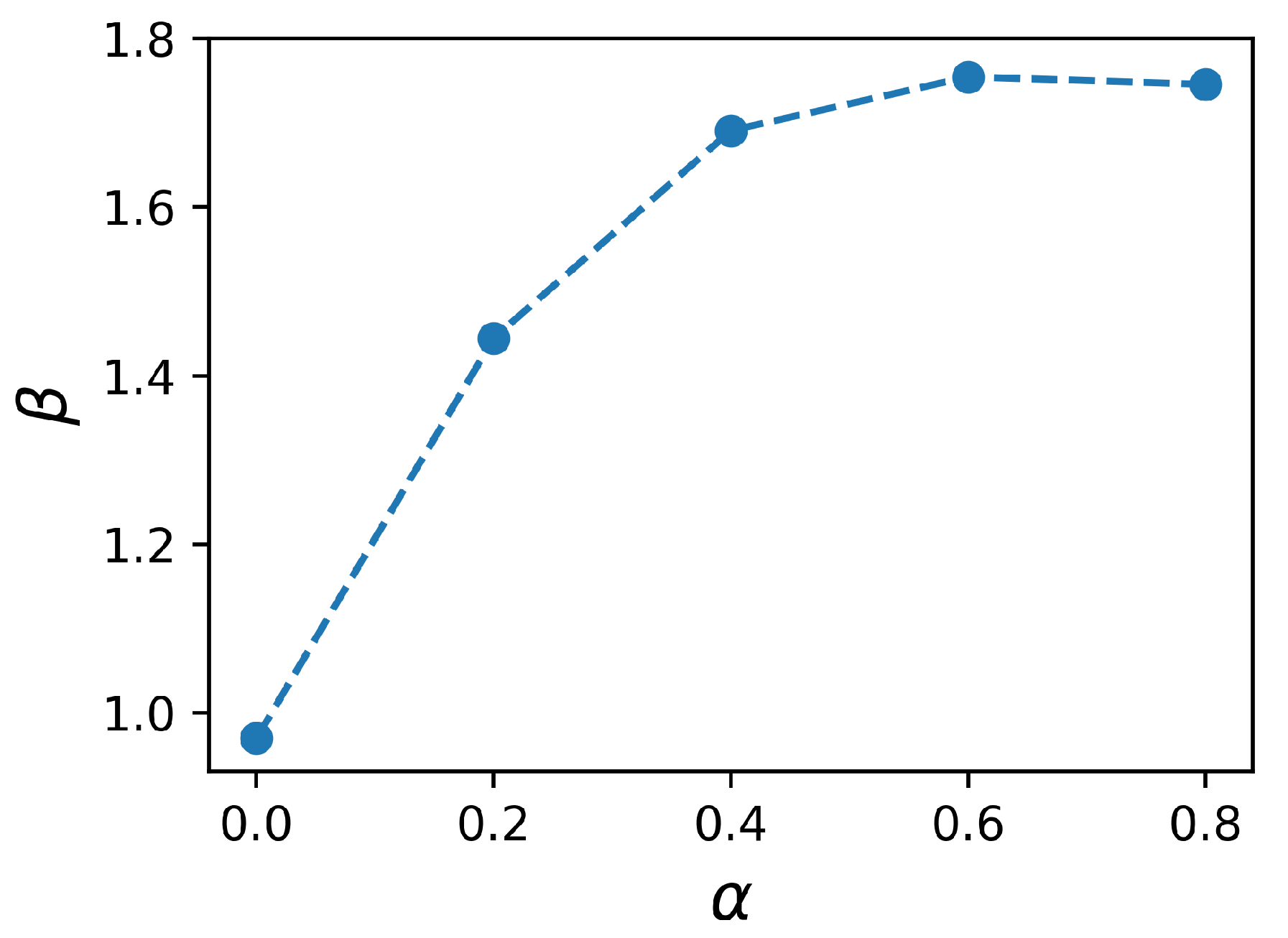

we determine the exponent $\beta$ as a function of $\alpha$ as shown in Figure 4. Even in the absence of correlations in disorder, there are correlations in the order parameter with $\beta =1$. The introduction of disorder correlations enhances these order parameter correlations. However, this enhancement diminishes at high $\alpha$ values, reaching a limit of $\beta =1.75$ for significant short-range correlations considered in this work.

In weakly disordered samples, the presence of a nonzero order parameter unequivocally signals the onset of superconductivity. However, in the case of strong disorder, the superconductive state becomes strongly nonhomogeneous, forming weakly connected superconductive clusters with randomized phases. This makes it impossible to define superconductivity using local or average order parameters. Instead, the initiation of superconductivity in highly disordered samples can be characterized by the (Meissner) superfluid stiffness, denoted as $D_s^0$ [91,92]. Within the mean-field theory, the stiffness is determined by the linear response to an externally applied static vector potential,

$$D_s^0=-{\mathsf{\Lambda }}_{xx}\left(q_x=0,q_y\to 0,\omega =0\right)+〈-K_x〉,$$

(10)

where ${\mathsf{\Lambda }}_{xx}$ represents the long wavelength limit of the transverse current–current correlator, averaged over both the superconductive state and the disorder realizations,

$${\mathsf{\Lambda }}_{xx}\left(\mathbf{q},\omega \right)=\frac{1}{N}\underset{0}{\overset{\infty }{\int }}d\tau e^{i\omega \tau }〈j_x\left(\mathbf{q},\tau \right)j_x\left(-\mathbf{q},0\right)〉,$$

(11)

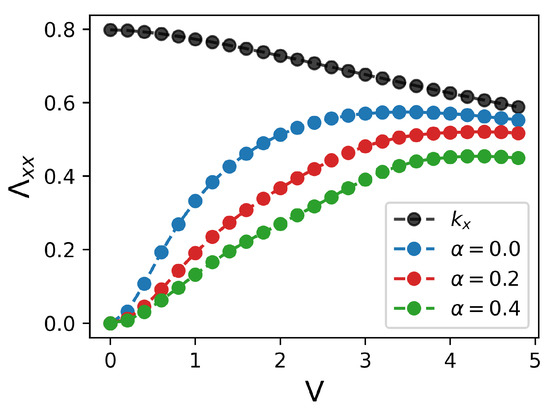

with $j_x\left(\mathbf{q},\tau \right)$ being the paramagnetic current, and the diamagnetic component $〈-K_x〉$ being the disorder-averaged kinetic energy along the x direction. Both of these quantities are illustrated in Figure 5, employing a disorder strength of $V=1.5$. Figure 6 depicts the stiffness as a function of disorder strength V for various $\alpha$ values. As expected, fluctuations decrease the stiffness, consequently suppressing superconductivity. In accordance with our previous work, the stiffness diminishes as the disorder strength V increases. Here, however, for correlated disorder ($\alpha \ne 0$), an increase in the correlation degree $\alpha$ results in the larger stiffness with a consequence that the critical disorder strength, where the stiffness becomes zero, increases at larger $\alpha$.

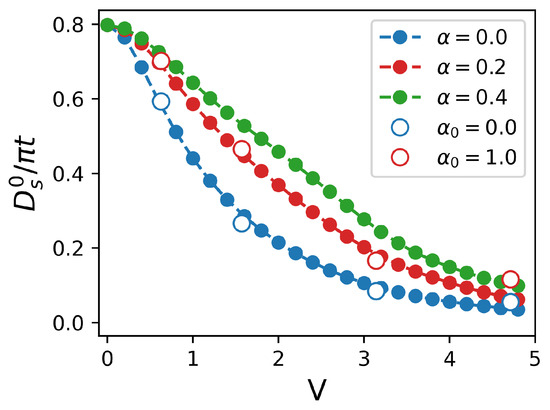

This figure presents the outcomes of our preceding research concerning two distinct $\alpha$ values. Specifically, outcomes associated with the Gaussian correlation law are denoted by filled symbols, whereas those corresponding to the power law model are represented by empty symbols. It is noteworthy that for the presentation of this figure, we deliberately chose $\alpha$ values such that both models manifest identical effective disorder correlation lengths.

Moreover, considering our current model, we systematically adjust the disorder strength in the power law correlation model to facilitate a meaningful comparison between the two models. Notably, when $\alpha$ is set to zero, a perfect alignment between the results of both models is observed. However, an incremental increase in $\alpha$ instigates discernible distinctions in the outcomes, particularly for elevated values of disorder strength.

As depicted in the figure, even for ${\alpha }_0$ = 1, the superfluid stiffness of the power law model notably surpasses that of the Gaussian correlator in the domain characterized by substantial values of V. Nevertheless, for modest and moderate levels of disorder strength, the distinctions between outcomes for the Gaussian correlator and the power law correlator remain relatively inconspicuous.

4. Discussion

In summary, the results of our study reveal important insights into the impact of the disorder strength and short-range spatial correlations on the superconducting characteristics. The results demonstrate that when the disorder strength increases, the amplitude of the order parameter oscillations also increases, which creates domains where the order parameter is strongly suppressed or enhanced. The introduction of disorder correlations amplifies correlations of the order parameter, with the correlation length $\beta$ reaching the limit of 1.75 for strong short-range disorder correlations.

In highly disordered materials, characterizing superconductivity based on local microscopic properties becomes challenging. In this case, transition to the superconducting state is better characterized by the superfluid stiffness. Our analysis reveals that fluctuations due to disorder make the stiffness decrease, leading to a suppression of superconductivity. However, for correlated disorder, an increase in its correlation degree results in a higher critical disorder strength, where the stiffness vanishes.

Furthermore, an examination of the outcomes achieved for the existing correlated disorder model, in contrast to those derived for the power law decay model, reveals that for identical disorder parameters within a model featuring a Gaussian disorder distribution, the order parameter distribution exhibits increased width on one side. Conversely, in the model incorporating power law correlations, the critical disorder strength leading to the suppression of superconductivity is observed to be greater regarding V than that in the alternative model.

Our findings emphasize the complex interplay between disorder strength and correlations in superconducting systems. Indeed, comparing the results obtained in our theoretical study and the results of the experimental study reported by M. Fratini on the topic “Scale-free structural organization of interstitial oxygen atoms in $L{a}_{2}Cu{O}_{4+y}$” [65], despite the difference that arises from our use of a short-range Gaussian function to model the disorder correlations in our calculations, as opposed to the power law function with an exponential cutoff employed in the experimental work to fit the data, one can glean that these results are in good agreement with the findings outlined in our theoretical framework. Namely, (1) an increase in the disorder correlation length leads to an increase in the order parameter correlations, and (2) the promotion of superconductivity is facilitated by a fractal disorder structure.

These insights are valuable for understanding and characterizing superconductivity in disordered materials, and may have important implications for the development of new materials with tailored superconducting properties. Moreover, it seems that these results are especially of importance for cases where the disorder is detrimental for the observation of certain superconducting states, such as FFLO, etc. [93,94].
