Review

From SrTiO3 to Cuprates and Back to SrTiO3: A Way Along Alex Müller’s Scientific Career

by
Annette Bussmann-Holder
1,* and
Hugo Keller
2,*
1
Max-Planck-Institute for Solid State Research, Heisenbergstr. 1, D-70569 Stuttgart, Germany
2
Physik-Institut der Universität Zürich, Winterthurerstr. 190, CH-8057 Zürich, Switzerland
*
Authors to whom correspondence should be addressed.
Condens. Matter 2021, 6(1), 2; https://doi.org/10.3390/condmat6010002
Submission received: 25 November 2020 / Revised: 23 December 2020 / Accepted: 27 December 2020 / Published: 31 December 2020

Abstract

:
K.A. Müller took a long route in science leaving many traces and imprints, which have been and are still today initiations for further research activities. We “walk” along this outstanding path but are certainly not able to provide a complete picture of it, since the way was not always straight, often marked by unintended detours, which had novel impact on the international research society.

1. Introduction

After World War II, science started a new blooming period, especially in solid state physics, which used to be the poor cousin in physics. In this early period, a number of novel systems were discovered, mostly in the need of applications to support the reconstruction of Europe. A lot of attention was devoted then to perovskite oxides, which, because of their ferroelectric properties, were excellent ultrasound transducers, piezoelectric converters, and pyroelectric devices. The most prominent members of this material class are PbTiO3 and its mixed ceramics with PbZrO3, still today installed in many applications, and being necessary ingredient for many techniques. BaTiO3 is similarly important, together with SrTiO3. Many other related compounds originated from this time, which all turned out to be of high scientific interest and relevant for new technologies (for a comprehensive review, see, Reference [1]). It was this exciting period when K.A. Müller started his research in experimental solid state physics.

2. Polar and Rotational Instabilities in Perovskite Oxides

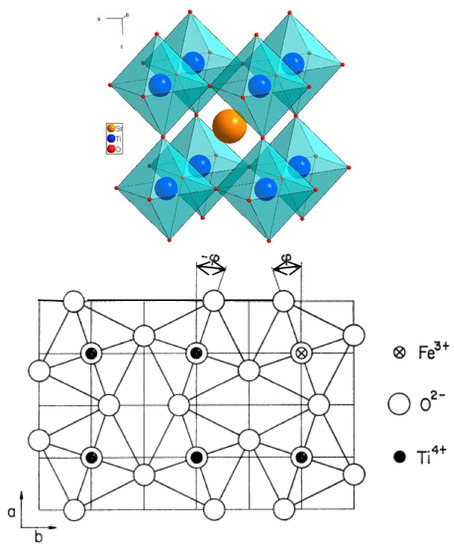

In the early 1950s, the investigations of perovskites were enormously intense, since their ferroelectric properties were relevant for novel industrial applications. Understanding the background for the appearance of these phenomena intensified the experimental and theoretical activities and lead to new tools, like neutron scattering, nuclear and electron (para)magnetic resonance (NMR, EPR), and low-temperature techniques. These techniques evidenced that the ferroelectric perovskites have unique properties related to their dynamics, namely a distinct soft mode behavior of a long wave length transverse optic mode, where the related frozen-in ionic displacement pattern determines the low temperature structure and the magnitude of the polarization [2,3,4]. Thus, a unique characterization of ferroelectrics was possible through the identification of a soft optic mode. Besides the polar properties, further structural phase transitions were discovered, where, especially, SrTiO3 [5], LaAlO3 [6], and BaTiO3 were of uttermost interest. In the former two compounds, phase transitions from cubic to tetragonal, cubic to R 3 ¯ c , were observed and believed to be characteristic for oxide perovskites [5]. The origin of these transitions remained unknown, however, for a decade, as well as their precise transition temperatures. This issue was clarified by K.A. Müller et al. in 1968 [7], who showed that the rotation angle φ of the oxygen ion octahedra is the order parameter of these phase transitions (see Figure 1, where the perovskite structure and the rotation of the octahedra are schematically illustrated).

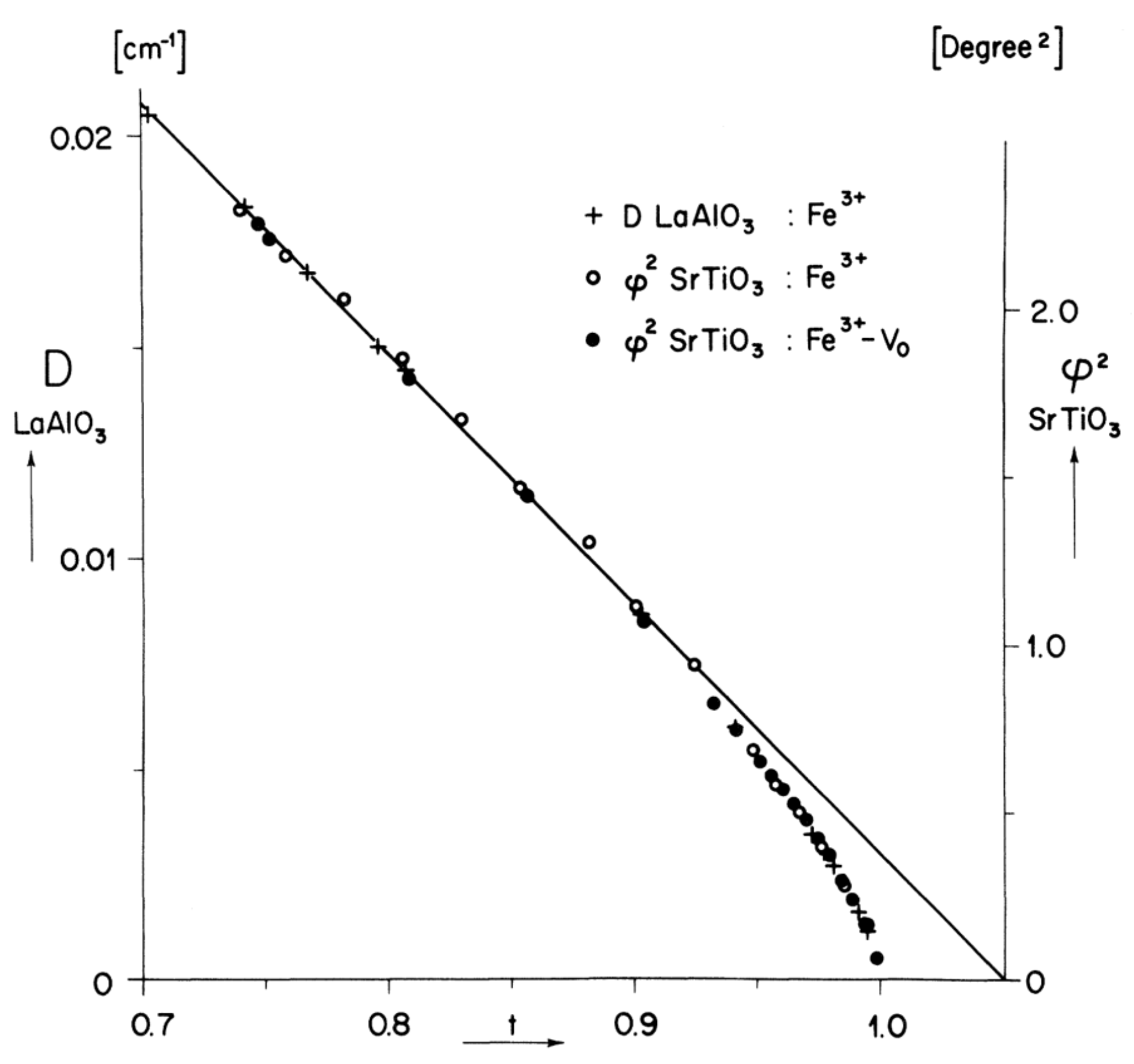

He identified this assignment via electron paramagnetic resonance (EPR) experiments where tiny amounts of a magnetic ion (e.g., Fe as indicated in the lower part of Figure 1) were implanted in the respective samples. By comparing the normalized rotation angles of different perovskite oxides, he concluded that, indeed, a unique similarity between them was present, since the temperature dependence of the rotation angle follows one single law independent of the corresponding compound. Since the rotation angle continuously goes to zero upon approaching the phase transition temperature, the transition has been classified as second order type.
Prior to this well-known work, K.A. Müller was interested in the Jahn-Teller effect, which continued to remain in his focus throughout his career, also and importantly, in the search for superconductivity. Already, in 1937, Jahn and Teller showed that, for a polyatomic molecule, “All nonlinear nuclear configurations are unstable for an orbitally degenerate ground state”. Using EPR to detect d 7 impurity ions in Al2O3 and SrTiO3, he showed that line broadening due to resonance relaxation occurs already above room temperature. By determining the level splitting between the ground and excited levels, he concluded that phonons are sufficient to overcome this splitting, thereby arriving at the concept of the dynamic Jahn-Teller effect [9], which later turned out to be at the heart for the discovery of high-temperature superconductivity.
The previous observations of a soft transverse optic mode at q = 0 gave rise to speculations that a coupling to an acoustic mode initiates the phase transition. This could rapidly be excluded, since the transition in LaAlO3 has been related to the softening of a transverse acoustic mode at ( 1 / 2 , 1 / 2 , 1 / 2 ) with no further evidence of any other soft mode being present [10]. On the opposite side, in SrTiO3, there is indeed a soft transverse optic mode at q = 0 . This observation led K.A. Müller et al. to propose that a second zone boundary soft acoustic mode must exist in SrTiO3. This idea was directly proven to be true by Raman scattering experiments and, shortly afterwards, additionally verified by inelastic neutron scattering [11].
An interesting discovery was made by K.A. Müller, as early as 1969, where he experimentally demonstrated the existence of a negative U-center in Ni-doped SrTiO3 [12]. At that time, this discovery did not draw much attention. However, six years later, P.W. Anderson [13], and, simultaneously and independently, R.A. Street and N.F. Mott [14], introduced theoretically the negative U centers to account for the fact that most glasses and amorphous semiconductors are diamagnetic. Obviously, they were unaware that this had already been discovered before experimentally [12]. There are important consequences from these centers for superconductivity, namely that there is an analogy between the existence of an effective attraction between electrons in a superconductor and the negative U centers in an insulating glass. Since the origin of this electron-electron attractive interaction stems from the lattice, it also bears a close resemblance to bipolaron formation, later on proposed by Chakraverty [15], to give rise to superconductivity.
The increasing interest in SrTiO3 and other perovskite titanates successfully encouraged crystal growers to optimize their growth conditions, and it became possible to obtain almost domain-free samples of SrTiO3 and LaAlO3 in their low-temperature tetragonal, R 3 ¯ c phase. These were the starting point to investigate in deep detail, and with much improved resolution, the temperature dependence of the order parameter, the rotation angle φ ( T ) , in the vicinity of the phase transition temperature (see Figure 1) [16]. While it was long taken for given that Landau theory universally describes the behavior of φ by the law: φ ε β , ε = ( T s T ) / T s , T s being the phase transition temperature and β = 1 / 2 , the better sample quality enabled to measure β with higher accuracy, especially in the vicinity of T s . The new data evidenced deviations from this law close to T s , thus questioning the global validity of Landau theory ( β = 1 / 2 ). From this work, it was concluded that the temperature dependence of φ in SrTiO3 and LaAlO3, below the second-order phase transition temperatures T s , is described by an exponent β = 0.33 ( 2 ) (critical exponent of the order parameter) in the temperature region 0.9 t = T / T s 0.96 (critical region). For t < 0.9 , there occurs a change to Landau behavior (mean-field behavior), as indicated by the solid line in Figure 2. This observation of static critical exponents near displacive phase transitions confirmed the notion of universality classes in this field [16].
The above comprehensive results on SrTiO3 set off more detailed investigations on the long wave length soft zone center transverse optic mode, which was speculated to be related to a ferroelectric phase transition in analogy to other titanites. However, a real transition had never been reported, but the extrapolation of this mode to zero led to a transition temperature around 20–30 K. Since the transverse optic soft mode driven phase transitions are related to a temperature dependent dielectric constant ε ( T ) via the Lyddane-Sachs-Teller relation, measurements of ε ( T ) can uniquely clarify the occurrence of a true phase transition. These were performed by Müller and Burkard [17] in 1979 and had the unexpected outcome that ε ( T ) saturates below 4 K exhibiting extremely high values there (Figure 3). The results have been interpreted in terms of quantum fluctuations which suppress a true phase transition and coined the name “quantum paraelectricity” [17]. After the Nobel Prize awarded paper, it is the most frequently cited paper of K.A. Müller, as noted in a bibliographic study by Kremer et al. in Reference [18].
In the search for superconductivity in perovskites, Binnig and coauthors went back to SrTiO3, which was already known to become superconducting at low temperature ( T c 0.5 K ) upon changing the oxygen stoichiometry [19,20,21]. Instead of manipulating the oxygen content, they doped the compound with small amounts of Nb [22] in order to enhance the superconducting transition temperature T c . Even though this methodology did not lead to a significant enhancement of T c , they discovered that their compound has two superconducting gaps and verified, thereby, the long known prediction that superconductors can exhibit more than one gap [23,24]. The most amazing thing about Nb-doped SrTiO3 is, however, that it has an extremely low carrier concentration, such that its Fermi energy is smaller or comparable to the Debye energy. This “strange” behavior has very recently been taken up again and gave rise to new theoretical [25,26,27] and experimental interest, results, concepts, and speculations [28] (also see Scheerer et al. in Reference [29]). These will be discussed in more detail at the end of this paper.

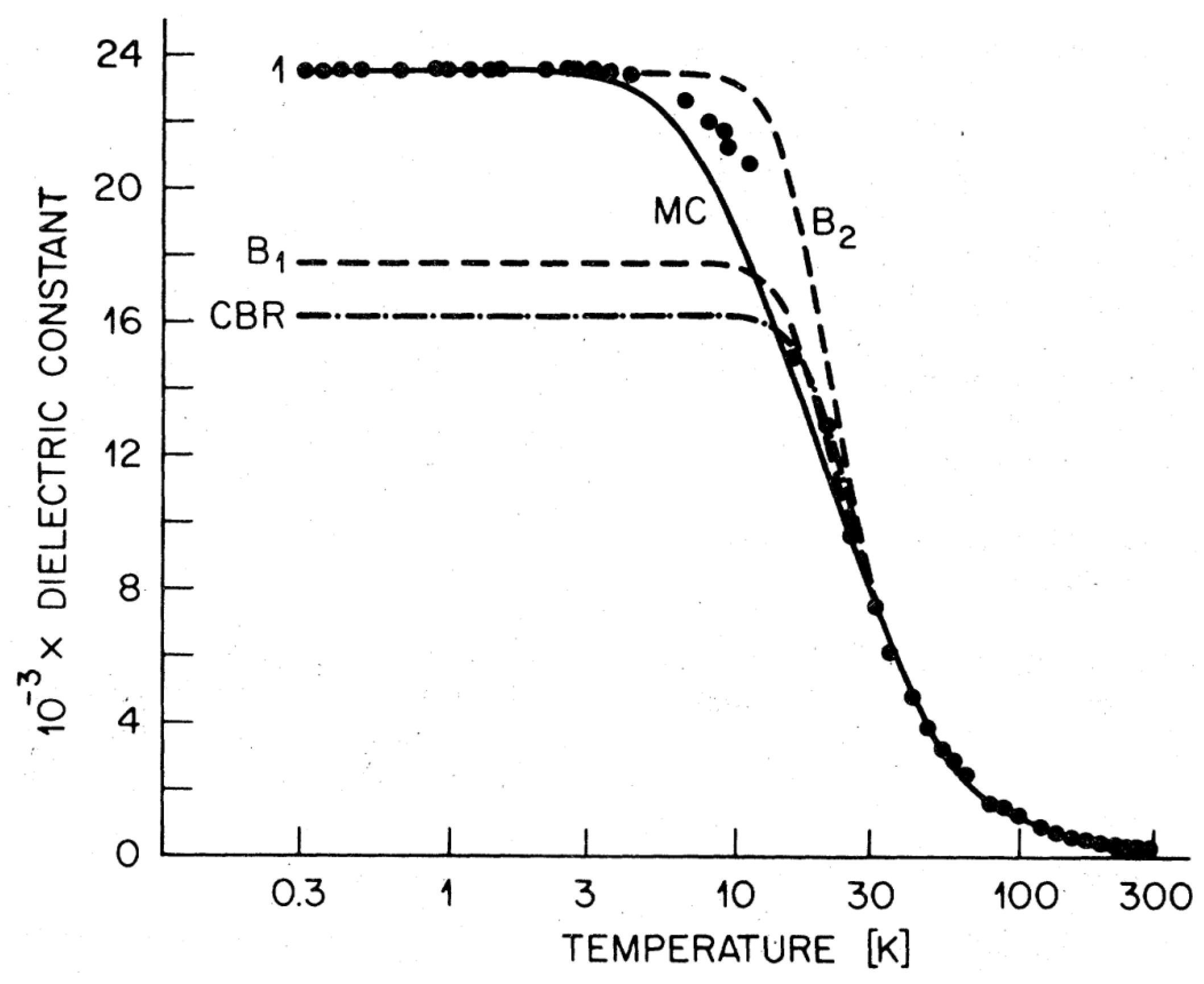

For many years, the proximity of SrTiO3 to a polar instability has challenged researchers to induce this order by different means. A first success was achieved by electric field effects, where polar domains could be induced [30]. Pressure on the contrary proved to be counter-productive, since the soft mode was observed to harden [31,32,33]. Similar effects were observed with doping, where an increase in the carrier density reduces the gap but also enhances the soft mode frequency [34]. It was up to J. G. Bednorz and K.A. Müller to achieve a breakthrough by replacing tiny amounts of Sr with Ca in SrTiO3 [34]. Since Ca is smaller than Sr, a spontaneous polarization appears in the basal planes and not along the c-direction and is switchable between the two equivalent a-axes. This behavior was named “XY quantum ferroelectric” and shown to vanish rapidly with increasing Ca content [34]. An alternative approach has been undertaken by Itoh et al. by replacing O16 by its isotope O18 [35]. Indeed, ferroelectricity was observed there, but soon shown to be incomplete through theoretical modeling [36] and Raman spectroscopy [37]. By “incomplete”, it is meant that ferroelectricity is not of long-range order, but appears locally only. Kleemann et al., in Reference [38], focus exactly on the possibility to achieve a true polar ground state in SrTiO3 but also strive through doping-dependent novel phenomena achievable in this compound.
Even though the discovery of high-temperature superconductivity in the La-Ba-Cu-O perovskite slowed down the work of K.A. Müller with respect to oxide perovskites, he continued beforehand existing collaborations and produced interesting new results. Here, it is important to mention his work on BaTiO3, which exhibits three phase transitions with decreasing temperature: the first from cubic to tetragonal at 408 K induces ferroelectricity, the following at 278 K lowers the symmetry to orthorhombic and is accompanied by a change in the polarization direction; at 183 K, the symmetry becomes rhombohedral and again the polarization reorients. The mechanisms of all transitions remained controversial for a long time, since experimental data testing different time and length scales suggested different mechanisms to be at play. Local probe experiments were in accordance with order-disorder type transitions [39,40], whereas long range testing experiments were in accordance with purely displacive ones [41]. The puzzles could be resolved again by EPR, where Mn4+ ions were doped in BaTiO3 to randomly substitute for the isovalent Ti4+ ion. These experiments clearly showed that dynamic precursor clusters are formed above the respective transition temperature, which signify a coexistence of order/disorder and displacive features [42]. Depending on the testing tool, either of both appears dominant and yields a corresponding interpretation. Note that, in the paper by Bishop in Reference [43], similar aspects and beyond are addressed, and more detailed consequences are given.
A representative and comprehensive collection of the broad work of K.A. Müller on the properties of perovskites and other oxides (except cuprates) is presented in Reference [8] and supplemented in the work by Kool in Reference [44].
The above described results have an important consequence, since they suggest that perovskites are locally inhomogeneous with different coexisting time and length scales. As will be shown below, this is also true for cuprate superconductors, where distinctive properties stem from inherent inhomogeneity [45].

3. High-Temperature Superconductivity in Cuprates

3.1. Discovery of Superconductivity in the Cuprates

While K.A. Müller was already famous for his work on oxide perovskites in the eighties, he became inspired by the work on granular Al to move to superconductivity [46], a field he had never been interested in before. Granular Al has an extremely short coherence length, untypical for BCS superconductors, which later was shown to be also realized in cuprate superconductors [47]. For more details on the physical meaning of a short coherence length in unconventional superconductors, see the contribution of Deutscher in Reference [48].
K.A. Müller almost immediately turned to his favorite materials, the oxide perovskites, since the observation of a low carrier density and a large Debye energy yielded astonishingly high superconducting transition temperatures in oxides, incompatible with BCS theory. The above described discovery of two-band superconductivity in Nb-doped SrTiO3 was the first result in that direction and actually was considered as very disappointing from the perspective of J.G. Bednorz. However, he, together with K.A. Müller, did not give up, and, finally, they succeeded in their world famous discovery of the La-Ba-Cu-O compound, which was honored with the Nobel prize only a year later, the fastest Nobel prize [49,50,51,52].

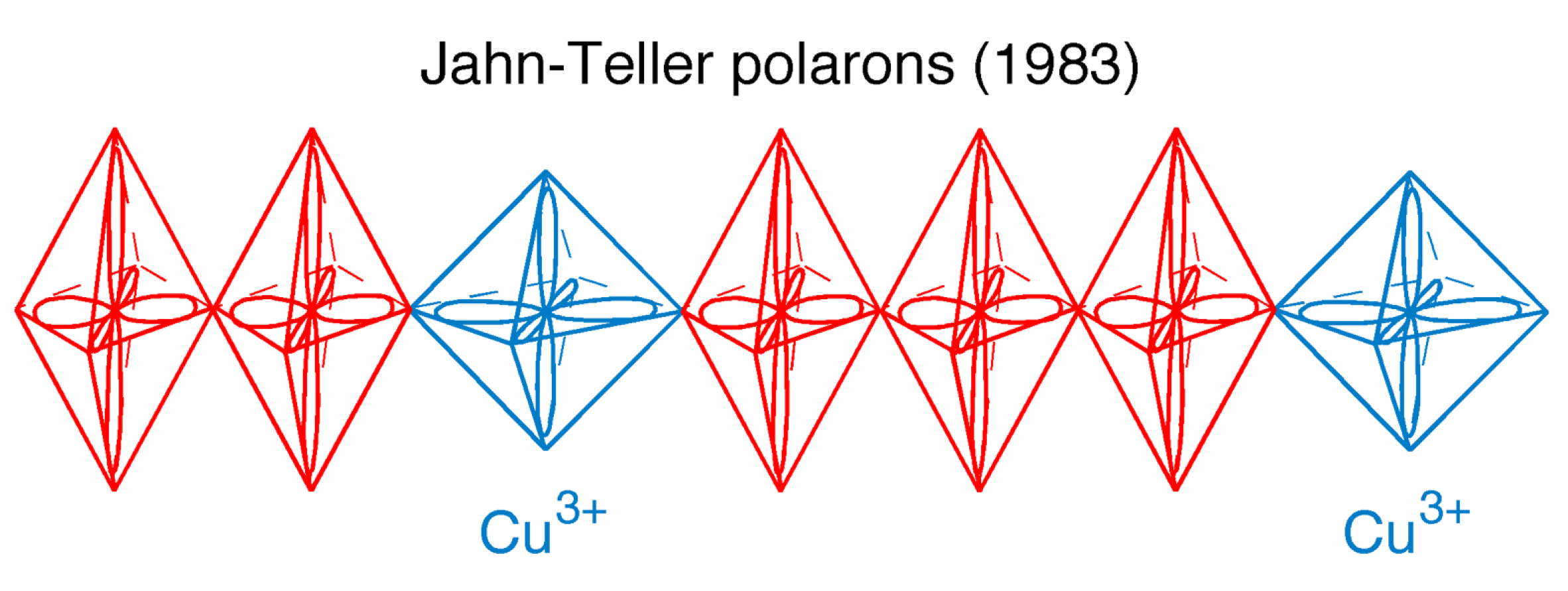

This discovery was inspired, as mentioned above, by the observation of the combination of low carrier density and a rather large superconducting transition temperature and the knowledge of Jahn-Teller polarons [53]. From this observation, and theoretical results of Höck et al. [53], K.A. Müller concluded that the coupling between the ions and the electrons/holes must be extraordinarily strong and unconventional, as suggested by Chakravarty based on a (bi-) polaronic concept [15]. Indeed, the cuprates also have a smaller carrier density than conventional superconductors, which is why they were named “bad” metals. Already, in his Nobel prize award speech, K.A. Müller depicted this scenario with alternating CuO pyramids, being charge rich and charge poor (Figure 4) [52], which was shortly afterwards verified experimentally by the group of A. Bianconi [54], suggesting a stripe-like patterning consisting of alternating distorted (D) and undistorted (U) CuO6 octahedra with widths W and L (Figure 5). Having such a scenario in mind, it is obvious from the very beginning that cuprates, being non-stoichiometric, cannot be homogeneous. This is discussed in the next section.
As mentioned above, the discovery of high-temperature superconductivity in the cuprates was not accidental but based on the idea that an unconventionally strong electron-lattice interaction may lead to superconductivity at high T c . A possible way to achieve such a strong coupling is the formation of Jahn-Teller (JT) polarons (bipolarons) in doped perovskite oxides, as proposed by Bednorz and Müller [49,50]. In order to test and support the polaron concept, K.A. Müller made, from the beginning, several suggestions for key experiments (see, e.g., References [55,56,57]). Some of his main proposals for experiments—dealing with inhomogeneity, mixed oder parameters, and unconventional isotope effects in cuprate superconductors—are discussed in the following sections.

3.2. Essential Heterogeneities and Mixed Order Parameters in Cuprate Superconductors

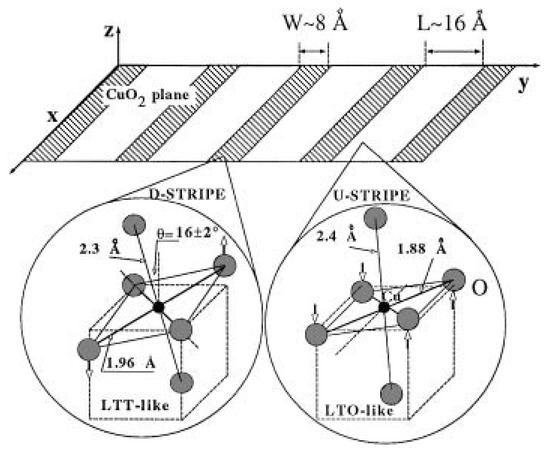

In spite of many efforts in understanding the electron (hole) pairing mechanism in these materials, K.A. Müller pursued his ideas which culminated - driven by not understood experimental results—in his suggestion that two coexisting order parameters are characteristic for these compounds [58,59]. In view of the majority line that cuprates have a single d-wave order parameter (see, e.g., References [60,61,62]), he intensely pointed out to a combination of s + d wave order parameters [58], thereby supporting his viewpoint of intrinsic inhomogeneity [45] characterized by local and global features which are beyond lattice periodicity. These ideas have subsequently been supported by detailed muon-spin rotation (μSR) experiments on various families of cuprate superconductors by the University of Zurich group [63,64,65,66,67]. The temperature dependence of the magnetic penetration depth λ, which can be extracted from the μSR relaxation rate σ s c according to the relation σ s c λ 2 [68], is sensitive to the gap symmetry.

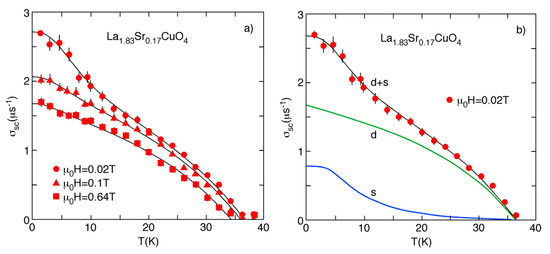

As an example, Figure 6a shows the temperature dependence of the μSR relaxation rate σ s c for single-crystal La1.83Sr0.17CuO4 measured in various external magnetic fields perpendicular to the CuO2 plane [63]. In this case, σ s c ( T ) λ a b 2 ( T ) , where λ a b is the in-plane magnetic penetration depth. Note that σ s c ( T ) shows an inflection point at low temperature which is most pronounced in the lowest magnetic field of μ 0 H = 0.02 T . By analyzing the μSR data within a two-component model with coupled s + d -wave order parameters, a good agreement between experiment and theory was achieved [63,67], as demonstrated in Figure 6b. In particular, it is evident from the analysis that the s-wave gap contributes less to the superfluid density (32%) as compared to the d-wave gap (68%), but that its contribution is essential in order to describe the μSR data consistently. The fact that various cuprate families exhibit essentially the same behavior of the μSR relaxation rate σ s c ( T ) [63,64,65] suggests that this behavior is generic to all cuprate superconductors and reflects also the intrinsic inhomogeneity of these materials [45,69].
Testing the gap symmetry experimentally crucially depends on the experimental technique involved. For example, ARPES (angle-resolved photoemission spectroscopy) or phase-sensitive tunneling experiments on single-crystal samples probe the gap symmetry near the surface, whereas μSR experiments probe the gap symmetry in the bulk. Inconsistent results concerning the gap symmetry determined by different experimental techniques [59], as well as group theoretical considerations inspired K.A. Müller, to conclude that the gap symmetry may change from purely d-wave near the surface to more s-wave, like in the bulk of the superconductor [69,70]. We investigated the temperature dependencies of the in-plane ( λ a b ) and out-of-plane ( λ c ) magnetic field penetration depths near the surface and in the bulk of the electron-doped superconductor Sr0.9La0.1CuO2 by means of AC magnetization and μSR measurements [71]. These studies provide evidence that the scenario of coexisting mixed s + d order parameters is indeed also realized in this electron-doped cuprate superconductor, as proposed by K.A. Müller [58,69]. The temperature dependence of λ a b 2 was found to be consistent with a dominant d-wave component (≃96%) and only a tiny s-wave component near the surface of the sample, whereas λ c ( T ) is well described by a mixed s + d order parameter with an s-wave component of more than 50% in the bulk. A comparison of the magnetization (surface probe) and the μSR (bulk probe) data for λ a b 2 reveals that the s-wave component of the superfluid density is strongly suppressed by more than a factor of two near the surface of the sample, in accordance with the proposal of K.A. Müller [69]. For more details of this study, we refer to the contribution of Khasanov et al. in Reference [71].
Since the involvement of the lattice is essential in this model of mixed s + d order parameters, K.A. Müller proposed to investigate isotope effects in the cuprate superconductors in order to highlight the important role played by the lattice. The most prominent isotope effects observed in cuprate superconductors are summarized in the following.

3.3. Unconventional Isotope Effects in Cuprate Superconductors

The observation of an isotope effect (IE) on the superconducting transition temperature T c in mercury in 1950 played a key role in the development of the weak-coupling microscopic BCS theory of superconductivity, where the electron-phonon interaction leads to the formation of Cooper pairs (two electrons with opposite spin and momentum) at T c . The isotope shift on T c is expressed by the relation
T c M α , α = d ln T c / d ln M ,
where M is the isotope mass, and α is the IE exponent. Weak-coupling BCS theory predicts T c M 1 / 2 with α BCS 0.5 . Indeed, for many low-temperature conventional superconductors, values of α 0.5 were found. The observation of an IE in conventional superconductors is thus consistent with the BCS theory of superconductivity, where the electron-phonon interaction is the pairing mechanism.
The discovery of high-temperature superconductivity in the cuprates by Bednorz and Müller [49] with transitions temperatures well above those found in conventional superconductors raised the question of the electron/hole pairing nature of superconductivity in these novel systems. The observation of only a tiny oxygen (16O/18O)-isotope effect (OIE) in optimally doped YBa2Cu3O 7 δ [72] led many theoreticians to conclude that the electron-phonon interaction, or, more generally, lattice effects, cannot be the pairing glue in high-temperature superconductivity. Alternatively, several other models of purely electronic origin were proposed, and a majority of scientists working in the field ignored the role of the lattice in the cuprates. However, it is important to note that all cuprates show a finite OIE on T c at all doping levels, increasing substantially with reduced doping [73,74].
From the very beginning, K.A Müller was convinced that the IE plays a crucial role to understand the microscopic pairing mechanism in the cuprates. The concept of the Jahn-Teller (JT) polaron, which originally was his basic motivation to search for superconductivity in perovskite oxides, involves local lattice deformations. Consequently, strong lattice interactions and unconventional isotope effects are expected to be present in the cuprates. In an early paper, K.A. Müller reviews the importance of IEs in the cuprates [75]. In 1990, K.A. Müller, therefore, initiated a new project, Isotope Effects in Cupate Superconductors, at the University of Zurich (see, e.g., References [76,77,78]), in close collaboration with material scientists from the ETH Zurich and the Paul Scherrer Institute (PSI) (see the contribution of Conder et al. in Reference [79]). The main goal of this project was to investigate which oxygen atoms (plane (p), apical (a), or chain (c) oxygens) in the crystal lattice of YBa2Cu3O 7 δ contribute mainly to the OIE on T c . It was expected that, within the JT concept, the apical oxygen ions should play a crucial role and give rise to a pronounced OIE. Experimentally, this can be tested by the so-called site-selective oxygen-isotope effect (SOIE) study on T c in optimally doped YBa2Cu3O 7 δ [80]. For this purpose, fully 16O and 18O exchanged, as well as site-selective exchanged samples, were prepared. In the site-selective samples, the planar sites were substituted by 18O (16O) and the apical and chain sites by 16O (18O). Surprisingly, it was found that the planar oxygen atoms contribute dominantly (≥80%) to the total OIE shift on T c . This finding was later confirmed for Y 1 x PrxBa2Cu3O 7 δ for various dopings ( x = 0 , 0.3 , 0.4 ) [81,82]. All these SOIE results on T c for Y 1 x PrxBa2Cu3O 7 δ are summarized in Figure 7. It is evident that the main contribution to the OIE on T c for all dopings originates from the oxygen atoms in the CuO2 planes, opposite to what was expected by K.A. Müller in his original proposal, where he assumed that the apical oxygen ion displacement is subject to strong anharmonicity analogous to perovskite ferroelectrics [75,83]. Apparently, these assumptions did not meet the experimental results, which he immediately accepted.
In subsequent years, doping dependent unconventional OIEs on several physical quantities (besides T c ) were observed, including, for instance, the antiferromagnetic transition temperature T N , the spin-glass transition temperature T g , the spin-stripe ordering tempertaure T s o , the magnetic penetration depth λ , and the pseudogap temperature T * [67,76,77,78,84,85]. In the following, we will only focus on the OIEs on λ and T * .
The BCS theory is based on the Migdal adiabatic approximation, in which the effective mass m * of the supercarriers is not sensitive to the mass M of the lattice atoms. However, if the supercarriers interact strongly with the lattice as in a polaronic concept (JT representation), the adiabatic approximation is no longer valid, and m * depends on M (see, e.g., Reference [86]). A direct way to test this notion is to search for a possible IE on the magnetic penetration depth λ. In the simplest case of a spherical or ellipsoidal Fermi surface, the zero-temperture in-plane magnetic penetration depth λ a b may be expressed by the London formula [78]:
λ a b ( 0 ) = 1 μ 0 e 2 m a b * n s ,
where n s is the superconducting carrier density, and m a b * is the in-plane effective mass of the carriers. The in-plane superfluid density ρ s is then given by the relation:
ρ s 1 / λ a b 2 ( 0 ) n s / m a b * .
This means that a possible OIE shift of the superfluid density ρ s arises from an OIE shift of n s and/or m a b * according to the expression:
Δ λ a b 2 ( 0 ) / λ a b 2 ( 0 ) = Δ n s / n s Δ m a b * / m a b * .
The first OIE experiments on the magnetic penetration depth in polycrystalline YBa2Cu3O6.94 were performed by means of magnetization measurements [87], and, later on, in fine-grained samples of La 2 x SrxCuO4 ( 0.06 x 0.15 ) [76,88]. For La 2 x SrxCuO4, the observed oxygen-isotope shift of λ a b 2 ( 0 ) was found to decrease substantially with increasing doping x [76,88]. For x = 0.105 , an oxygen-isotope shift of Δ λ a b 2 ( 0 ) / λ a b 2 ( 0 ) = 9 ( 1 ) % was found [88].
In addition, we performed OIE studies on microcrystals of underdoped La 2 x SrxCuO4 with x = 0.080 and x = 0.086 (volume 150 × 150 × 50   μ m 3 ) by means of high-sensitive torque magnetometry [89]. A substantial OIE on λ a b 2 ( 0 ) was observed, namely Δ λ a b 2 ( 0 ) / λ a b 2 ( 0 ) = 10 ( 2 ) % for x = 0.080 and −8(1)% for x = 0.086 , respectively, in agreement with the results obtained for fine-grained powder samples [76,88].
The University of Zurich group carried out a μSR OIE study of λ a b in fine-grained powder samples of underdoped Y 1 x PrxBa2Cu3O 7 δ ( x = 0.3 and 0.4) [90], which were in line with those of magnetic torque data for underdoped La 2 x SrxCuO4 [89]. In order to investigate which oxygen atoms in the lattice mainly contribute to the OIE on λ a b , we initiated a site-selective OIE μSR study of λ a b in underdoped Y 0.6 Pr 0.4 Ba 2 Cu 3 O 7 δ [82]. A substantial total OIE of T c , as well as of λ a b , is observed. Moreover, the SOIE experiments clearly indicates that the planar oxygens account within experimental error for 100% to both OIE shifts, yielding Δ T c / T c = 3.7 ( 4 ) % and Δ λ a b 2 ( 0 ) / λ a b 2 ( 0 ) = 6.2 ( 1.0 ) % , consistent with the SOIE results on T c presented above.
In a further OIE study, the low-energy μSR (LEμSR) technique was applied, which allows a direct measurement of the magnetic penetration depth by measuring the magnetic field profile B ( z ) inside a superconductor in the Meissner state just below a distance z from the surface [91,92]. From the measured B ( z ) , the magnetic penetration depth λ is then extracted directly. This method was used to detect the OIE on the in-plane penetration depth λ a b in a nearly optimally doped YBa 2 Cu 3 O 7 δ thin film (600 nm thick) [92]. The analysis of the LEμSR data for the 16 O and 18 O substituted thin films yielded 16 λ a b ( 4 K ) = 151.8 ( 1.1 ) nm and 18 λ a b ( 4 K ) = 155.8 ( 1.0 ) nm. Correcting for the incomplete 18 O exchange of 95%, one obtains for the relative OIE shift Δ λ a b / λ a b = ( 18 λ a b 16 λ a b ) / 16 λ a b = 2.8 ( 1.0 ) % at 4 K. This value is in good correspondence with the values reported for optimally doped YBa 2 Cu 3 O 7 δ , La 1.85 Sr 0.15 CuO 4 , and Bi 1.6 Pb 0.4 Sr 2 Ca 2 Cu 3 O 10 + δ evaluated indirectly from magnetization measurements [78].

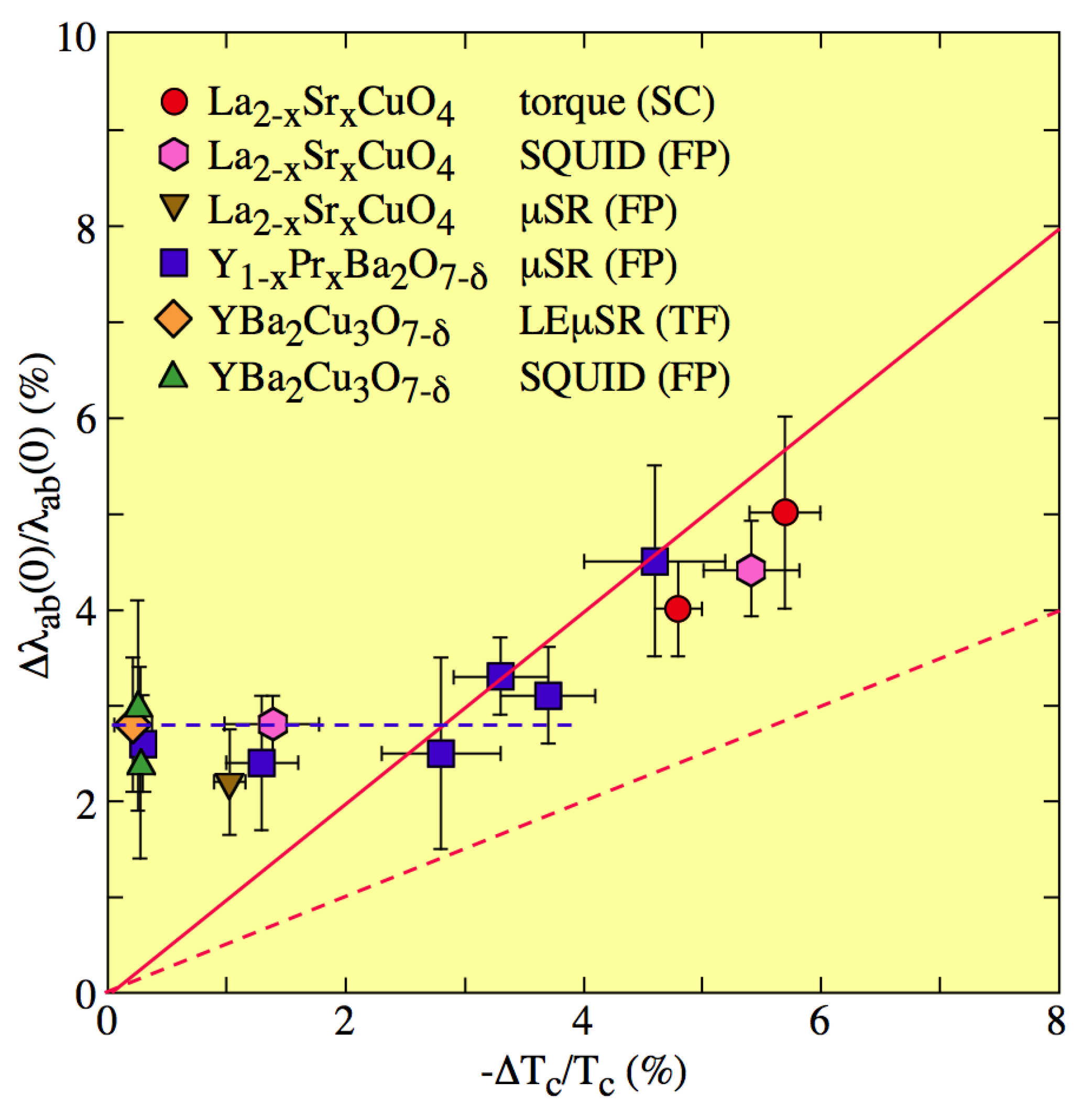

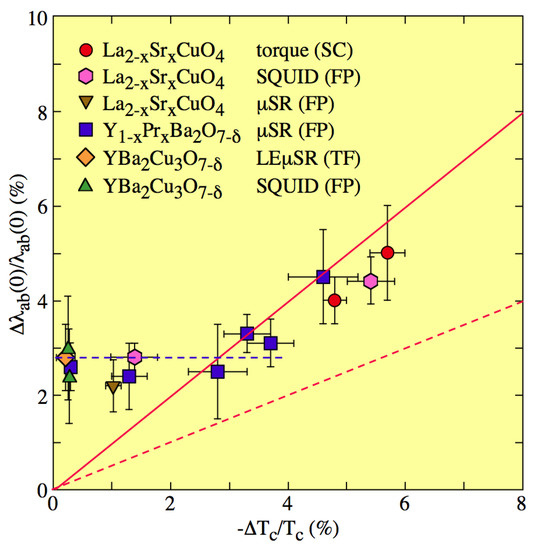

The OIE results on T c and λ a b presented in this chapter are summarized in Figure 8, where the OIE shifts Δ λ a b ( 0 ) / λ a b ( 0 ) versus the OIE shifts Δ T c / T c are shown. In order to discuss these findings, we use the OIE shift Δ λ a b ( 0 ) / λ a b ( 0 ) , instead of Δ λ a b 2 ( 0 ) / λ a b 2 ( 0 ) = 2 Δ λ a b ( 0 ) / λ a b ( 0 ) . Figure 8 clearly demonstrates that there is a correlation between the OIE on T c and λ a b ( 0 ) . At optimal doping, both isotope shifts are small, but finite with Δ λ a b ( 0 ) / λ a b ( 0 ) 10 | Δ T c / T c | . With decreasing doping (decreasing T c ), Δ λ a b ( 0 ) / λ a b ( 0 ) remains almost constant as underlined by the blue dashed line, then starts to increase, and, in the underdoped regime, the two relative oxygen isotope shifts are almost equal ( Δ λ a b ( 0 ) / λ a b ( 0 ) | Δ T c / T c | ), as indicated by the red solid line. This behavior is apparently generic for different families of cuprates, and, at first glance, one may speculate that this is a direct consequence of the empirical Uemura relation [93,94]. In the underdoped regime, the simple relation λ a b 2 ( 0 ) C T c α with α 1 holds, and C is a “universal constant”. With this relation, one readily gets for the isotope shift on λ a b ( 0 ) :
Δ λ a b ( 0 ) / λ a b ( 0 ) = 1 / 2 α Δ T c / T c .
For α 1 (the Uemura relation), one obtains Δ λ a b ( 0 ) / λ a b ( 0 ) 1 / 2 Δ T c / T c , as marked by the dashed red line in Figure 8, which deviates from the experimental data. In the underdoped regime, these are much better described by the red solid line with α 2 ( Δ λ a b ( 0 ) / λ a b ( 0 ) Δ T c / T c ). However, the physical meaning of this factor 2 remains unclear.
S. Weyeneth and K.A. Müller [95] analyzed the doping dependence of the OIE on T c for various cuprate systems in terms of a “polaronic model” proposed by Kresin and Wolf [96,97], which was derived for polarons forming perpendicular to the superconducting CuO 2 planes. It is important to note that, in References [96,97], polarons are not mentioned. However, S. Weyeneth and K. A. Müller [95] reinterpreted the model by them in terms of a polaronic one. The doping dependence of the measured OIE exponent follows well the predicted behavior, in agreement with previous results based on a purely empirical model [98]. In addition, the OIE exponent of the pseudogap temperature T * with reversed sign compared to that of T c is also described by this polaronic model. These findings suggest that superconductivity in the cuprates is driven by polaron, or rather bipolaron, formation in the CuO 2 planes [95]. In this model, it is assumed that the isotope effect on T c is only determined by the isotope effect on the supercarrier density n s . The same argument holds for T * . Since d T c / d n s > 0 , but d T * / d n s < 0 , the two isotope effects are sign reversed (see Figure 9). However, this concept underestimates the observed OIE on λ a b in the underdoped regime by almost a factor 2, as shown by the dashed red line ( α 1 ) in Figure 8, and even closer to optimal doping where Δ T c / T c 0 . This suggests the conclusion that the OIE on λ a b ( 0 ) must arise from an OIE on n s and m a b * , according to Equation (4).

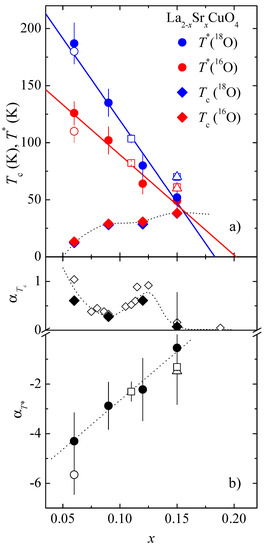

In another project proposed by K.A. Müller, we explored a possible OIE on the pseudogap (charge-stripe ordering temperature) T * in cuprate superconductors. It is generally accepted that T * plays a fundamental role in understanding the complex phase diagram und the underlying physics of cuprates. However, from an experimental point of view, the quantity T * is ill defined, depending on the experimental technique and the corresponding time and length scales involved (see, e.g., Reference [99]). In addition, the meaning of T * and its origin are controversely discussed. Here, we define T * as the temperature where local deviations from the average structure occur (also named charge ordering temperature) and where no direct magnetic effects are present. Thereby, it is evident that OIE studies of T * are crucial to test lattice/polaron effects in the cuprates. Up to now, only a few such studies have been carried out [99,100,101,102,103,104,105]. The first OIE on T * was performed in underdoped La 1.94 Sr 0.06 CuO 4 by means of Cu K-edge X-ray absorption near edge structure (XANES) studies [100], yielding a huge and sign reversed OIE exponent of α T * 5 . Later on, similar XANES experiments on La 2 x Sr x CuO 4 as a function of doping x ( 0.06 x 0.15 ) completed this result [99]. All XANES data, together with additional outcome from neutron crystal field spectroscopy (NCFS) studies of La 1.96 x Ho 0.04 Sr x CuO 4 [104,105], are summarized Figure 9. The observed OIE exponent α T * changes almost linearly from α T * 0.6 for x = 0.15 to α T * 5 for x = 0.06 . This is in contrast to the doping dependence of the OIE exponent α T c which exhibits a characteristic anomaly at x 1 / 8 (Figure 9), which is absent in α T * ( x ) , implying that there is no simple correlation between α T * ( x ) and α T c ( x ) , at least for La 2 x Sr x CuO 4 . Furthermore, NCFS experiments on slightly underdoped HoBa 2 Cu 4 O 8 [101] revealed α T * = 2.2 ( 6 ) , in agreement with values for La 2 x Sr x CuO 4 . Additional NCFS studies of the 63 Cu/ 65 Cu isotope effect show a large negative isotope shift of T * for HoBa 2 Cu 4 O 8 [103], which was not observed for optimally doped La 1.81 Ho 0.04 Sr 0.15 CuO 4 [104]. A consistent explanation of this observation was given by K.A. Müller [104]. In both compounds, single-layer La 1.81 Ho 0.04 Sr 0.15 CuO 4 and double-layer HoBa 2 Cu 4 O 8 , local oxygen and copper lattice JT-type modes have to be considered. Whereas oxygen and copper modes are relevant for the bilayer compound, the umbrella-type copper modes are absent in the single-layer compound, thus explaining the observed oxygen and copper isotope effects on T * [104]. As shown in Figure 9a, the pseudogap temperature T * decreases linearly with increasing doping x with pronounced different slopes for 16 O and 18 O. The limit T * = 0 K has frequently been interpreted as quantum critical point (see, e.g., References [106,107]). However, since, in this limit, an appreciable isotope effect is also observed, [ α x c = 0.84 ( 22 ) ] [99], a purely electronic model can be excluded as origin of this point.

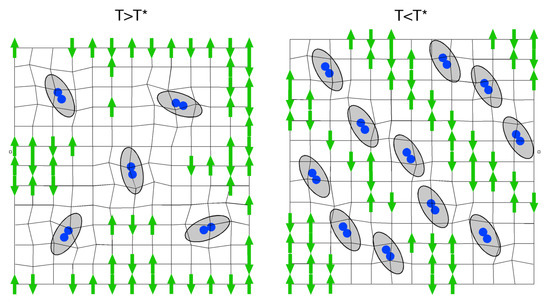

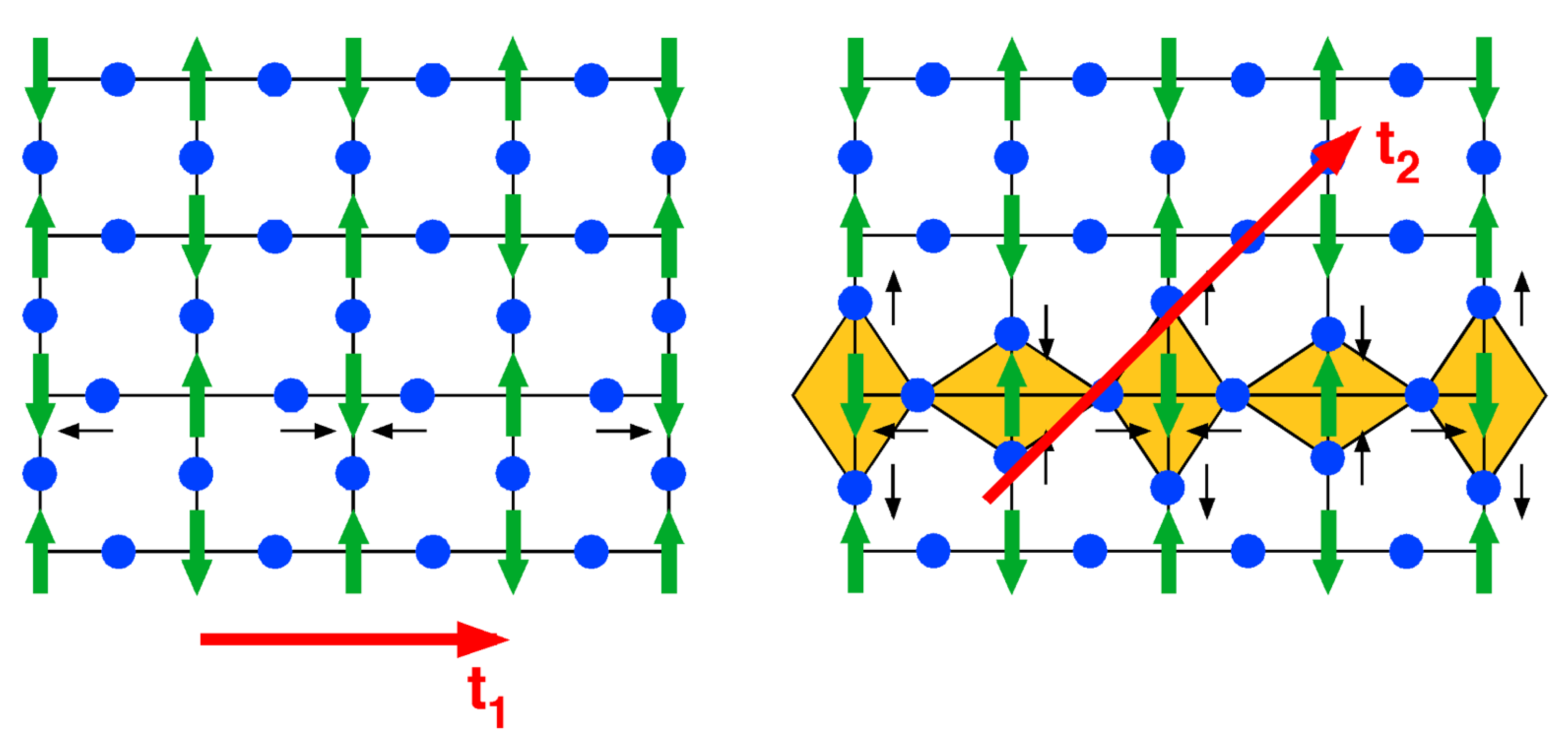

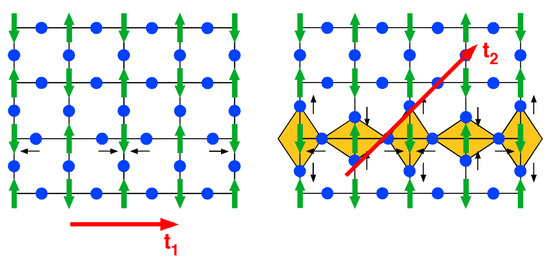

A theoretical explanation of the above described isotope effects has been given in References [67,108], where it was shown that the original idea as introduced by K.A. Müller, namely Jahn-Teller (bi-) polarons [50,52], indeed provide a consistent explanation of them. Polaron formation occurs in the case of strong local electron-lattice coupling where the individual particles lose their meaning to form a new quasi-particle. In such a case, the electrons are renormalized by the lattice, and the lattice, in turn, is renormalized by the electrons. This introduces an exponential slowing down of the electron (hole) hopping, i.e., their kinetic energy, whereas the phonons are rigidly displaced. Upon adopting a three band picture to capture the essential physics of cuprates, namely nearest t 1 and next-nearest neighbor hopping t 2 , together with an inter-planar hopping term t 4 , their polaronic coupling consequences have been investigated. Interestingly, only the second and inter-planar couplings are relevant for the isotope effects and describe the correct trends as observed experimentally for all those compounds mentioned above. This observation admits to draw conclusions on the local displacement involved in the dynamics, namely a Q 2 -type phonon mode, as shown in Figure 10.
On the other hand, the lattice renormalization caused by the polaron formation plays a decisive role to understand experimental XAFS (X-ray absorption fine structure) data of La 2 x Sr x CuO 4 [109]. These show two anomalies as a function of temperature, namely an upturn at T * and a second anomaly at T c . Both are consistently explained by the polaronic approach [110], emerging in a picture where (bi)polarons become coherent at T * , being gaseous above T * , to adopt a stripe-type dynamical pattern below T * , as illustrated in Figure 11. At T c , the superconducting pairing condensate symmetry becomes relevant, since a divergence, as observed by XAFS, takes place only if the symmetry is s-wave-like or has at least a substantial s-wave contribution. For a purely d-wave order parameter, no divergence takes place. This substantiates the original suggestion of K.A. Müller that cuprates must have coexisting s + d order parameters [58].
With these clear conclusions, we move back to SrTiO3 and one of the first famous papers of K.A. Müller, namely the introduction of quantum paraelectricity in this compound [17].

4. SrTiO3—An Exotic Low Carrier Density Superconductor

One of the most frequently cited papers of K.A. Müller is his work on the low-temperature behavior of the dielectric constant in SrTiO3 [17]. The saturation of the dielectric constant ε in this temperature regime has been termed “quantum paraelectricity” (see Figure 3) and gave rise to numerous speculations of its role played for superconductivity in doped or oxygen reduced SrTiO3. When, in the 1960s, superconductivity in this compound was first reported [19,20], the pairing mechanism was interpreted in terms of intervalley scattering or soft mode induced. A typical BCS pairing scheme was excluded, since the low carrier density does not support this. For a rather long period, the work on superconductivity in SrTiO3 slowed down, essentially until Binnig et al. [22] discovered multiband superconductivity in Nb-doped SrTiO3, inspired by K.A. Müller. With the discovery of high-temperature superconductivity in the cuprates, the majority interest was devoted to these compounds, and, only after many years of hype, novel or formerly discussed systems reemerged.
During the high-temperature superconductivity peak activities, SrTiO3 also gained renewed interest, since its lattice parameters match extraordinarily well with those of many cuprates, and, correspondingly, it was used as substrate material for the film growth of these superconductors. Scientifically, focused interest appeared in 2004 with the discovery of the two-dimensional electron (2DEG) or hole gas (2DHG) interface conductivity. In particular, the discovery of 2DEG at the interface between two oxide insulators LaAlO3 and SrTiO3 provided new opportunities for research and applications [111]. Especially, superconductivity [112] and magnetism [113] have been observed at these interface 2DEGs, which are not found in typical semiconductor interfaces. By using strain as an additional tuning parameter, a variety of new research areas have been reemerged [114,115,116].
The low carrier density of doped SrTiO3 has been in the focus during the last 5 years, since it was found that, even smaller than first thought, carrier densities support superconductivity [26,117]. These new findings gave rise to novel theories concentrating often on the proximity of SrTiO3 to quantum criticality and its incipient polar properties [25,118]. Experimentally, the carrier density has been determined from macroscopic measurements, namely conductivity, resistivity, and Hall measurements [117], thereby overlooking that all perovskite oxides have an inherent tendency to inhomogeneity, meaning that the doped carriers are not homogeneously distributed in the respective sample. This is already reflected in undoped perovskite oxides where finite size precursors occur, signaling locally distorted regions in an intact matrix [42,119]. In addition, extended X-ray absorption fine structure (EXAFS) [120,121], electron paramagnetic resonance (EPR) [8], atomic pair distribution function (PDF) (for a recent review, see, e.g., Reference [122]), and similar data are strong indications that the real space properties differ substantially from the momentum space derived ones. For this reason, novel experiments have been carried out in order to arrive at a clue for the understanding of the insulator/metal (I/M) and/or insulator/superconducting (I/S) transition. Both of these are achieved by either introducing oxygen vacancies or by doping the A or B site in ABO3 SrTiO3 by aliovalent ions. The data are interpreted by theoretical modeling based on the polarizability model [123,124,125].
From the latter approach, the dynamics of SrTiO3 can be studied in detail when concentrating on local anomalies in the momentum dependence of the two lowest transverse optic and acoustic modes, which represent the ferroelectric soft mode and the soft acoustic mode responsible for the antiferroelectric rotational instability. Anomalies in these two branches have already been analyzed previously and shown to be signatures for local polar and piezoelectric nano-regions [126]. By calculating the phonon group velocities for the two considered branches, the above described anomalies become very apparent and define the momentum at which local, spatially confined soft modes occur. The decisive momentum value is the one where the scattering between optic and acoustic mode is strongest. The corresponding squared local frequency ω TO 2 ( q ) is shown in Figure 12 as a function of carrier concentration, temperature, and momentum q.

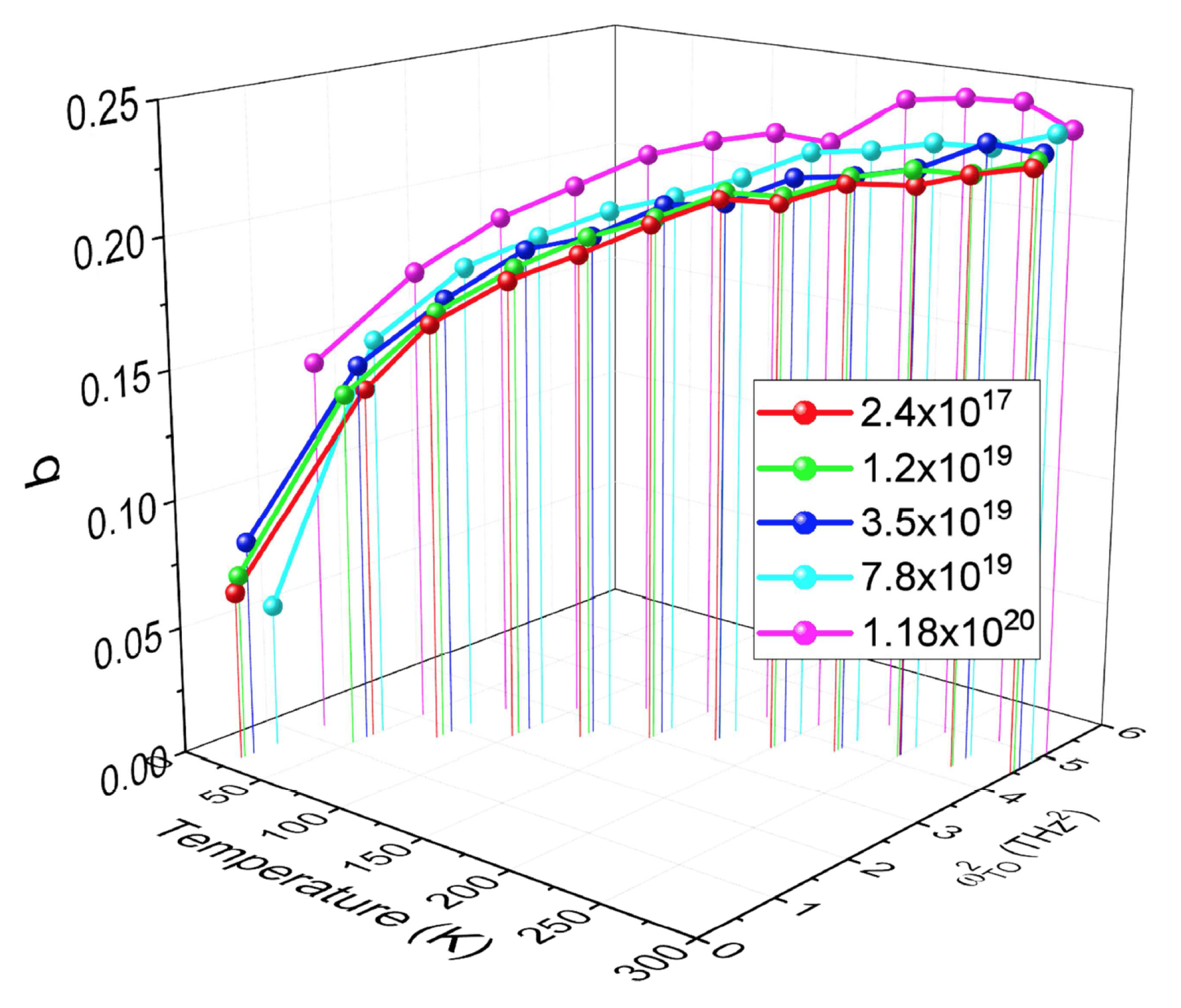

As is obvious from the figure, this local mode softens with decreasing temperature and simultaneously moves to lower momentum values but never reaches the long wave length q = 0 limit. In addition, the softening slows down with increasing carrier concentration, and its momentum space spread increases, highlighting the growing spatial confinement of these polar nano-domains. In contrast to a long wave length “true” soft mode, it is not linearly dependent on temperature but substantially nonlinear below 150 K . Since ω TO 2 ( q ) 1 / ε 0 , this mode is directly linked to the dielectric permittivity ε 0 , which is reduced by approximately 40% as compared to the long wave length limit, but still exhibits an appreciable temperature dependence which is typical for an almost ferroelectric compound [127]. From the calculated thermal average of the displacement-displacement correlation function, a local dipole moment has been derived, which decreases with decreasing temperature and increasing carrier concentration (Figure 13), where the inset shows the zero temperature limit of it in dependence of the carrier concentration.

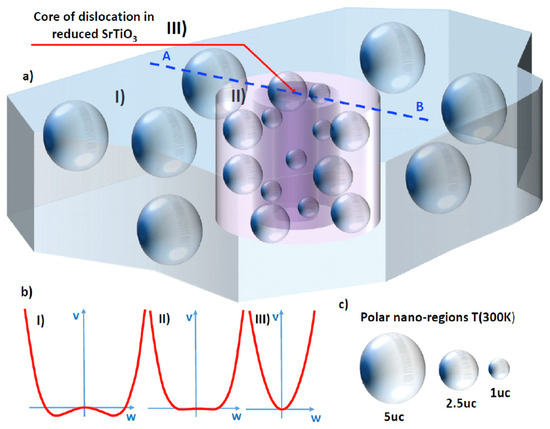

Experimentally, the electrical properties of doped SrTiO3 depend on the volume concentration of carriers which are, however, inhomogeneously distributed in the samples. Self-doped samples exhibit different electronic, chemical, and structural properties in highly doped regions as compared to the matrix, which is almost unaffected by doping [128]. According to References [129,130], the removal of oxygen preferentially takes place along extended defects, thus giving rise to a local reduction, which cannot be detected by average macroscopic property detecting methods, like, e.g., mobility and Hall measurements. This argument is supported by local conductivity atomic force microscopy (LC-AFM) data [131,132], which demonstrate that very low concentrations of oxygen deficiency assemble along these dislocations. In order to prove that a random distribution of “defects” is absent, a decisive experiment has been carried out, which underlines the important role of dislocations and filament formation on the electrical transport properties of reduced SrTiO3. As outlined above, even with increasing carrier density, mode softening persists on a dynamic time scale of ps and length scale of nm. This can be confirmed experimentally on the nano-scale by using, e.g., time-resolved infrared spectroscopy or scanning near-field optical microscopy (SNOM). Alternatively, piezoelectric force microscopy (PFM) offers the possibility of locally detecting a piezoelectric response which is an indirect probe of mode softening through the creation of induced dipole moments. This has been shown in Reference [133], where, in the vicinity of the core of edge dislocations in a SrTiO3 bicrystal, a polarization of the order of 20 μC/cm 2 has been detected. This is shown in Figure 14, where, along a sharp step of a plastically deformed SrTiO3 crystal, corresponding to a broad band of dislocations, piezoelectric responses are observed.

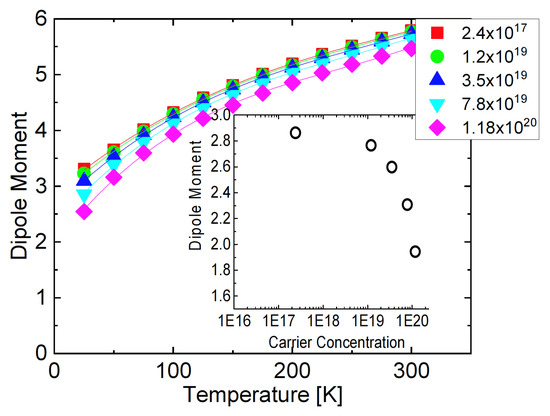

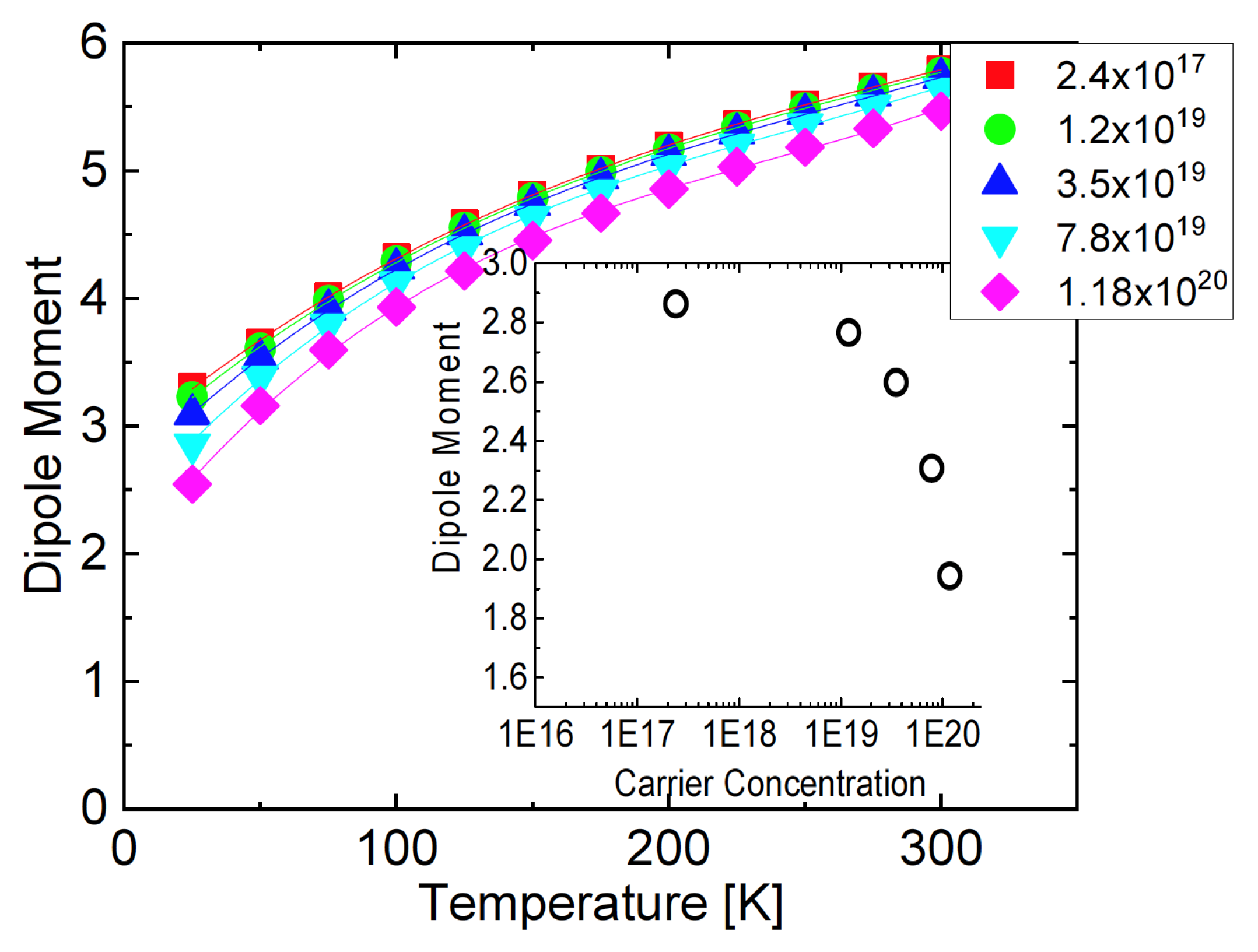

As expected, this rapidly decreases with increasing carrier concentration and approaches a constant value for small densities, thus clearly supporting the polar character of the matrix and the inherent inhomogeneity of doped SrTiO3. Correspondingly, in the metallic and superconducting low carrier density limit of SrTiO3, metallicity is not globally present but appears only in filaments which coexist with elastically and polar distorted domains where the latter shrink in size with increasing carrier density and have completely vanished beyond a critical carrier density n c to give space for a homogeneous metal where superconductivity is absent. In terms of the electronic band structure, highly localized polaronic bands can be attributed to the matrix, whereas Luttinger liquid-type behavior must be present in the filaments. With increasing carrier density, the localized band adopts dispersion from the itinerant one, which corresponds to a steep band/flat band scenario, where superconductivity is a consequence of interband interactions [134].
In conclusion, the dynamical properties of SrTiO3 have been calculated as a function of carrier concentration. Up to a critical concentration n c , the lattice potential is of double-well character, and strong transverse optic mode softening takes place [127]. This is linked to the formation of polar nano-regions, which grow in size with decreasing temperature, implying substantial sample inhomogeneity. The “insulating” nano-domains coexist with the filamentary conductivity; hence, possible links to superconductivity are apparent. As long as this coexistence persists, metallicity/superconductivity survives. Thus, its essential origin must be associated with the polar character of the matrix and the two-component properties. Beyond n c , almost “normal” dynamics are observed with negligible mode softening and nano-domain formation. Typical metallicity is expected there, as well as homogeneous sample properties. The theoretical results are in agreement with experiments which demonstrate the local metallic character and the insulating behavior of the matrix, which are schematically summarized in Figure 15, where the change in the character of the potential along a core of dislocations and the entry into the matrix is depicted.

5. Another Rather Mysterious Perovskite: WO3

WO3 is a perovskite where the A-site ion is missing or only in part occupied by M=Na, K, Rb, or Cs [135]. The dominating physics in these materials stem from the valence fluctuations of W, which dominantly adopts a 3 + or 5 + valency. Structurally, depending on the dopant atom M, carrier-doped tungsten oxides (M x WO3) are classified into two different categories: perovskite or hexagonal. Both structures consist of WO 6 octahedra that form a corner-sharing network, though, in many cases, each octahedron exhibits a significant distortion [136,137,138]. Early on, it was discovered that these tungsten bronzes become superconductors when small amounts x of M are added. Typical superconducting transition temperatures for the three compounds are shown in Figure 16.

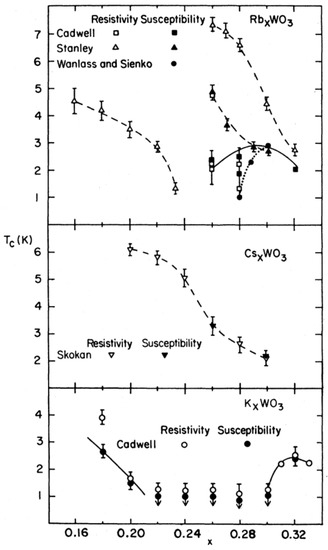

As is obvious from the figure, there are two superconducting regions in the K- and Rb-doped compounds which adopt a dome or half-dome, like x-dependence. The highest T c s are observed for the Rb-doped system reaching more than 7 K. What is of particular interest in WO3 is the fact that charge accumulations occur around the W 5 + ion with the tendency to localization, i.e., polaron formation [139]. Early on, detailed experiments by Salje and Schirmer convincingly showed that these polarons pair to form bipolarons [140,141], which yielded one of the first realizations for obtaining bipolaronic superconductivity, the original concept behind the discovery of cuprates [49]. This connection was taken up by Reich and Tsabba [142] to get back to WO3 and search for superconductivity in a WO3 sample with surface composition of Na 0.05 WO3. These crystals showed a sharp diamagnetic step in their magnetization at 91 K, and a magnetic hysteresis below this temperature. Transport measurements below 100 K show a sharp metal to insulator transition, which is followed by a rapid decrease in the resistivity when the temperature is lowered to about 90 K. These results point to a possible nucleation of a superconducting phase on the surface of these crystals. The results of Ref. [142] initialized an EPR and magnetic susceptibility study of Na-doped WO3 samples, suggesting traces of possible superconductivity [143]. In a later investigation of a related compound, namely lithium intercalated WO 2.9 , a small superconducting fraction was observed [144]. The absence of a clear transition in resistivity measurements indicated, however, that the superconductivity is localized in small regions which do not percolate. EPR experiments showed the presence of W 5 + - W 5 + electron bipolarons in reduced tungsten oxide samples, thus rendering the compound as a promising candidate for high-temperature superconductivity. More details with respect to recent progress on superconductivity in WO3-type compounds can be found in the contributions of Shengelaya et al. [145] and Salje [146] in this issue.

6. Concluding Remarks

In our contribution to the special issue honoring K.A. Müller’s life work, we tried to walk along his scientific path, which is a long one and covers almost 7 decades. Since his productivity and scientific activity was enormous, we certainly cannot follow all the detours he made during his career, but we concentrated on the two uttermost important systems: SrTiO3, his scientific favorite child, and the cuprates. In addition, we added an outlook for the future research in the former where, again, superconductivity is in the focus with emphasis on its inherent heterogeneous filamentary character, parallelizing his viewpoints for cuprates. We both are deeply indebted to our friend, K. Alex Müller, who not only scientifically supported and inspired both of us, and never stopped encouraging us in following even controversial scientific topics but also for his open minded attitudes and his honest interest in our private life. His black humor has promoted us throughout our collaborations and beyond and today also adds spice to our life.
- Thank you very much, Alex! -

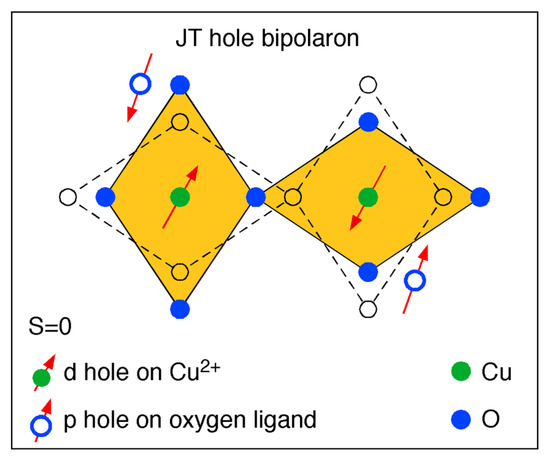

In order to come back to the starting ideas leading to high-temperature superconductivity, we finish our conclusions with the final Figure 17, the Jahn-Teller bipolaron [55,147], which is the essential ingredient and motivation for the discovery of high-temperature superconductivity [49,50,51,52].

Author Contributions

Both authors (A.B.-H. and H.K.) have contributed equally to this work. Both authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We would like to thank K.A. Müller for the fruitful and encouraging collaboration, his great support, and his warm friendship over many years.

Conflicts of Interest

The authors declare no conflict of interest.
