Proximity Array Device: A Novel Photon Detector Working in Long Wavelengths

1
Istituto Nazionale di Fisica Nucleare, Laboratori Nazionali di Fisica Nucleare, Via Enrico Fermi 54, 00044 Frascati, Italy
2
Istituto Nazionale di Ricerca Metrologica (INRiM), Strada delle Cacce 91, 10135 Torino, Italy
3
Consiglio Nazionale delle Ricerche, Istituto di Fotonica e Nanotecnologie, Rome 00156, Italy
4
Institute for Metallic Materials, IFW-Dresden, Dresden 01069, Germany
5
INFN and Department of Physics, Università degli Studi di Sapienza, 00185 Rome, Italy
6
International Centre for Material Science Superstripes, RICMASS, via dei Sabelli 119A, 00185 Rome, Italy
*
Author to whom correspondence should be addressed.
Condens. Matter 2020, 5(2), 33; https://doi.org/10.3390/condmat5020033
Received: 7 April 2020 / Accepted: 23 April 2020 / Published: 1 May 2020

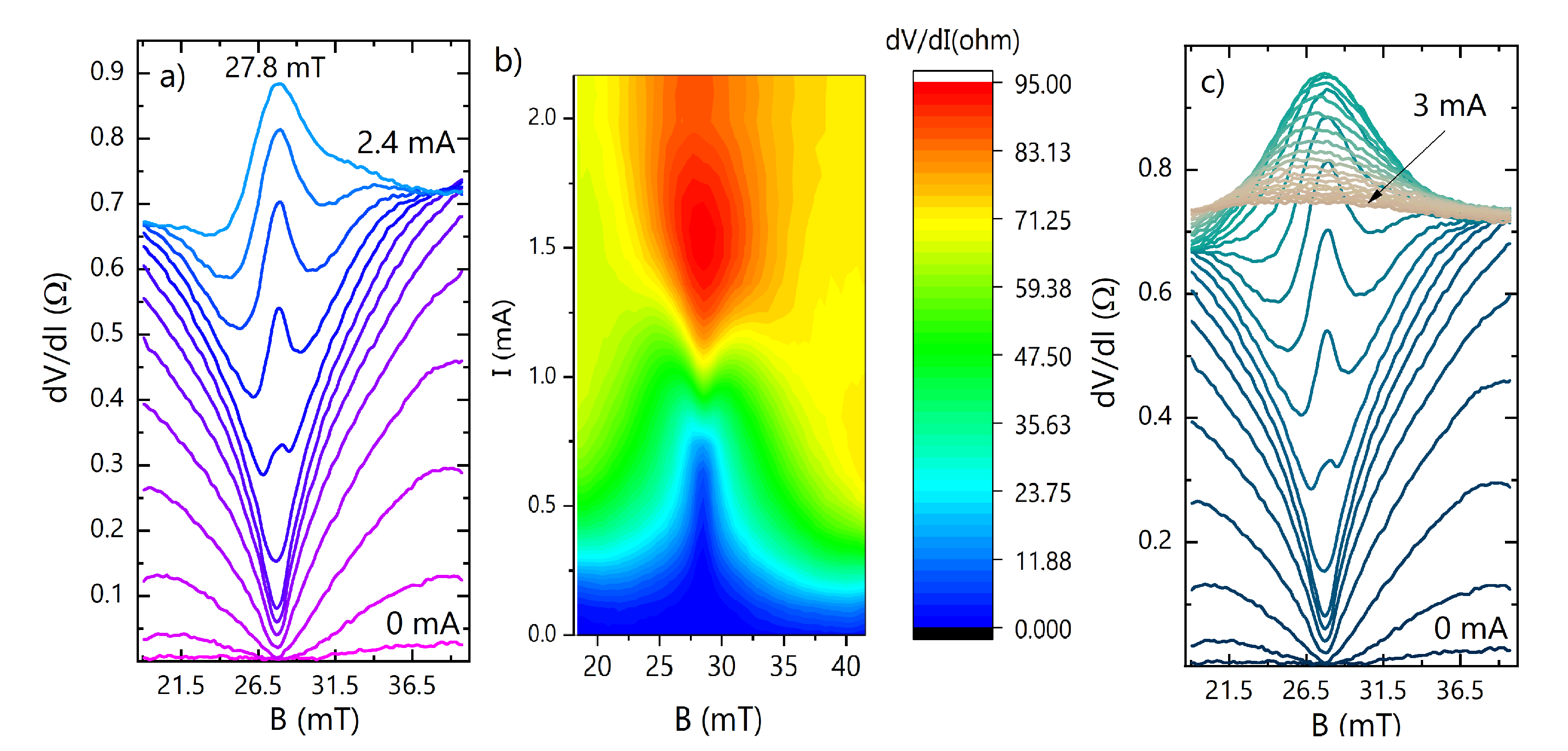

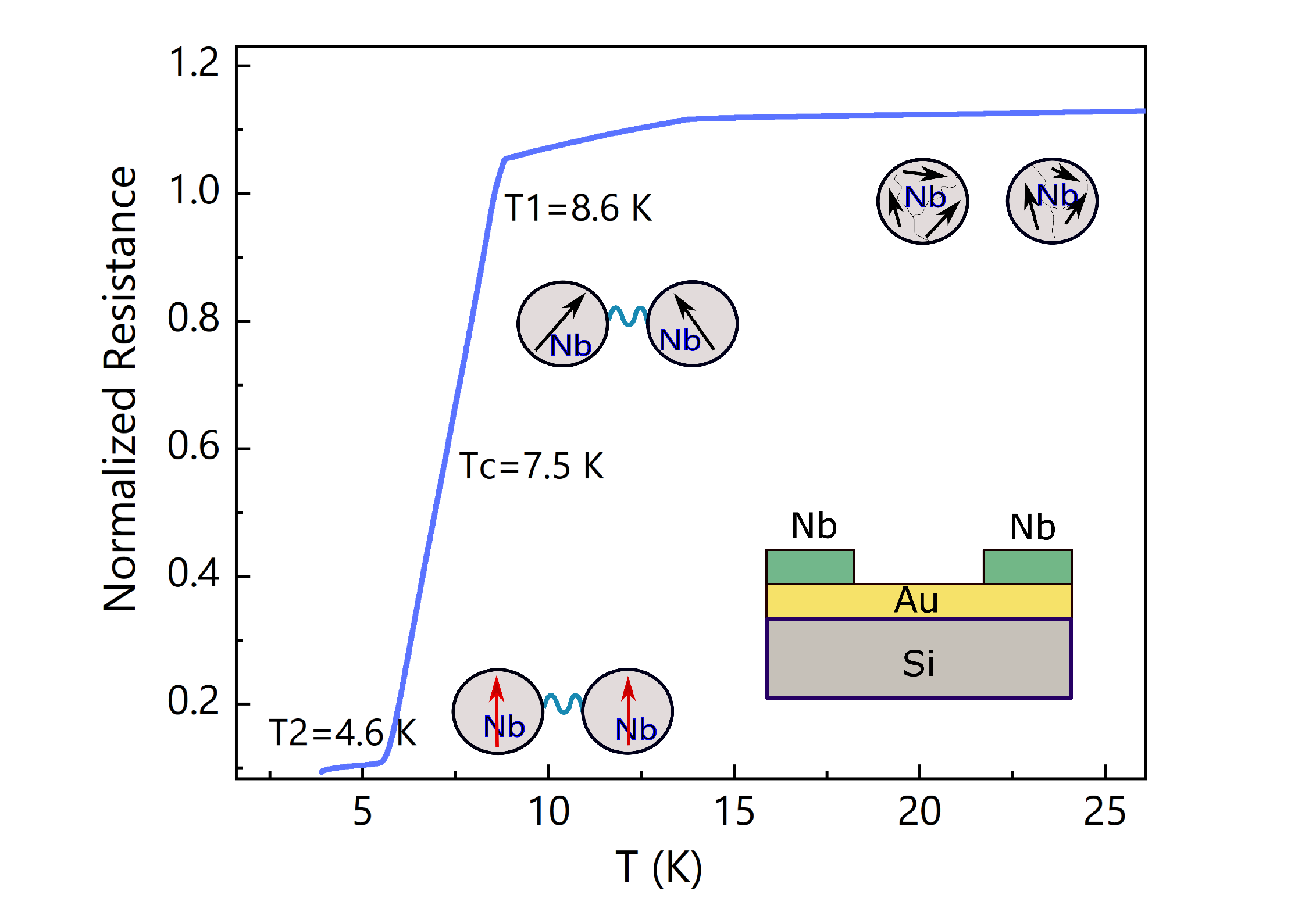

We present here an innovative photon detector based on the proximity junction array device (PAD) working at long wavelengths. We show that the vortex dynamics in PAD undergoes a transition from a Mott insulator to a vortex metal state by application of an external magnetic field. The PAD also evidences a Josephson I-V characteristic with the external field dependent tunneling current. At high applied currents, we observe a dissipative regime in which the vortex dynamics is dominated by the quasi-particle contribution from the normal metal. The PAD has a relatively high photo-response even at frequencies below the expected characteristic frequency while, its superconducting properties such as the order parameter and the Josephson characteristic frequency can be modulated via external fields to widen the detection band. This device represents a promising and reliable candidate for new high-sensitivity long-wavelength detectors. View Full-Text

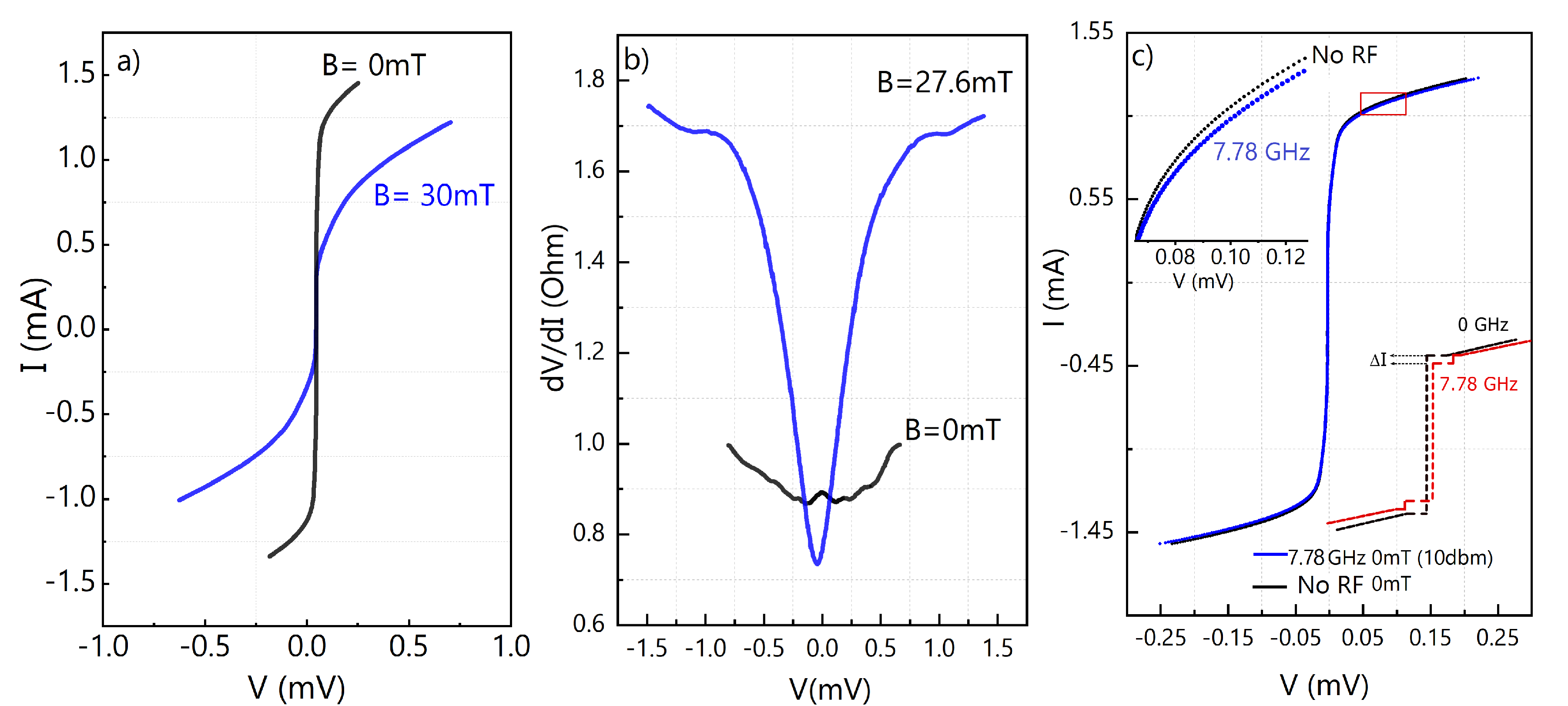

Keywords: niobium; proximity effects; superconductivity; detectors; terahertz; Vortex dynamics niobium; proximity effects; superconductivity; detectors; terahertz; Vortex dynamics
Show Figures

Figure 1

MDPI and ACS Style

Rezvani, S.J.; Gioacchino, D.D.; Gatti, C.; Ligi, C.; Guidi, M.C.; Cibella, S.; Fretto, M.; Poccia, N.; Lupi, S.; Marcelli, A. Proximity Array Device: A Novel Photon Detector Working in Long Wavelengths. Condens. Matter 2020, 5, 33.
