Resonant Quantum Kicked Rotor as A Continuous-Time Quantum Walk

Abstract

We analytically investigate the analogy between a standard continuous-time quantum walk in one dimension and the evolution of the quantum kicked rotor at quantum resonance conditions. We verify that the obtained probability distributions are equal for a suitable choice of the kick strength of the rotor. We further discuss how to engineer the evolution of the walk for dynamically preparing experimentally relevant states. These states are important for future applications of the atom-optics kicked rotor for the realization of ratchets and quantum search.

1. Introduction

Generally speaking, quantum walks (QWs) are the quantum-mechanical analogue of classical random walks [1]. Whilst there is no stochastic component in QW prior to measurements, QWs are characterized by the interference of many paths in the walker’s space, shaping the finally obtained probability distributions. The engineering of these distributions, or more generally of the amplitudes that result in them, may find practical applications for the creation of specific initial states. These may be useful for the implementation of quantum ratchets [2,3,4,5,6,7] and quantum search algorithms [8,9].

The first result of this paper is the interesting observation that a continuous-time quantum walk (CTQW) on the line leads to equal probability distributions in the walker’s space to the momentum distributions obtained in the evolution of the quantum kicked rotor (QKR) at quantum resonance conditions. CTQWs have been realized so far with optical cavities [10], nuclear spins in magnetic fields [11], optical waveguides [12], photonic chips [13], polarization of single photons [14], and Bose– Einstein condensates in optical lattices [15]. Only recently, the experimental realization, dubbed the atom-optics kicked rotor based on (ultra)cold atoms, has been proposed as an implementation of discrete-time [16] and continuous-time [17] quantum walks in momentum space. The experimental implementation of such momentum quantum walks was largely discussed in [18,19]. Similar observations on the interference patterns in the resonant quantum kicked rotor and possible analogies with quantum walks were reported in, e.g., [20,21,22,23,24,25,26,27]. Here, we discuss their equivalence from a general viewpoint first, showing a direct connection between the Hamiltonians describing the two processes and then by studying the probability distributions explicitly for exemplary initial states. In particular, we derive the distributions resulting from the choice of initial superposition states in the momentum basis. These results are then used for discussing how to engineer interesting states by means of the QKR/CTQW evolution. This is done by optimizing the starting state, which is typically limited to superpositions of just a few momentum eigenstates in the atom-optics implementation of the QKR [2,3,4,5,6,7,18,19,28].

The paper is structured as follows: In Section 2, we review known results for the QKR at resonance conditions, and we introduce the concept of a standard CTQW, as defined in [8]. In Section 3, we discuss the equivalence between these two models. This helps us to analyze, in Section 4, the formation of exotic interference patterns in the evolution of the walker, which can be exploited as a tool for preparing interesting states for the implementation of quantum ratchets [2,3,4,5,6,7] and the quantum search algorithm; see, e.g., [9] for a specific proposal. Finally, Section 5 summarizes our findings and provides some outlooks for further work.

2. Probability Distributions of the Walks

2.1. Review of the QKR

The quantum kicked rotor [29,30,31] is usually described by the rescaled dimensionless Hamiltonian:

$$\begin{array}{c}\hfill \widehat{\mathcal{H}}=\frac{{\widehat{p}}^2}{2}+\kappa \cos \widehat{\theta }\sum _{j=1}^T\delta (t-j\tau ),\end{array}$$

(1)

where p is the momentum, $\theta$ the periodic position, $\kappa >0$ the kick strength, and $\tau$ the period of the kicks. In the following, we will assume perfect conditions for the principal quantum resonance of the kicked rotor [32], and for simplicity, we set $\tau =4\pi$. In its atom-optics realization [6,33], the above Hamiltonian only couples momentum states that differ by a multiple of two photonic recoils so that we may separate the momentum into an integer part n and a conserved non-integer part called the quasimomentum arising from the implementation. Perfect quantum resonance occurs for zero quasimomentum for $\tau =4\pi$, and we will neglect its impact in the sequel. Implementations of the QKR based on Bose–Einstein condensates allow one a precise control of quasimomentum with a high resolution [2,3,4,5,6,18,28,34,35]. Since the free evolution part

$$\begin{array}{c}\hfill \widehat{F}=e^{-\mathrm{i}\tau \frac{{\widehat{p}}^2}{2}}\end{array}$$

(2)

at quantum resonance is just equal to unity, the evolution is only given by the time-periodic kicks impacted by the one cycle Floquet operator:

$$\widehat{\mathcal{U}}=e^{-\mathrm{i}\kappa \cos \widehat{\theta }}.$$

(3)

$\widehat{\theta }$ represents the angular (spatial) coordinate of the system. The evolution occurs in (angular) momentum space at discrete integers represented by the (angular) momentum operator $\widehat{p}=\widehat{n}=-\mathrm{id}/\mathrm{d}\theta$, with periodic (cyclic) boundary conditions. At quantum resonance, the momentum distribution of a single momentum initial state, e.g., $n_0=0$, expands symmetrically around its initial value and displays ballistic expansion, i.e., with a standard deviation proportional to the number of applied kicks [6,32]. Typical pictures of such momentum distributions were plotted, e.g., in [6,17].

In what follows, we review the calculation from [36] for the special case of zero quasimomentum. If we choose as the initial state the following plane wave of momentum $p_0=n_0\in \mathbb{Z}$:

$${\psi }_{n_0}\left(\theta \right)=\frac{1}{\sqrt{2\pi }}{e}^{\mathrm{i}{n}_0\theta },$$

(4)

after t kicks (or a total time t in units of $\tau$), we have:

$${\widehat{\mathcal{U}}}^t=e^{-\mathrm{i}\kappa t\cos \left(\widehat{\theta }\right)}.$$

(5)

Then, the probability amplitudes in the basis of momentum states ${\left\{|n\rangle \right\}}_{n\in \mathbb{Z}}$ are:

$$\langle n\rangle \widehat{{\mathcal{U}}^t}{\psi }_{n_0}={\int }_0^{2\pi }\frac{\mathrm{d}\theta }{2\pi }{e}^{-\mathrm{i}\kappa t\cos \left(\widehat{\theta }\right)}{e}^{\mathrm{i}(n_0-n)\theta }=-{\mathrm{i}}^{n-n_0}{J}_{n-n_0}\left(\kappa t\right),$$

(6)

where in the last equality, we have used the following integral representation of the Bessel function, Identity [9.1.21] from [37],

$$\frac{1}{2\pi }{\int }_0^{2\pi }\mathrm{d}\theta e^{\mathrm{i}z\cos \left(\theta \right)}{e}^{-\mathrm{i}n\theta }={\mathrm{i}}^n{J}_n\left(z\right).$$

(7)

Finally, the probability distribution for the momentum space evolution is found by taking the modulus squared of Equation (6), which gives:

$$P_{\kappa }(n,t|n_0)={\left|J_{n-n_0}\left(\kappa t\right)\right|}^2.$$

(8)

From the latter equation, we will observe, in the next subsections, that the behavior of the QKR at resonance conditions is reminiscent of the one of a CTQW.

2.2. Evolution of CTQW

Following Fahri and Gutmann [38] or Portugal’s book [8], we know that the evolution operator for a one-dimensional CTQW on a line is defined as:

$$\widehat{U}\left(t\right)=e^{-\mathrm{i}{\widehat{H}}_{\gamma }t},$$

(9)

where the Hamiltonian ${\widehat{H}}_{\gamma }$ is defined by means of the following matrix elements in the walker’s computational basis ${\left\{|m\rangle \right\}}_{m\in \mathbb{Z}}$,

$$\langle n|{\widehat{H}}_{\gamma }|m\rangle =\left\{\begin{array}{cc}2\gamma ,\hfill & \mathrm{if}n=m;\hfill \\ -\gamma ,\hfill & \mathrm{if}n=m\pm 1;\hfill \\ 0,\hfill & \mathrm{otherwise};\hfill \end{array}\right.$$

(10)

or, equivalently,

$${\widehat{H}}_{\gamma }|m\rangle =-\gamma |m-1\rangle +2\gamma |m\rangle -\gamma |m+1\rangle ,$$

(11)

with $\gamma$ taken with a positive value for the convention.

3. Equivalence between Resonant QKR and CTQW

3.1. Equivalence at the Hamiltonian Level

We now derive our first result, proving the equivalence between the QKR at the resonant condition and the CTQW on general grounds. We start by observing that the QKR’s evolution operator at quantum resonance of Equation (5) after t kicks can be formally interpreted as being generated by a Hamiltonian ${\widehat{H}}_{\kappa }=\kappa \cos \widehat{\theta }$ acting continuously for a time t. This obviously is true only when one looks at the resulting dynamics for integer t, i.e., when the kick occurs. Rewriting the potential in Equation (1) $\cos (\widehat{\theta })=1/2(\exp (\mathrm{i}\widehat{\theta })+\exp (-\mathrm{i}\widehat{\theta }))$, the similarity with the nearest-neighbor couplings of the CTQW in Equation (10) becomes quite evident. On the basis of momentum eigenstates, the Hamiltonian ${\widehat{H}}_{\kappa }$ has matrix elements:

$$\begin{array}{cc}\hfill \langle m|{\widehat{H}}_{\kappa }|n\rangle =& {\int }_0^{2\pi }\frac{e^{-\mathrm{i}m\theta }}{\sqrt{2\pi }}\begin{array}{c}\hfill \kappa \end{array}\cos \theta \frac{e^{\mathrm{i}n\theta }}{\sqrt{2\pi }}d\theta ,\hfill \\ \hfill =& \left\{\begin{array}{cc}\begin{array}{c}\hfill \kappa \end{array}/2\hfill & \mathrm{if} m=n\pm 1\hfill \\ 0\hfill & \mathrm{otherwise}\hfill \end{array}\right..\hfill \end{array}$$

(12)

Comparing Equations (10) and (12), we thus see that, if we choose $\kappa =2\gamma$, the following relation holds for the CTQW Hamiltonian ${\widehat{H}}_{\gamma }$ and the “effective” kick Hamiltonian ${\widehat{H}}_{\kappa }$ at integer t:

$${\widehat{H}}_{\gamma }=2\gamma \mathbb{I}-{\widehat{H}}_{\kappa },$$

(13)

where $\mathbb{I}$ is the identity matrix over the whole walker’s space. Let us now focus on the probability of being in the $n^{\mathrm{th}}$ momentum eigenstate, given whatever initial state $|{\mathsf{\Psi }}_0\rangle$ after t kicks of our QKR,

$$P_{\kappa }(n,t)={\left|\langle n|\widehat{{\mathcal{U}}^t}|{\mathsf{\Psi }}_0\rangle \right|}^2={\left|\langle n|e^{-\mathrm{i}{\widehat{H}}_{\kappa }t}|{\mathsf{\Psi }}_0\rangle \right|}^2.$$

(14)

The probability $P_{\gamma }(n,t)$ that the CTQW starting from the same state leads to the same momentum eigenstate is then, for $\gamma =\kappa /2$ and using Equations (13) and (14),

$$\begin{array}{cc}\hfill P_{\gamma }(n,t)=& |\langle n|e^{-\mathrm{i}{\widehat{H}}_{\gamma }t}{|{\mathsf{\Psi }}_0\rangle |}^2,\hfill \end{array}$$

(15a)

$$\begin{array}{cc}\hfill =& |\langle n|e^{-\mathrm{i}(2\gamma \mathbb{I}-{\widehat{H}}_{\kappa })t}{|{\mathsf{\Psi }}_0\rangle |}^2,\hfill \end{array}$$

(15b)

$$\begin{array}{cc}\hfill =& |\langle n|e^{-2\mathrm{i}\gamma t}{e}^{\mathrm{i}{\widehat{H}}_{\kappa }t}{|{\mathsf{\Psi }}_0\rangle |}^2,\hfill \end{array}$$

(15c)

$$\begin{array}{cc}\hfill =& |\langle n|e^{\mathrm{i}{\widehat{H}}_{\kappa }t}{|{\mathsf{\Psi }}_0\rangle |}^2,\hfill \end{array}$$

(15d)

$$\begin{array}{cc}\hfill =& P_{\kappa }(n,-t).\hfill \end{array}$$

(15e)

Therefore, choosing $\gamma =\kappa /2$ produces a CTQW with a time-reversed probability distribution with respect to the evolution induced by the QKR, independent of the initial condition.

If $\kappa =-2\gamma$ is chosen instead, the two probability distributions would be equal. One can also evaluate explicitly the probability distribution of the Hamiltonian (10) using techniques from the theory of quantum walks [8]. These calculations are reported in Appendix A.

We proved that the probability distribution of a CTQW, $P_{\gamma }(n,t)$, is equal to the one of the QKR at resonance, $P_{\kappa }(n,t)$, if one chooses $\kappa =-2\gamma$. Therefore, the simple QKR at principal resonance conditions directly implements a CTQW as defined in [8]. Previously, this identity was not highlighted explicitly or was only thought to be true approximately; see the discussions in [17] and around Figure 2 in [19].

3.2. Distributions for Specific Initial States

In general, if the initial condition is $|\psi \left(0\right)\rangle$, where $|\psi \left(0\right)\rangle$ is the eigenstate with $n_0=0$, the state at time t is:

$$|\psi \left(t\right)\rangle =\widehat{U}\left(t\right)|\psi \left(0\right)\rangle ,$$

(16)

and the probability distribution over the walker’s space is:

$$P_{\gamma }(m,t)={\left|\langle m\rangle \psi \left(t\right)\right|}^2.$$

(17)

From the previous Section 2.1 and Section 3.1, we know that:

$$P_{\gamma }(m,t)={\left|J_m\left(2\gamma t\right)\right|}^2.$$

(18)

We now extend the analogy between the QKR and CTQWs to an initial state consisting of a more complex superposition state of the walker’s basis in Section 4. This is motivated by the idea of exploiting the evolution produced by the QKR/CTQW for preparing interesting states. The distributions after some iterations of the QKR at resonance conditions, or equivalently of a CTQW on the line, show interesting interference patterns, which can be controlled by the relative phases in the initial states. This allows us, for instance, to switch from broader final distributions to more localized ones, or from symmetric to asymmetric ones in the walker’s space. We will discuss this phenomena in detail in the next Section 4.

Let us consider a generic initial state, which is described by the vector of coefficients $C_n$, e.g.,

$$\psi (t=0)=\mathcal{N}\left(\begin{array}{c}⋮\\ C_{-2}\\ C_{-1}\\ C_0\\ C_1\\ C_2\\ ⋮\end{array}\right),$$

(19)

where $\mathcal{N}$ is the normalization constant, in order to extend the theory for an initial state given by a superposition of eigenstates. The coefficients $C_n$ are chosen to be pure phases, that is they are complex coefficients of modulus one, in order to have $\psi (t=0)$ uniformly distributed over the walker’s space. Because of the freedom in choosing the global phase of the wave vector, (at least) one of the coefficients could be set equal to one. For illustrative purposes and in order to keep the discussion transparent, we consider a flat distribution over three states, thus taking $C_{-1},C_0,C_1\ne 0$ only. Further generalization to arbitrarily broad initial states seems obvious. Such states with more than one coefficient different from zero, but nevertheless localized in some region of the walker’s space are actually more interesting for the creation of the interference profiles presented in Section 4.

The chosen initial state ${\psi }_0\equiv \psi (t=0)$ is of the form:

$${\psi }_0\left(\theta \right)=\frac{1}{\sqrt{3}}\frac{1}{\sqrt{2\pi }}\left(C_{-1}{e}^{-\mathrm{i}\theta }+C_0+C_1{e}^{\mathrm{i}\theta }\right),$$

(20)

where we have the three components respectively with $n_0=-1,n_0=0,n_0=1$. Now, we use it as the initial state in order to arrive at the probability amplitude:

$$\langle n|\widehat{{\mathcal{U}}^t}{\psi }_0\rangle =\frac{1}{\sqrt{3}}{\int }_0^{2\pi }\frac{\mathrm{d}\theta }{2\pi }{e}^{-\mathrm{i}n\theta -\mathrm{i}\kappa t\cos \left(\widehat{\theta }\right)}\left(C_{-1}{e}^{-\mathrm{i}\theta }+C_0+C_1{e}^{\mathrm{i}\theta }\right).$$

(21)

Solving the integral in the same way we do in Section 2.1, we obtain a sum of Bessel functions:

$$\langle n|\widehat{{\mathcal{U}}^t}{\psi }_0\rangle =\frac{1}{\sqrt{3}}\left[C_0{J}_n\left(\kappa t\right)+\mathrm{i}\left(C_1{J}_{n-1}\left(\kappa t\right)-C_{-1}{J}_{n+1}\left(\kappa t\right)\right)\right].$$

(22)

Therefore, the distribution is:

$$\begin{array}{cc}\hfill P_{\kappa }(n,t)=& \frac{1}{3}\{|C_0{|}^2{J}_n^2\left(\kappa t\right)+|C_1{|}^2{J}_{n-1}^2\left(\kappa t\right)+{|C_{-1}|}^2{J}_{n+1}^2\left(\kappa t\right)-2\mathrm{Im}\left[C_0^{\ast }{C}_1\right]J_n\left(\kappa t\right)J_{n-1}\left(\kappa t\right)\hfill \\ & +2\mathrm{Im}\left[C_0^{\ast }{C}_{-1}\right]J_n\left(\kappa t\right)J_{n+1}\left(\kappa t\right)-2\mathrm{Re}[C_{-1}^{\ast }{C}_1]J_{n-1}\left(\kappa t\right)J_{n+1}\left(\kappa t\right)\}.\hfill \end{array}$$

(23)

Remembering that the coefficients are chosen with modulus equal to one, we finally have:

$$\begin{array}{cc}\hfill P_{\kappa }(n,t)=\frac{1}{3}\{& J_n^2\left(\kappa t\right)+J_{n-1}^2\left(\kappa t\right)+J_{n+1}^2\left(\kappa t\right)-2\mathrm{Im}\left[C_0^{\ast }{C}_1\right]J_n\left(\kappa t\right)J_{n-1}\left(\kappa t\right)\hfill \\ & +2\mathrm{Im}\left[C_0^{\ast }{C}_{-1}\right]J_n\left(\kappa t\right)J_{n+1}\left(\kappa t\right)-2\mathrm{Re}[C_{-1}^{\ast }{C}_1]J_{n-1}\left(\kappa t\right)J_{n+1}\left(\kappa t\right)\}.\hfill \end{array}$$

(24)

This last equation is the general form of the probability density function for an initial state given by a superposition of any three neighboring walker’s states. Fixing $C_0=1$ by the choice of the global phase of the wavefunction and writing $C_1=e^{i{\phi }_1}$ and $C_{-1}=e^{i{\phi }_{-1}}$, Equation (24) becomes:

$$\begin{array}{cc}\hfill P_{\kappa }(n,t)=\frac{1}{3}\{& J_n^2\left(\kappa t\right)+J_{n-1}^2\left(\kappa t\right)+J_{n+1}^2\left(\kappa t\right)-2\sin \left({\phi }_1\right)J_n\left(\kappa t\right)J_{n-1}\left(\kappa t\right)\hfill \\ & +2\sin \left({\phi }_{-1}\right)]J_n\left(\kappa t\right)J_{n+1}\left(\kappa t\right)-2\mathrm{Re}\cos ({\phi }_1-{\phi }_{-1})J_{n-1}\left(\kappa t\right)J_{n+1}\left(\kappa t\right)\}.\hfill \end{array}$$

(25)

From the latter expression, the role of the phases of the coefficients is more explicitly stressed. In Section 4, we will see how this probability distribution changes by choosing different values for the respective coefficients.

In the same way, we can evaluate the distribution of the CTQW obtaining:

$$\begin{array}{cc}\hfill P_{\gamma }(n,t)=\frac{1}{3}\{& J_n^2\left(2\gamma t\right)+J_{n-1}^2\left(2\gamma t\right)+J_{n+1}^2\left(2\gamma t\right)+2\mathrm{Im}\left[C_0^{\ast }{C}_1\right]J_n\left(2\gamma t\right)J_{n-1}\left(2\gamma t\right)\hfill \\ & -2\mathrm{Im}\left[C_0^{\ast }{C}_{-1}\right]J_n\left(2\gamma t\right)J_{n+1}\left(2\gamma t\right)-2\mathrm{Re}[C_{-1}^{\ast }{C}_1]J_{n-1}\left(2\gamma t\right)J_{n+1}\left(2\gamma t\right)\}.\hfill \end{array}$$

(26)

This distribution is very similar to Equation (24) except for a phase of $\pi$ in the fourth and the fifth term. This is related to the fact that we have chosen $\kappa =2\gamma$, which, as explained in Section 3, produces a reversed-time CTQW. As a result, a biased, asymmetric walk will take the opposite direction with respect to the one in Figure 2. One can restore exact equivalence, for instance, by adding a phase of $\pi$ to the prefactor $C_0$ or by implementing kicks with a negative strength $\kappa =-2\gamma$. This can be experimentally implemented in setups with cold atoms as in [18,19], for instance. Indeed, in that case, $\kappa$ is proportional to the squared Rabi frequency and to the duration of the kick pulse, which are positive, but inversely proportional to the detuning from the atomic transition, which can have also a negative value; please see the proposal of [16] for details.

4. Engineering the Final Walk Distributions

For applications in quantum search, the typical initial distribution is not localized as studied in the previous section, but uniformly extended over the walker’s space (see, e.g., [8]), or at least flat over some interval of walker states (see, e.g., a search proposal for a quantum rotor subject to two different kicking potentials in [39]). We numerically simulated QKR evolutions to verify our theoretical predictions from the previous sections. Since we proved the equivalence between the CTQW and the QKR in the previous sections, we drop from now on the corresponding labels in the probability distribution, calling it simply $P(n,t)$. In the numerical evolution, we can easily invert the evolution to produce figures that nicely illustrate the dynamics, just as done in the experiment; see [18], in particular Figure 2 therein. The backward evolution is obtained by applying the adjoint operator ${\left({\widehat{\mathcal{U}}}^t\right)}^{†}$ after half of the total steps, i.e., after 15 kicks in our cases.

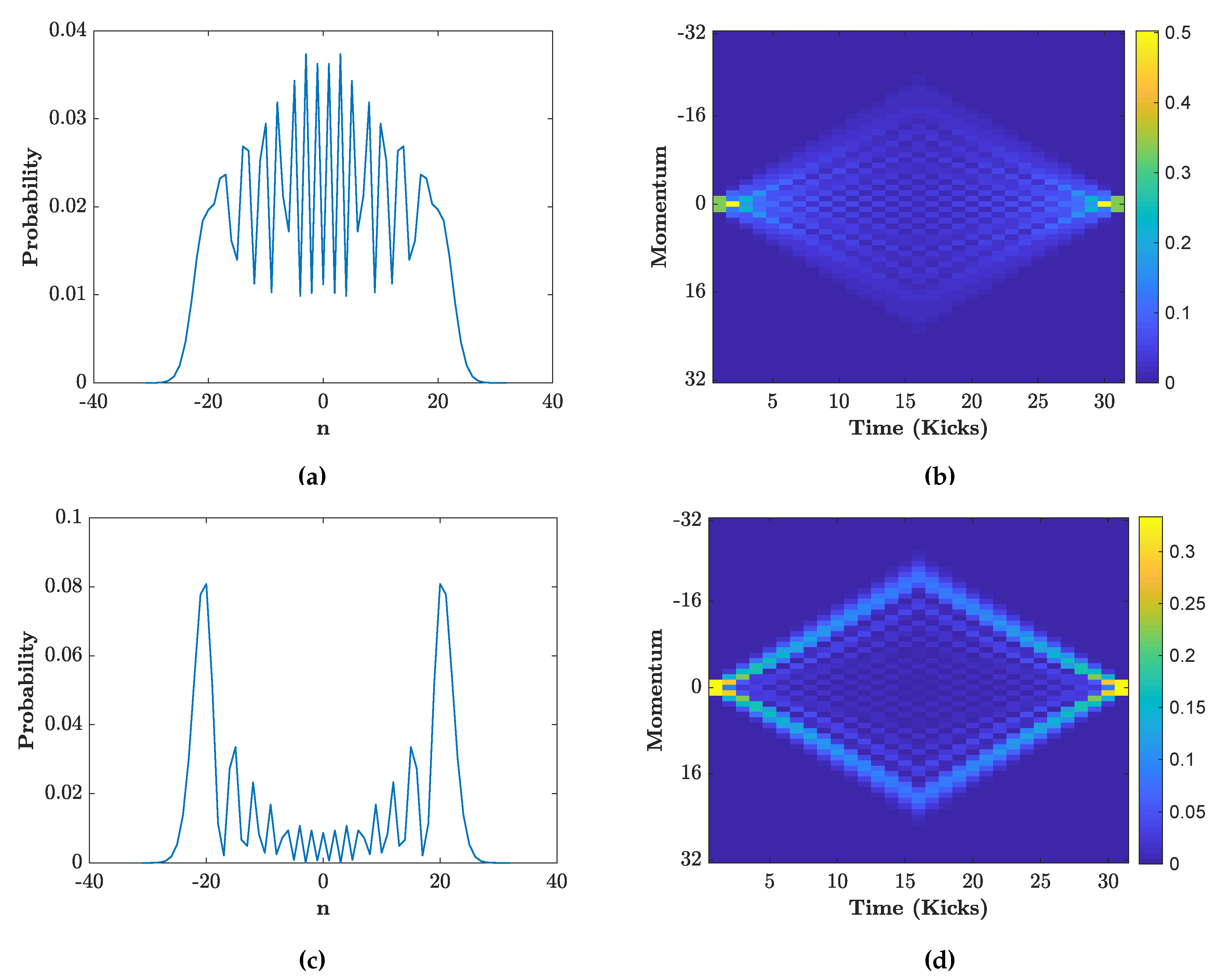

Figure 1 and Figure 2 show some examples with different choices of the coefficients $C_n$. In particular, for the first plot, we chose $C_1=C_{-1}=C_0=1$ and $C_n=0$ for any $n\ne \pm 1,0$. The evolution depicted in Figure 1a exhibits strong interference between neighboring momentum states, so we lose the usual shape of a CTQW characterized by a ballistic behavior of the peaks [8]. Analytically, using Equation (24), which is seen from the formula:

$$P(n,t)=\frac{1}{3}[J_n^2\left(\kappa t\right)+{(J_{n-1}\left(\kappa t\right)-J_{n+1}\left(\kappa t\right))}^2].$$

(27)

Because of the parity properties of the Bessel functions, the two quadratic terms combine during the entire walk so as to suppress the external peaks. This leads to a strong interference of the participating momentum states.

The evolution shown in Figure 1c,d is obtained by rotating the phase of either $C_{-1}$ or $C_1$ by $\pi$. Both cases lead to the same probability distribution,

$$\begin{array}{ccc}\hfill P(n,t)=\frac{1}{3}[J_n^2\left(\kappa t\right)+{(J_{n-1}\left(\kappa t\right)+J_{n+1}\left(\kappa t\right))}^2],& \hfill & \hfill \mathrm{Figure}1\mathrm{c},\mathrm{d}\end{array}$$

(28)

since $P(n,t)$ for real coefficients only depends on their relative phase; see Equation (25).

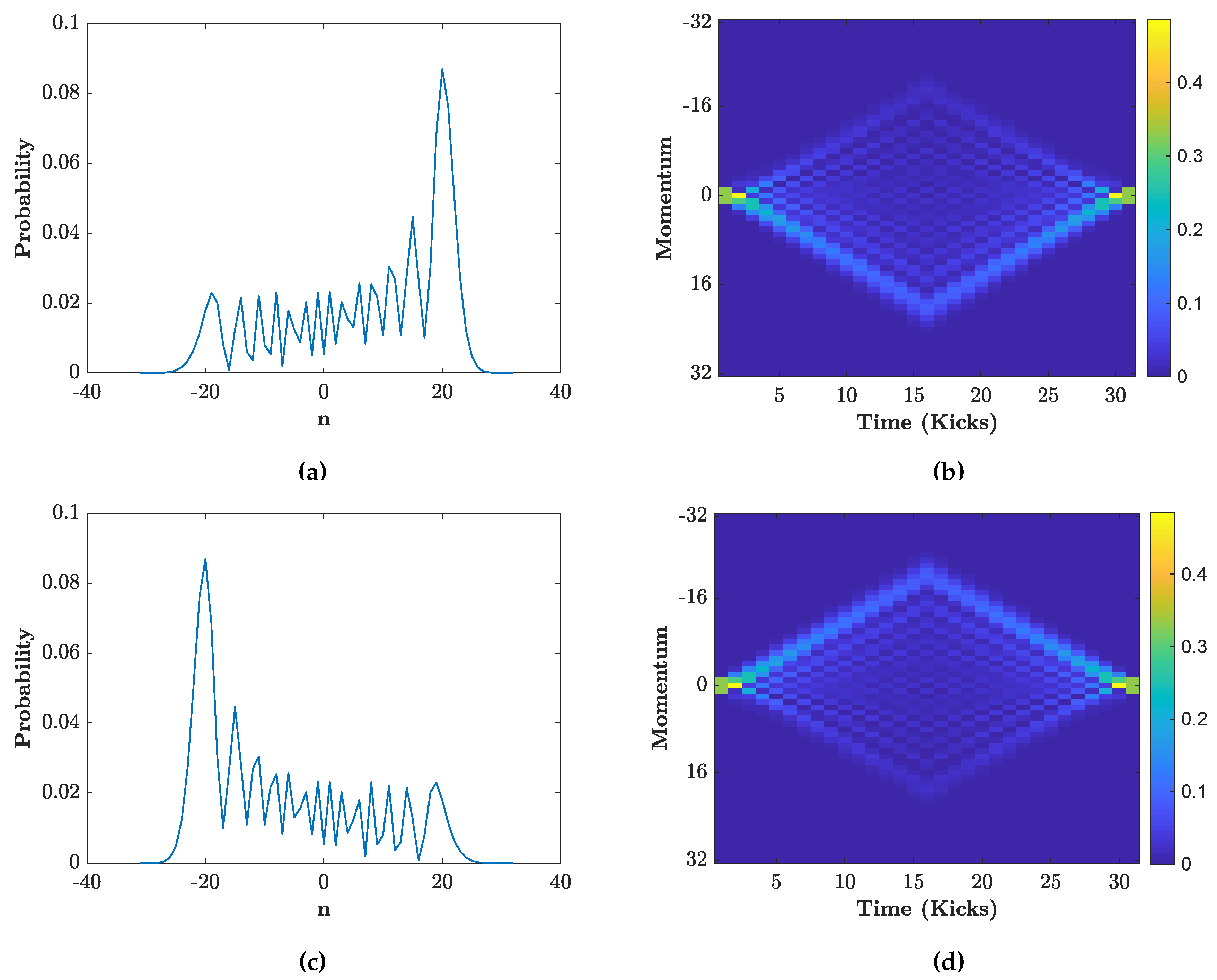

Figure 2 shows that changing the phases of $C_{-1}$ or $C_1$ by $\pi /2$ (rather than $\pi$) leads to an asymmetric walk. In fact, the two probability distributions are, respectively,

$$\begin{array}{ccc}\hfill P(n,t)=\frac{1}{3}[{(J_n\left(\kappa t\right)+J_{n+1}\left(\kappa t\right))}^2+J_{n-1}^2\left(\kappa t\right)]& \hfill & \hfill \mathrm{Figure}2\mathrm{a},\mathrm{b},\end{array}$$

(29)

$$\begin{array}{ccc}\hfill P(n,t)=\frac{1}{3}[{(J_n\left(\kappa t\right)-J_{n-1}\left(\kappa t\right))}^2+J_{n+1}^2\left(\kappa t\right)]& \hfill & \hfill \mathrm{Figure}2\mathrm{c},\mathrm{d}.\end{array}$$

(30)

Now, the distributions are different. The parity properties of the Bessel functions induce in this case a suppression of only one side of the walk.

Moreover, for illustrative purposes, we look at an initial state composed of five nonzero momentum classes:

$${\psi }_{\beta }\left(\theta \right)=\frac{1}{\sqrt{5}}\frac{1}{\sqrt{2\pi }}\left(C_{-2}{e}^{-\mathrm{i}2\theta }+C_{-1}{e}^{-\mathrm{i}\theta }+C_0+C_1{e}^{\mathrm{i}\theta }+C_2{e}^{\mathrm{i}2\theta }\right).$$

(31)

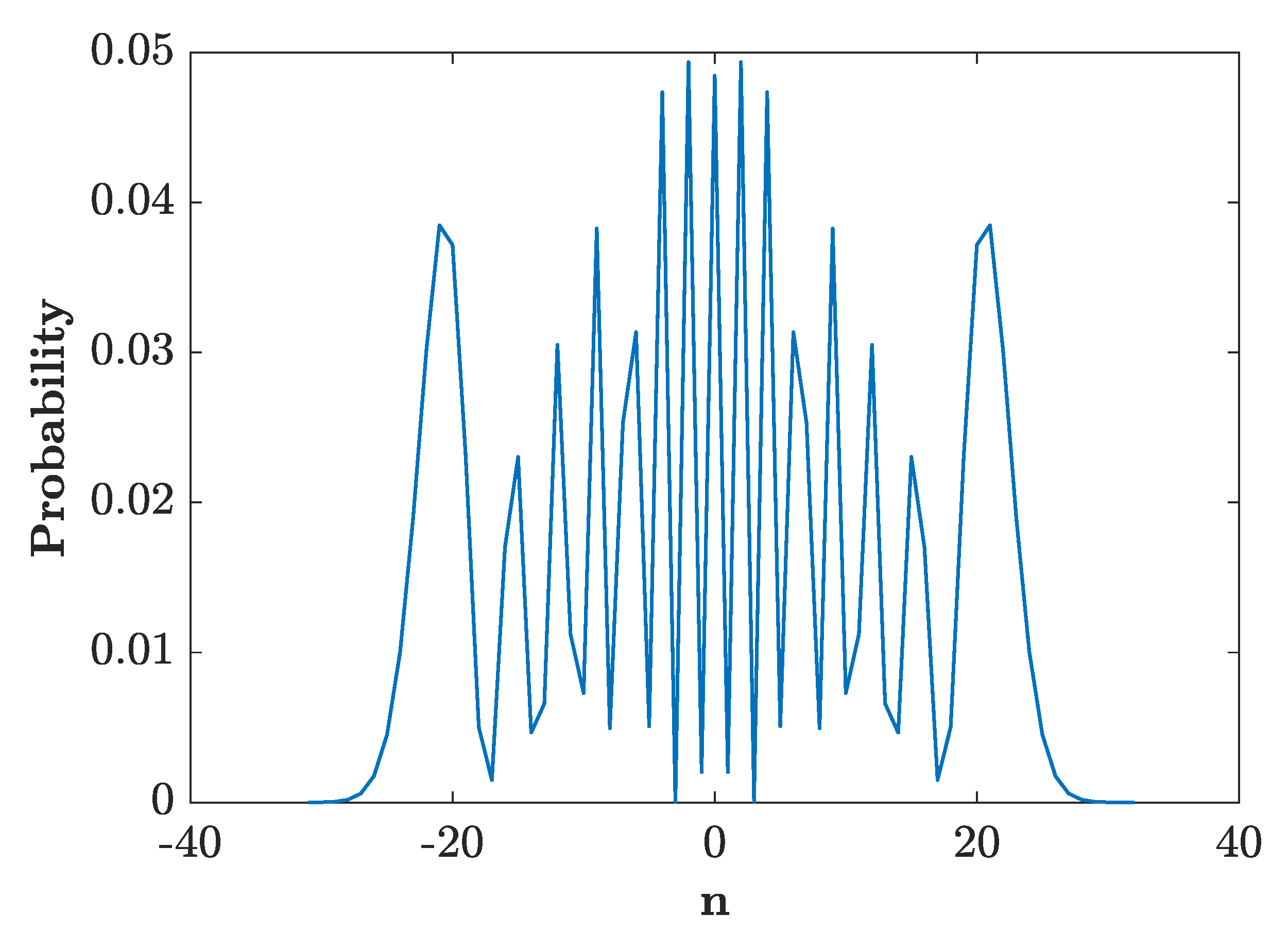

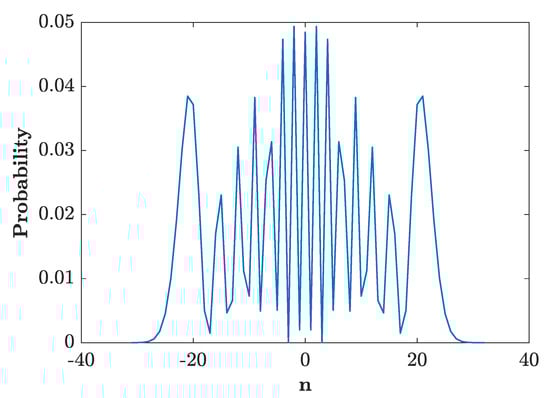

The procedure to calculate the final distribution is exactly the same as above. The only difference is that, in this case, we will have more interference generated by more participating neighboring momentum states, already early in the evolution. Figure 3 shows an exemplary distribution for an initial superposition with the coefficients $C_2=C_{-2}=C_{-1}=C_0=1$, $C_1=-1$, and $C_n=0$ for any other n. We can still distinguish the two peaks at the edges seen in the case of Figure 1c, but they are just half as high as the peaks there. This difference of probability has moved towards the center where we can see now much stronger constructive interference than before.

All the above examples illustrate the rich dynamical behavior governed by the interference of the participating initial states and the dynamically coupled additional states of the walker’s basis. Our examples already showed that the CTQW, or the equivalent QKR evolution at resonance, can be steered, biased towards one direction, and be made more localized or broader depending only on the specific choice of the initial state.

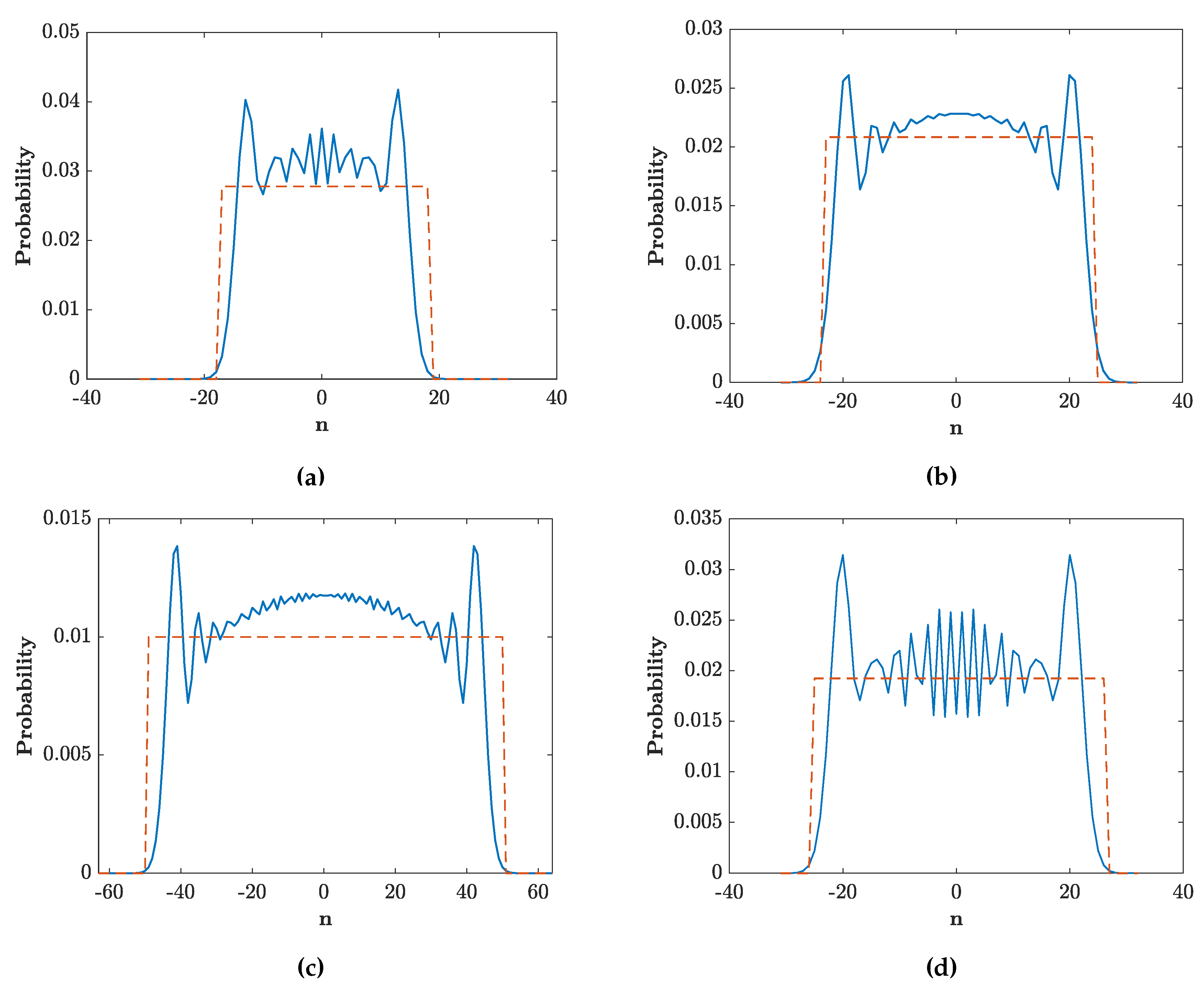

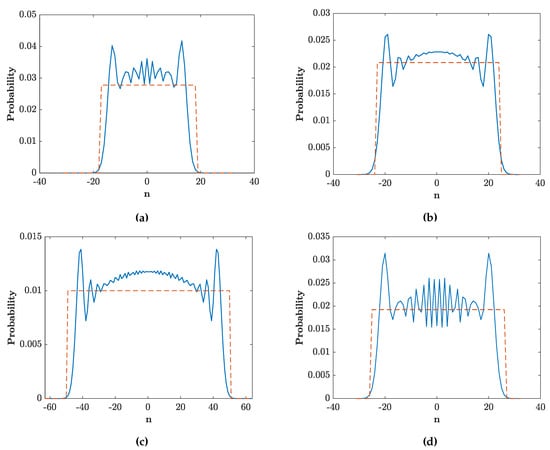

As our last example, we show how the coefficients in the initial state can be optimized in order to obtain a target distribution after a given number t of kicks. In particular, we aim at preparing a uniform distribution over N basis states, given that a generic superposition of only a few states can be experimentally realized as the input state [5,7,18,19]. The obtained distributions are of particular relevance for realizing a quantum search protocol; see, e.g., the proposals in [9,39]. For this purpose, denoting with $\mathit{C}=\{C_{-1},C_0,C_1\}$ the initial coefficients, we define a cost function $\mathcal{E}\left(\mathit{C}\right)$ as:

$$\mathcal{E}\left(\mathit{C}\right)=\sum _{n=-N/2}^{N/2}{[P(n,t;\mathit{C})-u_N]}^2,$$

(32)

where $P(n,t;\mathit{C})$ is the walker’s distribution given initial coefficients $\mathit{C}$ and $u_N=\frac{1}{N}$ is the value of the target uniform distribution over N states. Given this setup, we then find numerically the coefficients $\mathit{C}$ such that $\mathcal{E}\left(\mathit{C}\right)$ is minimal. For a given number of kicks t, the width N of the distribution is numerically probed beforehand, but we actually know that the maximal width after t kicks can be estimated to be $N\approx \pi \kappa t$, at least when starting at zero momentum only, as discussed in detail in [36]. Figure 4 shows the distributions resulting from the optimization done with parameter $\kappa =3/2$ ($\gamma =3/4$). In particular, Figure 4d is the distribution obtained, using Equation (24) as the walker’s distribution, for the initial state with three non-zero coefficients centered around zero momentum; whereas Figure 4a–c represent the distribution for an initial state with four nonzero coefficients. In detail, Figure 4 shows the final distribution after $t=10$ for the optimization parameter $N=36$ (Figure 4a), $t=15$ for $N=52$ (Figure 4b) as used also in Figure 4d, and $t=30$ for $N=102$ (Figure 4c). As can be seen, we can engineer the final distribution and in particular its width by the choice of the initial coefficients, the coupling parameter $\kappa$ ($2\gamma$), and the number of evolution steps. A specific experimental proposal was given in [9], where a broad distribution was first prepared along the lines above and then used for implementing a search algorithm based on our CTQW in momentum space.

5. Conclusions and Outlook

In summary, we revisited in detail the analogy of the continuous-time quantum walk (CTQW) in momentum space and the quantum kicked rotor (QKR). This system can be realized with Bose–Einstein condensates, allowing for the necessary control over the initial conditions [2,3,4,5,6,7,18,19,28]. The typical evolution of a single initial state in the walker’s space, in our case momentum space, was extended to initial states being a superposition of a few states. The resulting final distributions may be relevant for the implementation of quantum ratchets [2,3,4,5,6,7], quantum search protocols based on momentum-space CTWQs [9], as well as for the dynamical creation of interesting interference patterns in general. We see our work as a bridge between both scientific communities, working with CTQWs and QKRs, respectively, with a large potential overlap for future developments.

Interesting extensions would be the inclusion of atom–atom interactions and the investigation of higher dimensional walks. Whilst, in the experimental realization of a CTQW with a Bose–Einstein condensates expanding in an optical lattice [15], the walk occurred with interactions local in the walker’s (real) space, in our CTQW, such contact interactions in real space typical for ultracold atoms would be long range in momentum space, an aspect discussed briefly in [40]. For the QKR, an effective higher dimensionality can be obtained by the application of several incommensurable kicking potentials; see [19] for a comprehensive discussion of such a possibility. Whether the analogy between the resonant QKR and the CTQW will extend to higher dimensional walks in various geometries, with enlarged possibilities of interference between the different directions, will be the subject of future work. Furthermore, for discrete-time quantum walks with an additional coin degree of freedom, one may study the preparation of topological states and their properties; see, e.g., [41,42,43,44,45]. In particular, the work in [45] investigated the possibility of realizing topological phases in a double kicked QKR experiment. Mixing our state preparation scenario discussed here with the additional coin degree of freedom would thus be another interesting goal to pursue.
