Condens. Matter 2019, 4(2), 45; https://doi.org/10.3390/condmat4020045

Article
High Precision Test of the Pauli Exclusion Principle for Electrons
1
Centro Fermi—Museo Storico della Fisica e Centro Studi e Ricerche “Enrico Fermi”, 00184 Rome, Italy
2
Laboratori Nazionali di Frascati, INFN, 00044 Frascati, Italy
3
Politecnico di Milano, Dipartimento di Elettronica, Informazione e Bioingegneria and INFN Sezione di Milano, 20133 Milano, Italy
4
Dipartimento di Fisica e Astronomia, Università di Bologna, 40126 Bologna, Italy
5
IFIN-HH, Institutul National pentru Fizica si Inginerie Nucleara Horia Hulubei, Magurele 077125, Romania
6
Stefan-Meyer-Institute for Subatomic Physics, Austrian Academy of Science, 1090 Vienna, Austria
7
Institut de Physique, Université de Neuchâtel, CH-2000 Neuchâtel, Switzerland
8
Laboratori Nazionali del Gran Sasso, INFN, 67100 Assergi, Italy
9
Dipartimento di Fisica, Università di Trieste and INFN-Sezione di Trieste, 34127 Trieste, Italy
10
Institut für Hochenergiephysik der Österreichischen Akademie der Wissenschaften, 1050 Vienna, Austria
11
Excellence Cluster Universe, Technische Universität München, D-85748 Garching, Germany
*
Author to whom correspondence should be addressed.
Received: 6 March 2019 / Accepted: 23 April 2019 / Published: 2 May 2019

Abstract

:
The VIP-2 experiment aims to perform high precision tests of the Pauli Exclusion Principle for electrons. The method consists in circulating a continuous current in a copper strip, searching for the X radiation emission due to a prohibited transition (from the 2p level to the 1s level of copper when this is already occupied by two electrons). VIP already set the best limit on the PEP violation probability for electrons 1 2 β 2 < 4.7 × 10 29 , the goal of the upgraded VIP-2 (VIolation of the Pauli Exclusion Principle-2) experiment is to improve this result of two orders of magnitude at least. The experimental apparatus and the results of the analysis of a first set of collected data will be presented.
Keywords:
Pauli exclusion principle; quantum foundations; X-ray spectroscopy; underground experiment

1. Introduction

The VIP collaboration is performing high precision tests of the Pauli Exclusion Principle (PEP) for electrons, in the extremely low cosmic background environment of the Underground Gran Sasso Laboratories (LNGS) of INFN (Italy). According to the PEP a system can not hold two (or more) fermions with all quantum numbers identical. PEP stands as one of the fundamental and most solid cornerstones of modern physics, its validity explaining a plenty of phenomena such as the structure of atoms. The PEP was originally formulated for the electrons (see Ref. [1]) and was later extended to all the fermions by the spin-statistics theorem, which can only be demonstrated within Quantum Field Theory (QFT). According to the spin-statistics connection the quantum states of identical particles are necessarily either symmetric (for bosons) or antisymmetric (for fermions) with respect to their permutation. Extensions of the QFT admit, however, spin-statistics violations, hence experimental evidence of even a tiny violation of the PEP would be an indication of physics beyond the Standard Model.
VIP (see Refs. [2,3,4]) greatly improved an experimental technique conceived by Ramberg and Snow (see Ref. [5]) which consists in circulating a DC current in a copper conductor and search for the X-rays signature of PEP-violating K α transitions ( 2 p 1 s in Cu when the 1 s level is already occupied by two electrons). As a consequence of the shielding effect of the two electrons in the ground state, the K α violating transition is shifted of about 300 eV with respect to the standard line and is then distinguishable in precision spectroscopic measurements. Such experimental procedure aims to evidence an anomalous behaviour of the newly injected electrons which never had before the possibility to perform the searched violating K α transition in the target Cu atoms. In this sense VIP strictly fulfills the Messiah-Greenberg superselection rule [6] which excludes transitions between different symmetry states in a given system. Considering open systems is then a crucial feature in order to consistently test a violation of the PEP, whose probability is usually quantified by means of the β 2 /2 parameter [7,8].
In what follows the upgraded VIP-2 experimental apparatus (see Refs. [9,10]) will be presented, and the analysis of a first set of data (collected in 2016) will be described. As will be shown VIP-2 already improved the upper limit imposed by VIP on β 2 /2 (after three years of data taking), which represents the best limit ever on the PEP violation probability for electrons. The final goal of VIP-2 (which is presently acquiring data) is to either further improve the limit of two orders of magnitude, or to measure a signal of PEP violation.

2. The VIP-2 Experimental Apparatus

VIP-2 is the upgraded version of the VIP experiment and aims to improve the result obtained by VIP of two orders of magnitude at least. VIP set the best limit on the PEP violation probability for electrons 1 2 β 2 < 4.7 × 10 29 [2] exploiting the experimental technique which was pioneered by Ramberg and Snow. The VIP experimental setup made use of Charge Coupled Devices (CCDs) as the X-ray detectors; CCDs were characterised by a Full Width at Half Maximum (FWHM) of 320 eV at 8 keV, corresponding to the definition of the Region Of Interest (ROI) where the signature of anomalous X-ray transitions is searched for. Moreover, VIP was operated in the extremely low cosmic background environment of the Underground Gran Sasso Laboratories (LNGS) of INFN.
The goal of VIP-2 will be achieved by implementing many improvements in the experimental apparatus. The core components of the VIP-2 setup are illustrated in Figure 1. The new layout of the copper target consists of two strips of copper (with a thickness of 50 μm, and a surface of 9 cm × 2 cm) the new geometry results in a higher acceptance for the X-ray detection. The heat due to the dissipation in copper would lead to a significant temperature rise in the strip. In order to avoid this effect a cooling pad (cooled down by a closed chiller circuit) is placed in between the two strips. This also allows to enhance the DC current circulating on the strips to 100 A (instead of the 40 A in VIP) thus increasing the candidate event pool for the anomalous X-rays. The CCDs were replaced by Silicon Drift Detectors (SDDs) as X-ray detectors, with a better energy resolution (190 eV FWHM at 8 keV). The data presented in this work were acquired by means of two arrays of 1 × 3 SDDs surrounding the copper target, each array with 3 cm2 of effective surface. The SDDs were cooled down to −170 °C with circulating liquid argon in a closed cooling line. With a current of 100 A circulating in the strips, their temperature rises up by about 20 °C, inducing a temperature rise at the SDDs of about 1 K, which does not significantly alters the SDDs performances.
The timing capability of the SDDs also enables to introduce an active shielding system. This veto system is made of 32 plastic scintillator bars (250 mm × 38 mm × 40 mm bar) surrounding the SDDs and serves to remove the background originating from the high energy charged particles that are not shielded by the rocks of the Gran Sasso mountains. The light output of each scintillator is read out by two silicon photomultipliers (SiPMs) coupled to each end of the bars.
All the detectors and the front end preamplifier electronics are mounted inside the vacuum chamber which is kept at 10−5 mbar during operation.
In order to perform quick energy calibration and SDDs resolution measurements an X-ray tube on top of the setup irradiates Zirconium and Titanium foils, to produce fluorescence reference lines. A Kapton window in the vacuum chamber and an opening solid angle in the upper scintillator bars, allow to collect in one hour enough statistics for the SDDs performance monitoring. A secondary energy calibration method of the SDDs is performed by means of a weakly radioactive Fe-55 source, with a 25 μm thick Titanium foil attached on top, mounted together inside an aluminum holder. The six SDDs have an overall 2 Hz trigger rate, accumulating events of fluorescence X-rays from titanium and manganese to calibrate the digitized channel into energy scale.
The VIP-2 experimental apparatus was transported and mounted in the LNGS at the end of 2015. Following a period of tuning and optimization a first campaign of data taking started from October 2016 with the complete detector system (except the passive shielding). A total amount of 34 days of data with a 100 A DC current and 28 days without current were collected until the end of the year 2016. In the next section, the analysis of this data set and the obtained result are shown.
The VIP-2 setup was further upgraded during 2018: new copper targets were realised, the SDDs arrays were replaced with two arrays 2 × 8 for a total of 32 SDDs and the passive shielding was mounted. The passive shielding, which is made of two layers of lead and copper blocks, will kill most of the background due to environmental gamma radiation. The final configuration of the VIP-2 setup, which is presently taking data, is shown in Figure 2. The energy calibrated spectra corresponding to an equal data collection period of 39 days during 2018, with and without current, are shown in Figure 3 left and right respectively. The data analysis, performed with a similar procedure to that described in Section 3, is presently ongoing on this data set.
More details on the VIP-2 experimental apparatus, the trigger logic, data acquisition and slow control can be found in Ref. [9].

3. Data Analysis

In order to put in evidence an eventual signal of PEP violating Kα transitions a simultaneous fit was performed of the two spectra collected with and without current; the spectra and the obtained fit result are shown in Figure 4. The fit was performed by minimising a global Chi-square function, which is obtained as the product of the likelihoods corresponding to the two spectra, assuming the measurement errors to be distributed according to Gaussians. The fit proceeds in two steps: as first (see Figure 4a) a wide energy range is used (from 3.5 keV to 11 keV) in order to exploit the high statistics titanium and manganese lines to determine the Fano Factor and the Constant Noise (an energy independent contribution to the energy resolution). The parameters obtained from this pre-fit are then used as an input for the second fit in the range from 7 keV to 11 keV (see Figure 4b top), from which the shape of the continuous background near the interesting transition is better determined. The fit parameters accounting for the detector energy resolution, the shape of the continuous background, the shape of the fluorescence peaks, are common for the spectra with and without current. The parameters representing the intensities of the fluorescence peaks and of the continuous background are separately defined. For the current on spectrum an additional Gaussian component was introduced representing the eventual PEP violating Kα transition line, the centre of the line was set at 7746.73 eV (see Refs. [9]). In Figure 4b bottom the residuals from the second fit are shown for the two spectra. The Chi-square minimisation was performed using the MINUIT package of the CERN ROOT software framework [11]. From the fit the number of candidate PEP violating events, contributing to the Kα violating transitions, is obtained, together with the corresponding statistical error:
N X = 54 ± 67 ( s t a t i s t i c a l ) .
By analogy with the original limit estimated by Ramberg and Snow in Ref. [5] N X can be related to the PEP violation probability 1 2 β 2 as follows:
N X 1 2 β 2 · N new · 1 10 · N int · ϵ .
In Equation (2) N new = ( 1 / e ) Δ t I ( t ) d t is the number of current electrons injected in the copper target over the acquisition time period (with current) Δ t , the factor 1/10 accounts for the capture probability (per electron-atom scattering) into the 2 p state (see Ref. [12]), N int = D / μ is the minimum number of electron-atom scatterings, where D is the effective length of the copper strip and μ the scattering length for conduction electrons in the copper strip, to conclude ϵ = 1.8 % is the detection efficiency factor, obtained by means of a Monte Carlo (MC) simulation (as described in [9]). By substituting μ = 3.9 × 10 6 cm, e = 1.602 × 10 19 C, I = 100 A, and the effective length of the copper strip D = 7.1 cm (the same used in the MC simulation), using the three sigma upper bound of 3 · Δ N X = 201 to give a 99.7% C.L., the following upper limit is obtained for the PEP violation probability:
β 2 2 3.4 × 10 29 .

4. Discussion and Perspectives

In analogy with the analysis performed by Ramberg and Snow, the limit obtained in Equation (3) assumes a very simple straight path of the electrons across the Cu target strip. As a consequence, the scattering length is used in order to estimate the number of electron capture processes. In Ref. [13] it is argued that scatterings are not actually related to the atoms themselves, but depend on impurities, lattice imperfections and on phonons. For this reason the mean time between close electron-atom encounters is instead evaluated in Ref. [13], which is found to be 3.5 × 10 17 s (instead of the much longer average scattering time 2.5 × 10 14 ). Considered the traversal time of the copper target (which is estimated in [13] to amount to 10 s for the setup described in Section 2) an improved limit is obtained on the PEP violation probability: β 2 2 2.6 × 10 40 .
The analysis presented in Ref. [13] for the complex random walk which electron undergo in crossing the copper target material is mostly classical. We are presently working to extend the calculation to the quantum domain.

Author Contributions

Conceptualization, S.B. (Sergio Bertolucci), M.B. (Massimiliano Bazzi), A.C., C.C., J.-P.E., C.G., M.I., M.L., J.M., E.M., A.P., D.P., J.Z.; software, K.P., M.C., R.D.G., L.S., D.P., M.S., O.V.D., D.S., H.S.; formal analysis, K.P., H.S., A.P., D.P., R.D.G., M.M., L.D.P.; data curation A.A., C.F., M.C., S.B. (Sergio Bartalucci), M.B. (Mario Bragadireanu), A.C., C.C., L.D.P., M.I., M.L., J.M., M.M., A.P., D.P., A.S., D.L.S., F.S., H.S., J.Z.; writing and editing, K.P., C.C., E.M.; supervision, C.C.

Funding

This research was partially funded by Centro Fermi—Museo Storico della Fisica e Centro Studi e Ricerche “Enrico Fermi” (Open Problems in Quantum Mechanics project) and by the Austrian Science Foundation (FWF) with the grants P25529-N20, project P 30635-N36 and W1252-N27.

Acknowledgments

We thank Herbert Schneider, Leopold Stohwasser, and Doris Pristauz-Telsnigg from Stefan-Meyer-Institut for their fundamental contribution in designing and building the VIP2 setup. We acknowledge the very important assistance of the INFN-LNGS laboratory. We acknowledge the support of the Centro Fermi—Museo Storico della Fisica e Centro Studi e Ricerche “Enrico Fermi” (Open Problems in Quantum Mechanics project), the support from the EU COST Action CA 15220 and of the EU FET project TEQ (grant agreement 766900) is gratefully acknowledged. We thank the Austrian Science Foundation (FWF) which supports the VIP2 project with the grants P25529-N20, project P 30635-N36 and W1252-N27 (doctoral college particles and interactions). Furthermore, these studies were made possible through the support of a grant from the Foundational Questions Institute, FOXi (and a grant from the John Templeton Foundation (ID 58158). The opinions expressed in this publication are those of the authors and do not necessarily respect the views of the John Templeton Foundation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pauli, W. Über den Zusammenhang des Abschlusses der Elektronengruppen im Atom mit der Komplexstruktur der Spektren. Z. Phys. 1925, 31, 765–783. [Google Scholar] [CrossRef]
  2. Petrascu, C.C.; Bartalucci, S.; Bertolucci, S.; Bragadireanu, M.; Cargnelli, M.; Di Matteo, S.; Egger, J.-P.; Guaraldo, C.; Iliescu, M.; Ishiwatari, T. Experimental tests of quantum mechanics—Pauli exclusion principle violation (the VIP experiment) and future perspective. J. Phys. Conf. Ser. 2011, 306, 012036. [Google Scholar] [CrossRef]
  3. Bartalucci, S.; Bertolucci, S.; Bragadireanu, M.; Cargnelli, M.; Curceanu, C.; Di Matteo, S.; Egger, J.-P.; Guaraldo, C.; Iliescu, M.; Ishiwatari, T. The VIP experimental limit on the Pauli exclusion principle violation by electrons. Found. Phys. 2010, 40, 765–775. [Google Scholar] [CrossRef]
  4. Sperandio, L. New Experimental Limit on the Pauli Exclusion Principle Violation by Electrons From the VIP Experiment. Ph.D. Thesis, Tor Vergata University, Rome, Italy, 2008. [Google Scholar]
  5. Ramberg, E.; Snow, G.A. Experimental limit on a small violation of the Pauli principle. Phys. Lett. B 1990, 238, 438–441. [Google Scholar] [CrossRef]
  6. Messiah, A.; Greenberg, O. Symmetrization postulate and its experimental foundation. Phys. Rev. 1964, 136, B248–B267. [Google Scholar] [CrossRef]
  7. Ignatiev, A.Y.; Kuzmin, V. Quarks ’86: Proceedings of the Seminar, Tbilisi, USSR, 15–17 April 1986; Tavkhelidze, A.N., Matveev, V.A., Pivovarov, A.A., Tkachev, I.I., Eds.; VNU Science Press BV: Utrecht, The Netherlands, 1987; pp. 263–268. [Google Scholar]
  8. Ignatiev, A.Y. X rays test the Pauli exclusion principle. Radiat. Phys. Chem. 2006, 75, 2090–2096. [Google Scholar] [CrossRef][Green Version]
  9. Shi, H.; Milotti, E.; Bartalucci, S.; Bazzi, M.; Bertolucci, S.; Bragadireanu, A.; Cargnelli, M.; Clozza, A.; De Paolis, L.; Di Matteo, S.; et al. Experimental search for the violation of Pauli exclusion principle. Eur. Phys. J. C 2018, 78, 319. [Google Scholar] [CrossRef] [PubMed][Green Version]
  10. Curceanu, C.; Shi, H.; Bartalucci, S.; Bertolucci, S.; Bazzi, M.; Berucci, C.; Bragadireanu, M.; Cargnelli, M.; Clozza, A.; De Paolis, L.; et al. Test of the Pauli Exclusion Principle in the VIP-2 underground experiment. Entropy 2017, 19, 300. [Google Scholar] [CrossRef]
  11. Brun, R.; Rademakers, F. ROOT—An object oriented data analysis framework. Nucl. Instrum. Methods Phys. Res. A 1997, 389, 81–86. [Google Scholar] [CrossRef]
  12. Bartalucci, S.; Bertolucci, S.; Bragadireanu, M.; Cargnelli, M.; Catitti, M.; Curceanu, C.; Di Matteo, S.; Egger, J.-P.; Guaraldo, C.; Iliescu, M. New experimental limit on the Pauli exclusion principle violation by electrons. Phys. Lett. B 2006, 641, 18–22. [Google Scholar] [CrossRef][Green Version]
  13. Milotti, E.; Bartalucci, S.; Bertolucci, S.; Bazzi, M.; Bragadireanu, M.; Cargnelli, M.; Clozza, A.; Curceanu, C.; De Paolis, L.; Egger, J.-P.; et al. On the Importance of Electron Diffusion in a Bulk-Matter Test of the Pauli Exclusion Principle. Entropy 2018, 20, 515. [Google Scholar] [CrossRef]

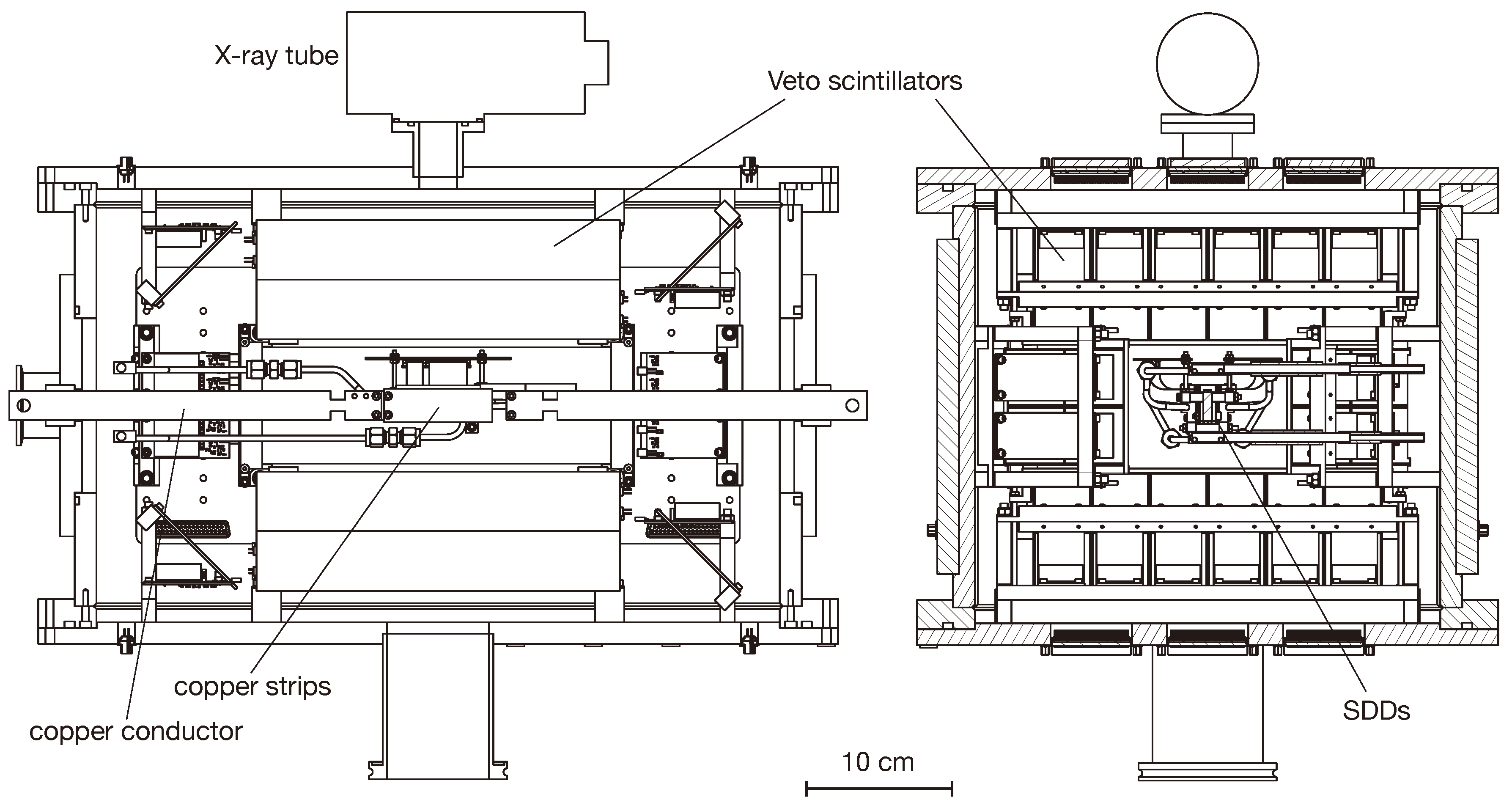

Figure 1. The side views of the design of the core components of the VIP-2 setup, including the SDDs as the X-ray detector, the scintillators as active shielding with silicon photomultiplier readout.
Figure 1. The side views of the design of the core components of the VIP-2 setup, including the SDDs as the X-ray detector, the scintillators as active shielding with silicon photomultiplier readout.
Condensedmatter 04 00045 g001

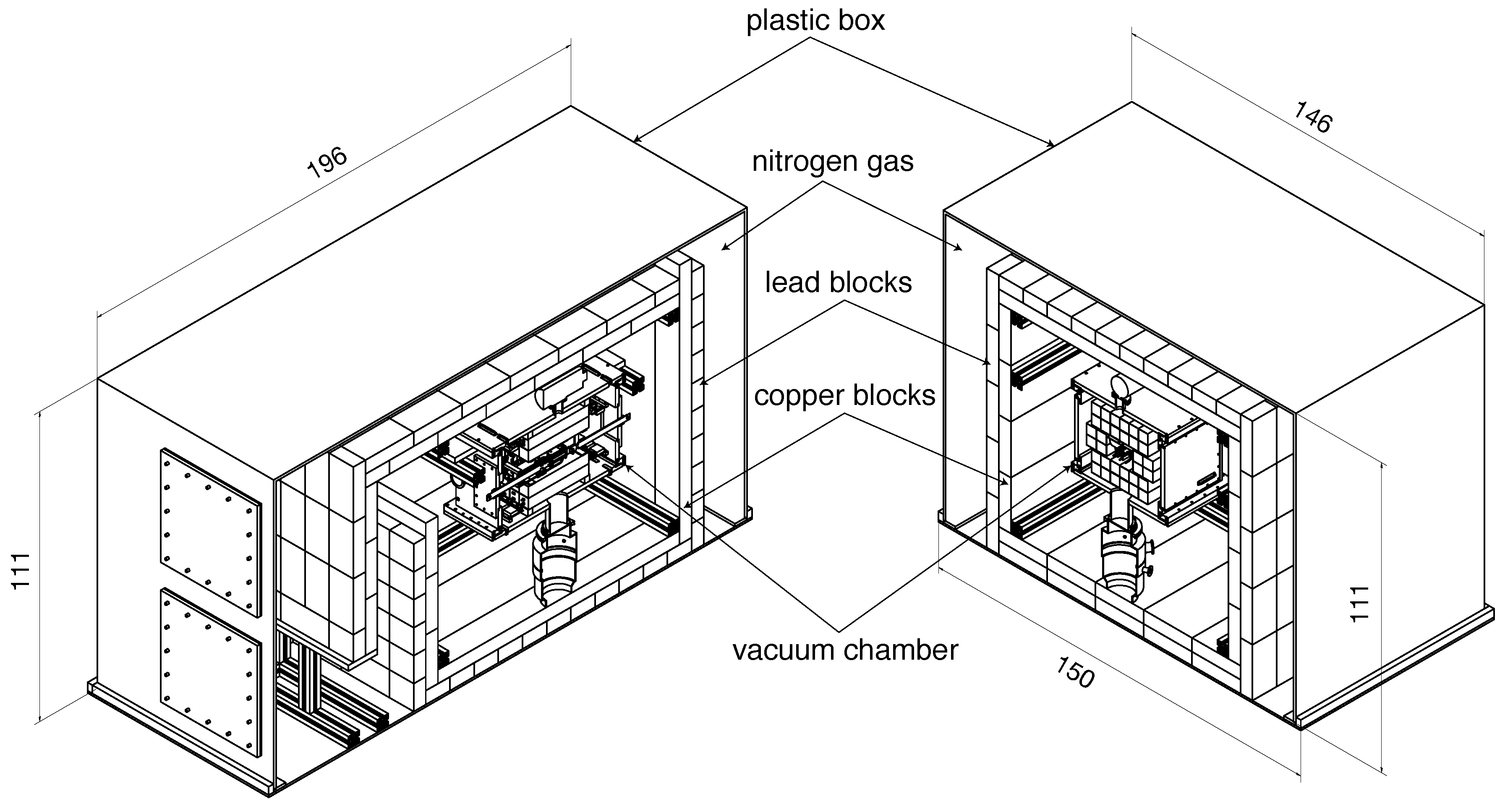

Figure 2. Perspective views of the VIP-2 apparatus with passive shielding, with the dimensions in cm. Nitrogen gas with a slight over pressure with respect to the external air will be circulated inside a plastic box in order to reduce the radon contamination.
Figure 2. Perspective views of the VIP-2 apparatus with passive shielding, with the dimensions in cm. Nitrogen gas with a slight over pressure with respect to the external air will be circulated inside a plastic box in order to reduce the radon contamination.
Condensedmatter 04 00045 g002

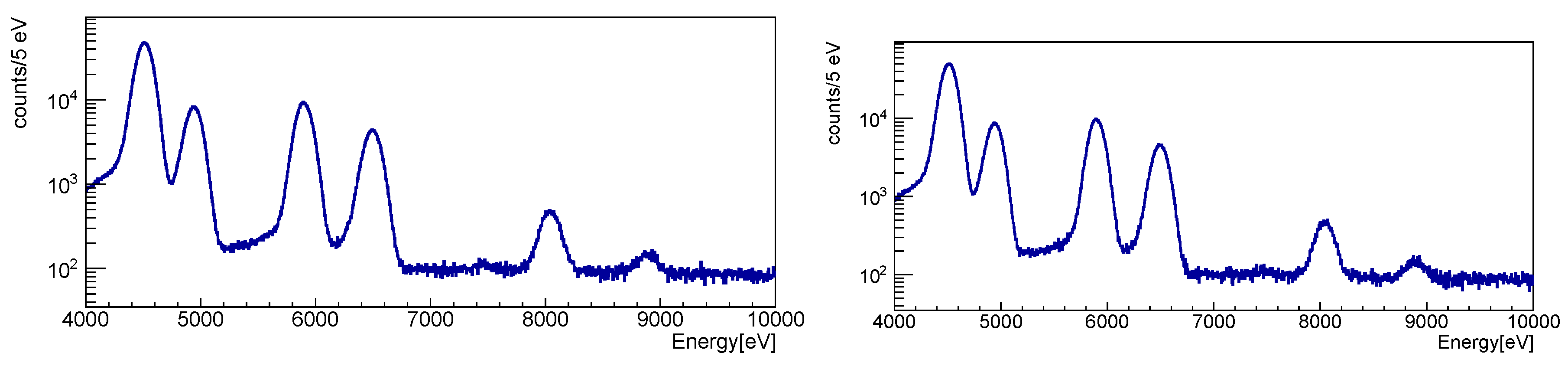

Figure 3. Energy calibrated spectra corresponding to 39 days of data taking without current (left) and 39 days with 100 A DC current (right) collected during 2018.
Figure 3. Energy calibrated spectra corresponding to 39 days of data taking without current (left) and 39 days with 100 A DC current (right) collected during 2018.
Condensedmatter 04 00045 g003

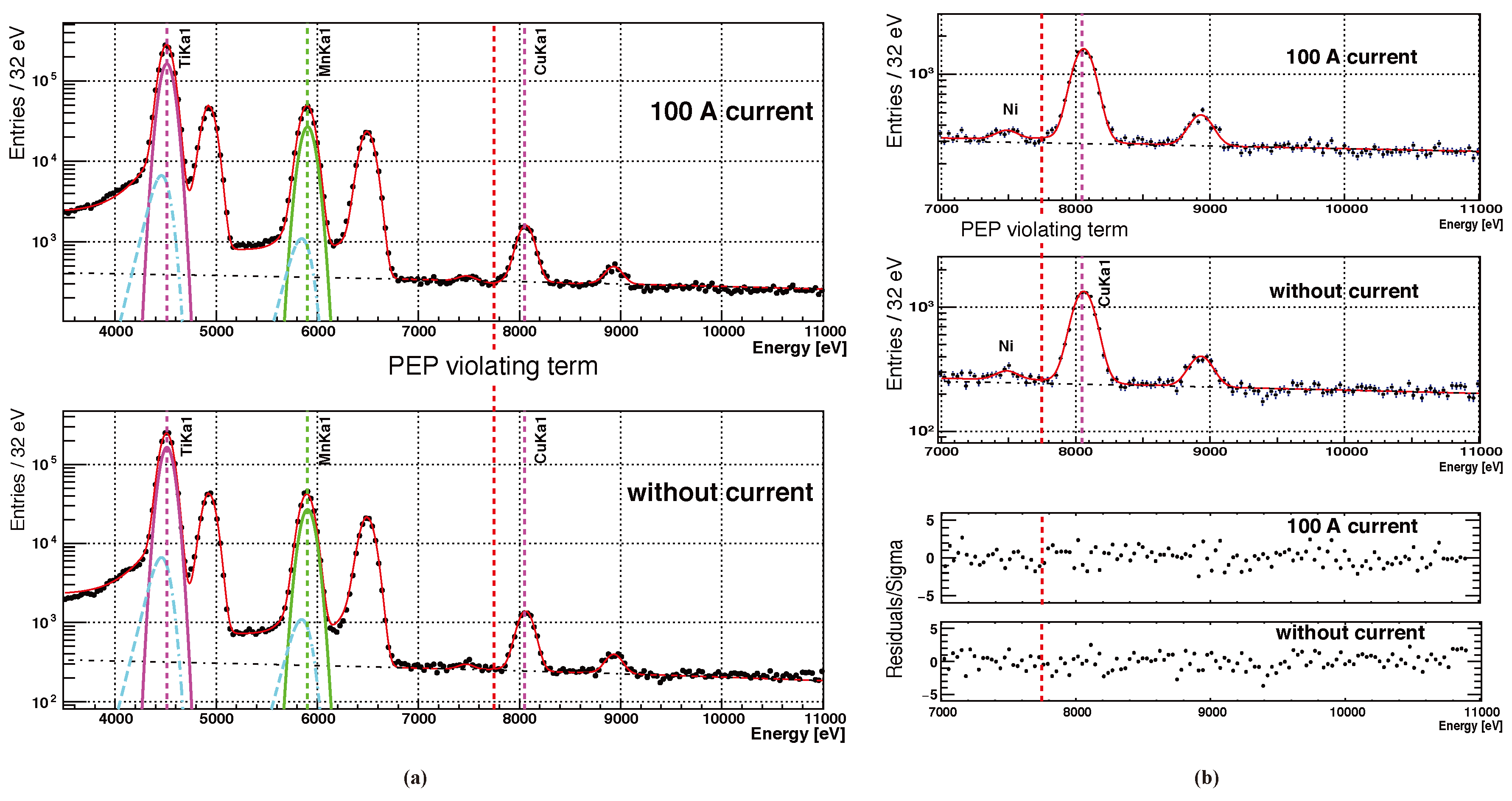

Figure 4. A global chi-square function was used to fit simultaneously the spectra with and without 100 A current applied to the copper conductor. The energy position for the expected PEP violating events is about 300 eV below the normal copper K α 1 transition. The Gaussian function and the tail part of the K α 1 components and the continuous background from the fit result are also plotted. (a): the fit to the wide energy range from 3.5 keV to 11 keV; (b): the fit and its residual for the 7 keV to 11 keV range where there is no background coming from the calibration source. See the main text for details.
Figure 4. A global chi-square function was used to fit simultaneously the spectra with and without 100 A current applied to the copper conductor. The energy position for the expected PEP violating events is about 300 eV below the normal copper K α 1 transition. The Gaussian function and the tail part of the K α 1 components and the continuous background from the fit result are also plotted. (a): the fit to the wide energy range from 3.5 keV to 11 keV; (b): the fit and its residual for the 7 keV to 11 keV range where there is no background coming from the calibration source. See the main text for details.
Condensedmatter 04 00045 g004
