High Precision Test of the Pauli Exclusion Principle for Electrons

Abstract

The VIP-2 experiment aims to perform high precision tests of the Pauli Exclusion Principle for electrons. The method consists in circulating a continuous current in a copper strip, searching for the X radiation emission due to a prohibited transition (from the 2p level to the 1s level of copper when this is already occupied by two electrons). VIP already set the best limit on the PEP violation probability for electrons $\frac{1}{2}{\beta }^2<4.7\times {10}^{-29}$, the goal of the upgraded VIP-2 (VIolation of the Pauli Exclusion Principle-2) experiment is to improve this result of two orders of magnitude at least. The experimental apparatus and the results of the analysis of a first set of collected data will be presented.

1. Introduction

The VIP collaboration is performing high precision tests of the Pauli Exclusion Principle (PEP) for electrons, in the extremely low cosmic background environment of the Underground Gran Sasso Laboratories (LNGS) of INFN (Italy). According to the PEP a system can not hold two (or more) fermions with all quantum numbers identical. PEP stands as one of the fundamental and most solid cornerstones of modern physics, its validity explaining a plenty of phenomena such as the structure of atoms. The PEP was originally formulated for the electrons (see Ref. [1]) and was later extended to all the fermions by the spin-statistics theorem, which can only be demonstrated within Quantum Field Theory (QFT). According to the spin-statistics connection the quantum states of identical particles are necessarily either symmetric (for bosons) or antisymmetric (for fermions) with respect to their permutation. Extensions of the QFT admit, however, spin-statistics violations, hence experimental evidence of even a tiny violation of the PEP would be an indication of physics beyond the Standard Model.

VIP (see Refs. [2,3,4]) greatly improved an experimental technique conceived by Ramberg and Snow (see Ref. [5]) which consists in circulating a DC current in a copper conductor and search for the X-rays signature of PEP-violating $K_{\alpha }$ transitions ($2p\to 1s$ in Cu when the $1s$ level is already occupied by two electrons). As a consequence of the shielding effect of the two electrons in the ground state, the $K_{\alpha }$ violating transition is shifted of about 300 eV with respect to the standard line and is then distinguishable in precision spectroscopic measurements. Such experimental procedure aims to evidence an anomalous behaviour of the newly injected electrons which never had before the possibility to perform the searched violating $K_{\alpha }$ transition in the target Cu atoms. In this sense VIP strictly fulfills the Messiah-Greenberg superselection rule [6] which excludes transitions between different symmetry states in a given system. Considering open systems is then a crucial feature in order to consistently test a violation of the PEP, whose probability is usually quantified by means of the ${\beta }^2$/2 parameter [7,8].

In what follows the upgraded VIP-2 experimental apparatus (see Refs. [9,10]) will be presented, and the analysis of a first set of data (collected in 2016) will be described. As will be shown VIP-2 already improved the upper limit imposed by VIP on ${\beta }^2$/2 (after three years of data taking), which represents the best limit ever on the PEP violation probability for electrons. The final goal of VIP-2 (which is presently acquiring data) is to either further improve the limit of two orders of magnitude, or to measure a signal of PEP violation.

2. The VIP-2 Experimental Apparatus

VIP-2 is the upgraded version of the VIP experiment and aims to improve the result obtained by VIP of two orders of magnitude at least. VIP set the best limit on the PEP violation probability for electrons $\frac{1}{2}{\beta }^2<4.7\times {10}^{-29}$ [2] exploiting the experimental technique which was pioneered by Ramberg and Snow. The VIP experimental setup made use of Charge Coupled Devices (CCDs) as the X-ray detectors; CCDs were characterised by a Full Width at Half Maximum (FWHM) of 320 eV at 8 keV, corresponding to the definition of the Region Of Interest (ROI) where the signature of anomalous X-ray transitions is searched for. Moreover, VIP was operated in the extremely low cosmic background environment of the Underground Gran Sasso Laboratories (LNGS) of INFN.

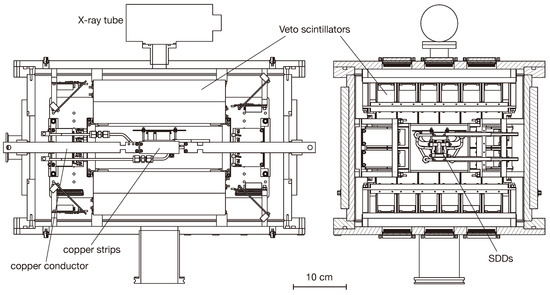

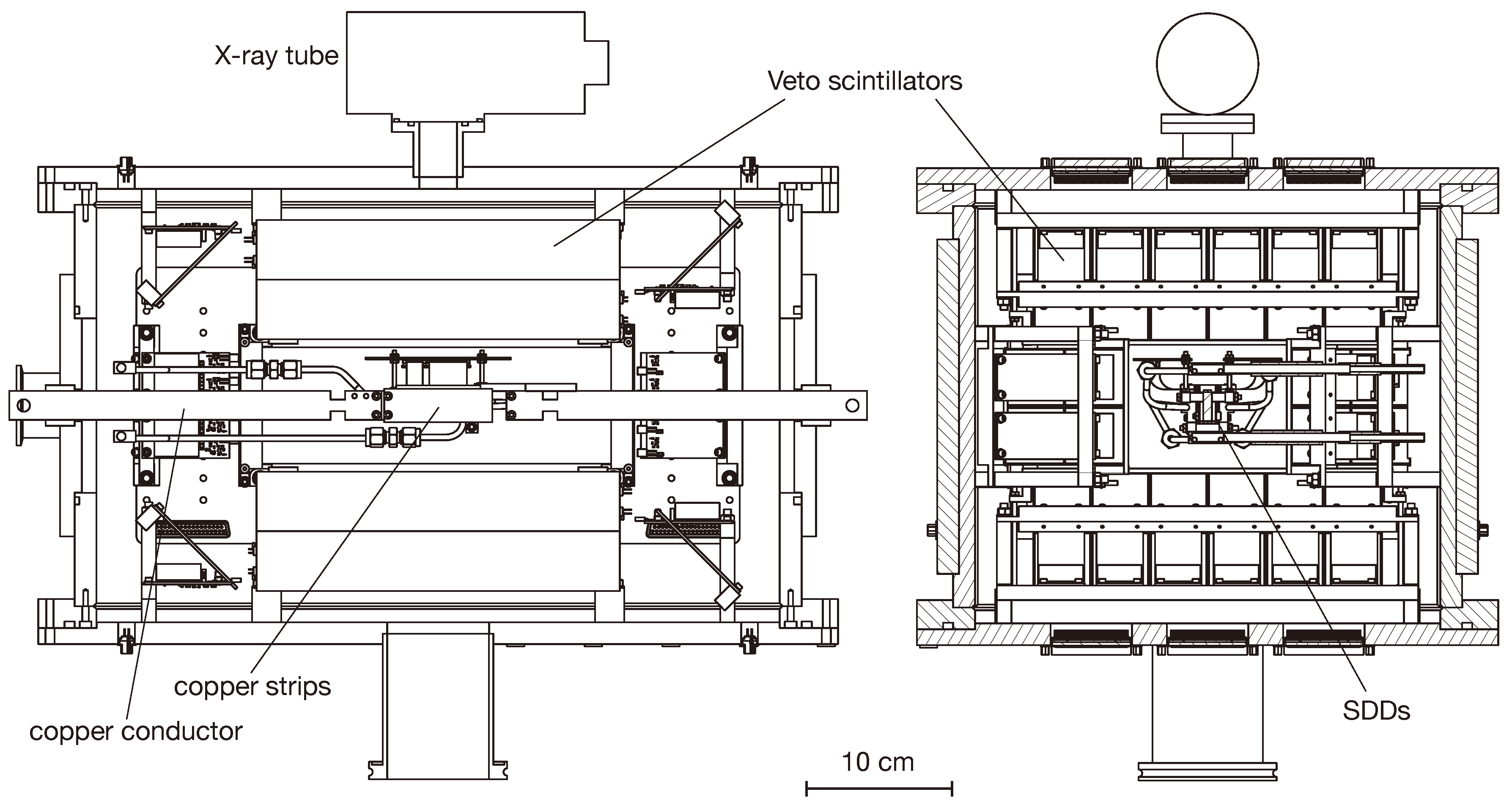

The goal of VIP-2 will be achieved by implementing many improvements in the experimental apparatus. The core components of the VIP-2 setup are illustrated in Figure 1. The new layout of the copper target consists of two strips of copper (with a thickness of 50 μm, and a surface of 9 cm × 2 cm) the new geometry results in a higher acceptance for the X-ray detection. The heat due to the dissipation in copper would lead to a significant temperature rise in the strip. In order to avoid this effect a cooling pad (cooled down by a closed chiller circuit) is placed in between the two strips. This also allows to enhance the DC current circulating on the strips to 100 A (instead of the 40 A in VIP) thus increasing the candidate event pool for the anomalous X-rays. The CCDs were replaced by Silicon Drift Detectors (SDDs) as X-ray detectors, with a better energy resolution (190 eV FWHM at 8 keV). The data presented in this work were acquired by means of two arrays of 1 × 3 SDDs surrounding the copper target, each array with 3 cm² of effective surface. The SDDs were cooled down to −170 °C with circulating liquid argon in a closed cooling line. With a current of 100 A circulating in the strips, their temperature rises up by about 20 °C, inducing a temperature rise at the SDDs of about 1 K, which does not significantly alters the SDDs performances.

The timing capability of the SDDs also enables to introduce an active shielding system. This veto system is made of 32 plastic scintillator bars (250 mm × 38 mm × 40 mm bar) surrounding the SDDs and serves to remove the background originating from the high energy charged particles that are not shielded by the rocks of the Gran Sasso mountains. The light output of each scintillator is read out by two silicon photomultipliers (SiPMs) coupled to each end of the bars.

All the detectors and the front end preamplifier electronics are mounted inside the vacuum chamber which is kept at 10⁻⁵ mbar during operation.

In order to perform quick energy calibration and SDDs resolution measurements an X-ray tube on top of the setup irradiates Zirconium and Titanium foils, to produce fluorescence reference lines. A Kapton window in the vacuum chamber and an opening solid angle in the upper scintillator bars, allow to collect in one hour enough statistics for the SDDs performance monitoring. A secondary energy calibration method of the SDDs is performed by means of a weakly radioactive Fe-55 source, with a 25 μm thick Titanium foil attached on top, mounted together inside an aluminum holder. The six SDDs have an overall 2 Hz trigger rate, accumulating events of fluorescence X-rays from titanium and manganese to calibrate the digitized channel into energy scale.

The VIP-2 experimental apparatus was transported and mounted in the LNGS at the end of 2015. Following a period of tuning and optimization a first campaign of data taking started from October 2016 with the complete detector system (except the passive shielding). A total amount of 34 days of data with a 100 A DC current and 28 days without current were collected until the end of the year 2016. In the next section, the analysis of this data set and the obtained result are shown.

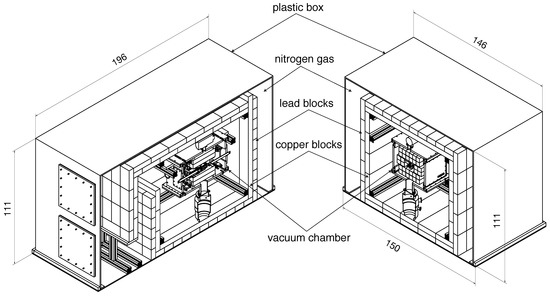

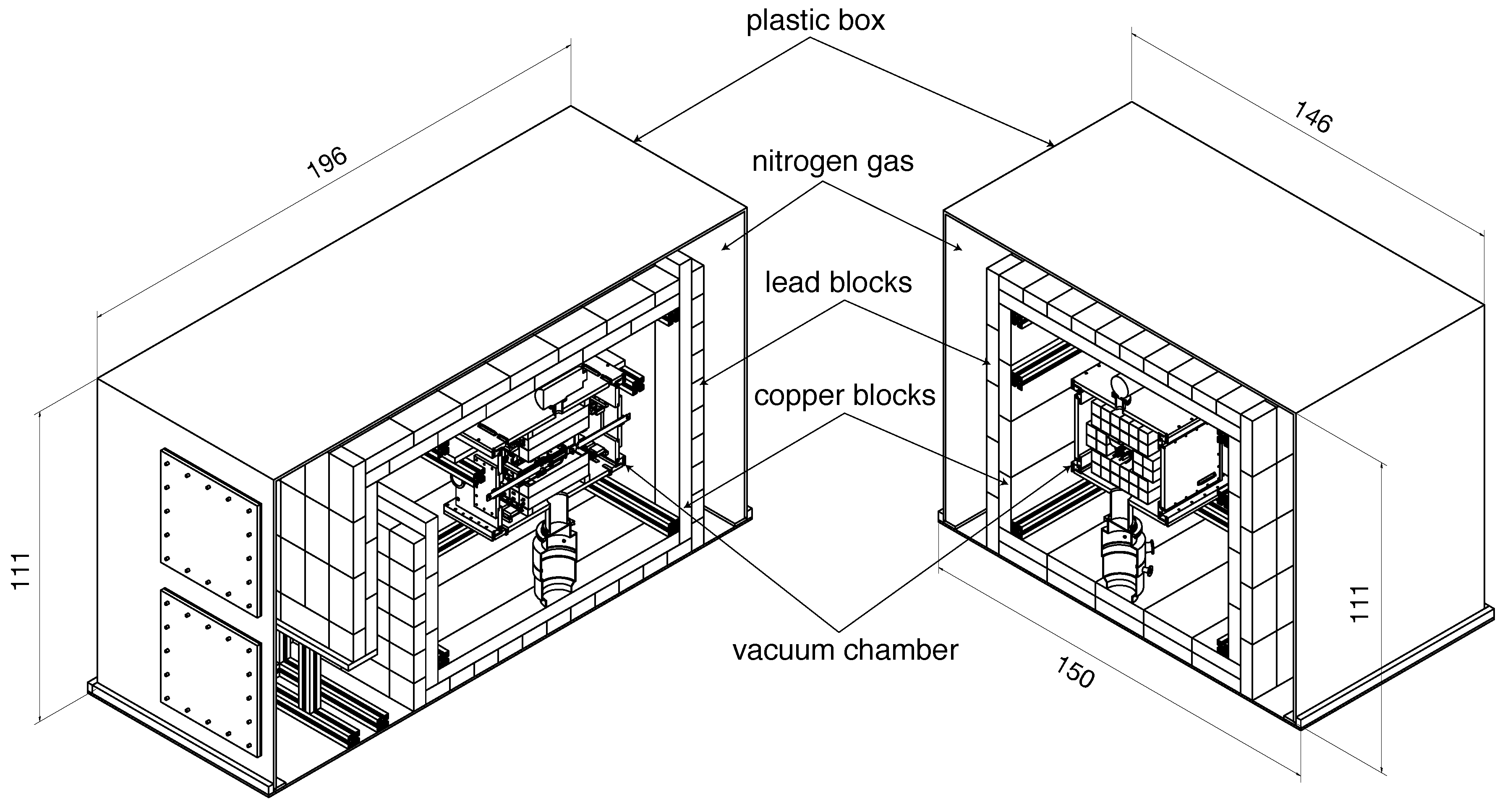

The VIP-2 setup was further upgraded during 2018: new copper targets were realised, the SDDs arrays were replaced with two arrays 2 × 8 for a total of 32 SDDs and the passive shielding was mounted. The passive shielding, which is made of two layers of lead and copper blocks, will kill most of the background due to environmental gamma radiation. The final configuration of the VIP-2 setup, which is presently taking data, is shown in Figure 2. The energy calibrated spectra corresponding to an equal data collection period of 39 days during 2018, with and without current, are shown in Figure 3 left and right respectively. The data analysis, performed with a similar procedure to that described in Section 3, is presently ongoing on this data set.

More details on the VIP-2 experimental apparatus, the trigger logic, data acquisition and slow control can be found in Ref. [9].

3. Data Analysis

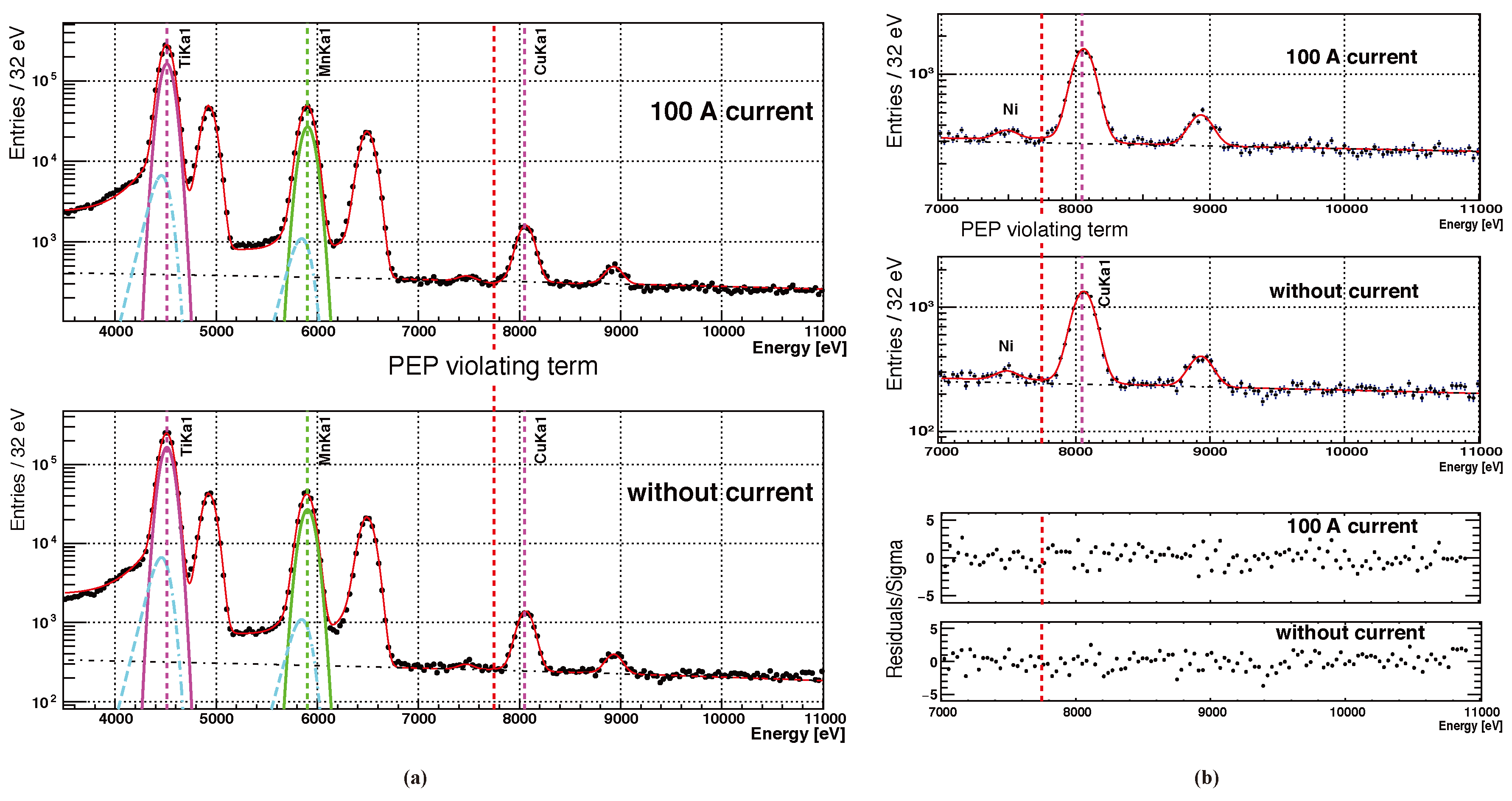

In order to put in evidence an eventual signal of PEP violating K_α transitions a simultaneous fit was performed of the two spectra collected with and without current; the spectra and the obtained fit result are shown in Figure 4. The fit was performed by minimising a global Chi-square function, which is obtained as the product of the likelihoods corresponding to the two spectra, assuming the measurement errors to be distributed according to Gaussians. The fit proceeds in two steps: as first (see Figure 4a) a wide energy range is used (from 3.5 keV to 11 keV) in order to exploit the high statistics titanium and manganese lines to determine the Fano Factor and the Constant Noise (an energy independent contribution to the energy resolution). The parameters obtained from this pre-fit are then used as an input for the second fit in the range from 7 keV to 11 keV (see Figure 4b top), from which the shape of the continuous background near the interesting transition is better determined. The fit parameters accounting for the detector energy resolution, the shape of the continuous background, the shape of the fluorescence peaks, are common for the spectra with and without current. The parameters representing the intensities of the fluorescence peaks and of the continuous background are separately defined. For the current on spectrum an additional Gaussian component was introduced representing the eventual PEP violating K_α transition line, the centre of the line was set at 7746.73 eV (see Refs. [9]). In Figure 4b bottom the residuals from the second fit are shown for the two spectra. The Chi-square minimisation was performed using the MINUIT package of the CERN ROOT software framework [11]. From the fit the number of candidate PEP violating events, contributing to the K_α violating transitions, is obtained, together with the corresponding statistical error:

$$N_X=54\pm 67\left(statistical\right).$$

(1)

By analogy with the original limit estimated by Ramberg and Snow in Ref. [5] $N_X$ can be related to the PEP violation probability $\frac{1}{2}{\beta }^2$ as follows:

$$N_X\ge \frac{1}{2}{\beta }^2·N_{\mathrm{new}}·\frac{1}{10}·N_{\mathrm{int}}·ϵ.$$

(2)

In Equation (2) $N_{\mathrm{new}}=(1/e){\int }_{\Delta t}I\left(t\right)dt$ is the number of current electrons injected in the copper target over the acquisition time period (with current) $\Delta t$, the factor 1/10 accounts for the capture probability (per electron-atom scattering) into the $2p$ state (see Ref. [12]), $N_{\mathrm{int}}=D/\mu$ is the minimum number of electron-atom scatterings, where D is the effective length of the copper strip and $\mu$ the scattering length for conduction electrons in the copper strip, to conclude $ϵ=1.8\%$ is the detection efficiency factor, obtained by means of a Monte Carlo (MC) simulation (as described in [9]). By substituting $\mu =3.9\times {10}^{-6}$ cm, $e=1.602\times {10}^{-19}$ C, $I=100$ A, and the effective length of the copper strip $D=7.1$ cm (the same used in the MC simulation), using the three sigma upper bound of $3·\Delta N_X=201$ to give a 99.7% C.L., the following upper limit is obtained for the PEP violation probability:

$$\frac{{\beta }^2}{2}\le 3.4\times {10}^{-29}.$$

(3)

4. Discussion and Perspectives

In analogy with the analysis performed by Ramberg and Snow, the limit obtained in Equation (3) assumes a very simple straight path of the electrons across the Cu target strip. As a consequence, the scattering length is used in order to estimate the number of electron capture processes. In Ref. [13] it is argued that scatterings are not actually related to the atoms themselves, but depend on impurities, lattice imperfections and on phonons. For this reason the mean time between close electron-atom encounters is instead evaluated in Ref. [13], which is found to be 3.5 $\times {10}^{-17}$ s (instead of the much longer average scattering time $2.5\times {10}^{-14}$). Considered the traversal time of the copper target (which is estimated in [13] to amount to 10 s for the setup described in Section 2) an improved limit is obtained on the PEP violation probability: $\frac{{\beta }^2}{2}\le 2.6\times {10}^{-40}$.

The analysis presented in Ref. [13] for the complex random walk which electron undergo in crossing the copper target material is mostly classical. We are presently working to extend the calculation to the quantum domain.
