Recent Advances in miRNA Delivery Systems

Ishani Dasgupta
1,† and
Anushila Chatterjee
Horae Gene Therapy Center, Department of Pediatrics, University of Massachusetts Medical School, Worcester, MA 01605, USA
Department of Immunology and Microbiology, University of Colorado School of Medicine, Aurora, CO 80045, USA
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Methods Protoc. 2021, 4(1), 10;
Submission received: 25 October 2020 / Revised: 14 January 2021 / Accepted: 15 January 2021 / Published: 20 January 2021


MicroRNAs (miRNAs) represent a family of short non-coding regulatory RNA molecules that are produced in a tissue and time-specific manner to orchestrate gene expression post-transcription. MiRNAs hybridize to target mRNA(s) to induce translation repression or mRNA degradation. Functional studies have demonstrated that miRNAs are engaged in virtually every physiological process and, consequently, miRNA dysregulations have been linked to multiple human pathologies. Thus, miRNA mimics and anti-miRNAs that restore miRNA expression or downregulate aberrantly expressed miRNAs, respectively, are highly sought-after therapeutic strategies for effective manipulation of miRNA levels. In this regard, carrier vehicles that facilitate proficient and safe delivery of miRNA-based therapeutics are fundamental to the clinical success of these pharmaceuticals. Here, we highlight the strengths and weaknesses of current state-of-the-art viral and non-viral miRNA delivery systems and provide perspective on how these tools can be exploited to improve the outcomes of miRNA-based therapeutics.

1. Introduction

The spatiotemporal expression of microRNAs (miRNAs) in eukaryotes, a class of small single-stranded non-coding RNAs (18–25 nucleotides), plays a critical role in post-transcriptional gene regulation [1]. MiRNAs serve as modulators of gene expression by annealing to complementary sequences in the 3′ or 5′ untranslated regions (3′UTR or 5′UTR) of target mRNAs to block translation machinery and drive mRNA cleavage [2,3,4,5]. Currently, 4571 human miRNAs (1917 precursors, 2654 mature) are annotated in public repositories [6], and it is estimated that these non-coding RNAs regulate >30% of protein-coding genes involved in different biological processes [7,8]. Additionally, the availability of the human miRNA tissue atlas, which provides a comprehensive catalogue of tissue-specific miRNA distribution and expression patterns, enables investigators to probe the physiological and pathological contributions of different miRNAs [9,10]. Several reports implicate that dysregulated or dysfunctional miRNAs are associated with diverse human pathologies, including cancer, cardiovascular, neurodegenerative, inflammatory, genetic, and infectious diseases [11,12,13,14,15,16,17].
With the emerging evidence that miRNAs are involved in the onset and progression of diverse biological anomalies, there has been a drastic surge of interest in miRNA-based therapies over the last few decades [18,19]. Therapeutic approaches have been developed to either suppress or restore the expression of disease-associated miRNAs (Table 1). In circumstances where reduced miRNA expression drives the disease, miRNA mimics can be used to restore their expression and function [19,20,21,22]. In contrast, anti-miRNAs (antagomirs) are exploited to counteract the activity of upregulated miRNAs responsible for disease [22,23,24]. However, the safe and efficient delivery of miRNA mimics or antagomirs to target tissues remains a significant challenge for miRNA-based therapies. Major limitations associated with miRNA delivery are susceptibility to degradation by nucleases, rapid clearance from blood, immunotoxicity, and low tissue permeability [25,26,27,28,29]. Chemical modifications of miRNAs have significantly improved their stability and provided protection against nucleases [30,31,32,33]. Further, several oligonucleotide carriers have been developed to enhance stability and improve tissue penetration. In vivo viral and non-viral delivery miRNA methods, the challenges associated with the delivery methods, and strategies to circumvent them for a multitude of diseases, with a focus on cancer therapy, have been extensively reviewed [34,35,36]. These reviews also provide a detailed discussion on the miRNA expression profiles implicated in cancers. From this perspective, we emphasize the delivery aspects of miRNA in various human diseases and draw attention to some newly evolving miRNA delivery techniques that have not been covered in the recent reviews. Here, we provide a holistic overview of the viral and non-viral delivery systems developed to maximize miRNA therapeutic efficacy, highlight selected examples of their applications in various human diseases, comment on current clinical trials in the field, and offer perspectives on the future design and development of miRNA delivery technologies.

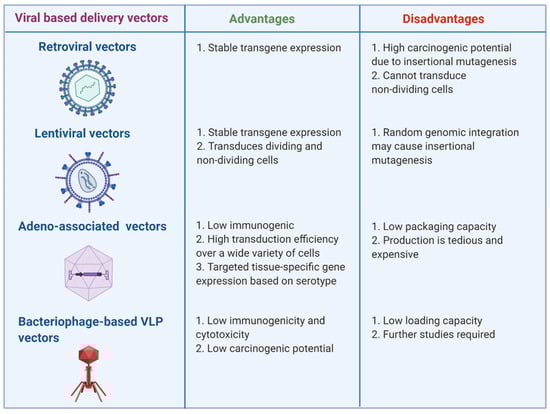

2. Virus-Based miRNA and Anti-miRNA Oligonucleotide Delivery Systems

Genetically modified viruses can efficiently transfer desired oligonucleotides into different tissue types and drive elevated levels of gene expression for protracted periods. In the context of eukaryotic viruses, the pathogenic determinants are eliminated from the viral genome to reduce toxicity and accommodate the transgene(s). Over the past few decades, a variety of viral delivery vehicles have emerged that can be adapted for specific transgenes, treatment purposes, and targeted cell types. Here, we identify distinct characteristics and limitations of major virus-based vectors used for miRNA or anti-mRNA (also known as antagomir) delivery, including retroviral, lentiviral, adenoviral and adeno-associated virus (AAV) (reviewed in [59,60]), and bacteriophage-based virus-like particle (VLP) vectors (Figure 1) [61,62].

2.1. Retroviral and Lentiviral Vectors

Retroviral vectors (RVs), developed from lipid-enveloped RNA viruses, have been pivotal for the stable transfer of therapeutic genes into dividing cells [60]. Most RVs are derived from the Moloney murine leukemia viruses (MoMLVs) that have a relatively simple genome structure encoding the Gag, Pol, and Env proteins flanked by long terminal repeats (LTR) [63]. Upon recognition and binding to specific cell surface-associated receptors, viral RNA enters the cytoplasm, is reverse transcribed into dsDNA, and proceeds to randomly integrate into one of the host chromosomes. The ability to integrate exogenous DNA into the host chromosome imparts a “Janus-faced” character to RVs. While genomic integration accentuates persistent transgene expression, insertional inactivation of critical genes or their regulatory elements can be detrimental for the cell [64,65]. Nevertheless, RV-mediated miRNA delivery has been shown to be promising in regenerative medicine. For example, heightened expression of miR-138 in murine embryonic fibroblasts led to the downregulation of the p53 signaling pathway and consequently favored induced pluripotent stem (iPS) cell production, which has implications in regenerative medicine [66].
Members of the lentivirus genus of Retroviridae family, including immunodeficiency viruses of bovine (BIV), feline (FIV), equine (EIAV), simian (SIV), and human (HIV-2), have been tailored to develop lentiviral vectors (LVs) [67,68,69,70,71]. In contrast to RVs that can only access the host chromosome when the nuclear membrane is dismantled during mitosis, LVs can actively translocate across an intact nuclear membrane via the nuclear pores and, thereby, can target both quiescent and non-quiescent cells [72]. Another major hurdle associated with RVs is the significant risk of developing oncogenesis as a consequence of insertional mutagenesis [73,74]. Because LVs preferably integrate within actively transcribing units, they have reduced likelihood of triggering insertional oncogenesis [75,76,77]. Several studies have effectively used LVs for the delivery of therapeutic miRNA mimics or antagonists. In a mouse model of chronic lymphocytic leukemia (CLL), lentiviral delivery and subsequent elevated levels of microRNAs, miR-15a, and miR-16 caused the depletion of malignant B cells and mitigated the disease [78]. Another study explored the therapeutic potential of lentiviral miR-494 sponge and demonstrated that these anti-miRNAs could sequester miR-494 molecules away from their cellular targets to reduce tumor growth and metastasis [79].

2.2. Adenovirus and Adeno-Associated Virus Vectors

Adenoviruses (Ad) and adeno-associated viruses (AAV) are engineered from non-enveloped viruses with double-stranded and single-stranded DNA genomes, respectively. AAVs emerged as potent gene delivery systems owing to their non-pathogenic profile, broad target tissue spectrum, and sustained presence in the system [80]. Additionally, two key features of these viruses contribute to their therapeutic success. Similar to LVs, both Ads and AAVs can infect resting or dividing cells. However, unlike RVs and LVs, these viruses do not integrate into the host chromosome and hence are unlikely agents of insertional oncogenic activation. Compared to RVs and LVs that can carry up to 8 Kb of foreign nucleotide sequences, Ads can carry as much as 38 kb of alien DNA [60]. Although AAVs have a fairly limited capacity for exogenous DNA (~4.8 Kb), they have sufficient room to accommodate most miRNA cassettes [81]. Several DNA viral platforms have been designed to deliver miRNAs (Table 1). Further, Miyazaki et al. reported that AAV vector-mediated delivery of miR-196a can silence Elav-like family member 2 (CELF2) and subsequently reduce androgen receptor (AR) mRNA stability, leading to the attenuation of spinal and bulbar muscular atrophy (SBMA) phenotypes [82]. Recently, Tang et al. found that recombinant adenovirus-delivered hemagglutinin-specific artificial miRNAs could provide protection from lethal strains of influenza virus and mitigate disease manifestations [83]. In another study, Pourshafie et al. used an AAV delivery system with high transduction efficiency to overexpress miR-298 and attenuated neuromuscular diseases in mice models [40]. Despite these successes, studies in large animal and human patients noted immune activation against AAV [84]. Indeed, several parameters, including specific properties of the transgene, vector dose and serotype, administration route, host species, and the presence of pre-existing neutralizing antibodies, may influence the development of an immunological response against AAV [84]. Because the promoter and kinetics of transgene expression strongly affect the immune response elicited to AAV, efforts have been made to achieve focused transgene expression using highly compact tissue-specific promoters and enhancers [85]. In this context, investigators have incorporated tissue-specific miRNA target sequences into the 3′-UTR of an AAV vector cassette to prevent unintentional transgene expression in the liver without disrupting the transgene expression in other tissues [86].

2.3. Bacteriophage-Based VLP Vectors

The success of eukaryotic virus-based miRNA delivery systems can be attributed to their high transduction efficiency, broad tropism, and long-term expression. However, the potency of these delivery vehicles is frequently restricted by their high cytotoxicity [87], carcinogenic potential [88], and strong immunogenicity [89]. To circumvent these challenges, researchers have exploited the encapsidation system of viruses that infect bacteria, termed bacteriophages, to deliver miRNAs. Pan et al. used Escherichia coli as cellular factories to package miRNAs in capsids of bacteriophage MS2 and subsequently cross-linked the miRNA carrying VLPs with cell-penetrating peptides (CPP) to achieve efficient transduction [61]. Succeeding studies have shown that MS2 VLP-based miRNA delivery systems containing disease-specific miRNAs could be harnessed to treat a chronic autoimmune disease, osteoclastogenesis, and hepatocellular carcinoma [90,91,92]. Another study has demonstrated that targeted delivery of miRNA-23b via bacteriophage PP7 VLPs to hepatoma cells can inhibit the migration of these cells and potentially reduce the risks of various associated cancers [62]. Another group has used folate-conjugated phage packaging RNA (pRNA) as a vehicle to deliver artificial miRNAs targeting the 3′UTR of coxsackievirus B3 (CVB3) strains Kandolf and CG, a common cause of myocarditis [93]. The pRNA is a 117-nucleotide-long RNA molecule found in Bacillus subtilis bacteriophage phi 29 that is essential for phage DNA encapsidation [94]. The unique structural features of pRNA enable the formation of oligomeric assemblies, and consequently, pRNAs have the ability to carry both therapeutic molecules and targeting ligands for efficient drug delivery [95]. Overall, research on phage-derived miRNA delivery systems is still in its early stages, and future studies evaluating the immunogenicity profile and pharmaceutical production of these vehicles will be imperative for the clinical exploitation of phage-derived vehicles for miRNA delivery.

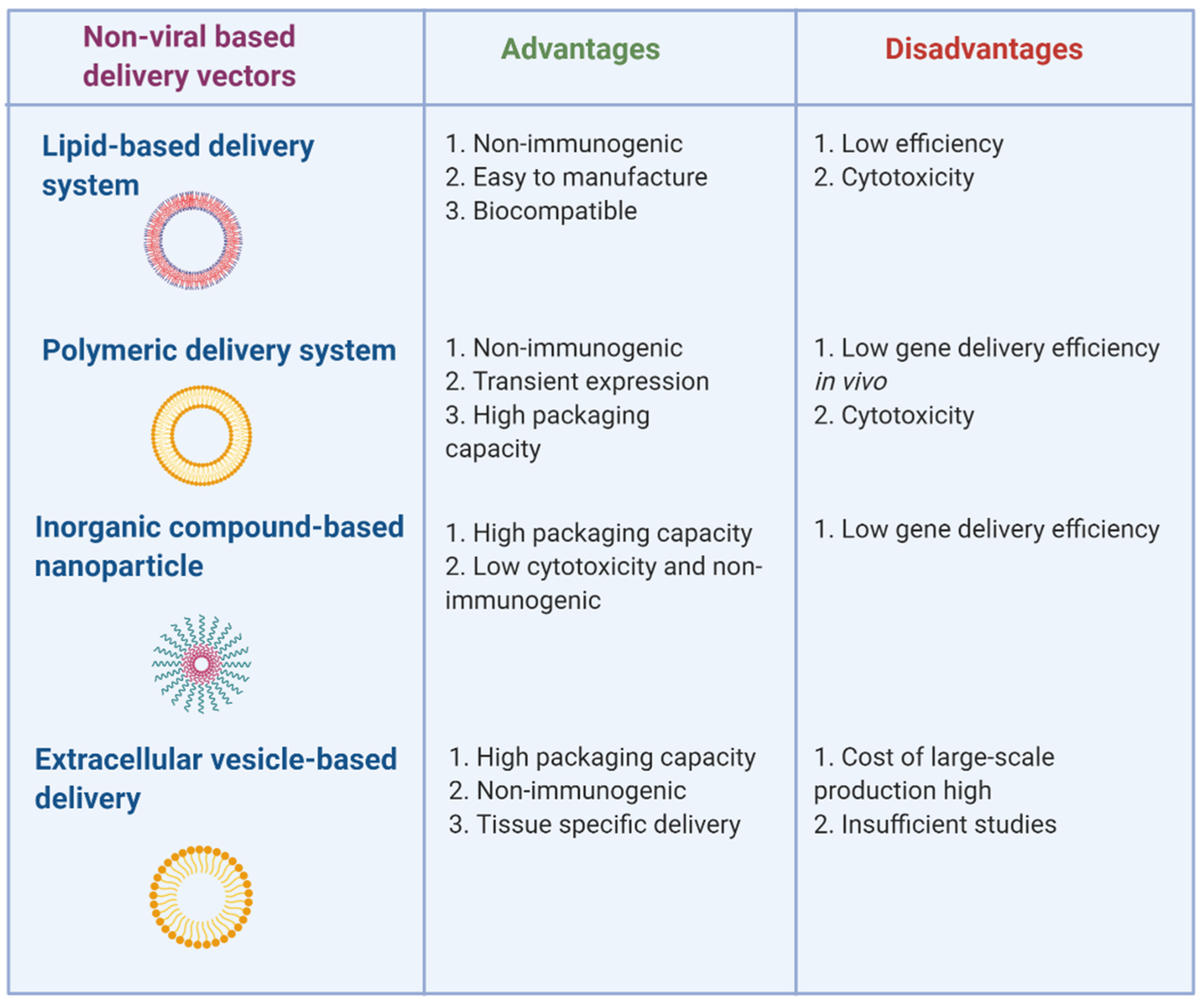

3. Non-Viral-Based miRNA and Anti-miRNA Oligonucleotide Delivery Systems

Despite the highly efficient viral-based miRNA delivery systems, they are associated with high immunogenicity, toxicity, and size limitation. To overcome these challenges, less toxic and biocompatible non-viral-based miRNA delivery approaches have come to light. The non-viral delivery systems ensure successful delivery of miRNA or miRNA-expressing vectors inside the cell without being subjected to nuclease degradation. Here, we discuss the different chemical methods of non-viral miRNA delivery, including lipid, polymer, inorganic, and extra-cellular vesicle carrier-based approaches (Figure 2).

3.1. Lipid-Based Delivery Systems

Lipid-based nanocarriers are the most widely used non-viral delivery methods [96]. Primarily, cationic lipids with hydrophilic heads and hydrophobic tails form a complex with the anionic nucleic acid, resulting in a lipoplex [97,98]. These cationic lipoplexes have a high affinity with the cell membrane, and they are non-immunogenic and easy to manufacture. Many commercially available cationic lipoplexes—for example, Lipofectamine® RNAi-MAX, SiPORT™ (Invitrogen) [99,100], SilentFect™ (Bio-Rad) [101], and DharmaFECT®(Dharmacon) [102]—have been routinely used for miRNA delivery. Although cationic liposomes have been used to deliver miRNA in vivo, the efficiency is low. Several modifications have been employed to circumvent this problem. Conjugating a polyethylene glycol (PEG) functional group to the cationic lipids helps in evading phagocytosis, thereby improving the overall efficiency [103]. A study reported that PEG-fused liposomes enabled successful miR-126 delivery, resulting in enhanced blood flow and angiogenesis in a hindlimb ischemia model [104]. Several studies have shown the successful in vivo transport of lipoplexes, including the systemic delivery of miR-29b fused with DOTMA, cholesterol, and PEG in non-small-cell lung cancer (NSCLC) cells [46] and miR-34a delivery mediated by lipid nanoparticles, consisting of cholesterol, DDAB [105]. Another comparable cationic lipoplex mixture containing dimethyldioctadecyl ammonium bromide (DDAB), cholesterol, and vitamin E TPGS transported pre-miR-107 to head and neck squamous cell carcinoma (HNSCC) cells and greatly alleviated the tumorigenesis of HNSCC in vitro and in vivo [106]. Cationic DOTAP enabled the co-delivery of doxorubicin and miR-101 in hepatocellular carcinoma (HCC) cells and also yielded desirable results [107]. Another successful combination using cationic liposome nanocarriers has been developed for treating melanoma [108]. These nanoparticles were successful in delivering paclitaxel and Bcl-2 siRNA for treating melanoma synergistically. Besides cancer, cationic lipoplexes containing anti-miR-712 were able to treat atherosclerosis in inflamed endothelial cells [44]. A major disadvantage of these cationic lipoplexes is their non-specific interactions with other undesirable proteins, leading to adverse effects and their instability. This issue has been alleviated by the recent use of neutral liposomes for miRNA delivery. Systemic administration of miRNA-34a delivered by a neutral liposome emulsion in a NSCLC mouse model yielded even distribution in desired tissues and a subsequent reduction in tumor size. Neutral DOPC (1,2-dioleoyl-sn-glycero-3-phosphatidylcholine) liposomes were able to deliver miRNA-506 mimics or miRNA-520 in an ovarian cancer orthotopic mouse model, leading to significant tumor suppression [109,110]. Another example of DOPC liposomes complexed with miR-2000 proved effective in inhibiting tumor growth in orthotopic lung cancer [111].
One of the concerns in liposome-based delivery may be the non-specific or systemic accumulation of the miRNA. Several approaches have been employed to enhance targeted miRNA delivery to specific cells or tissues. Using targeting ligands in the liposome formulations that can bind specifically to receptors on the target cell enables tissue-specific delivery. Generally, transferrin and folic acid are widely used ligands for targeting cancer cell receptors. Antibodies against matrix metalloproteases (MMP), vascular endothelial growth factor (VEGF), vascular cell adhesion molecule-1 (VCAM), and integrins fused to lipid nanoparticles can be used to specifically target cancer cells of interest [112]. A more recent strategy employs the use of aptamers that bind desired cell surface receptors for delivering miRNA or siRNA lipid nanoparticles [113].

3.2. Polymeric Delivery Systems

Polymeric delivery methods primarily use polyethyleneimines (PEIs), wherein the positively charged amine groups form a complex with the anionic RNA, thereby shielding the RNA from being degraded and enabling cellular uptake [114]. Both low- and high-molecular-weight linear and branched PEIs have been utilized as miRNA carrier systems [115]. Comparatively, low-molecular-weight PEIs are less cytotoxic and were shown to effectively deliver miR-33a mimics and miR-145 into colon cancer xenograft mice, resulting in decreased tumor growth [49]. However, low transfection efficiency and cytotoxicity render PEIs unfavorable for clinical applications. Other polymers, such as PEG or poly L-Lysine (PLL), when covalently fused to PEI, help in improving its biocompatibility, thereby making it less toxic to cells [116]. PEG/PEI nanocomplex polymeric vectors proved to be stable and enabled effective miR-150 transfection in human leukemia cells [117]. A copolymer of poly lactic acid (PLA) and poly glycolic acid, namely poly lactide-co-glycolide (PGLA), is an FDA-approved biodegradable polyester implicated in anti-miRNA delivery [118]. The hydrophobicity of PGLA impairs its miRNA delivery efficacy. Positively charged synthetic polyadenoamine (PAMAM) dendrimers are biodegradable and have higher transfection efficiency and lower cytotoxicity compared to other polymers. An intravenous injection of PAMAM dendrimers and PEG-nanographene oxide (NGO) linked to anti-miR-21 was successfully delivered to target tumor tissues in a recent study [119]. Another approach that has been employed is the use of polymeric micelles, consisting of a hydrophilic and a hydrophobic polymer. Doxorubicin and tumor suppressor miR-34a were co-delivered to cancer cells using this polymeric micelle strategy [120]. In addition to these synthetic polymers, less toxic, natural cell-penetrating peptides (CPPs) are also involved in miRNA delivery. CPP from naturally occurring protamine acted as a carrier for miR-29b transfer to osteogenic stem cells [121]. Chitosan is another example of a biocompatible, natural polysaccharide and its galactosylated form drives miRNA-16 precursor transport to mouse colonic macrophages [122,123,124].

3.3. Inorganic Compound-Based Delivery Systems

Inorganic compounds that are implicated in miRNA delivery primarily include gold [125], Fe3O4-based [126], and silica-based nanoparticles [127]. These nanoparticles, when fused to a functional thiol or amino groups, can ensure stronger interaction with the cargo (miRNA), thereby facilitating its delivery [125]. Administration of thiol-modified anti-miR-155 gold nanoparticles helped to restore cardiac function in a diabetic mouse model [128]. Moreover, gold nanoparticles conjugated to PEG led to the successful delivery of miR-1 cancer cells, associated with high transfection efficiency and low cytotoxicity [129]. Other examples include anti-miRNA-155 embedded in silica nanoparticles that form a complex with dopamine and AS1411 aptamer resulted in tumor growth inhibition in colorectal cancer [130]. Silica nanoparticles are thermostable, biocompatible, and have large surface area and pore volume, making them favorable miRNA and anti-miRNA vehicles [131]. A nanocomplex, consisting of Fe3O4 nanoparticles and polymers, namely polyglutamic acid and PEI, showed promising results by delivering miR-100 in vivo. In patient xenografts, systemic injection of this nanocomplex in combination with the routine docetaxel chemotherapy suppressed tumor growth, thereby improving its therapeutic potential [132].

3.4. Extracellular Vesicle-Based Delivery Systems

Extracellular vesicles (EVs) are heterogenous membrane vesicles involved in intercellular communication, enabling transport of biomolecules, such as proteins, miRNA, etc., via the bloodstream [133]. The presence of the CD47 marker on their surface protects them from phagocytic clearance. Additionally, surface modification of EVs facilitates targeted biomolecule delivery to specific tissues. These features render them promising miRNA delivery vehicles [134]. Depending upon their biogenesis, EVs are classified into exosomes, microvesicles, and apoptotic bodies. Exosomes (40–120 nm in diameter), primarily formed from late endosomes, have been used as effective carriers of miRNA [135,136]. The low cytotoxicity and antigenicity of exosome-based delivery makes it highly efficient. To enrich exosomes with miRNAs, two strategies have been employed. A cell line overexpressing the miRNA of interest is generated, resulting in increased miRNA expression and exosome secretion with the encapsulated miRNA. Another strategy is isolating exosomes and then enriching them with miRNAs. Enrichment of exosomes with miRNA is commonly achieved by transfecting adipose tissue-derived stem cells and mesenchymal stem cells with the miRNA of choice. The potential of the EVs as carriers of exogenous therapeutic miRNA has been discussed in detail in earlier reports [137]. MiRNA-enriched exosomes have been used in a wide variety of diseases, including brain disorders [138,139,140,141], cardiac diseases [142,143,144], muscular disorders [126,145], cancer [146,147] etc. Exosome-mediated delivery of miR-193b helped to diminish amyloid precursor protein levels, in an attempt to ameliorate Alzheimer’s disease. Synaptic transmission in astrocytes is enhanced by miR-124a secretion via extracellular vesicles that regulate the glutamate transporter [148]. In myocardial infarction disease models, intravenous injection of miRNA-126-enriched exosomes helped to ameliorate cardiac injury and fibrosis [144]. Additionally, miRNA-126–3p and 5p successfully delivered by exosomes from endothelial progenitor cells helped to regulate vascular permeability in cecal ligation and puncture (CLP)-triggered sepsis [149]. MSC-derived exosomes that deliver miR-92-a-3p suppress cartilage degeneration and can be used as potential osteoarthritis treatment [145]. In another study, bone marrow MSC-derived exosomes enriched with anti-miRNA-375 were used to restrict apoptosis during islet transplantation in humanized mice [150]. In a recent study, exosomes were engineered to co-deliver an anticancer drug along with miR-21 inhibitor in colorectal cancer cell lines to circumvent drug resistance and improve the efficacy of cancer treatment. The ability of exosomes to regulate immune system makes them an attractive tool for miRNA delivery in autoimmune diseases [151,152]. The levels of circulating exosomes are high in SLE, rendering them novel biomarkers of SLE progression [153]. Further advancements in exosome-based miRNA delivery will prove beneficial for future clinical implications in SLE. Besides exosomes, other EVs such as microvesicles and apoptotic bodies also function as miRNA carriers. A study reported microvesicles enriched with miRNA-29a/c that were able to suppress tumor development in gastric cancer [154]. Endothelial cell-derived apoptotic bodies containing miR-126 induced CXCL12 secretion, thereby protecting mice against atherosclerosis [155].
EVs enriched with the exogenous therapeutic miRNA have been used as efficient delivery vehicles and their applications in cell-based delivery are rapidly emerging. Despite their efficacy, the mass production of EVs remains a challenge. Further characterization of the EVs, including regulation of their biogenesis, determining the source from which they have been derived, and the route of administration, needs to be carried out to achieve large-scale production on a clinical scale. Additionally, thorough immune profiling needs to be conducted post exosome delivery to evaluate the recipient’s immune responses, thereby determining the clinical feasibility of this method. Thus, advancements in the isolation of EVs on a commercial scale, strategies to enhance miRNA loading on EVs, and safe delivery to target tissues are exciting avenues that need further exploration.

3.5. Emerging Methods of miRNA Delivery Systems

As miRNA-based therapy is growing in popularity as a means for treating diverse human diseases, novel oligonucleotide delivery strategies are being investigated to enhance the treatment outcomes. Gasparello and colleagues found that argininocalix[4]arene 1, a new synthetic cationic surfactant with basic amino acids clustered on a rigid macrocyclic scaffold, can efficiently transfer miRNAs and anti-miRNA molecules to target cells in vitro [156]. Another new multivalent macrocyclic carrier, tetraargininocalix[4]arene (1), has been effectively used as a non-covalent vector for a peptide nucleic acid–anti-miR nanocomplex [157]. Although such novel macrocyclic carriers showed high transfection efficiency and low cytotoxicity in a variety of cell lines, in vivo validation of these characteristics will be critical for the development of therapeutic protocols.
The low transfection efficiency of neutrons and the presence of the blood–brain barrier, which prevents the delivery of miRNA-based therapeutics to the central nervous system, present significant obstacles to the use of oligonucleotide-based therapies in the brain. In this context, Soto-Sánchez et al. first demonstrated that a polymeric magnetic particle, termed Neuromag®, could be employed to deliver nucleic acids to pyramidal cells in the rat visual cortex [158]. In a recent study, investigators demonstrated the efficacy of Neuromag®-complexed anti-miR-134 for silencing miR-134, a miRNA implicated in excitatory neurotransmission, neuritogenesis, spinal growth, and neuroplasticity [159].
To overcome the restricted efficiency and specificity of non-viral oligonucleotide carriers, researchers have engineered a nanobody-functionalized nucleic acid nanogel for the targeted delivery of miRNAs to tumor cells and to prevent tumor growth [160]. In another work, researchers engineered a multipronged DNA star motif that can carry three miRNA molecules and form a Shuriken-like shape upon miRNA loading [161]. In this proof-of-concept study, Qian et al. demonstrated that the DNA Shuriken nanostructure could be used to deliver a tumor suppressive miRNA to human colorectal cancer cells [161]. Nahar et al. assembled a DNA nanostructure carrying multiple anti-miR overhangs for the synergistic repression of multiple oncomiRs and prevented cell cycle progression in cancer cells [162]. Together, these studies demonstrate that the programmability of DNA nanostructures holds great promise to further explore the delivery of miRNA-based therapeutics.

4. Conclusions

Concerted efforts from academic research laboratories and pharmaceutical companies bolstered the progress of miRNA-based drug candidates to clinical trials for the treatment of diverse pathologies, ranging from kidney diseases to cardiac abnormalities, from different types of cancer to infectious diseases (Table 2 and reviewed in [7,163,164]). Currently, more miRNA-based therapeutics are in the pre-clinical stage or in the development pipeline for treating post-myocardial infarction remodeling, vascular disease, cardiac fibrosis, abnormal red blood cell production such as polycythemia vera, cardiometabolic disease, peripheral arterial disease, and chronic heart failure [164]. Despite these provocative advances, miRNA drug candidates are yet to reach phase III clinical trial and receive clearance from the US Food and Drug Administration (FDA) for medical intervention. Successful translation of miRNA-based strategies from bench to bedside remains dependent on the development of miRNA delivery vehicles that couple essential features such as high loading capacity, stability, enhanced half-life in circulation, minimal toxicity, and prevent the rapid degradation of their cargo.
Although several viral and non-viral miRNA delivery systems have been successfully used in vivo, all of these approaches have pros and cons (Figure 1 and Figure 2). While non-viral vectors are safe, they have low delivery efficiency. In contrast, viral vectors have higher transfection efficiency, but face the challenges of being immunogenic and cytotoxic. Chemical modifications and conjugations are being designed to alleviate toxicity and optimize transfection efficiency. For example, the half-life of lipid nanoparticles in sera was greatly increased by the conjugation of the lipids with hydrophilic and flexible polyethylene glycol (PEG) [165]. The potency of PAMAM has been improved through PEGylation whereas that of PEI was enhanced by generating disulfide cross-linked low-molecular-weight PEI that are assembled with biodetachable anionic groups [163]. Combined delivery of miRNAs and drugs is also being explored to augment therapeutic efficacy. For instance, biocompatible silica-based nanostructures have been employed to co-deliver anti-miR-221 and Temozolomide (TMZ) for treating drug-resistant glioma cells [166].
Most in vivo administration of miRNA-based therapeutics relies on systemic injection, which is expensive, has low efficacy, and can lead to adverse side effects. Therefore, targeted miRNA delivery platforms that improve the homing of delivery vehicles to specific tissues are being explored. Active targeting has been achieved by tethering ligands, such as saccharides, vitamins, bisphosphonate, antibodies, peptides, and aptamers, to the delivery vehicles [167,168]. For example, chemical conjugation of folic acid, a vitamin, to bacteriophage pRNA-based delivery system enables specific recognition of folate receptors that are overexpressed on the surface of cancer cells but are barely detectable on normal tissues [169]. Zhang et al. successfully targeted miR-145 to prostate cancer cells through the conjugation of polyarginine peptide (R11), a cell permeable peptide, to a branched PEI containing disulfide linkages [170]. Decoration of nanoparticles with galactose and glycyrrhetinic acid moieties significantly improved the efficiency and specificity of active targeting to the liver [171].
Several groups are investigating new avenues to develop unconventional delivery methods. EnGeneIC Ltd. (Sydney, Australia) developed an antibody-coated bacterially derived minicell (400 nm) delivery system that can package and deliver chemotherapeutics to targeted cells [172]. Later, several groups adapted this bacteria-based technology deliver miRNAs in pre-clinical [173,174] and clinical trials (dubbed TargomiRs; see Table 2) for cancer treatment. A growing body of work is now focusing on developing 3D biomaterial scaffolds, e.g., hydrogels, and electrospun fibers, for miRNA delivery (reviewed in [59]). A limited number of recent studies have suggested that dietary, particularly plant-based, delivery of miRNAs could provide an effective, noninvasive, and inexpensive treatment regime for some human diseases [175]. With the recent advances in next-generation sequencing technologies and bioinformatic tools, the inventory of novel miRNAs associated with human health and disease will continue to surge over the next decade. The development of new delivery technologies and their evaluation in animal models will be a promising research area. Additionally, future studies should focus on the characterization of disease-specific markers on target tissues and explore new targeting ligands for improving miRNA therapeutic efficacy.

Author Contributions

I.D. and A.C. contributed equally to this article. Conceptualization, I.D. and A.C.; writing—original draft preparation, I.D. and A.C.; writing—review and editing, I.D. and A.C.; visualization, I.D. and A.C.; supervision, A.C.; project administration, A.C. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
