Abstract

:
Ionic liquids (ILs) have advanced a variety of applications, including matrix-assisted laser desorption/ionization–mass spectrometry (MALDI–MS). ILs can be used as matrices and solvents for analyte extraction and separation prior to analysis using laser desorption/ionization–mass spectrometry (LDI–MS). Most ILs show high stability with negligible sublimation under vacuum, provide high ionization efficiency, can be used for qualitative and quantitative analyses with and without internal standards, show high reproducibility, form homogenous spots during sampling, and offer high solvation efficiency for a wide range of analytes. Ionic liquids can be used as solvents and pseudo-stationary phases for extraction and separation of a wide range of analytes, including proteins, peptides, lipids, carbohydrates, pathogenic bacteria, and small molecules. This review article summarizes the recent advances of ILs applications using MALDI–MS. The applications of ILs as matrices, solvents, and pseudo-stationary phases, are also reviewed.

Graphical Abstract

1. Introduction

Room-temperature ionic liquids (RTILs) are salts with melting points at/below room temperature [1,2]. Dialkylimidazolium chloroaluminate may be considered as the first reported RTILs [3]. The typical chemical structure of ionic liquids (ILs) contains a nitrogen or phosphorus organic cation and an organic/inorganic anion [1,2]. These combinations provide a plethora of different RTILs [4]. Suitable combination of anions and cations provide ILs with achiral chiral properties [5]. The properties of the cations and anions moieties govern the chemistry of ILs [6]. The properties of the anion moieties influence the hydrogen bond basicity of ILs, while the properties of the cation moieties influence π–π interactions and in some cases the hydrogen bond acidity. Ionic liquids can be used for green processing industry [7], synthesis of nanomaterials [8], as solvents for clean synthesis [1], catalysis [9], supercapacitors [10], electronic and bioelectronic nose instruments [11].
Ionic liquids have been used in analytical applications [12,13,14,15], including separation [16,17,18], as solvents for headspace gas chromatography [19], liquid chromatography (LC), and capillary electrophoresis (CE) [20], as stationary phases (ILSPs) [21], extraction [22,23,24,25], electrochemical-based sensors [26], and as ion-pairing reagents for the analysis of trace anions using electrospray ionization–mass spectrometry (ESI–MS) in the positive mode [27,28,29]. The addition of imidazolium-based ILs (1-ethyl-, 1-butyl- and 1-hexyl-3-methylimidazolium chloride) to the mobile phase prevents the access of analytes to the free silanols and improves the peak’s shape [30]. Ionic liquids such as 1-butyl-3-methylimidazolium tetrafluoroborate offers green additives compared to other reagents such as triethylamine and shows higher performance for the analysis of β-blockers [31].
Matrix-assisted laser desorption/ionization–mass spectrometry (MALDI–MS) [32,33], and ESI–MS [34,35,36] are soft ionization methods. They can be used for the analysis of thermal labile nonvolatile analytes with very low fragmentation. Matrix-assisted laser desorption/ionization–mass spectrometry was applied for the analysis of pathogenic microorganisms and their lysates [37,38,39,40,41,42,43,44,45,46], endotoxins [47], proteins [48,49,50,51], phosphopeptides [52], biothiols [53], surfactants [54], lipids [55], metals ions [56,57,58], metallodrugs [59], surface chemistry of nanoparticles functionalized with synthetic ligands [60], intermediates for quantum dots formation [61], and small molecules [62]. The ionization of an analyte may be assisted using organic matrices [63], ILs [64,65,66], or nanoparticles [67]. Ionic liquid matrices (ILMs) show high sensitivity in most cases and offer soft ionization with minimal fragmentation of thermal labile biomolecules.
This review summarizes the applications of ILs as matrices and solvents/pseudo-stationary phases for sample microextraction and separation prior to analysis using MALDI–MS. The pros and cons of each application are also discussed.

2. Matrix-Assisted Laser Desorption/Ionization–Mass Spectrometry

Laser desorption/ionization mass spectrometry (LDI–MS) is useful for the ionization of analytes that have high absorption at the wavelength of the laser source. The analytes that have no absorption at the laser wavelength require the use of a compound “matrix” that assists the LDI process [68]. The matrix should have a suitable chromophore to absorb the laser irradiation and promote the ionization of the analyte. The matrix and the analyte should be dissolved in a solvent before co-crystallization. The matrix should cause no chemical or thermal fragmentation of the investigated analyte. To circumvent some of these drawbacks, nanoparticles [69,70,71,72,73,74,75,76], and Ils [77] have been used. This review intends to cover the applications of ILs as matrices (Table 1) and solvents for separation and extraction (Table 2) prior to analysis using MALDI–MS. Matrix-assisted laser desorption/ionization–mass spectrometry spectra usually show the singly charged molecular ion of the ionized analyte.
The requirements of conventional organic matrices or ILs, reported below, are similar:
  • Effective ionic liquid matrices (ILMs) usually should have high absorption at the same wavelength of the laser radiation.
  • They should have capability to protonate (positive mode) or deprotonate (negative mode) the target analyte.
  • They should effectively ionize the target analyte.
  • They should effectively ionize all analytes in a mixture without or with minimal ion suppression.
  • They should cause no fragmentation of the analytes.
  • They should form no adduct species with the investigated analytes.
  • They should be miscible with the analyte solution and co-crystalize with the investigated analytes.
  • They should ensure high reproducibility with very low relative standard deviation (RSD) from spot to spot.
  • They should cause no change in the chemical structure of the investigated analyte.
  • They should be cheap and nontoxic.

3. Ionic Liquids-Assisted Laser Desorption/Ionization Mass Spectrometry

Armstrong et al. introduced RTILs as matrices for MALDI–MS [78]. Room temperature ionic liquids should have high absorption of the laser irradiation and be able to undergo proton transfer with the analyte. They can be used for a wide range of analytes, including proteins, peptides, oligonucleotides, carbohydrates, lipids, and small molecules [79].

3.1. Ionic Liquids-Assisted Laser Desorption/Ionization–Mass Spectrometry Applications for Proteins

Ionic liquids have been applied as matrices for proteins analysis using MALDI–MS. Several ILs based on conventional organic matrices were reported for the analysis of proteins including glycoproteins (Table 1) [80,81]. Ionic liquids were tested for both positive and negative ion extraction modes [82]. Ionic liquids improved the analytical performance and increased the sequence coverage of protein digests obtained using peptide mass mapping (PMM) [83]. They improved protein identification using peptide mass fingerprinting (PMF) [84]. They offered higher matches scores and increased sequence coverage. Ionic liquids consisting of 2,5-dihydroxybenzoic acid (DHB) and aniline were used for N-linked glycans derived from human and bovine α1-acid glycoprotein, as well as chicken egg white albumin [85]. Among different ILs, 3,5-dimethoxycinnamic acid triethylamine (SinTri) showed high performance for the analysis of high-molecular-weight proteins such as immunoglobulin G (IgG) [86].
Analysis of proteins using ILMs offers a low limit of detection (LOD), in the range fmol-attomol. Ionic liquids matrices induce no denaturation of the protein or ion suppression, and they can be used to detect proteins in a complex biofluid. The spectra usually show the signal molecular ion peak of the intact protein without or with very low fragmentation. Ionic liquids matrices form no adducts with the analyzed proteins.

3.2. Ionic Liquids-Assisted Laser Desorption/Ionization–Mass Spectrometry Applications for Peptides, Carbohydrates, Lipids, and Oligonucleotides

N,N-diisopropylethylammonium α-cyano-4-hydroxycinnamate, and N-isopropyl-N-methyl-t-butylammonium α-cyano-4-hydroxycinnamate were tested as matrices to assist desorption ionization process for peptides (Table 1) [96]. The storage of peptides in a solution of in CHCA/3-acetylpyridine and CHCA/aniline caused no oxidation compared to a conventional organic matrix CHCA [112]. CHCA/2-amino-4-methyl-5-nitropyridine and CHCA/N,N-dimethylaniline (CHCA/DANI) offered direct analysis of peptides in tissues [113].
The analysis of phosphopeptides using ILs was investigated. A solid ionic liquid matrix (SILM) consisting of 3-aminoquinoline, CHCA, and ammonium dihydrogen phosphate was used for phosphopeptide analysis [22]. Solid ionic liquid matrix can be used to replace salts and buffer exchange solution that typically follow after phosphopeptide elution from metal oxide affinity chromatography (MOAC) materials [22]. The compounds 1,1,3,3-tetramethylguanidium (TMG) and 2,4,6-trihydroxyacetophenone (THAP), denoted as GTHAP, showed selective ionization of phosphopeptides in the negative ion mode of MALDI–MS [108]. GTHAP showed high tolerance to the presence of salts [108]. Combination of the proton sponge 1,8-bis(dimethyl-amino)naphthalene (DMAN), 6-aza-2-thiothymine (ATT), and diammonium hydrogen citrate (DHC) improved the detection of phosphopeptides, showed lower LOD, reduced signal suppression effects, and improved position-to-position reproducibility [109].
Ionic liquids were applied for the analysis of N-linked oligosaccharides [102], disaccharides, sucrose octasulfate, octasulfated pentasaccharides, Arixtra [105], glycans [97], glycosaminoglycans (GAG) polysaccharides [98], and pullulans (polysaccharide polymers consisting of maltotrioseunits, 100 kDa) (Table 1) [103]. Anion-doped liquid matrix G3CA, which consists of p-coumaric acid, and 1,1,3,3-tetramethylguanidine, was applied for the analysis of anion-adducted N-glycans [107]. Among different ILMs, N,N-diisopropylethylammonium α-cyano-4-hydroxycinnamate and N,N-diisopropylethylammonium ferulate were the best matrices for the analysis of carbohydrates using MALDI–MS [96]. The 1,1,3,3-tetramethylguanidium (TMG) salt of CHCA (G2CHCA) showed no degradation of sulfated oligosaccharides and offered high sensitivity (e.g., 1 fmol) in both ion extraction modes, i.e., positive and negative modes [82]. ILMs consisting of 2-(4-hydroxyphenylazo)benzoic acid (HABA) with 1,1,3,3-tetramethylguanidine or spermine improved the analysis of heparin (HP) and heparin sulfate (HS) that have poor ionization efficiency [110]. DHB-dimethylaniline (DMA) was applied for the analysis of polysaccharides, such as neutral, anionic, methylated, sulfated, and acetylated compounds [114]. ILMs were also reported for mass spectrometry imaging (MSI) of gangliosides [115]. The choice of ILs such as butylamine 2,5-dihydroxybenzoate (DHB-BuN) improved the reproducibility and quantification analysis as well as imaging of oligosaccharides present in soybean and leaves [116].
Ionic liquid matrices showed high ionization efficiency for poor-ionization analytes [110]. ILMs offered no degradation of thermal labile oligosaccharides or DNA oligomers (Table 1) [117]. They showed also high sensitivity in both negative and positive ion extraction modes [82].
Ionic liquid matrices consisting of the ultraviolet (UV)-absorber p-nitroaniline with the protonating agent butyric acid were reported for the analysis of lipids (Table 1) [118]. ILMs were applied for the analysis of phospholipids (PLs) [93], lipid imaging [119], and phospholipids imaging in mouse liver and cerebellum tissue sections [120]. ILMs produced high signal intensities, improved spot homogeneity, provided high reproducibility, and showed low LOD (Table 1) [93].

3.3. Ionic Liquid-Assisted Laser Desorption/Ionization–Mass Spectrometry Applications for Small Molecules

Conventional organic matrices cause usually interference signals in low mass range (m/z < 1000 Da) due to self-ionization. The presence of the matrix ion peaks complicates the spectra and may lead to peaks overlap. Triethylammonium α-cyano-4-hydroxycinnamate and diisopropylammonium α-cyano-4-hydroxycinnamate offered direct analysis of 14 pharmaceutical drugs in different formulations, such as coated tablets, noncoated tablets, capsules, and solutions [91]. These peaks can cause also ion suppression of the investigated analytes.
Ionic liquid matrices (ILMs) of mefenamic acid and bases (aniline (ANI), pyridine (Pyr), dimethylaniline (DMANI), and 2-methylpicoline (2-P)) were applied for the analysis of small molecules, including drugs, carbohydrates, and amino acids [106]. ILMs were also applied for the analysis of aflatoxins B1, B2, G1, and G2 [99], and carbonaceous compounds [121]. The compound 2-aminopentane (AP)-CHCA was used for quantitative analysis of N-acyl homoserine lactones (AHL) in the low pico-molar range, with lower limits of quantification (LOQ) from 1–5 pmol for different AHL [92].
Selected ammonium-, phosphonium-, and sulfonium-based ILMs and bis(trifluoromethylsulfonyl)imide as a counter ion were applied for the analysis of lubrication specimens [122]. Formation of pyrylium salts in brain tissue sections offered the imaging of primary amines [123]. The 2,4-diphenyl-pyranylium ion can be used for derivatization of primary amines such as dopamine (DA) in coronal tissue sections.
The analysis of small molecules using ILMs is promising. ILMs show very few or no interference peaks in the low mass range (<1000 Da). The choice of a suitable base conjugate may suppress the ion peaks of the conventional organic matrices, with low or no negative impact on the ionization of the target analytes. Thus, ILMs show interference-free spectra for the analysis of small molecules. ILMs show no adducts peaks, and that leads to an accurate determination of the molecular weight. The ionization efficiency of small molecules usually is higher than the ionizability of molecules with large molecular weight. ILMs show effective ionization of both species in a mixture without any ion suppression for large-molecular-weight molecules.

3.4. Ionic Liquid-Assisted Laser Desorption/Ionization–Mass Spectrometry Applications for Polymer and Pathogenic Bacteria

N,N-diisopropylethylammonium α-cyano-4-hydroxycinnamate (DEA-CHCA) was used for the characterization of polar biodegradable polymers [124]. DEA-CHCA offered the greatest signal with the smallest laser power and negligible polymer degradation. Ionic liquid matrices were also applied for aliphatic biodegradable photoluminescent polymers [125]. They were also used for the analysis of lubricant residue polydimethylsiloxane standards (PDMS2000, PDMS6000, PDMS9000, PDMS17000) of condom lubricants in biological fluids [94]. A comparison between six conventional matrices with and without potassium and six ILMs, namely, trans-2- [3-(4-tert-butylphenyl)-2-methyl-2-propenylidene]malononitrile (DCTB) DCTB–triethylamine (TEA), DCTB-butylamine (BA), DHB-BA, CHCA-TEA, CHCA- N,N-diisopropylethylamine (DEA), and sinapinic acid (SA)-TEA, was reported for the analysis of poly(ethylene glycol) (PEG), polytetrahydrofuran (PTHF), and poly(methyl methacrylate) (PMMA) [126]. The authors reported that common organic matrices are superior to ILMs for some polymer species [126]. They claimed that the low efficiency of ILMs is due to the lower UV absorption values [126]. Ionic liquid matrices were also used for imaging synthetic polymer samples [127].
The analysis of polymers using MALDI–MS is challenging because of the poor ionization and high molecular weight of polymers. Ionic liquid matrices should cause no degradation of the polymers and produce a single peak corresponding to the molecular ion. Thus, the parent molecular ion peak of the intact polymer can be detected. They should produce a sharp peak with very small width at half maximum.
Abdelhamid et al. reported two series of ILMs using organic matrices sinapinic acid and 2,5-DHB in conjugation with the organic bases aniline (ANI), dimethylaniline (DMANI), diethylamine (DEA), dicyclohexylamine (DCHA), pyridine (Pyr), and 2-picoline (2-P), 3-picoline (3-P) for the analysis of pathogenic bacteria species [128]. ILMs enhanced the signals for bacteria biomolecules species and improved spot homogeneity. A series of ILMs of mefenamic acid and bases (ANI, Pyr, DMANI, and 2-P) was used to detect bacteria toxins without separation or any pretreatment steps [106]. 1-butyl-3-methylimidazolium hexafluorophosphate was used to capture bacteria cells from yogurt samples prior to analysis using MALDI–MS [129]. The separation procedure is simple, and offers higher sensitivity compared to the direct analysis [129].
The analysis of intact bacteria using ILMs is promising for biomedical studies. The analysis of bacteria cells using MALDI–MS requires a very short time (<5 min) compared to conventional methods such as bacteria culture that needs several days. The method offers high-throughput analysis and can be used in real analyses in hospitals and medical clinics. The use of statistical analyses combining MALDI–MS showed high accuracy and good precision for bacteria identification. The analysis of bacteria using MALDI–MS is simple, fast, accurate, and high-throughput. However, the quantification analysis is a challenge. The bacteria mass profiles are usually influenced by time and sample preparation. A few ILMs appeared suitable for the analysis of proteins or biomarkers with high molecular weights.

3.5. Imaging Using Ionic Liquid Matrices

Ionic liquid matrices were applied for MALDI–MS imaging (MALDI–MSI) of lipids [119], phospholipids in mouse liver and cerebellum tissue sections [120], protein distribution and identification within formalin-fixed paraffin-embedded (FFPE) tissue sections [130], gangliosides [115], and oligosaccharides in soybean and leaves [104]. MALDI–MSI using ILMs allows the study of protein distribution and identification directly within tissue sections [130], and improve the reproducibility of the results [104].

3.6. Quantitative Analysis Using Ionic Liquid Matrices-Assisted Laser Desorption/Ionization-Mass Spectrometry

Quantification analysis using MALDI-MS is a challenge due to the signal fluctuations. A few studies were reported for quantification analysis using MALDI–MS (Table 1). For successful quantification analysis, Wang and Giese summarized 18 recommendations for the quantitative analysis of small molecules using MALDI–MS [131]. ILMs offered many advantages that are absent in conventional organic matrices. Thus, they are promising for quantification analysis.
Tholey et al. reported the quantification analysis of a low-molecular-weight compound (i.e., glutamine) using ILMs and an internal standard [111]. ILMs were tested as matrices for the quantification of oligodeoxynucleotides (ODNs), peptides, small proteins [87], sialylated glycans [100], N-acyl homoserine lactones (AHL) [92], and phosphatidylcholine (PC) in mouse brain tissue [89]. Out of 27 combinations of acids and bases, ILMs of CHCA and 3-aminoquinoline or N,N-diethylaniline were the best choices for peptide quantification [95].
The quantification analysis of peptides without internal standards was also reported [132]. The data showed a linear correlation between peptide amounts and signal intensities. This advantage offered the monitoring of the time-dependent evolution of substrates and products in trypsin-catalyzed digests of single peptides and peptide mixtures [132]. The quantification analysis of a mixture shows that ILMs effectively ionize the mixture molecules without any observable ion suppression.

4. Factors Influencing the Analysis Using Ionic Liquid Matrices

There are several key parameters that influence the analysis using ILMs for MALDI–MS. Thus, there is no general rule to predict the performance of the ILMs. Furthermore, the gaps in knowledge about MALDI ionization behavior make the prediction of ILMs performance for a specific sample difficult a priori. The following points highlight some of these influencing parameters.

4.1. Types of Ionic Liquid Matrices and Analytes

The performance of ILMs varies depending on the types of ILMs and analytes. Thus, some reports showed comparable or increased sensitivities [90,113,127], whereas others studies reported a decrease in the sensitivities [129,133]. The best ILMs can be used for the selective analysis of species such as phosphopeptides in peptide mixtures and in proteolytic digests using negative ion mode [108]. Cool and high salt-tolerant ILMs G3THAP was considered as the best choice for the preferential ionization of phosphopeptides for negative ion mode [108]. G3THAP showed very low ion suppression caused by nonphosphopeptides for phosphopeptides [108].

4.2. Preparation of Ionic Liquid Matrices

Ionic liquid matrices are usually prepared by mixing the solution of a conventional organic matrix with molar equivalents of a counter base. The type and acid:base molar ratio influence the performance of ILMs. Thus, these parameters require optimization.
The physicochemical properties of the base conjugates influence the performance of ILMs. Thus, the selection of the optimal base conjugate is critical. The effect of the base type using pyridine, aniline, N,N-dimethylaniline, and n-butylamine (BuN) for the conventional organic matrix was studied for the analysis of oligosaccharides [104]. The authors found that BuN improved the performance of DHB compared to the other bases [104].
The molar ratio of organic matrix to base influences the performance of ILMs. The analysis of N-acyl homoserine lactones (AHL) using ILMs of CHCA and mono/di-amount of 2-aminopentane (AP) werereported [92]. The data showed that the ILMdi-AP-CHCA containing a double molar excess of base offered the best results in terms of quality of the MALDI spectra [92]. However, it was found that the ILM consisting of a TMG–THAP (G3THAP) ina molar ratio of 3:1 was the best choice for high performance for phosphopeptide analysis [108].The acid to base molar ratio affects the ionization of the investigated analyte as protonated or as adduct ions peaks [92]. The acid to base molar ratio from stoichiometric to nonstoichiometric can be also investigated to improve the fluidic characteristics of ILMs [95].

4.3. Sample Preparation

There are several methods for sample preparation for MALDI–MS [116]. Most of ILMs do not solidify after solvent evaporation [23]. Thus, they tend to form homogeneous spots and offer high reproducibility compared to conventional organic matrices. However, the choice of sample preparation influences the performance of the ILMs [128]. Abdelhamid et al. tested several methods, including the dried-droplet method and the double-layer method [128]. They observed that both methods were not suitable for the analysis of bacteria species. They found that the addition of a drop of ILMs on the two spots of bacteria species improved the performance of the tested ILMs for the analysis of pathogenic bacteria [128]. The sample preparation influences the spot properties and the analysis performance.

4.4. Solvent

The choice of solvent influences the deposition and crystallization for dried-droplet sample deposition [134]. The solvent affects the evaporation rate of the matrices and the spot homogeneity. Water is the common solvent; however, solvents such as methanol, ethanol, or acetonitrile were also investigated.

4.5. Additives

The additives, such as potassium trifluoroacetate (KTFA), which served as a cationization agent [126], play also a key role in the performance of ILMs. The excess of KTFA dissipated any overrepresentation of high-molecular-weight polymer species [126]. Other additives, including trifluoroacetic acid (TFA), phosphoric acid (PA) [135], and ammonium dihydrogen phosphate (ADP) [136], were also reported. These additives improved the ionization efficiency of ILMs. Furthermore, it was reported that the addition of PA to G3THAP reduced the background noise for the analysis of phosphopeptides [108]. The role of these additives is unknown, and in most cases their choice is a trial-and-error experiment.

4.6. Impurities

The presence of impurities in a sample, especially in biological samples such as tissues, influences the ionization performance of ILMs [89]. Tissues are often contaminated with undesired reagents, such as alkali metal salts, choline and its derivatives, etc., that may cause ion suppression. Thus, impurities render the quantification of phosphatidylcholine (PC) in mouse brain tissue a difficult task [89]. Further steps to eliminate most of the polar contaminants and some nonpolarones are usually necessary. Park et al. overcame this challenge by washing the tissue samples with water [89]. The impurities consisting of alkali species are inevitable and may affect the ionization of the target analyte and thus produce ion peaks as alkali adducts.

4.7. Instrumental Parameters

Instrumental parameters, including the type of laser, detector, mode of detection (positive or negative modes), and detectors, affect the performance of ILMs (Table 1).

5. Principles and Mechanisms of Ionization Using Ionic Liquid Matrices

The mechanism of the ionization using conventional organic matrices or ILMs is unknown. However, there are several proposed mechanisms to explain the ionization process [137,138]. It is important to keep in mind that the ionization using MALDI–MS cannot be explained using a single mechanism. However, the ion formation mechanism can be classified into:
(1)
Primary ion formation, including multiphoton ionization (MPI), pooling, excited-state proton transfer (ESPT), disproportionation, thermal proton transfer [139,140], and spallation.
(2)
Secondary ion formation, including H+ transfer, e- capture and H+ transfer, cationization, e- transfer, and ejection [138].
(3)
The ’’Lucky Survivor” model; this model claims that the ionization take places in the solution, and the ionized species retain their solution-state charge and exist as preformed ions within the solid state matrix [141].
(4)
Ionization due to solid-to-gas phase transition: this mechanism was proposed for the ionization induced in infrared (IR)-MALDI [142]. This model was also suggested for UV-MALDI that involves ionization without an obvious contribution from electronic excitation [142].
The ion formation mechanism depends on many parameters including the laser properties [143], such as wavelength (infrared or UV-laser), photon energy, energy density (J/cm2), laser irradiance (W/cm2), incident angle of the laser beam, laser exposure time, matrix type, analyte ionizability, additives, impurities, and sample preparation methods.
These proposed mechanisms were reported for conventional organic matrices that should have absorption matching the wavelength of the laser. They are also valid for ILMs. However, it is important to mention that the proton transfer can be assisted by the base moieties, as shown in Figure 1.

6. Advantages of Ionic Liquid as Matrices

Ionic liquid matrices offer several advantages compared to conventional organic matrices and nanoparticles. ILMs have shown higher sensitivity compared to the corresponding organic matrices. In a study, the presence of a weak base enhanced the sensitivity [144]. ILMs offer high signal-to-noise ratios, reduction of chemical noise, and reduced formation of alkali adducts [145]. The detection sensitivity using ILMs is in the range of fmol-attomol (Table 1). ILMs, in most cases, require no sample pretreatment or preconcentration.
Ionic liquid matrices improve the ionizability of analytes with poor ionization efficiencies. Polyanionic oligosaccharides, including dermatan sulfate (DS) and chondroitin sulfate (CS), have poor ionization efficiencies. Thus, they usually require derivatization to improve their ionization. A guanidinium salt of CHCA offered the direct analysis of underivatized DS and CS oligosaccharides up to a decasaccharide. ILMs are suitable for the analysis of a mixture containing oligosaccharides with different numbers of sulfogroups [146].
Ionic liquid matrices can be also used for species that face ionization suppression in the presence of high ionization analytes. The compound 1,1,3,3-tetramethylguanidinium 2,4,6-trihydroxyacetophenone (GTHAP) was used for the analysis of glycopeptides and glycans, in the presence of peptides [147]. ILMs overcame the well-known ionization suppression of the carbohydrates.
Adducts formation of analytes with alkali ions sodium or potassium sometimes causes ambiguity. It has been reported that the analysis using ILMs showed no peaks related to adduct species. Water-immiscible ILs was the best choice for analytes with low molecular weight. In contrast, proteins showed the best results in water-miscible ILMs [148].The ionization efficiency of ILMs could be improved by the addition of matrix additives, including trifluoroacetic acid (TFA) and phosphoric acid [135].
Because of their high solvation capabilities, ILMs dissolve a wide number of different analytes. ILMs offered homogenous spots compared to conventional organic matrices [149]. Thus, they offered better shot-to-shot reproducibility. The sample homogeneity can be increased by additives such as TFA or phosphoric acid. The formation of homogenous spots decreases the time employed to search hot spots. Thus, ILMs can be used for microfluidic sample deposition [23]. ILMs showed no solidification during the spotting and caused no formation of sweet or hot spots.
The fragmentation of large molecules may be caused by the high laser energy or the acidity-basicity of the conventional matrices. ILMs showed low or no fragmentation [78]. Conventional organic matrices cause thermal fragmentation of polyanionic oligosaccharides through the loss of sulfur trioxide (SO3) groups [90]. Thus, oligosaccharides are usually derivatized to suppress the fragmentation. A guanidinium salt of CHCA allowed the direct analysis of underivatized oligosaccharides with very low fragmentation. Suitable ILMs could significantly suppress fragmentation [90].
Conventional organic matrices lack high reproducibility compared to ILMs (Figure 2). The ion intensities of the oligosaccharide maltoheptaose using 2,5-DHB butylamine (DHBB, black squares) showed stable signal intensities and low relative standard deviation compared to the corresponding signals obtained with a conventional matrix DHB (grey circles) (Figure 2) [86].
The quantification analysis using MALDI–MS requires: (1) controlled and stable total ion current (TIC); (2) constructing a calibration curve by plotting the ion ratio versus the analyte concentration; (3) keeping the matrix suppression below a critical value [95]. Compared to conventional organic matrices, ILMs showed a stable ion current and allowed the quantification analysis for several analytes, including peptides [88], pyranose oxidase [150], N-acylhomoserine lactones (AHL) [92], and the environmental neurotoxin β-N-methylamino-L-alanine (L-BMAA) in brain tissue sections [123]. DHB-N-methylaniline (N-MA) and DHB-N-ethylaniline (N-EA) were used for the qualitative and quantitative analysis of carbohydrates [101].
Ionic liquid matrices were applied for several analytes, including proteins, peptides, oligonucleotides, and phospholipids. They offer the broadest applicability to a wide range of biomolecules [86]. They can ionize the different analytes in a mixture without observable ion suppression.
The melting point of ILs is below room temperature. Thus, ILs remain in liquid state even after the solvent evaporates [151]. The liquid state of ILMs allowed the in situ extraction of analyte species and improved the performance of ILMs [121].
Ionic liquid matrices can be used as matrices, modifiers, additives, and co-solvents [81,152]. These applications ensure high performance of ILMs. They reduce the use of chemicals and provide green technologies. They can be used for applications, such as microextraction and separation, which improve the analysis for MALDI–MS.
Ionic liquid matrices (ILMs) have a low vapor pressure and show high stability under vacuum. They show a very low tendency to sublimation. They offer homogeneous spots under vacuum, high ion peak intensity, and clean spectra [78].

7. Applications of Ionic Liquids for Microextraction Using Matrix Assisted Laser Desorption/Ionization Mass Spectrometry

Ionic liquids can be also applied as solvents for microextraction using MALDI–MS (Table 2). The use of ILs improves the detection using MALDI–MS. The microextraction improves sample spotting, enhances the sensitivity, offers higher selectivity, and decreases ion suppression caused due to undesirable species in a mixture.
α-cyno-4-hydroxycinnamic acid-butylamine (CHCAB) was used as a solvent and a matrix for extraction and ionization of phospholipids from food samples (soybean) using dispersive liquid–liquid microextraction (DLLME) prior to analysis using MALDI–MS (Table 2) [153]. The data showed 8–125-fold improvements in signal intensities after microextraction (Table 2).
Ionic liquids have affinity for coordination to metal cations. Uranyl nitrate was extracted using tributylphosphate (TBP) as UO2(NO3)2·2TBP prior to analysis using ESI–MS and MALDI–MS (Table 2) [154]. The analysis showed high sensitivity and simple sample preparation and can be extended to additional metal ions.
Room temperature ionic liquids (RTILs) tetraalkylphosphonium (PR4+) cations ferulate (FA), CHCA, and 2,5-DHB anions allowed the separation of dyes from textiles, the extraction of dyes from aqueous solutions, and the identification of dyes using MALDI–MS in a single experimental step (Figure 3) [156]. The use of PR4+-based ionic liquids allowed the detection of small-molecule dyes without the addition of a traditional solid matrix.
Ionic liquids offered nondestructive separation of dyes from wool [157]. The method requires a small volume, offers high-throughput analysis for accelerated threat-response times, and requires no matrices for laser desorption/ionization process.
The single-drop microextraction (SDME) approach using ILs allowed the extraction of pathogenic bacteria from aqueous samples for characterization by MALDI–MS (Figure 4). Platinum nanoparticles mixed in 1-butyl-3-methylimidazolium hexafluorophosphate were used in an extraction drop (Table 2) [158]. The method requires simple mixing of ILs and platinum nanoparticles (Pt NPs) (Figure 4). The separated drop is sufficient for analysis using MALDI–MS. 1-butyl-3-methylimidazolium hexafluorophosphate was applied to capture bacteria from yogurt samples prior to analysis using MALDI–MS [129].
The microextraction of pathogenic bacteria using ILs offered high sensitivity with low LOD [158]. Microextraction using ILs improved the sample preconcentration and showed no negative impact on bacteria identification. It improved the statistical analysis and showed high accuracy compared to the direct analysis. This process shows no cytotoxicity and no influence on the bacteria counts. Microextraction prior to the analysis using MALDI–MS increased the number of the protein peaks of intact cells without the need of complicated equipment.

8. Advantages of Ionic Liquids for Microextraction

The combination of organic matrices and organic bases offers custom-synthesized ILs (Table 2). They can be custom-synthesized to be either miscible or immiscible with water or organic solvents. Thus, they are useful for liquid–liquid microextraction (LLME). The structure and functionality of the cations and anions control the water solubility of the RTIL. Most water-immiscible RTILs contain either PF6 or bis[(trifluoromethyl)sulfonyl]imide anions.
Microextraction using ILs offers a nondestructive extraction of target analytes from a complicated mixture. The procedure of microextraction usually requires a small volume of ILs and other solvents, provides high-throughput analysis, and requires no addition of MALDI matrices or especial equipment.

9. Applications of Ionic Liquids for Analyte Separation Using Matrix Assisted Laser Desorption/Ionization Mass Spectrometry

Separation of a target analyte is usually needed before the analysis of a complicated mixture (Table 2). The separation procedure prevents ion suppression caused by highly ionizing species. It is also used to resolve the species that have the same molecular weight.
The viscous ionic liquid 3-aminoquinoline/CHCA (3-AQ/CHCA) was used to separate the buffer components, peptides, and oligosaccharides of a solution (Table 2) [159]. The method is simple, cheap, needs no external matrices, and offers green technology (Table 2).
Cationic IL-modified magnetic nanoparticles (CILMS) were used to separate pathogenic bacteria prior to identification using MALDI–MS (Figure 5) [160]. The separation procedure employed an external magnetic field and required a very short time for extraction. The presence of positive charges on the surface of the magnetic nanoparticles (MNPs) strengthened the interactions with the negative charges of the bacteria cell walls. CILMS nanoparticles enhanced the signal-to-noise ratios and offered low LOD.
Thin-layer chromatography (TLC) was used for the fast separation of small compounds prior to direct on-spot analysis using MALDI–MS [161]. The method using UV-absorbing ILMs offered nearly “matrix-free” mass spectra.

Advantages of Ionic Liquids for Separation

Ionic liquids have unique properties, such as negligible vapor pressure, good thermal stability, tunable viscosity, and miscibility with water and organic solvents, as well as good extractability of various organic compounds and metal ions [162]. Analyte separation using ILs is fast, requires no special equipment, and is compatible with MALDI–MS. ILs can be used as solvents and matrices at the same time.

10. Challenges and Remarks

The analysis of nonvolatile and thermal labile biomolecules using MALDI–MS is promising for clinical and real-sample analyses. However, there are no general rules for predicting the suitability of ILs as a matrix. The optimization of ILs is a trial-and-error experiment. Therefore, it is often necessary to test a range of ILMs with different sample preparation methods to find the suitable conditions. Furthermore, the base:acid ratio may affect the material performance. The optimization of the molar ratio is highly required.
The applications of ILs for microextraction and separation are still in the infancy stage. Further investigations are highly required. The optimization of microextraction and separation is highly required for high efficiency. The presence of impurities in ILs may influence their properties. These impurities may cause ion suppression or interference peaks in the spectra. New synthesis methods with high purity are highly demanded.
The role of additives such as TFA or phosphoric acid is not fully understood. These additives can improve the performance of ILs and can add more functions to the ILs. The presence of these additives can improve sample preparation, increase sensitivity, and may offer better selectivity. They can also reduce the fragmentation of thermal labile species and reduce the laser energy.

Funding

This research was funded by Assuit University, Egypt.

Acknowledgments

The author thanks Prof. Dr. Ahmed Abdu Ahmed Abdel-Hafez geaies, president of Assuit University for his support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Welton, T. Room-Temperature Ionic Liquids. Solvents for Synthesis and Catalysis. Chem. Rev. 1999, 99, 2071–2084. [Google Scholar] [CrossRef] [PubMed]
  2. Wasserscheid, P.; Keim, W. Ionic Liquids—New “Solutions” for Transition Metal Catalysis. Angew. Chem. 2000, 39, 3772–3789. [Google Scholar] [CrossRef]
  3. Wilkes, J.S.; Levisky, J.A.; Wilson, R.A.; Hussey, C.L. Dialkylimidazolium chloroaluminate melts: a new class of room-temperature ionic liquids for electrochemistry, spectroscopy and synthesis. Inorg. Chem. 1982, 21, 1263–1264. [Google Scholar] [CrossRef]
  4. Carmichael, A.J.; Seddon, K.R. Polarity study of some 1-alkyl-3-methylimidazolium ambient-temperature ionic liquids with the solvatochromic dye, Nile Red. J. Phys. Org. Chem. 2000, 13, 591–595. [Google Scholar] [CrossRef]
  5. Ding, J.; Armstrong, D.W. Chiral ionic liquids: Synthesis and applications. Chirality 2005, 17, 281–292. [Google Scholar] [CrossRef] [PubMed]
  6. Anderson, J.L.; Ding, J.; Welton, T.; Armstrong, D.W. Characterizing ionic liquids on the basis of multiple solvation interactions. J. Am. Chem. Soc. 2002, 124, 14247–14254. [Google Scholar] [CrossRef] [PubMed]
  7. Hulsbosch, J.; De Vos, D.E.; Binnemans, K.; Ameloot, R. Biobased Ionic Liquids: Solvents for a Green Processing Industry? ACS Sustain. Chem. Eng. 2016, 4, 2917–2931. [Google Scholar] [CrossRef]
  8. Aggarwal, R.; Khullar, P.; Mandial, D.; Mahal, A.; Ahluwalia, G.K.; Bakshi, M.S. Bipyridinium and Imidazolium Ionic Liquids for Nanomaterials Synthesis: pH Effect, Phase Transfer Behavior, and Protein Extraction. ACS Sustain. Chem. Eng. 2017, 5, 7859–7870. [Google Scholar] [CrossRef]
  9. Dai, C.; Zhang, J.; Huang, C.; Lei, Z. Ionic Liquids in Selective Oxidation: Catalysts and Solvents. Chem. Rev. 2017, 117, 6929–6983. [Google Scholar] [CrossRef] [PubMed]
  10. Eftekhari, A. Supercapacitors utilising ionic liquids. Energy Storage Mater. 2017, 9, 47–69. [Google Scholar] [CrossRef]
  11. Wasilewski, T.; Gębicki, J.; Kamysz, W. Prospects of ionic liquids application in electronic and bioelectronic nose instruments. TrAC Trends Anal. Chem. 2017, 93, 23–36. [Google Scholar] [CrossRef]
  12. Tan, Z.; Liu, J.; Pang, L. Advances in analytical chemistry using the unique properties of ionic liquids. TrAC Trends Anal. Chem. 2012, 39, 218–227. [Google Scholar] [CrossRef] [Green Version]
  13. Soukup-Hein, R.J.; Warnke, M.M.; Armstrong, D.W. Ionic Liquids in Analytical Chemistry. Annu. Rev. Anal. Chem. 2009, 2, 145–168. [Google Scholar] [CrossRef] [PubMed]
  14. Ho, T.D.; Zhang, C.; Hantao, L.W.; Anderson, J.L. Ionic liquids in analytical chemistry: Fundamentals, advances, and perspectives. Anal. Chem. 2014, 86, 262–285. [Google Scholar] [CrossRef] [PubMed]
  15. Pandey, S. Analytical applications of room-temperature ionic liquids: A review of recent efforts. Anal. Chim. Acta 2006, 556, 38–45. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, J.; Jiang, G.; Liu, J.; Jönsson, J.Å. Application of ionic liquids in analytical chemistry. TrAC Trends Anal. Chem. 2005, 24, 20–27. [Google Scholar] [CrossRef] [Green Version]
  17. Shamsi, S.A.; Danielson, N.D. Utility of ionic liquids in analytical separations. J. Sep. Sci. 2007, 30, 1729–1750. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Berthod, A.; Ruiz-Ángel, M.J.; Carda-Broch, S. Ionic liquids in separation techniques. J. Chromatogr. A 2008, 1184, 6–18. [Google Scholar] [CrossRef] [PubMed]
  19. Andre, M.; Loidl, J.; Laus, G.; Schottenberger, H.; Bentivoglio, G.; Wurst, K.; Ongania, K.H. Ionic liquids as advantageous solvents for headspace gas chromatography of compounds with low vapor pressure. Anal. Chem. 2005, 77, 702–705. [Google Scholar] [CrossRef] [PubMed]
  20. Marszałł, M.P.; Kaliszan, R. Application of Ionic Liquids in Liquid Chromatography. Crit. Rev. Anal. Chem. 2007, 37, 127–140. [Google Scholar] [CrossRef]
  21. Shi, X.; Qiao, L.; Xu, G. Recent development of ionic liquid stationary phases for liquid chromatography. J. Chromatogr. A 2015, 1420, 1–15. [Google Scholar] [CrossRef] [PubMed]
  22. Mukherjee, G.; Claudia Röwer, C.; Koy, C.; Protzel, C.; Lorenz, P.; Thiesen, H.-J.; Hakenberg, O.; Glocker, M. Ultraviolet matrix-assisted laser desorption/ionization time-of-flight mass spectrometry for phosphopeptide analysis with a solidified ionic liquid matrix. Eur. J. Mass Spectrom. 2015, 21, 65. [Google Scholar] [CrossRef] [PubMed]
  23. Weidmann, S.; Kemmerling, S.; Mädler, S.; Stahlberg, H.; Braun, T.; Zenobi, R. Ionic liquids as matrices in microfluidic sample deposition for high-mass matrix- assisted laser desorption/ionization mass spectrometry. Eur. J. Mass Spectrom. (Chichester, Eng.) 2012, 18, 279–286. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Chen, J.; Yao, B.; Li, C.; Shi, G. An improved Hummers method for eco-friendly synthesis of graphene oxide. Carbon 2013, 64, 225–229. [Google Scholar] [CrossRef]
  25. Chen, X.; Bian, Y.; Liu, F.; Teng, P.; Sun, P. Comparison of micellar extraction combined with ionic liquid based vortex-assisted liquid–liquid microextraction and modified quick, easy, cheap, effective, rugged, and safe method for the determination of difenoconazole in cowpea. J. Chromatogr. A 2017, 1518, 1–7. [Google Scholar] [CrossRef] [PubMed]
  26. Wei, D.; Ivaska, A. Applications of ionic liquids in electrochemical sensors. Anal. Chim. Acta 2008, 607, 126–135. [Google Scholar] [CrossRef] [PubMed]
  27. Soukup-Hein, R.J.; Remsburg, J.W.; Breitbach, Z.S.; Sharma, P.S.; Payagala, T.; Wanigasekara, E.; Huang, J.; Armstrong, D.W. Evaluating the use of tricationic reagents for the detection of doubly charged anions in the positive mode by ESI-MS. Anal. Chem. 2008, 80, 2612–2616. [Google Scholar] [CrossRef] [PubMed]
  28. Remsburg, J.W.; Soukup-Hein, R.J.; Crank, J.A.; Breitbach, Z.S.; Payagala, T.; Armstrong, D.W. Evaluation of Dicationic Reagents for Their Use in Detection of Anions Using Positive Ion Mode ESI-MS Via Gas Phase Ion Association. J. Am. Soc. Mass Spectrom. 2008, 19, 261–269. [Google Scholar] [CrossRef] [PubMed]
  29. Soukup-Hein, R.J.; Remsburg, J.W.; Dasgupta, P.K.; Armstrong, D.W. A general, positive ion mode ESI-MS approach for the analysis of singly charged inorganic and organic anions using a dicationic reagent. Anal. Chem. 2007, 79, 7346–7352. [Google Scholar] [CrossRef] [PubMed]
  30. Carda-Broch, S.; García-Alvarez-Coque, M.C.; Ruiz-Angel, M.J. Extent of the influence of phosphate buffer and ionic liquids on the reduction of the silanol effect in a C18 stationary phase. J. Chromatogr. A 2018, 1559, 112–117. [Google Scholar] [CrossRef] [PubMed]
  31. Ruiz-Angel, M.J.; Carda-Broch, S.; Berthod, A. Ionic liquids versus triethylamine as mobile phase additives in the analysis of β-blockers. J. Chromatogr. A 2006, 1119, 202–208. [Google Scholar] [CrossRef] [PubMed]
  32. Turker, S.D.; Dunn, W.B.; Wilkie, J. MALDI-MS of drugs: Profiling, imaging, and steps towards quantitative analysis. Appl. Spectrosc. Rev. 2017, 52, 73–99. [Google Scholar] [CrossRef]
  33. Francese, S.; Bradshaw, R.; Denison, N. An update on MALDI mass spectrometry based technology for the analysis of fingermarks—Stepping into operational deployment. Analyst 2017, 142, 2518–2546. [Google Scholar] [CrossRef] [PubMed]
  34. Abdelhamid, H.N.; Wu, H. Soft Ionization of Metallo-Mefenamic Using Electrospray Ionization Mass Spectrometry. Mass Spectrom. Lett. 2015, 6, 43–47. [Google Scholar] [CrossRef] [Green Version]
  35. Sekar, R.; Kailasa, S.K.; Abdelhamid, H.N.; Chen, Y.-C.; Wu, H.-F. Electrospray ionization tandem mass spectrometric studies of copper and iron complexes with tobramycin. Int. J. Mass Spectrom. 2013, 338, 23–29. [Google Scholar] [CrossRef]
  36. Chen, Y.-C.; Abdelhamid, H.N.; Wu, H.-F. Simple and Direct Quantitative Analysis for Quinidine Drug in Fish Tissues. Mass Spectrom. Lett. 2017, 8, 8–13. [Google Scholar] [CrossRef] [Green Version]
  37. Kumaran, S.; Abdelhamid, H.N.; Wu, H.-F. Quantification analysis of protein and mycelium contents upon inhibition of melanin for: Aspergillus Niger: A study of matrix assisted laser desorption/ionization mass spectrometry (MALDI-MS). RSC Adv. 2017, 7, 30289–30294. [Google Scholar] [CrossRef]
  38. Abdelhamid, H.N.; Khan, M.S.; Wu, H.-F. Graphene oxide as a nanocarrier for gramicidin (GOGD) for high antibacterial performance. RSC Adv. 2014, 4, 50035–50046. [Google Scholar] [CrossRef]
  39. Abdelhamid, H.N. Delafossite Nanoparticle as New Functional Materials: Advances in Energy, Nanomedicine and Environmental Applications. Mater. Sci. Forum 2015, 832, 28–53. [Google Scholar] [CrossRef]
  40. Abdelhamid, H.N.; Wu, H.-F. A method to detect metal-drug complexes and their interactions with pathogenic bacteria via graphene nanosheet assist laser desorption/ionization mass spectrometry and biosensors. Anal. Chim. Acta 2012, 751, 94–104. [Google Scholar] [CrossRef] [PubMed]
  41. Abdelhamid, H.N.; Wu, H.-F. Synthesis of a highly dispersive sinapinic acid@graphene oxide (SA@GO) and its applications as a novel surface assisted laser desorption/ionization mass spectrometry for proteomics and pathogenic bacteria biosensing. Analyst 2015, 140, 1555–1565. [Google Scholar] [CrossRef] [PubMed]
  42. Wu, B.-S.; Abdelhamid, H.N.; Wu, H.-F. Synthesis and antibacterial activities of graphene decorated with stannous dioxide. RSC Adv. 2014, 4, 3722. [Google Scholar] [CrossRef]
  43. Abdelhamid, H.N.; Wu, H.-F. Multifunctional graphene magnetic nanosheet decorated with chitosan for highly sensitive detection of pathogenic bacteria. J. Mater. Chem. B 2013, 1, 3950–3961. [Google Scholar] [CrossRef]
  44. Abdelhamid, H.N.; Wu, H.-F. Probing the interactions of chitosan capped CdS quantum dots with pathogenic bacteria and their biosensing application. J. Mater. Chem. B 2013, 1, 6094–6106. [Google Scholar] [CrossRef]
  45. Abdelhamid, H.N.; Wu, H.-F. Polymer dots for quantifying the total hydrophobic pathogenic lysates in a single drop. Colloids Surf. B. Biointerfaces 2013, 115C, 51–60. [Google Scholar] [CrossRef] [PubMed]
  46. Gedda, G.; Abdelhamid, H.N.; Khan, M.S.; Wu, H.-F. ZnO nanoparticle-modified polymethyl methacrylate-assisted dispersive liquid–liquid microextraction coupled with MALDI-MS for rapid pathogenic bacteria analysis. RSC Adv. 2014, 4, 45973–45983. [Google Scholar] [CrossRef]
  47. Gopal, J.; Abdelhamid, H.N.; Hua, P.-Y.; Wu, H.-F. Chitosan nanomagnets for effective extraction and sensitive mass spectrometric detection of pathogenic bacterial endotoxin from human urine. J. Mater. Chem. B 2013, 1, 2463–2475. [Google Scholar] [CrossRef]
  48. Abdelhamid, H.N.; Wu, H.-F. Proteomics analysis of the mode of antibacterial action of nanoparticles and their interactions with proteins. TrAC Trends Anal. Chem. 2014, 65, 30–46. [Google Scholar] [CrossRef]
  49. Wu, H.F.; Gopal, J.; Abdelhamid, H.N.; Hasan, N. Quantum dot applications endowing novelty to analytical proteomics. Proteomics 2012, 12, 2949–2961. [Google Scholar] [CrossRef] [PubMed]
  50. Shastri, L.; Abdelhamid, H.N.; Nawaz, M.; Wu, H.-F. Synthesis, characterization and bifunctional applications of bidentate silver nanoparticle assisted single drop microextraction as a highly sensitive preconcentrating probe for protein analysis. RSC Adv. 2015, 5, 41595–41603. [Google Scholar] [CrossRef]
  51. Abdelhamid, H.N.; Kumaran, S.; Wu, H.-F. One-pot synthesis of CuFeO2 nanoparticles capped with glycerol and proteomic analysis of their nanocytotoxicity against fungi. RSC Adv. 2016, 6, 97629–97635. [Google Scholar] [CrossRef]
  52. Jiang, D.; Song, N.; Li, X.; Ma, J.; Jia, Q. Highly selective enrichment of phosphopeptides by on-chip indium oxide functionalized magnetic nanoparticles coupled with MALDI-TOF MS. Proteomics 2017, 1700213. [Google Scholar] [CrossRef] [PubMed]
  53. Abdelhamid, H.N.; Wu, H.-F. Facile synthesis of nano silver ferrite (AgFeO2) modified with chitosan applied for biothiol separation. Mater. Sci. Eng. C Mater. Biol. Appl. 2014, 45, 438–445. [Google Scholar] [CrossRef] [PubMed]
  54. Abdelhamid, H.N.; Lin, Y.C.; Wu, H.-F. Magnetic nanoparticle modified chitosan for surface enhanced laser desorption/ionization mass spectrometry of surfactants. RSC Adv. 2017, 7, 41585–41592. [Google Scholar] [CrossRef] [Green Version]
  55. Hua, P.-Y.; Manikandan, M.; Abdelhamid, H.N.; Wu, H.-F. Graphene nanoflakes as an efficient ionizing matrix for MALDI-MS based lipidomics of cancer cells and cancer stem cells. J. Mater. Chem. B 2014, 2, 7334–7343. [Google Scholar] [CrossRef]
  56. Abdelhamid, H.N.; Lin, Y.C.; Wu, H.F. Thymine chitosan nanomagnets for specific preconcentration of mercury (II) prior to analysis using SELDI-MS. Microchim. Acta 2017, 184, 1517–1527. [Google Scholar] [CrossRef]
  57. Abdelhamid, H.N.; Wu, H.-F. Ultrasensitive, rapid, and selective detection of mercury using graphene assisted laser desorption/ionization mass spectrometry. J. Am. Soc. Mass Spectrom. 2014, 25, 861–868. [Google Scholar] [CrossRef] [PubMed]
  58. Abdelhamid, H.N.; Talib, A.; Wu, H.F. One pot synthesis of gold—Carbon dots nanocomposite and its application for cytosensing of metals for cancer cells. Talanta 2017, 166, 357–363. [Google Scholar] [CrossRef] [PubMed]
  59. Abdelhamid, H.N. Ionic liquids for mass spectrometry: matrices, separation and microextraction. TrAC Trends Anal. Chem. 2015. [Google Scholar] [CrossRef]
  60. Nicolardi, S.; van der Burgt, Y.E.M.; Codée, J.D.C.; Wuhrer, M.; Hokke, C.H.; Chiodo, F. Structural Characterization of Biofunctionalized Gold Nanoparticles by Ultrahigh-Resolution Mass Spectrometry. ACS Nano 2017, 11, 8257–8264. [Google Scholar] [CrossRef] [PubMed]
  61. Xie, L.; Shen, Y.; Franke, D.; Sebastián, V.; Bawendi, M.G.; Jensen, K.F. Characterization of Indium Phosphide Quantum Dot Growth Intermediates Using MALDI-TOF Mass Spectrometry. J. Am. Chem. Soc. 2016, 138, 13469–13472. [Google Scholar] [CrossRef] [PubMed]
  62. Abdelhamid, H.N.; Chen, Z.-Y.; Wu, H.-F. Surface tuning laser desorption/ionization mass spectrometry (STLDI-MS) for the analysis of small molecules using quantum dots. Anal. Bioanal. Chem. 2017, 409, 4943–4950. [Google Scholar] [CrossRef] [PubMed]
  63. Abdelhamid, H.N. Organic matrices, ionic liquids, and organic matrices@nanoparticles assisted laser desorption/ionization mass spectrometry. TrAC Trends Anal. Chem. 2017, 89, 68–98. [Google Scholar] [CrossRef]
  64. Abdelhamid, H.N. Applications of Nanomaterials and Organic Semiconductors for Bacteria &Biomolecules Analysis/Biosensing Using Laser Analytical Spectroscopy. Master’s Thesis, National Sun-Yat Sen University, Kaohsiung, Taiwan, 2013. [Google Scholar]
  65. Abdelhamid, H.N. Ionic Liquids Matrices for Laser Assisted Desorption/Ionization Mass Spectrometry. Mass Spectrom. Purif. Tech. 2015, 1, 109–119. [Google Scholar] [CrossRef]
  66. Abdelhamid, H.N. Physicochemical Properties of Proteomic Ionic Liquids Matrices for MALDI-MS. J. Data Min. Genom. Proteom. 2016, 7, 189. [Google Scholar] [CrossRef]
  67. Chiang, C.-K.; Chen, W.-T.; Chang, H.-T. Nanoparticle-based mass spectrometry for the analysis of biomolecules. Chem. Soc. Rev. 2011, 40, 1269–1281. [Google Scholar] [CrossRef] [PubMed]
  68. Nasser Abdelhamid, H.; Wu, H.F. Furoic and mefenamic acids as new matrices for matrix assisted laser desorption/ionization-(MALDI)-mass spectrometry. Talanta 2013, 115, 442–450. [Google Scholar] [CrossRef] [PubMed]
  69. Shahnawaz Khan, M.; Abdelhamid, H.N.; Wu, H.-F. Near infrared (NIR) laser mediated surface activation of graphene oxide nanoflakes for efficient antibacterial, antifungal and wound healing treatment. Colloids Surf. B Biointerfaces 2015, 127C, 281–291. [Google Scholar] [CrossRef] [PubMed]
  70. Abdelhamid, H.N.; Wu, B.-S.; Wu, H.-F. Graphene coated silica applied for high ionization matrix assisted laser desorption/ionization mass spectrometry: A novel approach for environmental and biomolecule analysis. Talanta 2014, 126, 27–37. [Google Scholar] [CrossRef] [PubMed]
  71. Abdelhamid, H.N.; Bhaisare, M.L.; Wu, H.-F. Ceria nanocubic-ultrasonication assisted dispersive liquid-liquid microextraction coupled with matrix assisted laser desorption/ionization mass spectrometry for pathogenic bacteria analysis. Talanta 2014, 120, 208–217. [Google Scholar] [CrossRef] [PubMed]
  72. Abdelhamid, H.N.; Wu, H.-F. Gold nanoparticles assisted laser desorption/ionization mass spectrometry and applications: from simple molecules to intact cells. Anal. Bioanal. Chem. 2016, 408, 4485–4502. [Google Scholar] [CrossRef] [PubMed]
  73. Abdelhamid, H.N.; Talib, A.; Wu, H.-F. Correction: Facile synthesis of water soluble silver ferrite (AgFeO2) nanoparticles and their biological application as antibacterial agents. RSC Adv. 2015, 5, 39952–39953. [Google Scholar] [CrossRef]
  74. Abdelhamid, H.N.; Talib, A.; Wu, H.-F. Facile synthesis of water soluble silver ferrite (AgFeO2) nanoparticles and their biological application as antibacterial agents. RSC Adv. 2015, 5, 34594–34602. [Google Scholar] [CrossRef]
  75. Abdelhamid, H.N.; Wu, H.-F. Monitoring metallofulfenamic–bovine serum albumin interactions: A novel method for metallodrug analysis. RSC Adv. 2014, 4, 53768–53776. [Google Scholar] [CrossRef]
  76. Chen, Z.-Y.; Abdelhamid, H.N.; Wu, H.-F. Effect of surface capping of quantum dots (CdTe) on proteomics. Rapid Commun. Mass Spectrom. 2016, 30, 1403–1412. [Google Scholar] [CrossRef] [PubMed]
  77. Abdelhamid, H.N. Ionic liquids for mass spectrometry: Matrices, separation and microextraction. TrAC Trends Anal. Chem. 2016, 77, 122–138. [Google Scholar] [CrossRef]
  78. Armstrong, D.W.; Zhang, L.-K.; He, L.; Gross, M.L. Ionic Liquids as Matrixes for Matrix-Assisted Laser Desorption/Ionization Mass Spectrometry. Anal. Chem. 2001, 73, 3679–3686. [Google Scholar] [CrossRef] [PubMed]
  79. Tholey, A.; Heinzle, E. Ionic (liquid) matrices for matrix-assisted laser desorption/ionization mass spectrometry—Applications and perspectives. Anal. Bioanal. Chem. 2006, 386, 24–37. [Google Scholar] [CrossRef] [PubMed]
  80. Fukuyama, Y.; Funakoshi, N.; Takeyama, K.; Hioki, Y.; Nishikaze, T.; Kaneshiro, K.; Kawabata, S.; Iwamoto, S.; Tanaka, K. 3-Aminoquinoline/p-Coumaric Acid as a MALDI Matrix for Glycopeptides, Carbohydrates, and Phosphopeptides. Anal. Chem. 2014, 86, 1937–1942. [Google Scholar] [CrossRef] [PubMed]
  81. Watanabe, M.; Terasawa, K.; Kaneshiro, K.; Uchimura, H.; Yamamoto, R.; Fukuyama, Y.; Shimizu, K.; Sato, T.-A.; Tanaka, K. Improvement of mass spectrometry analysis of glycoproteins by MALDI-MS using 3-aminoquinoline/α-cyano-4-hydroxycinnamic acid. Anal. Bioanal. Chem. 2013, 405, 4289–4293. [Google Scholar] [CrossRef] [PubMed]
  82. Fukuyama, Y.; Nakaya, S.; Yamazaki, Y.; Tanaka, K. Ionic Liquid Matrixes Optimized for MALDI-MS of Sulfated/Sialylated/Neutral Oligosaccharides and Glycopeptides. Anal. Chem. 2008, 80, 2171–2179. [Google Scholar] [CrossRef] [PubMed]
  83. Towers, M.W.; Mckendrick, J.E.; Cramer, R. Introduction of 4-Chloro-α-cyanocinnamic Acid Liquid Matrices for High Sensitivity UV-MALDI MS. J. Proteome Res. 2010, 9, 1931–1940. [Google Scholar] [CrossRef] [PubMed]
  84. Calvano, C.D.; Carulli, S.; Palmisano, F. Aniline/α-cyano-4-hydroxycinnamic acid is a highly versatile ionic liquid for matrix-assisted laser desorption/ ionization mass spectrometry. Rapid Commun. Mass Spectrom. 2009, 23, 1659–1668. [Google Scholar] [CrossRef] [PubMed]
  85. Snovida, S.I.; Chen, V.C.; Perreault, H. Use of a 2,5-Dihydroxybenzoic Acid/Aniline MALDI Matrix for Improved Detection and On-Target Derivatization of Glycans: A Preliminary Report. Anal. Chem. 2006, 78, 8561–8568. [Google Scholar] [CrossRef] [PubMed]
  86. Mank, M.; Stahl, B.; Boehm, G. 2,5-Dihydroxybenzoic Acid Butylamine and Other Ionic Liquid Matrixes for Enhanced MALDI-MS Analysis of Biomolecules. Anal. Chem. 2004, 76, 2938–2950. [Google Scholar] [CrossRef] [PubMed]
  87. Li, Y.L.; Gross, M.L. Ionic-liquid matrices for quantitative analysis by MALDI-TOF mass spectrometry. J. Am. Soc. Mass Spectrom. 2004, 15, 1833–1837. [Google Scholar] [CrossRef] [PubMed]
  88. Palmblad, M.; Cramer, R. Liquid Matrix Deposition on Conductive Hydrophobic Surfaces for Tuning and Quantitation in UV-MALDI Mass Spectrometry. J. Am. Soc. Mass Spectrom. 2007, 18, 693–697. [Google Scholar] [CrossRef] [PubMed]
  89. Park, K.M.; Hyeon, T.; Kim, M.S.; Moon, J.H. In Situ Quantification and Profiling of Phosphatidylcholine in Mouse Brain Tissue by Matrix-assisted Laser Desorption Ionization with a Liquid Matrix. Bull. Korean Chem. Soc. 2017, 38, 636–641. [Google Scholar] [CrossRef]
  90. Jones, J.J.; Batoy, S.M.A.B.; Wilkins, C.L.; Liyanage, R.; Lay, J.O. Ionic liquid matrix-induced metastable decay of peptides and oligonucleotides and stabilization of phospholipids in MALDI FTMS analyses. J. Am. Soc. Mass Spectrom. 2005, 16, 2000–2008. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  91. Bronzel, J.L.; Milagre, C.D.F.; Milagre, H.M.S. Analysis of low molecular weight compounds using MALDI- and LDI-TOF-MS: Direct detection of active pharmaceutical ingredients in different formulations. J. Mass Spectrom. 2017, 52, 752–758. [Google Scholar] [CrossRef] [PubMed]
  92. Leipert, J.; Treitz, C.; Leippe, M.; Tholey, A. Identification and Quantification of N-Acyl Homoserine Lactones Involved in Bacterial Communication by Small-Scale Synthesis of Internal Standards and Matrix-Assisted Laser Desorption/Ionization Mass Spectrometry. J. Am. Soc. Mass Spectrom. 2017. [Google Scholar] [CrossRef] [PubMed]
  93. Li, Y.L.; Gross, M.L.; Hsu, F.F. Ionic-liquid matrices for improved analysis of phospholipids by MALDI-TOF mass spectrometry. J. Am. Soc. Mass Spectrom. 2005, 16, 679–682. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Spencer, S.E.; Kim, S.Y.; Kim, S.B.; Schug, K.A. Matrix-assisted laser desorption/ionization–time of flight-mass spectrometry profiling of trace constituents of condom lubricants in the presence of biological fluids. Forensic Sci. Int. 2011, 207, 19–26. [Google Scholar] [CrossRef] [PubMed]
  95. Moon, J.H.; Park, K.M.; Ahn, S.H.; Lee, S.H.; Kim, M.S. Investigations of Some Liquid Matrixes for Analyte Quantification by MALDI. J. Am. Soc. Mass Spectrom. 2015, 26, 1657–1664. [Google Scholar] [CrossRef] [PubMed]
  96. Crank, J.A.; Armstrong, D.W. Towards a Second Generation of Ionic Liquid Matrices (ILMs) for MALDI-MS of Peptides, Proteins, and Carbohydrates. J. Am. Soc. Mass Spectrom. 2009, 20, 1790–1800. [Google Scholar] [CrossRef] [PubMed]
  97. Kaneshiro, K.; Fukuyama, Y.; Iwamoto, S.; Sekiya, S.; Tanaka, K. Highly Sensitive MALDI Analyses of Glycans by a New Aminoquinoline-Labeling Method Using 3-Aminoquinoline/α-Cyano-4-hydroxycinnamic Acid Liquid Matrix. Anal. Chem. 2011, 83, 3663–3667. [Google Scholar] [CrossRef] [PubMed]
  98. Tissot, B.; Gasiunas, N.; Powell, A.K.; Ahmed, Y.; Zhi, Z.; Haslam, S.M.; Morris, H.R.; Turnbull, J.E.; Gallagher, J.T.; Dell, A. Towards GAG glycomics: Analysis of highly sulfated heparins by MALDI-TOF mass spectrometry. Glycobiology 2007, 17, 972–982. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  99. Ramos Catharino, R.; de Azevedo Marques, L.; Silva Santos, L.; Baptista, A.S.; Glória, E.M.; Calori-Domingues, M.A.; Facco, E.M.P.; Eberlin, M.N. Aflatoxin Screening by MALDI-TOF Mass Spectrometry. Anal. Chem. 2005, 77, 8155–8157. [Google Scholar] [CrossRef] [PubMed]
  100. Snovida, S.I.; Rak-Banville, J.M.; Perreault, H. On the Use of DHB/Aniline and DHB/N,N-Dimethylaniline Matrices for Improved Detection of Carbohydrates: Automated Identification of Oligosaccharides and Quantitative Analysis of Sialylated Glycans by MALDI-TOF Mass Spectrometry. J. Am. Soc. Mass Spectrom. 2008, 19, 1138–1146. [Google Scholar] [CrossRef] [PubMed]
  101. Zhao, X.; Shen, S.; Wu, D.; Cai, P.; Pan, Y. Novel ionic liquid matrices for qualitative and quantitative detection of carbohydrates by matrix assisted laser desorption/ionization mass spectrometry. Anal. Chim. Acta 2017, 985, 114–120. [Google Scholar] [CrossRef] [PubMed]
  102. Snovida, S.I.; Perreault, H. A 2,5-dihydroxybenzoic acid/N,N-dimethylaniline matrix for the analysis of oligosaccharides by matrix-assisted laser desorption/ionization mass spectrometry. Rapid Commun. Mass Spectrom. 2007, 21, 3711–3715. [Google Scholar] [CrossRef] [PubMed]
  103. Schnöll-Bitai, I.; Ullmer, R.; Hrebicek, T.; Rizzi, A.; Lacik, I. Characterization of the molecular mass distribution of pullulans by matrix-assisted laser desorption/ionization time-of-flight mass spectrometry using 2,5-dihydroxybenzoic acid butylamine (DHBB) as liquid matrix. Rapid Commun. Mass Spectrom. 2008, 22, 2961–2970. [Google Scholar] [CrossRef] [PubMed]
  104. PEI, X.-L.; HUANG, Y.-Y.; GONG, C.; XU, X. Matrix-assisted Laser Desorption/Ionization-Mass Spectrometry Imaging of Oligosaccharides in Soybean and Bean Leaf with Ionic Liquid as Matrix. Chinese J. Anal. Chem. 2017, 45, 1155–1163. [Google Scholar] [CrossRef]
  105. Laremore, T.N.; Murugesan, S.; Park, T.J.; Avci, F.Y.; Zagorevski, D.V.; Linhardt, R.J. Matrix-assisted laser desorption/ionization mass spectrometric analysis of uncomplexed highly sulfated oligosaccharides using ionic liquid matrices. Anal. Chem. 2006, 78, 1774–1779. [Google Scholar] [CrossRef] [PubMed]
  106. Abdelhamid, H.N.; Khan, M.S.; Wu, H.-F. Design, characterization and applications of new ionic liquid matrices for multifunctional analysis of biomolecules: A novel strategy for pathogenic bacteria biosensing. Anal. Chim. Acta 2014, 823, 51–60. [Google Scholar] [CrossRef] [PubMed]
  107. Nishikaze, T.; Fukuyama, Y.; Kawabata, S.I.; Tanaka, K. Sensitive analyses of neutral N -glycans using anion-doped liquid matrix G3CA by negative-ion matrix-assisted laser desorption/ionization mass spectrometry. Anal. Chem. 2012, 84, 6097–6103. [Google Scholar] [CrossRef] [PubMed]
  108. Ling, L.; Xiao, C.; Jiang, L.; Wang, S.; Li, Y.; Chen, X.; Guo, X. A cool and high salt-tolerant ionic liquid matrix for preferential ionization of phosphopeptides by negative ion MALDI-MS. New J. Chem. 2017, 41, 12241–12249. [Google Scholar] [CrossRef]
  109. Zhang, S.; Yao, Z.-P. Improved detection of phosphopeptides by negative ion matrix-assisted laser desorption/ionization mass spectrometry using a proton sponge co-matrix. Anal. Chim. Acta 2012, 711, 77–82. [Google Scholar] [CrossRef] [PubMed]
  110. Przybylski, C.; Gonnet, F.; Bonnaffé, D.; Hersant, Y.; Lortat-Jacob, H.; Daniel, R. HABA-based ionic liquid matrices for UV-MALDI-MS analysis of heparin and heparan sulfate oligosaccharides. Glycobiology 2009, 20, 224–234. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  111. Zabet-Moghaddam, M.; Heinzle, E.; Tholey, A. Qualitative and quantitative analysis of low molecular weight compounds by ultraviolet matrix-assisted laser desorption/ionization mass spectrometry using ionic liquid matrices. Rapid Commun. Mass Spectrom. 2004, 18, 141–148. [Google Scholar] [CrossRef] [PubMed]
  112. Bonnel, D.; Franck, J.; Mériaux, C.; Salzet, M.; Fournier, I. Ionic matrices pre-spotted matrix-assisted laser desorption/ionization plates for patient maker following in course of treatment, drug titration, and MALDI mass spectrometry imaging. Anal. Biochem. 2013, 434, 187–198. [Google Scholar] [CrossRef] [PubMed]
  113. Lemaire, R.; Tabet, J.C.; Ducoroy, P.; Hendra, J.B.; Salzet, M.; Fournier, I. Solid Ionic Matrixes for Direct Tissue Analysis and MALDI Imaging. Anal. Chem. 2006, 78, 809–819. [Google Scholar] [CrossRef] [PubMed]
  114. Ropartz, D.; Bodet, P.-E.; Przybylski, C.; Gonnet, F.; Daniel, R.; Fer, M.; Helbert, W.; Bertrand, D.; Rogniaux, H. Performance evaluation on a wide set of matrix-assisted laser desorption ionization matrices for the detection of oligosaccharides in a high-throughput mass spectrometric screening of carbohydrate depolymerizing enzymes. Rapid Commun. Mass Spectrom. 2011, 25, 2059–2070. [Google Scholar] [CrossRef] [PubMed]
  115. Chan, K.; Lanthier, P.; Liu, X.; Sandhu, J.K.; Stanimirovic, D.; Li, J. MALDI mass spectrometry imaging of gangliosides in mouse brain using ionic liquid matrix. Anal. Chim. Acta 2009, 639, 57–61. [Google Scholar] [CrossRef] [PubMed]
  116. Byliński, H.; Gębicki, J.; Dymerski, T.; Namieśnik, J. Direct Analysis of Samples of Various Origin and Composition Using Specific Types of Mass Spectrometry. Crit. Rev. Anal. Chem. 2017, 47, 340–358. [Google Scholar] [CrossRef] [PubMed]
  117. Carda-Broch, S.; Berthod, A.; Armstrong, D.W. Ionic matrices for matrix-assisted laser desorption/ionization time-of-flight detection of DNA oligomers. Rapid Commun. Mass Spectrom. 2003, 17, 553–560. [Google Scholar] [CrossRef] [PubMed]
  118. Ham, B.M.; Jacob, J.T.; Cole, R.B. MALDI-TOF MS of phosphorylated lipids in biological fluids using immobilized metal affinity chromatography and a solid ionic crystal matrix. Anal. Chem. 2005, 77, 4439–4447. [Google Scholar] [CrossRef] [PubMed]
  119. Meriaux, C.; Franck, J.; Wisztorski, M.; Salzet, M.; Fournier, I. Liquid ionic matrixes for MALDI mass spectrometry imaging of lipids. J. Proteom. 2010, 73, 1204–1218. [Google Scholar] [CrossRef] [PubMed]
  120. Shrivas, K.; Hayasaka, T.; Goto-Inoue, N.; Sugiura, Y.; Zaima, N.; Setou, M. Ionic matrix for enhanced MALDI imaging mass spectrometry for identification of phospholipids in mouse liver and cerebellum tissue sections. Anal. Chem. 2010, 82, 8800–8806. [Google Scholar] [CrossRef] [PubMed]
  121. Hurtado, P.; Hortal, A.R.; Martínez-Haya, B. Matrix-assisted laser desorption/ionization detection of carbonaceous compounds in ionic liquid matrices. Rapid Commun. Mass Spectrom. 2007, 21, 3161–3164. [Google Scholar] [CrossRef] [PubMed]
  122. Gabler, C.; Pittenauer, E.; Dörr, N.; Allmaier, G. Imaging of a Tribolayer Formed from Ionic Liquids by Laser Desorption/Ionization-Reflectron Time-of-Flight Mass Spectrometry. Anal. Chem. 2012, 84, 10708–10714. [Google Scholar] [CrossRef] [PubMed]
  123. Shariatgorji, M.; Nilsson, A.; Källback, P.; Karlsson, O.; Zhang, X.; Svenningsson, P.; Andren, P.E. Pyrylium salts as reactive matrices for MALDI-MS imaging of biologically active primary amines. J. Am. Soc. Mass Spectrom. 2015, 26, 934–939. [Google Scholar] [CrossRef] [PubMed]
  124. Berthod, A.; Crank, J.A.; Rundlett, K.L.; Armstrong, D.W. A second-generation ionic liquid matrix-assisted laser desorption/ ionization matrix for effective mass spectrometric analysis of biodegradable polymers. Rapid Commun. Mass Spectrom. 2009, 23, 3409–3422. [Google Scholar] [CrossRef] [PubMed]
  125. Serrano, C.A.; Zhang, Y.; Yang, J.; Schug, K.A. Matrix-assisted laser desorption/ionization mass spectrometric analysis of aliphatic biodegradable photoluminescent polymers using new ionic liquid matrices. Rapid Commun. Mass Spectrom. 2011, 25, 1152–1158. [Google Scholar] [CrossRef] [PubMed]
  126. Kooijman, P.C.; Kok, S.; Honing, M. Independent assessment of matrix-assisted laser desorption/ionization mass spectrometry (MALDI-MS) sample preparation quality: Effect of sample preparation on MALDI-MS of synthetic polymers. Rapid Commun. Mass Spectrom. 2017, 31, 362–370. [Google Scholar] [CrossRef] [PubMed]
  127. Gabriel, S.J.; Pfeifer, D.; Schwarzinger, C.; Panne, U.; Weidner, S.M. Matrix-assisted laser desorption/ionization time-of-flight mass spectrometric imaging of synthetic polymer sample spots prepared using ionic liquid matrices. Rapid Commun. Mass Spectrom. 2014, 28, 489–498. [Google Scholar] [CrossRef] [PubMed]
  128. Abdelhamid, H.N.; Gopal, J.; Wu, H.-F. Synthesis and application of ionic liquid matrices (ILMs) for effective pathogenic bacteria analysis in matrix assisted laser desorption/ionization (MALDI-MS). Anal. Chim. Acta 2013, 767, 104–111. [Google Scholar] [CrossRef] [PubMed]
  129. Lee, C.H.; Gopal, J.; Wu, H.F. Ionic solution and nanoparticle assisted MALDI-MS as bacterial biosensors for rapid analysis of yogurt. Biosens. Bioelectron. 2012, 31, 77–83. [Google Scholar] [CrossRef] [PubMed]
  130. Djidja, M.-C.; Claude, E.; Scriven, P.; Allen, D.W.; Carolan, V.A.; Clench, M.R. Antigen retrieval prior to on-tissue digestion of formalin-fixed paraffin-embedded tumour tissue sections yields oxidation of proline residues. Biochim. Biophys. Acta Proteins Proteom. 2017, 1865, 901–906. [Google Scholar] [CrossRef] [PubMed]
  131. Wang, P.; Giese, R.W. Recommendations for quantitative analysis of small molecules by matrix-assisted laser desorption ionization mass spectrometry. J. Chromatogr. A 2017, 1486, 35–41. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  132. Tholey, A.; Zabet-Moghaddam, M.; Heinzle, E. Quantification of peptides for the monitoring of protease-catalyzed reactions by matrix-assisted laser desorption/ionization mass spectrometry using ionic liquid matrixes. Anal. Chem. 2006, 78, 291–297. [Google Scholar] [CrossRef] [PubMed]
  133. Giménez, E.; Benavente, F.; Barbosa, J.; Sanz-Nebot, V. Ionic liquid matrices for MALDI-TOF-MS analysis of intact glycoproteins. Anal. Bioanal. Chem. 2010, 398, 357–365. [Google Scholar] [CrossRef] [PubMed]
  134. Weidner, S.; Knappe, P.; Panne, U. MALDI-TOF imaging mass spectrometry of artifacts in “dried droplet” polymer samples. Anal. Bioanal. Chem. 2011, 401, 127–134. [Google Scholar] [CrossRef] [PubMed]
  135. Tholey, A. Ionic liquid matrices with phosphoric acid as matrix additive for the facilitated analysis of phosphopeptides by matrix-assisted laser desorption/ionization mass spectrometry. Rapid Commun. Mass Spectrom. 2006, 20, 1761–1768. [Google Scholar] [CrossRef] [PubMed]
  136. Fukuyama, Y.; Takeyama, K.; Kawabata, S.; Iwamoto, S.; Tanaka, K. An optimized matrix-assisted laser desorption/ionization sample preparation using a liquid matrix, 3-aminoquinoline/α -cyano-4-hydroxycinnamic acid, for phosphopeptides. Rapid Commun. Mass Spectrom. 2012, 26, 2454–2460. [Google Scholar] [CrossRef] [PubMed]
  137. Hosseini, S.; Martinez-Chapa, S.O. Principles and Mechanism of MALDI-ToF-MS Analysis. In Fundamentals of MALDI-ToF-MS Analysis; Springer: Singapore, 2017; pp. 1–19. [Google Scholar]
  138. Zenobi, R.; Knochenmuss, R. Ion formation in MALDI mass spectrometry. Mass Spectrom. Rev. 1998, 17, 337–366. [Google Scholar] [CrossRef]
  139. Lu, I.-C.; Lee, C.; Lee, Y.-T.; Ni, C.-K. Ionization Mechanism of Matrix-Assisted Laser Desorption/Ionization. Annu. Rev. Anal. Chem. 2015, 8, 21–39. [Google Scholar] [CrossRef] [PubMed]
  140. Chu, K.Y.; Lee, S.; Tsai, M.-T.; Lu, I.-C.; Dyakov, Y.A.; Lai, Y.H.; Lee, Y.-T.; Ni, C.-K. Thermal Proton Transfer Reactions in Ultraviolet Matrix-Assisted Laser Desorption/Ionization. J. Am. Soc. Mass Spectrom. 2014, 25, 310–318. [Google Scholar] [CrossRef] [PubMed]
  141. Karas, M.; Glückmann, M.; Schäfer, J. Ionization in matrix-assisted laser desorption/ionization: Singly charged molecular ions are the lucky survivors. J. Mass Spectrom. 2000, 35, 1–12. [Google Scholar] [CrossRef]
  142. Niu, S.; Zhang, W.; Chait, B.T. Direct comparison of infrared and ultraviolet wavelength matrix-assisted laser desorption/ionization mass spectrometry of proteins. J. Am. Soc. Mass Spectrom. 1998, 9, 1–7. [Google Scholar] [CrossRef]
  143. Knochenmuss, R. MALDI mechanisms: wavelength and matrix dependence of the coupled photophysical and chemical dynamics model. Analyst 2014, 139, 147–156. [Google Scholar] [CrossRef] [PubMed]
  144. Cramer, R.; Karas, M.; Jaskolla, T.W. Enhanced MALDI MS sensitivity by weak base additives and glycerol sample coating. Anal. Chem. 2014, 86, 744–751. [Google Scholar] [CrossRef] [PubMed]
  145. Zabet-Moghaddam, M.; Heinzle, E.; Lasaosa, M.; Tholey, A. Pyridinium-based ionic liquid matrices can improve the identification of proteins by peptide mass-fingerprint analysis with matrix-assisted laser desorption/ionization mass spectrometry. Anal. Bioanal. Chem. 2006, 384, 215–224. [Google Scholar] [CrossRef] [PubMed]
  146. Laremore, T.N.; Zhang, F.; Linhardt, R.J. Ionic liquid matrix for direct UV-MALDI-TOF-MS analysis of dermatan sulfate and chondroitin sulfate oligosaccharides. Anal. Chem. 2007, 79, 1604–1610. [Google Scholar] [CrossRef] [PubMed]
  147. Ullmer, R.; Rizzi, A.M. Use of a novel ionic liquid matrix for MALDI-MS analysis of glycopeptides and glycans out of total tryptic digests. J. Mass Spectrom. 2009, 44, 1596–1603. [Google Scholar] [CrossRef] [PubMed]
  148. Zabet-Moghaddam, M.; Krüger, R.; Heinzle, E.; Tholey, A. Matrix-assisted laser desorption/ionization mass spectrometry for the characterization of ionic liquids and the analysis of amino acids, peptides and proteins in ionic liquids. J. Mass Spectrom. 2004, 39, 1494–1505. [Google Scholar] [CrossRef] [PubMed]
  149. Fukuyama, Y.; Funakoshi, N.; Iwamoto, S.; Tanaka, K. Adding methanol to α -cyano-4-hydroxycinnamic acid butylamine salt as a liquid matrix to form a homogeneous spot on a focusing plate for highly sensitive and reproducible analyses in matrix-assisted laser desorption/ionization mass spectrometry. Rapid Commun. Mass Spectrom. 2014, 28, 662–664. [Google Scholar] [CrossRef] [PubMed]
  150. Bungert, D.; Bastian, S.; Heckmann-Pohl, D.M.; Giffhorn, F.; Heinzle, E.; Tholey, A. Screening of sugar converting enzymes using quantitative MALDI-ToF mass spectrometry. Biotechnol. Lett. 2004, 26, 1025–1030. [Google Scholar] [CrossRef] [PubMed]
  151. Park, K.M.; Moon, J.H.; Lee, S.H.; Kim, M.S. Quantitative transfer of polar analytes on a solid surface to a liquid matrix in MALDI profiling. J. Mass Spectrom. 2016, 51, 1152–1156. [Google Scholar] [CrossRef] [PubMed]
  152. Clark, K.D.; Emaus, M.N.; Varona, M.; Bowers, A.N.; Anderson, J.L. Ionic liquids: solvents and sorbents in sample preparation. J. Sep. Sci. 2018, 41, 209–235. [Google Scholar] [CrossRef] [PubMed]
  153. Shrivas, K.; Tapadia, K. Ionic liquid matrix-based dispersive liquid–liquid microextraction for enhanced MALDI–MS analysis of phospholipids in soybean. J. Chromatogr. B 2015, 1001, 124–130. [Google Scholar] [CrossRef] [PubMed]
  154. Murali, M.S.; Bonville, N.; Choppin, G.R. Uranyl Ion Extraction into Room Temperature Ionic Liquids: Species Determination by ESI and MALDI-MS. Solvent Extr. Ion Exch. 2010, 28, 495–509. [Google Scholar] [CrossRef]
  155. Luo, H.; Dai, S.; Bonnesen, P.V. Solvent Extraction of Sr2+ and Cs+ Based on Room-Temperature Ionic Liquids Containing Monoaza-Substituted Crown Ethers. Anal. Chem. 2004, 76, 2773–2779. [Google Scholar] [CrossRef] [PubMed]
  156. Lovejoy, K.S.; Purdy, G.M.; Iyer, S.; Sanchez, T.C.; Robertson, A.; Koppisch, A.T.; Del Sesto, R.E. Tetraalkylphosphonium-Based Ionic Liquids for a Single-Step Dye Extraction/MALDI MS Analysis Platform. Anal. Chem. 2011, 83, 2921–2930. [Google Scholar] [CrossRef] [PubMed]
  157. Lovejoy, K.S.; Lou, A.J.; Davis, L.E.; Sanchez, T.C.; Iyer, S.; Corley, C.A.; Wilkes, J.S.; Feller, R.K.; Fox, D.T.; Koppisch, A.T.; Del Sesto, R.E. Single-pot extraction-analysis of dyed wool fibers with ionic liquids. Anal. Chem. 2012, 84, 9169–9175. [Google Scholar] [CrossRef] [PubMed]
  158. Ahmad, F.; Wu, H.-F. Characterization of pathogenic bacteria using ionic liquid via single drop microextraction combined with MALDI-TOF MS. Analyst 2011, 136, 4020–4027. [Google Scholar] [CrossRef] [PubMed]
  159. Sekiya, S.; Taniguchi, K.; Tanaka, K. On-target separation of analyte with 3-aminoquinoline/α-cyano-4-hydroxycinnamic acid liquid matrix for matrix-assisted laser desorption/ionization mass spectrometry. Rapid Commun. Mass Spectrom. 2012, 26, 693–700. [Google Scholar] [CrossRef] [PubMed]
  160. Bhaisare, M.L.; Abdelhamid, H.N.; Wu, B.-S.; Wu, H.-F. Rapid and direct MALDI-MS identification of pathogenic bacteria from blood using ionic liquid-modified magnetic nanoparticles (Fe3O4@SiO2). J. Mater. Chem. B 2014, 2, 4671–4683. [Google Scholar] [CrossRef]
  161. Santos, L.S.; Haddad, R.; Höehr, N.F.; Pilli, R.A.; Eberlin, M.N. Fast Screening of Low Molecular Weight Compounds by Thin-Layer Chromatography and “On-Spot” MALDI-TOF Mass Spectrometry. Anal. Chem. 2004, 76, 2144–2147. [Google Scholar] [CrossRef] [PubMed]
  162. Earle, M.J.; Esperança, J.M.S.S.; Gilea, M.A.; Canongia Lopes, J.N.; Rebelo, L.P.N.; Magee, J.W.; Seddon, K.R.; Widegren, J.A. The distillation and volatility of ionic liquids. Nature 2006, 439, 831–834. [Google Scholar] [CrossRef] [PubMed]

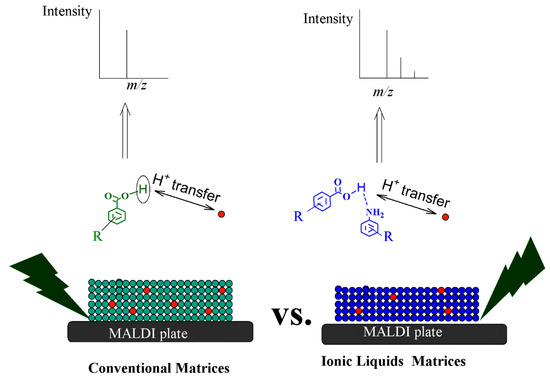

Figure 1. Proton transfer between conventional organic matrices (left) or ionic liquids matrices (right) and an analyte for matrix assisted laser desorption/ionization mass spectrometry.
Figure 1. Proton transfer between conventional organic matrices (left) or ionic liquids matrices (right) and an analyte for matrix assisted laser desorption/ionization mass spectrometry.
Mps 01 00023 g001

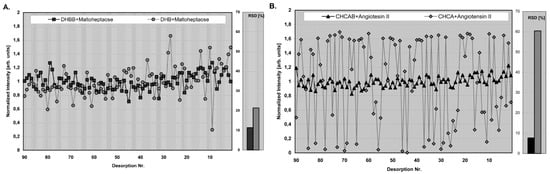

Figure 2. (A) Plot of normalized [M + Na]+ ion intensities of the oligosaccharide maltoheptaose with 2,5-DHB butylamine (DHBB) (black squares) and DHB matrix (grey circles). (B) Resulting [M + H]+ ion intensities from a human angiotensin II preparation with α-cyno-4-hydroxycinnamic acid-butylamine (CHCAB) (black triangles) and CHCA matrices (grey squares). Figure reprinted with permission from Reference [86].
Figure 2. (A) Plot of normalized [M + Na]+ ion intensities of the oligosaccharide maltoheptaose with 2,5-DHB butylamine (DHBB) (black squares) and DHB matrix (grey circles). (B) Resulting [M + H]+ ion intensities from a human angiotensin II preparation with α-cyno-4-hydroxycinnamic acid-butylamine (CHCAB) (black triangles) and CHCA matrices (grey squares). Figure reprinted with permission from Reference [86].
Mps 01 00023 g002

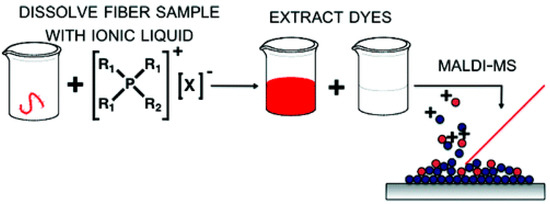

Figure 3. Extraction procedure of dyes using tetraalkylphosphonium (PR4+)-based ionic liquids. Figure reprinted with permission from reference [156].
Figure 3. Extraction procedure of dyes using tetraalkylphosphonium (PR4+)-based ionic liquids. Figure reprinted with permission from reference [156].
Mps 01 00023 g003

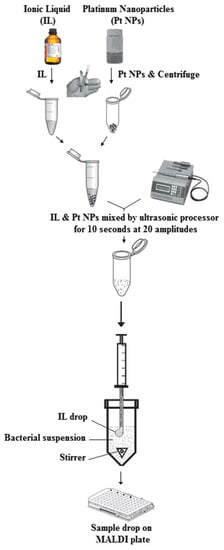

Figure 4. Single-drop microextraction (SDME) using ILs for the extraction of pathogenic bacteria from aqueous suspensions. Figure reprinted with permission from reference [158].
Figure 4. Single-drop microextraction (SDME) using ILs for the extraction of pathogenic bacteria from aqueous suspensions. Figure reprinted with permission from reference [158].
Mps 01 00023 g004

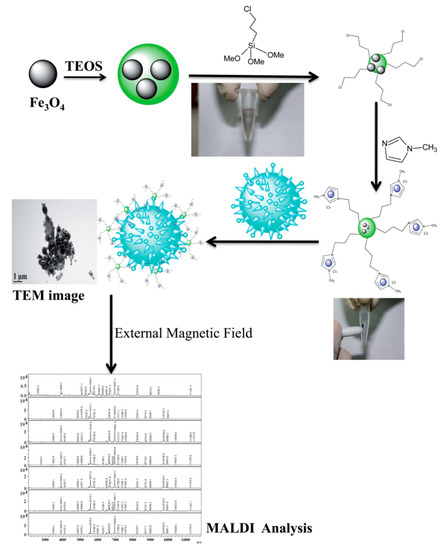

Figure 5. Schematic illustrations of the preparation of cationic IL-modified magnetic nanoparticles (CILMS) and the capture of bacteria by the magnetic nanoparticles. Reproduced from reference [160] with permission from The Royal Society of Chemistry. TEOS: Tetraethoxysilane; TEM: Transmission electron microscope.
Figure 5. Schematic illustrations of the preparation of cationic IL-modified magnetic nanoparticles (CILMS) and the capture of bacteria by the magnetic nanoparticles. Reproduced from reference [160] with permission from The Royal Society of Chemistry. TEOS: Tetraethoxysilane; TEM: Transmission electron microscope.
Mps 01 00023 g005
Table 1. Chemical compositions and applications of ionic liquids (ILs) for matrix-assisted laser desorption/ionization–mass spectrometry (MALDI–MS) as matrices.
Table 1. Chemical compositions and applications of ionic liquids (ILs) for matrix-assisted laser desorption/ionization–mass spectrometry (MALDI–MS) as matrices.
AcidBaseAnalyteConditionsLow Limit of Detection (LOD, pmol)Linear Range (pmol)Ref.
CHCA1-methylimidazole, aniline, pyridine, N,N-diethylamine, triethylamine, tripropylamine, tributylamineODNs, proteins 5′-d(CTTTCCTC) and 5′-d(TCTTCCCTT), bradykinin, Tyr-bradykinin, substance P, melittin, and bovine insulin
  • Voyager DE-RP mass spectrometer
  • Nitrogen laser (337 nm, 3 ns pulse)
  • Linear positive-ion mode
  • The acceleration voltage was 20 kV
  • Grid voltage was 95%,
  • Guide-wire voltage was 0.1%
  • Delay time was 200 ns
2 μM to 50 μM[87]
3-aminoquinolineTetrapeptide RFDS, bradykinin fragment 1-7, angiotensin I, substance P, Glu-fibrinopeptide, ANP 104-123, ACTH 18-39, Somatostatin, and ACTH 7-38
  • Waters Micromass Q-TOF Premier
  • Spot size of about 200–300 μm
10.001–2[88]
Phosphatidylcholine (PC) in mouse brain tissue
  • Lasertechnik Berlin
  • Nitrogen laser (337 nm, a pulse energy of 1.5 µJ)
30 1–100[89]
n-butylamine, N,N-diethylaniline, aniline, N,N-diethylanilineBradykinin, substance-P, melittin, allatostatin IV
oligonucleotide 5′-GGATTC-3′
phosphatidylcholine, L-α-phosphatidylcholine-β-palmitoyl-oleoyl, ([PC 16:0, 18:1]), and phosphatidylethanolamine, 1-2,dioleoyl-sn-glycerol-3-phospho-ethanolamine, ([PE 18:1, 18:1])
  • MALDI FTMS spectra were collected with a 3 tesla FTMS
  • Nitrogen laser (337 nm)
  • Full power (60–70 μJ).
  • The laser spot size is 0.196 mm2
5000 [90]
Triethylamine, diisopropylammineDrugs
  • Micromass MALDI-LR®
  • Nitrogen laser (337 nm)
  • A pulse voltage of 2.5 kV; a delay extraction of 500 ns; an accelerating voltage of 15 kV
  • Reflectron voltage of 2 kV
[91]
2-aminopentane (AP)N-acyl homoserine lactones (AHL)
  • AB SCIEX MALDI TOF/TOF 5800 mass spectrometer
  • Nd:YAG laser (355 nm)
  • A pulse rate of 400 Hz
  • Accumulating 2000 shots
0.125–5 [92]
1-methylimidazole, aniline, pyridine, tripropylamine, tributylaminePhosphatidylcholine (PC), phosphatidic acid (PA), phophatidylethanolamine (PE), serine (PS), glycerol (PG), and inositol (PI)
  • A Voyager DE-STR mass spectrometer
  • Nitrogen laser (337 nm)
  • Acceleration of 20 kV,
  • Delay time of 400 ns
  • 200 laser shots
127 × 103 [93]
N,N-diisopropylethylammoniumPolymers and additives found in lubricant residues
  • Bruker Daltonics AutoFlex
  • Nitrogen laser (337 nm)
0.5% and 0.003% lubricant in biological fluid [94]
3-aminoquinoline, N,N-diethylanilinePeptides Y5R, Y6, and substance P arginine, imipramine, and serotonin
  • MNL100 Lasertechnik
  • Nitrogen laser (337 nm)
10−210−2–103[95]
N,N-iisopropylethylammonium, N-isopropyl-N-methyl-t-butylammonium, N-isopropyl-N-methyl-N-tert-butylammonium, N,N-diisopropylethylammoniumBradykinin, polyethylene glycol 4600, insulin, cytochrome c, bovine serum albumin (BSA), catalase, urease, dextran enzymatic synthesis, Saccharomyces cerevisiae.
  • Bruker Autoflex and Bruker Flex Analysis Software
  • Nitrogen laser (337 nm)
50–100 [96]
3-aminoquinoline (3-AQ)Glycan
  • AXIMA-Resonance UV-MALDI
  • Nitrogen laser (337 nm)
  • 3 ns pulse width
  • The maximum laser pulse rate is 10 Hz
1 × 10−3 [97]
1-methylimidazoliumGlycosaminoglycan (GAG) polysaccharides
  • 4800 MALDI TOF/TOF™ Analyzer
  • Nitrogen laser (337 nm)
  • Reflectron negative mode
  • Accelerating voltage 1 kV
[98]
CHCATriethylamineAflatoxins B1, B2, G1, and G2
  • Micromass
  • Nitrogen laser (337 nm)
  • Reflectron and positive ion modes
  • Pulse voltage, 2450 V
  • Delay extraction 100 ns
  • Acelerating voltage, 15 kV
  • Reflectron voltage, 2 kV
0.05 [99]
2,5-dihydroxybenzoic acid (DHB), CHCA, Sinapic acidButylamine, TriethylamineGlycoconjugates, peptides, and proteins oligosaccharides, polymers desialylation of sialylactose, sialidase from Clostridium perfringens
  • A Voyager DE-STR MALDI-TOF MS
  • Nitrogen laser (337 nm)
  • Acceleration voltage, 20–25 kV
  • Grid voltage, 95% and 72%
  • Guidewire voltage, 0.05%
  • Extraction delay time, 300–550 ns
0.3–2.5 [86]
CHCA and ferulic acidN,N-iisopropylethylammonium, N,N-diisopropylethylammonium, N-isopropyl-N-methyl-N-tert-butylammonium, di(2-aminopentane)Mannan, β-Cyclodextran
dextran, polyethylene glycol 4600
  • Bruker Autoflex mass spectrometer
103 [96]
DHBAniline, N,N-dimethylaniline (DMA)Sialylated Glycans
  • Bruker Biflex IV MALDI-TOF
  • Nitrogen laser (337 nm)
  • Positive-ion extraction mode
  • Accelerating voltage 9.3–20 kV
30 [100]
N-methylaniline (N-MA), N-ethylaniline (N-EA)Maltohexaose, maltoheptaose,
dextran 2000 (D2000) and dextran 4000 (D4000), 1-Kestose (GF2), nystose (GF3) and 1,1,1-kestopentaose (GF4)
  • Bruker UltrafleXtreme™ mass spectrometer
  • Nd:YAG laser (355 nm)
  • Positive and reflectron mode
  • Accelerating potential 20 kV
0.0110–80[101]
N,N-dimethylaniline (DMA)N-linked oligosaccharides
Ovalbumin (chicken egg white albumin), maltohexaose,
maltoheptaose, dextran standard 1000
  • Bruker Biflex IV
  • Nitrogen laser (337 nm)
  • Positive ion reflecting mode
7–22.4 0.7–22.4[102]
ButylaminePullulans
Pul-5900 5.9 Pul-11,800 11.8 Pul-22,800 22.8 Pul-47,300 47.3 Pul-112,000 112.0
  • AXIMA-LNR
  • Nitrogen laser (337 nm)
  • Accelerating voltage of 20 kV
  • 200 laser shots
0.8–4.4 [103]
Oligosaccharides
sucrose (disaccharide), raffinose (trisaccharide), stachyose
(tetrasaccharide), ß-cyclodextrin, L-proline, D,L-pyroglutamic
acid, L-arginine hydrochloride, D,L-tyrosine, angiotensin II,
reduced glutathione and sunflower oil
  • SolariX 7.0 Fourier transform ion cyclotron resonance mass spectrometry (FT-ICR-MS)
  • Nd:YAG laser (355 nm)
38340–555[104]
CHCA
p-coumaric
1,1,3,3-tetramethylguanidium (TMG)Sulfated/sialylated/neutral oligosaccharides
  • AXIMA-QIT
  • Nitrogen laser (337 nm)
  • 100 laser shots for each analysis
0.001 [82]
CHCA and DHB1-methylimidazoliumSucrose octasulfate, and an octasulfatedpentasaccharide, Arixtra
  • TofSpec2E MALDI-TOF
  • Nitrogen laser (337 nm)
  • Reflectronand positive mode
  • Accelerating voltage 20–26 kV
8–40 [105]
Mefenamic acidAniline (ANI), Pyridine (Pyr), Dimethyl aniline (DMANI), 2-methyl picoline (2-P))Drugs, carbohydrate, and amino acids.
  • Bruker Microflex IV
  • Nitrogen laser (337 nm)
1–20 [106]
p-coumaric acid1,1,3,3-tetramethylguanidium (TMG)Anion adducted N-glycans
  • µFocus MALDI plate TM 700 µm
  • Nitrogen laser (337 nm)
  • 100 laser shots
0.001 for NO3, 0.001 for BF4 [107]
THAPPhosphopeptides
  • Autoflex speed TOF/TOF mass spectrometer
  • Nd:YAG laser (355 nm)
  • Laser energy 5–10% above the ionization threshold
  • 500 laser shots
  • The delayed extraction time 150 ns
[108]
ATTDMAN
  • Waters MicroMX MALDI
  • Nitrogen laser (337 nm)
  • Tubevoltage12 kV
  • Reflectronvoltage5.2 kV
  • Anode voltage 5 kV
  • accelerate voltage 20 kV, MCP detector
  • Voltage19.5 kV
  • Extraction delay 500 ns
5 × 10−40–100 [109]
HABA1,1,3,3-tetramethylguanidine
Spermine
Polysulfated carbohydrates such as heparin (HP) and heparan sulfate (HS)
  • Biosystems Voyager-DE Pro STR MALDI-TOF
  • Nitrogen laser (337 nm)
  • Pulsed at a 20 Hz frequency
  • Negative ion reflector mode
  • Accelerating potential of −20 kV
67 [110]
DHB
CHCA
SA
Tributylamine (TBA), Pyridine (Py), 1-methylimidazole(MI)Arabinose, biotin, thiamine, NAD, ascorbic acid, a-ketoglutarate, ATP
  • Bruker Reflex III
  • Nitrogen laser (337 nm)
  • Energy of 400 mJ/pulse
  • Accelerated voltage 20 kV
0.010.25–2.5[111]
Notes: ATP: Adenosine 5-triphosphate; ATT: 6-aza-2-thiothymine; CHCA: α-Cyano-4-hydroxycinnamic acid; DMAN: 1,8-bis(dimethyl-amino)naphthalene; HABA: 2-(4-hydroxyphenylazo)benzoic acid; NAD: nicotinamide adenine dinucleotide; ODNs: oligodeoxynucleotides; SA: Sinapinic acid; THAP; 2,4,6-trihydroxyacetophenone.
Table 2. Extraction and separation using ionic iquids prior to analysis for matrix assisted laser desorption/ionization mass spectrometry.
Table 2. Extraction and separation using ionic iquids prior to analysis for matrix assisted laser desorption/ionization mass spectrometry.
ILsExtraction/Separation TechniqueAnalytesInstrumental ParametersLODConditionsRef.
CHCABDLLMEPhospholipids from soybean
  • Bruker Daltonics,
  • Nitrogen laser (337 nm)
  • Positive ion mode
  • Acceleration voltage 20 kV
  • Pulse voltage 1300 V
  • Extraction delay time 225 ns
  • 400 laser shots
5 and 18 fmol (LOQ)5 min extraction time in the presence of 30 mg/mL CHCAB and 1.2% NaCl, using chloroform as an extracting solvent and methanol as a dispersing solvent[153]
1-alkyl-3-methylimidazolium PF6 (Cnmim, n = 4 and 8) CHCALLMEUranyl nitrate
  • Bruker Protein-TOF™
  • Nitrogen laser (337 nm)
  • Pulse width of 3 ns
  • 400 laser shots
  • Both positive and negative modes
0.014–0.098 M0.1–0.5 M using NaNO3 in 1.0 M HNO3, TBP (tributyl phosphate) concentration of 1.0 M in the RTILS or in dodecane [154]
3-methylimidazolium bis[(trifluoromethyl)sulfonyl]amide and 1-butyl-3-methylimidazolium bis[(trifluoromethyl)sulfonyl]amide, 1-hexyl-3-methylimidazolium bis[(trifluoromethyl)sulfonyl] amide and 1-octyl-3-methylimidazolium bis[(trifluoromethyl)sulfonyl]amideSr2+ and Cs+
  • Voyager DE MALDI–TOF
1.5 mM1 mL of IL, extracted with 10 mL of cation-containing aqueous solution (1.5 mM) for 60 min in a vibrating mixer. [155]
PR4+ cations and ferulate (FA), CHCA, and DHB anionssingle-step extractionDyes from textiles, malachite green, nile blue nile red, bromothymol blue, fluorescein, kiton red
  • 4800 Plus MALDI–TOF/TOF
  • 200 Hz Nd:YAG laser (355 nm)
  • 400 shots per
0–98%Samples were centrifuged at 2000 rpm for 30 min, pH 7.5–10, 50–90 °C[156]
Tetrabutylphosponium chloride IL [Bu4P][Cl] Single-Pot Extractiondyes associated with structurally robust wool fibers
  • 4800 PlusMALDI–TOF/TOF
  • 200 Hz ND:YAG(355 nm)
0.005 mg of dye per mg of dyed wool into the ILA cloudy red solution was produced after 24 h. The solution was filtered through a 0.45 µM syringe filter and spotted on the MALDI–MS plate in 1 µL aliquots, either neat or diluted 10,000-fold in methanol[157]
Platinum nanoparticles mixed 1-butyl-3-methylimidazolium hexafluorophosphateSDMEEscherichia coli and Serratia marcescens
  • Microflex MALDI-MS
  • Nitrogen laser (337 nm)
  • Accelerating voltage of 20 kV
  • 150 laser shots
106cfu mL−1A glass vial was filled with 1 mL of sample solution, spiked with the bacteria; the sample solution was agitated on a magnetic stirrer at room temperature,a 2.0 mL portion of platinum nanoparticles prepared in IL was drawn into a 10 mL microsyringe[158]
3-Aminoquinoline/CHCA (3AQ/CHCA)On-target separationpeptides and oligosaccharides
  • AXIMA-QIT™
  • Nitrogen laser 337 nm wavelength
5 pmolVaporization of water derived from analyte solvent [159]
Cationic ionic liquid-modified Fe3O4@SiO2 magnetic nanoparticles (CILMS)Magnetic fieldE. coli, Pseudomonas aeruginosa, and Staphylococcus aureus,
  • Bruker Microflex
  • Nitrogen laser 337 nm wavelength
3.4 × 103, 3.2 × 103, and 4.2 × 103 cfu mL−1<5 min, RT, and use of external magnetic field[160]
Triethylamine/CHCATLCthree arborescidine alkaloids, the anesthesics levobupivacaine and mepivacaine, and the antibiotic tetracycline
  • Micromass MALDI-TOF
  • Pulse voltage, 2450 V
  • Delay extraction, 100 ns
  • Accelerating voltage, 15 kV
  • Reflectron voltage, 2 kV
5–10 ng Elution with CHCl3/MeOH 9:1 [161]
1-butyl-3methylimidazolium hexafluorophosphateon-target separationBifidobacterium
lactis (Bb12), Lactobacillus acidophilus (La5), Streptococcus thermophilus and Lactobacillus bulgaricus from AB yogurt
  • Microflex, Bruker
  • Nitrogen laser (337 nm)
  • Accelerating voltages +20 kV
  • Laser energy of 63.2 μJ
  • 200 laser shots
107–109cfu/mL10 μL of yogurt was added to 100 μL of IL (containing 0.35 mg of AgNPs) and incubated for 10 min before spotting on the MALDI plate.[129]
Notes: DLLME: dispersive liquid-liquid microextraction; LLME: liquid-liquid microextraction; SPE: Single-pot extraction-analysis; TLC: Thin-layer chromatography; LOQ: limits of quantification.

Share and Cite

MDPI and ACS Style

Abdelhamid, H.N. Ionic Liquid-Assisted Laser Desorption/Ionization–Mass Spectrometry: Matrices, Microextraction, and Separation. Methods Protoc. 2018, 1, 23. https://doi.org/10.3390/mps1020023

AMA Style

Abdelhamid HN. Ionic Liquid-Assisted Laser Desorption/Ionization–Mass Spectrometry: Matrices, Microextraction, and Separation. Methods and Protocols. 2018; 1(2):23. https://doi.org/10.3390/mps1020023

Chicago/Turabian Style

Abdelhamid, Hani Nasser. 2018. "Ionic Liquid-Assisted Laser Desorption/Ionization–Mass Spectrometry: Matrices, Microextraction, and Separation" Methods and Protocols 1, no. 2: 23. https://doi.org/10.3390/mps1020023

Article Metrics

Back to TopTop
