# Long-Term Stability of Gradient Characteristics Warrants Model-Based Correction of Diffusion Weighting Bias

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{8}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

#### 2.1. DWI Phantom

^{−3}mm

^{2}/s) [20]. For all scanners, this ADC value was expected to be measured at a magnet isocenter, where magnetic field gradients are linear, and thus served as a universal reference (REF) value (Figure 1A,C,D, horizontal line) independent of scanner room temperature.

#### 2.2. MR Imaging Protocol

^{2}); acq/recon matrix = 200 × 200/256 × 256; number of slices = 15; slice thickness = 5 mm; TR/TE = at least 10 s/as short as possible (<150 ms); number of averages = 2; b-values = 0, 750, and 1500 (s/mm

^{2}); bandwidth/pixel (frequency-encoding) = 1500–2500 (Hz); and fat suppression was not used. Each b > 0 DWI was acquired using three diffusion gradients (${G}_{x}$, ${G}_{y}$, ${G}_{z}$) applied along the primary magnet axes to characterize individual gradient channels.

^{2}image along phase encode direction. No appreciable effect of concomitant fields [2] was expected for DSE using sagittal SI scans. An additional experiment with dial-in chronic shim gradient up to 0.1 mT/m was performed on Sys3 [23] to assess the maximum associated incremental impact on the ADC bias, for comparison to the measured chronic shim gradients on all the systems.

#### 2.3. Spatial ADC Measurements

#### 2.4. Theoretical Spatial ADC Based on GNL Model

^{−3}mm

^{2}/s). Spatially different theoretical ADCs were generated at various ROIs locations (e.g., Figure 1C, dashed curves) to which the measured spatial ADCs were compared. The measured locations were inferred from DICOM tags, and table offsets were accounted for if existing: On Sys5 and Sys6, an inferior offset of 1.3 cm was present for all measurements; an anterior offset of 2.3 cm was detected for Sys6; and a superior offset of 2.5 cm was observed for Sys1 and 2 for a single time point.

#### 2.5. Data Analysis

## 3. Results

#### 3.1. Temporal Variations in Spatial ADC Measurements

#### 3.2. ADC Measurements from SSE and DSE

#### 3.3. RMS Comparison of ADC Measurements

## 4. Discussion

_{0}shimming that introduced residual or chronic B

_{0}shim gradients [21] that were measured in this work. Our studies [23] with controlled chronic gradients demonstrated that the gradients observed in this study did not contribute to b-value errors by more than 5%. Furthermore, larger measured chronic gradients along SI correlated with the observation of higher temporal ADC variability, suggesting prevalent shim contribution to the temporal measurement errors.

_{0}map of the object, the presence of the residual shim gradients can be quantified and factored into an ideal GNL model by proportional spatial shifts and fractional offsets with respect to the isocenter.

## 5. Conclusions

## 6. Patents

## Supplementary Materials

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Bammer, R.; Markl, M.; Barnett, A.; Acar, B.; Alley, M.T.; Pelc, N.J.; Glover, G.H.; Moseley, M.E. Analysis and generalized correction of the effect of spatial gradient field distortions in diffusion-weighted imaging. Magn. Reson. Med.
**2003**, 50, 560–569. [Google Scholar] [CrossRef] [PubMed] - Tan, E.T.; Marinelli, L.; Slavens, Z.W.; King, K.F.; Hardy, C.J. Improved correction for gradient nonlinearity effects in diffusion-weighted imaging. J. Magn. Reson. Imaging
**2013**, 38, 448–453. [Google Scholar] [CrossRef] [PubMed] - Malyarenko, D.I.; Ross, B.D.; Chenevert, T.L. Analysis and correction of gradient nonlinearity bias in apparent diffusion coefficient measurements. Magn. Reson. Med.
**2014**, 71, 1312–1323. [Google Scholar] [CrossRef] [PubMed] - Barkovich, E.J.; Shankar, P.R.; Westphalen, A.C. A systematic review of the existing prostate imaging reporting and data system version 2 (PI-RADSv2) literature and subset meta-analysis of PI-RADSv2 categories stratified by Gleason scores. Am. J. Roentgenol.
**2019**, 212, 847–854. [Google Scholar] [CrossRef] - Partridge, S.C.; Zhang, Z.; Newitt, D.C.; Gibbs, J.E.; Chenevert, T.L.; Rosen, M.A.; Bolan, P.J.; Marques, H.S.; Romanoff, J.; Cimino, L.; et al. Diffusion-weighted MRI Findings Predict Pathologic Response in Neoadjuvant Treatment of Breast Cancer: The ACRIN 6698 Multicenter Trial. Radiology
**2018**, 289, 618–627. [Google Scholar] [CrossRef] - DeSouza, N.; Winfield, J.; Waterton, J.C.; Weller, A.; Papoutsaki, M.-V.; Doran, S.; Collins, D.; Fournier, L.; Sullivan, D.; Chenevert, T. Implementing diffusion-weighted MRI for body imaging in prospective multicentre trials: Current considerations and future perspectives. Eur. Radiol.
**2018**, 28, 1118–1131. [Google Scholar] [CrossRef] - Newitt, D.C.; Tan, E.T.; Wilmes, L.J.; Chenevert, T.L.; Kornak, J.; Marinelli, L.; Hylton, N. Gradient nonlinearity correction to improve apparent diffusion coefficient accuracy and standardization in the american college of radiology imaging network 6698 breast cancer trial. J. Magn. Reson. Imaging
**2015**, 42, 908–919. [Google Scholar] [CrossRef] - Barnes, A.; Alonzi, R.; Blackledge, M.; Charles-Edwards, G.; Collins, D.J.; Cook, G.; Coutts, G.; Goh, V.; Graves, M.; Kelly, C. UK quantitative WB-DWI technical workgroup: Consensus meeting recommendations on optimisation, quality control, processing and analysis of quantitative whole-body diffusion-weighted imaging for cancer. Br. J. Radiol.
**2018**, 91, 20170577. [Google Scholar] [CrossRef] [PubMed] - Mulkern, R.V.; Ricci, K.I.; Vajapeyam, S.; Chenevert, T.L.; Malyarenko, D.I.; Kocak, M.; Poussaint, T.Y. Pediatric brain tumor consortium multisite assessment of apparent diffusion coefficient z-axis variation assessed with an ice-water phantom. Acad. Radiol.
**2015**, 22, 363–369. [Google Scholar] [CrossRef] - Malyarenko, D.I.; Newitt, D.; Wilmes, L.J.; Tudorica, A.; Helmer, K.G.; Arlinghaus, L.R.; Jacobs, M.A.; Jajamovich, G.; Taouli, B.; Yankeelov, T.E.; et al. Demonstration of nonlinearity bias in the measurement of the apparent diffusion coefficient in multicenter trials. Magn. Reson. Med.
**2016**, 75, 1312–1323. [Google Scholar] [CrossRef] - Mesri, H.Y.; David, S.; Viergever, M.A.; Leemans, A. The adverse effect of gradient nonlinearities on diffusion MRI: From voxels to group studies. NeuroImage
**2020**, 205, 116127. [Google Scholar] [CrossRef] [PubMed] - Fedeli, L.; Belli, G.; Ciccarone, A.; Coniglio, A.; Esposito, M.; Giannelli, M.; Mazzoni, L.N.; Nocetti, L.; Sghedoni, R.; Tarducci, R. Dependence of apparent diffusion coefficient measurement on diffusion gradient direction and spatial position–A quality assurance intercomparison study of forty-four scanners for quantitative diffusion-weighted imaging. Phys. Med.
**2018**, 55, 135–141. [Google Scholar] [CrossRef] [PubMed] - Malyarenko, D.; Newitt, D.; Amouzandeh, G.; Wilmes, L.J.; Tan, E.T.; Marinelli, L.; Deveraj, A.; Peeters, J.; vom Endt, A.; Hylton, N.; et al. Retrospective correction of ADC for gradient nonlinearity errors in multi-center breast DWI trials: ACRIN6698 multiplatform feasibility study. Tomography
**2020**, 6, 86–92. [Google Scholar] [CrossRef] [PubMed] - Pang, Y.; Malyarenko, D.I.; Amouzandeh, G.; Barberi, E.; Cole, M.; Vom Endt, A.; Peeters, J.; Tan, E.T.; Chenevert, T.L. Empirical validation of gradient field models for an accurate ADC measured on clinical 3T MR systems in body oncologic applications. Phys. Med.
**2021**, 86, 113–120. [Google Scholar] [CrossRef] [PubMed] - Janke, A.; Zhao, H.; Cowin, G.J.; Galloway, G.J.; Doddrell, D.M. Use of spherical harmonic deconvolution methods to compensate for nonlinear gradient effects on MRI images. Magn. Reson. Med.
**2004**, 52, 115–122. [Google Scholar] [CrossRef] [PubMed] - Wang, D.; Doddrell, D.M. Geometric distortion in structural magnetic resonance imaging. Curr. Med. Imaging
**2005**, 1, 49–60. [Google Scholar] [CrossRef] - Barnett, A.S.; Irfanoglu, M.O.; Landman, B.; Rogers, B.; Pierpaoli, C. Mapping gradient nonlinearity and miscalibration using diffusion-weighted MR images of a uniform isotropic phantom. Magn. Reson. Med.
**2021**, 86, 3259–3273. [Google Scholar] [CrossRef] [PubMed] - Chenevert, T.L.; Galban, C.J.; Ivancevic, M.K.; Rohrer, S.E.; Londy, F.J.; Kwee, T.C.; Meyer, C.R.; Johnson, T.D.; Rehemtulla, A.; Ross, B.D. Diffusion coefficient measurement using a temperature-controlled fluid for quality control in multicenter studies. J. Magn. Reson. Imaging
**2011**, 34, 983–987. [Google Scholar] [CrossRef] [PubMed] - Lee, Y.; Kettinger, A.O.; Wilm, B.J.; Deichmann, R.; Weiskopf, N.; Lambert, C.; Pruessmann, K.P.; Nagy, Z. A comprehensive approach for correcting voxel-wise b-value errors in diffusion MRI. Magn. Reson. Med.
**2020**, 83, 2173–2184. [Google Scholar] [CrossRef] - Holz, M.; Heil, S.R.; Sacco, A. Temperature-dependent self-diffusion coefficients of water and six selected molecular liquids for calibration in accurate H-1 NMR PFG measurements. Phys. Chem. Chem. Phys.
**2000**, 2, 4740–4742. [Google Scholar] [CrossRef] - Tadic, T.; Jaffray, D.A.; Stanescu, T. Harmonic analysis for the characterization and correction of geometric distortion in MRI. Med. Phys.
**2014**, 41, 112303. [Google Scholar] [CrossRef] [PubMed] - Rohde, G.K.; Barnett, A.S.; Basser, P.J.; Marenco, S.; Pierpaoli, C. Comprehensive approach for correction of motion and distortion in diffusion-weighted MRI. Magn. Reson. Med.
**2004**, 51, 103–114. [Google Scholar] [CrossRef] [PubMed] - Pang, Y.; Malyarenko, D.; Schar, M.; Wilmes, L.J.; Newitt, D.; Jacobs, M.; Chenevert, T.L. Characterization of B0 Shim-Induced Bias in Diffusion Weighting Gradients. In Proceedings of the ISMRM’25 Proceedings, Honolulu HI, USA, 22–27 April 2017; p. 3360. [Google Scholar]
- Barnhart, H.X.; Barboriak, D.P. Applications of the repeatability of quantitative imaging biomarkers: A review of statistical analysis of repeat data sets. Transl. Oncol.
**2009**, 2, 231–235. [Google Scholar] [CrossRef] [PubMed] - Chenevert, T.L.; Malyarenko, D.I. Use of 2D image registration parameters for correction of eddy-current magnetizationdensity ADC errors in presence of gradient nonlinearity. In Proceedings of the ISMRM’28 Proceedings, Sydney, Australia, 8–14 August 2020; p. 4355, (virtual due to COVID). [Google Scholar]

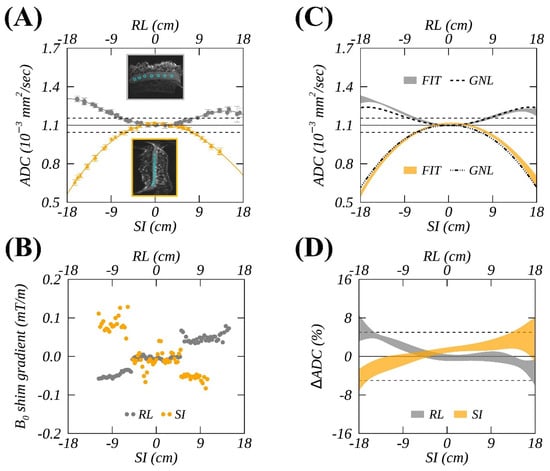

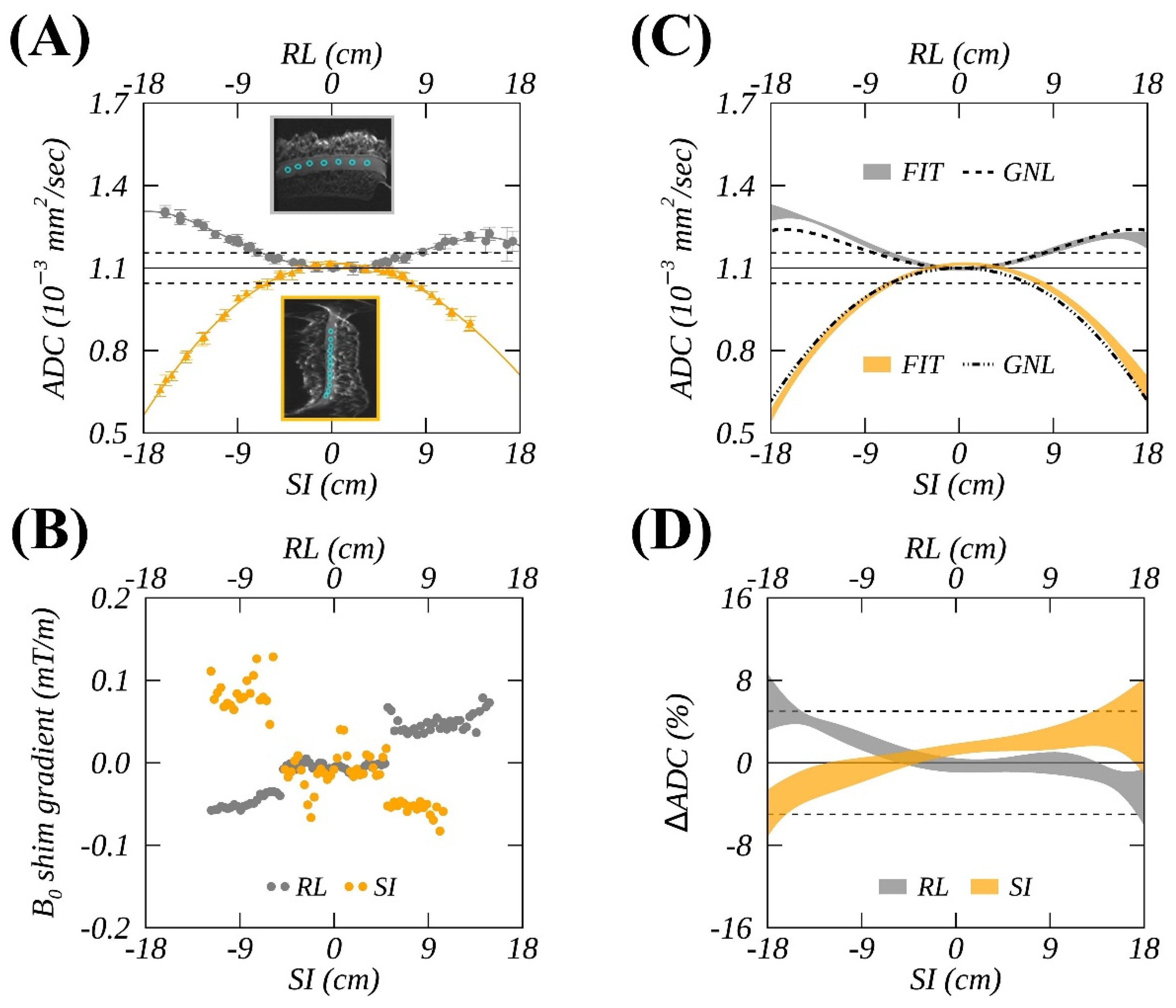

**Figure 1.**An example of ice-water spatial-dependent (i.e., right-left (RL) offsets in gray and superior-inferior (SI) offsets in orange) apparent diffusion coefficient (ADCs) measured for the ${G}_{y}$ gradient channel (

**A**) and ${B}_{0}$ shim gradients (

**B**) on a 1.5T MR scanner. Fitted ADCs (ribbons corresponding to temporal mean ± SD) from longitudinal studies were compared with a predicted (dashed curves) system-specific gradient nonlinearity (GNL) model in (

**C**), and their relative differences normalized by an ADC reference (solid horizonal line) of 1.1 × 10

^{−3}(mm

^{2}/s) are shown in (

**D**). Mean ADC measurements within regions of interest (ROIs) (e.g., cyan circles in A-inset) are plotted as a function of RL and SI offsets, respectively, with error-bars corresponding to a standard deviation within an ROI. Dashed horizontal lines denote ± 5% deviations from the reference ice-water ADC value.

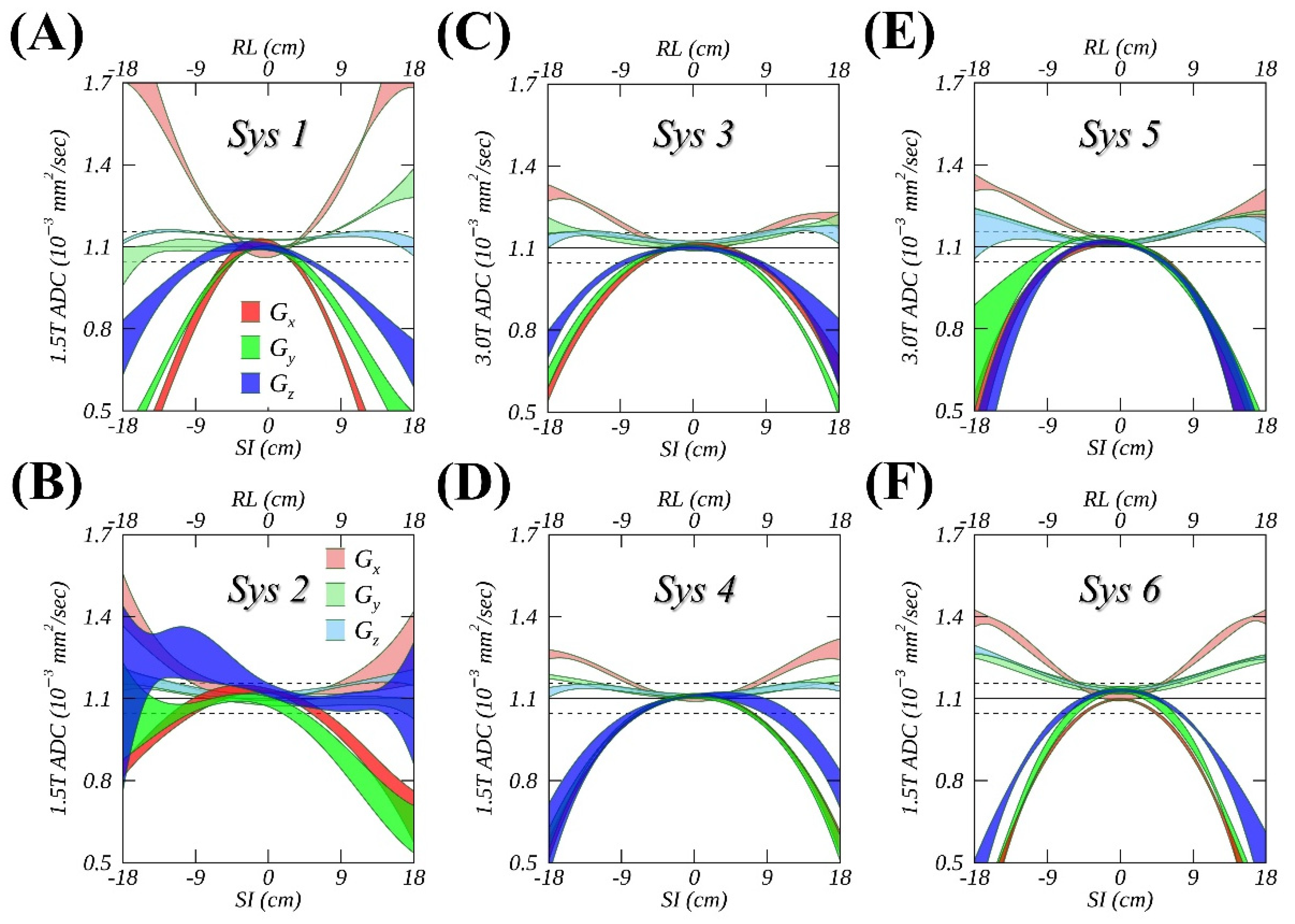

**Figure 2.**Spatial variations (colored ribbons representing temporal mean ± SD) of fitted ice-water apparent diffusion coefficient (ADCs) measured from longitudinal studies are shown as a function of a horizontal offset (light colors) and along the magnet bore (dark colors) for six different MR systems (Sys1-6) in (

**A**–

**F**), using three individual gradient channels ${G}_{x}$ (red), ${G}_{y}$ (green), and ${G}_{z}$ (blue). Solid and dashed horizonal lines mark an ice-water ADC reference and its ± 5% deviations.

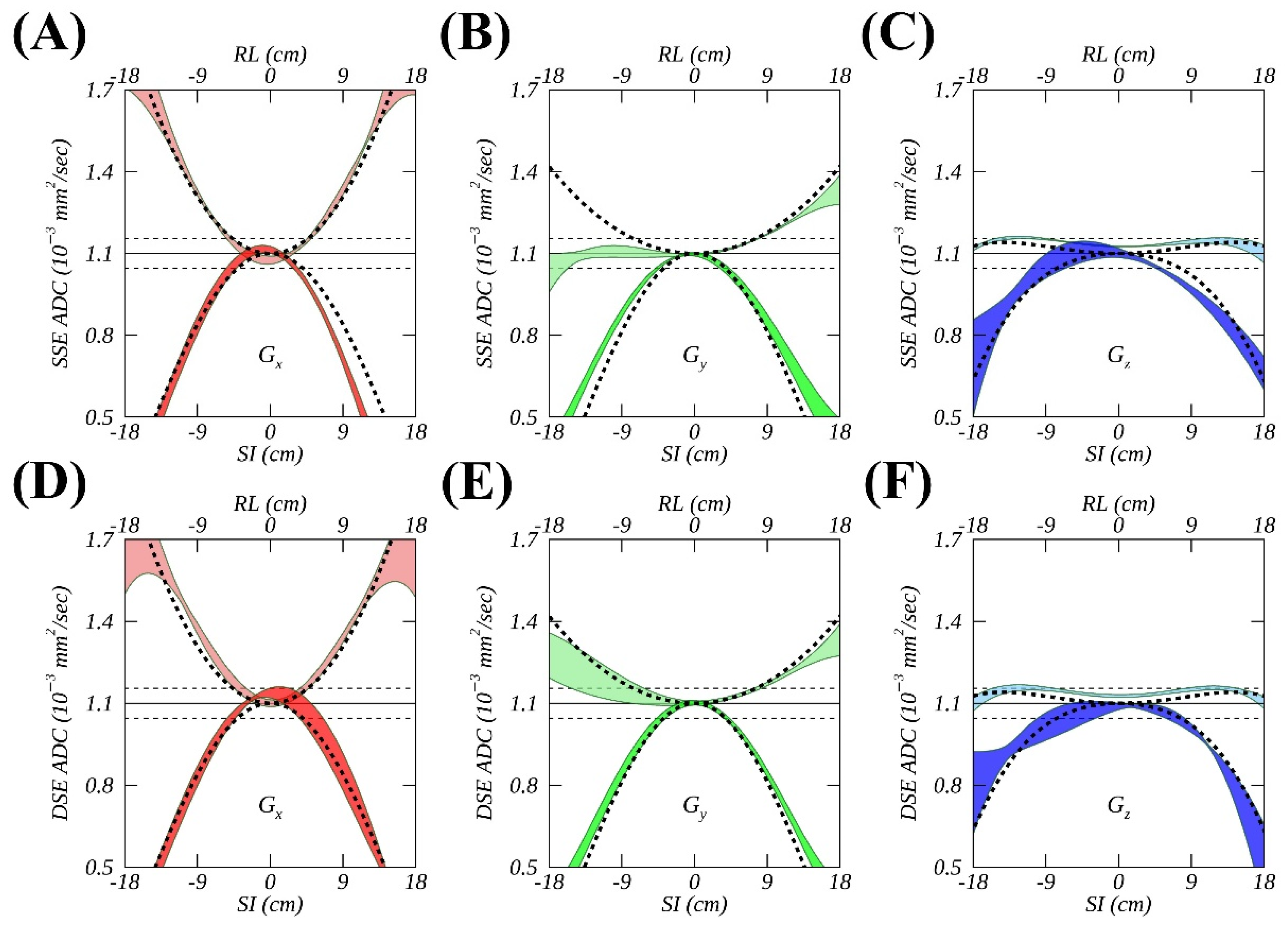

**Figure 3.**Temporal variations of spatial apparent diffusion coefficient (ADC) profiles (colored ribbons representing temporal mean ± SD) measured using single spin echo (

**A**–

**C**) and double spin echo (

**D**–

**F**) pulse sequences for a single MR system (Sys 1), compared to the gradient nonlinearity (GNL) model (dashed black curves) for three physical gradient channels, i.e., ${G}_{x}$ (red), ${G}_{y}$ (green), and ${G}_{z}$ (blue). Solid and dashed horizonal lines mark an ADC reference and its ± 5% deviations.

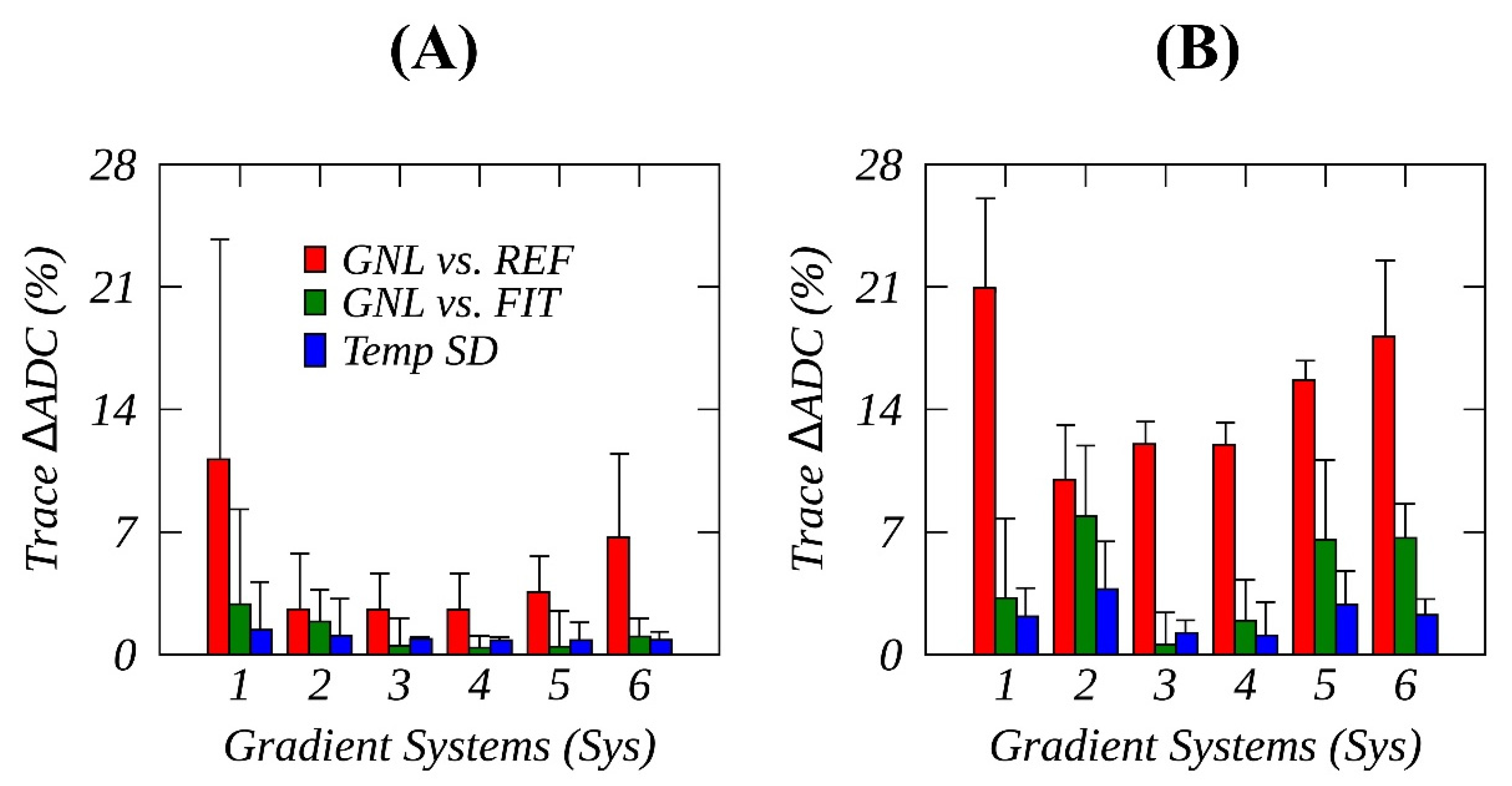

**Figure 4.**Root-mean-squared (RMS)% deviations (within ±18 cm), normalized by an ice-water apparent diffusion coefficient (ADC) reference (REF), are shown for predicted system model gradient nonlinearity (GNL) versus REF (red bars), GNL versus temporal mean fit (green bars), and temporal fit SD (blue bars) for trace ADCs, measured for horizontal offsets (

**A**) and along the magnet bore (

**B**) for six studied MR systems (Sys1-6, the error bars denote the largest RMS% observed among three physical gradient channels on a specific MR system, see Table 1).

**Table 1.**Summary of spatially averaged $\%RMS{D}_{i}$ ($i=REF,EXP,TMP$) for horizontal (RL) and along-the-bore (SI) offsets of three physical (x, y, z) gradient channels and the trace (t) from six studied gradient platforms (Sys1-6).

Sys | Grad | RL | SI | ||||
---|---|---|---|---|---|---|---|

REF | EXP | TMP | REF | EXP | TMP | ||

1 | x | 23.7 | 1.9 | 4.2 | 26.1 | 7.8 | 3.8 |

y | 8.7 | 8.3 | 1.3 | 24.7 | 4.2 | 2.3 | |

z | 1.3 | 1.2 | 0.6 | 12.2 | 3.4 | 2.5 | |

t | 11.2 | 2.9 | 1.4 | 20.9 | 3.2 | 2.2 | |

2 | x | 5.8 | 3.7 | 3.2 | 13.0 | 5.6 | 2.5 |

y | 2.3 | 2.5 | 1.4 | 13.1 | 11.9 | 4.2 | |

z | 0.4 | 2.5 | 1.1 | 3.9 | 7.0 | 6.5 | |

t | 2.6 | 1.9 | 1.1 | 10.0 | 7.9 | 3.7 | |

3 | x | 4.6 | 2.1 | 1.0 | 13.3 | 2.1 | 1.3 |

y | 2.1 | 0.7 | 1.0 | 13.2 | 2.4 | 1.1 | |

z | 1.1 | 0.6 | 0.9 | 9.6 | 0.6 | 2.0 | |

t | 2.6 | 0.5 | 0.9 | 12.0 | 0.6 | 1.2 | |

4 | x | 4.6 | 1.1 | 1.0 | 13.2 | 1.5 | 0.9 |

y | 2.1 | 0.2 | 0.8 | 13.1 | 1.4 | 1.1 | |

z | 1.1 | 0.2 | 0.8 | 9.6 | 4.3 | 3.0 | |

t | 2.6 | 0.4 | 0.8 | 12.0 | 1.9 | 1.1 | |

5 | x | 5.6 | 2.5 | 1.0 | 16.8 | 7.6 | 3.8 |

y | 3.7 | 0.7 | 0.5 | 16.8 | 4.1 | 3.3 | |

z | 1.6 | 1.1 | 1.8 | 13.5 | 11.1 | 4.8 | |

t | 3.6 | 0.5 | 0.8 | 15.7 | 6.6 | 2.9 | |

6 | x | 11.5 | 2.1 | 1.2 | 22.5 | 5.1 | 1.5 |

y | 5.3 | 1.8 | 1.3 | 22.2 | 6.8 | 3.2 | |

z | 3.3 | 1 | 0.4 | 9.7 | 8.6 | 2.6 | |

t | 6.7 | 1 | 0.8 | 18.2 | 6.7 | 2.3 |

**REF**, reference,

**EXP**, measured;

**TMP**, temporal;

**RL**, right to left;

**SI**, superior to inferior;

**1**–

**6**, gradient system number;

**RL**, right-left;

**SI**, superior-inferior;

**Sys**, system;

**Grad**, gradient channel.

**Table 2.**Summary of cross-system variations (excluding Sys2) in spatial $\%RMS{D}_{i}$ ($i=REF,EXP,TMP$) of gradient-channel metrics listed in Table 1.

Grad | x | y | z | t | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|

RMSD | REF | EXP | TMP | REF | EXP | TMP | REF | EXP | TMP | REF | EXP | TMP | |

RL | Median | 5.6 | 2.1 | 1 | 3.7 | 0.7 | 1 | 1.3 | 1 | 0.8 | 3.6 | 0.5 | 0.8 |

Min | 4.6 | 1.1 | 1 | 2.1 | 0.2 | 0.5 | 1.1 | 0.2 | 0.4 | 2.6 | 0.4 | 0.8 | |

Max | 23.7 | 2.5 | 4.2 | 8.7 | 8.3 | 1.3 | 3.3 | 1.2 | 1.8 | 11.2 | 2.9 | 1.4 | |

SI | Median | 16.8 | 5.1 | 1.5 | 16.8 | 4.1 | 2.3 | 9.7 | 4.3 | 2.6 | 15.7 | 3.2 | 2.2 |

Min | 13.2 | 1.5 | 0.9 | 13.1 | 1.4 | 1.1 | 9.6 | 0.6 | 2 | 12 | 0.6 | 1.1 | |

Max | 26.1 | 7.8 | 3.8 | 24.7 | 6.8 | 3.3 | 13.5 | 11.1 | 4.8 | 20.9 | 6.7 | 2.9 |

**REF**, reference,

**EXP**, measured;

**TMP**, temporal;

**RL**, right to left;

**SI**, superior to inferior;

**Grad**, gradient channel.

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
