Article

Degradation-Aware Deep Learning Framework for Sparse-View CT Reconstruction

Science of Information and Communication Engineering, Beijing University of Posts and Telecommunications, Beijing 100876, China
*
Author to whom correspondence should be addressed.
Tomography 2021, 7(4), 932-949; https://doi.org/10.3390/tomography7040077
Submission received: 20 October 2021 / Revised: 25 November 2021 / Accepted: 29 November 2021 / Published: 9 December 2021
(This article belongs to the Special Issue Advance in CT Imaging Using Deep Learning)

Abstract

:
Sparse-view CT reconstruction is a fundamental task in computed tomography to overcome undesired artifacts and recover the details of textual structure in degraded CT images. Recently, many deep learning-based networks have achieved desirable performances compared to iterative reconstruction algorithms. However, the performance of these methods may severely deteriorate when the degradation strength of the test image is not consistent with that of the training dataset. In addition, these methods do not pay enough attention to the characteristics of different degradation levels, so solely extending the training dataset with multiple degraded images is also not effective. Although training plentiful models in terms of each degradation level can mitigate this problem, extensive parameter storage is involved. Accordingly, in this paper, we focused on sparse-view CT reconstruction for multiple degradation levels. We propose a single degradation-aware deep learning framework to predict clear CT images by understanding the disparity of degradation in both the frequency domain and image domain. The dual-domain procedure can perform particular operations at different degradation levels in frequency component recovery and spatial details reconstruction. The peak signal-to-noise ratio (PSNR), structural similarity (SSIM) and visual results demonstrate that our method outperformed the classical deep learning-based reconstruction methods in terms of effectiveness and scalability.

1. Introduction

In the past fifty years, computed tomography (CT) has been broadly applied in clinical diagnostics, nondestructive testing and biological research due to the high resolution and high sensitivity of CT images [1]. However, its high radiation dose can lead to headaches or even cancer and leukemia in severe cases [2]. In addition, a long scanning time and high scanning frequency can further increase hazards [2]. One straightforward way to tackle this problem is by reducing the number of X-ray photons emitted by the detector by decreasing the currents on the X-ray tube, but this may result in heavy noise interference and undesired artifacts in CT images. Another alternative solution is to lower the frequency of X-ray scanning and accelerate the acquisition. Sparse-view CT and limited-angle CT reduce the frequency of measurement by sparsely projecting the object and controlling the projection angle to a limited extent, respectively. Nevertheless, severe streak artifacts and directional artifacts in reconstructed CT images inevitably occur due to insufficient data collection. Therefore, the study of low-dose CT reconstruction has received extensive attention from researchers.
CT reconstruction methods can be broadly classified into three categories, i.e., sinogram-domain reconstruction, iterative reconstruction (IR) and image-domain reconstruction. Sinogram-domain methods perform denoising, the removal of artifacts and interpolation in sinogram data by utilizing traditional filtering algorithms [3,4,5], dictionary-based approaches [6] and deep learning-based methods [7]. Filtering algorithms have the advantages of their computation cost and reconstruction speed but fail to achieve satisfying performance when the raw data are severely lacking. On the other hand, dictionary-based and deep learning-based approaches suffer from undesired artifacts or over-smoothing in CT images due to indirect processing in the sinogram-domain. In contrast, by iterative correction and reconstruction, IR methods such as the algebraic reconstruction technique (ART) [8], simultaneous algebraic reconstruction technique (SART) [9] and simultaneous iterative reconstruction technique (SIRT) [10] can produce CT images with better quality and less noise and artifacts. Moreover, under the guidance of the compressed sensing (CS) theory [11,12], the prior knowledge has been employed to constrain the solution space, such as those of ART total variation (ART-TV) [13], edge persevering TV (EPTV) [14], adaptive-weighted (AwTV) [15], non-local means (NLM) [16,17,18] and low-rank [19]. Aided by the prior knowledge, IR methods achieve favorable performance while sacrificing large computation resources. Another CT reconstruction approach is applying an image processing method in the image domain which is similar to natural image processing [20,21,22]. The main convenience of the image domain is that it does not require raw sinogram data.
Recently, deep learning methods have been particularly influential in image-domain CT reconstruction. Many CNN-based algorithms have outperformed IR methods by a large margin at a specific degradation level [23,24,25]. Unfortunately, as a result of supervised learning tailored for a single degradation strength, these fail to obtain a favorable reconstruction performance on other degradation levels due to the identical processing of all corrupted data. An viable way to address this problem is training plentiful models to target each degradation level, however, this may be greatly challenging to deploy in practice due to the large consumption of training computation and the growth of parameter storage. Furthermore, with the extension of degradation levels, the cost of training and parameters linearly increase, which is not scalable and practical in real applications. On the other hand, some researchers have proposed mitigating this problem by mixing multiple data at possible degradation levels to construct a training dataset. Chen et al. proposed a RED-CNN+ model which was trained on a mixed dataset including three different blank scan photons [25]. Han et al. took advantage of the wavelet transform and investigated a tight-frame U-Net [26] structure which was trained on filtered back projection (FBP) restored images from 60, 120 and 240 sparse views [27]. Xie et al. presented Improved GoogLeNet to remove streak artifacts, which was also trained on FBP restored images from 60 and 120 views [28]. The experiments showed that they can achieve better robustness than training with a single degradation level. Nonetheless, these methods do not pay sufficient attention to the difference in degradation information and perform the implicit learning of degradation attributes. Therefore, these methods do not have sufficient capacity to handle multiple degradations. The reconstructed CT images usually have less textural and structural details in the low degradation level (such as 240 sparse views) and more unexpected artifacts in the high degradation level (such as 60 sparse views). In this study, we focused on investigating a degradation-aware deep learning framework to enhance the robustness of low-dose CT reconstruction at multiple degradation levels.
The key to tackling this problem is to seize the distinction of sparse-view CT degradations and instruct the model to understand it explicitly. According to our analysis, the characteristic of degradation is not only displayed in the image domain, but is also distinctly presented in the frequency domain. Figure 1 shows the reconstruction error in 64 DCT frequency components between FBP reconstruction results and ideal CT images. Low frequencies are on the top–left and high frequencies are on the bottom–right. It is clear from the figure that for the low degradation level (240 views), the difference between the reconstructed images and ideal images is mainly in the high frequencies, which we should mainly focus on in the restoration process. In contrast, in high degradation levels (60 views), the error spans in both low and high frequencies, illustrating the significance of general reconstruction on all frequencies. This result motivated us to attempt to understand the disparity of degradation in both the frequency domain and image domain. To summarize, the main contributions of this study are as follows:
  • A novel degradation-aware deep learning framework for sparse-view CT reconstruction is proposed. The proposed framework overcomes the disadvantage of weak generalization at multiple degradation levels of previous single-degradation methods. In addition, it is beneficial for extending to more degradation levels without the growth of training parameters. Experimental results have shown the effectiveness and robustness of the proposed framework.
  • A frequency-domain reconstruction module is proposed. It conducts a frequency-attention mechanism to adaptively analyze the disparity of degradation levels by employ distinct operations to each frequency. The experiments described herein illustrate its satisfactory performance on artifact removal and intensity recovery.
  • An image-domain module is proposed to further capture the image space degradation characterization from the frequency-domain reconstruction results. This produces a critical-map to emphasize the contour pixels with high reconstruction errors. The experiments show the favorable achievement of the aid of an image-domain module in the structure preservation and edge enhancement.

2. Materials and Methods

2.1. Network Structure

The overall framework is shown in Figure 2. The network consists of two modules—one in in frequency domain and one in spatially domain. The frequency-domain module performs a reconstruction procedure in the frequency domain and predicts an initial reconstruction result while the objective of the image-domain module is to conduct fine restoration based on the initial reconstruction of the frequency-domain module. The details of these modules were illustrated in the following sections.

2.2. Frequency-Domain Module

A frequency domain reconstruction module was investigated to recover the frequency components which are composed of a DCT layer, a frequency-attention block, a reconstruction block and an IDCT layer. In practice, the input image is first deposed into N2 DCT frequencies. Given an input CT image f(x1,x2) of size H × H, we first split it into blocks without overlapping, and we then we conducted the DCT transform on each block f b ( x 1 , x 2 ) , b = 1 , 2 , , ( H N ) 2 of size N × N. The cosine basis function W ξ 1 , ξ 2 of size N × N at frequency ξ 1 , ξ 2 is as follows:
W ξ 1 , ξ 2 ( i , j ) = c ( i ) c ( j ) c o s [ ( i + 0.5 ) π ξ 1 N ] c o s [ ( j + 0.5 ) π ξ 2 N ] ,   i , j , ξ 1 , ξ 2 = 0 , 1 , , N 1 c ( k ) = { 1 / N ,     k = 0 2 / N   ,     k = 1 , 2 , ,   N 1
The DCT transform F b ( ξ 1 , ξ 2 ) on block fb(x1,x2) is also a N × N matrix which is calculated by
F b ( ξ 1 , ξ 2 ) = x 1 = 0 N 1 x 2 = 0 N 1 f b ( x 1 , x 2 ) × W ξ 1 , ξ 2 ( x 1 , x 2 )
Due to the orthogonality and symmetry of the DCT basis, the inverse DCT (IDCT) transform is given by
f b ( x 1 , x 2 ) = ξ 1 = 0 N 1 ξ 2 = 0 N 1 F b ( ξ 1 , ξ 2 ) × W ξ 1 , ξ 2 ( x 1 , x 2 )
In this study, we set N = 8. In order to pack the DCT operation and IDCT operation into the proposed deep learning model, the DCT transform was wrapped into a 2D convolution operation with 64 filters { W 0 , 0 , W 0 , 1 , , W 7 , 7 } of size 8 × 8. This enabled us to reasonably arrange the high-frequency component and low-frequency component. We conducted a zig-zag pattern in JPEG [31] to reorder the filters as shown in the top–left of Figure 2. In addition, the inverse DCT transform was converted into a 2D transposed convolution with the same filters. Both the convolution operation in the DCT layer and IDCT layer have a stride of 8 to prevent the image patches overlapping. The parameters of these filters are trainable in the training phase.
After transforming the input image into the DCT domain, frequency features of size 64 × H/8 × H/8 were obtained. As we knew, the low-frequency component is a comprehensive measure of the intensity of the whole image while the high-frequency component contains the information of the edge and contour. Therefore, low-frequency feature restoration is essential to intensity recovery while high-frequency feature reconstruction plays an important role in edge enhancement. In addition, different degraded images have distinctive characters on each frequency, i.e., low degraded images have more reliability on high frequencies than high degraded images. To separately operate the frequency components according to the degradation levels, a frequency-attention block was applied to explicitly instruct the network to pay attention to the degradation variation. Inspired by the SE block [32], the 64 frequency features were first squeezed into a 64-dimensional vector through global average pooling on each frequency. Then, a fully connected layer followed by a rectified linear unit (ReLU) was utilized to compress the feature space to 32 dimensions. After that, the compressed feature was extended to 64 dimensions as a frequency weight vector by a fully connected layer with a sigmoid operation. The sigmoid function constrains the feature value into 0~1 which represents the proportion of the corresponding frequency component. Finally, the frequency weight vector was expanded to the size of the input frequency feature and multiplied to the input frequency feature as the output of the frequency-attention block. The structure of the frequency-attention block is shown in Figure 3a.
The reconstruction block takes the weighted frequency feature as input and aims to restore the ideal frequency components. Recently, DD-Net [24] has made extraordinary achievements in sparse-view CT reconstruction, contributing to its DenseNet and Deconvolution modules. Inspired by DD-Net, we used the same network structure as DD-Net but made several modifications in our reconstruction block. Firstly, due to the fact that the input of the reconstruction block is not a degraded image of size H × H but a frequency feature of size H/8 × H/8 with 64 channels, the receptive field is enlarged and using a 4-fold down-sampling operation seems inappropriate. Therefore, our reconstruction block contains 3 times max pooling and 3 times max un-pooling. Secondly, to achieve the balance between the effectiveness and the number of training parameters, the convolution layer with kernel 5 was replaced by the convolution operation with kernel 3, and the output of each layer had 32 feature maps instead of 16 in DD-Net. These parameters were experimentally determined as seen in Section 3.4. The structure of the reconstruction block is shown in Figure 3b. Since the output of the reconstruction block is an estimate of ideal frequency components, the IDCT layer finally inverses the frequency feature into the image domain. The output of the frequency-domain module is a preliminary prediction of the ideal CT image.

2.3. Image-Domain Module

To further improve the textural details and edge information of CT images, an image-domain module was developed to enhance the frequency-domain result by a spatial-attention block and a refining block.
Since the reconstruction difficulty of CT images and the visual performance of CT images in the image domain vary with the degree of degradation, the spatial attention block takes the corrupted CT images and the frequency-domain results as input and predicts a critical-map that highlights the edge pixels with large reconstruction errors. Inspired by the critical pixel mask [33], the ideal critical-map is the intersection of an edge-map and an error-map. The edge-map was detected by a Canny operation from the ground-truth CT image. For the error-map, we first calculated the res-map which is the absolute value of the difference between the frequency-domain result and the ground-truth CT image (both normalized to 0~1). Then, we set the pixel value greater than 0.01 to 1 and the rest of the positions to 0. An example of the edge-map, error-map and ideal critical-map is shown in Figure 4. In the inference process, each value of the critical-map represents the probability that the corresponding pixel is a critical pixel. The structure of the spatial-attention block is also a U-Net [26], as shown in Figure 5a. A VGGBlock with two convolutional layers was used to learn the feature in the same feature size level. Finally, the frequency-domain result and the critical-map were concatenated as the input of the refining block, which was composed of 6 ResBlocks to recover the structure details of CT images. Down-sampling operations were not used in this block and the output of each layer has 64 feature maps. The details of the spatial-attention block and refining block are shown in Table S1 (Supplementary Materials) and Figure 5b. In addition, several experiments of parameter selecting were performed which are described in Section 3.4.

2.4. Datasets

The training, validation and test datasets consist of 9203 images (1580 brain, 2266 abdomen, 1251 esophagus and 4106 lung), 300 images (53 brain, 74 abdomen, 41 esophagus and 132 lung) and 1000 images (173 brain, 247 abdomen, 136 esophagus and 444 lung), respectively, with different images, all collected from The Cancer Imaging Archive (TCIA) [29,30,34,35,36]. To simulate the real degradation process of the projection data, the original DICOM CT data hu (Hounsfield unit (HU)) was first converted into an attenuation coefficient μ ( mm 1 ):
μ = μ w a t e r × ( h u 1000 + 1 )
where μ w a t e r is the attenuation coefficient of water which is approximately 0.02 mm 1 at 60 keV. According to the Lambert–Beer law, the received noise-free photons I on the detector along ray l is given by
  I l = I 0 × e p l
where I 0 is the mean number of photons from the source which is set to 1.0 × 10 5 [37,38,39] and p l represents the linear integral of the attenuation coefficients μ along ray l. The real photons ray I l ˜ is degraded by the Poisson photon noise and Gaussian electronic noise [15]:
I l ˜ = P o i s s o n { I l } + n
where n represents the additive Gaussian noise with zero mean and a variance of 10. Therefore, the noised integral of the attenuation coefficient is calculated by
p l ˜ = log ( I l ˜ / I 0 )
In this study, the Operator Discretization Library (ODL) [40] was used to construct fan beam projection geometry and produce sinogram data p ˜ . The distance between the source and rotation center was 346 mm, and the distance between the rotation center and detector was 261 mm. The diameter of the field-of-view was 370 mm and the resolution of the CT image was 0.5 mm per pixel. There are 1024 bins in the detector with a resolution of 0.75 mm per pixel. In the training process, the ground truth CT data are randomly projected with 60, 120, 240 views and the FBP algorithm was employed to generate the degraded image of size 512 × 512 .

2.5. Network Training

We designed a step-by-step training strategy to gradually learn the mapping from the degraded image to the ground truth image. Firstly, the frequency-domain model was trained to obtain a rough prediction of the ideal image using the mean square error (MSE) loss. Secondly, we independently trained the spatial-attention block using the ideal critical-map as the label image, which was generated from the ground truth image and the reconstruction result of the frequency-domain model. Binary cross entropy (BCE) loss was adopted to classify the critical pixels. Thirdly, the refining block was trained to finely estimate the ground-truth image using mean absolute error (L1) loss. Compared to MSE loss, L1 loss minimizes the absolute differences between the prediction and the ground truth which has the advantage of recovering structure details and enhancing the edge contour [41,42]. Finally, we froze the parameters of the spatial-attention block and conducted the overall training of the frequency-domain model and the refining block using L1 loss.
All modules were trained on a server with one GeForce GTX 1080 Ti using the PyTorch [43] deep learning framework. The batch size was set to 32, 4, 8 and 1, respectively, for the training of the frequency-domain model, spatial-attention block, refining block, and the overall training. The ADAM [44] optimizer was adopted to perform gradient updates with β 1 = 0.9 , β 2 = 0.999 . The initial learning rate was 1.0 × 10 4 and decreased by half for every 1.0 × 10 5 iteration of training. The pretrained model is available at https://github.com/sunchang2017/degradation-aware-sparse-CT-reconstruction (accessed on 20 October 2021).

3. Results

3.1. Degradation-Aware Ability Exploration

To analyze the explicit attentional transformations of the frequency-domain module for different degradation levels, we restored the output of the frequency-attention block to the pre-zig-zag order and reshaped it to 8 × 8 as a frequency-attention-map (FAP). The mean of FAP on test datasets of 60 views, 120 views and 240 views are shown in Figure 6a–c. The top of the orange dashed line is the low-frequency part and the bottom is the high-frequency part. We can see that since the low frequencies contain the main information of the CT images, the attention weight of the low frequencies is generally greater than that of the high frequencies. To further explore the specificity of FAP for different degradation levels, the subtraction of FAP on 120 views and 60 views, and the subtraction of FAP on 240 views and 120 views are shown in Figure 6d,e, respectively. It can be intuitively seen that as the degradation level decreases, the weights of high frequencies in the FAP show an overall increasing trend (pink color), while the weights of low frequencies show an overall decreasing trend (blue color), indicating that the network senses an increase in the reliability of the data at a high frequency.
To investigate the degradation perception of the image-domain module, we compared the predicted critical-map of the spatial-attention block for the same image with different degradation levels, as shown in Figure 7. The first column is the ideal CT image, whilst the second, third and fourth columns represent the predicted critical-maps at 60 views, 120 views and 240 views, respectively. We zoomed in on the red square area and displayed it in color to observe the textual details. The edge information of the critical-map increases as the degradation decreases, which indicates that the reconstructed values of the contours are generally inaccurate and the later refining block should enhance the detail recovery and reconstruction. In the case of the large degradation level, the critical-map of the image is blurry, indicating that there are still small artifacts interfering in the flat region, which should be further removed in the refining block to improve the overall intensity recovery.

3.2. Reconstruction Performance

We compared our method with two non-deep learning methods: FBP and SART [10]; and four deep learning methods: Improved GoogLeNet [28], Tight frame U-Net [27], RED-CNN [25] and DD-Net [24]. For a fair comparison, all four models were re-trained using the same dataset as our method. In addition, we also trained each model with three sets of parameters using training datasets of 60 views, 120 views and 240 views, respectively. We denoted these methods by Improved GoogLeNet+, Tight frame U-Net+, RED-CNN+ and DD-Net+. The number of parameters of these models was three times higher than the original model, as shown in Table 1, where FDM denotes the proposed frequency-domain module. Table 1 also displays the average computational cost (in GPU) of these methods on 1000 images with a size of 512 × 512 . It can be seen that RED-CNN achieves the lowest computational cost. Due to the designed frequency-domain and spatial-domain module, our method has the largest computational cost. However, the reconstruction speed of our method is still comparable with DD-Net.
PSNR and SSIM are used to quantitatively measure the reconstruction algorithms which are defined as
MSE = 1 m n i = 0 m 1 j = 0 n 1 [ I ( i , j ) K ( i , j ) ] 2
PSNR = 10 log ( M A X 2 M S E )
SSIM = ( 2 μ x μ y + c 1 ) ( 2 σ x y + c 2 ) ( μ x 2 + μ y 2 + c 1 ) ( σ x 2 + σ y 2 + c 2 )
where I ( i , j ) and K ( i , j ) represents the predicted CT image and the ideal CT image with size m × n . M A X is the maximum pixel value of the image. μ x ,   μ y is the mean value of I ( i , j ) and K ( i , j ) . σ x ,   σ y ,   σ x y is the variance of I ( i , j ) , K ( i , j ) and the covariance of I ( i , j ) and K ( i , j ) respectively. c 1 = ( k 1 L ) 2 , c 2 = ( k 2 L ) 2 where L is the range of pixel values, k 1 = 0.01 ,   k 2 = 0.03 .
Table 2 shows the PSNR and SSIM results of these methods on the test datasets. Both non-deep learning methods performed worse than the deep learning methods, while for the deep learning algorithms, the Tight frame U-Net achieves higher PSNR and SSIM performance compared to Improved GoogLeNet with 25 times the number of parameters. The RED-CNN achieves better PSNR performance than the Tight frame U-Net, especially on the 60 views dataset and the network parameters are only 6% of the Tight frame U-Net, which we believe may be overfitted. Thanks to DenseNet and deconvolution’s ability to capture deep features of images, DD-NET obtains a better PSNR performance than RED-CNN, especially on the head and abdomen datasets, and higher SSIM, especially on the head and esophagus datasets. Particularly, our method outperforms all methods by achieving optimal PSNR and SSIM performance on all datasets. From the perspective of the degradation level, the PSNR of our method is on average 0.84 dB, 0.89 dB and 1.22 dB higher than DD-Net, respectively, for the 60 views, 120 views and 240 views datasets, and the SSIM results are on average 0.02, 0.01 and 0.01 higher, respectively. In terms of the body part, the PSNRs of our method are 0.89 dB, 0.94 dB, 1.29 dB and 0.80 dB higher than those of DD-Net for the head, abdomen, lung and esophagus, respectively, and the SSIM results are 0.02, 0.01, 0.02 and 0.01 higher, respectively. Figure 8 shows the reconstruction results of these methods. It can be seen that the artifact removal performance and detailed retention performance of our proposed method are optimal for all kinds of sparse-view datasets.
For the networks that contain three sets of parameters corresponding to different degradation levels, Improved GoogLeNet+ has a PSNR advantage over Improved GoogLeNet on 60 views and 120 views while SSIM has an advantage only on 60 views. The performance of Tight Frame U-NET+ is generally weaker than that of Tight Frame U-NET, which may be due to the fact that the training dataset of Tight Frame U-NET+ only targets one degradation level, while the training set of Tight Frame U-NET contains three types of degradation, which moderates the overfitting problem to some extent. The average performance of Red-CNN+ and DD-NET+ is better than that of Red-CNN and DD-NET, but still worse than that of our model and more parameters are used. The standard deviations of PSNR and SSIM for our method on the test dataset are shown in Table 3. Suppose the PSNR and SSIM results are both independent samples from a normally distributed population, Table 3 also displays the 95% confidence intervals for PSNR and SSIM results on the test dataset. Figure 9 displays the difference images between the result images and the ideal CT images. It can be seen that the proposed method can reduce the overall intensity error compared to other methods, therefore, achieves better visual performance.
To further evaluate the effectiveness of the proposed method compared to other’s deep learning methods, statistical significance testing is conducted on each method. In particular, we compared the PSNR and SSIM results between the proposed method and other deep learning-based methods to see whether there was a significant difference. The process of significance testing is as follows:
Suppose that n pairs of results { ( X 1 , Y 1 ) , , ( X i , Y i ) , , ( X n , Y n ) } are independent, where X i is the PSNR result of the proposed method on the ith test image and Y i is the PSNR result of the compared method on the ith test image. Then, { D 1 , , D i , D n } are independent and can be considered to be from the same distribution, where D i = X i Y i . Assuming that D i ~ ( μ D ,   σ D 2 ) ,   i = 1 , , n follows a normal distribution, the two-sided null hypothesis H 0 is that there is no difference in the PSNR result between the proposed method and the compared method. Therefore, the null hypothesis H 0 and the alternative hypothesis H a can be formulated as follows:
H 0 :   μ D = 0   , H a : μ D 0
Then, the significance test is known as the t-test [45] and the test statistic t is computed as follows:
t = d ¯ s D / n
where d ¯ and s D are the mean and the standard deviation of { D 1 , , D i , D n } . The p-Value p is calculated by
p = 2 × t c d f ( | t | )
where t c d f ( · ) represents the cumulative distribution function of the t-distribution [45]. We can use t and p to evaluate the difference between the proposed method and the compared method. The null hypothesis H 0 is rejected if the t-score is in the critical region or the p-Value is less than a predetermined level. The procedure for the significance testing of the SSIM result is the same as the above. Only at this time is X i is the SSIM result of the proposed method on the ith test image and Y i is the SSIM result of the compared method on the ith test image.
We performed statistical significance testing on different deep learning-based reconstruction methods on test datasets with 1000 images. Given a significance level α = 0.005 , the p-Values of these methods are all smaller than 1.0 × 10 16 , indicating that we reject H 0 in favor of H a . Table 4 shows the t-score results of these methods. t_psnr and t_ssim represent the t-score of the PSNR result and SSIM result, respectively. It can be seen that DD-Net and DD-Net+ have relatively small t-scores compared to other methods, while Improved GoogLeNet, Improved GoogLeNet+, Tight frame U-Net and Tight frame U-Net+ have relatively large t-scores on all test datasets. In order to further analyze the differences between these methods, Figure 10 shows the t-scores of these methods on the test datasets. Given a significance level α = 0.005 , the critical region is | t | 2.8133 (outside of the yellow region in the figure). It can be seen that the t-scores of all the compared methods are in the critical region of all 60 views, 120 views and 240 views’ test datasets, therefore, the null hypothesis H 0 is rejected at the chosen level of significance α . Tight frame U-Net+ and Tight frame U-Net+ has the worst performance results. Improved GoogLeNet+ has a fluctuating performance on the test datasets of 60 views, 120 views and 240 views. On the other hand, RED-CNN, RED-CNN+, DD-Net, DD-Net+ have relatively stable results on all datasets but are still in the critical region.

3.3. Ablation Study

To investigate the effect of the proposed frequency-domain module, we designed two model variants—NDM and DM. Compared to our frequency-domain module, DM discards the frequency-attention block and NDM further does not use the DCT weights to initialize the DCT layer and IDCT layer. To make a fair comparison, NDM and DM were trained using the same strategies as our frequency domain module. The average PSNR results on the validation dataset during the training process are plotted in Figure 11a, where FDM* denotes the proposed frequency-domain module without the final overall training. Table 5 also illustrates the quantitative results. It can be seen that FDM* outperforms DM in terms of PSNR, indicating that the frequency-attention block is beneficial in tackling CT images with multiple degradation levels and achieve desirable performance in intensity recovery. FDM* also has an advantage in PSNR compared to NDM which demonstrates that learning in the frequency domain is more suitable for understanding the characteristics’ information of the degradation level and yield appealing reconstruction results.
To explore the effect of the spatial-attention block, we design a comparison model No_image_domain, which only retains the frequency-domain module and the refining block. In the training phase, we pre-train these two modules, respectively, and then conduct overall training of all parameters. The average SSIM values of all the CT images in the validation dataset are plotted in Figure 11b. Table 6 also illustrates the quantitative results. Our method achieves better results in terms of SSIM on the validation datasets which illustrates that the spatial-attention block has the advantage of preserving structural details and textural features.

3.4. Network Parameter Tuning

There are several parameters that need to be optimized in the reconstruction block, spatial-attention block and refining block. Figure 12a displays the average PSNR results of images in the validation dataset during the training of the reconstruction block. In this figure, c16_k5 represents a reconstruction block with 16 feature maps and convolution kernels of size 5. It can be clearly seen that the PSNR increases considerably from c16 to c32, while a large kernel size k5 has little improvements on PSNR. Therefore, we construct the reconstruction block with parameter c32_k3.
For the number of channels in the spatial-attention block, we change this parameter into three values: 8, 16 and 32. The validation loss during the training of the spatial-attention block is shown in Figure 12b. It can be seen that as the number of channels increases from 8 to 32, the performance becomes better. Considering the trade-off of the model size and the reconstruction performance, value 16 was selected as the number of channels in the proposed spatial-attention block.
As for the refining block, we conducted three variant models with a different number of ResBlocks: 5, 6 and 7. Figure 12c displays the SSIM results of these models during the training phase. It can be seen that all models have a similar performance after convergence, however, and the network with seven ResBlocks has the overall largest SSIM result, followed by the model with six ResBlocks and the SSIM result of the network with five ResBlocks is relatively lower than the others. Therefore, considering the trade-off of the model size and the reconstruction performance, we determined this parameter as six in our proposed network.

4. Discussion

In this study, we developed a single deep learning-based framework to improve the performance of sparse-view CT reconstruction on multiple degradation levels. Previous deep learning-based methods fail to achieve satisfactory results on different degradation levels due to the training on a single degradation level. Inspired by the distinctive frequency features of different degradation levels, as shown in Figure 1, the proposed framework was trained on datasets with different degradation levels, particularly, a frequency-domain module and an image-domain module were devised to improve the effectiveness of the deep learning network.
Experimental results shown in Figure 6 indicate that the proposed frequency-attention block was able to capture the characteristics of a different degradation level in the frequency domain. This result coincides with the previous conclusion of Figure 1, which demonstrates that the frequency-attention block is able to differentiate degradation levels and adaptively adjust the frequency-attention-map to better guide the reconstruction block. In addition, as shown in Figure 7, the spatial-attention block can sense the specificity of different degradation levels in the image domain, and give the pixels that should be focused on the later reconstruction to further map the ground truth image.
As for the reconstruction performance results in Table 2, both non-deep learning methods FBP and SIRT performed worse than deep learning methods, indicating that supervised learning can better learn the prior distribution of real CT images, which is beneficial for solving the inverse problem. However, the performance of the previous deep learning models degrades due to the gap in the degradation level between the training datasets and test datasets. One reasonable explanation is that these methods do not manually include degradation knowledge as a priori or as degradation-aware modules especially designed to explicitly learn degradation levels. Directly expanding the dataset with all degradation levels may produce a rather compromising result. This method of letting the network learn degradation priori implicitly without improvements in model design produces unstable effects. Therefore, it is promising for future work to design more efficient and robust degradation-aware modules.
With the explicit learning of degradation levels in both the frequency and image domain, our method outperforms all the deep learning-based methods in terms of different degradation levels and body parts, as well as achieves a satisfactory trade-off between the size of the network and the performance (Table 1). Moreover, the statistical significance of the testing results (Table 4 and Figure 10) demonstrates that the differences in the PSNR and SSIM results between the proposed method and other methods are statistically significant. In addition, our method achieves better visual results with more textual structure details and less reconstruction error (Figure 8 and Figure 9).
In addition, the advantage of our model lies in its extensibility. In the context of more degradation levels, the parameters of Red-CNN+ and DD-NET+ will increase exponentially, while the parameters of our model do not need to increase, as only the degradation species of the dataset needs to be extended, which makes our model more advantageous in practice.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/tomography7040077/s1, Table S1: The parameters of the spatial-attention block.

Author Contributions

Conceptualization: C.S. and Y.L.; methodology: C.S.; software: C.S.; validation: C.S., Y.L. and H.Y.; formal analysis: C.S.; investigation: C.S.; resources: Y.L.; data curation: Y.L.; writing—original draft preparation: C.S.; writing—review and editing: H.Y.; visualization: C.S.; supervision: Y.L.; project administration: H.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The pretrained model is available at https://github.com/sunchang2017/degradation-aware-sparse-CT-reconstruction (accessed on 20 October 2021).

Acknowledgments

The head CT images used in this publication were generated by the National Cancer Institute Clinical Proteomic Tumor Analysis Consortium (CPTAC).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. De Chiffre, L.; Carmignato, S.; Kruth, J.P.; Schmitt, R.; Weckenmann, A. Industrial Applications of Computed Tomography. CIRP Annals. 2014, 63, 655–677. [Google Scholar] [CrossRef]
  2. Brenner, D.J.; Hall, E.J. Computed Tomography—An Increasing Source of Radiation Exposure. N. Engl. J. Med. 2007, 357, 2277–2284. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Balda, M.; Hornegger, J.; Heismann, B. Ray Contribution Masks for Structure Adaptive Sinogram Filtering. IEEE Trans. Med. Imaging 2012, 31, 1228–1239. [Google Scholar] [CrossRef] [PubMed]
  4. Manduca, A.; Yu, L.; Trzasko, J.D.; Khaylova, N.; Kofler, J.M.; McCollough, C.M.; Fletcher, J.G. Projection Space Denoising with Bilateral Filtering and CT Noise Modeling for Dose Reduction in CT. Med. Phys. 2009, 36, 4911–4919. [Google Scholar] [CrossRef] [PubMed]
  5. Boudjelal, A.; Elmoataz, A.; Attallah, B.; Messali, Z. A Novel Iterative MLEM Image Reconstruction Algorithm Based on Beltrami Filter: Application to ECT Images. Tomography 2021, 7, 286–300. [Google Scholar] [CrossRef]
  6. Aharon, M.; Elad, M.; Bruckstein, A. K-SVD: An Algorithm for Designing Overcomplete Dictionaries for Sparse Representation. IEEE Trans. Signal Process. 2006, 54, 4311–4322. [Google Scholar] [CrossRef]
  7. Lee, H.; Lee, J.; Cho, S. View-Interpolation of Sparsely Sampled Sinogram Using Convolutional Neural Network. In Medical Imaging 2017: Image Processing, Proceedings of the International Society for Optics and Photonics, Orlando, FL, USA, 12–14 February 2017; SPIE: Bellingham, WA, USA, 2017; Volume 10133, p. 1013328. [Google Scholar]
  8. Gordon, R.; Bender, R.; Herman, G.T. Algebraic Reconstruction Techniques (Art) for Three-Dimensional Electron Microscopy and X-ray Photography. J. Theor. Biol. 1970, 29, 471–481. [Google Scholar] [CrossRef]
  9. Andersen, A.H.; Kak, A.C. Simultaneous Algebraic Reconstruction Technique (SART): A Superior Implementation of the ART Algorithm. Ultrason. Imaging 1984, 6, 81–94. [Google Scholar] [CrossRef]
  10. Trampert, J.; Leveque, J.J. Simultaneous Iterative Reconstruction Technique: Physical Interpretation Based on the Generalized Least Squares Solution. J. Geophys. Res.: Sol. Earth 1990, 95, 12553–12559. [Google Scholar] [CrossRef]
  11. Candès, E.J.; Romberg, J.; Tao, T. Robust Uncertainty Principles: Exact Signal Reconstruction from Highly Incomplete Frequency Information. IEEE Trans. Inf. Theor. 2006, 52, 489–509. [Google Scholar] [CrossRef] [Green Version]
  12. Donoho, D.L. Compressed Sensing. IEEE Trans. Inf. Theor. 2006, 52, 1289–1306. [Google Scholar] [CrossRef]
  13. Sidky, E.Y.; Kao, C.M.; Pan, X. Accurate Image Reconstruction from Few-Views and Limited-Angle Data in Divergent-Beam CT. J. X-Ray Sci. Tech. 2006, 14, 119–139. [Google Scholar]
  14. Tian, Z.; Jia, X.; Yuan, K.; Pan, T.; Jiang, S.B. Low-Dose Ct Reconstruction via Edge-Preserving Total Variation Regularization. Phys. Med. Biol. 2011, 56, 5949. [Google Scholar] [CrossRef] [PubMed]
  15. Liu, Y.; Ma, J.; Fan, Y.; Liang, Z. Adaptive-Weighted Total Variation Minimization for Sparse Data Toward Low-Dose X-Ray Computed Tomography Image Reconstruction. Phys. Med. Biol. 2012, 57, 7923. [Google Scholar] [CrossRef]
  16. Chen, Y.; Gao, D.; Nie, C.; Luo, L.; Chen, W.; Yin, X.; Lin, Y. Bayesian Statistical Reconstruction for Low-Dose X-Ray Computed Tomography Using an Adaptive-Weighting Nonlocal Prior. Comput. Med. Imaging Gr. 2009, 33, 495–500. [Google Scholar] [CrossRef]
  17. Ma, J.; Zhang, H.; Gao, Y.; Huang, J.; Liang, Z.; Feng, Q.; Chen, W. Iterative Image Reconstruction for Cerebral Perfusion CT Using a Pre-Contrast Scan Induced Edge-Preserving Prior. Phys. Med. Biol. 2012, 57, 7519. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, Y.; Xi, Y.; Yang, Q.; Cong, W.; Zhou, J.; Wang, G. Spectral CT Reconstruction with Image Sparsity and Spectral Mean. IEEE Trans. Comput. Imaging. 2016, 2, 510–523. [Google Scholar] [CrossRef] [Green Version]
  19. Cai, J.F.; Jia, X.; Gao, H.; Jiang, S.; Shen, Z.; Zhao, H. Cine Cone Beam CT Reconstruction Using Low-Rank Matrix Factorization: Algorithm and a Proof-of-Principle Study. IEEE Trans. Med. Imaging 2014, 33, 1581–1591. [Google Scholar] [CrossRef]
  20. Dabov, K.; Foi, A.; Katkovnik, V.; Egiazarian, K. Image Denoising by Sparse 3-D Transform-Domain Collaborative Filtering. IEEE Trans. Image Process. 2007, 16, 2080–2095. [Google Scholar] [CrossRef]
  21. Ma, J.; Huang, J.; Feng, Q.; Zhang, H.; Lu, H.; Liang, Z.; Chen, W. Low-Dose Computed Tomography Image Restoration Using Previous Normal-Dose Scan. Med. Phys. 2011, 38, 5713–5731. [Google Scholar] [CrossRef] [Green Version]
  22. Lauzier, P.T.; Chen, G.H. Characterization of Statistical Prior Image Constrained Compressed Sensing (PICCS): II. Application to Dose Reduction. Med. Phys. 2013, 40, 021902. [Google Scholar] [CrossRef] [Green Version]
  23. Madesta, F.; Sentker, T.; Gauer, T.; Werner, R. Self-Contained Deep Learning-Based Boosting of 4D Cone-Beam CT Reconstruction. Med. Phys. 2020, 47, 5619–5631. [Google Scholar] [CrossRef]
  24. Zhang, Z.; Liang, X.; Dong, X.; Xie, Y.; Cao, G. A Sparse-View CT Reconstruction Method Based on Combination of DenseNet and Deconvolution. IEEE Trans. Med. Imaging 2018, 37, 1407–1417. [Google Scholar] [CrossRef]
  25. Chen, H.; Zhang, Y.; Kalra, M.K.; Lin, F.; Chen, Y.; Liao, P.; Zhou, J.; Wang, G. Low-Dose CT with a Residual Encoder-Decoder Convolutional Neural Network. IEEE Trans. Med. Imaging 2017, 36, 2524–2535. [Google Scholar] [CrossRef]
  26. Ronneberger, O.; Fischer, P.; Brox, T. U-Net: Convolutional Networks for Biomedical Image Segmentation. In Proceedings of the International Conference on Medical Image Computing and Computer-Assisted Intervention, Munich, Germany, 5–9 October 2015; Volume 1, pp. 234–241. [Google Scholar]
  27. Han, Y.; Ye, J.C. Framing U-Net via Deep Convolutional Framelets: Application to Sparse-View CT. IEEE Trans. Med. Imaging 2018, 37, 1418–1429. [Google Scholar] [CrossRef] [Green Version]
  28. Xie, S.; Zheng, X.; Chen, Y.; Xie, L.; Liu, J.; Zhang, Y.; Yan, J.; Zhu, H.; Hu, Y. Artifact Removal Using Improved GoogLeNet for Sparse-View CT Reconstruction. Sci. Rep. 2018, 8, 1–9. [Google Scholar]
  29. Clark, K.; Vendt, B.; Smith, K.; Freymann, J.; Kirby, J.; Koppel, P.; Moore, S.; Phillips, S.; Maffitt, D.; Pringle, M.; et al. The Cancer Imaging Archive (TCIA): Maintaining and operating a public information repository. J. Digit. Imaging 2013, 26, 1045–1057. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Roth, H.; Lu, L.; Seff, A.; Cherry, K.M.; Hoffman, J.; Wang, S.; Liu, J.; Turkbey, E.; Summers, R.M. A New 2.5 D Representation for Lymph Node Detection in CT [Dataset]. The Cancer Imaging Archive. Available online: https://wiki.cancerimagingarchive.net/display/Public/CT+Lymph+Nodes (accessed on 8 April 2021). [CrossRef]
  31. Wu, H.; Huang, J. Secure JPEG Steganography by LSB+ Matching and Multi-Band Embedding. In Proceedings of the 18th IEEE International Conference on Image Processing (ICIP 2011), Brussels, Belgium, 11–14 September 2011; Volume 1, pp. 2737–2740. [Google Scholar]
  32. Hu, J.; Shen, L.; Sun, G. Squeeze-and-Excitation Networks. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR 2018), Salt Lake City, UT, USA, 18–22 June 2018; Volume 1, pp. 7132–7141. [Google Scholar]
  33. Zhang, X.; Wu, X. Attention-Guided Image Compression by Deep Reconstruction of Compressive Sensed Saliency Skeleton. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR 2018), Salt Lake City, UT, USA, 18–22 June 2018; Volume 1, pp. 13354–13364. [Google Scholar]
  34. Kinahan, P.; Muzi, M.; Bialecki, B.; Coombs, L. Data from ACRIN-FMISO-Brain [Dataset]. The Cancer Imaging Archive. Available online: https://wiki.cancerimagingarchive.net/pages/viewpage.action?pageId=33948305 (accessed on 18 February 2021). [CrossRef]
  35. National Cancer Institute Clinical Proteomic Tumor Analysis Consortium (CPTAC). (2018). Radiology Data from the Clinical Proteomic Tumor Analysis Consortium Head and Neck Squamous Cell Carcinoma [CPTAC-HNSCC] Collection [Dataset]. The Cancer Imaging Archive. Available online: https://wiki.cancerimagingarchive.net/display/Public/CPTAC-HNSCC (accessed on 3 November 2021). [CrossRef]
  36. Lucchesi, F.R.; Aredes, N.D. Radiology Data from The Cancer Genome Atlas Esophageal Carcinoma [TCGA-ESCA] Collection [Dataset]. The Cancer Imaging Archive. Available online: https://wiki.cancerimagingarchive.net/display/Public/TCGA-ESCA (accessed on 3 June 2020). [CrossRef]
  37. Wang, J.; Li, T.; Lu, H.; Liang, Z. Penalized Weighted Least-Squares Approach to Sinogram Noise Reduction and Image Reconstruction for Low-Dose X-Ray Computed Tomography. IEEE Trans. Med. Imaging. 2006, 25, 1272–1283. [Google Scholar] [CrossRef] [PubMed]
  38. Defrise, M.; Vanhove, C.; Liu, X. An Algorithm for Total Variation Regularization in High-Dimensional Linear Problems. Inverse Probl. 2011, 27, 065002. [Google Scholar] [CrossRef]
  39. Lasio, G.M.; Whiting, B.R.; Williamson, J.F. Statistical Reconstruction for X-Ray Computed Tomography Using Energy-Integrating Detectors. Phys. Med. Biol. 2007, 52, 2247. [Google Scholar] [CrossRef]
  40. Adler, J.; Kohr, H.; Oktem, O. Operator Discretization Library (ODL). Software. Available online: https://github.com/odlgroup/odl (accessed on 2 September 2016).
  41. Hui, Z.; Wang, X.; Gao, X. Fast and Accurate Single Image Super-Resolution via Information Distillation Network. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, 2018 (CVPR 2018), Salt Lake City, UT, USA, 18–22 June 2018; Volume 1, pp. 723–731. [Google Scholar]
  42. Lim, B.; Son, S.; Kim, H.; Nah, S.; Lee, K.M. Enhanced Deep Residual Networks for Single Image Super-Resolution. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition Workshops, Honolulu, HI, USA, 21–26 July 2017; (CVPR Workshops, 2017). Volume 1, pp. 136–144. [Google Scholar]
  43. Paszke, A.; Gross, S.; Chintala, S.; Chanan, G.; Yang, E.; DeVito, Z.; Lin, Z.; Desmaison, A.; Antiga, L.; Lerer, A. Automatic Differentiation in PyTorch. In Proceedings of the International Conference on Neural Information Processing Systems Workshop: The Future of Gradient-based Machine Learning Software and Techniques, Long Beach, CA, USA, 4–9 December 2017. [Google Scholar]
  44. Kingma, D.P.; Ba, J. Adam: A Method for Stochastic Optimization. arXiv 2014, arXiv:1412.6980. [Google Scholar]
  45. Walpole, R.E.; Myers, R.H.; Myers, S.L.; Ye, K.E. Probability and Statistics for Engineers and Scientists, 7th ed.; Pearson: New Delhi, India, 2006. [Google Scholar]

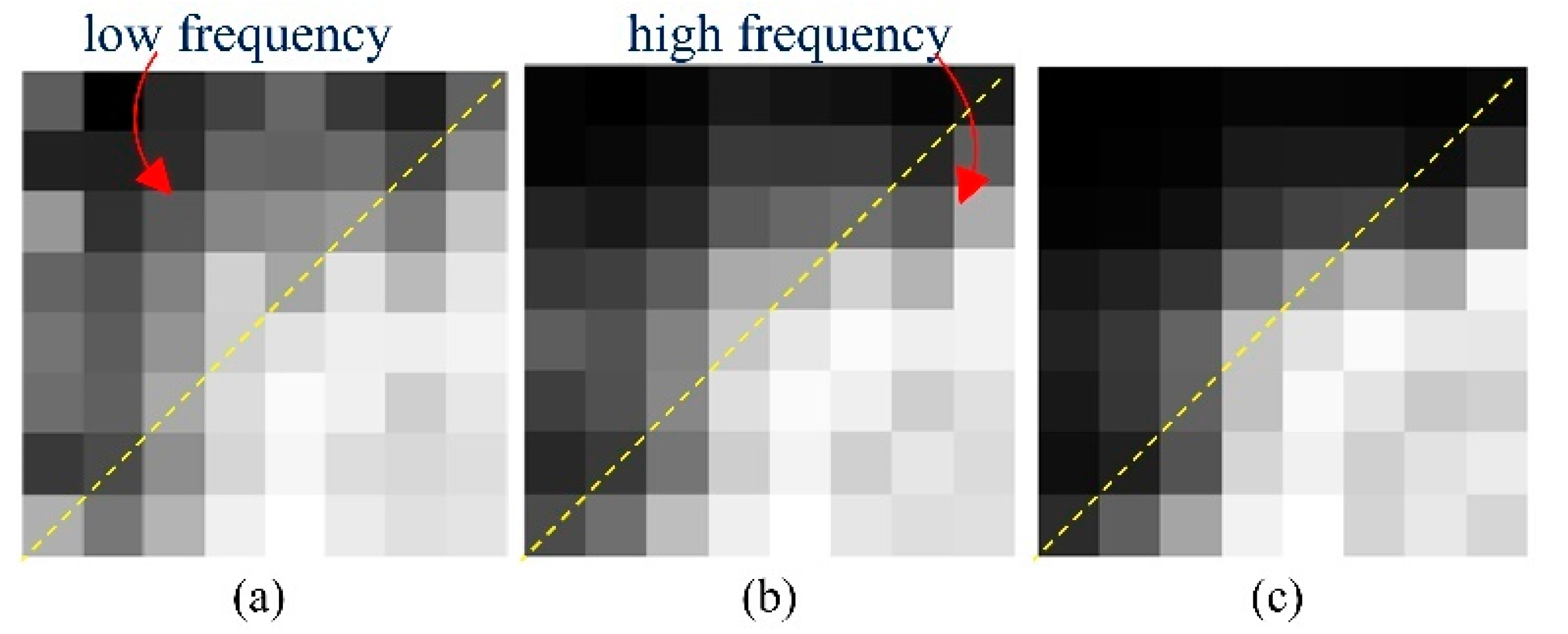

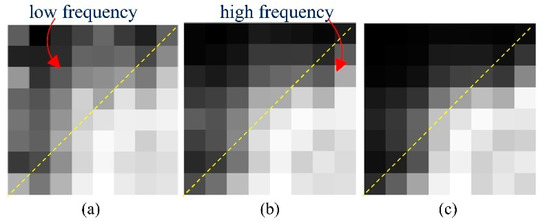

Figure 1. Average reconstruction error of 64 DCT frequencies with different degradation levels. Each pixel represents the MSE between FBP reconstruction and the ideal CT image at the corresponding frequency. The 300 evaluated images were selected from The Cancer Imaging Archive [29,30] for different body parts: (a) reconstruction error of 60 views; (b) reconstruction error of 120 views; and (c) reconstruction error of 240 views.
Figure 1. Average reconstruction error of 64 DCT frequencies with different degradation levels. Each pixel represents the MSE between FBP reconstruction and the ideal CT image at the corresponding frequency. The 300 evaluated images were selected from The Cancer Imaging Archive [29,30] for different body parts: (a) reconstruction error of 60 views; (b) reconstruction error of 120 views; and (c) reconstruction error of 240 views.
Tomography 07 00077 g001

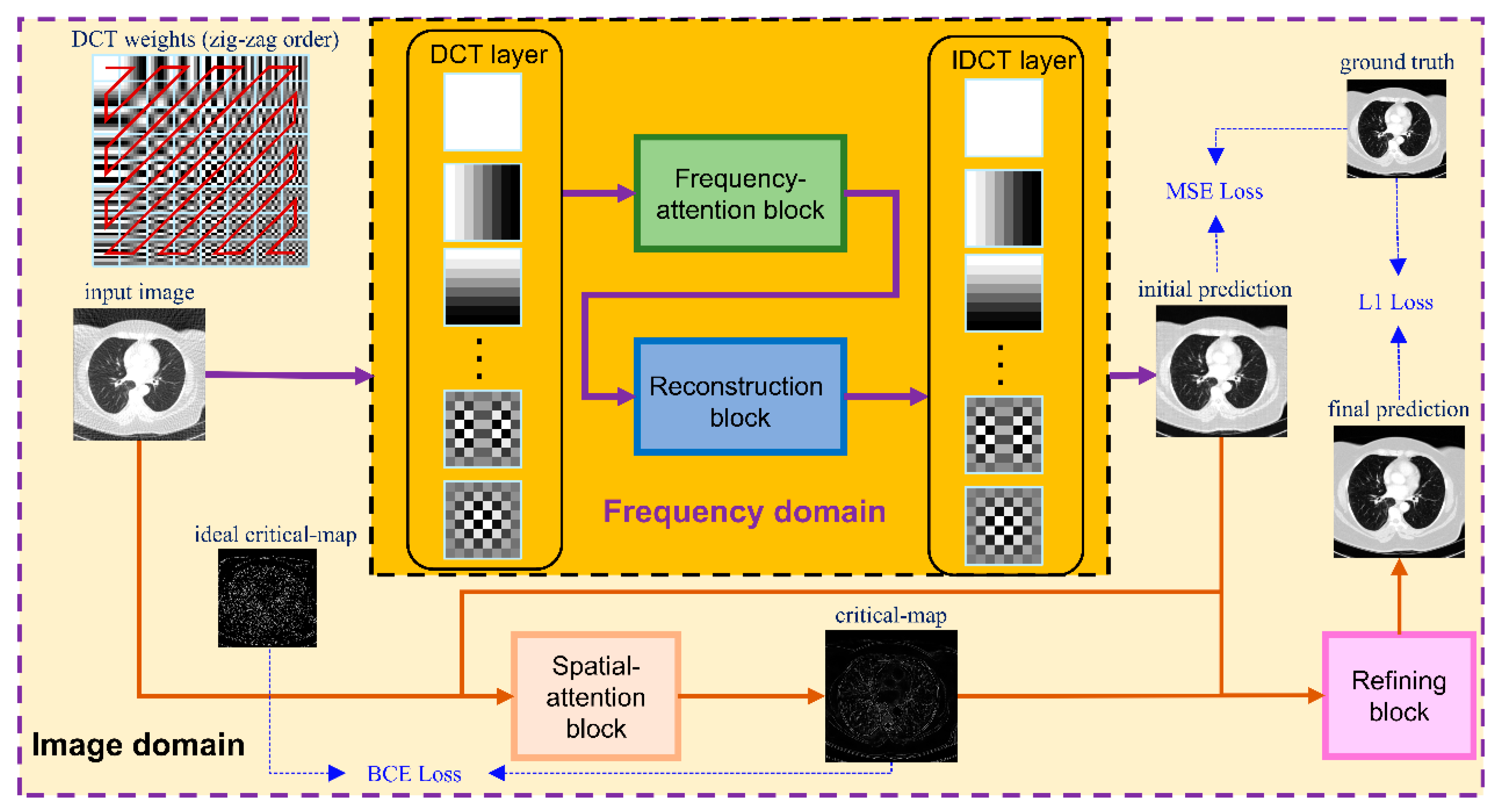

Figure 2. Proposed framework. The whole network contains two modules—one in the frequency domain and one in the image domain. The input image is first deposed into 64 frequency components by a DCT layer and then passes through a frequency-attention block and a reconstruction block. After that, the initial prediction of the ideal CT image is produced by an IDCT layer and is sent to a spatial-attention block in the image domain together with the input image. The output of the spatial-attention block is a critical-map, which is used for the guidance of refining the block to finally predict the ideal image.
Figure 2. Proposed framework. The whole network contains two modules—one in the frequency domain and one in the image domain. The input image is first deposed into 64 frequency components by a DCT layer and then passes through a frequency-attention block and a reconstruction block. After that, the initial prediction of the ideal CT image is produced by an IDCT layer and is sent to a spatial-attention block in the image domain together with the input image. The output of the spatial-attention block is a critical-map, which is used for the guidance of refining the block to finally predict the ideal image.
Tomography 07 00077 g002

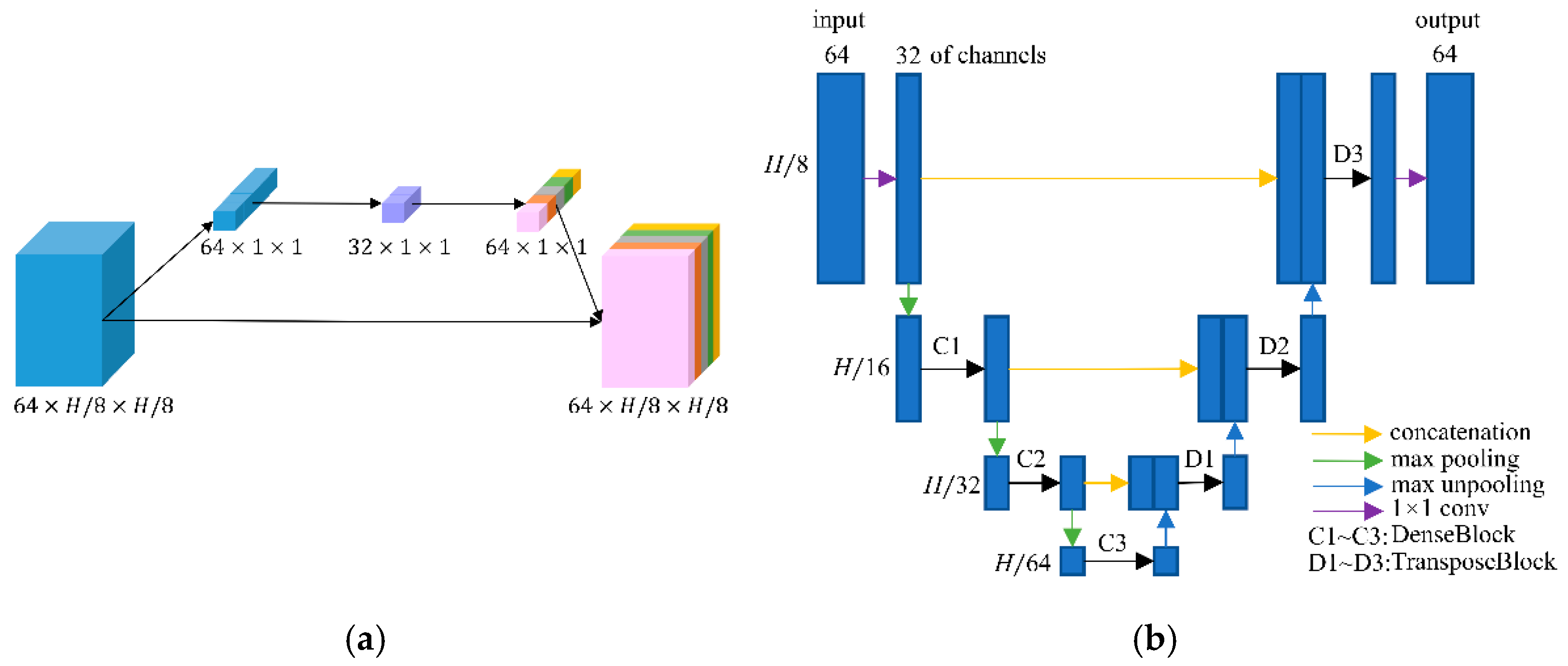

Figure 3. (a) Network structure of the frequency-attention block; and (b) network structure of the reconstruction block.
Figure 3. (a) Network structure of the frequency-attention block; and (b) network structure of the reconstruction block.
Tomography 07 00077 g003

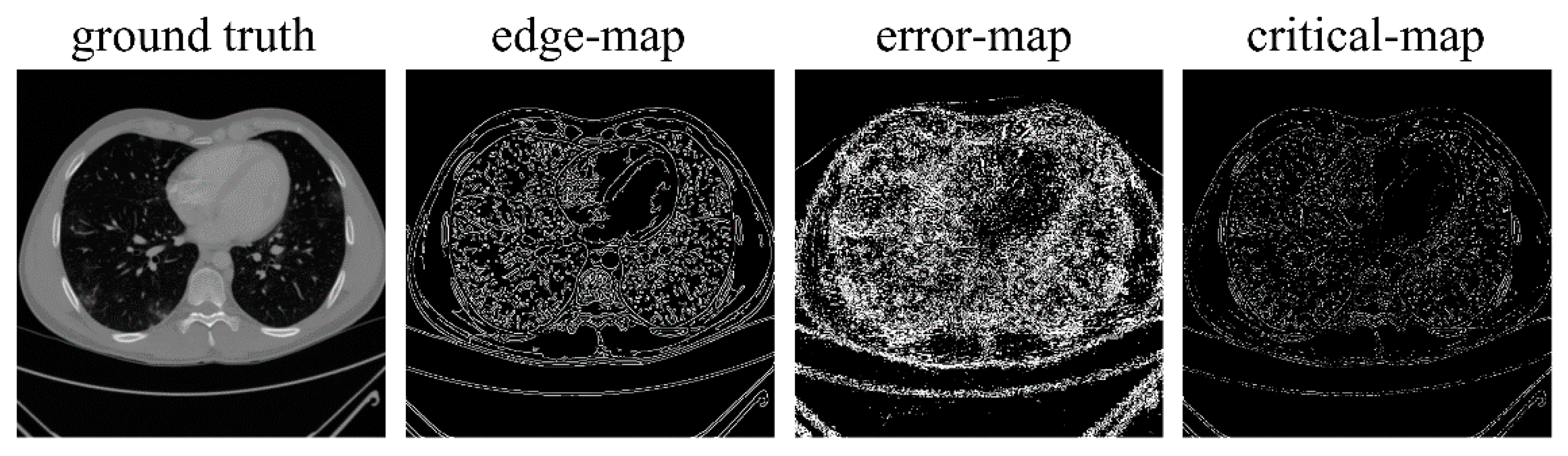

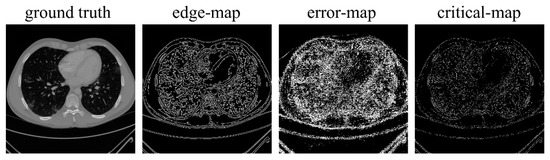

Figure 4. Examples of the ground-truth image, edge-map, error-map and ideal critical-map.
Figure 4. Examples of the ground-truth image, edge-map, error-map and ideal critical-map.
Tomography 07 00077 g004

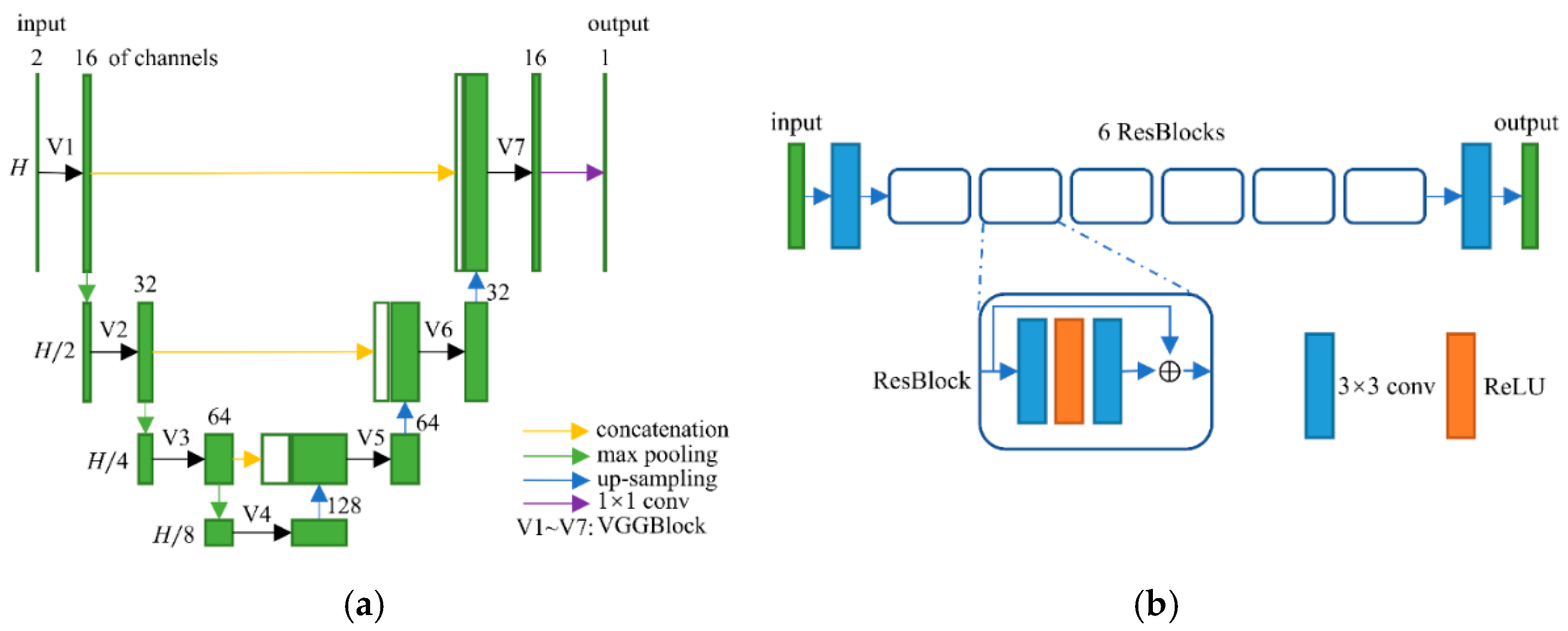

Figure 5. (a) Network structure of the spatial-attention block; and (b) network structure of the refining block.
Figure 5. (a) Network structure of the spatial-attention block; and (b) network structure of the refining block.
Tomography 07 00077 g005

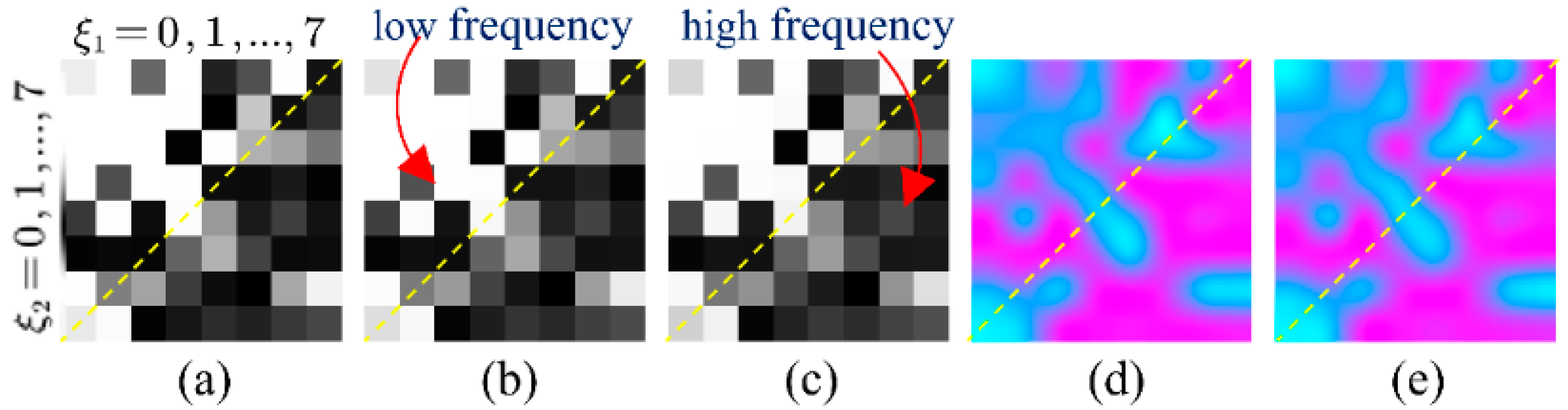

Figure 6. (a) Average frequency-attention-map on 60 views; (b) average frequency-attention-map on 120 views; (c) average frequency-attention-map on 240 views; (d) subtraction of average frequency-attention-map on 120 views and 60 views; and (e) subtraction of average frequency-attention-map on 120 views and 60 views. In (d,e), values greater than 0 are shown in pink and values less than 0 are shown in blue.
Figure 6. (a) Average frequency-attention-map on 60 views; (b) average frequency-attention-map on 120 views; (c) average frequency-attention-map on 240 views; (d) subtraction of average frequency-attention-map on 120 views and 60 views; and (e) subtraction of average frequency-attention-map on 120 views and 60 views. In (d,e), values greater than 0 are shown in pink and values less than 0 are shown in blue.
Tomography 07 00077 g006

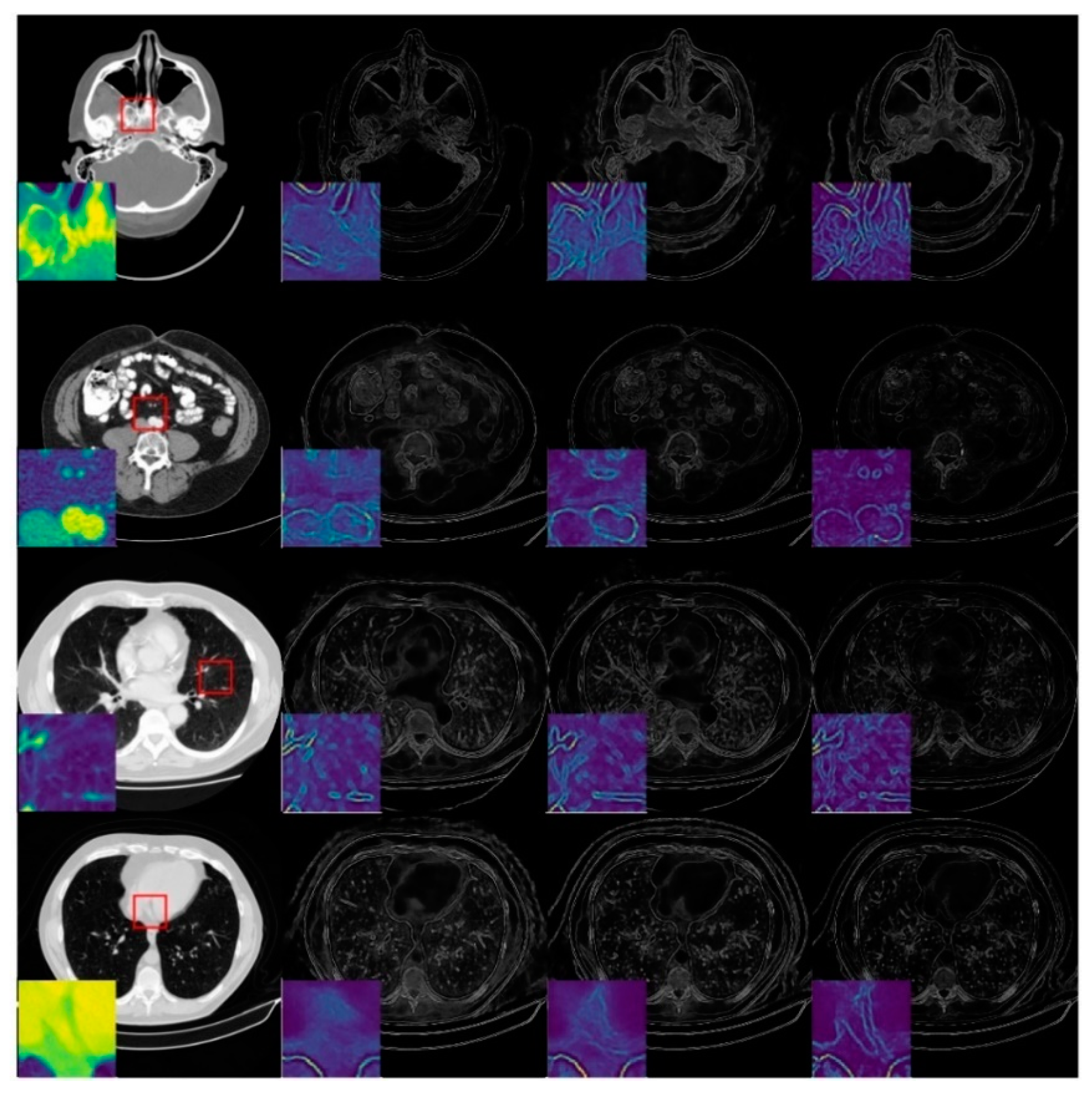

Figure 7. Examples of predicted critical-maps at 60 views, 120 views and 240 views.
Figure 7. Examples of predicted critical-maps at 60 views, 120 views and 240 views.
Tomography 07 00077 g007

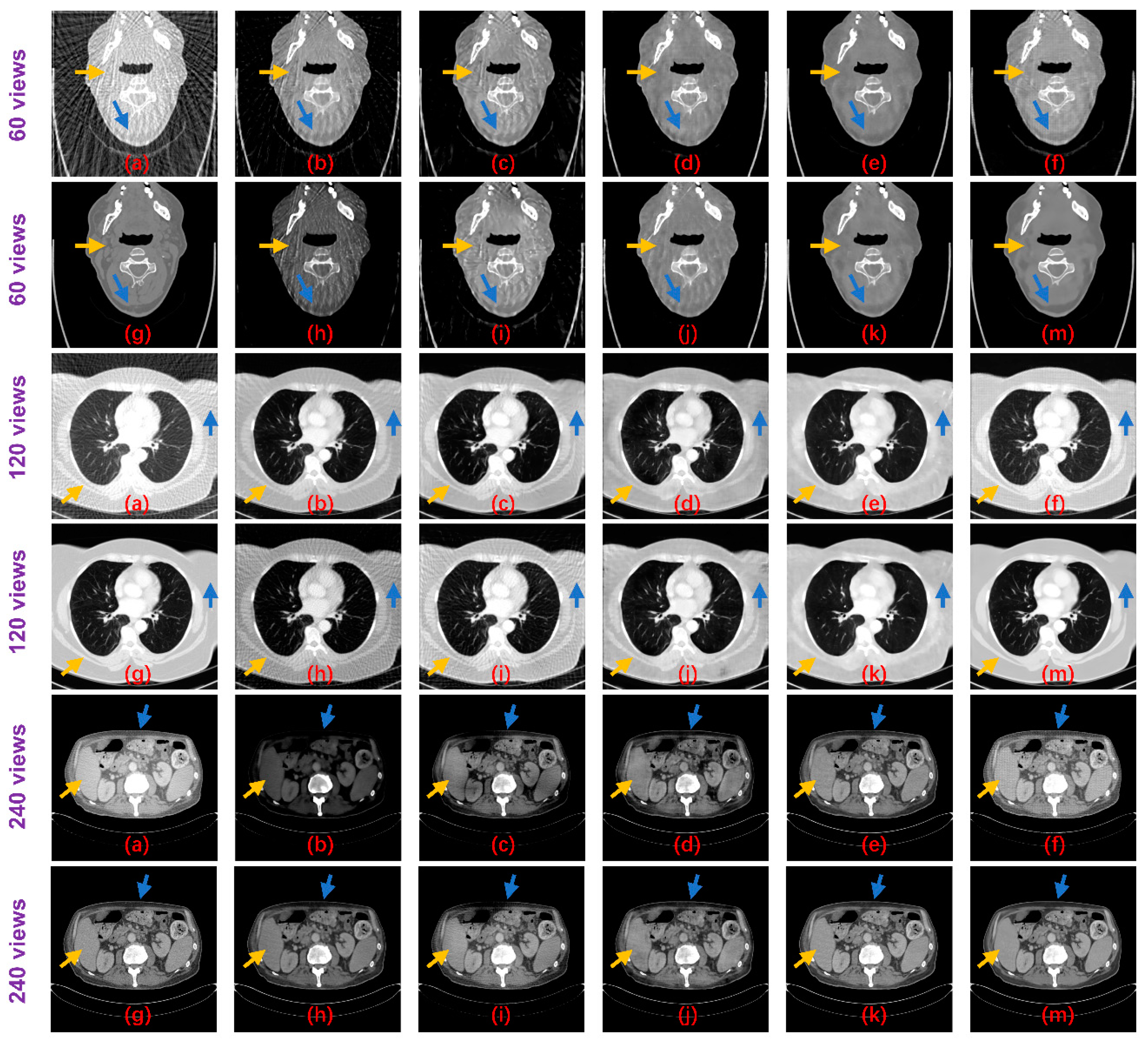

Figure 8. Result images of the proposed method and the compared algorithms (blue and yellow arrows point out the detailed structural differences); (a) FBP; (b) Improved GoogLeNet; (c) Tight frame U-Net; (d) RED-CNN; (e) DD-Net; (f) frequency-domain module (FDM); (g) ground truth; (h) improved GoogLeNet+; (i) tight frame U-Net+; (j) RED-CNN+; (k) DD-Net+; and (m) ours.
Figure 8. Result images of the proposed method and the compared algorithms (blue and yellow arrows point out the detailed structural differences); (a) FBP; (b) Improved GoogLeNet; (c) Tight frame U-Net; (d) RED-CNN; (e) DD-Net; (f) frequency-domain module (FDM); (g) ground truth; (h) improved GoogLeNet+; (i) tight frame U-Net+; (j) RED-CNN+; (k) DD-Net+; and (m) ours.
Tomography 07 00077 g008

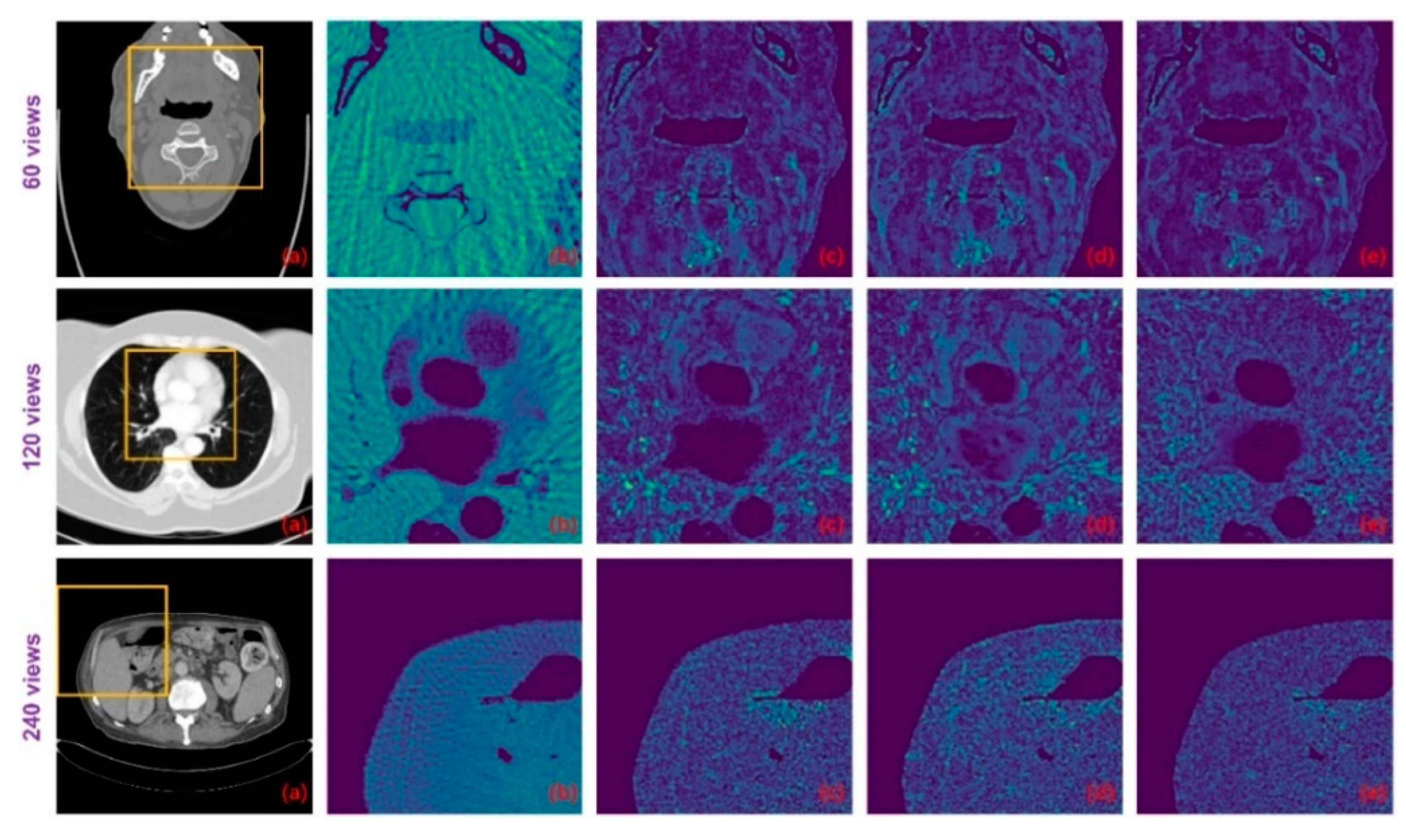

Figure 9. The difference images between the ground-truth CT images and the images resulting from different methods: (a) ground truth; (b) FBP; (c) DD-Net; (d) DD-Net+; and (e) ours.
Figure 9. The difference images between the ground-truth CT images and the images resulting from different methods: (a) ground truth; (b) FBP; (c) DD-Net; (d) DD-Net+; and (e) ours.
Tomography 07 00077 g009

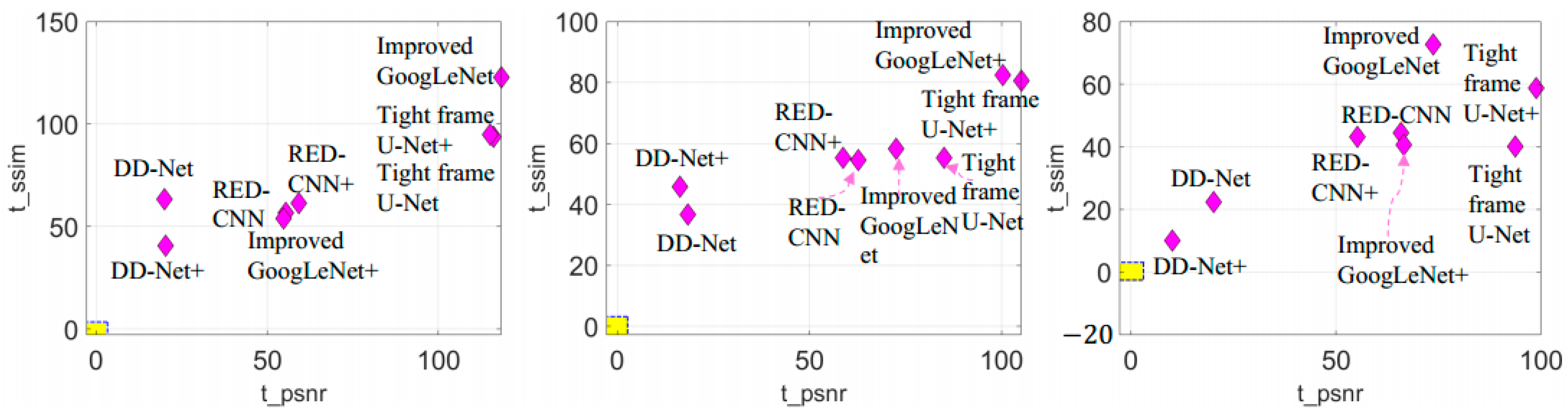

Figure 10. T-score of different deep learning-based reconstruction methods. t_psnr and t_ssim represent the t-score of the PSNR result and SSIM result, respectively. From left to right are the results of the test datasets of 60 views, 120 views and 240 views. Outside of the yellow area is the critical region (significance level α = 0.005 ).
Figure 10. T-score of different deep learning-based reconstruction methods. t_psnr and t_ssim represent the t-score of the PSNR result and SSIM result, respectively. From left to right are the results of the test datasets of 60 views, 120 views and 240 views. Outside of the yellow area is the critical region (significance level α = 0.005 ).
Tomography 07 00077 g010

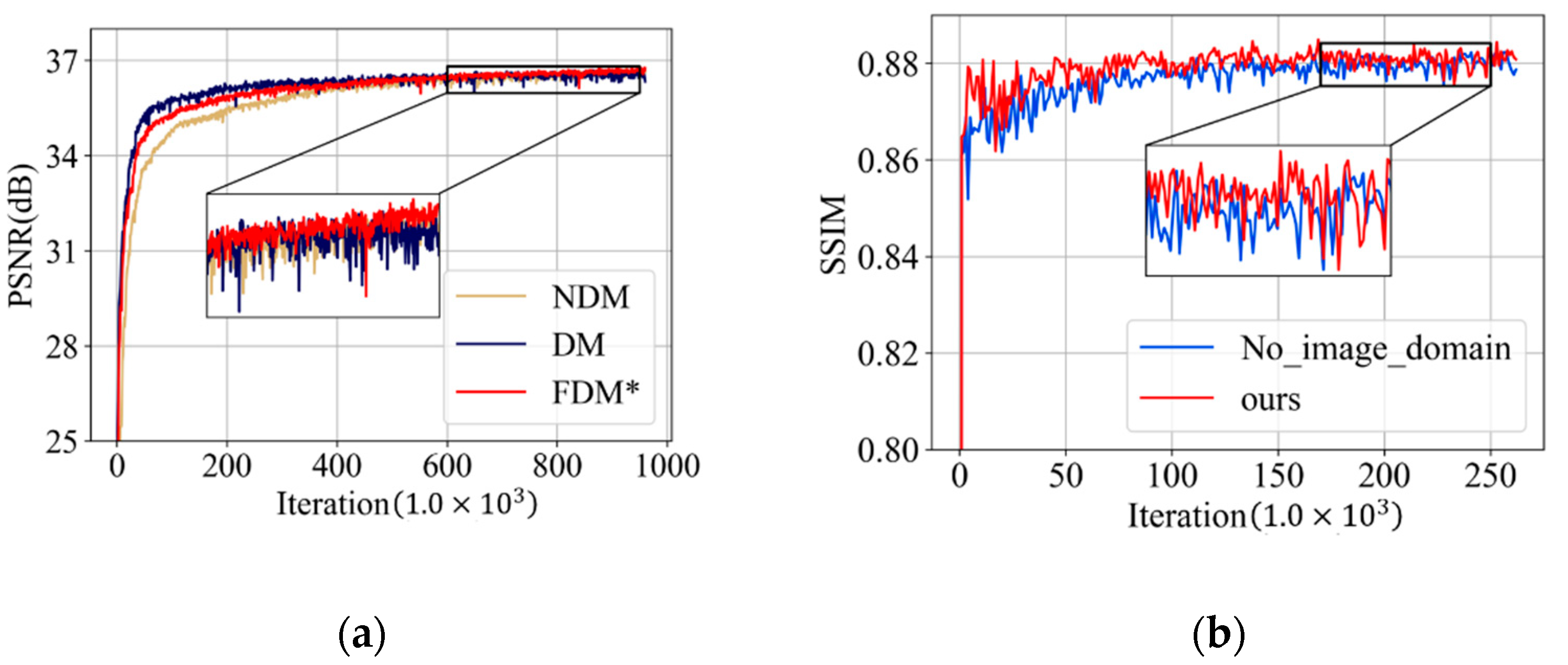

Figure 11. (a) PSNR (dB) results on the validation dataset of the ablation experiment on the frequency-domain module; and (b) SSIM results on the validation dataset of the ablation experiment on spatial-attention block.
Figure 11. (a) PSNR (dB) results on the validation dataset of the ablation experiment on the frequency-domain module; and (b) SSIM results on the validation dataset of the ablation experiment on spatial-attention block.
Tomography 07 00077 g011

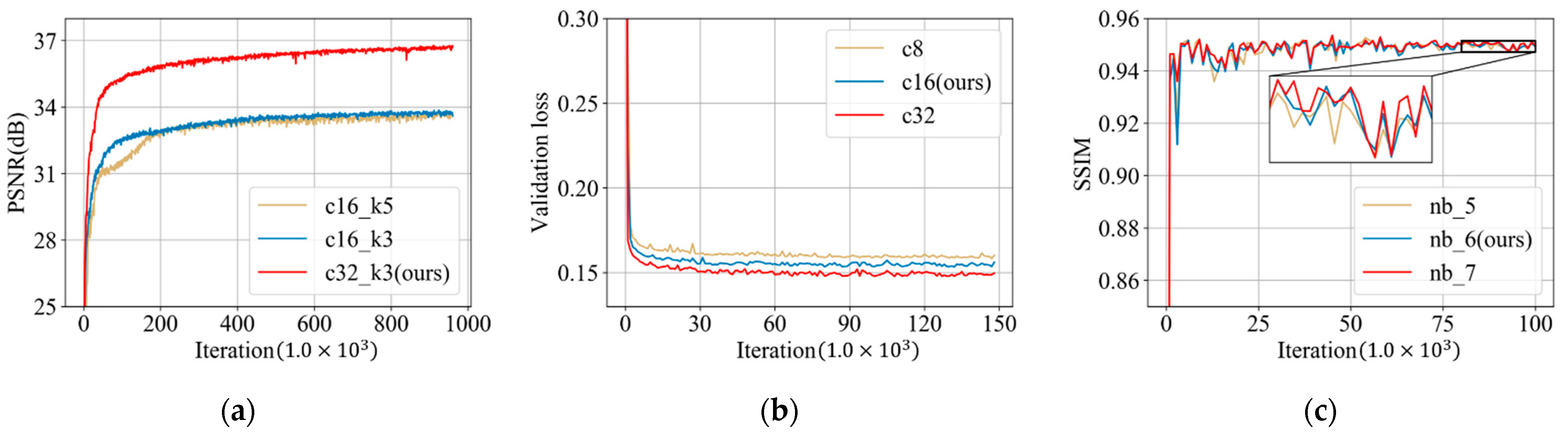

Figure 12. (a) PSNR (dB) results from the validation dataset during the training of the reconstruction block (c16_k5 represents a reconstruction block with 16 feature maps and convolution kernels of size 5); (b) loss on the validation dataset during the training of the spatial-attention block (c8 represents 8 channels in the spatial-attention block); and (c) SSIM results on the validation dataset during the training of refining block (nb_5 represents the refining block with 5 ResBlocks).
Figure 12. (a) PSNR (dB) results from the validation dataset during the training of the reconstruction block (c16_k5 represents a reconstruction block with 16 feature maps and convolution kernels of size 5); (b) loss on the validation dataset during the training of the spatial-attention block (c8 represents 8 channels in the spatial-attention block); and (c) SSIM results on the validation dataset during the training of refining block (nb_5 represents the refining block with 5 ResBlocks).
Tomography 07 00077 g012
Table 1. Number of parameters and computational cost of different deep learning-based methods.
Table 1. Number of parameters and computational cost of different deep learning-based methods.
MethodNumber of ParametersComputational Cost (per Image)
Improved GoogLeNet1.25 M0.0032 s
Tight frame U-Net31.42 M0.0034 s
RED-CNN1.85 M0.0010 s
DD-Net0.56 M0.0057 s
FDM0.92 M0.0050 s
Improved GoogLeNet+3.75 M0.0032 s
Tight frame U-Net+94.26 M0.0034 s
RED-CNN+5.55 M0.0010 s
DD-Net+1.68 M0.0057 s
ours1.63 M0.0062 s
Table 2. Quantitative results of PSNR (dB)/SSIM on different reconstruction algorithms. The best results on each dataset are marked in bold.
Table 2. Quantitative results of PSNR (dB)/SSIM on different reconstruction algorithms. The best results on each dataset are marked in bold.
ViewsBody PartFBPImproved GoogLeNetTight Frame U-NetRED-CNNDD-NetFDM
60Head15.9478/0.351621.6936/0.460725.0216/0.605131.0674/0.817135.4189/0.914733.8139/0.8088
Abdomen14.6239/0.397719.5052/0.488625.3207/0.690732.2187/0.876035.9957/0.923735.8076/0.9028
Lung15.7114/0.417721.1298/0.531525.1913/0.698130.2601/0.848133.9357/0.908033.4616/0.8532
Esophagus13.8681/0.342818.2902/0.417324.0947/0.629131.9415/0.844635.6552/0.922034.8013/0.8327
120Head20.5276/0.453632.3011/0.740034.5627/0.866634.5000/0.885939.4975/0.948836.5722/0.8386
Abdomen18.6596/0.494029.1715/0.705933.0186/0.903535.2896/0.921039.3417/0.949638.4492/0.9184
Lung20.0424/0.533329.9168/0.767131.6234/0.889433.0130/0.899037.0283/0.938836.7272/0.8877
Esophagus17.2796/0.428527.0452/0.605732.2867/0.863034.7532/0.890438.8522/0.951837.1417/0.8544
240Head26.5085/0.586532.4706/0.825536.7117/0.915037.1478/0.905242.6465/0.966038.4318/0.8443
Abdomen25.4890/0.636831.2142/0.848034.9420/0.946536.7007/0.938441.8674/0.965441.0545/0.9425
Lung25.6982/0.679129.5797/0.811333.2487/0.926335.1415/0.926039.1089/0.956038.6735/0.9058
Esophagus23.0284/0.551634.1418/0.852634.6916/0.915637.3571/0.909741.3469/0.968739.7422/0.8852
ViewsBody PartSARTImproved GoogLeNet+Tight Frame U-Net+RED-CNN+DD-Net+Ours
60Head23.4269/0.696428.0190/0.748625.8151/0.617631.4201/0.815835.5668/0.925636.0998/0.9421
Abdomen18.4496/0.638128.3975/0.740125.3411/0.675832.1736/0.868736.0104/0.933836.8327/0.9434
Lung17.1589/0.609727.2493/0.735425.6127/0.689930.1739/0.849033.7070/0.915234.9458/0.9291
Esophagus18.5389/0.652629.2958/0.711924.2923/0.617731.7161/0.838935.1918/0.929136.4700/0.9428
120Head28.6282/0.774830.8313/0.714330.0908/0.664535.4605/0.882439.5932/0.951740.2681/0.9630
Abdomen23.1838/0.733828.2309/0.670527.7061/0.696635.7323/0.918039.4556/0.952140.1679/0.9606
Lung21.6494/0.715827.6462/0.678928.7425/0.737233.3552/0.900937.1235/0.943338.3021/0.9525
Esophagus22.7435/0.733526.2278/0.573625.9611/0.619635.0883/0.897739.0283/0.955039.5306/0.9625
240Head34.5998/0.842435.8046/0.819934.5272/0.789038.4972/0.924243.3962/0.972743.8769/0.9755
Abdomen29.7504/0.825035.0612/0.850532.7387/0.828137.7709/0.948842.3253/0.971243.0279/0.9724
Lung27.7240/0.814133.6383/0.870431.9236/0.835335.7299/0.938539.9550/0.964140.7020/0.9670
Esophagus28.4788/0.811232.4359/0.736930.5312/0.747837.2861/0.935541.8500/0.974342.2515/0.9745
Table 3. Variability measures of the proposed method on the test dataset (at 95% confidence level).
Table 3. Variability measures of the proposed method on the test dataset (at 95% confidence level).
MetricViewsStandard DeviationConfidence Interval
PSNR60 3.0346(35.8188 ± 0.1883)
120 3.2308(39.2702 ± 0.2005)
240 3.5828(42.0365 ± 0.2223)
SSIM600.0214(0.9368 ± 0.0013)
1200.0181(0.9577 ± 0.0011)
2400.0164(0.9708 ± 0.0010)
Table 4. T-score of different deep learning-based reconstruction methods. t_psnr and t_ssim represent the t-score of the PSNR result and SSIM result, respectively.
Table 4. T-score of different deep learning-based reconstruction methods. t_psnr and t_ssim represent the t-score of the PSNR result and SSIM result, respectively.
Compared Method60 Views120 Views240 Views
t_psnrt_ssimt_psnrt_ssimt_psnrt_ssim
Improved GoogLeNet118.2965 122.8433 72.5626 58.2919 73.6602 72.7600
Tight frame U-Net116.1232 93.8206 85.0838 55.3261 93.7110 40.0548
RED-CNN55.4372 56.7843 62.7069 54.5588 65.8841 44.3951
DD-Net19.9694 63.3336 18.4503 36.6697 20.1678 22.4695
Improved
GoogLeNet+
54.7750 54.1022 100.2554 82.4739 66.5465 40.6918
Tight frame U-Net+115.1382 94.8125 105.0866 80.6470 98.7682 58.7093
RED-CNN+59.2286 61.5391 58.8350 55.3430 55.2423 43.2324
DD-Net+20.3308 40.7363 16.3571 45.8754 10.0287 10.1868
Table 5. Quantitative PSNR results of the ablation experiment on the frequency-domain module. FDM* denotes the proposed frequency-domain module without the final overall training. The best results on each dataset are marked in bold.
Table 5. Quantitative PSNR results of the ablation experiment on the frequency-domain module. FDM* denotes the proposed frequency-domain module without the final overall training. The best results on each dataset are marked in bold.
ViewsBody PartNDMDMFDM*
60Head32.856332.542533.7495
Abdomen32.844632.618835.6840
Lung32.925732.697833.1673
Esophagus32.819732.603733.7173
120Head35.732135.570436.5904
Abdomen35.817035.616238.1990
Lung35.626735.571036.1079
Esophagus35.717335.595336.1940
240Head37.694337.575938.4270
Abdomen37.905637.634440.3256
Lung37.696037.469438.2643
Esophagus37.685137.377438.1505
Table 6. Quantitative SSIM results of the ablation experiment’s spatial-attention block. The best results on each dataset are marked in bold.
Table 6. Quantitative SSIM results of the ablation experiment’s spatial-attention block. The best results on each dataset are marked in bold.
ViewsBody PartNo_Image_DomainOurs
60Head0.93960.9421
Abdomen0.94150.9434
Lung0.92680.9291
Esophagus0.94040.9428
120Head0.96190.9630
Abdomen0.95960.9606
Lung0.95100.9525
Esophagus0.96120.9625
240Head0.97510.9755
Abdomen0.97190.9724
Lung0.96600.9670
Esophagus0.97390.9745
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sun, C.; Liu, Y.; Yang, H. Degradation-Aware Deep Learning Framework for Sparse-View CT Reconstruction. Tomography 2021, 7, 932-949. https://doi.org/10.3390/tomography7040077

AMA Style

Sun C, Liu Y, Yang H. Degradation-Aware Deep Learning Framework for Sparse-View CT Reconstruction. Tomography. 2021; 7(4):932-949. https://doi.org/10.3390/tomography7040077

Chicago/Turabian Style

Sun, Chang, Yitong Liu, and Hongwen Yang. 2021. "Degradation-Aware Deep Learning Framework for Sparse-View CT Reconstruction" Tomography 7, no. 4: 932-949. https://doi.org/10.3390/tomography7040077

APA Style

Sun, C., Liu, Y., & Yang, H. (2021). Degradation-Aware Deep Learning Framework for Sparse-View CT Reconstruction. Tomography, 7(4), 932-949. https://doi.org/10.3390/tomography7040077

Article Metrics

Back to TopTop
