Article

Collagen 1 Fiber Volume Predicts for Recurrence of Stage 1 Non-Small Cell Lung Cancer

by
Samata Kakkad
1,†,
Balaji Krishnamachary
1,†,
Nadege Fackche
2,
Matthew Garner
2,
Malcom Brock
2,
Peng Huang
3,‡ and
Zaver M. Bhujwalla
1,3,4,*,‡
1
Division of Cancer Imaging Research, The Russell H. Morgan Department of Radiology and Radiological Science, The Johns Hopkins University School of Medicine, Baltimore, MD 21205, USA
2
Department of Surgery, The Johns Hopkins University School of Medicine, Baltimore, MD 21205, USA
3
Sidney Kimmel Comprehensive Cancer Center, The Johns Hopkins University School of Medicine, Baltimore, MD 21205, USA
4
Department of Radiation Oncology and Molecular Radiation Sciences, The Johns Hopkins University School of Medicine, Baltimore, MD 21205, USA
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work as first authors.
‡
These authors contributed equally to this work as senior authors.
Tomography 2024, 10(7), 1099-1112; https://doi.org/10.3390/tomography10070083
Submission received: 16 April 2024 / Revised: 8 July 2024 / Accepted: 9 July 2024 / Published: 13 July 2024
Browse Figures
Review Reports Versions Notes

Abstract

:
Background: The standard of care for stage 1 NSCLC is upfront surgery followed by surveillance. However, 20–30% of stage 1 NSCLC recur. There is an unmet need to identify individuals likely to recur who would benefit from frequent monitoring and aggressive cancer treatments. Collagen 1 (Col1) fibers detected by second harmonic generation (SHG) microscopy are a major structural component of the extracellular matrix (ECM) of tumors that play a role in cancer progression. Method: We characterized Col1 fibers with SHG microscopy imaging of surgically resected stage 1 NSCLC. Gene expression from RNA sequencing data was used to validate the SHG microscopy findings. Results: We identified a significant (p ≤ 0.05) increase in the Col1 fiber volume in stage 1 NSCLC that recurred. The increase in Col1 fiber volume was supported by significant increases in the gene expression of Col1 in invasive, compared to noninvasive, lung adenocarcinoma. Significant differences were identified in the gene expression of other ECM proteins, as well as CAFs, immune checkpoint markers, immune cytokines, and T-cell markers. Conclusion: Col1 fiber analysis can provide a companion diagnostic test to evaluate the likelihood of tumor recurrence following stage 1 NSCLC. The studies expand our understanding of the role of the ECM in NSCLC recurrence.

1. Introduction

Lung cancer is a leading cause of cancer-related deaths [1]. In the US, non-small cell lung cancer (NSCLC) accounts for approximately 85% of all lung cancers. With enhanced lung cancer screening techniques, the number of newly diagnosed stage 1 NSCLC cases is increasing [2,3,4]. Upfront surgical resection remains the gold standard for treatment of stage 1 NSCLC, with five-year overall survival rates nearing 70%. However, up to 20–30% of patients with completely resected stage 1 NSCLC are still at risk for further lung cancer development, either as a recurrence or as a new metachronous primary. In fact, recurrence is the main cause of treatment failure in these patients and the most common obstacle for long-term survival. Unfortunately, 70–90% of those who progress die from their lung cancers [5,6,7,8,9]. Neoadjuvant or adjuvant systemic therapies using targeted therapy or immunotherapy, used alone or in combination with chemotherapy, are promising approaches to improve the cure rate for patients with resectable early-stage lung cancer [10]. Early prediction of progression would allow oncologists to identify patients who may benefit from adjuvant or even immunological treatment to offset the full development of metastatic disease. Identifying patients with early-stage NSCLC who may benefit from these novel therapies is an important unmet need.
As a major component of the tumor extracellular matrix (ECM) [11], collagen 1 (Col1) fibers have been found to play an active role in cancer progression [12,13]. While significant advances have been made in understanding the role of collagen in the progression of breast [14], prostate [15], and colorectal cancer [16,17], its role in NSCLC is largely unexplored, especially in terms of differences between those early stage cancers that recur and those which do not recur. Increased Col1 fiber volumes are associated with increased likelihood of metastasis in breast cancer [12,13,18], and although the mechanism is not completely understood, studies have demonstrated a functional role for Col1 fibers in mediating of transport molecules in breast cancer xenografts [19,20]. In prostate cancer, Col1 fibers in primary cancers that metastasized were found to have patterns different from cancers that did not metastasize [15]. Similarly, in colorectal cancer, increased Col1 deposition has been positively correlated with metastasis [17].
Col1 fiber topography including fiber diameter [21], directionality [22], and alignment [23] plays an important role in cancer motility and invasiveness. Cancer cells can travel along aligned Col1 fibers [12,24]. Tumor-associated Col1 fiber alignment is a potential prognostic signature for survival in breast cancer patients [14]. Col1 fibers can be detected with second harmonic generation (SHG) microscopy [11] which detects an intrinsic signal derived from the non-centrosymmetric molecular structure of Col1 fibers [11,25]. In a recent study, a significant increase in Col1 fiber density as detected by SHG microscopy was observed in early-stage lung adenocarcinoma compared to normal tissue [26].
Our purpose here was to determine differences in Col1 fiber content in stage 1 NSCLC that subsequently recurred. We used SHG microscopy to detect and quantify Col1 fibers [18,19,20,27,28,29]. The intrinsic contrast generated by Col1 fibers with SHG microscopy allowed us to use hematoxylin and eosin (H&E)-stained sections from the National Lung Screening Trial (NLST) project of the National Institutes of Health (NIH). We have for the past decade developed analytical algorithms to characterize Col1 fibers [29]. Here we applied these algorithms to quantify differences in fiber volume in tissue sections.
To understand the causes and consequences of the increase in Col1 fiber volume observed in recurrent stage 1 NSCLC, including the immune modulatory role of collagen [30,31], we analyzed genes associated with ECM proteins including collagen, cancer associated fibroblasts (CAFs), immune checkpoints, and T-cells by mining a publicly available dataset (GSE166720) [32] from NCBI’s GEO database that contained gene expression data from noninvasive and invasive stage 1 lung adenocarcinoma. We focused on CAFs because they play an important role in the synthesis and remodeling of multiple ECM proteins including collagen [33,34,35]. CAF subtypes have been associated with establishing an immunosuppressive tumor microenvironment [36,37,38], and promoting tumor invasion and metastasis [34,35,39,40]. We analyzed immune checkpoints because of the association between CAFs and an immune suppressive tumor microenvironment in lung [41] and other cancers [33], as well as the increasing evidence of the immunomodulatory role of collagen [30,31]. Because collagen fibers have been identified as facilitating the movement of cancer cells [12,24] as well as macromolecules [20] and water movement [19], we characterized the gene expression of T-cell markers to determine if the T-cell numbers increased in invasive lung adenocarcinoma group compared to the noninvasive group. Our study identified the importance of increased collagen in lung cancer recurrence in stage 1 NSCLC that, to the best of our knowledge, has not been previously reported. Gene expression patterns identified potential causes as well as consequences of these changes in collagen that may contribute to recurrence.

2. Methods

2.1. Samples

H&E stained sections were obtained through a Material Transfer Agreement between the National Cancer Institute and Johns Hopkins University. Detailed descriptions of the NLST specimen collection and processing have been previously described [42]. We analyzed 5 µm-thick H&E stained sections from surgically resected tissue obtained from twelve patients with non-recurrent stage 1 NSCLC and fourteen patients with recurrent stage 1 NSCLC. Since the tissue sections were H&E sections from the NIH NLST database obtained during surgery, the sections were formalin fixed and mounted on glass slides and therefore did not require any special storage conditions. The ability to use H&E sections provides the advantage of including SHG microscopy analysis as a companion diagnostic. Patient demographics are presented in Table 1. All patients received informed consent for the use of their surgically resected tissues for future studies [42], and an IRB-approved waiver was obtained from the Johns Hopkins University School of Medicine.

2.2. SHG Imaging and Analysis

Col1 fibers were detected with SHG microscopy from the intrinsic signal derived from the non-centrosymmetric molecular structure of Col1 fibers. SHG microscopy was performed on H&E-stained tissue sections. The person performing SHG microscopy was blind to the identity of the stained tissue and the outcome of the patient. An Olympus Laser Scanning FV1000 MPE multiphoton microscope (Olympus Corp., Center Valley, PA, USA) was used to acquire the SHG signals with an excitation wavelength of 860 nm, and a detection wavelength of 430 nm, using a 25× lens, and a voxel resolution of 0.497 µm. A review of SHG microscopy and a schematic of the microscope can be found in [43]. Randomly selected fields of view (FOVs) ranging from 6–18 FOVs from each tissue block, one block per patient, were analyzed. The mean fiber volume for each patient in the non-recurrent and recurrent group, obtained from 6–18 randomly selected FOVs, was used for statistical analysis. We also analyzed individual FOVs using a random effects model.
We performed tiled scan SHG microscopy on six sections (three non-recurrent and three recurrent patients) to acquire the Col1 fiber distribution over the entire tissue sample. Tiled scan SHG microscopy of the entire tissue sample was performed using a 25× lens, at a voxel resolution of 0.53 μm × 0.53 μm, and at z-intervals of 3 μm. Tiled scan acquisitions of the entire biopsied section were divided into smaller sections. The biopsy tissue sections ranged from 1.5 cm × 1.5 cm to 1.5 cm × 2.2 cm that were beyond the data holding capacity of the microscope software optical signal limits of 0.7 cm × 0.7 cm at the set resolution of 0.53 μm × 0.53 μm and z-intervals of 3 μm. We therefore divided each tissue section into 0.7 cm × 0.7 cm square quadrants. SHG signal was acquired from each of these quadrants with ~300 μm of overlapping regions with the neighboring quadrants. Once the SHG data from each of the quadrants were acquired for a tumor section, an in-built MATLAB R2017b code (MathWorks Inc., Natick, MA, USA) was used to stitch the quadrants together to overlay the SHG information on the corresponding H&E section.
Col1 fibers in sections were quantified to calculate the percent fiber volume using an in-built MATLAB R2017b code (MathWorks Inc., Natick, MA, USA). The quantification analysis was done as previously described [18,19,20,27]. Briefly, Col1 fibers were extracted using fuzzy c-mean clustering segmentation and applying length and width criteria to filter out stray signals, to quantify percent fiber volume as previously described [18,19,20,27]. Our software quantified the total Col1 fiber volume by first preprocessing the raw image to exclude noise and nonfibrillar shapes by using a shape filter as previous described [27]. The Col1 fiber structures extracted from the raw images were analyzed as the percent Col1 fiber volume per field of view.

2.3. Molecular Analysis of Noninvasive and Invasive Lung Adenocarcinoma

We analyzed genes associated with ECM proteins, CAFs, immune checkpoints, and T-cell markers to further understand the potential causes and impact of the Col1 changes observed with SHG microscopy in our study, using a publicly available dataset that contained gene expression data from 32 noninvasive and 21 invasive stage IA lung adenocarcinoma, classified based on gene expression signatures [32]. We mined this publicly available dataset (GSE166720) [32], which was retrieved from the GEO database and analyzed using in-built software GEO2R (https://www.ncbi.nlm.nih.gov/geo/geo2r/, accessed on 25 August 2023) [44]. The interactive web tool GEO2R is based on the R programing language with an in-built statistical program and graphic tools that allow identification of differentially expressed genes. We analyzed differences in genes associated with ECM proteins, CAFs, immune checkpoints, and T-cell markers in the noninvasive and invasive samples to further understand the potential causes and consequences of the Col1 changes observed with SHG microscopy in our study. Genes expressed with at least >0.5 or <0.5 log2 fold change (~1.4-fold change) and a p-adjusted value (padj) of ≤0.05 were considered significantly altered.

2.4. Statistical Analysis

The data were expressed as mean ± SE. We used a one-tailed unpaired Student t-test as we hypothesized the recurrent tumors would have a denser collagen 1 fiber distribution compared to the non-recurrent tumor patient groups based on previously published data with several other cancers, including a recently published study with lung cancer that showed ncreased Col1 fibers in early-stage lung cancer compared to normal tissue [26]. We used a t-test since the data did not seriously violate the normality distribution assumption. We also performed an analysis of the percent fiber volume using individual values from the randomly selected fields of view (FOVs) ranging from 6–18 FOVs from each tissue block, with one block per patient analyzed. To compare the percent fiber volume between patients with and without recurrence, we employed a random effects model. In this model, the tissue block served as the random effect (random intercept), while the cancer recurrence status was the fixed effect. Although the mean percent fiber volume from all FOVs from the same tissue block is approximately normally distributed, the individual percent fiber volumes across all FOVs are skewed. We thus log-transformed the individual FOV percent fiber volume to reduce skewness before fitting the random effects model. Values of p <  0.05 were considered significant, unless otherwise stated.

3. Results

Representative images of Col1 fibers acquired using SHG microscopy from three patients in the recurrent and non-recurrent groups of the NIH NLST dataset are presented in Figure 1. Increased Col1 fibers are evident in the recurrent group compared to the non-recurrent group. The quantification of the Col1 fibers identified a significant increase (p-value < 0.05) in Col1 fiber volume in recurrent NSCLC (N = 14) compared to the non-recurrent NSCLC (N = 12), as shown in Figure 2. The mean fiber volume for each patient was obtained from 6–18 randomly selected FOVs per patient. Each point in Figure 2 represents the mean fiber volume for each patient in the non-recurrent and recurrent group. As evident in this figure, there was some overlap between the mean fiber volume detected in the recurrent and non-recurrent group. Individual FOVs displayed for the two groups, together with the corresponding statistical analysis, are presented in Supplementary Figure S1. The model output indicated that recurrent patients exhibited a higher percent fiber volume than non-recurrent patients (two-sided test p-value = 0.078, one-sided test p-value = 0.039).
We also performed tiled scan SHG microscopy on six of these surgical biopsy samples (three non-recurrent and three recurrent samples) to detect the Col1 fiber distribution within the entire section. This tiled scans dataset confirmed the increased Col1 fiber volume identified when analyzing FOVs. Tiled scanning also revealed thick long fiber tracks throughout the tumor regions in the recurrent NSCLC compared to a short and less dense fiber distribution in the tumor regions of the non-recurrent NSCLC as shown in Figure 3.
We next performed a ranked-test to predict survival in patients relative to the Col1 fiber volume. Patients were classified into two subgroups based on whether the Col1 fiber volume values were greater or smaller than the median. As shown in Figure 4, a separation was observed (p-value = 0.093, HR = 2.71), in terms of overall survival from time of surgery, based on the Col1 fiber volume.
An analysis of the gene expression data from the GSE166720 dataset from the GEO database are presented in Table 2 and Table 3. The gene expression of ECM-related proteins that were significantly altered between noninvasive and invasive lung adenocarcinoma are presented in Table 2. The most prominent increase in gene expression in the invasive group was observed for Col1, followed by fibronectin. Increases in laminin, nidogen-2, and aggrecan gene expression were also observed. A significant decrease was observed for hyaluronan binding protein-2, in the invasive group compared to the noninvasive group. We also analyzed gene expression patterns of CAF markers. As shown in Table 2, a significant increase in the gene expression of multiple CAF markers associated with different subsets of CAFs, including fibroblast activation protein-alpha (FAP-α) expressing CAFs, was observed in invasive lung adenocarcinoma compared to noninvasive lung adenocarcinoma.
To identify potential alterations in immune checkpoints and T-cell markers associated with a high Col1 phenotype, we characterized gene expression patterns of immune checkpoints and T-cell markers as shown in Table 3. Several immune checkpoints including PD-1 and PD-L1 were significantly higher in the invasive lung adenocarcinoma group compared to the noninvasive group as shown in Table 3. Gene expression of cytokines that induce an immune response, as well as multiple T-cell markers, significantly increased in invasive lung adenocarcinoma. Interferon-gamma gene expression was three-fold higher in the invasive lung adenocarcinoma group. T-cell markers included those associated with cytotoxic T cells, helper T cells, memory T cells, tissue resident memory T cells, recent thymic emigrants, tissue effector memory cells, and T effector cells.

4. Discussion

We identified significant differences in the Col1 fiber volume between recurrent and non-recurrent stage 1 NSCLC in this exploratory study. These data highlight the potential role of Col1 fibers in the recurrence of stage 1 NSCLC and support further investigation of their use as a companion diagnostic marker to identify patients with early-stage NSCLC who may benefit from treatment. Consistent with the increase of Col1 fibers in recurrent early-stage NSCLC, Col1 fiber volume was a determinant in overall survival in these patients.
Mining the gene expression patterns of a publicly available dataset for ECM proteins, CAF markers, immune checkpoints, and T-cells provided insight into potential mechanisms underlying why Col1 fibers should have such a strong correlation with recurrence and survival. Although the gene expression data was a comparison between stage I noninvasive and locally invasive lung adenocarcinoma rather than recurrent NSCLC, it provided insight into the role of the ECM, CAFs, immune checkpoints, and immune cells in lung adenocarcinoma progression. The results from this publicly available dataset identified a significant increase in genes associated with the ECM proteins, with the largest fold increase observed for Col1 in the invasive group. Increases in the gene expression of fibronectin, laminin, nidogen-2, and aggrecan were also observed, together with a significant decrease of hyaluronan binding protein in the invasive group. Taken together, these data indicate that invasive NSCLC can significantly reprogram the ECM. Increased fibronectin [48], laminin [49,50], nidogen [51], and aggrecan [52] have been previously associated with an aggressive phenotype and progression in lung cancer. Collagens type I, II, and III form a major component of the tumor ECM, with collagen type IV lining the basement membrane and forming a network to act as a barrier to cancer cell invasion [53]. Fibronectin is frequently upregulated in many invasive tumors, including NSCLC, and undergoes post-translational modification resulting in binding to various ECM proteins. Fibronectin decorates linearized Col1, playing a role in the directional migration of tumor cells towards the vasculature for intravasation [54]. Laminins contribute to the structure of the basement membrane by binding to type IV collagen and strengthening the basement lamina [55]. In early stages of NSCLC, nidogen-2 increase is predicted to be a marker of a poor prognosis [56]. The interaction between collagen type-IV, laminin, and nidogen-2 is critical for cell adhesion, migration, and proliferation. Aggrecans are proteoglycans that play a role in cancer tissue mechanics [48].
Surprisingly, a five-fold reduction was observed in the gene expression of hyaluronan binding protein 2 (HABP2). HABP2 is a serine protease that binds to hyaluronic acid and modulates the ECM by accelerating the matrix degradation that eventually affects migration, extravasation, tumor growth, and metastasis [57]. HAPB2 has been previously reported to be an important regulator of lung cancer progression and its expression has been observed in NSCLC [57]. These differences suggest that the increase in HAPB2 proteins observed in NSCLC may be post-translational.
We were able to corroborate, independently, the increase of Col1 fibers identified using SHG microscopy from the H&E-stained slides from the NLST dataset with the six-fold increase of Col1 gene expression in the GEO database. We were, however, unable to map the remaining changes in the gene expression of ECM proteins, CAFs, immune checkpoints, immune cytokines, and T-cells to protein expression or immunohistochemistry due to the unavailability of tissues, which was a limitation of this study.
We used known molecular markers associated with CAFs to screen for differences between the invasive and noninvasive groups. Changes in gene expression of CAF markers were associated with several CAF subsets [45]. The molecular markers that showed a significant difference between the two groups were associated with antigen-presenting CAFs (apCAFs), inflammatory CAFs (iCAFs), myofibroblast CAFs (myCAFs), and FAP-α CAFs. Notably, in lung cancer [41], as well as in multiple other cancers [33], FAP-α expressing CAFs have been associated with fibrogenesis and with immune suppression. An increase of FAP-α CAFs may explain the increase of Col1 fibers in recurrent NSCLC.
A significant increase in the gene expression of several immune checkpoints, including PD-L1 and PD-1, was observed in the invasive lung adenocarcinoma group, suggestive of an immune suppressive microenvironment [58,59]. The gene expression of immune cytokines such as interferon gamma, as well as different T-cell markers, also significantly increased, consistent with previously published reports [60,61].
The SHG microscopy data provided clear evidence that Col1 fibers significantly increased in recurrent stage 1 NSCLC in this exploratory study. While a previous study has reported a significant increase in Col1 fiber density, as detected by SHG microscopy in early-stage lung adenocarcinoma compared to normal tissue [26], here we found that Col1 fibers increased significantly in recurrent compared to non-recurrent stage 1 NSCLC. Expanded future studies with a large data base would be required to identify a Col1 fiber threshold value for risk of recurrence of stage 1 NSCLC. Future expanded studies should also investigate a more in-depth geometric and textural analysis, and evaluate polarization-resolved measurements in normal tissue, as well as stage 1 NSCLC. Col1 fibers mediate the movement of molecules and cells through the ECM [12,15,19,20]. Lung cancer recurrences from patients in this study were both distant and local, supporting the possibility that the fibers may have mediated the migration of cancer cells to distant or local sites. From our collective data, we hypothesize that collagen may also mediate an increase of T-cell movement into the tumor by providing transport pathways. This may be counter balanced by immunomodulation of T-cells by collagen [30,31] and CAFs resulting in T-cell exhaustion as evident from the increase of immune checkpoint expression.

5. Conclusions

Our study highlights the importance of the tumor ECM and microenvironment in NSCLC recurrence. Our observations linking Col1 fiber volume to cancer progression in post-operative stage 1 NSCLCs identify Col1 fibers as potential biomarkers with clinical significance. Col1 fiber analysis may provide a companion diagnostic test that can be performed rapidly on H&E tumor sections, using nondestructive SHG microscopy, to evaluate the likelihood of tumor recurrence from stage I NSCLC. The studies here also expand our understanding of the role of the ECM in NSCLC recurrence that may lead to new targets for future therapeutic strategies. Future studies should characterize the association between Col1 fibers and the migration of cancer cells. The role of Col1 and ECM proteins in the modulation of immune checkpoints in NSCLC should also be investigated.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/tomography10070083/s1, Figure S1: Percent fiber volume from randomly selected fields of view (FOVs) ranging from 6-18 FOVs from each tissue block, one block per patient were analyzed. To compare the percent fiber volume between patients with and without recurrence, we employed a random effects model. In this model, the tissue block served as the random effect (random intercept), while the cancer recurrence status was the fixed effect. Additionally, we log-transformed the percent fiber volume to reduce skewness before fitting the model. The model output indicated that recurrent patients exhibited a higher percent fiber volume than non-recurrent patients (two-sided test p-value = 0.078, one-sided test p-value = 0.039).

Author Contributions

Validation, data curation, formal analysis, investigation, visualization, methodology, writing—original draft, writing—review and editing, S.K.; Validation, data curation, formal analysis, investigation, visualization, methodology, writing—review and editing, B.K.; Data curation, investigation, writing—review and editing, N.F.; Data curation, investigation, writing—review and editing, M.G.; conceptualization, formal analysis, investigation, methodology, writing—review and editing, M.B.; Conceptualization, formal analysis, validation, data curation, methodology, investigation, visualization, writing—review and editing, P.H.; conceptualization, formal analysis, methodology, investigation, visualization, validation, funding acquisition, supervision, writing—original draft, writing—review and editing, Z.M.B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Institutes of Health R35CA209960, R01CA82337, R01 CA253617 and R50 CA243562.

Institutional Review Board Statement

The NLST data we received were de-identified.

Informed Consent Statement

Our study utilized samples and data from the NLST, which is a clinical trial sponsored by the National Cancer Institute (NCI). While all NLST participants signed informed consent forms, our research team was not directly involved in the NLST study itself. Consequently, we do not have direct access to the consent forms signed by NLST participants. Our access to NLST samples and data was facilitated through two NCI-approved projects in conjunction with Material Transfer Agreements between Johns Hopkins University and the NCI. Our study was conducted in accordance with the terms outlined in these agreements, which permitted us to utilize NLST samples and data for our research purposes.

Data Availability Statement

Data will be shared upon reasonable request from the corresponding author.

Conflicts of Interest

The authors have no conflicts of interest to disclose.

Abbreviations

CAFsCancer-associated fibroblasts
Col1Collagen 1
ECMExtracellular matrix
FOVsFields of view
GEOGene expression omnibus
H&EHematoxylin and eosin
IRBInstitutional Review Board
NCBINational Center for Biotechnology Information
NIHNational Institutes of Health
NLSTNational Lung Screening Trial
NSCLCNon-small cell lung carcinoma
SHGSecond harmonic generation

References

  1. Molina, J.R.; Yang, P.; Cassivi, S.D.; Schild, S.E.; Adjei, A.A. Non-small cell lung cancer: Epidemiology, risk factors, treatment, and survivorship. Mayo Clin. Proc. 2008, 83, 584–594. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  2. Aberle, D.R.; DeMello, S.; Berg, C.D.; Black, W.C.; Brewer, B.; Church, T.R.; Clingan, K.L.; Duan, F.; Fagerstrom, R.M.; Gareen, I.F.; et al. Results of the two incidence screenings in the National Lung Screening Trial. N. Engl. J. Med. 2013, 369, 920–931. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  3. National Lung Screening Trial Research, T.; Church, T.R.; Black, W.C.; Aberle, D.R.; Berg, C.D.; Clingan, K.L.; Duan, F.; Fagerstrom, R.M.; Gareen, I.F.; Gierada, D.S.; et al. Results of initial low-dose computed tomographic screening for lung cancer. N. Engl. J. Med. 2013, 368, 1980–1991. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  4. Morgensztern, D.; Ng, S.H.; Gao, F.; Govindan, R. Trends in stage distribution for patients with non-small cell lung cancer: A National Cancer Database survey. J. Thorac. Oncol. 2010, 5, 29–33. [Google Scholar] [CrossRef] [PubMed]
  5. Fedor, D.; Johnson, W.R.; Singhal, S. Local recurrence following lung cancer surgery: Incidence, risk factors, and outcomes. Surg. Oncol. 2013, 22, 156–161. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  6. Bille, A.; Ahmad, U.; Woo, K.M.; Suzuki, K.; Adusumilli, P.; Huang, J.; Jones, D.R.; Rizk, N.P. Detection of Recurrence Patterns After Wedge Resection for Early Stage Lung Cancer: Rationale for Radiologic Follow-Up. Ann. Thorac. Surg. 2016, 102, 1067–1073. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  7. Brown, L.M.; Louie, B.E.; Jackson, N.; Farivar, A.S.; Aye, R.W.; Vallieres, E. Recurrence and Survival After Segmentectomy in Patients With Prior Lung Resection for Early-Stage Non-Small Cell Lung Cancer. Ann. Thorac. Surg. 2016, 102, 1110–1118. [Google Scholar] [CrossRef] [PubMed]
  8. Goldstraw, P.; Crowley, J.; Chansky, K.; Giroux, D.J.; Groome, P.A.; Rami-Porta, R.; Postmus, P.E.; Rusch, V.; Sobin, L.; International Association for the Study of Lung Cancer International Staging Committee; et al. The IASLC Lung Cancer Staging Project: Proposals for the revision of the TNM stage groupings in the forthcoming (seventh) edition of the TNM Classification of malignant tumours. J. Thorac. Oncol. 2007, 2, 706–714. [Google Scholar] [CrossRef] [PubMed]
  9. Su, S.; Scott, W.J.; Allen, M.S.; Darling, G.E.; Decker, P.A.; McKenna, R.J.; Meyers, B.F. Patterns of survival and recurrence after surgical treatment of early stage non-small cell lung carcinoma in the ACOSOG Z0030 (ALLIANCE) trial. J. Thorac. Cardiovasc. Surg. 2014, 147, 747–752. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  10. Chaft, J.E.; Rimner, A.; Weder, W.; Azzoli, C.G.; Kris, M.G.; Cascone, T. Evolution of systemic therapy for stages I-III non-metastatic non-small-cell lung cancer. Nat. Rev. Clin. Oncol. 2021, 18, 547–557. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  11. Brown, E.; McKee, T.; diTomaso, E.; Pluen, A.; Seed, B.; Boucher, Y.; Jain, R.K. Dynamic imaging of collagen and its modulation in tumors in vivo using second-harmonic generation. Nat. Med. 2003, 9, 796–800. [Google Scholar] [CrossRef] [PubMed]
  12. Provenzano, P.P.; Eliceiri, K.W.; Campbell, J.M.; Inman, D.R.; White, J.G.; Keely, P.J. Collagen reorganization at the tumor-stromal interface facilitates local invasion. BMC Med. 2006, 4, 38. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  13. Provenzano, P.P.; Inman, D.R.; Eliceiri, K.W.; Knittel, J.G.; Yan, L.; Rueden, C.T.; White, J.G.; Keely, P.J. Collagen density promotes mammary tumor initiation and progression. BMC Med. 2008, 6, 11. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  14. Conklin, M.W.; Eickhoff, J.C.; Riching, K.M.; Pehlke, C.A.; Eliceiri, K.W.; Provenzano, P.P.; Friedl, A.; Keely, P.J. Aligned collagen is a prognostic signature for survival in human breast carcinoma. Am. J. Pathol. 2011, 178, 1221–1232. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  15. Penet, M.F.; Kakkad, S.; Pathak, A.P.; Krishnamachary, B.; Mironchik, Y.; Raman, V.; Solaiyappan, M.; Bhujwalla, Z.M. Structure and Function of a Prostate Cancer Dissemination-Permissive Extracellular Matrix. Clin. Cancer Res. 2017, 23, 2245–2254. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  16. Burke, K.; Smid, M.; Dawes, R.P.; Timmermans, M.A.; Salzman, P.; van Deurzen, C.H.; Beer, D.G.; Foekens, J.A.; Brown, E. Using second harmonic generation to predict patient outcome in solid tumors. BMC Cancer 2015, 15, 929. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  17. Liang, Y.; Lv, Z.; Huang, G.; Qin, J.; Li, H.; Nong, F.; Wen, B. Prognostic significance of abnormal matrix collagen remodeling in colorectal cancer based on histologic and bioinformatics analysis. Oncol. Rep. 2020, 44, 1671–1685. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  18. Kakkad, S.M.; Solaiyappan, M.; Argani, P.; Sukumar, S.; Jacobs, L.K.; Leibfritz, D.; Bhujwalla, Z.M.; Glunde, K. Collagen I fiber density increases in lymph node positive breast cancers: Pilot study. J. Biomed. Opt. 2012, 17, 116017. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  19. Kakkad, S.; Zhang, J.; Akhbardeh, A.; Jacob, D.; Krishnamachary, B.; Solaiyappan, M.; Jacobs, M.A.; Raman, V.; Leibfritz, D.; Glunde, K.; et al. Collagen fibers mediate MRI-detected water diffusion and anisotropy in breast cancers. Neoplasia 2016, 18, 585–593. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  20. Kakkad, S.M.; Penet, M.F.; Akhbardeh, A.; Pathak, A.P.; Solaiyappan, M.; Raman, V.; Leibfritz, D.; Glunde, K.; Bhujwalla, Z.M. Hypoxic tumor environments exhibit disrupted collagen I fibers and low macromolecular transport. PLoS ONE 2013, 8, e81869. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  21. Sapudom, J.; Rubner, S.; Martin, S.; Kurth, T.; Riedel, S.; Mierke, C.T.; Pompe, T. The phenotype of cancer cell invasion controlled by fibril diameter and pore size of 3D collagen networks. Biomaterials 2015, 52, 367–375. [Google Scholar] [CrossRef] [PubMed]
  22. Burke, K.A.; Dawes, R.P.; Cheema, M.K.; Van Hove, A.; Benoit, D.S.; Perry, S.W.; Brown, E. Second-harmonic generation scattering directionality predicts tumor cell motility in collagen gels. J. Biomed. Opt. 2015, 20, 051024. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  23. Riching, K.M.; Cox, B.L.; Salick, M.R.; Pehlke, C.; Riching, A.S.; Ponik, S.M.; Bass, B.R.; Crone, W.C.; Jiang, Y.; Weaver, A.M.; et al. 3D collagen alignment limits protrusions to enhance breast cancer cell persistence. Biophys. J. 2014, 107, 2546–2558. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  24. Cox, T.R.; Erler, J.T. Remodeling and homeostasis of the extracellular matrix: Implications for fibrotic diseases and cancer. Dis. Models Mech. 2011, 4, 165–178. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  25. Mohler, W.; Millard, A.C.; Campagnola, P.J. Second harmonic generation imaging of endogenous structural proteins. Methods 2003, 29, 97–109. [Google Scholar] [CrossRef]
  26. Xi, G.; Huang, C.; Lin, J.; Luo, T.; Kang, B.; Xu, M.; Xu, H.; Li, X.; Chen, J.; Qiu, L.; et al. Rapid label-free detection of early-stage lung adenocarcinoma and tumor boundary via multiphoton microscopy. J. Biophotonics 2023, 16, e202300172. [Google Scholar] [CrossRef] [PubMed]
  27. Kakkad, S.M.; Solaiyappan, M.; O'Rourke, B.; Stasinopoulos, I.; Ackerstaff, E.; Raman, V.; Bhujwalla, Z.M.; Glunde, K. Hypoxic tumor microenvironments reduce collagen I fiber density. Neoplasia 2010, 12, 608–617. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  28. Goggins, E.; Kakkad, S.; Mironchik, Y.; Jacob, D.; Wildes, F.; Krishnamachary, B.; Bhujwalla, Z.M. Hypoxia Inducible Factors Modify Collagen I Fibers in MDA-MB-231 Triple Negative Breast Cancer Xenografts. Neoplasia 2018, 20, 131–139. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  29. Goggins, E.; Mironchik, Y.; Kakkad, S.; Jacob, D.; Wildes, F.; Bhujwalla, Z.M.; Krishnamachary, B. Reprogramming of VEGF-mediated extracellular matrix changes through autocrine signaling. Cancer Biol. Ther. 2023, 24, 2184145. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  30. Kuczek, D.E.; Larsen, A.M.H.; Thorseth, M.L.; Carretta, M.; Kalvisa, A.; Siersbaek, M.S.; Simoes, A.M.C.; Roslind, A.; Engelholm, L.H.; Noessner, E.; et al. Collagen density regulates the activity of tumor-infiltrating T cells. J. Immunother. Cancer 2019, 7, 68. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  31. Romer, A.M.A.; Thorseth, M.L.; Madsen, D.H. Immune Modulatory Properties of Collagen in Cancer. Front. Immunol. 2021, 12, 791453. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  32. Yoo, S.; Sinha, A.; Yang, D.; Altorki, N.K.; Tandon, R.; Wang, W.; Chavez, D.; Lee, E.; Patel, A.S.; Sato, T.; et al. Integrative network analysis of early-stage lung adenocarcinoma identifies aurora kinase inhibition as interceptor of invasion and progression. Nat. Commun. 2022, 13, 1592. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  33. Chen, Y.; McAndrews, K.M.; Kalluri, R. Clinical and therapeutic relevance of cancer-associated fibroblasts. Nat. Rev. Clin. Oncol. 2021, 18, 792–804. [Google Scholar] [CrossRef]
  34. Gaggioli, C.; Hooper, S.; Hidalgo-Carcedo, C.; Grosse, R.; Marshall, J.F.; Harrington, K.; Sahai, E. Fibroblast-led collective invasion of carcinoma cells with differing roles for RhoGTPases in leading and following cells. Nat. Cell Biol. 2007, 9, 1392–1400. [Google Scholar] [CrossRef] [PubMed]
  35. Goetz, J.G.; Minguet, S.; Navarro-Lérida, I.; Lazcano, J.J.; Samaniego, R.; Calvo, E.; Tello, M.; Osteso-Ibáñez, T.; Pellinen, T.; Echarri, A.; et al. Biomechanical remodeling of the microenvironment by stromal caveolin-1 favors tumor invasion and metastasis. Cell 2011, 146, 148–163. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  36. Kraman, M.; Bambrough, P.J.; Arnold, J.N.; Roberts, E.W.; Magiera, L.; Jones, J.O.; Gopinathan, A.; Tuveson, D.A.; Fearon, D.T. Suppression of antitumor immunity by stromal cells expressing fibroblast activation protein-alpha. Science 2010, 330, 827–830. [Google Scholar] [CrossRef] [PubMed]
  37. Feig, C.; Jones, J.O.; Kraman, M.; Wells, R.J.; Deonarine, A.; Chan, D.S.; Connell, C.M.; Roberts, E.W.; Zhao, Q.; Caballero, O.L.; et al. Targeting CXCL12 from FAP-expressing carcinoma-associated fibroblasts synergizes with anti-PD-L1 immunotherapy in pancreatic cancer. Proc. Natl. Acad. Sci. USA 2013, 110, 20212–20217. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  38. Lakins, M.A.; Ghorani, E.; Munir, H.; Martins, C.P.; Shields, J.D. Cancer-associated fibroblasts induce antigen-specific deletion of CD8 (+) T Cells to protect tumour cells. Nat. Commun. 2018, 9, 948. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  39. Vennin, C.; Mélénec, P.; Rouet, R.; Nobis, M.; Cazet, A.S.; Murphy, K.J.; Herrmann, D.; Reed, D.A.; Lucas, M.C.; Warren, S.C.; et al. CAF hierarchy driven by pancreatic cancer cell p53-status creates a pro-metastatic and chemoresistant environment via perlecan. Nat. Commun. 2019, 10, 3637. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  40. Grugan, K.D.; Miller, C.G.; Yao, Y.; Michaylira, C.Z.; Ohashi, S.; Klein-Szanto, A.J.; Diehl, J.A.; Herlyn, M.; Han, M.; Nakagawa, H.; et al. Fibroblast-secreted hepatocyte growth factor plays a functional role in esophageal squamous cell carcinoma invasion. Proc. Natl. Acad. Sci. USA 2010, 107, 11026–11031. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  41. Wong, K.Y.; Cheung, A.H.; Chen, B.; Chan, W.N.; Yu, J.; Lo, K.W.; Kang, W.; To, K.F. Cancer-associated fibroblasts in nonsmall cell lung cancer: From molecular mechanisms to clinical implications. Int. J. Cancer 2022, 151, 1195–1215. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  42. Patz, E.F., Jr.; Caporaso, N.E.; Dubinett, S.M.; Massion, P.P.; Hirsch, F.R.; Minna, J.D.; Gatsonis, C.; Duan, F.; Adams, A.; Apgar, C.; et al. National Lung Cancer Screening Trial American College of Radiology Imaging Network Specimen Biorepository originating from the Contemporary Screening for the Detection of Lung Cancer Trial (NLST, ACRIN 6654): Design, intent, and availability of specimens for validation of lung cancer biomarkers. J. Thorac. Oncol. 2010, 5, 1502–1506. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  43. Aghigh, A.; Bancelin, S.; Rivard, M.; Pinsard, M.; Ibrahim, H.; Legare, F. Second harmonic generation microscopy: A powerful tool for bio-imaging. Biophys. Rev. 2023, 15, 43–70. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  44. Barrett, T.; Wilhite, S.E.; Ledoux, P.; Evangelista, C.; Kim, I.F.; Tomashevsky, M.; Marshall, K.A.; Phillippy, K.H.; Sherman, P.M.; Holko, M.; et al. NCBI GEO: Archive for functional genomics data sets--update. Nucleic Acids Res. 2013, 41, D991–D995. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  45. Biffi, G.; Tuveson, D.A. Diversity and Biology of Cancer-Associated Fibroblasts. Physiol. Rev. 2021, 101, 147–176. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  46. Han, X.; Zhang, W.H.; Wang, W.Q.; Yu, X.J.; Liu, L. Cancer-associated fibroblasts in therapeutic resistance of pancreatic cancer: Present situation, predicaments, and perspectives. Biochim. Biophys. Acta Rev. Cancer 2020, 1874, 188444. [Google Scholar] [CrossRef] [PubMed]
  47. Muroyama, Y.; Wherry, E.J. Memory T-Cell Heterogeneity and Terminology. Cold Spring Harb. Perspect. Biol. 2021, 13, a037929. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  48. Ritzenthaler, J.D.; Han, S.; Roman, J. Stimulation of lung carcinoma cell growth by fibronectin-integrin signalling. Mol. Biosyst. 2008, 4, 1160–1169. [Google Scholar] [CrossRef] [PubMed]
  49. Liu, M.; Cai, R.; Wang, T.; Yang, X.; Wang, M.; Kuang, Z.; Xie, Y.; Zhang, J.; Zheng, Y. LAMC2 promotes the proliferation of cancer cells and induce infiltration of macrophages in non-small cell lung cancer. Ann. Transl. Med. 2021, 9, 1392. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  50. Moon, Y.W.; Rao, G.; Kim, J.J.; Shim, H.S.; Park, K.S.; An, S.S.; Kim, B.; Steeg, P.S.; Sarfaraz, S.; Changwoo Lee, L.; et al. LAMC2 enhances the metastatic potential of lung adenocarcinoma. Cell Death Differ. 2015, 22, 1341–1352. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  51. Willumsen, N.; Bager, C.L.; Leeming, D.J.; Bay-Jensen, A.C.; Karsdal, M.A. Nidogen-1 Degraded by Cathepsin S can be Quantified in Serum and is Associated with Non-Small Cell Lung Cancer. Neoplasia 2017, 19, 271–278. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  52. Barkovskaya, A.; Buffone, A., Jr.; Zidek, M.; Weaver, V.M. Proteoglycans as Mediators of Cancer Tissue Mechanics. Front. Cell Dev. Biol. 2020, 8, 569377. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  53. Tanjore, H.; Kalluri, R. The role of type IV collagen and basement membranes in cancer progression and metastasis. Am. J. Pathol. 2006, 168, 715–717. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  54. Miroshnikova, Y.A.; Rozenberg, G.I.; Cassereau, L.; Pickup, M.; Mouw, J.K.; Ou, G.; Templeman, K.L.; Hannachi, E.I.; Gooch, K.J.; Sarang-Sieminski, A.L.; et al. alpha5beta1-Integrin promotes tension-dependent mammary epithelial cell invasion by engaging the fibronectin synergy site. Mol. Biol. Cell 2017, 28, 2958–2977. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  55. Walker, C.; Mojares, E.; Del Rio Hernandez, A. Role of Extracellular Matrix in Development and Cancer Progression. Int. J. Mol. Sci. 2018, 19, 3028. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  56. Teng, Y.; Wang, Z.; Ma, L.; Zhang, L.; Guo, Y.; Gu, M.; Wang, Z.; Wang, Y.; Yue, W. Prognostic significance of circulating laminin gamma2 for early-stage non-small-cell lung cancer. Onco Targets Ther. 2016, 9, 4151–4162. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  57. Mirzapoiazova, T.; Mambetsariev, N.; Lennon, F.E.; Mambetsariev, B.; Berlind, J.E.; Salgia, R.; Singleton, P.A. HABP2 is a Novel Regulator of Hyaluronan-Mediated Human Lung Cancer Progression. Front. Oncol. 2015, 5, 164. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  58. Bodor, J.N.; Boumber, Y.; Borghaei, H. Biomarkers for immune checkpoint inhibition in non-small cell lung cancer (NSCLC). Cancer 2020, 126, 260–270. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  59. Della Corte, C.M.; Sen, T.; Gay, C.M.; Ramkumar, K.; Diao, L.; Cardnell, R.J.; Rodriguez, B.L.; Stewart, C.A.; Papadimitrakopoulou, V.A.; Gibson, L.; et al. STING Pathway Expression Identifies NSCLC with an Immune-Responsive Phenotype. J. Thorac. Oncol. 2020, 15, 777–791. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  60. Ayers, M.; Lunceford, J.; Nebozhyn, M.; Murphy, E.; Loboda, A.; Kaufman, D.R.; Albright, A.; Cheng, J.D.; Kang, S.P.; Shankaran, V.; et al. IFN-gamma-related mRNA profile predicts clinical response to PD-1 blockade. J. Clin. Investig. 2017, 127, 2930–2940. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  61. Benci, J.L.; Johnson, L.R.; Choa, R.; Xu, Y.; Qiu, J.; Zhou, Z.; Xu, B.; Ye, D.; Nathanson, K.L.; June, C.H.; et al. Opposing Functions of Interferon Coordinate Adaptive and Innate Immune Responses to Cancer Immune Checkpoint Blockade. Cell 2019, 178, 933–948.e914. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
Tomography 10 00083 g001

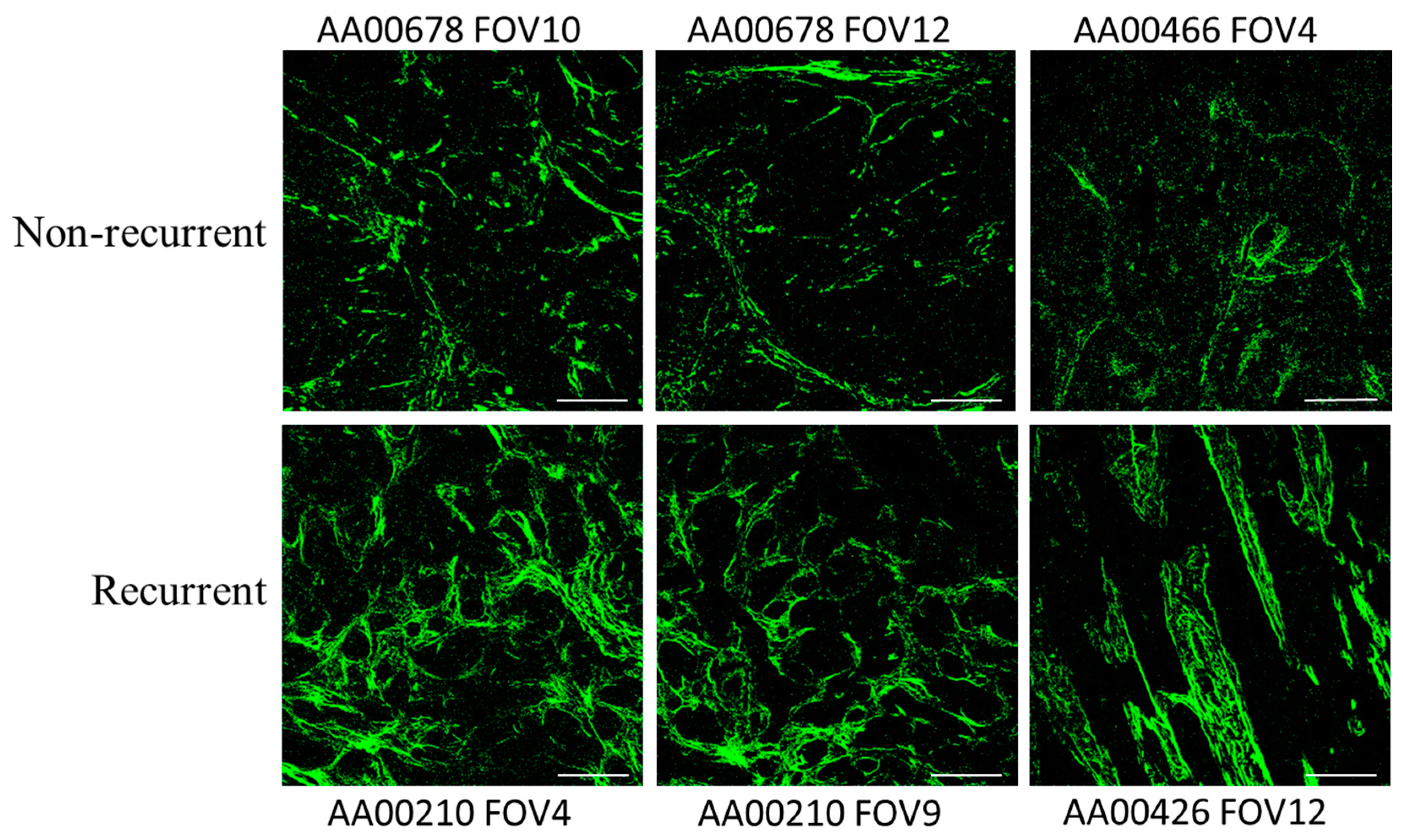

Figure 1. Representative SHG microscopy images showing Col1 fibers from three different non-recurrent and recurrent NSCLC tumors. SHG images were acquired with a FOV = 423.5 μm × 423.5 μm, pixel resolution in XY plane = 0.414 μm. Scale bar = 100 μm. The corresponding file names of the de-identified data are provided together with the images. The images represent Col1 fibers from two different patients with non-recurrent tumors and two different patients with recurrent tumors.
Figure 1. Representative SHG microscopy images showing Col1 fibers from three different non-recurrent and recurrent NSCLC tumors. SHG images were acquired with a FOV = 423.5 μm × 423.5 μm, pixel resolution in XY plane = 0.414 μm. Scale bar = 100 μm. The corresponding file names of the de-identified data are provided together with the images. The images represent Col1 fibers from two different patients with non-recurrent tumors and two different patients with recurrent tumors.
Tomography 10 00083 g001
Tomography 10 00083 g002

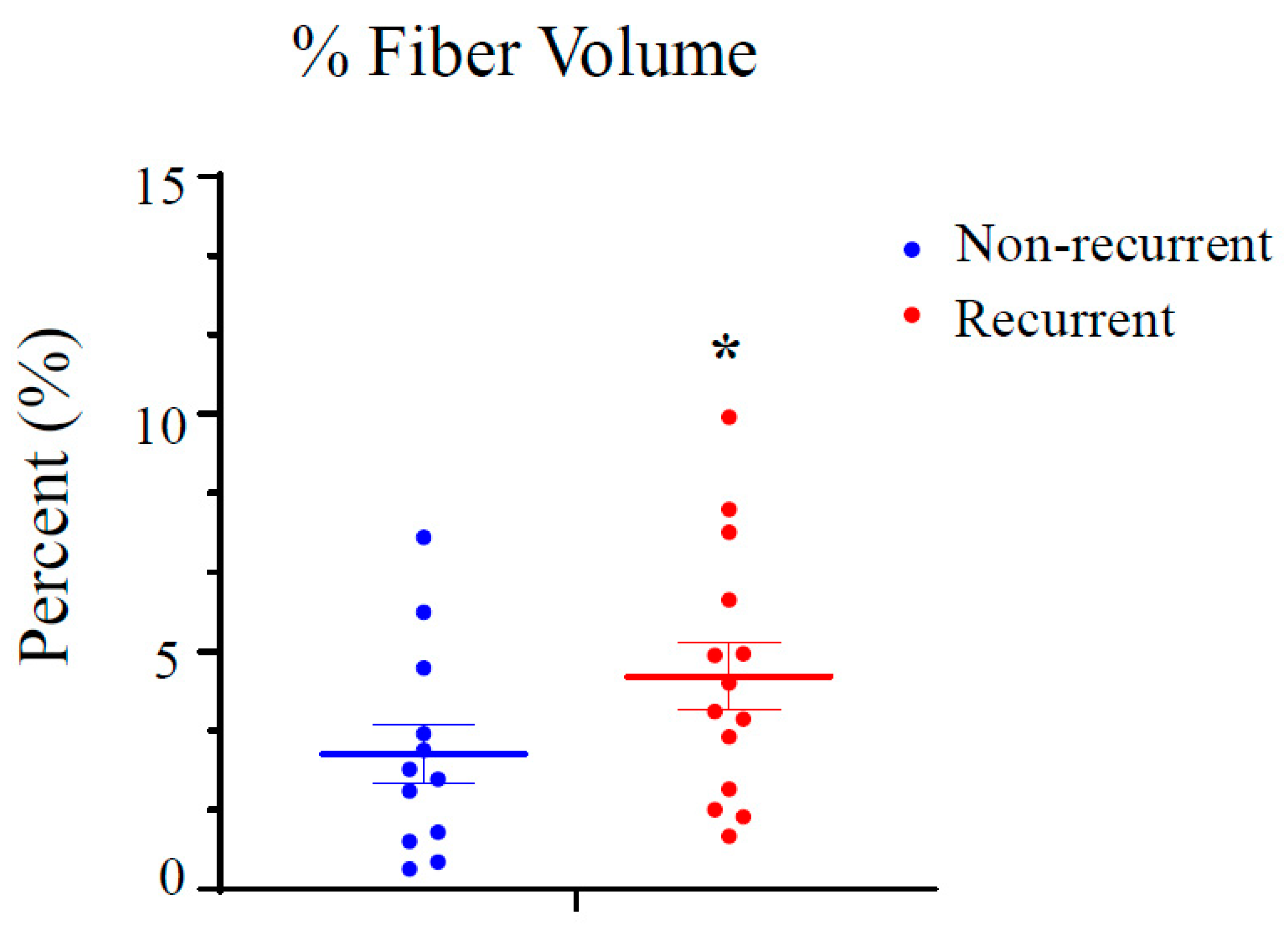

Figure 2. Significantly higher percent Col1 fibers were observed in the recurrent NSCLC (N = 14) compared to the non-recurrent NSCLC (N = 12). Values represent mean ± S.E.; * p-value ≤ 0.05. Each point represents the mean fiber volume for each patient in the non-recurrent and recurrent group obtained from 6–18 randomly selected FOVs for each patient.
Figure 2. Significantly higher percent Col1 fibers were observed in the recurrent NSCLC (N = 14) compared to the non-recurrent NSCLC (N = 12). Values represent mean ± S.E.; * p-value ≤ 0.05. Each point represents the mean fiber volume for each patient in the non-recurrent and recurrent group obtained from 6–18 randomly selected FOVs for each patient.
Tomography 10 00083 g002
Tomography 10 00083 g003

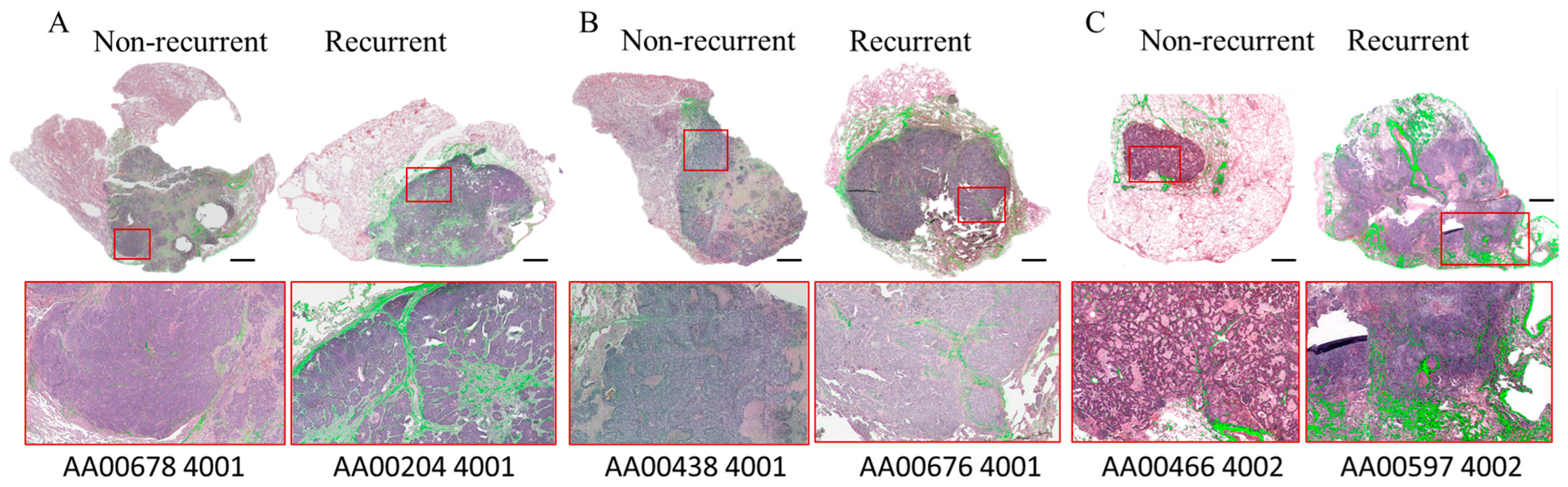

Figure 3. (A–C): Representative H&E stained sections and tile scanned Col1 fiber SHG microscopy images (shown in green) from three pairs of different non-recurrent and recurrent NSCLC patients, with the corresponding de-identified file names. Expanded red boxed regions identify the long thicker patterns of Col1 fiber in the H&E section of the recurrent tumors compared to the short thin Col1 fibers in the non-recurrent tumors. Pixel resolution in XY plane = 0.53 μm. Scale bar = 2000 μm.
Figure 3. (A–C): Representative H&E stained sections and tile scanned Col1 fiber SHG microscopy images (shown in green) from three pairs of different non-recurrent and recurrent NSCLC patients, with the corresponding de-identified file names. Expanded red boxed regions identify the long thicker patterns of Col1 fiber in the H&E section of the recurrent tumors compared to the short thin Col1 fibers in the non-recurrent tumors. Pixel resolution in XY plane = 0.53 μm. Scale bar = 2000 μm.
Tomography 10 00083 g003
Tomography 10 00083 g004

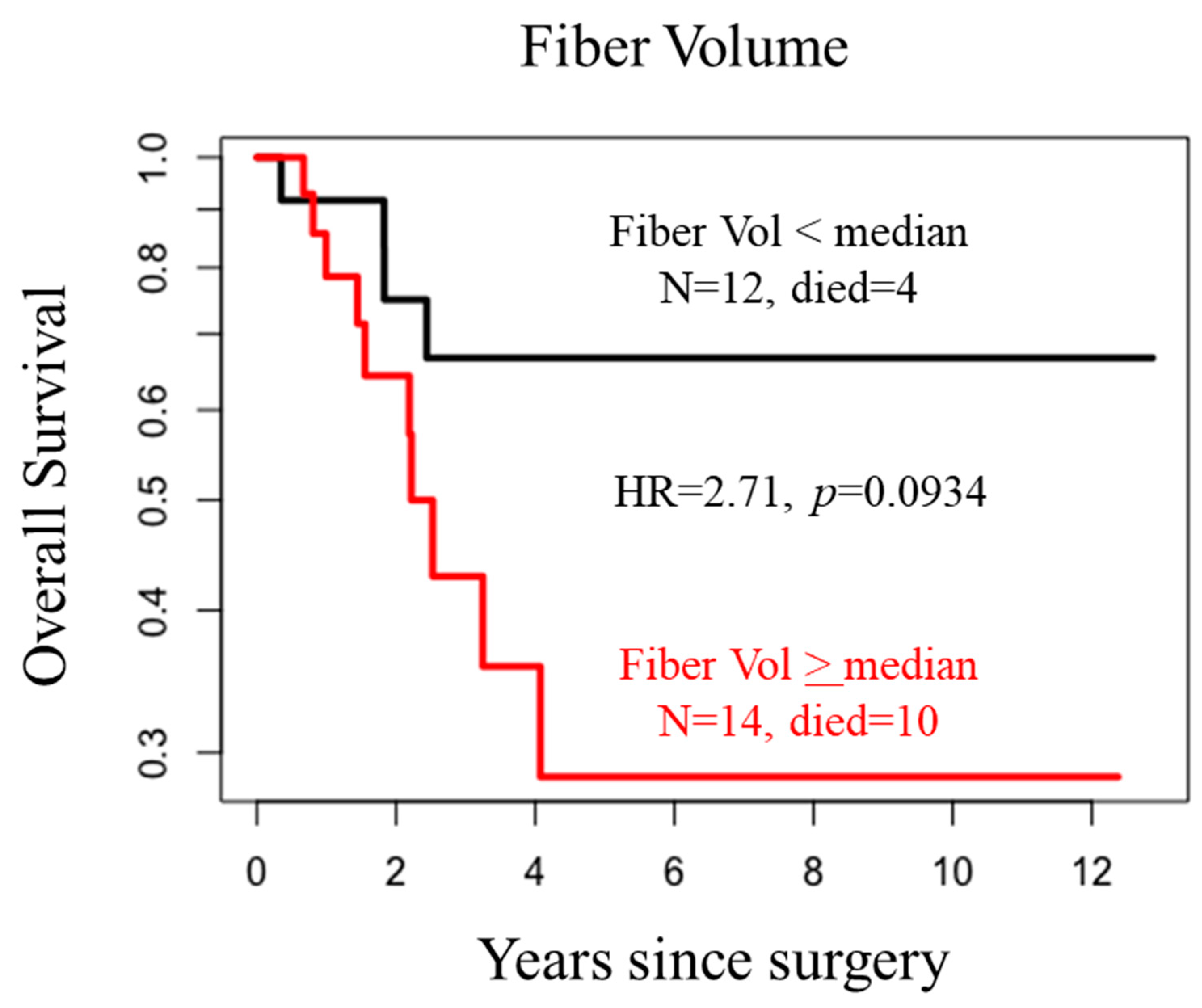

Figure 4. Survival graphs showing differences in the overall survival of patients from the date of surgery differentiated based on Col1 fiber volume. Patients were classified into two subgroups based on whether the Col1 fiber volume values were greater or smaller than the median value. A hazard ratio (HR) of 2.71 was observed between the two groups.
Figure 4. Survival graphs showing differences in the overall survival of patients from the date of surgery differentiated based on Col1 fiber volume. Patients were classified into two subgroups based on whether the Col1 fiber volume values were greater or smaller than the median value. A hazard ratio (HR) of 2.71 was observed between the two groups.
Tomography 10 00083 g004
Table 1. Demographics of the patient population studied.
Table 1. Demographics of the patient population studied.
No Recurrence* Recurrencep Value
N 1214
Female N (%)4 (33%)7 (50%)1.0
Age at surgeryMean ± sd63.3 ± 4.466.5 ± 5.40.1141
Current smokerN (%)4 (33%)10 (71%)0.1131
Years smokedMean ± sd42.0 ± 6.547.9 ± 6.60.0326
Pack-yearsMean ± sd55.0 ± 17.083.3 ± 63.70.1308
Family history of lung cancerN (%)2 (17%)5 (36%)0.3913
* 8 local, 3 distant, 3 local and distant.
Table 2. Log2 fold changes in ECM-protein-related genes in invasive compared to noninvasive NSCLC samples in the GSE166720 data set. Log2 fold negative values represent downregulated genes.
Table 2. Log2 fold changes in ECM-protein-related genes in invasive compared to noninvasive NSCLC samples in the GSE166720 data set. Log2 fold negative values represent downregulated genes.
DescriptionSymbolGeneIDlog2Fold Changep Valuepadj
ECM related proteinsCollagen type I alpha 1 chainCOL1A112772.635.27 × 10−190.0000
Fibronectin type III domain containing 1FNDC184,6241.972.44 × 10−110.0000
Collagen type I alpha 2 chainCOL1A212781.933.44 × 10−140.0000
Laminin subunit beta 3LAMB339141.644.20 × 10−100.0000
Laminin subunit gamma 2LAMC239181.625.88 × 10−070.0000
Nidogen 2NID222,7951.512.04 × 10−130.0000
AggrecanACAN1761.503.76 × 10−050.0003
EGF-like, fibronectin type III and Laminin G domainsEGFLAM133,5841.393.38 × 10−120.0000
Laminin subunit beta 4LAMB422,7981.366.52 × 10−060.0001
Laminin subunit alpha 1LAMA1284,2170.757.09 × 10−030.0228
Laminin subunit beta 1LAMB139120.734.16 × 10−050.0003
Laminin subunit alpha 4LAMA439100.522.84 × 10−030.0108
Hyaluronan binding protein 2HABP23026−2.378.10 × 10−070.0000
CAFsHHIP like 2 (myCAF) [45]HHIPL279,8023.271.44 × 10−140.0000
Leucine-rich repeat containing 15 (myCAF)LRRC15131,5782.376.07 × 10−100.0000
Thy-1 cell surface antigen (myCAF) [45,46]THY170701.441.02 × 10−130.0000
Fibroblast activation protein alphaFAP21911.405.33 × 10−090.0000
HHIP like 1 (myCAF) [45]HHIPL184,4390.852.06 × 10−050.0002
Platelet derived growth factor receptor beta (iCAF) [46]PDGFRB51590.559.45 × 10−040.0044
Integrin subunit alpha 8 (apCAF) [46]ITGA88516−0.823.29 × 10−050.0003
apCAF: antigen-presenting CAF; iCAF: inflammatory CAF; myCAF: myofibroblasts CAF.
Table 3. Log2 fold changes in immune checkpoint and T-lymphocyte related genes in invasive compared to noninvasive NSCLC samples in the GSE166720 data set. Log2 fold negative values represent downregulated genes.
Table 3. Log2 fold changes in immune checkpoint and T-lymphocyte related genes in invasive compared to noninvasive NSCLC samples in the GSE166720 data set. Log2 fold negative values represent downregulated genes.
DescriptionSymbolGeneIDlog2Fold Changep Valuepadj
Immune checkpointsLymphocyte activating 3LAG339021.622.81 × 10−100.0000
Indoleamine 2,3-dioxygenase 1IDO136201.602.73 × 10−060.0000
Sialic acid binding Ig like lectin 10SIGLEC1089,7901.354.07 × 10−070.0000
V-set domain containing T cell activation inhibitor 1VTCN179,6791.331.30 × 10−020.0373
Programmed cell death 1PDCD151331.092.36 × 10−050.0002
CD274 moleculeCD27429,1260.681.55 × 10−020.0430
Immune cytokines/
* T-lymphocytes		Interferon gamma (Th1, Tc1)IFNG34581.801.32 × 10−050.0001
Transforming growth factor beta induced (Tregs)TGFBI70451.111.06 × 10−080.0000
CD8b molecule (Tc)CD8B9260.851.69 × 10−030.0070
Interleukin 2 receptor subunit alpha (Tregs, Tcm)IL2RA35590.843.54 × 10−030.0129
Integrin subunit alpha E (Trm, RTE)ITGAE36820.824.69 × 10−070.0000
CD38 molecule (activated T cells)CD389520.712.01 × 10−020.0531
CD8a molecule (Tc)CD8A9250.697.49 × 10−030.0238
Interleukin 10 (Tregs, Trm, Th2, Tc9)IL1035860.686.95 × 10−030.0224
CD3 delta subunit of T-cell receptor complex (Pan T cells)CD3D9150.606.17 × 10−030.0204
Interleukin 2 receptor subunit beta (Tscm, Tcm, Tem, Teff)IL2RB35600.591.21 × 10−020.0351
C-C motif chemokine receptor 6 (Th17, Tc17)CCR61235−0.593.2 × 10−030.0119
prostaglandin D2 receptor 2 (Th2, Tc2)PTGDR211,251−0.721.20 × 10−020.0348
CD69 molecule (Trm, Tcm, Tem, Teff)CD69969−0.722.08 × 10−030.0083
RTE: Recent thymic emigrants; Tc: Cytotoxic T cells; Tcm: Memory T cells; Teff: Effector T cells; Tem: Tissue effector memory cells; Th1: Helper T cells; Tregs: Regulatory T cells, Th2: Helper T cells; Trm: Tissue resident memory T cells; Tscm: memory stem cell; * Abbreviations from [47].
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kakkad, S.; Krishnamachary, B.; Fackche, N.; Garner, M.; Brock, M.; Huang, P.; Bhujwalla, Z.M. Collagen 1 Fiber Volume Predicts for Recurrence of Stage 1 Non-Small Cell Lung Cancer. Tomography 2024, 10, 1099-1112. https://doi.org/10.3390/tomography10070083

AMA Style

Kakkad S, Krishnamachary B, Fackche N, Garner M, Brock M, Huang P, Bhujwalla ZM. Collagen 1 Fiber Volume Predicts for Recurrence of Stage 1 Non-Small Cell Lung Cancer. Tomography. 2024; 10(7):1099-1112. https://doi.org/10.3390/tomography10070083

Chicago/Turabian Style

Kakkad, Samata, Balaji Krishnamachary, Nadege Fackche, Matthew Garner, Malcom Brock, Peng Huang, and Zaver M. Bhujwalla. 2024. "Collagen 1 Fiber Volume Predicts for Recurrence of Stage 1 Non-Small Cell Lung Cancer" Tomography 10, no. 7: 1099-1112. https://doi.org/10.3390/tomography10070083

APA Style

Kakkad, S., Krishnamachary, B., Fackche, N., Garner, M., Brock, M., Huang, P., & Bhujwalla, Z. M. (2024). Collagen 1 Fiber Volume Predicts for Recurrence of Stage 1 Non-Small Cell Lung Cancer. Tomography, 10(7), 1099-1112. https://doi.org/10.3390/tomography10070083

Article Metrics

Back to TopTop
