Article

A Highly Stretchable, Tough, Fast Self-Healing Hydrogel Based on Peptide–Metal Ion Coordination

by
Liang Zeng
1,†,
Mingming Song
2,†,
Jie Gu
2,
Zhengyu Xu
2,
Bin Xue
2,*,
Ying Li
1,* and
Yi Cao
2,*
1
Collaborative Innovation Center of Atmospheric Environment and Equipment Technology, Jiangsu Key Laboratory of Atmospheric Environment Monitoring and Pollution Control, School of Environmental Science and Engineering, Nanjing University of Information Science & Technology, Nanjing 210044, China
2
Collaborative Innovation Center of Advanced Microstructures, National Laboratory of Solid State Microstructure, Key Laboratory of Intelligent Optical Sensing and Manipulation, Ministry of Education, Department of Physics, Nanjing University, Nanjing 210093, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Biomimetics 2019, 4(2), 36; https://doi.org/10.3390/biomimetics4020036
Submission received: 14 February 2019 / Revised: 31 March 2019 / Accepted: 6 May 2019 / Published: 10 May 2019
(This article belongs to the Special Issue Biogenic and Bioinspired Self-Healing Materials)
Browse Figures
Versions Notes

Abstract

:
Metal coordination bonds are widely used as the dynamic cross-linkers to construct self-healing hydrogels. However, it remains challenging to independently improve the toughness of metal coordinated hydrogels without affecting the stretchability and self-healing properties, as all these features are directly correlated with the dynamic properties of the same metal coordination bonds. In this work, using histidine–Zn2+ binding as an example, we show that the coordination number (the number of binding sites in each cross-linking ligand) is an important parameter for the mechanical strength of the hydrogels. By increasing the coordination number of the binding site, the mechanical strength of the hydrogels can be greatly improved without sacrificing the stretchability and self-healing properties. By adjusting the peptide and Zn2+ concentrations, the hydrogels can achieve a set of demanding mechanical features, including the Young’s modulus of 7–123 kPa, fracture strain of 434–781%, toughness of 630–1350 kJ m−3, and self-healing time of ~1 h. We anticipate the engineered hydrogels can find broad applications in a variety of biomedical fields. Moreover, the concept of improving the mechanical strength of metal coordinated hydrogels by tuning the coordination number may inspire the design of other dynamically cross-linked hydrogels with further improved mechanical performance.

Graphical Abstract

1. Introduction

Self-healing hydrogels have received considerable attention in recent years due to their diverse biomedical applications, such as wound dressing, soft tissue medical adhesives, injectable drug carriers, and self-supporting 3D printing inks [1,2,3,4,5,6,7,8]. Generally, self-healing hydrogels can use either dynamic covalent or noncovalent cross-linkers as the healing motifs. Dynamic covalent cross-linkers include boronate ester bonds [9,10,11,12,13,14], imine bonds [15,16], acylhydrazone bonds [17,18], and oxime bonds [19], etc. These bonds are chemically labile under physiological conditions. Despite that the hydrogels cross-linked by dynamic covalent cross-linkers possess high mechanical stability, they self-heal slowly, as typical dynamic covalent bonds show very slow exchange dynamics. On the other hand, physical cross-linkers, including hydrophobic effects [20,21,22,23], hydrogen bonding [24,25,26,27,28,29], host–guest interactions [30,31,32], ionic bonding [33], metal coordination [34,35,36,37,38,39,40,41,42,43,44,45,46], and specific protein–protein interactions [47,48,49], are highly dynamic, rendering the hydrogels with great self-healing properties. However, they are typically too dynamic to give rise to mechanically tough hydrogels, because mechanical strength of hydrogels is also directly correlated with the cross-linker dynamics [34,50,51,52]. Therefore, in most self-healing materials, the toughness and the healing rates are compromised. It remains challenging to engineer mechanically tough yet highly stretchable and fast healable hydrogels.
Recently Holten-Andersen et al. experimentally [53], and Hartmann et al. theoretically [54], showed that the coordination number, which is the number of ligands involved in the cross-linking junction, is critical for the mechanical properties of the resulting hydrogels. By increasing the number of cross-linking sites using Fe3O4 nanoparticles instead of Fe3+ ions with catechol, the hydrogels became much tougher yet remained reversible [53]. Increasing the coordination number has a beneficial effect on the mechanical strength of the hydrogels due to the cooperative rupture of these bonds upon loading [54].
Inspired by these studies, here we report on the construction of highly stretchable, tough and fast self-healing hydrogels cross-linked by peptide–metal ion coordination sites with high coordination number (the number of binding site in each cross-linking ligand). We show that comparing to the hydrogels cross-linked by single ligand–metal ion bonds, the peptide–metal ion coordinated hydrogels show much higher Young’s modulus and break strength as well as similar break strain and self-healing rate. We anticipate that these hydrogels can find broad biomedical applications in tissue engineering, wound addressing and 3D bioprinting.

2. Materials and Methods

2.1. Materials

Acrylamide was purchased from Sigma-Aldrich (Shanghai, China). Zinc chloride (ZnCl2), potassium chloride (KCl), ammonium persulfate (APS), hydrochloric acid (HCl), and tris(hydroxymethyl)methyl aminomethane (Tris base) were purchased from Sinopharm Chemical Regent Co., Ltd. (Beijing, China). The designed peptides were purchased from GL Biochem (Shanghai) Ltd. (Shanghai, China). All regents were used without further purification.

2.2. Preparation of the Gly-Gly-His (GGH) and Gly-His-His-Pro-His (GHHPH) Hydrogels

In a typical preparation of hydrogels, peptides and acrylamide were dissolved in Milli-Q water to the concentrations of 100 mg mL−1 and 50 mg mL−1, respectively. The solution was degassed three times for 15 min by ultrasound under argon atmosphere. Ammonium persulfate was added as a photoinitiator for polymerization. The solutions were filled into the molds and polymerization was undertaken under ultraviolet light (285 nm) irradiation for 20 h. Then the hydrogels were immersed in 1 M Tris buffer (pH = 7.60, containing 300 mM of KCl and different molars of ZnCl2) for 24 h to form the coordinate bonds. The solid content (Ws) of the hydrogels was calculated as W s = W d W 0 , where Wd is the weight of the lyophilized hydrogel and W0 corresponds to the weight of the corresponding wet hydrogel. The molecular weights of the polymers were characterized using gel permeation chromatography (GPC) (LC-20A, Shimadzu, Japan) in THF with tandem Shodex KF-803 and KF-805 columns. The molecular weights were calibrated using the polystyrene molecular weight standard (ZZStandard, Shanghai, China). Then the degree of polymerization was calculated based on the molecular weights of the polymers and the molar ratio of peptides and acrylamide in the hydrogels.

2.3. Rheological Measurements

The rheological measurements were carried out on a standard rheometer (Thermo Scientific Haake RheoStress 6000, Thermo, Karlsruhe, Germany). The hydrogels were carefully placed on the rheometer plate and allowed to equilibrate for ~30 min prior to the measurements. The rheology experiments were then carried out either using a strain sweep mode with a strain amplitude range of 0.01% to 100% at a fixed frequency of 6.28 rad s−1 or using a frequency sweep mode with a frequency range of 0.01 rad s−1 to 100 rad s−1 at a fixed strain of 0.1% (geometry: 1°/20 mm of cone and plate; gap: 0.37 mm; temperature: 20 °C). For the recovery experiments, the G’ and G’’ were measured at a strain of 0.1% and a frequency of 6.28 rad s−1. Then strain was set to an amplitude of 1000% to destroy the hydrogels for 60 s and switched back to an amplitude of 0.1% to monitor the recovery of the mechanical properties for 300 s.

2.4. Tensile and Compressive Test

The tensile stress–strain measurements were performed on a tensile–compressive tester (Instron-5944 with a 10 N sensor, Instron, Boston, MA, USA) in air at room temperature. In the tension crack test, the strain rate of stretching was maintained at different percentages of the original length of the samples per minute and the original length of the hydrogel samples in the uniaxial tension ranged from 7.5 mm to 10.0 mm. The tensile toughness was calculated from the area below the stress–strain curve until fracture. The equation used in the calculation was as below; E f = ∫ x 0 x f σ ( x ) d x in which x 0 corresponds to the starting point of the tension, corresponds to the fracture point of the tension and σ corresponds to the stress during the tension. [55,56,57] The Young’s moduli, E, were measured by fitting the linear region of the stress–strain curve (below 20% strain). The definitions of all the parameters and formulations are listed in Table S1.

2.5. Scanning Electron Microscopy (SEM) measurements

SEM images were obtained using a Quanta Scanning Electron Microscope (Quata 200, FEI, Thermo, Hillsboro, OR, USA) at 20 kV. The hydrogels were lyophilized prior to the measurement.

3. Results

3.1. Results and Analysis

3.1.1. The Design and Preparation of the Self-Healing Hydrogels

Two kinds of short peptides containing different number of metal ion binding sites (histidine) [58,59] were used as the cross-linkers in the self-healing hydrogels. The sequences of the two peptides are Gly–Gly–His (GGH) and Gly–His–His–Pro–His (GHHPH), respectively (Figure 1A,B). The histidine residues in both peptides can form coordination bonds with Zn2+ ions. The GGH peptide contains only a single histidine and forms a single coordination bond with Zn2+ ions. In contrast, GHHPH can bind with Zn2+ ions with a 2:1 stoichiometric ratio as previously reported [60], indicating that GHHPH forms at least two coordination bonds with Zn2+, exhibiting higher coordination number (the number of binding site in each cross-linking ligand) than GGH. Although metal coordination bonds can be directly conjugated to multiarmed hydrophilic polymers to form metal chelating hydrogels, the mechanical properties of those networks were relatively weak due to the limited cross-linking density [34,44]. We therefore used an aqueous free radical copolymerization approach to polymerize the hydrophilic monomer (acrylamide) and the acryloyl-terminated peptides directly into an entangled weak network of pre-gels (Figure 1C). The pre-gels were in the boundary of hydrogels and viscous solutions whose storage moduli were close to the loss moduli in a broad frequency range (Figure S1). There was no inter-chain covalent cross-linking in the pre-gels. Then, the pre-gels were immersed in Tris buffer (pH = 7.60, 100 mM Tris and 300 mM KCl) containing different concentrations of ZnCl2 for 48 h in order to form coordination bonds between peptides and Zn2+ ions (Figure 1C). The hydrogels (denoted as GGH and GHHPH hydrogels) were transparent and free-standing (Figure 1D). The microstructures of the hydrogels were studied by scanning electron microscopy (SEM). Both the two kinds of hydrogels exhibited similar microstructures of porous networks (Figure S2).

3.1.2. Dynamic Mechanical Properties of the Self-Healing Hydrogels

The dynamic mechanical properties of the two kinds of hydrogels were investigated using dynamic shear rheology. As shown in Figure 1E, the G’ (storage modulus) of all hydrogels was obviously larger than G’’ (loss modulus), indicating solid rather than viscous response of the gel. The G’ increased with the increase of peptide concentrations (Figure S3). The G’ and G’’ of GHH hydrogels crossed at a frequency of ~100 rad s−1. This suggested that the histidine–Zn2+ coordination bonds in both hydrogels were highly dynamic with a characteristic lifetime shorter than 0.03 s. In comparison, GHHPH hydrogels were stiffer than GGH hydrogels at the same peptide concentrations, as evidenced by their higher storage modulus G’ (Figure 1E and Figure S3). No crossover of G’ and G’’ was observed, suggesting that the binding of GHHPH became much static. Moreover, the strain sweep experiments were also performed (Figure 1F). The yield strength values of GGH and GHHGH hydrogels were 354 Pa and 432 Pa, respectively, indicating that both the gels can undergo plastic deformation at low amplitudes (Figure 1F). Furthermore, all hydrogels, except for GGH hydrogel at the low peptide concentration of 25 mg mL−1, can survive up to 100% strain, suggesting that the hydrogels were mechanically quite robust (Figure S4). For comparison, the covalent hydrogels cross-linked by bis-acrylamide with the same cross-linking density was studied as the control group (Figure S5A). The G’ and G’’ of the hydrogel with covalent network were similar with those of GGH and GHHGH hydrogels.
Then the reassociation of the peptide-Zn2+ bonds was studied after a large strain oscillatory breakdown at 20 °C (Figure 1G and Figure S6). Both GGH and GHHPH hydrogels can be fractured at strains higher than 1000% due to the mechanical rupture of the peptide-Zn2+ cross-linkers. However, both the G’ and G’’ can be fully recovered in a few seconds, suggesting that these hydrogels may own self-healing properties owing to the fast reassociation of the coordination bonds. The recovery of GHHPH hydrogels was even faster, suggesting that the histidine residues in the peptide may exhibit certain cooperativity for Zn2+ binding.

3.1.3. Tensile Mechanical Properties of the Self-Healing Hydrogels

Next, the tensile mechanical properties of the hydrogels were measured by standard tensile tests. The typical tensile stress–strain curves with different mass ratios of the acryloyl-terminated peptide and acrylamide (w/w 1:1, 2:1 and 3:1) are shown in Figure 2A,C and the degree of polymerization, solid content, and mechanical properties were summarized in Table 1. Similar to the rheological properties, the tensile mechanical properties, including fracture stress, Young’s modulus, and toughness of GHHPH hydrogels were systematically higher than that of GGH hydrogels. The maximum toughness of GGH hydrogels was 868.07 kJ m−3 while that of GHHPH hydrogels reached more than 1300 kJ m−3. Increasing peptide concentrations led to higher stiffness and toughness of the hydrogels, suggesting that the mechanical properties can be manipulated by adjusting the density of the cross-linkers. It is worth mentioning that the solid contents of these hydrogels were different and in a range of 22.79% to 31.69% (Table 1). However, due to the different Zn2+ binding ability and swelling ratios of these hydrogels, the solid content was difficult to predict a priori. Nonetheless, the dramatic difference in Young’s moduli and strain limit for all these hydrogels cannot be attributed to the variation of the solid contents. The different coordination numbers of the cross-linkers played the major role. In comparison, the stretchability and toughness of the covalent hydrogels were much lower than that of GGH and GHHGH hydrogels (Figure S5B).
Furthermore, the mechanical properties of the hydrogels with different tensile strain rates were also studied in order to determine the reversibility of the cross-linkers. As shown in Figure 2B,D, the fracture strain of both kinds of hydrogels became larger as the tensile strain rate decreased, indicating that the toughness of the hydrogels increased as the strain rate increased. However, the Young’s modulus of the hydrogels almost remained unchanged with the increase of strain rates, suggesting that the change of strain rates would not affect the elasticity of the hydrogels. The independent control of the toughness and elasticity demonstrated that the cross-links based on the coordination between the designed peptides and Zn2+ ions were reversible, which is consistent with recent experimental studies [61,62] and theoretic work [63]. According to the theory [63], to have the strain rate independent elasticity, the strain rate timescale should be longer than the timescale of reversible dissociation/association of the cross-linkers. Therefore, the coordination bonds between GGH/GHHPH and Zn2+ have reversible dynamics at a timescale shorter than 2 s. Due to the limited strain rate available in our tensile test machine, which cannot go beyond 3000% min−1 in the experiments, the exact reversible dynamics cannot be obtained. Nonetheless, it is clear that GHHPH can still retain high dissociation/association rates with Zn2+ in the cross-linking site, which is the prerequisite for fast self-healing.
At last, the tensile experiments with multiple cyclic loading were also performed to investigate the dissipated energy, fatigue, and plastic deformation (Figure S7). The energy dissipation of GGH and GHHGH hydrogels reached 172.4 kJ m−3 and 413.0 kJ m−3, respectively, in the first tensile cycle, exhibiting excellent energy dissipation properties due to the absence of covalent cross-linkers. The dissipated energy and maximum stress changes are also summarized in Figure S7C,D. The dissipated energy as well as the maximum stress decreased significantly after multiple cyclic loading. However, the dissipated energy remained more than 20% after seven tensile cycles, indicating that the peptide-Zn2+ coordination bonds can partially reform during relaxation. The decrease of dissipated energy and maximum stress suggested the fast accumulation of plastic deformation and fatigue of the hydrogels.

3.1.4. Self-Healing Properties of the Hydrogels

Next, we tested the self-healing properties of the hydrogels. In a typical self-healing experiment, the hydrogel was cut into two pieces and put together to self-heal for different times under slight pressure provided by two parallel disk plates in Tris buffer (pH = 7.60, containing 100 mM Tris and 300 mM KCl). The representative images of hydrogels before and after healing, stress–strain curves and normalized recovery percentage of the mechanical properties are illustrated in Figure 3. Obviously, longer healing time led to higher recovery percentages. For GGH hydrogels, the fracture strain can reach the initial level after healing for 60 min and the fracture stress and toughness can reach ~80% of the initial level. For GHHPH hydrogels, the fracture strain can be fully recovered after healing for 60 min and the fracture stress and toughness can reach about 90% of the initial level. The self-healing of the GHHPH hydrogels was slightly higher than that of GGH hydrogels, probably due to higher cooperativity of the bonds between GHHPH and Zn2+ ions than that of GGH and Zn2+. These experiments confirmed that the hydrogels based on the coordination bonds between GHHPH and Zn2+ ions showed combined high stretchability, great mechanical strength and fast self-healing properties. In comparison, no self-healing property was observed in the covalent hydrogels (Figure S5C).
Furthermore, the self-healing of hydrogels with different molar ratios of peptides and Zn2+ ions was also investigated in order to study the effects of Zn2+ ion concentrations on the self-healing properties (Figure 4). For GGH hydrogels, the molar ratios of peptides and Zn2+ ions were set as 15:1, 15:3 and 15:4, respectively. As shown in Figure 4C, the self-healing percentage of the fracture strain, fracture stress and toughness increased with the increasing molar ratios of Zn2+ ions and peptides, indicating that the self-healing ability was enhanced as the Zn2+ concentration increased. For GHHPH hydrogels, the molar ratios of peptide and Zn2+ ions were set as 15:3, 15:9, and 15:12 to ensure the ratios of histidine and Zn2+ ions were the same as those in GGH hydrogels (Figure 4B). Similarly, the self-healing percentages increased with the increase of Zn2+ concentrations (Figure 4D). All these results showed that the self-healing properties of the hydrogels can be further improved by the presence of additional metal ions, which increased the apparent association rates of peptides and Zn2+ ions.

4. Discussion

Although metal coordination bonds have been extensively used as reversible dynamic bonds for engineering self-healing hydrogels, a major challenge is that the resulting hydrogels have limited mechanical strength. However, the mechanical properties are essential for many biological applications, such as wound dressing and soft tissue medical adhesive, because the hydrogels are subjected to substantial mechanical stress in these applications. In this work, we showed that the toughness of the hydrogels can be greatly improved by using peptide cross-linkers of high coordination number (the number of binding sites in each cross-linking ligand). Due to the formation of multiple metal coordination bonds in each cross-linking ligand, the mechanical load can be evenly distributed to the bonds thus allowing them to bear larger overall mechanical forces. Therefore, the toughness of the hydrogels is significantly increased comparing to the single-bond cross-linkers. Moreover, due to the formation of specific metal ion binding sites, the association rates of peptides to metal ions are also faster than that of individual ligands. This leads to faster self-healing. Therefore, by simply tuning the coordination number (the number of binding sites in each cross-linking ligand), we were able to obtain hydrogels with combined high stretchability, toughness, and fast recovery. Note that this approach is distinct from the way of tuning the metal–ligand dynamics. It is worth noting that in our system, the maximum coordination number of Zn2+ ions is four. In order to form intermolecular cross-linking, the number of histidine residues in each peptide cannot be higher than four, which prevented us from testing hydrogels cross-linked ligands with other coordination numbers. To further validate this conclusion, future work using synthetic ligands and metal ions with higher coordination numbers is required.
Although it is possible to increase the toughness of hydrogels by making the metal coordination bonds less dynamic, the self-healing properties are compromised because the reassociation of the metal coordination bonds is retarded. Therefore, our approach provides a novel and efficient means for the construction of tough yet self-healable hydrogels. We envision that there is much room to tune the mechanical properties of the self-healing hydrogels by optimizing the cooperativity of dynamical interactions at the molecular level. For example, using nanoparticle cross-linkers or multivalent protein domains as the cross-linkers may further boost the mechanical features of self-healing hydrogels, which are certainly our next endeavors.

5. Conclusions

In summary, we have engineered highly stretchable, tough and self-healing hydrogels based on the coordination of peptides and metal ions. We showed that by increasing the coordination number of the binding sites (the number of binding sites in each cross-linking ligand), the toughness of the hydrogels can be greatly improved without sacrificing the stretchability and self-healing of the hydrogels. The resulting hydrogels can achieve a rigorous set mechanical characteristic, including the Young’s modulus of 15 kPa, the fracture strain of 620%, the toughness of 1350 kJ m−3, and the self-healing time of ~1 h. These properties may allow the hydrogels to be used as artificial skins or bioactive coatings for wound dressing. Moreover, the mechanical and self-healing properties can be tuned by adjusting the concentrations of the peptides and metal ions to match the mechanical properties of other biological tissues and to explore other biomedical applications. The concept of using higher number of binding sites in each cross-linking ligand to enhance the mechanical strength of self-healing hydrogels may open doors to design and engineer mechanically tough, highly stretchable and fast self-healing hydrogels.

Supplementary Materials

The Supplementary Materials are available online at https://www.mdpi.com/2313-7673/4/2/36/s1: Figure S1. Dynamic mechanical properties of GGH and GHHPH Pre-gels without Zn2+ ion; Figure S2. SEM images of lyophilized GGH and GHHPH hydrogels; Figure S3. Rheological mechanical properties of GGH and GHHPH hydrogels in frequency sweep experiments; Figure S4. Rheological mechanical properties of GGH and GHHPH hydrogels in strain sweep experiments; Figure S5. Rheological mechanical properties in frequency sweep experiments, tensile experiments and self-healing properties of the covalent hydrogels; Figure S6. Rheological mechanical properties of GGH and GHHPH hydrogels in destroy–recovery experiments; Figure S7. Tensile experiments with multiple cyclic loading; Table S1. Details of all parameters and formulations in the article.

Author Contributions

Conceptualization, Y.C. and Y.L.; Methodology, L.Z. and M.S.; Software, B.X.; Validation, L.Z. and M.S.; Formal Analysis, B.X. and M.S.; Investigation, L.Z., M.S., and Z.X.; Resources, Y.C.; Data Curation, L.Z. and M.S.; Writing—Original Draft Preparation, B.X.; Writing—Review and Editing, Y.C. and Y.L.; Visualization, L.Z.; Supervision, Y.C., Y.L., and B.X.; Project Administration, Y.C.; Funding Acquisition, Y.C., Y.L., and B.X.

Funding

This work is supported by the National Natural Science Foundation of China (Grant No. 11674153, 11804148, and 11804147), the Priority Academic Program Development (PAPD) of Jiangsu Higher Education Institutions, the Natural Science Foundation of Jiangsu Province (No. BK20180320), and the Fundamental Research Funds for the Central Universities.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, Q.; Liu, C.; Wen, J.; Wu, Y.; Shan, Y.; Liao, J. The design, mechanism and biomedical application of self-healing hydrogels. Chin. Chem. Lett. 2017, 28, 1857–1874. [Google Scholar] [CrossRef]
  2. Taylor, D.L.; in het Panhuis, M. Self-healing hydrogels. Adv. Mater. 2016, 28, 9060–9093. [Google Scholar] [CrossRef] [PubMed]
  3. Timin, A.S.; Gould, D.J.; Sukhorukov, G.B. Multi-layer microcapsules: Fresh insights and new applications. Expert Opin. Drug Deliv. 2017, 14, 583–587. [Google Scholar] [CrossRef] [PubMed]
  4. Liu, Y.; Hsu, S.-H. Synthesis and biomedical applications of self-healing hydrogels. Front. Chem. 2018, 6, 449. [Google Scholar] [CrossRef]
  5. Shi, L.; Ding, P.; Wang, Y.; Zhang, Y.; Ossipov, D.; Hilborn, J. Self-healing polymeric hydrogel formed by metal–ligand coordination assembly: Design, fabrication, and biomedical applications. Macromol. Rapid Commun. 2019, 40, 1800837. [Google Scholar] [CrossRef] [PubMed]
  6. Saunders, L.; Ma, P.X. Self-healing supramolecular hydrogels for tissue engineering applications. Macromol. Biosci. 2019, 19, 1800313. [Google Scholar] [CrossRef]
  7. Wang, Y.; Park, J.P.; Hong, S.H.; Lee, H. Biologically inspired materials exhibiting repeatable regeneration with self-sealing capabilities without external stimuli or catalysts. Adv. Mater. 2016, 28, 9961–9968. [Google Scholar] [CrossRef]
  8. Hong, S.; Schaber, C.F.; Dening, K.; Appel, E.; Gorb, S.N.; Lee, H. Air/water interfacial formation of freestanding, stimuli-responsive, self-healing catecholamine janus-faced microfilms. Adv. Mater. 2014, 26, 7581–7587. [Google Scholar] [CrossRef]
  9. Guan, Y.; Zhang, Y. Boronic acid-containing hydrogels: Synthesis and their applications. Chem. Soc. Rev. 2013, 42, 8106–8121. [Google Scholar] [CrossRef]
  10. Sun, W.; Jiang, H.; Wu, X.; Xu, Z.; Yao, C.; Wang, J.; Qin, M.; Jiang, Q.; Wang, W.; Shi, D.; et al. Strong dual-cross-linked hydrogels for ultrasound-triggered drug delivery. Nano Res. 2019, 12, 115–119. [Google Scholar] [CrossRef]
  11. He, L.; Fullenkamp, D.E.; Rivera, J.G.; Messersmith, P.B. pH responsive self-healing hydrogels formed by boronate–catechol complexation. Chem. Commun. 2011, 47, 7497–7499. [Google Scholar] [CrossRef]
  12. Deng, C.C.; Brooks, W.L.A.; Abboud, K.A.; Sumerlin, B.S. Boronic acid-based hydrogels undergo self-healing at neutral and acidic pH. ACS Macro Lett. 2015, 4, 220–224. [Google Scholar] [CrossRef]
  13. Cromwell, O.R.; Chung, J.; Guan, Z. Malleable and self-healing covalent polymer networks through tunable dynamic boronic ester bonds. J. Am. Chem. Soc. 2015, 137, 6492–6495. [Google Scholar] [CrossRef]
  14. Huang, Z.; Delparastan, P.; Burch, P.; Cheng, J.; Cao, Y.; Messersmith, P.B. Injectable dynamic covalent hydrogels of boronic acid polymers cross-linked by bioactive plant-derived polyphenols. Biomater. Sci. 2018, 6, 2487–2495. [Google Scholar] [CrossRef]
  15. Zhang, Y.; Tao, L.; Li, S.; Wei, Y. Synthesis of multiresponsive and dynamic chitosan-based hydrogels for controlled release of bioactive molecules. Biomacromolecules 2011, 12, 2894–2901. [Google Scholar] [CrossRef]
  16. Lü, S.; Gao, C.; Xu, X.; Bai, X.; Duan, H.; Gao, N.; Feng, C.; Xiong, Y.; Liu, M. Injectable and self-healing carbohydrate-based hydrogel for cell encapsulation. ACS Appl. Mater. Interfaces 2015, 7, 13029–13037. [Google Scholar] [CrossRef] [PubMed]
  17. Chang, R.; Wang, X.; Li, X.; An, H.; Qin, J. Self-activated healable hydrogels with reversible temperature responsiveness. ACS Appl. Mater. Interfaces 2016, 8, 25544–25551. [Google Scholar] [CrossRef] [PubMed]
  18. Wei, Z.; Yang, J.H.; Liu, Z.Q.; Xu, F.; Zhou, J.X.; Zrínyi, M.; Osada, Y.; Chen, Y.M. Novel biocompatible polysaccharide-based self-healing hydrogel. Adv. Funct. Mater. 2015, 25, 1352–1359. [Google Scholar] [CrossRef]
  19. Mukherjee, S.; Hill, M.R.; Sumerlin, B.S. Self-healing hydrogels containing reversible oxime cross-links. Soft Matter 2015, 11, 6152–6161. [Google Scholar] [CrossRef] [PubMed]
  20. Tuncaboylu, D.C.; Sahin, M.; Argun, A.; Oppermann, W.; Okay, O. Dynamics and large strain behavior of self-healing hydrogels with and without surfactants. Macromolecules 2012, 45, 1991–2000. [Google Scholar] [CrossRef]
  21. Li, S.; Gao, Y.; Jiang, H.; Duan, L.; Gao, G. Tough, sticky and remoldable hydrophobic association hydrogel regulated by polysaccharide and sodium dodecyl sulfate as emulsifiers. Carbohydr. Polym. 2018, 201, 591–598. [Google Scholar] [CrossRef] [PubMed]
  22. Yeh, M.-Y.; Huang, C.-T.; Lai, T.-S.; Chen, F.-Y.; Chu, N.-T.; Tseng, D.T.-H.; Hung, S.-C.; Lin, H.-C. Effect of peptide sequences on supramolecular interactions of naphthaleneimide/tripeptide conjugates. Langmuir 2016, 32, 7630–7638. [Google Scholar] [CrossRef]
  23. Zhan, J.; Cai, Y.; Ji, S.; He, S.; Cao, Y.; Ding, D.; Wang, L.; Yang, Z. Spatiotemporal control of supramolecular self-assembly and function. ACS Appl. Mater. Interfaces 2017, 9, 10012–10018. [Google Scholar] [CrossRef]
  24. Feng, Z.; Zuo, H.; Gao, W.; Ning, N.; Tian, M.; Zhang, L. A robust, self-healable, and shape memory supramolecular hydrogel by multiple hydrogen bonding interactions. Macromol. Rapid Commun. 2018, 39, 1800138. [Google Scholar] [CrossRef]
  25. Nam, H.G.; Nam, M.G.; Yoo, P.J.; Kim, J.-H. Hydrogen bonding-based strongly adhesive coacervate hydrogels synthesized using poly(n-vinylpyrrolidone) and tannic acid. Soft Matter 2019, 15, 785–791. [Google Scholar] [CrossRef] [PubMed]
  26. Guo, Y.; Zheng, K.; Wan, P. A flexible stretchable hydrogel electrolyte for healable all-in-one configured supercapacitors. Small 2018, 14, 1704497. [Google Scholar] [CrossRef] [PubMed]
  27. Dai, X.; Zhang, Y.; Gao, L.; Bai, T.; Wang, W.; Cui, Y.; Liu, W. A mechanically strong, highly stable, thermoplastic, and self-healable supramolecular polymer hydrogel. Adv. Mater. 2015, 27, 3566–3571. [Google Scholar] [CrossRef] [PubMed]
  28. Wu, D.; Xu, J.; Chen, Y.; Yi, M.; Wang, Q. Gum arabic: A promising candidate for the construction of physical hydrogels exhibiting highly stretchable, self-healing and tensility reinforcing performances. Carbohydr. Polym. 2018, 181, 167–174. [Google Scholar] [CrossRef]
  29. Wu, Q.; Wei, J.; Xu, B.; Liu, X.; Wang, H.; Wang, W.; Wang, Q.; Liu, W. A robust, highly stretchable supramolecular polymer conductive hydrogel with self-healability and thermo-processability. Sci. Rep. 2017, 7, 41566. [Google Scholar] [CrossRef] [PubMed]
  30. Feng, Q.; Wei, K.; Lin, S.; Xu, Z.; Sun, Y.; Shi, P.; Li, G.; Bian, L. Mechanically resilient, injectable, and bioadhesive supramolecular gelatin hydrogels cross-linked by weak host-guest interactions assist cell infiltration and in situ tissue regeneration. Biomaterials 2016, 101, 217–228. [Google Scholar] [CrossRef]
  31. Harada, A.; Takashima, Y.; Nakahata, M. Supramolecular polymeric materials via cyclodextrin–guest interactions. Acc. Chem. Res. 2014, 47, 2128–2140. [Google Scholar] [CrossRef]
  32. Miao, T.; Fenn, S.L.; Charron, P.N.; Oldinski, R.A. Self-healing and thermoresponsive dual-cross-linked alginate hydrogels based on supramolecular inclusion complexes. Biomacromolecules 2015, 16, 3740–3750. [Google Scholar] [CrossRef]
  33. Luo, F.; Sun, T.L.; Nakajima, T.; Kurokawa, T.; Zhao, Y.; Sato, K.; Ihsan, A.B.; Li, X.; Guo, H.; Gong, J.P. Oppositely charged polyelectrolytes form tough, self-healing, and rebuildable hydrogels. Adv. Mater. 2015, 27, 2722–2727. [Google Scholar] [CrossRef] [PubMed]
  34. Grindy, S.C.; Learsch, R.; Mozhdehi, D.; Cheng, J.; Barrett, D.G.; Guan, Z.; Messersmith, P.B.; Holten-Andersen, N. Control of hierarchical polymer mechanics with bioinspired metal-coordination dynamics. Nat. Mater. 2015, 14, 1210. [Google Scholar] [CrossRef]
  35. Liang, H.; Zhang, Z.; Yuan, Q.; Liu, J. Self-healing metal-coordinated hydrogels using nucleotide ligands. Chem. Commun. 2015, 51, 15196–15199. [Google Scholar] [CrossRef]
  36. Holten-Andersen, N.; Jaishankar, A.; Harrington, M.J.; Fullenkamp, D.E.; DiMarco, G.; He, L.; McKinley, G.H.; Messersmith, P.B.; Lee, K.Y.C. Metal-coordination: Using one of nature’s tricks to control soft material mechanics. J. Mater. Chem. B 2014, 2, 2467–2472. [Google Scholar] [CrossRef]
  37. Yount, W.C.; Juwarker, H.; Craig, S.L. Orthogonal control of dissociation dynamics relative to thermodynamics in a main-chain reversible polymer. J. Am. Chem. Soc. 2003, 125, 15302–15303. [Google Scholar] [CrossRef]
  38. Kersey, F.R.; Loveless, D.M.; Craig, S.L. A hybrid polymer gel with controlled rates of cross-link rupture and self-repair. J. R. Soc. Interface 2007, 4, 373–380. [Google Scholar] [CrossRef] [PubMed]
  39. Lewis, A.L.; Miller, J.D. Stabilisation of cobalt(I) by coordination within a bipyridyl-based hydrogel polymer membrane. J. Chem. Soc. Chem. Commun. 1992, 14, 1029–1030. [Google Scholar] [CrossRef]
  40. Lewis, A.L.; Miller, J.D. Synthesis, characterisation and complexation behaviour of a series of pyridyl- and bipyridyl-based hydrogel membranes. J. Mater. Chem. 1993, 3, 897–902. [Google Scholar] [CrossRef]
  41. Chujo, Y.; Sada, K.; Saegusa, T. Iron(II) bipyridyl-branched polyoxazoline complex as a thermally reversible hydrogel. Macromolecules 1993, 26, 6315–6319. [Google Scholar] [CrossRef]
  42. Chujo, Y.; Sada, K.; Saegusa, T. Cobalt(III) bipyridyl-branched polyoxazoline complex as a thermally and redox reversible hydrogel. Macromolecules 1993, 26, 6320–6323. [Google Scholar] [CrossRef]
  43. Barrett, D.G.; Fullenkamp, D.E.; He, L.; Holten-Andersen, N.; Lee, K.Y.C.; Messersmith, P.B. pH-Based regulation of hydrogel mechanical properties through mussel-inspired chemistry and processing. Adv. Funct. Mater. 2013, 23, 1111–1119. [Google Scholar] [CrossRef] [PubMed]
  44. Holten-Andersen, N.; Harrington, M.J.; Birkedal, H.; Lee, B.P.; Messersmith, P.B.; Lee, K.Y.C.; Waite, J.H. pH-induced metal-ligand cross-links inspired by mussel yield self-healing polymer networks with near-covalent elastic moduli. Proc. Natl. Acad. Sci. USA 2011, 108, 2651–2655. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, H.; Bedford, F.K.; Brandon, N.J.; Moss, S.J.; Olsen, R.W. GABBAA-receptor-associated protein links GABBAA receptors and the cytoskeleton. Nature 1999, 397, 69. [Google Scholar] [CrossRef] [PubMed]
  46. Fullenkamp, D.E.; He, L.; Barrett, D.G.; Burghardt, W.R.; Messersmith, P.B. Mussel-inspired histidine-based transient network metal coordination hydrogels. Macromolecules 2013, 46, 1167–1174. [Google Scholar] [CrossRef]
  47. Wu, J.; Li, P.; Dong, C.; Jiang, H.; Bin, X.; Gao, X.; Qin, M.; Wang, W.; Bin, C.; Cao, Y. Rationally designed synthetic protein hydrogels with predictable mechanical properties. Nat. Commun. 2018, 9, 620. [Google Scholar] [CrossRef]
  48. Gao, X.; Fang, J.; Xue, B.; Fu, L.; Li, H. Engineering protein hydrogels using spycatcher-spytag chemistry. Biomacromolecules 2016, 17, 2812–2819. [Google Scholar] [CrossRef]
  49. Li, H.; Kong, N.; Laver, B.; Liu, J. Hydrogels constructed from engineered proteins. Small 2016, 12, 973–987. [Google Scholar] [CrossRef]
  50. Yount, W.C.; Loveless, D.M.; Craig, S.L. Small-molecule dynamics and mechanisms underlying the macroscopic mechanical properties of coordinatively cross-linked polymer networks. J. Am. Chem. Soc. 2005, 127, 14488–14496. [Google Scholar] [CrossRef]
  51. Yount, W.C.; Loveless, D.M.; Craig, S.L. Strong means slow: Dynamic contributions to the bulk mechanical properties of supramolecular networks. Angew. Chem. Int. Ed. 2005, 44, 2746–2748. [Google Scholar] [CrossRef]
  52. Appel, E.A.; Forster, R.A.; Koutsioubas, A.; Toprakcioglu, C.; Scherman, O.A. Activation energies control the macroscopic properties of physically cross-linked materials. Angew. Chem. 2014, 126, 10202–10207. [Google Scholar] [CrossRef]
  53. Li, Q.; Barrett, D.G.; Messersmith, P.B.; Holten-Andersen, N. Controlling hydrogel mechanics via bio-inspired polymer–nanoparticle bond dynamics. ACS Nano 2016, 10, 1317–1324. [Google Scholar] [CrossRef]
  54. Shabbir, H.; Dellago, C.; Hartmann, M.A. A high coordination of cross-links is beneficial for the strength of cross-linked fibers. Biomimetics 2019, 4, 12. [Google Scholar] [CrossRef]
  55. Filippidi, E.; Cristiani, T.R.; Eisenbach, C.D.; Waite, J.H.; Israelachvili, J.N.; Ahn, B.K.; Valentine, M.T. Toughening elastomers using mussel-inspired iron-catechol complexes. Science 2017, 358, 502–505. [Google Scholar] [CrossRef]
  56. Shin, M.K.; Spinks, G.M.; Shin, S.R.; Kim, S.I.; Kim, S.J. Nanocomposite hydrogel with high toughness for bioactuators. Adv. Mater. 2009, 21, 1712–1715. [Google Scholar] [CrossRef]
  57. Mozhdehi, D.; Ayala, S.; Cromwell, O.R.; Guan, Z. Self-healing multiphase polymers via dynamic metal–ligand interactions. J. Am. Chem. Soc. 2014, 136, 16128–16131. [Google Scholar] [CrossRef]
  58. Schmitt, C.N.; Politi, Y.; Reinecke, A.; Harrington, M.J. Role of sacrificial protein–metal bond exchange in mussel byssal thread self-healing. Biomacromolecules 2015, 16, 2852–2861. [Google Scholar] [CrossRef]
  59. Degtyar, E.; Harrington, M.J.; Politi, Y.; Fratzl, P. The mechanical role of metal ions in biogenic protein-based materials. Angew. Chem. Int. Ed. 2014, 53, 12026–12044. [Google Scholar] [CrossRef]
  60. Morgan, W.T. The histidine-rich glycoprotein of serum has a domain rich in histidine, proline, and glycine that binds heme and metals. Biochemistry 1985, 24, 1496–1501. [Google Scholar] [CrossRef]
  61. Kean, Z.S.; Hawk, J.L.; Lin, S.; Zhao, X.; Sijbesma, R.P.; Craig, S.L. Increasing the maximum achievable strain of a covalent polymer gel through the addition of mechanically invisible cross-links. Adv. Mater. 2014, 26, 6013–6018. [Google Scholar] [CrossRef]
  62. Mayumi, K.; Guo, J.; Narita, T.; Hui, C.Y.; Creton, C. Fracture of dual cross-link gels with permanent and transient cross-links. Extreme Mech. Lett. 2016, 6, 52–59. [Google Scholar] [CrossRef]
  63. Tito, N.B.; Creton, C.; Storm, C.; Ellenbroek, W.G. Harnessing entropy to enhance toughness in reversibly cross-linked polymer networks. Soft Matter 2019, 15, 2190–2203. [Google Scholar] [CrossRef] [PubMed]
Biomimetics 04 00036 g001 550

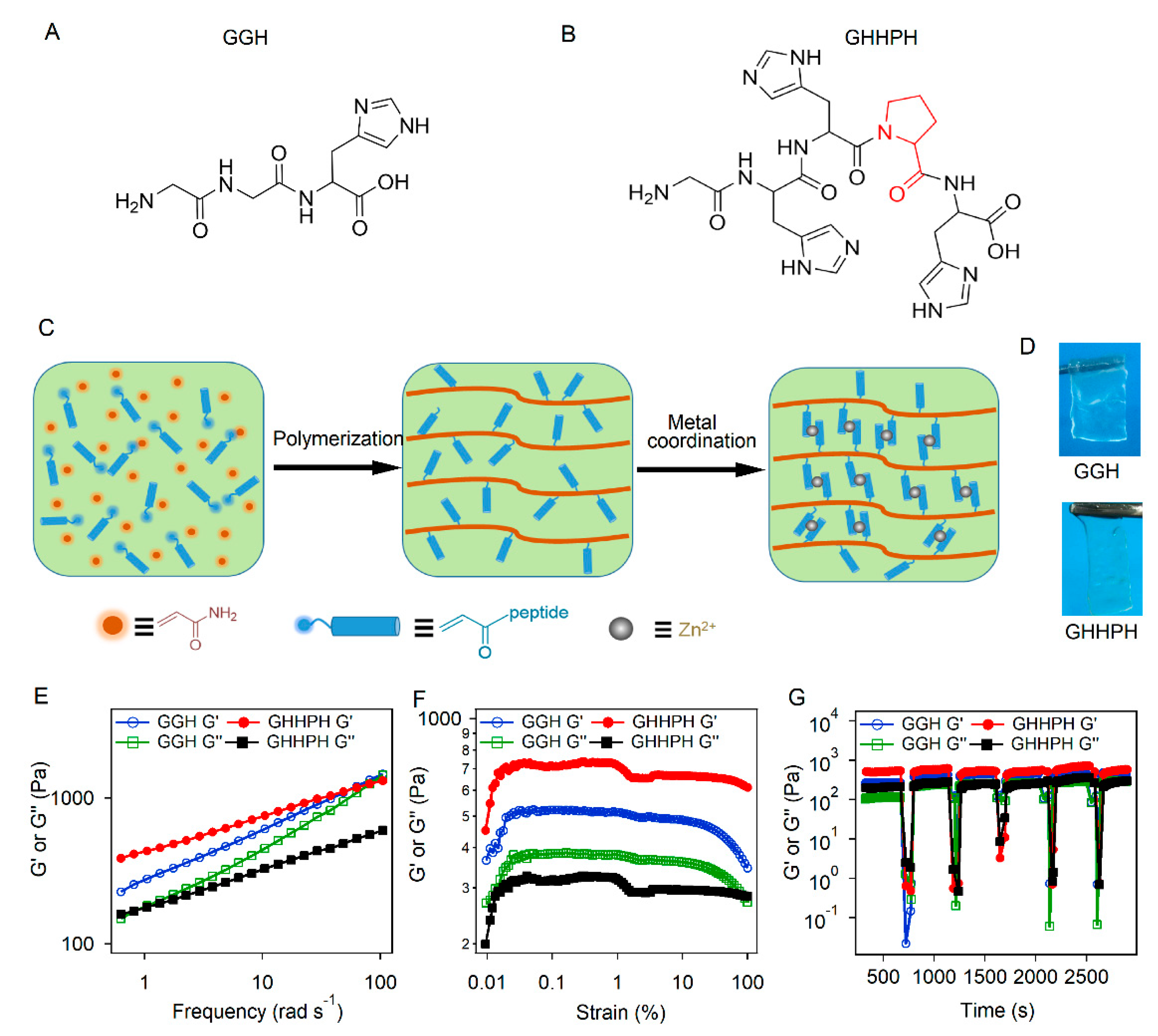

Figure 1. Illustrative scheme and rheological mechanical properties of the self-healing hydrogels based on the coordination interactions between peptides and Zn2+ ions. (A) Chemical structure of the GGH peptide. (B) Chemical structure of the GHHPH peptide. (C) Schematic illustration of the hydrogels based on the coordination interactions between the designed peptides and Zn2+ ions. (D) Images corresponding to GGH and GHHPH hydrogels. (E) G’ and G” of the hydrogels measured in a frequency sweep experiment (frequencies from 0.01 to 100 rad s−1, 0.1% strain) at the peptide concentration of 50 mg mL−1 while the concentration of acrylamide was always 25 mg mL−1. The molar ratios of peptides and ZnCl2 in GGH and GHHPH hydrogels were 15:3 and 15:9, respectively. (F) G’ and G” of the hydrogels measured in a strain sweep experiment (strains from 0.01 to 100%, a frequency of 6.28 rad s−1) at the peptide concentration of 50 mg mL−1, while the concentration of acrylamide was always 25 mg mL−1 and molar ratio of peptides and ZnCl2 were 15:3 and 15:9 for GGH and GHHPH hydrogels, respectively. (G) G’ and G” of the hydrogels measured in a destroy–recovery experiment at the peptide concentration of 50 mg mL−1 while the concentration of acrylamide was always 25 mg mL−1 and molar ratios of peptides and ZnCl2 were 15:3 and 15:9 for GGH and GHHPH hydrogels, respectively. The strain was set to an amplitude of 1000% for 60 s to destroy the coordination interactions and switched back to an amplitude of 0.1% to monitor the recovery of the mechanical properties for 600 s. The G’ and G’’ were measured at a frequency of 6.28 rad s−1 at 20 °C.
Figure 1. Illustrative scheme and rheological mechanical properties of the self-healing hydrogels based on the coordination interactions between peptides and Zn2+ ions. (A) Chemical structure of the GGH peptide. (B) Chemical structure of the GHHPH peptide. (C) Schematic illustration of the hydrogels based on the coordination interactions between the designed peptides and Zn2+ ions. (D) Images corresponding to GGH and GHHPH hydrogels. (E) G’ and G” of the hydrogels measured in a frequency sweep experiment (frequencies from 0.01 to 100 rad s−1, 0.1% strain) at the peptide concentration of 50 mg mL−1 while the concentration of acrylamide was always 25 mg mL−1. The molar ratios of peptides and ZnCl2 in GGH and GHHPH hydrogels were 15:3 and 15:9, respectively. (F) G’ and G” of the hydrogels measured in a strain sweep experiment (strains from 0.01 to 100%, a frequency of 6.28 rad s−1) at the peptide concentration of 50 mg mL−1, while the concentration of acrylamide was always 25 mg mL−1 and molar ratio of peptides and ZnCl2 were 15:3 and 15:9 for GGH and GHHPH hydrogels, respectively. (G) G’ and G” of the hydrogels measured in a destroy–recovery experiment at the peptide concentration of 50 mg mL−1 while the concentration of acrylamide was always 25 mg mL−1 and molar ratios of peptides and ZnCl2 were 15:3 and 15:9 for GGH and GHHPH hydrogels, respectively. The strain was set to an amplitude of 1000% for 60 s to destroy the coordination interactions and switched back to an amplitude of 0.1% to monitor the recovery of the mechanical properties for 600 s. The G’ and G’’ were measured at a frequency of 6.28 rad s−1 at 20 °C.
Biomimetics 04 00036 g001
Biomimetics 04 00036 g002 550

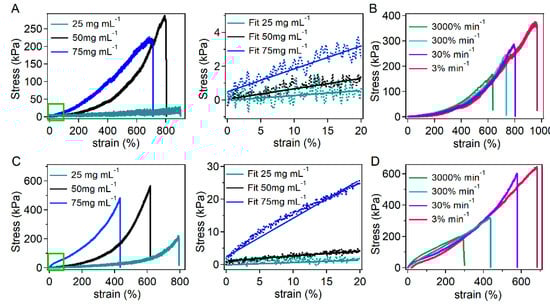

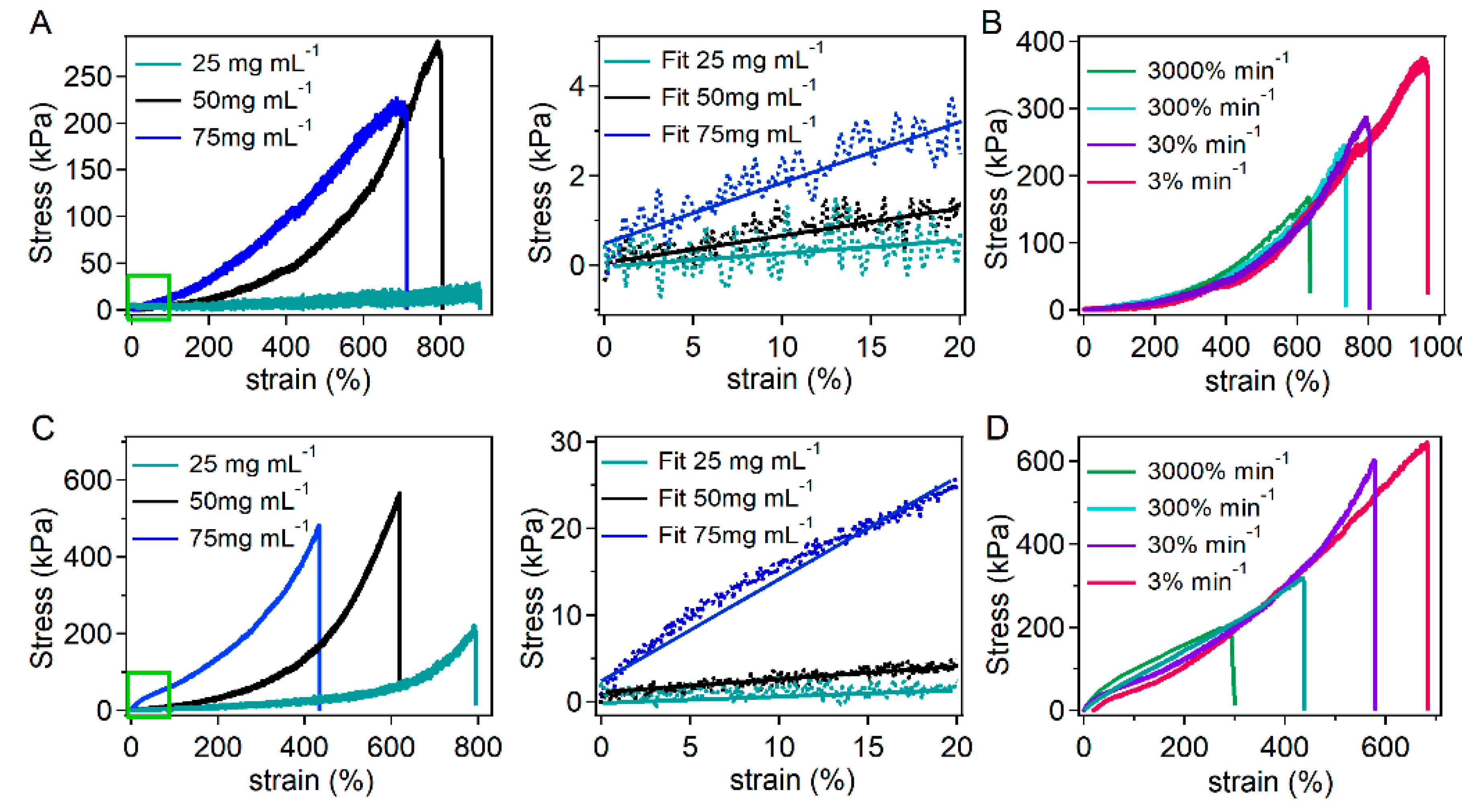

Figure 2. Tensile mechanical properties of GGH and GHHPH hydrogels. (A) Stress–strain curves (left) of GGH hydrogels and zoomed stress–strain curves (right) at the strain rate of 30% min−1 with different mass ratios of GGH and acrylamide (1:1, 2:1, and 3:1). The solid lines in the right indicate the linear fitting of the elastic region. The concentrations of GGH peptides were 25 mg mL−1, 50 mg mL−1, and 75 mg mL−1, respectively, while the concentration of acrylamide was always 25 mg mL−1 and the molar ratios of peptides and ZnCl2 were always 15:3. (B) Stress–strain curves of GGH hydrogels (mGGH:macrylamide= 2:1) with different tensile strain rates (3%, 30%, 300% and 3000% per minute). (C) Stress–strain curves (left) of GHHPH hydrogels and zoomed stress–strain curves (right) at the strain rate of 30% min−1 with different mass ratios of GHH and acrylamide (1:1, 2:1, and 3:1). The solid lines in the right indicate the linear fitting of the elastic region. The concentrations of GHHPH peptides were 25 mg mL−1, 50 mg mL−1, and 75 mg mL−1, respectively, while the concentration of acrylamide was always 25 mg mL−1 and the molar ratios of peptides and ZnCl2 were always 15:9. (D) Stress–strain curves of GHHPH hydrogels (mGHHPH:macrylamide = 2:1) with different tensile strain rates (3%, 30%, 300% and 3000% min−1).
Figure 2. Tensile mechanical properties of GGH and GHHPH hydrogels. (A) Stress–strain curves (left) of GGH hydrogels and zoomed stress–strain curves (right) at the strain rate of 30% min−1 with different mass ratios of GGH and acrylamide (1:1, 2:1, and 3:1). The solid lines in the right indicate the linear fitting of the elastic region. The concentrations of GGH peptides were 25 mg mL−1, 50 mg mL−1, and 75 mg mL−1, respectively, while the concentration of acrylamide was always 25 mg mL−1 and the molar ratios of peptides and ZnCl2 were always 15:3. (B) Stress–strain curves of GGH hydrogels (mGGH:macrylamide= 2:1) with different tensile strain rates (3%, 30%, 300% and 3000% per minute). (C) Stress–strain curves (left) of GHHPH hydrogels and zoomed stress–strain curves (right) at the strain rate of 30% min−1 with different mass ratios of GHH and acrylamide (1:1, 2:1, and 3:1). The solid lines in the right indicate the linear fitting of the elastic region. The concentrations of GHHPH peptides were 25 mg mL−1, 50 mg mL−1, and 75 mg mL−1, respectively, while the concentration of acrylamide was always 25 mg mL−1 and the molar ratios of peptides and ZnCl2 were always 15:9. (D) Stress–strain curves of GHHPH hydrogels (mGHHPH:macrylamide = 2:1) with different tensile strain rates (3%, 30%, 300% and 3000% min−1).
Biomimetics 04 00036 g002
Biomimetics 04 00036 g003 550

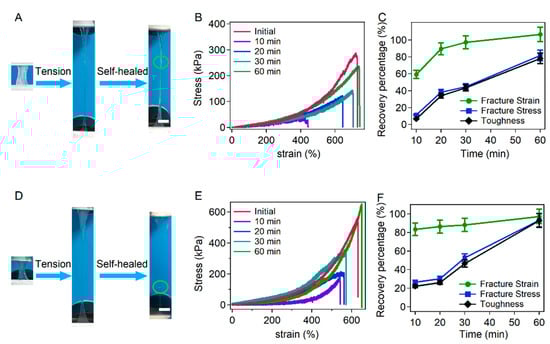

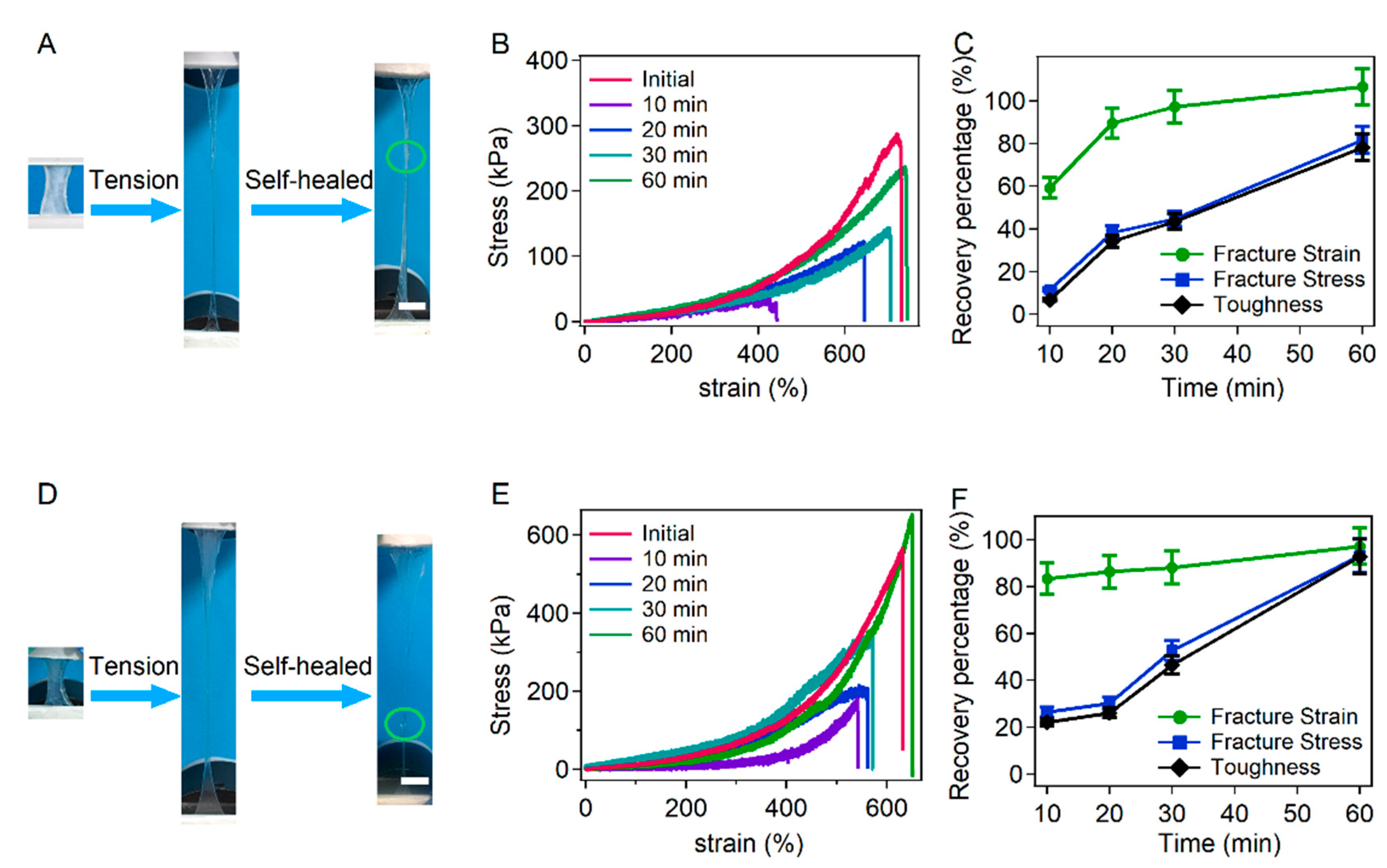

Figure 3. Self-healing properties of GGH and GHHPH hydrogels. (A) Stretching photograph of the GGH hydrogel before and after healing. The reconnected points are highlighted with a green cycle. Scale bar = 5 mm. (B) Stress–strain curves of GGH hydrogels at the strain rate of 30% min−1 healed for different times at room temperature. The concentrations of GGH peptides and acrylamide were 50 mg mL−1 and 25 mg mL−1, respectively, while the molar ratios of peptides and ZnCl2 were always 15:3. (C) Normalized recovery percentages of fracture strain, fracture stress and toughness with different healing time corresponding to (B). (D) Stretching photograph of the GHHPH hydrogel before and after healing. The reconnected points are highlighted with a green cycle. Scale bar = 5 mm. (E) Stress–strain curves of GHHPH hydrogels at the strain rate of 30% min−1 healed for different times at room temperature. The concentrations of GHHPH peptides and acrylamide were 50 mg mL−1 and 25 mg mL−1, respectively, while the molar ratios of peptides and ZnCl2 were always 15:9. (F) Normalized recovery percentages of fracture strain, fracture stress and toughness with different healing time corresponding to (E).
Figure 3. Self-healing properties of GGH and GHHPH hydrogels. (A) Stretching photograph of the GGH hydrogel before and after healing. The reconnected points are highlighted with a green cycle. Scale bar = 5 mm. (B) Stress–strain curves of GGH hydrogels at the strain rate of 30% min−1 healed for different times at room temperature. The concentrations of GGH peptides and acrylamide were 50 mg mL−1 and 25 mg mL−1, respectively, while the molar ratios of peptides and ZnCl2 were always 15:3. (C) Normalized recovery percentages of fracture strain, fracture stress and toughness with different healing time corresponding to (B). (D) Stretching photograph of the GHHPH hydrogel before and after healing. The reconnected points are highlighted with a green cycle. Scale bar = 5 mm. (E) Stress–strain curves of GHHPH hydrogels at the strain rate of 30% min−1 healed for different times at room temperature. The concentrations of GHHPH peptides and acrylamide were 50 mg mL−1 and 25 mg mL−1, respectively, while the molar ratios of peptides and ZnCl2 were always 15:9. (F) Normalized recovery percentages of fracture strain, fracture stress and toughness with different healing time corresponding to (E).
Biomimetics 04 00036 g003
Biomimetics 04 00036 g004 550

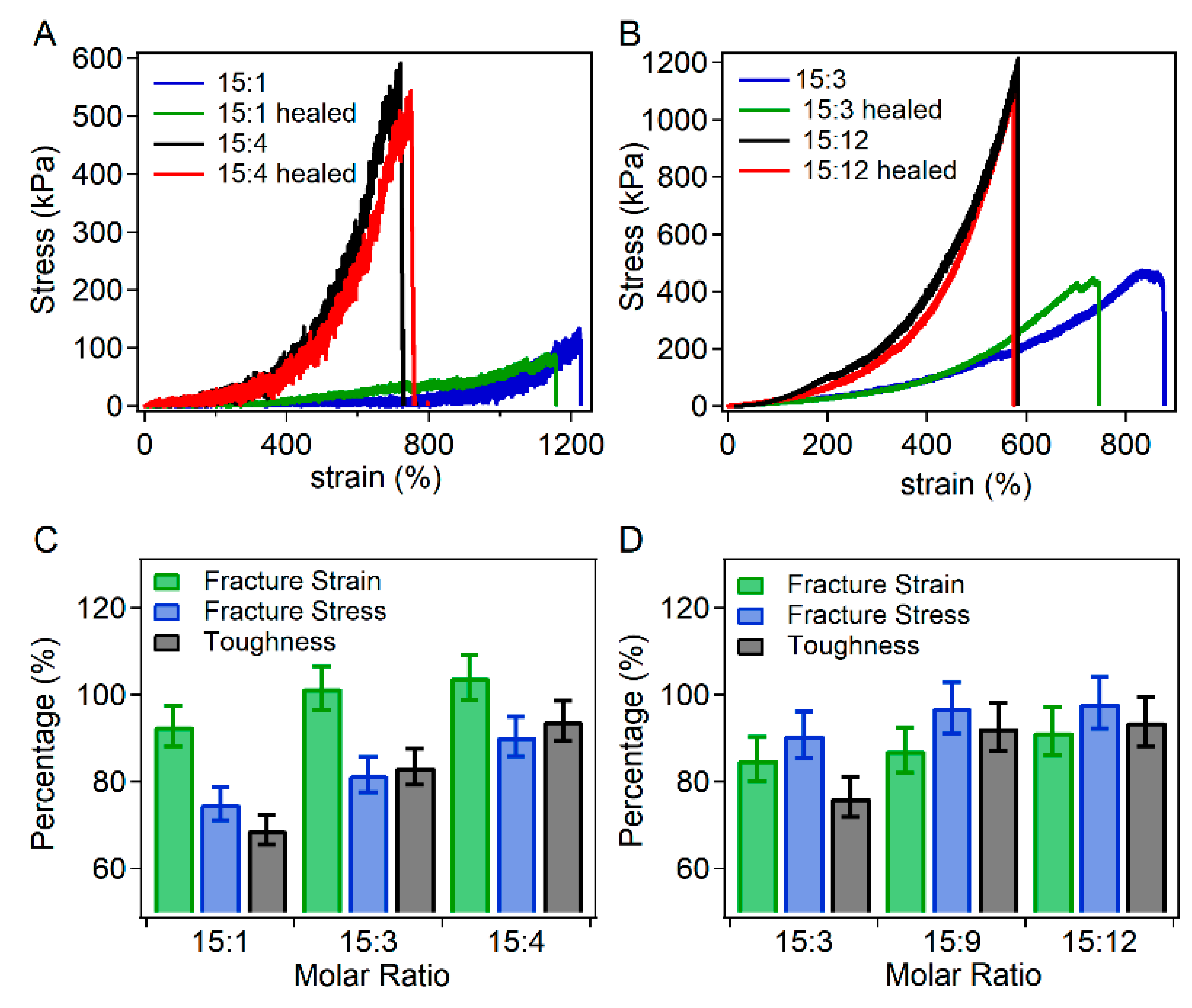

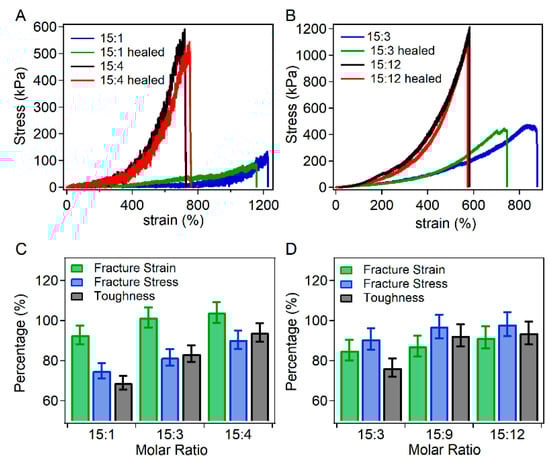

Figure 4. Self-healing properties of GGH and GHHPH hydrogels with different molar ratios of peptide and Zn2+ ions. (A) Stress–strain curves of GGH hydrogels at the strain rate of 30% min−1 before and after healing with different molar ratios of peptide and Zn2+ ions (15:1 and 15:4). The concentrations of GGH peptides and acrylamide were 50 mg mL−1 and 25 mg mL−1 respectively. (B) Stress–strain curves of GHHPH hydrogels at the strain rate of 30% min−1 before and after healing with different molar ratios of peptide and Zn2+ ions (15:3, 15:12). The concentrations of GGH peptides and acrylamide were 50 mg mL−1 and 25 mg mL−1, respectively. (C) Normalized recovery percentages of fracture strain, fracture stress and toughness with different ratios of GGH and Zn2+ ions. (D) Normalized recovery percentages of fracture strain, fracture stress and toughness with different ratios of GHHPH and Zn2+ ions.
Figure 4. Self-healing properties of GGH and GHHPH hydrogels with different molar ratios of peptide and Zn2+ ions. (A) Stress–strain curves of GGH hydrogels at the strain rate of 30% min−1 before and after healing with different molar ratios of peptide and Zn2+ ions (15:1 and 15:4). The concentrations of GGH peptides and acrylamide were 50 mg mL−1 and 25 mg mL−1 respectively. (B) Stress–strain curves of GHHPH hydrogels at the strain rate of 30% min−1 before and after healing with different molar ratios of peptide and Zn2+ ions (15:3, 15:12). The concentrations of GGH peptides and acrylamide were 50 mg mL−1 and 25 mg mL−1, respectively. (C) Normalized recovery percentages of fracture strain, fracture stress and toughness with different ratios of GGH and Zn2+ ions. (D) Normalized recovery percentages of fracture strain, fracture stress and toughness with different ratios of GHHPH and Zn2+ ions.
Biomimetics 04 00036 g004
Table
Table 1. Degree of polymerization, solid content, and mechanical properties of GGH and GHHPH hydrogels of different peptide concentrations.
Table 1. Degree of polymerization, solid content, and mechanical properties of GGH and GHHPH hydrogels of different peptide concentrations.
Mass Concentration of Peptide (mg mL−1)Polymerization Degree (%)Solid Content (%)Tension Strain Limit (%)Tension Stress Limit (kPa)Young’s Modulus (kPa)Toughness (kJ m−3)
GGH25 32.8 (Mn = 21,156)25.84 ± 2.29899.8 ± 56.118.6 ± 1.61 1.1 ± 2.990.6 ± 8.9
5036.2 (Mn = 17,521)31.69 ± 2.56793.5 ± 63.4282.9 ± 37.66.1 ± 3.6868.1 ± 23.3
7542.7 (Mn = 18,318)31.39 ± 2.13687.5 ± 54.9220.3 ± 22.118.2 ± 4.2586.7 ± 15.1
GHHPH2523.9 (Mn = 28,522)22.79 ± 2.05781.0 ±70.5208.8 ± 23.77.1 ± 3.5630.6 ± 50.4
5031.2 (Mn = 27,930)26.67 ± 1.89619.1 ±49.5561.2 ± 44.914.9 ± 7.11348.4 ± 107.8
7527.4 (Mn = 21,804)25.62 ± 2.03434.1 ± 34.5479.5 ± 38.4122.9 ± 15.1855.2 ± 82.1
