Determining the Pull-Forces Required to Extricate a Victim Entrapped at Various Angles in a Grain Mass

Abstract

Prior research on extrication of victims entrapped in stored grain has measured the vertical forces applied to a representative victim (i.e., mannequin) using an anchor point that is mounted directly overhead. However, primarily because of how most grain storage structures are designed, the forces applied would more likely be coming from an angle. This is due to the victim typically being entrapped in the center of the grain mass while the access point is at the perimeter of the roof. The objective of this study was to measure the peak forces required to pull a mannequin at an angle and compare it to vertical pull. An adult-size mannequin was pulled out of dry corn and soybean masses from various depths and at various angles. It was found that both corn and soybeans were comparable regardless of depth or angle with the exception of 15° angle. It was also found that, at pulling angles of 60° and 75°, the loads were comparable to those required at 90° or directly overhead. Only at the sharper angles of 15° and 30° did the peak forces significantly increase. The results highlight that there is some flexibility in the placement of the anchor point and that extrication forces on the body will increase at sharper pull angles.

1. Introduction

Grain entrapments and engulfments continue to be an important issue on farms and at grain storage facilities across the U.S. On average, about 35 such incidents have occurred per year over the last ten years [1]. In one of the first research studies on grain entrapment, Schmecta and Matz [2] sought to determine the speed at which a human subject becomes buried in grain and the depth at which self-extrication is no longer possible in a bottom-unloading test bin. They found that (1) it took only about 30 s for one to get entrapped to shoulder level with grain flowing out at 25 metric tons per hour (925 bushels per hour); (2) at hip level, self-extrication was not possible, but extrication could be accomplished with the aid of another individual; and (3) at shoulder depth, not only was self-extrication impossible, but also the safety harness employed for the test was damaged when the subject was being pulled out by rope, and the test had to be discontinued because of the pain caused to the victim by the rescue effort.

Schwab et al. [3] expanded upon this study by measuring the total force that the body experiences at various depths during extrication. Using a 75 kg (165 lbs.) mannequin to represent an adult victim, they found that it “experienced” about 2700 N (~600 lbf) at shoulder depth and 1300 N (~300 lbf) at waist level. Similarly, Roberts et al. [4] found that a mannequin experiences about 1770 N (~400 lbf) and 1260 N (~280 lbf) when pulled from armpit and waist levels, respectively. The same study also showed that, upon insertion of a coffer dam (or grain rescue tube), the peak force required to extricate the mannequin increased by 24%.

Earlier, Roberts et al. [5] reported a case study in which a co-worker attempted to extricate an entrapped victim by tying one end of a rope around their (the victim’s) chest, running the rope outside the grain bin and tying the other end to a pickup truck, then driving the truck away from the bin in an effort to pull the victim out. The victim ended up suffering fatal injuries due to the forces applied on their body, which begs the questions: Did pulling the victim at an angle increase the total force on their body and, if so, do these forces exceed the human capacity to survive them? The study presented here sought to expand on previous research by testing the amount of force required to extricate a mannequin out of grain at various angles.

2. Materials and Methods

Two grains were used in this experiment—soybeans and corn, by far the most common mediums involved in grain entrapment incidents [6]. Samples of each were taken and their properties tested. Three samples were taken randomly and mixed together into a larger sample. Moisture content measurements were based on ASABE Standard S352.2 [7]; and bulk density was determined by filling a 0.55 L cup using a funnel, leveling the surface, and then measuring the weight of the grain [8]. Three random samples were used for bulk density, and five samples were used for moisture content measurements.

2.1. Experiment Setup

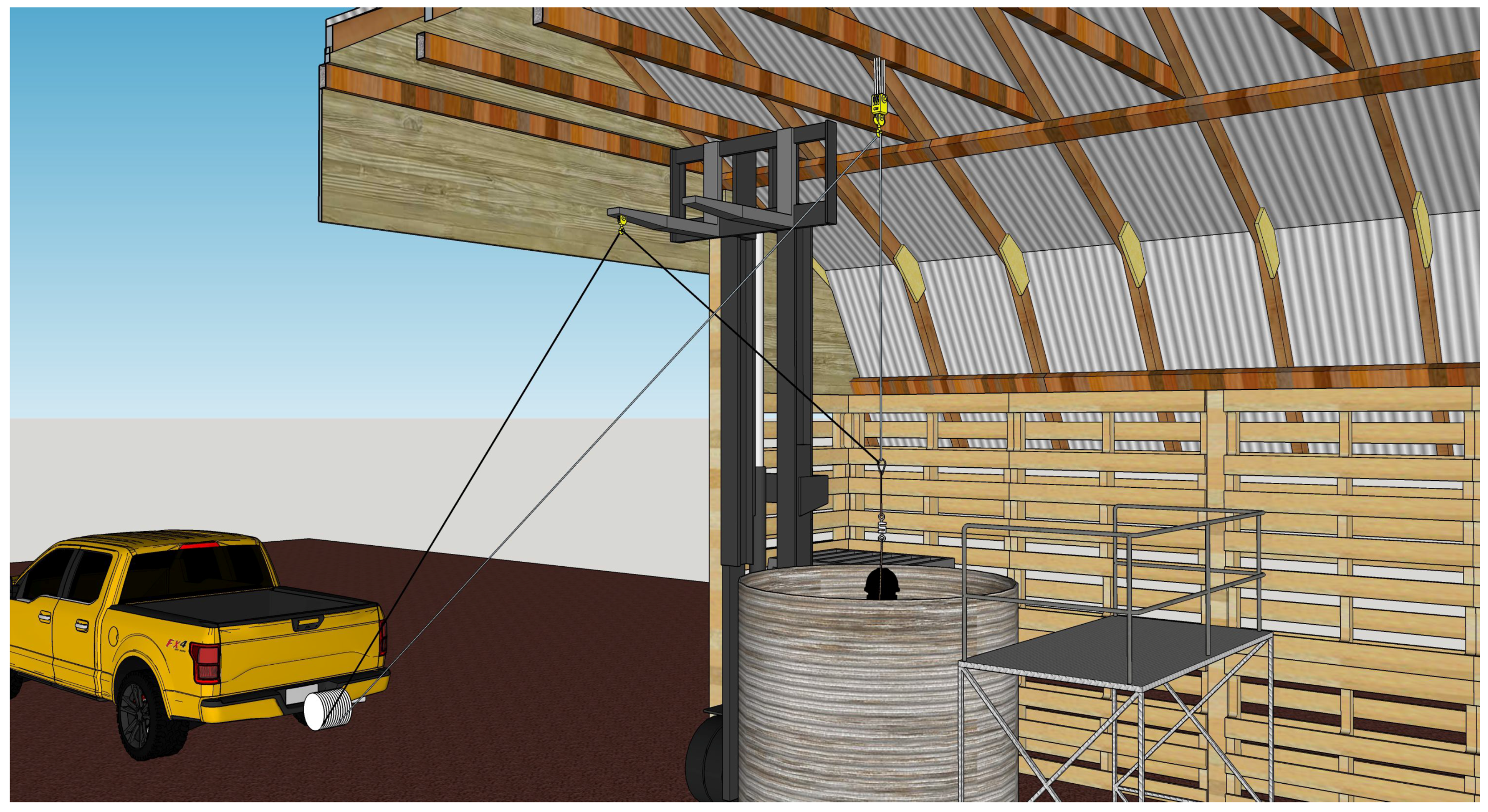

The study was conducted at a grain elevator in Maquon, Illinois. A bin, measuring 2.4 m (8 ft) tall by 1.8 m (6 ft) wide, was built on top of the elevator’s grain pit. The bin floor was composed of plywood sheets, except for a 33 × 33 cm (13 in.) metal slide gate in the middle (Figure 1). The bin drained by gravity into the pit and was filled by the elevator leg, which had a maximum rate of about 7000 bushels per hour. An overhead anchor point was placed as close to the center of the bin as possible.

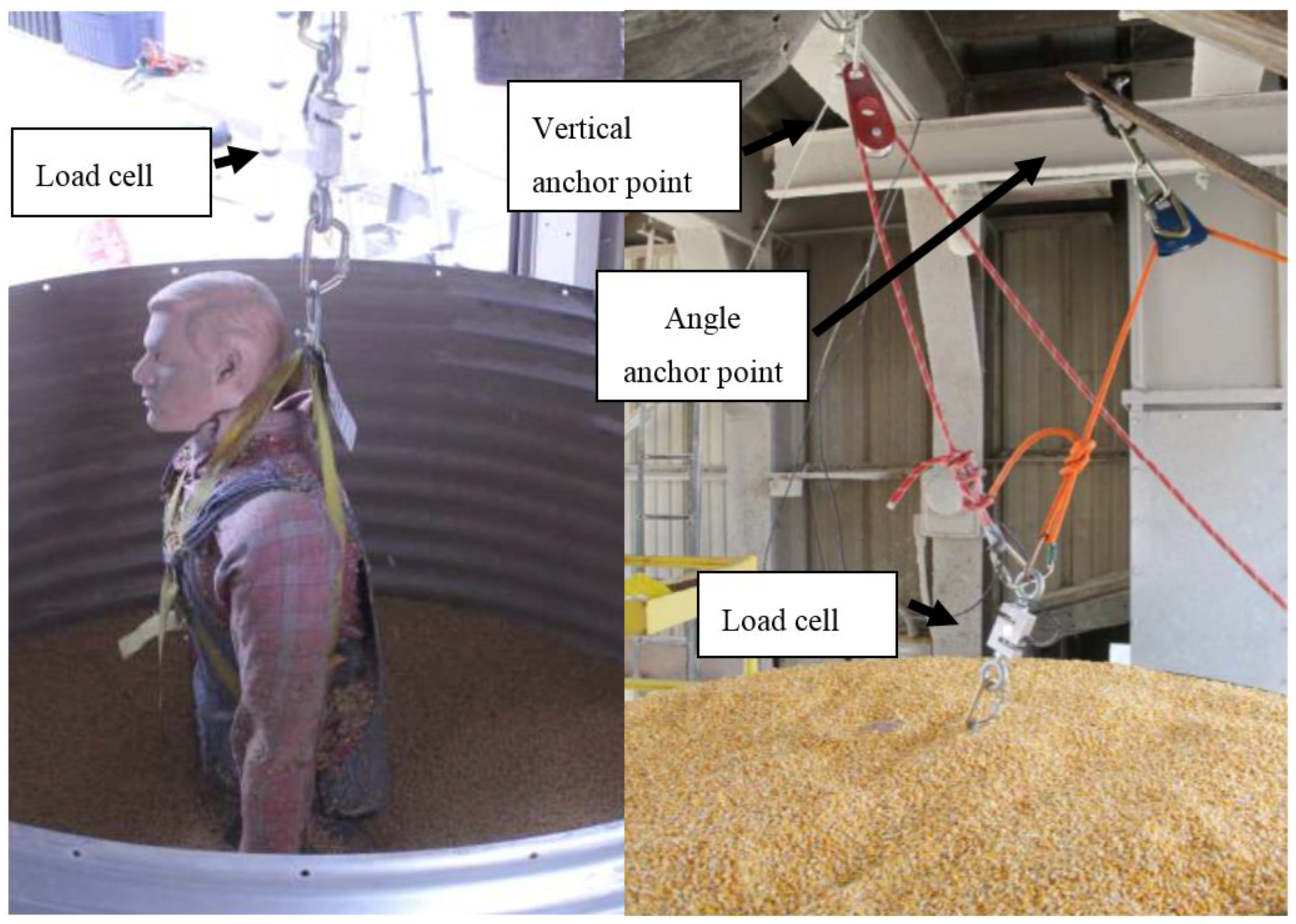

The mannequin was 75 kg (165 lbs.), measured 185 cm (73 in.) from the base of its feet to the top of its head and had articulated joints (Rescue Randy, Simulaids Inc., New York, NY, USA). It was dressed in a flannel shirt, bib overalls, and pull-on boots. A full-body, ANSI-rated safety harness with back-mounted D-ring was placed on the mannequin to serve as the point of attachment for the load cell (Figure 2, left). The mannequin with clothes, boots, harness, and attachments for the load cell weighed 82 kg (180 lb.).

The load cell (ICS516, Industrial Commercial Scales, North Charleston, SC, USA) was rated for 44 kN (10,000 lbf) and was attached through a pulley system to a winch rated for 454 kg (1000 lbs.). The cell is maintained by the grain elevator (Maquon, IL, USA). A simple verification on the cell was conducted by measuring a 590 kg (1300 lbs.) concrete block and was found to accurately measure the block within 1%. On the lower end, the mannequin weight was used as a verification and was found to accurately measure the mannequin weight within 2%. It was set up to output only the peak load during each run. Two lines were attached to the cell, one for a vertical pull and the other for an angle pull (Figure 2, right). Only one of those lines was attached to the winch at a time.

A fork lift truck was used as an anchor point for the angle line in order to be able to change the angle based on the experimental design. Each angle was measured and calibrated to the prescribed degree after the mannequin was buried in the grain, and the line was tightened via the winch. A hand-held magnetic angle finder was used to determine each test angle.

2.2. Experiment Design

This experiment involved two parts—tests to determine the forces required for extrication from various depths when pulling vertically and tests to determine the forces required for extrication when pulling from various angles. A two tailed t-test analysis was conducted between each depth, angle and grain type at p < 0.05. Only the peak force was recorded for both tests. The peak force values were used since the authors were interested in the upper limit of force experienced by the body. A potential limitation of using only the peak force is that it may be recorded incorrectly due to a sudden peak due to the locking of mechanical parts. This limitation was not observed in this study.

2.2.1. Vertical-Pull Experiment

This was similar to that conducted by Schwab et al. [3], with five grain depths chosen—two to represent full engulfment (grain levels at 38 cm (15 in.) above the head and at the top of the head), and three to represent entrapment (grain levels at shoulder, chest, and waist). The mannequin had been marked at each depth to ensure that it was buried at that depth. The experiment included these sequential steps: (1) the mannequin is placed in the test bin at almost shoulder level; (2) the bin is filled with grain to its rim; (3) the slide gate opens and the mannequin is allowed to sink into the grain until the 38 cm marker above the head reaches the same level as the rim; (4) the bin is again filled and the grain is leveled with a rake; (5) the mannequin is then pulled straight up at a rate of 4.2 m/min, (13.6 ft/min) to about 0.3–0.6 m (1–2 ft) above the rim, with the load cell recording the peak load; (6) the load cell is reset; (7) the slide gate is opened again until the mannequin sinks to the second marker (i.e., top of head); (8) the bin is filled again and the grain is leveled against the marker; (9) Steps 1–8 are repeated until peak load measurements are recorded for shoulder-, chest-, and waist-level positions; (10) the entire experiment is repeated two more times, totaling three replications; and (11) lastly, the mannequin is weighed to confirm that it was within the initial range of 82 kg and the load cell remains correctly calibrated.

2.2.2. Angled-Pull Experiment

The design of this experiment was similar to the vertical-pull test but with the following differences: (1) after the mannequin is engulfed in a vertical position, the pull lines are switched to allow it to be pulled out at an angle; (2) the mannequin is buried at only one depth—the top of the head; (3) the pull line is set at an angle (15°, 30°, 45°, 60°, or 75°) and the mannequin is pulled out at that angle; (4) the peak load is recorded, and the line is switched to the vertical line again; (5) the mannequin is pulled further upwards until vertical again; (6) the mannequin is engulfed again and the experiment is repeated; and (7) Steps 1-6 are repeated twice at each angle (totaling three replications for each angle) before moving on to the next angle. (Note: At the sharper angles (i.e., 15° and 30°), the bin was drained between runs to make sure that the methods did not impact the results, and no appreciable difference was found between draining the bin completely and partially as mentioned above.)

3. Results

3.1. Grain Properties

The bulk density of corn and soybeans used in this study was 754.25 kg/m³ (St. Dev. = 7.45) and 749.76 kg/m³ (St. Dev. = 1.14), respectively. Moisture content of the corn was 13.3% and of the soybeans was 9.9%. Both grains were below the maximum moisture levels desirable for long-term storage.

3.2. Vertical-Extrication Tests

Table 1. Peak extrication force (in newtons w/standard deviations) required to free the mannequin entrapped vertically in corn and in soybeans at specified depth levels.

		Corn		Soybeans
	Grain Depth 1 (m)	Pull Force (N)	St. Dev. (N)	Pull Force (N)	St. Dev. (N)
Above Head	2.24	4653	154	4875	471
Head	1.85	3072	116	3010	74
Shoulder	1.57	2331	79	2337	37
Chest	1.35	1913	62	1928	27
Waist	1.07	1690	27	1741	10
Mannequin	0.0	817	19	818	9

¹ Distance from the grain surface to the bottom of the mannequin feet.

shows the amounts of pull-force required to free the mannequin entrapped vertically (upright) in the corn and the soybean grain masses at the five different depths (i.e., 38 cm above-head, head, shoulder, chest, and waist levels). The last measurement point (0.0 m) shown in the table is the mannequin held freely by the load cell.

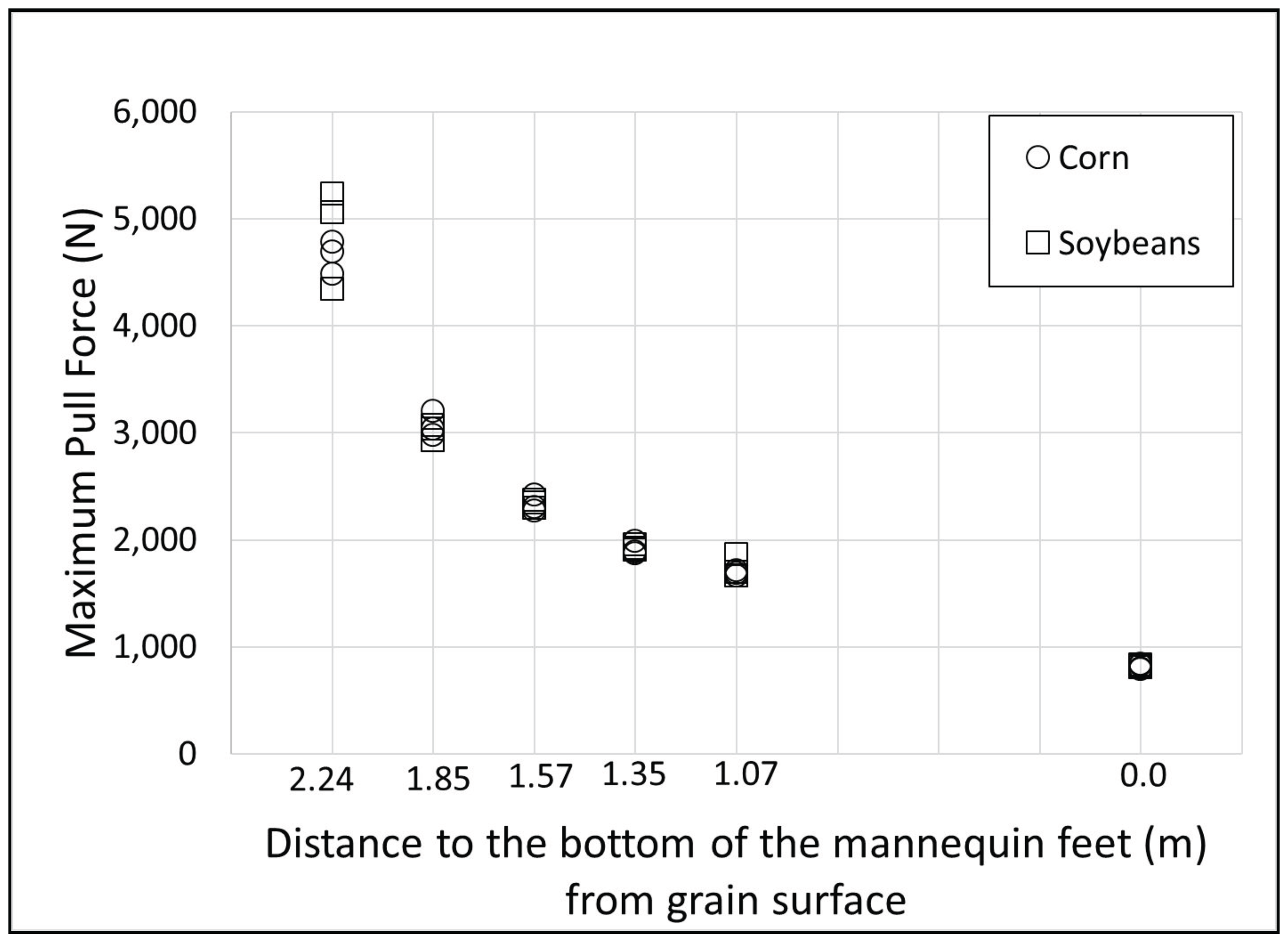

For both the corn and the soybean entrapments/engulfments, the measurements at these five depth levels were significantly different from each other at p < 0.05. However, the recorded measurements between the two grains were not significantly different at any depth (Figure 3).

3.3. Angled-Extrication Tests

Table 2. Peak extrication force (in newtons w/standard deviation) required to free the mannequin entrapped at specific angles in corn and soybeans at a depth of 1.85 m.

	Corn		Soybeans
Angle (°)	Pull Force 1 (N)	St. Dev. (N)	Pull Force 1 (N)	St. Dev. (N)
15	4416	123	3748 a	85
30	3716 a	31	3891 a	149
45	3413 b	59	3496 b	50
60	3298 bc	116	3348 bc	89
75	3126 c	36	3072 c	72
90	3072 c	116	3010 c	74

¹ Pull forces with the same letter are not significantly different from each other (p < 0.05) regardless of grain type.

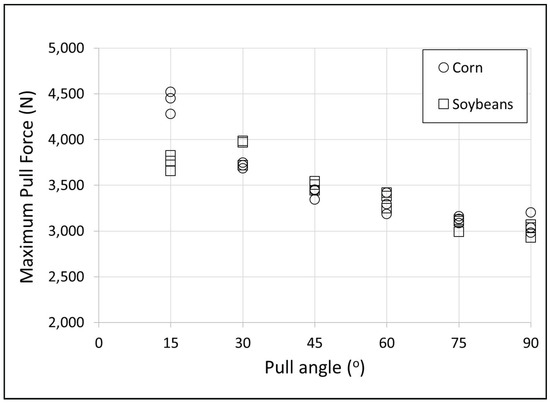

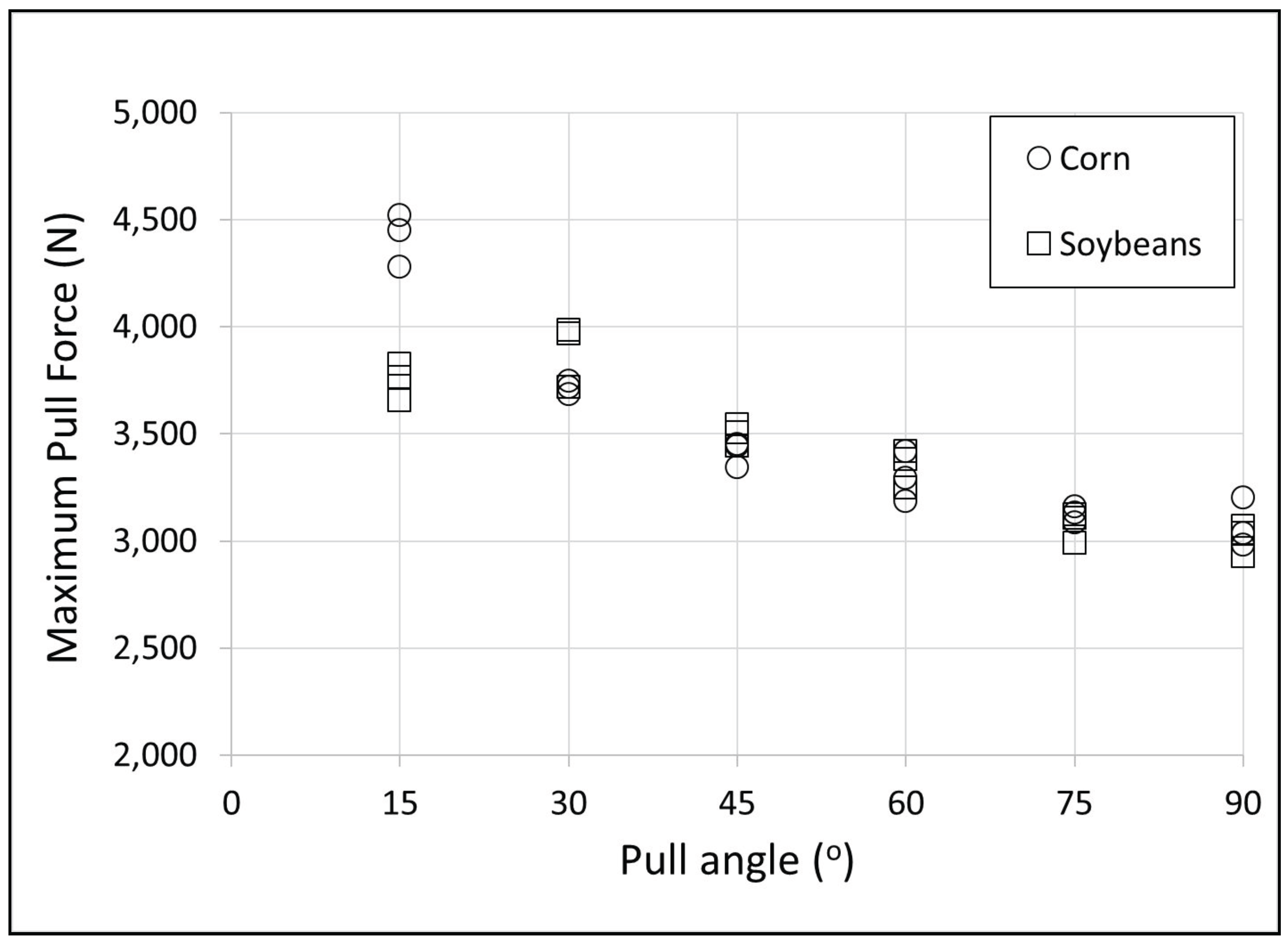

shows the amount of pull-forces required to free the mannequin entrapped to the top-of-the-head level in the corn and the soybean grain masses at five different angles (i.e., 15°, 30°, 45°, 60°, and 75°) and compared to the vertical (90°) pull results.

For the corn entrapments, (1) the pull-forces involved at angles of 60° and 75° were not significantly different from each other or from those of the vertical-extrication (90°) tests at the same depth; (2) the pull force at 45° angle was not significantly different from the 60° angle but was significantly different from the 75° and 90° angles; and (3) the 15° and 30° angles were significantly different at p < 0.05 from all other angles (Figure 4). As the angle was decreased there was a corresponding increase in the peak forces required to extricate the mannequin.

For the soybean entrapments, the pull force was not significantly different between (a) the 60°, 75°, and 90° angles; (b) the 45° and 60° angles; and (c) the 15° and 30° angles. Pull force values for all other angle combinations were significantly different from each other at p < 0.05. The measurements between corn and soybeans were not significantly different at angles of 30°, 45°, 60°, 75°, and 90°, but they were for the 15° angle at p < 0.05 (Figure 4). As for corn, the required peak forces for extrication increased as the angle of the pull was reduced.

4. Discussion

4.1. Comparison with the Schwab et al. Study Results

The vertical-extrication test was conducted to validate this present study’s experimental methods by comparing the results with those from the study by Schwab et al. [3] and Roberts et al. [4]. Although not an exact comparison between the two studies (due to grain properties, fine material, grain bin size and grain depth), this study’s pull-force values at similar depths (with the exception of 1.85 m depth) were within one standard deviation from Schwab et al. [4] pull-force values (

Table 3. Comparison between the current study and the Schwab et al. study results for vertical-force pull.

Current-Study Results		Schwab et al. Study Results			Roberts et al. Study Results
Grain Depth (m)	Pull Force (N)	Grain Depth (m)	Pull Force (N)	St. Dev.	Grain Depth (m)	Pull Force (N)	St. Dev.
2.24	4652	2.20	5253	903
1.85	3072	1.89	4012	765
1.57	2331	1.58	2771	583
1.35	1913	1.26	1913	360	1.37	1766	200
1.07	1690	0.94	1321	196	0.91	1259	71

¹ Distance from the grain surface to the bottom of the mannequin feet.

).

Two interesting results emerge from this comparison. The first one is that the vertical-pull experiment ended up with a significantly smaller standard deviation between the runs than what was reported in the Schwab et al. study. Among the possible explanations are the effect of leveling the grain and/or the limited number of runs conducted in this study. In contrast to this experiment in which the grain was leveled before each pull, Schwab et al. did not level the grain after engulfing the mannequin, but rather kept the grain mass’s natural inverted conical shape. While this perhaps is more appropriate since victims will likely not be entrapped in level grain, it also seems to produce more “noise,” as it is hard to ensure that the mannequin is at the bottom of the inverted cone during every run. The second interesting result is that the vertical-test averages were almost always lower than Schwab et al. at the same grain depth. This may also be due to the leveling of the grain, because it reduces the pressure that the extra mass in the inverted cone indirectly places on the body. However, leveling the grain was still an important method since it allows for highly repeatable results. The only times the pull force in this study was significantly larger than Schwab et al. [3] and Roberts et al. [4] were due to the placement of the waist marker, which was 13 and 16 cm higher, respectively.

4.2. Influence Due to Grain Type

In both the vertical-pull and the angle-pull experiments, the results recorded in corn and those in soybeans were not significantly different from each other, except for the 15°-angle test. This was an unexpected finding, since the two grains were chosen because they have different shapes; thus, it was assumed they would behave differently. The fact that they behaved similarly was perhaps because of their similar bulk densities. In a study on grain pressure on the chest, Moore and Jones [9] likewise found the differences in the corn and soybean results to be insignificant. Concerning the difference recorded between the two grains at the 15° angle, it might have been due to a limitation that occurred in the experiment setup. Installation of the anchor point at the very low angle of 15° was difficult and was slightly modified by adjusting the forklift location (angle anchor point) between running the soybean and corn experiments. Applying extrication forces to an actual victim at such low angles would be most unlikely. Another potential cause for the difference in pull-force might be due to the grain size/shape. While the bulk density of grain (thus the weight of grain) dominates during vertical pull, as the angle is adjusted the shape and grain-grain friction will play a more dominate role and might thus be the cause in the difference in the pull-force values.

4.3. Angle Extrication Test Results

Results showed that the mannequin could be extricated from as sharp an angle as 60° without significantly impacting the pull-force required. Pulling the mannequin at 15° and 30° angles made a significant difference in the maximum force needed to free the mannequin in comparison to vertical pull. At 15° for corn (1.85 m depth), the pull force was not significantly different from pulling a mannequin at 2.24 m depth level (from surface of grain to feet). These findings suggest that, relative to placement of the overhead anchor points, some flexibility apparently is possible in rescue situations. However, it is important to note that, compared to a straight vertical pull, additional time was required to extricate the mannequin when set up at various anchor point angles. Time was not a measured parameter; it was observed that it took more time to pull the mannequin out of grain than in a vertical extrication.

4.4. Risk of Injury during Forceful Extrication

With the force required to pull the mannequin at 38 cm below grain mass found to be about five and a half times greater than the mannequin’s weight, it is highly likely that such force would cause serious harm to one’s spine and joints. Similarly, attempts to forcibly free a victim with the anchor point located at angles below 45°, may also result in injury. The problem becomes even more critical if the victim is not wearing a body harness that is capable of distributing the pull force over a larger portion of their body, as was often found to be the case as reported by Roberts et al., [5] and Issa and Field [10]. It remains difficult to specify the point at which depth and/or angle would cause injury, especially due to the variability of victims in past entrapments. These incidents have involved victims as young as 2 and as old as 80 years of age [1]. Physical conditions such as previous joint replacements, physical strength, levels of obesity, and heart condition could increase the risk of secondary injury during extrication. Thus, the safest recommendation is to avoid vertical extrication until more research is done on the ability of the body, especially the spine, to handle tensile loads required for extrication.

5. Conclusions

The results of this study confirmed that (1) a large pull-force is required to extricate someone entrapped in a grain mass, and (2) pulling the victim at an angle sharper than 45° results in substantially greater forces being applied to the body. One positive finding from this research, however, was that emergency first responders and grain bin manufacturers do have some leeway in the placement of anchor points; that is, it does not have to be exactly vertical to the center of the bin. This leeway could allow bin manufacturers to meet the Occupational Safety and Health Administration (OSHA) design criteria for anchor points for fall protection (22,200 N or 5000 lbf) [11] on structures having roofs with low load capacities.

It is recommended that the content of the emergency first responder training be updated to include the following information: (1) Based upon case studies, the forces required to forcefully extricate an entrapped victim can potentially exceed that which the body can endure; (2) the use of extrication strategies that separate the victim from the grain, such as using a grain rescue tube or comparable coffer dam that allows the grain to be removed from around the victim provide for the least force being administered to the victim during rescue attempts [4]; (3) extrication angles can make a difference in the amount of required force on the body; (4) rescue anchor points can be located at up to 30° off the center of the storage structure and be used without significantly increasing the forces required for extrication; (5) anchor points at lower angles will produce greater force increasing the risk of injury to the victim; and (6) rescuers should not assume that using structural components as anchor points can be used for extraction.

It is also recommended that additional research be conducted on ascertaining the physiological responses that occur during extrication, including the forces on the body and the pressures on internal organs.
