Considering Waste Generation in the Energy Sector during the Transition to a Circular Economy
Department of Environmental Economics, Ural Federal University, Mira-Str., 19, 620002 Ekaterinburg, Russia
*
Author to whom correspondence should be addressed.
Recycling 2023, 8(2), 42; https://doi.org/10.3390/recycling8020042
Submission received: 27 February 2023
/
Revised: 5 April 2023
/
Accepted: 6 April 2023
/
Published: 8 April 2023
(This article belongs to the Special Issue Feature Papers in Recycling 2023)
Abstract
:The need to reduce the negative environmental impact of energetics with the growing energy demand in the world is the core objective of the industry for the upcoming decades. The global agenda in the field of environmental protection increases the requirements for evaluation of the energy investment projects, in particular for their environmental efficiency. Currently, much attention is paid to assessing the impact of the project on atmospheric air, water bodies and land resources, including the formation of industrial waste during the operational stage. The formation of production and consumption waste at other stages of the project life cycle is not considered either when generating cash flows or when conducting the assessment pf environmental efficiency. It might significantly reduce the reliability of assessment results. The purpose of this study is to develop a system of integrated accounting for all types of waste generated and the environmental costs incurred for handling them during the environmental and economic assessment of energy projects. The paper discusses modern waste management practices at energy enterprises, waste generation at various stages of investment projects implementation, and provides recommendations on waste accounting when assessing their environmental and economic efficiency.
1. Introduction
Economic growth caused by technological progress and the growth of total production leads to an increase in the level of social welfare—growth of household incomes and consumption of material goods and services, improvement of education quality, accessibility of affordable healthcare [1]. The long-term economic growth rates are largely determined by the energy sector and its ability to meet the growing demand for primary energy [2,3]. If the energy sector is unable to provide the required level of energy consumption, the pace of economic development slows down.
In this regard, such factors as the availability and cheapness of energy resources, developed energy infrastructure, and the use of the latest energy technologies are beginning to play a system-forming role in the national economy. However, the increase in energy consumption also leads to an increase in the anthropogenic impact on the environment [4,5].
The energy industry is one of the largest environmental pollutants. According to data for 2021, 36.3 Gt of CO2 emissions accounted for the energy sector, while in 2000, this figure was 24.3 Gt of CO2 [6]. The largest part of emissions of greenhouse gases and other pollutants (NOx, SO2, PM, etc.) falls on traditional energy, in which fossil fuels (coal, oil and natural gas) are used as fuel for energy production [7,8]. The energy sector also has a negative impact on water resources, land resources and biodiversity of territories located in the immediate vicinity of the energy facility.
Despite the high level of anthropogenic impact on the environment, energy does not belong to the largest producers of industrial waste in comparison with other sectors of the economy. In 2020, on the territory of the EU, only 3.1% of all production waste was accounted for by the electricity, gas, and steam supply sector—air conditioning, which includes the energy sector. In Russia, this value in 2021 was less than 0.3% [9,10] (Table 1). The insignificant share of the energy industry in the structure of waste generation in Russia is due to the high volume of waste generation at the enterprises of the extractive industry—more than 91%. A more detailed structure of production waste generation in the EU and Russia is shown in Figure 1.
The volume of production waste generation in the analyzed sector in the EU is higher than in Russia, which might be due to the specifics of waste generation accounting and environmental reporting at Russian and European energy enterprises. For instance, waste sent by Russian enterprises for disposal, decontamination, or recycling within the framework of reporting is reflected only in those organizations where these wastes are sent. These wastes are not reflected on the ecological “balance sheet” of the waste-producing enterprise.
The classification of waste according to the degree of negative impact on the environment in Russia and the EU also has a number of fundamental differences. In Russia, the waste classification includes five hazard classes: Class I—extremely hazardous waste, Class II—highly hazardous waste, Class III—moderately hazardous waste, Class IV—low–hazard waste, and Class V—practically non-hazardous waste [11]. In the EU, waste is divided into two main classes: non-hazardous waste and hazardous waste. Hazardous waste is classified into classes depending on the nature of the hazard (for example, carcinogenic type of waste), then they are classified according to the degree of danger (for example, carcinogenic waste can be of three hazard classes: 1A, 1B and 2) [12].
The formation of production waste and their disposal is an urgent problem of modern energy. For example, the use of fossil fuels, in particular coal, for energy production leads to the formation of a huge amount of ash and slag waste, for the storage of which large territories are alienated [13].
Renewable energy sources (RES), despite a significantly less negative impact on the environment in comparison with traditional energy facilities, form a certain amount of industrial waste, but after the decommissioning of facilities (spent wind turbine blades, faulty solar panels, etc.) [14,15,16,17]. Table 2 presents a list of waste generated at traditional (thermal power plants (TPP) operating on coal, fuel oil, and natural gas) and renewable energy facilities (hydro power plant, solar power plant, wind power plant) during the production of electricity, in the general operation of the energy facility and at the stage of its decommissioning.
The largest contribution to the volume of waste generation by the energy sector is made by coal-fired thermal power plants, which is one of the reasons for the refusal to use coal as fuel for energy production. At the considered renewable energy facilities and gas thermal power plants, a small amount of waste generation occurs at the stage of operation of the energy facility and a significant amount at the elimination stage.
One of the ways to reduce the anthropogenic impact of the energy sector on the environment is to carry out its large-scale eco-modernization, the construction of high-tech renewable energy facilities [20], and the introduction of the principles of circular economy—all this implies the development and implementation of major investment projects [21]. In addition, the requirements for environmental performance assessment are being tightened—the impact of the project on atmospheric air, water bodies, and land resources (including waste generation in the process of electricity production) is being analyzed. Energy waste leaves a negative ecological footprint and implies the costs of handling them. Therefore, they should be reflected in the procedure for evaluating the effectiveness of investment projects.
At present, there are no studies in the field of accounting for production waste generation in the process of environmental assessment of energy investment projects and their subsequent implementation. The purpose of this study is to develop a system of integrated accounting of waste generation and incurred environmental costs for handling them during the environmental and economic assessment of investment projects in the energy sector. The article discusses modern waste management practices at energy enterprises (mainly at traditional energy enterprises), waste generation at various stages of investment projects implementation, and provides recommendations on waste accounting when assessing their environmental and economic efficiency.
2. Brief Review of Waste Management Practices on Energy Facilities
Waste management at traditional energy enterprises. The structure and volume of waste generation at traditional energy facilities directly depend on the type of fuel used: when burning coal, a significant amount of ash and slag waste is formed, which may contain toxic elements such as arsenic or mercury; when burning fuel oil, fuel oil ash is generated; when burning natural gas, production waste is practically not generated [22,23]. Regardless of the type of fuel, such types of waste are generated at energy facilities as used oils (hazard class III), cleaning material contaminated with oils (hazard class III), electronic waste (hazard classes I–IV), waste from household activities in organizational premises (hazard class IV–V), etc.
In the scientific literature, most of the work in the field of waste management practices at traditional energy enterprises is devoted to improving the ash and slag waste management system at coal-fired thermal power plants and improving the efficiency of their processing [13,24,25,26]. There are practically no studies of waste management practices used at gas power facilities.
In total, there are four main directions of waste management at thermal power plants: organization of waste storage, their disposal, processing, and neutralization. Figure 2 shows a typical logistics scheme for waste management at traditional energy enterprises.
The chosen method of waste management depends primarily on the type of waste: MSW generated mainly in organizational premises can be transferred for disposal to third-party organizations or processed directly at the enterprise; waste oils and mercury lamps are sent for disposal and/or neutralization to third-party specialized organizations; ash and slag waste at coal-fired thermal power plants either they are sent for storage in ash and slag dumps, or for disposal and further processing.
The generation, storage, and processing of ash and slag waste is one of the central environmental problems of coal power. On the territory of Russia, a common practice of handling ash and slag waste, despite the possibility of their processing for secondary use, is storage in ash and slag dumps: according to the data presented in [13], more than 28 thousand hectares of land have been alienated for ash and slag dumps, and the total amount of accumulated waste can reach 2 billion tons. In the USA and the EU, about 60% of all ash and slag waste is sent for recycling, which brings additional income to electric power companies [29], while in Russia this practice is just beginning to be implemented at energy enterprises.
At gas-fired thermal power plants, the waste management system is even more simplified in comparison with coal-fired thermal power plants due to the absence of production waste generation during fuel combustion—almost all types of generated waste are sent for disposal, storage, or neutralization to third-party organizations, which allows not to take into account their formation in the framework of environmental reporting and, consequently, environmental efficiency assessment.
Thus, the waste management system at traditional energy enterprises has a fairly typical character due to the specifics of waste generation and their low hazard class (the vast majority of waste generated belongs to hazard Class IV–V). In the scientific literature, the topic of improving the accounting of the waste management system at thermal power plants is practically not considered.
Waste management at renewable energy enterprises (hydropower, wind energy, and solar energy). Renewable energy is one of the components of the transition to a closed-cycle economy—obtaining energy from renewable energy sources can significantly reduce the negative impact on the environment, compared with energy based on the use of fossil fuels, and complies with the principles of circular economy [30,31,32,33]. In the process of construction and maintenance of renewable energy facilities, MSW, construction waste, electronic waste, etc., are also generated on par with traditional ones, which must be taken into account when assessing the environmental efficiency of an enterprise or when conducting an environmental and economic assessment of investment projects.
A simplified environmental monitoring system operates at hydropower, wind, and solar energy facilities. Accounting and assessment of production waste generation usually is not carried out due to its absence at an operational stage. However, a significant part of waste, including industrial waste, is generated at the stage of shutdown or reconstruction of energy facilities, which is especially important for solar and wind power facilities [14,15,34,35,36,37].
For example, most of the photovoltaic modules are sent either for burial at special landfills, or for disposal and neutralization to specialized organizations; a smaller part is sent for recycling [37,38]. According to the forecasts of the International Renewable Energy Agency and the International Energy Agency, up to 1.8 million tons of photovoltaics waste may be generated by 2030, and by 2050 this figure may reach 60 million tons [39].
The spent parts of wind turbines (in particular the blades) are sent for burial to special landfills, for the organization of which significant territories are alienated. The problem of processing and reuse of blades is considered in the works [14,35,36,40]. One of the barriers to their processing is the complex composition of the material from which they are made—the processing of blades is possible but is hampered by the need to use complex specialized and expensive equipment to separate the material into demanded components. Incineration (disposal) of the blades is not possible due to their mild burning and clogging of the cleaning plants.
The main practices of waste management at hydropower enterprises, due to the absence of complex specifics of their formation, include disposal (electronic waste, MSW, construction waste) and neutralization (electronic, construction waste).
Thus, it can be concluded that there are no specific waste management practices at renewable energy enterprises.
3. Results and Discussion
Due to the specifics of the energy facilities’ impact on the environment, the insignificant amount of waste generation by most types of energy facilities (with the exception of coal and fuel oil thermal power plants), accounting, and evaluation of waste management costs in the framework of environmental and economic assessment of investment projects is practically not carried out.
According to the data from Table 2, a significant amount of production waste generation at traditional energy enterprises, in particular coal-fired thermal power plants, falls on the production process and on the elimination stage. At renewable energy enterprises, most of the production waste is generated at the stage of their elimination.
At the same time, during the design, construction, and operation of an energy facility, MSW (mainly during administrative activities), electronic waste (used electrical appliances for industrial and non-industrial purposes) and construction waste (during construction and repair work) are generated. The costs of its handling are often not taken into account when forming the cash flows of the project, and the calculation of environmental costs that are included in the calculation of the performance indicators of the investment project. To improve the accuracy of the formation of cash flows of an investment project and the effectiveness of assessing the negative impact on the environment, it is necessary to consider the formation of waste not only at the operational stage, but also at the stages of its development, implementation, and elimination.
Production waste has the largest ecological footprint in comparison with other types of waste (with the exception of electronic waste). In this regard, the assessment and analysis of their generation must necessarily be carried out when assessing the environmental efficiency of an investment project (for instance, calculating the volume of production waste generation per unit of energy produced [25] or forecasting the potential volume of industrial waste generated at the stage of elimination of an energy facility).
The inclusion of other types of waste in the calculation of environmental indicators is impractical due to the specifics of their generation and insignificant environmental impact (with the exception of electronic waste).
The costs of handling all types of waste should be reflected as environmental costs and included in the formation of cash flows. Despite the insignificant environmental impact of MSW, construction waste, etc., an energy facility can incur significant costs for handling them that might affects the commercial effectiveness of the project in the future.
The costs of handling MSW and electronic waste should be included in the investment (costs of developing waste management system, staff training) and operational flows of the investment project (staff salaries, payments to third-party organizations for the collection and disposal of MSW, the costs of processing MSW). Their inclusion in the calculation of environmental performance indicators of the functioning of a traditional or renewable energy facility is optional due to their non-productive nature and, consequently, insignificant environmental impact (hazard classes IV–V).
The largest volume of construction waste that belongs to hazard classes IV–V, is formed at the investment and elimination stages. At the stage of construction/reconstruction of an investment facility (investment phase), the costs of collection, removal and/or transfer of waste to third parties are most often reflected in the cash flows of the project. Their inclusion in the calculation of environmental indicators may be optional on par with MSW. The costs of waste management at the elimination stage during the evaluation of the effectiveness of the investment project are not predicted and are not included in the cash flows of the project, despite the significant amount of their formation and possible problems with their disposal. Forecasting the level of costs for the management of construction and man-made waste during the elimination phase of the project and their inclusion in investment and operational flows contributes to improving the accuracy of calculations of economic and financial indicators of the project. In addition, some of the man-made waste that may be generated during the shutdown of an energy facility should be taken into account when assessing the environmental effectiveness of an investment project.
Figure 3 shows a potential scheme for accounting for waste generation when generating cash flows and conducting an environmental assessment of an investment project in the energy sector.
The use of the proposed waste generation accounting system within all stages of project implementation in the energy sector will allow the following:
- To more accurately predict the environmental costs of the project—despite the insignificant amount of waste generation in the I and II phases of project implementation in comparison with the III phase, the organization will still bear the costs of handling them (collection, sorting, disposal, payment for the services of third-party organizations, etc.);
- To increase the accuracy of the formation of cash flows of an investment project by including additional environmental costs in them and the effectiveness of the economic efficiency evaluation;
- To increase the informativeness of the environmental assessment of an investment project by considering waste generation more comprehensively at all stages of its implementation—often, the generation of man-made waste at the stage of elimination of an energy facility (completion of an investment project) is not taken into account, despite their significant volume and, in some cases, a high hazard class;
- To make a more complete accounting of waste generation at energy enterprises—the generation of all types of waste and the costs of handling them will be reflected in the cash flows of the investment project;
- To simplify the calculation of environmental indicators without losing the objectivity of the results obtained, only man-made waste that has a significant negative impact on the environment will be taken into account.
The use of the proposed waste generation accounting system in the development and evaluation of an investment project involves the mandatory introduction of an environmental management system, within which a waste management system is designed.
On the territory of the EU, most of the production and consumption waste is sent for recycling for secondary use, which is one of the components of the transition to the concept of a circular economy. In Russia, the share of waste sent for recycling is critically low. The application of the accounting system will make it possible to predict the formation of various types of waste at all stages of the project implementation and, therefore, can serve as a tool to stimulate the introduction of modern waste management practices, in particular at Russian energy enterprises. Table 3 presents recommended waste management practices at energy enterprises.
The implementation of these practices will help to minimize the total volume of waste generation in order to increase the degree of their valorization for potential profit, and minimize environmental costs, which corresponds to the concept of a circular economy. For instance, the ash and slag waste, depending on its composition and structure, is widely used in the construction sector of the economy, namely in the production of building materials (brick, cement, etc.), in road construction, for the production of various construction fillers, etc. Certain ash and slag wastes could also be used in agriculture as fertilizers. MSW could be used to produce recyclable materials suitable for the production of new products (plastic, paper, etc.), some parts of decommissioned electronic devices can be reused, and from unusable raw materials a special polymetallic concentrate is produced that is used in the production of various goods. In general, most of the waste generated at energy facilities can be recycled and reused in other sectors of the economy.
The need to improve the accounting of waste generation in the energy sector and the concomitant introduction of the principles of circular economy is noted in [28,47]. Rodrigo M. et al. note the predominant role of environmental reporting as a stimulating tool for improving accounting, reducing waste generation while increasing the valorization of industrial waste [27].
The increasing role of accounting and subsequent disposal of electronic waste at traditional energy enterprises is noted in studies [48,49]. At the same time, there are practically no works containing recommendations for including the analysis and considering of waste generation in the framework of the environmental and economic efficiency assessment of energy projects. The vast majority of research focuses on the evaluation of pollution of atmospheric air by energy facilities [25,50,51], water bodies [25,27,52], and the use of land resources [25].
The developed system makes it possible to increase the effectiveness of the environmental assessment procedure and the accuracy of the formation of cash flows at all stages of the energy project implementation. In addition, the introduction of an accounting system contributes to solving the problem of unaccounted costs—often the formation of waste at enterprises in a non-monetized state is transferred to society, and their ecological footprint is practically not taken into account. The proposed concept of waste accounting during the implementation of the investment project allows one to “return” these costs to production and take into account their impact on the environment at least in monetary terms (the environmental costs incurred for waste management at all stages of the project implementation).
4. Materials and Methods
In order to form a comprehensive waste accounting system, the existing waste management practices at traditional and renewable energy enterprises were studied, as well as the specifics of waste generation during the implementation of investment projects. Further, the most promising practices were identified, the classification of the generated production and consumption waste by stages of the life cycle was carried out. The stages and logic of the study are shown in Figure 4.
In order to improve approaches to accounting and assessment of waste generation in the development of investment projects in the energy sector, it is proposed to use the concept of Life Cycle Impact Assessment (LCIA) [53,54], according to which environmental impact assessment should be carried out at all stages of the life cycle of both a single product and an enterprise or investment project. Despite the possibility of comprehensive impact accounting and a standardized assessment procedure, its results can vary significantly depending on the selected functional unit, which is the main disadvantage of the methodology [55,56].
It is proposed to take into account not only production waste, but also consumption waste generated in administrative premises and industrial facilities at various stages of the project life cycle that includes 4 phases:
I. Pre-investment stage: (i) formation of the initial project idea, setting goals and objectives; (ii) conducting marketing and investment analysis; (iii) preparation of a feasibility study of investments; (iv) development of a business plan and a calendar plan of the project.
II. Investment stage: (i) development of the necessary documentation; (ii) conclusion of contracts; (iii) engineering and technical design; (iv) initial investment; (v) construction/implementation of planned activities.
III. Operational stage: (i) production, sale of products and services; (ii) monitoring of current economic and environmental indicators.
IV. Elimination stage: (i) suspension or complete shutdown of production processes; (ii) reformation, sale of assets and development of a new project.
Production and consumption waste generated at all stages of the project life cycle within the framework of the proposed accounting concept based on the results of the first stages, were divided into 4 groups: MSW, electronic waste, construction waste, and production waste, which will be conditionally divided into two groups (waste generated in the process of energy production, and in the process of shutdown of industrial objects). It should be noted that part of the construction waste (plaster, brick, etc.) belongs to MSW and, therefore, will be taken into account in this group. All other waste generated during construction works (scrap, gypsum waste, bitumen, dust, waterproofing materials, acetone, etc.) will be accounted for in the construction waste group. The separation of production waste by stages of the investment project is presented in Table 4.
5. Conclusions
In the course of the study, the specifics of waste generation at energy enterprises were analyzed and the main practices of handling them were studied. Based on the analysis, a waste generation accounting system has been developed for the stages of project implementation in the energy sector, which allows solving a number of tasks:
- The formation of all types of waste and the potential costs of handling them are taken into account, which contributes to a more accurate formation of project cash flows;
- The costs of man-made waste management at the elimination stage or during the reconstruction of an energy facility are laid down, which are usually not taken into account in the process of developing a project and conducting its environmental and economic assessment;
- The problem of unaccounted costs at all stages of the energy project implementation is being solved—responsibility for all types of waste generated and their negative impact on the environment falls entirely on the energy company;
- Improvement of the procedure for environmental and economic efficiency assessment of the energy investment project—for the calculation of environmental indicators, only man-made waste that has the greatest negative impact on the environment will be considered, the formation of other types of waste and the costs of handling them will be reflected in environmental costs that are included in the cash flows of the project—thus, most of the waste is taken into account when assessing the project efficiency.
The waste accounting system by stages of project life cycle might serve as an incentive for the introduction and effective waste management system at energy enterprises and an increase in the share of waste sent for recycling, for the purpose of their secondary use, sale to third-party organizations for additional profit, and a general reduction in environmental costs, which corresponds to the concept of a circular economy.
One of the significant disadvantages of the proposed system is the complexity of predicting the volume of waste generation at each phase of the housing and communal services, taking into account the time factor when forecasting environmental costs for their inclusion in the project cash flows and dependence on environmental legislation (different countries may have different requirements for waste disposal/processing/storage and environmental requirements may be subject to changes according to the passage of time). To solve these problems, it is planned to study the proposed system in more detail and adapt it to existing approaches of environmental and economic assessment (costs-benefits and costs-efficiency).
Author Contributions
Conceptualization, A.K. and E.M.; methodology, A.K. and E.M.; software, A.K.; validation, E.M.; formal analysis, A.K. and E.M.; investigation, A.K. and E.M.; resources, E.M.; data curation, E.M.; writing—original draft preparation, A.K.; writing—review and editing, E.M.; visualization, A.K.; supervision, E.M.; project administration, E.M.; funding acquisition, E.M. All authors have read and agreed to the published version of the manuscript.
Funding
The research was supported by the Russian Science Foundation Grant No. 22-28-01740, https://rscf.ru/en/project/22-28-01740/.
Data Availability Statement
Not applicable.
Conflicts of Interest
The authors declare no conflict of interest.
References
- Max-Neef, M. Economic growth and quality of life: A threshold hypothesis. Ecol. Econ. 1995, 15, 115–118. [Google Scholar] [CrossRef]
- Kim, D.; Park, Y.-J. Nonlinear causality between energy consumption and economic growth by timescale. Energy Strat. Rev. 2022, 44, 100949. [Google Scholar] [CrossRef]
- Wang, W. Differences between energy consumption and regional economic growth under the energy environment. Energy Rep. 2022, 8, 10017–10024. [Google Scholar] [CrossRef]
- Galli, A.; Kitzes, J.; Niccolucci, V.; Wackernagel, M.; Wada, Y.; Marchettini, N. Assessing the global environmental consequences of economic growth through the Ecological Footprint: A focus on China and India. Ecol. Indic. 2012, 17, 99–107. [Google Scholar] [CrossRef]
- Panepinto, D.; Riggia, V.A.; Zanetti, M.C. Analysis of the Emergent Climate Change Mitigation Technologies. Int. J. Environ. Res. Public Health. 2021, 18, 6767. [Google Scholar] [CrossRef] [PubMed]
- Global Energy Review: CO2 Emissions in 2021, IEA. Available online: https://www.iea.org/reports/global-energy-review-co2-emissions-in-2021-2 (accessed on 16 January 2023).
- Karaeva, A.; Magaril, E.; Rada, E.C. Improving the approach to efficiency assessment of investment projects in the energy sector. WIT Trans. Ecol. Environ. 2020, 246, 113–123. [Google Scholar] [CrossRef]
- Gitelman, L.; Kozhevnikov, M. Energy Transition Manifesto: A Contribution towards the Discourse on the Specifics Amid Energy Crisis. Energies 2022, 15, 9199. [Google Scholar] [CrossRef]
- Generation of Waste by Economic Activity. Eurostat. Available online: https://ec.europa.eu/eurostat/databrowser/view/ten00106/default/table?lang=en (accessed on 14 January 2023).
- The Main Indicators of Environmental Protection STATISTICAL BULLETIN. Available online: https://rosstat.gov.ru/storage/mediabank/oxr_bul_2021.pdf (accessed on 12 January 2023).
- Federal Law No. 89-FZ of 24.06.1998 (as amended on 19.12.2022) “On Production and Consumption Waste” (with amendments and Additions, Intro. Effective from 06.01.2023). Available online: https://www.consultant.ru/document/cons_doc_LAW_19109/7243eae6242e49089f4e8192566463c014f87bd8/ (accessed on 14 January 2023). (In Russian).
- Guidance on Classification of Waste According to WC-Stat Categories. Available online: https://ec.europa.eu/eurostat/documents/342366/351806/Guidance-on-EWCStat-categories-2010.pdf/0e7cd3fc-c05c-47a7-818f-1c2421e55604 (accessed on 14 January 2023).
- A Yatsenko, E.; Goltsman, B.M.; Novikov, Y.V.; Trofimov, S.V.; Yatsenko, V.S. Processing of ash and slag waste from coal-fired power plants into functional geopolymer materials. IOP Conf. Series: Earth Environ. Sci. 2022, 1061, 012052. [Google Scholar] [CrossRef]
- Sommer, S.; Walther, G. Recycling and recovery infrastructures for glass and carbon fiber reinforced plastic waste from wind energy industry: A European case study. Waste Manag. 2021, 121, 265–275. [Google Scholar] [CrossRef] [PubMed]
- Hao, S.; Kuah, A.T.H.; Rudd, C.D.; Wong, K.H.; Lai, N.Y.G.; Mao, J.; Liu, X. A circular economy approach to green energy: Wind turbine, waste, and material recovery. Sci. Total Environ. 2020, 702, 135054. [Google Scholar] [CrossRef] [PubMed]
- Heng, H.; Meng, F.; McKechnie, J. Wind turbine blade wastes and the environmental impacts in Canada. Waste Manag. 2021, 133, 59–70. [Google Scholar] [CrossRef] [PubMed]
- Chowdhury, M.S.; Rahman, K.S.; Chowdhury, T.; Nuthammachot, N.; Techato, K.; Akhtaruzzaman, M.; Tiong, S.K.; Sopian, K.; Amin, N. An overview of solar photovoltaic panels’ end-of-life material recycling. Energy Strateg. Rev. 2020, 27, 100431. [Google Scholar] [CrossRef]
- Electric Power Generation, Transmission and Distribution Industry Practicies and Environmental Characterization. Available online: https://www.epa.gov/sites/default/files/2019-07/documents/cercla_108b_industry_practices.pdf (accessed on 20 January 2023).
- Industry Classification Benchmark. Available online: https://research.ftserussell.com/products/downloads/ICB_Rules_new.pdf (accessed on 20 January 2023).
- Solomin, E.; Sirotkin, E.; Cuce, E.; Selvanathan, S.P.; Kumarasamy, S. Hybrid Floating Solar Plant Designs: A Review. Energies 2021, 14, 2751. [Google Scholar] [CrossRef]
- Rabaia, M.K.H.; Semeraro, C.; Olabi, A.-G. Modeling photovoltaics’ waste projection and waste management optimization. J. Clean. Prod. 2023, 388, 135947. [Google Scholar] [CrossRef]
- Karaeva, A.; Magaril, E.; Al-Kayiem, H.H. Regulations for Efficiency Assessment of Investment Projects in the Energy Sector: Brief Overview and Comparative Analysis. WIT Trans. Ecol. Environ. 2022, 255, 35–47. [Google Scholar] [CrossRef]
- Karaeva, A.P.; Magaril, E.R.; Kiselev, A.V.; Cioca, L.-I. Screening of Factors for Assessing the Environmental and Economic Efficiency of Investment Projects in the Energy Sector. Int. J. Environ. Res. Public Health 2022, 19, 11716. [Google Scholar] [CrossRef]
- Biajawi, M.I.; Embong, R.; Muthusamy, K.; Ismail, N.; Obianyo, I.I. Recycled coal bottom ash as sustainable materials for cement replacement in cementitious Composites: A review. Constr. Build. Mater. 2022, 338, 127624. [Google Scholar] [CrossRef]
- Zhou, Y.; Yang, J.; Dong, L.; Gao, T.; Li, Z.; Ji, Y.; Zhao, Y.; Pan, S.; Zhang, J.; Zheng, C. Removal of elemental mercury from flue gas by recyclable CuCl2 modified magnetospheres from fly ash: Part 5. Industrial scale studies at a 50 MWth coal-fired power plant. Fuel 2020, 266, 117052. [Google Scholar] [CrossRef]
- Liu, W.; Liang, J.; Fu, C.; Zeng, B.; Huang, M.; Yang, G.; Luo, X.; An, D.; Wei, S.; Xie, Z.; et al. Waste recycling of coal fly ash: A novel approach to prepare hierarchically porous coal fly ash/Al2O3 ceramic composite with high porosity and high strength templated by emulsion-assisted self-assembly. Ceram. Int. 2022, 48, 18588–18595. [Google Scholar] [CrossRef]
- Rodrigo, M.; Ottoni, M.; Barros, J.; Santos, M.A. Assessment of the waste management reporting in the electricity sector. Clean Responible Consum. 2021, 3, 100031. [Google Scholar] [CrossRef]
- Xie, S.; Qin, P.; Zhang, M.; Xu, J.; Ouyang, T. A high-efficiency and eco-friendly design for coal-fired power plants: Combined waste heat recovery and electron beam irradiation. Energy. 2022, 258, 124884. [Google Scholar] [CrossRef]
- Secondary Resources Generated at Heat Power Enterprises. Available online: https://eipc.center/wp-content/uploads/2020/08/encycl/p_three/chpt_15.pdf. (accessed on 16 January 2023). (In Russian).
- Yu, Z.; Gao, J. Economic Benefit Evaluation of Waste Heat Recovery in Coal-fired CHP System Based on Exergoeconomic Analysis. IOP Conf. Series: Mater. Sci. Eng. 2020, 721, 012059. [Google Scholar] [CrossRef]
- Rada, E.C. Special waste valorization and renewable energy generation under a circular economy: Which priorities? WIT Trans. Ecol. Environ. 2019, 222, 145–157. [Google Scholar] [CrossRef] [Green Version]
- Kiviranta, K.; Thomasson, T.; Hirvonen, J.; Tähtinen, M. Connecting circular economy and energy industry: A techno-economic study for the Åland Islands. Appl. Energy 2020, 279, 115883. [Google Scholar] [CrossRef]
- Bîrgovan, A.L.; Lakatos, E.S.; Szilagyi, A.; Cioca, L.I.; Pacurariu, R.L.; Ciobanu, G.; Rada, E.C. How Should We Measure? A Review of Circular Cities Indicators. Int. J. Environ. Res. Public Health 2022, 19, 5177. [Google Scholar] [CrossRef] [PubMed]
- Ghosh, T.; Hanes, R.; Key, A.; Walzberg, J.; Eberle, A. The Circular Economy Life Cycle Assessment and Visualization Framework: A Multistate Case Study of Wind Blade Circularity in United States. Resour. Conserv. Rec. 2022, 185, 106531. [Google Scholar] [CrossRef]
- Tazi, N.; Kim, J.; Bouzidi, Y.; Chatelet, E.; Liu, G. Waste and material flow analysis in the end-of-life wind energy system. Resour. Conserv. Rec. 2019, 145, 199–207. [Google Scholar] [CrossRef]
- Fiandra, V.; Sannino, L.; Andreozzi, C. Photovoltaic waste as source of valuable materials: A new recovery mechanical approach. J. Clean. Prod. 2023, 385, 135702. [Google Scholar] [CrossRef]
- Ardente, F.; Latunussa, C.E.L.; Blengini, G.A. Resource efficient recovery of critical and precious metals from waste silicon PV panel recycling. Waste Manag. 2019, 91, 156–167. [Google Scholar] [CrossRef]
- Majewski, P.; Al-shammari, W.; Dudley, M.; Jit, J.; Lee, S.-H.; Myoung-Kug, K.; Sung-Jim, K. Recycling of solar PV panels- product stewardship and regulatory approaches. Energy Policy 2021, 149, 112062. [Google Scholar] [CrossRef]
- IRENA. End-of-life Management Solar Photovoltaic Panels. Available online: https://www.irena.org/publications/2016/Jun/End-of-life-management-Solar-Photovoltaic-Panels (accessed on 24 January 2022).
- Nagle, A.J.; Delaney, E.L.; Bank, L.C.; Leahy, P.G. A Comparative Life Cycle Assessment between landfilling and Co-Processing of waste from decommissioned Irish wind turbine blades. J. Clean. Prod. 2020, 277, 123321. [Google Scholar] [CrossRef]
- Yu, S.; Tao, R.; Tan, H.; Zhou, A.; Deng, S.; Wang, X.; Zhang, Q. Migration characteristics and ecological risk assessment of heavy metals in ash from sewage sludge co-combustion in coal-fired power plants. Fuel 2023, 333, 126420. [Google Scholar] [CrossRef]
- Podgorodetskii, G.S.; Gorbunov, V.B.; Agapov, E.A.; Erokhov, T.V.; Kozlova, O.N. Processing Ash and Slag Wastes from Thermal Power Stations. Part 2. Steel Transl. 2018, 48, 435–440. [Google Scholar] [CrossRef]
- Kotelnikova, A.D.; Rogova, O.B.; Karpukhina, E.A.; Solopov, A.B.; Levin, I.S.; Levkina, V.V.; Proskurnin, M.A.; Volkov, D.S. Assessment of the structure, composition, and agrochemical properties of fly ash and ash-and-slug waste from coal-fired power plants for their possible use as soil ameliorants. J. Clean. Prod. 2022, 333, 130088. [Google Scholar] [CrossRef]
- Pires, A.; Martinho, G. Waste hierarchy index for circular economy in waste management. Waste Manag. 2019, 95, 298–305. [Google Scholar] [CrossRef]
- Ottoni, M.; Dias, P.; Xavier, L.H. A circular approach to the e-waste valorization through urban mining in Rio de Janeiro, Brazil. J. Clean. Prod. 2020, 261, 120990. [Google Scholar] [CrossRef]
- Allevi, E.; Gnudi, A.; Konnov, I.G.; Oggioni, G. Municipal solid waste management in circular economy: A sequential optimization model. Energy Econ. 2021, 100, 105383. [Google Scholar] [CrossRef]
- Janik, A.; Ryszko, A.; Szafraniec, M. Greenhouse gases and circular economy issues in sustainability reports from the energy sector in the European union. Energies 2020, 13, 5993. [Google Scholar] [CrossRef]
- Lefeuvre, A.; Garnier, S.; Jacquemin, L.; Pillain, B.; Sonnemann, G. Anticipating in-use stocks of carbon fibre reinforced polymers and related waste generated by the wind power sector until 2050. Resour. Conserv. Rec. 2019, 141, 30–39. [Google Scholar] [CrossRef]
- Krook, J.; Svensson, N.; Wallsten, B. Urban infrastructure mines: On the economic and environmental motives of cable recovery from subsurface power grids. J. Clean. Prod. 2015, 104, 353–363. [Google Scholar] [CrossRef] [Green Version]
- Halkos, G.E.; Polemis, M.L. The impact of economic growth on environmental efficiency of the electricity sector: A hybrid window DEA methodology for the USA. J. Environ. Manag. 2018, 211, 334–346. [Google Scholar] [CrossRef]
- Tenente, M.; Henriques, C.; da Silva, P.P. Eco-efficiency assessment of the electricity sector: Evidence from 28 European union countries. Econ. Anal. Policy 2020, 66, 293–314. [Google Scholar] [CrossRef]
- Zurano-Cervelló, P.; Pozo, C.; Mateo-Sanz, J.M.; Jiménez, L.; Guillén-Gosálbez, G. Sustainability efficiency assessment of the electricity mix of the 28 EU member countries combining data envelopment analysis and optimized projections. Energy Policy 2019, 134, 110921. [Google Scholar] [CrossRef]
- Karaeva, A.; Magaril, E.; Al-Kayiem, H.; Torretta, V.; Rada, E.C. Approaches to the Assessment of Ecological and Economic Efficiency of Investment Projects: Brief Review and Recommendations for Improvements. WIT Trans. Ecol. Environ. 2021, 253, 515–525. [Google Scholar] [CrossRef]
- ISO 14042:2000 Environmental Management—Life Cycle Assessment—Life Cycle Impact Assessment. Available online: https://www.iso.org/standard/23153.html (accessed on 27 January 2023).
- Bianco, I.; Panepinto, D.; Zanetti, M. Environmental Impacts of Electricity from Incineration and Gasification: How the LCA Approach Can Affect the Results. Sustainability 2022, 14, 92. [Google Scholar] [CrossRef]
- Lijó, L.; Lorenzo-Toja, Y.; González-García, S.; Bacenetti, J.; Negri, M.; Moreira, M.T. Ecoefficiency assessment of farm-scaled biogas plants. Bioresour. Technol. 2017, 237, 146–155. [Google Scholar] [CrossRef] [PubMed]

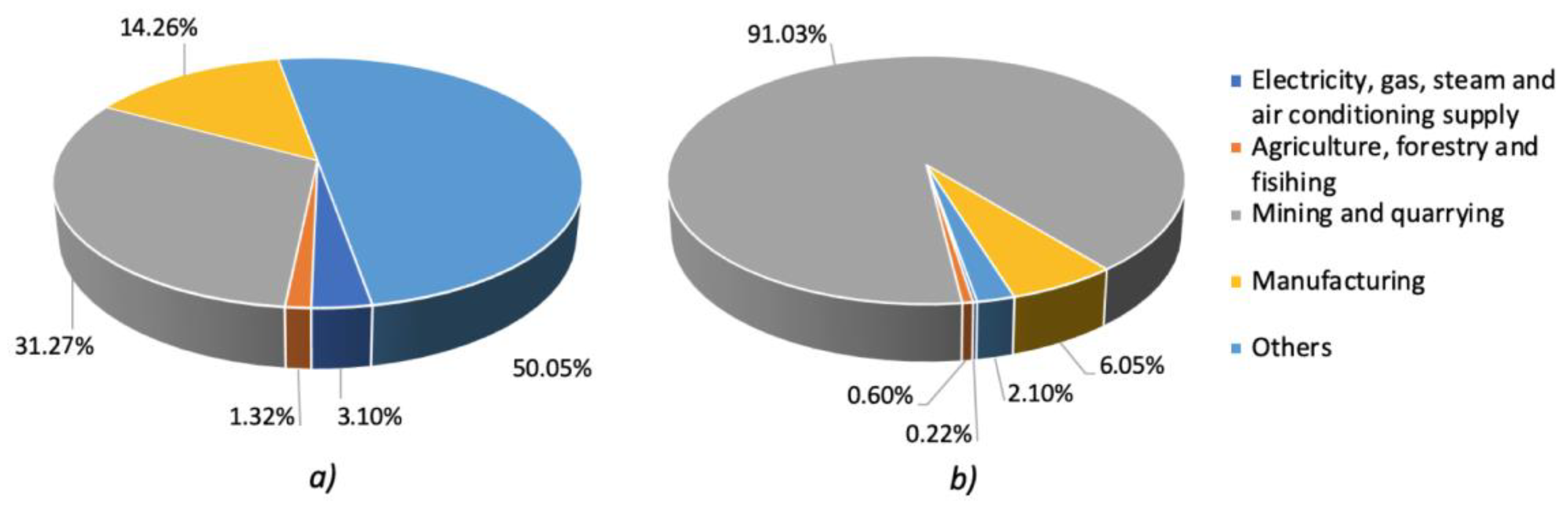

Figure 1.
Structure of production waste generation (here and hereafter presented data not including nuclear waste): (a) in EU 2020, % (b) in Russia 2021, % (made by authors using data from [9,10]).

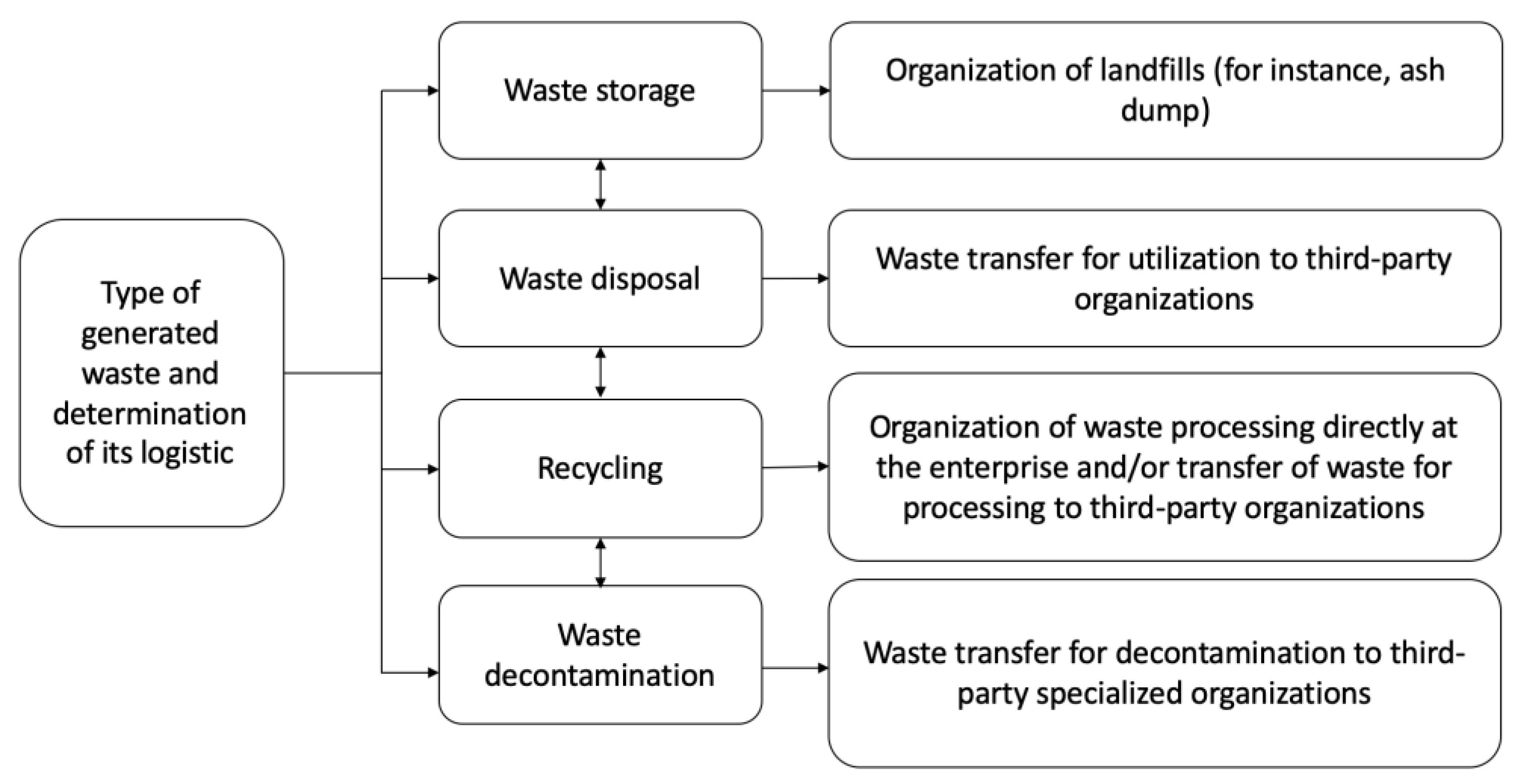

Figure 2.
A typical logistics scheme for waste management at traditional energy enterprises (made by authors using data from [27,28,29].

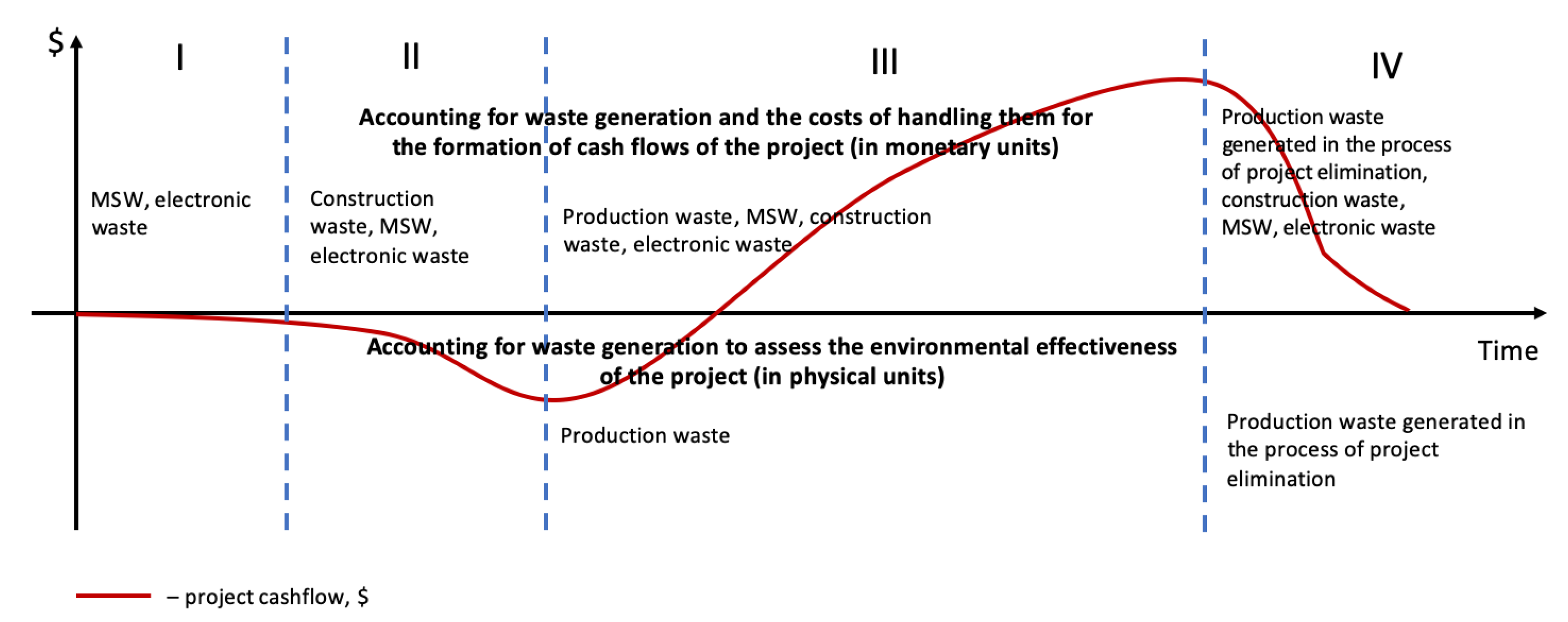

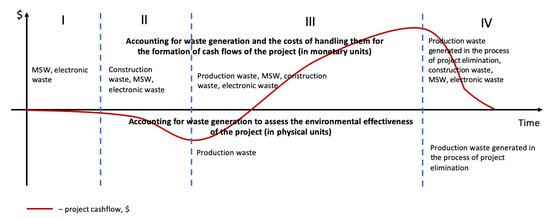

Figure 3.
A potential scheme for accounting for waste generation in the formation of cash flows and conducting an environmental assessment of an investment project in the energy sector.
Figure 3.
A potential scheme for accounting for waste generation in the formation of cash flows and conducting an environmental assessment of an investment project in the energy sector.

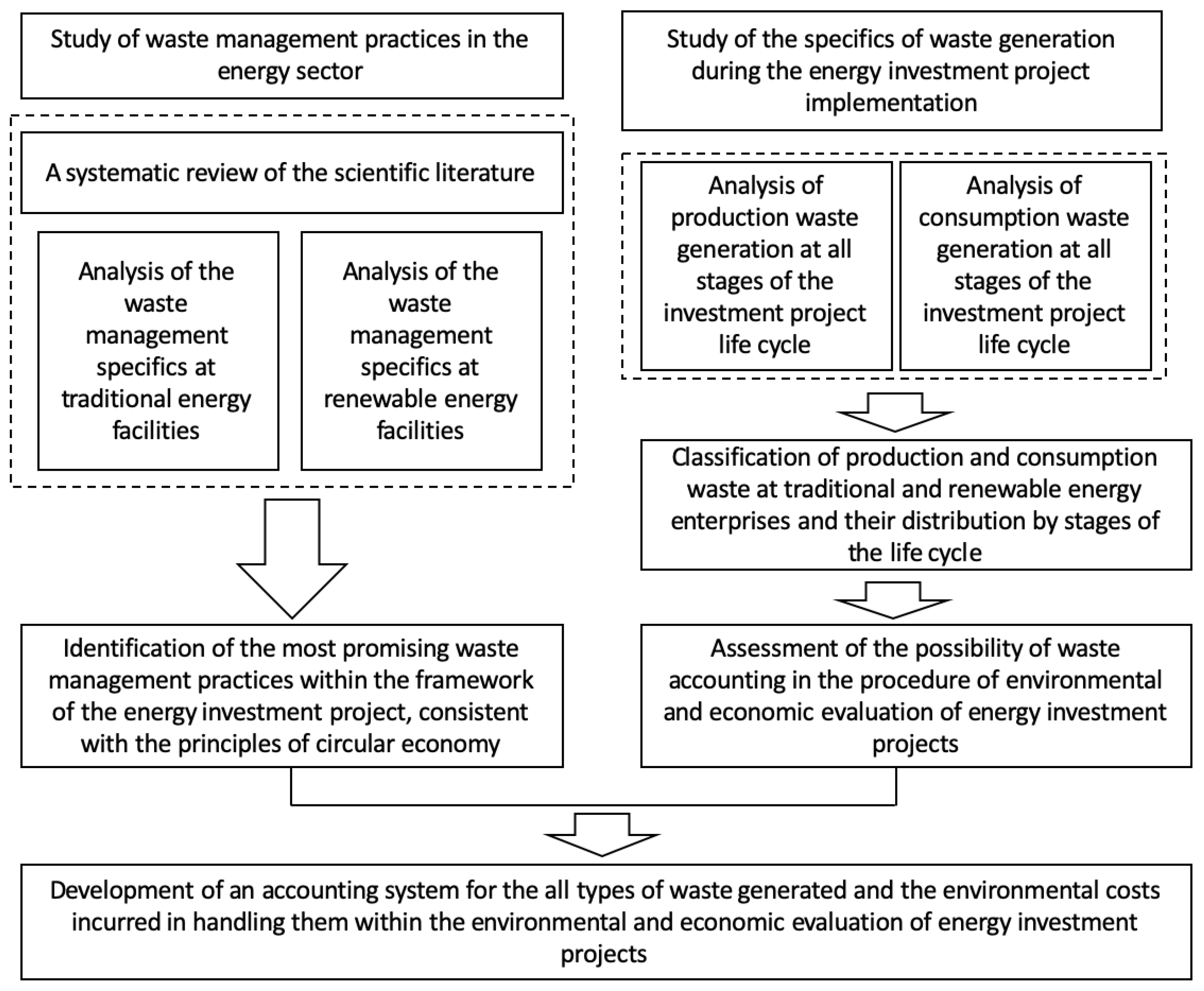

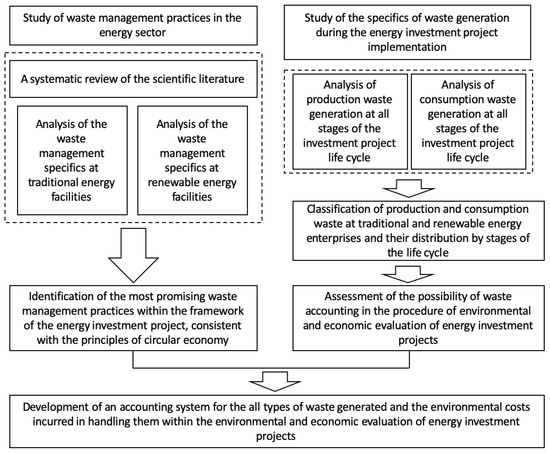

Figure 4.
The logic of the research and its stages.
Table 1.
Production waste generation in electricity, gas, steam, and air conditioning supply industry in EU and Russia from 2016 to 2020 (made by authors using data from [9,10]).
| Year | 2016 | 2018 | 2020 (2021) 1 |
|---|---|---|---|
| Total production waste generation, thousand tons | |||
| Russia | 5,350,102 | 7,167,738 | 8,282,729 |
| EU | 1,759,210 | 1,804,540 | 1,611,610 |
| Production waste generation in gas, steam, and air conditioning supply industry, thousand tons | |||
| Russia | 20,509 | 20,105 | 18,696 |
| EU | 76,800 | 78,370 | 49,970 |
| The share of the sector in the total volume of waste generation, % | |||
| Russia | 0.38% | 0.28% | 0.23% |
| EU | 4.37% | 4.34% | 3.10% |
1 Data for Russia is presented for 2021 due to its availability.
| Type of Energy Facility | Waste Generation from Fuel Consumption | Waste Generation during Operation | Decommissioning Waste |
|---|---|---|---|
| Thermal Power Plant (Coal) |
|
|
|
| Thermal Power Plant (Fuel oil) |
|
|
|
| Thermal Power Plant (Natural gas) |
|
|
|
| Hydro Power Plant | - |
|
|
| Wind Power Plant | - |
|
|
| Solar Photovoltaics | - |
|
|
Table 3.
Recommended waste management practices for energy facilities (made by the authors using data from [26,31,41,42,43,44,45,46]).
| Type of Waste | Recommended Practices |
|---|---|
| Solid waste |
|
| Ash and slag waste |
|
| Construction waste |
|
| Electronic waste |
|
Table 4.
Types of waste generated at various stages of the project life cycle in the energy sector (made by the authors).
Table 4.
Types of waste generated at various stages of the project life cycle in the energy sector (made by the authors).
| Investment Project Stage/Type of Energy Facility | Pre-Investment Stage (I) | Investment Stage (II) | Operational Stage (III) | Elimination Stage (IV) |
|---|---|---|---|---|
| Thermal Power Plant (Coal) |
|
|
|
|
| Thermal Power Plant (Fuel oil) |
|
|
|
|
| Thermal Power Plant (Natural gas) |
|
|
|
|
| Hydropower Power Plant |
|
|
|
|
| Wind Power Plant |
|
|
|
|
| Solar Photovoltaics |
|
|
|
|
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Karaeva, A.; Magaril, E. Considering Waste Generation in the Energy Sector during the Transition to a Circular Economy. Recycling 2023, 8, 42. https://doi.org/10.3390/recycling8020042
AMA Style
Karaeva A, Magaril E. Considering Waste Generation in the Energy Sector during the Transition to a Circular Economy. Recycling. 2023; 8(2):42. https://doi.org/10.3390/recycling8020042
Chicago/Turabian StyleKaraeva, Anzhelika, and Elena Magaril. 2023. "Considering Waste Generation in the Energy Sector during the Transition to a Circular Economy" Recycling 8, no. 2: 42. https://doi.org/10.3390/recycling8020042
APA StyleKaraeva, A., & Magaril, E. (2023). Considering Waste Generation in the Energy Sector during the Transition to a Circular Economy. Recycling, 8(2), 42. https://doi.org/10.3390/recycling8020042
