Overcoming Challenges in Development of Manganese Oxide Supercapacitor Cathodes by Alkali-Free Hydrothermal Synthesis

1
Department of Materials Science and Engineering, McMaster University, Hamilton, ON L8S 4L7, Canada
2
Technical Research Center (TRC), Cairo 11759, Egypt
*
Author to whom correspondence should be addressed.
Batteries 2023, 9(7), 365; https://doi.org/10.3390/batteries9070365
Submission received: 28 May 2023 / Revised: 27 June 2023 / Accepted: 6 July 2023 / Published: 8 July 2023
(This article belongs to the Special Issue Micro Supercapacitors: Recent Advance, Challenge and Outlook)

Abstract

:
This investigation is motivated by the need in the development of manganese oxide cathodes for supercapacitors with high capacitance at high charge–discharge rates and enhanced capacitance retention in a wide range of charge–discharge rates. It also addresses the challenge of eliminating the time-consuming activation procedure, which limits the applications of Mn3O4 cathodes. The new approach is based on the use of environmentally friendly and biocompatible pH modifiers–dispersants, such as polyethylenimine (PEI) and meglumine (MG) for hydrothermal synthesis. In this approach, the use of inorganic alkalis is avoided. We demonstrate the benefits of this approach for the fabrication of manganese oxide nanoparticles, such as Mn-PEI and Mn-MG. Electrodes with a high active mass of 40 mg cm−2 are fabricated and electrochemically tested in 0.5 M Na2SO4 electrolyte. The method of electrode material fabrication offers benefits for the accelerated electrode activation procedure, which is practically eliminated for Mn-MG electrodes. The Mn-MG electrodes showed a remarkably high capacitance of 3.68 F cm−2 (93.19 F g−1) at a sweep rate of 100 mV s−1 and a high capacitance retention of 90.6% in the CV sweep range of 1–100 mV s−1.

Graphical Abstract

1. Introduction

Wet chemical synthesis methods are widely used in the nanotechnology of redox-active materials for energy storage devices, such as batteries and supercapacitors [1,2]. New materials and methods offer excellent control of particle size on the nanometric scale and allow for the fabrication of energy storage devices with enhanced performance [1,3,4,5,6,7]. Such methods facilitated the doping of materials, which was a key factor for the enhancement in energy storage properties [5,8]. Hydrothermal synthesis is an important wet chemical synthesis strategy [9,10], which facilitates nanoparticle crystallization and phase control. In wet chemical synthesis methods, the pH control is usually achieved by adding alkalis, such as NaOH or KOH, to the aqueous precursor solutions of metal salts. Chemical precipitation from aqueous solutions is used for the fabrication of Mn3O4 for applications in supercapacitors and batteries. Synthesis is usually performed by the pH adjustment of Mn2+ salt solutions [11] and precipitation at pH = 9–10, which is significantly higher than the isoelectric point of Mn3O4 and other manganese oxides [12,13]. As a result, the synthesized particles are negatively charged. The synthesized particles usually form agglomerates and precipitate in agreement with the DLVO theory of colloidal stability, which predicts the coagulation of the negatively charged particles in high ionic strength solutions, containing positively charged Na+ or K+ ions. The prevention of nanoparticle agglomeration is important for the development of advanced Mn3O4 electrodes with enhanced capacitance. Despite the significant progress achieved in the development of Mn3O4 electrodes, several factors limit the practical application of this material. Numerous investigations showed the need for the electrochemical activation of Mn3O4 electrodes and the gradual in situ transformation to the electrochemically active MnO2 phase [14,15]. The important task is to accelerate or avoid the time-consuming activation cycling of such electrodes, which is necessary for achieving high capacitance [11,14,15]. Previous investigations showed that capacitance increases by three times during the activation procedure [14]. Another difficulty is related to the poor capacitance retention of Mn3O4 electrodes at high charge–discharge rates [14]. This limits the applications of Mn3O4 for the development of advanced supercapacitors with enhanced power–energy characteristics. It is hypothesized that such problems can be addressed by the development of advanced wet chemical synthesis nanotechnologies for Mn3O4 nanofabrication.
Our investigation is motivated by the interest in avoiding the long activation procedure and fabrication of electrodes with high capacitance at high charge–discharge rates and enhanced capacitance retention in a wide range of charge–discharge rates. Our approach is based on the use of meglumine (MG) and polyethylenimine (PEI), which strongly adsorb protons in aqueous solutions and allow for the fabrication of solutions with a high pH. We avoided the use of inorganic alkalis via the application of more environmentally friendly materials, which offer the additional benefit of enhanced nanoparticle dispersion for the fabrication of energy storage materials with enhanced performance.
The goal of this investigation was the application of MG and PEI as pH modifiers and dispersants for the hydrothermal synthesis of Mn3O4 nanoparticles. Proof-of-concept studies demonstrated the successful synthesis of nanoparticles, which showed good electrochemical charge storage properties for application in supercapacitors. An important finding was the ability to avoid a time-consuming electrode activation and to achieve high capacitance and excellent capacitance retention at high charge–discharge rates. The approach developed in this investigation opens a new avenue for the synthesis of other inorganic charge storage materials of different types and composites.

2. Materials and Methods

Polyethylenimine (80% ethoxylated, PEI) solution, meglumine (MG), manganese (II) nitrate tetrahydrate, polyvinyl butyral binder (PVB) supplied by Millipore Sigma (Canada) and MWCNT (OD 13 nm, ID 4 nm, length 1–2 µm) supplied by Bayer (Germany) were used. Ni foams with 95% porosity were provided by Vale (Canada). All chemicals were used without further purification.
For the preparation of the nanoparticles, a hydrothermal synthesis approach was utilized by forming 7 mM Mn(NO3)2 solution in deionized (DI) water. Then, MG or PEI was added dropwise to reach pH = 9 under constant stirring. The mixture was stirred for another two hours to complete the reaction. The resultant mixture was transferred to an 80 mL Teflon liner in a stainless-steel autoclave and left for 12 h at 150 °C.
The resulting materials were washed repetitively with DI water and ethanol to neutralize the pH and afterward left to dry for 12 h at 55 °C in an oven. For electrode fabrication, the mass ratio of Mn3O4: MWCNT: PVB binder in the prepared ethanol slurry was 80:20:3. MWCNT were utilized as conductive additives. The Ni foam current collectors were impregnated with the slurry. The relatively small length of the selected MWCNT facilitated impregnation of the current collectors. The mass loading of the impregnated material after drying was 40 mg cm−2. The impregnated Ni foam electrodes were compressed to 37% of the original thickness to enhance the electrical contact of the active material with Ni current collector.
The Biologic potentiostat (SP 300) was utilized to conduct all electrochemical evaluations, such as cyclic voltammetry (CV), galvanostatic charge–discharge (GCD), and electrochemical impedance spectroscopy (EIS). Aqueous 0.5 M Na2SO4 electrolyte was used in a three-electrode cell, with the impregnated Ni foam as a working electrode, a platinum mesh as a counter electrode, and a saturated calomel electrode (SCE) as a reference. The active area of the working electrode was 1 cm2. The electrochemical measurements were used for the analysis of capacitive behavior from the integral area of CV or GCD data, as it was described in the literature [16,17,18]. Areal (CS) and specific (Cm) capacitances were calculated from the CV, GCD, and EIS testing results [19]. The integral capacitances (CS and Cm) in a potential range of 0–0.9 V were calculated using Equations (1) and (2) by normalizing the total capacitance (C) by electrode area and mass, respectively. For cyclic voltammetry:
C = Q V m a x = | t ( V 0 ) t ( V m a x ) i d t | + | t ( V m a x ) t ( V 0 ) i d t |   2 V m a x
where Q is a total charge, derived from the CV area, V0 is an electrode potential at the beginning or end of the charge/discharge proves (V0 = 0 V vs SCE) and Vmax is the highest electrode potential during cycling (Vmax = 0.9 V vs SCE), i -is current, and t is time. For galvanostatic charge–discharge:
C = i t V m a x
Complex impedance Z*(ω) = Z’(ω) + iZ’’(ω) data obtained at a voltage amplitude of 5 V and different frequencies (ω) were used for the calculation of complex capacitance components C*(ω) = C’(ω) − iC’’(ω):
C = Z ( ω ) ω | Z ( ω ) | 2
C = Z ( ω ) ω | Z ( ω ) | 2
Cycling procedure (CP) involved cycling at sweep rates of 1, 5, 10, 20, 50, and 100 mV s−1. EIS measurements were performed after each CP. CV and EIS measurements were repeated 5 times for the investigation of electrode activation. GCD testing was performed after 5 CPs and EIS measurements.
Transmission electron microscopy (TEM) studies were performed with a Talos L120C instrument, while scanning electron microscopy was performed using a JEOL JSM-6610 microscope. X-ray diffraction (XRD) testing was performed with a diffractometer (Bruker D8 Advance, Cu-Kα radiation, UK). X-ray photoelectron spectroscopy (XPS) studies of manganese oxides prepared using MG and PEI were performed with the aid of a PHI Quantera II Scanning XPS Microprobe. The equivalent circuit simulations for EIS data were investigated using ZSimpWin software supplied by AMETEK.

3. Results and Discussion

PEI and MG were used as pH modifiers and dispersants for the synthesis of Mn-PEI and Mn-MG materials. In this approach, the use of inorganic alkalis, such as KOH or NaOH, was avoided.
The chemical structures of PEI and MG are shown in Figure 1. MG is an amino alcohol, which is derived from glucose [20]. It has previously been shown that MG is a promising biocompatible pH modifier for the solubilization of various drugs, which are insoluble in water at pH = 7, but soluble at a high pH [21,22,23,24]. The use of MG facilitated drug release [23]. The interest in biomedical applications of MG is related to its biocompatibility and biodegradability [25,26]. MG is used for the fabrication of biomedical implants and for biomedical diagnostic imaging applications [27]. Several investigations focused on applications of MG as an environmentally benign catalyst [28,29]. MG can facilitate the dispersion of inorganic particles [27]. Therefore, MG can act as a pH modifier and dispersant [27]. MG is a relatively small organic molecule, which forms aqueous solutions with pH = 11. The high pH of MG is related to proton adsorption by the NH group of this molecule. The NH and multiple OH groups of MG facilitate its adsorption on inorganic materials.
PEI shows a strong adsorption of protons in water, resulting in a significant pH increase and formation of basic solutions [30]. This biocompatible polymer facilitates the dispersion of various materials [31,32,33,34,35]. PEI is a branched polymer, which absorbs protons from water by the protonation of amino groups. PEI formed a solution with pH = 12. Moreover, the amino groups of PEI have a strong affinity to metal atoms. As a result, PEI shows strong adsorption on the surfaces of inorganic materials. Therefore, PEI acted as a pH regulator and dispersant.
It was suggested that the adsorption of PEI and MG on inorganic surfaces during synthesis can reduce particle growth.
Hydrothermal processing resulted in successful particle synthesis in the presence of PEI and MG. Figure 2 shows the TEM images of the particles prepared by the hydrothermal synthesis in the presence of PEI (Mn-PEI) and MG (Mn-MG).
The TEM images of Mn-PEI showed nanoparticles with a typical size of 50–70 nm. The particles show a nearly cubic shape. The low particle agglomeration is beneficial for their mixing with conductive carbon nanotubes and fabrication of electrodes. The TEM images of Mn-MG particles at different magnifications showed nearly cubic nanoparticles and nanorods with a small aspect ratio of 2–4. The TEM images also revealed the formation of particles of irregular shape. The length of the nanorods was in the range of 100–300 nm.
X-ray diffraction studies of Mn-PEI in Figure 3a, showed peaks of Mn3O4, corresponding to JCPDS file 04-007-1841. The X-ray diffraction pattern of Mn-MG in Figure 3b, showed small peaks of Mn3O4 and MnO2, corresponding to JCPDS files 04-007-1841 and 44-0141, respectively. Mn-MG also contained an amorphous phase. The difference in sample composition was also confirmed by the results of the XPS investigations.
Figure 4 shows the results of the XPS studies of Mn-PEI and Mn-MG. XPS analysis showed the different oxidation states of Mn, such as Mn2+, Mn3+, and Mn4+, in both materials. The high resolution XPS spectrum of Mn 2p showed two peaks which represent 2p2/3 and 2p1/2 orbitals, respectively. The splitting widths between the Mn 2p1/2 and Mn 2p3/2 peaks were 11.8 and 11.6 eV for Mn-PEI and Mn-MG, respectively. Testing results confirmed the mixed oxidation states of Mn-PEI and Mn-MG were in agreement with previously reported data for manganese oxides prepared by different methods [36,37,38]. However, the Mn-MG sample showed noticeably higher contents of Mn3+ and Mn4+ ions than Mn-PEI.
The results of the TEM, XRD, and XPS studies showed differences in the morphology, phase content, and oxidation state of Mn for Mn-PEI and Mn-MG. The differences can be attributed to the effect of PEI and MG on particle synthesis. The amino groups of PEI and MG facilitated the adsorption of such molecules on manganese oxide particles. It should be noted that MG is a relatively small organic molecule, which has one secondary amino group, whereas PEI is a large polyelectrolyte molecule, which contains primary and secondary amino groups. Therefore, the size of the molecules and the interactions of primary and secondary amino groups with Mn atoms can exert influence on the synthesis of manganese oxide particles. The small size of the Mn-PEI and Mn-MG particles is beneficial for their application in supercapacitor electrodes. The small particle size offers advantages of a large surface area for electrolyte access. However, not all the surface area of the particles is available for electrolyte access. Previous studies showed that some particles with a high BET surface area exhibited lower capacitance, compared to other particles with a lower BET surface area [39,40,41]. It was demonstrated that small pores accessible by N2 molecules in the BET experiments are not accessible by the solvated electrolyte ions [39,40,41]. It was concluded that capacitance was independent on the BET surface area [39,40,41].
It is suggested that the small particle size could be beneficial for the acceleration of the electrode activation. The activation step of Mn3O4 involves solvation and partial anodic oxidation [11]:
3Na2SO4(aq) + 3H2O + Mn3O4 + (3x − 4)/2O2
3(2 − δ)Na+(aq) + 3NaδMnOx·H2O + 3SO42-(aq) + (6x − 3δ − 8)e
The oxidation of Mn3O4 during the activation process was confirmed by XPS and scanning transmission X-ray microscopy [11,14,15]. The capacitance increase during the electrode activation process was linked to the formation of an oxidized layer on the particle surface, which exhibited pseudocapacitive properties. The charge–discharge behavior is described by the following equation [11]:
NaδMnOx·H2O ↔ MnOx·H2O + δNa+ + δe
The larger content of Mn3+ and Mn4+ in Mn-MG, compared to Mn-PEI, can potentially accelerate or eliminate the time-consuming oxidation and activation of electrode material in Reaction (5).
Mn-PEI and Mn-MG were used for the fabrication of composite electrodes containing MWCNT as conductive additives. The EDX studies showed a relatively uniform distribution of Mn and O in the electrodes. Electrochemical testing resulted in the incorporation of Na and S to the electrode from the electrolyte (Supplementary Materials, Figures S1–S4). Figure 5A,B shows CVs at different sweep rates for the Mn-PEI and Mn-MG electrodes for CP1. Both electrodes showed nearly rectangular CVs. However, Mn-MG showed higher currents, which indicated higher capacitance. Figure 5C,D shows CVs at a sweep rate of 10 mV s−1 for CPs1–5. Mn-PEI showed a significant increase in the CV area in the order CP1 < CP2 < CP3. The area of CV was nearly the same for CP3–CP5. The increase in the CV area during the first CPs was related to electrode activation. However, the area of CV for Mn-MG was nearly the same for CPs1–5. Figure 5E compares the capacitances for CPs1–5 derived from the CV data for Mn-PEI. The capacitance for CP1 at a sweep rate of 1 mV s−1 was found to be 1.92 F cm−2 (48 F g−1). The capacitance increased with the increasing sweep rate from 1 to 20 mV s−1, showed a maximum, and then decreased to the value of 1.82 F cm−2 (45.6 F g−1) at 100 mV s−1. The capacitance increase was attributed to electrode activation. The decrease in capacitance with the increasing scan rate above 20 mV s−1 was due to limited diffusion and poor electrolyte access to the electrode surface at fast sweep rates.
The activation of Mn-PEI resulted in an increased capacitance of 3.64 F cm−2 (91.14 F g−1) for CP2 at 1 mV s−1, compared to CP1. The capacitance showed a small maximum and decreased to the value of 1.67 (41.86 F g−1) F cm−2 at 100 mV s−1.
CP3 showed a further increase in capacitance; however, the capacitance values remained unchanged for CPs3–5. For CP5, the capacitance at 1 mV s−1 was found to be 4.89 F cm−2 (122.26 F g−1) and it decreased to 1.79 F cm−2 (44.75 F g−1) at 100 mV s−1. The capacitance retention in the range of 1–100 mV s−1 was 36.6%.
Investigations of Mn-MG (Figure 5F) showed capacitances of 4.88 F cm−2 (123.47 F g−1) at 1 mV s−1, which decreased to the value of 3.19 F cm−2 (80.76 F g−1) at 100 mV s−1 for CP1. A capacitance reduction for sweep rates 1–10 mV s−1 and capacitance increase for sweep rates 50–100 mV s−1 was observed for CP2. The capacitance remained unchanged for CPs3–5. The capacitance was found to be 4.06 F cm−2 (102.87 F g−1) and 3.68 F cm−2 (93.19 F g−1) for sweep rates of 1 and 100 mV s−1, respectively. Mn-MG showed a remarkably high capacitance retention of 90.6% in the range 1–100 mV s−1. High capacitance retention and high capacitance at high sweep rates are important for applications of Mn-MG in the cathodes of supercapacitor devices with enhanced power–energy characteristics. It should be noted that CS(Cm) at 100 mV s−1 for Mn-MG is significantly higher than the corresponding values for Mn3O4 and MnO2 electrodes of a similar mass reported in the literature [14,15,42]. Moreover, the activation procedure can be practically eliminated for Mn-MG. This contrasts with previous investigations of electrodes of similar mass [11,14,15], which showed significant capacitance variations during CPs1–5. The difference in cycling behavior of Mn-PEI and Mn-MG can result from the relatively large size of PEI macromolecules, which can provide insulating layers, resulting in longer activation. The capacitive properties of Mn-MG and Mn-PEI electrodes are attributed to the pseudocapacitive charge storage mechanism of the manganese oxide, described by Reaction (6). The contribution of the electrical double-layer capacitance of multiwalled carbon nanotubes was negligibly small due to their low specific capacitance and small content in the composite electrode. As pointed out above, multiwalled carbon nanotubes were used as conductive additives.
Figure 6 and Figure S5 show the EIS data for the Mn-PEI and Mn-MG electrodes. The Nyquist plots (Figure 6A,B) indicated good pseudocapacitive behavior and low resistance of the electrodes. The frequency dependences of the real and imaginary components of a complex capacitance are presented in Figure 6C–F. The analysis of the EIS data for Mn-PEI showed a variation in the impedance and complex capacitance for testing after CPs1–3. The increase in the real component of capacitance was attributed to electrode activation. This is in agreement with the CV data. The relaxation frequency, corresponding to the maximum in the frequency dependence of the imaginary component of capacitance, decreased after cycling. This indicated a reduction in capacitance retention.
The EIS data for Mn-MG showed only small variations in the impedance and components of AC capacitance during cycling. This indicated that the electrode activation procedure can be practically eliminated. In contrast to Mn-PEI, the relaxation frequency showed a slight increase during cycling and remained relatively high after CP5. This result is in agreement with the CV data, providing additional evidence of enhanced capacitance retention at fast electrode charging/discharging. The EIS data were also analyzed using an equivalent circuit simulation with ZSimpWin software. Figure 7A presents the EIS experimental data and simulation for Mn-PEI and Mn-MG. The equivalent circuit developed for high active mass bulk electrodes [42] was used. However, in contrast to [42], the circuit (Figure 7B) did not include Warburg impedance, which was negligibly small for the developed electrodes. The simulation results agreed with the experimental data. The Mn-MG electrodes showed a charge-transfer resistance (RCT) of 0.33 Ohm, which is lower than the RCT = 0.43 Ohm for Mn-PEI. Therefore, the CV and EIS data for Mn-MG show a small influence of ion diffusion on the pseudocapacitive properties, which resulted in good capacitance retention at high scan rates and negligibly small Warburg impedance.
Figure 8 compares the GCD data for Mn-PEI and Mn-MG. The nearly linear charge–discharge curves indicated good pseudocapacitive properties of the electrodes. The capacitance of Mn-PEI decreased from 5.03 F cm−2 (125.87 F g−1) to 4.17 F cm−2 (104.49 F g−1) with an increasing current density from 3 to 40 mA cm−2 and showed a capacitance retention of 82.9% in this current density range. The capacitance of the Mn-MG electrodes was found to be 4.33 F cm−2 (109.57 F g−1) at 3 mA cm−2. It decreased to 4.00 F cm−2 (101.25 F g−1) with an increasing current density to 40 mA cm−2. The Mn-MG electrodes showed a capacitance retention of 92.4%.
Figure 9 shows the cycling behavior of the as-prepared Mn-PEI and Mn-MG electrodes. The Mn-PEI electrodes showed a significant capacitance variation of about 380% for the first 500 cycles and a very small capacitance change during further cycling. The capacitance increased from 23.0 to 86.1 F g−1 during cycling. The Mn-MG electrodes showed a 20% increase in capacitance during the first 220 cycles and after that, the capacitance was practically unchanged during cycling. The capacitance increased from 83.3 to 96.7 F g−1 during cycling. The analysis of the cycling behavior presents additional evidence of acceleration of the activation procedure for Mn-MG, compared to Mn-PEI. Turning again to the XPS data, it is seen that the higher oxidation state of Mn in Mn-MG eliminates the need for electrochemical oxidation and facilitates the activation process. It should be noted that electrode acceleration is influenced by a scan rate. The electrode material oxidation time during an individual cycle decreases with the increasing scan rate and a larger number of cycles are required for the electrochemical oxidation. Electrochemical cycling resulted in some changes in the electrode microstructure. The comparison of the SEM images of the electrode microstructure before and after cycling (Figure S6) showed that cycling resulted in increasing microporosity, which was beneficial for electrolyte transport.
The results of CV, EIS, and GCD indicate a remarkable capacitance retention of Mn-MG electrodes. The ability to retain high capacitance at high charge–discharge rates is critically important for the development of high-power supercapacitors. Of particular importance is the ability to accelerate and practically eliminate the electrode activation procedure. It is in this regard that in previous investigations, the capacitance increased by three times during the activation procedure [14]. This makes Mn-MG a material of choice for advanced supercapacitors and a promising alternative to the most developed MnO2 cathodes. It should be noted that MnO2 shows capacitance variation during initial cycling [19]. Another difficulty is related to the high resistivity of MnO2, which results in poor capacitance retention at high charge–discharge rates. The progress in the development of MnO2-based electrodes is limited due to the use of permanganate precursors, which oxidize and decompose organic capping agents and other processing additives. The use of Mn3O4 offers advantages due to the ability to modify its properties [43] by doping and forming spinel solid solutions with other chemical elements and the ability to synthesize nanoparticles in the presence of organic alkalizers and dispersants from Mn2+ salt precursors, which are chemically compatible with organic chemical-processing additives.
It is important to note that good electrochemical performance was achieved at high active mass loading, which is a key factor for the fabrication of electrodes with high areal capacitance [19]. The comparison with the literature data for Mn3O4 electrodes with high active mass loadings indicates that our approach offers benefits of high areal capacitance, excellent capacitance retention at high charge–discharge rates, and low impedance [11,14,15,19]. Another important advancement was the acceleration and practical elimination of the time-consuming electrode activation procedure [11,14], which is important for practical applications.

4. Conclusions

This investigation demonstrated the feasibility of manganese oxide synthesis from Mn(NO3)2 solutions using PEI and MG as environmentally friendly pH modifiers and dispersants for synthesis. In this new approach, the use of inorganic alkalis for hydrothermal synthesis was avoided. The method facilitated the synthesis of manganese oxide nanoparticles. The approach developed in this investigation can potentially be used for the manufacturing of other nanomaterials for energy storage devices. The method of electrode material fabrication offers the benefit of accelerated electrode activation procedure, which was practically eliminated for the Mn-MG electrodes. The problem of poor capacitance retention and low capacitance of manganese oxide electrodes was successfully addressed. The Mn-MG electrodes showed a remarkably high capacitance of 3.68 F cm−2 (93.19 F g−1) at a sweep rate of 100 mV s−1 and a high capacitance retention of 90.6% in the CV sweep range of 1–100 mV s−1. Mn-MG electrodes are promising for the development of high-power supercapacitors.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/batteries9070365/s1, Figure S1: EDX data for Mn-PEI electrodes before electrochemical testing.; Figure S2: EDX data for Mn-PEI electrodes after electrochemical testing.; Figure S3: EDX data for Mn-MG electrodes before electrochemical testing.; Figure S4: EDX data for Mn-MG electrodes after electrochemical testing.; Figure S5: (A,B) magnified Nyquist plots for (A) Mn-PEI and (B) Mn-MG respectively after (a) CP1, (b) CP2, (c) CP3, (d) CP4, (e) CP5.; Figure S6: SEM images of microstructure for (A,B) fresh and tested Mn-PEI electrode, respectively and (C,D) fresh and tested Mn-MG electrode, respectively.

Author Contributions

Conceptualization, M.A., M.N. and I.Z.; methodology, M.A. and I.Z.; software, M.A.; validation, M.A., M.N. and I.Z.; formal analysis, M.A., M.N. and I.Z.; investigation, M.A. and I.Z.; resources, M.A., M.N. and I.Z.; data curation, M.A. and M.N.; writing—original draft preparation, M.A., M.N. and I.Z.; writing—review and editing, M.A., M.N. and I.Z.; visualization, M.A., M.N. and I.Z.; supervision, I.Z.; project administration, M.N. and I.Z.; funding acquisition, I.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Sciences and Engineering Research Council of Canada, grant number RGPIN-2018-04014, and CRC program.

Data Availability Statement

Data are available within the article and Supplementary Materials.

Acknowledgments

Electron microscopy investigations were performed at the Canadian Centre for Electron Microscopy.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Liao, Y.; Yang, C.; Xu, Q.; Zhao, W.; Zhao, J.; Wang, K.; Chen, H.-C. Ag-Doping Effect on MnO2 Cathodes for Flexible Quasi-Solid-State Zinc-Ion Batteries. Batteries 2022, 8, 267. [Google Scholar] [CrossRef]
  2. Li, Z.; Ji, C.; Guo, F.; Mi, H.; Zhu, X.; Qiu, J. A multi-interface CoNi-SP/C heterostructure for quasi-solid-state hybrid supercapacitors with a graphene oxide-containing hydrogel electrolyte. J. Mater. Chem. A 2022, 10, 4671–4682. [Google Scholar] [CrossRef]
  3. Wang, M.; Liu, X.; Wu, X. Surface Selenization of NiCo-Layered Double Hydroxide Nanosheets for High-Performance Supercapacitors. Batteries 2023, 9, 49. [Google Scholar] [CrossRef]
  4. Cevik, E.; Gunday, S.T.; Akhtar, S.; Yamani, Z.H.; Bozkurt, A. Sulfonated hollow silica spheres as electrolyte store/release agents: High-performance supercapacitor applications. Energy Technol. 2019, 7, 1900511. [Google Scholar] [CrossRef]
  5. Liang, J.; Zhao, H.; Yue, L.; Fan, G.; Li, T.; Lu, S.; Chen, G.; Gao, S.; Asiri, A.M.; Sun, X. Recent advances in electrospun nanofibers for supercapacitors. J. Mater. Chem. A 2020, 8, 16747–16789. [Google Scholar] [CrossRef]
  6. Cao, Y.; Liang, J.; Li, X.; Yue, L.; Liu, Q.; Lu, S.; Asiri, A.M.; Hu, J.; Luo, Y.; Sun, X. Recent advances in perovskite oxides as electrode materials for supercapacitors. Chem. Commun. 2021, 57, 2343–2355. [Google Scholar] [CrossRef]
  7. Ma, X.; Chen, J.; Yuan, B.; Li, Y.; Yu, L.; Zhao, W. Three-dimensional hollow nickel phosphate microspheres with controllable hoya-like structure for high-performance enzymeless glucose detection and supercapacitor. Appl. Surf. Sci. 2022, 588, 152928. [Google Scholar] [CrossRef]
  8. Alqarni, A.N.; Cevik, E.; Gondal, M.; Almessiere, M.; Baykal, A.; Bozkurt, A.; Slimani, Y.; Hassan, M.; Iqbal, A.; Alotaibi, S.A. Synthesis and design of vanadium intercalated spinal ferrite (Co0. 5Ni0. 5VxFe1. 6−xO4) electrodes for high current supercapacitor applications. J. Energy Storage 2022, 51, 104357. [Google Scholar] [CrossRef]
  9. Lin, S.; Yang, F.; Yang, Z.; Wang, J.; Xiang, L. Preparation of Hydrated TiO2 Particles by Hydrothermal Hydrolysis of Mg/Al-Bearing TiOSO4 Solution. Nanomaterials 2023, 13, 1179. [Google Scholar] [CrossRef]
  10. Mineo, G.; Scuderi, M.; Pezzotti Escobar, G.; Mirabella, S.; Bruno, E. Engineering of Nanostructured WO3 Powders for Asymmetric Supercapacitors. Nanomaterials 2022, 12, 4168. [Google Scholar] [CrossRef]
  11. Yang, W.; Eraky, H.; Zhang, C.; Hitchcock, A.P.; Zhitomirsky, I. Scanning transmission X-ray microscopy studies of electrochemical activation and capacitive behavior of Mn 3 O 4 supercapacitor electrodes. J. Mater. Chem. A 2022, 10, 18267–18277. [Google Scholar] [CrossRef]
  12. Gagrani, A.; Ding, B.; Wang, Y.; Tsuzuki, T. pH dependent catalytic redox properties of Mn3O4 nanoparticles. Mater. Chem. Phys. 2019, 231, 41–47. [Google Scholar] [CrossRef]
  13. Kosmulski, M. Isoelectric points and points of zero charge of metal (hydr)oxides: 50years after Parks’ review. Adv. Colloid Interface Sci. 2016, 238, 1–61. [Google Scholar] [CrossRef]
  14. Poon, R.; Zhitomirsky, I. High areal capacitance of Mn3O4-carbon nanotube electrodes. Mater. Lett. 2018, 215, 4–7. [Google Scholar] [CrossRef]
  15. Milne, J.; Zhitomirsky, I. Application of octanohydroxamic acid for liquid-liquid extraction of manganese oxides and fabrication of supercapacitor electrodes. J. Colloid Interface Sci. 2018, 515, 50–57. [Google Scholar] [CrossRef]
  16. Shar, S.S.; Cevik, E.; Bozkurt, A.; Yaman, C.; Almutari, Z.; Kayed, T.S. Molybdate incorporated poly (acrylic acid) electrolytes for use in quasi-solid state carbon based supercapacitors: Redox-active polychelates. Electrochim. Acta 2020, 354, 136770. [Google Scholar] [CrossRef]
  17. Cevik, E.; Gunday, S.T.; Bozkurt, A.; Amine, R.; Amine, K. Bio-inspired redox mediated electrolyte for high performance flexible supercapacitor applications over broad temperature domain. J. Power Sources 2020, 474, 228544. [Google Scholar] [CrossRef]
  18. Cevik, E.; Gunday, S.T.; Iqbal, A.; Akhtar, S.; Bozkurt, A. Synthesis of hierarchical multilayer N-doped Mo2C@ MoO3 nanostructure for high-performance supercapacitor application. J. Energy Storage 2022, 46, 103824. [Google Scholar] [CrossRef]
  19. Chen, R.; Yu, M.; Sahu, R.P.; Puri, I.K.; Zhitomirsky, I. The development of pseudocapacitor electrodes and devices with high active mass loading. Adv. Energy Mater. 2020, 10, 1903848. [Google Scholar] [CrossRef]
  20. Gutiérrez, G.L.; Dávila, O.O.; Aguilar, C.L.; Jiménez, M.D.; González, R.S.; Sirés, I.; Brillas, E.; Fabregat-Safont, D.; Navarro, A.R.; Arandes, J.B. Electrochemical oxidation of meglumine in a pharmaceutical formulation using a nanocomposite anode. Electrochim. Acta 2023, 437, 141457. [Google Scholar] [CrossRef]
  21. Fusina, A.; Degot, P.; Touraud, D.; Kunz, W.; Nardello-Rataj, V. Enhancement of water solubilization of quercetin by meglumine and application of the solubilization concept to a similar system. J. Mol. Liq. 2022, 368, 120756. [Google Scholar] [CrossRef]
  22. Hussien, M.A.; Essa, E.; El-Gizawy, S.A. Investigation of the effect of formulation additives on telmisartan dissolution rate: Development of oral disintegrating tablets. Eur. J. Biomed. Pharm. Sci 2019, 6, 12–20. [Google Scholar]
  23. Parikh, B.; Patel, D.; Patel, C.; Dave, J.; Gothi, G.; Patel, T. Formulation optimization and evaluation of immediate release tablet of telmisartan. J. Glob. Pharma Technol. 2010, 2, 79–84. [Google Scholar]
  24. Dong, L.; Mai, Y.; Liu, Q.; Zhang, W.; Yang, J. Mechanism and improved dissolution of glycyrrhetinic acid solid dispersion by alkalizers. Pharmaceutics 2020, 12, 82. [Google Scholar] [CrossRef] [Green Version]
  25. Manley, K.; Bravo-Nuevo, A.; Minton, A.R.; Sedano, S.; Marcy, A.; Reichman, M.; Tobia, A.; Artlett, C.M.; Gilmour, S.K.; Laury-Kleintop, L.D. Preclinical study of the long-range safety and anti-inflammatory effects of high-dose oral meglumine. J. Cell. Biochem. 2019, 120, 12051–12062. [Google Scholar] [CrossRef]
  26. Palchevska, T.; Saliy, O.; Baula, O.; Palchevskyi, K.; Onishchuk, O. The role of excipients of trometamolum and meglumine in the formation of biopharmaceutical properties of medicinal products of various pharmacites. Farmatsevtychnyi Zhurnal 2021, 4, 64–75. [Google Scholar] [CrossRef]
  27. Sawamura, T.; Okuyama, M.; Maeda, H.; Obata, A.; Kasuga, T. Preparation of calcium-phosphate cements with high compressive strength using meglumine as a water reducer. J. Ceram. Soc. Jpn. 2016, 124, 223–228. [Google Scholar] [CrossRef] [Green Version]
  28. Guo, R.-Y.; An, Z.-M.; Mo, L.-P.; Wang, R.-Z.; Liu, H.-X.; Wang, S.-X.; Zhang, Z.-H. Meglumine: A novel and efficient catalyst for one-pot, three-component combinatorial synthesis of functionalized 2-amino-4 H-pyrans. ACS Comb. Sci. 2013, 15, 557–563. [Google Scholar] [CrossRef]
  29. Sravya, G.; Suresh, G.; Zyryanov, G.V.; Balakrishna, A.; Madhu Kumar Reddy, K.; Suresh Reddy, C.; Venkataramaiah, C.; Rajendra, W.; Bakthavatchala Reddy, N. A meglumine catalyst–based synthesis, molecular docking, and antioxidant studies of dihydropyrano [3,2-b] chromenedione derivatives. J. Heterocycl. Chem. 2020, 57, 355–369. [Google Scholar] [CrossRef]
  30. Benjaminsen, R.V.; Mattebjerg, M.A.; Henriksen, J.R.; Moghimi, S.M.; Andresen, T.L. The possible “proton sponge” effect of polyethylenimine (PEI) does not include change in lysosomal pH. Mol. Ther. 2013, 21, 149–157. [Google Scholar] [CrossRef] [Green Version]
  31. Tang, F.; Uchikoshi, T.; Ozawa, K.; Sakka, Y. Effect of polyethylenimine on the dispersion and electrophoretic deposition of nano-sized titania aqueous suspensions. J. Eur. Ceram. Soc. 2006, 26, 1555–1560. [Google Scholar] [CrossRef]
  32. Zhu, X.; Tang, F.; Suzuki, T.S.; Sakka, Y. Role of the initial degree of ionization of polyethylenimine in the dispersion of silicon carbide nanoparticles. J. Am. Ceram. Soc. 2003, 86, 189–191. [Google Scholar] [CrossRef]
  33. Dietrich, A.; Neubrand, A. Effects of particle size and molecular weight of polyethylenimine on properties of nanoparticulate silicon dispersions. J. Am. Ceram. Soc. 2001, 84, 806–812. [Google Scholar] [CrossRef]
  34. Laarz, E.; Bergström, L. Dispersing WC–Co powders in aqueous media with polyethylenimine. Int. J. Refract. Met. Hard Mater. 2000, 18, 281–286. [Google Scholar] [CrossRef]
  35. Rubianes, M.D.; Rivas, G.A. Dispersion of multi-wall carbon nanotubes in polyethylenimine: A new alternative for preparing electrochemical sensors. Electrochem. Commun. 2007, 9, 480–484. [Google Scholar] [CrossRef]
  36. Wang, B.; Yu, J.; Lu, Q.; Xiao, Z.; Ma, X.; Feng, Y. Preparation of Mn3O4 microspheres via glow discharge electrolysis plasma as a high-capacitance supercapacitor electrode material. J. Alloys Compd. 2022, 926, 166775. [Google Scholar] [CrossRef]
  37. Chen, J.; Chu, K.; Sun, S.; Chen, H.; Song, B.; Wang, J.; Liu, Z.; Zhu, L. Synthesis of magnetic core-shell Fe3O4-Mn3O4 composite for degradation of sulfadiazine via peroxymonosulfate activation: Characterization, mechanism and toxicity analysis. J. Environ. Chem. Eng. 2023, 11, 109230. [Google Scholar] [CrossRef]
  38. He, L.; Zhang, G.; Dong, Y.; Zhang, Z.; Xue, S.; Jiang, X. Polyetheramide templated synthesis of monodisperse Mn3O4 nanoparticles with controlled size and study of the electrochemical properties. Nano-Micro Lett. 2014, 6, 38–45. [Google Scholar] [CrossRef]
  39. Reddy, R.N.; Reddy, R.G. Sol–gel MnO2 as an electrode material for electrochemical capacitors. J. Power Sources 2003, 124, 330–337. [Google Scholar] [CrossRef]
  40. Jeong, Y.; Manthiram, A. Nanocrystalline manganese oxides for electrochemical capacitors with neutral electrolytes. J. Electrochem. Soc. 2002, 149, A1419. [Google Scholar] [CrossRef]
  41. Dong, W.; Sakamoto, J.S.; Dunn, B. Electrochemical properties of vanadium oxide aerogels. Sci. Technol. Adv. Mater. 2003, 4, 3. [Google Scholar] [CrossRef] [Green Version]
  42. Wang, Y.; Liu, Y.; Zhitomirsky, I. Surface modification of MnO2 and carbon nanotubes using organic dyes for nanotechnology of electrochemical supercapacitors. J. Mater. Chem. A 2013, 1, 12519–12526. [Google Scholar] [CrossRef]
  43. Barai, H.R.; Lopa, N.S.; Ahmed, F.; Khan, N.A.; Ansari, S.A.; Joo, S.W.; Rahman, M.M. Synthesis of Cu-Doped Mn3O4@Mn-Doped CuO Nanostructured Electrode Materials by a Solution Process for High-Performance Electrochemical Pseudocapacitors. ACS Omega 2020, 5, 22356–22366. [Google Scholar] [CrossRef] [PubMed]

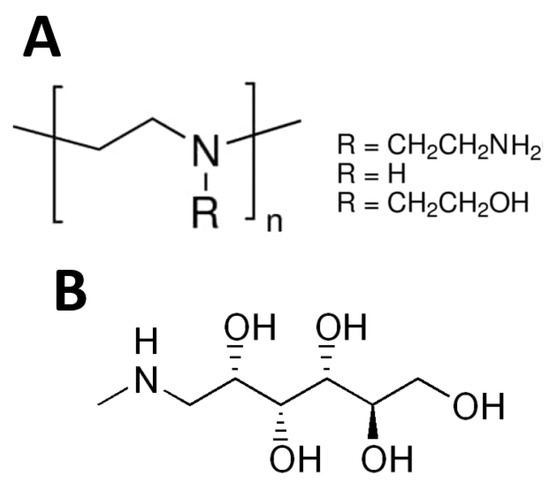

Figure 1. Chemical structures of (A) PEI and (B) MG.
Figure 1. Chemical structures of (A) PEI and (B) MG.
Batteries 09 00365 g001
Figure 2. TEM images at different magnifications for (AC) Mn-PEI and (DF) Mn-MG powders.
Figure 2. TEM images at different magnifications for (AC) Mn-PEI and (DF) Mn-MG powders.
Batteries 09 00365 g002

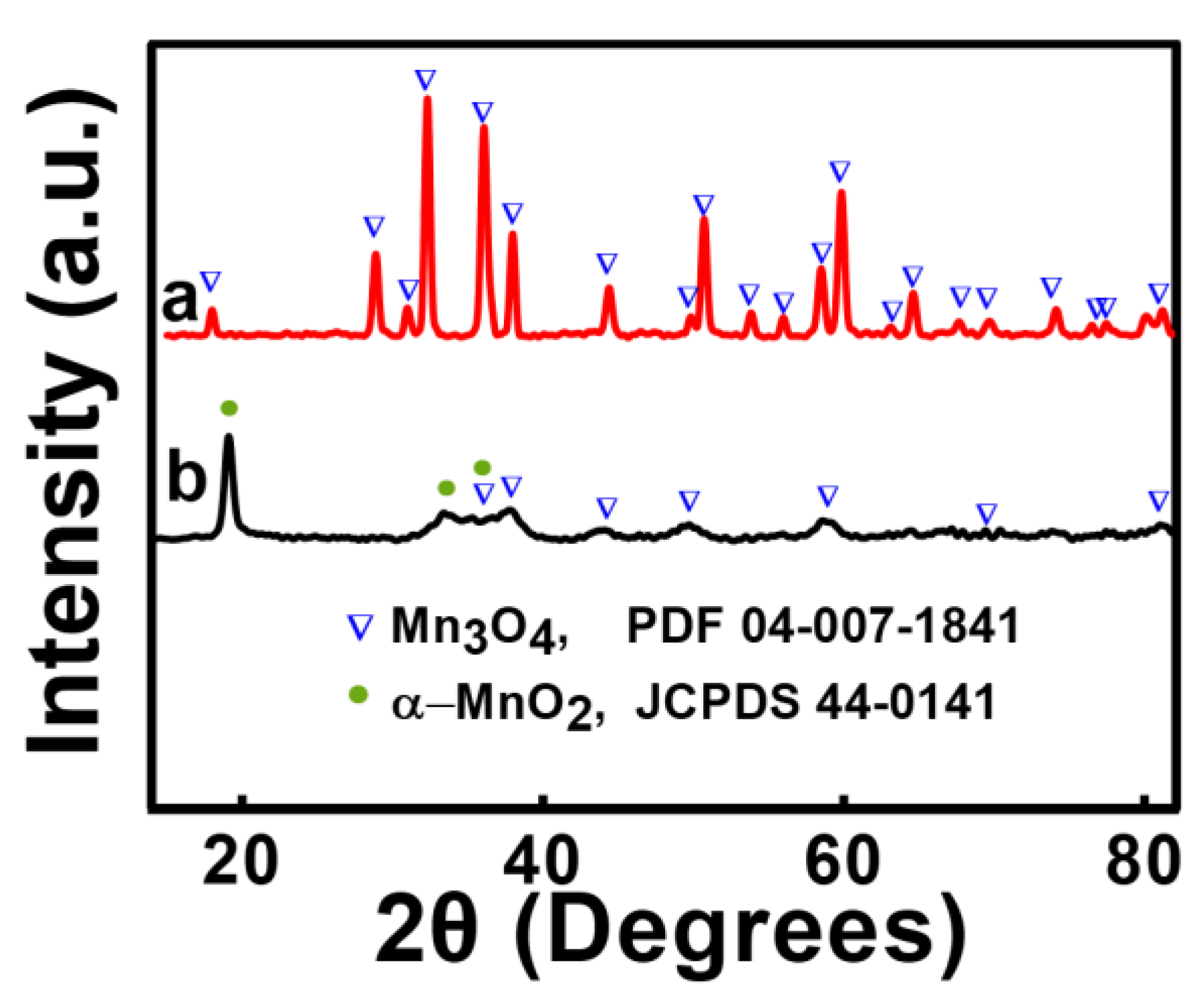

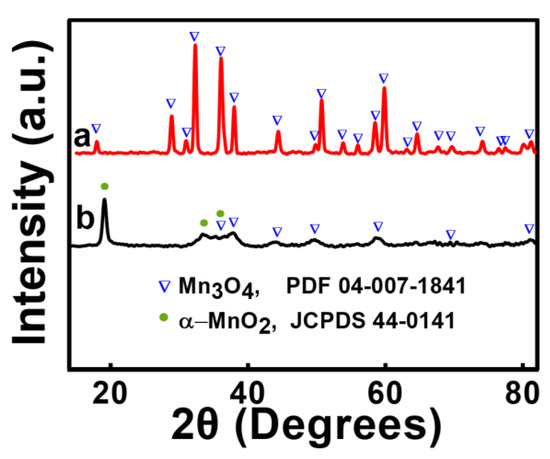

Figure 3. X-ray diffraction patterns of Mn-PEI and Mn-MG.
Figure 3. X-ray diffraction patterns of Mn-PEI and Mn-MG.
Batteries 09 00365 g003

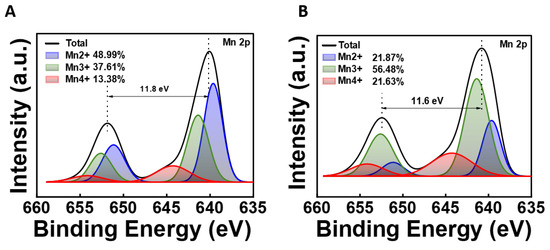

Figure 4. XPS spectra of as-synthesized (A) Mn-PEI and (B) Mn-MG in Mn 2p range.
Figure 4. XPS spectra of as-synthesized (A) Mn-PEI and (B) Mn-MG in Mn 2p range.
Batteries 09 00365 g004

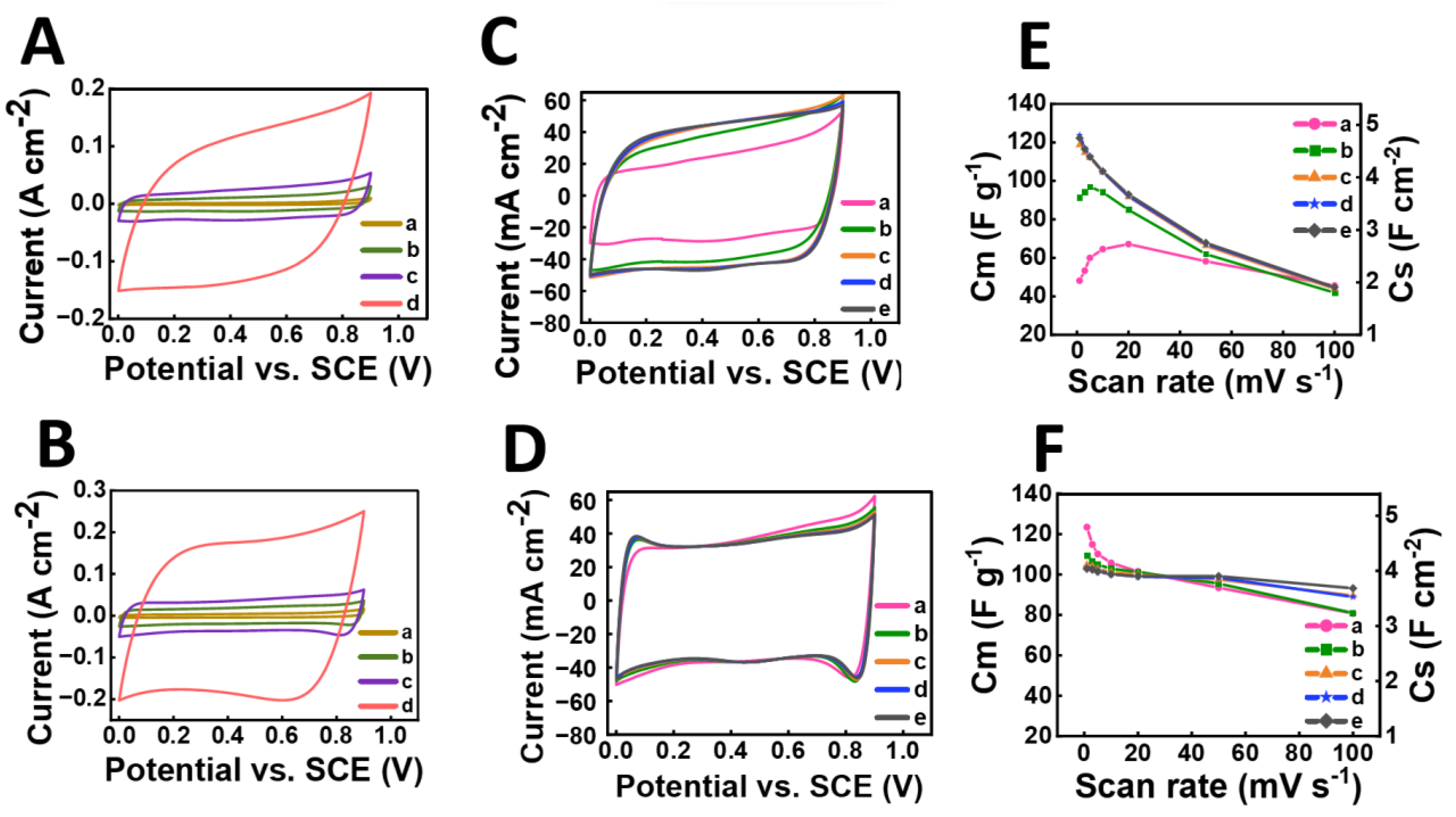

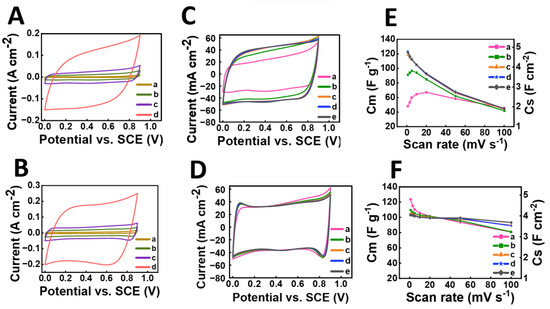

Figure 5. (A,B) CVs for (A) Mn−PEI and (B) Mn−MG at sweep rates of (a) 1, (b) 5, (c) 10, and (d) 50 mV s−1 for CP 1, (C,D) CVs at a sweep rate of 10 mV s−1 for (C) Mn−PEI, (D) Mn−MG, and (a) CP1, (b) CP2, (c) CP3, (d) CP4, (e) CP5, (E,F) capacitance versus sweep rate for (E) Mn−PEI, (F) Mn−MG, and (a) CP1, (b) CP2, (c) CP3, (d) CP4, (e) CP5.
Figure 5. (A,B) CVs for (A) Mn−PEI and (B) Mn−MG at sweep rates of (a) 1, (b) 5, (c) 10, and (d) 50 mV s−1 for CP 1, (C,D) CVs at a sweep rate of 10 mV s−1 for (C) Mn−PEI, (D) Mn−MG, and (a) CP1, (b) CP2, (c) CP3, (d) CP4, (e) CP5, (E,F) capacitance versus sweep rate for (E) Mn−PEI, (F) Mn−MG, and (a) CP1, (b) CP2, (c) CP3, (d) CP4, (e) CP5.
Batteries 09 00365 g005

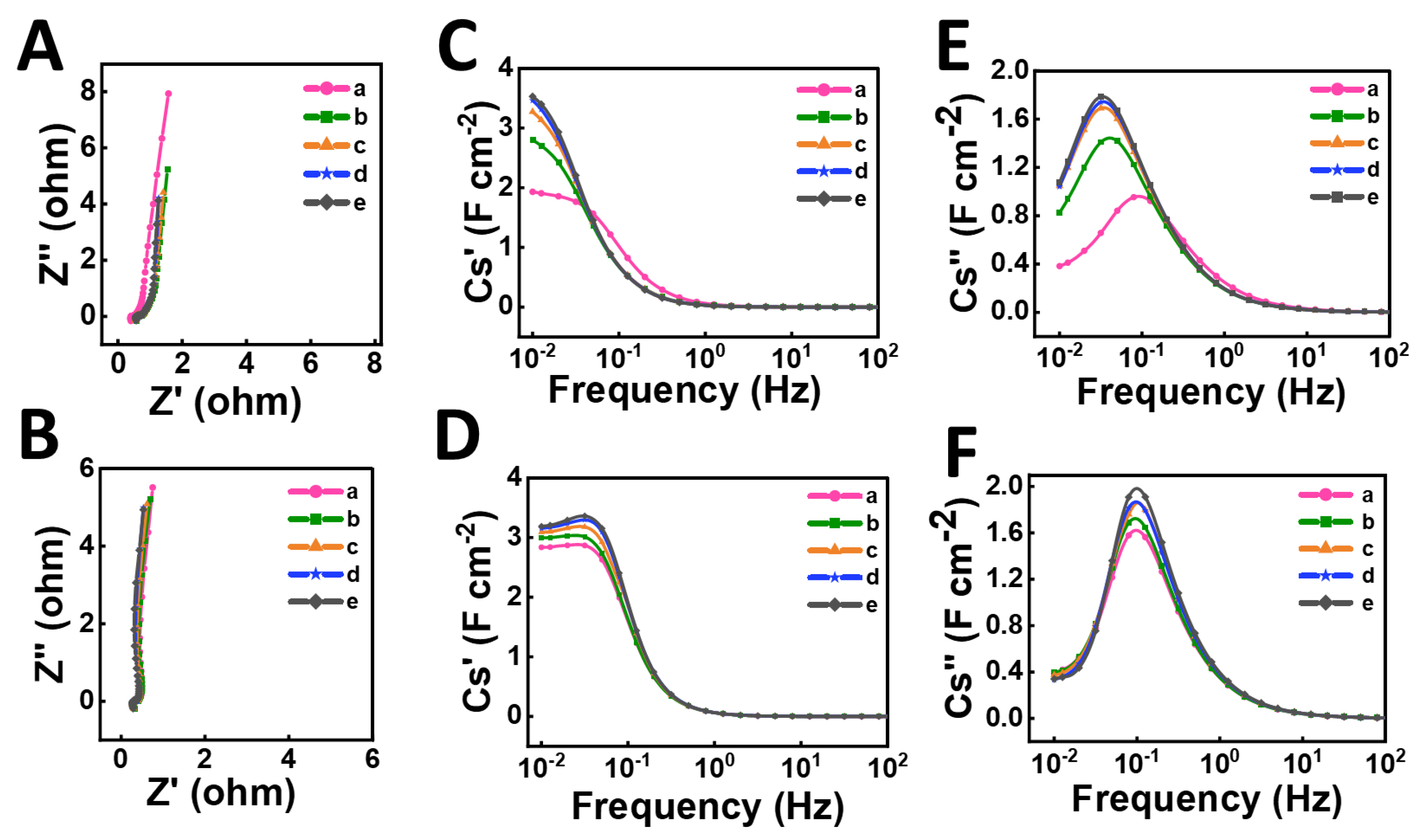

Figure 6. (A,B) Nyquist plots, (C,D) real components of complex capacitance, (E,F) imaginary components of complex capacitance for (A,C,E) Mn−PEI and (B,D,F) Mn−MG after (a) CP1, (b) CP2, (c) CP3, (d) CP4, (e) CP5.
Figure 6. (A,B) Nyquist plots, (C,D) real components of complex capacitance, (E,F) imaginary components of complex capacitance for (A,C,E) Mn−PEI and (B,D,F) Mn−MG after (a) CP1, (b) CP2, (c) CP3, (d) CP4, (e) CP5.
Batteries 09 00365 g006

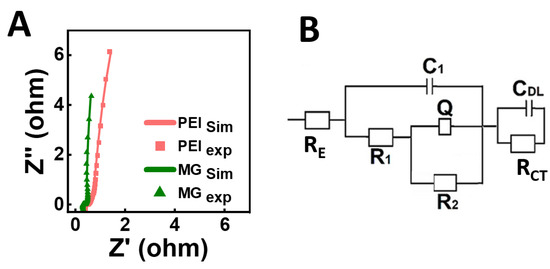

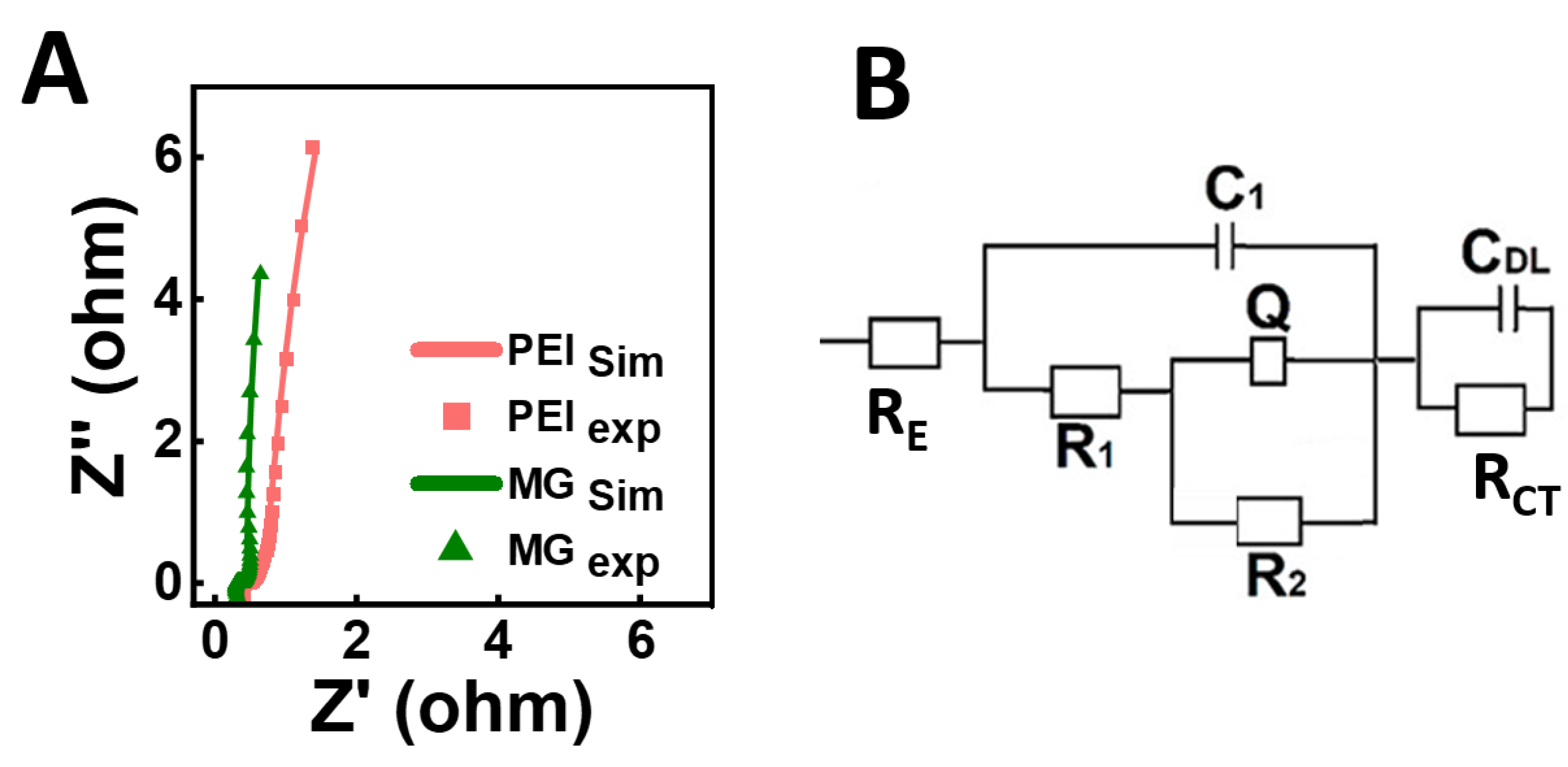

Figure 7. (A) EIS results (Nyquist plot) of the experimental data (exp) and simulation data (sim) for Mn-PEI and Mn-MG, (B) the equivalent circuit used for simulation study.
Figure 7. (A) EIS results (Nyquist plot) of the experimental data (exp) and simulation data (sim) for Mn-PEI and Mn-MG, (B) the equivalent circuit used for simulation study.
Batteries 09 00365 g007

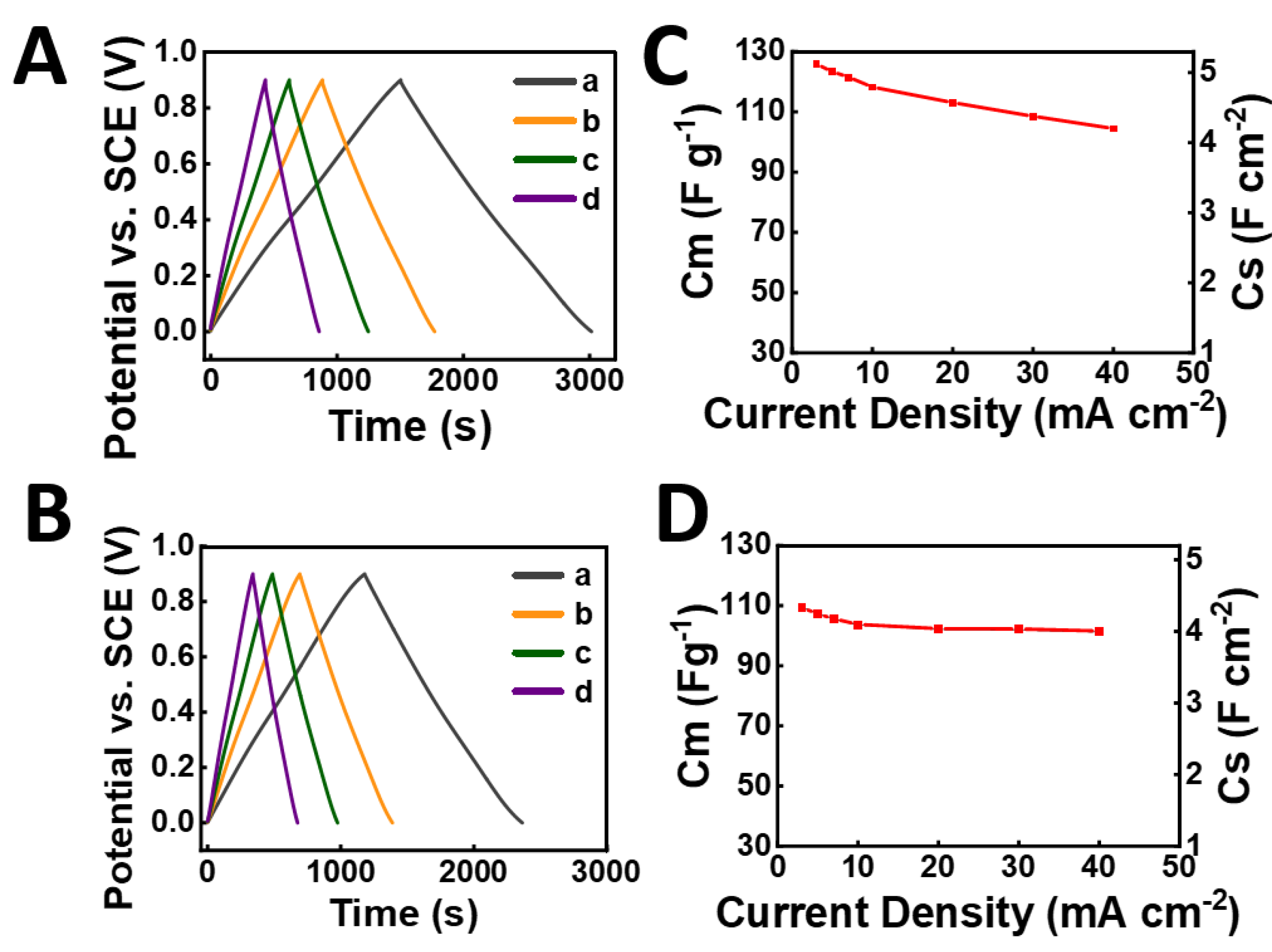

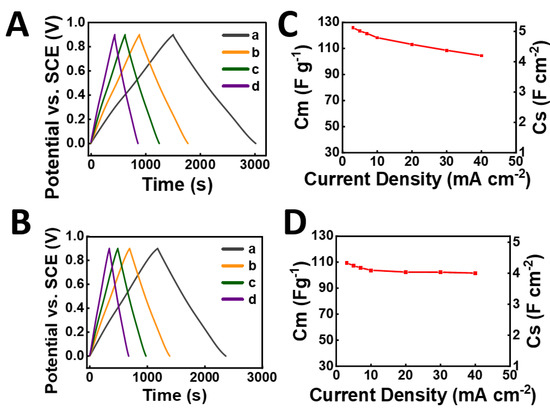

Figure 8. (A,B) GCD data for (A) Mn−PEI and (B) Mn−MG at current densities of (a) 3, (b) 5, (c) 7, and (d) 10 mA cm−2 and (C,D) capacitance versus current density calculated from the GCD data for (C) Mn−PEI and (D) Mn−MG.
Figure 8. (A,B) GCD data for (A) Mn−PEI and (B) Mn−MG at current densities of (a) 3, (b) 5, (c) 7, and (d) 10 mA cm−2 and (C,D) capacitance versus current density calculated from the GCD data for (C) Mn−PEI and (D) Mn−MG.
Batteries 09 00365 g008

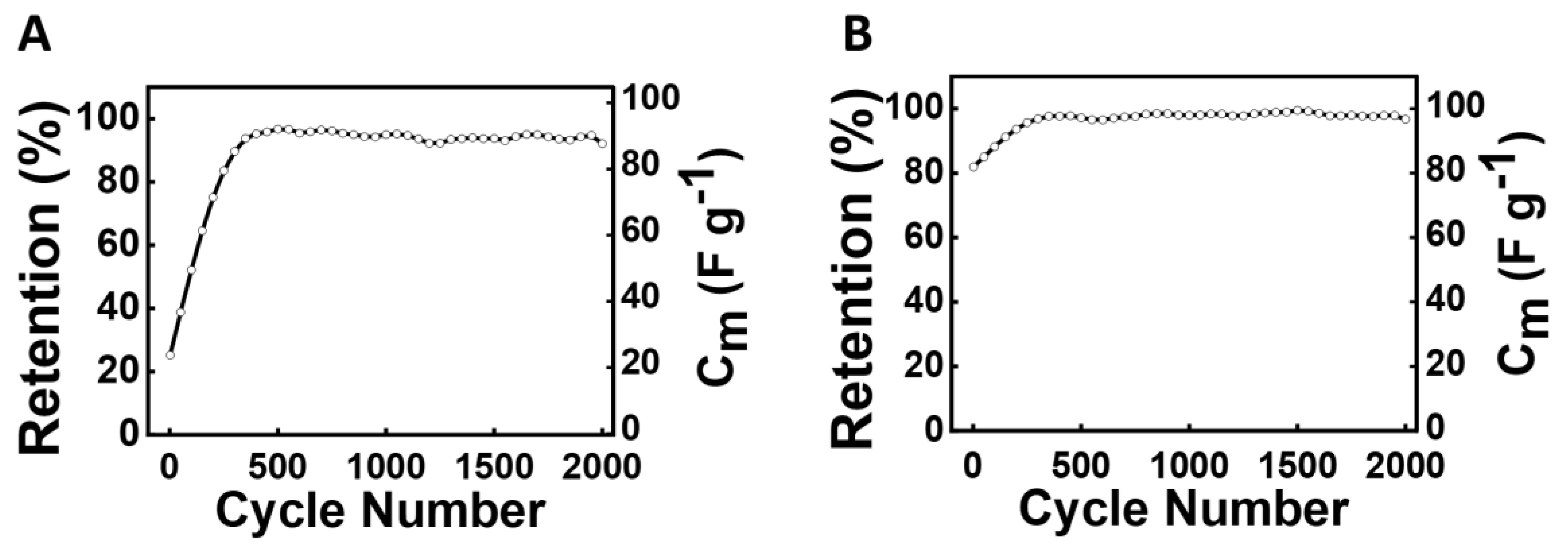

Figure 9. Capacitance retention and capacitance versus CV cycle number at a scan rate of 50 mV s−1 for (A) Mn−PEI and (B) Mn−MG electrodes. Retention represents capacitances at different cycle numbers normalized by the capacitance for cycle 2000.
