# On the Usage of Battery Equivalent Series Resistance for Shuntless Coulomb Counting and SOC Estimation

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

- –
- A shuntless SOC estimation method is proposed that exploits the knowledge of the internal resistance of the battery under test;
- –
- The proposed method is validated by experimental results performed on a lithium polymer (LiPo) rechargeable battery with a realistic current profile emulating an electrical vehicle scenario.

## 2. Proposed Shuntless SOC Measurement Method

Algorithm 1 Estimate SOC. | |

Input: (obtained in the calibration phase) Look-up-tables $LU{T}_{OCV,{I}_{1}},\dots ,LU{T}_{OCV,{I}_{n}}$, $LU{T}_{ESR,{I}_{1}},\dots ,LU{T}_{ESR,{I}_{n}}$, $LU{T}_{SOC}$, battery capacity C | |

Output: SOC estimate, denoted as $\widehat{SOC}$ | |

1: begin | |

2: Start condition: battery fully charged | |

3: Measure ${V}_{load}\left(1\right)$ | ▹ First voltage measurement |

4: $\widehat{I}\left(1\right)\leftarrow \frac{{V}_{load}\left(1\right)-LU{T}_{OCV}\left(1\right)}{LU{T}_{ESR}\left(1\right)}$ | ▹ Initial estimate of current |

5: $\widehat{SOC}\left(1\right)\leftarrow 100\%$ | ▹ Initial estimate of SOC |

6: $k\leftarrow 2$ | |

7: while True do | |

8: $\widehat{q}\leftarrow \widehat{I}(k-1)\times (t\left(k\right)-t(k-1))$ | ▹ Charge increment (coulomb counting) |

9: $\widehat{SOC}\left(k\right)\leftarrow \widehat{SOC}(k-1)+\widehat{q}/C$ | ▹ Estimate SOC at time step k |

10: return $\widehat{SOC}\left(k\right)$ | |

11: Measure ${V}_{load}\left(k\right)$ | ▹ Voltage measurement at time step k |

12: $j\leftarrow $ index of the entry of $LU{T}_{SOC}$ closest to $\widehat{SOC}\left(k\right)$ | |

13: $\widehat{OCV}\leftarrow $ linear fit of $LU{T}_{OCV,{I}_{1}}\left(j\right),\dots ,LU{T}_{OCV,{I}_{n}}\left(j\right)$ eval. at $\widehat{I}(k-1)$ | |

14: $\widehat{ESR}\leftarrow $ linear fit of $LU{T}_{ESR,{I}_{1}}\left(j\right),\dots ,LU{T}_{ESR,{I}_{n}}\left(j\right)$ eval. at $\widehat{I}(k-1)$ | |

15: $\widehat{I}\left(k\right)\leftarrow \frac{{V}_{load}\left(k\right)-\widehat{OCV}}{\widehat{ESR}}$ | ▹ Estimate current at time step k |

16: $k\leftarrow k+1$ | |

17: end while | |

18: end |

## 3. Experimental SOC Estimation Results

#### 3.1. Experimental Setup

#### 3.2. Experimental Procedure

#### 3.2.1. Calibration Phase

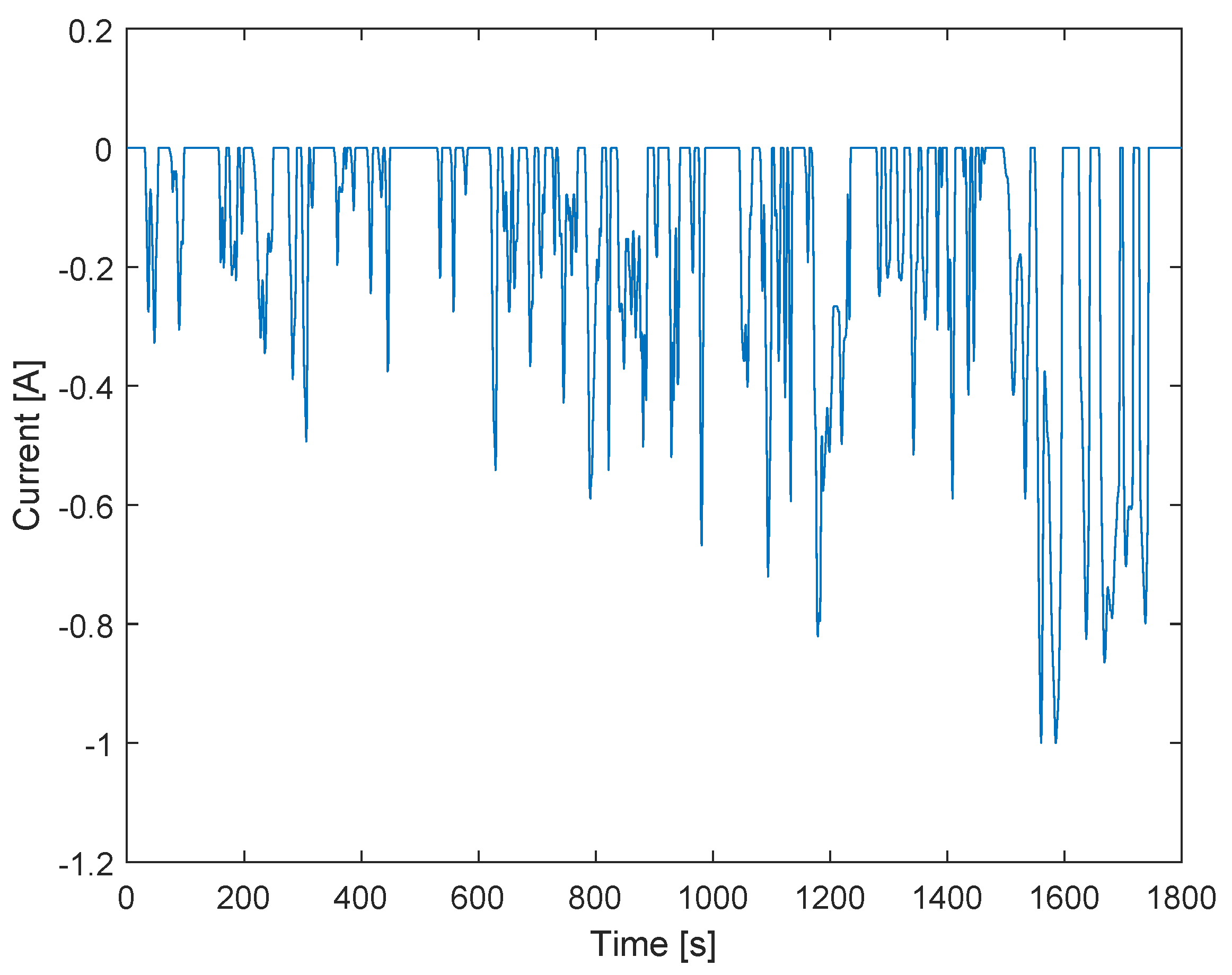

#### 3.2.2. Operational Phase

#### 3.3. Results

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## Abbreviations

SOC | State of charge |

ESR | Equivalent series resistance |

LUT | Look-up-table |

OCV | Open-circuit voltage |

SMU | Source measurement unit |

WLTP | Worldwide Harmonized Light Vehicles Test Procedure |

## References

- Zhou, L.; Lai, X.; Li, B.; Yao, Y.; Yuan, M.; Weng, J.; Zheng, Y. State Estimation Models of Lithium-Ion Batteries for Battery Management System: Status, Challenges, and Future Trends. Batteries
**2023**, 9, 131. [Google Scholar] [CrossRef] - Chang, W.Y. The state of charge estimating methods for battery: A review. Int. Sch. Res. Not.
**2013**, 2013, 953792. [Google Scholar] [CrossRef] - Niri, M.F.; Bui, T.M.; Dinh, T.Q.; Hosseinzadeh, E.; Yu, T.F.; Marco, J. Remaining energy estimation for lithium-ion batteries via Gaussian mixture and Markov models for future load prediction. J. Energy Storage
**2020**, 28, 101271. [Google Scholar] [CrossRef] - Niri, M.F.; Dinh, T.Q.; Yu, T.F.; Marco, J.; Bui, T.M.N. State of Power Prediction for Lithium-Ion Batteries in Electric Vehicles via Wavelet-Markov Load Analysis. IEEE Trans. Intell. Transp. Syst.
**2021**, 22, 5833–5848. [Google Scholar] [CrossRef] - Gallien, T.; Krenn, H.; Fischer, R.; Lauterbach, S.; Schweighofer, B.; Wegleiter, H. Magnetism Versus LiFePO
_{4}Battery’s State of Charge: A Feasibility Study for Magnetic-Based Charge Monitoring. IEEE Trans. Instrum. Meas.**2015**, 64, 2959–2964. [Google Scholar] [CrossRef] - Ni, Z.; Yang, Y. A Combined Data-Model Method for State of Charge Estimation of Lithium-ion Batteries. IEEE Trans. Instrum. Meas.
**2021**, 71, 1–11. [Google Scholar] [CrossRef] - Movassagh, K.; Raihan, A.; Balasingam, B.; Pattipati, K. A Critical Look at Coulomb Counting Approach for State of Charge Estimation in Batteries. Energies
**2021**, 14, 4074. [Google Scholar] [CrossRef] - Movassagh, K.; Raihan, S.A.; Balasingam, B. Performance Analysis of Coulomb Counting Approach for State of Charge Estimation. In Proceedings of the 2019 IEEE Electrical Power and Energy Conference (EPEC), Montreal, QC, Canada, 16–18 October 2019. [Google Scholar] [CrossRef]
- Baccouche, I.; Jemmali, S.; Mlayah, A.; Manai, B.; Amara, N.E.B. Implementation of an improved Coulomb-counting algorithm based on a piecewise SOC-OCV relationship for SOC estimation of li-IonBattery. arXiv
**2018**, arXiv:1803.10654. [Google Scholar] - Liu, Z.; Li, Z.; Zhang, J.; Su, L.; Ge, H. Accurate and efficient estimation of lithium-ion battery state of charge with alternate adaptive extended Kalman filter and ampere-hour counting methods. Energies
**2019**, 12, 757. [Google Scholar] [CrossRef] - Wang, W.; Ma, B.; Hua, X.; Zou, B.; Zhang, L.; Yu, H.; Yang, K.; Yang, S.; Liu, X. End-Cloud Collaboration Approach for State-of-Charge Estimation in Lithium Batteries Using CNN-LSTM and UKF. Batteries
**2023**, 9, 114. [Google Scholar] [CrossRef] - Miao, J.; Tong, Z.; Tong, S.; Zhang, J.; Mao, J. State of Charge Estimation of Lithium-Ion Battery for Electric Vehicles under Extreme Operating Temperatures Based on an Adaptive Temporal Convolutional Network. Batteries
**2022**, 8, 145. [Google Scholar] [CrossRef] - Fundaro, P. Impedance Track™ Based Fuel Gauging—White Paper; Technical Report; Texas Instruments: Austin, TX, USA, 2007. [Google Scholar]
- Zhu, K.; Liu, X.; Pong, P.W.T. Performance Study on Commercial Magnetic Sensors for Measuring Current of Unmanned Aerial Vehicles. IEEE Trans. Instrum. Meas.
**2020**, 69, 1397–1407. [Google Scholar] [CrossRef] - Chun, C.Y.; Baek, J.; Seo, G.S.; Cho, B.; Kim, J.; Chang, I.K.; Lee, S. Current sensor-less state-of-charge estimation algorithm for lithium-ion batteries utilizing filtered terminal voltage. J. Power Source
**2015**, 273, 255–263. [Google Scholar] [CrossRef] - Crescentini, M.; De Angelis, A.; Ramilli, R.; De Angelis, G.; Tartagni, M.; Moschitta, A.; Traverso, P.A.; Carbone, P. Online EIS and Diagnostics on Lithium-Ion Batteries by Means of Low-Power Integrated Sensing and Parametric Modeling. IEEE Trans. Instrum. Meas.
**2021**, 70, 1–11. [Google Scholar] [CrossRef] - Manfredini, G.; Ria, A.; Bruschi, P.; Gerevini, L.; Vitelli, M.; Molinara, M.; Piotto, M. An ASIC-Based Miniaturized System for Online Multi-Measurand Monitoring of Lithium-Ion Batteries. Batteries
**2021**, 7, 45. [Google Scholar] [CrossRef] - Mikroe. SR674361P Li-Polymer Battery Datasheet. 2022. Available online: https://www.mikroe.com/li-polymer-battery-37v-2000mah (accessed on 17 May 2023).
- 62660-1:2018; Secondary Lithium-Ion Cells for the Propulsion of Electric Road Vehicles—Part 1: Performance Testing. International Electrotechnical Commission (IEC): Geneva, Switzerland, 2018.
- Schweiger, H.G.; Obeidi, O.; Komesker, O.; Raschke, A.; Schiemann, M.; Zehner, C.; Gehnen, M.; Keller, M.; Birke, P. Comparison of Several Methods for Determining the Internal Resistance of Lithium Ion Cells. Sensors
**2010**, 10, 5604–5625. [Google Scholar] [CrossRef] [PubMed] - Addendum 15: Global Technical Regulation No. 15—World-Wide Harmonized Light Vehicles Test Procedure; Technical Report; CE/TRANS/UNECE: Geneva, Switzerland, 2014.
- Kocsis Szürke, S.; Dineva, A.; Csomós, B. Dataset—Complex Testing Procedure for 18650 Batteries; IEEE DataPort: Piscataway, NJ, USA, 2021. [Google Scholar]
- Dineva, A.; Csomós, B.; Kocsis, S.; Vajda, I. Investigation of the performance of direct forecasting strategy using machine learning in State-of-Charge prediction of Li-ion batteries exposed to dynamic loads. J. Energy Storage
**2021**, 36, 102351. [Google Scholar] [CrossRef] - JCGM 200:2012; International Vocabulary of Metrology—Basic and General Concepts and Associated Terms (VIM), 3rd ed. Joint Committee for Guides in Metrology (JCGM): Sèvres, France, 2012.
- Zhang, S.; Xu, K.; Jow, T. The low temperature performance of Li-ion batteries. J. Power Source
**2003**, 115, 137–140. [Google Scholar] [CrossRef] - Gandoman, F.H.; El-Shahat, A.; Alaas, Z.M.; Ali, Z.M.; Berecibar, M.; Abdel Aleem, S.H.E. Understanding Voltage Behavior of Lithium-Ion Batteries in Electric Vehicles Applications. Batteries
**2022**, 8, 130. [Google Scholar] [CrossRef]

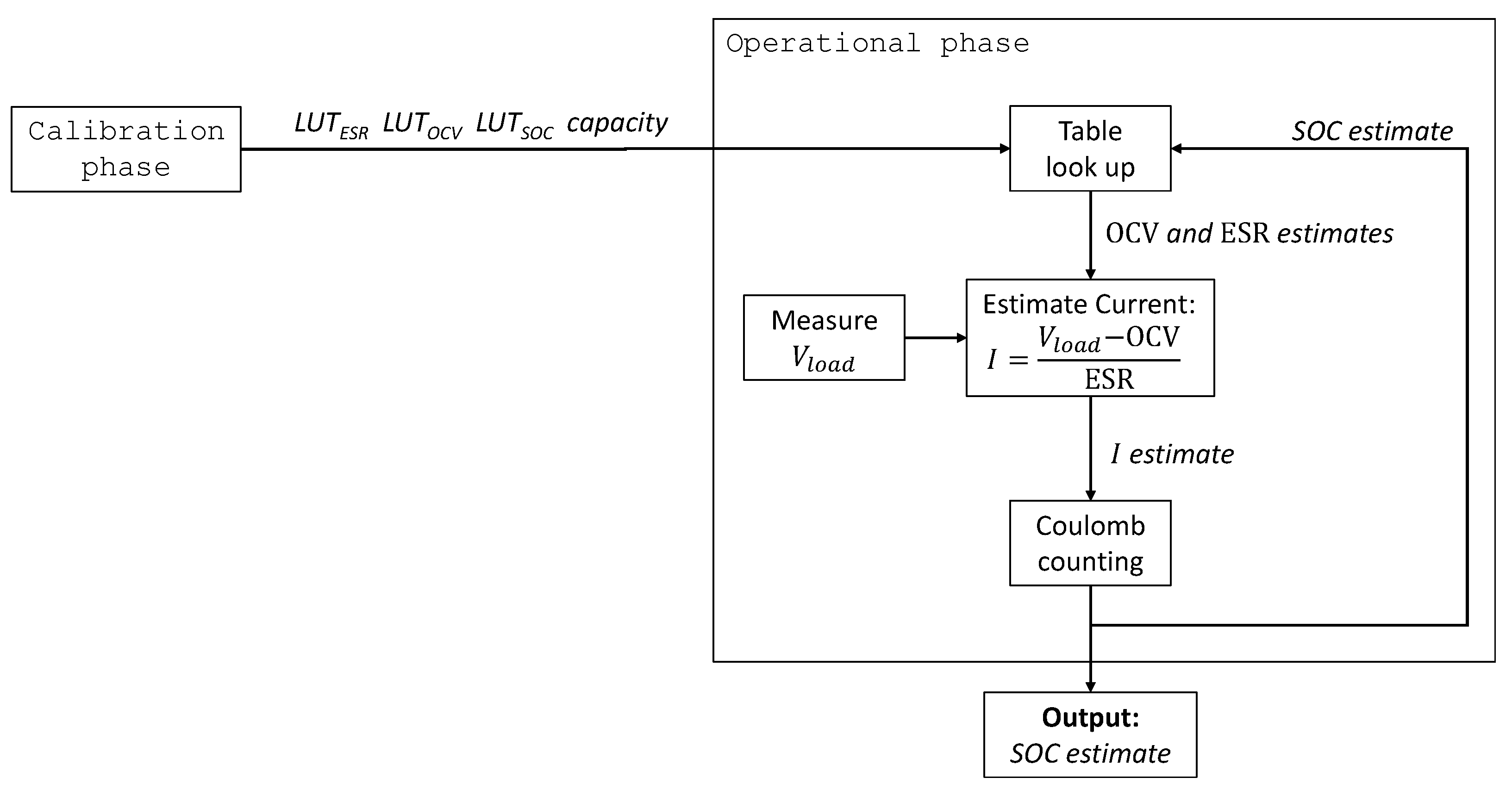

**Figure 1.**Operation of the proposed method, divided into two phases: calibration phase where the LUTs are built, and operational phase, where the LUTs are used together with voltage measurements to estimate the current and SOC.

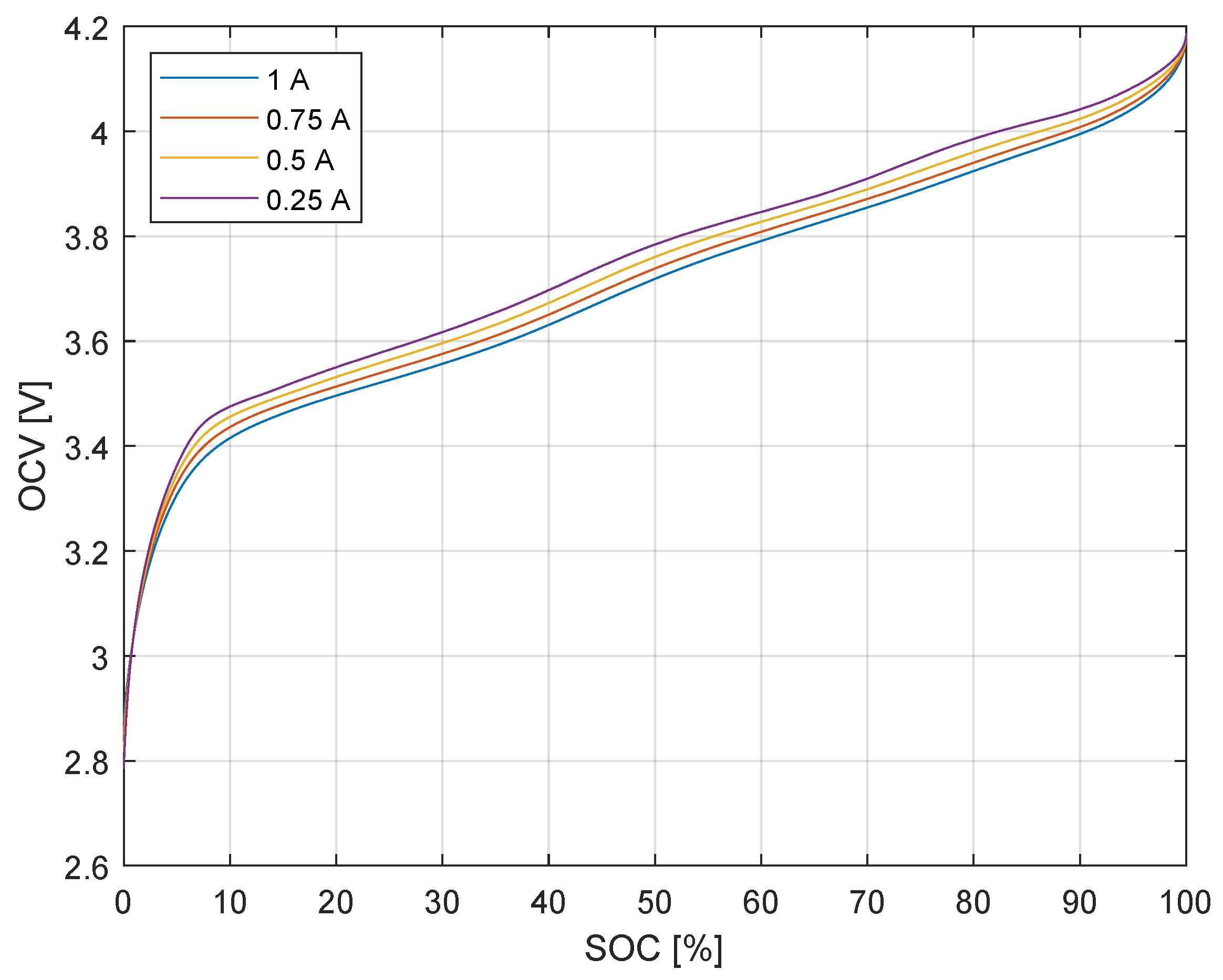

**Figure 3.**Experimental data: OCV as a function of SOC. The curves were obtained in the calibration phase for different values of the discharging current.

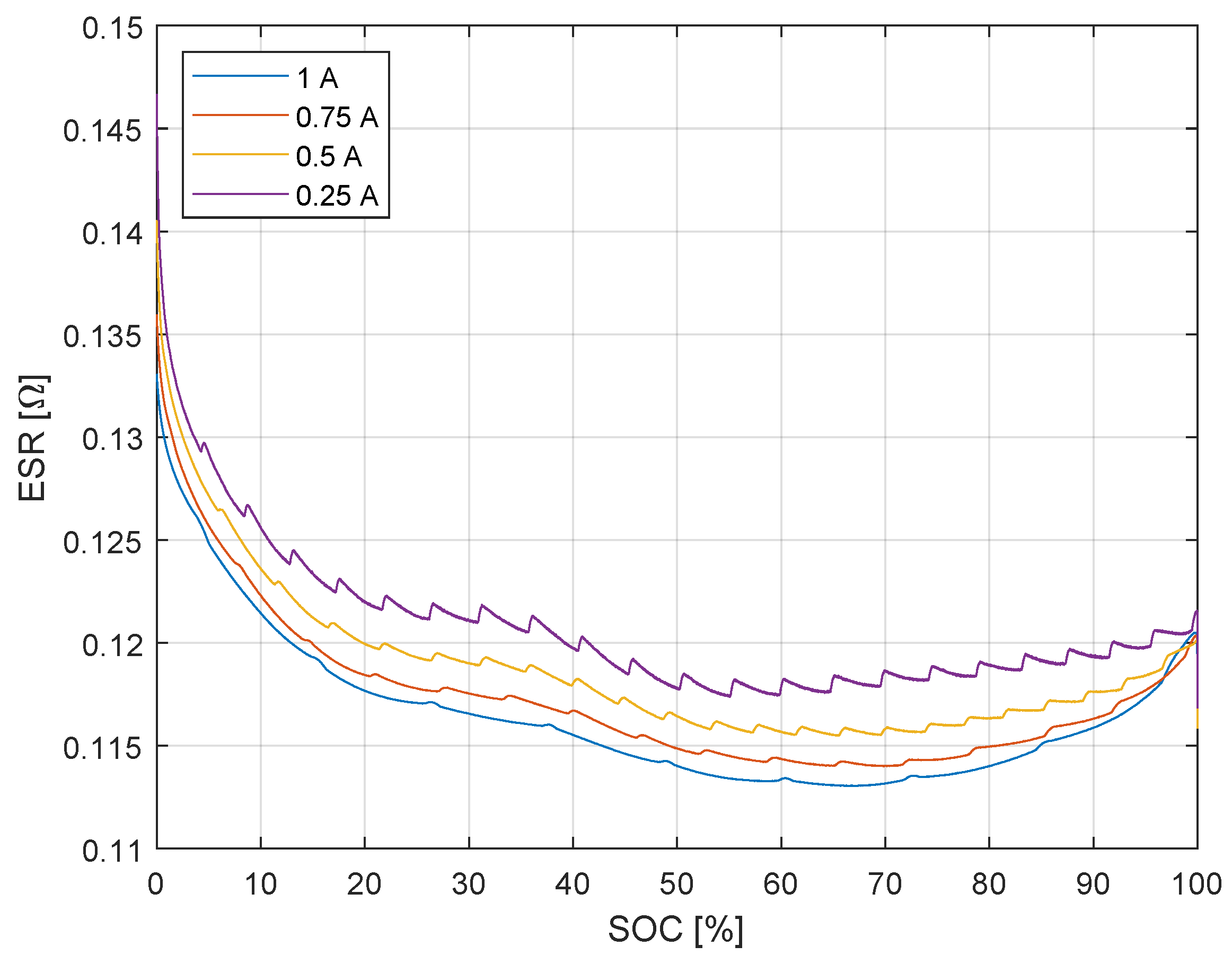

**Figure 4.**Experimental data: ESR as a function of SOC. The curves were obtained in the calibration phase for different values of the discharging current.

**Figure 5.**An example of the best-fit line computed during the operational phase to obtain an estimate of OCV from an estimate of the current. The fit was performed on four data samples from the LUTs acquired at different currents: 250 mA, 500 mA, 750 mA, and 1000 mA.

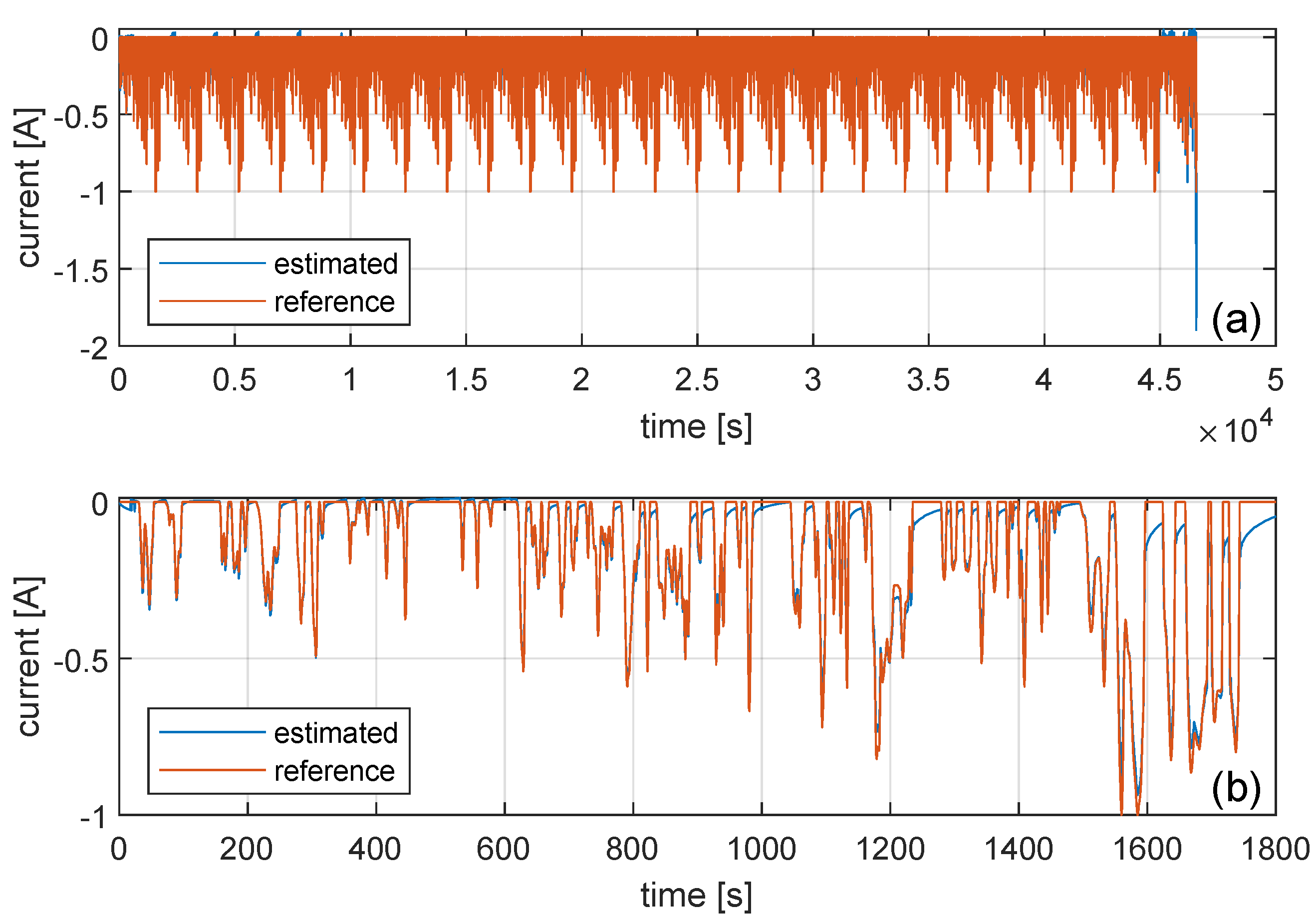

**Figure 6.**Experimental results in the operational phase. (

**a**): Current estimated by the proposed shuntless method with a WLTP profile; (

**b**): magnification of the curve in (

**a**), showing a single repetition of the WLTP profile; (

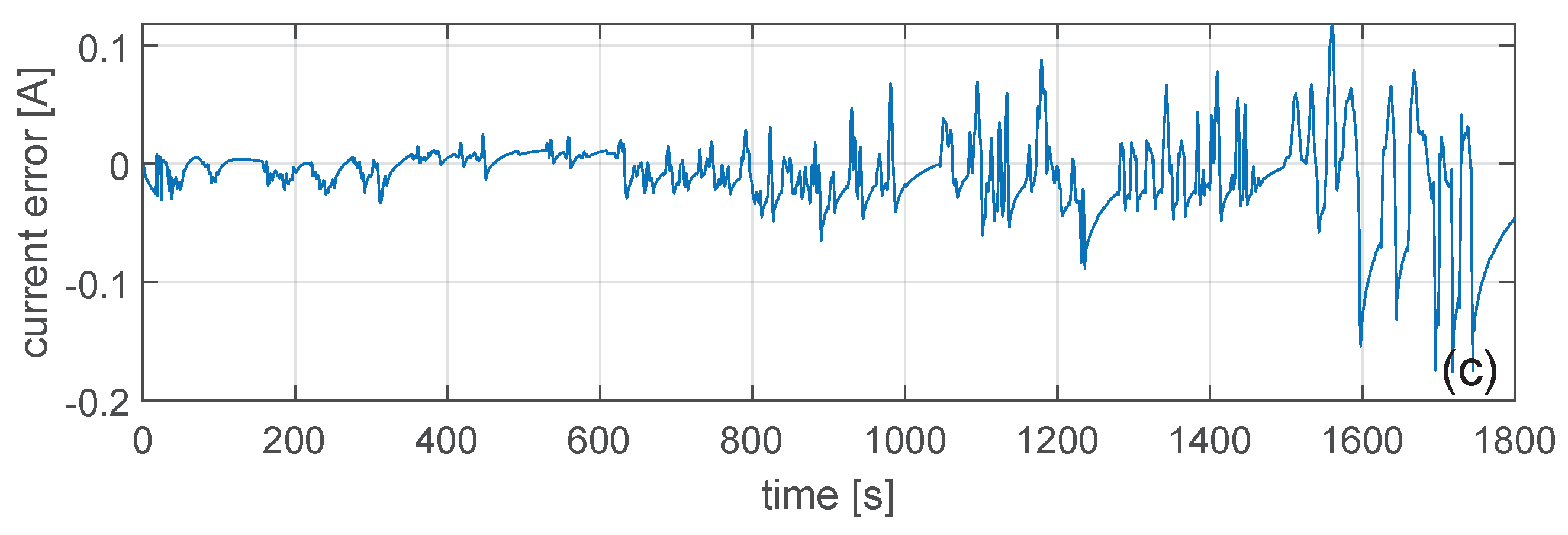

**c**): current estimation error, computed as the difference between the estimated and reference value of the current.

**Figure 7.**Experimental results in the operational phase: (

**a**) SOC estimated by the proposed shuntless method; (

**b**) estimation error.
