A Facile Two-Step Thermal Process for Producing a Dense, Phase-Pure, Cubic Ta-Doped Lithium Lanthanum Zirconium Oxide Electrolyte for Upscaling

by
Diwakar Karuppiah
1,2,*,
Dmitrii Komissarenko
1,3,
Nur Sena Yüzbasi
1,
Yang Liu
1,
Pradeep Vallachira Warriam Sasikumar
1,4,
Amir Hadian
1,5,
Thomas Graule
1,
Frank Clemens
1 and
Gurdial Blugan
1,*
1
Laboratory for High Performance Ceramics, Empa, Swiss Federal Laboratories for Materials Science and Technology, CH-8600 Duebendorf, Switzerland
2
Department of Mechanical Engineering Applied Mechanics, University of Pennsylvania, Philadelphia, PA 19104, USA
3
Institute for Biomass and Resource Efficiency, University of Applied Sciences and Arts Northwestern Switzerland (FHNW), 5210 Windisch, Switzerland
4
ADVANO, Lakeshore Drive, New Orleans, LA 70112, USA
5
Institute of Product and Production Engineering, University of Applied Sciences and Arts Northwestern Switzerland (FHNW), 5210 Windisch, Switzerland
*
Authors to whom correspondence should be addressed.
Batteries 2023, 9(11), 554; https://doi.org/10.3390/batteries9110554
Submission received: 13 October 2023 / Revised: 6 November 2023 / Accepted: 7 November 2023 / Published: 13 November 2023
(This article belongs to the Special Issue Advanced Electrode and Electrolyte Materials for All-Solid-State Batteries)
Browse Figures
Versions Notes

Abstract

:
An inorganic solid electrolyte is the most favorable candidate for replacing flammable liquid electrolytes in lithium batteries. Lithium lanthanum zirconium oxide (LLZO) is considered a promising solid electrolyte due to its safe operating potential window (0–5 V) combined with its good electrochemical stability. In this work, 250 g batches of pre-sintered Ta-doped LLZO (Li7La3Zr1.6Ta0.4O12, Ta-LLZO) were synthesized for bulk production of a dense LLZO electrolyte. A simple two-step thermal treatment process was developed. The first thermal step at 950 °C initiates nucleation of LLZO, with carefully controlled process parameters such as heating atmosphere, temperature, and dopant concentration. In the second thermal step at 1150 °C, sintered discs were obtained as solid electrolytes, with relative densities of 96%. X-ray diffraction analysis confirmed the phase purity of the sintered Ta-LLZO disc, and refined data were used to calculate the lattice parameter (12.944 Å). Furthermore, the presence of the Ta dopant in the disc was confirmed through X-ray photoelectron spectroscopy (XPS) analysis. The ionic and electronic conductivity values of the Ta-LLZO disc were 10−4 S cm−1 and 10−10 S cm−1, respectively. These values confirm that the prepared (Ta-LLZO) discs exhibit ionic conductivity while being electronically insulating, being suitable for use as solid electrolytes with the requisite electrical properties.

Graphical Abstract

1. Introduction

Li7La3Zr2O12 (LLZO) is one of the most promising inorganic solid electrolytes for lithium batteries due to its high melting point, ionic conductivity, chemical stability, and wide electrical potential window (0 to 5 V) with respect to lithium [1]. LLZO exists in two different crystalline phases, cubic and tetragonal. The cubic phase (c-LLZO) with its high ionic conductivity (10−3 S cm−1) is preferred over the tetragonal (t-LLZO) phase with its lower conductivity (10−6 S cm−1). The starting component powders are oxidized at temperatures exceeding 1000 °C to form LLZO. It is noteworthy that the cubic phase predominates at higher temperatures. However, upon cooling to room temperature, the tetragonal phase becomes more prominent. Stabilizing the cubic phase at room temperature is crucial; this is often achieved through the addition of cations. Hence, the incorporation of different cations to replace the existing ones, such as Li+, La3+, and Zr4+, in the crystal lattice of LLZO [2,3] is employed to address this challenge. The second important challenge is producing solid LLZO electrolytes with a high density. Achieving low porosity in LLZO is essential to limit undesired lithium dendrite growth, which can lead to short circuiting. To achieve this, high temperatures (>1000 °C) and prolonged dwell times are often utilized. Therefore, various thermal treatments, such as spark plasma sintering [4], flash sintering [5], field-assisted sintering [6], oscillatory pressure sintering [7], hot-press sintering [8], and solid-state reaction (SSR) [9] have been widely investigated to achieve high density LLZO.
Among these methods, SSR stands out as a cost-effective approach, despite its limitations, such as lithium loss and the undesired formation of the tetragonal phase due to high temperatures and prolonged dwell times. To address these issues, large amounts of mother powder (powder bed) are consumed during the process. The cost of mother powder is high, mainly due to the lithium precursor. To compensate for lithium loss, excess lithium salt (precursor) can be utilized [10,11,12].
In addition to this, the choice of crucibles used during synthesis plays a significant role. Jiang et al. [13] investigated the influence of sintering crucibles on the phase purity of Ta-LLZO (specifically MgO and Al2O3 crucibles) when the lid is used. Their study demonstrated that MgO is the most suitable candidate for synthesis of c-LLZO over Al2O3, owing to its enhanced chemical inertness at elevated temperatures [14,15,16,17].
Furthermore, numerous studies have employed various methodologies to synthesize c-LLZO [18,19,20]. However, upscaling of LLZO production using these known synthesis methods can be challenging. Therefore, development of a methodology with the necessary process steps to enable repeatable production in large batch sizes is crucial as a first step.
In this study, 250 g of pre-sintered LLZO (Li7La3Zr1.6Ta0.4O12) powder per batch was synthesized via SSR for use in tape casting and 3D printing processes. This powder was subsequently pressed and sintered at 1150 °C to verify the phase purity of the Ta-LLZO. The synthesized Ta-LLZO demonstrates a room-temperature ionic conductivity of 1.96 × 10−4 S cm−1. An electrochemical test indicates that Ta-LLZO exhibits reasonable stability with metallic Li. This pre-sintered powder opens new possibilities for use as a source in bulk tape casting and 3D printing processes, which may hold a significant importance for next-generation battery technology.

2. Materials and Methods

Li7La3Zr1.6Ta0.4O12 was synthesized via solid-state reaction using La2O3 (95%, Merck, Darmstadt, Germany), Li2CO3 (99%, Merck, Darmstadt, Germany), Ta2O5 (99%, Merck, Darmstadt, Germany), and monoclinic-ZrO2 (Tosoh, Amsterdam, The Netherlands) as starting materials. To obtain 250 g of c-Ta-LLZO, 146.61 g of La2O3, 85.34 g of Li2CO3, 22.18 g of ZrO2, and 26.51 g of Ta2O5 were planetary ball milled (PM 400, Retsch GmbH, Haan, Germany). Here, the incorporation of Ta (0.4 mol) in the LLZO stabilizes the crystal structure of cubic LLZO (c-LLZO) at room temperature [21]. Milling was performed at 300 rpm for 6 h in ZrO2-lined jars. The milling media consisted of 260 g ZrO2 balls (3 mm diameter) and 2-propanol as the solvent. Addition of a 10% excess lithium source could compensate for lithium loss at elevated temperatures [13]. The slurry obtained from the milling process was dried at room temperature to remove the excess solvent. The mixed powder was die-pressed at 100 MPa for one minute into 50 g pellets, which were then calcined at 950 °C for 6 h in an Al2O3 crucible. The calcined pellets were ground manually using a mortar and pestle to achieve a homogeneous powder. The powder was uni-axially pressed into discs at 120 MPa, held at this pressure for 5 min, then removed and sintered at 1150 °C with a ramp rate of 3 °C/min for 1 h in an MgO crucible with a closed lid, resulting in a relatively high-density, phase-pure c-Ta-LLZO with disc dimensions of 0.7 mm thickness and 12 mm diameter. The schematic representation of the experimental section is shown in Figure S1.
Differential thermal analysis (DTA) and thermogravimetric analysis (TGA) were performed on wet-milled powders at a heating rate of 10 K/min in dynamic airflow (70 mL/min) using a STA-449 F3 Jupiter instrument (Netzsch GmbH & Co., KG, Selb, Germany). A high-temperature dilatometer DIL 402/E (Netzsch GmbH & Co., KG, Selb, Germany) with a pyrometer was used to measure the shrinkage of the Ta-LLZO disc under an argon atmosphere up to 1200 °C. The phase formation of the disc was investigated using a PANalytical X’Pert powder diffractometer (Eindhoven, The Netherlands). A Rietveld refinement of X-ray diffraction patterns was performed using the FullProf software package [22]. To check for impurities in the Ta-LLZO discs, Raman spectra were collected using the confocal Raman spectroscopy device (WITec Alpha 300 R, Ulm, Germany) with an excitation of 532 nm for thermally-treated pellets and discs. Additionally, X-ray photoelectron spectroscopy (XPS) measurements (Phi Quantum 2000) were performed. The densities of the sintered, c-Ta-LLZO discs were measured using the Archimedes method with 2-propanol. The density measurements were performed on at least two separate samples, and the average density value was reported. Scanning electron microscopy (SEM, Tascan Vega 3, Brno, Czech Republic) was performed on the wet-polished cross-section of both pellets and discs after sputtering with a thickness of 10 nm of Au/Pd alloy using a Leica EM ACE 200 sputter coater (Leica, Wetzlar, Germany). Symmetrical cell (Li|c-Ta-LLZO|Li) assembly and electrochemical characterization were performed under an argon atmosphere in a glovebox. Using a frequency response analyzer (FRA) (Solartron 1260A), the room temperature impedance of the pellets was measured to extract the resistance and conductivity values for the discs (0.7 mm × 12 mm diameter). The ion conductivity of the c-Ta-LLZO electrolyte was extracted from PEIS data measured at frequencies between 5 Hz and 25 MHz with a 20-mV sinusoidal amplitude. Electronic conductivity was determined by a DC polarization method (Mott–Schottky) at 1 V versus Li/Li+ after 16 h stabilization using a VMP-300 multichannel potentiostat (BioLogic, Seyssinet-Pariset, France). All electrochemical measurements were carried out in a Swagelok cell.

3. Results

3.1. Thermal Analysis

Thermogravimetric analysis and dilatometry analysis were conducted to elucidate the weight loss and shrinkage behavior of Ta-LLZO from room temperature to 1200 °C. In Figure 1a, the TG and DTA curves after wet milling of the Ta-LLZO powder are presented. The TG curve reveals four distinct weight loss steps and the corresponding endothermic peaks. The initial weight loss step (approximately to 300 °C) is attributed to the presence of moisture and organic residues in the milled sample. The subsequent weight loss in the temperature range of 250–550 °C is associated with the transformation of La(OH)3, formed during wet milling from La2O3. Wet milling of the oxide precursor, La2O3, leads to the formation of La(OH)3 due to topological transformation during the reaction process. This transformation is confirmed by the appearance of new peaks in the XRD spectra shown in Figure 1b,c. Moreover, during the milling process, mechanical activation can enhance the diffusion of dopant Ta into the LLZO lattice and concurrently can reduce the crystallinity of LiCO3. This process improves the incorporation of tantalum ions, thereby promoting stabilization of the cubic phase structure.
The TG/DTA curves for each individual starting material after milling are shown in Figure S2a–d. When comparing these TG/DTA curves with the first endothermic peak in Figure 1a, attributed to the formation of La(OH)3 in the 250 to 550 °C range, it is evident that the next weight loss occurs in the region of 650–900 °C, corresponding to the decomposition of Li2CO3, which is in line with the literature findings [23]. Above 900 °C, there is no weight loss up to 1200 °C. Dilatometry measurements on Ta-LLZO pellets in the same temperature range, with a heating rate of 3 K/min (Figure 1d), reveal a small peak at 730 °C, indicating a slight shrinkage. Subsequently, after 1000 °C, the main onset of densification and shrinkage behavior is observed, reaching completion at approximately 1150 °C for Ta-LLZO.

3.2. Phase Analysis

XRD patterns of Ta-LLZO after thermal processes at 950 °C (pellet) and 1150 °C (disc) are shown in Figure 2a. Following the 950 °C process, the cubic phase (c-LLZO) is observed in the Ta-LLZO powder, along with some impurity peaks representing the tetragonal phase (t-LLZO), La2Zr2O7, and Li2CO3. A strong diffraction peak at 2θ = 28.52°, indicating the formation of La2Zr2O7, is prominently visible. The tetragonal phase is confirmed by peaks at 2θ of 27.97, 47.42, 56.26, and 59.09°. The presence of lithium carbonate is observed with weak diffraction peaks at 21.40, 31.85, 36.16, 37.05, and 39.49°. Additionally, unidentified peaks at 29.92, 33.02, and 46.62 were also detected. The pellets achieved 73% of relative density at 950 °C. Hence, a higher sintering temperature is required to obtain a phase-pure and dense Ta-LLZO disc. According to dilatometry measurements, the Ta-LLZO samples were sintered at 1150 °C (Figure 1d). The peak intensity at 224 increases slightly with the 024 plane, indicating the presence of Ta5+ ions in the LLZO crystal lattice. The ratio of the 024/224 plane at 950 °C and 1150 °C is determined as 0.84 and 0.97, respectively. Here, the value of 0.97 that approaches 1 indicates the presence of cubic LLZO. Well-defined diffraction peaks perfectly match with cubic Ta-LLZO, indexed with the corresponding hkl planes without any impurity. According to Zhang et al. [24], a high intense peak was obtained at the 33.83° (224) plane for cubic Ta-LLZO samples, and its intensity varies with respect to the concentration of Ta. In the presented XRD pattern (Figure 2a), a high-intensity peak was observed at 16.80° (112). Rangasamy et al. [2] reported that Al-LLZO shows a similar XRD pattern with a high-intensity peak at 16.80°. Additionally, alterations in lithium concentration, whether increased or decreased, could influence the phase of c-Ta-LLZO.
Rietveld refinement was used to examine the lattice parameters of the aforementioned samples. The results of pattern fitting are shown in Figure 2b. The relative density after sintering the disc at 1150 °C is 96% of the theoretical density, which is advantageous for electrochemical performance and will be discussed later. A comparison graph, plotting the cell parameter data extracted from the literature for different Ta concentrations (Ta = 0.2, 0.25, 0.30, 0.35, 0.40, and 0.45), is presented in Figure 2c. It is observed that an increase in Ta content leads to a decrease in the lattice parameter [25,26]. The lattice parameter in this study is 12.944 Å, similar to previous works with comparable Ta compositions [27,28,29]. The ionic radii of the dopant and the host ions play a crucial role in determining the lattice parameters. In our study, the ionic radius of Ta is smaller than that of Zr in LLZO; the lattice parameter will decrease as Ta content increases, up to a certain concentration. Beyond this concentration, other factors like phase stability, defects, and electronic effects can dominate, leading to an increase in the lattice parameters [27,28].
Figure 2d illustrates the impact of the Al2O3 crucible on the high temperature sintering of Ta-LLZO discs. Notably, compared to discs sintered in an MgO crucible, those treated in an Al2O3 crucible exhibit a peak at 18.18°, which cannot be attributed to any other impurities of LLZO. Therefore, we designate this peak as an unidentified one, likely resulting from Al ions diffusing into the LLZO structure at elevated temperatures exceeding 1000 °C. MgO crucibles were identified as suitable crucibles for obtaining dense, phase-pure, cubic Ta-LLZO discs. Large Al2O3 crucibles were used at 950 °C, as they were readily available and allowed us to produce batches of 250 g without Al2O3 diffusion at this lower temperature. Unfortunately, only small MgO crucibles are easily available; however, this was convenient as they were used for sintering small discs at 1150 °C. An alternative would be to use MgO crucibles for both steps.

3.3. Vibration and Elemental Analysis

Raman spectroscopy was used to investigate the vibrational spectrum of the Ta-LLZO pellet (950 °C) and disc (1150 °C). In Figure 3a, all the peaks are indexed based on their vibrations in accordance with the literature [29,30,31,32,33,34]. The presence of the cubic phase has been confirmed by the existence of Li-accommodating sites 24 d (tetrahedral) and 96 h (octahedral). In Figure 3a, in that specific region, the isolation of the peak is observed for the pellets (950 °C), whereas the discs (1150 °C) show a merged peak without any separation. This indicates the linkage of tetrahedral and octahedral regions contributing to Li movement in the crystal structure. This is a major reason why the cubic phase exhibits a higher ionic conductivity than the tetragonal phase [35].
Raman spectroscopy was employed to investigate the aforementioned lithium-accommodating site linkage. In line with this, the vibrations of Ta, Zr, Li, and La combined with oxygen vibrations were observed after heating cycles at 950 °C (pellet) and 1150 °C (disc). However, for pellets, the peaks appearing at 1090 cm−1 correspond to lithium carbonate. This lithium carbonate peak is consistent with the XRD pattern in Figure 2a. During the phase evaluation, no impurity peaks are identified for the dopant Ta. The presence of Ta is confirmed by the XPS analysis. The XPS spectrum of c-Ta-LLZO is presented in Figure 3b, showing the peaks corresponding to the presence of La, O, Ta, Zr, and Li [36]. The inset in Figure 3b further depicts the presence of Ta.

3.4. Microstructural Analysis

Microstructural analysis was performed to investigate particle formation after heating to 950 °C (pellets) and 1150 °C (discs) using SEM. The morphology of the particles after 950 °C is observed to be agglomerated, as shown in Figure 4a. Notably, the morphology of the disc (1150 °C) reveals the absence of large holes and pores on the surface, with well-interconnected grains, indicating good densification, as shown in Figure 4b. Additionally, the cross-section image of the disc in Figure 4c shows only a few small internal pores in the materials [37]. These characteristics are crucial for testing the samples for electrochemical measurements.

3.5. Electrochemical Analysis

A solid electrolyte should exhibit ionic conductivity while remaining electronically insulating. In this study, the electronic and ionic conduction behaviors of c-Ta-LLZO discs were assessed. Electronic conductivity of the c-Ta-LLZO solid solution (Ta-doping) was investigated by using chronoamperometry measurements, applying a constant potential of 1V between Li||c-Ta-LLZO||Li in the configuration. Figure 5a shows the current as a function of time. Initially, the current exhibits a negative slope due to the polarization of the Ta-doped solid solution LLZO. The electronic conductivity was measured as 3.94 × 10−10 S cm−1, indicating the insulating behavior of the solid electrolyte.
Simultaneously, ionic conductivity was measured through electrochemical impedance spectroscopy (EIS) in the frequency range 24 MHz to 5 Hz. Figure 5b shows a spectrum with two semi-circles in the high- and mid-frequency region and an inclined line in the low-frequency region in the Nyquist plot. The first semicircle represents the bulk boundary, and the second represents the grain boundary [38]. The real axis in the Nyquist plot contributes to the total resistance. The observed two semi-circles and the addition of their individual resistance aligns with the real axis responsible for the total resistance. Fitting the spectrum using Z-view 4.0f software provided the values for resistance, capacitance, and constant phase elements of the equivalent circuit (Figure 5b), and the ionic conductivity of the system is calculated as 1.96 × 10−4 S cm−1. However, pure LLZO exhibits the conductivity range from 10−6 to 10−4 S cm−1 [39]. The distribution of relaxation times (DRT) was employed for deconvoluting the EIS data to better understand the interactions of the different interfaces [40,41,42]. Figure 5c shows peaks at different relaxation times, aiding in identification of interactions for charge transfer and diffusion process.
Finally, the critical current density measurement for c-Ta-LLZO is illustrated in Figure 5d. This measurement is crucial for identifying lithium dendrite formation during cell cycling at different current densities. It was reported that 0.3 to 0.7 mA cm−2 is the maximum limit for obtaining a good cyclability without polarization (lithium dendrites) [43,44]. However, c-Ta-LLZO shows better results at a current density of 0.09 mA cm−2, due to the absence of large voids. However, at 0.12 mA cm−2, polarization is observed as shown in Figure 5d, due to lithium penetration through the grain boundaries.

4. Conclusions

A cubic Ta-doped (Li7La3Zr1.6Ta0.4O12) (c-Ta-LLZO) inorganic solid electrolyte was synthesized through a solid-state reaction. TG and DTA, and dilatometry analyses, were employed to identify weight loss and densification of the material. The discs (sintered at 1150 °C) of c-Ta-LLZO exhibited a relative density of 96% without any large open pores on the surface or inside the structure.
The optimized synthesis process can be theoretically scaled up for larger industrial production, without alterations. Cells prepared from the sintered discs demonstrated promising electronic (3.94 × 10−10 S cm−1) and ionic conductivity (1.96 × 10−4 S cm−1) values, making them suitable as solid electrolytes for next-generation solid-state Li-ion batteries. Critical current density measurements indicated that c-Ta-LLZO performed well up to 0.09 mA cm−2, but polarization was observed at a current density of 0.12 mA cm−2, attributed to the growth of lithium dendrites via grain boundaries.
The synthesis process was optimized for laboratory-scale production, up to ~250 g of pre-sintered LLZO per batch. This powder is strongly recommended as a source for producing phase-pure c-Ta-LLZO using tape casting and 3D printing processes. Although 250 g batch sizes were produced in this study, scaling up to several kg batches is feasible.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/batteries9110554/s1: Figure S1: Schematic representation of the experimental process of Ta:LLZO; Figure S2a–d: TG and DTA of wet-milled La2O3, Ta2O5, ZrO2, and Li2CO3 powder.

Author Contributions

Conceptualization, G.B., T.G. and F.C.; methodology, Y.L., D.K. (Diwakar Karuppiah), D.K. (Dmitrii Komissarenko) and A.H.; validation, N.S.Y. and A.H.; formal analysis, D.K. (Diwakar Karuppiah), D.K. (Dmitrii Komissarenko) and N.S.Y.; investigation, D.K. (Diwakar Karuppiah), Y.L. and P.V.W.S.; resources, G.B. and T.G.; data curation, D.K. (Diwakar Karuppiah) and P.V.W.S.; writing—original draft preparation, D.K. (Diwakar Karuppiah); writing—review and editing, G.B. and N.S.Y.; visualization, N.S.Y. and P.V.W.S.; supervision, G.B. and F.C.; project administration, G.B.; funding acquisition, G.B. and T.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partially funded by Innosuisse, the Swiss Innovation Agency, under project title “CAMELOT”, funding agreement number 31236.1 IP-EE.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

Author Pradeep Vallachira Warriam Sasikumar is employed by the ADVANO. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Shen, F.; Guo, W.; Zeng, D.; Sun, Z.; Gao, J.; Li, J.; Zhao, B.; He, B.; Han, X. A Simple and Highly Efficient Method toward High-Density Garnet-Type LLZTO Solid-State Electrolyte. ACS Appl. Mater. Interfaces 2020, 12, 30313–30319. [Google Scholar] [CrossRef] [PubMed]
  2. Rangasamy, E.; Wolfenstine, J.; Sakamoto, J. The role of Al and Li concentration on the formation of cubic garnet solid electrolyte of nominal composition Li7La3Zr2O12. Solid State Ion. 2012, 206, 28–32. [Google Scholar] [CrossRef]
  3. Buannic, L.; Orayech, B.; López Del Amo, J.-M.; Carrasco, J.; Katcho, N.A.; Aguesse, F.; Manalastas, W.; Zhang, W.; Kilner, J.; Llordés, A. Dual Substitution Strategy to Enhance Li+ Ionic Conductivity in Li7La3Zr2O12 Solid Electrolyte. Chem. Mater. 2017, 29, 1769–1778. [Google Scholar] [CrossRef]
  4. Xue, J.; Zhang, K.; Chen, D.; Zeng, J.; Luo, B. Spark plasma sintering plus heat-treatment of Ta-doped Li7La3Zr2O12 solid electrolyte and its ionic conductivity. Mater. Res. Express 2020, 7, 025518. [Google Scholar] [CrossRef]
  5. Clemenceau, T.; Andriamady, N.; Kumar, M.K.; Badran, A.P.; Avila, V.; Dahl, K.; Hopkins, M.; Vendrell, X.; Marshall, D.; Raj, R. Flash sintering of Li-ion conducting ceramic in a few seconds at 850 °C. Scr. Mater. 2019, 172, 1–5. [Google Scholar] [CrossRef]
  6. Zhang, Y.; Chen, F.; Tu, R.; Shen, Q.; Zhang, L. Field assisted sintering of dense Al-substituted cubic phase Li7La3Zr2O12 solid electrolytes. J. Power Sources 2014, 268, 960–964. [Google Scholar] [CrossRef]
  7. Li, H.-Y.; Huang, B.; Huang, Z.; Wang, C.-A. Enhanced mechanical strength and ionic conductivity of LLZO solid electrolytes by oscillatory pressure sintering. Ceram. Int. 2019, 45, 18115–18118. [Google Scholar] [CrossRef]
  8. Yang, L.; Dai, Q.; Liu, L.; Shao, D.; Luo, K.; Jamil, S.; Liu, H.; Luo, Z.; Chang, B.; Wang, X. Rapid sintering method for highly conductive Li7La3Zr2O12 ceramic electrolyte. Ceram. Int. 2020, 46, 10917–10924. [Google Scholar] [CrossRef]
  9. Kravchyk, K.V.; Karabay, D.T.; Kovalenko, M.V. On the feasibility of all-solid-state batteries with LLZO as a single electrolyte. Sci. Rep. 2022, 12, 1177. [Google Scholar] [CrossRef]
  10. Xiang, X.; Chen, F.; Shen, Q.; Zhang, L.; Chen, C. Effect of the lithium ion concentration on the lithium ion conductivity of Ga-doped LLZO. Mater. Res. Express 2019, 6, 085546. [Google Scholar] [CrossRef]
  11. Yi, E.; Wang, W.; Kieffer, J.; Laine, R.M. Flame made nanoparticles permit processing of dense, flexible, Li+ conducting ceramic electrolyte thin films of cubic-Li7La3Zr2O12 (c-LLZO). J. Mater. Chem. A 2016, 4, 12947–12954. [Google Scholar] [CrossRef]
  12. Badami, P.; Smetaczek, S.; Limbeck, A.; Rettenwander, D.; Chan, C.K.; Kannan, A.N.M. Facile synthesis of Al-stabilized lithium garnets by a solution-combustion technique for all solid-state batteries. Mater. Adv. 2021, 2, 5181–5188. [Google Scholar] [CrossRef]
  13. Jiang, Y.; Zhou, Y.; Hu, Z.; Huang, Y.; Zhu, X. MgO or Al2O3 crucible: Which is better for the preparation of LLZ-based solid electrolytes? Ceram. Int. 2020, 46, 3367–3373. [Google Scholar] [CrossRef]
  14. Cao, Y.; Li, Y.-Q.; Guo, X.-X. Densification and lithium ion conductivity of garnet-type Li7La3Zr2−xTaxO12 (x = 0.25) solid electrolytes. Chin. Phys. B 2013, 22, 078201. [Google Scholar] [CrossRef]
  15. Weller, J.M.; Whetten, J.A.; Chan, C.K. Synthesis of fine cubic Li7La3Zr2O12 powders in molten LiCl–KCl eutectic and facile densification by reversal of Li+/H+ exchange. ACS Appl. Energy Mater. 2018, 1, 552–560. [Google Scholar] [CrossRef]
  16. Xia, W.; Xu, B.; Duan, H.; Guo, Y.; Kang, H.; Li, H.; Liu, H. Ionic conductivity and air stability of Al-doped Li7La3Zr2O12 sintered in alumina and Pt crucibles. ACS Appl. Mater. Interfaces 2016, 8, 5335–5342. [Google Scholar] [CrossRef] [PubMed]
  17. Huang, X.; Lu, Y.; Guo, H.; Song, Z.; Xiu, T.; Badding, M.E.; Wen, Z. None-mother-powder method to prepare dense Li-garnet solid electrolytes with high critical current density. ACS Appl. Energy Mater. 2018, 1, 5355–5365. [Google Scholar] [CrossRef]
  18. Sato, M.; Garcia-Mendez, R.; Sakamoto, J. Mapping hot-pressed Li6.25Al0.25La3Zr2O12 (LLZO) grains and grain boundaries through a simple thermal grooving technique. J. Asian Ceram. Soc. 2020, 8, 793–803. [Google Scholar] [CrossRef]
  19. Cheng, L.; Wu, C.H.; Jarry, A.; Chen, W.; Ye, Y.; Zhu, J.; Kostecki, R.; Persson, K.; Guo, J.; Salmeron, M.; et al. Interrelationships among grain size, surface composition, air stability, and interfacial resistance of Al-substituted Li7La3Zr2O12 solid electrolytes. ACS Appl. Mater. Interfaces 2015, 7, 17649–17655. [Google Scholar] [CrossRef]
  20. Heo, T.W.; Grieder, A.; Wang, B.; Wood, M.; Hsu, T.; Akhade, S.A.; Wan, L.F.; Chen, L.-Q.; Adelstein, N.; Wood, B.C. Microstructural impacts on ionic conductivity of oxide solid electrolytes from a combined atomistic-mesoscale approach. npj Comput. Mater. 2021, 7, 214. [Google Scholar] [CrossRef]
  21. Inada, R.; Takeda, A.; Yamazaki, Y.; Miyake, S.; Sakurai, Y.; Thangadurai, V. Effect of postannealing on the properties of a Ta-doped Li7La3Zr2O12 solid electrolyte degraded by Li dendrite penetration. ACS Appl. Energy Mater. 2020, 3, 12517–12524. [Google Scholar] [CrossRef]
  22. Fritsch, C.; Zinkevich, T.; Indris, S.; Etter, M.; Baran, V.; Bergfeldt, T.; Knapp, M.; Ehrenberg, H.; Hansen, A.-L. Garnet to hydrogarnet: Effect of post synthesis treatment on cation substituted LLZO solid electrolyte and its effect on Li ion conductivity. RSC Adv. 2021, 11, 30283–30294. [Google Scholar] [CrossRef] [PubMed]
  23. Huang, Z.; Liu, K.; Chen, L.; Lu, Y.; Li, Y.; Wang, C.-A. Sintering behavior of garnet-type Li6.4La3Zr1.4Ta0.6O12 in Li2CO3 atmosphere and its electrochemical property. Int. J. Appl. Ceram. Technol. 2017, 14, 921–927. [Google Scholar] [CrossRef]
  24. Zhang, Y.; Deng, J.; Hu, D.; Chen, F.; Shen, Q.; Zhang, L.; Dong, S. Synergistic regulation of garnet-type Ta-doped Li7La3Zr2O12 solid electrolyte by Li+ concentration and Li+ transport channel size. Electrochim. Acta 2019, 296, 823–829. [Google Scholar] [CrossRef]
  25. Yi, M.; Liu, T.; Wang, X.; Li, J.; Wang, C.; Mo, Y. High densification and Li-ion conductivity of Al-free Li7-xLa3Zr2−xTaxO12 garnet solid electrolyte prepared by using ultrafine powders. Ceram. Int. 2019, 45, 786–792. [Google Scholar] [CrossRef]
  26. Ramakumar, S.; Deviannapoorani, C.; Dhivya, L.; Shankar, L.S.; Murugan, R. Lithium garnets: Synthesis, structure, Li+ conductivity, Li+ dynamics and applications. Prog. Mater. Sci. 2017, 88, 325–411. [Google Scholar] [CrossRef]
  27. Zeier, W.G.; Zhou, S.; Lopez-Bermudez, B.; Page, K.; Melot, B.C. Dependence of the Li-Ion Conductivity and Activation Energies on the Crystal Structure and Ionic Radii in Li6MLa2Ta2O12. ACS Appl. Mater. Interfaces 2014, 6, 10900–10907. [Google Scholar] [CrossRef]
  28. Miara, L.J.; Ong, S.P.; Mo, Y.; Richards, W.D.; Park, Y.; Lee, J.-M.; Lee, H.S.; Ceder, G. Effect of Rb and Ta Doping on the Ionic Conductivity and Stability of the Garnet Li7+2x–y(La3–xRbx)(Zr2–yTay)O12 (0 ≤ x ≤ 0.375, 0 ≤ y ≤ 1) Superionic Conductor: A First Principles Investigation. Chem. Mater. 2013, 25, 3048–3055. [Google Scholar] [CrossRef]
  29. Gajraj, V.; Kumar, A.; Indris, S.; Ehrenberg, H.; Kumar, N.; Mariappan, C.R. Influence of Al on the structure and ion transport in garnet-type Li7La3−xAlxZr2O12 solid electrolytes for Li-ion batteries. Ceram. Int. 2022, 48, 29238–29246. [Google Scholar] [CrossRef]
  30. Gonzalez Puente, P.M.; Song, S.; Cao, S.; Rannalter, L.Z.; Pan, Z.; Xiang, X.; Shen, Q.; Chen, F. Garnet-type solid electrolyte: Advances of ionic transport performance and its application in all-solid-state batteries. J. Adv. Ceram. 2021, 10, 933–972. [Google Scholar] [CrossRef]
  31. Larraz, G.; Orera, A.; Sanjuán, M.L. Cubic phases of garnet-type Li7La3Zr2O12: The role of hydration. J. Mater. Chem. A 2013, 1, 11419–11428. [Google Scholar] [CrossRef]
  32. Hirose, E.; Niwa, K.; Kataoka, K.; Akimoto, J.; Hasegawa, M. Structural stability of the Li-ion conductor Li7La3Zr2O12 investigated by high-pressure in-situ X-ray diffraction and Raman spectroscopy. Mater. Res. Bull. 2018, 107, 361–365. [Google Scholar] [CrossRef]
  33. Rettenwander, D.; Welzl, A.; Cheng, L.; Fleig, J.; Musso, M.; Suard, E.; Doeff, M.M.; Redhammer, G.J.; Amthauer, G. Synthesis, crystal chemistry, and electrochemical properties of Li7–2xLa3Zr2–xMoxO12 (x = 0.1–0.4): Stabilization of the cubic garnet polymorph via substitution of Zr4+ by Mo6+. Inorg. Chem. 2015, 54, 10440–10449. [Google Scholar] [CrossRef] [PubMed]
  34. Sharafi, A.; Yu, S.; Naguib, M.; Lee, M.; Ma, C.; Meyer, H.M.; Nanda, J.; Chi, M.; Siegel, D.J.; Sakamoto, J. Impact of air exposure and surface chemistry on Li–Li7La3Zr2O12 interfacial resistance. J. Mater. Chem. A 2017, 5, 13475–13487. [Google Scholar] [CrossRef]
  35. Rustad, J.R. The effect of tetrahedral versus octahedral network-blocking atom substitutions on lithium ion conduction in LLZO garnet. arXiv 2016, arXiv:1605.08598. [Google Scholar]
  36. Zhu, Y.; Connell, J.G.; Tepavcevic, S.; Zapol, P.; Garcia-Mendez, R.; Taylor, N.J.; Sakamoto, J.; Ingram, B.J.; Curtiss, L.A.; Freeland, J.W.; et al. Dopant-dependent stability of garnet solid electrolyte interfaces with lithium metal. Adv. Energy Mater. 2019, 9, 1803440. [Google Scholar] [CrossRef]
  37. Huang, X.; Lu, Y.; Song, Z.; Rui, K.; Wang, Q.; Xiu, T.; Badding, M.E.; Wen, Z. Manipulating Li2O atmosphere for sintering dense Li7La3Zr2O12 solid electrolyte. Energy Storage Mater. 2019, 22, 207–217. [Google Scholar] [CrossRef]
  38. Deng, Y.-F.; Zhao, S.-X.; Xu, Y.-H.; Nan, C.-W. Effect of the morphology of Li–La–Zr–O solid electrolyte coating on the electrochemical performance of spinel LiMn1.95Ni0.05O3.98F0.02 cathode materials. J. Mater. Chem. A 2014, 2, 18889–18897. [Google Scholar] [CrossRef]
  39. Zhu, Y.; Zhang, J.; Li, W.; Xue, Y.; Yang, J.; Li, S. Realization of superior ionic conductivity by manipulating the atomic rearrangement in Al-doped Li7La3Zr2O12. Ceram. Int. 2023, 49, 10462–10470. [Google Scholar] [CrossRef]
  40. Hahn, M.; Rosenbach, D.; Krimalowski, A.; Nazarenus, T.; Moos, R.; Thelakkat, M.; Danzer, M.A. Investigating solid polymer and ceramic electrolytes for lithium-ion batteries by means of an extended Distribution of Relaxation Times analysis. Electrochim. Acta 2020, 344, 136060. [Google Scholar] [CrossRef]
  41. Chen, X.; Li, L.; Liu, M.; Huang, T.; Yu, A. Detection of lithium plating in lithium-ion batteries by distribution of relaxation times. J. Power Sources 2021, 496, 229867. [Google Scholar] [CrossRef]
  42. Iurilli, P.; Brivio, C.; Carrillo, R.E.; Wood, V. EIS2MOD: A DRT-based modeling framework for li-ion cells. IEEE Trans. Ind. Appl. 2021, 58, 1429–1439. [Google Scholar] [CrossRef]
  43. Flatscher, F.; Philipp, M.; Ganschow, S.; Wilkening, H.M.R.; Rettenwander, D. The natural critical current density limit for Li7La3Zr2O12 garnets. J. Mater. Chem. A 2020, 8, 15782–15788. [Google Scholar] [CrossRef]
  44. Jiang, W.; Dong, L.; Liu, S.; Ai, B.; Zhao, S.; Zhang, W.; Pan, K.; Zhang, L. Improvement of the interface between the lithium anode and a garnet-type solid electrolyte of lithium batteries using an aluminum-nitride layer. Nanomaterials 2022, 12, 2023. [Google Scholar] [CrossRef]
Batteries 09 00554 g001

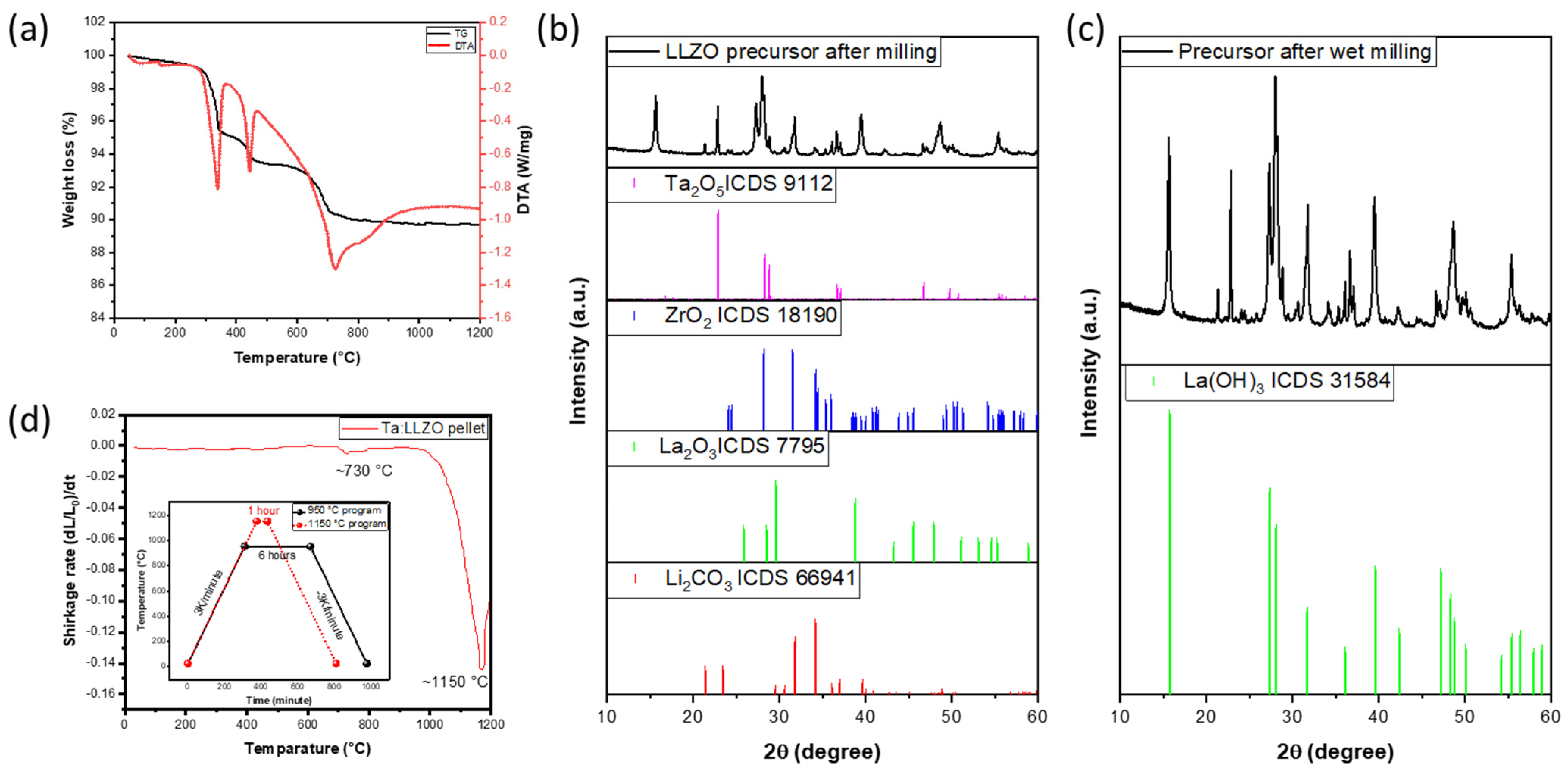

Figure 1. (a) TG/DTA analysis of Ta-LLZO precursor after wet milling process, (b) XRD patterns of wet-milled powder and starting materials, (c) comparison of XRD patterns of reference La(OH)3 (ICSD 31584) with wet-milled powder, and (d) constant heat rate dilatometry of Ta-LLZO conducted (RT-1200 °C) in an argon atmosphere (shrinkage rate as a function of temperature) in a two-step thermal process.
Figure 1. (a) TG/DTA analysis of Ta-LLZO precursor after wet milling process, (b) XRD patterns of wet-milled powder and starting materials, (c) comparison of XRD patterns of reference La(OH)3 (ICSD 31584) with wet-milled powder, and (d) constant heat rate dilatometry of Ta-LLZO conducted (RT-1200 °C) in an argon atmosphere (shrinkage rate as a function of temperature) in a two-step thermal process.
Batteries 09 00554 g001
Batteries 09 00554 g002
Figure 2. (a) XRD patterns of sample calcined at 950 °C (pellet) and 1150 °C (disc), (b) Rietveld refinement of c-Ta-LLZO disc after thermal processing at 1150 °C in MgO crucible, (c) lattice parameters as a function of Ta concentration, and (d) XRD patterns of the prepared Ta-LLZO discs using Al2O3 or MgO crucibles after sintering at 1150 °C for 1 h.
Figure 2. (a) XRD patterns of sample calcined at 950 °C (pellet) and 1150 °C (disc), (b) Rietveld refinement of c-Ta-LLZO disc after thermal processing at 1150 °C in MgO crucible, (c) lattice parameters as a function of Ta concentration, and (d) XRD patterns of the prepared Ta-LLZO discs using Al2O3 or MgO crucibles after sintering at 1150 °C for 1 h.
Batteries 09 00554 g002
Batteries 09 00554 g003

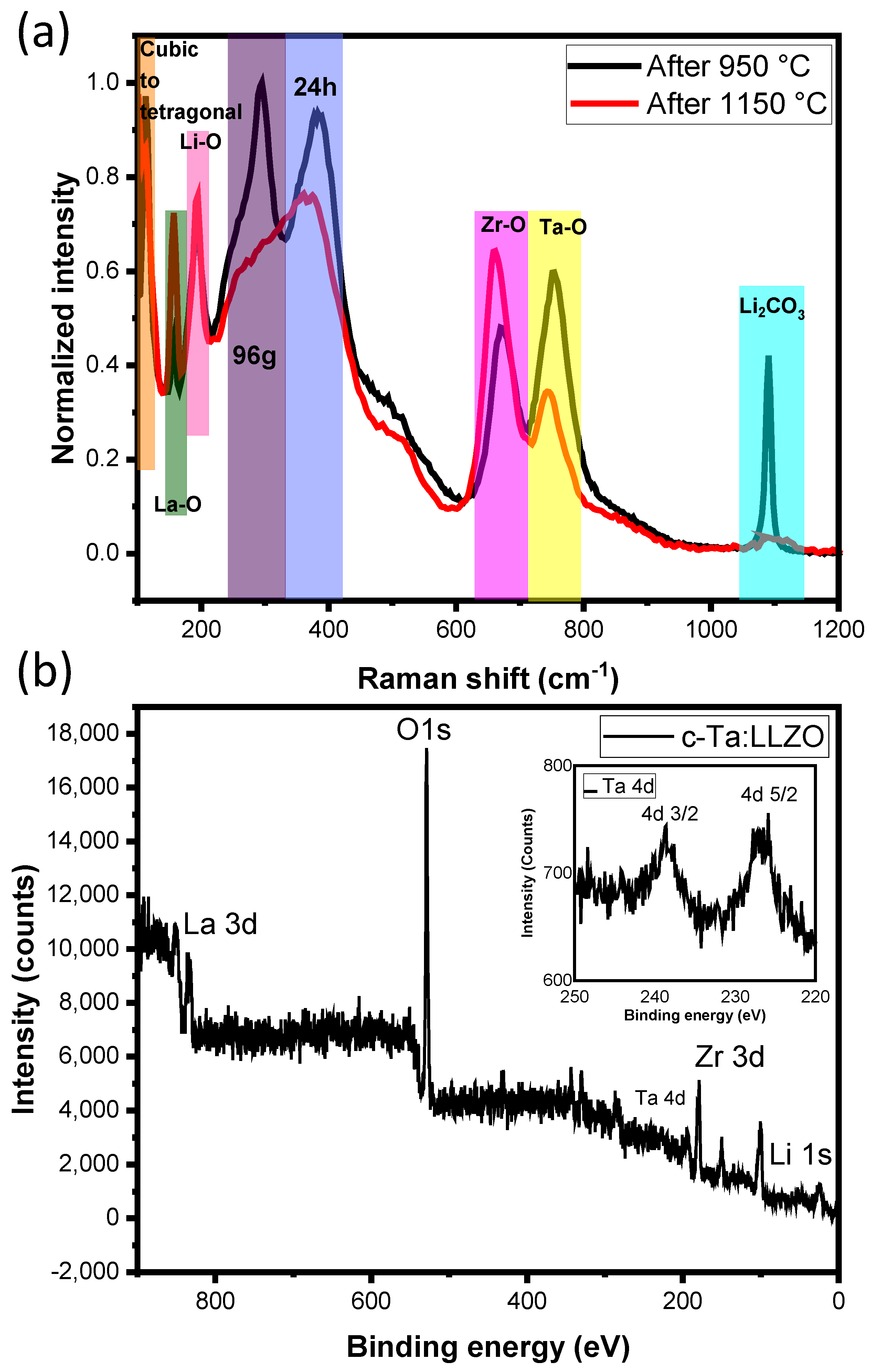

Figure 3. (a) Raman spectra of c-Ta-LLZO after heat treatment at 950 °C (pellet) and 1150 °C (disc); (b) X-ray photoelectron spectroscopy of c-Ta-LLZO after heat treatment at 1150 °C (inset: Ta 4d spectrum).
Figure 3. (a) Raman spectra of c-Ta-LLZO after heat treatment at 950 °C (pellet) and 1150 °C (disc); (b) X-ray photoelectron spectroscopy of c-Ta-LLZO after heat treatment at 1150 °C (inset: Ta 4d spectrum).
Batteries 09 00554 g003
Batteries 09 00554 g004
Figure 4. SEM microstructure image of c-Ta-LLZO (a), pellet (after 950 °C) (b), and (c) discs (1150 °C).
Figure 4. SEM microstructure image of c-Ta-LLZO (a), pellet (after 950 °C) (b), and (c) discs (1150 °C).
Batteries 09 00554 g004
Batteries 09 00554 g005

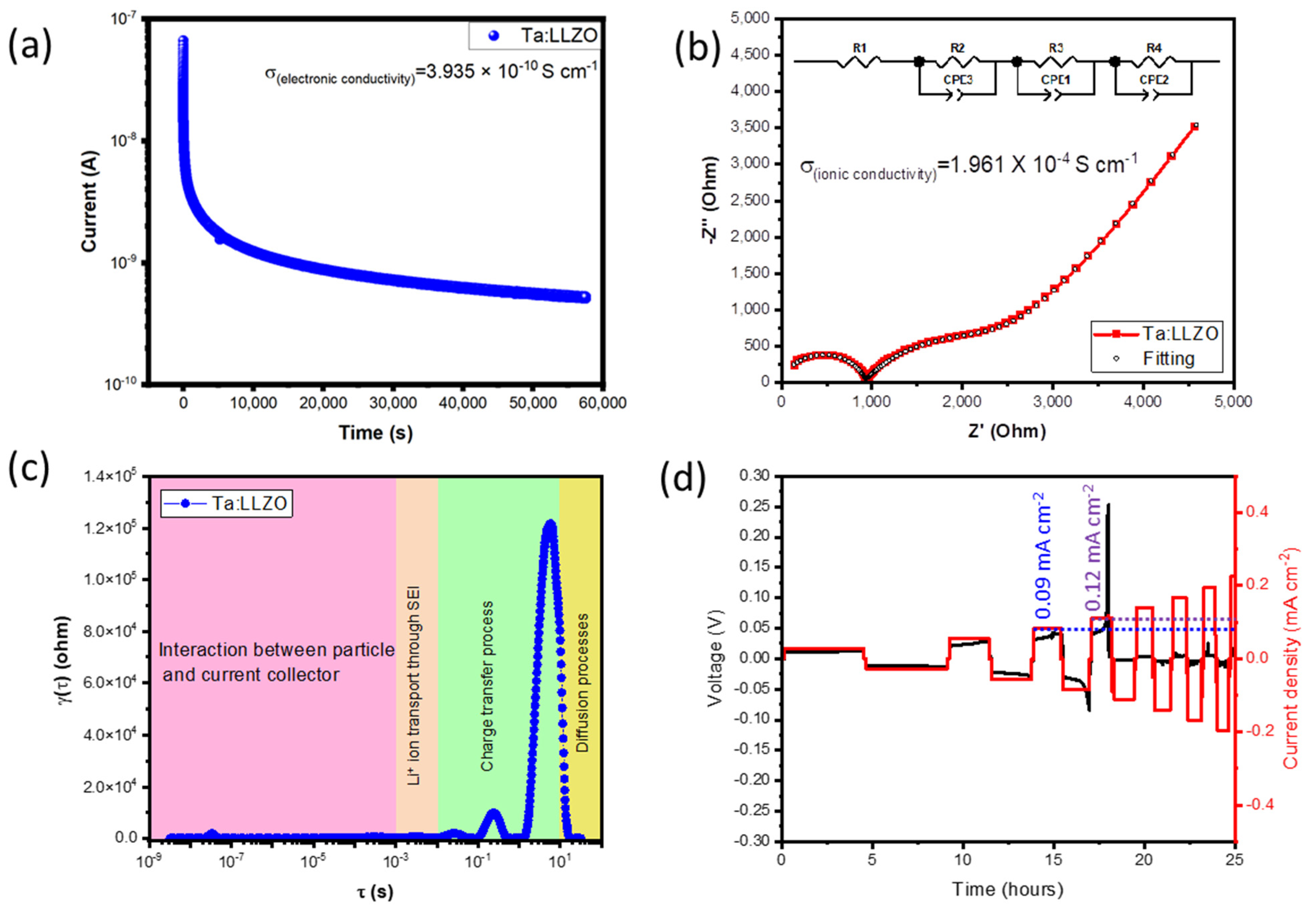

Figure 5. (a) Chronoamperometry measurement, (b) EIS measurement, (c) Differential relaxation time analysis, and (d) Critical current density measurement of c-Ta-LLZO pellets.
Figure 5. (a) Chronoamperometry measurement, (b) EIS measurement, (c) Differential relaxation time analysis, and (d) Critical current density measurement of c-Ta-LLZO pellets.
Batteries 09 00554 g005
