Comparison among Constituent Phases in Superlattice Metal Hydride Alloys for Battery Applications

Abstract

The effects of seven constituent phases—CeNi₃, NdNi₃, Nd₂Ni₇, Pr₂Ni₇, Sm₅Ni₁₉, Nd₅Co₁₉, and CaCu₅—on the gaseous phase and electrochemical characteristics of a superlattice metal hydride alloy made by induction melting with a composition of Sm₁₄La_5.7Mg_4.0Ni₇₃Al_3.3 were studied through a series of annealing experiments. With an increase in annealing temperature, the abundance of non-superlattice CaCu₅ phase first decreases and then increases, which is opposite to the phase abundance evolution of Nd₂Ni₇—the phase with the best electrochemical performance. The optimal annealing condition for the composition in this study is 920 °C for 5 h. Extensive correlation studies reveal that the A₂B₇ phase demonstrates higher gaseous phase hydrogen storage and electrochemical discharge capacities and better battery performance in high-rate dischargeability, charge retention, and cycle life. Moreover, the hexagonal stacking structure is found to be more favorable than the rhombohedral structure.

1. Introduction

Misch metal (Mm, a mixture of more than one rare earth element)-based superlattice metal hydride (MH) alloys are very important for today’s nickel/metal hydride (Ni/MH) batteries, because of their higher hydrogen storage (H-storage) capacity, better high-rate dischargeability (HRD) capability, superior low-temperature and charge retention performances, and improved cycle stability [1,2,3,4,5,6,7,8]. The three main components in the superlattice alloy can be classified by chemical stoichiometry—or more precisely, the B/A ratio—and they are AB₃, A₂B₇, and A₅B₁₉. In each component, there are two different types of structures—hexagonal and rhombohedral, depending on the stacking sequence for the A₂B₄ slabs (illustrated in pink in Figure 1). Each A₂B₄ slab shifts on the ab-plane by 1/3 $\overrightarrow{a}$ and 1/3 $\overrightarrow{b}$ from its neighbor. Studies on superlattice alloys began with the structure [9] and gaseous phase (GP) H-storage characteristics of the single rare earth element (RE)-based AB₃ alloys [10,11,12] and soon shifted to the Mm-based A₂B₇ chemistry for battery applications [13,14,15,16]. Some researchers continued to work on RE-based AB₃ chemistry for its basic electrochemical (EC) properties [17,18,19,20,21,22]. In the meantime, RE-based A₅B₁₉ was also highly promoted for battery applications [23,24,25,26,27]. Several comparative works on the EC performances of various superlattice phases were previously reported and are summarized as follows. In a (LaMg)Ni_x (x = 3, 3.5, and 3.8) system, the capacity decreased, and both HRD and cycle stability increased with the increase of x from 3 to 3.5 and finally 3.8 [28]. In a (LaY)(NiMnAl)_x (x = 3, 3.5, and 3.8) system, both capacity and cycle stability reached the maximum at x = 3.5, and HRD increased with the increase in x [29]. The EC properties of the Mm-based AB_x (where A is Mm, B is a combination of several transition metals and Al, and x = 2, 3, 3.5, 3.8, and 5) were compared, and A₂B₇ showed the best overall performance [30,31], which prompted many investigations in the A₂B₇ superlattice alloys [32,33,34,35,36,37]. However, no data were provided to support the comparative work. Therefore, in this work we detail the correlations between the constituent phase abundances and various properties.

Annealing has been used to effectively alter the phase components in the AB [38,39], AB₂ [40,41,42,43], AB₃ [44,45,46,47], A₂B₇ [48,49,50,51], A₅B₁₉ [52], AB₅ [53,54,55], A₈B₂₁ [56,57], and body-centered-cubic (bcc) [58] MH alloys. According to first-principle calculations on superlattice MH alloy systems, the preferable phase abundance can be influenced by the starting composition and annealing condition [59,60]. For example, the A₂B₇ phase is more stable than the mixture of the AB₃ and AB₅ phases in the La₃MgNi₁₄ alloy, however, the opposite is true in the La₂CeMgNi₁₄ alloy [60]. Therefore, while annealing increased the A₂B₇ phase abundance in the La-based superlattice alloy [61], it promoted phase segregation in the LaPrNd-based alloy [62]. Moreover, phase segregation is more prominent in the Mm-based (A is more than one RE element) superlattice alloys than in the RE-based (A is only one RE element) alloys. In this work, annealing is applied to engineer the abundances of constituent components in a SmLa-based superlattice alloy, and the correlations of phase abundances with the GP and EC properties are reported.

2. Experimental Setup

First, Eutectix (Troy, MI, USA) prepared a 250 kg ingot using the conventional induction melting method [31]. Five 2 kg ingot pieces were annealed in 1 atm atmosphere of Ar for 5 h at different temperatures. Each ingot was hydrided and then crushed and ground into the size of −200 mesh. Chemical compositions of ingots before and after annealing were verified with a Varian Liberty 100 inductively coupled plasma-optical emission spectrometer (ICP-OES, Agilent Technologies, Santa Clara, CA, USA). A Philips X’Pert Pro X-ray diffractometer (XRD, Amsterdam, The Netherlands) and a JEOL-JSM6320F scanning electron microscope (SEM, Tokyo, Japan) with energy dispersive spectroscopy (EDS) was used to conduct microstructure analysis. GP H-storage characteristics were evaluated with a Suzuki-Shokan multi-channel pressure-concentration-temperature system (PCT, Tokyo, Japan). Negative electrodes were fabricated by compacting the alloy powder onto an expanded nickel substrate through a roll mill without any binder. Half-cell measurements were performed using a CTE MCL2 Mini cell testing system (Chen Tech Electric MFG. Co., Ltd., New Taipei, Taiwan) with a partially pre-charged Ni(OH)₂ positive electrode and a 30% KOH electrolyte. The electrode was first charged with a current density of 100 mA·g⁻¹ for 4 h and then discharged with a current density of 400 mA·g⁻¹ until a cutoff voltage of 0.9 V was reached. More discharges at smaller current densities (300, 200, 100, 50, and 5 mA·g⁻¹) with the same cutoff voltage were performed afterward with a 2 min rest in between. The sum of capacities from six discharge stages was used as the full discharge capacity. The HRD was defined as the ratio of the capacity obtained at the highest rate (400 mA·g⁻¹) vs. full discharge capacity. A Solartron 1250 Frequency Response Analyzer (Solartron Analytical, Leicester, UK) with a sine wave amplitude of 10 mV and a frequency range of 0.5 mHz to 10 kHz was used for the AC impedance measurement. A Digital Measurement Systems Model 880 vibrating sample magnetometer (MicroSense, Lowell, MA, USA) was used to measure the magnetic susceptibility of the alloy powder surface after activation, which was performed by immersing the powder in 30 wt % KOH solution at 100 °C for 4 h.

For the sealed cell testing, a C-size cylindrical cell was chosen. While the negative electrode was fabricated by dry compacting the alloy powder onto nickel mesh current collectors, the counter positive electrode was fabricated by pasting a mixture of 89% standard AP50 [63] with the composition of Ni_0.91Co_0.045Zn_0.045(OH)₂ (BASF—Ovonic, Rochester Hills, MI, USA), 5 wt % Co powder, and 6% CoO powder onto nickel foam substrates. Scimat 700/79 acrylic acid grafted polypropylene/polyethylene separators were used (Freudenberg Group, Weinheim, Germany). A 1.5 to 1.7 negative-to-positive capacity ratio cell design was used to maintain a good balance between the over-charge and over-discharge reservoirs [64]. A 30 wt % KOH solution with LiOH (1.5 wt %) additive was used as the electrolyte. Formation was performed with a six-cycle process using a Maccor Battery Cycler (Maccor, Tulsa, OK, USA). Details of cell testing can be found in an earlier publication [65].

3. Results and Discussion

The design compositions for this study are presented in

Table 1. Designed composition and ICP results in at%. B/A is the ratio of the B-atom (Ni and Al) to the A-atom (La, Sm, and Mg).

Alloy	Annealing Temperature	Source	La	Sm	Mg	Ni	Al	B/A
-	-	Design	5.7	14.0	4.0	73.0	3.3	3.2
A0	-	ICP	5.7	14.0	3.9	73.0	3.4	3.2
A1	880 °C	ICP	6.0	14.5	4.2	72.1	3.2	3.0
A2	900 °C	ICP	5.8	13.9	4.0	72.9	3.4	3.2
A3	920 °C	ICP	5.8	13.9	4.0	73.0	3.3	3.2
A4	940 °C	ICP	5.8	14.3	4.0	72.7	3.2	3.1
A5	960 °C	ICP	5.8	14.5	4.0	72.5	3.2	3.1

. Sm was chosen as the main RE element because it is relatively inexpensive (like La and Ce) and less oxidable (for a comparison to other RE elements, see Table 7 in [31]). However, the metal–hydrogen bond strength of the Sm-based superlattice MH alloy is too weak (Sm₂Ni₇ has a discharge capacity of 170 mAh·g⁻¹ [66]), and thus adding La is necessary to increase the storage capacity [67]. LaSm-based superlattice MH alloys with the La/Sm ratio above 1 were previously reported. While the AB₅ phase cannot be removed completely by annealing in those alloys, the AB₅ phase abundance still decreased with the increase in Sm-content [27,68,69,70,71,72]. In this experiment, a La/Sm ratio of 0.4 was adopted to attempt to suppress the AB₅ phase abundance. Two common constituent elements used in the AB₅ MH alloy, Mn and Co, are excluded in this study for better charge retention and cycle stability [1,73]. Al is included to prevent the hydrogenation-induced-amorphization in the superlattice MH alloys [36].

Five pieces of ingot from the induction melting were annealed at 880, 900, 920, 940, and 960 °C for 5 h in an Ar environment. Compositions of the as-cast (alloy A0) and annealed ingots (alloys A1 to A5) were measured by ICP, and the results are summarized in Table 1. ICP results reveal that the annealed ingots have similar Mg-content, but are slightly rich in La and lean in Ni.

3.1. Microsctructure Analysis

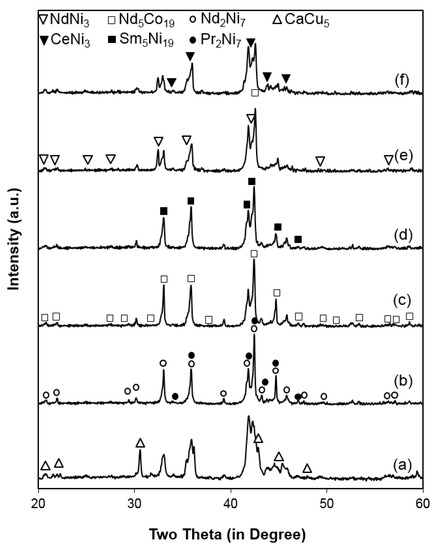

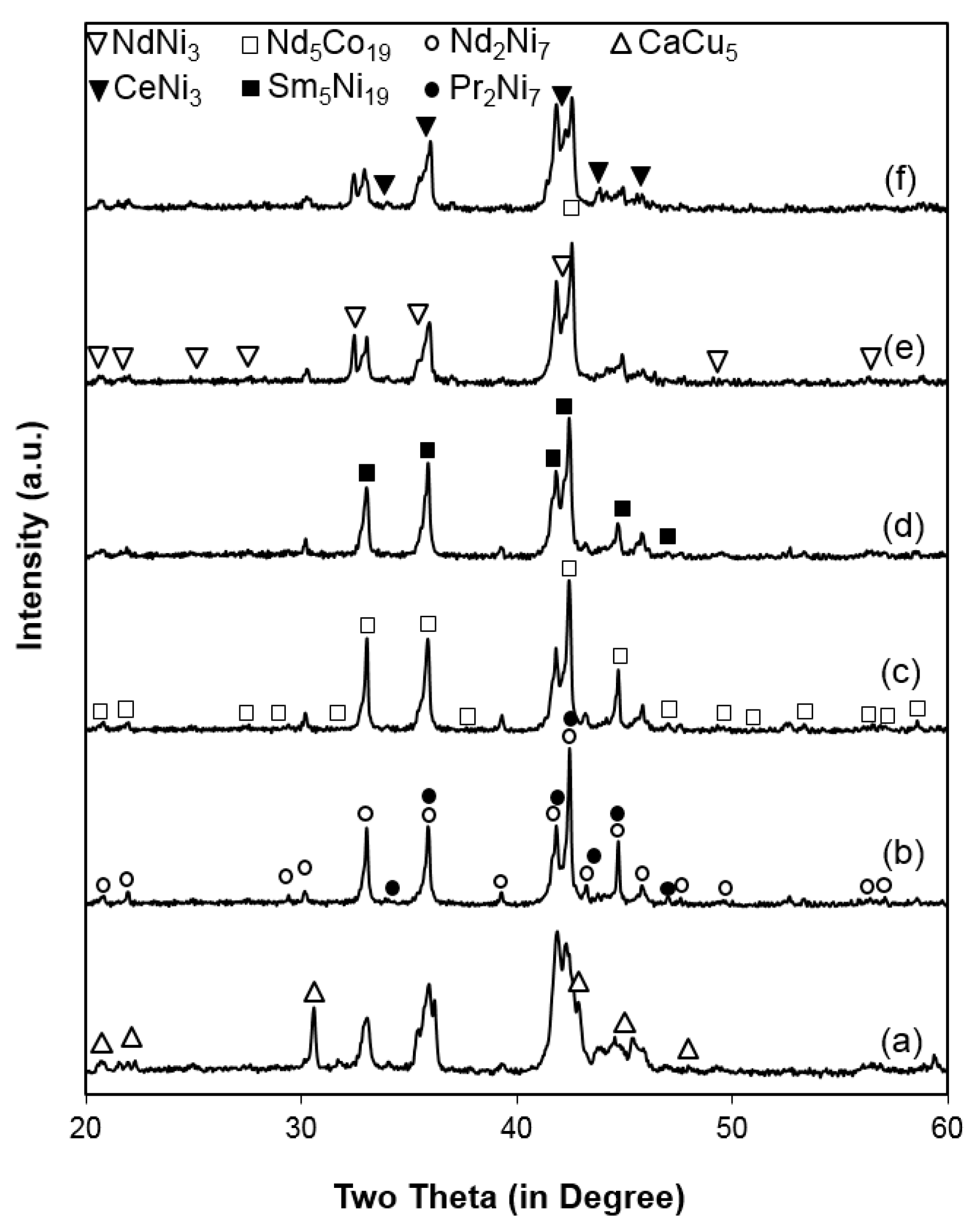

XRD patterns of alloys in this study are presented in Figure 2. These patterns show the typical multi-phase superlattice structures. By using the Jade 9.0 software (MDI, Livermore, CA, USA), we were able to deconvolute each pattern into its constituent phases, and the results are summarized in

Table 2. Abundances (in wt %) of the constituent phases obtained from the XRD data for hexagonal (H) and rhombohedral (R) systems.

Alloy	CeNi3 (H)	NdNi3 (R)	Nd2Ni7 (H)	Pr2Ni7 (R)	Sm5Ni19 (H)	Nd5Co19 (R)	CaCu5 (H)
A0	8.4	37.1	14.9	-	-	18.6	21.0
A1	20.8	8.6	50.4	10.0	-	10.2	-
A2	-	17.9	48.6	7.0	13.9	12.6	-
A3	-	18.5	52.4	4.8	11.9	12.5	-
A4	24.3	20.8	17.5	-	20.9	13.2	3.3
A5	24.3	27.7	15.9	-	12.5	15.5	4.2

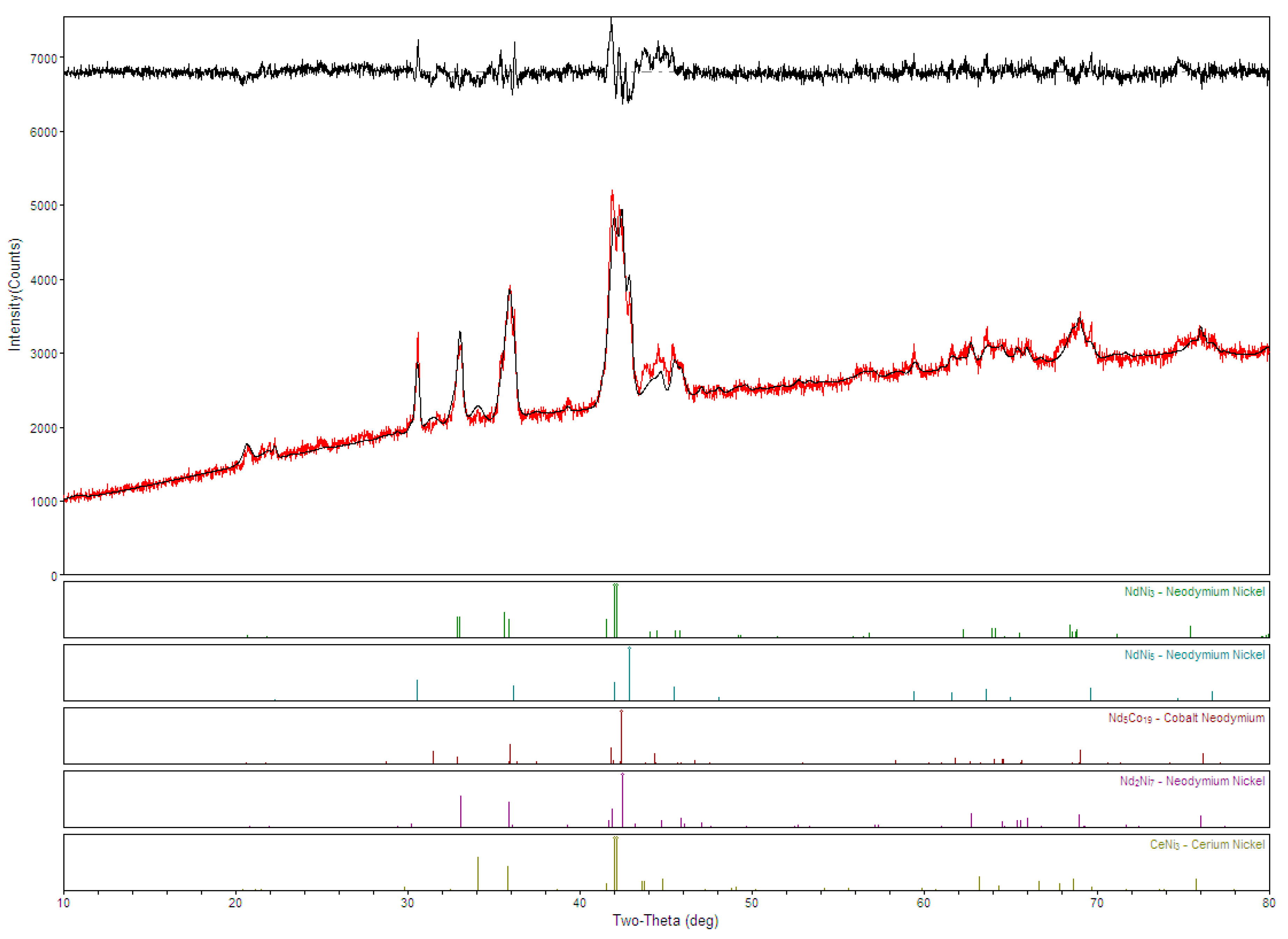

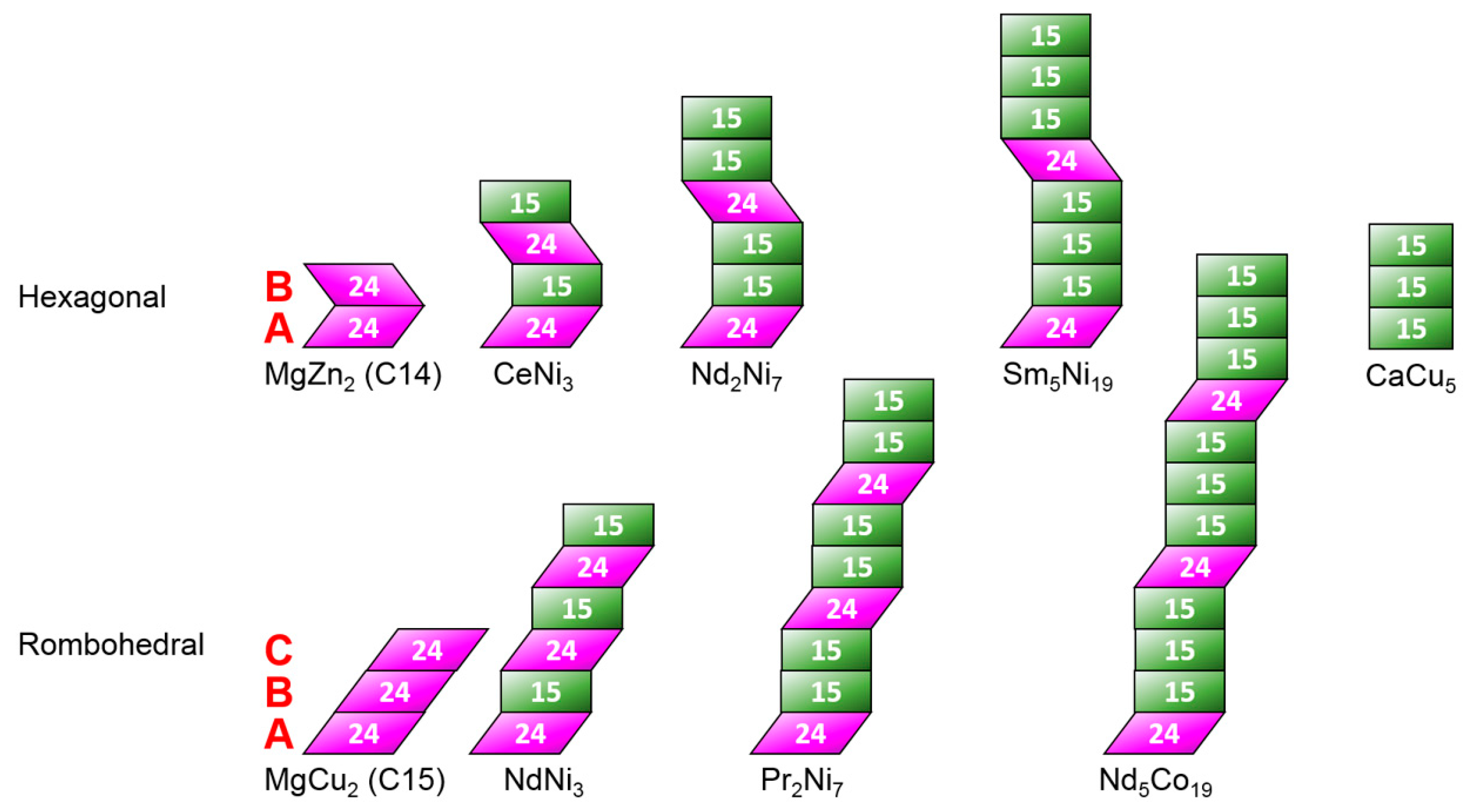

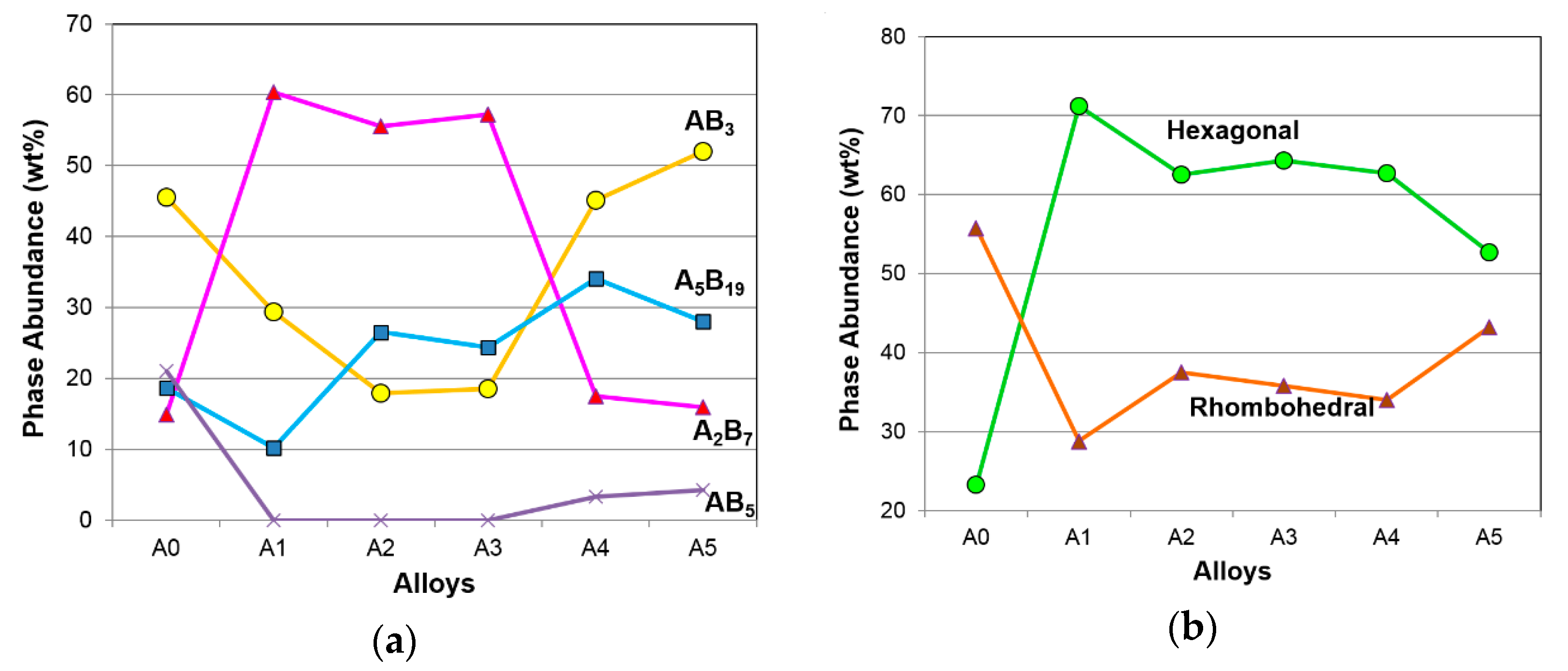

. One example of such deconvolution is plotted in Figure 3. There are two stacking structures for each stoichiometry (AB₃, A₂B₇, and A₅B₁₉)—hexagonal (H) and rhombohedral (R). Most of the phase transformations in the superlattice phases are through the peritectic reaction and are very sensitive to the annealing conditions (temperature and duration). From Table 2, it is clear that annealing initially suppresses the unwanted non-superlattice AB₅ phase, which decreases both the capacity and HRD [72,73]. However, further increases in annealing temperature promotes the formation of AB₅. Evolutions in phase stoichiometry (x value in AB_x) and stacking structure (hexagonal vs. rhombohedral) with different annealing temperatures are plotted in Figure 4. Annealing first increases the A₂B₇ abundance at the expense the AB₃ abundance, but further increases in annealing temperature decreases the A₂B₇ abundance. In comparison, the changes in A₅B₁₉ abundance are less obvious. For the stacking structure evolution, annealing first increases the hexagonal structure and then slowly decreases it as the annealing temperature increases (Figure 4b).

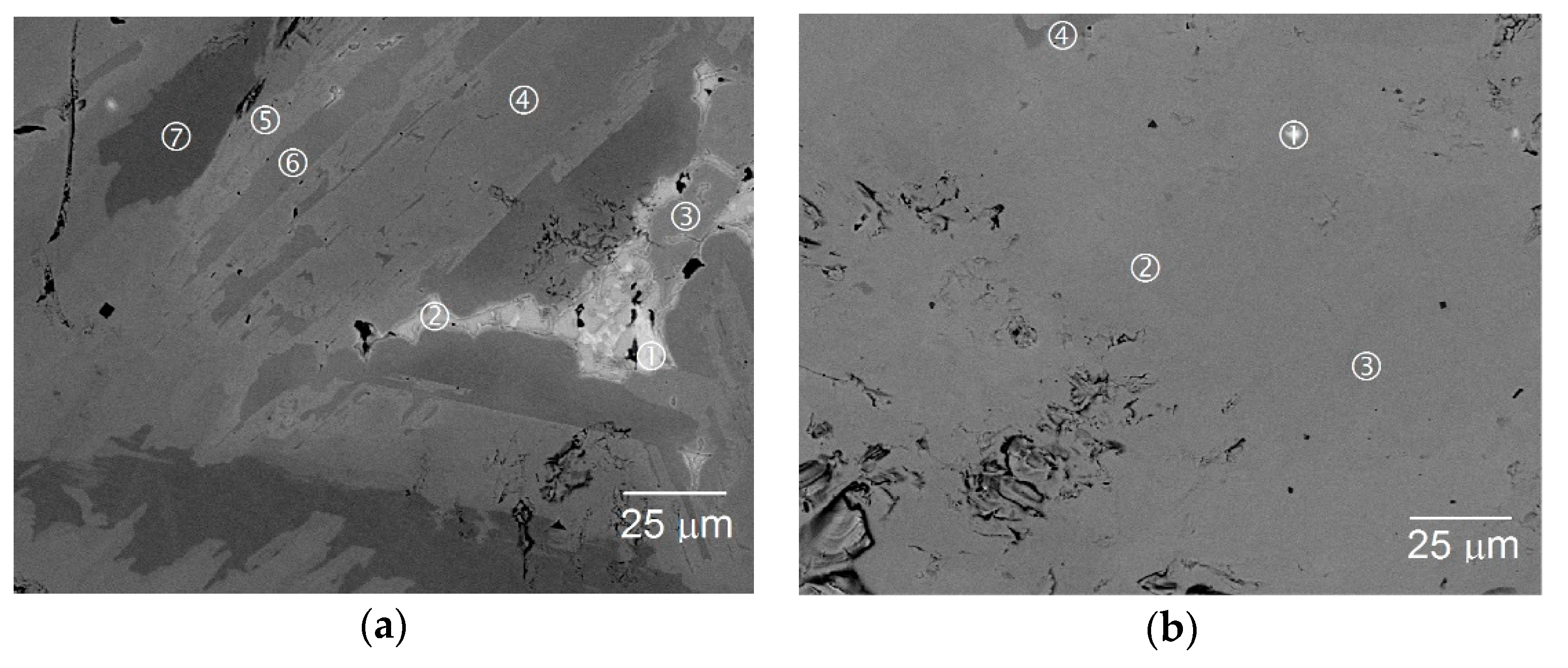

Representative SEM backscattering electron image (BEI) micrographs from alloys A0 (as-cast) and A3 (annealed at 920 °C) are compared in Figure 5. While obvious phase segregation can be observed in alloy A0 (Figure 5a), alloy A3 appears to be more uniform (Figure 5b). EDS was used to measure chemical compositions of several spots in each micrograph, and the results are summarized in

Table 3. Summary of EDS results from several selective spots in the SEM–BEI micrographs of alloys A0 and A3 shown in Figure 5a,b.

Sample	Location	La	Sm	Mg	Ni	Al	B/A	Phase
A0	3a-1	90.8	5.1	1.5	1.9	0.7	0.03	La
	3a-2	2.5	42.9	7.3	47.0	0.3	0.90	AB
	3a-3	9.3	13.6	5.2	65.7	6.2	2.56	AB2/AB3
	3a-4	4.1	15.3	5.4	71.6	3.6	3.03	AB3
	3a-5	3.4	15.0	4.4	73.6	3.6	3.39	AB3/A2B7/A5B19
	3a-6	7.2	14.3	13.5	63.7	1.2	1.85	AB2
	3a-7	3.5	14.0	0.6	78.3	3.6	4.52	AB5
A3	3b-1	27.9	61.0	2.7	7.3	1.1	0.09	La/Sm
	3b-2	5.1	14.4	5.1	71.1	4.3	3.07	AB3/A2B7
	3b-3	3.1	13.9	4.0	75.2	3.8	3.76	A2B7/A5B19
	3b-4	4.8	14.5	15.6	64.0	1.0	1.86	AB2

. In alloy A0 (Figure 5a), undissolved La (spot 1), the SmNi (spot 2), AB₃ (spot 4), AB₂ (spot 6) and AB₅ (spot 7) phases can be identified. The main phase (spot 5) is a mixture of the AB₃, A₂B₇, and A₅B₁₉ phases. In the annealed alloy A3, only occasional undissolved La and Sm (spot 1) and the AB₂ phase (spot 4) can be identified, and the majority is composed of a fine mixture of the AB₃, A₂B₇, and A₅B₁₇ phases (Figure 5b).

3.2. Gaseous Phase Hydrogen Storage

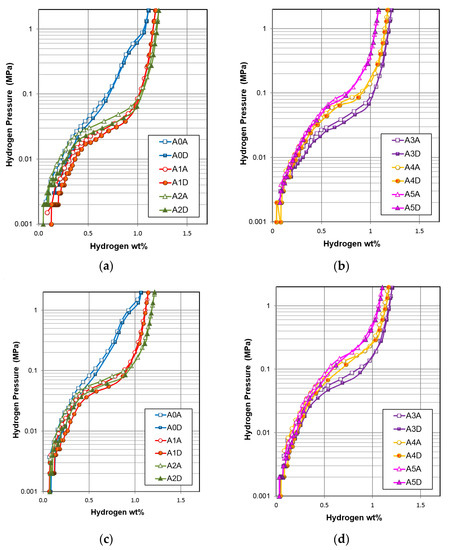

In this study, PCT analysis was used to examine hydrogen absorption/desorption characteristics of alloys, and the isotherms measured at 30 and 45 °C are plotted in Figure 6. While no obvious plateau is observed in the isotherms of alloy A0, isotherms of the annealed alloys show well-defined plateau regions. GP H-storage properties obtained from the PCT analysis are summarized in

Table 4. Summary of gaseous phase properties measured at 30 °C.

Gaseous Phase Properties	Unit	A0	A1	A2	A3	A4	A5
Capacity at 2 MPa	wt %	1.11	1.18	1.21	1.21	1.18	1.08
Reversible capacity	wt %	0.95	0.98	1.17	1.17	1.13	1.00
Desorption pressure	MPa	0.16	0.029	0.035	0.037	0.071	0.091
Slope factor	%	69	78	76	72	77	79
Hysteresis		0.17	0.16	0.22	0.17	0.08	0.09
–∆H	kJ·mol H2−1	25.8	38.8	35.2	33.6	31.8	39.3
–∆S	J·mol H2−1·K−1	89	118	107	102	102	129

. Both maximum and reversible capacities first increase and then decrease with an increase in annealing temperature, and the annealed alloys have higher storage capacities compared to the as-cast alloy A0. The desorption pressure at 0.75 wt % H-storage increases monotonically with an increase in annealing temperature. For the annealed alloys, the slope factor (ratio of the H-storage capacity between 0.02 and 0.5 MPa to the total reversible capacity) first decreases (more slanted, less uniform in composition [74]) and then increases (flatter and more uniform in composition) as the annealing temperature increases, but all are higher than that of the as-cast alloy A0. PCT hysteresis, defined as

$$\mathrm{PCT}\mathrm{hysteresis}=\ln \left(\frac{\mathrm{absorption}\mathrm{pressure}\mathrm{at}0.75\mathrm{wt}\%\mathrm{H}-\mathrm{storage}}{\mathrm{desorption}\mathrm{pressure}\mathrm{at}0.75\mathrm{wt}\%\mathrm{H}-\mathrm{storage}}\right)$$

(1)

of alloys A4 and A5 are relatively smaller, which suggest a better resistance to pulverization during charge/discharge cycling [75]. Changes in enthalpy (ΔH) and entropy (ΔS) were calculated by using the desorption pressures (P) at 0.75 wt % H-storage measured at different temperatures in the Van’t Hoff equation,

ΔG = ΔH − TΔS = ℜ T lnP,

(2)

where T and ℜ are the absolute temperature and ideal gas constant, respectively. Calculation results are listed in the last two rows of Table 4. Both ΔH and ΔS of the annealed alloys are lower than those of the as-cast alloy A0. Among the annealed alloys, both ΔH and ΔS increase (except for alloy A5) with an increase in annealing temperature. The lowest ΔS value obtained from alloy A5 is the closest to the ΔS value for H₂ gas (−135 J·mol H₂⁻¹ K⁻¹), indicating the highest degree of order of hydrogen in the MH alloy [76].

3.3. Electrochemical and Magnetic Susceptibility Measurements

Before the half-cell capacity measurement, the compacted negative electrode went through a 4 h activation process in 30 wt % KOH at 100 °C. The second cycle capacities obtained at different discharge currents for each alloy are plotted in Figure 7a together with those for a standard and commercially available AB₅ alloy (Alloy B with a chemical composition of La_10.5Ce_4.3Pr_0.5Nd_1.4Ni₆₀Co_12.7Mn_5.9Al_4.7 supplied by Eutectix). Discharge capacity decreases with the increase in discharge rate in a roughly linear manner. The slope of capacity vs. discharge rate for the superlattice alloys (dashed red line) is lower than the slope for the AB₅ alloy (solid green line), which confirms the superiority of superlattice alloys in HRD, as previously reported [30]. EC test results of alloys in this study are summarized in

Table 5. Summary of electrochemical half-cells.

Electrochemical and Magnetics Properties	Unit	A0	A1	A2	A3	A4	A5
High-rate discharge capacity	mAh·g−1	249	288	295	291	283	266
Full discharge capacity	mAh·g−1	285	323	326	323	315	300
Half-cell HRD	%	87.5	89.2	90.4	90.1	89.8	88.7
Diffusion coefficient, D	10−10 cm2·s−1	4.0	4.0	4.2	4.4	4.2	4.1
Surface reaction current, Io	mA·g−1	24.2	24.0	33.1	23.8	21.9	17.6
Charge-transfer resistance at −40 °C, R	Ω·g	4.9	8.8	4.0	3.7	3.4	5.3
Double-layer capacitance at −40 °C, C	F·g−1	1.6	0.86	1.02	0.88	1.12	1.29
RC product at −40 °C	s	7.7	7.6	4.1	3.3	3.8	6.8
Total saturated magnetic susceptibility, MS	emu·g−1	1.45	1.36	0.96	0.60	1.05	1.12
Applied field where M.S. = ½ MS, H1/2	kOe	0.11	0.10	0.11	0.12	0.10	0.10

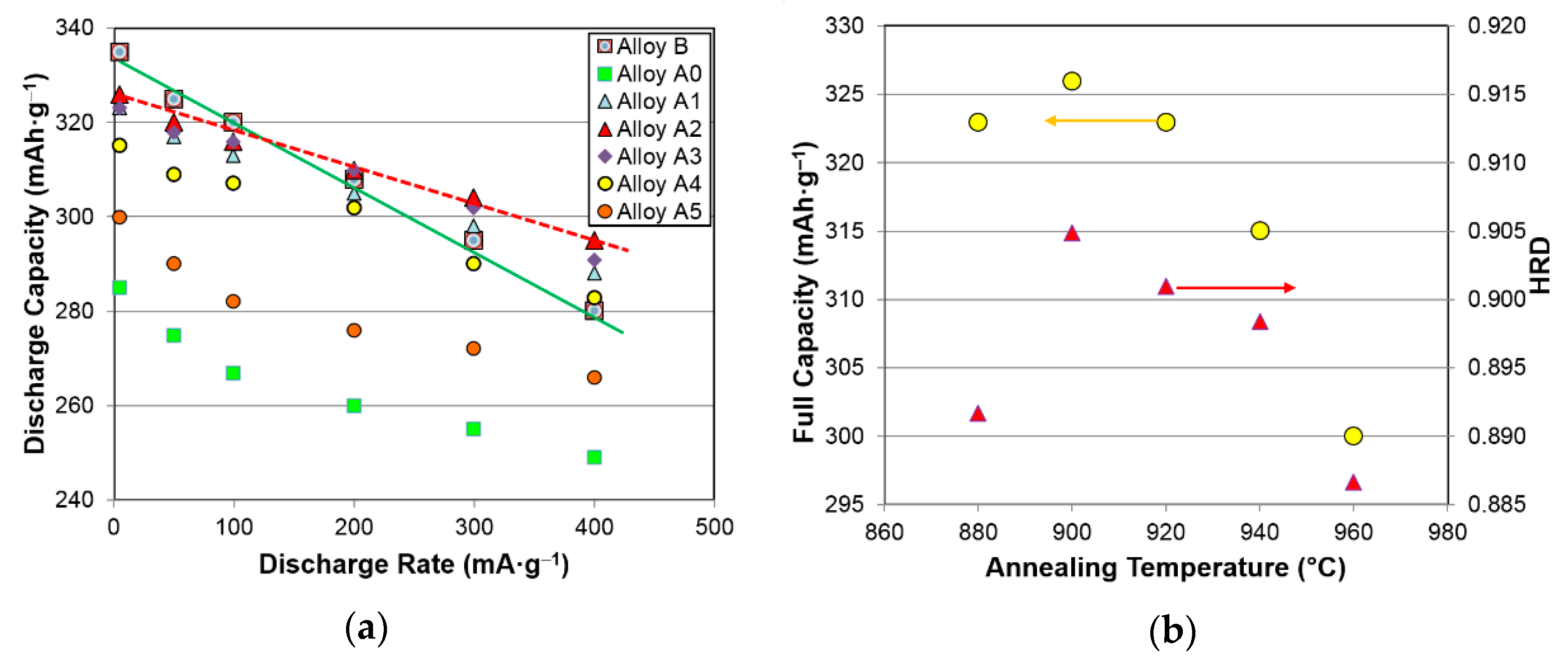

. Annealing improves the capacity substantially. Both the capacity and half-cell HRD (the ratio between the capacities obtained at 400 and 5 mA·g⁻¹) increase first and then decrease with the increase in annealing temperature and peak at alloy A2 (Figure 7b). EC discharge capacities of alloys A1 to A3 (323 to 326 mAh·g⁻¹) are very close to the maximum H-storage capacities in GP (1.18 to 1.21 wt %, which is equivalent to 316 to 324 mAh·g⁻¹).

Evolution in half-cell HRD was further investigated by the bulk hydrogen diffusion constant (D) and surface reaction current (I_o), and the results are listed in Table 5. Details of both measurements were previously reported [33]. While the D value remains approximately the same, the I_o value peaks at alloy A2. Therefore, we conclude the half-cell HRD in this series of annealed superlattice alloys is related more to the surface catalytic ability, which agrees with our previous findings from the Co-substituted Mm-based superlattice MH alloys [33]. With the −40 °C AC impedance measurement, both charge-transfer resistance (R) and double-layer capacitance (C) were obtained, and are summarized in Table 5. With an increase in annealing temperature, both R and RC product (a measure of surface catalytic ability [77]) first decrease and then increase; this trend is similar to that observed in HRD. Moreover, alloys A2, A3, and A4 demonstrate the best low-temperature performance (the lowest Rs), which is dominated by the surface catalytic ability (the lowest RC products).

Magnetic susceptibility was measured to study the evolution in surface metallic Ni with the annealing temperature. Details of this measurement and the connection between magnetic susceptibility and HRD were previously published [78,79]. Saturated magnetic susceptibility (M_S, closely related to the surface catalytic ability) first decreases and then increases with an increase in annealing temperature, suggesting that the surface’s catalytic ability first decreases and then increases. This result is contradictory to the conclusion drawn from the RC product result. Therefore, the lowest Rs and RC products observed in alloys A2, A3, and A4 do not correlate with the amount of surface metallic nickel. This discrepancy is rare, but there is example when the surface oxide microstructure, rather than the metallic nickel, played an important role in affecting the HRD and low temperature performances [80]. Further study of the surface oxide microstructure by transmission microscope is necessary to explain the source of highly catalytic surface of alloys A2, A3, and A4. Lastly, the applied field strength corresponding to half of M_S (H_1/2) of these alloys are similar, indicating the size of metallic nickel inclusion in the surface oxide remains constant despite the change in annealing condition.

3.4. Sealed Cell Performance

Five annealed alloys (alloys A1 to A5) were incorporated into cylindrical C-size cells (20 cells for each alloy), and each cell has a nominal capacity of 5.0 Ah. After a standard formation process [65], cells were distributed to various tests, and the results are discussed in the following sections.

3.4.1. High-Rate Performance

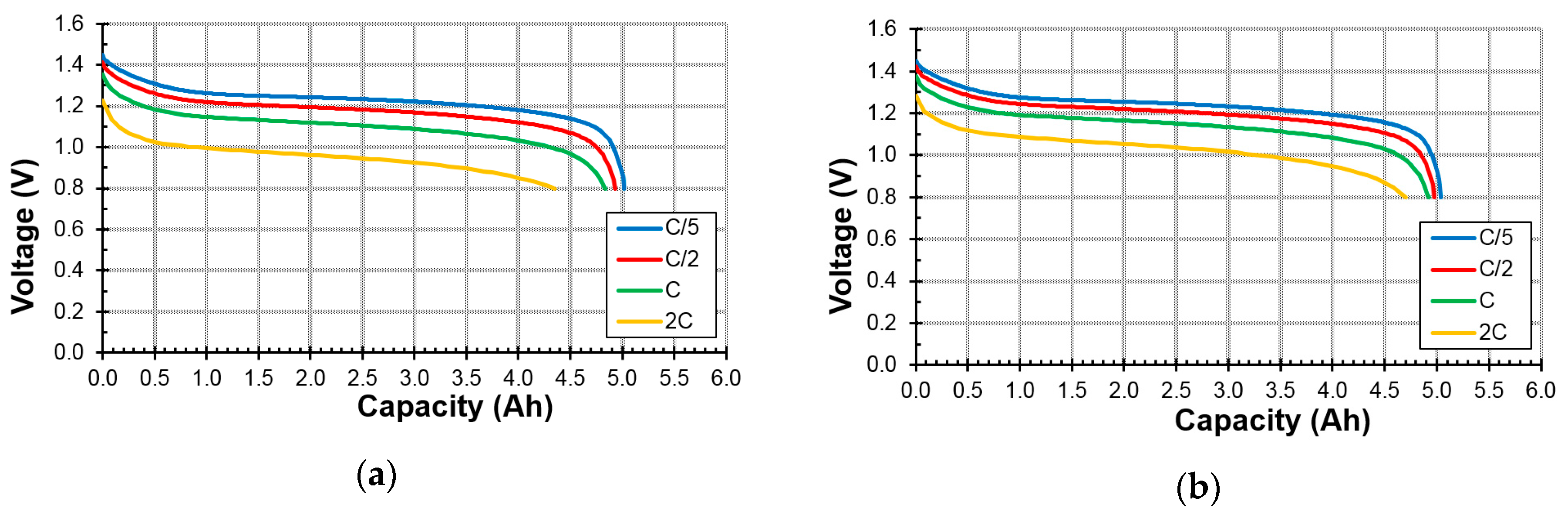

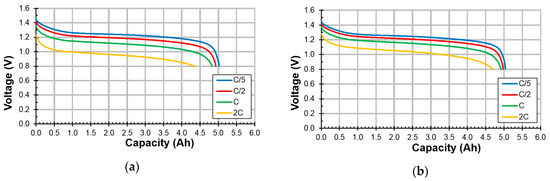

Four different discharge rates (C/5, C/2, C, and 2C) were used to obtain the room temperature (RT) discharge voltage curves, and the results from cells made with alloys A1 and A3 are shown in Figure 8. As the discharge rate increases, voltage is suppressed by the internal resistivity in the cell [65], and the discharge capacity obtained at the fixed cutoff voltage (0.8 V) decreases. Cells made with alloy A3 show a smaller voltage reduction with the increase in discharge rate, which indicates a lower cell internal resistance compared to the internal resistance in the cell made with alloy A1. The normalized discharge capacity obtained at a 2C rate for cells made with the five annealed alloys are listed in

Table 6. Summary of C-cell test results (RT stands for room temperature).

C-Cell Results	Unit	A1	A2	A3	A4	A5
2C at RT capacity/0.2C at RT capacity	%	87	90	93	90	87
1C at −10 °C capacity/0.2C at RT capacity	%	92	94	95	94	91
14-day charge retention	%	85.3	84.9	84.8	76.1	85.3
28-day 45 °C voltage stand	V	1.213	1.222	1.218	1.218	1.220
Peak power at RT (20th cycle)	W·kg−1	183	198	206	200	194
0.5C/0.5C cycle life (before reaching 3 Ah)	Number of cycles	220	255	365	340	210
C/C cycle life (before reaching 3 Ah)	Number of cycles	110	185	205	130	120

. The data displays an initial increasing and later decreasing trend with an increase in alloy annealing temperature. Cells made with alloy A3 yield the best RT high-rate (2C) performance in this test.

3.4.2. Low-Temperature Performance

Low-temperature performance was evaluated at −10 °C and a 1C discharge rate, and the results are summarized in Table 6. Like the trend in high-rate performance, a trend of initial increase followed by decrease is observed for the low-temperature performance with an increase in alloy annealing temperature. The cell made with alloy A3 shows the best low-temperature result, which can be attributed to its surface catalytic ability being the best (lowest RC product in Table 5).

3.4.3. Charge Retention

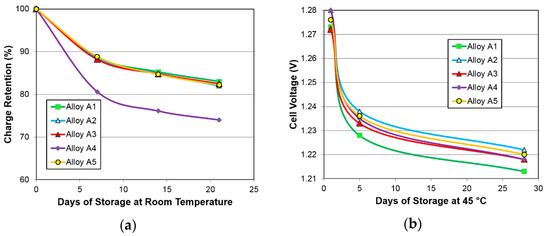

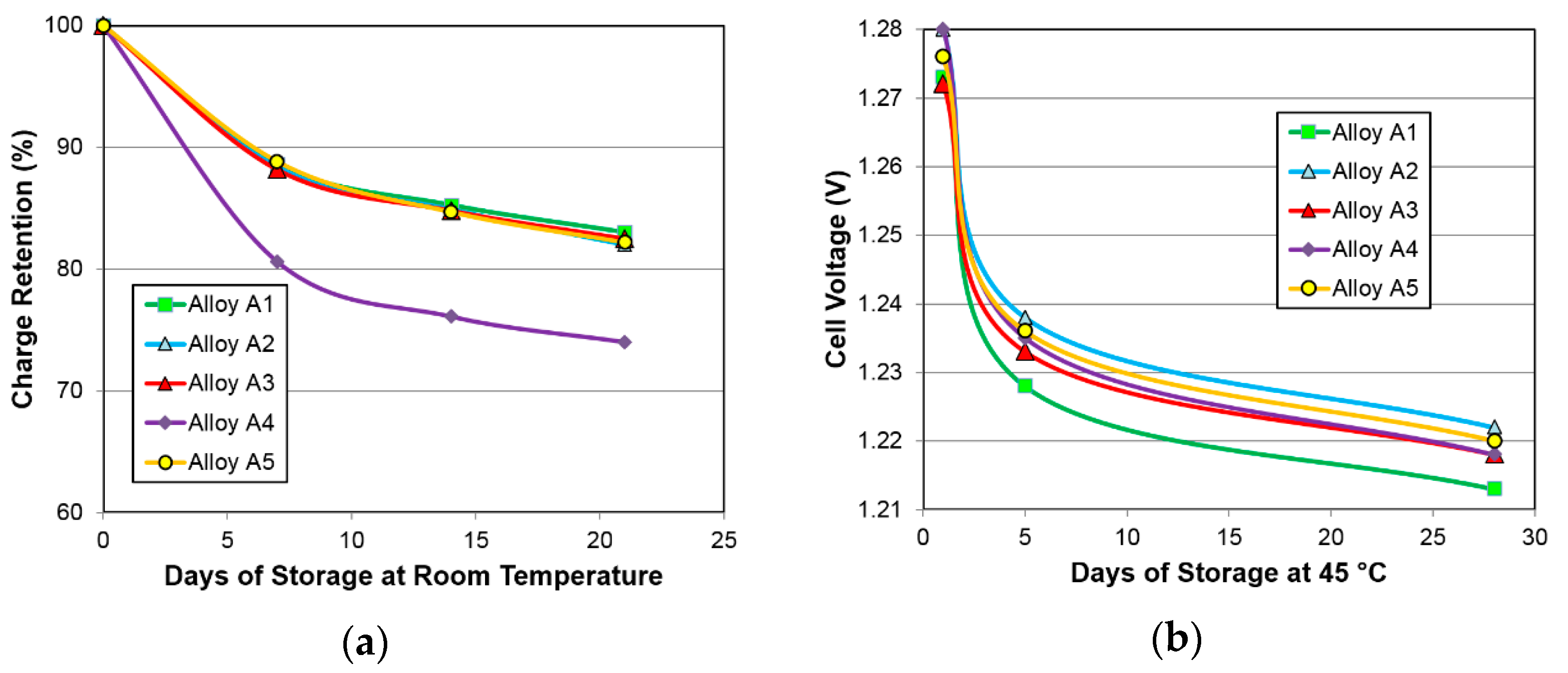

RT charge retention test results are shown in Figure 9a. All cells (except for the one made with alloy A4) exhibit similar charge retention characteristics. Three cells made with alloy A4 were tested, and all show inferior charge retention performance compared to the cells made with the other annealed alloys. 45 °C voltage stand test results are plotted in Figure 9b and summarized in Table 6. In this test, the cells made with alloy A2 demonstrate the best result.

3.4.4. Peak Power

Peak power was measured at the 20th cycle and RT, and the results are compared in Table 6. Peak power follows the same trend as those in high-rate and low-temperature performances. Cells made with alloy A3 show the best balance among peak power, best high-rate, and low-temperature performances.

3.4.5. Cycle Life

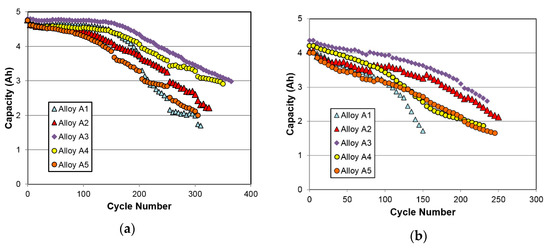

The RT cycle life performance was evaluated in two different configurations: a regular configuration charged at a C/2 rate and discharged at a C/2 rate, and an accelerated configuration charged at a C rate and discharged at a C rate. The results are plotted in Figure 10 and summarized in Table 6. The number of cycles before reaching a capacity of 3 Ah first increases and then decreases with an increase in alloy annealing temperature. Cells with alloy A3 show the best cycle stability in both C/2-C/2 and C-C cycling tests. As reported previously, the main degradation mechanism for superlattice alloy free of Mn and Co is the combination of particle pulverization and surface oxidation [34,35].

3.5. Performance Correlation with Individual Phase

Correlations between the seven constituent phase abundances (CeNi₃, NdNi₃, Nd₂Ni₇, Pr₂Ni₇, Sm₅Ni₁₉, Nd₅Co₁₉, and CaCu₅) and seven GP, eight half-cell EC, and five sealed cell properties were studied by the linear regression method, and the resulting correlation factors (R²) are summarized in

Table 7. Correlation factors (R²) between the constituent phase abundances and various gaseous phase, half-cell, and sealed cell properties. Plus (+) and minus (−) signs after the numbers indicate positive and negative correlations, respectively. Significant correlations with R² ≥ 0.6 are highlighted in red. EC full capacity is the discharge capacity measured with a 5 mA·g⁻¹ current density.

Properties	CeNi3	NdNi3	Nd2Ni7	Pr2Ni7	Sm5Ni19	Nd5Co19	CaCu5
GP maximum capacity	0.26−	0.51−	0.63+	0.42+	0.07+	0.55−	0.38−
GP reversible capacity	0.24−	0.14−	0.21+	0.03+	0.57+	0.20−	0.37−
Equilibrium pressure	0.02+	0.89+	0.68−	0.58−	0.09−	0.92+	0.92+
PCT slope factor	0.42+	0.31−	0.00	0.05+	0.14+	0.31−	0.46−
PCT hysteresis	0.73−	0.03−	0.46+	0.39+	0.17−	0.02−	0.00
∆H	0.12−	0.43+	0.16−	0.24−	0.02−	0.42+	0.61+
∆S	0.28−	0.16+	0.01−	0.05−	0.01−	0.15+	0.33+
EC high-rate capacity	0.06−	0.79−	0.65+	0.49+	0.17+	0.84−	0.84−
EC full capacity	0.05−	0.84−	0.69+	0.56+	0.13+	0.89−	0.84−
HRD	0.09−	0.52−	0.43+	0.22+	0.42+	0.59−	0.76−
Diffusion constant, D	0.25−	0.05−	0.16+	0.00	0.42+	0.09−	0.27−
Exchange Current, Io	0.52−	0.08−	0.33+	0.31+	0.00	0.07−	0.02−
−40 °C resistivity, R	0.15+	0.17−	0.06+	0.32+	0.53−	0.11−	0.01−
−40 °C capacitance, C	0.02+	0.91+	0.71−	0.59−	0.05+	0.94+	0.85+
RC product	0.17+	0.08+	0.11−	0.00	0.65−	0.13+	0.29+
High rate	0.54−	0.00	0.14+	0.00	0.20+	0.00	0.15−
Low temperature	0.50−	0.02−	0.18+	0.01+	0.19+	0.07−	0.23−
Charge retention	0.17−	0.03−	0.31+	0.30+	0.48−	0.01−	0.21−
Peak power	0.29−	0.25+	0.00	0.23−	0.56+	0.17+	0.00
Cycle life	0.90−	0.00	0.31+	0.02+	0.07+	0.00	0.30−

. Although these phase abundances were obtained from the XRD analysis of the un-activated alloys, the XRD performed on the activated alloys only showed additional minute rare-earth oxide (hydride) peaks and no changes in the main phase peaks were found [81]. For the maximum H-storage capacity, Nd₂Ni₇ (Figure 11a) and Pr₂Ni₇ are considered beneficial, whereas NdNi₃ and Nd₅Co₁₉ are detrimental. Reversible H-storage capacity does not correlate well with any phase. NdNi₃, Nd₅Co₁₉ (Figure 11b), and CaCu₅ (Figure 11c) are effective in increasing the PCT plateau pressure; however, Nd₂Ni₇ and Pr₂Ni₇ have an opposite effect. CeNi₃ increases the flatness of PCT isotherm, but CaCu₅ decreases it. While CeNi₃ reduces the PCT hysteresis, Nd₂Ni₇ and Pr₂Ni₇ increase it (Figure 11d). The only strong influence on the change in enthalpy is from CaCu₅, which contributes to a much less negative ∆H value (weaker metal-hydrogen bond strength). NdNi₃ and Nd₅Co₁₉ may also increase ∆H. None of the phases have a significant correlation with the change in entropy (which is essentially the change of entropy between hydrogen gas and hydrogen in an ordered solid).

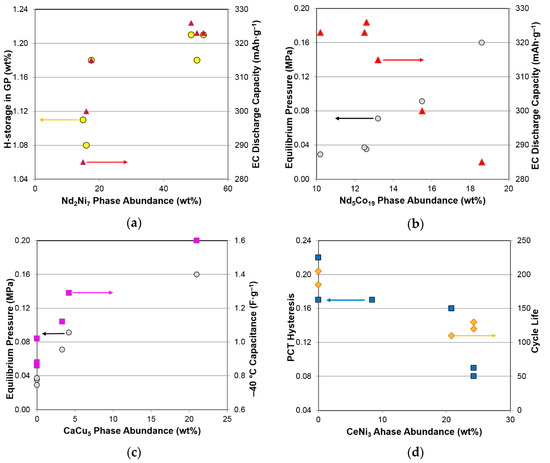

For the EC properties, Nd₂Ni₇ (Figure 11a) and Pr₂Ni₇ make positive contributions to the high-rate and low-rate discharge capacities, while NdNi₃, Nd₅Co₁₉ (Figure 11b) and CaCu₅ have an opposite effect. Nd₂Ni₇ and Sm₅Ni₁₉ increase HRD, but NdNi₃, Nd₅Co₁₉, and CaCu₅ decrease it. The increase in HRD comes from different sources: improvement in surface reaction for Nd₂Ni₇ (indicated by its positive correlation with I_o) and enhancement of bulk diffusion for Sm₅Ni₁₉ (indicated by its positive correlation with D). For the low-temperature characteristics determined by the AC impedance measured at −40 °C, Sm₅Ni₁₉ decreases the charge-transfer resistance by increasing the surface’s catalytic ability (indicated by its negative correlation with the RC product), but Pr₂Ni₇ increases it by reducing the surface’s reactive area (indicated by its negative correlation with C). Although NdNi₃, Nd₅Co₁₉, and CaCu₅ (Figure 11c) can increase the surface reactive area, they have a marginal effect on the charge-transfer resistance, due to their relatively low catalytic abilities.

Judging from the ratio between the number of significant correlations (R² ≥ 0.60) found and number of properties (7/7 for the GP properties, 14/8 for the half-cell EC properties, and 2/5 for the sealed cell properties), correlations with the sealed cell properties are the weakest. There are two explanations for the difficulty in setting up correlations for the sealed cell properties: manual assembly operation and limited cell number. While the former adds inconsistency, the latter limits the accuracy of sampling. Therefore, further confirmation on a larger scale (hundreds of cells) is needed. Nevertheless, correlations obtained from the 100 cells (20 for each annealed alloy) in this study are shown in the bottom five rows of Table 7. Only CeNi₃ shows a significant and detrimental effect on the high-rate performance. For the low-temperature performance, only Sm₅Ni₁₉ exhibits a positive influence. Both Nd₂Ni₇ and Pr₂Ni₇ show a positive impact on the charge retention performance, but Sm₅Ni₁₉ influences it negatively. Among all phases, Sm₅Ni₁₉ most effectively increases the peak power. Only NdNi₃ contributes to the increase in cycle stability, whereas CeNi₃ (Figure 11d) and CaCu₅ deteriorate it.

As the exact chemical composition in each superlattice phase cannot be quantified by SEM–EDS, the correlations found in this session may come from the non-uniform distribution of A-site and B-site elements in these phases, but this cannot be verified.

3.6. Performance Correlation with Phase Stoichiometry

In earlier superlattice MH alloy studies of various phases’ contributions to the EC performances, phases are grouped according to the phase stoichiometry, such as AB₃ (CeNi₃ and NdNi₃), A₂B₇ (Nd₂Ni₇ and Pr₂Ni₇), and A₅B₁₉ (Sm₅Ni₁₉ and Nd₅Co₁₉) [28,29,30]. In this study, we correlated the properties with the phase stoichiometry, and the resulted R²s are summarized and shown in the first three columns of

Table 8. Correlation factors (R²) between the phase stoichiometry/structure and various gaseous phase, half-cell, and sealed cell properties and. Plus (+) and minus (−) signs after the numbers indicate positive and negative correlations, respectively. Significant correlations with R² ≥ 0.6 are highlighted in red. EC full capacity is the discharge capacity measured with a 5 mA·g⁻¹ current density.

Properties	AB3	A2B7	A5B19	Hexagonal	Rhombohedral
GP maximum capacity	0.75−	0.60+	0.00	0.44+	0.46−
GP reversible capacity	0.40−	0.17+	0.36+	0.29+	0.21−
Equilibrium pressure	0.52+	0.68−	0.00	0.93−	0.85+
PCT slope factor	0.02+	0.01+	0.03+	0.45+	0.41−
PCT hysteresis	0.61−	0.46+	0.21−	0.00	0.00
∆H	0.03+	0.17−	0.01+	0.54−	0.43+
∆S	0.02−	0.01−	0.00	0.26−	0.18+
EC high-rate capacity	0.60−	0.63+	0.01+	0.84+	0.78−
EC full capacity	0.61−	0.68+	0.00	0.86+	0.81−
HRD	0.49−	0.40+	0.14+	0.70+	0.59−
Diffusion constant, D	0.29−	0.11+	0.29+	0.18+	0.11−
Exchange Current, Io	0.56−	0.34+	0.01−	0.02+	0.01−
−40 °C resistivity, R	0.00	0.10+	0.72−	0.04+	0.08−
−40 °C capacitance, C	0.53+	0.71−	0.01+	0.90−	0.88+
RC product	0.26+	0.08−	0.46−	0.23−	0.16+
High rate	0.34−	0.09+	0.13+	0.02+	0.00
Low temperature	0.42−	0.13+	0.10+	0.11+	0.09−
Charge retention	0.17−	0.32+	0.38−	0.00	0.04+
Peak power	0.05−	0.02−	0.53+	0.11−	0.16+
Cycle life	0.58−	0.24+	0.05+	0.00	0.03+

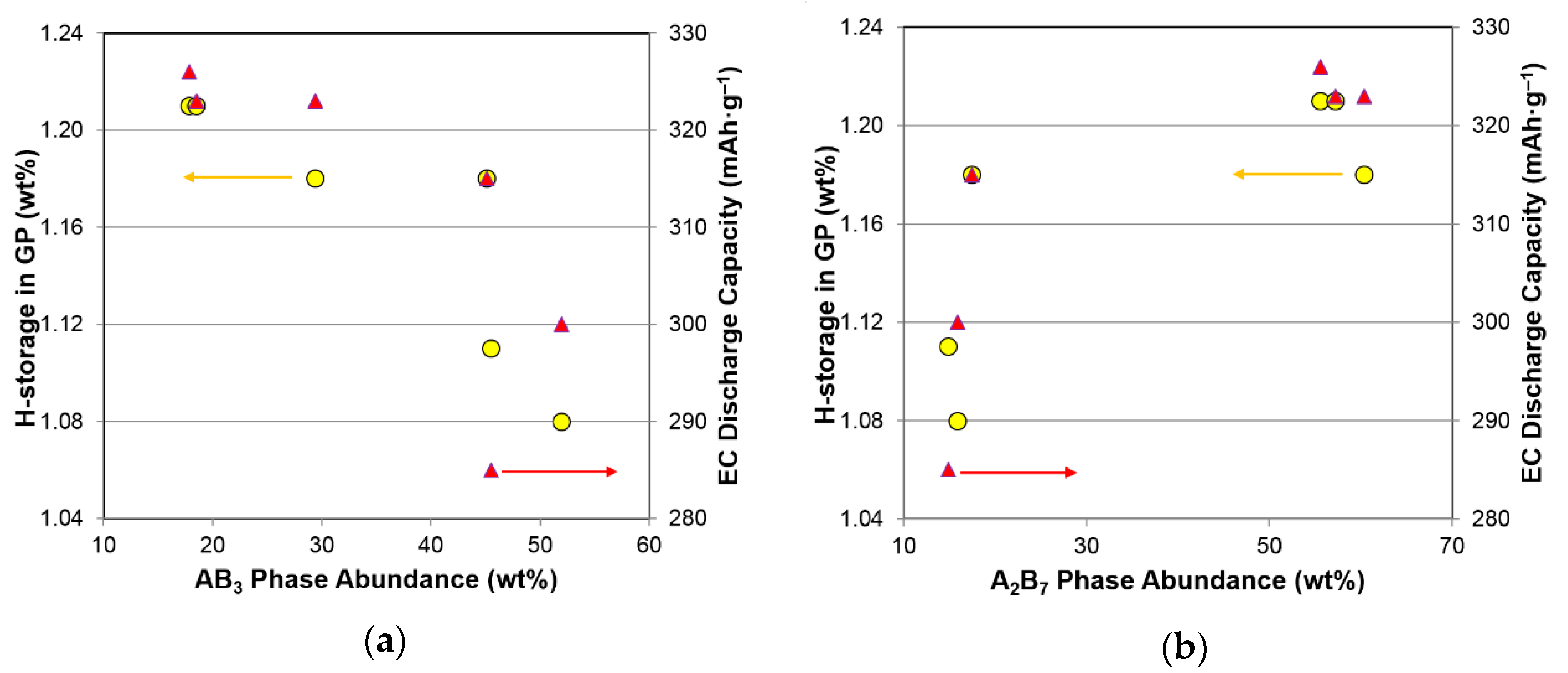

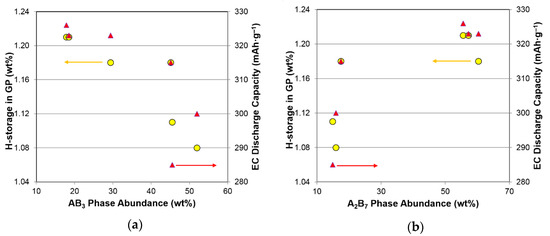

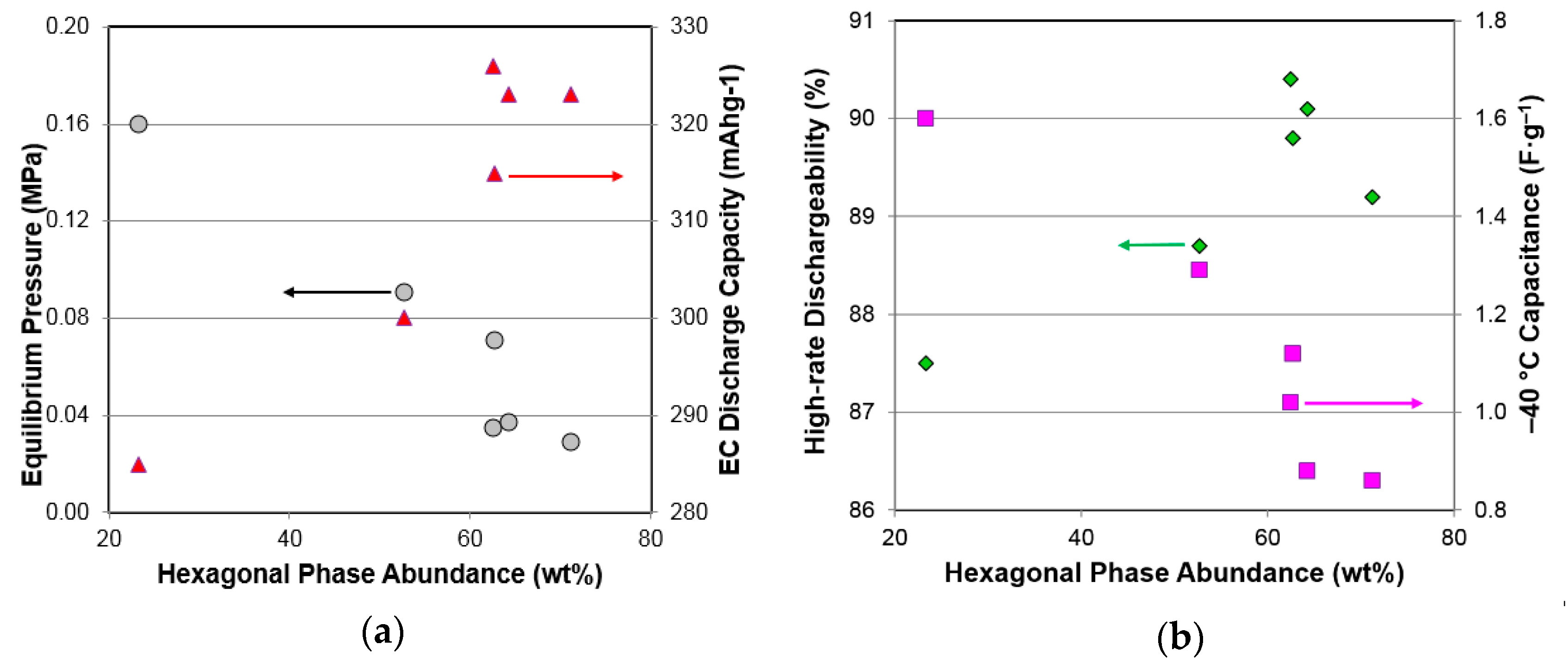

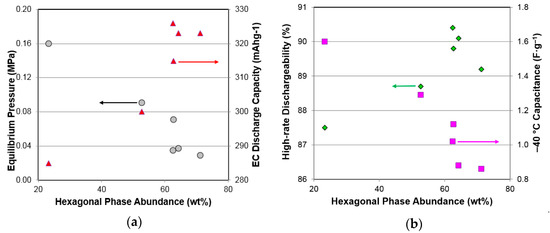

. AB₃ decreases the GP and EC capacities (Figure 12a), increases the plateau pressure, decreases HRD because of the reductions in D and I_o, which also contribute to an inferior high-rate performance. Moreover, although AB₃ decreases the PCT hysteresis, it still deteriorates the cycle stability. A₂B₇ increases the GP and EC capacities (Figure 12b), lowers the equilibrium pressure, increases HRD because of the enhanced D and I_o, and improves both the charge retention and cycle life. A₅B₁₉ increases the GP reversible H-storage, improves the −40 °C performance via the increase in surface catalytic ability, increases the peak power, and deteriorates the charge retention. By comparing these correlations, A₂B₇ appears to be the most desirable stoichiometry for battery applications among all stoichiometries for the superlattice MH alloys. This conclusion is in complete agreement with previous reports [29,30,31].

3.7. Performance Correlation with Phase Structure

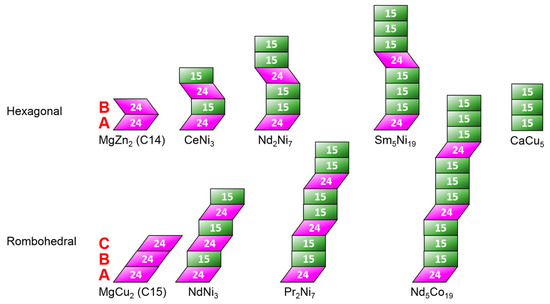

Another way to classify the various phases in the superlattice MH alloys is by structure symmetry. Stacking of the A₂B₄ slabs in the CeNi₃, Nd₂Ni₇, and Sm₅Ni₁₉ phases is the same as that in the C14 crystal structure and is considered as the hexagonal group, and the rhombohedral group containing the NdNi₃, Pr₂Ni₇, and Nd₅Co₁₉ phases shares the same A₂B₄ stacking as the C15 structure. The C14- and C15-based MH alloys behave differently in the EC environment, and we have reported the comparison previously [82] and concluded that the C14-predominated alloy is more suitable for high-capacity and long-cycle life applications, whereas the C15-predominated alloy is preferable in applications requiring easy activation and good high-rate and low-temperature performances. Therefore, it will be interesting to determine whether similar conclusions can be drawn from the superlattice MH alloy study.

R²s obtained by correlating the total abundances of the hexagonal and rhombohedral phase groups with various properties are listed in the last two columns in Table 8. Compared to those in the rhombohedral group, the hexagonal group shows higher GP and EC capacities (Figure 13a), a lower equilibrium pressure (Figure 13a), a flatter PCT isotherm, a better HRD (Figure 13b), and a reduced surface reactive area at −40 °C (Figure 13b), but without affecting the charge-transfer resistance. Based on the results, a hexagonal phase will be more desirable for battery applications. Furthermore, combining the preferences in stoichiometry and structure yields the champion of this study—the Nd₂Ni₇ phase.

4. Conclusions

Constituent phase abundances of an SmLa-based superlattice alloy were engineered by changing the annealing temperature. Various gaseous phase, half-cell electrochemical, and sealed cell properties and performances were correlated to the individual phase, phase stoichiometry, and type of structure. Many significant correlations were identified; however, because of the complication of phase structure and limited sampling size used in this study, all correlations need further confirmation. In general, an A₂B₇ stoichiometry and a hexagonal structure are more favorable for battery applications. Among the six superlattice phases in this study, Nd₂Ni₇ is the most desirable. As a result, establishment of a single target of maximizing Nd₂Ni₇ phase abundance simplifies the composition/process optimization task. In this study, an annealing condition of 920 °C for 5 h for the superlattice Sm₁₄La_5.7Mg_4.0Ni₇₃Al_3.3 MH alloy renders the highest Nd₂Ni₇ phase abundance and the best overall electrochemical performance.
