Design and Simulations of RT Na-S Battery/Supercapacitor Energy Storage Systems Integrated in Grid/Microgrid with Renewables

by
Hakeem Ademola Adeoye
,
Mona Elghzal
and
Constantina Lekakou
*
School of Engineering, University of Surrey, Guildford GU2 7XH, UK
*
Author to whom correspondence should be addressed.
Batteries 2025, 11(11), 409; https://doi.org/10.3390/batteries11110409
Submission received: 28 August 2025 / Revised: 3 November 2025 / Accepted: 4 November 2025 / Published: 5 November 2025
(This article belongs to the Special Issue Innovations in Batteries for Renewable Energy Storage in Remote Areas)
Browse Figures
Versions Notes

Abstract

A sustainable non-lithium battery is proposed, integrated with renewables to cater for the intermittency and differences between daily supply and demand. A room temperature sodium–sulfur (RT Na-S) battery presented in this study offers a promising energy density of 177 Wh/kg of the pouch cell. A framework is introduced for the design of an RT Na-S battery system, alone and combined with a supercapacitor, and its operating schedule for two case studies: (a) a photovoltaic (PV) system for a household and (b) a wind turbine for an industrial site. Daily power supply and demand profiles are included in both cases. In the first design step, the required mass and volume of the battery cells are determined. In the second step, the system architecture is designed, and simulations of the renewable-energy storage system–demand are carried out for four consecutive days. An RT Na-S battery–supercapacitor system is recommended in association with the wind turbine that involves high frequency and high power pulses, where the supercapacitor caters for power exceeding 0.1 C. A standalone RT Na-S battery is recommended for the PV system. The simulations predicted that each storage system covered all the net power and energy demands without any contributions from the grid.

1. Introduction

Given the intermittent nature of renewables, with the focus on wind and photovoltaic energy, energy storage systems are urgently needed to cover differences between supply and demand during the day and interseasonally [1,2,3,4,5]. European statistics reported that in September 2024, Europe had 278 GW of wind power capacity, with 243 GW onshore and 35 GW offshore, where Europe was defined to include all European countries including those within and outside the European Union (EU) [6]. Furthermore, a capacity of 333 GW of solar energy devices or panels was reported for 2024 within EU [7]. Apart from daily and interseasonal variations, there is also large variation between countries [8,9,10,11,12]: energy storage systems will also smooth the geographical distribution of the produced electric energy as per needs of demand and agreements between distributors, regions and countries.
Amongst the different types of energy storage, electrochemical energy storage has the highest efficiency: 80–90% for Li-ion batteries [13,14,15,16,17,18,19,20,21,22,23,24], 88% for a pouch cell of room temperature (RT) sodiated hard carbon anode and sulfur cathode [25], 70–80% for selected low overpotential RT Na-S batteries [26,27,28,29,30] and 95–100% for supercapacitors [31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50]. Other types of energy storage techniques include the following: gravitational energy storage (GES) with an efficiency of 95–97% for cases where natural water heads exist (e.g., hydropower plant in Kremasta, Greece, at 96.7% efficiency [51,52,53,54,55,56]) and 72–75% efficiency for GES with induced “charge”—“discharge” phases realized by pumped hydropower electricity storage (PHES) [57,58,59,60,61,62]. Compressed air energy storage (CAES) exhibits even lower efficiency of 42–54% that might be raised to 70–80% if the lost heat during compression is utilized [63,64,65,66,67,68]. Thermal energy storage also has low energy efficiency of 50–70% [69,70,71,72,73,74].
Average wind speeds around the UK coast and North Sea coast of Ireland, Germany, Denmark, Netherlands and Belgium have been reported to be above 8 m s−1, above 9 m s−1 in open sea [75,76,77,78,79,80], and above 11 m s−1 on hills and ridges [81,82,83,84,85], where wind power fluctuations of the order of 700 W m−2 have been reported [86,87,88,89,90,91]. For an electrochemical energy storage system, it is possible that a battery–supercapacitor system may be more suitable to cater for rapid wind power fluctuations, and this is included in the present feasibility study. However, the widespread use of Li-ion batteries in the electrification of different sectors raises the question about whether the oil-dependent economy will be replaced by a lithium and rare materials-dependent economy. Furthermore, the different types of Li-ion batteries extensively use many critical raw materials (CRMs), such as elements Li, Ni, Mn, Co and Ti. Intensive research within our group focuses on non-lithium sulfur batteries and sodium–sulfur (Na-S) batteries, in which lithium is replaced by sodium in the anode and Li, Ni, Mn and Co are replaced by sulfur in the cathode.
Room-temperature sodium–sulfur (RT Na-S) batteries offer a valid alternative to Li-ion batteries, as they are based on the abundant materials sodium and sulfur, of which sulfur offers high theoretical capacity [92,93]. Intensive research in the last decade has led to the development of cathode hosts that prevent the shuttling of polysulphides in sulfur batteries with liquid electrolytes [94,95,96,97,98,99,100]. High-temperature (HT) Na-S batteries are available commercially, operating at 300–340 °C, and are used for stationary energy storage with renewables [101,102,103]. However, the elevated temperatures raise fire and explosion risks [104,105,106,107,108].
Further developments yielded sodium salts soluble in organic solvents [109,110,111,112,113,114] which enabled RT Na-S batteries. Examples include an RT Na-S coin cell of 25 wt% S in an activated carbon fabric cathode host and electrolyte 1.5 M NaClO4 and 0.2 M NaNO3 in TEGDME at electrolyte/sulfur ratio E/S = 10.4 μL/mgS, which reached 360 Wh/kgcathode+Na at 0.2 C after 700 cycles [115]; and an RT Na-S pouch cell of 10 cell layers with 45 wt% S in a hollow porous particle Ketjenblack-based cathode [25,116], sodiated hard carbon anode, and electrolyte 1 M NaClO4, 0.1 M Na2S and 0.1 M P2S5 in TEGDME at E/S = 13 μL/mgS that reached an estimated optimized gravimetric and volumetric energy density of 109 Wh/kgcell and 164 Wh/Lcell, respectively, in discharge at 0.1 C tested to 1000 cycles with 88.6% energy efficiency [25]. Such energy densities are comparable, or even better, than the volumetric and gravimetric energy density of second-life LFP batteries which are sufficiently old to be recycled from electric vehicles (EVs) to grid applications nowadays [117,118,119,120,121,122]. Although cycling of RT Na-S batteries at higher rates has been reported, the risk of dendrite formation in batteries with metal anodes has led to the decision to restrict the operation of RT Na-S batteries in this study at 0.1 C for safety reasons. Given that the recommended charge rate even for new LFP batteries is 0.1 C, such a low rate has been considered reasonable to set as the limit in the present study. Higher C-rates could be achieved for RT Na-S batteries with a sodiated hard carbon anode so that there is no risk of dendrite formation: a study with a 10-layer pouch cell was tested at 0.2 C up to 1000 cycles [25]. The first task of the present study is to finetune an RT Na-S battery to raise its energy density while maintaining low C-rates in the range of 0.1–0.2 C to avoid dendrite formation. Our group has great experience in eliminating the sulfur and sulfide “shuttling” phenomenon in Li-S batteries via the following techniques which shall be investigated for the cathodes of the RT Na-S battery in this study: (a) the use of hollow porous carbon particles as cathode hosts [25,95,123]; (b) employing PEDOT:PSS as a cathode binder [95,124]; and (c) spraying a thin B,N doped graphene nanoplatelet (BNG) interlayer on the cathode surface [95]. Initial trials with such novel cathodes in RT Na-S cells employing a two-part rigid cell case [14,125] within our group indicated that the high cathode expansion at high specific capacity leads to cracks and fragmentation in the cathode which raises the cell resistance and leads to the deterioration of the battery performance. Hence, we are proposing the fabrication and testing of scaled up RT Na-S pouch cells in this study which would allow better cathode expansion and minimize the amount of required electrolyte [32,126].
The combination of the RT Na-S battery with a supercapacitor may increase the C-rate of the system [125,127,128]. Supercapacitors feature high power density but low energy density and a long lifetime [34,129]. Both supercapacitors and RT Na-S batteries can also be easily recycled via solvent-aided processing [130].
Hence, this study offers novel contributions in a number of areas regarding high energy storage batteries without critical raw materials and the design and simulations of hybrid energy storage systems integrated with renewables.
(a)
By employing abundant sodium and sulfur materials for the anode and cathode, respectively, which avoids the dependence of Li-ion batteries on lithium and rare cathode materials, the latest advances in RT Na-S batteries are adopted in an RT Na-S battery pouch cell finetuned in this study. The electrochemical test data for this innovative RT Na-S battery pouch cell are presented and employed in the energy storage systems designed and simulated in this study.
(b)
The framework is set for the preliminary and in-depth design of energy storage systems based on RT Na-S batteries and supercapacitors, according to needs, integrated with microgrid or grid with solar and wind energy renewables. The contributions are important in the RT Na-S battery sizing and simulations.
(c)
Simulations are conducted for systems designed for two case studies, featuring a PV panel system for a household and a wind turbine for an industrial site, respectively. Studying the simulation results leads to improvements in the design of the energy storage system and its operating conditions. The innovation lies in the scenario-specific system optimization (standalone RT Na-S for PV, hybrid system for high-frequency wind power pulses).

2. Specifications of Use Cases with Solar and Wind Energy Renewables

The first step in the design framework is to assemble the specifications of the grid/microgrid usage and the specifications of each of its components. Starting with renewables, two use cases of renewables are covered for individual units: a PV system for a household integrated with the grid (or a microgrid), and a wind turbine for an industrial site also integrated with the grid. Figure 1 presents the power profiles of supply and demand for each of the two types of renewables considered in this study. Figure 1a depicts the example of a system of 10 m2 PV of 20% efficiency, an average maximum power profile based on the PV energy produced from the corresponding solar irradiation profile in the most sunlit month of the year, July, in Athens, so that a high-capacity energy storage system is specified. In general, although fluctuations of solar irradiation might occur on cloudy days, the power does not exceed the maximum profile of a sunny day in July [131,132]. Figure 1a also displays a representative electricity load profile for a household [133]. Profiles integration yields a daily PV energy supply of 14,650 Wh and daily electric energy demand of 11,376 Wh. The overlap area between the PV supply and demand profiles represents the electric energy covered directly by the PV. The blue areas under the demand profile above and outside the PV profile, early in the morning and late in the evening, represent the energy supplied directly from the grid to cover the demand or the energy supplied from the battery to cover the demand if the battery SoC is greater than 0. From 10.4 to 18.7 h, the PV directly supplies 2915 Wh to cover the electricity demand of the household and may store the rest of the PV energy in the energy storage system, which amounts to 9985 Wh. From the PV and demand profiles in Figure 1a, it is also determined that the maximum power of charging the battery reaches 1651 W. Given possible fluctuations of the demand profile that, within the energy storage period, might be switched off at times, the maximum specified charge power of the battery in Figure 1a is increased to 1830 W, i.e., the maximum PV power.

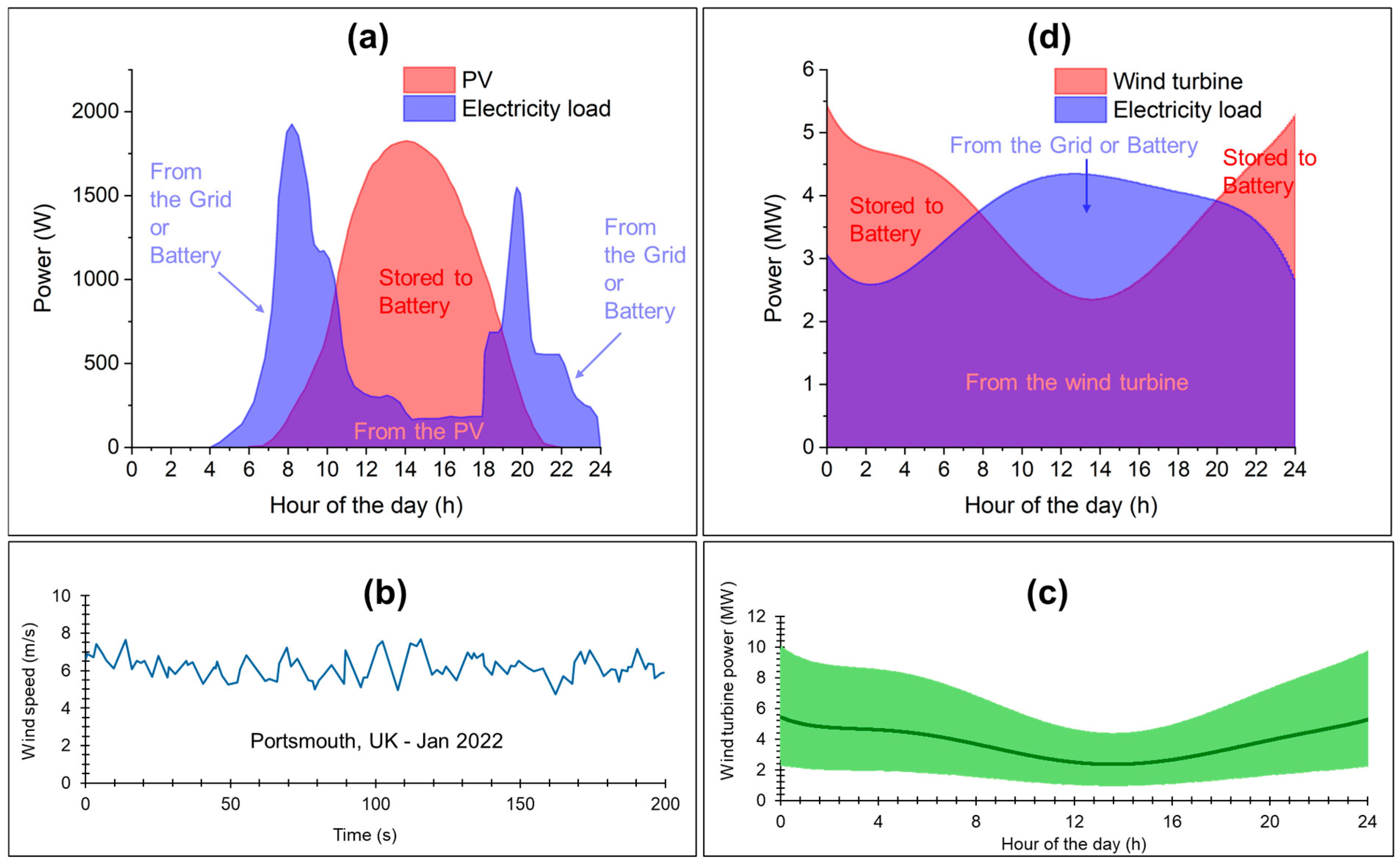

Figure 1b presents fluctuating wind data in Portsmouth, UK, in January, one of the highest wind speed months there. The data was obtained for this study with a CALYPSO ultrasonic portable mini wind meter at a sample rate frequency of 1 Hz and resolution of 0.1 m s−1. Considering a wind turbine of blade length L = 100 m, the wind speed data (n) is translated to wind turbine power data presented in Figure 1c, using the equation for the theoretical wind turbine power, PWT [134]:
P W T = 8 27 ρ a π L 2 v 3
where ρa is the air density. The wind turbine power data in Figure 1c consists of an average profile and fluctuations generated from the ratio of wind fluctuations with respect to the average wind speed in the wind speed profile sample presented in Figure 1b. Figure 1d presents the average daily profile of the wind turbine power against the daily electricity demand of an industrial site near which the wind turbine is installed. The overlap area between the wind turbine supply and demand profiles in Figure 1d represents the electric energy covered directly by the wind turbine. The blue area under the demand profile and above the wind power profile, between 7.78 h and 19.96 h, represents the energy supplied directly from the grid to cover the demand or supplied from the battery if the battery SoC is greater than 0. From 19.96 h to 24 h and from 0 h to 7.78 h of the following day, the wind turbine has an excess energy of 16,802 kWh that may be stored in a battery. From the wind power and demand profiles in Figure 1d, taking also the fluctuating profile in Figure 1c, it is also determined that the maximum power of charging the battery reaches 7.133 MW and the maximum discharge power may reach 3.319 MW.
Hence, two different energy storage systems need be designed in this study: (i) An energy storage system for the household PV with an energy capacity of 9985 Wh, a maximum charge power of 1830 W and a maximum discharge power of 1926 W. (ii) An energy storage system for the industrial site wind turbine with an energy capacity of 16,802 kWh, a maximum charge power of 7133 kW and a maximum discharge power of 3319 kW.

3. RT Na-S Battery

3.1. Materials and Experimental Methods

A 100 mm × 100 mm monolayer pouch cell was fabricated comprising the following: a cathode coating of 50 wt% sulfur (Sigma Aldrich, Gillingham, UK), 40.5 wt% KJB (Ketjenblack EC-600JD, Lion Corp., Tokyo, Japan) and 9.5 wt% PEDOT:PSS (Heraeus, Hanau, Germany) on carbon-coated aluminum current collector (MTI Corp., Richmond, CA, USA) fabricated as described in [95]; a thin BNG (Graphitene, Scunthorpe, UK) interlayer sprayed on the cathode; about 0.1 mm-thick Na foil anode in-house fabricated via rolling; separator Celgard® 2400; electrolyte 1M NaTFSI (Solvionic, Toulouse, France), 0.3 M NaNO3 and 0.8 wt% gelatin in TEGDME (Sigma Aldrich, UK) at optimized E/S = 6 μL/mgS. Table 1 presents the mass composition of a 10-layer pouch cell of RT Na-S battery, extrapolated from the composition of the monolayer pouch cell of this study. The 10-layer pouch cell is in a parallel layer cell connection and comprises double-side coated cathode current collectors and Na anode foil shared between adjacent layer cells [32,34].

3.2. Experimental Results of Cycled RT Na-S Pouch Cell

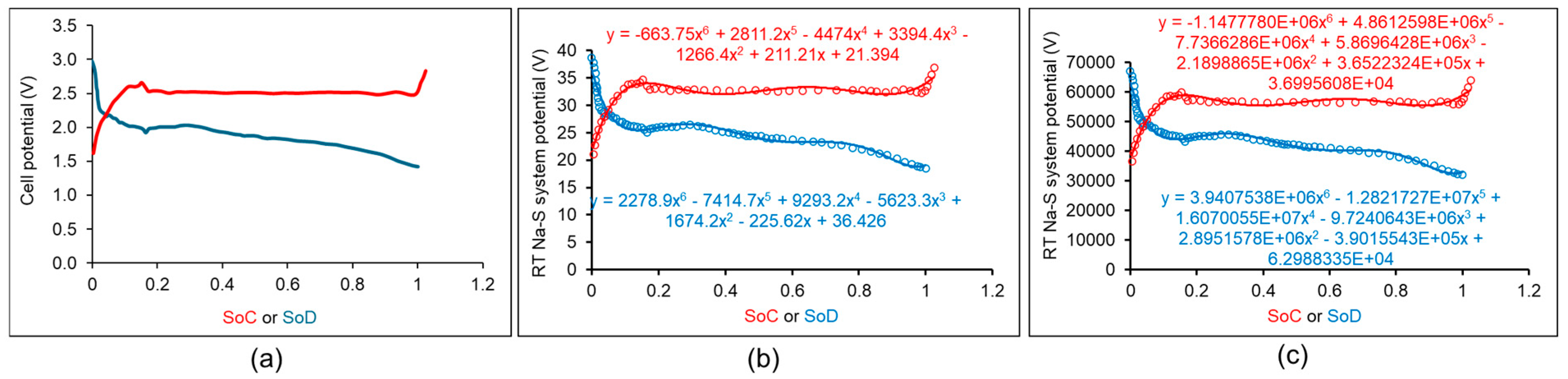

Figure 2a displays the galvanostatic dischage–charge (GDC) curves of the novel RT Na-S pouch cell described in Section 3.1, which achieved 1400 mAh/gS in discharge at 0.1 C after 200 cycles, with this capacity value at discharge stabilized in the last 10 tested cycles at 0.1 C. On the basis of these GDC curves and the composition of a multilayer pouch cell presented in Table 1, a gravimetric and volumetric energy density of 177 Wh/kgcell and 287 Wh/Lcell, respectively, was estimated in discharge at 0.1 C. The pouch cell exhibits 75% energy efficiency due to the high overpotential creating a large potential difference between charge and discharge, although the cell in Figure 2a has the advantage of offering a long potential plateau compared to other RT Na-S technologies with different electrolyte systems ([25]: 109 Wh/kgcell and 164 Wh/Lcell). In terms of power density, 0.1 C-rate is translated to an average of 22.7 W/kgcell and 36.6 W/Lcell in charge, and 17.7 W/kgcell and 28.6 W/Lcell in discharge.
HT Na-S batteries offer higher energy densities of up to 200 Wh/kgcell [135] but operate at high temperatures of 300–340 °C [101,102,103] which pose a fire and explosion risk. Due to the novelty of RT Na-S batteries, there is a lack of scaled-up cell data and, hence, energy density data with respect to cell mass rather than electrode or just sulfur mass. Our RT Na-S battery cell has higher energy density than that of the RT sodiated hard carbon-sulfur cell of Pampel et al. [25], which may be attributed to the lower E/S ratio of our cell and the additional hard carbon mass in the anode of their cell. Sodium-ion (Na-ion) batteries are another non-lithium battery technology still under development, with the French research agency CNRS CEA having launched a commercial 18,650 cylindrical cell of 90 Wh/kgcell and 250 Wh/Lcell [136], whereas other Na-ion cells reported in the literature with cathodes rich in critical raw materials exhibited higher energy densities of 150 Wh/kg for a NaNi0.68Mn0.22Co0.10O2 cathode or a Na3V2(PO4)2F3 cathode [136]. Our RT Na-S battery for energy storage integrated with renewables may also be compared to safe Li-ion batteries with reduced CRM content, such as LiFePO4 (LFP) batteries. Typical LFP batteries (commercially available as new or second-life batteries [117,118,119,120,121,122]) offer an energy density of 90–160 Wh/kg or 150–Wh/L [117,118,119,120,121,122,137,138,139], rising to 180 Wh/kg for state-of-the-art LFP cells [140], and a power density of 2000 W/kg in discharge [140] but much lower in charge at 100–200 W/kg [141].
On the basis of this data for the RT Na-S battery cell, a preliminary design is conducted to cover the mean power and energy requirements of the PV and wind turbine renewables presented in Figure 1a,b, respectively. An amount of 57 kg or 35 L of RT Na-S battery cells are required to store and deliver 9985 Wh of PV energy (also taking into account 75% energy efficiency of our RT Na-S battery cells), which, at an average of 22.7 W/kgcell and 36.6 W/Lcell in charge, cannot fully satisfy the maximum charge power requirement of 1830 W. At 17.7 W/kgcell and 28.6 W/Lcell in discharge, 57 kg or 35 L of RT Na-S battery cells cannot satisfy the maximum discharge power requirement of 1926 W (Figure 1a). Hence, a total of 109 kg or 67 L of RT Na-S battery (i.e., an extra 52 kg or 32 L of battery) is needed to cover the maximum power in discharge, which seems to be the controlling factor in this case, which also covers the maximum power in discharge and can cater to the total energy requirement in both charge and discharge; in fact, it can store and deliver an extra of 9308 Wh. Alternatively, if only 57 kg or 35 L of RT Na-S battery is used to cover the energy storage requirement, 1293.9 W charge power and 1008.9 W discharge power, then 155 kg of a high energy density supercapacitor (10 Wh kg−1 and power density of 1750 W kg−1 in charge and discharge [32,34]) could be used to cover the extra 1550 Wh at a power above 1293.9 W in charge and 1470 Wh at a power above 1008.9 W in discharge. Clearly, the lowest mass option is a total mass of 109 kg or 67 L of RT Na-S battery mass which can cover all the energy and power requirements of Figure 1a.
A preliminary design of the RT Na-S battery is also conducted to cover the mean power and energy requirements of the wind turbine renewable and load presented in Figure 1d. A total of 95 tons or 58.5 m3 of RT Na-S battery cells are required to store and deliver 16,802 kWh of wind turbine energy (also taking into account 75% energy efficiency of our RT Na-S battery cells), which at an average of 22.7 W/kgcell cover only 2.157 MW out of the 7.133 MW required in charge, and at an average of 17.7 W/kgcell cover only 1.6815 MW out of the 3.319 MW required in discharge. An extra mass of 220 tons of RT Na-S battery cells is required to cover the extra power required. Alternatively, 84.11 tons or 96.1 m3 of a high energy density supercapacitor (10 Wh kg−1 and power density of 1750 W kg−1 [32,34]) is needed to cover 0.31 MWh at powers above 2.157 MW in charge and 0.8411 MWh at powers above 1681.5 kW in discharge. In conclusion, the lowest mass option is a total amount of 179.11 tons or 154.6 m3 of RT Na-S battery and supercapacitor cells that can cover all the energy and power requirements of Figure 1d.

4. Design and Simulations of Energy Storage Systems for Solar and Wind Energy Renewables

4.1. Design and Simulations of Energy Storage System Integrated with PV System

The PV system for Figure 1a is considered to be 10 m2 of 10 PV panels with a maximum power of 200 W each, in 2p5s connection as presented in Figure 3, with a nominal PV system potential of 24 V, maximum potential of 38 V, and maximum power of 2 kW. The system is connected in parallel with an RT Na-S battery pack of 13 modules in series with a maximum potential of 3 V per module (to be charged to a maximum of 39 V) and an average potential of 1.87 V per module (system voltage of 24.31 V on average). For the battery system to store 9985 Wh at a nominal system voltage of 24 V, each module needs to be of 416 Ah, with the characteristic discharge–charge curves of the RT Na-S battery system at 0.1 C and the related polynomials fitted to the experimental data presented in Figure 2b. Considering a battery cell of 59 Ah (which is an assumed scaled-up version of our cell presented in Section 3.2 and Figure 2a, with the same specific capacity, energy density, power density in charge and discharge and energy efficiency), seven such cells need to be connected in parallel to form a battery module. As presented in Figure 3, a DC/DC converter is connected between the PV and the battery system to control the voltage within the limits of each system, and a DC/AC converter is connected between the PV and the AC grid connected with the house.

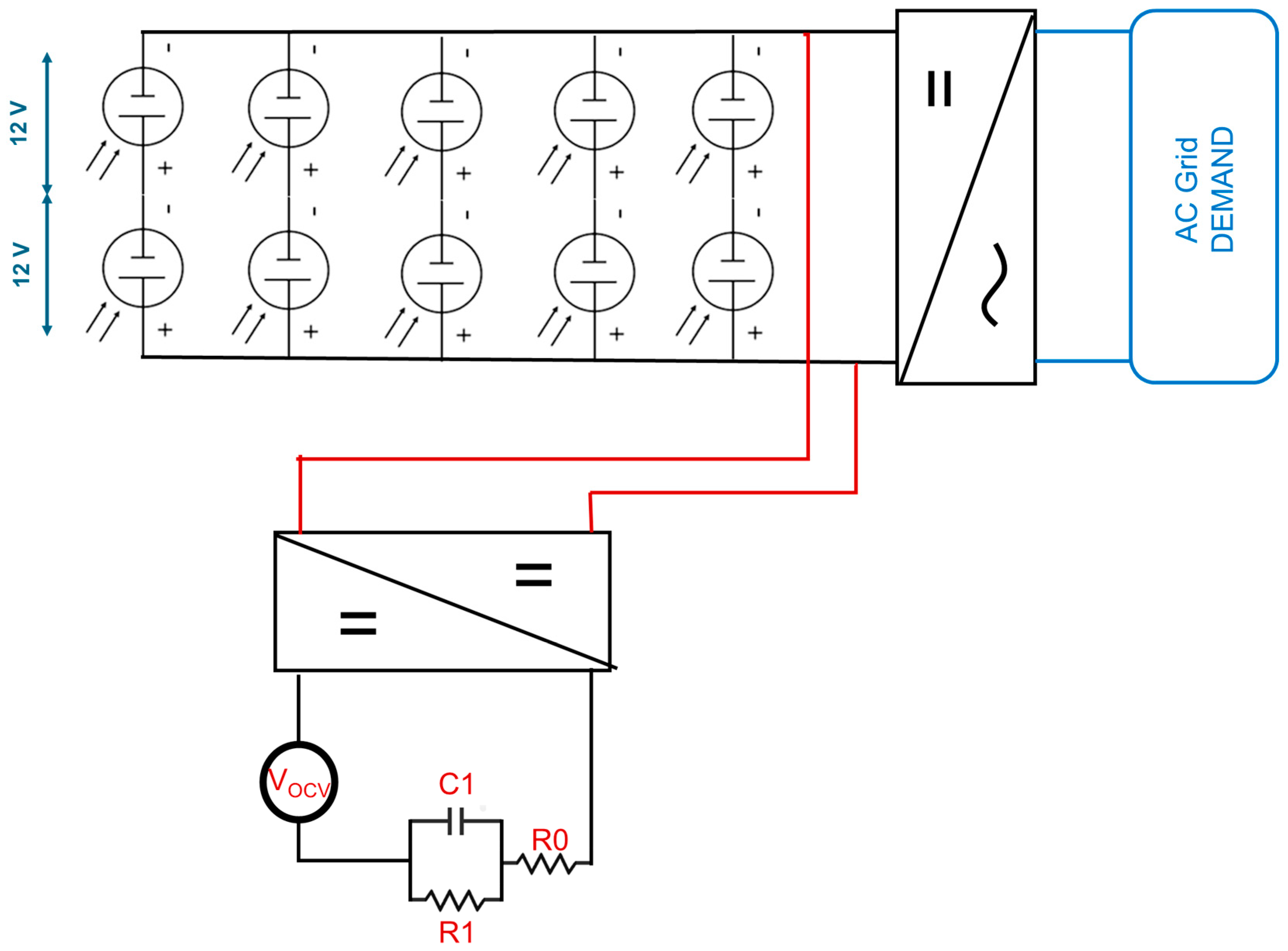

The battery system is modeled by an equivalent circuit model (ECM) as presented in Figure 3, which consists of an in-series resistance R0 = 2.75 m-ohm, a Voigt element of a capacitor C1 = 157.8 F and a resistor R1 = 3.4 m-ohm (from electrical impedance spectroscopy data of our RT Na-S pouch cell presented in Section 3.2 after 200 cycles at 0.1 C), and the open circuit voltage term Vocv fitted to the polynomials for charge and discharge presented in Figure 2b with a goodness-of-fit index R2 = 0.96. It must be noted that in considering separate VOCV curves for charge and discharge and the rest of ECM parameters, an energy efficiency of 75% and associated power efficiency (according to ECM parameters) are embedded for the RT Na-S battery system in the simulations, assuming no losses from other circuitry components of the overall system, such as in-series connections and wiring.
The PV-RT Na-S battery system–house grid was simulated for 4 consecutive days, each day inputting the PV power production profile and the household demand profile presented in Figure 1a. The initial conditions for the battery are as follows:
S t a t e   o f   c h a r g e ,   S o C = 0 ;   S t a t e   o f   d i s c h a r g e ,   S o D = 1

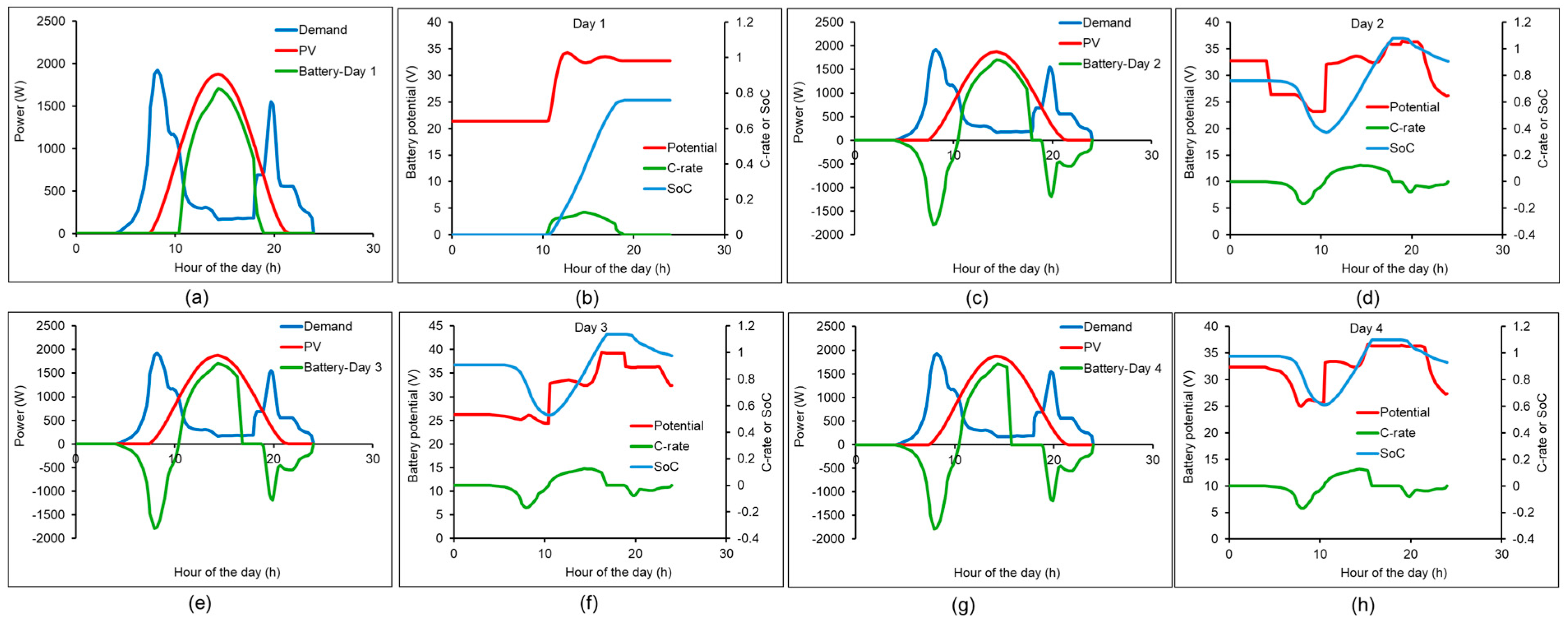

The simulation results are presented in Figure 4. On Day 1, the RT Na-S battery system is only charged by any excess PV energy, and the grid provides for any net demands not covered by the PV system (Figure 4a). At the end of Day 1 (Figure 4b), the battery has reached SoC = 75.85% and potential Vbatt = 32.8 V. The charging C-rate varies from 0.004 C to 0.0125 C. On Day 2, the partially charged battery discharges (up to the limit of SoC = 0) on demand or is charged by any excess of PV energy up to the upper limit of Vbatt = 39 V (Figure 4c). At the end of Day 2 (Figure 4d), the battery has reached SoC = 90.8% and Vbatt = 26.17 V. The maximum discharging and charging C-rates are −0.166 C and 0.122 C, respectively. During Day 2, the battery started with SoC = 75.85%, initially discharged to SoC = 37.6%; thereafter, after 10.8 h in the day, there was excess of PV energy that charged the battery to its maximum voltage limit, SoC = 108% at 17.93 h, at which point the charging stopped until 19.7 h when the first need for net demand arose and was supplied by the battery which was discharged to SoC = 90.8% at the end of Day 2. No energy was supplied by the grid on Day 2; all net energy demands were covered by the battery.
On Day 3, the charged battery discharges (up to the limit of SoC = 0) on demand or is charged by any excess of PV energy up to the upper limit of Vbatt = 39 V (Figure 4e). At the end of Day 3 (Figure 4f), the battery has reached SoC = 97.7% and Vbatt = 32.4 V. The maximum discharging and charging C-rates are −0.168 C and 0.126 C, respectively. During Day 3, the battery started with SoC = 90.8%, initially discharged to SoC = 52.7%; thereafter, after 10.6 h in the day, there was excess of PV energy that charged the battery to its maximum voltage limit, SoC = 109% at 17.3 h, at which point the charging stopped until 19.9 h when the first need for net demand arose and was supplied by the battery which was discharged to SoC = 97.7% at the end of Day 3. No energy was supplied by the grid on Day 3; all net energy demands were covered by the battery.
On Day 4, the charged battery discharges (up to the limit of SoC = 0) on demand or is charged by any excess of PV energy up to the upper limit of Vbatt = 39 V (Figure 4f). At the end of Day 4 (Figure 4g), the battery has reached SoC = 93.08% and Vbatt = 27.3 V. The maximum discharging and charging C-rates are −0.170 C and 0.127 C, respectively. During Day 4, the battery started with SoC = 97.7%, initially discharged to SoC = 61.2%; thereafter, after 10.7 h in the day, there was excess of PV energy that charged the battery to its maximum voltage limit, SoC = 108% at 15.7 h, at which point the charging stopped until 19.9 h when the first need for net demand arose and was supplied by the battery which was discharged to SoC = 93.08% at the end of Day 4. No energy was supplied by the grid on Day 3; all net energy demands were covered by the battery.

4.2. Design and Simulations of Energy Storage Systems Integrated with the Wind Turbine System

The wind turbine system for Figure 1d is considered to be of an AC voltage of 66 kV and maximum power of 10 MW. The first case study considers a standalone RT Na-S battery pack, without any supercapacitor. The wind turbine system is connected in parallel with the RT Na-S battery pack via an AC/DC converter which translates the 66 kV AC to 42.04 V DC, which is considered to be the battery system potential. The battery system consists of 22,480 modules in series with a maximum potential of 3 V per module (to be charged to a maximum of 67,440 V) and an average potential of 1.87 V per module (system voltage of 42,037.6 V on average). For the battery system to store 16,802 kWh at a nominal system voltage of 42,037.6 V, each module needs to be of a capacity of 400 Ah. Considering a battery cell of 59 Ah (which is an assumed scaled-up version of our cell presented in Section 3.2 and Figure 2a, with the same specific capacity, energy density, power density in charge and discharge and energy efficiency), seven such cells need to be connected in parallel to form a battery module. In fact, more cells are considered to lower the C-rate; 21 cells in parallel are considered, creating 1239 Ah per battery module. Figure 2c presents the characteristic discharge–charge curves of the RT Na-S battery pack at 0.1 C and the related polynomials fitted to the experimental data. As presented in Figure 5, an AC/DC converter is connected between the wind turbine and the battery pack to control the voltage within the limits of each system, and an AC/AC converter is connected between the wind turbine and the AC grid connected with the industrial site to control the AC voltage supplied to the grid and the individual industrial site.

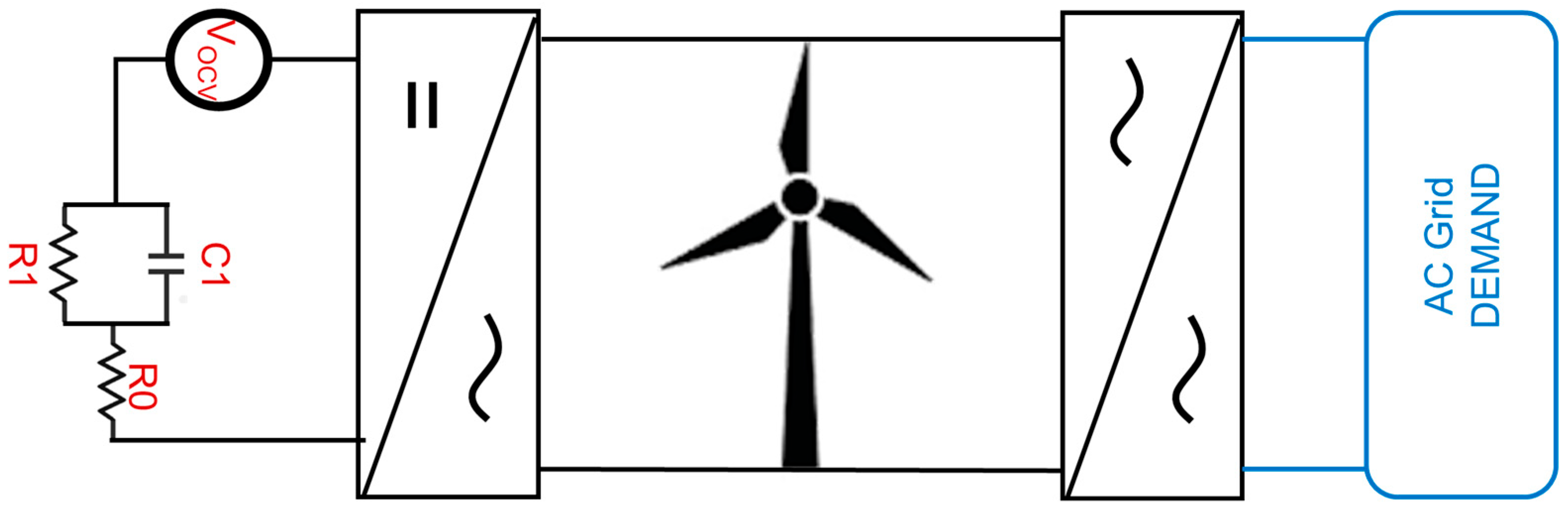

The battery system is modeled by an equivalent circuit model (ECM) as presented in Figure 5, which consists of an in-series resistance R0 = 4.95 ohm, a Voigt element of a capacitor C1 = 87.7 mF and a resistor R1 = 5.65 ohm (from electrical impedance spectroscopy data of our RT Na-S pouch cell presented in Section 3.2 after 200 cycles at 0.1 C), and the open circuit voltage term Vocv fitted to the polynomials for charge and discharge is presented in Figure 2c with a goodness-of-fit index R2 = 0.96. It must be noted that considering separate VOCV curves for charge and discharge and the rest of ECM parameters, an energy efficiency of 75% and associated power efficiency (according to ECM parameters) are embedded for the RT Na-S battery system in the simulations, assuming no losses from other circuitry components of the overall system, such as in-series connections and wiring.

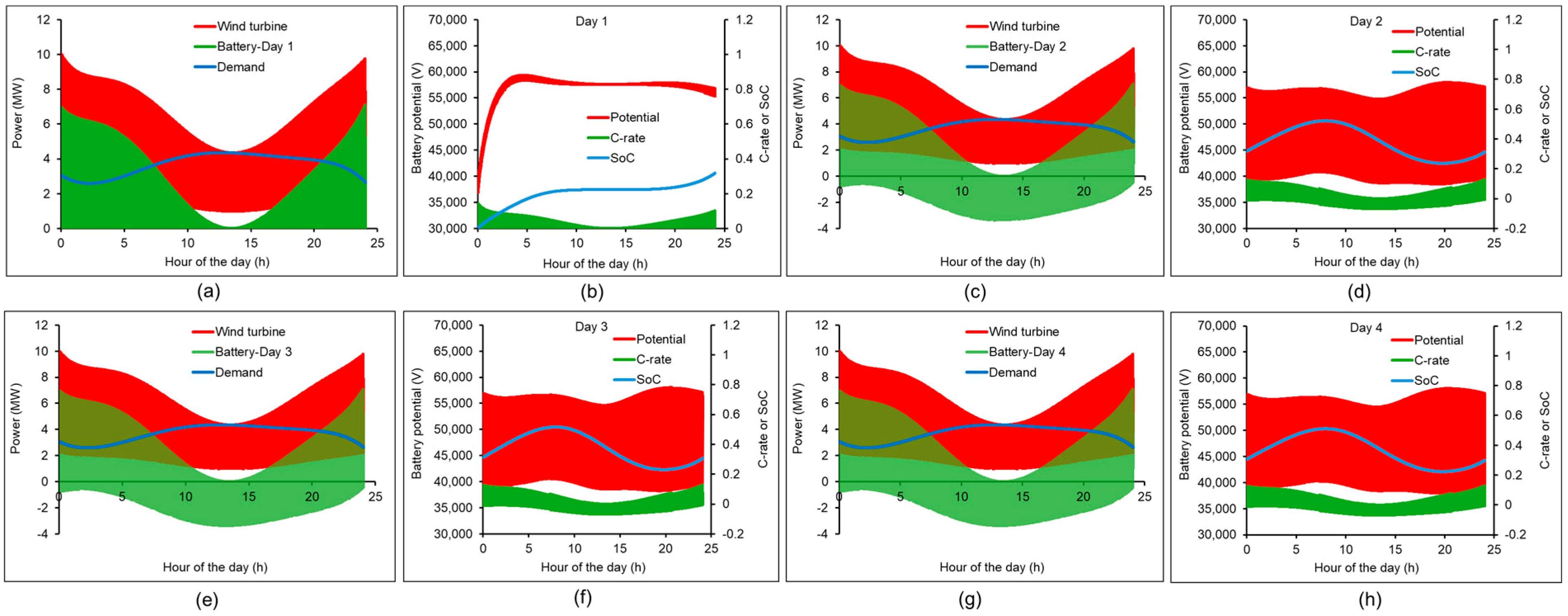

The wind turbine–RT Na-S battery system—industrial grid was simulated for 4 consecutive days, each day inputting the wind turbine power production profile and the industrial site grid demand profile presented in Figure 1c,d. The simulation results are presented in Figure 6. On Day 1, the RT Na-S battery system is only charged by any excess wind energy, and the grid provides for any net demands not covered by the wind turbine system (Figure 6a). At the end of Day 1 (Figure 6b), the battery has reached SoC = 31.8% and potential Vbatt = 55,820 V. The charging C-rate varies from 0.004 C to 0.147 C.
On Day 2, the partially charged battery discharges (up to the limit of SoC = 0) on demand or is charged by any excess of wind turbine energy up to the upper limit of Vbatt = 67,440 V (Figure 6c). At the end of Day 2 (Figure 6d), the battery has reached SoC = 31.24% and Vbatt = 55,770 V. The maximum discharging and charging C-rates are −0.005 C and 0.12 C, respectively. During Day 2, the battery started with SoC = 31.8% and was charged to SoC = 52.15%; thereafter, after 8.1 h in the day, there was net demand that discharged the battery to a minimum SoC = 23.7% at 19.6 h, at which point the battery charging returned until the end of the day, after 24 h, to SoC = 31.24%. No energy was supplied by the grid on Day 2; all net energy demands were covered by the battery.
On Day 3, the partially charged battery discharges (up to the limit of SoC = 0) on demand or is charged by any excess of wind turbine energy up to the upper limit of Vbatt = 67,440 V (Figure 6e). At the end of Day 3 (Figure 6f), the battery has reached SoC = 30.6% and Vbatt = 55,740 V. The maximum discharging and charging C-rates are −0.005 C and 0.125 C, respectively. During Day 3, the battery started with SoC = 31.24% and was charged to SoC = 51.4%; thereafter, after 8.7 h in the day, there was net demand that discharged the battery to a minimum SoC = 23.05% at 19.6 h, at which point the battery charging returned until the end of the day, after 24 h, to SoC = 30.6%. No energy was supplied by the grid on Day 3; all net energy demands were covered by the battery.
On Day 4 the partially charged battery discharges (up to the limit of SoC = 0) on demand or is charged by any excess of wind turbine energy up to the upper limit of Vbatt = 67,440 V (Figure 6g). At the end of Day 4 (Figure 6h), the battery has reached SoC = 29.9% and Vbatt = 55,730 V. The maximum discharging and charging C-rates are −0.005 C and 0.125 C, respectively. During Day 4, the battery started with SoC = 30.6% and was charged to SoC = 50.8%; thereafter, after 8.7 h in the day, there was net demand that discharged the battery to a minimum SoC = 22.3% at 19.6 h, at which point the battery charging returned until the end of the day, after 24 h, to SoC = 29.9%. No energy was supplied by the grid on Day 4; all net energy demands were covered by the battery.
Given the large mass of the RT Na-S battery for the wind turbine system (Figure 1d), 315 tons of battery was employed in the simulations that produced the results in Figure 6 (which is equivalent to 194 m3 of battery), a hybrid RT Na-S battery–supercapacitor system was employed in a new case study integrated with the wind system, as designed at the end of Section 3. The battery–supercapacitor system is considered with the battery and the supercapacitor connected in parallel (sharing the same maximum voltage), with a DC/DC converter between them that converts the supercapacitor voltage to the same voltage as that of the battery and the DC voltage of the AC/DC converter between the wind turbine and the battery in Figure 5. An algorithm was written for the power split between the battery and the supercapacitor (essentially current split) on the basis of the following empirical rule: when the battery C-rate exceeds a threshold (in absolute) in charge or discharge, the excess of power is stored or delivered by the supercapacitor [142]. This C-rate threshold was set at 0.1 C for both charge and discharge. As, without a supercapacitor, the C-rate in Figure 6 was above 0.1 C only in charge, the supercapacitor would take over only in charge, reaching the maximum voltage and fully charged state towards the end of Day 3. For this reason, when the battery is discharged to the grid, if the supercapacitor has sufficient charge, it is set to charge the battery at 10% of the battery discharge power.

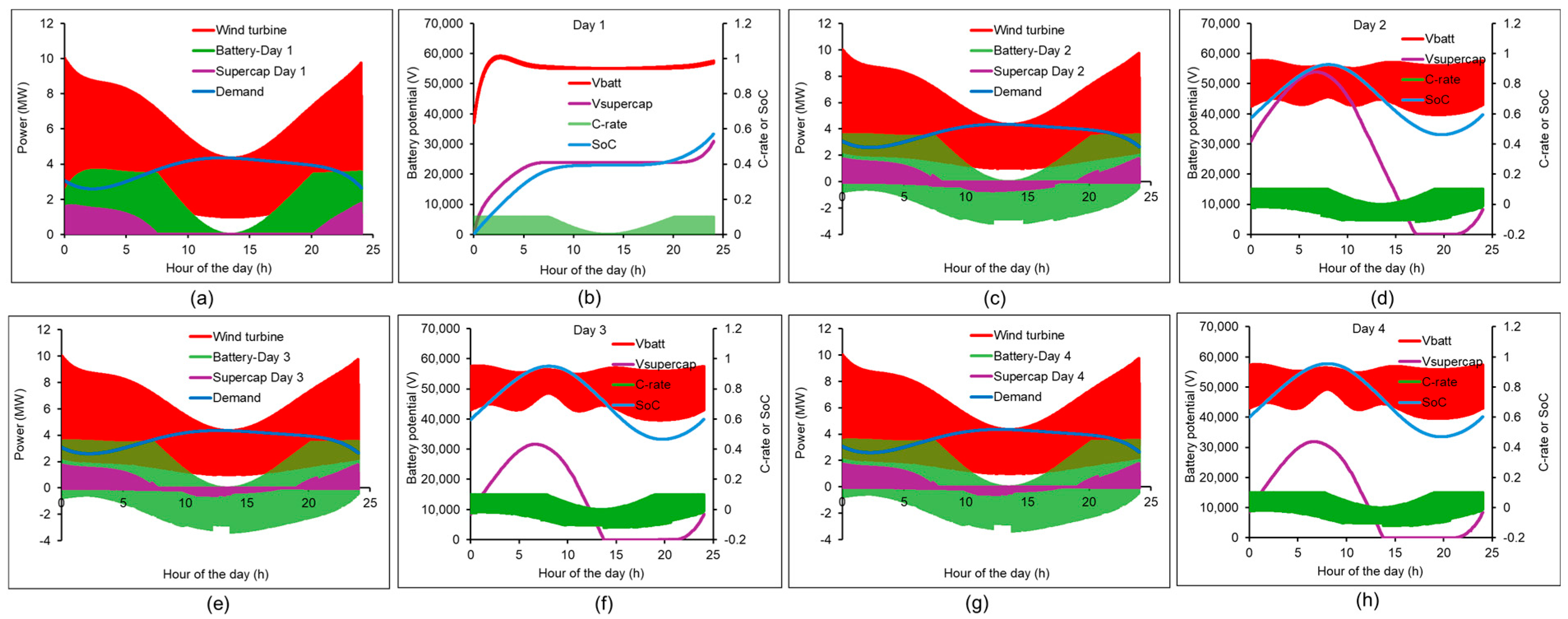

The wind turbine–battery–supercapacitor–industrial grid system was simulated for 4 consecutive days, each day inputting the wind turbine power production profile and the industrial site grid demand profile presented in Figure 1c,d. The simulation results are presented in Figure 7. For all four days and at all times, the battery C-rate was maintained between the specified limits of −0.1 C at discharge and 0.1 C in charge, according to the power split strategy between the battery and the supercapacitor. The supercapacitor potential reached a maximum of 30.89 kV at the end of Day 1, 53.9 kV at 6.9 h on Day 2, 31.6 kV at 6.9 h on Day 3 and 31.9 V at 6.9 h on Day 4. The battery potential was 57.19 kV at the end of Day 1, 57.25 kV on Day 2, 57.14 kV on Day 3 and 57.03 kV on Day 4. Hence, the supercapacitor contributes to maintaining the battery at a steady state from one day to the next, while it maintains the battery C-rate within the specified limits. This ensures the safe operation of the RT Na-S battery. No energy was supplied by the grid on Days 2–4; all net energy demands were covered by the battery and the supercapacitor.

5. Conclusions

We have concluded that RT Na-S batteries, at an energy density of 177 Wh/kg of pouch cell and 287 Wh/L of the pouch cell and 0.1 C-rate, tested successfully in charge and discharge, have exceeded the energy density of typical LFP batteries [117,118,119,120,121,122,137,138,140], other RT Na-S batteries with data in the literature with regard to cell mass [25] and Na-ion batteries [136]. Hence, they offer great potential for high energy applications and are recommended in the present study for stationary storage: on their own for relatively low power requirements, broadly provided by the battery mass satisfying the energy requirements, as an energy storage system designed for a PV panel system, or in combination with a supercapacitor for high power pulses as an energy storage system designed for a wind turbine. However, it is recognized that further research is needed to test these new green batteries for a large number of cycles (3000–5000 cycles) and obtain data for their aging and lifetime estimation in order to pave the way for their commercialization. Furthermore, more research may be needed for the development of composite anodes [25,143] to allow operation at higher power density and C-rates above 0.1 C while eliminating the problem of dendrite formation.
This feasibility study was conducted in two design stages for the energy storage system integrated with two alternative renewables and associated power supply and demand profiles: a PV system for a household and a wind turbine for an industrial site. In the first preliminary design stage, the mass and volume of the RT Na-S battery system was determined on the basis of the battery energy and power density and the requirements in battery charge (from the renewable source) and discharge (based on the demand profile). It was concluded that a mass of 109 kg and a volume of 67 L of RT Na-S battery cells is needed for the household PV energy supply and demand profile. This is equivalent to a volume of about 0.41 × 0.41 × 0.41 m3 which seems reasonable for a household energy storage system.
In the second case study, it was concluded that a mass of 179.1 tons or 154.6 m3 of a hybrid battery–supercapacitor system is needed for the 7.13 MW wind turbine energy supply and industrial site demand profile. This is equivalent to a cubic volume of about 5.37 × 5.37 × 5.37 m3 which may be reasonable for a 100 m blade wind turbine. A battery system footprint of 5.37 × 5.37 m2 may be hosted by an industrial site and the volume of 154.6 m3 may be distributed from a footprint of 5.37 × 5.37 m2 or even larger in the underground foundations to greater height vertically along the tall tower of the wind turbine.
The second design stage proceeded to determine the energy storage system architecture in terms of the number of cells in series and in parallel and the voltage limits of the system. The RT Na-S battery was modeled by an equivalent electric circuit model which was parameterized on the basis of experimental test data for an RT Na-S battery pouch cell. It must be appreciated that for both renewable integrated energy storage systems, and especially for the large energy storage system of thousands of cells integrated with the wind turbine, well-designed thermal management and battery control systems are required, which have not been included in the simulations of this paper but would be required for a comprehensive design of a commercial system.
In each case study, the renewable energy-battery system-microgrid was simulated for four consecutive days. After charging the energy storage system on Day 1, the battery system was self-sufficient every day, charging sufficiently from the renewable energy supply and supplying all the demand needs, without any contributions from the grid to cover the demand. Regarding the battery mass for the high maximum power wind turbine system, about half of this mass was replaced by a supercapacitor system of an energy density of 10 Wh/kg, which catered for any excess power above 0.1 C in charge or discharge and also charged the battery at a very low rate during battery discharge. Simulations for four consecutive days revealed that the battery–supercapacitor system was a very good fit for the wind power supply and grid demand profiles and covered all the net demands without any contributions required from the grid. At the same time, the operation of the RT Na-S battery pack was maintained below 0.1 C, which ensured safe system operation at the minimum mass and volume of the hybrid energy storage system of the RT Na-S battery–supercapacitor.
In conclusion, the RT Na-S battery alone or combined with a supercapacitor offers a highly sustainable solution for stationary energy storage that promises to promote the exploitation of renewable energy sources to their full capacity.
