# Optimization of Transfer Quality Factor of Limited-Size Coils for Series-Series Compensated Inductive Power Transfer System

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

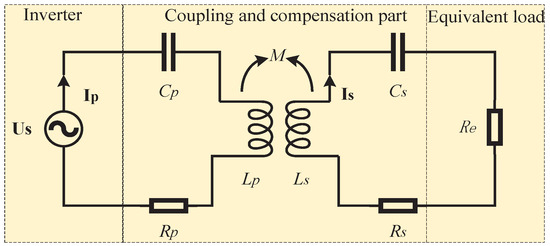

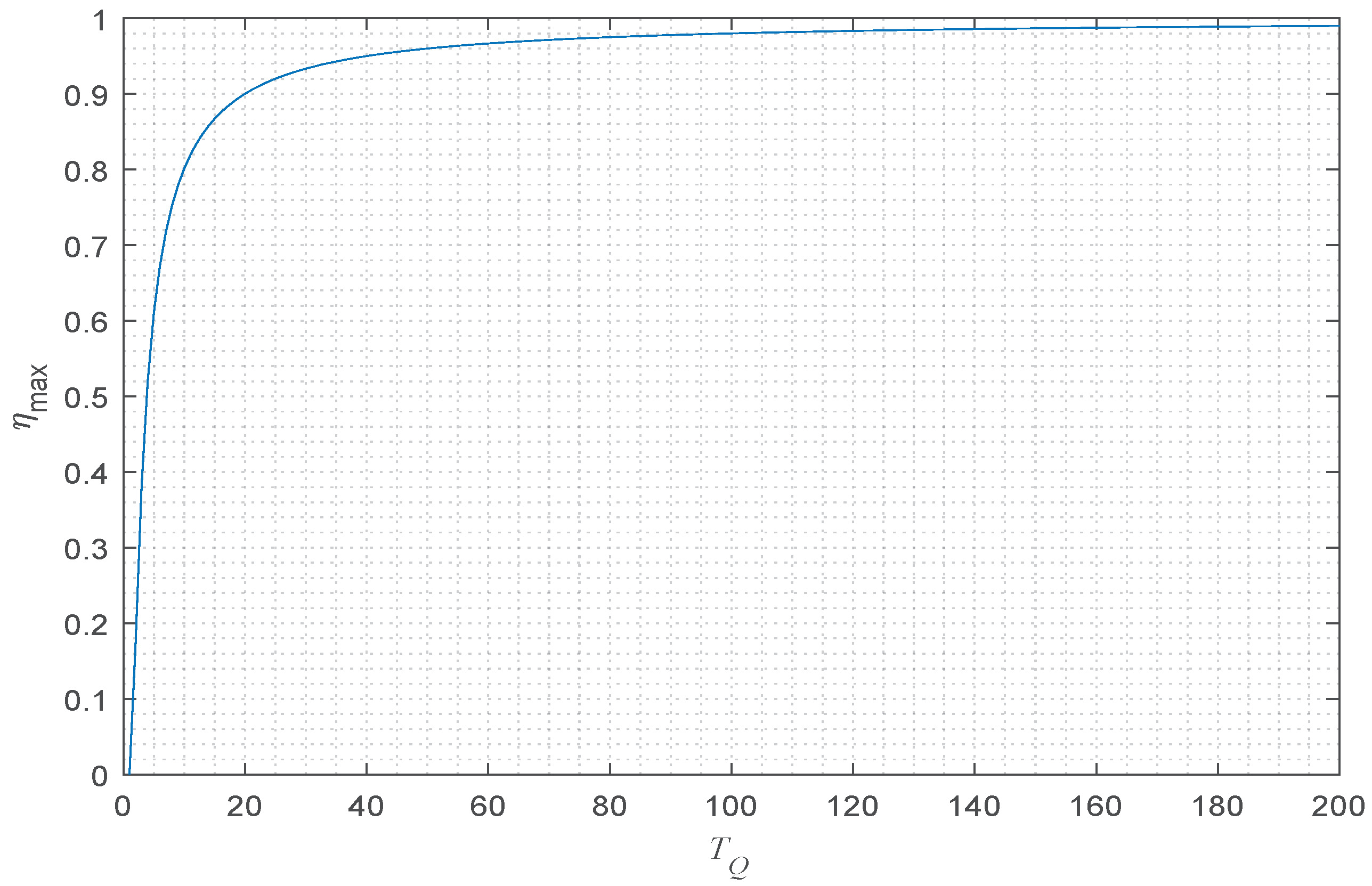

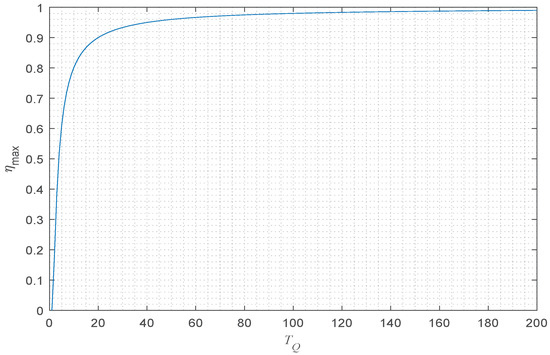

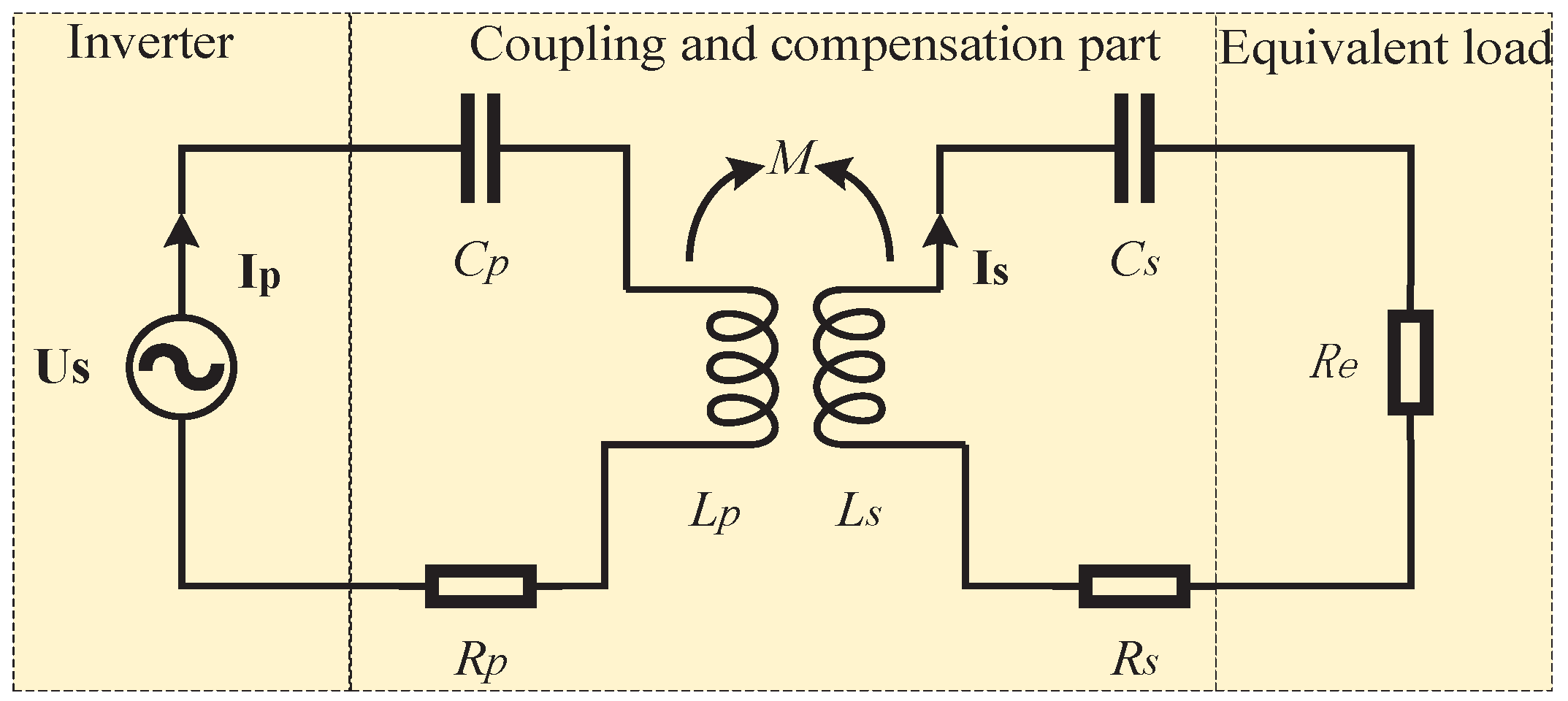

## 2. Problem Formulation

## 3. Optimization Procedure

**d**are taken as variables to solve the problem, the solution space will be very large, thus in this paper, we first analyze the variation law of the transfer quality factor of equally spaced coils with the number of turns and turn spacing. After obtaining the optimal number of turns, we optimize the turn spacing to further improve the transfer quality factor of the coils.

#### 3.1. Determination of the Number of Turns

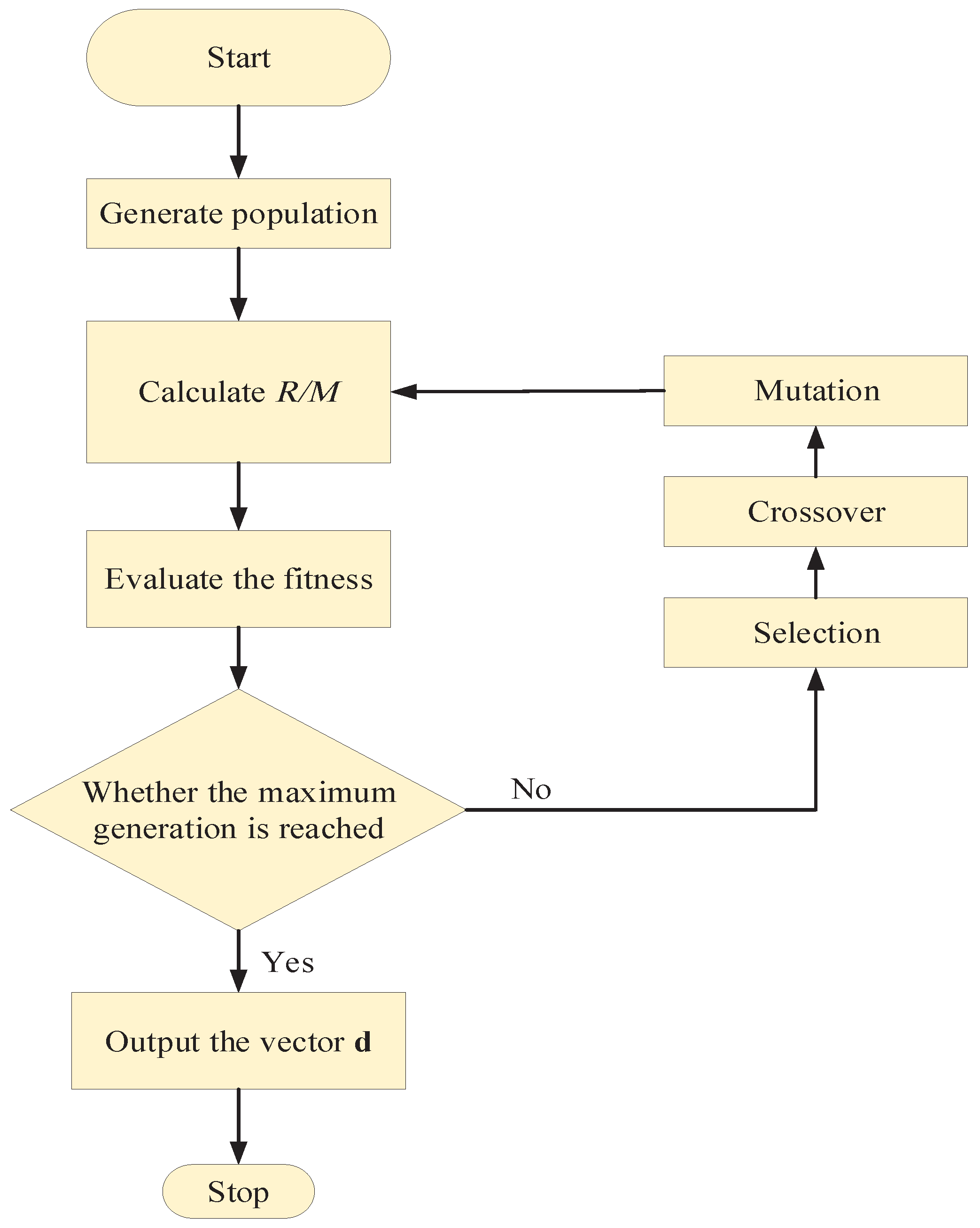

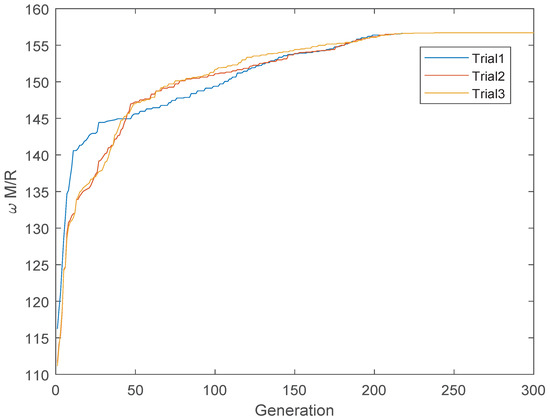

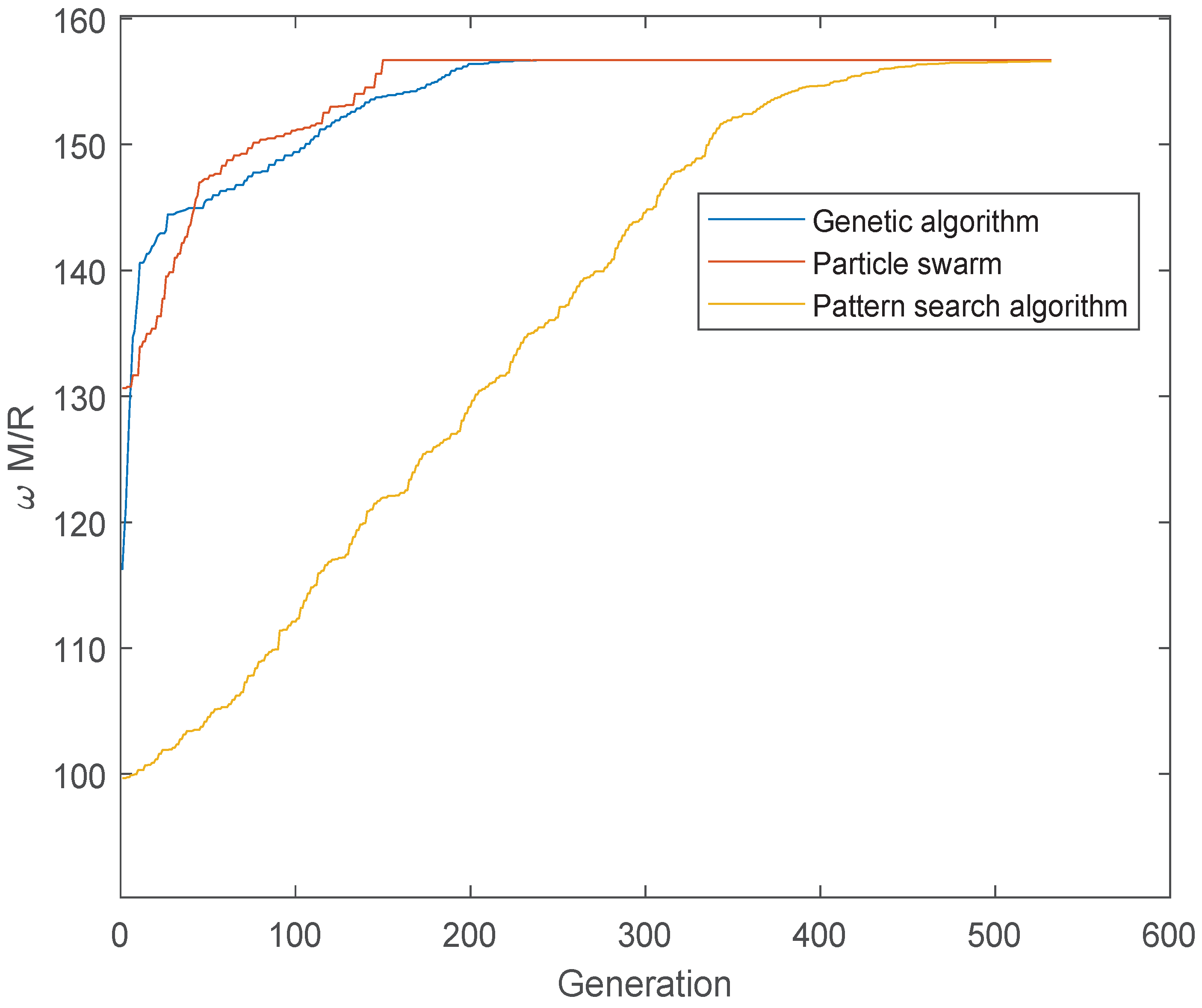

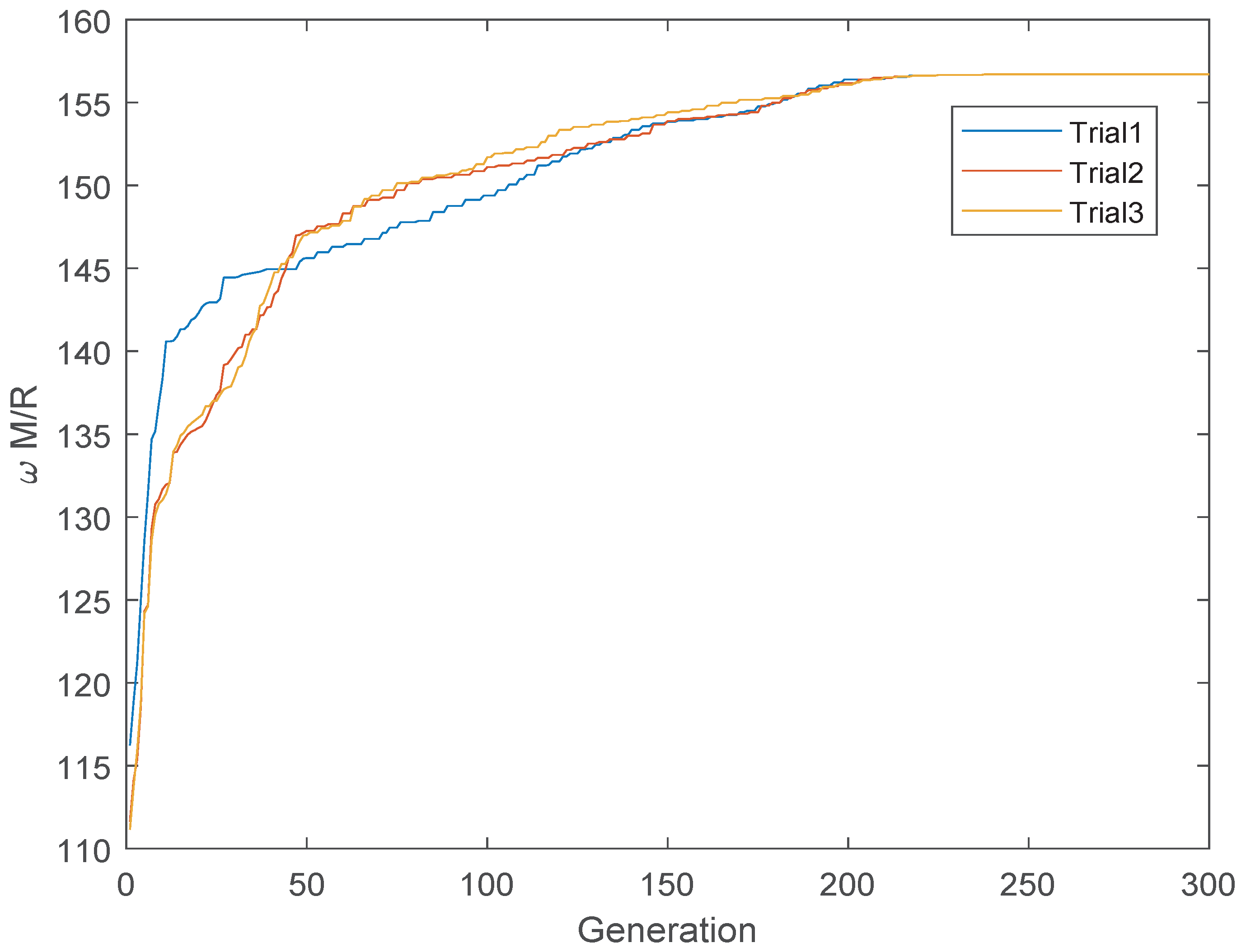

#### 3.2. Optimization of the Distance between Adjacent Turn

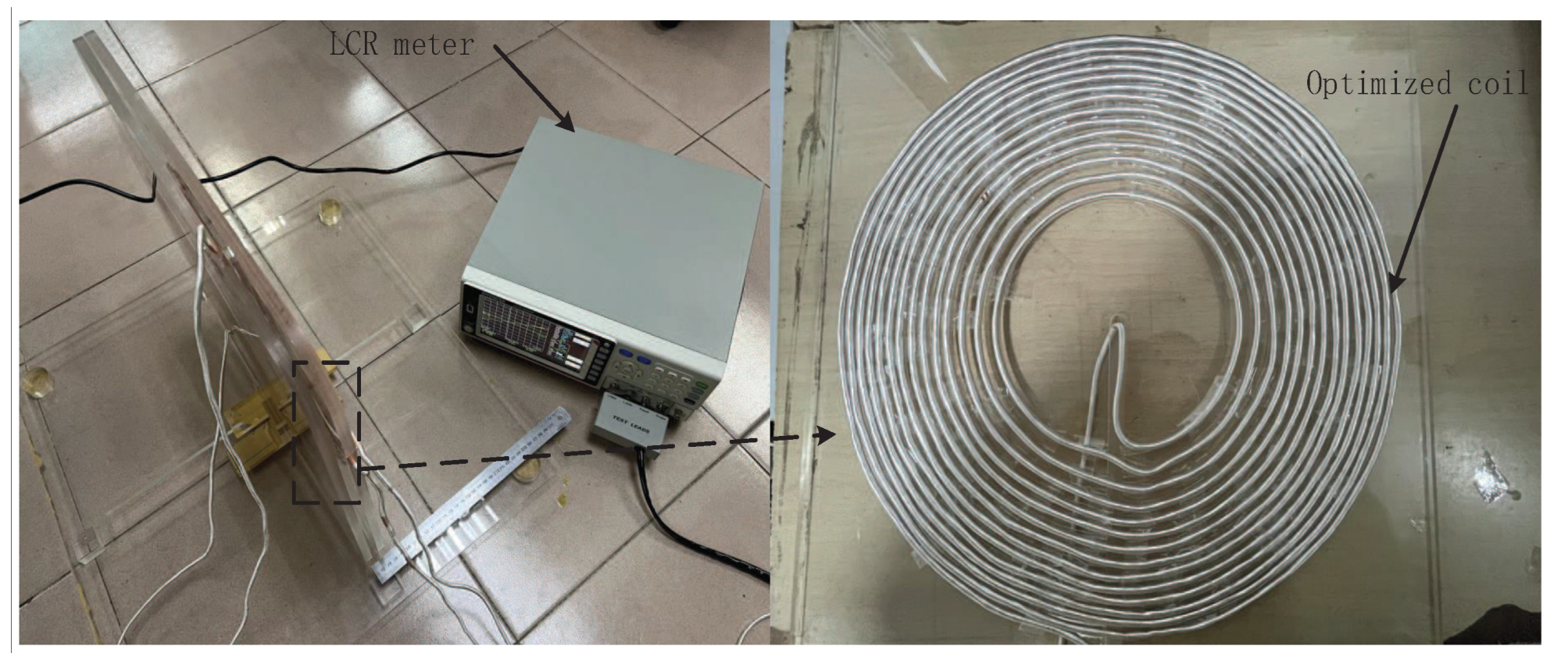

## 4. Results and Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Sample, A.P.; Meyer, D.A.; Smith, J.R. Analysis, Experimental Results, and Range Adaptation of Magnetically Coupled Resonators for Wireless Power Transfer. IEEE Trans. Ind. Electron.
**2011**, 58, 544–554. [Google Scholar] [CrossRef] - Zhang, Z.; Pang, H.; Georgiadis, A.; Cecati, C. Wireless Power Transfer-An Overview. IEEE Trans. Ind. Electron.
**2019**, 66, 1044–1058. [Google Scholar] [CrossRef] - Liu, Q.; Wu, J.; Xia, P.; Zhao, S.; Chen, W. Charging unplugged: Will distributed laser charging for mobile wireless power transfer work? IEEE Veh. Technol. Mag.
**2016**, 11, 36–45. [Google Scholar] [CrossRef] - Wang, B.; Teo, K.H.; Nishino, T.; Yerazunis, W.; Barnwell, J.; Zhang, J. Experiments on wireless power transfer with metamaterials. Appl. Phys. Lett.
**2011**, 98, 254101. [Google Scholar] [CrossRef] [Green Version] - Ludois, D.C.; Erickson, M.J.; Reed, J.K. Aerodynamic fluid bearings for translational and rotating capacitors in noncontact capacitive power transfer systems. IEEE Trans. Ind. Appl.
**2014**, 50, 1025–1033. [Google Scholar] [CrossRef] - Kuperman, A. Additional two-capacitor basic compensation topologies for resonant inductive wpt links. IEEE Trans. Power Deliv.
**2020**, 35, 2568–2570. [Google Scholar] [CrossRef] - Riehl, P.S.; Satyamoorthy, A.; Akram, H.; Yen, Y.C.; Yang, J.C.; Juan, B.; Lee, C.M.; Lin, F.C.; Muratov, V.; Plumb, W. Wireless power systems for mobile devices supporting inductive and resonant operating modes. IEEE Trans. Microw. Theory Tech.
**2015**, 63, 780–790. [Google Scholar] [CrossRef] - Zhong, W.; Hui, S. Maximum energy efficiency operation of series-series resonant wireless power transfer systems using on-off keying modulation. IEEE Trans. Power Electron.
**2017**, 99, 1. [Google Scholar] [CrossRef] - Song, K.; Li, Z.; Jiang, J.; Zhu, C. Constant current/voltage charging operation for series-series and series-parallel compensated wireless power transfer systems employing primary-side controller. IEEE Trans. Power Electron.
**2017**, 33, 8065–8080. [Google Scholar] [CrossRef] - Monti, G.; Costanzo, A.; Mastri, F.; Mongiardo, M. Optimal design of a wireless power transfer link using parallel and series resonators. Wireless Power Transfer. Wirel. Power Transf.
**2016**, 3, 105–116. [Google Scholar] [CrossRef] - Hatc Ha Vanich, N.; Sangswang, A.; Konghirun, M. The Bifurcated Detection using the Sensing Coil for Parallel-Parallel Compensation in IPT System. In Proceedings of the IECON 2020–46th Annual Conference of the IEEE Industrial Electronics Society, Singapore, 18–21 October 2020. [Google Scholar]
- Ramezani, A.; Farhangi, S.; Iman-Eini, H.; Farhangi, B.; Rahimi, R.; Moradi, G.R. Optimized lcc-series compensated resonant network for stationary wireless ev chargers. IEEE Transactions on Industrial Electronics. IEEE Trans. Ind. Electron.
**2019**, 66, 2756–2765. [Google Scholar] [CrossRef] - Li, S.; Li, W.; Deng, J.; Nguyen, T.D.; Mi, C.C. A double-sided lcc compensation network and its tuning method for wireless power transfer. IEEE Trans. Veh. Technol.
**2015**, 64, 2261–2273. [Google Scholar] [CrossRef] - Yao, Y.; Wang, Y.; Liu, X.; Lin, F.; Xu, D. A novel parameter tuning method for a double-sided lcl compensated wpt system with better comprehensive performance. IEEE Trans. Power Electron.
**2018**, 33, 8525–8536. [Google Scholar] [CrossRef] - Zhou, X.; Garmatyuk, D. Frequency-selective planar coil architecture modeling for wpt access control. Appl. Comput. Electromagn. Soc. J.
**2021**, 35, 1452–1453. [Google Scholar] [CrossRef] - Wu, J.; Zhao, C.; Lin, Z.; Du, J.; Hu, Y.; He, X. Wireless power and data transfer via a common inductive link using frequency division multiplexing. IEEE Trans. Ind. Electron.
**2015**, 62, 7810–7820. [Google Scholar] [CrossRef] [Green Version] - Moon, S.; Kim, B.; Cho, S.; Ahn, C.; Moon, G. Analysis and design of a wireless power transfer system with an intermediate coil for high efficiency. IEEE Trans. Ind. Electron.
**2014**, 61, 5861–5870. [Google Scholar] [CrossRef] - Huang, X.; Wei, C.; Chen, Q. A design algorithm of circular transmitting coil to achieve uniform magnetic field distribution in WPT applications. In Proceedings of the 2015 IEEE 2nd International Future Energy Electronics Conference (IFEEC), Taipei, Taiwan, 1–4 November 2015. [Google Scholar]
- Zhang, Y.; Zhao, Z.; Chen, K. Frequency Decrease Analysis of Resonant Wireless Power Transfer. IEEE Trans. Power Electron.
**2013**, 29, 1058–1063. [Google Scholar] [CrossRef] - Wang, P.Y.; Sun, Y.; Ye, Z.H.; Dai, X.; Liao, Z.J. An Optimal Design Method of Coils for Magnetic Coupled Wireless Power Transfer System. In Proceedings of the 2018 Progress in Electromagnetics Research Symposium (PIERS-Toyama), Toyama, Japan, 1–4 August 2018. [Google Scholar]
- Sampath, J.; Alphones, A.; Shimasaki, H. Coil design guidelines for high efficiency of wireless power transfer (WPT). In Proceedings of the 2016 IEEE Region 10 Conference, Singapore, 22–25 November 2016. [Google Scholar]
- Fadhel, Y.B.; Bouattour, G.; Bouchaala, D.; Derbel, N.; Kanoun, O. Design optimization of spiral coils for textile applications by genetic algorithm. In Proceedings of the 18th International Multi-Conference on Systems, Signals and Devices (SSD), Monastir, Tunisia, 22–25 March 2021. [Google Scholar]
- Sasatani, T.; Narusue, Y.; Kawahara, Y. Genetic algorithm-based receiving resonator array design for wireless power transfer. IEEE Access
**2020**, 8, 222385–222396. [Google Scholar] [CrossRef] - Kuang, S.; Yan, G.; Wang, Z. Optimization design for receiving coil with novel structure based on mutual coupling model in wireless power transmission for capsule endoscope. Energies
**2020**, 13, 6460. [Google Scholar] [CrossRef] - Liu, P.; Gao, T.; Mao, Z. Analysis of the Mutual Impedance of Coils Immersed in Water. Magnetochemistry
**2021**, 7, 113. [Google Scholar] [CrossRef]

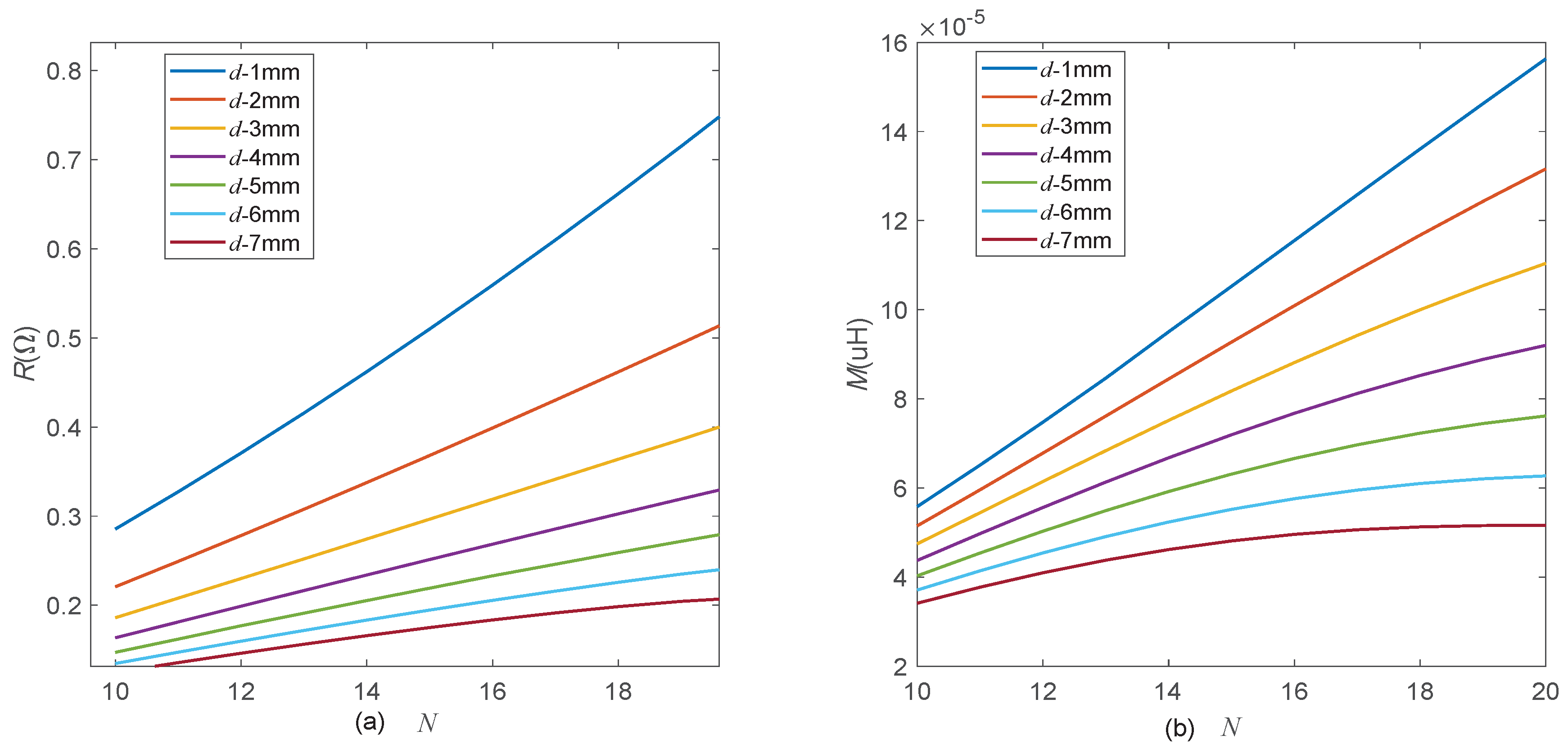

**Figure 4.**(

**a**) Curve of resistance with turn number N and the distance d between adjacent turn. (

**b**) Curve of M with turn number N and the distance d between adjacent turn.

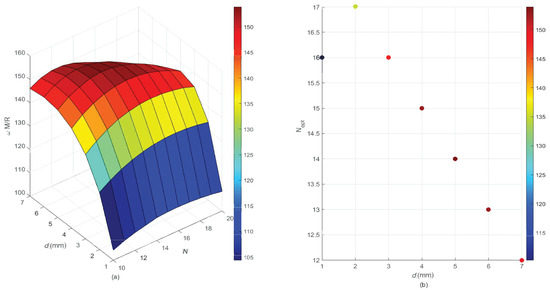

**Figure 5.**(

**a**) Curve of transfer quality factor with turn number N and the distance d between adjacent turn. (

**b**) Transfer quality factor corresponding to the optimal number of turns ${N}_{opt}$ under different turn spacing d.

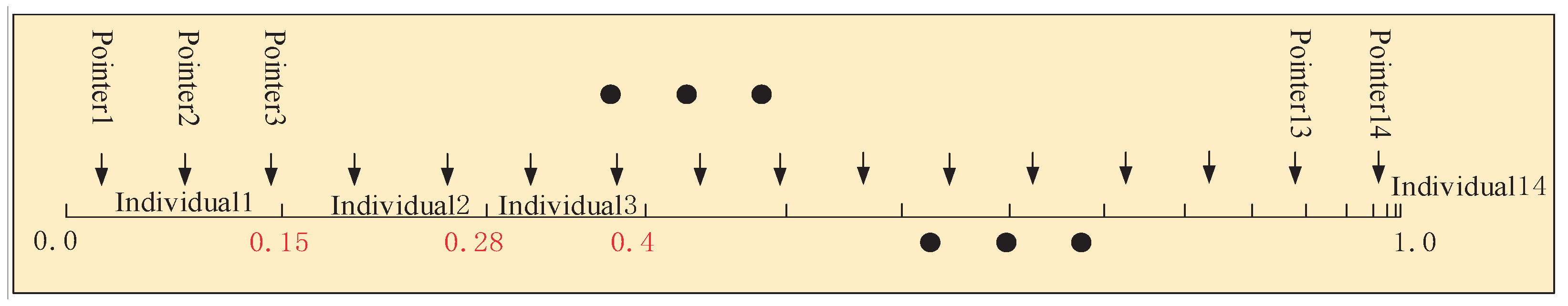

**Figure 7.**Schematic diagram of SUS principle.The red numbers in the figure are only used to illustrate the principle of this method.

Parameters | Symbol | Value |
---|---|---|

the working frequency | f | 85 kHz |

the minimum distance between adjacent turn | m | 1 mm |

the vertical distance between the two coils | ${Z}_{0}$ | 10 mm |

the maximum radius of the outermost turn of the coil | ${d}_{Nmax}$ | 200 mm |

the radius of the wire used to wind the coil | ${r}_{0}$ | $1.5$ mm |

f/kHz | Coil | N | d/mm | M/uH | $\mathit{R}/\mathbf{\Omega}$ | $\mathit{\omega}\mathit{M}/\mathit{R}\phantom{\rule{3.33333pt}{0ex}}\left({\mathit{T}}_{\mathit{Q}}\right)$ | ${\mathit{\eta}}_{\mathit{m}\mathit{a}\mathit{x}}$ |
---|---|---|---|---|---|---|---|

I (simulation) | 20 | 1 | 155.9 | 0.770 | 108.1 | 98.17% | |

II (simulation) | 14 | 5 | 59.2 | 0.205 | 154.1 | 98.71% | |

85 | III (simulation) | 14 | d | 59.6 | 0.204 | 156.0 | 98.73% |

I (measurement) | 20 | 1 | 154.0 | 0.751 | 109.5 | 98.19% | |

II (measurement) | 14 | 5 | 58.4 | 0.198 | 157.4 | 98.74% | |

III (measurement) | 14 | d | 59.1 | 0.195 | 161.8 | 98.77% |

f/kHz | Coil | ${\mathit{Z}}_{0}\phantom{\rule{3.33333pt}{0ex}}\left(\mathbf{mm}\right)$ | $\mathit{\omega}\mathit{M}\mathbf{/}\mathit{R}\phantom{\rule{3.33333pt}{0ex}}\mathbf{\left(}{\mathit{T}}_{\mathit{Q}}\mathbf{\right)}$ | ${\mathit{\eta}}_{\mathit{m}\mathit{a}\mathit{x}}$ |
---|---|---|---|---|

I (simulation) | 10 | 108.1 | 98.17% | |

I (simulation) | 20 | 105.9 | 98.13% | |

I (simulation) | 30 | 100.5 | 98.0% | |

III (simulation) | 10 | 156.0 | 98.73% | |

III (simulation) | 20 | 149.5 | 98.67% | |

III (simulation) | 30 | 140.3 | 98.58% | |

85 | I (measurement) | 10 | 109.5 | 98.19% |

I (measurement) | 20 | 106.7 | 98.14% | |

I (measurement) | 30 | 101.2 | 98.04% | |

III (measurement) | 10 | 161.8 | 98.77% | |

III (measurement) | 20 | 150.4 | 98.68% | |

III (measurement) | 30 | 142.1 | 98.60% |
