Doxorubicin-Loaded Magnetic Nanoparticles: Enhancement of Doxorubicin’s Effect on Breast Cancer Cells (MCF-7)

1
Department of Biotechnology, Genetics and Cell Biology, State University of Maringa, Av. Colombo, 5790, Maringa 87020900, PR, Brazil
2
Department of Physics, State University of Maringa, Av. Colombo, 5790, Maringa 87020900, PR, Brazil
*
Author to whom correspondence should be addressed.
Magnetochemistry 2022, 8(10), 114; https://doi.org/10.3390/magnetochemistry8100114
Submission received: 1 August 2022 / Revised: 15 September 2022 / Accepted: 16 September 2022 / Published: 23 September 2022

Abstract

:
The incidence of female breast cancer has increased; it is the most commonly diagnosed cancer, at 11.7% of the total, and has the fourth highest cancer-related mortality. Magnetic nanoparticles have been used as carriers to improve selectivity and to decrease the side effects on healthy tissues in cancer treatment. Iron oxide (mainly magnetite, Fe 3 O 4 ), which presents a low toxicity profile and superparamagnetic behavior, has attractive characteristics for this type of application in biological systems. In this article, synthesis and characterization of magnetite (NP-Fe 3 O 4 ) and silica-coated magnetite (NP-Fe 3 O 4 /SiO 2 ) nanoparticles, as well as their biocompatibility via cellular toxicity tests in terms of cell viability, are carefully investigated. MCF-7 cells, which are commonly applied as a model in cancer research, are used in order to define prognosis and treatment specifics at a molecular level. In addition, HaCaT cells (immortalized human keratinocytes) are tested, as they are normal, healthy cells that have been used extensively to study biocompatibility. The results provide insight into the applicability of these magnetic nanoparticles as a drug carrier system. The cytotoxicity of nanoparticles in breast adenocarcinoma (MCF-7) and HaCat cells was evaluated, and both nanoparticles, NP-Fe 3 O 4 /SiO 2 and NP-Fe 3 O 4 , show high cell viability (non-cytotoxicity). After loading the anti-tumor drug doxorubicin (Dox) on NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox, the cytotoxicity against MCF-7 cells increases in a dose-dependent and time-dependent manner at concentrations of 5 and 10 μ g/mL. HaCat cells also show a decrease in cell viability; however, cytotoxicity was less than that found in the cancer cell line. This study shows the biocompatibility of NP-Fe 3 O 4 /SiO 2 and NP-Fe 3 O 4 , highlighting the importance of silica coating on magnetic nanoparticles and reinforcing the possibility of their use as a drug carrier system against breast adenocarcinoma cells (MCF-7).

1. Introduction

In 2020, an estimated 19.3 million new cancer cases and nearly 10 million cancer deaths occurred worldwide. Female breast cancer has overtaken lung cancer as the most commonly diagnosed cancer, with an estimated 2.3 million new cases, 11.7% of the total, and the fourth leading cause of cancer-related death [1]. Cell culture lines can be applied in several approaches in research, particularly as in vitro models in cancer research, and are useful at the molecular level in order to define the prognosis and specific treatment. In the case of breast cancer, MCF-7 cells are commonly used as a suitable human breast cell line model, including for the development of anticancer drugs [2,3,4]. Recent cancer treatment studies have been trying to find the best and least risky way to replace the old methods. The main problem with currently used cancer treatments is their adverse side effects on healthy tissue. Nanotechnology, particularly magnetic nanoparticle-based applications, can help to overcome these problems. Site-specific drug administration can ensure safe and reproducible treatment of diseases in defined, localized positions and can also prevent overdose and corresponding unwanted side effects [5].
Interest in magnetic nanoparticles (MNPs) has been growing continuously due to their unique physico–chemical characteristics, including enhanced magnetic properties, chemical stability, low toxicity and biodegradability [6,7,8]. In general, their magnetic behavior depends on particle size, particle shape and crystalline structure [9]. In fact, they offer several possibilities of use in the biomedical field, and due to their well-known superparamagnetic behavior, these nanoparticles can be manipulated by external magnetic fields and, consequently, be precisely deposited in a desired location [10], for example, for hyperthermia treatment [11,12] and cancer therapy [13,14,15]. In addition, they are seen as the next generation of specific drug delivery systems [5,6,14], precisely because under the action of appropriate magnetic fields, these MNPs can be conducted to a specific target [16,17,18]. Generally, they can be divided into metal oxides, pure metals and magnetic nanocomposites. Among these, magnetic nanoparticles such as Fe 3 O 4 , Fe 2 O 3 , Fe x O y and other iron oxides have been exploited as “magnetic carriers” for drug delivery [8,19]. It is known that one of the limitations in delivering drugs is inability to transport the drug directly to the center of the disease or tumor site. Nevertheless, by using MNPs, this issue can be overcome, which would reduce systemic toxicity and side effects [16,18]. In particular, magnetite nanoparticles (Fe 3 O 4 ), which show low toxicity profiles and superparamagnetic behavior, have attractive characteristics for this type of application in biological systems [20,21].
It is important to note that nanomaterials are small enough to move around the body without affecting its normal functions and have access to places inaccessible to other materials. However, cells can also react in the presence of nanomaterials, and these reactions can produce changes in cells that lead to cell growth or cell death [22]. Although some MNPs have been approved by the FDA (U. S. Food and Drug Administration), they should not be administered in the body without control. Several toxicity studies have been conducted on MNPs with or without a surface coating and with different coatings [23,24]. Some results have indicated the toxic potential of these MNPs, mainly when used for drug delivery or magnetic resonance imaging [25,26]. MNP toxicity can be mitigated by covering them with different materials, including inorganic and organic coatings [27]. Among these materials, silica may offer significant advantages as a coating due to its inertness, agglomeration prevention, high biocompatibility and improvement of MNP stability [28,29,30]. In fact, the surface of silica ends with silanols (-SiOH), which allows easy functionalization with different groups (such as amines and carboxylic groups) and can interact with different molecules such as drugs and enzymes that can be used in the biomedical area [31,32].
The application of MNPs as therapeutic carriers can help overcome a number of disadvantages of traditional applications, such as limited effectiveness, poor distribution in the body and low selectivity [5,16]. MNPs offer an attractive means to remotely target therapeutic agents specifically to a disease site, reducing dosage and deleterious side effects associated with non-specific drug absorption by healthy tissues. After magnetic guidance, drug release can be initiated by external stimuli, such as a limited rise in temperature, or by internal stimuli, such as a change in pH [10,33,34,35]. These approaches are highly promising for cancer therapy because they may enhance the efficacy and decrease the cytotoxicity of drugs that are usually applied in cancer treatment, such as doxorubicin (Dox). Dox is considered one of the most effective chemotherapeutics and is currently approved by the FDA for a variety of cancers [36]. However, its use is hampered by relatively low selectivity for cancer cells and severe side effects due to uptake by healthy cells and tissues [37]. Therefore, targeted drug delivery systems are naturally preferred to increase the functional efficiency of transportation to specific tissues and to reduce potential side effects [16].
Some hierarchical carriers utilizing, for example, mesoporous silica nanocarriers (MSNs) co-impregnated with metallic copper in the silica framework (Cu-MSNs) or Zn-co-impregnated mesoporous siliceous frameworks (Zn-MSNs), which facilitates coordinated interactions to immobilize Dox for its pH-sensitive release, have been used for cancer cell treatments [38,39]. Several approaches related to iron oxide coated with different materials and loaded with Dox have been analyzed in order to study these materials as drug carriers for cancer therapy [11,32,40]. The amount of Dox loaded in the MNPs is highly dependent of coating nature; i.e., MNPs coated with oxalic acid presented a high loading capacity of 867 μ g of Dox per mg of MNPs [41]. In another case, MNPs were stabilized by carboxymethylcellulose sodium salt and presented a loading capacity of approximately 0.1 μ g of Dox per mg of MNPs [42]. In both cases, the materials were able to decrease the cell viability of cancerous cells (lung adenocarcinoma, A549 cells and breast cancer cells, respectively) and were time- and dose-dependent. In addition, in the second example, the conjugation of Dox with MNPs promoted less cytotoxicity in healthy breast cells. D. Nieciecka et al. analyzed iron oxide/holmium-based MNPs coated with citric acid and loaded with two chemeotherapeutics (Dox and epirubicin). Again, the cytotoxicity of Dox-loaded MNPs against SKOV-3 cancer cells was time- and dose-dependent (loading capacity of 0.1 μ g of Dox per mg of MNPs) [43].
In this study, synthesis and characterization of magnetite nanoparticles and silica-coated magenetite nanoparticles, as well as biocompatibility assays in terms of cell viability and morphology changes by in vitro cellular toxicity tests (HaCat cells used as healthy cells and MCF-7 as breast cancer cells) are carefully conducted. The strategy to enhance the toxicity of Dox on MCF-7 cancer cells by functionalization of these magnetic nanoparticles by electrostatic interactions is proposed. In addition, the advantages of silica as coating for the MNPs are pointed out, and insights into the applicability of these nanoparticles as a drug carrier system are presented and discussed.

2. Materials and Methods

2.1. Nanoparticle Synthesis and Characterization

2.1.1. Materials

Ferrous chloride tetrahydrate (FeCl 2 .4H 2 O), ferric chloride hexahydrate (FeCl 3 .6H 2 O), tetraethyl orthosilicate (TEOS) and Igepal CO-520 were purchased from Sigma-Aldrich. Ethanol (C 2 H 5 OH), ammonium hydroxide solution (NH 3 aq. 28%) and oleic acid (C 18 H 34 O 2 ) were purchased from Labsynth. In all syntheses, the aqueous solution was deoxygenated by argon bubbling for 15 min before use.

2.1.2. Magnetic Nanoparticle Synthesis

Magnetic nanoparticles (NP-Fe 3 O 4 ) were synthesized by the chemical co-precipitation method [44,45]. Initially, a solution of iron chlorides was prepared using 6 mmol Fe 3 + and 3 mmol Fe 2 + in 30 mL of deionized and degassed water. Under stirring and an argon atmosphere, the solution was heated to 80 C, and then 15 mL of NH 3 aq. (28%) was added to the reactional system, instantly forming a black precipitate. The suspension was continuously stirred for 1 h. Finally, the system was cooled to room temperature, and the nanoparticles were magnetically separated. The supernatant was removed, and the nanoparticles were washed several times with deionized water. Oleic acid-coated magnetite nanoparticles (NP-Fe 3 O 4 /OA), used as precursor for coating magnetite nanoparticles, were prepared using the same method as above. In this synthesis, 5 min after the addition of NH 3 aq., 3 mmol of OA was added to the medium, and the mix was continuously stirred for 1 h. Posteriorly, the separation process and washing were similar to the process already described for the preparation of NP-Fe 3 O 4 .

2.1.3. Silica-Coated Iron Oxide Nanoparticle Synthesis

The NP-Fe 3 O 4 /OA nanoparticles were coated with silica using the assisted-microemulsion route of reverse micelles based on the method described by Souza et al. [46]. Firstly, 4 mL of the surfactant Igepal CO-520 was added to 75 mL of cyclohexane. This mixture was stirred for 5 min, and then 7.5 mL of NP-Fe 3 O 4 /OA, dispersed in cyclohexane (10 mg/mL), was added. The suspension was constantly stirred for 30 min, and then 750 μ L of TEOS was added slowly under stirring and kept for 30 minutes. Finally, 650 μ L of NH 3 aq. 28% was added to the mixture, and the reactional medium was continuously stirred for 24 h at room temperature. Posteriorly, the product of this reaction, silica-coated magnetite nanoparticles (NP-Fe 3 O 4 /SiO 2 ), was washed several times with ethanol and magnetically separated.

2.1.4. X-ray Diffraction

The structure and composition of the magnetite nanoparticles were studied by X-ray diffraction (XRD) using a Shimadzu XRD 7000 with Cu–K α radiation equipped with a counter monochromator and at a scattering angle of 2 θ from 10 to 70 .

2.1.5. FTIR Spectroscopy

Infrared spectra were accurately recorded with an FTIR. Powder samples were ground and pressed into pellets. FTIR spectra in the 4000–400 cm 1 typical range were acquired by a gradual accumulation of 128 scans with an appropriate resolution of 4 cm 1 .

2.1.6. Zeta Potential Determination

Zeta potential ( ζ ) measurements were performed to investigate the surface charge of magnetic nanoparticles in aqueous medium. The processed nanoparticles were evaluated by a Litesizer 500 analyzer (Anton Paar), and the ζ values were calculated using Kalliope software version 2.10.6. Standard measurements were carefully performed by dispersing diluted samples of MNPs in distilled water at a concentration of 0.01 mg/L at room temperature.

2.1.7. Vibrating-Sample Magnetometer (VSM)

The magnetic curves (hysteresis loops) were accurately determined at room temperature using a custom vibrating-sample magnetometer under applied magnetic fields up to 15 kOe [47].

2.1.8. Doxorubicin Loading

Loading of the water-soluble anticancer drug doxorubicin (Dox) on the nanoparticle surfaces, NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 , was done by mixing 5 mg of each nanoparticle with 5 mL of Dox solution (0.1 mg/mL in PBS, pH 7.4). This protocol was adapted from the protocol used by S. Kayal et al. [48]. The mixtures of nanoparticles and Dox were stirred for 24 h at room temperature. The magnetic nanoparticles were removed by centrifugation at 12,000 rpm for 30 min, and the supernatant was used to measure the efficiency rate of drug loading. The loading efficiency (LE) was determined by UV–vis spectroscopy using a T90 spectrophotometer from PG Instruments Ltd, taking into account the absorbance due to the presence of Dox in the solutions at a wavelength of 480 nm. Drug-loading efficiency was calculated by Equation (1).
L E ( % ) = t o t a l o f D O X ( μ g ) D O X i n t h e s u p e r n a d a n t ( μ g ) t o t a l o f D O X ( μ g ) × 100

2.2. Cell Lines

Cells from a breast adenocarcinoma cell line (MCF-7 - ATCC HTB-22) and human immortalized keratinocytes (HaCat - Cell Lines Service (CLS), 300,493), were cultured separately in 25 cm 2 culture flasks containing Dulbecco’s Modified Eagle Medium (DMEM, Gibco) complete culture medium supplemented with 10% fetal bovine serum (FBS) and 1mL/L of antibiotic/antimycotic solution and kept in an incubator at 37 C in a humidified atmosphere with 5% CO 2 .

2.3. Cytotoxicity Assay–MTT

The cytotoxic potential of the nanoparticles was determined by the MTT (3- [4,5-[UW1] dimethylthiazol-2-yl] -2,5 diphenyl tetrazolium bromide) assay based on the Mosmann protocol [49]. MCF-7 and HaCaT cells were seeded, separately, at a density of 2.5 × 10 4 cells per mL in 96-well plates under standard cell culture conditions in a CO 2 incubator at 37 C for 24 h. Posteriorly, different concentrations of NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 (5, 10, 25 μ g/mL) were added, as well as Dox (positive control) and nanoparticles loaded with Dox, NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox (5 and 10 μ g/mL). For the control, only 10% FBS DMEM culture medium was added to the cells. The plates were maintained in an oven in a humidified atmosphere with 5% CO 2 at 37 C for 24 and 48 h. After each exposure time, the treatments contained in the plates were discarded, and a solution containing MTT (0.167 mg/mL) was added. After 4 h of incubation, a solution of dimethylsulfoxide (DMSO) was added to the wells, and the absorbance of each sample was measured using a Labtech Microplate Reader (model: LT-4000) spectrophotometer at 550 nm. Cell viability was determined as the direct ratio of exposed cells’ optical density (OD) to the OD of untreated cells. Mean absorbance rates from eight wells were averaged for each effective concentration analyzed. All experiments were performed in triplicate. The differences among the NPs (NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 ), Dox loaded NPs (NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox), Dox free and control (untreated cells) were analyzed using one-way ANOVA followed by the Tukey test, in which p-values ≤ 0.05 were considered significant (a = 0.05, p < 0.05, n = 3).

2.4. Membrane Integrity Analysis by Flow Cytometry

In this analysis, propidium iodide (PI) was used as a probe that binds to DNA in cells with a non-intact membrane, allowing identification of cell membrane integrity. For the assay, MCF-7 cells were grown in six-well culture plates at a density of 5 × 10 5 cells/mL. The cells were exposed for 24h to different NP groups (NP-Fe 3 O 4 , NP-Fe 3 O 4 /SiO 2 , NP-Fe 3 O 4 -/Dox and NP-Fe 3 O 4 /SiO 2 /Dox), as well as Dox free, at two concentrations: 5 and 10 μ g/mL. Untreated cells were used as control. Then, the cells were harvested, centrifuged and re-suspended in phosphate-buffered saline (PBS) and incubated with 5 μ L of PI for 10 min, and the integrity of the cell membrane was checked. Data acquisition and analysis were performed using a FACSCalibur flow cytometer equipped with CellQuest software. A total of 5000 events were acquired.

2.5. Scanning Electron Microscopy (SEM)

Scanning electron microscopy (SEM) was used to assess morphological changes to the cells after contact with the NPs [37]. MCF-7 cells were seeded in 24-well plates at a density of 2.5 × 10 4 cells/mL. The culture cells were exposed for 24h to different NP groups (NP-Fe 3 O 4 , NP-Fe 3 O 4 /SiO 2 , NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox) and Dox free at concentration of 10 μ g/mL. As control was used untreated cells. Posteriorly, the wells were washed once with PBS buffer and fixed by 2.5% glutaraldehyde in 0.1 M phosphate buffer (pH 7.3) for 90 minutes at 8 C. They were then dehydrated in a gradual series of ethanol (20–100%). After dehydration, they were submitted to the critical point, metalized, and examined under a FEI Quanta 250 scanning electron microscope.

2.6. Transmission Electron Microscopy (TEM)

The nanoparticle suspensions were prepared in distilled water, exposed to an ultrasonic bath for 10 min, placed on a carbon grid, and then dried using a suitable solvent at room temperature. The morphology, particle size and accurate characterization of the nanoparticles produced in this study were efficiently performed using a JEOL JEM 1400 microscope. The specific dimensions of a representative number of observed particles (at least 250) were obtained from different TEM images via ImageJ software [50].
The ultrastructural changes to the cells, after the contact with the nanoparticles, were analyzed under the same microscope. MCF-7 cells were seeded in a 6-well plate at a density of 2.5 × 10 5 cells/mL and were kept in an oven at 37 C with 5% CO 2 for 24 h. For comparison, untreated cells were also analyzed. After washing with PBS, cells were treated with nanoparticles (NP-Fe 3 O 4 , NP-Fe 3 O 4 /SiO 2 , NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 / SiO 2 /Dox) and Dox at concentrations of 10 μ g/mL and incubated at 37 C in a humidified atmosphere with 5% CO 2 for 24 h. Then, the wells were washed once in PBS buffer, and the cells were fixed with 2.5% glutaraldehyde in 0.1 M phosphate buffer (pH 7.3) for 90 min at 8 C. Cells were re-suspended in sodium cacodylate and centrifuged at 3000 rpm for 5 min. At this point, two drops of 2% osmium tetroxide plus potassium ferrocyanide were added. After 1 h, the cells were centrifuged at 10,000 rpm for 3 min and re-suspended in cacodylate buffer, followed by dehydration in increasing concentrations of acetone (30–100%), and the addition of EPON resin. Subsequently, ultra-thin cuts and staining with uranyl acetate and lead citrate were performed, and finally the cells were analyzed by TEM.

3. Results and Discussions

3.1. X-ray Diffraction (XRD)

XRD results for uncoated iron oxide, NP-Fe 3 O 4 and the silica-coated iron oxide nanoparticles (NP-Fe 3 O 4 /SiO 2 ) are shown in Figure 1a,b. The standard XRD pattern for microscopic magnetite (JCPDS 88-0315) is also shown in Figure 1. As seen, the obtained results are in close agreement with the standard XRD pattern and indicate the formation of an inverse cubic spinel structure. The appearance of well-defined Bragg’s peaks indicates that nanoparticles with a high degree of crystallinity were successfully synthesized [51]. In Figure 1b, besides the characteristic peaks of iron oxide, a broadened halo centered at ~23 is observed and is related to the characteristic thin silica shell (JCPDS 82-1554) that coats the iron oxide nanoparticles [52]. The mean crystallite sizes for both samples, NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 , were determined from line-broadening of the most intense diffraction peak ((311) at (~35.5 )) by using the Scherrer’s equation [53]. The estimated crystallite sizes are 10.3 ± 0.8 nm and 8.3 ± 0.6 nm for NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 , respectively. It is important to highlight that NP-Fe 3 O 4 presents a black color, which is one more indication of the predominance of a magnetite structure instead a maghemite structure (red color).

3.2. FTIR

In order to characterize NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 , and to emphasize the presence of silica on the nanoparticle surface (shell), infrared spectra were recorded. The NP-Fe 3 O 4 sample (Figure 1c) has characteristic absorption bands at 633, 586 and 444 cm 1 that can be assigned to stretching vibrations of Fe-O bonds at the tetrahedral and octahedral sites, a signature of magnetite nanoparticles. For the silica-coated sample, NP-Fe 3 O 4 /SiO 2 (Figure 1d), these bands shift to 631, 590 and 466 cm 1 , respectively. This result suggests the formation of Si–O–Fe bonds on the surface of iron oxide nanoparticles. The high-intensity peak at 466 cm 1 also indicates the overlap of the Si–O–Si bending modes. Furthermore, the characteristic absorption bands at 802, 956 and 1091 cm 1 are assigned to the symmetric stretching mode of Si–O–Si, symmetric stretching mode of Si–OH, and the bending mode of the Si–O band, respectively [54,55].

3.3. Transmission Electron Microscopy (TEM)

Figure 2 shows the TEM images for uncoated NP-Fe 3 O 4 (Figure 2a) and silica-coated nanoparticles, NP-Fe 3 O 4 /SiO 2 (Figure 2b). The TEM image for NP-Fe 3 O 4 (Figure 2a) clearly shows nanoparticles with a nearly spherical shape and an average diameter of ~9.6 nm, as shown in the histogram of size measurements (insert). The size of the nanoparticles described in this study are comparable to that of iron oxide nanoparticles related by S. Ali et al. [56], which used a similar process of synthesis (~9.1 nm). In Figure 2b, the TEM image for the NP-Fe 3 O 4 /SiO 2 sample reveals a spherical core/shell structure and total average diameter of ~18.1 nm, as shown in the histogram of size measurements (insert). In this case, the core is formed by a magnetite nanoparticle (~8 nm in diameter), and the shell is formed by a ~5 nm thin SiO 2 layer.

3.4. Zeta Potential Analysis

Zeta potential ( ζ ) measurements were performed in an aqueous dispersion at pH 7. For NP-Fe 3 O 4 , the mean superficial potential value was found as −18.8 ± 0.8 mV, while for NP-Fe 3 O 4 /SiO 2 , the mean superficial potential was −28.1 ± 0.5 mV. The decrease in the ζ value indicates an increase in coulombic repulsion caused by the presence of the silica layer on the surface of the magnetite nanoparticles (presence of hydroxyl groups), which improves the stability of the nanoparticles in the aqueous suspension [57].

3.5. Vibrating Sample Magnometometer

Magnetic hysteresis curves for NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 nanoparticles are shown in Figure 2c. As can be seen, the saturation magnetization (M s ) obtained for the synthesized magnetite is lower than that of multidomain bulk magnetite (~90 emu/g) [58]. Remarkably, different particle sizes, surface areas, crystal defects and chemical compositions can properly explain possible deviations in the saturation magnetization. In fact, M s values reached 63.8 and 18.2 emu/g, respectively, for NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 samples. The literature provides saturation magnetization values for similar SiO 2 -coated magnetite nanoparticles close to the ones measured in this study [52,59]. The insert in Figure 2c shows an enlarged view of low field of hysteresis curves for both samples. As can be seen, the analyzed nanoparticles present coercivity close to zero and have high remanence, indicating superparamagnetic behavior at room temperature. In most cases, an inorganic layer on the surface of nanoparticles can undoubtedly contribute to an apparent decrease in M s values since the magnetic signal is proportional to the mass in standard VSM tests [60]. M s values can properly be corrected by considering only the mass of the magnetic core. The mass of each component of the core/shell structure can be estimated by taking into account the density of the materials. In the case of the SiO 2 shell, a density of 1.87 g/cm 3 is assumed [61,62], with 5.10 g/cm 3 for the magnetic core (magnetite) [63]. Using the mean diameter obtained by TEM images for the core/shell nanoparticles (NP-Fe 3 O 4 /SiO 2 ), the contribution of each component for Ms is estimated as 78.6% for the silica shell and 21.4% for the magnetite core. Therefore, the M s can be properly corrected and reaches 85.07 emu/g, i.e., increasing by ~33.2% in comparison with NP-Fe 3 O 4 nanoparticles. In fact, NP-Fe 3 O 4 can typically undergo an oxidative process, and thus, their outer layer (surface) can invariably lose its magnetic properties. However, in NP-Fe 3 O 4 /SiO2 samples, the SiO 2 on the particles’ surface acts as a protective layer, preventing oxidation.

3.6. Drug-Loading Efficiency

To further explore the application of the obtained nanoparticles as anticancer drug carriers, the loading efficiency of Dox was determined. Many works have reported the strong affinity of Dox for various negatively charged groups, such as carboxylates, oleates and phospholipids, mainly due to electrostatic interaction [64,65,66,67]. In this study, the conjugation of Dox onto NP- Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 surfaces was carried out following the procedure used by S. Kayal et al. with some modifications and was analyzed using UV–vis spectroscopy [48]. It is believed that the driving force for assembly was primarily the electrostatic interaction between Dox and groups on the surfaces of the nanoparticles. The electrostatic interaction between the two distinct entities can be explained as a direct result of the amine group portions of Dox and the negative charge of the groups on the nanoparticles’ surface. This negative charge was evidenced by the negative zeta potential of the surface. The loading efficiency (LE) was determined for both samples and indicated a Dox loading of 85% and 69%, respectively, for NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 . These percentages effectively represent 85 μ g of Dox per mg of NP-Fe 3 O 4 , and 69 μ g of Dox per mg of NP-Fe 3 O 4 /SiO 2 . The amount of Dox loaded onto NP- Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 surfaces is slightly higher than the values achieved by S. Kayal et al. (maximum of 58 μ g/mg) [48]. The strategy to use PBS at pH 7.4 as solvent also contributed to stabilize Dox and improved the loading on the nanoparticles’ surface. This fact was equally verified in other studies that analyzed the adsorption of Dox on silica particles [28,68], as well as in the case of Dox-loading onto polymer-coated iron oxide [35]. In Lungu et al. [42], the efficiency of DOX loading was also analyzed by laser-induced fluorescence. A concentration of 0.8 μ g/mL in a 1:10 dilution of DOX-loaded γ -Fe 2 O 3 suspension was found, corresponding to a loading efficiency of 10%. Kovrigina et al. proposed two possible drug-loading conditions at a basic pH [41]. The first provides excellent capacity, up to 1757 μ g DOX/1 mg for magnetic nanoparticles in oleic acid, with a 24% DOX loading efficiency. Up to 870 μ g DOX/1 mg for magnetic nanoparticles in oleic acid with ~90% DOX loading efficiency was found for the second approach.

3.7. Cell Viability Assay

The cytotoxicities of NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 formulations toward human breast cancer (MCF-7) and normal keratinocyte (HaCat) cells were examined by using the thiazolyl blue tetrazolium bromide (MTT) cell viability assay, primarily to demonstrate the potential of these MNPs as biocompatible drug carriers. The cell viability assays on MCF-7 (Figure 3a,b) and HaCat cells (Figure 3c,d) in the presence of NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 unequivocally show no cytotoxicity in the tested cells in either analyzed period (24 h and 48 h). In fact, cell viability was higher than 70% (as established by the ISO 10993-5 standard) in all analyzed conditions. The 70% limit is indicated by the red dashed lines in Figure 3. In addition, it was possible to verify the benefits of silica coating on NP-Fe 3 O 4 in the tests with healthy cells (HaCat), as after 24 h, the cell viability for NP-Fe 3 O 4 was lower (70%) than for NP-Fe 3 O 4 /SiO 2 . In all cases, cell viability reached a minimum of 85% when exposed to silica-coated iron oxide (NP-Fe 3 O 4 /SiO 2 ). E. Helal-Neto et al. analyzed exposure of silica-coated magnetic nanoparticles to different cancerous cell lines and healthy cells, and they verified that these nanoparticles have no cytotoxicity at the concentrations analyzed [69], which corroborates with the results presented in our work. Other studies with mesopourous silica nanoparticles similarly reported a decrease in cell viability by 20% in MCF-7 cell lines and HeLa cells at a concentration of 10 μ g/mL [70,71], which supports our observations and confirms the biocompatibility of the analyzed nanoparticles.
Figure 4 shows similar cytotoxicity assays for the presented MNPs loaded with Dox. It is worth highlighting that different drug-loaded nanoparticle formulations (5 μ g/mL and 10 μ g/mL) were found to be highly toxic to MCF-7 breast cancer cells, with their lowest cytotoxicity found in normal keratinocyte cells (HaCat). The MNPs loaded with Dox (Figure 4) decreased cell viability compared to the control at all exposure times, specially at the concentration of 10 μ g/mL. The Dox effective concentrations at 5 and 10 μ g/mL nanoparticle formulations are, respectively, 0.392 and 0.783 μ g for NP-Fe 3 O 4 /Dox and 0.323 and 0.645 μ g for NP-Fe 3 O 4 /SiO 2 /Dox. In this sense, the effective concentration of Dox in the MNPs is much lower than that of free Dox used in the control sample. These results indicate that Dox-loaded nanoparticles are very effective in decreasing MCF-7 cancer cell viability. It can also be understood that, considering nanoparticle internalization, NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox more effectively release Dox inside the MCF-7 cancer cells, and consequently enhance cytotoxicity through synergistic anti-proliferative activities in the cancer cell line. In addition, time dependence for drug release inside the cells for loaded MNPs was noted. After 48 h of treatment, cell viability decreased to around 10% for the 10 μ g/mL sample of both Dox-loaded MNPs. Furthermore, coating with silica seems to improve the internalization of nanoparticles in the cells. Compared to data in the literature in which nanoparticles were coated with other materials then loaded with Dox (in quantities equivalent to our case), such as (Trimethoxysilylpropyl)-ethylenediamine triacetic acid (EDT) (analysis using glioblastoma cells) [40] and PVCL-co-PAA copolymer (analysis using MCF-7 cells) [35], NP-Fe 3 O 4 /SiO 2 /Dox turned out to be more effective in decreasing cancer cell viability. These results emphasize the enhanced cytotoxicity to cancer cells of the processed MNPs loaded with Dox in comparison to free drug; further, we had the least cytoxicity in normal cells, suggesting huge potential for NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox as selective and efficient drug delivery carriers. Additionally, these results corroborate other cases in vitro release of Dox-loaded nanoparticles found in the literature, in which the release is mainly dependent on the pH of the medium, and it is well-known that the pH of cancerous cells is lower that of healthy cells [32,40,72,73].

3.7.1. Plasma Membrane Integrity

In order to analyze the plasma membrane integrity of MCF-7 cells, flow cytometry tests were performed. These tests measured propidium iodide uptake by cells subjected to 24 h of treatment with different concentrations of the nanoparticle systems synthesized in this study. Propidium iodide uptake only occurs in cells that have suffered some type of membrane damage. Figure 5 shows the number of positive and negative PI cells, where negative PI indicates cells with viable or intact membranes. As can be seen, there was an increase in PI-positive cells after contact with Dox, NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox, suggesting that damage to the cell membrane occurred. It is possible to verify both the effect of Dox-loaded nanoparticle concentration and the higher number of cells damaged when exposed to NP-Fe 3 O 4 /SiO 2 /Dox. However, the levels of PI positive cells was similar to that of the control sample for MCF-7 cells exposed to NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 . These results suggest that the processed MNPs with no drug loaded did not damage the cell membrane, corroborating the cell viability results.

3.7.2. Scanning Electron Microscopy—Cell Morphology

To further study the morphology of MCF-7 cells after 24 h of treatment with Dox, NP-Fe 3 O 4 , NP-Fe 3 O 4 /SiO 2 , NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox, SEM analyses were carried out to identify the cellular surface structure and shape. Figure 6A,B show that the distinct SEM images for the control group (MCF-7 cells) depict healthy cells firmly adhered to the substrate with an abundance of short microvilli distributed across the cell surface and with cells well-attached in all directions. Figure 6C,D show the MCF-7 cells under Dox treatment. It is seen that the cell membrane ruptured, damaging the cell. Regarding the cells treated with NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 , SEM images (Figure 6E,F show that most cells had extensions of their body, presenting a morphology similar to the untreated control even after being in contact with 10 μ g/mL of both studied MNPs. In addition, MNPs can be seen attached to the cell membrane. Parameters such as outer membrane surface structure, adhesion and overall shape do not appear to have been altered by the nanoparticles, even drug-loaded nanoparticles (Figure 6G,H). Despite NPs appearing to be attached to the cell membrane, wrapping of the cell membrane around particles is evident (Figure 6C–F), showing that the processed and studied MNPs are cell-associated and interact with the plasma membrane, and that some of them were probably internalized into the cells.

3.7.3. Transmission Electron Microscopy—NP Distribution Inside Cells

Figure 7 shows images of the studied cells: (A) control MCF-7 cells and (B) 10 μ g/mL Dox-treated MCF-7 cells (24 h). Figure 7 also enables us to understand the internalization process and track the fate of the studied MCF-7 cells in contact with (C) NP-Fe 3 O 4 , (D) NP-Fe 3 O 4 /Dox, (E) NP-Fe 3 O 4 /SiO 2 and (F) NP-Fe 3 O 4 /SiO 2 /Dox (10 μ g/mL/24 h). Figure 7C,D show the spatial distribution of nanoparticles (dark circles) of 9 nm mean diameter. Figure 7E,F also show internalized nanoparticles with 18 nm diameter within intracellular vesicles, indicating the presence of an active uptake mechanism such as endocytosis. The internalization of magnetic nanoparticles loaded or unloaded with Dox into cancerous cells was also verified by R.C. Popescu et al. [14] when they exposed HeLa cells to PEG-coated iron oxide nanoparticles loaded and unloaded with Dox. Studies have shown that particle internalization and subsequent routing are highly dependent on particle size, shape, composition and surface properties, and parameters such as cell type, protein expression level and cell-cycle phase. As shown here, the size-dependent interaction of different particles with the cell membrane is likely related to the encapsulation process of the incipient membrane. Despite significant efforts in this area, linking specific cellular responses to particle size remains challenging and unclear [74].
Drug-loaded nanoparticles such as NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox promise to improve therapeutic efficacy with optimal drug doses and open new avenues for in vivo therapy. One of the main advantages of nanotechnology drug delivery systems is increased selectivity, resulting in a decrease of the harmful side effects associated with low specificity that typically limits drug dosages. Furthermore, magnetic guidance is potentially possible in this system using an external magnetic field at the target site after injecting this type of drug-loaded magnetic nanoparticles.
In many cases, treatments with these iron oxide nanoparticles do not generate negative effects on the body, but there is a possibility that cellular overload with these nanoparticles may trigger adverse cellular responses, despite iron oxide nanoparticles not presenting toxicity at concentrations lower than 100 μ g/mL [75]. Further, it is important to consider that some cells are more sensitive to treatment with nanoparticles than others, such as demonstrated by Poller et al. [24] and Malvindi et al. [76], where different responses were observed depending on the cell line used. In this case, it is also necessary to tests these nanoparticles using other cell types to better understand their mechanism of action. Magnetic nanoparticle studies are recent, and in spite of all the positive evidence, it is still necessary to evaluate the cytotoxicity of these materials. Finally, our results are relevant in the development of safer magnetic nanoparticles that can be used in several biomedical applications.

4. Conclusions

In this work, magnetite nanoparticles were synthesized by chemical co-precipitation. Silica-coated NP-Fe 3 O 4 was obtained using assisted-microemulsion of reverse micelles. In order to obtain a material for treatment of a specific target, the anticancer drug doxorubicin (Dox) was successfully loaded on NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 surfaces with high efficiency. This is undoubtedly an essential way to realistically achieve effective damage to cancer cells by ensuring a sufficiently high concentration of nanoparticles in the tumor tissue, regardless of the specific location of the nanoparticles at the cellular level. Regarding the studied treatments, NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 presented noncytotoxicity to MCF-7 and HaCat cells at the analyzed concentrations. For nanoparticles loaded with Dox, NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox, treatments of MCF-7 cells showed a cytotoxic profile and higher toxicity toward the tumor cell line. Due to the spatial distribution and concentration of Dox-loaded magnetic nanoparticles on MCF-7 cells, membranes were ruptured, and consequently, cells were damaged. Thus, we can conclude that these nanoparticles can potentially be used to drive the drug to a specific location and thereby lessen the side effects caused by Dox. Although modifications to the formulations of such nanoparticles should be considered in order to further improve their biocompatibility and specificity, NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 represent building blocks from which a variety of functionalized magnetic nanoparticles can be created. Consequently, this proper establishes cellular uptake and toxicity, adequately providing a baseline from which other surface modifications can be evaluated for potential drug delivery applications for the effective treatment of breast cancer. In fact, these magnetic nanoparticles can be used as site-specific drug delivery vehicles, ensuring safe and reproducible therapy for complex diseases in distinct, localized positions while preventing overdose and corresponding unwanted side effects.

Author Contributions

Conceptualization, P.N.d.O., V.E.P.V. and L.F.C.; Methodology, I.V.d.A., G.S.D. and I.A.d.S.; Validation, I.V.d.A., G.S.D. and I.A.d.S.; formal analysis, E.P.H., R.D.B., K.M.E. and V.A.d.O.J.; investigation, E.P.H., R.D.B., K.M.E. and V.A.d.O.J.; writing—original draft preparation, E.P.H., R.D.B., K.M.E., V.A.d.O.J. and V.E.P.V.; writing—review and editing, G.S.D., P.N.d.O. and L.F.C.; supervision, P.N.d.O., V.E.P.V. and L.F.C.; project administration, L.F.C.; funding acquisition, I.A.d.S. and L.F.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Coordenação de Aperfeicoamento de Pessoal de Nível Superior: Fellowship funding; National Council for Scientific and Technological Development: Project Funding; Fundação Araucária: Project Funding; Financiadora de Estudos e Projetos: Project Funding.

Acknowledgments

For their financial support, the authors would like to acknowledge the Brazilian funding agencies CAPES, CNPq and Fundacão Araucária. Finally, we thank COMCAP/UEM facility and Finep for the experimental characterizations.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sung, H.; Ferlay, J.; Siegel, R.L.; Laversanne, M.; Soerjomataram, I.; Jemal, A.; Bray, F. Global cancer statistics 2020: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2021, 71, 209–249. [Google Scholar] [CrossRef] [PubMed]
  2. Yu, N.; Li, N.; Wang, K.; Deng, Q.; Lei, Z.; Sun, J.; Chen, L. Design, synthesis and biological activity evaluation of novel scopoletin-NO donor derivatives against MCF-7 human breast cancer in vitro and in vivo. Eur. J. Med. Chem. 2021, 224, 113701. [Google Scholar] [CrossRef] [PubMed]
  3. Shirazi, H.F.; Zarghi, A.; Kobarfard, F.; Zendehdel, R.; Nakhjavani, M.; Arfaiee, S.; Zebardast, T.; Mohebi, S.; Anjidani, N.; Ashtarinezhad, A.; et al. Remarks in Successful Cellular Investigations for Fighting Breast Cancer Using Novel Synthetic Compounds. In Breast Cancer—Focusing Tumor Microenvironment, Stem Cells and Metastasis; Gunduz, M., Gunduz, E., Eds.; InTech: London, UK, 2011. [Google Scholar]
  4. Comşa, Ş.; Cîmpean, A.M.; Raica, M. The Story of MCF-7 Breast Cancer Cell Line: 40 years of Experience in Research. Anticancer Res. 2015, 35, 3147–3154. [Google Scholar]
  5. Fernandes Cardoso, V.; Francesko, A.; Ribeiro, C.; Bañobre-López, M.; Martins, P.; Lanceros-Mendez, S. Advances in Magnetic Nanoparticles for Biomedical Applications. Adv. Healthc. Mater. 2017, 7, 1700845. [Google Scholar] [CrossRef]
  6. Dobosz, B.; Krzyminiewski, R.; Schroeder, G.; Kurczewska, J. Electron paramagnetic resonance as an effective method for a characterization of functionalized iron oxide. J. Phys. Chem. Solids 2014, 75, 594–598. [Google Scholar] [CrossRef]
  7. Anik, M.I.; Hossain, M.K.; Hossain, I.; Mahfuz, A.M.U.B.; Rahman, M.T.; Ahmed, I. Recent progress of magnetic nanoparticles in biomedical applications: A review. Nano Select 2021, 2, 1146–1186. [Google Scholar] [CrossRef]
  8. Martins, P.M.; Lima, A.C.; Ribeiro, S.; Lanceros-Mendez, S.; Martins, P. Magnetic Nanoparticles for Biomedical Applications: From the Soul of the Earth to the Deep History of Ourselves. Appl. Bio Mater. 2021, 4, 5839–5870. [Google Scholar] [CrossRef] [PubMed]
  9. Behrens, S.; Appel, I. Magnetic nanocomposites. Curr. Opin. Biotechnol. 2016, 39, 89–96. [Google Scholar] [CrossRef]
  10. Zhao, Z.; Huang, D.; Yin, Z.; Chi, X.; Wang, X.; Gao, J. Magnetite nanoparticles as smart carriers to manipulate the cytotoxicity of anticancer drugs: Magnetic control and pH-responsive release. J. Mater. Chem. 2012, 22, 15717. [Google Scholar] [CrossRef]
  11. Patil-Sen, Y.; Torino, E.; De Sarno, F.; Ponsiglione, A.M.; Chhabria, V.; Ahmed, W.; Mercer, T. Biocompatible superparamagnetic core-shell nanoparticles for potential use in hyperthermia-enabled drug release and as an enhanced contrast agent. Nanotechnology 2020, 31, 375102. [Google Scholar] [CrossRef]
  12. Vallejo-Fernandez, G.; Whear, O.; Roca, A.G.; Hussain, S.; Timmis, J.; Patel, V.; O’Grady, K. Mechanisms of hyperthermia in magnetic nanoparticles. J. Phys. Appl. Phys. 2013, 46, 312001. [Google Scholar] [CrossRef]
  13. Thomas, R.; Park, I.K.; Jeong, Y. Magnetic Iron Oxide Nanoparticles for Multimodal Imaging and Therapy of Cancer. Int. J. Mol. Sci. 2013, 14, 15910–15930. [Google Scholar] [CrossRef] [PubMed]
  14. Popescu, R.C.; Savu, D.; Dorobantu, I.; Vasile, B.S.; Hosser, H.; Boldeiu, A.; Temelie, M.; Straticiuc, M.; Iancu, D.A.; Andronescu, E.; et al. Efficient uptake and retention of iron oxide-based nanoparticles in HeLa cells leads to an effective intracellular delivery of doxorubicin. Sci. Rep. 2020, 10, 1–10. [Google Scholar] [CrossRef] [PubMed]
  15. Avasthi, A.; Caro, C.; Pozo-Torres, E.; Leal, M.P.; García-Martín, M.L. Magnetic Nanoparticles as MRI Contrast Agents. Top. Curr. Chem. 2020, 378, 40. [Google Scholar]
  16. Kianfar, E. Magnetic Nanoparticles in Targeted Drug Delivery: A Review. J. Supercond. Nov. Magn. 2021, 34, 1709–1735. [Google Scholar] [CrossRef]
  17. Mahmoudi, M.; Sant, S.; Wang, B.; Laurent, S.; Sen, T. Superparamagnetic iron oxide nanoparticles (SPIONs): Development, surface modification and applications in chemotherapy. Adv. Drug Deliv. Rev. 2011, 63, 24–46. [Google Scholar] [CrossRef]
  18. Wadajkar, A.S.; Bhavsar, Z.; Ko, C.Y.; Koppolu, B.; Cui, W.; Tang, L.; Nguyen, K.T. Multifunctional particles for melanoma-targeted drug delivery. Acta Biomater. 2012, 8, 2996–3004. [Google Scholar] [CrossRef]
  19. Long, N.V.; Yang, Y.; Teranishi, T.; Thi, C.M.; Cao, Y.; Nogami, M. Biomedical Applications of Advanced Multifunctional Magnetic Nanoparticles. J. Nanosci. Nanotechnol. 2015, 15, 10091–10107. [Google Scholar] [CrossRef]
  20. Li, G.; Cao, L.; Zhou, Z.; Chen, Z.; Huang, Y.; Zhao, Y. Rapamycin loaded magnetic Fe3O4/carboxymethylchitosan nanoparticles as tumor-targeted drug delivery system: Synthesis and in vitro characterization. Colloids Surf. B 2015, 128, 379–388. [Google Scholar] [CrossRef]
  21. Natarajan, S.; Harini, K.; Gajula, G.P.; Sarmento, B.; Neves-Petersen, M.T.; Thiagarajan, V. Multifunctional magnetic iron oxide nanoparticles: Diverse synthetic approaches, surface modifications, cytotoxicity towards biomedical and industrial applications. Materials 2019, 1, 1–22. [Google Scholar] [CrossRef]
  22. Estelrich, J.; Escribano, E.; Queralt, J.; Busquets, M. Iron Oxide Nanoparticles for Magnetically-Guided and Magnetically-Responsive Drug Delivery. Int. J. Mol. Sci. 2015, 16, 8070–8101. [Google Scholar] [CrossRef] [PubMed]
  23. Majeed, M.I.; Lu, Q.; Yan, W.; Li, Z.; Hussain, I.; Tahir, M.N.; Tremel, W.; Tan, B. Highly water-soluble magnetic iron oxide (Fe3O4) nanoparticles for drug delivery: Enhanced in vitro therapeutic efficacy of doxorubicin and MION conjugates. J. Mater. Chem. B 2013, 1, 2874. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Poller, J.; Zaloga, J.; Schreiber, E.; Unterweger, H.; Janko, C.; Radon, P.; Eberbeck, D.; Trahms, L.; Alexiou, C.; Friedrich, R. Selection of potential iron oxide nanoparticles for breast cancer treatment based on in vitro cytotoxicity and cellular uptake. Int. J. Nanomed. 2017, 12, 3207–3220. [Google Scholar] [CrossRef] [PubMed]
  25. Lee, D.E.; Koo, H.; Sun, I.C.; Ryu, J.H.; Kim, K.; Kwon, I.C. Multifunctional nanoparticles for multimodal imaging and theragnosis. Chem. Soc. Rev. 2012, 41, 2656–2672. [Google Scholar] [CrossRef]
  26. Aşik, E.; Akpinar, Y.; Güray, N.T.; Işcan, M.; Demircigil, G.Ç.; Volkan, M. Cellular uptake, genotoxicity and cytotoxicity of cobalt ferrite magnetic nanoparticles in human breast cells. Toxicol. Res. 2016, 5, 1649–1662. [Google Scholar] [CrossRef] [PubMed]
  27. Hola, K.; Markova, Z.; Zoppellaro, G.; Tucek, J.; Zboril, R. Tailored functionalization of iron oxide nanoparticles for MRI, drug delivery, magnetic separation and immobilization of biosubstances. Biotechnol. Adv. 2015, 33, 1162–1176. [Google Scholar] [CrossRef] [PubMed]
  28. Teng, Y.; Du, Y.; Shi, J.; Pong, P.W. Magnetic iron oxide nanoparticle-hollow mesoporous silica Spheres:Fabrication and potential application in drug delivery. Curr. Appl. Phys. 2020, 20, 320–325. [Google Scholar] [CrossRef]
  29. Basu, P.; De, K.; Das, S.; Mandal, A.K.; Kumar, A.; Jana, T.K.; Chatterjee, K. Silica-Coated Metal Oxide Nanoparticles: Magnetic and Cytotoxicity Studies. ChemistrySelect 2018, 3, 7346–7353. [Google Scholar] [CrossRef]
  30. Singh, R.K.; Kim, T.H.; Patel, K.D.; Knowles, J.C.; Kim, H.W. Biocompatible magnetite nanoparticles with varying silica-coating layer for use in biomedicine: Physicochemical and magnetic properties, and cellular compatibility. J. Biomed. Mater. Res. Part A 2012, 100A, 1734–1742. [Google Scholar] [CrossRef]
  31. Janßen, H.C.; Angrisani, N.; Kalies, S.; Hansmann, F.; Kietzmann, M.; Warwas, D.P.; Behrens, P.; Reifenrath, J. Biodistribution, biocompatibility and targeted accumulation of magnetic nanoporous silica nanoparticles as drug carrier in orthopedics. J. Nanobiotechnol. 2020, 18, 14. [Google Scholar] [CrossRef]
  32. Siminzar, P.; Omidi, Y.; Golchin, A.; Aghanejad, A.; Barar, J. Targeted delivery of doxorubicin by magnetic mesoporous silica nanoparticles armed with mucin-1 aptamer. J. Drug Target. 2019, 28, 92–101. [Google Scholar] [CrossRef]
  33. Rubia, G.G.; Peigneux, A.; Jabalera, Y.; Puerma, J.; Oltolina, F.; Elert, K.; Colangelo, D.; Morales, J.G.; Prat, M.; Jimenez-Lopez, C. pH-Dependent Adsorption Release of Doxorubicin on MamC-Biomimetic Magnetite Nanoparticles. Langmuir 2018, 34, 13713–13724. [Google Scholar] [CrossRef] [PubMed]
  34. Ding, B.; Shen, S.; Wu, L.; Qi, X.; Ni, H.; Ge, Y. Doxorubicin-loaded Fe3O4@SiO2 Nanoparticles as Magnetic Targeting Agents for Combined Photothermal-chemotherapy of Cancer. Chem. Lett. 2015, 44, 858–860. [Google Scholar] [CrossRef]
  35. Eslami, P.; Albino, M.; Scavone, F.; Chiellini, F.; Morelli, A.; Baldi, G.; Cappiello, L.; Doumett, S.; Lorenzi, G.; Ravagli, C.; et al. Smart Magnetic Nanocarriers for Multi-Stimuli On-Demand Drug Delivery. Nanomaterials 2022, 12, 303. [Google Scholar] [CrossRef]
  36. Cagel, M.; Grotz, E.; Bernabeu, E.; Moretton, M.A.; Chiappetta, D.A. Doxorubicin: Nanotechnological overviews from bench to bedside. Drug Discov. Today 2017, 22, 270–281. [Google Scholar] [CrossRef]
  37. Sritharan, S.; Sivalingam, N. A comprehensive review on time-tested anticancer drug doxorubicin. Life Sci. 2021, 278, 119527. [Google Scholar] [CrossRef] [PubMed]
  38. Kankala, R.K.; Liu, C.G.; Chen, A.Z.; Wang, S.B.; Xu, P.Y.; Mende, L.K.; Liu, C.L.; Lee, C.H.; Hu, Y.F. Overcoming Multidrug Resistance through the Synergistic Effects of Hierarchical pH-Sensitive, ROS-Generating Nanoreactors. Biomater. Sci. Eng. 2017, 3, 2431–2442. [Google Scholar] [CrossRef]
  39. Kankala, R.K.; Liu, C.G.; Yang, D.Y.; Wang, S.B.; Chen, A.Z. Ultrasmall platinum nanoparticles enable deep tumor penetration and synergistic therapeutic abilities through free radical species-assisted catalysis to combat cancer multidrug resistance. Chem. Eng. J. 2020, 383, 123138. [Google Scholar] [CrossRef]
  40. Norouzi, M.; Yathindranath, V.; Thliveris, J.A.; Kopec, B.M.; Siahaan, T.J.; Miller, D.W. Doxorubicin-loaded iron oxide nanoparticles for glioblastoma therapy: A combinational approach for enhanced delivery of nanoparticles. Sci. Rep. 2020, 10, 11292. [Google Scholar] [CrossRef]
  41. Kovrigina, E.; Chubarov, A.; Dmitrienko, E. High Drug Capacity Doxorubicin-Loaded Iron Oxide Nanocomposites for Cancer Therapy. Magnetochemistry 2022, 8, 54. [Google Scholar] [CrossRef]
  42. Lungu, I.I.; Nistorescu, S.; Badea, M.A.; Petre, A.M.; Udrea, A.M.; Banici, A.M.; Fleacă, C.; Andronescu, E.; Dinischiotu, A.; Dumitrache, F.; et al. Doxorubicin-Conjugated Iron Oxide Nanoparticles Synthesized by Laser Pyrolysis: In Vitro Study on Human Breast Cancer Cells. Polymers 2020, 12, 2799. [Google Scholar] [CrossRef]
  43. Nieciecka, D.; Celej, J.; Żuk, M.; Majkowska-Pilip, A.; Żelechowska Matysiak, K.; Lis, A.; Osial, M. Hybrid System for Local Drug Delivery and Magnetic Hyperthermia Based on SPIONs Loaded with Doxorubicin and Epirubicin. Pharmaceutics 2021, 13, 480. [Google Scholar] [CrossRef]
  44. Araújo-Neto, R.P.; Silva-Freitas, E.L.; Carvalho, J.F.; Pontes, T.R.F.; Silva, K.L.; Damasceno, I.H.M.; Egito, E.S.T.; Dantas, A.L.; Morales, M.A.; Carriço, A.S. Monodisperse sodium oleate coated magnetite high susceptibility nanoparticles for hyperthermia applications. J. Magn. Magn. Mater. 2014, 364, 72–79. [Google Scholar] [CrossRef]
  45. Chang, E.P.; Hatton, T.A. Membrane Emulsification and Solvent Pervaporation Processes for the Continuous Synthesis of Functional Magnetic and Janus Nanobeads. Langmuir 2012, 28, 9748–9758. [Google Scholar] [CrossRef] [PubMed]
  46. Souza, C.G.S.; Beck, W.; Varanda, L.C. Multifunctional luminomagnetic FePt@Fe3O4/SiO2/Rhodamine B/SiO2 nanoparticles with high magnetic emanation for biomedical applications. J. Nanoparticle Res. 2013, 15, 1545. [Google Scholar] [CrossRef]
  47. Cótica, L.F.; Estrada, F.R.; Freitas, V.F.; Dias, G.S.; Santos, I.A.; Eiras, J.A.; Garcia, D. Ferroic states in La doped BiFeO3-PbTiO3 multiferroic compounds. J. Appl. Phys. 2012, 111, 114105. [Google Scholar] [CrossRef]
  48. Kayal, S.; Ramanujan, R.V. Doxorubicin loaded PVA coated iron oxide nanoparticles for targeted drug delivery. Mater. Sci. Eng. C 2010, 30, 484–490. [Google Scholar] [CrossRef]
  49. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]
  50. ImageJ. Available online: https://imagej.net/software/imagej/ (accessed on 31 January 2022).
  51. Bini, R.A.; Marques, R.F.C.; Santos, F.J.; Chaker, J.A.; Jafelicci, M. Synthesis and functionalization of magnetite nanoparticles with different amino-functional alkoxysilanes. J. Magn. Magn. Mater. 2012, 324, 534–539. [Google Scholar] [CrossRef]
  52. Ding, H.L.; Zhang, Y.X.; Wang, S.; Xu, J.M.; Xu, S.C.; Li, G.H. Fe3O4@SiO2 Core/Shell Nanoparticles: The Silica Coating Regulations with a Single Core for Different Core Sizes and Shell Thicknesses. Chem. Mater. 2012, 24, 4572–4580. [Google Scholar] [CrossRef]
  53. Langford, J.I.; Wilson, A.J.C. Scherrer after sixty years: A survey and some new results in the determination of crystallite size. J. Appl. Crystallogr. 1978, 11, 102–113. [Google Scholar] [CrossRef]
  54. Bui, T.Q.; Ngo, H.T.M.; Tran, H.T. Surface-protective assistance of ultrasound in synthesis of superparamagnetic magnetite nanoparticles and in preparation of mono-core magnetite-silica nanocomposites. J. Sci. Adv. Mater. Devices 2018, 3, 323–330. [Google Scholar] [CrossRef]
  55. Li, C.; Ma, C.; Wang, F.; Xi, Z.; Wang, Z.; Deng, Y.; He, N. Preparation and Biomedical Applications of Core—Silica/Magnetic Nanoparticle Composites. J. Nanosci. Nanotechnol. 2012, 12, 2964–2972. [Google Scholar] [CrossRef] [PubMed]
  56. Ali, S.; Khan, S.A.; Yamani, Z.H.; Qamar, M.T.; Morsy, M.A.; Sarfraz, S. Shape- and size-controlled superparamagnetic iron oxide nanoparticles using various reducing agents and their relaxometric properties by Xigo acorn area. Appl. Nanosci. 2018, 9, 479–489. [Google Scholar] [CrossRef]
  57. Sun, Y.; Duan, L.; Guo, Z.; DuanMu, Y.; Ma, M.; Xu, L.; Zhang, Y.; Gu, N. An improved way to prepare superparamagnetic magnetite-silica core-shell nanoparticles for possible biological application. J. Magn. Magn. Mater. 2005, 285, 65–70. [Google Scholar] [CrossRef]
  58. Cornell, R.M.; Schwertmann, U. The Iron Oxides: Structure, Properties, Reactions, Occurences and Uses, 2nd ed.; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2003. [Google Scholar]
  59. Meng, C.; Zhikun, W.; Qiang, L.; Chunling, L.; Shuangqing, S.; Songqing, H. Preparation of amino-functionalized Fe3O4@mSiO2 core-shell magnetic nanoparticles and their application for aqueous Fe3+ removal. J. Hazard. Mater. 2018, 341, 198–206. [Google Scholar] [CrossRef]
  60. Oliveira, P.N.; Bini, R.D.; Dias, G.S.; Alcouffe, P.; Santos, I.A.; David, L.; Cótica, L.F. Magnetite nanoparticles with controlled sizes via thermal degradation of optimized PVA/Fe(III) complexes. J. Magn. Magn. Mater. 2018, 460, 381–390. [Google Scholar] [CrossRef]
  61. Kimoto, S.; Dick, W.D.; Hunt, B.; Szymanski, W.W.; McMurry, P.H.; Roberts, D.L.; Pui, D.Y.H. Characterization of nanosized silica size standards. Aerosol Sci. Technol. 2017, 51, 936–945. [Google Scholar] [CrossRef]
  62. Green, D.L.; Lin, J.S.; Lam, Y.F.; Hu, M.Z.C.; Schaefer, D.W.; Harris, M.T. Size, volume fraction, and nucleation of Stober silica nanoparticles. J. Colloid Interface Sci. 2003, 266, 346–358. [Google Scholar] [CrossRef]
  63. Paufler, P. Landolt-Börnstein, New Series, K.H. Hellwege (Ed.). Group III: Crystal and Solid State Physics, Vol. 12: Magnetic and Other Properties of Oxides and Related Compounds, Part c: Hexagonal Ferrites. Special Lanthanide and Actinide Compounds. Springer-Verlag Berlin, Heidelberg, New York: 1982, XI + 604 Seiten, 1034 Figuren Leinen DM 980.–, etwa. US $392.00. Cryst. Res. Technol. 1983, 18, 1546. [Google Scholar]
  64. Saepudin, E.; Fadhilah, H.R.; Khalil, M. The influence of carboxylate moieties for efficient loading and pH-controlled release of doxorubicin in Fe3O4 magnetic nanoparticles. Colloids Surfaces Physicochem. Eng. Asp. 2020, 602, 125137. [Google Scholar] [CrossRef]
  65. Rana, S.; Shetake, N.G.; Barick, K.C.; Pandey, B.N.; Salunke, H.G.; Hassan, P.A. Folic acid conjugated Fe3O4 magnetic nanoparticles for targeted delivery of doxorubicin. Dalton Trans. 2016, 45, 17401–17408. [Google Scholar] [CrossRef]
  66. Wolf, F.A.D.; Nicolay, K.; Kruijff, B.D. Effect of doxorubicin on the order of the acyl chains of anionic and zwitterionic phospholipids in liquid-crystalline mixed model membranes: Absence of drug-induced segregation of lipids into extended domains. Biochemistry 1992, 31, 9252–9262. [Google Scholar] [CrossRef] [PubMed]
  67. Nigam, S.; Barick, K.C.; Bahadur, D. Development of citrate-stabilized Fe3O4 nanoparticles: Conjugation and release of doxorubicin for therapeutic applications. J. Magn. Magn. Mater. 2011, 323, 237–243. [Google Scholar] [CrossRef]
  68. Roik, N.V.; Belyakova, L.; Dziazko, M.O. Kinetic and equilibrium studies of doxorubicin adsorption on MCM-41-type silica surface. Him. Fiz. Tehnol. Poverhni 2016, 7, 405–412. [Google Scholar] [CrossRef]
  69. Helal-Neto, E.; da Silva de Barros, A.O.; Saldanha-Gama, R.; Brandão-Costa, R.; Alencar, L.M.R.; dos Santos, C.C.; Martínez-Máñez, R.; Ricci-Junior, E.; Alexis, F.; Morandi, V.; et al. Molecular and Cellular Risk Assessment of Healthy Human Cells and Cancer Human Cells Exposed to Nanoparticles. Int. J. Mol. Sci. 2019, 21, 230. [Google Scholar] [CrossRef]
  70. Racles, C.; Zaltariov, M.F.; Peptanariu, D.; Vasiliu, T.; Cazacu, M. Functionalized Mesoporous Silica as Doxorubicin Carriers and Cytotoxicity Boosters. Nanomaterials 2022, 12, 1823. [Google Scholar] [CrossRef] [PubMed]
  71. Shen, J.; He, Q.; Gao, Y.; Shi, J.; Li, Y. Mesoporous silica nanoparticles loading doxorubicin reverse multidrug resistance: Performance and mechanism. Nanoscale 2011, 3, 4314. [Google Scholar] [CrossRef] [PubMed]
  72. Sadighian, S.; Rostamizadeh, K.; Hosseini-Monfared, H.; Hamidi, M. Doxorubicin-conjugated core– magnetite nanoparticles as dual-targeting carriers for anticancer drug delivery. Colloids Surf. B 2014, 117, 406–413. [Google Scholar] [CrossRef]
  73. Mu, Q.; Lin, G.; Jeon, M.; Wang, H.; Chang, F.C.; Revia, R.A.; Yu, J.; Zhang, M. Iron oxide nanoparticle targeted chemo-immunotherapy for triple negative breast cancer. Mater. Today 2021, 50, 149–169. [Google Scholar] [CrossRef]
  74. El-Boubbou, K.; Ali, R.; Al-Zahrani, H.; Trivilegio, T.; Alanazi, A.H.; Khan, A.L.; Boudjelal, M.; AlKushi, A. Preparation of iron oxide mesoporous magnetic microparticles as novel multidrug carriers for synergistic anticancer therapy and deep tumor penetration. Sci. Rep. 2019, 9, 9481. [Google Scholar] [CrossRef] [PubMed]
  75. Singh, N.; Jenkins, G.J.; Asadi, R.; Doak, S.H. Potential toxicity of superparamagnetic iron oxide nanoparticles (SPION). Nano Rev. 2010, 1, 5358. [Google Scholar] [CrossRef] [PubMed]
  76. Malvindi, M.A.; De Matteis, V.; Galeone, A.; Brunetti, V.; Anyfantis, G.C.; Athanassiou, A.; Cingolani, R.; Pompa, P.P. Toxicity Assessment of Silica Coated Iron Oxide Nanoparticles and Biocompatibility Improvement by Surface Engineering. PLoS ONE 2014, 9, e85835. [Google Scholar] [CrossRef] [PubMed] [Green Version]

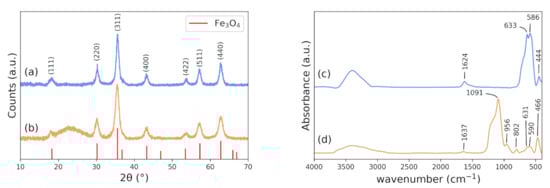

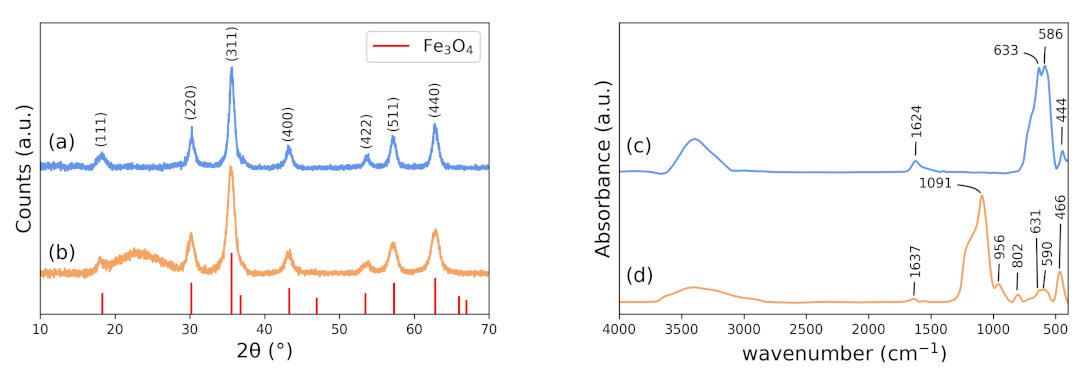

Figure 1. XRD patterns for (a) NP-Fe 3 O 4 and (b) NP-Fe 3 O 4 /SiO 2 with magnetite pattern from the JCPDS database (JCPDS 88-0315). FTIR spectra for (c) NP-Fe 3 O 4 and (d) NP-Fe 3 O 4 /SiO 2 samples.
Figure 1. XRD patterns for (a) NP-Fe 3 O 4 and (b) NP-Fe 3 O 4 /SiO 2 with magnetite pattern from the JCPDS database (JCPDS 88-0315). FTIR spectra for (c) NP-Fe 3 O 4 and (d) NP-Fe 3 O 4 /SiO 2 samples.
Magnetochemistry 08 00114 g001

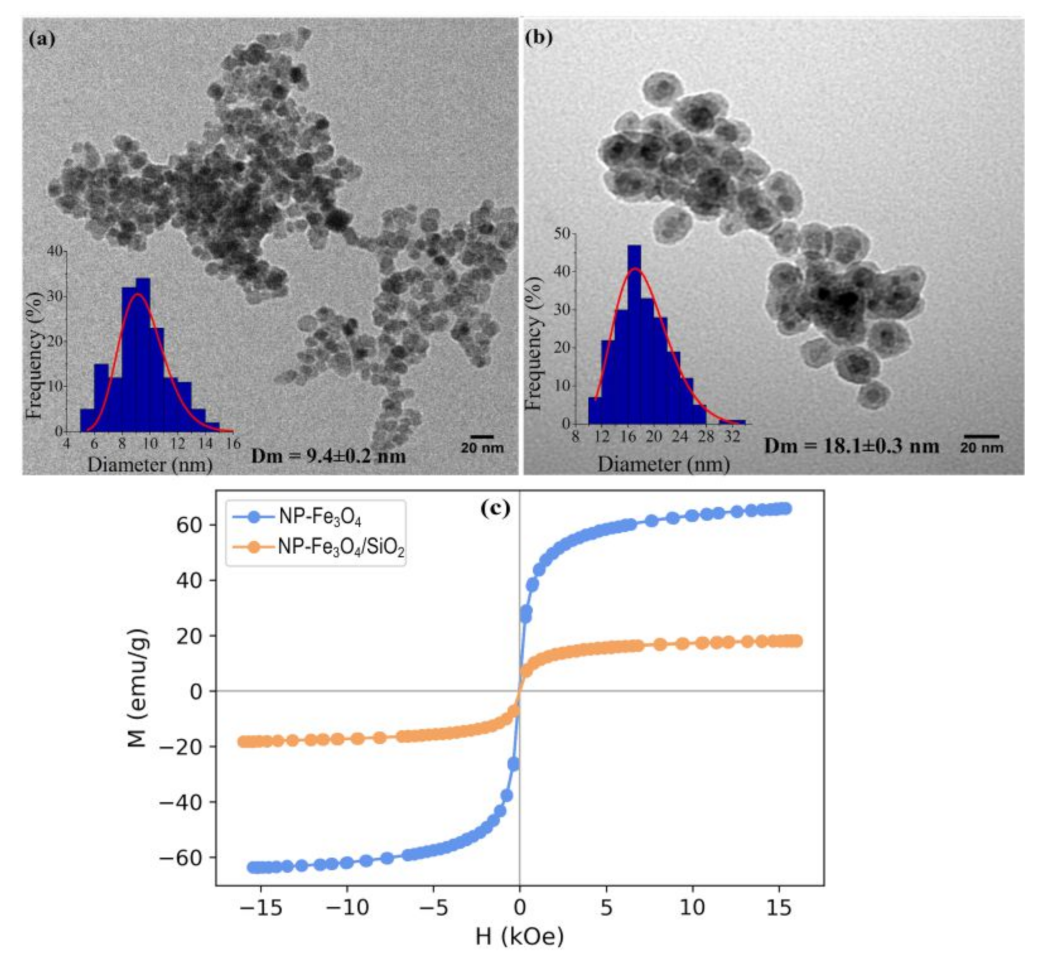

Figure 2. TEM images for (a) uncoated NP-Fe 3 O 4 and (b) silica-coated (NP-Fe 3 O 4 /SiO 2 ) magnetite nanoparticles. (c) M × H curves at room temperature for NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 nanoparticles.
Figure 2. TEM images for (a) uncoated NP-Fe 3 O 4 and (b) silica-coated (NP-Fe 3 O 4 /SiO 2 ) magnetite nanoparticles. (c) M × H curves at room temperature for NP-Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 nanoparticles.
Magnetochemistry 08 00114 g002

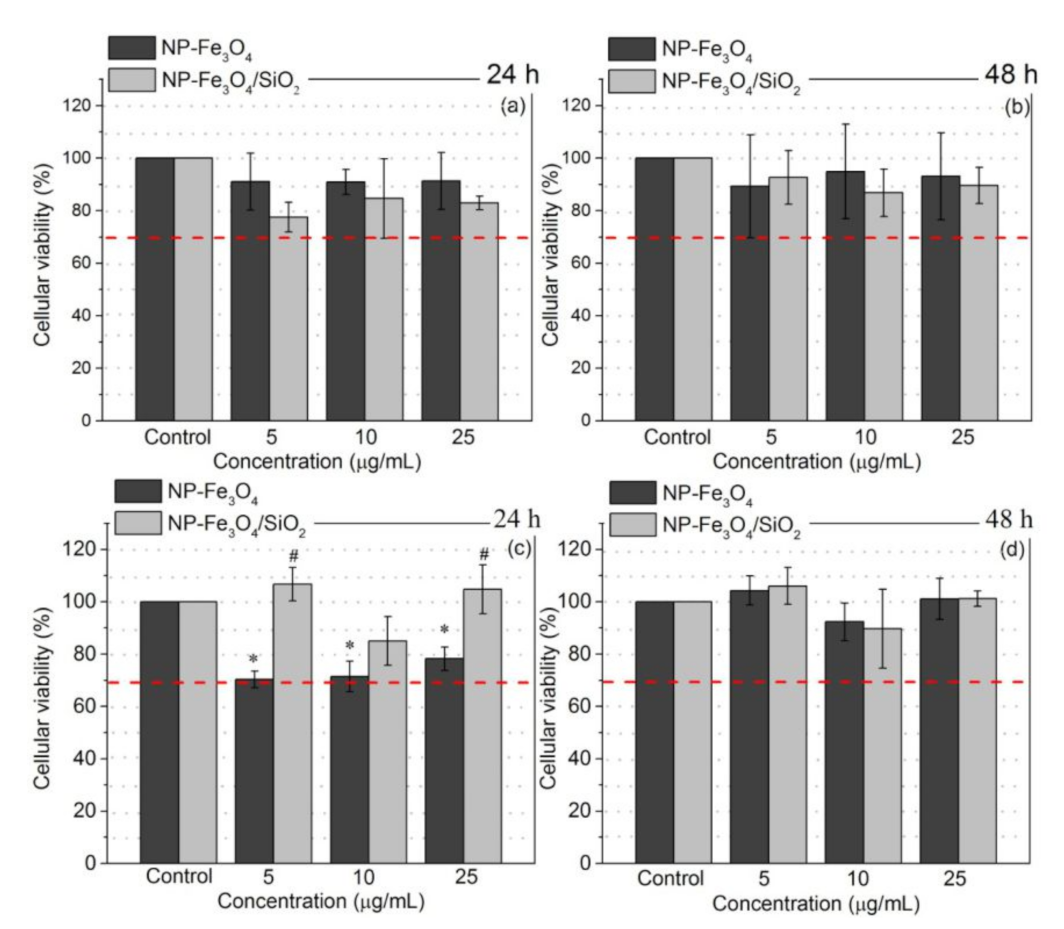

Figure 3. Cell viability assays for MCF-7 cells treated with NP- Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 at different NP concentrations (5 to 25 μ g/mL) for (a) 24 h and (b) 48 h. Control group: untreated MCF-7 cells. Cell viability assays for HaCaT cells treated with NP- Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 at different NP concentrations (5 to 25 μ g/mL) for (c) 24 and (d) 48 h. Data are expressed as percentage of control. * Statistically significant difference in relation to control (p < 0.05); # Statistically different in relation to 5 μ g/mL NP-Fe 3 O 4 and statistically different compared to 25 μ g/mL NP-Fe 3 O 4 (p < 0.05). Red dashed line threshold shows the limit percentage of cell viability (70%, ISO 10993-5).
Figure 3. Cell viability assays for MCF-7 cells treated with NP- Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 at different NP concentrations (5 to 25 μ g/mL) for (a) 24 h and (b) 48 h. Control group: untreated MCF-7 cells. Cell viability assays for HaCaT cells treated with NP- Fe 3 O 4 and NP-Fe 3 O 4 /SiO 2 at different NP concentrations (5 to 25 μ g/mL) for (c) 24 and (d) 48 h. Data are expressed as percentage of control. * Statistically significant difference in relation to control (p < 0.05); # Statistically different in relation to 5 μ g/mL NP-Fe 3 O 4 and statistically different compared to 25 μ g/mL NP-Fe 3 O 4 (p < 0.05). Red dashed line threshold shows the limit percentage of cell viability (70%, ISO 10993-5).
Magnetochemistry 08 00114 g003

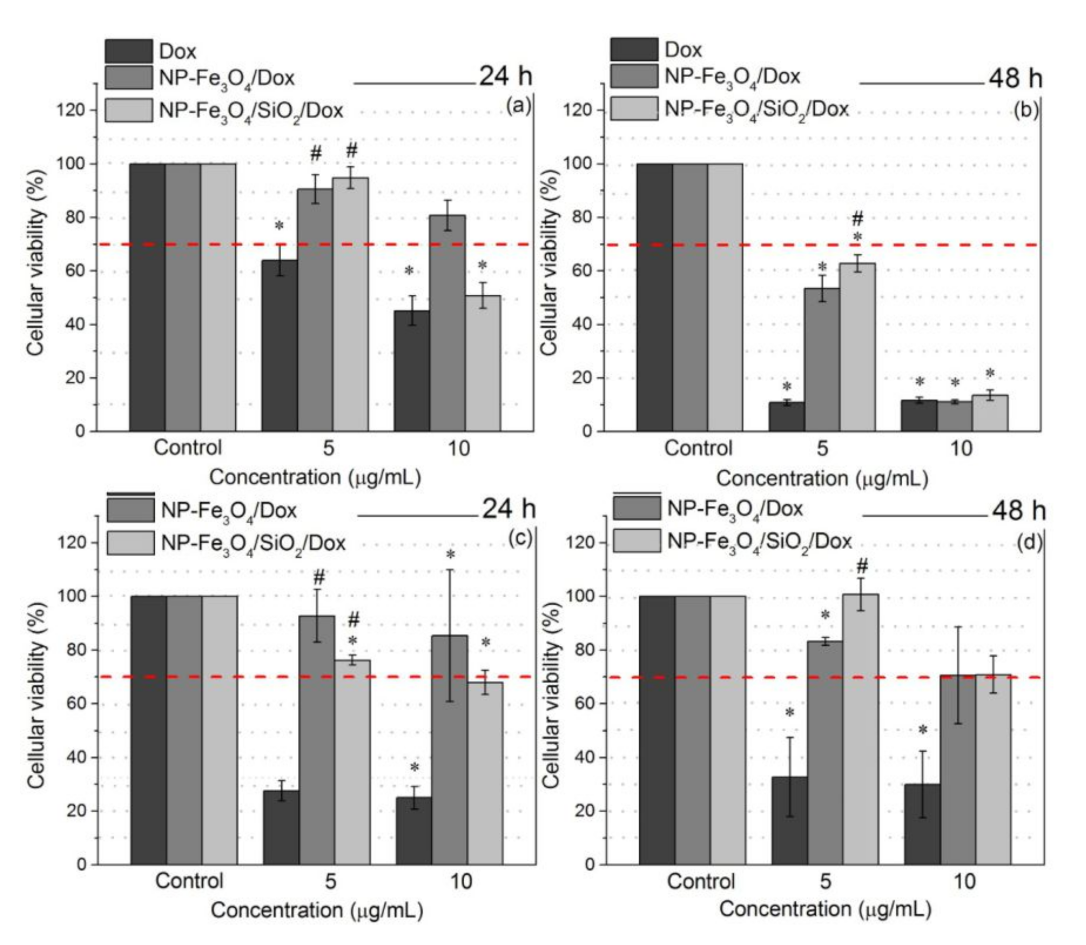

Figure 4. Cell viability assay for MCF-7 cells treated with Dox, NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox at concentrations of 5 and 10 μ g/mL for (a) 24 h and (b) 48 h. Control group: untreated MCF-7 cells. Cell viability assays for HaCat cells treated with Dox, NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox at concentrations of 5 and 10 μ g/mL for (c) 24 h and (d) 48 h. Control group: untreated HaCat cells. Data are expressed as percentage of control group. * p < 0.05, significantly different compared to control; # p < 0.05, significantly different compared to 5 μ g/mL doxorubicin; p < 0.05, significantly different compared to 10 μ g/mL doxorubicin. Red dashed line threshold shows the limit percentage of cell viability (70%, ISO 10993-5).
Figure 4. Cell viability assay for MCF-7 cells treated with Dox, NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox at concentrations of 5 and 10 μ g/mL for (a) 24 h and (b) 48 h. Control group: untreated MCF-7 cells. Cell viability assays for HaCat cells treated with Dox, NP-Fe 3 O 4 /Dox and NP-Fe 3 O 4 /SiO 2 /Dox at concentrations of 5 and 10 μ g/mL for (c) 24 h and (d) 48 h. Control group: untreated HaCat cells. Data are expressed as percentage of control group. * p < 0.05, significantly different compared to control; # p < 0.05, significantly different compared to 5 μ g/mL doxorubicin; p < 0.05, significantly different compared to 10 μ g/mL doxorubicin. Red dashed line threshold shows the limit percentage of cell viability (70%, ISO 10993-5).
Magnetochemistry 08 00114 g004

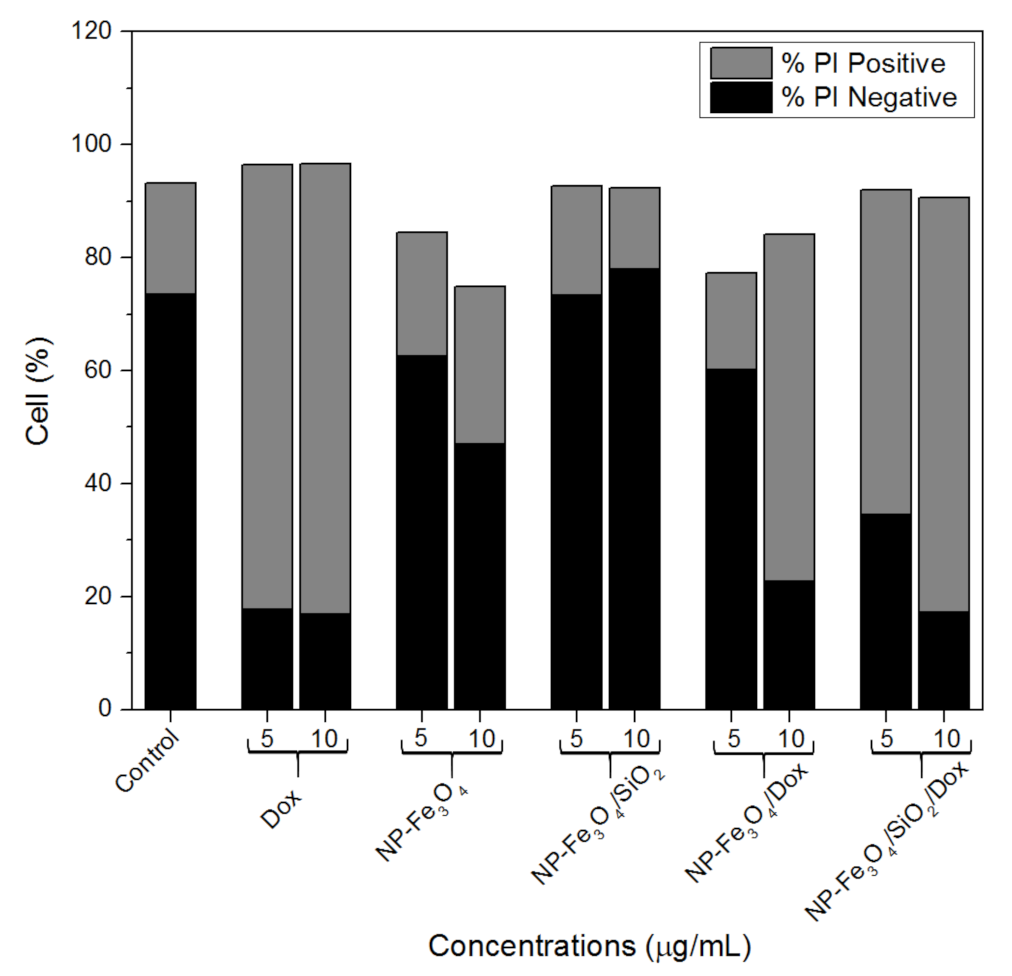

Figure 5. Membrane integrity tests of MCF-7 cells subjected to different treatments using 5 and 10 μ g/mL for 24 h. From left to right: control; doxorubicin (Dox); NP-Fe 3 O 4 ; NP-Fe 3 O 4 /SiO 2 ); NP-Fe 3 O 4 /Dox; and NP-Fe 3 O 4 /SiO 2 /Dox.
Figure 5. Membrane integrity tests of MCF-7 cells subjected to different treatments using 5 and 10 μ g/mL for 24 h. From left to right: control; doxorubicin (Dox); NP-Fe 3 O 4 ; NP-Fe 3 O 4 /SiO 2 ); NP-Fe 3 O 4 /Dox; and NP-Fe 3 O 4 /SiO 2 /Dox.
Magnetochemistry 08 00114 g005

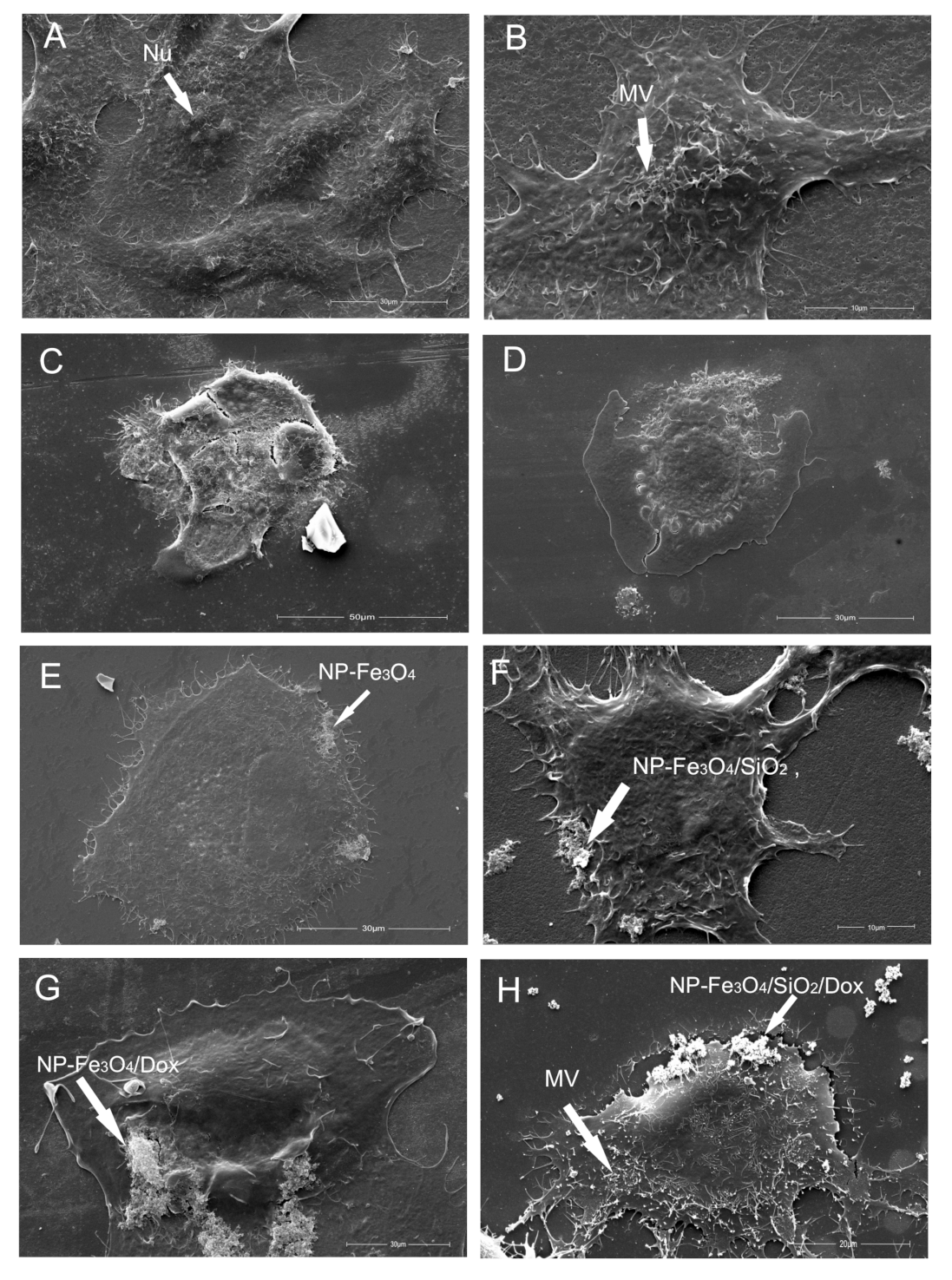

Figure 6. Scanning electron microscopy images of MCF-7 cells that stayed in contact with different analyzed systems for 24 h. (A,B) Control, bar: 15 μ m, 10 μ m, respectively; (C,D) Dox 10 μ g/mL, bar: 25 μ m, 15 μ m, respectively; (E) NP-Fe 3 O 4 10 μ g/mL, bar: 15 μ m; (F) NP-Fe 3 O 4 /SiO 2 10 μ g/mL, bar: 10 μ m; (G) NP-Fe 3 O 4 /Dox 10 μ g/mL, bar: 10 μ m; and (H) NP-Fe 3 O 4 /SiO 2 /Dox 10 μ g/mL, bar: 10 μ m; MV, microvilli; Nu, nucleolus.
Figure 6. Scanning electron microscopy images of MCF-7 cells that stayed in contact with different analyzed systems for 24 h. (A,B) Control, bar: 15 μ m, 10 μ m, respectively; (C,D) Dox 10 μ g/mL, bar: 25 μ m, 15 μ m, respectively; (E) NP-Fe 3 O 4 10 μ g/mL, bar: 15 μ m; (F) NP-Fe 3 O 4 /SiO 2 10 μ g/mL, bar: 10 μ m; (G) NP-Fe 3 O 4 /Dox 10 μ g/mL, bar: 10 μ m; and (H) NP-Fe 3 O 4 /SiO 2 /Dox 10 μ g/mL, bar: 10 μ m; MV, microvilli; Nu, nucleolus.
Magnetochemistry 08 00114 g006

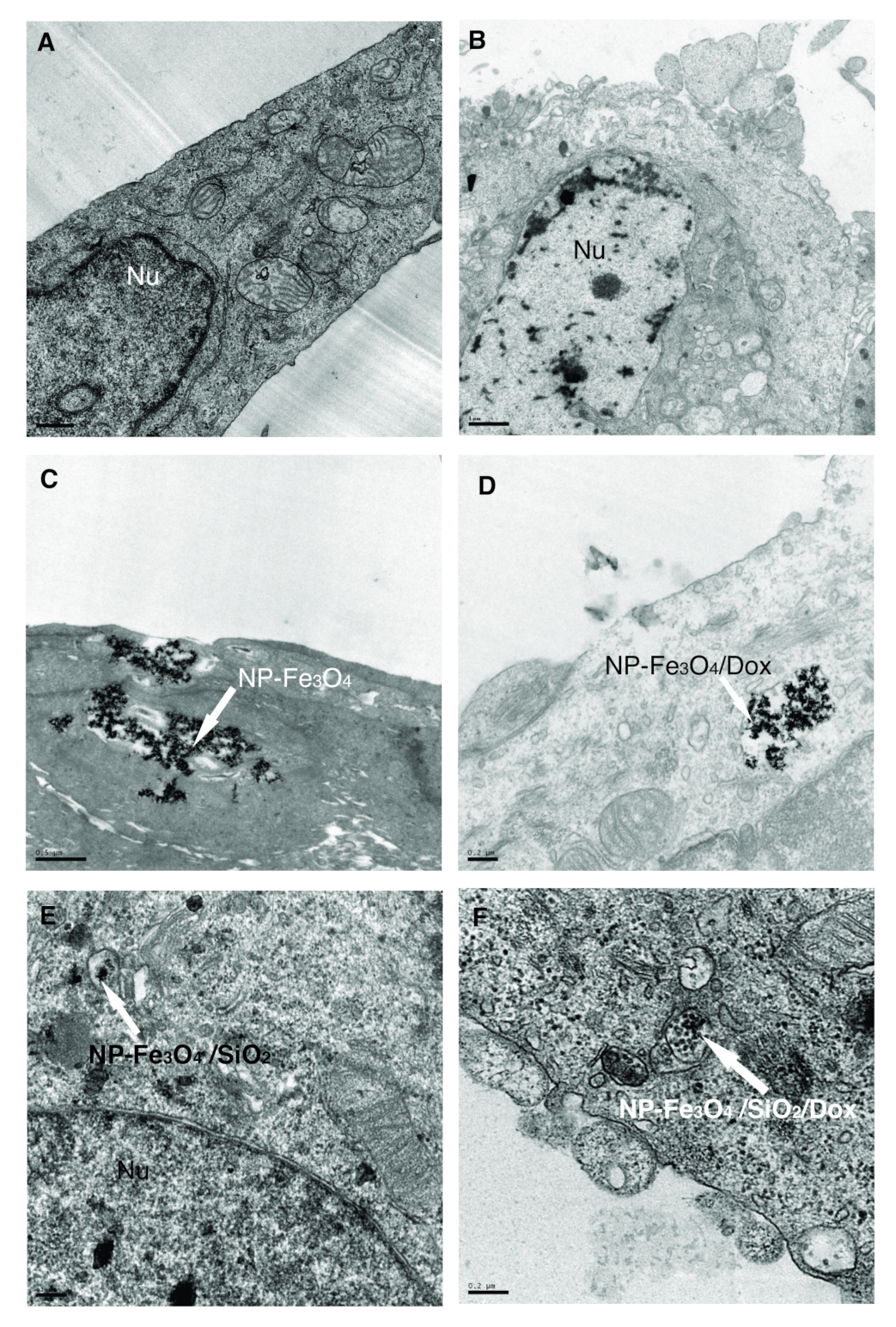

Figure 7. TEM images of MCF-7 cells that stayed in contact for 24 h with different systems at a concentration of 10 μ g/mL: (A) control (cells alone); (B) Dox; (C) NP-Fe 3 O 4 ; (D) NP-Fe 3 O 4 /Dox, bar: 10 μ m; (E) NP-Fe 3 O 4 /SiO 2 ; and (F) NP-Fe 3 O 4 /SiO 2 /Dox; Nu, nucleus.
Figure 7. TEM images of MCF-7 cells that stayed in contact for 24 h with different systems at a concentration of 10 μ g/mL: (A) control (cells alone); (B) Dox; (C) NP-Fe 3 O 4 ; (D) NP-Fe 3 O 4 /Dox, bar: 10 μ m; (E) NP-Fe 3 O 4 /SiO 2 ; and (F) NP-Fe 3 O 4 /SiO 2 /Dox; Nu, nucleus.
Magnetochemistry 08 00114 g007
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hernandes, E.P.; Bini, R.D.; Endo, K.M.; de Oliveira Junior, V.A.; de Almeida, I.V.; Dias, G.S.; dos Santos, I.A.; de Oliveira, P.N.; Vicentini, V.E.P.; Cotica, L.F. Doxorubicin-Loaded Magnetic Nanoparticles: Enhancement of Doxorubicin’s Effect on Breast Cancer Cells (MCF-7). Magnetochemistry 2022, 8, 114. https://doi.org/10.3390/magnetochemistry8100114

AMA Style

Hernandes EP, Bini RD, Endo KM, de Oliveira Junior VA, de Almeida IV, Dias GS, dos Santos IA, de Oliveira PN, Vicentini VEP, Cotica LF. Doxorubicin-Loaded Magnetic Nanoparticles: Enhancement of Doxorubicin’s Effect on Breast Cancer Cells (MCF-7). Magnetochemistry. 2022; 8(10):114. https://doi.org/10.3390/magnetochemistry8100114

Chicago/Turabian Style

Hernandes, Elisa Parcero, Raquel Dosciatti Bini, Karina Midori Endo, Verci Alves de Oliveira Junior, Igor Vivian de Almeida, Gustavo Sanguino Dias, Ivair Aparecido dos Santos, Paula Nunes de Oliveira, Veronica Elisa Pimenta Vicentini, and Luiz Fernando Cotica. 2022. "Doxorubicin-Loaded Magnetic Nanoparticles: Enhancement of Doxorubicin’s Effect on Breast Cancer Cells (MCF-7)" Magnetochemistry 8, no. 10: 114. https://doi.org/10.3390/magnetochemistry8100114

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
