Breaking of Odd Chirality in Magnetoelectrodeposition of Copper Films on Micro-Electrodes

Abstract

The surface chirality was investigated in magnetoelectrodeposition (MED) of copper films on micro-disc electrodes with the diameters of 100 and 25 µm. The MED was conducted in the magnetic fields of 1–5 T, which were parallel or antiparallel to the ionic currents. In the case of 100 µm-electrodes, the MED films prepared in 2 and 3 T exhibited odd chirality for the magnetic field polarity, as expected in the magnetohydrodynamic (MHD) vortex model. However, the films prepared in the higher fields of 4 and 5 T exhibited breaking of odd chirality. In the case of the 25 µm-electrode, the broken odd chirality was observed in 2 and 3 T. These results indicate that the strong vertical MHD flows induce the breaking of odd chirality. The mapping of chiral symmetry on the axes of the magnetic field and electrode diameter demonstrate that the odd chirality could be easily broken by the fluctuation of micro-MHD vortices.

1. Introduction

Magnetoelectrodeposition (MED), which represents electrodeposition under magnetic fields [1], can induce surface chirality on copper and silver thin films [2,3]. When the MED films were used as electrodes, they exhibited chiral responses for the oxidation reactions of enantiomers of amino acids, tartaric acid, and glucose [4,5,6]. The chiral surface formation in the MED processes is related to the magnetohydrodynamic (MHD) flows and vortices caused by the Lorentz force [7,8].

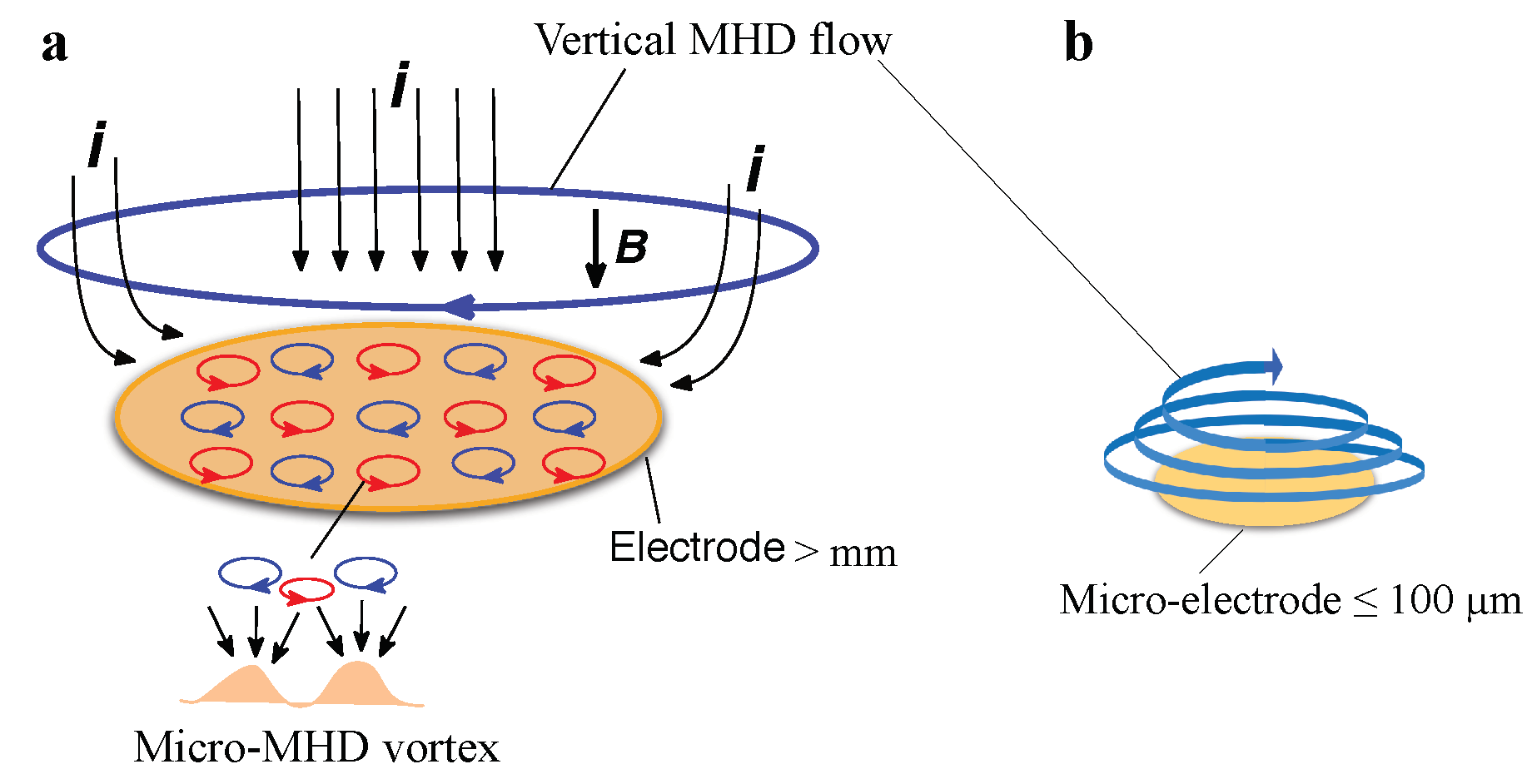

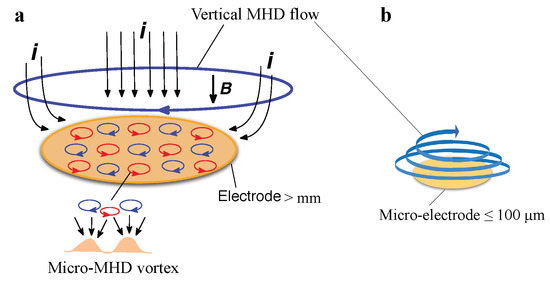

The chiral surfaces on MED films can be formed in the magnetic fields perpendicular to the working electrode. The Lorentz force brings about macroscopic and microscopic flows around the electrode [7,8], as shown in Figure 1a. The vertical MHD flow is induced around the electrode edge, where the currents i are not parallel to the magnetic field B. On the other hands, the micro-MHD vortices are excited around the local bumps and pits, which are caused by non-equilibrium fluctuation on the deposit surfaces. There exists a number of screw dislocations on electrodeposited copper films [9]. The micro-MHD vortices could contribute to the chiral site formation on the screw dislocations [8]. The vortices form the self-organized state, where the clockwise and anticlockwise vortices adjoin each other. The self-organized state leads to network structures on the surface morphology of the MED films [5]. Such symmetrical self-organized state is disturbed by the influence of vertical MHD flows. The cyclonic vortices are stable and they can contribute to the chiral site formation, whereas anticyclonic ones become unstable [10,11]. The direction of vertical MHD flow depends on the magnetic field polarity, thus the chiral sign of MED film becomes opposite for the reverse of magnetic field polarity. This behavior represents the odd chirality for the magnetic field polarity [12].

The odd chirality was clearly observed in the MED of copper films at 5 T on the usual mm-size electrode [5,13]. This fact indicates the formation of rigid self-organized state of micro-MHD vortices under the vertical MHD flows as depicted in Figure 1a. On the other hand, the same chiral sign was observed in both magnetic field polarities under several MED conditions: specific adsorption of chloride ions [13], low magnetic fields [14], and cell rotation [15]. For example, the copper films prepared by the MED with chloride additives showed only L-activity in both magnetic field polarities at 5 T [13]: The MED films prepared at 2.5 T showed L-activity in both polarities. Such MED conditions cause the fluctuation of micro-MHD vortices, hence the fluctuation would be crucial for the broken odd chirality.

The breaking of odd chirality is of great interest in connection with the origin of homochirality of amino acids in biochemical systems. We have explored the MED conditions to induce the broken odd chirality in copper films as mentioned above. Here our attention is focused on the influence of vertical MHD flows on the micro-MHD vortices. When the electrode downsizes to micrometer scales, the vertical MHD flows envelop the whole area of electrode and strongly affect the micro-MHD vortices as shown in Figure 1b, leading to the fluctuation of micro-MHD vortices. In this study, we investigate the chiral behaviors of MED copper films on the micro-disc-electrode with diameter of 100 and 25 µm, and here we show that the appearance of broken odd chirality depends on the magnetic field and the electrode diameter.

2. Results and Discussion

2.1. Chiral Behaviors of MED Films on a 100 µm-Electrode

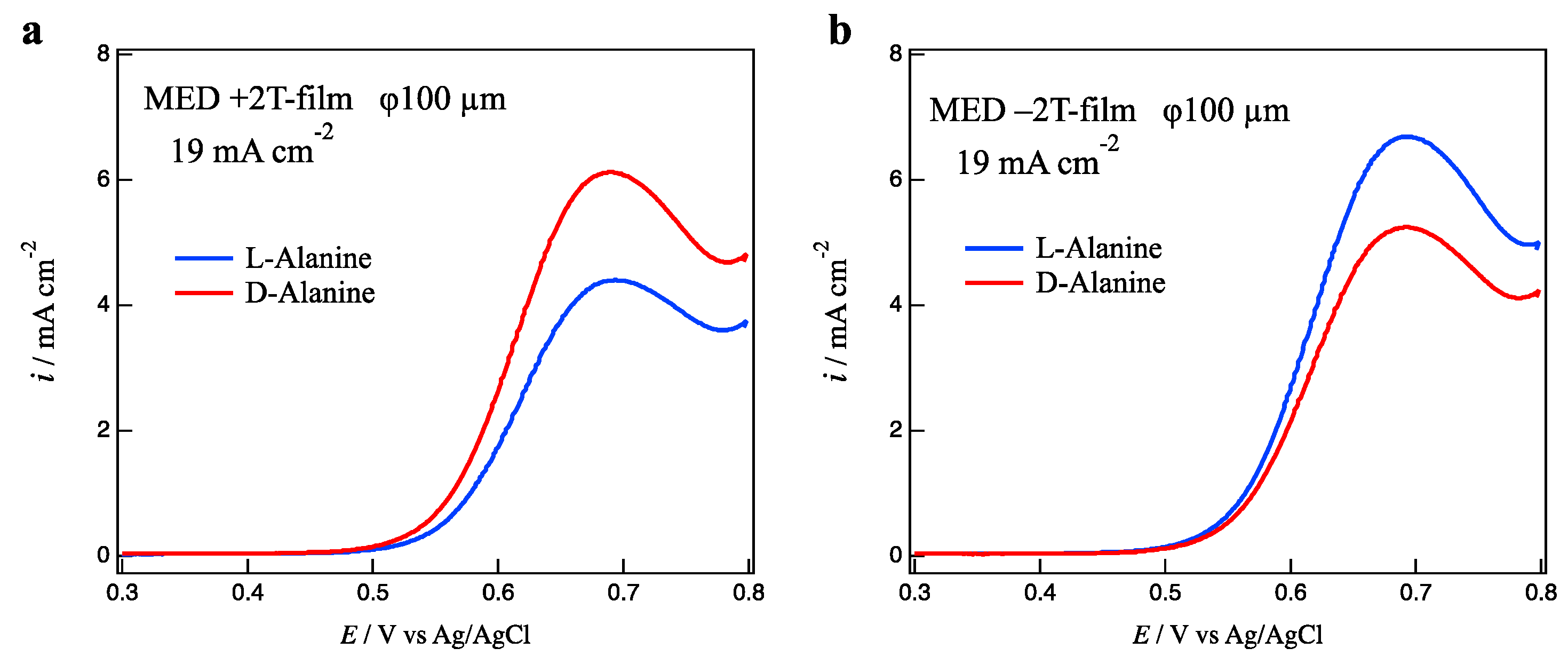

The MED of copper films was conducted on a micro-disc electrode with 100 µm diameter in the magnetic fields of 1–5 T, which were parallel (+B) or antiparallel (–B) to the ionic currents. The film prepared in a magnetic field of +1 T, for example, is termed the +1 T-film. To estimate the surface chirality of MED films, the films were employed as electrodes, and the voltammograms of alanine enantiomers were measured on the MED film electrodes in a 0.1 M NaOH aqueous solution. Figure 2a shows voltammograms of L- and D-alanines on the +2 T-film electrode prepared at a deposition current of 19 mA cm⁻². Alanine molecules are oxidized around 0.7 V on a copper electrode [16], resulting in the current peaks in Figure 2a. The surface chirality of MED films can be reflected in the peak currents of enantiomers. The peak current of D-alanine is greater than that of L-alanine. This fact represents that the +2 T-film electrode has D-activity. On the contrary, the −2 T-film electrode exhibits L-activity as shown in Figure 2b.

The chirality in voltammograms was evaluated by an enantiomeric excess (ee) ratio defined as

ee = (i_p^L − i_p^D)/(i_p^L + i_p^D)

(1)

where i_p^L and i_p^D represent the peak currents of L- and D-alanines, respectively. The positive and negative signs of ee ratios stand for L- and D-activity, respectively. As reported in our previous papers [13], the surface chirality depends on the deposition current, thus the MED films were prepared at various deposition currents. Figure 3a,b show the deposition current dependence of ee ratios (ee ratio profile) for the +2 T-film and −2 T-film electrodes, respectively. The +2 T-film shows D-activity in the current region around 19 mA cm⁻², on the contrary, the −2 T-film shows the L-activity at the same current region. This result can be described using the following diagrams:

ee(B) ≈ −ee(−B).

(2)

Such a relation represents the odd chirality for the magnetic field polarity. The odd chirality is easily understood by the self-organized MHD model in Figure 1a, as described above.

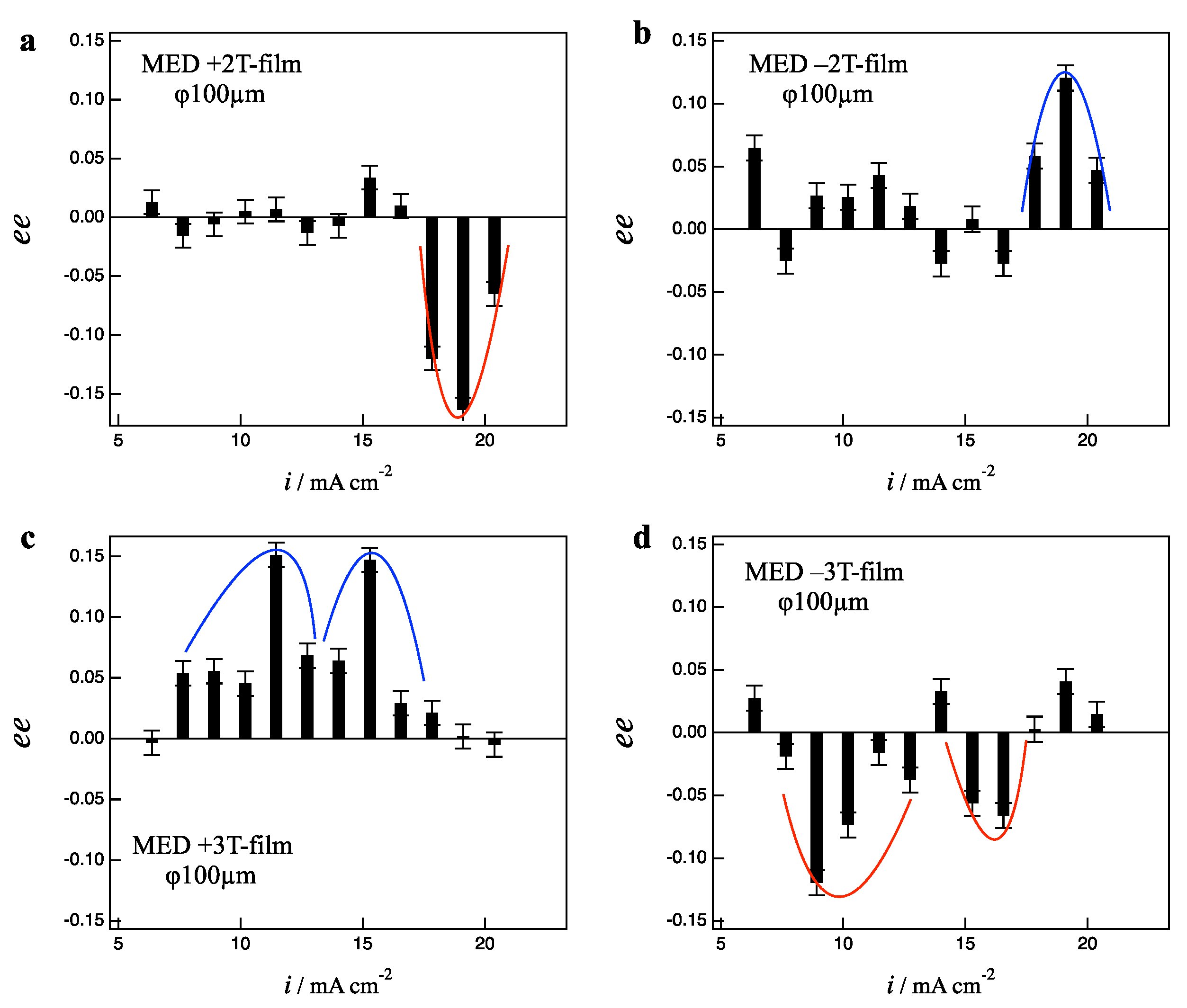

Similar odd chirality can be seen in the 3 T-films. Figure 3c,d show the ee ratio profiles for the +3 T- and −3 T-film electrodes, respectively. The +3 T-films exhibit L-activity in the wide current region of 7–17 mA cm⁻², and the −3 T-films exhibit D-activity in the same region. The results in Figure 3 indicate that the self-organized MHD state is formed in the MED at 2 and 3 T even on the 100 µm-electrodes.

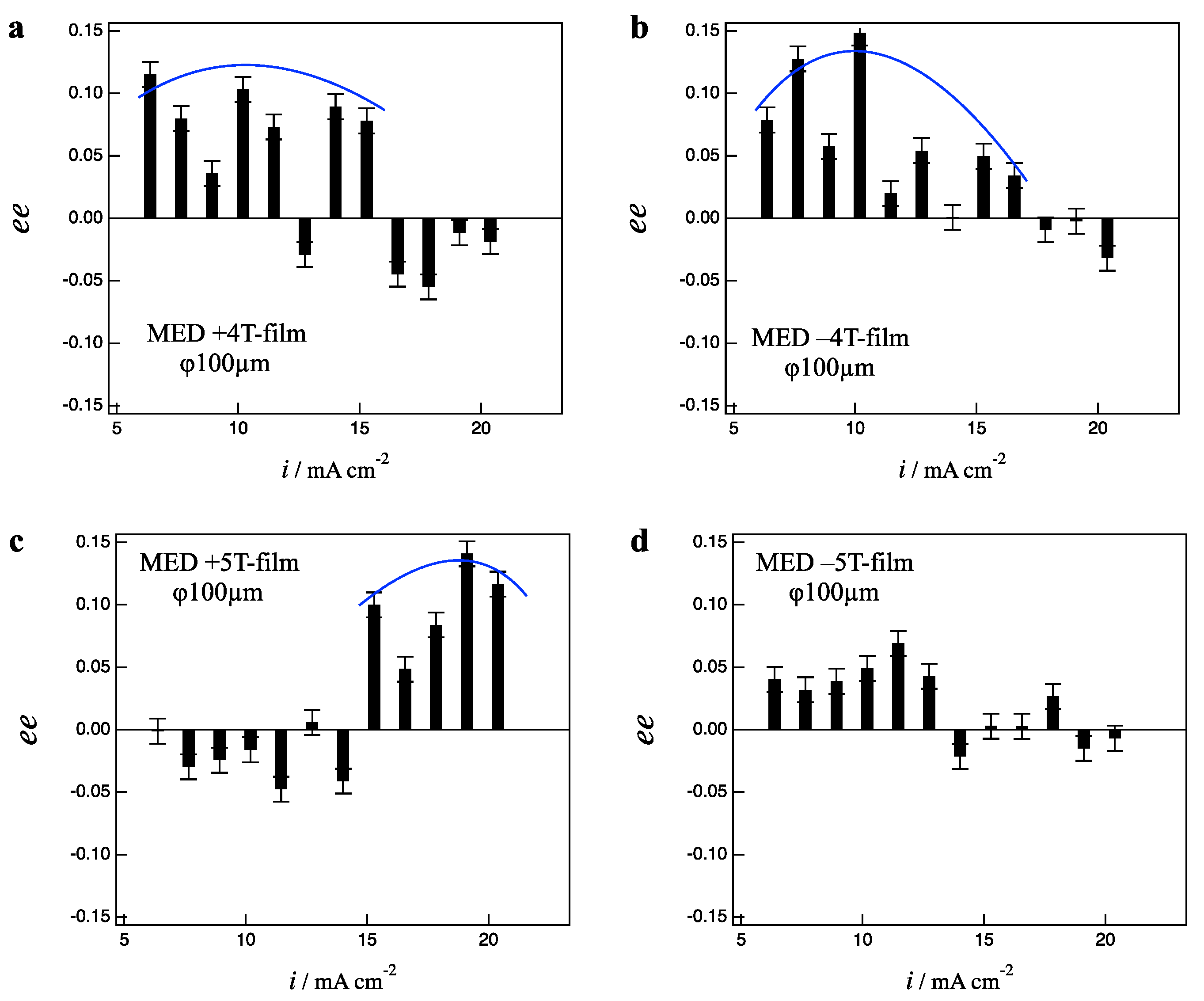

When the MED is conducted in the higher magnetic fields, the influence of vertical magnetic field is expected to be more substantial. Figure 4a,b show the ee ratio profiles for the +4 T- and −4 T-film electrodes, respectively. The +4 T-film exhibits L-activity in the current region of 6–15 mA cm⁻², and the −4 T-film also exhibits L-activity in the same current region. Such behaviors represent the clear breaking of odd chirality, rather even chirality for the magnetic field polarity.

Figure 4c,d show the ee ratio profiles for the +5 T- and −5 T-film electrodes, respectively. The +5 T-film exhibits L-activity in the current region of 15–21 mA cm⁻², on the other hand, the −5 T-film exhibits achirality in the same current region. These facts also represent the breaking of odd chirality. The results in Figure 4 indicate that the strong influence of vertical MHD flows causes the fluctuation of micro-MHD vortices, leading to the breaking of odd chirality. When the influence of vertical MHD flows is strong enough, the micro-MHD vortices have random fluctuation, leading to the disappearance of surface chirality as observed in the −5 T-film (Figure 4d). When the influence is not so strong, the micro-MHD vortices have “ordered fluctuation”. Such ordered fluctuation could lead to the even chirality as observed in 4 T-films.

The ordered and random fluctuations of micro-MHD vortices were proposed in our previous paper [14], where the effects of low magnetic fields on the surface chirality were studied with and without the specific adsorption of chloride ions. The low magnetic fields induce ordered fluctuation, leading to the even chirality for the magnetic field polarity. The even chirality is forbidden symmetry on the basis of the simple MHD model. A number of MED results [13,14,15] suggest that the ordered fluctuation is crucial for the forbidden symmetry. On the other hand, the superimposed effects of low magnetic fields and specific adsorption induce random fluctuation, leading to the disappearance of surface chirality.

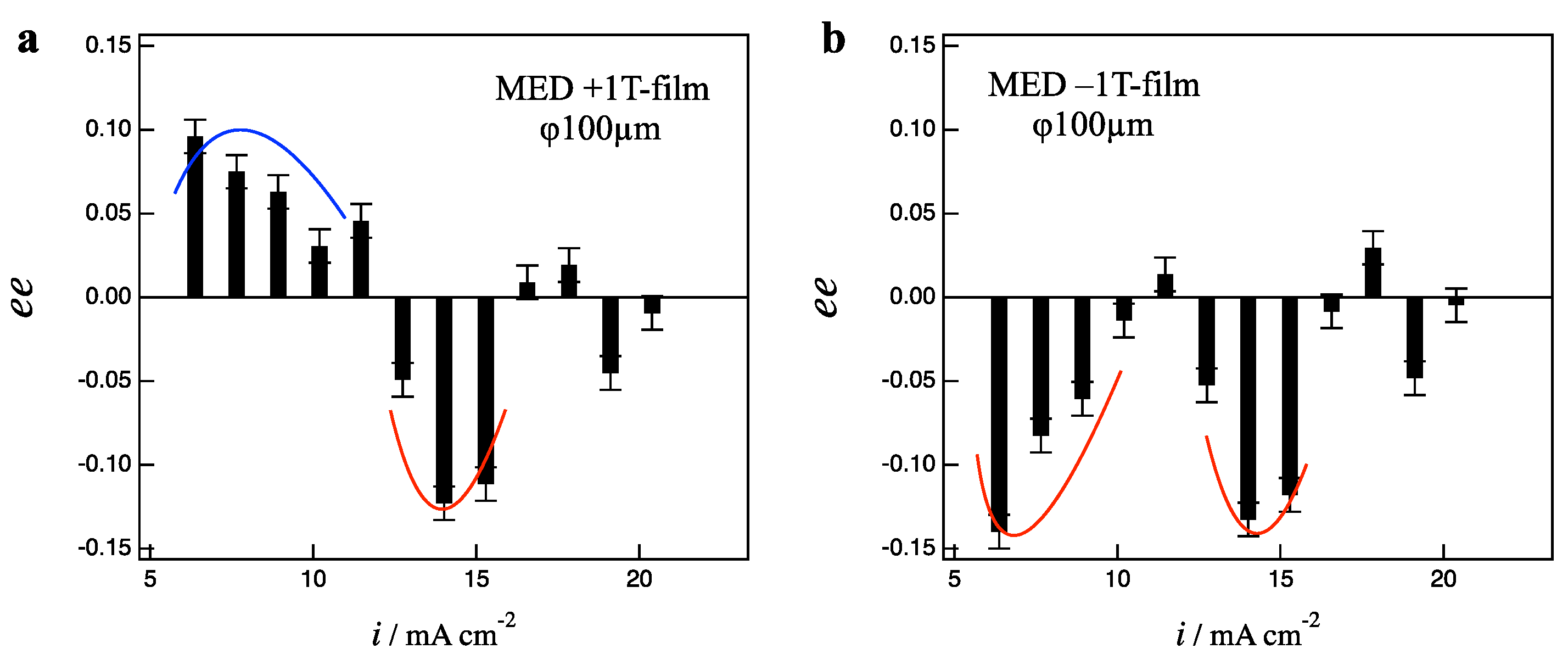

When the MED was conducted in the magnetic field lower than 2 T, the effects of low magnetic fields can be expected even in the micro-electrodes. Figure 5a,b show the ee ratio profiles for the +1 T- and −1 T-film electrodes, respectively. In the low current region of 6–10 mA cm⁻², the +1 T-film shows L-activity, and the −1 T-film shows D-activity, representing the odd chirality. On the contrary, in the middle current region of 12–16 mA cm⁻², both +1 T- and −1 T-films show D-activity, representing the even chirality. The ee ratio profiles of 1 T-films exhibit the coexistence of the odd and even chirality. In the low magnetic field of 1T, the vertical MHD flows have tiny influence, instead, the low magnetic field causes the fluctuation of micro-MHD vortices, leading to the breaking of odd chirality.

2.2. Chiral Behaviors of MED Films on a 25 µm-Electrode

The influence of vertical MHD flows on the micro-MHD vortices depends on the electrode diameter. As the electrode is smaller, the influence would spread over the whole electrode surface, and it becomes more remarkable. To examine the effects of smaller electrode, the MED of copper films was conducted on a micro-disc electrode with 25 µm diameter. Figure 6a,b show the ee ratio profiles for the +2 T- and −2 T-film electrodes, respectively. Both +2 T- and −2 T-films show D-activity in the wide current region of 6–30 mA cm⁻², representing even chirality. While the 2 T-films exhibit clear odd chirality on the 100 µm-electrodes (Figure 4), they exhibit the breaking of odd chirality on the 25 µm-electrodes. This indicates that the fluctuation of micro-MHD vortices is ascribed to the vertical MHD flows.

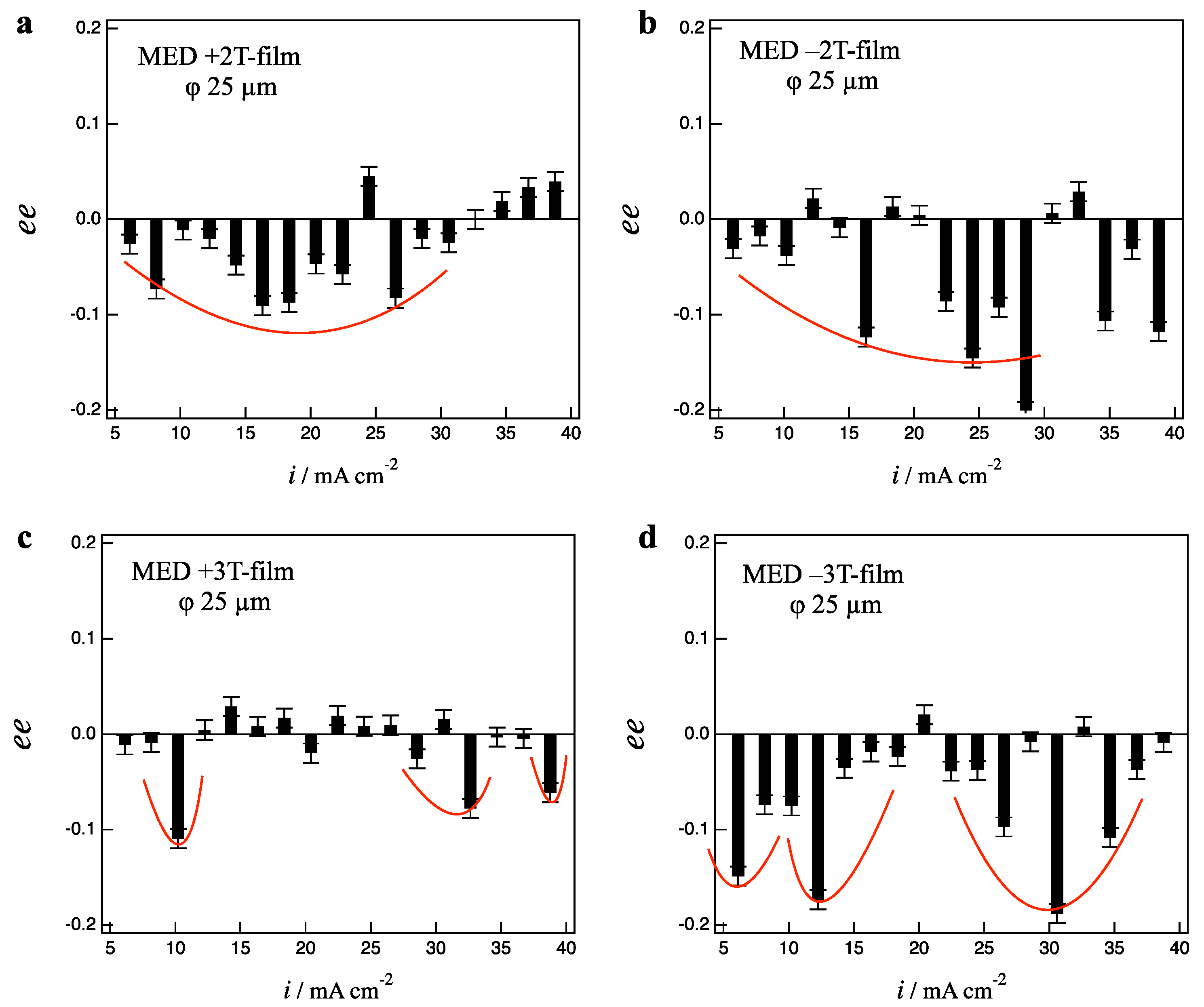

The breaking of odd chirality can be seen in the 3 T-film as shown in Figure 6c,d, where the −3 T-film show clear D-activity around 10 and 30 mA cm⁻², on the other hand, the +3 T-film show almost achirality except tiny D-activity around 10 and 30–40 mA cm⁻². As reported in our previous paper [17], both +5 T- and −5 T-films showed achirality on the 25 µm-electrodes. The random fluctuation of micro-MHD vortices is dominant in the MED processes of the +3 T- and 5 T-films.

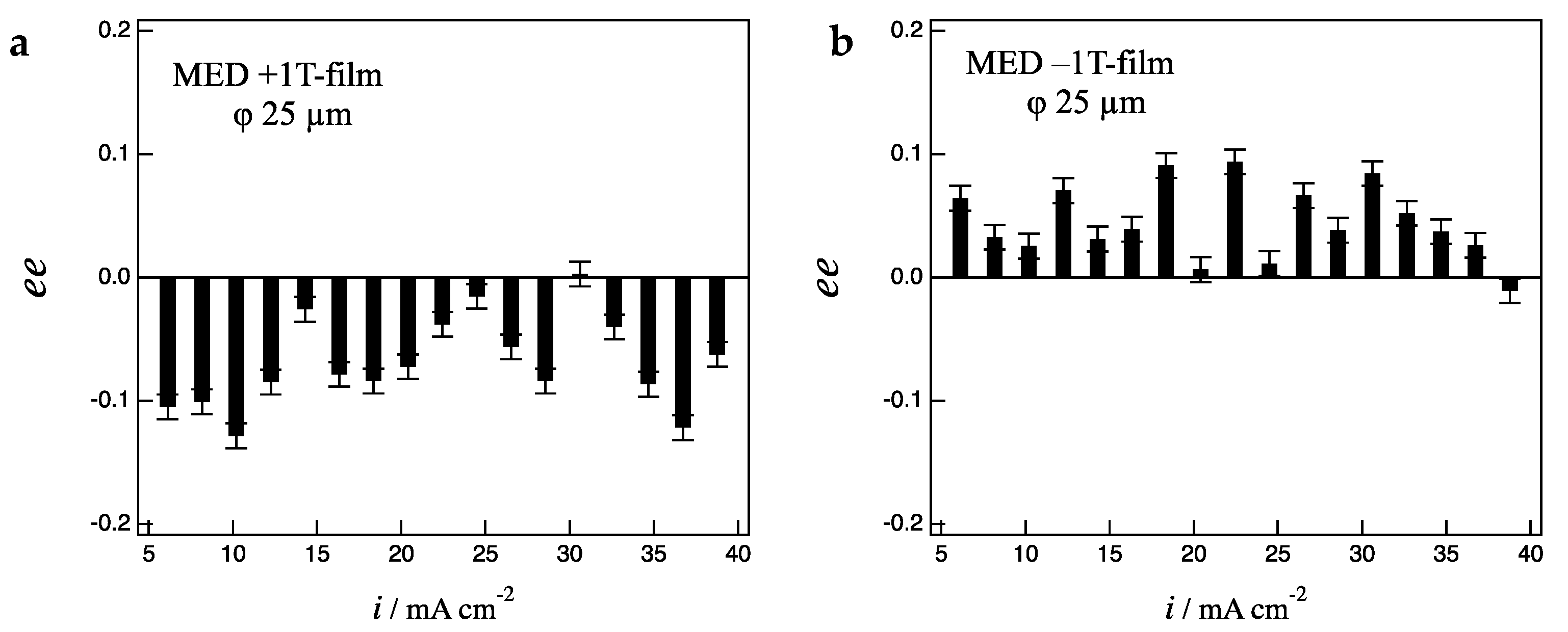

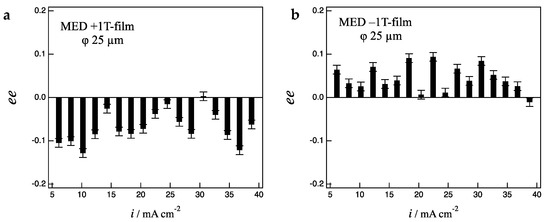

When the MED was conducted in the lower magnetic fields, the influence of vertical MHD flows could be suppressed even in the 25 µm-electrodes. Figure 7a,b show the ee ratio profiles for the +1 T- and −1 T-film electrodes, respectively. The +1 T-film shows D-activity in the whole current region, in contrast, the −1 T-film shows L-activity, representing the clear odd chirality. While the 1 T-films partially exhibits the breaking of odd chirality on the 100 µm-electrodes (Figure 5), they exhibit only odd chirality. This result suggests that the fluctuation effects arising from low magnetic fields could be suppressed in the smaller-size electrode.

2.3. Mapping of Chiral Symmetry

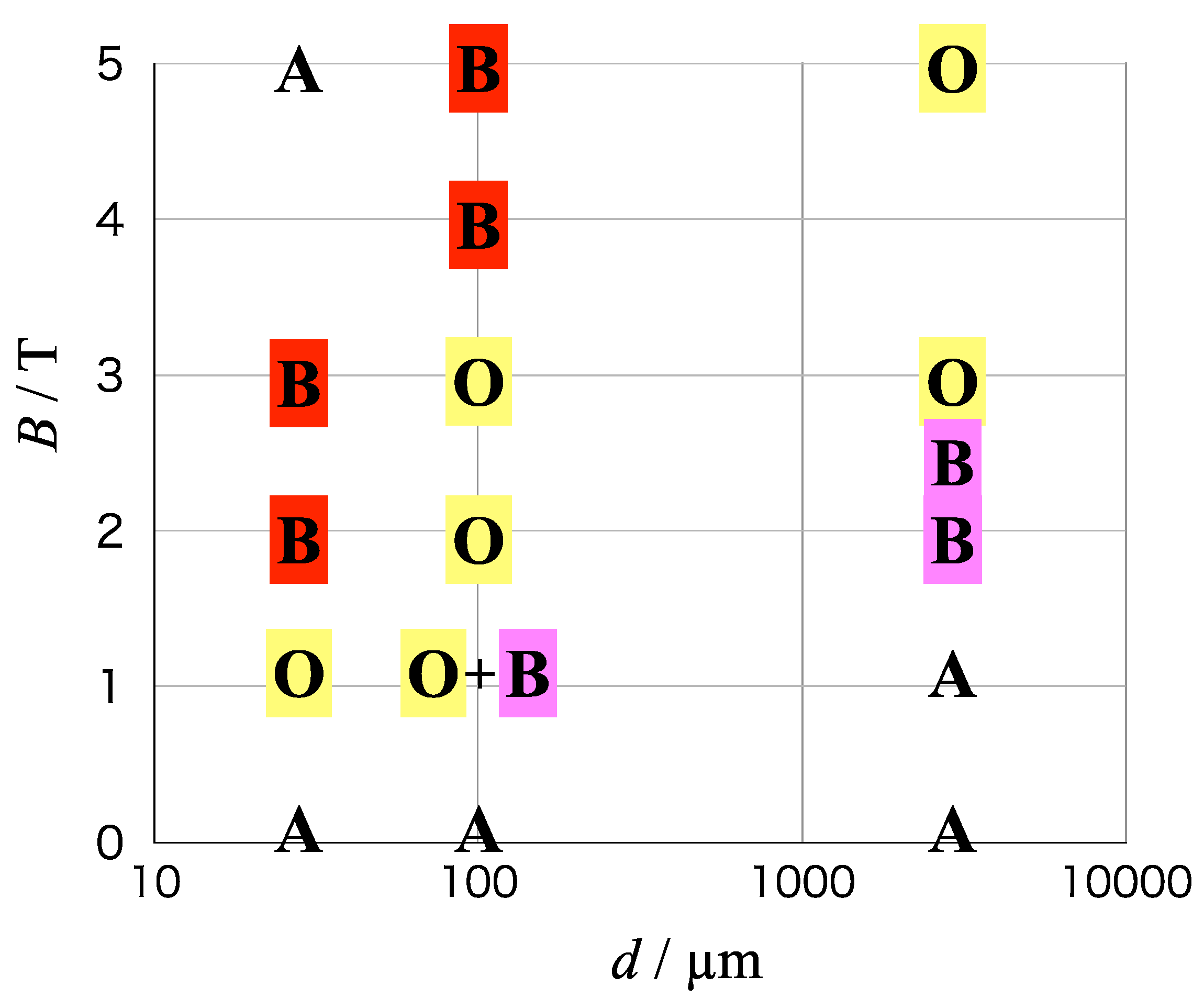

We have shown the chiral symmetry behaviors of MED films in the magnetic fields of 1–5 T on the 100 µm- and 25 µm-electrodes. Figure 8 shows the mapping of chiral symmetry on the axes of magnetic field vs. electrode diameter, including the results of 3 mm-electrodes in our previous paper [14]. The chiral symmetry is classified into three types: odd chirality (O) for the magnetic field polarity, breaking of odd chirality (B) and achirality (A).

The surface chirality on copper MED films was found in the 5 T-film on the 3 mm-electrode for the first time [13,14]. As the electrode size decreases, the influence of vertical MHD flows causes the ordered fluctuation of micro-MHD vortices, leading to the breaking of odd chirality (red-B) on the 100 µm-electrode. More drastic influence of vertical MHD flows causes the random fluctuation on the 25 µm-electrode, leading to the achirality. On the other hand, as the magnetic field decreases on the 3 mm-electrode, the ordered fluctuation of micro-MHD vortices emerges at 2–2.5 T, leading to the breaking of odd chirality (pink-B). The self-organized state of micro-MHD vortices cannot well develop in the lower magnetic field of 1 T, thereby the MED films show achirality.

The odd chirality appears at the lower magnetic fields of 1–3 T on the 100 µm-electrodes and at 1 T on the 25 µm-electrodes. The low magnetic fields reduce the influence of vertical MHD flows, thereby the self-organized state of micro-MHD vortices survives on the micro-electrodes. The breaking of odd chirality at the 1 T-film on the 100 µm-electrodes implies the fluctuation effect induced by the low magnetic fields.

Figure 8 shows that the chiral surfaces are formed in the wide areas of magnetic field and electrode diameter (the types O and B). It is remarkable that the chiral surface can be formed without chiral agents. There are two types of breaking of odd chirality: red-B and pink-B. The red-B is caused by the vertical MHD flows, and the pink-B is caused by the low magnetic fields. The area of type O is surrounded by those of type B, and the achirality is in the outer areas. Hence, the odd chirality exists in the confined areas of magnetic field and electrode diameter. This fact implies that the odd chirality could be easily broken by the fluctuation of micro-MHD vortices.

3. Materials and Methods

The electrolytic cell in MED experiments consists of three electrodes: a polycrystalline platinum micro-disc working electrode with diameters of 100 and 25 µm (ALS Co. Ltd., Tokyo, Japan), a copper plate counter electrode, and a Ag | AgCl | 3 M (M = mol dm⁻³) NaCl reference electrode. The copper films were electrodeposited galvanostatically on the working electrode at various constant currents of 5–40 mA cm⁻² in a 50 mM CuSO₄ + 0.5 M H₂SO₄ aqueous solution. The film thickness was approximately 150 nm at the passing charge of 0.4 C cm⁻².

In the MED processes, the electrolytic cell was put on a cell holder at the bore center in a cryocooled solenoidal superconducting magnet (Sumitomo Heavy Industries Ltd., Tokyo, Japan). This magnet can produce magnetic fields of up to 5 T in a 220 mm room-temperature bore. An applied magnetic field was parallel (+B) or antiparallel (–B) to the ionic current and perpendicular to the working electrode surface. The schematic of MED configuration was reported in our previous papers [5]. The temperature within the magnet bore was adjusted to 25 °C by circulating thermo-controlled water.

The chiral behaviors of MED films were examined by the voltammetric measurements of alanine enantiomers on the MED film electrodes. The films underwent the pre-treatment of a potential sweep (–0.3–0.3 V) in a 0.1 M NaOH aqueous solution [5]. The voltammograms of 20 mM L- or D-alanine were measured on the MED film electrodes in a 0.1 M NaOH aqueous solution with a linear potential sweep rate of 10 mV s⁻¹ in the absence of a magnetic field.

4. Conclusions

We have shown the ee ratio profiles of copper MED films prepared in various conditions at 1–5 T on the 100 µm- and 25 µm-electrodes and found that the odd chirality for the magnetic field polarity can be broken by the considerable influence of vertical MHD flows on the micro-MHD vortices. The mapping of chiral symmetry on the axes of magnetic field and electrode diameter exhibits that the odd chirality can exist in the confined area surrounded by those of broken odd chirality. This indicates that the chiral symmetry on the MED films could be easily broken by the fluctuation of micro-MHD vortices. These results would lead to significant hints for the origin of homochirality in biomolecules, taking account of the catalytic roles of chiral surfaces of minerals in the molecular evolution on the early earth [18].
