Magnetochemistry 2016, 2(1), 16; https://doi.org/10.3390/magnetochemistry2010016

Review
Symmetry Breaking in Iron(II) Spin-Crossover Molecular Crystals
1
Facultad de Química (UNAM), Edificio B. Av. Universidad 3000, Coyoacán, 04510 México D.F., Mexico
2
Departamento de Física Aplicada, Universitat Politècnica de València, E-46022 Valencia, Spain
3
Instituto de Ciencia Molecular (ICMol), Universidad de Valencia, 46980 Valencia, Paterna, Spain
*
Author to whom correspondence should be addressed.
Academic Editor: Carlos J. Gómez García
Received: 12 January 2016 / Accepted: 24 February 2016 / Published: 11 March 2016

Abstract

:
This review provides an up to date survey of a singular class of iron(II) spin crossover (SCO) molecular materials that undergo high-spin (HS) ↔ low-spin (LS) phase transitions accompanied by crystallographic symmetry breaking (CSB). Particular interest has been focused on a variety of complexes that exhibit one-step or stepwise SCO behavior and CSB. Most of them afford excellent examples of well-ordered 1HS-1LS, 2HS-1LS or 1HS-2LS intermediate phases (IP) and represent an important platform to disclose microscopic mechanisms responsible for cooperativity and ordering in such multistable materials.
Keywords:
iron(II) complexes; spin crossover; symmetry breaking; crystal structure; magnetic behavior; mononuclear complexes; polynuclear complexes; coordination polymers

1. Introduction

Spin crossover (SCO) complexes represent an important class of switchable molecular materials [1,2,3,4]. In these complexes, the energy gap between the high-spin (HS) and the low-spin (LS) states is of the order of magnitude of the thermal energy. Consequently, they can adopt both spin states and change from one state to the other state in a reversible, detectable and controllable way through temperature or pressure gradients, light irradiation and chemical stimuli. The LS ↔ HS switch is accompanied by distinctive changes in magnetic, optical and dielectric properties. The SCO behavior involves an electronic redistribution between the t2g and eg orbitals, strongly coupled with structural changes, which mainly affect the coordination core of the metal complex. In the solid state, these structural changes are cooperatively transmitted through elastic interactions and, in favorable cases, first-order spin transition occasionally accompanied by hysteretic behavior confers a binary function to the material. The elastic interactions depend somehow on the intermolecular contacts developed between SCO centers (i.e., van der Waals, hydrogen bonding, π-π interactions, coordination bonds, etc.) and determine the cooperative character of the SCO, namely steepness, hysteresis and steps. Theoretically explained as the result of a competition between antagonistic short-range and long-range elastic interactions [5,6,7,8,9], observation of steps has been considered for many years an intriguing and relatively rare event. However, the exponential growth experienced by the field in the last decade has uncovered an increasing number of stepwise SCO events featuring ordered intermediate phases (IP) well characterized from a structural viewpoint. There are two distinct situations that account for stepwise transitions. One is observed when different SCO sites, characterized by distinct transition temperatures (T1/2 or Tc), are present in the solid [10,11,12,13,14,15,16,17]. The other arises from subtle balances between different elastic interactions in the crystal lattice, which spontaneously generate two or more distinct SCO sites. This spontaneous change may occur without significant modification of the unit cell, other than the typical structural changes associated with the LS ↔ HS conversion. However, a growing number of examples, particularly in the area of FeII complexes, has been found to exhibit crystallographic symmetry breaking (CSB). CSB is characterized by a change of space group type and eventually of crystal system in the IP. Although the occurrence of phase transitions with CSB is ubiquitous in Nature, it is still considered a rare event and an important opportunity to learn new fundamental aspects of the SCO behavior. As far as we know, apart from the FeII complexes here reviewed only one complex exhibiting SCO and CSB has been described in the chemistry of CoII [18] and MnIII [19], while there are five reports concerning FeIII complexes [20,21,22,23,24].
CSB has been partially reviewed by Shatruk et al. in a broader context which, includes displacive transitions, phase transitions caused by disorder, polymorphism, and first order transitions without space group changes [25]. The aim of the present contribution is to update and systematically review the FeII SCO systems that manifest half-step, one-step, two-step and multi-step SCO transitions accompanied by CSB. The next three sections are organized according to the nature of the systems: monomeric (Section 2), polynuclear (Section 3), or polymeric (Section 4). Section 2 has been divided in two subsections, one dedicated to mononuclear SCO complexes exhibiting stepwise transitions and ordering in the IP, the other, dedicated to complexes that exhibit complete one-step SCO with CSB. Section 2 essentially describes a series of significant dinuclear SCO compounds that feature CSB. Section 3 is organized according to the one-, two- or three-dimensional nature of the coordination polymer that shows SCO and CSB behavior.

2. Mononuclear Iron(II) Complexes

2.1. Stepwise SCO Behavior

The prototypical mononuclear [FeII(2-pic)3]Cl2·EtOH (pic = picolylamine) was the first two-step SCO complex investigated extensively [26]. Its structure was analyzed at 115 K [27] and 90 K in the LS state and at 150 K and 298 K in the HS state [28]. Shortly after, Gütlich et al. observed for this compound the occurrence of a two-step behavior characterized by a small plateau (ca. 10 K wide) centered at about 119 K, which separates two half spin transitions with Tc1 = 114 K and Tc2 = 124 K (Figure 1) [29,30,31]. The existence of the intermediate plateau was rationalized in terms of concurrence of “ferromagnetic-like” long-range and “antiferromagnetic-like” short-range elastic interactions in the crystal [32]. Almost 20 years after the discovery of this two-step SCO behavior, a detailed structural reinvestigation by Bürgi et al. disclosed the nature of the double phase transition and hence of the plateau in [FeII(2-pic)3]Cl2·EtOH]. In the LS and HS states the unit cell is monoclinic, space group P21/c, and contains one crystallographically independent FeII site. In contrast, in the plateau (IP), the unit cell doubles and accommodates two crystallographically independent FeII sites, which corresponds to a 1:1 mixture of LS and HS states (IP = 1HS-1LS). In the IP, layers of HS molecules alternate with layers of LS molecules defining an ordered ···HS-LS··· pattern. These layers lie approximately in the bc plane and stack along the a-axis (Figure 1) [33].
A less common pattern in the IP has been described by Létard, Howard and Halcrow et al. for [Fe(bmpzpy)2](BF4)2·xH2O (x = 0, 1/3; bmpzpy = 2,6-bis{3-methylpyrazol-1-yl}pyridine). This system undergoes an incomplete SCO where only 1/2 of the FeII centers switches to the LS while the other 1/2 remains HS. This so-called half SCO occurs in two cooperative steps centered at Tc2 = 147 K and Tc1 = 105 K with ∆Tc2 = 6 K and ∆Tc1 = 18 K wide hysteresis loops, respectively (Note: half SCO) (Figure 2). This 50% mixed spin state is observed when usual temperature scan rates (1–2 K/min) are employed at low temperatures, due to slow HS ↔ LS kinetics. However, it relaxes to the fully LS state in 2 h at 100 K.
The crystal structures of the anhydrous and the hydrate species (x = 0, 1/3) were investigated at 200 K, 130 K and 90 K. At 200 K, the crystals are monoclinic (space group C2/c, (Z = 8)) and contain one crystallographically independent FeII site, which is HS. At 130 K, the anhydrous form remains in the same space group type but triples the unit cell (Z = 24) to accommodate three distinct FeII sites, one LS and two HS (IP = 2HS-1LS), a fact consistent with the magnetic behavior. In this ordered state, the unit cell shows two types of chains running along the c-axis. One is defined by two FeII sites, ···Fe1(LS)-Fe3(HS)···, while the other contains a unique Fe2(HS) site. Both kinds of chains alternate along the a-axis and superpose along the b-axis (Figure 2). At 90 K, after relaxing the mixed state at 100 K, the complex shows one crystallographically independent FeII site, which is LS. At 200 K and 130 K, the crystal structures of the hydrated and anhydrous compounds are essentially the same since the inclusion of 1/3 H2O molecules seems to not perturb too much the crystal packing. However, in contrast to the anhydrous compound, all the FeII centers of the hydrated derivative remain in the HS state at 130 K. At 90 K, the structure of the hydrated derivative is similar to that of the anhydrous compound at 130 K [34].
The same IP = 2HS-1LS has been recently reported by Bao and Tong et al. for the polymorph A of complex [Fe(bpmen)(NCSe)2] (bpmen is the tetradentate ligand N,N′-dimethyl-N,N′-bis(2-pyridylmethyl)-1,2-ethanediamine). This compound undergoes a complete cooperative two-step SCO characterized by a first drop in the thermal dependence of the χMT product (χM is the molar magnetic susceptibility and T temperature) from 3.2 cm3·K·mol−1 (HS state) to 2.6 cm3·K·mol−1 (IP state). This step, characterized by a hysteresis loop 5 K wide centered at Tc2 = 117.5 K, reflects the conversion of 1/3 of the HS centers to the LS state. The second drop in χMT (between 2.2 cm3·K·mol−1 and 0.2 cm3·K·mol−1), characterized by a hysteresis loop 10 K wide centered at Tc1 = 101 K, involves the remaining 2/3 of the HS species. The crystals of this polymorph are orthorhombic, its space group being Aba2, and contain one asymmetric unit defined by half a molecule with a two-fold axis passing through the FeII site. The molecules are arranged in layers that stack along the a-axis and extend parallel to the plane bc. At 100 K (IP state) the unit cell triples displaying a HS-HS-LS pattern. However, the order in this IP = 2HS-1LS is produced in a different way to that described in the previous example, namely a layer constituted of Fe2(LS) sites is separated by two consecutive identical layers made up of Fe1(HS) sites (Figure 3) [35].
The multicomponent mononuclear complex [FeII(dpp)2][Ni(mnt)2]2·MeNO2, (dpp = 2,6-bis(pyrazol-1-yl)pyridine (see Appendix Figure A1) and mnt = maleonitriledithiolate) displays a complicated SCO behavior. Above 180 K, the Fe centers are HS but abruptly change to the LS state below this temperature. In contrast, in the heating mode the population of the FeII HS species increases showing three steps defining an irregular hysteresis. Although crystallographic evidence of order in the intermediate states could only be partially demonstrated for the first plateau (1HS-2LS), where the unit cell triples to contain three distinct FeII centers, it could be concluded from magnetic susceptibility and Mössbauer data that the steps corresponds to the L S   s t e p 1   1 H S : 2 L S   s t e p 2   2 H S : 1 L S   s t e p 3   H S sequence [36].
Despite the nature of the SCO in [FeII(2-pic)3]Cl2·EtOH] has attracted much attention for two decades, the first structurally investigated two-step SCO with CSB was reported by Tuchagues et al. for the complex [FeII{5-NO2-sal-N(1,4,7,10)}], where 5-NO2-sal-N(1,4,7,10) is a six-coordinating ligand prepared by Schiff base condensation of 5-NO2-salicylaldehyde with 1,4,7,10-tetraazadecane [37]. The magnetic data showed the occurrence of two cooperative half spin transitions centered at Tc2 = 176 K and Tc1 =142 K with hysteresis loops 3 K and 8 K wide, respectively (Figure 4). In the HS state, the crystal is monoclinic, its space group being P2/c, and is characterized by the presence of one FeII HS site. The high temperature step, HS → IP, occurs simultaneously with a change of the crystal to the space group P2. The loss of the inversion center in the IP also involves the generation of two crystallographically independent FeII centers. In the subsequent IP → LS step the crystal loses the two-fold symmetry axes and becomes triclinic (space group P1). Contrary to expectations, the average metal-to-ligand bond length of the [FeN4O2] coordination center is virtually the same for the HS and the IP states and only 0.1 Å larger than that observed for the LS state at 103 K. Consequently, no crystallographic evidence of IP with an ordering ···HS-LS··· was afforded for this complex. This problem was reinvestigated by Gütlich et al. but no clear conclusion was achieved [32].
The first example of CSB involving change of space group was reported by Reger et al. for {Fe[HC(3,5-Me2pz)3]2}(BF4)2, where HC(3,5-Me2pz)3 is the scorpionate-like tridentate ligand tris(3,5-dimethyl-1-pyrazolyl)methane. This compound undergoes an abrupt half SCO at Tc = 204 K. Above this temperature, where the HS crystal is monoclinic (space group C2/c), the unit cell contains one independent FeII site characterized by an average Fe–N bond length Fe–Nav = 2.164(3) Å. Below 204 K, the crystal transforms into triclinic, its space group being P 1 ¯ , with concomitant generation of a unit cell with two independent FeII sites, one LS (Fe2–Nav = 1.984(3) Å) and other HS (Fe1–Nav = 2.171(3) Å). In this IP = 1HS-1LS, the cationic complexes with the same spin state, HS or LS, are arranged in layers parallel to the ab plane. The HS and LS layers alternate along the c axis (Figure 5) [38].
Matsumoto et al. have investigated in depth the SCO properties of an interesting series of complexes formulated [FeII(H3LMe)2](Cl)(XF6), where H3LMe is the tripodal ligand tris[2-{[(2-methyl-imidazoyl-4-yl)methylidene]amino}-ethyl]amine (see Appendix) and X = P, As. The PF6 derivative displays a half SCO (Tc = 122 K) accompanied by a change of space group from P21/n (HS state) to P21 (IP state). In the pure HS state, there is one crystallographically independent FeII site (Fe–Nav = 2.190(3) Å), whereas in the IP the complex shows two equally populated FeII sites, one HS (Fe–Nav = 2.186(5) Å) and other LS (Fe–Nav = 1.994(5) Å). A similar situation is observed when PF6 is formally replaced by AsF6. Nevertheless, the resulting compound undergoes a two-step SCO centered at Tc2 =122 K and Tc1 = 85 K. The low-temperature step is incomplete due to slow HS ↔ LS kinetics. In this step, when cooling at 1 K/min, χMT drops from 1.70 cm3·K·mol−1 at 100 K (IP = 1HS-1LS) down to 1.10 cm3·K·mol−1 at 5 K. However, after keeping the sample at 85 K for 12 h the AsF6 derivative relaxes completely to the LS state (χMT decreases down to 0.24 cm3·K·mol−1). In this process the complex recovers the space group P21/n. The crystal packing of both derivatives consists of two-dimensional networks constructed by NH···Cl hydrogen bonds between Cl and the imidazole NH groups of three neighboring [FeIIH3LMe]2+ cations, whereas XF6 (X = P, As) acts as an isolated anion filling the space between two consecutive supramolecular layers. The layers are racemic with the ∆ and Λ configurations of [FeIIH3LMe]2+ interconnected through hydrogen bonds in an alternating way. In the ordered IP the layers can be described as a stacking of chains of HS sites that alternate with chains of LS sites. Interestingly, the HS and LS sites adopt the ∆ and Λ configurations, respectively [39].
In the search for new FeII SCO complexes based on polydentate ligands with imidazole-pendant groups, the same research group has reported an important number of complexes of general formula [Fe(H2L2−Me)2](X)(Y)·Solvent, where H2L2−Me is the tridentate ligand ((2-methylimidazol-4-yl)methylidene)histamine. Among them the system {[Fe(H2L2−Me)2](X)(ClO4)·1EtOH} (X = Cl, Br) shows a gradual two-step SCO behavior with Tc1 (Tc2) = 75 (255) K for X = Cl and 100 (260) K for X = Br. The HS → IP transformation is accompanied by a change of the unit cell from monoclinic, space group P21/n, to triclinic, space group P 1 ¯ ,. For X = Br, the crystal structure of the IP confirms the occurrence of an ordering that can be described as made up of alternating undulated layers of LS or HS complexes (Figure 6). Interestingly, no re-entrant phase transition was observed in the LS state since the crystal remains P 1 ¯ [40].
In the same line, Tuchagues and Collet et al. have reported the system [FeII(H2L*2−Me)2](XF6)2 (X = P, As) derived from the acyclic hexadentate N6 Schiff base bis[N-(2-methylimidazol-4-yl)methylidene-3-aminopropyl]ethylenediamine (H2L*2−Me). The AsF6 derivative undergoes an asymmetric two-step SCO behavior. At 250 K, in the HS state, the crystal is orthorhombic (space group P22121) and contains one crystallographically independent FeII site (Fe–Nav = 2.187(3) Å). At 100 K, in the IP, the crystal retains the same unit cell but displays an unusual complex distribution of HS and LS sites. In the LS state (T = 15 K), the crystal changes to P212121 with concomitant quadrupling of the unit cell, which contains two independent FeII sites (Fe–Nav = 2.023(4) Å) [41]. In contrast, the two-step transition of the PF6 derivative is practically symmetric. The high-temperature step is gradual (Tc2 ≈ 155 K) while the low-temperature step (Tc1 ≈ 97 K) is cooperative and exhibits a narrow hysteresis loop 6 K wide (Figure 7). At 250 K, the unit cell P22121 contains two crystallographically identical [FeII(H2L*2−Me)2]2+ cations, which consistently with the magnetic data are HS (Fe–Nav = 2.190 Å). At 110 K, in the IP, the parameter c doubles and the new unit cell (P21) contains four cations, two of which are crystallographically unique. One site is mainly HS (Fe1–Nav = 2.13(1) Å), and the other is mainly LS (Fe2–Nav = 2.04(1) Å) (a rough estimate of the HS fraction on sites 1 (2) was found to be 75 (25)%). The crystal packing is defined by layers of cations and layers of anions in the ab plane alternating along c. Interestingly, in the IP = 1HS-1LS the ordering is defined by layers of cations that follow the pattern ···HS-LS-LS-HS··· (Figure 7). In the pure LS state (80 K) the unit cell exhibits a new space group (P212121) defined by two independent LS complex cations [42].
An interesting example of asymmetric two-step SCO with CSB has been reported by Reedijk et al. for the complex [Fe(bapbpy)(NCS)2], where bapbpy is the tetradentate ligand N-(6-(6-(pyridin-2-ylamino)pyridin-2-yl)pyridin-2-yl)pyridin-2-amine. The χMT vs. T plot shows a high-temperature step centered at Tc2 = 237 K involving 2/3 of the HS centers, characterized by a hysteresis 4 K wide. The remaining 1/3 of HS centers change to the LS state in a strong cooperative low-temperature transition centered at Tc1 = 183 K with a hysteresis 22 K wide (Figure 8). The unit cell is monoclinic, space group C2/c, and contains one independent FeII site in the HS state. The molecules are held together through π-π interactions and hydrogen bonds defining supramolecular chains running along the c-axis. In the IP, the crystal retains the same space group type but c triples giving rise two independent FeII sites, namely 1 HS center and 2 equivalent LS centers (IP = 1HS-2LS), which display a ···HS-LS-LS··· ordering (Figure 8). In the LS state the crystal is triclinic, space group     C 1 ¯ , and contains one FeII site. These steps are accompanied by unusually large overall enthalpy (∆H = 26.7 kJ·mol−1·K−1) and entropy (∆S = 125 J·mol−1·K−1) variations, which clearly account for the SCO and crystallographic phase transition contributions [43].

2.2. One-Step SCO Behavior

So far, we have discussed a series of mononuclear complexes featuring two-step and half-step SCO with CSB and ordering. However, reversible CSB is not exclusive of systems undergoing stepwise transitions. Indeed, CSB has been reported for some mononuclear FeII complexes exhibiting complete “one-step” SCO where obviously no IP exists. In this respect, Kahn et al. reported the complex [Fe(PMPA)2(NCS)2] (PMPA = N-(2′-pyridylmethylene)-4-(phenylethynyl)aniline, see Appendix), which undergoes a cooperative SCO centered at Tc = 212.5 K characterized by a hysteresis 37 K wide. The SCO is accompanied by a crystallographic phase transition between monoclinic, space group P21/c, in the HS state and orthorhombic, space group Pccn, in the LS state. The molecules are located on two-fold axes in the LS state, while they lose this symmetry element in the HS state [44]. The complex {Fe[H2B(pz)2]2(phen)} ([H2B(pz)2]2 = dihydrobis(pyrazolyl)borate (Appendix); phen = 1,10-phenanthroline) reported by Goeta and Real et al. illustrates another interesting example of CSB. It displays a cooperative SCO centered Tc = 164 K with a hysteresis 4 K wide. In the HS state the crystal is monoclinic, C2/c, and changes to triclinic, P 1 ¯ , in the LS state. Contrarily to that observed in the precedent example, the complex loses the two-fold axis when moving from the HS state to the LS state. Interestingly, in the photo-generated HS* state, the complex does not recover the two-fold axis, what constitutes a rare example photo-induced polymorphism [45].
Some FeII complexes based on bispyrazolpyridine-ligands have been shown to exhibit SCO and CSB. For example, the complex [Fe(dmpp)2](ClO4)2 (dmpp = 2,6-di{4-methylpyrazol-1-yl}pyridine, see Appendix) reported by Howard, Halcrow and Létard et al. displays an abrupt SCO centered at 233 K with a hysteresis 3 K wide. The crystal is tetragonal, space group P 4 ¯ 2 1 c , in the HS state (250 K) and orthorhombic, space group P 2 1 2 1 2 1 , in the LS state (30 K) [46]. The related complex [Fe(dcpp)2](BF4)2 (dcpp = 2,6-bis(4-chloro-1H-pyrazol-1-yl)pyridine, see Appendix), by Halcrow et al., displays a similar SCO behavior. This complex changes reversibly from P 4 ¯ 2 1 c (HS state) to the P21 (LS state) [47]. The polymorph A of the related complex [Fe(4-epp)2](BF4)2 (4-epp = 2,6-di{4-methylpyrazol-1-yl}pyridine, see Appendix), reported by Ruben et al., undergoes an abrupt SCO centered at Tc = 341 K featuring a hysteresis 8 K wide and a reversible crystallographic phase transition between the space groups P 2 1 2 1 2 1 (HS state) and Pbcn (LS state) [48]. The complex [Fe(3-bpp)2][Fe(CN)5(NO)] (3-bpp = 2,6-di(1H-pyrazol-3-yl)pyridine, see Appendix), reported by Goodwin et al., undergoes a cooperative SCO centered at 182 K accompanied by a change from tetragonal, space group P4/ncc, in the HS state to the orthorhombic, space group Pnca, in the LS state [49].
Within the family of imidazole-based FeII SCO complexes, Bréfuel and Matsumoto et al. have found that the perchlorate salt of the aforementioned complex [FeII(H2L*2−Me)2]2+ displays a strong cooperative spin transition centered at Tc = 171.5 K featuring a hysteresis loop ca. 5 K wide and simultaneous crystallographic phase transition between the space groups P21/n (HS) and P21 (LS) [50].
Linert et al. have reported the complex [Fe(i4tz)6](SbF6)2 (i4tz = 1-isobuthyl-1H-tetrazole), which undergoes a gradual SCO in the temperature interval 60–160 K with Tc = 116 K and a crystallographic phase transition. At 200 K, the crystal is triclinic, P 1 ¯ , and contains one crystallographically independent FeII site, located on an inversion center. The average Fe–Nav bond length, 2.189(5) Å, is consistent with a fully populated HS state in agreement with the magnetic data. Upon cooling at 100 K, where the HS molar fraction is about 37%, the space group type remains the same, but the volume of the unit cell triples. The new unit cell contains two different [Fe(i4tz)6]2+ centers with average bond lengths, Fe1–Nav = 2.187(7) Å and Fe2–Nav = 2.175(7) Å, typical of the 100% populated HS state [51].

3. Polynuclear Iron(II) Complexes

In the late 1980s Kahn introduced the idea of coupling two FeII centers through suitable bridging ligands as a way to modulate the SCO behavior by means of magnetic and/or elastic interactions [52]. Kahn and Zarembovitch et al. reported some years later the dinuclear complex {[Fe(bt)(NCS)2]2(µ-bpym)} (bt = 2,2′-bithiazoline and bpym = bipyrimidine, see Appendix), which became a new paradigm of two-step SCO (2d, [53,54]). It was suggested that this two-step transition reflects the transformation between the three possible “spin-pair” states of the dinuclear species, i.e., LS-LS ↔ LS-HS ↔ HS-HS. In a subsequent collaborative work Real, Gütlich, Bousseksou, Collet and coworkers confirmed, from Mössbauer and Raman spectroscopies and crystallographic investigations combined with LIESST effect, the selective transformation between the “spin-pair” states in the bpym-bt dinuclear species [55,56,57,58,59]. Unfortunately, no direct evidence of the IP = 1HS-1LS state could be obtained, since the crystal structure of this complex in the IP state is an average of the HS and LS states.
The interesting properties of the bpym-bt derivative motivated the search for new dinuclear SCO complexes [60]. In this context, Kaizaki et al. reported a new singular dinuclear complex {[FeII(NCBH3)(4-phpy)]2(µ-bpypz)2} (bpypz = 3,5-bis(2-pyridyl)-pyrazolate and 4phpy = 4-phenylpyridine). This compound does not follow the aforementioned transformation between “spin-pair” states. The magnetic properties show the occurrence of a gradual two-step SCO with a plateau centered at ca. 200 K (Figure 9). According to the magnetic data, the crystal structure was investigated at 296 K, 200 K and 100 K where, respectively, states HS-HS, LS-HS and LS-LS should be completely populated. At 296 K and 100 K, the crystal is triclinic, P 1 ¯ , and contains one crystallographically independent FeII site with Fe-N bond lengths typical of the HS and LS states, respectively. At 200 K the space group type remains the same, but the volume of the unit cell doubles to accommodate two FeII sites, one HS and the other LS. However, the HS and LS sites belong to different dinuclear molecules and consequently, the IP is made up of HS-HS and LS-LS dinuclear species defining a ···HS-HS···LS-LS··· pattern. The dimers interact each other via strong π-π intermolecular interactions through the 4-phpy ligands. These intermolecular interactions extend in two dimensions defining layers (Figure 9). The authors consider that compared to the bpym-bt system, the more rigid nature of the tetradentate µ-bpypz ligand and the strong π-π intermolecular interactions developed in the crystal, favour the generation of HS-HS and LS-LS spin-pairs instead of the LS-HS ones in the IP [61].
The first dinuclear complex with an ordered IP = LS-HS was reported by Brooker and Murray et al. for the complex [FeII(PMAT)]2(BF4)4·DMF (PMAT is a 1,2,4-triazole based acyclic tetradentate ligand). Magnetic and Mössbauer studies show that this dinuclear complex undergoes a half SCO behavior. At 298 K, the asymmetric unit is made up of one half of the dinuclear complex with the other half generated by a center of inversion. The average bond length FeII–Nav = 2.188(5) Å is characteristic of the HS state. However, at 123 K, the asymmetric unit contains a complete dimeric unit with two independent FeII centers, one HS (FeII–Nav = 2.202(4) Å) and the other LS (FeII–Nav = 1.998(4) Å) (Figure 10). The HS-HS → HS-LS transition involves doubling of the triclinic, P 1 ¯ , unit cell [62]. Further evidence confirming the prevalence of the LS-HS state in FeII dinuclear SCO complexes was found by Kepert and Murray et al. for the complex [Fe2(ddpp)2(NCS)4]·4CH2Cl2 (ddpp = 2,5-di(2′,2″-dipyridylamino)pyridine, see Appendix). This compound displays a gradual two-step SCO with Tc2 = 180 K and at Tc1 = 80 K separated by a plateau ca. 30 K wide in the temperature interval 140–110 K. The crystal structure investigated at 250 K, 123 K and 25 K confirmed the presence of the HS-HS, LS-HS and LS-LS states, respectively. The crystal is triclinic, its space group being P 1 ¯ , but in contrast the asymmetric unit contains two independent FeII sites at all temperatures. Consequently, no CSB occurs in this system [63].
The complex {[Fe(3-bpp)(NCS)2]2(4,4′-bipyridine)}·2CH3OH (3-bpp = 2,6-bis(pyrazol-3-yl)pyridine) reported by Létard, Rosa and Guionneau et al. affords another example of half SCO behavior and CSB in a dinuclear unit. In the temperature interval 250–120 K, χMT is equal to 7.2 cm3·K·mol−1 and consistent with two FeII centers in the HS state. Below 120 K, χMT gradually drops to 4.7 cm3·K·mol−1, a value ca. 15% higher than expected for a half SCO (Figure 11). Below 70 K, no further spin conversion occurs, most probably due to kinetic effects. The unit cell is monoclinic, its space group being P21/n, with an inversion center located on the 4,4′-bipy bridge (phase I). This structure, characterized by one independent HS FeII site, is stable in the temperature interval 298–120 K. At ca. 115 K, a crystallographic phase transition coincides with the onset of the SCO. Consequently, in the new Cc space group the unit cell volume quadruples, and contains four crystallographically independent HS FeII centers segregated in two distinct dinuclear units (phase II). At 30 K, where χMT is consistent with a 1:1 mixture of HS and LS states, the crystal is triclinic, P 1 ¯ , and the unit cell volume halves. Despite this, the unit cell contains two distinct asymmetric dinuclear units displaying a LS-HS state (phase III) [64,65].

4. Polymeric Iron(II) Complexes

4.1. One-Dimensional Complexes

As far as we know the complex [FeL1(azpy)] reported by Weber et al., represents the only example of one-dimensional polymeric SCO displaying an ordered IP state and CSB (L1 is the tetradentate Schiff-like base {diethyl(E,E)-2,2′-[1,2-phenyl-bis(iminomethylidyne)]-bis[3-oxobutanoate]-(2-)-N,N′,O3,O3′} and azpy is the bismonodentate bridging ligand 4,4′-azopyridine). The magnetic behavior of this complex shows a complete two-step transition with steps, centered at Tc2 = 326 K and Tc1 = 152 K, separated by a large plateau (IP). The crystal structure was solved in the IP, at 200 K, where the crystal is orthorhombic, space group P212121, and displays a perfect ordering HS-LS along the chains (Figure 12). In the LS state, the crystal changes to monoclinic P21 (130 K) but, unfortunately, complete analysis of the structure could not be performed due to twinning during the phase transition [66].
Haasnoot and Gamez et al. have reported the 1D coordination polymer [Fe(btzx)3][CF3SO3]2·CH3CN, (btzx = m-xylylenebis(tetrazole), see Appendix), a singular example in which SCO and crystallographic phase transition do not occur simultaneously. Apparently, the crystallographic phase transition predisposes the system to exhibit a half SCO. This compound crystallizes in the hexagonal space group P63/m. However, it changes to the trigonal space group P 3 ¯ at 170 K. In the hexagonal phase there is one independent FeII site, which is HS, while the trigonal phase is characterized by the presence of four crystallographically independent FeII HS sites distributed in two distinct chains. The chain 1 runs along a C3 axis and contains the sites Fe1 and Fe2 with Fe–Nav bond lengths 2.193(4) Å and 2.192(4) Å, respectively. Chain 2 is on a S6 symmetry with Fe3 (Fe–Nav = 2.178(4) Å) and Fe4 (Fe–Nav = 2.185(4) Å) sites. Below 150 K, the Fe2 and Fe4 centers undergo a gradual SCO (Tc = 110 K) generating an ordered IP = 1HS-1LS [67].

4.2. Two-Dimensional Coordination Polymers

The compound [Fe2(2,2′-bipyridine)(imidazolate)4] reported by Reiff, Storr, and Thompson et al. is a singular coordination polymer constituted of extended 2D double-layer sheets of alternating tetrahedral and octahedral FeII centers. The tetrahedral FeII centers are surrounded by four imidazolate ligands, which bridge to four other FeII. The hexacoordinate FeII centers complete their coordination sphere with a 2,2′-bipyridine ligand. This compound undergoes two structural phase transitions centered at Tc2 = 151 and Tc1 = 135 K defining three phases (α, β, and γ). The high-temperature phase, α, is consistent with 100% FeII centers in the HS state (χMT = 3.4 cm3·K·mol−1), the transition to the intermediate phase, β, features a very limited change of χMT (ca. 3%), while the subsequent transformation to the low temperature phase, γ, involves a variation of χMT ca. 16% characterized by a thermal hysteresis loop 4 K wide. The three phases are triclinic, P 1 ¯ , but the volume of the unit cell becomes 6 times larger when the system moves from the α phase to the β phase and, then, reduces to the half when the β phase transforms into the γ phase. In the γ phase there are six crystallographically independent FeII sites (three octahedrons and three tetrahedrons). In perfect agreement with the magnetic and Mössbauer data, the crystal structure of the γ phase shows that only one octahedrally coordinate FeII site is LS while the other five sites remain in the HS state [68].
Kepert et al. have reported the doubly interpenetrated 2D porous coordination polymer [Fe(bpe)2(NCS)2]·3(acetone), (bpe is 1,2-bis(4-pyridyl)ethane, see Appendix), which undergoes a complete two-step SCO. Above 155 K, a constant χMT value, ca. 3.2 cm3·K·mol−1, characterizes the HS state while below 60 K the compound is essentially LS (χMT ≈ 0.35 cm3·K·mol−1). The two half SCO, separated by a plateau 20 K wide (χMT centered at 1.6 cm3·K·mol−1), occurs at Tc2 = 133 K and Tc1 = 80 K. In the HS state, there are two independent FeII sites with distinct angular distortions and Fe–N values. Upon cooling, the less distorted HS site changes to the LS state, thereby generating a 1HS-1LS checkerboard-like arrangement in the plateau (IP). This structural reorganization occurs without crystallographic phase transition. However, upon further cooling, the low-temperature step 1HS-1LS → LS occurs simultaneously with a crystallographic phase transition from the orthorhombic space group P21212 to the tetragonal space group P 4 ¯ 2 1 c [69]. In a related system, Real et al. have recently reinvestigated the related porous coordination polymer [Fe(tvp)2(NCS)2]·Guest (tvp = trans(4,4′-vinylenedi-pyridine, see Appendix). This compound is made up of perpendicular interpenetration of two identical stacks of [Fe(tvp)2(NCS)2]n layers, which define large square-sectional channels where the guest molecules are located. The magnetic and calorimetric data indicate a guest-dependent SCO behavior accompanied by crystallographic phase transition in the temperature interval 170–215 K. In particular, for Guest = 2·benzonitrile and 4CH3CN·4H2O, the crystallographic phase transition occurs between the tetragonal space group P4/ncc in the HS state and the orthorhombic space group Pccn in the LS state. In addition to the spin-state change, this phase transition features a change of the angle of interpenetration of the [Fe(tvp)2(NCS)2]n layers from strictly orthogonal in the HS state to oblique in the LS state [70].
Adams and Real et al. have reported a series of compounds formulated [Fe(4,4′-bipy)2(NCX)2Guest (4,4′-bipy = 4,4′-bipyridine, X = S, Se), which are closely related to the two precedent examples. However, the slightly shorter length of the bridging ligand 4,4′-bipy with respect to the ligands bpe and tvp prevents interpenetration of the coordination polymer [Fe(4,4′-bipy)2(NCX)2] and, consequently, the crystal is constituted of a parallel stack of layers. Nevertheless, the space between the layers can be filled with different guest solvent molecules. For Guest = 4CHCl3, the S derivative experiences a cooperative SCO with two steps centered at Tc2 = 146.9 K and Tc1 = 101.7 K) and hysteresis loops 6.6 K and 21 K wide, respectively (Figure 13). The corresponding Se derivative undergoes a cooperative half SCO centered at Tc = 165 K characterized by a hysteresis 6.6 K wide. For both derivatives, the high-temperature HS → 1HS-1LS step is accompanied by a crystallographic phase transition from the space group C2/c to the space group P2/c affording an ordered checkerboard like arrangement. The low-temperature step for the S derivative presumably involves a re-entrant crystallographic phase transition from IP = 1HS-1LS (P2/c) phase to the LS (C2/c) phase [71].
Chen and Zhang et al. have reported the homoleptic two-dimensional coordination polymer [Fe(bdpt)2]·nSolvent where nSolvent = unsolvate, 1EtOH and 1MeOH, and bdpt is the conjugate base of the ionogenic bridging ligand 3-(5-Bromo-2-pyridyl)-5-(4-pyridyl)-1,2,4-triazol. The three derivatives undergo a cooperative two-step SCO involving a 50% mixture of HS and LS centers in the plateau. For the unsolvated compound, the two transitions take place without hysteresis at Tc2 = 192 K and Tc1 = 143.5 K. The inclusion of MeOH (EtOH) induces an average downshift of Tc2 and Tc1 of 18 K and 10.5 K (36 K and 26.5 K), respectively, (Figure 14). This decrease of Tc is accompanied by a slight increase of cooperativity, which is specially pronounced for the EtOH derivative. In the HS state, the unit cell is monoclinic, space group P21/n, and contains one independent FeII site, while in the plateau the unit cell is triclinic, space group P 1 ¯ , and contains two independent FeII sites with HS and LS spin states, respectively. This IP = 1HS-1LS defines the same checkerboard-like arrangement described for [Fe(bpe)2(NCS)2]·3(acetone) and [Fe(4,4′-bipy)2(NCX)2]·4CHCl3. A re-entrant transition to the monoclinic P21/n space group is observed when the crystal goes to the LS state [72].
Bronisz et al. have reported the cationic 2D complex [Fe(bbtr)3](ClO4)2 (bbtr = 1,4-bis(1,2,3-triazol-1-yl)butane, see Appendix) which features an abrupt one step SCO with a hysteresis loop 8 K wide centered at Tc = 105 K. Furthermore, this compound displays upon cooling a crystallographic phase transition at 125 K that induces a change from trigonal (space group P 3 ¯ ), to triclinic (space group P 1 ¯ ). Interestingly, the isostructural ZnII derivative undergoes the same structural phase transition at 151 K with similar structural modifications as the FeII compound. This circumstance was used to prepare solid solutions, [FexZn1−x(bbtr)3](ClO4)2, and separate both events, namely crystallographic phase transition and SCO. Indeed, an increase of ZnII content induces a proportional increase of the phase transition’s temperature and a decrease of the SCO temperature without modifying its cooperative nature. This case is an example in which a crystallographic phase transition does not trigger directly the SCO but affords the necessary structural conditions [73].
The three remaining examples belong to the family of heterobimetallic complexes derived from cyanometallate bridging building blocks. In these compounds the FeII is axially coordinated by two monodentate pyridine-like ligands, while the equatorial positions are occupied by the cyanide moieties of four [M(CN)2] (M = Ag, Au) or [Pd(CN)4]2− groups that act as bridges defining infinite layers. Two different SCO behaviors have been described for the complex {Fe(3Fpy)2[Au(CN)2]} (3Fpy = 3-fluoropyridine). On one hand, the “form 1” reported by Real et al., displays a half SCO characterized by an asymmetric hysteresis loop 5 K wide centered at Tc = 142.5 K. At room temperature, the monoclinic (space group P21/c) unit cell contains one independent FeII site, which is in the HS state. At 120 K, the triclinic (space group P 1 ¯ ) unit cell consists of two independent LS and HS FeII sites displaying a checkerboard like arrangement (Figure 15). On the other hand, the “form 2”, reported by Kitazawa et al., shows a complete two-step SCO with critical temperatures centered at Tc2 = 147.9 K and Tc1 = 108.4 K (hysteresis loop ∆Tc1 = 20.4 K) (Figure 15). The crystal structures of the HS and the IP = 1HS-1LS reported by these authors for “form 2” are consistent with the structure reported for “form 1”. The crystal structure of ”form 2” solved at 80 K shows that in the LS state the crystal recovers the monoclinic (space group P21/c) unit cell. Whatever the temperature, the packing is dominated by the occurrence strong aurophilic interactions between consecutive layers. Although the magnetic behavior of these samples suggests the existence of two polymorphs, it is difficult to justify them from a crystallographic viewpoint. Interestingly, application of low pressures (0.16 GPa) induces complete two-step spin conversion in the “form 1” [74,75,76].
Real et al have reported the Hofmann-like 2D coordination polymer {Fe(3-Clpy)2[Pd(CN)4]} (3-Clpy = 3-Chloropyridine). This compound undergoes a strong cooperative two-step SCO, each one involving 50% of FeII centers, with critical temperatures centered at Tc1 = 144.9 K and Tc2 = 162.1 K characterized by a hysteresis loop 7 K and 5 K wide, respectively. Above 160 K, the HS state is characterized by an orthorhombic (space group Pnc2) unit cell, which contains one independent FeII site, while in the IP (T = 150 K) the unit cell changes to orthorhombic (space group Pmna) where the 1HS-1LS state adopts the same orderly distribution described for most of the aforementioned two-dimensional coordination polymers (Figure 16). In the second step the crystal recovers the original Pnc2 space group characterized by one FeII LS site [77]. The same research group has described the complex {Fe(DEAS)2[Ag(CN)2]2} (DEAS = 4′-diethylaminostilbazole). This compound undergoes an incomplete SCO where 2/3 of the FeII centers remain in the HS state. The SCO, characterized by a hysteresis loop 6 K wide centered at Tc = 141 K, is accompanied by a reversible crystallographic phase transition in which the volume of the unit-cell doubles in the low temperature phase. At 100 K, there are six FeII atoms per unit cell, two Fe1 and four Fe2. The average bond lengths, Fe1–Nav = 1.969(4) Å and Fe2–Nav = 2.176(4) Å, agree well with the Fe–N bond distances typically found for the FeII ion in the LS and HS states, respectively. This singular fact perfectly correlates with the reported magnetic data at low temperature. In this IP = 2HS-1LS state the layers can be defined as generated by a sequence of ···LS-HS-HS··· columns (Figure 17) [78].

4.3. Three-Dimensional Coordination Polymers

To the best of our knowledge, two examples of 3D coordination polymers displaying SCO and CSB have been reported so far. The compound {Fe(5Brpmd)2[Ag(CN)2]2} (5Brpmd = 5-bromo-pyrimidine), reported by Real et al., displays a strong cooperative half SCO centered at Tc = 158 K characterized by a hysteresis loop 18 K wide. The FeII centers are bridged by the bismonodentate ligand 5Brpmd generating stacks of infinite ···Fe-(5Brpmd)-Fe··· linear chains running parallel to the a-axis. The chains are interconnected through [Ag(CN)2] thus generating an intricate three-dimensional framework. The unit cell is monoclinic, C2/c, in the HS state and displays one independent FeII site with Fe–Nav = 2.166(8) Å (T = 293 K). However, at 120 K the monoclinic, P21/c, unit cell contains, in agreement with the magnetic data, two independent FeII sites: one is HS (Fe–Nav = 2.174(5) Å) and the other is LS (Fe–Nav = 1.955(5) Å). The HS and LS sites alternate along the infinite ···Fe-(5Brpmd)-Fe··· linear chains, which also define layers parallel to the ac plane (Figure 18) [79].
The complex [Fe(dpsme)Pt(CN)4]·2/3dpsme·xEtOH·yH2O (dpsme = 4,4′-di(pyridylthio)methane), reported by Kepert et al., is a unique example of cooperative three-step SCO transition displaying CSB. In the interval 300–140 K, χMT = 3.30 cm3·K·mol−1 is consistent with the HS state of FeII (state 1). In a first step, centered at 138 K, the system reaches a plateau, ca. 10 K wide, with a χMT value of 1.54 cm3·K·mol−1, which is consistent with a IP1 = 1HS-1LS (state 2). Then, a second drop of χMT in the temperature interval 130–125 K defines a new plateau with a χMT value equal to 1.01 cm3·K·mol−1 (state 3). The χMT value of this second plateau is consistent with a IP2 = 1HS-2LS. Below ca. 112 K, the practically zero value of χMT indicates a complete transformation to the LS state (state 4). In the heating mode the three-step behavior occurs ca. 20 K higher displaying an irregular hysteresis loop. In state 1, the system is characterized by a monoclinic, P2/a, unit cell defined by one independent FeII site, which is HS. In state 2, the unit cell changes to triclinic, P 1 ¯ , where two equally populated independent sites defining an ordered IP = 1LS:1HS characterized by alternating rows of LS and HS states as described for the related Fe(3-Clpy)2[Pd(CN)4] (see Figure 16). The change from state 2 to state 3 involves doubling of the P 1 ¯ unit cell along the a-axis and concomitant generation of three crystallographically independent FeII sites, i.e., two LS (Fe1–Nav = 1.944 Å and Fe2–Nav = 1.991 Å), and one HS (Fe3–Nav = 2.113 Å) with occupation factors 0.5, 1 and 0.5, respectively. From a crystallographic point of view state 3 corresponds well with a IP2 = 1HS:3LS, which is not consistent with the magnetic data. The authors suggest that a solid solution region with varying modulation along the a-axis may exist with conversion from 1HS-2LS to 1HS:3LS [80].

5. Conclusions

Here we have reviewed a variety of FeII complexes that undergo reversible SCO and CSB, giving special emphasis to those systems displaying stepwise and ordering behavior. Complete two-step HS ↔ LS conversion characterized by a 1HS-1LS symmetric distribution of both spin states in the IP can be considered the most common situation. A few examples of complete two-step SCO with asymmetric 2HS-1LS and 1HS-2LS distributions in the IP have also been described. In addition, incomplete SCO characterized by 1HS-1LS or 2HS-1LS stable low-temperature phases are also known. Thus far, only one example of three-step SCO involving successive generation of 1HS-1LS and 1HS-2LS IPs between the pure HS and LS phases has been described.
The IP states, easily identifiable as plateaus from the thermal dependence of the χMT product, represent macroscopic manifestations of precise microscopic distributions of HS and LS centers in the crystal, which can only be evidenced by X-ray diffraction analysis. The examples of order here highlighted represent an excellent platform to investigate the microscopic mechanisms, most likely based on cooperative and anticooperative elastic interactions, which could explain and predict the occurrence of different HS-LS patterns in the IP state. Understanding of these mechanisms is relevant for the control of the responsiveness of SCO materials and their possible integration in functional devices. We hope that this review will stimulate creative collaboration between the different involved areas of research, including coordination chemistry, materials science and solid-state physics.

Acknowledgments

This work was supported by the Spanish Ministerio de Economía y Competitividad (MINECO) and FEDER funds (CTQ2013-46275-P) and Generalitat Valenciana (PROMETEO/2012/049).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
SCOSpin crossover
CSBCrystallographic symmetry breaking
HSHigh-spin
LSLow-spin
IPIntermediate phase

Appendix

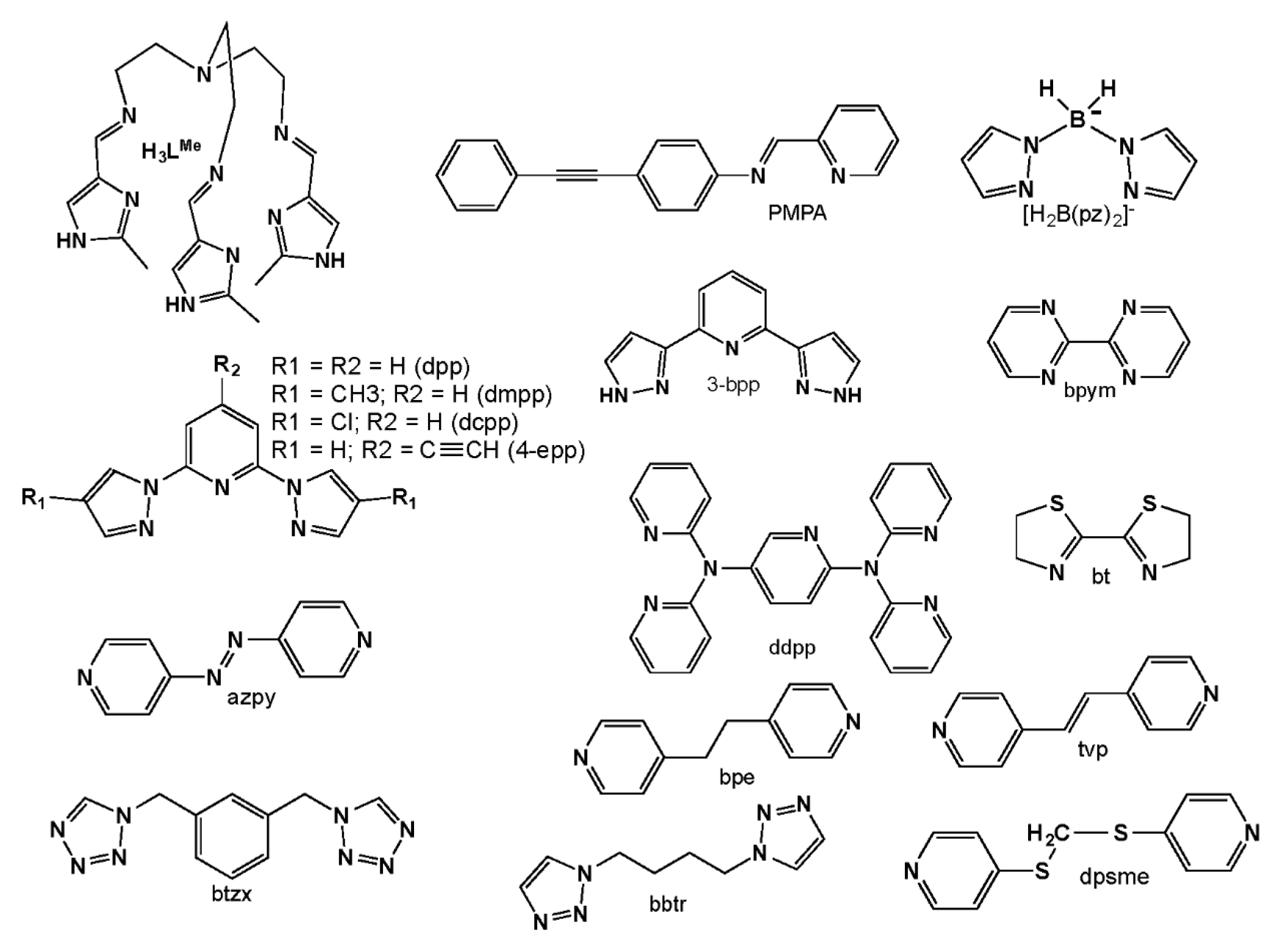

Figure A1. Ligands not described in the main text.
Figure A1. Ligands not described in the main text.
Magnetochemistry 02 00016 g019

References

  1. Olguin, J.; Brooker, S. Spin crossover active iron(II) complexes of selected pyrazole-pyridine/pyrazine ligands. Coord. Chem. Rev. 2011, 255, 203–240. [Google Scholar] [CrossRef]
  2. Bousseksou, A.; Molnár, G.; Salmon, L.; Nicolazzi, W. Molecular spin crossover phenomenon: Recent achievements and prospects. Chem. Soc. Rev. 2011, 40, 3313–3335. [Google Scholar] [CrossRef] [PubMed]
  3. Halcrow, M.A. Spin-crossover Materials: Properties and Applications; John Wiley & Sons: Chichester, UK, 2013. [Google Scholar]
  4. Muñoz, M.C.; Real, J.A. Thermo-, piezo-, photo- and chemo-switchable spin crossover iron(II)-metallocyanate based coordination polymers. Coord. Chem. Rev. 2011, 255, 2068–2093. [Google Scholar] [CrossRef]
  5. Sasaki, N.; Kambara, T. Theory of the two-step spin conversion induced by the cooperative molecular distortions in spin-crossover compounds. Phys. Rev. B 1989, 40, 2442–2449. [Google Scholar] [CrossRef]
  6. Bousseksou, A.; Nasser, J.; Linares, J.; Boukheddaden, K.; Varret, F. Ising-like model for the two-step spin-crossover. J. Phys. I 1992, 2, 1381–1403. [Google Scholar] [CrossRef]
  7. Romstedt, H.; Spiering, H.; Gütlich, P. Modelling of two step high spin reversible arrow low spin transitions using the cluster variation method. J. Phys. Chem. Solids 1998, 59, 1353–1362. [Google Scholar] [CrossRef]
  8. Real, J.A.; Bolvin, H.; Bousseksou, A.; Dworkin, A.; Kahn, O.; Varret, F.; Zarembowitch, J. Two-step spin crossover in the new dinuclear compound [Fe(bt)(NCS)2]2bpym, with bt = 2,2′-Bi-2-thiazoline and bpym = 2,2′-Bipyrimidine: experimental investigation and theoretical approach. J. Am. Chem. Soc. 1992, 114, 4650–4658. [Google Scholar] [CrossRef]
  9. Cirera, J.; Ruiz, E. Theoretical modeling of two-step spin-crossover transitions in FeII dinuclear systems. J. Mater. Chem. C 2015, 3, 7954–7961. [Google Scholar] [CrossRef]
  10. Niel, V.; Thompson, A.L.; Goeta, A.E.; Enachescu, C.; Hauser, A.; Galet, A.; Muñoz, M.C.; Real, J.A. Thermal- and photoinduced spin-state switching in an unprecedented three-dimensional bimetallic coordination polymer. Chem. Eur. J. 2005, 11, 2047–2060. [Google Scholar] [CrossRef] [PubMed]
  11. Nihei, M.; Ui, M.; Yokota, M.; Han, L.; Maeda, A.; Kishida, H.; Okamoto, H.; Oshio, H. Two-step spin conversion in a cyanide-bridged ferrous square. Angew. Chem. Int. Ed. 2005, 44, 6484–6487. [Google Scholar] [CrossRef] [PubMed]
  12. Shongwe, M.S.; Al-Rashdi, B.A.; Adams, H.; Morris, M.J.; Mikuriya, M.; Hearne, G.R. Thermally induced two-step, two-site incomplete 6A12T2 crossover in a mononuclear iron(III) phenolate-pyridyl Schiff-base complex: A rare crystallographic observation of the coexistence of pure S = 5/2 and 1/2 metal centers in the asymmetric unit. Inorg. Chem. 2007, 46, 9558–9568. [Google Scholar] [CrossRef] [PubMed]
  13. Klingele, J.; Kaase, D.; Klingele, M.H.; Lach, J.; Demeshko, S. Two-step spin crossover in the mononuclear iron(II) complex [FeII(L)2(NCS)2] (L = 2,5-di-(2-pyridyl)-1,3,4-thiadiazole). Dalton Trans. 2010, 39, 1689–1691. [Google Scholar] [CrossRef] [PubMed]
  14. Wei, R.-J.; Huo, Q.; Tao, J.; Huang, R.-B.; Zheng, L.-S. Spin-crossover FeII4 squares: Two-step complete spin transition and reversible single-crystal-to-single-crystal transformation. Angew. Chem. Int. Ed. 2011, 50, 8940–8943. [Google Scholar] [CrossRef] [PubMed]
  15. Bao, X.; Guo, P.-H.; Liu, W.; Tucek, J.; Zhang, W.-X.; Leng, J.-D.; Chen, X.-M.; Gural’skiy, I.; Salmon, L.; Bousseksou, A.; et al. Remarkably high-temperature spin transition exhibited by new 2D metal-organic frameworks. Chem. Sci. 2012, 3, 1629–1633. [Google Scholar] [CrossRef]
  16. Klein, Y.M.; Sciortino, N.F.; Ragon, F.; Housecroft, C.E.; Kepert, C.J.; Neville, S.M. Spin crossover intermediate plateau stabilization in a flexible 2-D Hofmann-type coordination polymer. Chem. Commun. 2014, 50, 3838–3840. [Google Scholar] [CrossRef] [PubMed]
  17. Piñeiro-López, L.; Seredyuk, M.; Muñoz, M.C.; Real, J.A. Two- and one-step cooperative spin transitions in Hofmann-like clathrates with enhanced loading capacity. Chem. Commun. 2014, 50, 1833–1835. [Google Scholar] [CrossRef] [PubMed]
  18. Bhar, K.; Khan, S.; Sánchez-Costa, J.; Ribas, J.; Roubeau, O.; Mitra, P.; Ghosh, B.K. Crystallographic Evidence for Reversible Symmetry Breaking in a Spin-Crossover d7 Cobalt(II) Coordination Polymer. Angew. Chem. Int. Ed. 2012, 51, 2142–2145. [Google Scholar] [CrossRef] [PubMed]
  19. Fitzpatrick, A.J.; Trzop, E.; Müller-Bunz, H.; Dîrtu, M.M.; Garcia, Y.; Collet, E.; Morgan, G.G. Electronic vs. structural ordering in a manganese(III) spin crossover complex. Chem. Commun. 2015, 51, 17540–17543. [Google Scholar] [CrossRef] [PubMed]
  20. Griffin, M.; Shakespeare, S.; Shepherd, H.J.; Harding, C.J.; Létard, J.F.; Desplanches, C.; Goeta, A.E.; Howard, J.A.K.; Powell, A.K.; Mereacre, V.; et al. A Symmetry-Breaking Spin-State Transition in Iron(III). Angew. Chem. Int. Ed. 2011, 50, 896–900. [Google Scholar] [CrossRef] [PubMed]
  21. Li, Z.-Y.; Dai, J.-W.; Shiota, Y.; Yoshizawa, K.; Kanegawa, S.; Sato, O. Multi-Step Spin Crossover Accompanied by Symmetry Breaking in an FeIII Complex: Crystallographic Evidence and DFT Studies. Chem. Eur. J. 2013, 19, 12948–12952. [Google Scholar] [CrossRef] [PubMed]
  22. Vieira, B.J.C.; Coutinho, J.T.; Santos, I.C.; Pereira, L.C.J.; Waerenborgh, J.C.; da Gama, V. [Fe(nsal2trien)]SCN, a new two-step iron(III) spin srossover compound, with symmetry breaking spin-state transition and an intermediate ordered state. Inorg. Chem. 2013, 52, 3845–3850. [Google Scholar] [CrossRef] [PubMed]
  23. Murnaghan, K.D.; Carbonera, C.; Toupet, L.; Griffin, M.; Dîrtu, M.M.; Desplanches, C.; Garcia, Y.; Collet, E.; Létard, J.F.; Morgan, G.G. Spin-state ordering on one sub-lattice of a mononuclear iron(III) spin crossover complex exhibiting LIESST and TIESST. Chem. Eur. J. 2014, 20, 5613–5618. [Google Scholar] [CrossRef] [PubMed]
  24. Harding, D.J.; Phonsri, W.; Harding, P.; Murray, K.S.; Moubaraki, B.; Jameson, G.N.L. Abrupt two-step and symmetry breaking spin crossover in an iron(III) complex: An exceptionally wide [LS-HS] plateau. Dalton Trans. 2015, 44, 15079–15082. [Google Scholar] [CrossRef] [PubMed]
  25. Shatruk, M.; Phana, H.; Chrisostomoa, B.A.; Suleimenov, A. Symmetry-breaking structural phase transitions in spin crossover complexes. Coord. Chem. Rev. 2015, 289–290, 62–73. [Google Scholar] [CrossRef]
  26. Gütlich, P.; Hauser, A.; Spiering, H. Thermal and optical switching of iron(ii) complexes. Angew. Chem. Int. Ed. 1994, 33, 2024–2054. [Google Scholar] [CrossRef]
  27. Katz, B.A.; Strouse, C.E. Molecular-transformations in the solid-state. Crystallographic resolution of the spin isomers of tris(2-picolylamine)iron(II) dichloride and the structural relationship between the methanol and ethanol solvates. J. Am. Chem. Soc. 1979, 101, 6214–6221. [Google Scholar] [CrossRef]
  28. Mikami, M.; Konno, M.; Saito, Y. Structures of high-spin (298, 150 K) and low-spin (90 K) states and the spin phase-transition mechanism of a spin crossover complex; tris(α-picolylamine)iron(II) chloride-ethanol. Acta Cryst. 1980, B36, 275–287. [Google Scholar] [CrossRef]
  29. Köppen, H.; Müller, E.W.; Köhler, C.P.; Spiering, H.; Meissner, E.; Gütlich, P. Unusual spin-transition anomaly in the crossover system [Fe(2-pic)3]Cl2·EtOH. Chem. Phys. Lett. 1982, 91, 348–352. [Google Scholar] [CrossRef]
  30. Meissner, E.; Köppen, H.; Spiering, H.; Gütlich, P. The effect of low-pressure on a high-spin low-spin transition. Chem. Phys. Lett. 1983, 95, 163–166. [Google Scholar] [CrossRef]
  31. Kaji, K.; Sorai, M. Heat-capacity and dual spin-transitions in the crossover system [Fe(2-pic)3]Cl2·EtOH. Thermochim. Acta 1985, 88, 185–190. [Google Scholar] [CrossRef]
  32. Spiering, H.; Kohlhaas, T.; Romstedt, H.; Hauser, A.; Bruns-Yilmaz, C.; Gütlich, P. Correlations of the distribution of spin states in spin crossover compounds. Coord. Chem. Rev. 1999, 190–192, 629–647. [Google Scholar] [CrossRef]
  33. Chernyshov, D.; Hostettler, M.; Törnroos, K.W.; Bürgi, H.B. Ordering phenomena and phase transitions in a spin-crossover compound-uncovering the nature of the intermediate phase of [Fe(2-pic)3]Cl2·EtOH. Angew. Chem. Int. Ed. 2003, 42, 3825–3830. [Google Scholar] [CrossRef] [PubMed]
  34. Money, V.A.; Carbonera, C.; Elhaïk, J.; Halcrow, M.A.; Howard, J.A.K.; Létard, J.F. Interplay between kinetically slow thermal spin-crossover and metastable high-spin state relaxation in an iron(II) complex with similar T1/2 and T(LIESST). Chem. Eur. J. 2007, 13, 5503–5514. [Google Scholar] [CrossRef] [PubMed]
  35. Luan, J.; Zhou, J.; Liu, Z.; Zhu, B.; Wang, H.; Bao, X.; Liu, W.; Tong, M.L.; Peng, G.; Peng, H.; et al. Polymorphism-dependent spin-crossover: Hysteretic two-step spin transition with an ordered [HS-HS-LS] intermediate phase. Inorg. Chem. 2015, 54, 5145–5147. [Google Scholar] [CrossRef] [PubMed]
  36. Nihei, M.; Tahira, H.; Takahashi, N.; Otake, Y.; Yamamura, Y.; Saito, K.; Oshio, H. Multiple bistability and tristability with dual spin-state conversions in [Fe(dpp)2][Ni(mnt)2]2·MeNO2. J. Am. Chem. Soc. 2010, 132, 3553–3560. [Google Scholar] [CrossRef] [PubMed]
  37. Boinnard, D.; Bousseksou, A.; Dworkin, A.; Savariault, J.M.; Varret, F.; Tuchagues, J.P. Two-step spin conversion of [FeII(5-NO2-sal-N(1,4,7,10))]: 292, 153, and 103 K. X-ray crystal and molecular-structure and infrared, magnetic, mossbauer, calorimetric, and theoretical-studies. Inorg. Chem. 1994, 33, 271–281. [Google Scholar] [CrossRef]
  38. Reger, D.L.; Little, C.A.; Young, V.G., Jr.; Pink, M. Variable-temperature X-ray structural investigation of {Fe[HC(3,5-Me2pz)3]2}(BF4)2 (pz = pyrazolyl ring): Observation of a thermally induced spin state change from all high spin to an equal high spin-low spin mixture, concomitant with the onset of nonmerohedral twinning. Inorg. Chem. 2001, 40, 2870–2874. [Google Scholar] [PubMed]
  39. Yamada, M.; Hagiwara, H.; Torigoe, H.; Matsumoto, N.; Kojima, M.; Dahan, F.; Tuchagues, J.P.; Re, N.; Iijima, S. A variety of spin-crossover behaviors depending on the counter anion: Two-dimensional complexes constructed by NH···Cl hydrogen bonds, [(FeIIH3LMe)]Cl·X (X = PF6, AsF6, SbF6, CF3SO3; H3LMe = tris[2-{[(2-methylimidazol-4-yl)methylidene]amino}ethyl]amine). Chem. Eur. J. 2006, 12, 4536–4549. [Google Scholar] [PubMed]
  40. Sato, T.; Nishi, K.; Iijima, S.; Kojima, M.; Matsumoto, N. One-step and two-step spin-crossover iron(II) complexes of ((2-methylimidazol-4-yl)methylidene)histamine. Inorg. Chem. 2009, 48, 7211–7229. [Google Scholar] [CrossRef] [PubMed]
  41. Bréfuel, N.; Collet, E.; Watanabe, H.; Kojima, M.; Matsumoto, N.; Toupet, L.; Tanaka, K.; Tuchagues, J.P. Nanoscale self-hosting of molecular spin-states in the intermediate phase of a spin-crossover material. Chem. Eur. J. 2010, 16, 14060–14068. [Google Scholar] [CrossRef] [PubMed]
  42. Bréfuel, N.; Watanabe, H.; Toupet, L.; Come, J.; Matsumoto, N.; Collet, E.; Tanaka, K.; Tuchagues, J.P. Concerted spin crossover and symmetry breaking yield three thermally and one light-induced crystallographic phases of a molecular material. Angew. Chem. Int. Ed. 2009, 48, 9304–9307. [Google Scholar] [CrossRef] [PubMed]
  43. Bonnet, S.; Siegler, M.A.; Sánchez-Costa, J.; Molnár, G.; Bousseksou, A.; Spek, A.L.; Gamez, P.; Reedijk, J. A two-step spin crossover mononuclear iron(II) complex with a [HS-LS-LS] intermediate phase. Chem. Commun. 2008, 5619–5621. [Google Scholar] [CrossRef] [PubMed]
  44. Létard, J.F.; Guionneau, P.; Codjovi, E.; Lavastre, O.; Bravic, G.; Chasseau, D.; Kahn, O. Wide thermal hysteresis for the mononuclear spin-crossover compound cis-bis(thiocyanato)bis[N-(2′-pyridylmethylene)-4-(phenylethynyl)anilino]iron(II). J. Am. Chem. Soc. 1997, 119, 10861–10862. [Google Scholar] [CrossRef]
  45. Thompson, A.L.; Goeta, A.E.; Real, J.A.; Galet, A.; Muñoz, M.C. Thermal and light induced polymorphism in iron(II) spin crossover compounds. Chem. Commun. 2004, 1390–1391. [Google Scholar] [CrossRef] [PubMed]
  46. Carbonera, C.; Saánchez-Costa, J.; A. Money, V.; Elhaïk, J.; Howard, J.A. K.; Halcrow, M.A.; Létard, J.F. Photomagnetic properties of iron(II) spin crossover complexes of 2,6-dipyrazolylpyridine and 2,6-dipyrazolylpyrazine ligands. Dalton Trans. 2006, 3058–3066. [Google Scholar] [CrossRef] [PubMed]
  47. Pritchard, R.; Kilner, C.A.; Halcrow, M.A. Iron(II) complexes with a terpyridine embrace packing motif show remarkably consistent cooperative spin-transitions. Chem. Commun. 2007, 577–579. [Google Scholar] [CrossRef] [PubMed]
  48. Salitros, I.; Fuhr, O.; Eichhöfer, A.; Kruk, R.; Pavlik, J.; Dlhán, L.; Boca, R.; Ruben, M. The interplay of iron(II) spin transition and polymorphism. Dalton Trans. 2012, 41, 5163–5171. [Google Scholar] [CrossRef] [PubMed]
  49. Sugiyarto, K.H.; McHale, W.A.; Craig, D.C.; Rae, A.D.; Scudder, M.L.; Goodwin, H.A. Spin transition centres linked by the nitroprusside ion. The cooperative transition in bis(2,6-bis(pyrazol-3-yl)-pyridine)iron(II) nitroprusside. Dalton Trans. 2003, 2443–2448. [Google Scholar] [CrossRef]
  50. Bréfuel, N.; Imatomi, S.; Torigoe, H.; Hagiwara, H.; Shova, S.; Meunier, J.F.; Bonhommeau, S.; Tuchagues, J.P.; Matsumoto, N. Structural-electronic correlation in the first-order phase transition of [FeH2L2−Me](ClO4)2 (H2L2−Me = bis[((2-methylimidazol-4-yl)methylidene)-3-aminopropyl]ethylenediamine). Inorg. Chem. 2006, 45, 8126–8135. [Google Scholar] [CrossRef] [PubMed]
  51. Tafili-Kryeziu, M.; Weil, M.; Muranaka, T.; Bousseksou, A.; Hasegawa, M.; Junc, A.; Linert, W. Effect of the counter-anion on the spin-transition properties of a family of Fe(II) tetrazole complexes, [Fe(i4tz)6]X2 (X = ClO4, PF6, SbF6, BF4). Dalton Trans. 2013, 42, 15796–15804. [Google Scholar] [CrossRef] [PubMed]
  52. Real, J.A.; Zarembowitch, J.; Kahn, O.; Solans, X. Magnetic interaction and spin transition in iron(II) dinuclear compounds. Crystal-structure of (µ-2,2′-bipyrimidine)bis[(2,2′-bipyrimidine) bis(thiocyanato)iron(II)]. Inorg. Chem. 1987, 26, 2939–2943. [Google Scholar] [CrossRef]
  53. Real, J.A.; Castro, I.; Bousseksou, A.; Verdaguer, M.; Burriel, R.; Castro, M.; Linares, J.; Varret, F. Spin crossover in the 2,2′-bipyrimidine-(bpym-) bridged iron(II) complexes [Fe(L)(NCX)2]2(bpym) (L = 2,2′-bithiazoline (bt) and bpym; X = S, Se). X-ray absorption spectroscopy, magnetic susceptibility, calorimetric, and Mossbauer spectroscopy studies. Inorg. Chem. 1997, 36, 455–464. [Google Scholar] [CrossRef]
  54. Létard, J.F.; Real, J.A.; Moliner, N.; Gaspar, A.B.; Capes, L.; Cador, O.; Kahn, O. Light induced excited pair spin state in an iron(II) binuclear spin-crossover compound. J. Am. Chem. Soc. 1999, 121, 10630–10631. [Google Scholar] [CrossRef]
  55. Real, J.A.; Gaspar, A.B.; Muñoz, M.C.; Gütlich, P.; Ksenofontov, V.; Spiering, H. Bipyrimidine-bridged dinuclear iron(II) spin crossover compounds. Top. Curr. Chem. 2004, 233, 167–193. [Google Scholar]
  56. Bousseksou, A.; Molnár, G.; Real, J.A.; Tanaka, K. Spin crossover and photomagnetism in dinuclear iron(II) compounds. Coord. Chem. Rev. 2007, 251, 1822–1833. [Google Scholar] [CrossRef]
  57. Moussa, N.O.; Molnár, G.; Bonhommeau, S.; Zwick, A.; Mouri, S.; Tanaka, K.; Real, J.A.; Bousseksou, A. Selective photoswitching of the binuclear spin crossover compound {[Fe(bt)(NCS)2]2(bpm)} into two distinct macroscopic phases. Phys. Rev. Lett. 2005, 94. [Google Scholar] [CrossRef] [PubMed]
  58. Gaspar, A.B.; Ksenofontov, V.; Reiman, S.; Gütlich, P.; Thompson, A.L.; Goeta, A.E.; Muñoz, M.C.; Real, J.A. Mossbauer investigation of the photoexcited spin states and crystal structure analysis of the spin-crossover dinuclear complex [{Fe(bt)(NCS)2)2bpym] (bt = 2,2′-bithiazoline, bpym = 2,2′-bipyrimidine). Chem. Eur. J. 2006, 12, 9289–9298. [Google Scholar] [CrossRef] [PubMed]
  59. Trzop, E.; Buron-Le Cointe, M.; Cailleau, H.; Toupet, L.; Molnár, G.; Bousseksou, A.; Gaspar, A.B.; Real, J.A.; Collet, E. Structural investigation of the photoinduced spin conversion in the dinuclear compound {[Fe(bt)(NCS)2]2(bpym)}: Toward controlled multi-stepped molecular switches. J. Appl. Cryst. 2007, 40, 158–164. [Google Scholar] [CrossRef]
  60. Gaspar, A.B.; Muñoz, M.C.; Real, J.A. Dinuclear iron(II) spin crossover compounds: Singular molecular materials for electronics. J. Mater. Chem. 2006, 16, 2522–2533. [Google Scholar] [CrossRef]
  61. Nakano, K.; Kawata, S.; Yoneda, K.; Fuyuhiro, A.; Yagi, T.; Nasu, S.; Morimoto, S.; Kaizaki, S. Direct two-step spin-crossover through [HS-HS]···[LS-LS] at the plateau in dinuclear diiron(II) complex [{Fe(NCBH3)(4phpy)}2(µ-bpypz)2]. Chem. Commun. 2004, 2892–2893. [Google Scholar] [CrossRef] [PubMed]
  62. Klingele, M.H.; Moubaraki, B.; Cashion, J.D.; Murray, K.S.; Brooker, S. The first X-ray crystal structure determination of a dinuclear complex trapped in the [low spin-high spin] state: [FeII2(PMAT)2](BF4)·DMF. Chem. Commun. 2005, 987–989. [Google Scholar] [CrossRef] [PubMed]
  63. Amoore, J.J.M.; Kepert, C.J.; Cashion, J.D.; Moubaraki, B.; Neville, S.M.; Murray, K.S. Structural and magnetic resolution of a two-step full spin-crossover transition in a dinuclear iron(II) pyridyl-bridged compound. Chem. Eur. J. 2006, 12, 8220–8227. [Google Scholar] [CrossRef] [PubMed]
  64. Fedaoui, D.; Bouhadja, Y.; Kaiba, A.; Guionneau, P.; Létard, J.F.; Rosa, P. Complexation of 2,6-bis(3-pyrazolyl)pyridine-bis(thiocyanato)iron(II) with a bridging 4,4′-bipyridine: A new example of a dinuclear spin crossover complex. Eur. J. Inorg. Chem. 2008, 2008, 1022–1026. [Google Scholar] [CrossRef]
  65. Kaiba, A.; Shepherd, H.J.; Fedaoui, D.; Rosa, P.; Goeta, A.E.; Rebbani, N.; Létard, J.F.; Guionneau, P. Crystallographic elucidation of purely structural, thermal and light-induced spin transitions in an iron(II) binuclear complex. Dalton Trans. 2010, 39, 2910–2918. [Google Scholar] [CrossRef] [PubMed]
  66. Bauer, W.; Pfaffeneder, T.; Achterhold, K.; Weber, B. Complete two-step spin-transition in a 1D chain iron(II) complex with a 110-K wide intermediate plateau. Eur. J. Inorg. Chem. 2011, 2011, 3183–3192. [Google Scholar] [CrossRef]
  67. Quesada, M.; Prins, F.; Bill, E.; Kooijman, H.; Gamez, P.; Roubeau, O.; Spek, A.L.; Haasnoot, J.G.; Reedijk, J. Counterion effect on the spin-transition properties of the cation [Fe(btzx)3]2+ (btzx = µ-xylylenebis(tetrazole)). Chem. Eur. J. 2008, 14, 8486–8499. [Google Scholar] [CrossRef] [PubMed]
  68. Patrick, B.O.; Reiff, W.M.; Sanchez, V.; Storr, A.; Thompson, R.C. Poly(2,2-bipyridine)tetrakis(imidazolato)diiron(II): Structural and spin-state phase transitions and low-temperature magnetic ordering in a unique 2-dimensional material. Inorg. Chem. 2004, 43, 2330–2339. [Google Scholar] [CrossRef] [PubMed]
  69. Halder, G.J.; Chapman, K.W.; Neville, S.M.; Moubaraki, B.; Murray, K.S.; Létard, J.F.; Kepert, C.J. Elucidating the mechanism of a two-step spin transition in a nanoporous metal-organic framework. J. Am. Chem. Soc. 2008, 130, 17552–17562. [Google Scholar] [CrossRef] [PubMed]
  70. Romero-Morcillo, T.; de la Pinta, N.; Callejo, L.M.; Piñeiro-López, L.; Muñoz, M.C.; Madariaga, G.; Ferrer, S.; Breczewski, T.; Cortés, R.; Real, J.A. Nanoporosity, inclusion chemistry, and spin crossover in orthogonally interlocked two-dimensional metal-organic frameworks. Chem. Eur. J. 2015, 21, 12112–12120. [Google Scholar] [CrossRef] [PubMed]
  71. Adams, C.J.; Muñoz, M.C.; Waddington, R.E.; Real, J.A. Cooperative spin transition in the two-dimensional coordination polymer [Fe(4,4′-bipyridine)2(NCX)2)·4CHCl3 (X = S, Se). Inorg. Chem. 2011, 50, 10633–10642. [Google Scholar] [CrossRef] [PubMed]
  72. Lin, J.-B.; Xue, W.; Wang, B.-Y.; Tao, J.; Zhang, W.-X.; Zhang, J.-P.; Chen, X.-M. Chemical/physical pressure tunable spin-transition temperature and hysteresis in a two-step spin crossover porous coordination framework. Inorg. Chem. 2012, 51, 9423–9430. [Google Scholar] [CrossRef] [PubMed]
  73. Kusz, J.; Bronisz, R.; Zubko, M.; Bednarek, G. On the role of intermolecular interactions on structural and spin-crossover properties of 2D coordination networks [Fe(bbtr)3]A2 (bbtr = 1,4-bis(1,2,3-triazol-1-yl)butane; A = ClO4, BF4). Chem. Eur. J. 2011, 17, 6807–6820. [Google Scholar] [CrossRef] [PubMed]
  74. Agustí, G.; Muñoz, M.C.; Gaspar, A.B.; Real, J.A. Spin-crossover behavior in cyanide-bridged Iron(II)-Gold(I) bimetallic 2D Hofmann-like metal-organic frameworks. Inorg. Chem. 2008, 47, 2552–2561. [Google Scholar] [CrossRef] [PubMed]
  75. Kosone, T.; Kachi-Terajima, C.; Kanadani, C.; Saito, T.; Kitazawa, T. A two-step and hysteretic spin-crossover transition in new cyano-bridged hetero-metal FeIIAuI 2-dimensional assemblage. Chem. Lett. 2008, 37, 422–423. [Google Scholar] [CrossRef]
  76. Kosone, T.; Kanadani, C.; Saito, T.; Kitazawa, T. Synthesis, crystal structures, magnetic properties and fluorescent emissions of two-dimensional bimetallic coordination frameworks FeII(3-fluoropyridine)2[AuI(CN)2]2 and MnII(3-fluoropyridine)2[AuI(CN)2]2. Polyhedron 2009, 28, 1930–1934. [Google Scholar] [CrossRef]
  77. Martínez, V.; Gaspar, A.B.; Muñoz, M.C.; Bukin, G.V.; Levchenko, G.; Real, J.A. Synthesis and characterisation of a new series of bistable iron(II) spin-crossover 2D metal-organic frameworks. Chem. Eur. J. 2009, 15, 10960–10971. [Google Scholar] [CrossRef] [PubMed]
  78. Agustí, G.; Gaspar, A.B.; Muñoz, M.C.; Lacroix, P.G.; Real, J.A. Spin crossover and paramagnetic behaviour in two-dimensional iron(II) coordination polymers with stilbazole push-pull ligands. Aust. J. Chem. 2009, 62, 1155–1165. [Google Scholar] [CrossRef]
  79. Agustí, G.; Gaspar, A.B.; Muñoz, M.C.; Real, J.A. Thermal- and pressure-induced cooperative spin transition in the 2D and 3D coordination polymers {Fe(5-Br-pmd)z]M(CN)x]y} (M = AgI, AuI, NiII, PdII, PtII). Inorg. Chem. 2007, 46, 9646–9654. [Google Scholar] [CrossRef] [PubMed]
  80. Sciortino, N.F.; Scherl-Gruenwald, K.R.; Chastanet, G.; Halder, G.J.; Chapman, K.W.; Létard, J.F.; Kepert, C.J. Hysteretic three-step spin crossover in a thermo- and photochromic 3D pillared Hofmann-type metal-organic framework. Angew. Chem. Int. Ed. 2012, 51, 10154–10158. [Google Scholar] [CrossRef] [PubMed]

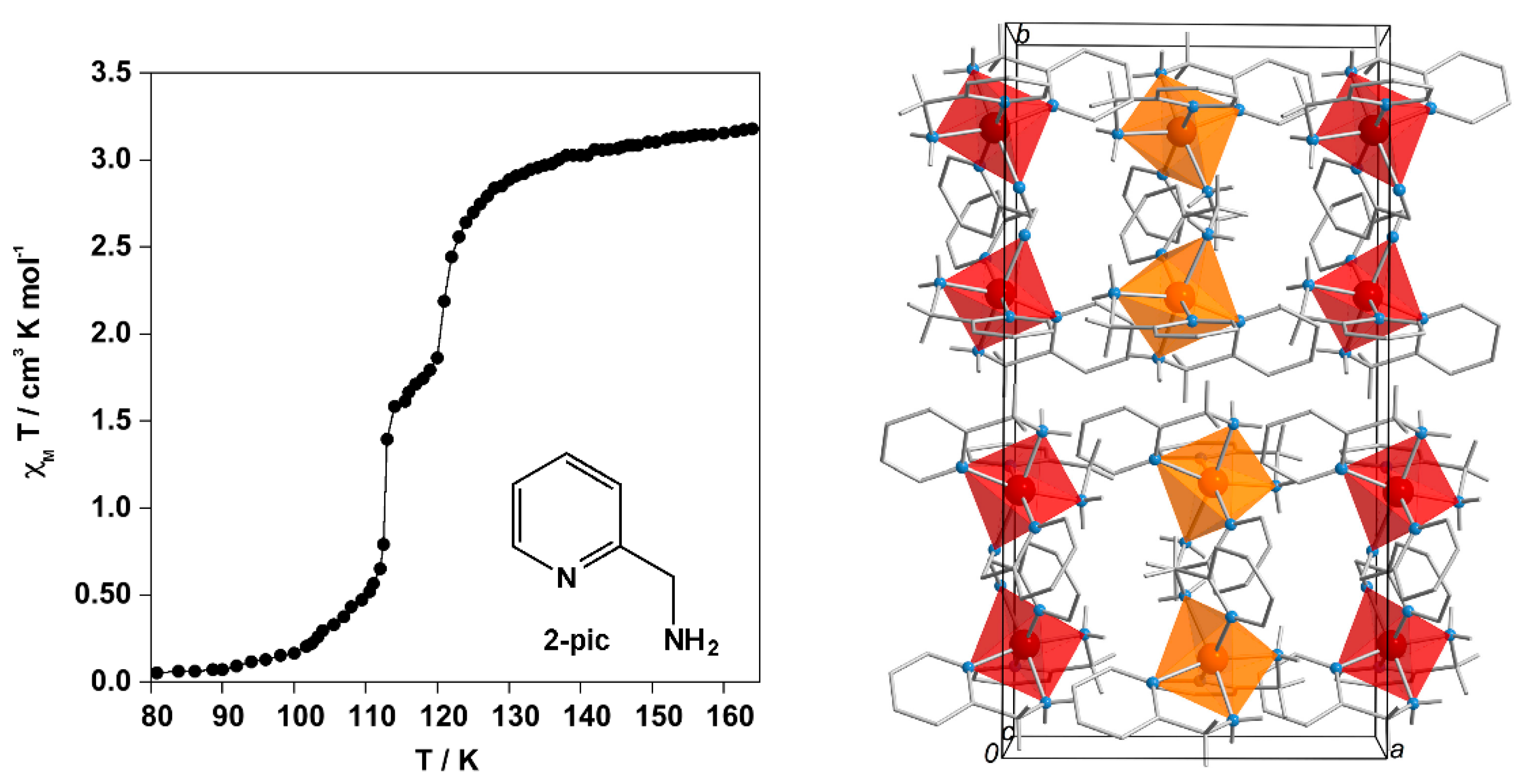

Figure 1. [FeII(2-pic)3]Cl2·EtOH]: Two-step SCO behavior in the χMT vs. T plot (χM is the molar magnetic susceptibility and T is the temperature) (left). Projection of the unit cell down the c-axis in the intermediate phase (IP) (1HS-1LS) showing alternance of the HS (orange) and LS (red) complex cations (Cl anions and EtOH solvent molecules have been omitted) (right).
Figure 1. [FeII(2-pic)3]Cl2·EtOH]: Two-step SCO behavior in the χMT vs. T plot (χM is the molar magnetic susceptibility and T is the temperature) (left). Projection of the unit cell down the c-axis in the intermediate phase (IP) (1HS-1LS) showing alternance of the HS (orange) and LS (red) complex cations (Cl anions and EtOH solvent molecules have been omitted) (right).
Magnetochemistry 02 00016 g001

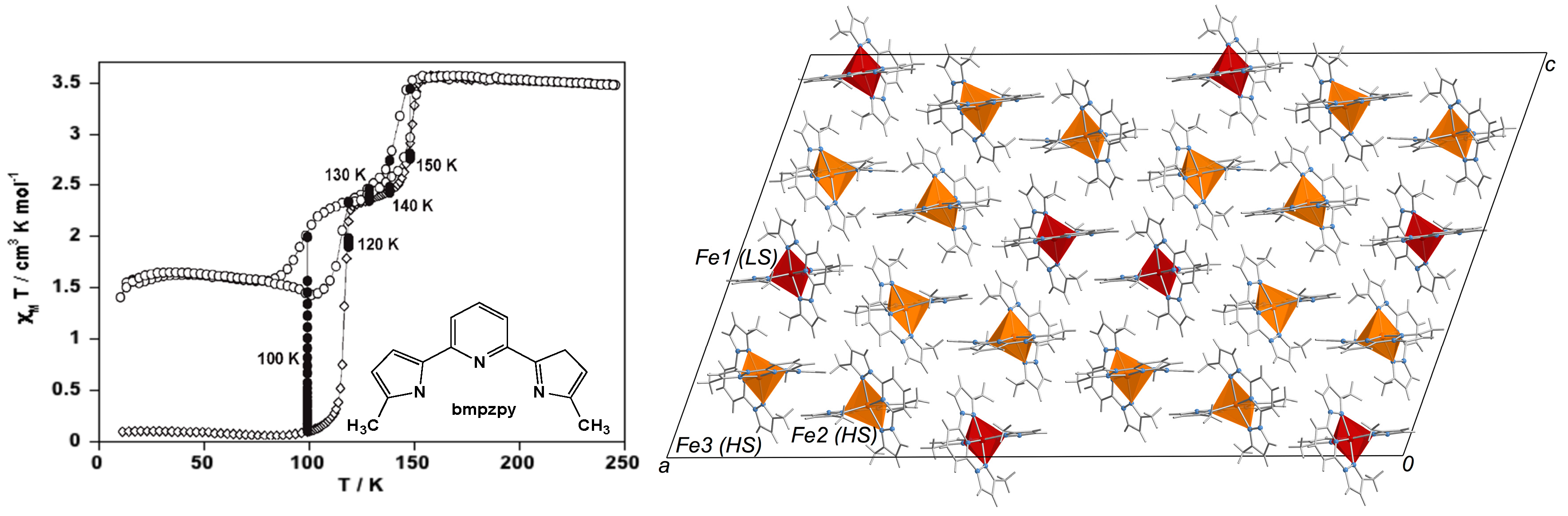

Figure 2. Spin crossover behavior of [Fe(bmpzpy)2](BF4)2·xH2O (adapted with permission from Reference [34]) (left). Projection of the unit cell down the b-axis in the plateau at 130 K showing the IP = 2HS-1LS (HS, orange; LS, red) (right).
Figure 2. Spin crossover behavior of [Fe(bmpzpy)2](BF4)2·xH2O (adapted with permission from Reference [34]) (left). Projection of the unit cell down the b-axis in the plateau at 130 K showing the IP = 2HS-1LS (HS, orange; LS, red) (right).
Magnetochemistry 02 00016 g002

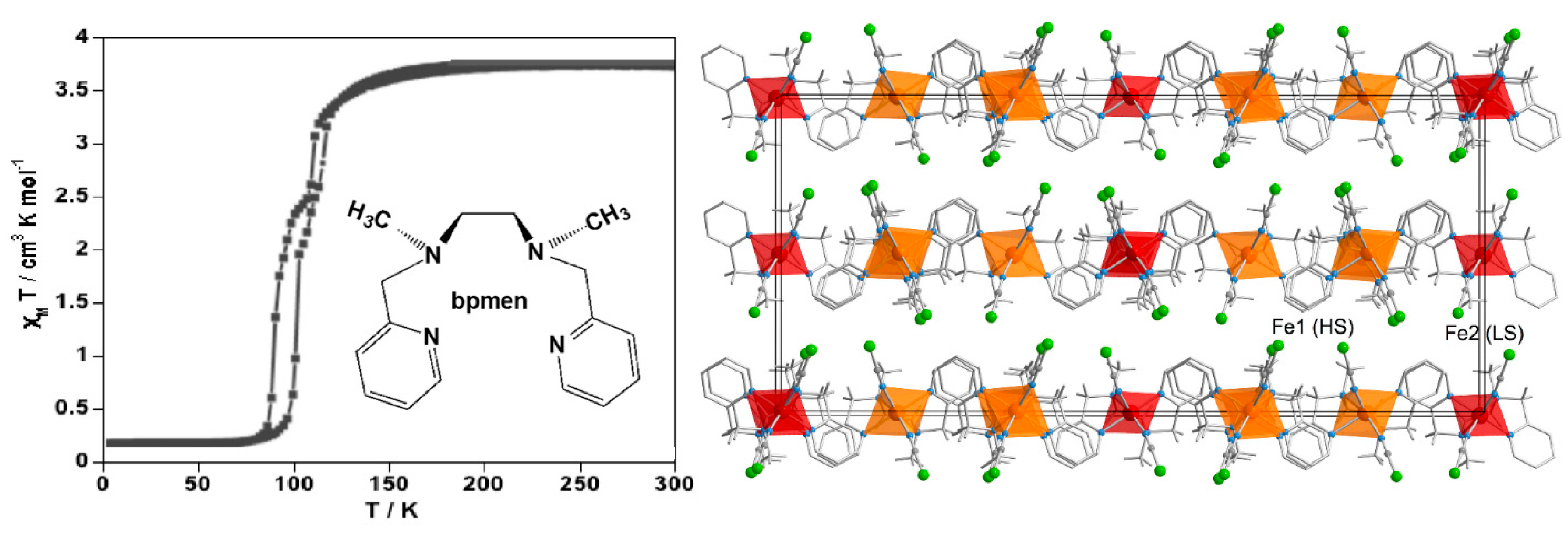

Figure 3. [Fe(bpmen)(NCSe)2]: Spin crossover behavior (adapted with permission from Reference [35]) (left). Projection of the unit cell down the c-axis showing the ordering in the IP = 2HS-1LS (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Figure 3. [Fe(bpmen)(NCSe)2]: Spin crossover behavior (adapted with permission from Reference [35]) (left). Projection of the unit cell down the c-axis showing the ordering in the IP = 2HS-1LS (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Magnetochemistry 02 00016 g003

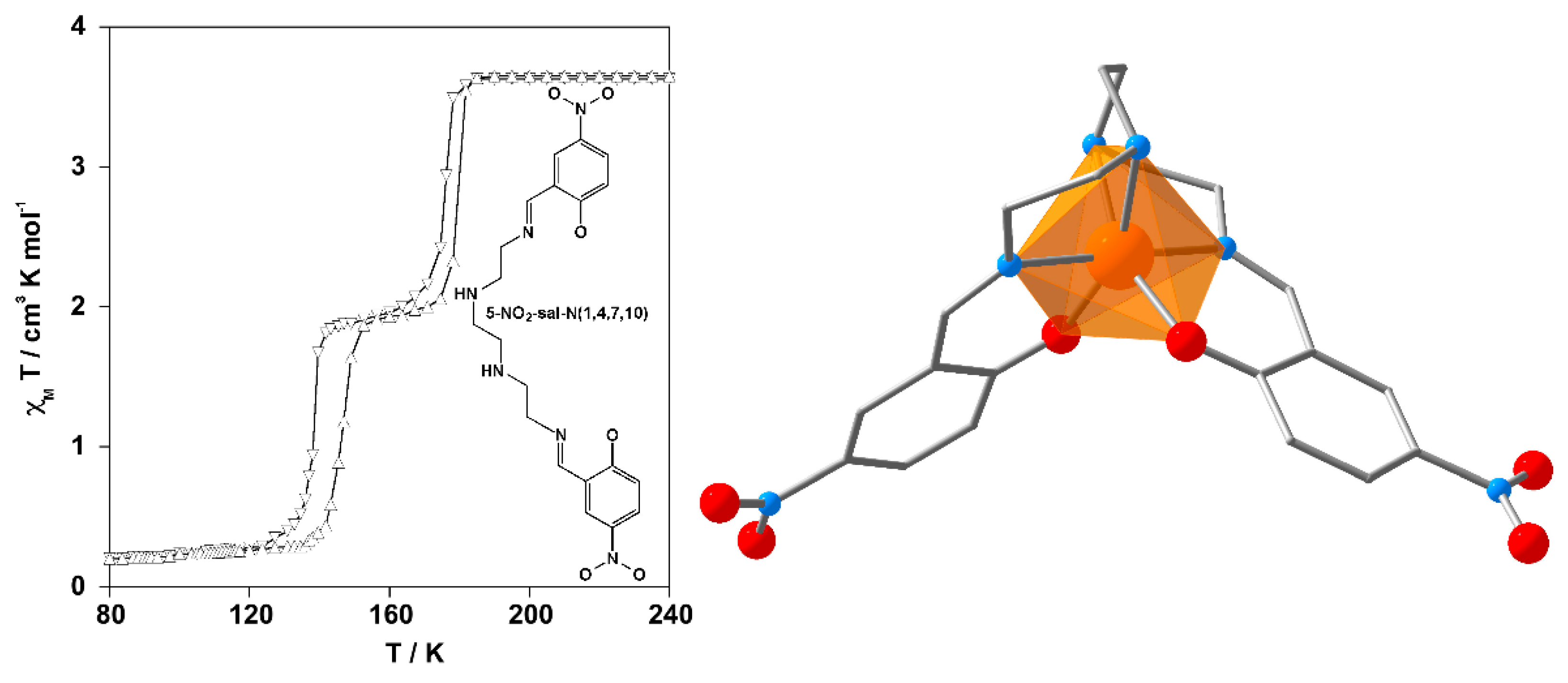

Figure 4. Spin crossover behavior of [FeII{5-NO2-sal-N(1,4,7,10)}] (left) and molecular structure (right).
Figure 4. Spin crossover behavior of [FeII{5-NO2-sal-N(1,4,7,10)}] (left) and molecular structure (right).
Magnetochemistry 02 00016 g004

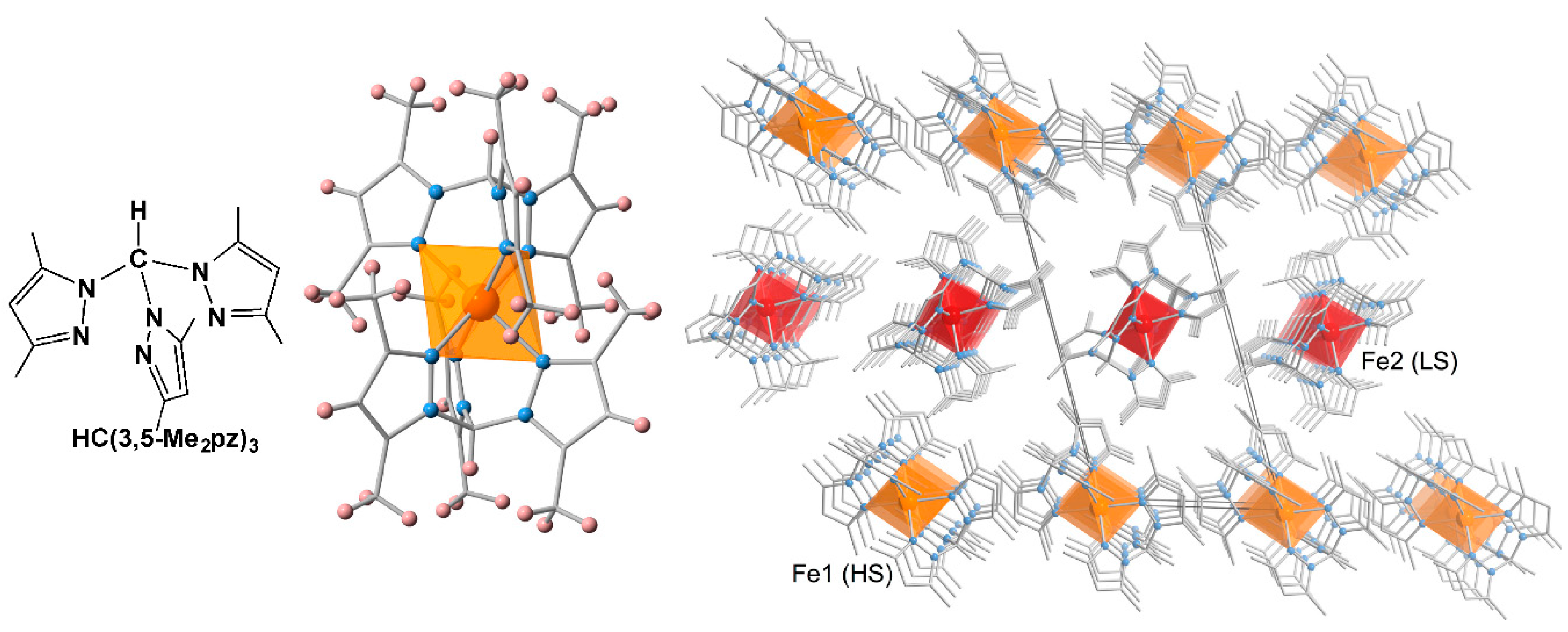

Figure 5. Molecular structure of the ligand [HC(3,5-Me2pz)3] (left) and {Fe[HC(3,5-Me2pz)3]2}2+ cation (middle). Projection of the crystal packing on the ac plane showing the ordering of the LS and HS layers (BF4 anions have been removed) (right).
Figure 5. Molecular structure of the ligand [HC(3,5-Me2pz)3] (left) and {Fe[HC(3,5-Me2pz)3]2}2+ cation (middle). Projection of the crystal packing on the ac plane showing the ordering of the LS and HS layers (BF4 anions have been removed) (right).
Magnetochemistry 02 00016 g005

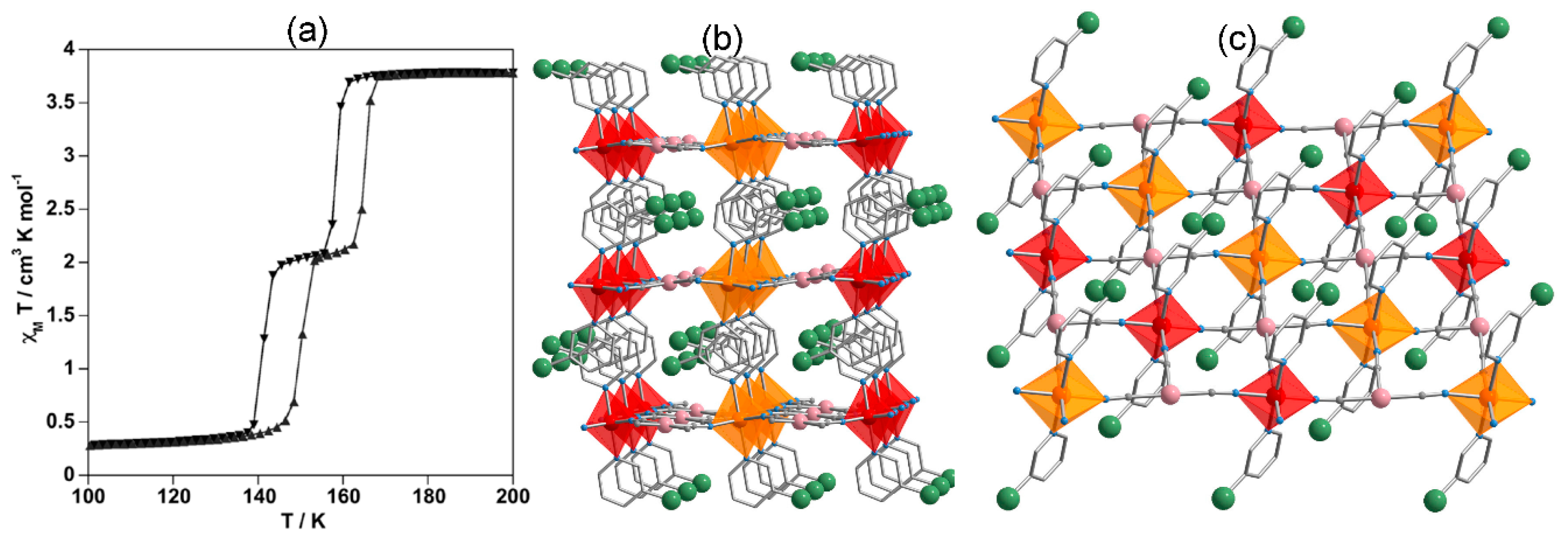

Figure 6. {[Fe(H2L2−Me)2](X)(ClO4)·1EtOH}: Spin crossover behavior for X = Cl, Br (adapted with permission from Reference [40]) (left); and projection on the ab plane of the crystal packing (X = Br) in the IP (Br and ClO4 anions and EtOH have been removed) (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Figure 6. {[Fe(H2L2−Me)2](X)(ClO4)·1EtOH}: Spin crossover behavior for X = Cl, Br (adapted with permission from Reference [40]) (left); and projection on the ab plane of the crystal packing (X = Br) in the IP (Br and ClO4 anions and EtOH have been removed) (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Magnetochemistry 02 00016 g006

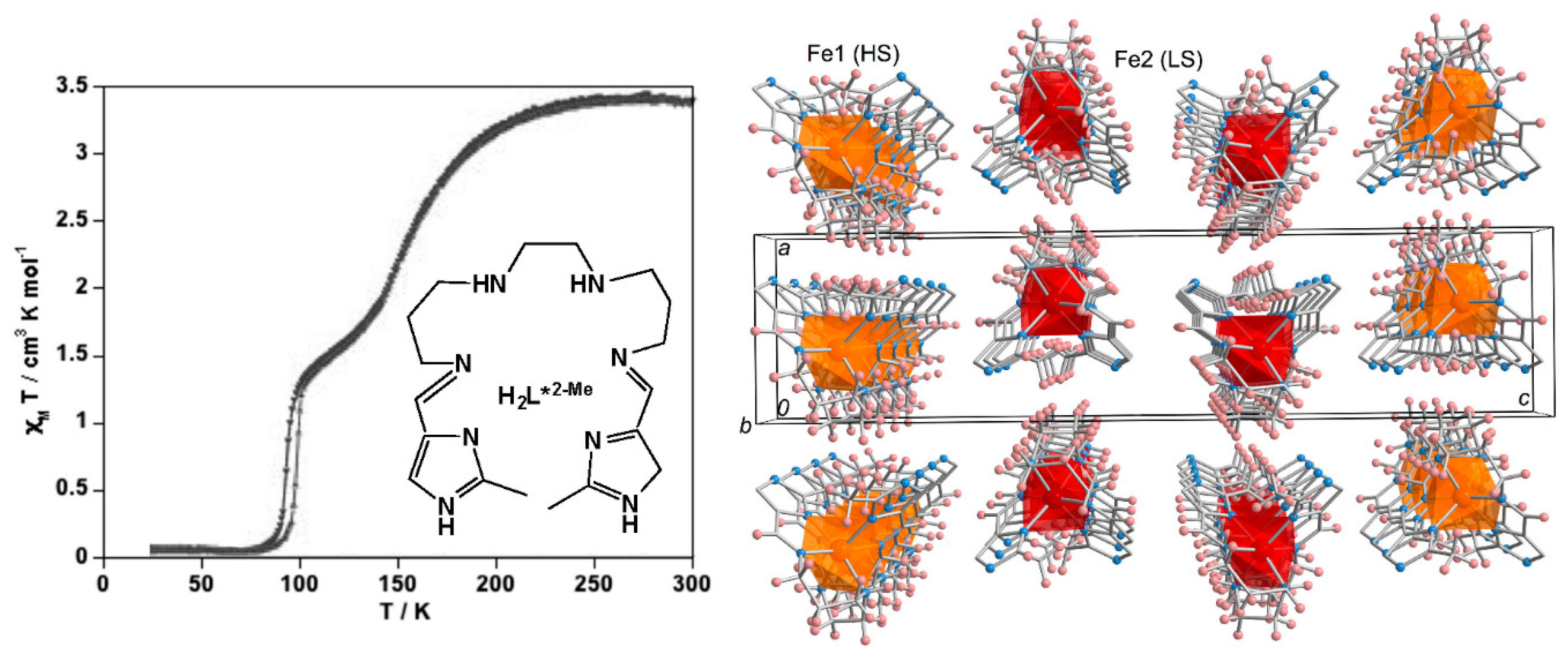

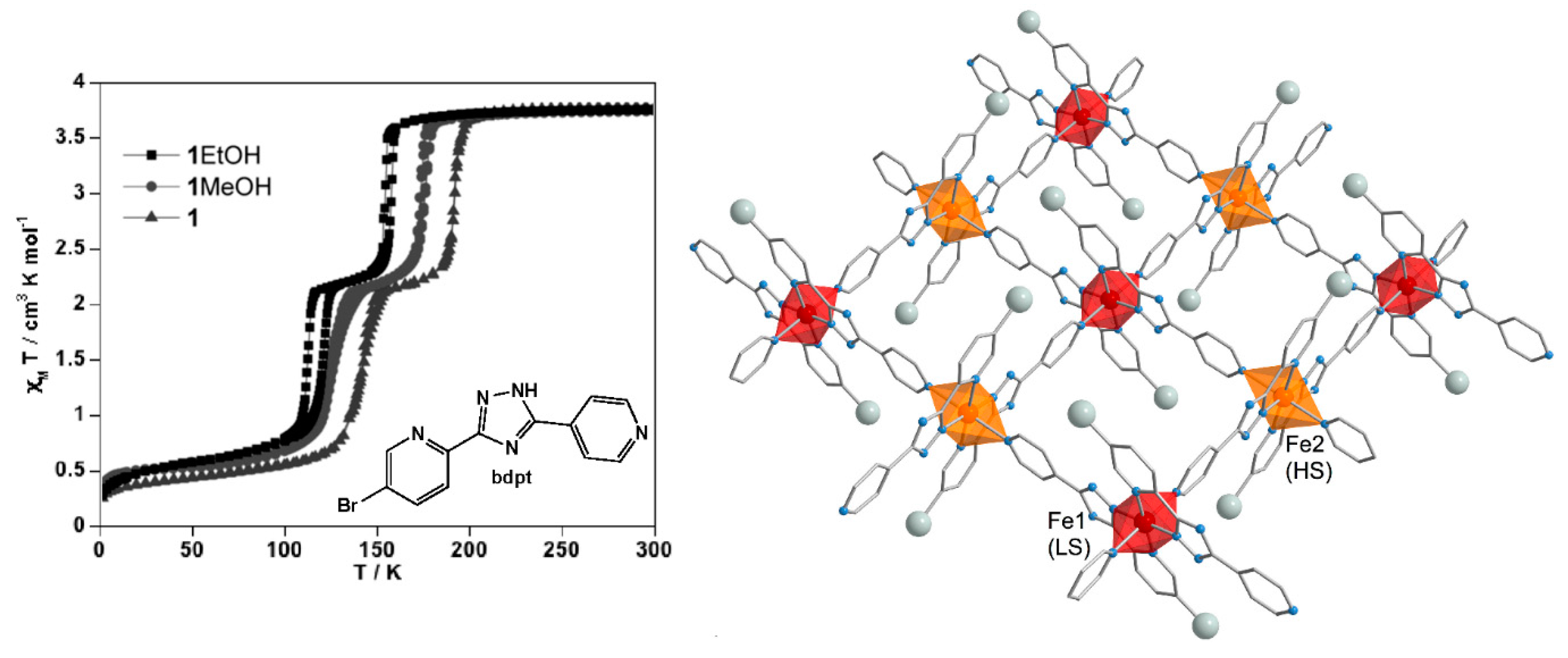

Figure 7. [FeII(H2L*2−Me)2](PF6)2: Spin crossover behavior (adapted with permission from Reference [42]) (left). Projection on the ac plane of the crystal packing in the IP showing the sequence of ···HS-LS-LS-HS··· layers parallel to the ab plane (the layers of PF6 have been removed); Red and orange octahedrons correspond to LS and HS sites (right).
Figure 7. [FeII(H2L*2−Me)2](PF6)2: Spin crossover behavior (adapted with permission from Reference [42]) (left). Projection on the ac plane of the crystal packing in the IP showing the sequence of ···HS-LS-LS-HS··· layers parallel to the ab plane (the layers of PF6 have been removed); Red and orange octahedrons correspond to LS and HS sites (right).
Magnetochemistry 02 00016 g007

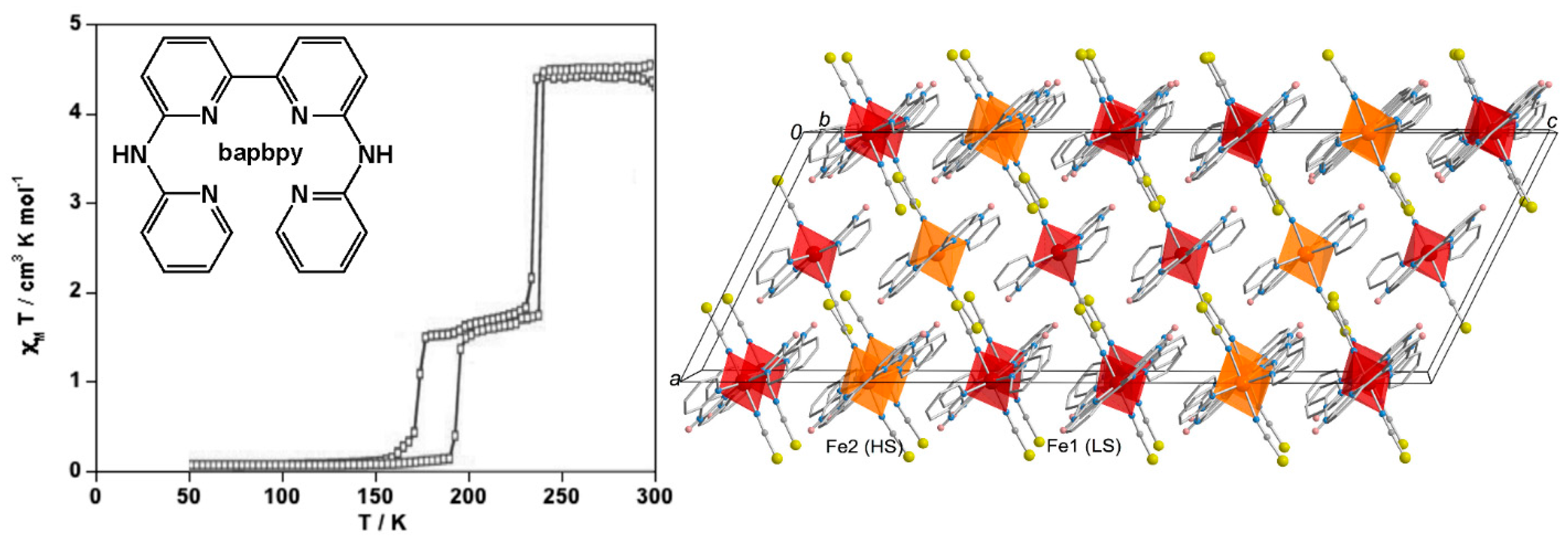

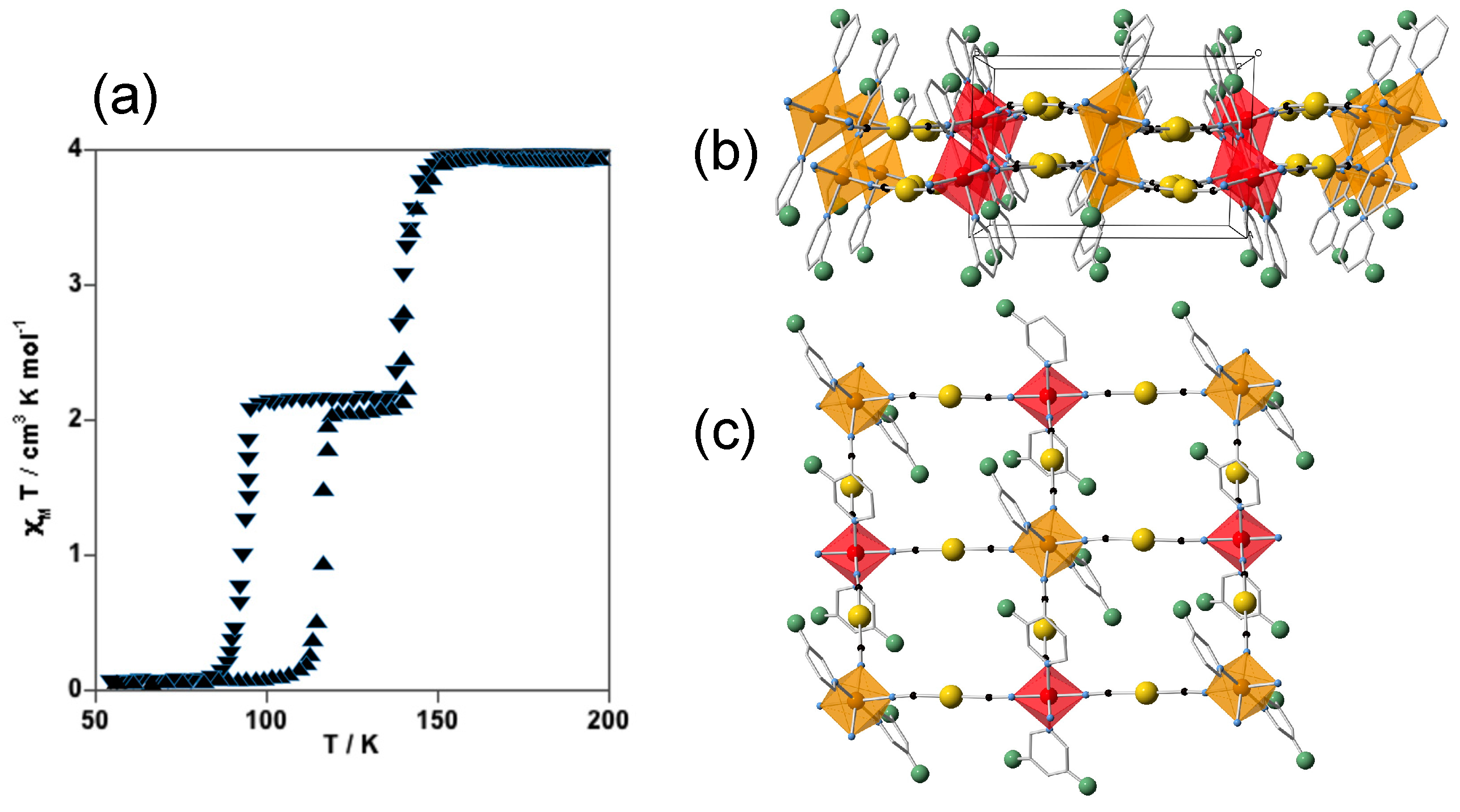

Figure 8. [Fe(bapbpy)(NCS)2]: Spin crossover behavior (adapted with permission from Reference [43]) (left); and projection on the ac plane of the crystal packing in the IP showing the LS-LS-HS sequence of molecules running along the c-axis. Red and orange octahedrons correspond to LS and HS sites, respectively (right).
Figure 8. [Fe(bapbpy)(NCS)2]: Spin crossover behavior (adapted with permission from Reference [43]) (left); and projection on the ac plane of the crystal packing in the IP showing the LS-LS-HS sequence of molecules running along the c-axis. Red and orange octahedrons correspond to LS and HS sites, respectively (right).
Magnetochemistry 02 00016 g008

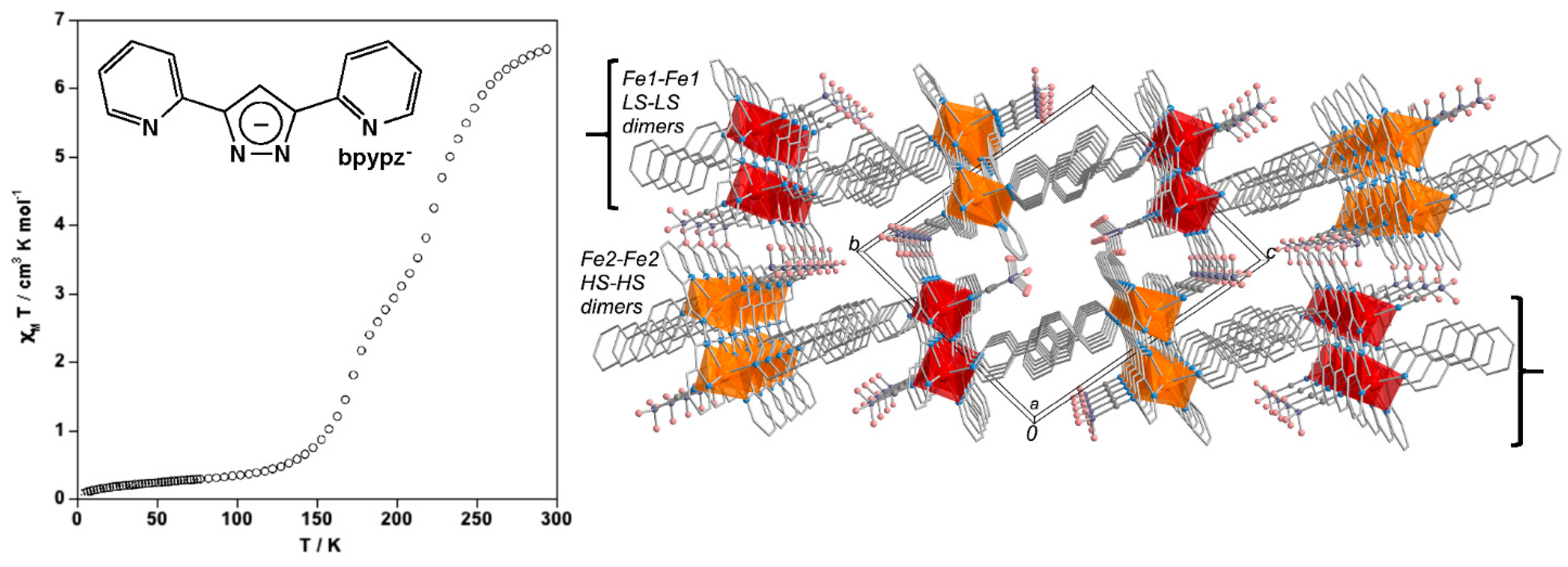

Figure 9. {[FeII(NCBH3)(4-phpy)]2(µ-bpypz)2}: Spin crossover behavior (adapted with permission from Reference [61]) (left); and projection on the bc plane of the crystal packing displaying the LS-LS···HS-HS order of the dimers in the IP (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Figure 9. {[FeII(NCBH3)(4-phpy)]2(µ-bpypz)2}: Spin crossover behavior (adapted with permission from Reference [61]) (left); and projection on the bc plane of the crystal packing displaying the LS-LS···HS-HS order of the dimers in the IP (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Magnetochemistry 02 00016 g009
Figure 10. Molecular structure of a dimeric {[FeII(PMAT)]2}4+ unit (left) and projection of the unit cell on bc (right) (BF4 anions and DMF inclusions have been omitted). Red and orange octahedrons correspond to LS and HS sites, respectively.
Figure 10. Molecular structure of a dimeric {[FeII(PMAT)]2}4+ unit (left) and projection of the unit cell on bc (right) (BF4 anions and DMF inclusions have been omitted). Red and orange octahedrons correspond to LS and HS sites, respectively.
Magnetochemistry 02 00016 g010

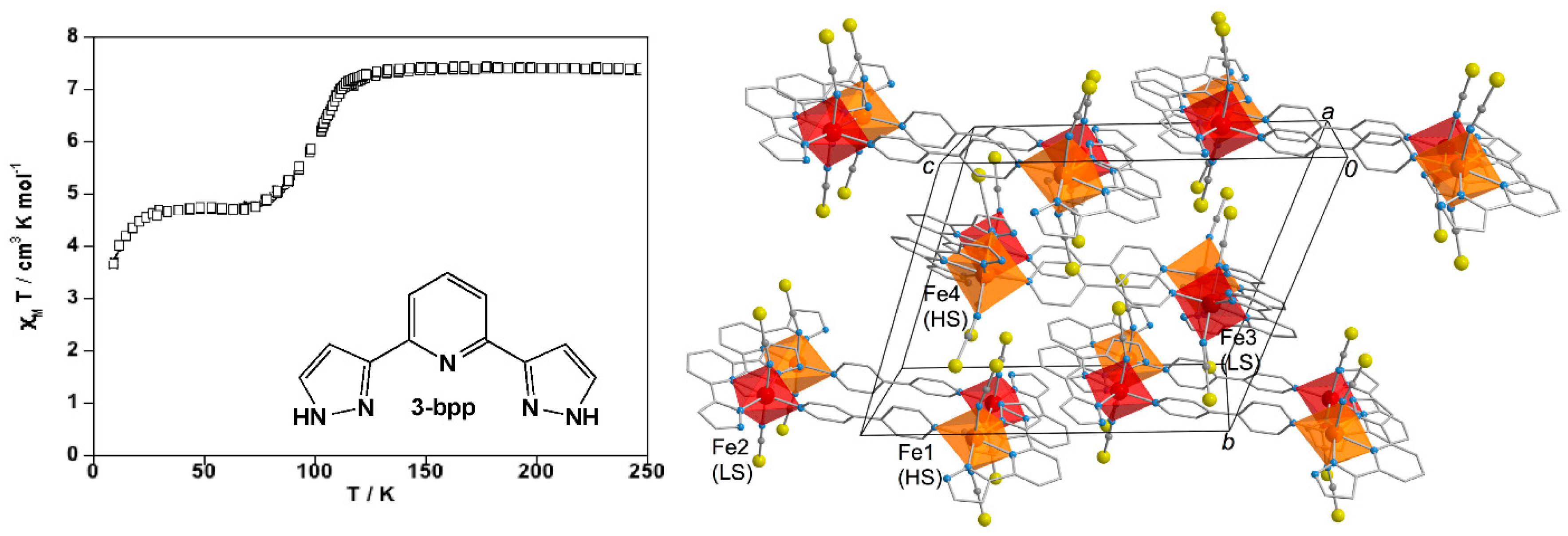

Figure 11. {[Fe(3-bpp)(NCS)2]2(4,4′-bypiridine)}·2CH3OH: Spin crossover behavior (adapted with permission from Reference [64]) (left); and projection on the bc plane the crystal packing in the IP (CH3OH has been omitted) (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Figure 11. {[Fe(3-bpp)(NCS)2]2(4,4′-bypiridine)}·2CH3OH: Spin crossover behavior (adapted with permission from Reference [64]) (left); and projection on the bc plane the crystal packing in the IP (CH3OH has been omitted) (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Magnetochemistry 02 00016 g011

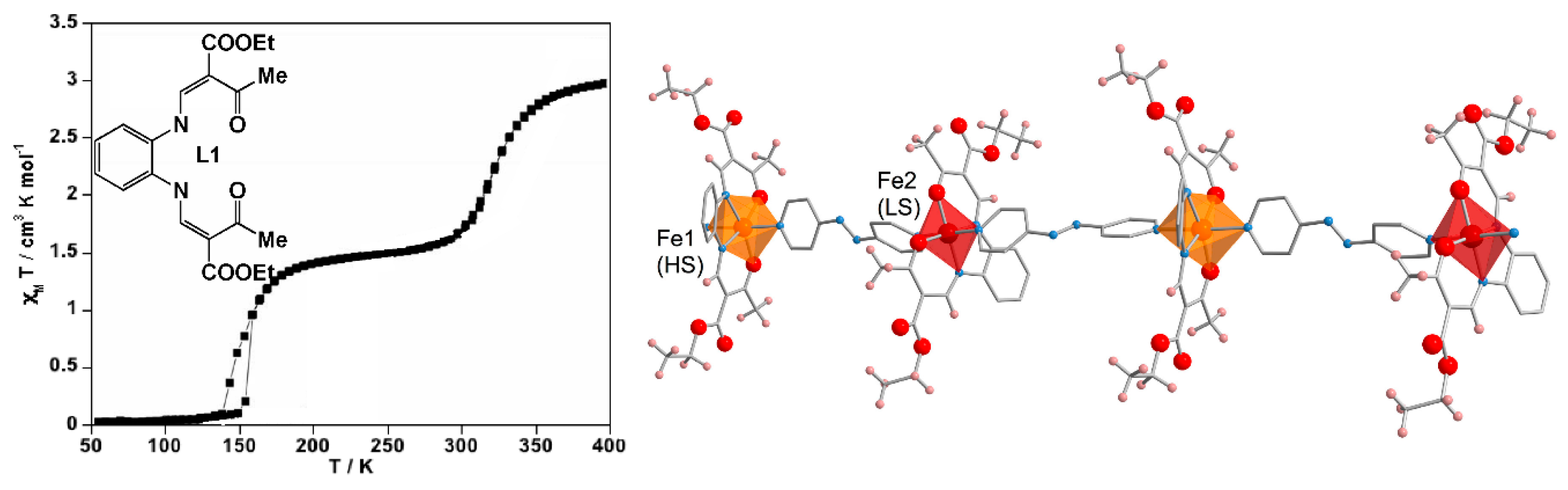

Figure 12. [FeL1(azpy)]: Spin crossover behavior (adapted with permission from Reference [66]) (left); and fragment of a chain displaying the alternate order 1HS-1LS in the IP at 200 K (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Figure 12. [FeL1(azpy)]: Spin crossover behavior (adapted with permission from Reference [66]) (left); and fragment of a chain displaying the alternate order 1HS-1LS in the IP at 200 K (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Magnetochemistry 02 00016 g012

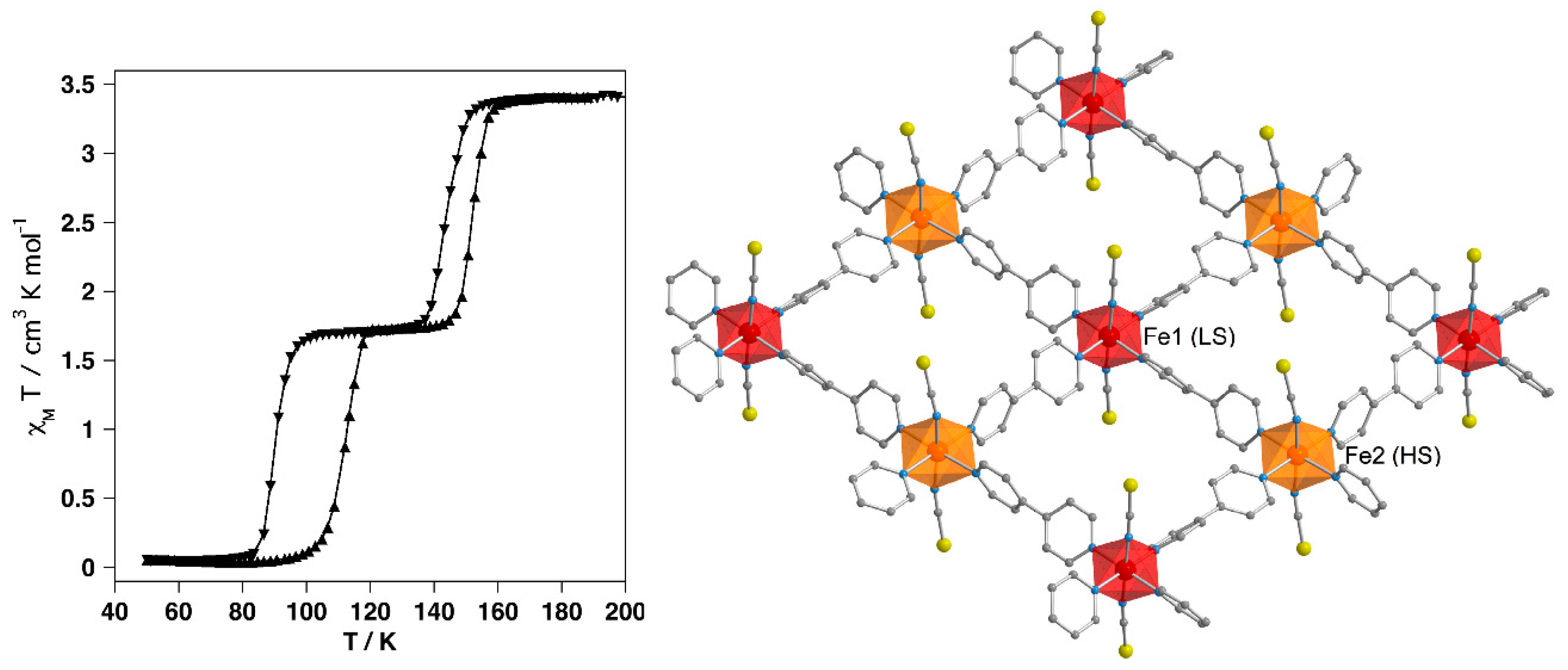

Figure 13. [Fe(4,4′-bipy)2(NCS)2]·4CHCl3: Spin crossover behavior (left); and perspective view of a layer displaying the checkerboard 1HS-1LS order in the IP at 120 K (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Figure 13. [Fe(4,4′-bipy)2(NCS)2]·4CHCl3: Spin crossover behavior (left); and perspective view of a layer displaying the checkerboard 1HS-1LS order in the IP at 120 K (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Magnetochemistry 02 00016 g013
Figure 14. [Fe(bdpt)2]·nSolvent: Spin crossover behavior (adapted with permission from Reference [72]) (left); and fragment of a layer displaying the checkerboard like 1HS-1LS order in the IP (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Figure 14. [Fe(bdpt)2]·nSolvent: Spin crossover behavior (adapted with permission from Reference [72]) (left); and fragment of a layer displaying the checkerboard like 1HS-1LS order in the IP (right). Red and orange octahedrons correspond to LS and HS sites, respectively.
Magnetochemistry 02 00016 g014
Figure 15. {Fe(3Fpy)2[Au(CN)2]}: (a) Spin crossover behavior (form 2); (b) perspective view of the packing of two consecutive layers along c the c-axis in the IP (123 K); and (c) fragment of a layer along the a-axis in the IP (123 K). Red and orange octahedrons correspond to LS and HS FeII sites, respectively, while green and yellow spheres represent F and Au, respectively.
Figure 15. {Fe(3Fpy)2[Au(CN)2]}: (a) Spin crossover behavior (form 2); (b) perspective view of the packing of two consecutive layers along c the c-axis in the IP (123 K); and (c) fragment of a layer along the a-axis in the IP (123 K). Red and orange octahedrons correspond to LS and HS FeII sites, respectively, while green and yellow spheres represent F and Au, respectively.
Magnetochemistry 02 00016 g015
Figure 16. {Fe(3-Clpy)2[Pd(CN)4]}: (a) Spin crossover behavior (b) perspective view of the packing of three consecutive layers seen along the a-axis in the IP (150 K); and (c) fragment of a layer in the IP state (150 K). Red and orange octahedrons correspond to LS and HS FeII sites, respectively, while green and pink spheres represent Cl and Pd, respectively.
Figure 16. {Fe(3-Clpy)2[Pd(CN)4]}: (a) Spin crossover behavior (b) perspective view of the packing of three consecutive layers seen along the a-axis in the IP (150 K); and (c) fragment of a layer in the IP state (150 K). Red and orange octahedrons correspond to LS and HS FeII sites, respectively, while green and pink spheres represent Cl and Pd, respectively.
Magnetochemistry 02 00016 g016

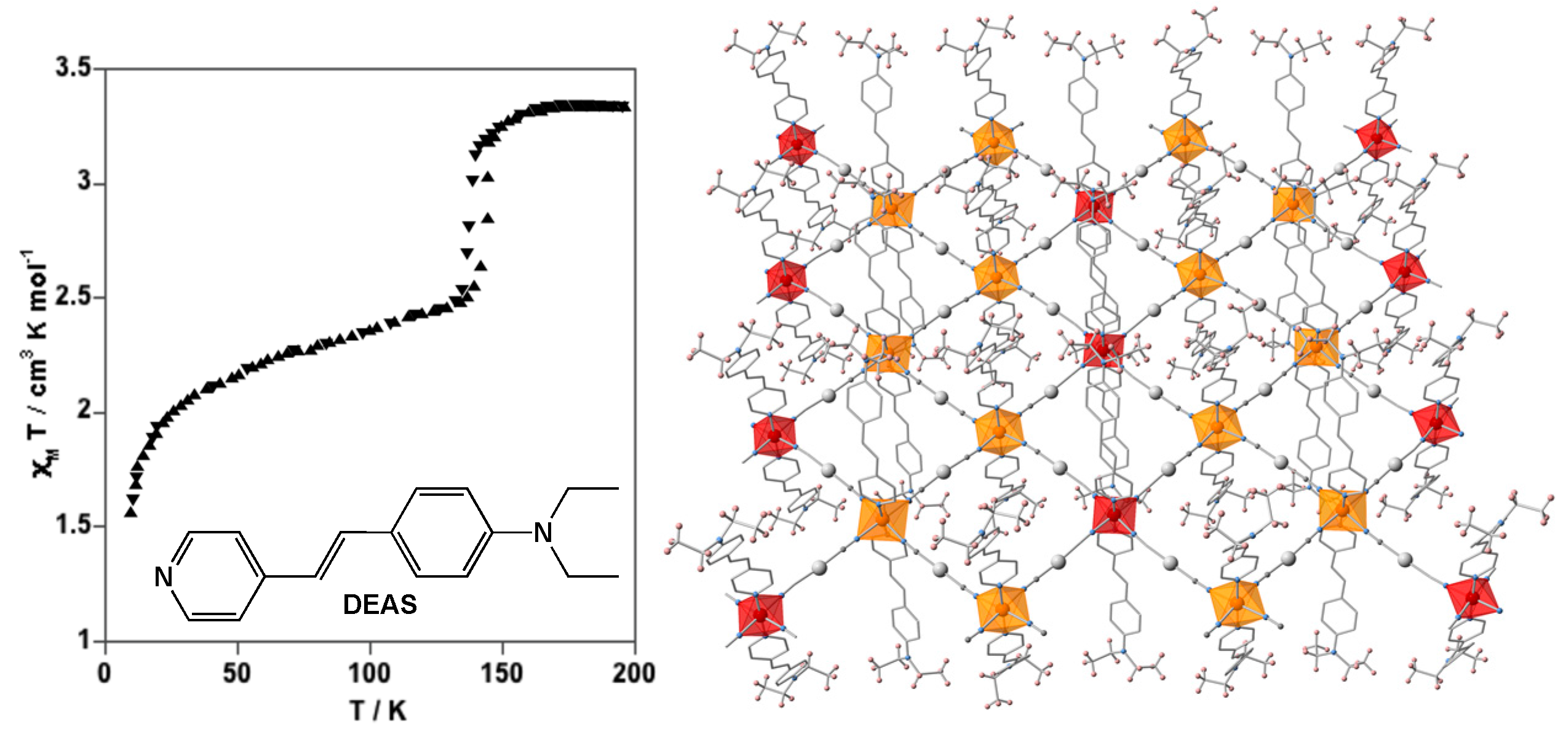

Figure 17. {Fe(DEAS)2[Ag(CN)2]2}: Spin crossover behavior (left) and perspective of a layer of in the IP =2HS-1LS at 100 K (right). Red and orange octahedrons correspond to LS and HS FeII sites, respectively.
Figure 17. {Fe(DEAS)2[Ag(CN)2]2}: Spin crossover behavior (left) and perspective of a layer of in the IP =2HS-1LS at 100 K (right). Red and orange octahedrons correspond to LS and HS FeII sites, respectively.
Magnetochemistry 02 00016 g017
Figure 18. {Fe(5Brpmd)2[Ag(CN)2]2}: Spin crossover behavior (adapted with permission from Reference [79]) (left); and projection of the unit cell on the ab plane in the IP (120 K) (right). Red and orange octahedrons correspond to LS and HS FeII sites, respectively, while green and light-blue spheres represent Br and Ag, respectively.
Figure 18. {Fe(5Brpmd)2[Ag(CN)2]2}: Spin crossover behavior (adapted with permission from Reference [79]) (left); and projection of the unit cell on the ab plane in the IP (120 K) (right). Red and orange octahedrons correspond to LS and HS FeII sites, respectively, while green and light-blue spheres represent Br and Ag, respectively.
Magnetochemistry 02 00016 g018
Back to TopTop
