Hairy Root Induction of Taxus baccata L. by Natural Transformation with Rhizobium rhizogenes

by
Junou He
*,
João Paulo Alves Plácido
,
Irini Pateraki
,
Sotirios Kampranis
,
Bruno Trevenzoli Favero
and
Henrik Lütken
Department of Plant and Environmental Sciences, University of Copenhagen, Højbakkegård Allé 9-13, 2630 Taastrup, Denmark
*
Author to whom correspondence should be addressed.
Horticulturae 2023, 9(1), 4; https://doi.org/10.3390/horticulturae9010004
Submission received: 1 December 2022 / Revised: 16 December 2022 / Accepted: 18 December 2022 / Published: 20 December 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
Paclitaxel (Taxol®) is a potent anticancer agent, but the widespread pharmaceutical use of paclitaxel is hampered by its limited availability due to low accumulation levels in the native yew (Taxus spp.) plants. Currently, hairy root culture is an emerging biotechnological tool that presents several advantages such as reduced costs and higher specialized metabolite production, therefore, its application to paclitaxel production can be of commercial and medicinal interest. The objective of present study was to induce hairy root in Taxus baccata L. by transformation with the wild type Rhizobium rhizogenes A4 strain. Thus, T. baccata was inoculated by three different inoculation methods: (a) ex vitro seedlings inoculation by direct injection of a liquid bacterial culture; (b) ex vitro needles inoculation by liquid co-culturing with bacteria; (c) ex vitro shoots inoculation by dipping liquid bacterial culture. Hairy roots were formed only from ex vitro seedlings inoculated by the direct inoculation method, with transformation efficiency of 14.3%. Formation of hairy roots was observed two months after inoculation. This project forms the basis for the establishment of hairy root cultures from T. baccata for the production of paclitaxel.

1. Introduction

Taxus baccata L. is the most commonly cultivated species of Taxus in Europe, mainly used for ornamental purposes [1]. The medicinal interest in Taxus was low until the potential anticancer properties of paclitaxel from Taxus was found [1,2,3,4]. Paclitaxel (also called Taxol®) is a tricyclic diterpenoid with the formula C47H51NO14 [5,6]. It works as an anticancer agent by binding to tubulin and promoting the assembly of cellular microtubules, and inhibiting their disassembly [7,8,9,10]. Paclitaxel was first isolated from the bark extracted from T. brevifolia [2]. However, the yields were extremely low at around 0.01% on a dry weight basis [11]. Paclitaxel is also present in other tissues from different Taxus species, although the yields are even lower than those of the bark from T. baccata [12,13]. The extraction of paclitaxel directly from the harvested trees remains financially and ecologically unsustainable. Therefore, chemists took the challenge of chemically synthesizing paclitaxel, which was first conducted by two different groups in 1994 [14,15,16,17]. However, the complexity of the molecule, and the several steps required for its synthesis, led to the process having a low yield, and hence also being financially unsustainable [18]. The discovery of 10-deacetylbaccatin (10-DAB) in 1986 opened the door to the semi-synthesis of paclitaxel [19,20,21,22]. Nevertheless, the harvesting and extraction process of 10-DAB is still laborious [23].
Recently, attention has been rapidly moving toward the application of hairy root cultures (HRCs) for the production of many valuable secondary metabolites [24]. Hairy roots (HRs) resulting from natural transformation (i.e., transformation with unmodified bacterial strains of e.g., Rhizobium rhizogenes (previously known as Agrobacterium rhizogenes) without the use of recombinant DNA technologies) are not recognized as a genetically modified organism (GMO) in EU and Japan [25,26,27,28,29]. Morphologically, many small, highly branched roots protrude directly from the infection site in a range of plant species, a phenomenon that gave rise to the term hairy root [30]. R. rhizogenes contain a root-inducing (Ri) plasmid [31,32]. The pathogenicity of the bacterium is caused by a horizontal gene transfer event, where a portion of the Ri plasmid, the transfer DNA (T-DNA), is transferred and integrated in the genome of the host plant [33,34]. Several genes are present on the T-DNA and at least 18 open reading frames (ORFs) have been described. The most well-characterized genes are the root oncogenic loci (rol) genes (i.e., rolA, rolB, rolC, and rolD), which coincides with ORF 10, 11, 12, and 15, respectively [35,36], which are involved in the initiation of HR formation [37,38].
Four Ri plasmid types have been described as of now: agropine (A4 strain type), cucumopine (NCPPB2659 strain type), mannopine (NCIB8196 strain type), and mikimopine (MAFF301724 strain type) [39]. Unlike the other Ri plasmid types, the agropine type Ri plasmids have a split T-DNA, which is divided into a left T-DNA (TL-DNA) and right T-DNA (TR-DNA) [40]. The TL-DNA contains the rol genes and other ORFs [41]. On the other hand, the TR-DNA contains aux1 and aux2, which are genes responsible for auxin biosynthesis [42,43]. Aside from the T-DNA region, the Ri plasmids also contain virulence (vir) genes necessary for the horizontal gene transfer event [31,44].
Secondary metabolite production in HRCs usually have similar or higher yields than the wild type tissues from the same plant [45]. As a result, research on HRCs from Taxus spp. has been pursued to increase the production of paclitaxel. Palut-Carcasson [46] tested five strains of R. rhizogenes and found that the transformation efficiency of Taxus brevifolia. was extremely low, at around 0.5%, and only three HR lines were established, all from the ATCC39207 strain. Huang et al. [47] reported that successful transformation only occurred from shoot explants of T. brevifolia inoculated with the ATCC31798 strain of R. rhizogenes, with 30% transformation efficiency. Furmanowa and Syklowska-Baranek [48] stated that T. x media var. hicksii was successfully transformed with R. rhizogenes strain LBA9402, but only one HR line was established. Kim et al. [45] inoculated T. cuspidata, but no HR formed from the seedlings infected with the A4 strain, whilst the seedlings infected with ATCC15834 and R1000 successfully formed HRs. Spjut [49] found that T. sumatrana transformed with the AR1600 and ATCC15834 strains of R. rhizogenes yielded a transformation efficiency of 15% and 19%, respectively. A recent report by Sahai and Sinha [50] demonstrated the successful transformation of T. wallichiana by using the R. rhizogenes MTCC532 strain with an average transformation efficiency of 24%.
In general, the above research proved the prospects of Taxus spp. producing HRs through transformation with R. rhizogenes, although Taxus spp. seems to be somewhat recalcitrant to transformation because of the low transformation efficiency. In the experiment by Furmanowa and Syklowska-Baranek [48], the induced HRs were exposed to methyl jasmonate, and subsequently the yield of paclitaxel increased by 3-fold compared to the paclitaxel contents of bark harvested from Taxus spp. Therefore, the production of HRs is a highly promising strategy to boost paclitaxel production. As previously mentioned, HRs have been produced using different Taxus species as natural transformation material. However, no HR has yet been obtained from T. baccata, the most common wild species in Europe. Furthermore, HRs have not been induced in Taxus spp. By the R. rhizogenes A4 strain according to current knowledge. Therefore, different T. baccata plant materials were used for natural transformation with the A4 strain in the present work, with the aim of producing HRs. In addition, three different bacterial inoculation methods were tested in this study: (a) a direct inoculation ex vitro method; (b) a liquid co-culture ex vitro method; and (c) a dipping method. The importance of this research is that it is the first time to successfully produce HRs using T. baccata as a natural transformation material, which can close the knowledge gap. Moreover, the A4 strain was used to inoculate explants in this experiment. The successful generation of HR in the ex vitro method was achieved. This breakthrough research lays the basis for establishing a platform for generating HRCs from T. baccata.

2. Materials and Methods

2.1. Experimental Design

In this study, five different strategies of bacteria inoculation were used for different T. baccata tissues, three of them ex vitro, as follows:
  • Direct inoculation ex vitro: ex vitro seedling inoculation by direct injection of a liquid bacterial culture.
  • Liquid co-culture ex vitro: ex vitro needle inoculation by liquid co-culturing with bacteria.
  • Dipping method: ex vitro shoot inoculation by dipping liquid bacterial culture.
  • Direct inoculation in vitro: in vitro shoot inoculation by directly smearing in a solid bacterial culture (Supplementary File S1).
  • Liquid co-culture in vitro: in vitro seedling inoculation by liquid co-culturing with bacteria (Supplementary File S2).

2.2. Plant Material

Regarding the direct inoculation ex vitro, 10 ex vitro T. baccata seedlings (Figure 1A) were obtained from the domesticated material and kept moist until the beginning of the experiment. With respect to the liquid co-culture ex vitro and dipping method, ex vitro T. baccata branches (Figure 1B) were obtained from the wild. For the dipping method, young shoots with 6.0 to 10.0 cm in height, and 7.0 to 11.0 cm in width from the branches were selected (Figure 1C). The needles at the branch base, ca. 3.0 cm, were discarded (Figure 1D). For liquid co-culture ex vitro, needles from young shoots that showed no signs of damage or contamination were selected (Figure 1E,F).

2.3. Bacterial Strain

The A4 strain (from Dr. David Tepfer, Biologie de la Rhizosphère, INRA, Versailles, France) of Rhizobium rhizogenes was used for the induction of HRs. A total of 1 mL glycerol stock of the bacteria was cultured in 9 mL of liquid malt yeast agar (MYA) medium [51] and shaken at 200 rpm for 24 h at 28 °C. The culture was then diluted in 90 mL of MYA medium and incubated again at 28 °C for 24 h in a shaker (Innova 4430, Mississauga, Canada) at 200 rpm. After that, the optical density (OD) of the bacterial culture was adjusted to OD600 = 0.5 with MYA medium, and 0.67 mL L−1 1-(4-hydroxy-3,5-dimethoxyphenyl)-ethanone (acetosyringone) (Duchefa, Haarlem, The Netherlands) was added to the culture. Then, the bacterial culture was shaken at 28 °C, 200 rpm, for an additional 4 h. Finally, the bacterial culture was diluted to OD600 = 0.5 with the MYA medium.

2.4. Ex Vitro Seedlings Inoculation by Direct Injection of a Liquid Bacterial Culture

The ex vitro seedlings were inoculated using an adapted protocol from Nguyen and Searle [52]. T. baccata seedlings were placed in a 13.0 × 10.0 cm pot (Billund Potter, Billund, Denmark) containing peat, and a top 2.0 cm layer of vermiculite (Figure 2). The seven seedlings (n = 7) were inoculated near the roots by injecting 0.05 mL of liquid bacterial culture (OD600 = 0.5) with a 1 mL sterile syringe (BD Plastipak, San Agustin, Spain), using a 27 G × ¾” (0.40 × 20 mm) sterile syringe needle (Braun, Melsungen, Germany), while the remaining three seedlings were inoculated with MYA medium as the control. Each seedling was inoculated twice. The inoculated region was covered by the vermiculite layer. The seedlings were grown under greenhouse conditions at 21 °C for 2 months, after which they were taken out of the pots to check for HR formation.

2.5. Ex Vitro Needle Inoculation by Liquid Co-Culturing with Bacteria

The needle explants were washed with sterile water containing 18.7 mL L−1 soap (Citop Zero, Greenspeed, Ryswick, The Netherlands) for 30 min in a shaker at 100 rpm, followed by 70% (v/v) ethanol (VWR, Rosny-sous-Bois, France) for 5 min, bleaching with 10.0 g L−1 calcium hypochlorite (Sigma-Aldrich, Munich, Germany) supplemented with three drops of Tween 20 (Sigma-Aldrich, Munich, Germany) for 50 min, and finally, sterile water with 100.0 mg L−1 nystatin (Duchefa, Haarlem, The Netherlands) for 30 min. Finally, the needles were rinsed three times with sterile water.
After surface sterilization, needles were wounded on their abaxial side with a scalpel (Sigma-Aldrich, Munich, Germany) (Figure 3). Fifteen needles were placed in a 15 mL Falcon tube (Nerbe Plus, Harburg, Germany). Based on the research from Hiei et al. [53] and Khanna et al. [54], the needles were subjected to a heat treatment in a water bath at 45 °C for 10 min, followed by a quick cooling period of 1 min on ice. A total of 15 mL of liquid bacterial culture was added to each Falcon tube, vortexed, and incubated for 5 min at room temperature. The needles were then subjected to centrifugation at 4500 rpm for 10 min at 25 °C. A second incubation period of 20 min at room temperature followed. Then, the needles were transferred to the co-cultivation media—½ Murashige & Skoog (MS) media [55] supplemented with 15 mg L−1 acetosyringone—for two days, with the adaxial side facing the medium. The same procedure was performed with needles and pure MYA as the control. Thirty repetitions for each treatment (n = 30) with 15 needles per repetition, totaling 900 explants were used. After co-cultivation, they were transferred in tubes to wash with sterile water containing 100 mg L−1 of ticarcillin disodium/clavulanate potassium (mixed in ratio 15:1, Timentin) (Duchefa, Haarlem, The Netherlands). Then, the needles were transferred to the rooting media (½ MS + 200 mg L−1 timentin + 5 g L−1 activated charcoal (Duchefa, Haarlem, The Netherlands)). The needles were always kept under dark conditions at 25 °C and changed to fresh medium every 2 weeks.

2.6. Ex Vitro Shoot Inoculation by Dipping Liquid Bacterial Culture

The base of young shoot explants was cut and the shoots were placed in 1.5 mL tubes containing 1 mL of liquid bacterial culture, and were left overnight under dark conditions at room temperature (Figure 4). Twenty shoots (n = 20) were utilized for the inoculation, and the same number of shoots for the controls were placed under the same conditions, but in contact with the MYA medium. After inoculation, the explants were transferred to a 13.0 × 10.0 cm pot containing peat and grown under the same greenhouse conditions.

2.7. Molecular Analysis for the Confirmation of Transgenic HRs

Up to 100 mg of putatively transformed root was collected to a 1.5 mL tube and stored at −80 °C until the DNA was extracted. The DNA extraction was performed following the instructions of the Plant DNA Isolation Kit (Takara, Kusatsu, Japan). DNA concentration was measured on a Nano-drop (ND-1000, ThermoFisher Scientific, MA, USA). Subsequently, each sample was adjusted to the DNA concentration of 60 ng µL−1.
The presence of rolD was used to confirm the T-DNA insertion, while 18S was the internal control for DNA integrity and the presence of virD was used to check for the remnants of R. rhizogenes. The primers used for each of these genes are described in Table 1. PCR analysis involved a master mixture, which was composed of 10X Ex Taq Buffer, dNTP, MiliQ water, and Ex Taq DNA Polymerase from the TaKaRa Ex Taq™ DNA Kit (TaKaRa, Kusatsu, Japan), with the primer combination for each of the three genes previously mentioned. The amplification of the PCR products was performed in a DNA thermal cycler (BioRad, CA, USA) using the following program for all primer combinations: 94 °C for 10 min (initial denaturation), followed by 40 cycles of [94 °C for 30 s (denaturation), 57 °C for 30 s (annealing), and 72 °C for 25 s (elongation)], and a final elongation at 72 °C for 7 min. A sample containing only water was used as the negative control, whilst a sample containing the A4 plasmid was used as a positive control.
To visualize the PCR products, each sample was mixed with 6X GelRed® Prestain Loading Buffer with Orange Tracking Dye (Biotium, CA, USA), which contained 0.1% (v/v) Orange G tracking dye (ThermoFisher Scientific). The mixtures were loaded onto a 1.5% (w/v) agarose gel (VWR) and 3 uL of 100 bp DNA ladder (NEB, Quick-Load®, MA, USA). The PCR products were separated by running an agarose gel eletrophoresis at 120 V for 50 min and visualizing the result under UV-light (GelDoc, Universal Hood II, BioRad, CA, USA).

3. Results

3.1. Transformation Efficiency of Different Inoculation Methods

Overall, one HR was formed in the direct inoculation ex vitro method, that is, by directly injecting ex vitro seedlings with a liquid culture of R. rhizogenes (Table 2). However, no HRs were observed in the liquid co-culture ex vitro and dipping method, even though a large number of explants were used (900 explants were inoculated for liquid co-culture ex vitro). In the direct inoculation ex vitro method, only one of the seven inoculated seedlings formed HRs, which resulted in a natural transformation efficiency of 14.3%. In addition, two other methods were tested in order to induce and grow HRs in Taxus (Supplementary Files S1 and S2) with no efficiency.

3.2. Direct Inoculation Ex Vitro

When assessed after 2 months of inoculation, putative HRs near the inoculated site were found from the ex vitro seedlings inoculated by the direct injection of a liquid bacterial culture. Both the control and inoculated seedlings grew well under greenhouse conditions, with vegetative growth being observed (Figure 5A). The putative HRs emerged at a lower site than the infected site. The roots from both the control (Figure 5B) and inoculated (Figure 5C) seedlings were harvested for subsequent molecular analysis to confirm whether transformation was successful.

3.3. Liquid Co-Culture Ex Vitro

The ex vitro needle inoculation experiment by liquid co-cultivation was severely affected by contamination. A total of 74% (data not shown) of the needles in the experiment showed contamination, which was seen as bacteria colonies with a yellow coloration surrounding the needles (Figure 6A). No HR formation was observed after one month of culturing the needles on rooting media and a severe discoloration/loss of greenness indicated tissue senescence, hence the experiment was terminated (Figure 6B).

3.4. Dipping Method

The ex vitro shoots inoculated by the dipping method showed no HR formation after two months of being grown under greenhouse conditions (Figure 7). Moreover, the inoculated shoots developed a hard callus-like tissue at the site of inoculation (Figure 7A,B), which was not present on the control shoots (Figure 7C,D). As the shoots had not been sterilized prior to the inoculation, they suffered from fungal contamination as well as mealy bug infection.

3.5. Direct Inoculation In Vitro and Liquid Co-Culture In Vitro (Supplementary Files S1 and S2)

No HR formation was observed from the in vitro shoots inoculated by directly smearing in a solid bacterial culture (Supplementary File S1). These shoots were inoculated and placed directly on the rooting media without a washing step, so signs of bacterial contamination were present since the beginning of the culture (data not shown).
The in vitro seedling inoculation by liquid co-culturing with bacteria (Supplementary File S2) showed no HR formation, even after four months of culturing. The inoculated seedlings developed callus tissue predominantly on the hypocotyl region (Figure 8A), unlike the control seedlings, which developed low or no formation of callus (Figure 8B).

3.6. Molecular Analysis on the Putative HRs from Ex Vitro Seedlings

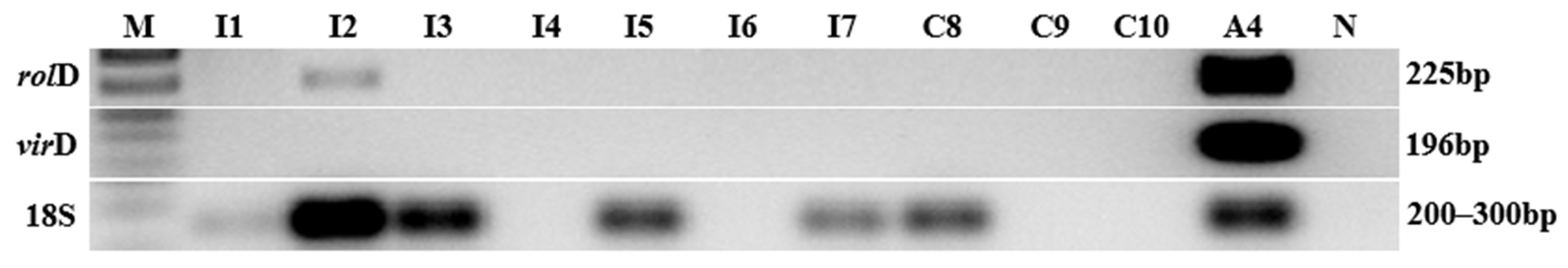

In the PCR analysis (Figure 9), presence of the rolD fragment in sample I2 was observed, while it was absent in the remaining samples and controls. The virD fragment bands were not present in any root samples and controls. An 18S fragment was observed in samples I1, I2, I3, I5, I7, and C8. The A4 samples showed the presence of rolD, 18S, and virD fragments, and none of these fragments in the N sample.
The results confirmed that root harvested from sample I2 was in fact a HR induced by the natural transformation with R. rhizogenes, as it showed the presence of genes (rolD) from the T-DNA of the Ri-plasmid, whilst no signs of bacterial contamination were detected (no presence of virD).

4. Discussion

For sustainable ecological and economic production of paclitaxel, HRCs, a rapidly developing biotechnology, was introduced to replace the direct extraction of paclitaxel from T. baccata, or the synthesis and semi-synthesis of paclitaxel [12,13,14,15,16,17,18,19,20,21,22,23]. Paclitaxel is produced by the induction of HRs generated from T. baccata with methyl jasmonate, which was reported on Taxus x media ‘Hicksii’, increasing the paclitaxel content by 3-fold in this way [48]. Therefore, it is pivotal to produce HRs through the transformation of T. baccata with R. rhizogenes.
In the current study, the A4 strain of R. rhizogenes was used for the inoculation. This strain has previously been pursued to transform T. brevifolia and T. cuspidate [45,46], although both attempts were unsuccessful. Since HRs from ex vitro seedlings were formed in the current study (Figure 5), it has been proven that the A4 strain can in fact transform Taxus spp., and more specifically, T. baccata, although the efficiency of the infection appears to be low. This is the first study describing the successful transformation of any Taxus spp. using the R. rhizogenes A4 strain.
During this study, HRs formed in the direct inoculation ex vitro method. More specifically, HRs were produced by directly injecting ex vitro seedlings of T. baccata with a liquid bacterial culture. Several other inoculation strategies were also investigated, involving other tissues such as shoots and needles as well as other inoculation methods such as the liquid co-culture ex vitro, dipping method, direct inoculation in vitro, and liquid co-culture in vitro. However, no HRs were observed. The direct inoculation ex vitro method successfully induced HRs with a transformation efficiency of 14.3% (Table 2). Direct infection methods have been used to successfully transform T. x media var. hicksii and T. cuspidate [45,48]. However, there are no reports of T. baccata tissue having been successfully transformed before the present work. Therefore, according to current knowledge, this is the first report of the successful transformation of T. baccata with R. rhizogenes that resulted in HR formation. Furthermore, there are no reports of Taxus spp. having been successfully transformed with R. rhizogenes in ex vitro conditions before, since natural transformation of Taxus spp. has always been conducted in vitro with plant material obtained from plants germinated by embryo rescue.
Different forms of the liquid co-culture method have been used over the years to induce HR formation in T. brevifolia, T. cuspidata, T. sumatrana, and T. baccata ssp. Wallichiana [45,46,47,50,58]. In this study, needles were inoculated by the liquid co-culture ex vitro method, although no HR formation was observed. The needles were subjected to a heat and centrifugation treatment during inoculation. This methodology was used by Sahai and Sinha [50], who obtained a 13% transformation efficiency. Centrifugation and heat treatments during infection with A. tumefaciens have been reported for embryogenic cell suspensions of banana (Musa spp.), and for immature embryos of Oryza sativa and Zea mays [53,54]. The protocol for the inoculation of needles by the liquid co-culture ex vitro method with the heat and centrifugation treatments was based on these two reports. Heat shock treatments are commonly used to make the tissue more permeable and susceptible to transformation. However, gravity-based treatments such as centrifugation are not as common and are less understood. Khanna et al. [54] proposed that centrifugation increased the contact between the suspended cells of banana and cells from R. rhizogenes. On the other hand, Hiei et al. [53] observed that centrifugation of rice embryos inhibited shoot elongation and promoted callus development, and therefore proposed that centrifugation negatively affects normal cell differentiation and organ development and promotes undifferentiated plant cell growth. It is more likely that the mechanism explained by the hypothesis of Hiei et al. [53] would be the one that would apply to the needles of Taxus spp., potentially increasing the transformation efficiency of the inoculation. Unfortunately, the needle cultures were extremely contaminated (Figure 6A). It was expected that the surface sterilization procedure would not be enough to completely sterilize the needle explants. Additionally, the endophytic fungi present in Taxus spp. are usually isolated after the plant samples are surface sterilized, indicating that surface sterilization is not enough to completely sterilize the explants [59,60].
The dipping method is unlike the liquid co-cultivation method in the sense that the explant is not completely submerged in the culture media. Although other studies such as Kim et al. [45] and Sahai and Sinha [50] have reported dipping methods for inoculation, these were not comparable to the dipping methods described during this study, as they simply consisted of submerging the explant for a short amount of time in the liquid culture of R. rhizogenes. For the dipping method in the present work, ex vitro shoots were the selected explant and were inoculated overnight by only submerging the shoot tip, ca. 1 cm. After inoculation, shoots were planted in pots and grown under greenhouse conditions similar to those of the ex vitro seedlings, which successfully formed HRs (Figure 7). As the shoots were not sterilized, signs of fungal and mealy bug contamination were detected in both cases. Nevertheless, callus still developed on the inoculated shoots (Figure 7B). Other studies showed that Rubia cordifolia formed callus after the transformation of rolB [61,62]. Similarly, Chen et al. [63] stated that calli were formed on hypocotyls of soybean inoculated with R. rhizogenes. In addition, HRs were not produced if the callus did not form [63], which was different from the present experiment because only the callus formed and no HR was subsequently generated.
The direct inoculation ex vitro method of seedlings described in the current work was based on the research of Nguyen and Searle [52]. However, liquid culture was used as an inoculum instead of a solid culture of R. rhizogenes. When assessed after 2 months of inoculation, HRs were found. The position of the root formation was different from the inoculation site (Figure 5). This might have been because a liquid culture was used as the inoculum, and therefore might be able to travel through the stem tissues after it injected with a syringe. The transformation was confirmed to have been successful for root sample I2, of which the presence of rolD was confirmed by PCR analysis (Figure 9).
Although the formation of HR was confirmed, no in vitro HR culture could be established because the experiment was performed ex vitro, and the seedlings were therefore unsterilized. Surface sterilization procedures would either destroy the root tissue, or be ineffective, most likely leading to endophytic fungi contamination after the roots were cultured in vitro. An alternative strategy would be to repeat the experiment using in vitro germinated seedlings from embryo rescue (He, J. unpublished data), and use autoclaved peat and vermiculite as the substrate. If the transformation was again successful, there would be no need for complicated sterilization procedures before establishing the HRCs.

5. Conclusions

In the present study, HR formation of T. baccata was successfully achieved by natural transformation using the R. rhizogenes A4 strain, with a transformation efficiency of 14.3% generating one HR. This breakthrough finding revealed for the first time that the R. rhizogenes A4 strain is in fact capable of transforming Taxus spp., which paves the way for establishing a platform for producing paclitaxel. Additionally, it also closes the knowledge gap that T. baccata is susceptible to transformation with R. rhizogenes, which had not been previously reported.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/horticulturae9010004/s1, Supplemental File S1: Direct inoculation in vitro: in vitro shoot inoculation by directly inoculating with solid bacterial culture; Supplemental File S2: Liquid co-culture in vitro: in vitro seedling inoculation by liquid co-culture with bacteria.

Author Contributions

J.H.: Data curation, formal analysis, investigation, methodology, visualization, writing—original draft, writing—review & editing. J.P.A.P.: Data curation, formal analysis, investigation, methodology, visualization, writing—original draft, writing—review & editing. I.P.: Conceptualization, funding acquisition, project administration, writing—review & editing. S.K.: Conceptualization, funding acquisition, methodology, project administration, writing—review & editing. B.T.F.: Conceptualization, data curation, formal analysis, funding acquisition, investigation, methodology, supervision, visualization, writing—review & editing. H.L.: Conceptualization, formal analysis, funding acquisition, investigation, methodology, supervision, writing—review & editing. All authors have read and agreed to the published version of the manuscript.

Funding

JH reports the financial support provided by the China Scholarship Council (PhD grant no. 201906760024). BTF and HL report the financial support provided by Independent Research Fund Denmark Technology and Production (grant no. 0136-00410B).

Funding

JH reports the financial support provided by the China Scholarship Council (PhD grant no. 201906760024). BTF and HL report the financial support provided by Independent Research Fund Denmark Technology and Production (grant no. 0136-00410B).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. DeLong, J.; Prange, R. Taxus spp.: Botany, Horticulture, and Source of Anti-Cancer Compounds. Hortic. Rev. 2010, 32, 299–327. [Google Scholar]
  2. Wani, M.C.; Taylor, H.L.; Wall, M.E.; Coggon, P.; McPhail, A.T. Plant antitumor agents. VI. The Isolation and structure of taxol, a novel antileukemic and antitumor agent from Taxus brevifolia. J. Am. Chem. Soc. 1971, 93, 2325–2327. [Google Scholar] [CrossRef]
  3. Cragg, G.M.; Boyd, M.R.; CardellinaIi, J.H.; Newman, D.J.; Snader, K.M.; McCloud, T.G. Ethnobotany and Drug Discovery: The Expe-rience of the US National Cancer Institute. In Ciba Foundation Symposium 185—Ethnobotany and the Search for New Drugs; Chadwick, D.J., Marsh, J., Eds.; Wiley: New York, NY, USA, 2007; pp. 178–196. [Google Scholar]
  4. Arnst, J. When Taxol met tubulin. J. Biol. Chem. 2020, 295, 13994–13995. [Google Scholar] [CrossRef] [PubMed]
  5. Rowinsky, E.K.; Donehower, R.C. Paclitaxel (Taxol). N. Engl. J. Med. 1995, 332, 1004–1014. [Google Scholar] [CrossRef] [PubMed]
  6. Gallego-Jara, J.; Lozano-Terol, G.; Sola-Martínez, R.A.; Cánovas-Díaz, M.; de Diego Puente, T. A Compressive Review about Taxol®: History and Future Challenges. Molecules 2020, 25, 5986. [Google Scholar] [CrossRef] [PubMed]
  7. Schiff, P.B.; Fant, J.; Horwitz, S.B. Promotion of microtubule assembly in vitro by taxol. Nature 1979, 277, 665–667. [Google Scholar] [CrossRef]
  8. Schiff, P.B.; Horwitz, S.B. Taxol stabilizes microtubules in mouse fibroblast cells. Proc. Natl. Acad. Sci. USA 1980, 77, 1561–1565. [Google Scholar] [CrossRef] [Green Version]
  9. De Brabander, M.; Geuens, G.; Nuydens, R.; Willebrords, R.; De Mey, J. Taxol induces the assembly of free microtubules in living cells and blocks the organizing capacity of the centrosomes and kinetochores. Proc. Natl. Acad. Sci. USA 1981, 78, 5608–5612. [Google Scholar] [CrossRef] [Green Version]
  10. Manfredi, J.J.; Parness, J.; Horwitz, S.B. Taxol binds to cellular microtubules. J. Cell Biol. 1982, 94, 688–696. [Google Scholar] [CrossRef] [Green Version]
  11. Horwitz, S.B. How to make taxol from scratch. Nature 1994, 367, 593–594. [Google Scholar] [CrossRef]
  12. Vidensek, N.; Lim, P.; Campbell, A.; Carlson, C. Taxol Content in Bark, Wood, Root, Leaf, Twig, and Seedling from Several Taxus Species. J. Nat. Prod. 1990, 53, 1609–1610. [Google Scholar] [CrossRef] [PubMed]
  13. Witherup, K.M.; Look, S.A.; Stasko, M.W.; Ghiorzi, T.J.; Muschik, G.M.; Cragg, G.M. Taxus spp. needles contain amounts of taxol com-parable to the bark of Taxus brevifolia: Analysis and isolation. J. Nat. Prod. 1990, 53, 1249–1255. [Google Scholar] [CrossRef] [PubMed]
  14. Holton, R.A.; Kim, H.B.; Somoza, C.; Liang, F.; Biediger, R.J.; Boatman, P.D.; Shindo, M.; Smith, C.C.; Kim, S. First total synthesis of taxol. 2. Completion of the C and D rings. J. Am. Chem. Soc. 1994, 116, 1599–1600. [Google Scholar] [CrossRef]
  15. Holton, R.A.; Somoza, C.; Kim, H.B.; Liang, F.; Biediger, R.J.; Boatman, P.D.; Shindo, M.; Smith, C.C.; Kim, S. First total synthesis of taxol. 1. Functionalization of the B ring. J. Am. Chem. Soc. 1994, 116, 1597–1598. [Google Scholar] [CrossRef]
  16. Nicolaou, K.C.; Yang, Z.; Liu, J.J.; Ueno, H.; Nantermet, P.G.; Guy, R.K.; Claiborne, C.F.; Renaud, J.; Couladouros, E.A.; Paulvannan, K.; et al. Total synthesis of taxol. Nature 1994, 367, 630–634. [Google Scholar] [CrossRef]
  17. Nicolaou, K.C.; Ueno, H.; Liu, J.-J.; Nantermet, P.G.; Yang, Z.; Renaud, J.; Paulvannan, K.; Chadha, R. Total Synthesis of Taxol. 4. The Final Stages and Completion of the Synthesis. J. Am. Chem. Soc. 1995, 117, 653–659. [Google Scholar] [CrossRef]
  18. Hezari, M.; Croteau, R. Taxol Biosynthesis: An Update. Planta Medica 1997, 63, 291–295. [Google Scholar] [CrossRef] [Green Version]
  19. Mangatal, L.; Adeline, M.-T.; Guénard, D.; Guéritte-Voegelein, F.; Potier, P. Application of the vicinal oxyamination reaction with asymmetric induction to the hemisynthesis of taxol and analogues. Tetrahedron 1989, 45, 4177–4190. [Google Scholar] [CrossRef]
  20. Colin, M.; Guenard, D.; Gueritte-Voegelein, F.; Pierre, P. Dérivés du Taxol, Leur Préparation et Les Compositions Pharmaceutiques Qui Les Contiennent. U.S. Patent EP0253738A1, 31 January 1990. [Google Scholar]
  21. Guenard, D.; Gueritte-Voegelein, F.; Potier, P. Taxol and taxotere: Discovery, chemistry, and structure-activity relationships. Ac-Counts Chem. Res. 1993, 26, 160–167. [Google Scholar] [CrossRef]
  22. Rao, K.V. Process for the Preparation of Taxol and 10-Deacetyltaxol. U.S. Patent US5200534A, 6 April 1993. [Google Scholar]
  23. Jaziri, M.; Zhiri, A.; Guo, Y.-W.; Dupont, J.-P.; Shimomura, K.; Hamada, H.; Vanhaelen, M.; Homès, J. Taxus sp. cell, tissue and organ cultures as alternative sources for taxoids production: A literature survey. Plant Cell Tissue Organ Cult. (PCTOC) 1996, 46, 59–75. [Google Scholar] [CrossRef]
  24. Xu, H.; Kim, Y.-K.; Suh, S.-Y.; Uddin, M.R.; Lee, S.-Y.; Park, S.-U. Decursin Production from Hairy Root Culture of Angelica gigas. J. Korean Soc. Appl. Biol. Chem. 2008, 51, 349–351. [Google Scholar] [CrossRef]
  25. Intrieri, M.C.; Buiatti, M. The Horizontal Transfer of Agrobacterium rhizogenes Genes and the Evolution of the Genus Nicotiana. Mol. Phylogenetics Evol. 2001, 20, 100–110. [Google Scholar] [CrossRef]
  26. European-Union. Directive 2001/18/EC of the European Parliament and of the Council of 12 March 2001 on the Deliberate Release into the Environment of Genetically Modified Organisms and Repealing Council Directive 90/220/EEC-Commission Dec-Laration; European-Union: Brussels, Belgium, 2001.
  27. Mishiba, K.-I.; Nishihara, M.; Abe, Y.; Nakatsuka, T.; Kawamura, H.; Kodama, K.; Takesawa, T.; Abe, J.; Yamamura, S. Production of dwarf potted gentian using wild-type Agrobacterium rhizogenes. Plant Biotechnol. 2006, 23, 33–38. [Google Scholar] [CrossRef] [Green Version]
  28. Matveeva, T.V.; Bogomaz, D.I.; Pavlova, O.A.; Nester, E.W.; Lutova, L.A. Horizontal Gene Transfer from Genus Agrobacterium to the Plant Linaria in Nature. Mol. Plant-Microbe Interactions® 2012, 25, 1542–1551. [Google Scholar] [CrossRef] [Green Version]
  29. Lütken, H.; Clarke, J.L.; Müller, R. Genetic engineering and sustainable production of ornamentals: Current status and future directions. Plant Cell Rep. 2012, 31, 1141–1157. [Google Scholar] [CrossRef]
  30. Tepfer, D. Genetic transformation using Agrobacterium rhizogenes. Physiol. Plant. 1990, 79, 140–146. [Google Scholar] [CrossRef]
  31. White, F.F.; Nester, E.W. Hairy root: Plasmid encodes virulence traits in Agrobacterium rhizogenes. J. Bacteriol. 1980, 141, 1134–1141. [Google Scholar] [CrossRef] [Green Version]
  32. Bosmans, L.; Moerkens, R.; Wittemans, L.; De Mot, R.; Rediers, H.; Lievens, B. Rhizogenic agrobacteria in hydroponic crops: Epidemics, diagnostics and control. Plant Pathol. 2017, 66, 1043–1053. [Google Scholar] [CrossRef]
  33. Chilton, M.-D.; Tepfer, D.A.; Petit, A.; David, C.; Casse-Delbart, F.; Tempé, J. Agrobacterium rhizogenes inserts T-DNA into the ge-nomes of the host plant root cells. Nature 1982, 295, 432–434. [Google Scholar] [CrossRef]
  34. White, F.F.; Ghidossi, G.; Gordon, M.P.; Nester, E.W. Tumor induction by Agrobacterium rhizogenes involves the transfer of plasmid DNA to the plant genome. Proc. Natl. Acad. Sci. USA 1982, 79, 3193–3197. [Google Scholar] [CrossRef] [Green Version]
  35. White, F.F.; Taylor, B.H.; A Huffman, G.; Gordon, M.P.; Nester, E.W. Molecular and genetic analysis of the transferred DNA regions of the root-inducing plasmid of Agrobacterium rhizogenes. J. Bacteriol. 1985, 164, 33–44. [Google Scholar] [CrossRef] [PubMed]
  36. Slightom, J.L.; Durand-Tardif, M.; Jouanin, L.; Tepfer, D. Nucleotide sequence analysis of TL-DNA of Agrobacterium rhizogenes agropine type plasmid. Identification of open reading frames. J. Biol. Chem. 1986, 261, 108–121. [Google Scholar] [CrossRef] [PubMed]
  37. Casanova, E.; Trillas, M.I.; Moysset, L.; Vainstein, A. Influence of rol genes in floriculture. Biotechnol. Adv. 2005, 23, 3–39. [Google Scholar] [CrossRef] [PubMed]
  38. Desmet, S.; Dhooghe, E.; De Keyser, E.; Van Huylenbroeck, J.; Muller, R.; Geelen, D.; Lutken, H. Rhizogenic agrobacteria as an inno-vative tool for plant breeding: Current achievements and limitations. Appl. Microbiol. Biotechnol. 2020, 104, 2435–2451. [Google Scholar] [CrossRef]
  39. Vladimirov, I.A.; Matveeva, T.V.; Lutova, L.A. Opine biosynthesis and catabolism genes of Agrobacterium tumefaciens and Agro-bacterium rhizogenes. Russ J. Genet. 2015, 51, 121–129. [Google Scholar] [CrossRef]
  40. A Huffman, G.; White, F.F.; Gordon, M.P.; Nester, E.W. Hairy-root-inducing plasmid: Physical map and homology to tumor-inducing plasmids. J. Bacteriol. 1984, 157, 269–276. [Google Scholar] [CrossRef] [Green Version]
  41. Jouanin, L. Restriction map of an agropine-type Ri plasmid and its homologies with Ti plasmids. Plasmid 1984, 12, 91–102. [Google Scholar] [CrossRef]
  42. Camilleri, C.; Jouanin, L. The TR-DNA region carrying the auxin synthesis genes of the Agrobacterium rhizogenes agropine-type plasmid pRiA4: Nucleotide sequence analysis and introduction into tobacco plants. Mol. Plant-Microbe Interact. MPMI 1991, 4, 155–162. [Google Scholar] [CrossRef]
  43. Rangslang, R.K.; Liu, Z.; Lütken, H.; Favero, B.T. Agrobacterium spp. genes and ORFs: Mechanisms and applications in plant science. Ciência e Agrotecnol. 2018, 42, 453–463. [Google Scholar] [CrossRef]
  44. Hooykaas, P.; Hofker, M.; Dulk-Ras, H.D.; Schilperoort, R. A comparison of virulence determinants in an octopine Ti plasmid, a nopaline Ti plasmid, and an Ri plasmid by complementation analysis of Agrobacterium tumefaciens mutants. Plasmid 1984, 11, 195–205. [Google Scholar] [CrossRef]
  45. Kim, J.A.; Baek, K.H.; Son, Y.M.; Son, S.H.; Shin, H. Hairy Root Cultures of Taxus cuspidata for Enhanced Production of Paclitaxel. J. Korean Soc. Appl. Biol. Chem. 2009, 52, 144–150. [Google Scholar] [CrossRef]
  46. Plaut-Carcasson, Y.Y. Plant Tissue Culture Method for Taxol Production. U.S. Patent WO1994020606A1, 15 September 1994. [Google Scholar]
  47. Huang, Z.; Mu, Y.; Zhou, Y.; Chen, W.; Xu, K.; Yu, Z.; Bian, Y.; Yang, G. Transformation of Taxas brevifolia by Agrobacterium rhizogenes and taxol production in hairy roots culture. Acta Bot. Yunnanica 1997, 19, 292–296. [Google Scholar]
  48. Furmanowa, M.; Sykłowska-Baranek, K. Hairy root cultures of Taxus × media var. Hicksii Rehd. as a new source of paclitaxel and 10-deacetylbaccatin III. Biotechnol. Lett. 2000, 22, 683–686. [Google Scholar] [CrossRef]
  49. Spjut, R.W. Taxonomy and Nomenclature of Taxus (Taxaceae). J. Bot. Res. Inst. Tex. 2007, 1, 203–289. [Google Scholar]
  50. Sahai, P.; Sinha, V.B. Development of hairy root culture in Taxus baccata sub sp wallichiana as an alternative for increased Taxol production. Mater. Today Proc. 2021, 49, 3443–3448. [Google Scholar] [CrossRef]
  51. Tepfer, M.; Casse-Delbart, F. Agrobacterium rhizogenes as a vector for transforming higher plants. Microbiol. Sci. 1987, 4, 24–28. [Google Scholar]
  52. Nguyen, V.; Searle, I.R. An Efficient Root Transformation System for Recalcitrant Vicia sativa. Front. Plant Sci. 2022, 12, 781014. [Google Scholar] [CrossRef]
  53. Hiei, Y.; Ishida, Y.; Kasaoka, K.; Komari, T. Improved frequency of transformation in rice and maize by treatment of immature embryos with centrifugation and heat prior to infection with Agrobacterium tumefaciens. Plant Cell Tissue Organ Cult. (PCTOC) 2006, 87, 233–243. [Google Scholar] [CrossRef]
  54. Khanna, H.; Becker, D.; Kleidon, J.; Dale, J. Centrifugation Assisted Agrobacterium tumefaciens-mediated Transformation (CAAT) of embryogenic cell suspensions of banana (Musa spp. Cavendish AAA and Lady finger AAB). Mol. Breed. 2004, 14, 239–252. [Google Scholar] [CrossRef]
  55. Murashige, T.; Skoog, F. A Revised Medium for Rapid Growth and Bioassays with Tobacco Tissue Cultures. Physiol. Plant. 1962, 15, 473–497. [Google Scholar] [CrossRef]
  56. Lütken, H.; Jensen, E.; Wallström, S.; Muller, R.; Christensen, B. Development and evaluation of a non-gmo breeding technique exemplified by kalanchoë. Acta Hortic. 2012, 961, 51–58. [Google Scholar] [CrossRef]
  57. Topp, S.H.; Rasmussen, S.K.; Sander, L. Alcohol induced silencing of gibberellin 20-oxidases in Kalanchoe blossfeldiana. Plant Cell Tissue Organ Cult. (PCTOC) 2008, 93, 241–248. [Google Scholar] [CrossRef]
  58. Chang, S.; Chen, F.; Chen, Y.; Tsay, J.; Chen, J.; Huang, C.; Lu, W.; Ho, C. Induction, culture, and taxane production of crown galls and hairy roots of Taxus sumatrana (Miq) de Laub. Taiwan J. For. Sci. 2017, 32, 283–297. [Google Scholar]
  59. Liu, K.; Ding, X.; Deng, B.; Chen, W. Isolation and characterization of endophytic taxol-producing fungi from Taxus chinensis. J. Ind. Microbiol. Biotechnol. 2009, 36, 1171–1177. [Google Scholar] [CrossRef] [PubMed]
  60. Sreekanth, D.; Sushim, G.; Syed, A.; Khan, B.; Ahmad, A. Molecular and Morphological Characterization of a Taxol-Producing Endophytic Fungus, Gliocladium sp., from Taxus baccata. Mycobiology 2011, 39, 151–157. [Google Scholar] [CrossRef] [PubMed]
  61. Bulgakov, V.P.; Shkryl, Y.N.; Veremeichik, G.N. Engineering High Yields of Secondary Metabolites in Rubia Cell Cultures Through Transformation with Rol Genes; Humana Press: Totowa, NJ, USA, 2010; pp. 229–242. [Google Scholar]
  62. Shkryl, Y.; Veremeichik, G.; Bulgakov, V.; Avramenko, T.; Günter, E.; Ovodov, Y.; Muzarok, T.; Zhuravlev, Y. The production of class III plant peroxidases in transgenic callus cultures transformed with the rolB gene of Agrobacterium rhizogenes. J. Biotechnol. 2013, 168, 64–70. [Google Scholar] [CrossRef] [PubMed]
  63. Chen, L.; Cai, Y.; Liu, X.; Guo, C.; Sun, S.; Wu, C.; Jiang, B.; Han, T.; Hou, W. Soybean hairy roots produced in vitro by Agrobacterium rhizogenes-mediated transformation. Crop. J. 2018, 6, 162–171. [Google Scholar] [CrossRef]
Horticulturae 09 00004 g001 550
Figure 1. Plant material obtained from wild T. baccata seedlings and domesticated trees. (A) T. baccata seedling collected from a garden; (B) T. baccata branch collected from a garden. The white circle surrounding the sample of plant material selected for the preparation of both the shoot and needles. (C) Specimen of a young shoot explant. (D) Specimen of a young shoot explant after discarding the needles from approximately 3 cm from shoot base. (E) Adaxial side of a needle selected as an explant. (F) Abaxial side of a needle selected as an explant. Both sides of the needle were green and free of contamination. Bars = 1 cm.
Figure 1. Plant material obtained from wild T. baccata seedlings and domesticated trees. (A) T. baccata seedling collected from a garden; (B) T. baccata branch collected from a garden. The white circle surrounding the sample of plant material selected for the preparation of both the shoot and needles. (C) Specimen of a young shoot explant. (D) Specimen of a young shoot explant after discarding the needles from approximately 3 cm from shoot base. (E) Adaxial side of a needle selected as an explant. (F) Abaxial side of a needle selected as an explant. Both sides of the needle were green and free of contamination. Bars = 1 cm.
Horticulturae 09 00004 g001
Horticulturae 09 00004 g002 550

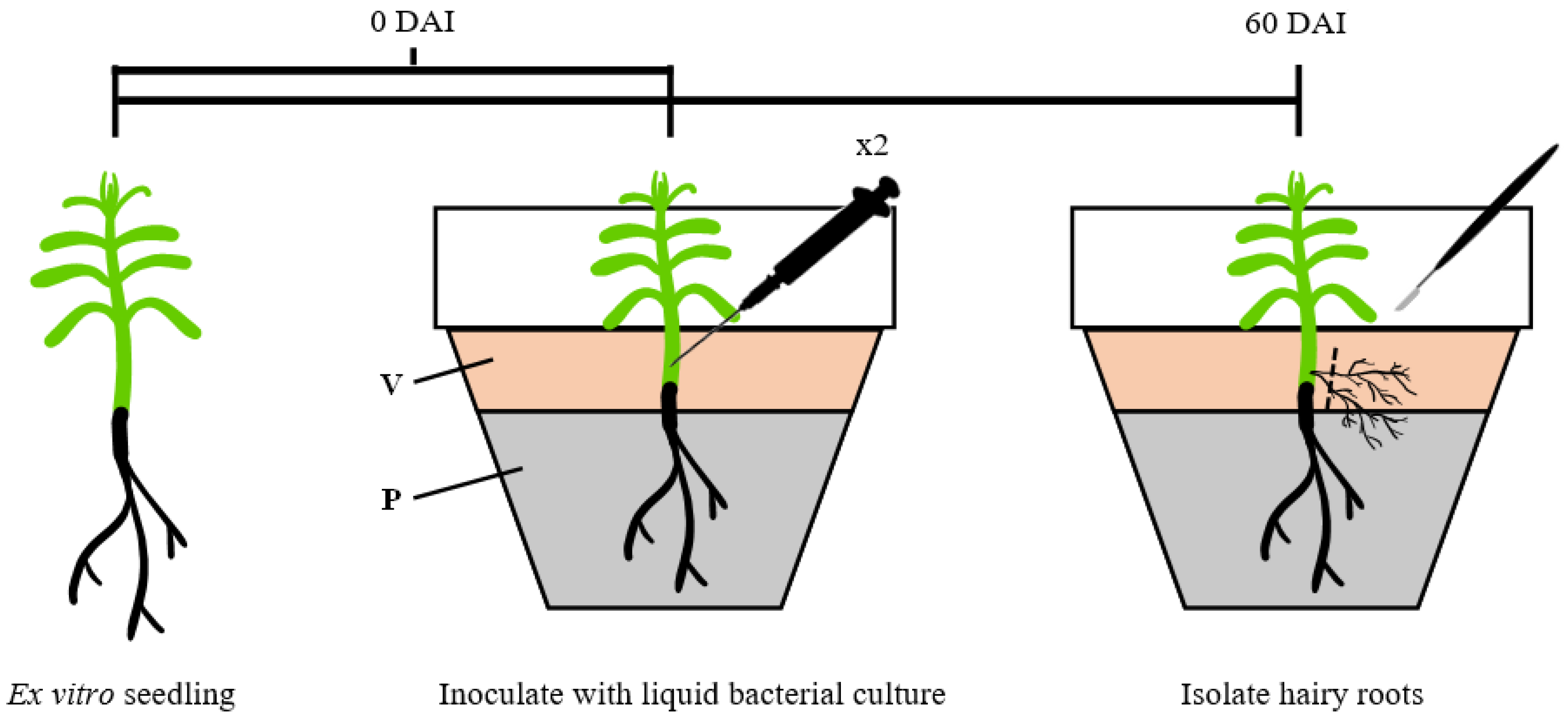

Figure 2. Schematic representation of the inoculation of ex vitro seedlings by the direct inoculation method. DAI: days after inoculation; V: vermiculite; P: peat.
Figure 2. Schematic representation of the inoculation of ex vitro seedlings by the direct inoculation method. DAI: days after inoculation; V: vermiculite; P: peat.
Horticulturae 09 00004 g002
Horticulturae 09 00004 g003 550

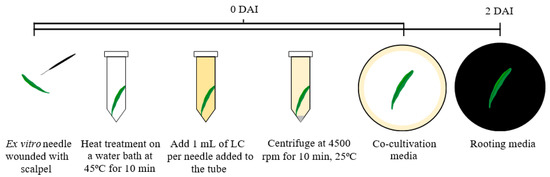

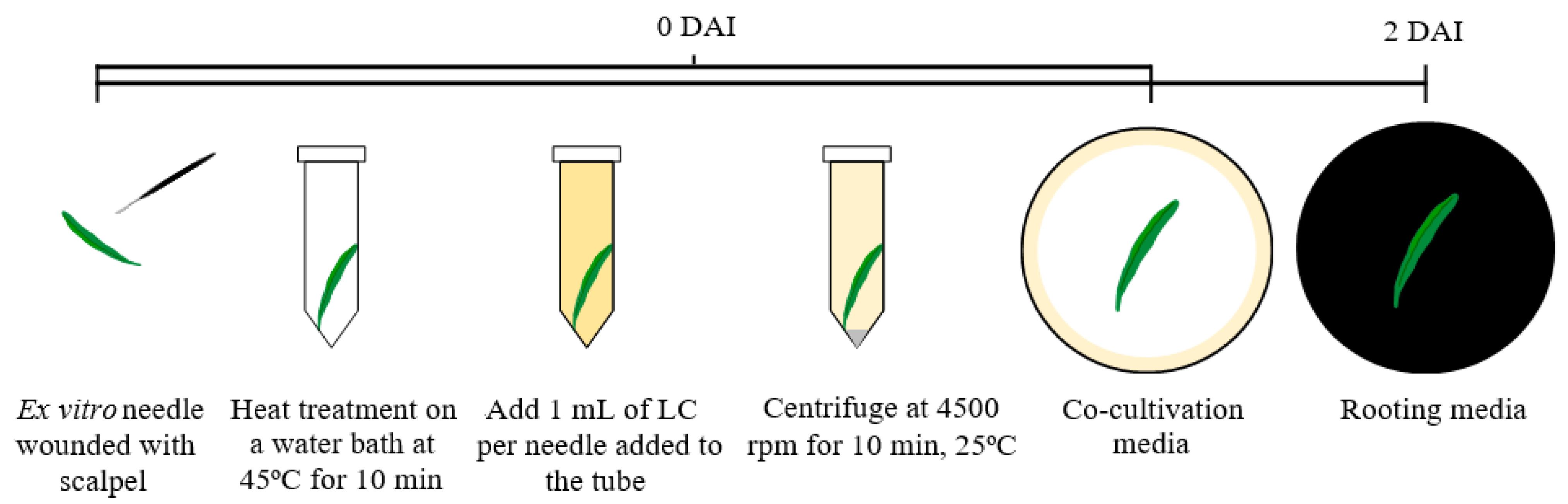

Figure 3. Schematic representation of the inoculation of ex vitro needles by the liquid co-culture method. DAI: days after infection; LC: liquid culture of R. rhizogenes.
Figure 3. Schematic representation of the inoculation of ex vitro needles by the liquid co-culture method. DAI: days after infection; LC: liquid culture of R. rhizogenes.
Horticulturae 09 00004 g003
Horticulturae 09 00004 g004 550

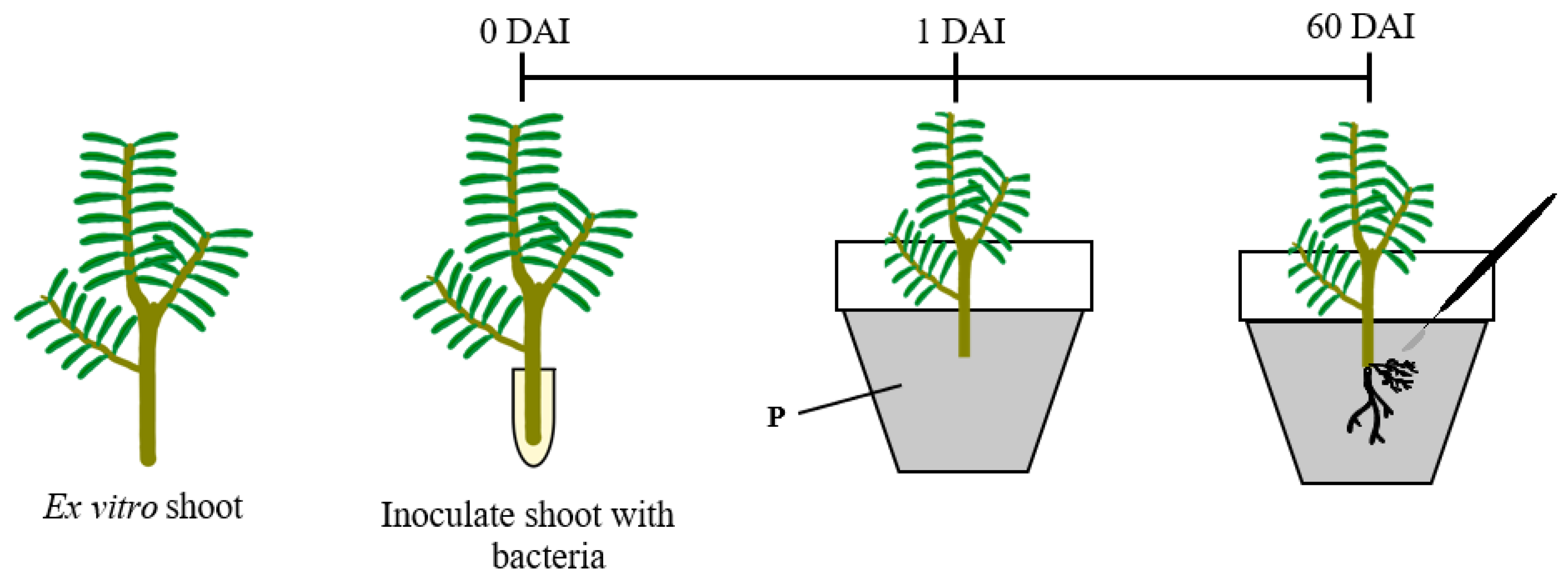

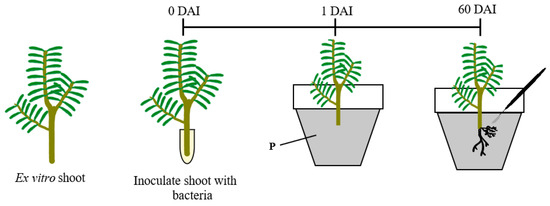

Figure 4. Schematic representation of the inoculation of ex vitro shoots by the dipping method. DAI: days after infection.
Figure 4. Schematic representation of the inoculation of ex vitro shoots by the dipping method. DAI: days after infection.
Horticulturae 09 00004 g004
Horticulturae 09 00004 g005 550
Figure 5. Seedlings inoculated by the direct inoculation ex vitro method after 2 months of inoculation. (A) Inoculated seedling grown in the greenhouse. (B) Control seedling. (C) Inoculated seedling; Black arrows indicate the inoculation site, while orange arrows indicate the highest protruding site of the formed roots. Bar = 1.5 cm for (A), and bars = 1.0 cm for (B,C).
Figure 5. Seedlings inoculated by the direct inoculation ex vitro method after 2 months of inoculation. (A) Inoculated seedling grown in the greenhouse. (B) Control seedling. (C) Inoculated seedling; Black arrows indicate the inoculation site, while orange arrows indicate the highest protruding site of the formed roots. Bar = 1.5 cm for (A), and bars = 1.0 cm for (B,C).
Horticulturae 09 00004 g005
Horticulturae 09 00004 g006 550
Figure 6. Needles inoculated by the liquid co-culture ex vitro method. (A) Contaminated needle. (B) Uncontaminated needle after 28 days of inoculation. Bars = 1.0 cm.
Figure 6. Needles inoculated by the liquid co-culture ex vitro method. (A) Contaminated needle. (B) Uncontaminated needle after 28 days of inoculation. Bars = 1.0 cm.
Horticulturae 09 00004 g006
Horticulturae 09 00004 g007 550
Figure 7. Ex vitro shoots inoculated by the dipping method after 2 months of inoculation. (A) Inoculated shoot. (B) Hard callus-like tissue on the inoculation site of the inoculated shoot. (C) Control shoot. (D) Inoculation site of the control shoot. Bars = 1.0 cm for (A,C), and bars = 0.5 cm for (B,D).
Figure 7. Ex vitro shoots inoculated by the dipping method after 2 months of inoculation. (A) Inoculated shoot. (B) Hard callus-like tissue on the inoculation site of the inoculated shoot. (C) Control shoot. (D) Inoculation site of the control shoot. Bars = 1.0 cm for (A,C), and bars = 0.5 cm for (B,D).
Horticulturae 09 00004 g007
Horticulturae 09 00004 g008 550
Figure 8. Seedlings inoculated by the liquid co-culture in vitro method after 28 days of inoculation. (A) Inoculated seedling. (B) Control seedling. Bars = 1.0 cm.
Figure 8. Seedlings inoculated by the liquid co-culture in vitro method after 28 days of inoculation. (A) Inoculated seedling. (B) Control seedling. Bars = 1.0 cm.
Horticulturae 09 00004 g008
Horticulturae 09 00004 g009 550
Figure 9. Molecular analysis from the root samples. PCR using rolD, virD, and 18S primer sets; Length of the PCR products are shown; M: 100 bp DNA ladder; I1–7: root samples extracted from inoculated seedlings; C8–10: root samples extracted from control seedlings; A4: positive control with DNA from the A4 strain of R. rhizogenes; N: negative control with water.
Figure 9. Molecular analysis from the root samples. PCR using rolD, virD, and 18S primer sets; Length of the PCR products are shown; M: 100 bp DNA ladder; I1–7: root samples extracted from inoculated seedlings; C8–10: root samples extracted from control seedlings; A4: positive control with DNA from the A4 strain of R. rhizogenes; N: negative control with water.
Horticulturae 09 00004 g009
Table
Table 1. List of primers targeting fragments of rolD, virD, and 18S.
Table 1. List of primers targeting fragments of rolD, virD, and 18S.
TargetOrientationSequenceAmplicon SizeReference
rolDForward5’-GCGAAGTGGATGTCTTTGGT-3’225 bpLütken et al. [56]
Reverse5’-TTGCGAGGTACACTGGACTG-3’
rolDForward5’-CTGAATTACGACGCCTTGCG-3’196 bpDesigned with Primer-BLAST using the accession X12867.1 position: 2855.
Reverse5’-TGCGATGACGACTGTTCCAA-3’
18SForward5’-CGGCTACCACATCCAAGGAA-3’unknownTopp et al. [57]
Reverse5’-GCTGGAATTACCGCGGCT-3’
Table
Table 2. Transformation efficiency of different inoculation methods.
Table 2. Transformation efficiency of different inoculation methods.
Inoculation MethodNumber of Inoculated ExplantsNumber of Hairy Roots FormedTransformation Efficiency
Direct inoculation ex vitro7114.3%
Liquid co-culture ex vitro90000
Dipping2000
Direct inoculation in vitro2000
Liquid co-culture in vitro1800
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

He, J.; Plácido, J.P.A.; Pateraki, I.; Kampranis, S.; Favero, B.T.; Lütken, H. Hairy Root Induction of Taxus baccata L. by Natural Transformation with Rhizobium rhizogenes. Horticulturae 2023, 9, 4. https://doi.org/10.3390/horticulturae9010004

AMA Style

He J, Plácido JPA, Pateraki I, Kampranis S, Favero BT, Lütken H. Hairy Root Induction of Taxus baccata L. by Natural Transformation with Rhizobium rhizogenes. Horticulturae. 2023; 9(1):4. https://doi.org/10.3390/horticulturae9010004

Chicago/Turabian Style

He, Junou, João Paulo Alves Plácido, Irini Pateraki, Sotirios Kampranis, Bruno Trevenzoli Favero, and Henrik Lütken. 2023. "Hairy Root Induction of Taxus baccata L. by Natural Transformation with Rhizobium rhizogenes" Horticulturae 9, no. 1: 4. https://doi.org/10.3390/horticulturae9010004

APA Style

He, J., Plácido, J. P. A., Pateraki, I., Kampranis, S., Favero, B. T., & Lütken, H. (2023). Hairy Root Induction of Taxus baccata L. by Natural Transformation with Rhizobium rhizogenes. Horticulturae, 9(1), 4. https://doi.org/10.3390/horticulturae9010004

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
