Genome-Wide Analyses of Tea Plant Stress-Associated Proteins (SAPs) Reveal the Role of CsSAP12 in Increased Drought Tolerance in Transgenic Tomatoes

by
Shu-Chen Fan
1,†,
Chun Li
1,†,
Shao-Hua Li
1,
Jie Tang
1,
Hong-Di Shi
1,
Tian-Ming Yang
1,2,
Ming-Zhi Liang
2,* and
Dan-Dan Liu
1,*
1
School of Agriculture, Yunnan University, Kunming 650091, China
2
Yunnan Provincial Key Laboratory of Tea Science, Institute of Tea, Yunnan Academy of Sciences, Menghai 666201, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Horticulturae 2022, 8(5), 363; https://doi.org/10.3390/horticulturae8050363
Submission received: 7 March 2022 / Revised: 16 April 2022 / Accepted: 20 April 2022 / Published: 21 April 2022
(This article belongs to the Topic Physiological and Molecular Characterization of Crop Tolerance to Abiotic Stresses)
Browse Figures
Review Reports Versions Notes

Abstract

:
Plant stress-associated proteins (SAPs) contain A20/AN1 zinc finger domains and are involved in plant response to abiotic stresses. In this study, we aimed to explore the biological function of tea plant CsSAPs. A total of 14 CsSAP genes were identified in the tea plant genome using a reference genome database (Camellia sinensis var. sinensis). The CsSAPs were divided into the following two groups: Group I, containing one AN1 domain and/or one A20 domain; and Group II, containing two AN1 domains and/or two C2H2 domains. The sequence alignments and conserved domains analysis indicated that the CsSAPs were highly structurally conserved in terms of amino acid sequence and protein structure. The CsSAPs showed different transcript levels in spatio-temporal expression and in response to cold and drought stress in tea plants. Furthermore, the expression of CsSAP12 was considerably upregulated under drought stress. The overexpression of CsSAP12 in transgenic tomatoes showed increased tolerance to drought stress compared with the wild type. Altogether, the results showed that CsSAP12 might be involved in drought stress. Thus, CsSAP12 might be a target gene in genetic engineering to improve drought tolerance in tea plants.

1. Introduction

Environmental stresses, including biotic and abiotic stresses, severely affect plant growth, development, and even survival. However, plants have evolved complex molecular mechanisms for regulating their gene expressions in response to adverse natural environments that could minimize stress damage by altering their growth and development, and physiological and biochemical responses to stress [1]. Stress-associated proteins (SAPs) are a class of newly discovered zinc finger proteins that act as a key factor in the plant response to abiotic stresses [2].
The A20, AN1, or both A20/AN1 zinc finger domains are contained in the plant SAP family members [3]. The A20 zinc finger domain protein was first identified in human vascular endothelial cells, which is tumour necrosis factor alpha (TNFA)-inducible protein, and its C-terminus has at least one C2C2 zinc finger domain [4,5,6]. The protein AN1, was the first identified protein encoded by the RNA of the maternal hemisphere of Xenopus laevis, has conserved sequences that can be divided into two categories [7]. The first category is CX2CX9-12CX1-2CX4CX2HX5HXC (X stands for any amino acid, C stands for cysteine, and H stands for histidine), which is usually present without the A20 domain, and the corresponding gene contains introns in its sequence [8]. The second category is CX4CX9-12 CX4CX2HX5HXC [9], which contains the A20 domain and non-introns in its sequence. A total of 8, 27, 15 and 24 SAPs, belonging to the first type of AN1 zinc-finger structure, are present in rice, cotton, desert poplar (Populus euphratica), and apple, respectively [10,11,12].
The SAP members have been induced by several challenges and found to play a significant role in improving tolerance to abiotic stress [11,13]. The OSISAP1/OsSAP1 is the first stress-associated protein studied, which was stimulated by drought, salt, and cold [11]. In Arabidopsis, AtSAP5 could improve salt tolerance and drought resistance, and the analysis of transgenic Arabidopsis using gene chips indicated that the expression of many genes associated with stress had increased [14]. Furthermore, the SAP genes were associated with biotic and abiotic stresses in Artemisia annua, tomato, rice and banana [15,16,17,18,19]. In tomato, SlSAP3 and SlSAP4 expression increased basic resistance in Pseudomonas syringae pv. tomato DC3000 and necrotrophic fungus Botrytis cinerea, respectively [20]. Additionally, the SAP gene is associated with the regulation of signal transduction and hormone synthesis. The overexpression of OsDOG (OsiSAP11) and OsZFP185 (OsiSAP4) resulted in dwarf phenotypes, decreased gibberellic acid (GA) contents, and insufficient cell elongation [21]. Furthermore, OsZFP185 down-regulates the expression of genes associated with abscisic acid (ABA) biosynthesis and interferes with ABA-mediated tolerance to high salt, drought, and cold. The SAP genes are also associated with the regulation of plant development. Overexpression of OsZFP185 (OsiSAP4) in rice brings about a dwarfism phenotype, a decrease in endogenous GA3 and ABA content, and negative regulation of the expression of several genes bound up with ABA biosynthesis [21]. Furthermore, SAPs with E3 ubiquitin ligase activity have a hand in the regulation of redox sensors and/or regulators of gene expression under abiotic stress. In Arabidopsis, AtSAP5 acts as an E3 ubiquitin ligase to participate in drought tolerance [22].
The genome-wide analysis of SAP genes in plants has helped understand their biological functions. In this study, the TPIA database (http://tpia.teaplant.org/, accessed on 24 March 2020) was used to excavate and identify CsSAP genes (CsSAPs). Furthermore, CsSAPs were comprehensively and systematically analysed in tea, including their conserved domains, protein and gene structures, phylogenetic relationships, cis-acting elements, and transcript levels under cold and drought stresses. Finally, CsSAP12 was isolated from tea and was transformed into tomatoes to identify its function. This study provides an analysis of the biological functions of CsSAPs under abiotic stresses in tea plant with a solid theoretical basis and reference.

2. Materials and Methods

2.1. Identification of CsSAPs in Tea Plant

Protein sequences of tea plant were downloaded from the published TPIA database to construct a local blast database. Both A20 (A20-likezinc finger, PF01754) and AN1 conservative domains (AN1 zinc finger, PF01428) were downloaded from the Pfam database (http://pfam.xfam.org/, accessed on 24 March 2020). The software HMMER 3.1 (http://hmmer.org/, accessed on 24 March 2020) was used to identify the candidate CsSAP genes from the tea plant protein sequences. The candidate genes were confirmed using NCBI (https://www.ncbi.nlm.nih.gov/, accessed on 24 March 2020) and Pfam (http://pfam.xfam.org/, accessed on 24 March 2020) for further confirmation of the A20 and/or AN1 conserved domains.

2.2. Evolutionary Analysis of Tea Plant CsSAPs

The evolutionary tree analysis software MEGA 6 (http://www.megasoftware.net, accessed on 24 March 2020) was used to analyse the evolution of SAPs using the maximum likelihood (ML) approach (execution parameters: position correction, paired deletions, and guidance (1000 repetitions).

2.3. Gene Structure and Genome Localization of CsSAP Genes

The data on intron, exon, and genomic mapping of CsSAPs were acquired from the TPIA database. The introns and exons in the CsSAPs of tea plant were mapped according to their location in the TPIA database.

2.4. Amino Acid Sequences and Conserved Elements of CsSAPs

Both the A20 and AN1 domains of tea plant CsSAPs were analysed using the software DNAMAN 5.0 and WebLogo 3 (http://weblogo.threeplusone.com/, accessed on 24 March 2020). The online software SWISS-MODEL was used to analyse the 3D structure of the A20 domain (AN1 topology; PDB ID: 2KZY) and the AN1 domain (AN1 topology; PDB ID: 1WFP) of CsSAPs for model matching (http://swissmodel.expasy.org/, accessed on 24 March 2020). The 3D structure was visualized using RasTop software (http://www.geneinfinity.org/rastop/, accessed on 24 March 2020).

2.5. Cis-Acting Elements in Promoters

To assess assumed cis-acting elements in the promoter of CsSAPs in tea plant, we isolated the genome sequences 1500 bp upstream of the translation start codon of CsSAPs. We then predicted putative cis-acting elements based on the Plant CARE database (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 25 March 2020).

2.6. Plant Materials, Growth Conditions and Stress Treatments

Fully-expanded leaves from tea (C. sinensis var. Assamica cv. Yunkang10) that were cultured in a greenhouse were collected and included as the control group. These plants were grown in a greenhouse, and drought stress treatment was not initiated until these plants were about 50 cm high. Type YK-10 planted in a climate incubator for 15 days without water was used as samples for evaluating the effects of water deficits. The sampling schedule involved the harvesting of mature leaves from drought-treated YK-10 from the intermediate node on days of 0, 3, 5, 7 and 15 after treatment. All samples were immediately frozen in liquid nitrogen and stored in a refrigerator at −80 °C.

2.7. The qRT-PCR Analysis of CsSAPs

We extracted total RNA from the frozen leaves of tea plant using RNAprep pure Plant Kit (TIANGEN; Beijing, China). In total, 2 μg of RNA was collected for synthesizing the first strand of cDNA through the use of a PrimeScript™ II 1st Strand cDNA Synthesis Kit (TaKaRa; Shanghai, China). For the qRT-PCR assays, reverse transcription was performed with 1 μg of total RNA from each sample, followed by amplification of 1 μL of the product. We performed qRT-PCR assays with 20 μL of reaction mixtures containing 10 μL of SYBR® Premix Ex Taq™ (TaKaRa; Beijing, China). The sequences of primers used for qRT-PCR are listed in Table S1. The ∆Ct values were calculated by using CsActin or SlActin as the endogenous control. The relative fold change in gene expression of samples was calculated using the 2−∆∆Ct method [23]. The qRT-PCR conditions were pre-denaturation at 95 °C for 30 s; followed by 35 cycles of 95 °C for 5 s, 60 °C for 20 s, and 72 °C for 15 s. The qRT-PCR was also used to calculate the copy number of foreign genes, and SlGRX1 was selected as the single copy reference gene [24,25].

2.8. Vector Construction, Plant Transformation and Drought Stress Treatment

The open reading frame (ORF) of CsSAP12 was amplified by PCR, which consisted of denaturation at 94 °C for 5 min; followed by 25 cycles of 94 °C for 30 s, 55 °C for 30 s, and 72 °C for 60 s. The cDNA of CsSAP12 was cloned into pBWA(V)KS plant transformation vectors containing the kanamycin resistance gene. Tomato transformations were performed as previously described [26]. The transgenic plants were screened and confirmed by kanamycin-resistance and PCR using a primer pair specific to the CsSAP12 primers (Table S1). Additionally, tomato seeds were screened on MS culture medium containing kanamycin to identify transgenic plants. Therefore, MDA content, oxygen free radical content, and antioxidant enzyme activities were determined using T3 generation plants.
The transgenic tomato and wild-type plants were planted for 3 months before being used for drought stress in a greenhouse. Drought stress treatment was performed for 20 days without water. The plants were analysed using the determination of physiological indices, such as leaf relative water content, MDA content, oxygen free radical content, and antioxidant enzyme activities.

2.9. Measurement of Physiological Indices

For the measurement of leaf relative water content, leaves were weighed using a balance (Suzhou Science Instrument Co., Ltd., Suzhou, China) and recorded as fresh weight (FW). The leaves were dried to a constant weight at 100 °C in an oven (Shanghai Badh Machinery Equipment Co., Ltd., Shanghai, China). Next, the leaves were weighed as dry weight (DW). The calculation formula of leaf water content was as follows:
Leaf water content = (FW − DW)/FW × 100%.
The accumulation assay of two Reactive Oxygen Species (ROS), hydrogen peroxide (H2O2) and oxygen free radicals (O2−), MDA content, and activities of antioxidant enzyme, including SOD (EC: 1.15.1.1), CAT (EC: 1.11.1.6), and POD (EC: 1.11.1.7) were performed using reagent kits of A064-1-1, A052-1-1, A003-1, A001-1, A007-1-1 and A084-3-1 (Jiancheng Bioengineering Institute, Nanjing, China), respectively.
The osmotic potential (Ψw) was calculated according to the formula: Ψw = −iCRT; i, dissociation coefficient (CaCl2 = 2.60), the concentration of CaCl2 solution comparable to the water potential of the plant material was found by varying the weight of the plant material. C, isotonic concentration (mol/L). R, Gas constant 0.008314 LMPa/(mol·K), T, Kelvin temperature.

3. Results

3.1. Identification of CsSAPs in Tea Plant

In total, 14 CsSAPs were obtained from the proteins of tea plant. The gene name, ID, conserved domains, protein length, molecular weight, theoretical pI, and chromosome location of the CsSAPs are listed in Table 1. The genomic DNA sequences of the CsSAPs ranged from 435 bp to 9197 bp, whereas the length of the coding DNA sequence of the CsSAPs ranged from 435 bp to 1737 bp. Furthermore, the CsSAPs contained different types of zinc-finger domain, i.e., both CsSAP6 and CsSAP7 contained the AN1-AN1 domain, whereas CsSAP11 contained only an AN1 domain, 11 other CsSAPs contained the A20-AN1 domain. Multiple sequence alignment analysis showed that the A20 and AN1 domains and multiple amino acid sites were highly conserved (Figure 1).
Sequence logos were then produced, further indicating that these domains were highly conservative at every residue position (Figure 2a,b). Furthermore, by modelling and analysing the A20 and AN1 domains of the CsSAPs using the SWISS-MODEL online software, the homologous models of the A20 and AN1 domains are shown in Figure 2c,d, respectively. The results showed clearly that the A20 and AN1 domains of the CsSAPs work together with the A20 domain of ubiquitin receptor ZNF216 and the zf-AN1 domain of Arabidopsis F5O11.17 protein (PDB ID: 2KZY.1.A, 44.7% sequence identity for residues 10–48; 1WFP.1.A, 53.2% sequence identity for residues 107–153), suggesting that the A20 and AN1 domains of the CsSAPs were highly conserved.

3.2. Analysis of CsSAPs Structure and Conservative Elements

The evolution, exon-intron structure, and conserved domains were analysed to explore the structural variability of the SAP family genes. An evolutionary analysis of 14 CsSAPs showed that they can be separated into two groups: Group I, including one AN1 domain and/or one A20 domain; and Group II, including two AN1 domains and/or other domains (Figure 3a). Gene structure analysis results showed that CsSAP1-CsSAP5, CsSAP8, CsSAP9, CsSAP11, and CsSAP14 had no introns, CsSAP7 and CsSAP10 had only one intron, and CsSAP6 contained two introns (Figure 3a). Conservative domain analysis showed that all the CsSAPs contained A20 and/or AN1 conserved domains (Figure 3b). In Group I, CsSAP5, CsSAP8, CsSAP9, CsSAP11 and CsSAP14 had no introns, and CsSAP7 and CsSAP10 contained A20 and AN1 conserved domains. CsSAP6 and CsSAP7 in Group II contained two AN1 conserved domains.

3.3. Phylogenetic Analysis of CsSAPs

To examine the evolutionary relationships among plant SAPs in tea plant and other plants, such as Actinidia chinensis and Vitis vinifera, full-length protein sequences encoded by 118 SAP genes from 20 species were used to construct unrooted phylogenetic trees. The evolutionary analysis of CsSAPs showed that they were classified into following two groups: CsSAP1-CsSAP5 and CsSAP8-CsSAP14 belonged to Group I, containing an AN1 domain and/or an A20 domain; CsSAP6 and CsSAP7 belonged to Group II, containing two AN1 domains and/or other domains (Figure 4). Group I was classified into two subgroups (Ia–Ib): Ia, containing one AN1 domain and one A20 domain, including CsSAP1-5, CsSAP8-10 and CsSAP12-14; and Ib, containing only one AN1 domain, CsSAP11. Group II can be divided into three subgroups (IIa–IIb): IIa, containing two AN1 domains and two C2H2 domains, including CsSAP6; IIb, two AN1 domains, including CsSAP7.

3.4. Functional Prediction of CsSAPs

To identify the likely cis-regulatory elements (CREs) of CsSAPs, we isolated genomic sequences 1500 bp upstream of the start codon from CsSAPs. A total of 100 CREs belonging to 10 typical types of abiotic and biotic response elements or transcription factors binding sites were obtained in 14 promoters. These were related to responses to hypoxia, cold, drought, pathogens, trauma, and hormones (Table 2). Most CsSAPs promoters contained the anaerobic response element, ethylene-responsive element, and W-box element. Additionally, some hormone-related CREs, such as ABA, salicylic acid, methyl jasmonate, and ethylene, were also found in CsSAPs gene promoters. The results showed that the CREs of CsSAPs played a significant role in the stress responses of plant and might be associated with the circadian clock, cell differentiation, and morphogenesis regulation.

3.5. Expression Pattern of CsSAPs in Tea Plant

Identifying the expression patterns of CsSAPs in different tissues can help us understand their functions. Real-time quantitative PCR results showed that CsSAP1, CsSAP2, CsSAP6, CsSAP13 and CsSAP14 were highly expressed in roots and leaves, CsSAP3 and CsSAP8 were expressed strongly in stems, and CsSAP4, CsSAP5, CsSAP7, CsSAP9, CsSAP10, CsSAP11 and CsSAP12 were highly expressed in stems and flowers (Figure 5a). In addition, the relative expressions of CsSAPs were determined in tea plants under drought stress. Under 5 days of drought treatment, the expression of CsSAP9 and CsSAP12 increased significantly, whereas the transcripts of CsSAP4 was significantly reduced. The expression of the other CsSAPs showed no obvious changes (Figure 5b).

3.6. CsSAP12 Overexpression Enhances Drought Tolerance in Transgenic Tomato

Transcript analysis showed that CsSAP12 was significantly accumulated under drought stress. The full-length cDNA of the CsSAP12 obtained from tea plant was 498 bp, which encoded a predicted protein containing 165 amino acid residues with a calculated molecular mass of 17.86 kDa and an isoelectric point of 8.44. It contained both A20 and AN1 zinc finger domains and its amino acid sequence showed a similarity of up to 53.27% with that of SlSAP4 (Figure S1), which corresponded to drought stress in tomato plants (Solanum lycopersicum) [27].
To further identify its function, CsSAP12 was transformed into tomatoes. After detection, 12 transformants were identified and confirmed with obviously increased levels of CsSAP12 transcripts; it could not be observed in wild type (WT) (Figure 6a). In transgenic tomato seedlings, the copy number of CsSAP12 was 1.39 times that of the reference gene, SlGRX1, indicating that CsSAP12 was a single copy gene in transgenic tomatoes (Figure S2). We then selected transgenic tomatoes with high CsSAP12 expression to assess their potential function when responding to drought stress.
The WT tomato and CsSAP12-overexpressed seedlings showed similar growth characteristics without any treatment, and there were no obvious changes in seeds germination, leaf development, flower fruit, and leaf development between transgenic and wild tomatoes (Figure S3). After 20 days of drought stress, the green leaves of WT plants were wilted and subsequently turned yellow and drooped significantly; CsSAP12-overexpressed transgenic tomatoes displayed slightly wilted leaves but without drooping (Figure 6b). Furthermore, the WT plants did not recover normal development when rehydration began (2 days of refreshment), the transgenic tomato leaves recovered to upright growth (Figure 6c), and the expression of CsSAP12 in the transgenic lines treated with drought stress was significantly higher (p-value < 0.05) than that under 2 days of refreshment (Figure 6b), suggesting that the resistance of transgenic tomatoes to drought was increased due to the increased transcript level of CsSAP12.

3.7. Measurement of Physiological Indices of CsSAP12 Transgenic Plants

In a further effort to appraise the growth conditions of CsSAP12 transgenic lines under drought stress, leaf relative water content, malondialdehyde (MDA) content, and oxygen free radical content (O2−) were evaluated in WT and transgenic tomatoes. The leaf relative water content of transgenic lines was remarkably higher than that of WT under drought stress and after 2 days of refreshment (Figure 7a). The MDA content and oxygen free radical content of WT were significantly higher than those of the transgenic lines. After 2 days of refreshment, the MDA and oxygen free radical content of both WT and transgenic lines decreased rapidly (Figure 7b,c).
Moreover, antioxidant enzyme activities, including peroxidase (POD), catalase (CAT), peroxidase (POD), and superoxide dismutase (SOD) were also measured. Compared with WT after 20 days of drought, CAT, POD, and SOD activities in the transgenic lines were 1.37-, 1.29- and 1.47-times higher than those of WT, respectively. The antioxidant enzyme activities of WT and transgenic lines after 2 days of refreshment displayed a sharp downward trend compared with that of WT and transgenic lines after 20 days of the drought-contrasting trend; the CAT, POD, and SOD activities of the transgenic lines were 1.74-, 1.16- and 1.82-times greater than those of the WT (Figure 7d).
Furthermore, to identify the physiological differences between the WT and transgenic tomatoes at the early stage of drought stress, osmotic potential and two Reactive Oxygen Species (ROS), hydrogen peroxide (H2O2) and oxygen free radicals (O2−) were also detected using WT and transgenic tomatoes under 7 days drought stress. The results showed that the osmotic potential of CsSAP12 transgenic plants was much lower than that of wild plants after 7 days of drought and 2 days of refreshment (Figure 7e). Both hydrogen peroxide and oxygen free radicals accumulated mostly in leaves, and they were decreased obviously in the WT and transgenic tomatoes after 7 days of drought (Figure 7f,g). Interestingly, no obvious changes were found in the hydrogen peroxide contents of stems between the WT and CsSAP12 transgenic tomatoes, while the content of oxygen free radicals in CsSAP12 transgenic plants was lower than that of the WT. After 2 days of refreshment, the hydrogen peroxide and oxygen free radical content were decreased in both the WT and transgenic lines. Moreover, the hydrogen peroxide content showed no obvious changes in roots and stems of WT and transgenic tomatoes, but oxygen free radical contents of roots were lower in CsSAP12 transgenic lines than in the WT (Figure 7f,g).

4. Discussion

Recently, along with the discovery and sustained development of gene sequencing and sequence assembly technology, the preparation of high-quality profiles of plant genomes provides great convenience in the study of plant-specific agronomic traits, the acceleration of plant breeding, an increase in production, and the ability to resist biotic and abiotic stresses [28]. Tea, one of the world’s most important beverage crops, has a variety of secondary metabolites that are good for the human body, and has economic, medical, and cultural significance [29,30]. As the quality of tea genome profiles has improved, it provides great opportunities and platforms for identifying tea family genes [27,28]. Recently, several tea plant gene families have been identified, such as GRAS, LEA, HSP, WOX, WRKY, bZIP, and LBD [31,32,33,34,35,36,37,38,39]; however, reports about the tea plant SAP gene family are not available. The SAP gene families have been identified and analysed in rapeseed, cotton maize, tomato and Arabidopsis (Table 3). The numbers of SAP gene family members in rapeseed and cotton are 57 and 37, respectively, whereas the numbers of SAP gene family members in maize, tomato, and Arabidopsis are 11, 13 and 14 [3,40,41]. In this study, 14 CsSAPs were identified by searching the tea plant genome. Compared with the number of SAP gene families in other species, the tea plant CsSAP gene family has fewer members. As reported in previous studies, gene replication, which includes a segment, tandem and genome-wide replication, is essential for the diversification of gene functions and the rearrangement and expansion of the genome [42,43]. The tea genome emerged in two rounds of whole-genome duplication (WGD) events 30–40 million years ago and 90–100 million years ago, respectively [32]. These WGD events and subsequent paralogous repeats impacted considerably on the copy number of secondary metabolite-related genes of tea plant. However, because of the lack of chromosome localization information, we could not specifically analyse whether members of the SAP gene family participated in gene replication events. With developments in the accuracy and assembly of tea genome sequencing, the promotion and replacement of search and analysis software, and the discovery of variable shear, the aforementioned problems will be overcome, and other SAP gene family members will be determined. Furthermore, the zinc finger structures of the SAP gene family are not the same in different plants. The number of A20 zinc finger structures among members of the SAP gene family of rapeseed, apple, and rice were 7, 3, and 1, respectively. The A20-A20-AN1 zinc-finger structure was also found in the Arabidopsis and rapeseed SAP gene families [40,44]. Altogether, the loss or increase in zinc-finger type genes in these genomes is essential for the complex enzyme activity of these plants.
The SAP gene family members of Arabidopsis, rice, tomato, and cotton are classified into five groups [32,41,43], while in apple (Malus domestica Borkh.), they are divided into the following two groups: Group I, with an A20 domain and an AN1 domain; and Group II, including two AN1 domains [5]. In the present study, we performed an evolutionary analysis of tea plant SAPs and compared them with 118 SAP genes from 20 species. The evolutionary analysis of tea SAPs showed that tea SAPs can be classified into the two groups: Group I (A20-AN1 type) and Group II (AN1 type). A typical feature of SAP in each plant is the absence of introns. Among the 12 CsSAP members of Group I, 11 CsSAPs were found to contain no introns, whereas all Group II-type CsSAPs contained introns. The 11 CsSAPs with no popular intron genes indicated the ancient origins of the SAP genes and their close relationship with the rapid accumulation of transcripts because of a reduction in post-transcriptional processes.
Plant SAP genes can be quickly induced by several abiotic stresses. The OsiSAP1/OsSAP1 gene can be upregulated by high salt, aridity, chill, ABA, submergence, and mechanical wounding induction [44]. The OsSAP9 gene is upregulated responding to cold, heat, PEG6000, and other stresses [45,46]. The OsiSAP8 gene is upregulated by salt, heat, cold, ABA, desiccation, heavy metals, submergence, and wounding [47]. Similar results induced by abiotic stress have also been found in Aeluropus littoralis, Arabidopsis, maize, cotton, Populus euphratica, Brassica napus, and apple [8,47,48,49,50,51,52,53].
The expression patterns of 14 SAP genes in tea plants were comprehensively analysed in this study. Among the 14 genes, CsSAP12 was, not only highly expressed in various tissues of plants, but its expression increased in drought conditions. Drought stress allowed the formation of hydrogen peroxide and oxygen free radical in plants, and could cause MDA accumulation because of membrane lipid peroxidation, indicating that antioxidant activity in plants can improve plant tolerance to different stress factors [53]. The overexpression of CsSAP12 can effectively reduce osmotic potential in leaves and the content of hydrogen peroxide, oxygen free radical in different tissues, promoting lower MDA content and higher leaf water content. And after drought treatment, the anti-oxidase activity of CsSAP12-overexpressed transgenic lines was higher than wild species and rapidly reduced after rehydration; MDA content and oxygen free radical content in CsSAP12-overexpressed transgenic lines were lower than in WT lines, while the relative water content of leaves was even higher, suggesting that transgenic tomatoes had better drought tolerance than that of wild-type tomatoes.

5. Conclusions

In this study, 14 CsSAP genes were identified in tea plant. We studied the function of CsSAP genes in apple growth and development using bioinformatics, gene expression, and functional analysis. Functional characterization showed that CsSAP12 might play an important role in salt stress. It will provide a basis for future studies to comprehensively and comparatively analyse the functional characteristics of CsSAP to deeply investigate aspects of drought stress in tea.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/horticulturae8050363/s1. Figure S1: Protein sequence alignment of SlSAP4 (GenBank accession number: XP 019066408) and CsSAP12 by Clustalx; A20 and AN1 domains are indicated at the top. Figure S2. The qRT-PCR amplification curve of CsSAP12 and SlGRX1. Figure S3. Phenotypes of CsSAP12 over-expressed transgenic and wildtype tomatoes. Table S1: Application of primers used for PCR and qRT-PCR.

Author Contributions

Data curation, S.-C.F.; formal analysis, H.-D.S.; funding acquisition, D.-D.L. and M.-Z.L.; methodology, S.-C.F., C.L. and S.-H.L.; resources, M.-Z.L.; software, S.-C.F., J.T. and T.-M.Y.; supervision, D.-D.L.; writing—original draft, S.-C.F.; writing—review and editing, D.-D.L. and M.-Z.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Natural Science Foundation of China (Grant No. 31660566), and The Open Fund of the State Key Laboratory of Yunnan Provincial Key Laboratory of Tea Science (Grant No. 2021YNCX002).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data used for the analysis in this study are available within the article and Supplementary Materials.

Acknowledgments

We thank TopEdit (www.topeditsci.com, accessed on 25 March 2020) for its linguistic assistance during the preparation of this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gill, S.S.; Tuteja, N. Polyamines and abiotic stress tolerance in plants. Plant Signal. Behav. 2010, 5, 26–33. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Tian, L.; Huang, C.; Zhang, X.; Zhang, L.; Wu, Z. Advances of plant zinc finger proteins involved in abiotic stress. Biotechnol. Bull. 2005, 6, 12–16. [Google Scholar]
  3. Gao, W.; Long, L.; Tian, X.; Jin, J.; Liu, H.; Zhang, H.; Xu, F.; Song, C. Genome-wide identification and expression analysis of stress-associated proteins (SAPs) containing A20/AN1 zinc finger in cotton. Mol. Genet. Genom. 2016, 291, 2199–2213. [Google Scholar] [CrossRef]
  4. Ghosh, S.; Tewari, R.; Dixit, D.; Sen, E. TNF alpha induced oxidative stress dependent Akt signaling affects actin cytoskeletal organization in glioma cells. Neurochem. Int. 2010, 56, 194–201. [Google Scholar] [CrossRef] [PubMed]
  5. Dong, Q.; Duan, D.; Zhao, S.; Xu, B.; Luo, J.; Wang, Q.; Huang, D.; Liu, C.; Li, C.; Gong, X.; et al. Genome-wide analysis and cloning of the apple stress-associated protein gene family reveals MdSAP15, which confers tolerance to drought and osmotic stresses in transgenic Arabidopsis. Int. J. Mol. Sci. 2018, 19, 2478. [Google Scholar] [CrossRef] [Green Version]
  6. Wang, Z.; Kuang, J.; Han, B.; Chen, S.; Liu, A. Genomic characterization and expression profiles of stress-associated proteins (SAPs) in castor bean (Ricinus communis). Plant Divers. 2021, 43, 152–162. [Google Scholar] [CrossRef]
  7. Linnen, J.M.; Bailey, C.P.; Weeks, D.L. 2 related localized messenger-RNAs form Xenopus laevis encode ubiquitin-like fusion proteins. Gene 1993, 128, 181–188. [Google Scholar] [CrossRef]
  8. DeValck, D.; Heyninck, K.; VanCriekinge, W.; Contreras, R.; Beyaert, R.; Fiers, W. A20, an inhibitor of cell death, self-associates by its zinc finger domain. FEBS Lett. 1996, 384, 61–64. [Google Scholar] [CrossRef] [Green Version]
  9. Jin, Y.; Wang, M.; Fu, J.J.; Xuan, N.; Zhu, Y.; Lian, Y.; Jia, Z.W.; Zheng, J.; Wang, G.Y. Phylogenetic and expression analysis of ZnF-AN1 genes in plants. Genomics 2007, 90, 265–275. [Google Scholar] [CrossRef] [Green Version]
  10. Lai, W.; Zhou, Y.; Pan, R.; Liao, L.; He, J.; Liu, H.; Yang, Y.; Liu, S. Identification and expression analysis of stress-associated Proteins (SAPs) containing A20/AN1 zinc finger in cucumber. Plants 2020, 9, 400. [Google Scholar] [CrossRef] [Green Version]
  11. Tyagi, H.; Jha, S.; Sharma, M.; Giri, P.; Tyagi, A.K. Rice SAPs are responsive to multiple biotic stresses and overexpression of OsSAP1, an A20/AN1 zinc-finger protein, enhances the basal resistance against pathogen infection in tobacco. Plant Sci. 2014, 225, 68–76. [Google Scholar] [CrossRef] [PubMed]
  12. Jia, H.X.; Li, J.B.; Zhang, J.; Ren, Y.Q.; Hu, J.J.; Lu, M.Z. Genome-wide survey and expression analysis of the stress-associated protein gene family in desert poplar, Populus euphratica. Tree Genet. Genomes 2016, 12, 78. [Google Scholar] [CrossRef]
  13. Huang, J.; Wang, M.M.; Jiang, Y.; Bao, Y.M.; Huang, X.; Sun, H.; Xu, D.Q.; Lan, H.X.; Zhang, H.S. Expression analysis of rice A20/AN1-type zinc finger genes and characterization of ZFP177 that contributes to temperature stress tolerance. Gene 2008, 420, 135–144. [Google Scholar] [CrossRef] [PubMed]
  14. Kang, M.Y.; Fokar, M.; Abdelmageed, H.; Allen, R.D. Arabidopsis SAP5 functions as a positive regulator of stress responses and exhibits E3 ubiquitin ligase activity. Plant Mol. Biol. 2011, 75, 451–466. [Google Scholar] [CrossRef] [PubMed]
  15. Wang, Y.; Fu, X.; Xie, L.; Qin, W.; Li, L.; Sun, X.; Xing, S.; Tang, K. Stress associated protein 1 regulates the development of glandular trichomes in Artemisia annua. Plant Cell Tissue Organ Cult. 2019, 139, 249–259. [Google Scholar] [CrossRef]
  16. Ghneim-Herrera, T.; Selvaraj, M.G.; Meynard, D.; Fabre, D.; Pena, A.; Ben Romdhane, W.; Ben Saad, R.; Ogawa, S.; Rebolledo, M.C.; Ishitani, M.; et al. Expression of the Aeluropus littoralis AlSAP gene enhances rice yield under field drought at the reproductive stage. Front. Plant Sci. 2017, 8, 994. [Google Scholar] [CrossRef] [Green Version]
  17. Xing, W.; Xu, B.; Wang, Z.; Jia, C.; Liu, J.; Jin, Z. Cloning and Expression of stress associated protein fene from banana (Musa acuminata L.AAA group,cv.Brazilian). Acta Bot. Boreali-Occident. Sin. 2014, 34, 225–230. [Google Scholar]
  18. Ben Saad, R.; Safi, H.; Ben Hsouna, A.; Brini, F.; Ben Romdhane, W. Functional domain analysis of LmSAP protein reveals the crucial role of the zinc-finger A20 domain in abiotic stress tolerance. Protoplasma 2019, 256, 1333–1344. [Google Scholar] [CrossRef]
  19. Zhang, F.; Lu, X.; Chen, H.; Wang, C.; Li, Y.; Zheng, J.; Cai, X. New Maize Stress-Associated Protein Kinase ZmSAPK3 Gene Useful for Improving Plant Osmotic Stress Resistance and Cultivating High-Yielding Transgenic Crops. Patent CN107312784-A, 27 April 2016. [Google Scholar]
  20. Liu, S.X.; Wang, J.L.; Jiang, S.Y.; Wang, H.; Gao, Y.Z.; Zhang, H.J.; Li, D.Y.; Song, F.M. Tomato SlSAP3, a member of the stress-associated protein family, is a positive regulator of immunity against Pseudomonas syringae pv. tomato DC3000. Mol. Plant Pathol. 2019, 20, 815–830. [Google Scholar] [CrossRef] [Green Version]
  21. Zhang, Y.; Lan, H.X.; Shao, Q.L.; Wang, R.Q.; Chen, H.; Tang, H.J.; Zhang, H.S.; Huang, J. An A20/AN1-type zinc finger protein modulates gibberellins and abscisic acid contents and increases sensitivity to abiotic stress in rice (Oryza sativa). J. Exp. Bot. 2016, 67, 315–326. [Google Scholar] [CrossRef] [Green Version]
  22. Zhang, N.; Xu, J.; Liu, X.Y.; Liang, W.X.; Xin, M.M.; Du, J.K.; Hu, Z.R.; Peng, H.R.; Guo, W.L.; Ni, Z.F.; et al. Identification of HSP90C as a substrate of E3 ligase TaSAP5 through ubiquitylome profiling. Plant Sci. 2019, 287, 110170. [Google Scholar] [CrossRef] [PubMed]
  23. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  24. Guo, Y.; Huang, C.; Xie, Y.; Song, F.; Zhou, X. A tomato glutaredoxin gene SlGRX1 regulates plant responses to oxidative, drought and salt stresses. Planta 2010, 232, 1499–1509. [Google Scholar] [CrossRef] [PubMed]
  25. Narancio, R.; John, U.; Mason, J.; Giraldo, P.; Spangenberg, G. Digital PCR (dPCR) and qPCR mediated determination of transgene copy number in the forage legume white clover (Trifolium repens). Mol. Biol. Rep. 2021, 48, 3069–3077. [Google Scholar] [CrossRef] [PubMed]
  26. Ellul, P.; Garcia-Sogo, B.; Pineda, B.; Rios, G.; Roig, L.; Moreno, V. The ploidy level of transgenic plants in Agrobacterium-mediated transformation of tomato cotyledons (Lycopersicon esculentum Mill) is genotype and procedure dependent [corrected]. Theor. Und Angew. Genet. 2003, 106, 231–238. [Google Scholar] [CrossRef]
  27. Liu, S.; Yuan, X.; Wang, Y.; Wang, H.; Wang, J.; Shen, Z.; Gao, Y.; Cai, J.; Li, D.; Song, F. Tomato stress-associated protein 4 contributes positively to immunity against necrotrophic fungus Botrytis cinerea. Mol. Plant-Microbe Interact. 2019, 32, 566–582. [Google Scholar] [CrossRef]
  28. Muthuramalingam, P.; Jeyasri, R.; Selvaraj, A.; Kalaiyarasi, D.; Aruni, W.; Pandian, S.T.K.; Ramesh, M. Global transcriptome analysis of novel stress associated protein (SAP) genes expression dynamism of combined abiotic stresses in Oryza sativa (L.). J. Biomol. Struct. Dyn. 2021, 39, 2106–2117. [Google Scholar] [CrossRef]
  29. Richards, S.; Murali, S.C. Best practices in insect genome sequencing: What works and what doesn’t. Curr. Opin. Insect Sci. 2015, 7, 1–7. [Google Scholar] [CrossRef] [Green Version]
  30. Scalbert, A.; Williamson, G. Dietary intake and bioavailability of polyphenols. J. Nutr. 2000, 130, 2073S–2085S. [Google Scholar] [CrossRef]
  31. RiceEvans, C.A.; Miller, J.; Paganga, G. Antioxidant properties of phenolic compounds. Trends Plant Sci. 1997, 2, 152–159. [Google Scholar] [CrossRef]
  32. Dos Santos, R.A.C.; Berretta, A.A.; Barud, H.d.S.; Ribeiro, S.J.L.; Gonzalez-Garcia, L.N.; Zucchi, T.D.; Goldman, G.H.; Riano-Pachon, D.M. Draft genome sequence of Komagataeibacter rhaeticus strain AF1, a high producer of cellulose, isolated from Kombucha tea. Genome Announc. 2014, 2, e00731-14. [Google Scholar] [CrossRef] [Green Version]
  33. Wei, C.; Yang, H.; Wang, S.; Zhao, J.; Liu, C.; Gao, L.; Xia, E.; Lu, Y.; Tai, Y.; She, G.; et al. Draft genome sequence of Camellia sinensis var. sinensis provides insights into the evolution of the tea genome and tea quality. Proc. Natl. Acad. Sci. USA 2018, 115, E4151–E4158. [Google Scholar] [CrossRef] [Green Version]
  34. Wang, Y.-X.; Liu, Z.-W.; Wu, Z.-J.; Li, H.; Wang, W.-L.; Cui, X.; Zhuang, J. Genome-wide identification and expression analysis of GRAS family transcription factors in tea plant (Camellia sinensis). Sci. Rep. 2018, 8, 3949. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Wang, W.; Gao, T.; Chen, J.; Yang, J.; Huang, H.; Yu, Y. The late embryogenesis abundant gene family in tea plant (Camellia sinensis): Genome-wide characterization and expression analysis in response to cold and dehydration stress. Plant Physiol. Biochem. 2019, 135, 277–286. [Google Scholar] [CrossRef] [PubMed]
  36. Chen, J.; Gao, T.; Wan, S.; Zhang, Y.; Yang, J.; Yu, Y.; Wang, W. Genome-wide identification, classification and expression analysis of the HSP gene superfamily in tea plant (Camellia sinensis). Int. J. Mol. Sci. 2018, 19, 2633. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Wang, P.; Guo, Y.; Chen, X.; Zheng, Y.; Sun, Y.; Yang, J.; Ye, N. Genome-wide identification of WOX genes and their expression patterns under different hormone and abiotic stress treatments in tea plant (Camellia sinensis). Trees-Struct. Funct. 2019, 33, 1129–1142. [Google Scholar] [CrossRef]
  38. Wang, P.; Yue, C.; Chen, D.; Zheng, Y.; Zhang, Q.; Yang, J.; Ye, N. Genome-wide identification of WRKY family genes and their response to abiotic stresses in tea plant (Camellia sinensis). Genes Genom. 2019, 41, 17–33. [Google Scholar] [CrossRef] [PubMed]
  39. Hou, Y.; Wu, A.; He, Y.; Li, F.; Wei, C. Genome-wide characterization of the basic leucine zipper transcription factors in Camellia sinensis. Tree Genet. Genomes 2018, 14, 27. [Google Scholar] [CrossRef]
  40. Teng, R.-M.; Wang, Y.-X.; Wang, W.-L.; Li, H.; Shen, W.; Zhuang, J. Genome-wide identification, classification and expression pattern of LBD gene family in Camellia sinensis. Biotechnol. Biotechnol. Equip. 2018, 32, 1387–1397. [Google Scholar] [CrossRef] [Green Version]
  41. Vij, S.; Tyagi, A.K. Genome-wide analysis of the stress associated protein (SAP) gene family containing A20/AN1 zinc-finger(s) in rice and their phylogenetic relationship with Arabidopsis. Mol. Genet. Genom. 2006, 276, 565–575. [Google Scholar] [CrossRef]
  42. Solanke, A.U.; Sharma, M.K.; Tyagi, A.K.; Sharma, A.K. Characterization and phylogenetic analysis of environmental stress-responsive SAP gene family encoding A20/AN1 zinc finger proteins in tomato. Mol. Genet. Genom. 2009, 282, 153–164. [Google Scholar] [CrossRef] [PubMed]
  43. Li, Y.; Roberts, N.D.; Wala, J.A.; Shapira, O.; Schumacher, S.E.; Kumar, K.; Khurana, E.; Waszak, S.; Korbel, J.O.; Haber, J.E.; et al. Patterns of somatic structural variation in human cancer genomes. Nature 2020, 578, 112–121. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Messer, P.W.; Arndt, P.F. The majority of recent short DNA insertions in the human genome are tandem duplications. Mol. Biol. Evol. 2007, 24, 1190–1197. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. He, X.; Xie, S.; Xie, P.; Yao, M.; Liu, W.; Qin, L.W.; Liu, Z.S.; Zheng, M.; Liu, H.F.; Guan, M.; et al. Genome-wide identification of stress-associated proteins (SAP) with A20/AN1 zinc finger domains associated with abiotic stresses responses in Brassica napus. Environ. Exp. Bot. 2019, 165, 108–119. [Google Scholar] [CrossRef]
  46. Mukhopadhyay, A.; Vij, S.; Tyagi, A.K. Overexpression of a zinc-finger protein gene from rice confers tolerance to cold, dehydration, and salt stress in transgenic tobacco. Proc. Natl. Acad. Sci. USA 2004, 101, 6309–6314. [Google Scholar] [CrossRef] [Green Version]
  47. Ben-Saad, R.; Meynard, D.; Ben-Romdhane, W.; Mieulet, D.; Verdeil, J.-L.; Al-Doss, A.; Guiderdoni, E.; Hassairi, A. The promoter of the AlSAP gene from the halophyte grass Aeluropus littoralis directs a stress-inducible expression pattern in transgenic rice plants. Plant Cell Rep. 2015, 34, 1791–1806. [Google Scholar] [CrossRef]
  48. Kanneganti, V.; Gupta, A.K. Overexpression of OsiSAP8, a member of stress associated protein (SAP) gene family of rice confers tolerance to salt, drought and cold stress in transgenic tobacco and rice. Plant Mol. Biol. 2008, 66, 445–462. [Google Scholar] [CrossRef]
  49. Ben-Saad, R.; Ben-Ramdhan, W.; Zouari, N.; Azaza, J.; Mieulet, D.; Guiderdoni, E.; Ellouz, R.; Hassairi, A. Marker-free transgenic durum wheat cv. Karim expressing the AlSAP gene exhibits a high level of tolerance to salinity and dehydration stresses. Mol. Breed. 2012, 30, 521–533. [Google Scholar] [CrossRef]
  50. Sreedharan, S.; Shekhawat, U.K.S.; Ganapathi, T.R. MusaSAP1, a A20/AN1 zinc finger gene from banana functions as a positive regulator in different stress responses. Plant Mol. Biol. 2012, 80, 503–517. [Google Scholar] [CrossRef]
  51. Kim, G.-D.; Cho, Y.-H.; Yoo, S.-D. Regulatory functions of evolutionarily conserved AN1/A20-like Zinc finger family proteins in Arabidopsis stress responses under high temperature. Biochem. Biophys. Res. Commun. 2015, 457, 213–220. [Google Scholar] [CrossRef]
  52. Wu, L.; Yu, M.; Holowachuk, J.; Sharpe, A.; Lydiate, D.; Hegedus, D.; Gruber, M. Overexpression of Brassica napus myrosinase-associated protein 1 improved Sclerotinia sclerotiorum tolerance in Arabidopsis thaliana. Can. J. Plant Sci. 2017, 97, 842–851. [Google Scholar] [CrossRef] [Green Version]
  53. Liu, H.; Wang, Y.; Zhou, X.; Wang, C.; Wang, C.; Fu, J.; Wei, T. Overexpression of a harpin-encoding gene popW from Ralstonia solanacearum primed antioxidant defenses with enhanced drought tolerance in tobacco plants. Plant Cell Rep. 2016, 35, 1333–1344. [Google Scholar] [CrossRef] [PubMed]
Horticulturae 08 00363 g001 550

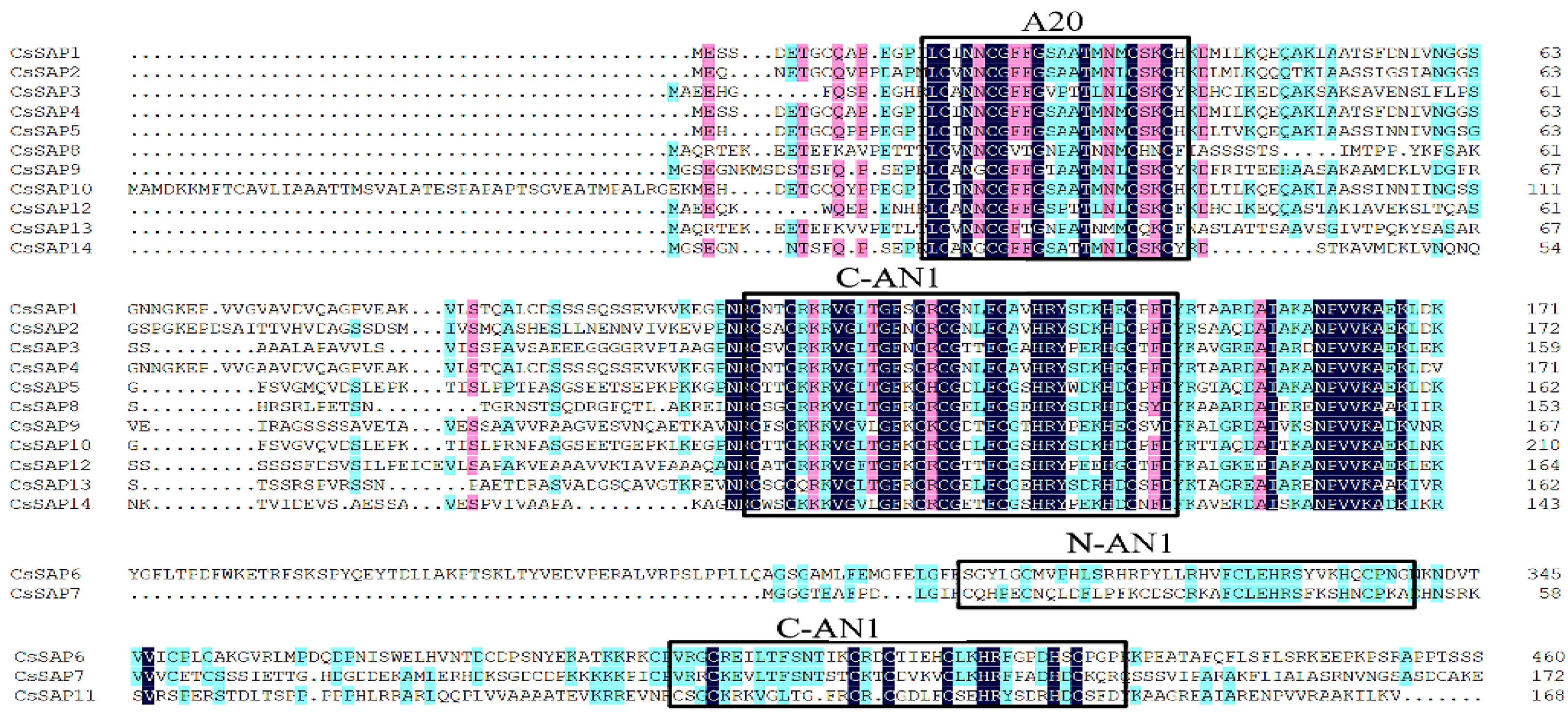

Figure 1. Multiple alignments of the A20/AN1 domain in tea plant CsSAPs. The conserved domains are shown in boxes, identical amino acids are shown with a dark blue background (similarity: dark blue = 100%; pink > 75%; cyan > 50%).
Figure 1. Multiple alignments of the A20/AN1 domain in tea plant CsSAPs. The conserved domains are shown in boxes, identical amino acids are shown with a dark blue background (similarity: dark blue = 100%; pink > 75%; cyan > 50%).
Horticulturae 08 00363 g001
Horticulturae 08 00363 g002 550

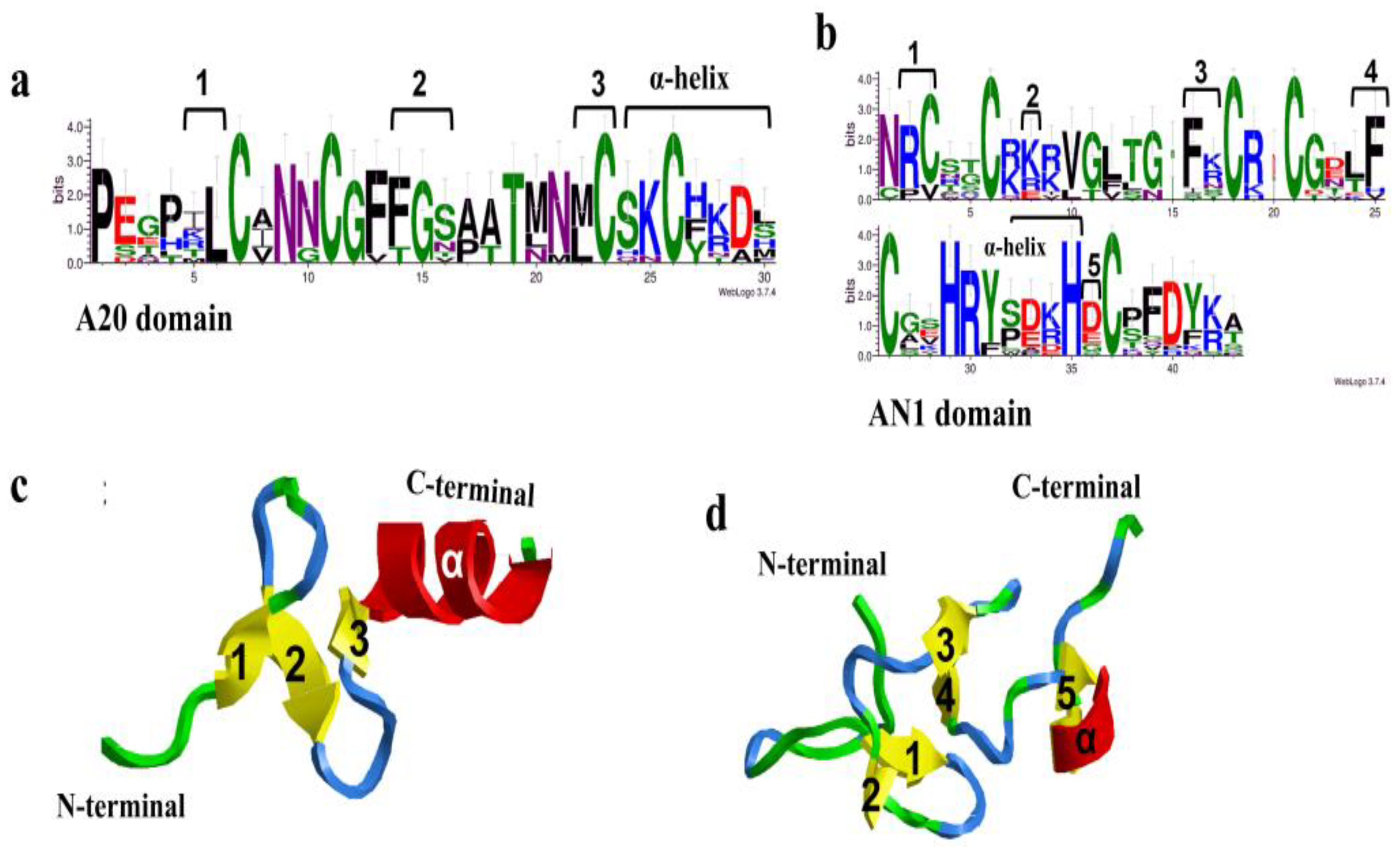

Figure 2. (a) Sequence logos of A20 domain in the CsSAPs. (b) Sequence logos of the AN1 domain in the CsSAPs. (c) Three-dimensional tertiary structural model of the A20 domain (PDB ID: 2KZY.1.A); and (d) three-dimensional tertiary structural model of the AN1 domain (PDB ID: 1WFP.1.A). The logos of the A20 and AN1 domains were obtained through multiple alignments of the CsSAPs. In each stack, the symbol height represents the relative frequency of each amino acid at that position; numbers 1–5 represent β-sheets in A20 and AN1 domains; α-helices are red, β-sheets (numbers 1–5) are yellow, and strands are blue/green.
Figure 2. (a) Sequence logos of A20 domain in the CsSAPs. (b) Sequence logos of the AN1 domain in the CsSAPs. (c) Three-dimensional tertiary structural model of the A20 domain (PDB ID: 2KZY.1.A); and (d) three-dimensional tertiary structural model of the AN1 domain (PDB ID: 1WFP.1.A). The logos of the A20 and AN1 domains were obtained through multiple alignments of the CsSAPs. In each stack, the symbol height represents the relative frequency of each amino acid at that position; numbers 1–5 represent β-sheets in A20 and AN1 domains; α-helices are red, β-sheets (numbers 1–5) are yellow, and strands are blue/green.
Horticulturae 08 00363 g002
Horticulturae 08 00363 g003 550

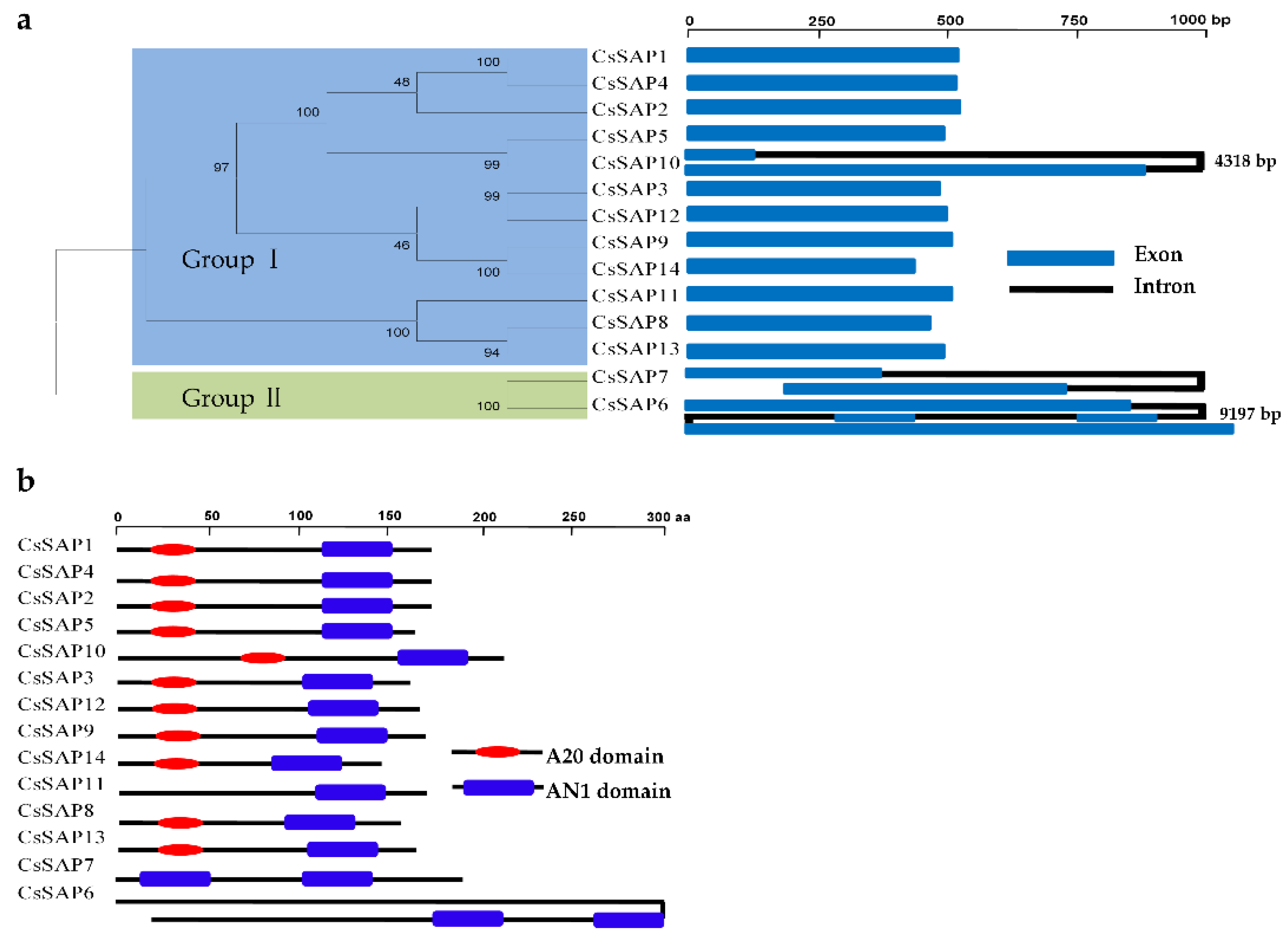

Figure 3. Sequence analysis of CsSAPs. (a) Phylogenetic relationships and Gene structure analysis; (b) analysis of the conserved domains for CsSAPs in tea plant. The phylogenetic tree of full-length amino acid sequences was constructed using MEGA software.
Figure 3. Sequence analysis of CsSAPs. (a) Phylogenetic relationships and Gene structure analysis; (b) analysis of the conserved domains for CsSAPs in tea plant. The phylogenetic tree of full-length amino acid sequences was constructed using MEGA software.
Horticulturae 08 00363 g003
Horticulturae 08 00363 g004 550
Figure 4. Phylogenetic analysis of 118 SAPs from 20 species of plants. The unrooted NJ tree was constructed using the full-length amino acid sequences. Ia, Ib, IIa, IIb indicates four subgroups. 14 CsSAPs in tea were showed in red and plus stars.
Figure 4. Phylogenetic analysis of 118 SAPs from 20 species of plants. The unrooted NJ tree was constructed using the full-length amino acid sequences. Ia, Ib, IIa, IIb indicates four subgroups. 14 CsSAPs in tea were showed in red and plus stars.
Horticulturae 08 00363 g004
Horticulturae 08 00363 g005 550

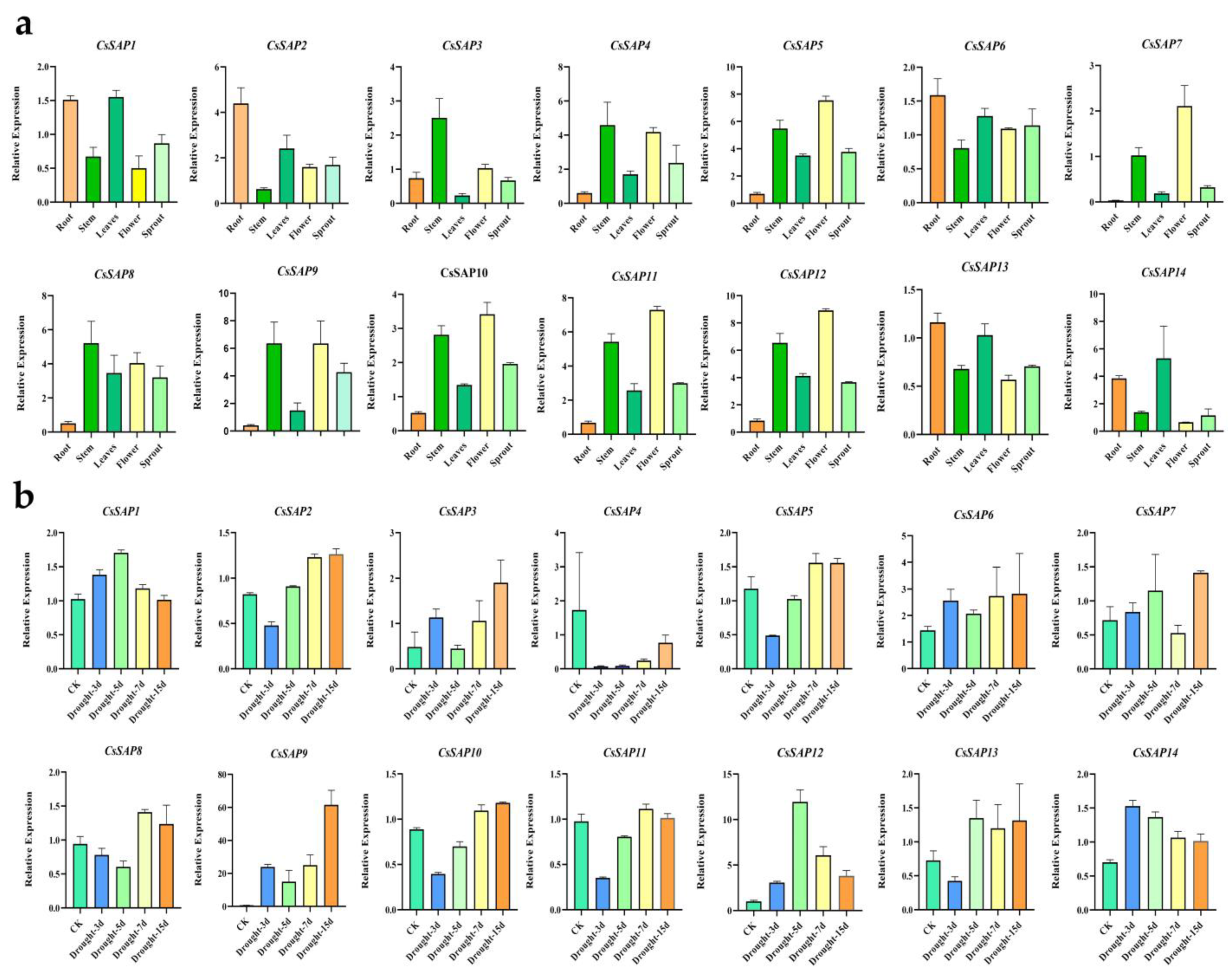

Figure 5. Tissue-specific expression and drought response of 14 CsSAPs. (a) Expression patterns of CsSAPs in different tissues of tea plant. (b) Expression patterns of CsSAPs in response to drought stress.
Figure 5. Tissue-specific expression and drought response of 14 CsSAPs. (a) Expression patterns of CsSAPs in different tissues of tea plant. (b) Expression patterns of CsSAPs in response to drought stress.
Horticulturae 08 00363 g005
Horticulturae 08 00363 g006 550
Figure 6. Identification of transgenic tomato lines under drought stress. (a) Semi-quantitative PCR analysis of the CsSAP12 expression level. (b) Relative expression of CsSAP12 in leaves of WT and transgenic plants. (c) Phenotypes of WT and transgenic lines under drought stress. The values are expressed as the mean ± standard deviation, and different letters of the alphabet represent significant differences calculated by Duncan’s multiple range test (p < 0.05).
Figure 6. Identification of transgenic tomato lines under drought stress. (a) Semi-quantitative PCR analysis of the CsSAP12 expression level. (b) Relative expression of CsSAP12 in leaves of WT and transgenic plants. (c) Phenotypes of WT and transgenic lines under drought stress. The values are expressed as the mean ± standard deviation, and different letters of the alphabet represent significant differences calculated by Duncan’s multiple range test (p < 0.05).
Horticulturae 08 00363 g006
Horticulturae 08 00363 g007 550
Figure 7. Stress physiological indices and antioxidant enzyme activities of wild types (WT) and CsSAP12−overexpressed transgenic lines under drought stress. (a) Relative water content of leaves. (b) Oxygen free radical content. (c) MDA relative content. (d) Activities of antioxidant enzyme (CAT, POD, SOD) in WT and transgenic lines under drought stress and refreshment assay. (e) Osmotic potential. (f) Hydrogen peroxide and oxygen free radical content (g) of different tissues in WT and transgenic lines. The values are expressed as the mean ± standard deviation, and different letters of the alphabet a−d suggest significant differences calculated by Duncan’s multiple range test (p < 0.05), error bars represent standard errors.
Figure 7. Stress physiological indices and antioxidant enzyme activities of wild types (WT) and CsSAP12−overexpressed transgenic lines under drought stress. (a) Relative water content of leaves. (b) Oxygen free radical content. (c) MDA relative content. (d) Activities of antioxidant enzyme (CAT, POD, SOD) in WT and transgenic lines under drought stress and refreshment assay. (e) Osmotic potential. (f) Hydrogen peroxide and oxygen free radical content (g) of different tissues in WT and transgenic lines. The values are expressed as the mean ± standard deviation, and different letters of the alphabet a−d suggest significant differences calculated by Duncan’s multiple range test (p < 0.05), error bars represent standard errors.
Horticulturae 08 00363 g007
Table
Table 1. Properties of CsSAPs identified from tea plant genome.
Table 1. Properties of CsSAPs identified from tea plant genome.
Gene NameGene IDZinc-Finger DomainCDS Length (bp)Protein Length (aa)Molecular Weight (kDa)No. of IntronsTheoretical pIScaffold Location
CsSAP1TEA003271.1A20-AN151917318.3107.72Scaffold622:
1698779:1699297:+
CsSAP2TEA007661.1A20-AN152217417.4507.51Scaffold560:
754898:755419:+
CsSAP3TEA007758.1A20-AN148316117.0608.14Scaffold390:
736618:737100:+
CsSAP4TEA008252.1A20-AN151617218.1407.44Scaffold2348:
1266811:1267326:+
CsSAP5TEA009516.1A20-AN149216417.5307.76Scaffold2009:
46003:46494:−
CsSAP6TEA013656.1AN1-AN1173757963.7649.66Scaffold942:
1448206:1457402:−
CsSAP7TEA013686.1AN1-AN157319120.9218.52Scaffold4677:
68010:69805:+
CsSAP8TEA014231.1A20-AN146515517.2408.91Scaffold3002:
9737:10201:+
CsSAP9TEA016255.1A20-AN150716917.9608.46Scaffold435:
1131711:1132217:+
CsSAP10TEA016540.1A20-AN163621222.5217.92Scaffold1761:
717585:722550:−
CsSAP11TEA016572.1AN150716918.7509.11Scaffold1761:
663031:663537:−
CsSAP12TEA021384.1A20-AN149816617.8508.08Scaffold4125:
306796:307293:+
CsSAP13TEA023579.1A20-AN149216417.6408.7Scaffold5358:
143051:143542:+
CsSAP14TEA025409.1A20-AN143514515.6908.6Scaffold2300:
157553:157987:+
‘+’ and ‘−’ indicate that the gene is located in the forward and reverse strand, respectively.
Table
Table 2. The cis-acting elements analysis of CsSAPs.
Table 2. The cis-acting elements analysis of CsSAPs.
Cis-Acting ElementsABREARECGTCAERELTRMBSTCATC-Rich RepeatW-Box
Stress to ResponseABAHypoxiaMeJAEthyleneChillingDroughtSADefencePathogen
CsSAP1 0/5 1/0 1/00/1 1/0
CsSAP2 0/21/1 1/0
CsSAP31/13/01/0 0/1 2/0
CsSAP42/02/21/0 1/0 1/0
CsSAP51/01/10/1 1/0
CsSAP6 0/11/01/2 0/1
CsSAP71/11/01/10/1 1/0 1/0
CsSAP81/10/10/1 1/00/1
CsSAP92/11/2 1/0
CsSAP10 1/1 2/1 0/1 2/1
CsSAP11 0/30/10/20/12/0 1/0
CsSAP120/1 1/0 1/0 0/1
CsSAP13 1/00/13/2
CsSAP140/1 1/0 1/01/2
ABRE (ABA response element), ARE (anaerobic response element), CGTCA (MeJA-responsiveness), ERE (ethylene-responsive element), LTR (low-temperature response element), MBS (MYB binding site involved in drought response), TCA (salicylic acid response element), TC-rich repeat (defence and stress responsiveness), and W-box (elicitation; wounding and pathogen responsiveness; binding site of WRKY type transcription factors); digits represent the number of regulatory elements on the positive and negative chain. The blank area indicates no corresponding cis-acting element in any chain of the promoter.
Table
Table 3. Numbers of SAP gene family members in various species.
Table 3. Numbers of SAP gene family members in various species.
Plant SpeciesA20-A20-A20AN1AN1-AN1-AN1-Total Number
AN1A20-AN1AN1-AN1-
AN1 C2H2C2H2-
C2H2
Camellia sinensis1100120014
Arabidopsis thaliana1000111114
Brassica napus3207954057
Gossypium hirsutum2800340237
Malus domestica2303030130
Medicago truncatula1100210216
Oryza sativa1111310118
Populus euphratica1500020118
Solanum lycopersicum900120113
Zea mays800110111
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Fan, S.-C.; Li, C.; Li, S.-H.; Tang, J.; Shi, H.-D.; Yang, T.-M.; Liang, M.-Z.; Liu, D.-D. Genome-Wide Analyses of Tea Plant Stress-Associated Proteins (SAPs) Reveal the Role of CsSAP12 in Increased Drought Tolerance in Transgenic Tomatoes. Horticulturae 2022, 8, 363. https://doi.org/10.3390/horticulturae8050363

AMA Style

Fan S-C, Li C, Li S-H, Tang J, Shi H-D, Yang T-M, Liang M-Z, Liu D-D. Genome-Wide Analyses of Tea Plant Stress-Associated Proteins (SAPs) Reveal the Role of CsSAP12 in Increased Drought Tolerance in Transgenic Tomatoes. Horticulturae. 2022; 8(5):363. https://doi.org/10.3390/horticulturae8050363

Chicago/Turabian Style

Fan, Shu-Chen, Chun Li, Shao-Hua Li, Jie Tang, Hong-Di Shi, Tian-Ming Yang, Ming-Zhi Liang, and Dan-Dan Liu. 2022. "Genome-Wide Analyses of Tea Plant Stress-Associated Proteins (SAPs) Reveal the Role of CsSAP12 in Increased Drought Tolerance in Transgenic Tomatoes" Horticulturae 8, no. 5: 363. https://doi.org/10.3390/horticulturae8050363

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
