Relationship between Leaf Traits and PM-Capturing Capacity of Major Urban-Greening Species

Abstract

High concentrations of airborne particulate matter (PM) in urban areas are of great concern to human health. Urban greening has been shown to be an effective and eco-friendly way to alleviate particle pollution, and attention to its role in mitigating particle pollution has increased worldwide. The species-specific PM-capturing capacity of ten urban-greening species in Seoul was evaluated by leaf functional traits (average leaf area (ALA), specific leaf area (SLA), and leaf width-to-length ratio (W/L)), microstructures (roughness, stomata, and trichomes), and physicochemical traits (contact angle (θ_w), surface free energy (r_s), the work of adhesion for water (W_a), and epicuticular wax loads (EWL)). The relationships between leaf traits and PM adsorption by leaves were revealed by Pearson’s correlations and principal component analysis (PCA). A gravimetric method was used to quantify, by particle size, the PM adsorbed on leaf surfaces or embedded in leaf epicuticular wax layers. The key factors for PM adsorption on leaf surfaces were the SLA, the mean roughness value (R_a), and stomatal size. The SLA and R_a of adaxial leaf surfaces were negatively correlated with PM accumulation on leaf surfaces, while stomatal length and width were positively correlated with surface PM load. The r_s and EWL positively affected the in-wax PM load. Species-specific PM deposition was the result of complicated mechanisms of various leaf traits. Three evergreen shrub species, Buxus sinica (Rehder & E.H. Wilson) M.Cheng var. insularis (Nakai) M.Cheng, Taxus cuspidata Siebold & Zucc., and Euonymus japonicus Thunb., were efficient in capturing both surface PM and in-wax PM. The PCA revealed that the high PM accumulation efficiency of these three species might be attributable to the interaction between stomatal size and EWL. Aesculus turbinata Blume, Chionanthus retusus Lindl. & Paxton, and Rhododendron schlippenbachii Maxim. had intermediate PM adsorption ability, which might be a result of interactions among stomatal density, the W_a of adaxial surfaces, and ALA. Magnolia denudata Desr., Styphnolobium japonicum (L.) Schott, Liriodendron tulipifera L., and Ginkgo biloba L. had low PM accumulation efficiency. These four species exhibited correlations among SLA, the R_a of adaxial leaf surfaces, and W/L, which had negative effects on PM adsorption.

1. Introduction

Rapid urbanization and industrialization have resulted in particle pollution in the recent Anthropocene epoch [1,2]. Particulate matter (PM) is a generic term for a mixture of fine solid particles and liquid droplets found in the atmosphere. Particulate matter can be subdivided according to aerodynamic diameter (D_a) into PM₁₀ (D_a, <10 µm) and PM_2.5 (D_a, <2.5 µm). Particulate matter results not only from natural emissions (such as wildfires, volcanic eruptions, and sea salt formation) but also from anthropogenic processes, such as fuel combustion and vehicle emissions [3,4]. Particulate matter can negatively affect human health, especially the cardiopulmonary system, and has therefore become a major issue worldwide [3]. The effects on human health vary with the size and chemical composition of the PM [5]. The World Health Organization (WHO) estimated that approximately 3 million deaths and 85 million DALYs (disability-adjusted life years, which account for both the length and quality of life) were attributable to particle pollution in 2012 [6].

Particles are scavenged from the air when they impact a surface after any of the following five processes: (1) sedimentation, (2) diffusion, (3) turbulence, (4) washout, and (5) occult deposition [7]. Wet deposition is a mechanism for the removal of particles by washout through precipitation (rainfall or snow) or, to a lesser extent, the impact of fog or cloud droplets on vegetation [8]. Dry deposition occurs via processes such as sedimentation, turbulence, and Brownian motion. Particles with D_a smaller than 1 µm diffuse across concentration gradients and behave like gaseous pollutants because of Brownian motion [7,9]. Other than directly regulating the PM source, urban greening is the most effective measure to reduce air pollutants once PM has been emitted into the air [10]. It is universally recognized that urban vegetation offers a sustainable path for improving the air quality in polluted areas [7,11]. Trees can scavenge particles and gaseous pollutants such as NO₂, SO₂, O₃, and CO [12]. Specifically, leaves as the major sinks of trees can capture PM from the air [13,14]; PM can be adsorbed on leaf surfaces or embedded in the wax layers of leaves [15]. Previous studies have reported the potential of plants’ ability to purify the air and that the service of urban trees has become crucial.

The quantitative analysis of PM is strongly affected by different environmental conditions and plant species, so it is crucial during scientific investigations to examine and control the factors influencing the PM-capturing capacity of different tree species [16]. Many studies have assessed the efficiency of PM capture across different plant species and identified relationships between PM deposition on leaves and leaf morphological variability at both the micro and macro levels [16,17,18,19,20]. Sæbø et al. [17] examined PM accumulation in 22 trees and 25 shrubs in Norway and Poland, and there were 10–15 times higher PM amounts on Taxus and Pinus belonging to conifer species. Chen et al. [21] reported that the groove area ratio and trichome density are important leaf traits for high-efficiency PM_2.5 capture. Sgrigna et al. [16] analyzed the relationship between leaf traits and the amount of PM on leaf surfaces sampled from twelve tree species in Italy and presented an accumulation index by scoring each leaf trait that significantly influenced PM adsorption. Leaf traits such as trichome density and leaf surface roughness are positively correlated with PM deposition on leaf surfaces [3,21,22]. In contrast, the specific leaf area and contact angle are negatively correlated with the quantity of the surface PM adsorption [3,17,23,24,25,26]. In addition, the structure, amount, and composition of wax can influence leaf surface wettability [8,27,28] and, thus, the accumulation of PM [15,29,30].

Particle pollution is a serious public health problem in Seoul. In 2016, the concentration of PM_2.5 in Seoul was 26 µg/m³, which is about twice as high as the WHO air quality criterion (10 µg/m³) and that of major cities in 2015 (Tokyo 13.8 µg/m³, London 11 µg/m³, and LA 14 µg/m³). According to a report of PM_2.5 watches and warnings by the Korea Ministry of Environment in 2021, there were 128 watches and 1 warning in 2017, which increased to 315 watches and 1 warning in 2018 and 590 watches and 52 warnings in 2019. Urban greenspaces can assist in ameliorating particle pollution, but urban and suburban areas have limited available open space [17,31]. Therefore, there is a need to quantify the PM-capturing ability of different taxa, identify species with high PM-capturing ability, and optimize the configuration of green spaces.

Although several studies have discussed the leaf traits associated with PM deposition, few studies have been conducted on the major urban species in Seoul. Moreover, there remain limitations to understanding the mechanisms of the PM deposition of plant species. The hypothesis of this study was that several leaf traits vary among the major urban species, which affects their species-specific PM-capturing capacity. Hence, this work focused on (1) investigating the relationship between foliar traits and PM adsorption on leaves and (2) quantifying the PM-capturing ability of ten major urban tree species in Seoul.

2. Materials and Methods

2.1. Study Site and Plant Material

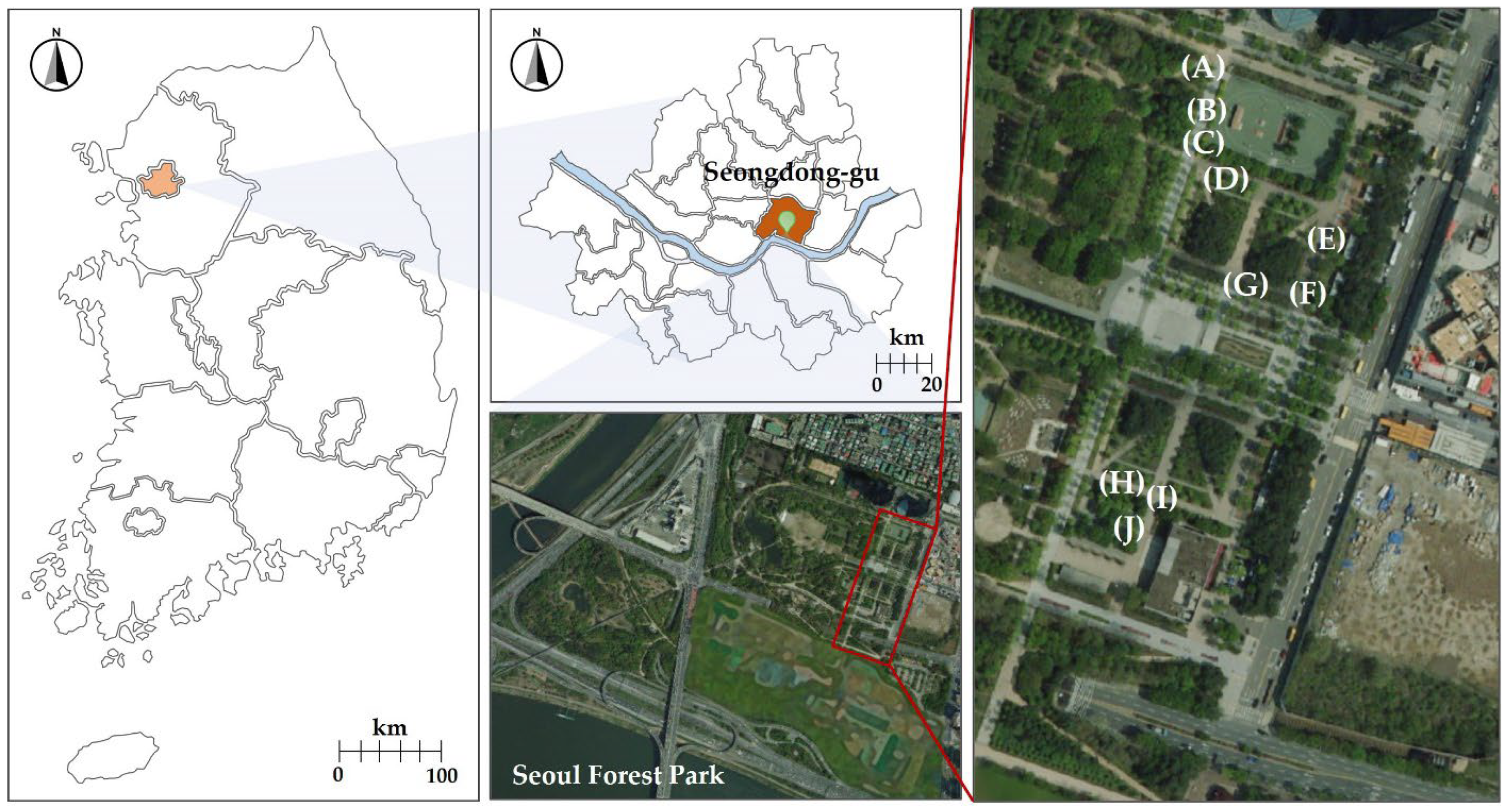

The study site was Seoul Forest Park, located in Seongdong-gu, Seoul, Korea. The average PM₁₀ and PM_2.5 concentrations (43.6 µg/cm³ and 24.4 µg/cm³, respectively) that were measured at a monitoring station (about 700 m away from a sampling site) in Seoul Forest Park over the past five years were similar to the nationwide concentrations (Table S1). Ten major urban greening species in Seoul were selected for this study: Aesculus turbinata Blume, Chionanthus retusus Lindl. & Paxton, Ginkgo biloba L., Liriodendron tulipifera L., Magnolia denudata Desr., Styphnolobium japonicum (L.) Schott, Taxus cuspidata Siebold & Zucc., Buxus sinica (Rehder & E.H. Wilson) M.Cheng var. insularis (Nakai) M.Cheng, Euonymus japonicus Thunb., and Rhododendron schlippenbachii Maxim. (Figure S1). The main characteristics of the selected species are presented in Table S2.

2.2. Sampling

The location of each plant was marked during a preliminary investigation for each species when leaves from identical trees were collected by consecutive sampling (Figure 1). The average height (m) and diameter at the breast height (DBH, cm) of the sampled trees are shown in Table S3. Branches were sampled from five individuals of each species. For each tree, about four branches in different directions were harvested at 3–6 m (tree species) height or 0.5–1 m (shrub species) above ground level on the following dates: 23 July, 13 August, 9 September, 9 October, and 30 October. After sampling, the samples were immediately placed in plastic bags to prevent contamination, transported to the laboratory, and stored in a refrigerator at 4 °C before analysis.

2.3. Leaf Functional Traits

A specified number of leaves were detached from the sampled branches using plant-trimming scissors. The leaf length, width, and area were measured using WinFOLIA image software (WinFOLIA, Regent Instruments Inc., Quebec, QC, Canada); the leaves were then dried in an oven for forty-eight hours at 60 °C. Dried leaves of each batch were weighed using an electronic balance with an accuracy of 0.001 g. Average leaf area (ALA), specific leaf area (SLA), and leaf width-to-length ratio (W/L) were calculated according to [3,20].

2.4. Leaf Micromorphological Traits

After being separated from the sampled branches, the leaves were placed in a Petri dish and freeze-dried using a lyophilizer (FD 8508, IlShinBioBase Co. Ltd., Dongducheon, Korea). Leaf samples from broad-leaved species were cut to a size of 5.0 mm × 5.0 mm with plant-trimming scissors. For T. cuspidata, 0.5 mm-long needles were excised. Four leaf sections, two from each adaxial and abaxial surface, were cut, attached to a metal stub with conductive double-sided carbon tape, and platinum-coated using an ion sputter coater (MC1000, Hitachi, Tokyo, Japan). Field-emission scanning electron microscopy (FE-SEM; SU8010, Hitachi High-Tech, Tokyo, Japan) was used to observe the microstructures of the leaf surfaces.

The parameters related to leaf surface roughness were examined using a non-contact surface profiler (Bruker Contour GT-K™, Bruker Nano GmbH, Berlin, Germany). The non-contact surface profiler uses optics (white light interferometry and interference microscopy) instead of a stylus that can impose contact pressure on a specimen [32,33]. The R_a (the arithmetic mean deviation from the average line within the assessed length) and R_t (the total of the maximum peak height and the maximum valley depth of roughness) were measured to grade the roughness of adaxial and abaxial leaf surfaces.

2.5. Leaf Physicochemical Traits

The contact angle (θ) is the angle between the solid surface and the line tangent to the liquid droplet passing through the contact point between the surface and the droplet. Leaf wettability is determined by measuring the contact angle between a water droplet and the leaf surface [34]. A larger spherical water droplet is produced as a result of the lower hydrophilicity of the leaf surface, which also causes a lower contact angle. The static contact angle can be determined using the sessile drop method [35]. The leaf samples were cut with a razor blade to avoid the midrib and mounted on a glass microscope slide. The contact angles were measured using two test liquids: deionized water and diiodomethane [36]. A 10 μL droplet of distilled water or 2 μL of diiodomethane at room temperature (25 °C) was gently placed on adaxial and abaxial leaf samples using a pipette.

Measurement of the contact angle of a test liquid on the surface, with known surface tension and parameters relevant to surface tension (dispersive and polar components), is a common method for obtaining the surface free energy of the solid surface (r_s). The r_s is a parameter that affects surface-related characteristics, such as adsorption, wetting, and adhesion [37]. When the liquid contacts the solid surface in the gaseous phase, the relationship between the solid and liquid interfacial tension at the triple line between the liquid, solid, and gas can be expressed by Young’s equation in the absence of the spreading pressure [36,38]:

$$r_{sl}=r_s-r_l\cos \theta$$

(1)

where r_sl, r_s, and r_l represent the interfacial tension between the solid and liquid phases, the surface free energy of the solid and liquid (mJ/m²), respectively, and θ (°) is the contact angle at the triple line between the solid, liquid, and gas. The surface free energy can be calculated by adding the dispersive and polar components [39] as follows:

$$r=r_d+r_p$$

(2)

where r, r_d, and r_p are the surface free energy and the dispersive and polar components (mJ/m²), respectively. The interfacial tension between a test liquid and a solid can be calculated using the geometric mean equation according to Owens and Wendt [40]:

$$r_{sl}=r_l+r_s-2\sqrt{r_s^d{r}_l^d}-2\sqrt{r_s^p{r}_l^p}$$

(3)

where r_s^d and r_l^d are the dispersive components of the solid and liquid (mJ/m²), respectively; and r_s^p and r_l^p are the polar components of the solid and liquid (mJ/m²), respectively. Combining Equations (1) and (3) yields:

$$r_l(1+\cos \theta )=2(\sqrt{r_l^p{r}_s^p}+\sqrt{r_l^d{r}_s^d}$$

(4)

The work of adhesion was defined as the reversible thermodynamic work needed for separating the interface from the equilibrium state of two phases to a separation distance of infinity. The work of adhesion for water (W_a) can be calculated following the Young–Dupré equation [36]:

$$W_a=r_l+r_s-r_{sl}=r_l\left(1+\cos \theta \right)$$

(5)

Epicuticular wax loads (EWL) were quantified using colorimetric analysis [41,42]. This method is based on the color change caused by the reaction of wax with acidic potassium dichromate (K₂Cr₂O₇). The reagent was prepared by mixing 5 g of powdered potassium dichromate (K₂Cr₂O₇) with 10 mL of deionized water. The solution was mixed with 250 mL of concentrated sulfuric acid and heated under a fume hood until the slurry became clear. For the extraction of epicuticular wax, 30 pieces of leaves (total area of 30.16 cm²) were prepared for each sample. In the case of the broad-leaved species, each piece was punched at a 0.8 cm diameter. For T. cuspidata, 30 entire leaves were used since the average leaf area investigated was 1.1 cm². The leaf samples were immersed in 10 mL of chloroform for 40 s at room temperature (~25 °C).

The extract was transferred to a 2 mL glass vial and evaporated at 70 °C for 30 min using a heating block (MaXtable H10, Daihan Scientific Co. Ltd., Seoul, Korea). After oxidation by adding 300 μL of potassium dichromate solution, the extract was heated for 30 min at 100 °C in a heating block. After heating, the glass vials were placed on ice for cooling, and 700 μL of deionized water was added to each vial. The samples were maintained at room temperature for 1 h for color development. The absorbance of each sample was measured at 590 nm using a microplate reader (Epoch microplate spectrophotometer, Synergy-Bio Tek, Winooski, VT, USA). Carnauba wax was used as the standard wax to develop a calibration curve. A calibration curve was used to calculate the EWL for each species. The EWL was expressed in mg/g.

2.6. Quantitative Assessment of PM

The quantitative assessment of PM was examined gravimetrically according to [43] (Figure S2). For each species, a number of leaves were randomly selected from the samples and were carefully detached using plant-trimming scissors. The leaves were placed in a glass container containing 250 mL of deionized water. The glass container was agitated for one minute using an ultrasonic bath (JAC-Ultrasonic 1505P) to remove particles deposited on the leaf surfaces. These represent water-soluble PM from the leaf surfaces (SPM). The leaf area of each sample was measured using WinFOLIA image software (WinFOLIA, Regent Instruments Inc., Quebec, QC, Canada) after rinsing with deionized water. The leaves were placed in 150 mL of chloroform in a glass container for 40 s to dissolve the epicuticular wax and separate PM stabilized in the wax layers. These represent the PM retained in leaf waxes (termed WPM). Deionized water and chloroform were stored in a refrigerator until filtration was performed.

To prevent electrostatic charge, the filters were passed through a deionizer gate and pre-weighed using an electronic balance with an accuracy of 0.001 mg. The washing solutions containing SPM were filtered sequentially through three types of filters with different retentions: nylon filter (pores 10 μm) and MCE (mixed cellulose ester) filter (pores 3 μm and 0.22 μm) (all MF-Millipore, Merck, Darmstadt, Germany). In the case of chloroform containing WPM, the filtration process was performed as for SPM, with the exception that filters were replaced with polytetrafluoroethylene PTFE membrane filters (Advantec, Tokyo, Japan) for organic solvents. The filtration procedure was performed using a filtration set with a 47 mm glass filter funnel connected to a vacuum pump. After filtration, the filters were dried (25 °C, RH 35%) for twenty-four hours and reweighed. Consequently, three PM sizes were left on each filter: (i) >10 μm, (ii) 3–10 μm, and (iii) 0.2–3 μm. The quantity of PM accumulated on the leaves or in wax layers for each species was determined as follows:

$$P \left(\mathsf{\mu }\mathrm{g}/\mathrm{cm}\right)=\left(P_2-P_1\right)/A$$

(6)

where P is the amount of leaf PM retention (µg/cm), P₁ is the pre-weighed amount of filter paper (µg), P₂ is the weight of filter paper with PM (µg), and A is the surface area of the leaves (cm²). Amounts of PM₁₀ were calculated as the total mass of PM_3–10 and PM_0.2–3. The leaf area was calculated using a double-sided surface because the particles were washed from both the adaxial and abaxial surfaces of the leaves.

2.7. Leaf Area Index (LAI)

The leaf area index (LAI) is defined as half the total area of leaves and woody materials per unit of ground surface area [44]. Hemispherical photography is a useful indirect method for estimating the LAI of forest canopies by providing a circular hemispheric projection. Using the LAI-2000 plant canopy analyzer (Li-cor Inc., Lincoln, NE, USA), hemispherical photography analyzes LAI by measuring the canopy gap fraction from different zenith angles and the angle measured directly above [45]. The LAI was estimated by taking digital hemispherical photographs (DHPs) of the canopy using a camera fitted with a fish-eye lens (a lens with a 180° circular view).

DHPs of the canopy of each species were taken from 1.2 m above ground using a smartphone camera with a 180° fish-eye lens fixed to a tripod with a leveling head, which ensured a horizontal position. The LAI was determined from the DHPs of the canopy using the Gap Light Analyzer (GLA) software. The PM load based on LAI (µg/cm) was quantified by multiplying the LAI value by the amount of PM adsorbed on leaf surfaces or embedded in the wax layers of ten species. It was hypothesized that the rate of PM adsorption would be identical in all parts of the plant.

2.8. Statistical Analysis

All data were statistically analyzed using SPSS Statistics 26 (SPSS Inc., IBM Company Headquarters, Chicago, IL, USA). The Shapiro–Wilk test was used to confirm the normality of all data. A one-way analysis of variance (ANOVA) as a parametric test was performed for the variables that satisfied normality, to determine whether there were statistically significant differences among different species, followed by Tukey’s post hoc test. The non-parametric Kruskal–Wallis test was used for the variables that did not meet normality, to identify statistically significant differences among species. Pearson’s correlation test was performed to test whether there is a statistically significant linear relationship between PM load and various foliar traits. Principal component analysis (PCA) was applied to investigate associations of specific leaf characteristics with amounts of accumulated particles on leaves.

3. Results

3.1. Leaf Functional Traits

Statistically significant differences in ALA, SLA, and W/L (ANOVA, p = 0.000) were observed among the ten species (

Table 1. Average leaf area (ALA), specific leaf area (SLA), and leaf width-to-length ratio (W/L ratio) of tested plant species.

Species	ALA	SLA	W/L Ratio
Aesculus turbinata	225.4 ± 34.4 a	169.9 ± 26.1 b	0.42 ± 0.01 ef
Chionanthus retusus	82.3 ± 5.4 c	132.7 ± 5.9 cd	0.58 ± 0.08 cd
Ginkgo biloba	45.1 ± 3.8 d	143.2 ± 7.1 bcd	1.46 ± 0.10 a
Liriodendron tulipifera	161.5 ± 22.7 b	228.5 ± 15.2 a	1.29 ± 0.01 b
Magnolia denudata	147.2 ± 16.1 b	145.6 ± 11.3 bcd	0.67 ± 0.06 c
Styphnolobium japonicum	19.6 ± 1.9 de	228.7 ± 18.4 a	0.33 ± 0.01 f
Taxus cuspidata	1.1 ± 0.1 e	57.9 ± 6.9 e	0.17 ± 0.02 g
Buxus koreana	1.4 ± 0.1 e	55.5 ± 1.7 e	0.48 ± 0.04 de
Euonymus japonicus	19.1 ± 1.7 de	118.8 ± 10.8 d	0.51 ± 0.02 de
Rhododendron schlippenbachii	16.4 ± 2.5 de	153.9 ± 6.3 bc	0.45 ± 0.05 e

The same lowercase letter indicates that there were no statistically significant differences among species at a significance level of 0.05 (n = 5).

). The ALA varied between 1.1 ± 0.1 cm² and 255.4 ± 34.4 cm². ALA was obviously higher in A. turbinata (255.4 cm²), followed by L. tulipifera, M. denudata, C. retusus, G. biloba, S. japonicum, E. japonicus, and R. schlippenbachii. The smallest ALA groups were observed in B. koreana (1.4 cm²) and T. cuspidata (1.1 cm²). The SLA and the W/L ratio also varied by species. L. tulipifera and S. japonicum with thinner leaves exhibited larger SLAs, while T. cuspidata and B. koreana showed smaller SLA values by their thick and leathery leaves. The W/L ratio which reflects the leaf shape was higher in G. biloba (fan-shaped leaves) and L. tulipifera (broad ovate-shaped leaves) at 1.46 and 1.29, respectively. The W/L ratio of S. japonicum and T. cuspidata was close to zero because of the lanceolate or needle-shaped leaf.

3.2. Leaf Micromorphological Traits

As summarized in

Table 2. Leaf micro-morphological traits (stomata and trichomes) of ten plant species.

Species	Stomata			Trichome
	Density	Size (μm)		Types z		Size (μm) y
	(No. mm−2)	Length	Width	Adaxial	Abaxial	Adaxial	Abaxial
A. turbinata	439 ± 44	12.3 ± 3.1	4.9 ± 1.8		NG		176 ± 64
C. retusus	157 ± 16	19.4 ± 2.4	7.5 ± 1.1	PG	NG, PG		191 ± 48
G. biloba	84 ± 21	22.3 ± 3.6	14.8 ± 2.8
L. tulipifera	135 ± 8	19.9 ± 5.3	7.6 ± 2.1
M. denudata	208 ± 2	19.4 ± 3.2	6.4 ± 1.3	NG	NG	215 ± 28	411 ± 79
S. japonicum	161 ± 20	12.4 ± 1.7	6.2 ± 1.6	NG, SG	NG	202 ± 31	436 ± 111
T. cuspidata	163 ± 34	42.3 ± 3.3	33.5 ± 3.6
B. koreana	175 ± 32	42.1 ± 2.5	32.4 ± 2.4	NG		50 ± 6
E. japonicus	229 ± 16	26.7 ± 1.3	20.6 ± 0.9
R. schlippenbachii	174 ± 23	17.0 ± 1.7	8.4 ± 0.7	NG	NG	1336 ± 482	1355 ± 252

The same lowercase letter indicates that there were no statistically significant differences among species at a significance level of 0.05. ^z: NG, non-glandular; PG, peltate glandular; S, stellate. ^y: Length of non-glandular trichomes.

, leaf micro-morphological traits differed among species. The mean stomatal density (No. mm⁻²) varied among the species by more than five-fold. The stomatal density was highest for A. turbinata (439 ± 44 mm⁻²), followed by E. japonicus, M. denudata, B. koreana, R. schlippenbachii, T. cuspidata, S. japonicum, C. retusus, L. tulipifera, and G. biloba. The stomatal size (μm), which is the length and width of the stomata on abaxial leaf surfaces, also varied among species. In the present study, a higher stomatal size was observed in T. cuspidata (42.3 μm long and 33.5 μm wide) and B. koreana (42.1 μm long and 32.4 μm wide). S. japonicum and A. turbinata showed lower stomatal sizes at 12.4 long and 6.2 μm wide and 12.3 μm long and 4.9 μm wide, respectively.

There were differences among the ten species in trichome type and size on adaxial and abaxial leaf surfaces. G. biloba, L. tulipifera, T. cuspidata, and E. japonicus had no trichomes on either surface of the leaves, while the remaining six species exhibited different trichome types on their leaf surfaces (Table 2). In particular, C. retusus was clearly distinguished from the other species by markedly peltate glandular trichomes on its adaxial surfaces and non-glandular and peltate glandular trichomes on its abaxial surfaces. S. japonicum showed the non-glandular and stellate trichomes on the adaxial leaf surfaces and the non-glandular trichomes on the abaxial leaf surfaces. R. schlippenbachii formed the longest trichomes on both its adaxial and abaxial leaf surfaces, while B. koreana formed the shortest trichomes only on the adaxial leaf surfaces.

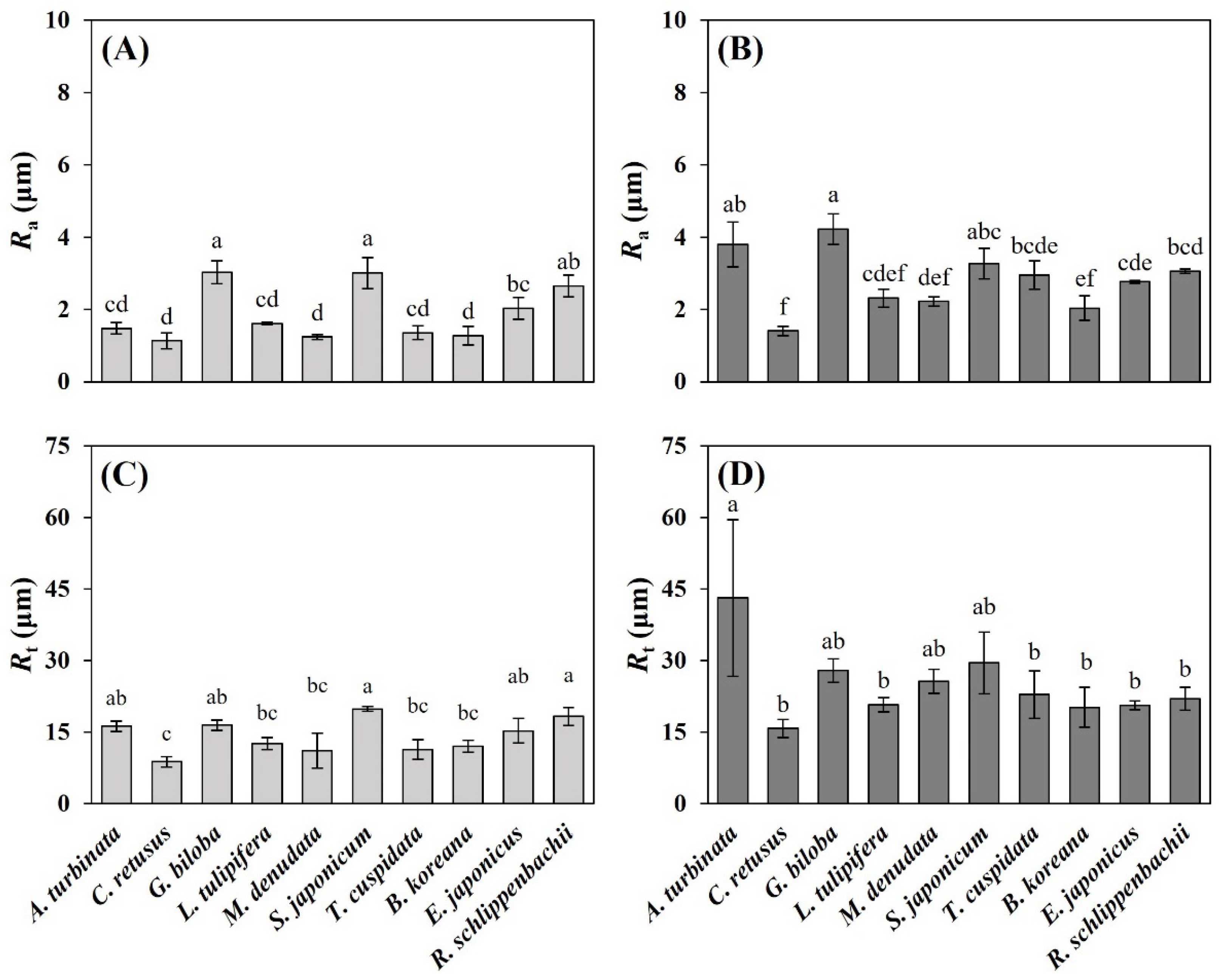

R_a and R_t differed significantly among the ten species (ANOVA, p = 0.000; Figure 2). The Ra of adaxial leaf surfaces were highest for S. japonicum and G. biloba, followed by R. schlippenbachii, E. japonicus, L. tulipifera, A. turbinata, T. cuspidata, B. koreana, M. denudata, and C. retusus. The R_t of adaxial leaf surfaces were highest for S. japonicum and R. schlippenbachii and lowest for C. retusus. G. biloba was observed to have higher roughness on the abaxial surfaces by the greatest R_a. C. retusus had the lowest R_a on its abaxial surfaces. The R_t of the abaxial surfaces was highest for A. turbinata, followed by S. japonicum, G. biloba, and M. denudata. The R_t of the abaxial surfaces was significantly lower in T. cuspidata, R. schlippenbachii, L. tulipifera, E. japonicus, B. koreana, and C. retusus. As shown in the 3D interferometry images (Figures S5 and S6), the roughness of the abaxial surfaces was greater than that of the adaxial surfaces. The 3D topography was reflected in the SEM micrograph.

There were obvious differences in the surface roughness of the different leaves among ten plant species (Figures S3 and S4). The ridges and grooves were densely distributed on both the adaxial and abaxial surfaces of A. turbinata, and most of these grooves were quite narrow. G. biloba had well-developed grooves and ridges on both the adaxial and abaxial surfaces. M. denudata had a wide and shallow sunken area on the adaxial surfaces. C. retusus had a narrower sunken area than M. denudata on its adaxial surfaces and was covered with quite dense ridges and grooves around the stomata similar to A. turbinata (Figure S3). S. japonicum was densely covered with epicuticular wax crystals on the abaxial leaf surfaces. L. tulipifera, B. koreana, and E. japonicus had relatively smooth adaxial surfaces compared with the other species. In addition, T. cuspidata exhibited the presence of quite narrow and deep grooves on the abaxial surfaces (Figure S4).

3.3. Leaf Physicochemical Traits

The contact angles of the standardized water droplets on a leaf surface can be used as a proxy for leaf wettability. The water-repellent properties of leaf surfaces were applied to a high contact angle (θ) of water droplets. The leaves were classified as “super-hydrophilic” surfaces if the θ was less than 40°, “highly wettable” if the θ was 40° to <90°, and “wettable” if the θ was 90° to <110°. If the θ was 110° to <130°, the leaves were termed as non-wettable and as highly non-wettable if the θ was >130° [46].

There were clear differences in the contact angles of deionized water and diiodomethane (θ_w and θ_d, respectively) among ten plant species (ANOVA, p = 0.000;

Table 3. Contact angle of water (θ_w) and diiodomethane (θ_d) on the adaxial and abaxial leaf surfaces of ten plant species.

Species	θw (°)		θd (°)
	Adaxial	Abaxial	Adaxial	Abaxial
Aesculus turbinata	75.2 ± 3.2 e	151.6 ± 1.5 a	57.3 ± 1.0 bc	69.8 ± 8.0 bc
Chionanthus retusus	84.2 ± 4.7 de	102.1 ± 9.4 g	52.5 ± 3.0 cd	59.6 ± 2.9 cd
Ginkgo biloba	101.9 ± 3.5 b	143.6 ± 4.7 ab	64.8 ± 3.2 ab	94.0 ± 2.3 a
Liriodendron tulipifera	97.8 ± 5.4 b	137.5 ± 3.6 bc	57.3 ± 2.7 bc	56.4 ± 5.3 cd
Magnolia denudata	94.2 ± 1.0 bcd	115.2 ± 1.5 ef	69.1 ± 0.3 a	69.3 ± 3.0 bc
Styphnolobium japonicum	95.3 ± 4.2 bc	132.1 ± 2.9 cd	51.0 ± 5.8 cd	81.9 ± 5.4 ab
Taxus cuspidata	114.1 ± 9.9 a	123.3 ± 2.6 de	56.0 ± 7.6 bc	82.1 ± 3.0 ab
Buxus koreana	93.3 ± 1.0 bcd	108.0 ± 3.4 fg	59.2 ± 2.6 bc	67.6 ± 9.9 bc
Euonymus japonicus	84.5 ± 1.2 cde	102.2 ± 6.4 g	51.1 ± 1.2 cd	67.6 ± 4.1 bc
Rhododendron schlippenbachii	85.0 ± 3.7 cde	73.7 ± 3.7 h	43.4 ± 5.4 d	51.9 ± 9.8 d

The same lowercase letter indicates that there were no statistically significant differences among species at a significance level of 0.05 (n = 4).

and Figure S7). In the case of deionized water, the adaxial surfaces of T. cuspidata had the highest θ_w (114.1°), showing the most water-repellency. In contrast, A. turbinata had highly wettable adaxial surfaces, with the lowest θ_w values among the species. The abaxial surfaces exhibited higher θ_w values than the adaxial surfaces in most species experimented on, except for R. schlippenbachii. The abaxial surfaces of A. turbinata had the highest θ_w value (151.6°), showing a highly non-wettable surface, followed by G. biloba (143.6°). The θ_w values of R. schlippenbachii on the abaxial surfaces were the lowest among the ten species (73.7°). Overall, the θ values of diiodomethane were lower than those of deionized water for both the adaxial and abaxial leaf surfaces (Table 3)

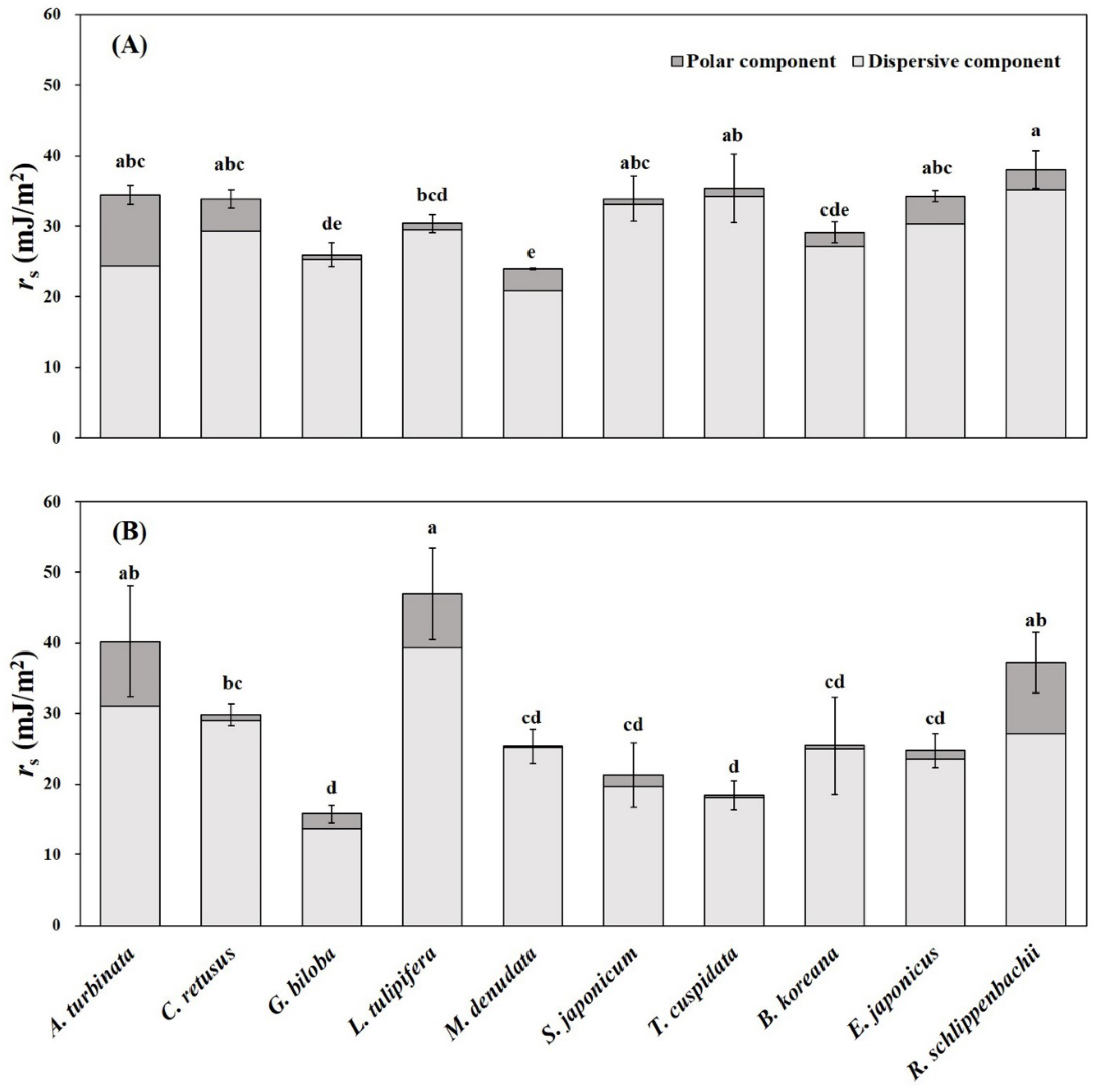

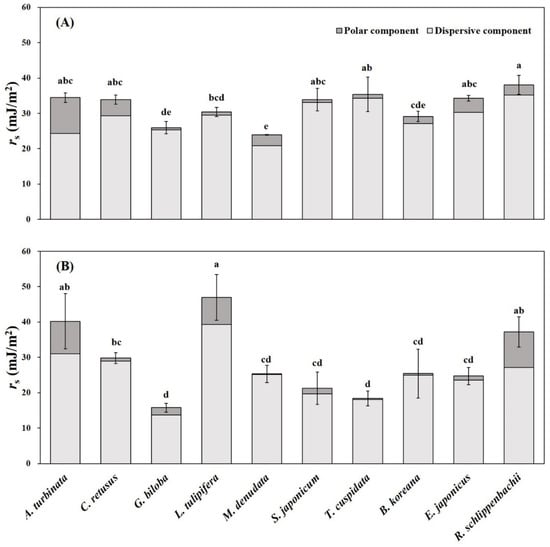

The surface free energy varied among the ten species and between the adaxial and abaxial surfaces. As one of the thermodynamic properties of solid surfaces, the surface free energy (r_s) is associated with surface phenomena such as wettability and adhesion. There were significant differences in the r_s of the adaxial and abaxial surfaces among the ten plant species (ANOVA, p = 0.000; Figure 3). In the species experimented on, the dispersion component dominated r_s with a larger proportion than the polar components on both the adaxial and abaxial surfaces. The r_s of the adaxial leaf surfaces descended in the following order: R. schlippenbachii (38.1 mJ/m²), T. cuspidata (35.4 mJ/m²), A. turbinata (34.5 mJ/m²), E. japonicus (34.3 mJ/m²), C. retusus (33.9 mJ/m²), S. japonicum (33.9 mJ/m²), L. tulipifera (30.4 mJ/m²), B. koreana (29.1 mJ/m²), G. biloba (26.0 mJ/m²), and M. denudata (23.9 mJ/m²). Unlike in other species, the polarity component accounted for a larger proportion of the r_s on the adaxial surfaces of A. turbinata. The r_s on the abaxial surfaces descended in the following order: L. tulipifera (47.0 mJ/m²), A. turbinata (40.2 mJ/m²), R. schlippenbachii (37.2 mJ/m²), C. retusus (29.8 mJ/m²), B. koreana (25.4 mJ/m²), M. denudata (25.3 mJ/m²), E. japonicus (24.7 mJ/m²), S. japonicum (21.3 mJ/m²), T. cuspidata (18.4 mJ/m²), and G. biloba (15.8 mJ/m²). The polarity component accounted for a larger proportion of the r_s on the abaxial surfaces in A. turbinata, L. tulipifera, and R. schlippenbachii.

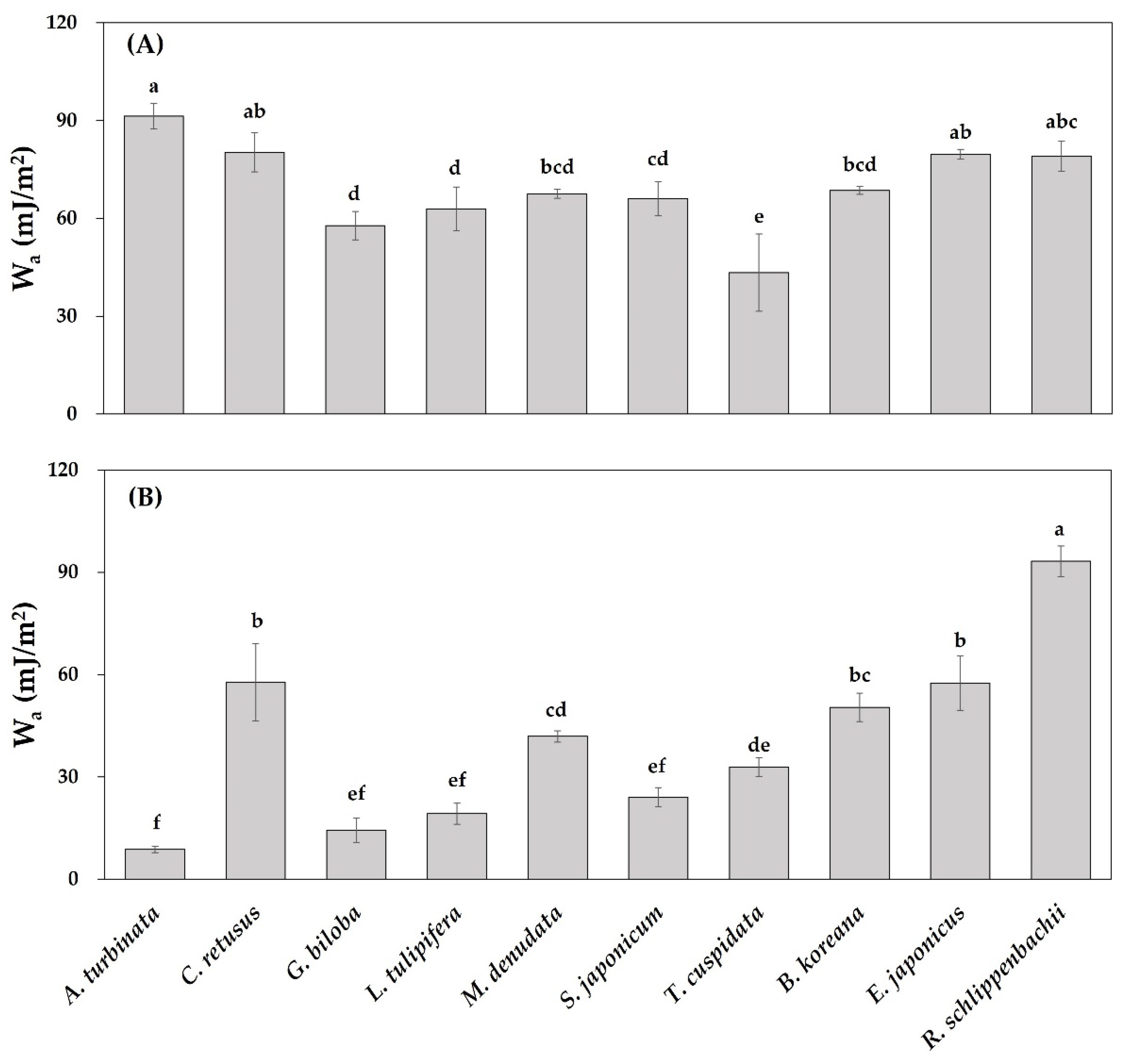

The W_a differed significantly among the ten species on both the leaf adaxial and abaxial surfaces (ANOVA, p = 0.000; Figure 4). The W_a of the adaxial surfaces was greatest for A. turbinata (91.4 mJ/m²), followed by C. retusus (80.3 mJ/m²), E. japonicus (79.8 mJ/m²), R. schlippenbachii (79.2 mJ/m²), B. koreana (68.6 mJ/m²), M. denudata (67.5 mJ/m²), S. japonicum (66.1 mJ/m²), L. tulipifera (63.0 mJ/m²), and G. biloba (57.8 mJ/m²). The W_a value of the adaxial surfaces was lowest for T. cuspidata (43.4 mJ/m²). The abaxial surfaces exhibited higher W_a values than those of the adaxial surfaces in most species, except for R. schlippenbachii. The W_a of the abaxial surfaces varied more than 10-fold among the species. The W_a of the abaxial surfaces was highest for R. schlippenbachii (93.2 mJ/m²), followed by C. retusus (57.3 mJ/m²), E. japonicus (57.5 mJ/m²), B. koreana (50.4 mJ/m²), M. denudata (41.9 mJ/m²), T. cuspidata (32.9 mJ/m²), S. japonicum (24.1 mJ/m²), L. tulipifera (19.2 mJ/m²), and G. biloba (14.4 mJ/m²). In contrast to the adaxial surface, the value for the abaxial surfaces was lowest for A. turbinata (8.78 mJ/m²).

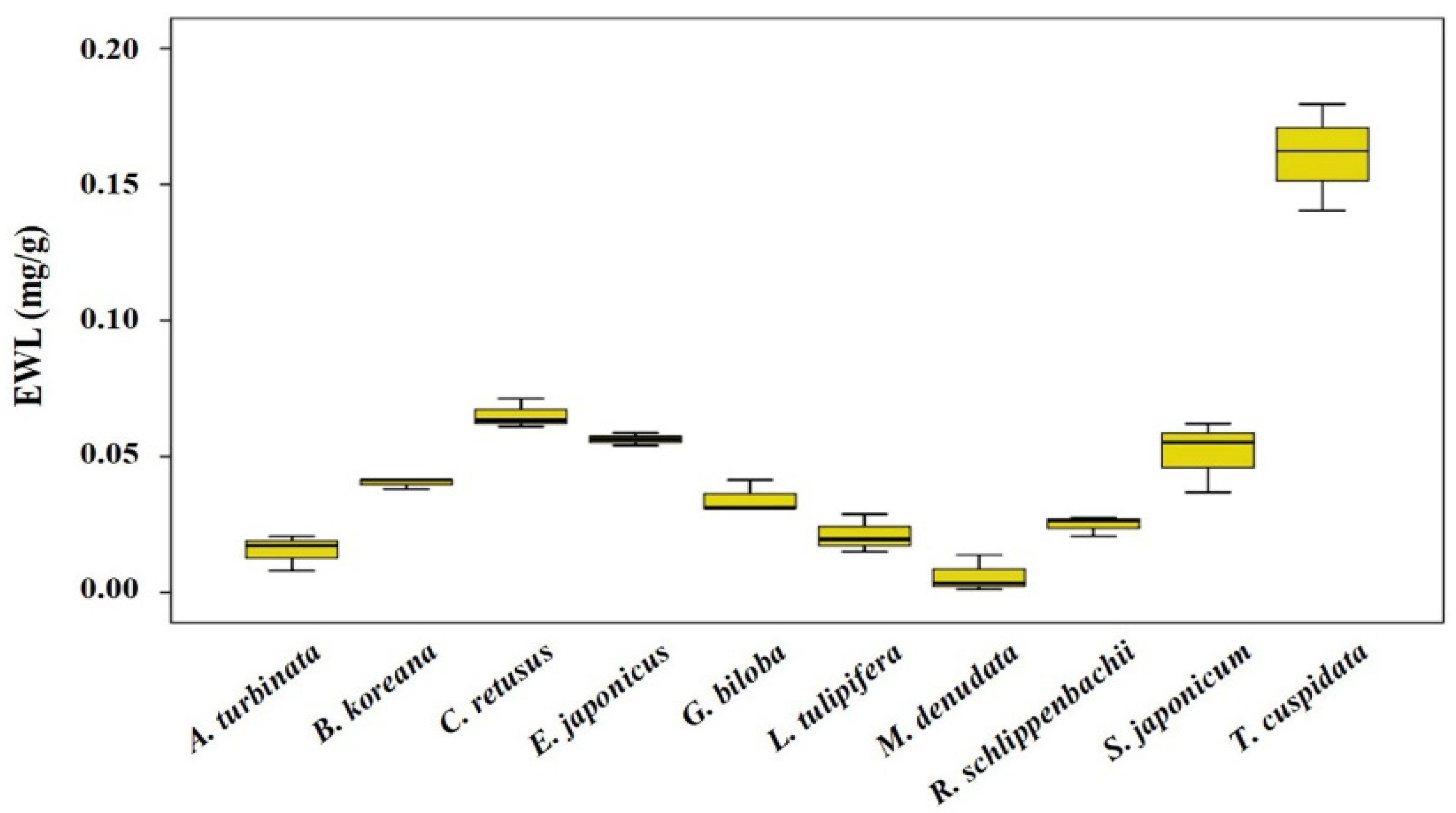

Significant differences were observed among the ten plant species in the epicuticular wax loads (EWL) (Kruskal–Wallis test, p = 0.001; Figure 5). T. cuspidata was identified as the species having the highest EWL, followed by C. retusus, E. japonicus, S. japonicum, B. koreana, G. biloba, R. schlippenbachii, and L. tulipifera. A. turbinata and M. denudata had lower EWLs.

3.4. PM Load on Leaf Surfaces and in Wax Layers

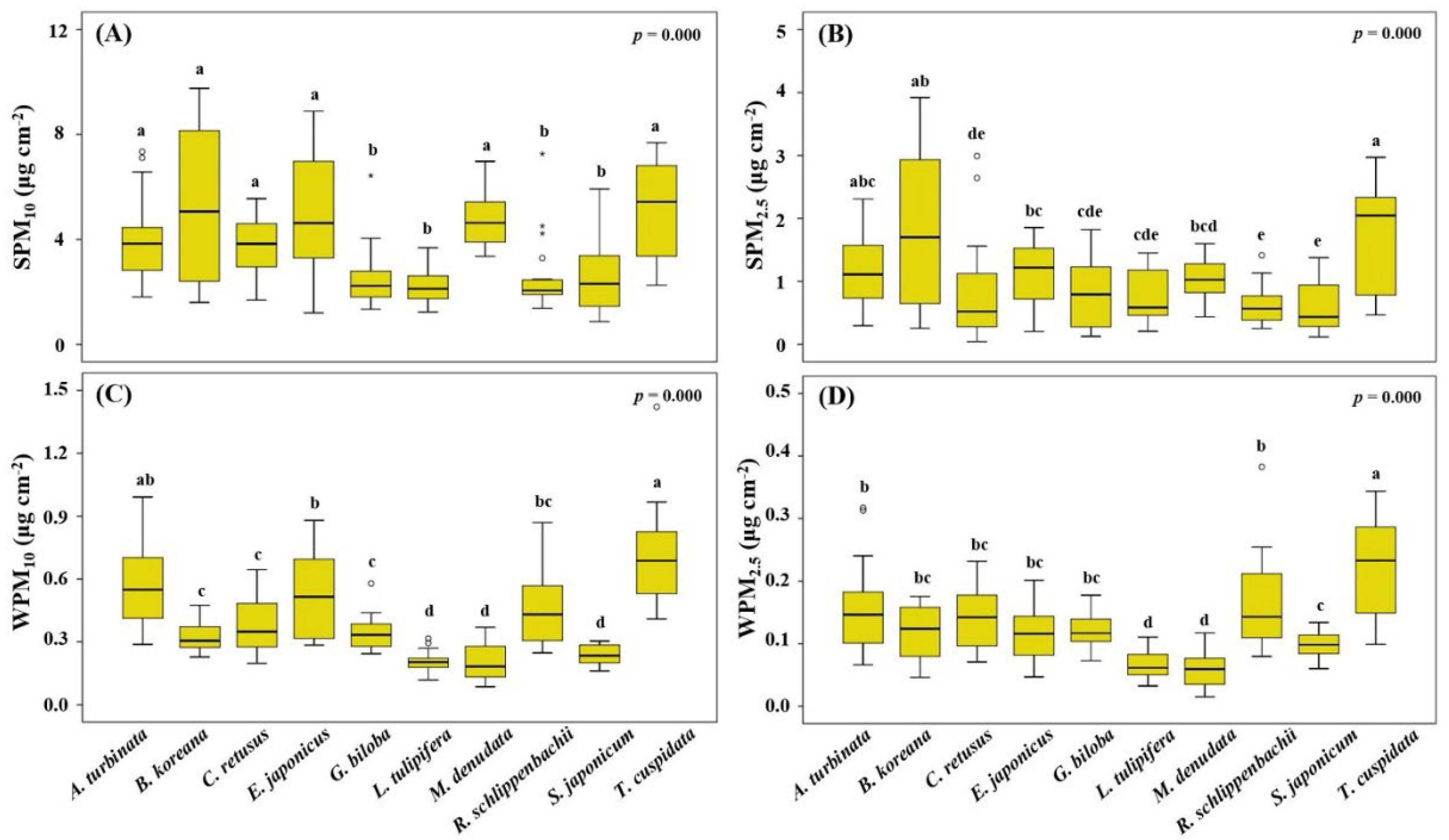

The amounts of PM adsorbed on the leaf surfaces and accumulated in the wax layers differed significantly among the ten plant species (Kruskal–Wallis test, p = 0.000; Figure 6). SPM₁₀, SPM_2.5, WPM₁₀, and WPM_2.5 were analyzed for the ten species, taking the PM adsorption data from July to October as a whole.

The mean SPM₁₀ ranged from about 2.3 µg/cm² to 5.23 µg/cm². B. koreana had the highest SPM₁₀-capturing capacity (5.23 µg/cm²), followed by T. cuspidata, E. japonicus, M. denudata, A. turbinata, C. retusus, S. japonicum, G. biloba, R. schlippenbachii, and L. tulipifera. According to the Kruskal–Wallis test, B. koreana, T. cuspidata, and A. turbinata were in the same homogeneous subset (data not shown), showing high SPM_2.5 accumulations on their leaf surfaces. The following order was E. japonicus, M. denudata, C. retusus, G. biloba, L. tulipifera, R. schlippenbachii, and S. japonicum.

There were also significant differences in the WPM₁₀-capturing capacity among the species. The WPM₁₀ ranged from 0.20 µg/cm² to 0.71 µg/cm². T. cuspidata showed the highest WPM₁₀, followed by A. turbinata, E. japonicus, R. schlippenbachii, C. retusus, G. biloba, B. koreana, S. japonicum, L. tulipifera, and M. denudata. In regard to the WPM_2.5 accumulations, T. cuspidata was the only species in the high accumulation group according to the Kruskal–Wallis test (0.22 ± 0.08 µg/cm²). C. retusus, G. biloba, B. koreana, E. japonicus, and S. japonicum had considerably lower accumulations of WPM_2.5. L. tulipifera and M. denudata had the lowest WPM_2.5-capturing capability (0.07 µg/cm² and 0.06 µg/cm², respectively). There were differences among the ten plant species in the ratio of the four class types to the total PM mass (Figure S8). In general, the mass of the SPM₁₀ dominated most of the total mass, accounting for 64–80% of the total PM load; SPM_2.5 accounted for 16–24%; WPM₁₀ accounted for 3–12%; and WPM_2.5 accounted for 1–5%.

3.5. Relationship between Leaf Traits and PM Capturing Capability

Pearson’s correlation analysis was performed to identify the correlations between various foliar traits and the PM adsorbed on leaf surfaces or encapsulated in leaf epicuticular wax layers (

Table 4. Correlations among PM load and foliar traits (n = 10).

Leaf Traits	SPM10		SPM2.5		WPM10		WPM2.5
	r	p	r	P	r	p	r	p
ALA	−0.15	0.672	−0.19	0.595	−0.13	0.727	−0.28	0.431
SLA	−0.81 **	0.005	−0.83 **	0.003	−0.54	0.104	−0.54	0.107
W/L	−0.55	0.101	−0.40	0.257	−0.51	0.130	−0.53	0.116
SL	0.69 *	0.028	0.87 **	0.001	0.37	0.298	0.38	0.280
SW	0.67 *	0.035	0.86 **	0.002	0.47	0.176	0.46	0.186
SD	0.29	0.415	0.18	0.612	0.41	0.243	0.18	0.619
Ra (ad)	−0.66 *	0.039	−0.59	0.075	−0.16	0.659	−0.07	0.841
Rt (ad)	−0.53	0.116	−0.46	0.183	−0.01	0.985	−0.01	0.987
θw (ad)	0.08	0.817	0.30	0.395	0.00	0.995	0.13	0.718
rs (ad)	−0.09	0.798	−0.08	0.836	0.62	0.058	0.66 *	0.037
Wa (ad)	−0.08	0.834	−0.30	0.406	0.02	0.963	−0.12	0.747
Ra (ab)	−0.34	0.332	−0.18	0.616	0.28	0.425	0.23	0.523
Rt (ab)	−0.12	0.745	−0.06	0.876	0.18	0.612	0.08	0.830
θw (ab)	−0.17	0.642	0.03	0.934	−0.08	0.829	−0.16	0.649
rs (ab)	−0.37	0.292	−0.28	0.428	−0.13	0.722	−0.18	0.626
Wa (ab)	0.13	0.730	−0.06	0.861	0.10	0.774	0.19	0.599
EWL	0.41	0.236	0.49	0.153	0.64 *	0.047	0.71 *	0.022

SPM₁₀, surface PM₁₀; SPM_2.5, surface PM_2.5; WPM₁₀, in-wax PM₁₀; WPM_2.5, in-wax PM_2.5; ALA, average leaf area; SLA, specific leaf area; W/L, leaf width-to-length ratio; SL, stomatal length; SW, stomatal width; SD, stomatal density; R_a, the arithmetic mean deviation from the average line within the assessed length; R_t, the sum total of the maximum peak height and the maximum valley depth of roughness; θ_w, contact angle of water; r_s, surface free energy; W_a, adhesion for water; EWL, epicuticular wax load; ad, adaxial surface; ab, abaxial surface. We determined the statistical significance of the Pearson Correlation Coefficient to test whether there is a statistically significant linear relationship between PM load and various foliar traits. P values were indicated by * p < 0.05 and ** p < 0.01.

). The SPM₁₀ was significantly negatively correlated with SLA and R_a (adaxial surfaces) in leaf traits (p < 0.01). In contrast, the SL and SW showed significant positive correlations with SPM₁₀ (p < 0.05). The SLA, SL, and SW were highly significant factors correlated with SPM_2.5 (p < 0.01); the SLA was negatively correlated with SPM_2.5, whereas the SL and SW were positively correlated with SPM_2.5. The PM embedded in epicuticular wax layers showed different correlation results compared with the PM adsorbed on the leaf surfaces. The WPM₁₀ showed significant positive correlations with EWL. The WPM_2.5 showed significant positive correlations with EWLs and r_s (adaxial surfaces).

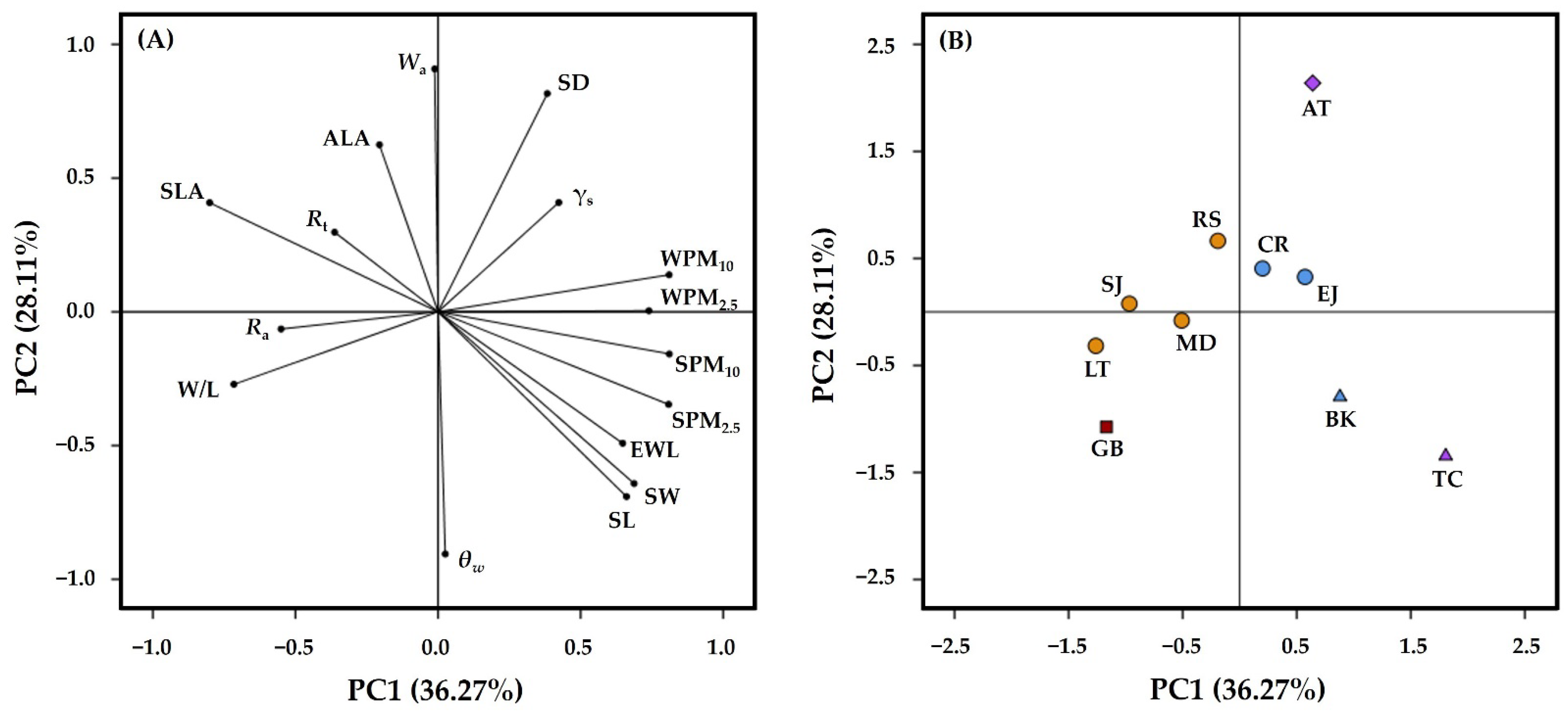

Subsequently, the PM loads for the two size fractions on the leaf surfaces and in the wax and the values indicating foliar traits were used as variables for principal component analysis (PCA). For R_a, R_t, θ_w, W_a, and r_s, only the results of the leaf adaxial surfaces were used for the PCA analysis. As shown in Figure 7, the cumulative contribution rate of the first two of nine principal components (PCs) represented 64.38% of the total variance. The first PC, based on all four types of PM load, SL, SW, EWL, W/L, and SLA, accounted for 36.3% of the variance. In particular, PC1 was positively correlated with SL, SW, and EWL and negatively correlated with W/L and SLA. The second PC explained 28.1% of all factors, primarily based on the following characteristics: ALA, SD, W_a, θ_w, and W/L. The second PC was positively correlated with ALA, SD, and W_a; however, it was negatively correlated with W/L and θ_w. The amount of SPM and WPM was positively correlated with the following leaf traits: SW, SL, EWL, r_s, and SD, but it was negatively correlated with SLA, ALA, W/L, Ra, and Rt. The factor coordinates and scores of the first two PCs are shown in Figure 7. The ten tested species were divided into the following two groups by PC1: (1) A. turbinata, C. retusus, T. cuspidata, B. koreana, and E. japonicus, and (2) G. biloba, L. tulipifera, M. denudata, S. japonicum, and R. schlippenbachii.

4. Discussion

The foliar traits examined in this study exhibited a wide variation among the ten plant species, resulting in variable PM adsorption. There was a negative correlation between the SPM load and SLA (Table 4). Previous studies have reported that deposition velocity has a negative relationship with SLA. It is generally believed that leaves with low SLA might have thicker palisade tissues. Thus, leaves with low SLA can have structural stability, which may allow them to adsorb more particles to leaf surfaces [3,20]. Chiam et al. [3] reported that there was no significant correlation with PM deposition velocity, which is in line with the results of this study. In contrast to the results of the present study, Zhang et al. [20] reported that the PM deposition velocity was negatively correlated with W/L. The W/L indicated the extent of the proximity of the leaf edges to the main vein; a lower W/L might cause leaves to sway less, reducing the resuspension of PM.

Leaf microstructure is considered to be one of the major factors influencing PM deposition. The stomata can be one of the places where PM_2.5 or PM₁₀ is deposited on leaf surfaces [31]. The SPM was positively correlated with stomatal size, but not with stomatal density in this study (Table 4). Zha et al. [47] reported that stomatal size was significantly associated with the load of PM_2.5. Liang et al. [48] found no significant relationship between stomatal density (ranging averagely from 10.4 to 38.4 No./mm²), and PM_2.5. In contrast, Simon et al. [49] reported that plant species with high stomatal density exhibited higher foliar PM accumulation. The species tested in that study had a relatively high average stomatal density, ranging from 237 to 757 No./mm². Chen et al. [21] confirmed that when the stomatal density is high, it might have a significant relationship with PM capture. In the present study, an average stomatal density of 84–439 No./mm² was observed (Table 2), showing no significant correlation with the PM load.

In the present study, the relationship between R_a and the PM load differed from that reported in previous studies. In this study, R_a was negatively correlated with SPM₁₀. Chen et al. [21] reported that the groove area ratio (a percent ratio of groove area to total leaf area) was positively correlated with PM_2.5 capture in broadleaved tree species. In addition, Zhang et al. [22] reported a positive correlation between leaf surface roughness and the adsorption of PM_2.5 in broadleaved species. In this study, R_t did not show a statistically significant correlation with PM loads. Wang et al. [4] reported that Ulmus pumila L., which had 1 µm wide parallel ridges detected by using a non-contact optical profiler, had a more efficient PM-capturing capacity than Ginkgo biloba L., which had the greatest P–V distance (the distance between the highest peak and lowest valley, which is the same as R_t in this study). In addition, the P–V distance did not have a significant relationship with PM adsorption. It seems that not only the roughness parameters related to the height of ridges but also the width between ridges should be considered to identify relationships with PM adsorption.

The work of adhesion is one of the physicochemical properties of a material, along with the surface free energy and its polar and dispersive components. By measuring the work of adhesion of a liquid, it is possible to quantify the degree of droplet retention or repellence on a plant surface [36,50]. Dry and wet deposition can be decreased by the low adhesion of water drops on leaf surfaces [51]. Wang et al. [36] reported that leaf water drop adhesion is positively correlated with r_s (r = 0.535, p = 0.000) and W_a (r = 0.698, p = 0.000). In the present study, the r_s of leaf adaxial surfaces was positively correlated with WPM (Table 4). It is likely that a higher r_s allowed greater water drop adhesion on the leaf surfaces which increased the dry and wet deposition of PM. Unlike r_s, W_a had no significant effect on the PM load.

The leaves with a higher EWL had a greater adsorption capacity for WPM (Table 4). Popek et al. [15] found that the amount of wax differed significantly among species, and the in-wax PM_2.5–10 load was positively correlated with wax quantities. In Corylus colurna, high positive correlations were found between wax quantity and total in-wax PM content (r = 0.95). However, when all the tested species were analyzed together, a moderate positive correlation was observed between in-wax PM_2.5–10 load and wax quantities (r = 0.54). Moreover, Popek et al. [15] confirmed that PM deposition can be differently affected by the complicated mechanisms of various leaf traits, not only wax load.

PM has the potential to adversely affect human health, particularly in urban areas. Trees capture PM and accumulate toxic components such as heavy metals in an environmentally friendly manner [52]. It is valuable to select species that can capture PM when planning green infrastructure. In this study, ten major urban plant species in Seoul were tested to investigate the differences in their PM-capturing capacity. Significant differences in the amount of PM adsorbed on leaf surfaces and encapsulated in wax layers were observed among the species. Figure 7 shows that the PM load was positively correlated with the size and density of stomata, r_s, and EWL, and negatively correlated with the functional leaf traits (SLA, ALA, and W/L) and surface roughness parameters (R_a and R_t), which coincided with the results of Pearson’s correlation analysis (Table 4).

The species-specific PM-capturing capacity of the ten plant species that were tested can be explained by interpreting the results of the PCA with respect to the different PM loads among the ten species (Figure 7). The species in the first group were distinguished by PCA as having a relatively higher PM-capturing capacity than the species in the second group. Taxus cuspidata and B. koreana had high PM accumulation both on leaf surfaces and in epicuticular wax layers. The first principal component indicated that PM load was positively correlated with stomatal size (SL and SW) and EWL, and negatively correlated with SLA and W/L. Taxus cuspidata had the greatest mean stomatal size (both SL and SW; Table 2) and mean EWL (Figure 6). In addition, T. cuspidata had the lowest values for both SLA and W/L (Table 1). The two species of B. koreana and T. cuspidata had the lowest mean SLA and the largest stomatal size (Table 1 and Table 2).

The high PM-capturing capability of T. cuspidata and B. koreana is in line with the results of previous studies. He et al. [23] reported the highest load of both PM₁₀ and PM_2.5 over winter in another member of the Taxus genus, English yew (Taxus baccata L.), due to the rough leaf surface. Reference [17] also found that T. baccata is an efficient species for PM capture. Kwon et al. [53] reported that B. koreana deposited the greatest quantity of PM_2.5–10 in both sampling dates due to the round shape and relatively wide base of leaves which allow little movement by wind. Among the deciduous broadleaved species, A. turbinata had greater PM-capturing capability (Figure 6) and was classified by PC1 into the first group.

Aesculus turbinata has not been discussed in the literature to the best of our knowledge; however, several studies have investigated other species in the Aesculus genus, particularly the horse chestnut (Aesculus hippocastanum L.) [17,54]. Tomašević et al. [54] reported that A. hippocastanum had a higher density of fine particles, as compared with C. colurna. Euonymus japonicus also had relatively high PM accumulation. Zhang et al. [55] reported that E. japonicus had a relatively high PM-capturing capacity with the greatest coarse PM (PM_2.5–10) load on the leaf surfaces because it is a low-growing shrub species with proximity to the pollutant source.

The two species of S. japonicum and L. tulipifera were differentiated by PC1 as showing relatively low PM-capturing capacity, which coincides with the result of the PM load (Figure 6). These two species had the highest mean SLA values, in contrast to T. cuspidata and B. koreana (Table 1). Additionally, G. biloba showed intermediate efficiency in capturing PM (Figure 6), which was identified by the PCA technique as being rather low in G. biloba (Figure 7). Specifically, Ginkgo biloba had the highest mean value of W/L (Table 1), which is the factor showing a negative correlation with PC1 (Figure 7). Many previous studies have included G. biloba when testing for species differences in PM-capturing capability and have confirmed G. biloba as a species with low PM-capturing efficiency [20,26,55,56,57]. Kwak et al. [56] reported that among five temperate tree species G. biloba had the lowest PM adsorption per unit of leaf area. Zhang et al. [26] reported that G. biloba adsorbed a small mass of PM on its leaf surfaces because of the smooth and hydrophobic surface. Three evergreen species, B. koreana, E. japonicus, and T. cuspidata, were distinguished from most of the other deciduous species, except for A. turbinata and C. retusus. Evergreen species have the potential to function as biological filters throughout the year, whereas deciduous species lose their leaves and PM-capturing ability during the winter season [21,23]. In addition, this study proved that the PM-scavenging ability of evergreen species was more efficient than that of deciduous species. Due to the toxic components in urban air-suspended PM particles, however, it is necessary to investigate the physiological traits of each species for a better understanding of the PM-capturing capacity of plant species. More importantly, Lhotská et al. [58] demonstrated that soil dust PM, which can lead to different physicochemical properties, toxicokinetics, and surface reflectances induced biochemical, physiological, and metabolic alterations that drive epigenetic changes as the degree of leaf damage caused by oxidative stress.

5. Conclusions

Urban greening is one of the sustainable ways to alleviate air quality in urban areas deteriorated by high PM emission loads. We demonstrated that there was a significant relationship in leaf functional, micromorphological, and physicochemical traits for PM adsorption among major urban species in Seoul. The combinations of various leaf traits seemed to affect different PM-capturing capabilities of ten plant species. Among the leaf functional traits and micro-morphological traits, SLA and stomatal size (length and width of stomata) had significant effects on SPM adsorption; SLA was negatively correlated with SPM load, while stomatal size had a positive correlation with SPM. In addition, the leaf physicochemical trait EWL was significantly positively correlated with WPM, PM load immobilized in waxes. Given the relationships between the leaf traits and PM capture efficiency of urban plant species, we suggest that evergreen species, B. koreana, T. cuspidata, and E. japonicus are the best urban species that can be planted in urban areas to reduce particle pollutants faster and better during the four seasons because of their relatively large stomatal size and high epicuticular wax loads. Future studies need to clarify those potential explanations of meteorological factors throughout seasonal changes in physiological traits and PM-capturing capacity.
