Using Sigmoid Growth Models to Simulate Greenhouse Tomato Growth and Development

Abstract

Mathematical modeling has been used to describe the characteristics of crop growth. Establishing a growth model can help to better understand the responses of crops to their environment and improve the efficiency of agricultural production. This study establishes empirical growth models to predict the growth of greenhouse tomato. In this study, we collected beef tomato (Solanum lycopersicum cv. ‘993′) growth data over two crop seasons in Taiwan and established growth models by employing the commonly used Gompertz and Logistic curves. Days after transplanting (DAT) and growing degree-days (GDD) were introduced as independent variables and their relationships with five traits, i.e., plant height, leaf area index, stem dry matter, leaves dry matter, and fruits dry matter were determined. The performances of GDD models were slightly better than those of the DAT models. In addition, we inferred five critical points with biological meaning based on the proposed growth models. The critical points estimated by the Logistic model are closer to our expectation than those of the Gompertz model, and they were applicable for the ‘993′ tomato in Taiwan. These results can be used to predict tomato growth and adjust the fieldwork schedule to improve the efficiency of the greenhouse production of tomatoes.

1. Introduction

Growth models have long been used to statistically describe the characteristics of crop growth and the relationship between crops and the environment [1,2]. Growth models not only summarize the knowledge about crop behavior [3] but can also be applied in many aspects of greenhouse cultivation such as research, planning, and climate control [4,5].

Time (i.e., days after planting) and ambient temperature are important factors affecting crop growth. Temperature is an important factor that influences crop development, including germination, flowering, and maturation [6,7]. Different species and even varieties have their optimal growth temperature [6,8,9]. Heat units, expressed in growing degree-days (GDD), are frequently used to quantify the impact of temperature on biological processes [10]. The GDD is the difference between the daily mean air temperature (T_AVG) and base temperature (T_BASE) [10]. When the temperature is below the T_BASE, the development of a particular process will cease [9]. Cumulative GDD can effectively predict crop biomass, leaf area index (LAI), and other traits [7,11].

The LAI, dry matter (DM), and plant height (PH) are often used as indicators of crop growth [7]. The LAI can quantify the vegetative canopy structure of crops [12]. Additionally, the LAI can reflect the radiation interception ability of crops, and it is highly correlated with yield [13]. However, the traditional method of measuring LAI is costly or destructive; therefore, the LAI could be simulated directly from environmental parameters. LAI has been modeled as a function of days after transplanting (DAT) [14,15] or as a function of GDD [12,16,17,18,19,20]. Crop DM production is important for the optimization of greenhouse management [21] together with PH, especially for crops that require support. In addition, PH can be used to adjust crop coefficients when calculating evapotranspiration [22]. Both DM production and PH can be simulated through growth models [23,24,25,26,27,28] to reduce labor costs and damage to plants when sampling.

The growth process of crops involves the regulation of many metabolic pathways and gene functions. In most cases, the growth rate of crops will change from slow to fast before reaching a maximum, after which it will start to slow down; finally, the growth rate will then reach zero [29]. Several sigmoid growth curves have been proposed to describe this growth pattern of organisms [30]. Among these, the Gompertz and Logistic models stand out, which are parsimonious and interpretable [1,24]. Logistic and Gompertz models are called growth functions, and the first derivative and the second derivative of the growth function are called growth rate and acceleration functions, respectively [31]. In addition, both models can infer five critical points, which are helpful in the arrangement of agricultural operations [24,31]. The five critical points are absolute acceleration point (AAP), maximum acceleration point (MAP), inflection point (IP), maximum deceleration point (MDP), and asymptotic deceleration point (ADP) [31]. Before AAP, the acceleration of the growth rate is very slow; thus the actual growth starts after this point. MAP is the maximum point of the acceleration function. IP has a maximum growth rate and the value of the acceleration function will be zero. Additionally, after IP, the growth decelerates. In other words, the value of acceleration function is negative. MDP is the minimum point of the acceleration function. It is known that after ADP, the deceleration and growth rate go to zero gradually, and the growth will no longer be significantly changed [31].

Tomato (Solanum lycopersicum L.) is one of the most important crops for greenhouse production. This study investigated five traits, including PH, LAI, stem dry matter (SDM), leaves dry matter (LDM), and fruits dry matter (FDM), and used two types of independent variables, DAT and GDD, to fit the Gompertz and Logistic models. The objectives of the present study were to investigate the fitting ability of the Gompertz and Logistic models to the growth of tomatoes and to clarify the applicability of sigmoid growth curves in greenhouse tomato cultivation.

2. Materials and Methods

2.1. Data Collection

All experiments were conducted in the solar greenhouse at the Taiwan Agricultural Research Institute (TARI) located in Taichung City, Taiwan (latitude 24°02′ N, longitude 120°69′ E) (Figure S1). The size of the greenhouse was 29.2 m $\times$ 24 m $\times$ 4.4 m, and the material was polyethylene film. Beef tomato cv. ‘993′ was used and planted in coconut fiber substrate (Forteco Profit; Van der Knaap Group, Wateringen, the Netherlands). The planting density was 27,907 plants ha⁻¹. The tomatoes were irrigated and fertilized with a drip system as well as pruned and managed following local practices.

The studied growth parameters were PH, LAI, SDM, LDM, and FDM. Growth parameters investigation was performed 1 day after the transplanting and repeated every 1–2 weeks. For each inspection, we randomly selected 3–5 plants to measure PH. The leaf area was measured with a leaf area meter (LI-3000a; LI-COR Biosciences, Lincoln, NE, USA). After measuring the leaf area and PH, the plant was separated into three parts: stem, leaves, and fruits, and dried in an oven at 80 °C until the weight no longer changed to obtain the DM. In this study, the growth data of tomatoes were collected for two crop seasons: October 2020 to January 2021 and October 2021 to January 2022. The data included a total of 45 and 60 tomato plants grown in the 2020–2021 and 2021–2022 crop seasons, respectively. The environmental parameters were air temperature (°C) and relative humidity (RH, %) inside and outside the greenhouse, which were automatically collected every 10 min and averaged every day using a data logger (CR300; Campbell Scientific Inc., Logan, UT, USA).

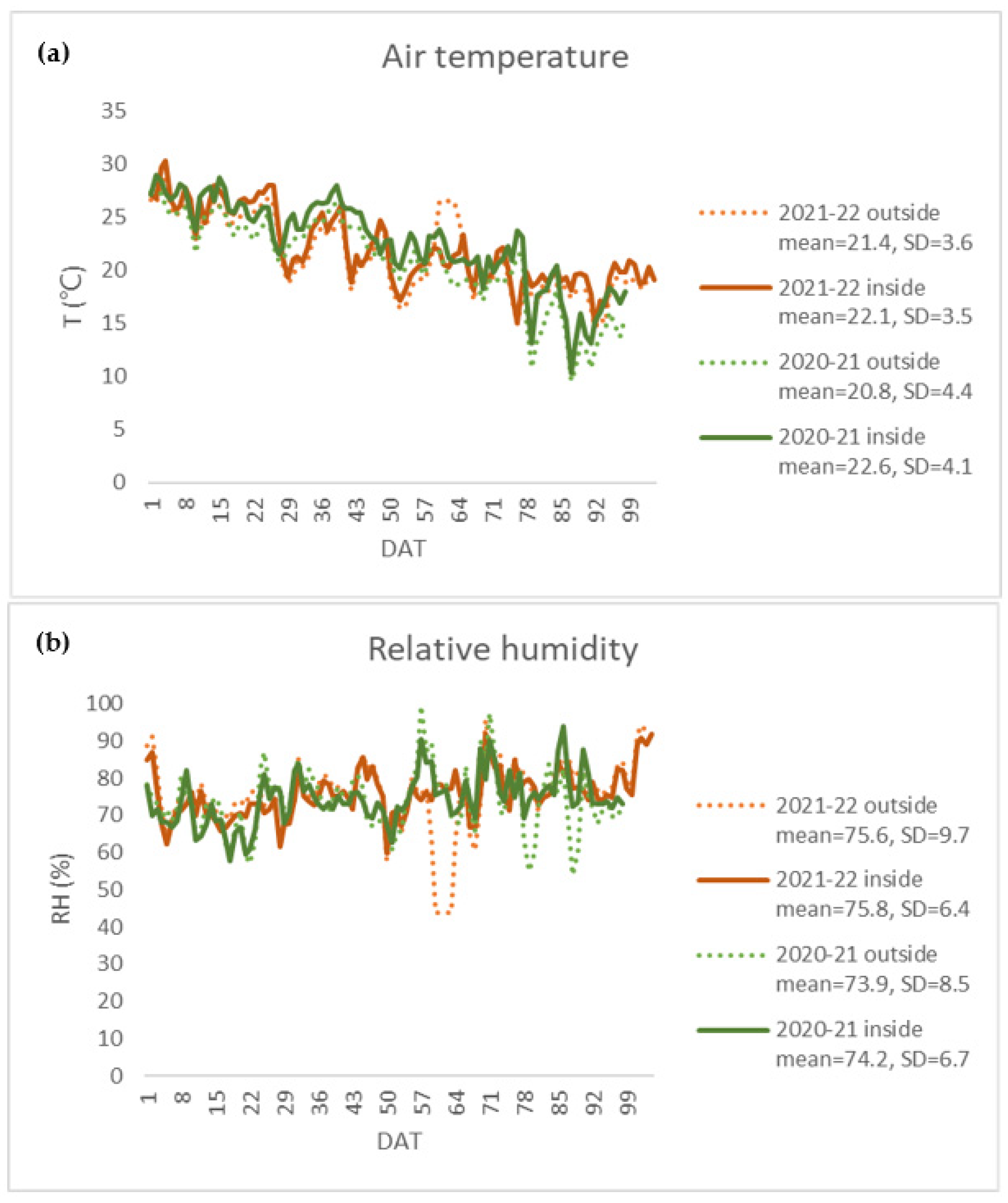

Figure 1 shows the daily mean air temperature and RH during the 2020–2021 and 2021–2022 crop seasons with no obvious difference in environmental conditions. Daily mean air temperature showed a decreasing trend in both crop seasons. The temperature variation outside the greenhouse was larger than those inside the greenhouse (SD_inside $<$ SD_outside). The daily mean RH inside the greenhouse fluctuated around 60% and 90% throughout the crop seasons, while the daily mean RH outside the greenhouse varied from 45% to nearly 100%. Thus, the greenhouse environment was relatively stable compared with the open field.

2.2. Establishment of the Sigmoid Growth Models

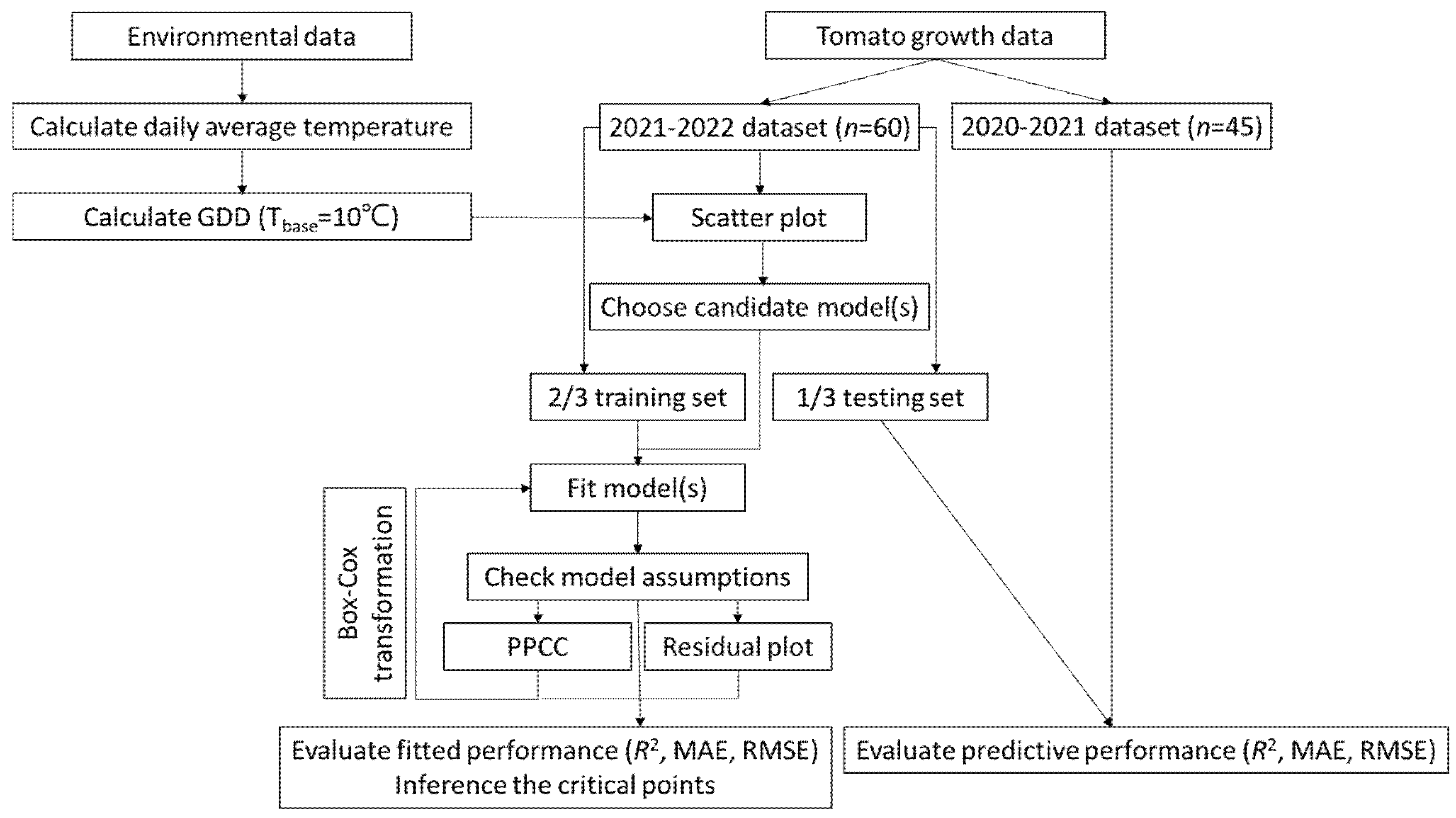

When establishing the growth model of the five traits of tomato, i.e., PH, LAI, SDM, LDM, and FDM, we considered two types of independent variables, DAT and GDD. T_BASE of tomato was set as 10 °C when calculating GDD [26]. Before modeling, we produced the scatter plot of the dependent variable against each independent variable to confirm the suitability of fitting the growth model with a sigmoid curve. If the relationship between the independent and dependent variable was S-shaped, two sigmoid models, the Gompertz (Equation (1)) and Logistic (Equation (2)), were used to fit the data.

$$y_i=a·e^{\left(-e^{b-c{x}_i}\right)}+{\epsilon }_i$$

(1)

$$y_i=\frac{a}{1+e^{\left(-b-c{x}_i\right)}}+{\epsilon }_i$$

(2)

where a denotes the asymptotic value of the dependent variable, b is the location parameter related to the initial value of the model, c is the parameter that affects the growth rate in the curve, e is the base of the natural logarithm, and ε_i is the error term.

We randomly selected 2/3 of the 2021–2022 data for model calibration, and the remaining 1/3 of the data were used for model validation. Due to the small amount of data gathered during the 2020–2021 growth season, it was only used as another validation set. Before selecting a candidate model, the assumptions, such as those of normality and variance homogeneity, were examined. We used the probability plot correlation coefficient (PPCC), which is the correlation coefficient between the model residuals and their expected quantiles under a normal distribution, to test the normality hypothesis [32]. The higher the calculated PPCC, the better the model residuals follow a normal distribution. The assumption of homogeneity of variance was tested using residual plots of the model. An ideal residual plot should have residuals scattered randomly around 0 and not in a megaphone shape [33]. If the model violated the assumptions, the Box-Cox procedure (Equation (3)) was used to transform the data to make it follow the assumptions. The Box-Cox procedure can automatically identify a transformation from the family of power transformations on the dependent variable [33].

$${\mathrm{Y}}^{\prime }={\mathrm{Y}}^{\mathsf{\lambda }}$$

(3)

where ${\mathrm{Y}}^{\prime }$ is the dependent variable after transformation, Y is the untransformed dependent variable, and λ is a parameter determined from the data.

2.3. Model Performance Evaluation

Both the coefficient of determination (R²) (Equation (4)) and mean absolute error (MAE) (Equation (5)) were used to evaluate the model performance during the calibration and validation. For R², larger values signify higher model performance. Contrarily, for MAE, the lower values indicate a better model. Additionally, the root mean square error (RMSE) (Equation (6)) was used to evaluate the goodness-of-fit of each model. For RMSE, the lowest values indicate the optimal model.

$$R^2=1-\frac{\mathrm{SSE}}{\mathrm{SST}}$$

(4)

$$\mathrm{MAE}=\frac{{{\displaystyle \sum }}_{i=1}^n\left|y_i-{\widehat{y}}_i\right|}{n}$$

(5)

$$\mathrm{RMSE}=\sqrt{\frac{\mathrm{SSE}}{n-p-1}}$$

(6)

where SSE is the error sum of squares of the model, SST is the total sum of squares of the model, n is the number of observations, $y_i$ is the ith observation value, ${\widehat{y}}_i$ is the fitted value of the ith observation, and p is the number of parameters in the model. Both the Logistic and Gompertz models have three parameters (i.e., a, b, and c).

2.4. Critical Points of the Logistic and Gompertz Models

AAP and ADP can be calculated by equalizing the fourth derivative of the growth function to zero. MAP and MDP are found by equalizing the third derivative of the growth function to zero. IP is determined by equalizing the second derivative of the growth function to zero. Korkmaz et al. [31] already determined these critical points of the Logistic curve. In this paper, we only derived the Gompertz curve’s critical points; the derivation process can be found in the Appendix A. Here, we summarized the critical points of the two growth curves as

Table 1. Critical points of the Logistic and Gompertz models. a, b, and c are the estimated parameters of the two growth models, and e is the base of the natural logarithm.

Model	AAP	MAP	IP	MDP	ADP
Logistic	$\left(\frac{-\left(\ln \left(5+2\sqrt{6}\right)+b\right)}{c},\frac{a\left(3-\sqrt{6}\right)}{6}\right)$	$\left(\frac{-\left(\ln \left(2+\sqrt{3}\right)+b\right)}{c},\frac{a\left(3-\sqrt{3}\right)}{6}\right)$	$\left(\frac{-b}{c},\frac{a}{2}\right)$	$\left(\frac{-\left(\ln \left(2-\sqrt{3}\right)+b\right)}{c},\frac{a\left(3+\sqrt{3}\right)}{6}\right)$	$\left(\frac{-\left(\ln \left(5-2\sqrt{6}\right)+b\right)}{c},\frac{a\left(3+\sqrt{6}\right)}{6}\right)$
Gompertz	$\left(\frac{b-1.5021}{c},\frac{a}{e^{4.4909}}\right)$	$\left(\frac{b-ln\left(\frac{3+\sqrt{5}}{2}\right)}{c},a·e^{-\frac{3+\sqrt{5}}{2}}\right)$	$\left(\frac{b}{c},\frac{a}{e}\right)$	$\left(\frac{b-ln\left(\frac{3-\sqrt{5}}{2}\right)}{c},a·e^{-\frac{3-\sqrt{5}}{2}}\right)$	$\left(\frac{b+1.7975}{c},\frac{a}{e^{0.1657}}\right)$

AAP: Absolute acceleration point; MAP: Maximum acceleration point; IP: Inflection point; MDP: Maximum deceleration point; ADP: Asymptotic deceleration point.

.

2.5. Statistical Analysis

All statistical analyses were implemented using the R software (version 4.1.3; R Foundation for Statistical Computing, Vienna, Austria), with ‘minpack.lm’ (version 1.2-2) and ‘ppcc’ (version 1.2) packages used for model fitting and normality verification, respectively. For parameter estimation of nonlinear model, the ‘minpack.lm’ package was employed to obtain the numerical solution by minimizing residual sum of squares based on the Levenberg-Marquardt algorithm [34]. ‘EnvStats’ package (version 2.7.0) was used to conduct Box-Cox transformation when the model did not meet the assumptions.

3. Results and Discussion

In the present study, we employed Logistic and Gompertz models to connect the several growth traits (i.e., PH, LAI, SDM, LDM, and FDM) of tomatoes with DAT and cumulative GDD. To construct a model that exhibits good adaptability, a series of steps are required, including: (1) selecting suitable model types, (2) checking model assumptions, (3) fitting models, (4) evaluating model performance, and (5) model interpretation [1,35]. The overall research schema is summarized in Figure 2.

3.1. Verifying the Model Assumptions

Because the residuals of the fitted model (based on the original data) violated the assumptions of homogeneity of variance (Figures S2–S5), we implemented the Box-Cox procedure to transform the data. The λ values obtained are shown in

Table 2. λ values of the Box-Cox transformation.

Variable	λ
PH	0.88
SDM	0.63
LDM	0.72
FDM	0.84
LAI	0.81

PH: plant height; SDM: stem dry matter; LDM: leaves dry matter; FDM: fruits dry matter; LAI: leaf area index.

. After the variable transformation, the PPCC values of the models were all higher than 0.87, indicating that the model residuals obeyed the normality assumption (Table S1). The residual plots revealed that the violations of assumptions were improved substantially after the data transformation (Figures S2–S5). However, even after the data transformation, there was still heteroscedasticity in the model residuals (Figures S2–S5). Meade et al. [36] and Thornley and France [37] considered that heteroscedasticity was common in the establishment of growth models since the increase in measurement was often accompanied by an increase in the overall variance.

3.2. Evaluation of the Fitted and Predictive Performance of the Models

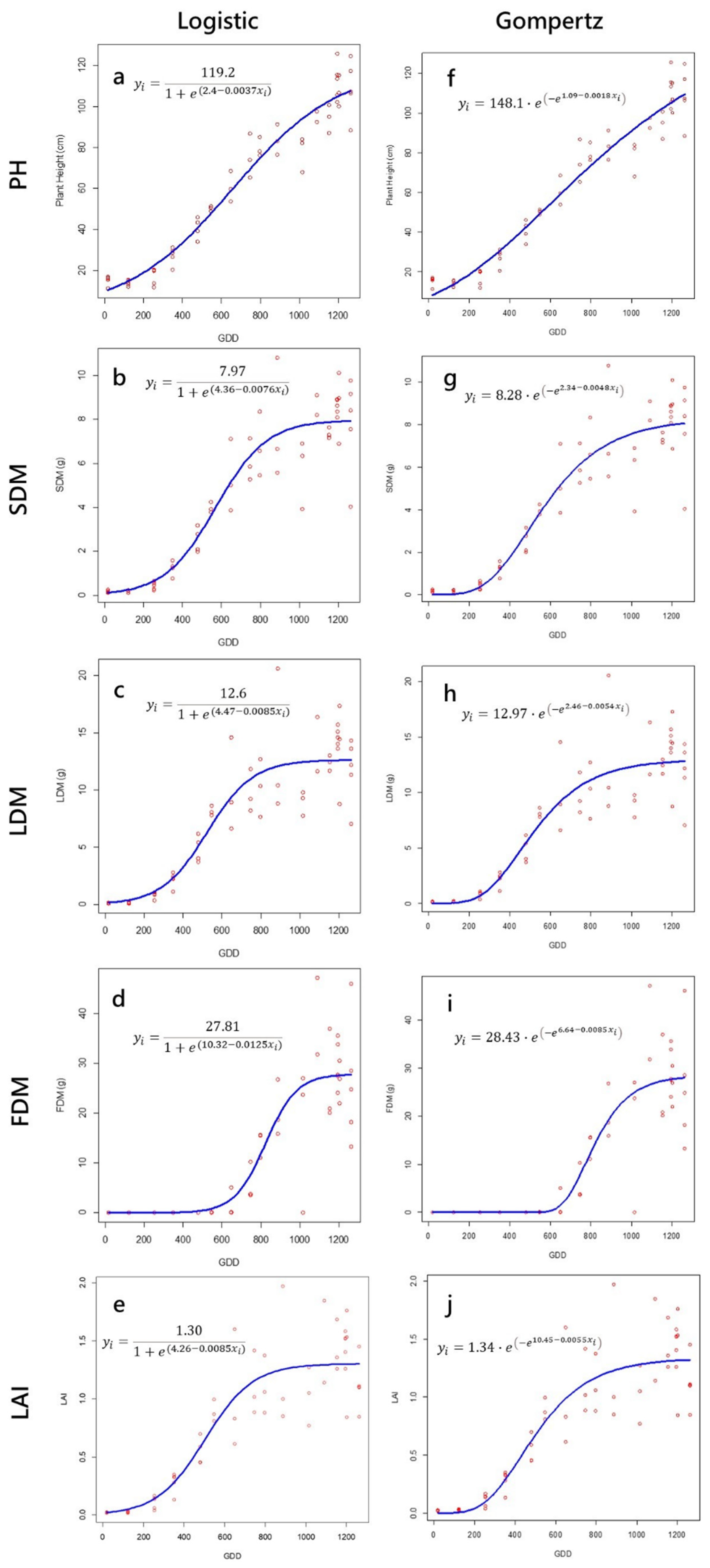

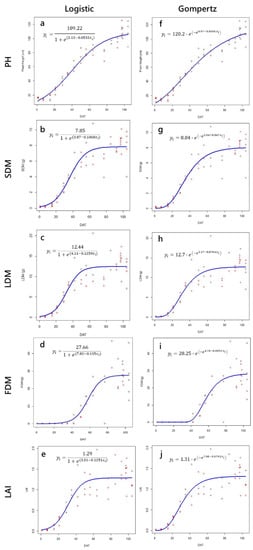

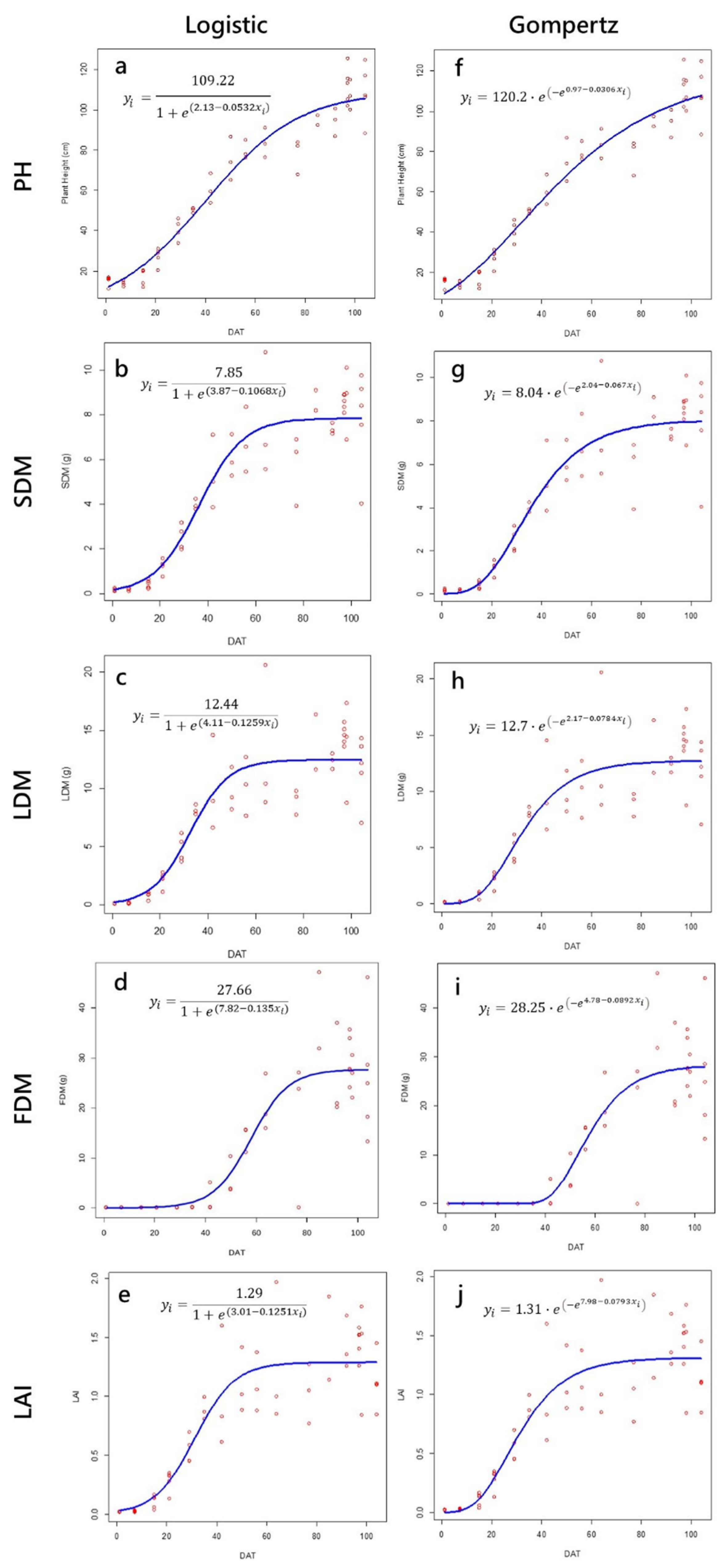

From the examination of the scatter plots of the observations of each trait against the DAT and GDD, the relationships of five traits (i.e., PH, LAI, SDM, LDM, and FDM) with DAT and GDD are all S-shaped (Figure 3 and Figure 4). The fitted Logistic and Gompertz growth curves can describe the relationship between variables well (Figure 3 and Figure 4). The R² values of the models are between 0.82–0.97, and MAE values are low in calibration (

Table 3. Calibration results of the sigmoid growth models established with the 2/3 of the 2021–2022 crop season data.

Trait	Independent Variable	Logistic			Gompertz
		R2	MAE	RMSE	R2	MAE	RMSE
PH (cm)	DAT	0.97	5.28	8.04	0.96	5.75	9.06
	GDD	0.97	4.94	7.44	0.97	5.61	8.88
SDM (g/plant)	DAT	0.94	0.73	1.14	0.94	0.71	1.09
	GDD	0.95	0.72	1.11	0.94	0.71	1.06
LDM (g/plant)	DAT	0.90	1.56	2.51	0.89	1.58	2.52
	GDD	0.89	1.55	2.49	0.89	1.58	2.50
FDM (g/plant)	DAT	0.89	3.60	7.68	0.88	3.45	7.69
	GDD	0.89	3.53	7.68	0.88	3.47	7.72
LAI	DAT	0.82	0.18	1.15	0.83	0.17	1.18
	GDD	0.82	0.17	1.15	0.83	0.17	1.17

DAT: days after transplanting; GDD: growing degree-days; PH: plant height; SDM: stem dry matter; LDM: leaves dry matter; FDM: fruits dry matter; LAI: leaf area index; R²: coefficient of determination; MAE: mean absolute error; RMSE: root mean square error.

). The R² values using 1/3 of the data from the 2021–2022 season for validation are between 0.77–0.95 (

Table 4. Validation of the sigmoid growth models established in 2021–2022 using the 1/3 of 2021–2022 crop season data.

Trait	Independent Variable	Logistic			Gompertz
		R2	MAE	RMSE	R2	MAE	RMSE
PH (cm)	DAT	0.95	6.12	8.78	0.95	6.01	8.57
	GDD	0.95	5.89	8.50	0.95	6.06	8.52
SDM (g/plant)	DAT	0.89	0.77	1.20	0.89	0.73	1.18
	GDD	0.89	0.75	1.19	0.89	0.74	1.18
LDM (g/plant)	DAT	0.83	1.59	2.40	0.84	1.51	2.36
	GDD	0.84	1.56	2.38	0.84	1.50	2.36
FDM (g/plant)	DAT	0.81	3.24	6.31	0.81	3.10	6.27
	GDD	0.81	3.20	6.32	0.81	3.11	6.29
LAI	DAT	0.77	0.22	0.25	0.79	0.21	0.25
	GDD	0.78	0.21	0.25	0.80	0.21	0.25

DAT: days after transplanting; GDD: growing degree-days; PH: plant height; SDM: stem dry matter; LDM: leaves dry matter; FDM: fruits dry matter; LAI: leaf area index; R²: coefficient of determination; MAE: mean absolute error; RMSE: root mean square error.

), and those for the 2020–2021 season are between 0.64–0.92 (

Table 5. Validation of the sigmoid growth models established in 2021–2022 using the 2020–2021 crop season data.

Trait	Independent Variable	Logistic			Gompertz
		R2	MAE	RMSE	R2	MAE	RMSE
PH (cm)	DAT	0.68	17.86	28.00	0.67	17.50	27.67
	GDD	0.66	18.74	29.63	0.64	18.14	29.09
SDM (g/plant)	DAT	0.90	0.76	1.12	0.91	0.76	1.07
	GDD	0.91	0.74	1.09	0.91	0.78	1.08
LDM (g/plant)	DAT	0.83	1.69	2.55	0.84	1.64	2.44
	GDD	0.84	1.62	2.48	0.85	1.59	2.37
FDM (g/plant)	DAT	0.92	3.09	5.42	0.92	3.06	5.51
	GDD	0.92	3.02	5.32	0.92	2.95	5.33
LAI	DAT	0.77	0.24	0.29	0.79	0.23	0.28
	GDD	0.78	0.23	0.29	0.80	0.22	0.28

DAT: days after transplanting; GDD: growing degree-days; PH: plant height; SDM: stem dry matter; LDM: leaves dry matter; FDM: fruits dry matter; LAI: leaf area index; R²: coefficient of determination; MAE: mean absolute error; RMSE: root mean square error.

), indicating that these models can be used for prediction.

For each trait, the Logistic and Gompertz curves have similar performances at R², MAE, and RMSE (Table 3, Table 4 and Table 5). Although the two models are sigmoid curves, their growth trends are different. That is, the Logistic curve is symmetric, whereas the Gompertz curve is asymmetric [36,38]. It means that the height (Y coordinate) of the IP for the Logistic curve is exactly half the entire curve. On the other hand, the height of the IP of the Gompertz curve is smaller than that of the Logistic function. The symmetric characteristic may be a limitation for some growth processes, which cannot meet the characteristic of the Logistic function [36,39]. The Gompertz function may also meet the features of some growth processes better than that of the Logistic function [36,39]; however, the performance of the Logistic model is comparable to or better than that of the Gompertz model [1,39]. These findings are consistent with our results. Figure 3 and Figure 4 showed that the growth of the Logistic curve was slow at the initial stage, and dropped rapidly in later stages; however, the growth of the Gompertz curve was very fast at the beginning and decreases slowly in the later stages. Therefore, if resources permit, both Logistic and Gompertz functions should be considered, which is in agreement with Vieira and Hoffmann [39].

In the comparison of two types of independent variables, the model with GDD as the independent variable performs slightly better than the model with DAT as the independent variable (Table 3, Table 4 and Table 5) because GDD takes additional temperature-related information into account than DAT. The performance of models did not show much difference in whether the GDD or DAT was used as an independent variable, the reason may be that there was no significant difference in environmental conditions between the two seasons (Figure 1). However, because the climate usually changes, the use of GDD may predict crop growth more accurately than DAT [40,41].

Comparing the model of different traits, the prediction performance of LAI is relatively poor compared to other traits (Table 3, Table 4 and Table 5). This result is consistent with previous studies where the simulation of LAI was difficult and with low accuracy [5,26]. However, our performance of the sigmoid curve simulation of LAI is still acceptable (R² $>$ 0.70, MAE $<$ 0.25, RMSE $<$ 1.18) (Table 3, Table 4 and Table 5). In addition, the predictive performance of 2020–2021 is worse than that of 2021–2022, especially for PH (Table 4 and Table 5). We probably did not consider other important factors that may affect the growth of tomatoes such as light. Temperature and solar radiation are the most important climate factors affecting crop growth [5,21,42]. However, the change in temperature inside the greenhouse does not follow the pattern of solar radiation as closely as in the open field, thus using GDD alone may not be enough to accurately predict crop growth inside greenhouses [5,21]. Therefore, to control error variation more effectively and improve the predictive ability of the model, additional light-related variables should be considered.

3.3. Inferences in Critical Points

One of the advantages of using sigmoid curves to build growth models is that some biologically meaningful parameters can be derived from the mathematical properties of the curve [31], which can be coordinated with agricultural practices [24,25,43]. Silva et al. [44] used the critical points of growth models to observe the harvest time of ‘Green Dwarf’ coconut fruits with the best water flavor. Diel et al. [45] characterized the production of biquinho pepper by the interpretation of Logistic model’s parameters and critical points, and discovered the best cultivar and growing season for subtropical region. The critical points of DAT and GDD derived from the two curves for each trait are shown in

Table 6. Critical days after transplanting.

Trait	Logistic					Gompertz
	AAP	MAP	IP	MDP	ADP	AAP	MAP	IP	MDP	ADP
PH	$-$3.1	15.3	40.0	64.8	83.1	$-$17.5	0.1	31.6	63.2	90.3
SDM	14.8	23.9	36.2	48.6	57.7	8.0	16.0	30.4	44.8	57.2
LDM	14.4	22.2	32.6	43.1	50.9	8.5	15.4	27.7	40.0	50.6
FDM	40.9	48.2	57.9	67.7	74.9	36.7	42.7	53.5	64.4	73.7
LAI	12.9	20.7	31.3	41.8	49.6	7.2	14.0	26.2	38.4	48.9

PH: plant height; SDM: stem dry matter; LDM: leaves dry matter; FDM: fruits dry matter; LAI: leaf area index; AAP: absolute acceleration point; MAP: maximum acceleration point; IP: inflection point; MDP: maximum deceleration point; ADP: asymptotic deceleration point.

and

Table 7. Critical growing degree-days.

Trait	Logistic					Gompertz
	AAP	MAP	IP	MDP	ADP	AAP	MAP	IP	MDP	ADP
PH	29.1	292.7	648.6	1004.6	1268.2	$-$227.9	71.5	606.6	1144.2	1605.2
SDM	272.0	400.4	573.7	747.0	875.3	174.3	286.6	487.3	688.9	861.8
LDM	256.2	370.9	525.9	680.8	795.6	176.5	276.3	454.7	633.9	787.6
FDM	642.2	720.2	825.6	931.0	1009.0	604.0	667.4	780.8	894.6	992.2
LAI	231.5	346.2	501.2	656.1	770.9	153.5	251.5	426.7	602.6	753.5

PH: plant height; SDM: stem dry matter; LDM: leaves dry matter; FDM: fruits dry matter; LAI: leaf area index; AAP: absolute acceleration point; MAP: maximum acceleration point; IP: inflection point; MDP: maximum deceleration point; ADP: asymptotic deceleration point.

, respectively. The AAP, MAP, and IP of the Logistic model are all later than those estimated by the Gompertz model; the interval between MDP and ADP of the Logistic model is shorter than that of the Gompertz model (Table 6 and Table 7). These characteristics reflect the different properties of the two sigmoid curves. The Gompertz model is a fast-growing curve in the early stage, while the Logistic is a rapidly stable curve in the later stages. Overall, the critical points estimated by the Logistic model are closer to our expectation than those of the Gompertz model.

Because APP is known as a lag time point [31], there is almost no crop growth before the APP, which also reflects the time required for tomatoes to adapt to the new environment and rebuild their roots after transplanting. From Table 6 and Table 7, the PH is the earliest growth trait, and most of the AAP values of PH are negative, indicating that PH has started to grow before transplanting. SDM and LDM reach AAP almost simultaneously but the subsequent LDM grows faster than SDM (Table 6 and Table 7). In addition, the critical points of LAI are approximately 1–2 days earlier than that of LDM, revealing that young tissues have higher water content (Table 6). The IP determines the time at which the growth rate is maximum. According to the results of the Logistic model, the growth rate of tomato stems and leaves reaches a peak approximately one month after transplanting (Table 6) when the GDD is 525–575 °C (Table 7). The growth rate of tomato fruit reaches its peak approximately two months after transplanting (Table 6) when the GDD is approximately 825 °C (Table 7). If the crop requires any growth management such as fertilization, it is most efficient before the IP [24,43]. In general, when the IP can be reached in a smaller GDD or DAT, it indicates that the growth under this situation is more precocious [46]. A short interval between MAP and MDP showed that the production was concentrated in a short time [46]. Finally, at the ADP, plant growth tends to stabilize towards the end of its production cycle. After ADP, too much nutrition will not significantly promote the growth of crops, while the fertilizer input should be carefully controlled.

Both the Logistic and Gompertz models need only three parameters (i.e., a, b, and c) to describe the growth of tomatoes, producing acceptable and interpretable results [1,47,48]. However, it is worth noting that the Logistic and Gompertz models are both empirical models, so the conclusions that can be drawn from the experiment will depend on the manner in which the data were collected [49]. Therefore, the reliability of empirical models needs to be validated using the experimental data of more varieties and a wider range of climate conditions. Nonetheless, because the greenhouse environment can be regulated and is relatively stable compared with the open field, the growth of crops can be efficiently predicted by the experimentally determined models. Shi et al. [50] evaluated the performance of a novel beta sigmoid function using real and simulated the DM data of six crop species generated by four commonly used growth functions (i.e., the exponential, Logistic, Gompertz, and von Bertalanffy equations). Compared to other growth models, the beta sigmoid function allowed for both symmetric and asymmetric growth, and it performed better than the above growth functions. Kocian et al. [51] proposed a Bayesian machine learning approach to dynamically model the sigmoid-type growth of greenhouse crops. It was found that this approach could accurately fit the data, and it was more robust to the changes of different environmental conditions. In the future, we can use novel growth models or combine machine learning methods to further enhance the model performance and the robustness to the environmental change.

4. Conclusions

In the present study, we collected tomato growth data for two crop seasons in Taiwan and established growth models using two sigmoid functions (i.e., the Gompertz and Logistic curves). The growth models established in this study can accurately predict the growth of five important traits of tomato, including PH, LAI, SDM, LDM, and FDM. In addition, we inferred five critical points that can be used for practical management based on the proposed growth models. The performances of GDD models were slightly better than those of the DAT models. Although there was no significant difference in model performance between the Gompertz and Logistic models, the critical points estimated by the Logistic model are closer to our expectation than those of the Gompertz model. Therefore, the Logistic model developed in this study is more applicable for greenhouse ‘993′ tomatoes compared to the Gompertz model. When these models are used to predict the growth of tomatoes, the GDD predictions using local weather forecasts or historical weather data can be used to adjust the planned fieldwork schedule based on the traditional calendar day method. Since the greenhouse environment is relatively stable and can be controlled, the empirical model has several potential applications. Finally, the reliability of the model can be improved using experimental data of more varieties and climatic conditions.
