The Response of Antioxidant System of Drought-Stressed Green Pea (Pisum sativum L.) Affected by Watering and Foliar Spray with Silica Nanoparticles

Abstract

Abiotic stress caused by drought impairs plant growth and reduces yields. This study aimed to investigate the impact of silica nanoparticles (SiO₂ NPs) through the adverse effects of drought on the growth, oxidative stress, and antioxidative response of pea ‘Respect’. Pea plants were grown in a greenhouse before being watered (100 ± 1 mL per pot) or foliar sprayed (ca. 14 ± 0.5 mL plant⁻¹) with suspensions containing SiO₂ NPs (0, 12.5 ppm, 25 ppm, and 50 ppm) and were exposed to drought stress for 10 days. Drought stress was created by maintaining 30% of the soil moisture while the control was 80%. The growth parameters of pea grown under drought stress conditions were improved by spraying or watering plants with SiO₂ NPs (12.5, 25, and 50 ppm). At drought stress, peas treated with SiO₂ NPs (50 ppm) increased their relative water content by 29%, specific leaf area by 17%, and decreased root/shoot ratio by 4% as compared to plant non-treated with SiO₂ NPs. In addition, spraying or watering of SiO₂ NPs increased peas tolerance to drought by increasing the activity of antioxidant enzymes at least three times including catalase, ascorbate peroxidase, glutathione reductase, and superoxide dismutase, as well as reducing hydrogen peroxide and lipid peroxidation in plant tissue. It was observed the increase in total phenolic compounds and non-enzymatic antioxidant activity (DPPH, ABTS, FRAP) in peas treated with SiO₂ NPs under drought stress. The physiological response of peas to drought and the effects of SiO₂ NPs studied in this experiment based on the use of the concentration of 50 ppm nanoparticles can protect peas from the damaging effects of drought and could help reduce global food shortages.

1. Introduction

Field peas play an important role in crop rotation due to their ability to fix atmospheric nitrogen in a symbiotic association with Rhizobium bacteria and fulfill the nitrogen demand of the succeeding crops, as well as can be used for both human food and animal feed. However, climate change has led to increased heterogeneity of precipitation, ranging from heavy to drought [1], leading to unstable crop yields and seed protein content, thus contributing to the reduction in field pea cultivation in the world according to Food and Agriculture Organization Statistics (FAOSTAT). To restore pea cultivation in the world, new ways such as nanotechnology need to be discovered to maintain a constant pea harvest regardless of environmental factors, as well as to maintain soil quality [2,3,4,5].

Nanoparticle (NPs), according to their unique properties: size, surface charge, shape, and potential interaction with plants could help to reduce the impact of drought [6]. It has been described that NPs ranging in size from 4 to 100 nm can cross the cuticle by disrupting the wax layer [7], and fluorescently tagged >50 nm NPs can accumulate in the epidermis under the cuticle where stomata are absent [7,8]. Negatively charged plant cell walls act as an ion exchange surface that potentially promotes the penetration of cationic NPs rather than anionic NPs [9], but show much higher adsorption on the root surface of positively charged NPs [10]. With increasing interest in silica NPs (SiO₂ NPs), it has been found that SiO₂ NPs through symplastic and apoplastic pathways (through cell wall microchannels) penetrate the roots and then reach other parts of the plant through conductive tissues [5,11].

Silicon (Si) is not essential for plants, but in drought stress, it can affect the water ratio in drought-affected plants, reduce stomatal conduction associated with protective cell turgor loss, improve the ability to extract water from the soil due to the promotion of root elongation and the regulation of aquaporin genes [12]. Si NPs can reduce oxidative stress by increasing antioxidant enzyme activities and decreasing reactive oxygen species (ROS) in plant leaf [7,13,14,15]. In a salinity experiment with sweet peppers and different forms of Si, it was found that using SiO₂ NPs resulted in 15% higher plants, 34% higher fresh, and 36% dry biomasses and 11% higher total chlorophyll content and 30% yield compared to bulk Si [16]. In wheat seedlings, Si NPs (size 20–95 nm) were found to be more effective than bulk SiO₂ in response to UV-B stress as well [17]; Si NPs successfully reduced lipid peroxidation by 82% and electrolyte leakage, as well as increased catalase (CAT) and superoxide dismutase (SOD) activity, resulting in increased antioxidant resistance of wheat to UV-B. More studies have demonstrated the effectiveness of SiO₂ NPs against abiotic stress in different plants. In strawberries, peroxide concentrations and total phenols, vitamin C, CAT, SOD, ascorbate peroxidase (APX), and glutathione peroxidase (GPX) were increased by spraying with 125 ppm SiO₂ NPs under severe to moderate drought stress [14]. SiO₂ NPs had a positive effect on photosynthesis and gas exchange in rice seedlings [18]. Besides 30 ppm of Si NPs foliar application reduced oxidative stress as evidenced by low levels of malondialdehyde (MDA) and electrolyte leakage and increased production of antioxidant enzymes such as SOD by 5%, APX by 41%, and CAT by 40% in rice tissues. In potatoes, increased GPX and SOD activity was observed after spraying with 50 ppm SiO₂ NPs under salinity stress [19]. Si NPs protected from oxidative stress in pea seedlings treated with Cr (VI) [20]; the application of SiO₂ NPs on Cr (VI) treated peas significantly increased the activity of enzymes such as SOD, APX, CAT, glutathione, and dehydroascorbate reductases. Another study [21] investigated the effects of SiO₂ NPs on marigold plants after spraying and watering them, observed that the CAT activity in plant leaves was higher when irrigated with the same concentration of SiO₂ NPs as compared to spray, but the opposite effect of the suspension was found for peroxidase—higher activity was found in sprayed plants.

In recent decades, the application of NPs to improve the resistance of various crops to abiotic stress was discussed, but there is still no consensus on the benefits of NPs for plant growth and yields. An array of plant species, different NPs, their particle size and concentrations, and application pathways have been used in the literature; however, knowing the beneficial role of Si to drought-affected plants [12], little data is available on the effects of SiO₂ NPs against drought stress in the Legumes family which are popular crops in the world. It was hypothesized that watering or foliar application of SiO₂ NPs alleviates oxidative stress in drought-affected peas by inducing non-enzymatic and enzymatic antioxidant activity. Therefore, the present study aimed to investigate the effect of watering and foliar application of different SiO₂ NPs concentrations on the growth traits of drought-affected green peas (Pisum sativum L.), to elucidate the influence of SiO₂ NPs on oxidative stress and antioxidative response in peas exposed to drought.

2. Materials and Methods

2.1. Study Site and Treatments

The research was carried out in a greenhouse (3 × 6 m, h = 2 m) at the Lithuanian Research Centre for Agriculture and Forestry, Institute of Horticulture, Babtai, Lithuania (55°05′08.4″ N 23°48′03.5″ E, at an altitude of 51 m; moderate climate zone of the northern hemisphere), from 6 May to 22 June. Before sowing, green pea (Pisum sativum L. cv. Respect, Maribo Seed International ApS, Holeby, Denmark) seeds were sterilized in 5% sodium hypochlorite solution for 15 min to assure surface sterility and rinsed gently with deionized water several times. Then, seeds were soaked in water for 24 h. Ten seeds were sown in 10-L volume plastic pots (7 pots per treatment, arranged randomized), filled with ~8 kg of soil mixture (7:1 soil to perlite ratio, respectively). The granulometric composition of the soil was heavy loam, pH 7.4 ± 0.1; concentration of humus—3.6 ± 0.1%; P₂O₅—243 ± 8 mg kg⁻¹; K₂O—348 ± 37 mg kg⁻¹; NH₄—4 ± 0.6 mg kg⁻¹; NO₃—22 ± 0.9 mg kg⁻¹; SiO_2—39 ± 0.8 mg kg⁻¹. Pea seedlings were thinned to 7 plants per pot 5 days after sowing. After 16 days of cultivation, the peas were fertilized with 7 g pot⁻¹ ammonium nitrate. Pots were irrigated with water by graduated cylinder daily to 80% of substrate moisture (SM) using substrate moisture sensor (Delta-T devices, HH2 moisture meter, Cambridge, UK) for 23 days (6 May till 12 June). In the greenhouse with a natural day length photoperiod, the average day/night temperature was 24.2/14.4 °C; relative air humidity—54/75 ± 5% before exposure; during the drought treatment the average day/night temperature was 26.2/17.0 °C and the relative air humidity was 50/73 ± 5%, data were measured throughout the experiment (Termio + data logger, Poland). When the peas reached the 40 BBCH growth stage [22], they were watered (100 ± 1 mL per pot) or foliar sprayed until full wetting (ca. 14 ± 0.5 mL plant⁻¹) with solutions containing different concentrations of SiO₂ NPs: 0 (watered or sprayed with water, NPs-untreated), 12.5 ppm, 25 ppm, and 50 ppm. After the application of SiO₂ NPs, the watering of pea plants was stopped and drought stress was initiated (30% SM), while control plants were irrigated with water to maintain normal soil moisture (80% SM) throughout the experiment. These regimes were applied for 10 days (12 June till 22 June) until harvest. Plants were harvested after reaching the BBCH 50 growth stage from each treatment to assess their morphophysiological responses.

SiO₂ NPs solutions were prepared with silica (SiO₂) NPs (particle size: 20–30 nm; purity: 99%; US Research Nanomaterials, Inc, Houston, TX, USA). The NPs with concentrations of 12.5 ppm, 25 ppm, 50 ppm, were suspended in deionized (DI) water and ultrasonically dispersed for 60 min. The NPs size and suspension stability were measured using Delsa™ Nano Submicron Particle Size (Beckman Coulter Instruments Corporation, Fullerton, CA, USA) and Zeta Potential device (Dispersion Technology Inc., Bedford Hills, NY, USA). The data in

Table 1. Properties of SiO₂ NPs suspension in DI water (pH = 7.05): zeta potential, results represent the mean ± standard error, polydispersity index, and percentage of nanoparticles between 1–100 nm.

Suspension of SiO2 NPs
Zeta potential (ζ; mV)	−20.64 ± 0.333
Polydispersity index (PI)	0.34
NPs size 1–100 nm in suspension (%)	70

show the negative charge of NPs in the suspensions and the stability of the systems, furthermore the NPs suspensions tend to be more monodisperse according to the polydispersity index (PDI).

2.2. Relative Water Content, Specific Leaf Area, and Root/Shoot Ratio

Ten pea plants were randomly selected from each treatment for biometric measurements. The shoots were separated from the roots and then fresh weight (FW) and dry weight (DW) were determined (n = 10). The FW and DW were measured with an electronic scale (Mettler Toledo AG64, Columbus, OH, USA) and DW was determined following forced-air convection drying at 105 °C to a constant dry weight (Venticell 222, MBT, Brno, Czech Republic). After shoot FW determination, 10 matured plants per each treatment were floated on deionized water for 24 h and then turgid weights (TW) were measured. Relative water content (RWC) was calculated, using the following equation [23]:

$$\mathrm{RWC},\%=\frac{\left(\mathrm{FW}-\mathrm{DW}\right)}{\left(\mathrm{TW}-\mathrm{DW}\right)}\times 100$$

(1)

The leaf area was measured using an automatic leaf area meter (AT Delta-T Devices, Wallingford, UK) expressed as cm² g⁻¹. For calculation of specific leaf area (SLA), the total plant leaf area (n = 10) was divided by the shoot DW. Root/shoot ratio was determined as the ratio of root DW to aboveground DW.

2.3. Antioxidant Properties and Total Phenolic Compounds

Antioxidant properties of pea leaves were evaluated as the DPPH (2-diphenyl-1-picrylhydrazyl), ABTS (2,2′-azino-bis (3-ethylbenzothiazoline-6-sulphonic acid)) diammonium salt, radical scavenging activities, and Fe²⁺ reducing antioxidant power assay (FRAP); the total contents of phenolic compounds were also determined. Extracts were prepared by grinding 0.3 g of plant leaves with liquid nitrogen and diluting with 5 mL of 80% methanol. After 24 h, the samples were centrifuged for 10 min at 3000 rpm (Hermle Z300K, Baden-Württemberg, Germany), extracts were filtered through cellulose filters and the supernatant was used for further analyses. All biochemical analysis was performed in 3 biological replications. Each of three biological replicates consisted of at least three conjugated plants and was repeated in three analytical replicates.

The total content of phenolic compounds was determined as gallic acid equivalents. A 250 µL aliquot of the sample extract was mixed with 250 µL of 10% (w/v) Folin–Ciocalteu reagent, 500 µL of 1 M Na₂CO₃ solution, and 2 mL of distilled water [24]. After incubation for 20 min in the dark, the absorbance was measured at 765 nm (M501, Spectronic Camspec Ltd., Leeds, UK). The total phenolic compounds quantity mg g⁻¹ was calculated from the calibration curve of the gallic acid (0.01–0.1 mg mL⁻¹, R² = 0.99).

The ABTS (2,2′-azino-bis (3-ethylbenzothiazoline-6-sulphonic acid) radical cation was obtained by incubating the 7 mM ABTS stock solution (100 mL) with 2.45 mM potassium persulfate (K₂S₂O₈; final concentration) and allowing the mixture to stand in the dark at room temperature for 12–16 h before use [25]. Thereafter, 50 μL of the prepared sample was mixed with 2 mL of ABTS solution (ABTS stock solution was diluted 1:7) and the absorbance was measured after 11 min (plateau phase) at 734 nm (M501, Spectronic Camspec Ltd., Leeds, UK). The ABTS scavenging activity of pea leaves extracts was calculated as the difference between the initial absorbance and after reacting for 10 min. A calibration curve was determined using Trolox (6-hydroxy-2,5,7,8-tetramethychroman-2-carboxylic acid; 97% purity; Sigma-Aldrich, Burlington, MA, USA) as an external standard with a range of concentrations from 0.1 to 0.8 mM (R² = 0.99). It was expressed as ABTS µmol scavenged per 1 g of fresh weight (µmol g^–1 FW).

For DPPH (2-diphenyl-1-picrylhydrazyl) assay, a stable 126.8 μM DPPH (100% purity; Sigma-Aldrich, Burlington, MA, USA) solution was prepared in methanol [26]. Subsequently, 1 mL of the DPPH solution was transferred to a test tube and mixed with 100 μL of the diluted pea extract with 400 μL methanol. The absorbance was scanned at 515 nm (M501, Spectronic Camspec Ltd., Leeds, UK) while reacting for 16 min. The free radical scavenging capacity was expressed as μmol of DPPH radicals scavenged per 1 g of fresh weight (µmol g^–1 FW). A calibration curve was determined using Trolox (6-hydroxy-2,5,7,8-tetramethychroman-2-carboxylic acid; 97% purity; Sigma-Aldrich, Burlington, MA, USA) as an external standard with a range of concentrations from 0.1 to 0.6 mM (R² = 0.99).

The FRAP method is based on reducing ferric ion (Fe³⁺) to ferrous ion (Fe²⁺). The fresh working solution was prepared by mixing 300 mM, pH 3.6 acetate buffer, 10 mM TPTZ (2,4,6-tripyridyl-s-triazine) solution in 40 mM HCl, and 20 mM FeCl₃ × 6H₂O at 10:1:1 (v/v/v) [27]. 20 µL of the sample was mixed with 3 mL of working solution and incubated in the dark for 30 min. Readings of the colored product (ferrous tripyridyl-triazine complex) were then taken at 593 nm. A calibration curve was determined using Fe₂(SO₄)₃ (Iron (III) sulfate; 97% purity; Sigma-Aldrich, Burlington, MA, USA) as an external standard with a range of concentrations from 0.005 to 0.5 mM (R² = 0.99). The antioxidant power is expressed as Fe²⁺ antioxidant capacity (Fe²⁺ µmol g⁻¹ FW).

2.4. Malondialdehyde and Hydrogen Peroxide

The extracts used to determine the concentration of lipid peroxidation and hydrogen peroxide (H₂O₂) in pea leaves were prepared by grinding 0.1 g of fresh sample with liquid nitrogen and diluting with 4 mL of 0.1% TCA (trichloroacetic acid). After centrifugation for 10 min at 3000 rpm (Hermle Z300K, Baden-Württemberg, Germany), the supernatant was used for further analyses.

For H₂O₂ measurements in plant leaves, 500 μL of the supernatant was added to 1 mL of 1 M potassium iodide (KI). The absorbance of the mixture was scanned at 390 nm using a spectrophotometer (M501, Spectronic Camspec Ltd., Leeds, UK). A calibration curve was determined using H₂O₂ (30% hydrogen peroxide) as an external standard with a range of concentrations from 0.6–24.3 mM (R² = 0.99). The content of H₂O₂ is expressed in fresh weight (µmol g^–1 FW) [28].

The TBARS test determines malondialdehyde (MDA) content in pea leaves samples as the end product of lipid peroxidation. 500 μL of the supernatant was added to 1 mL 0.5% (w/v) thiobarbituric acid (TBA) in 20% trichloroacetic acid (TCA). The mixture was incubated in boiling water for 30 min. The reaction stopped after the samples have cooled. The samples were centrifuged at 10,000× g for 5 min, and the absorbance of the supernatant was measured at 532 nm using a spectrophotometer (M501, Spectronic Camspec Ltd., Leeds, UK). The value for non-specific absorbance at 600 nm was subtracted [29]. The amount of MDA–TBA complex (red pigment) in leaves was calculated and expressed as nmol g^–1 FW:

C_MDA = (A532 − A600)/E_MDA

(2)

C_MDA—concentration of MDA, µM

A532, A600—Absorbance at wavelengths

E_MDA—MDA extinction coefficient 155 mM⁻¹ cm⁻¹

2.5. Antioxidant Enzymes Activities

The extracts used to determine the activity of superoxide dismutase (SOD), catalase (CAT), ascorbate peroxidase (APX), and glutathione reductase (GR) in pea leaves were prepared by grinding 0.5 g of fresh sample with liquid nitrogen and diluting within 5 mL extraction buffer (100 mM potassium-phosphate buffer, pH 7.8, containing 0.1 mM EDTA). After centrifugation for 10 min at 3000 rpm (Hermle Z300K, Baden-Württemberg, Germany), the supernatant was collected and used for the assays of enzymatic activities. All steps in the preparation of the enzyme extract were carried out at 4 °C.

For soluble protein determination, the dye-binding method and bovine serum albumin as standard were used. A volume of 30 µL of enzyme extract was mixed with 1.5 mL of Bradford reagent diluted by 1:5 with DI water. Absorbance was read after 2 min. through a spectrophotometer (M501, Spectronic Camspec Ltd., Leeds, UK) at 595 nm [30].

Total SOD activity was estimated by the inhibition of the photochemical reduction of nitroblue tetrazolium (NBT) by the enzyme [31]. Three mL of reaction mixture consisted of 13 mM methionine, 75 µM NBT, 100 mM potassium phosphate buffer (pH 7.8, containing 0.1 mM EDTA), 50 µL enzyme extract, and 13 μM riboflavin. The tubes were under 150 µmol m⁻² s⁻¹ for 1 min to initiate the reaction and then covered. The absorbance was recorded after 30 min by spectrophotometer (M501, Spectronic Camspec Ltd., Leeds, UK) at 560 nm, and one unit of enzyme activity was taken as that amount of enzyme, which reduced the absorbance reading to 50% in comparison with tubes lacking enzyme expressed as unit mg⁻¹ protein min⁻¹.

CAT activity was measured as the disappearance of H₂O₂ [32]. A volume of 100 µL enzyme extract was added in 1.275 mL of 0.1 M phosphate buffer (pH 7.8, containing 0.1 mM EDTA); the reaction started by adding 125 µL of 30 mM H₂O₂. The decrease in absorbance measured by spectrophotometer (M501, Spectronic Camspec Ltd., Leeds, UK) at 240 nm was observed for 1 min and enzyme activity was computed by calculating the amount of H₂O₂ decomposed (µmol H₂O₂ mg⁻¹ protein min⁻¹).

APX activity was assayed by recording the decrease in optical density due to ascorbic acid at 290 nm [33]. The 1 mL assay mixture contained 0.1 M potassium phosphate buffer (pH 7.8, containing 0.1 mM EDTA), 0.5 mM ascorbic acid, 0.1 mL enzyme extract, and 0.1 mL of 30 mM H₂O₂ was added to initiate the reaction. The decrease in absorbance was measured spectrophotometrically (M501, Spectronic Camspec Ltd., Leeds, UK) for 1 min and the extinction coefficient of 2.8 mM⁻¹ cm⁻¹ for reduced ascorbate was used in calculating the enzyme activity that was expressed as µmol AsA mg⁻¹ protein min⁻¹.

Measuring GR activity based on the rate of decrease in the absorbance of oxidized glutathione (GSSG), at 340 nm [34]. The reaction mixture contained 0.1 M potassium phosphate buffer (pH 7.8, containing 0.1 mM EDTA), 1 mM GSSG, 100 µL enzyme extract and 75 µL 0.1 mM NADPH added last to initiate the reaction. The decrease in absorbance measured by spectrophotometer (M501, Spectronic Camspec Ltd., Leeds, UK) was recorded every 5 min until 20 min. An absorption coefficient of 6.22 mM⁻¹ cm⁻¹ was used for calculations, and GR activity was defined as µmol NADPH mg⁻¹ protein min⁻¹.

2.6. Statistical Analysis

All the values were expressed as mean ± standard error. Data were analyzed using the Analysis of Variance (ANOVA) test followed by Tukey HSD at p ≤ 0.001 to identify significant differences. All statistical analyses were performed using XLSTAT (Xlstat, Addinsoft, Paris, France, 2021).

3. Results

3.1. Effects of Drought Stress and SiO₂ NPs on Plants Specific Leaf Area, Relative Water Content, and Root/Shoot Ratio

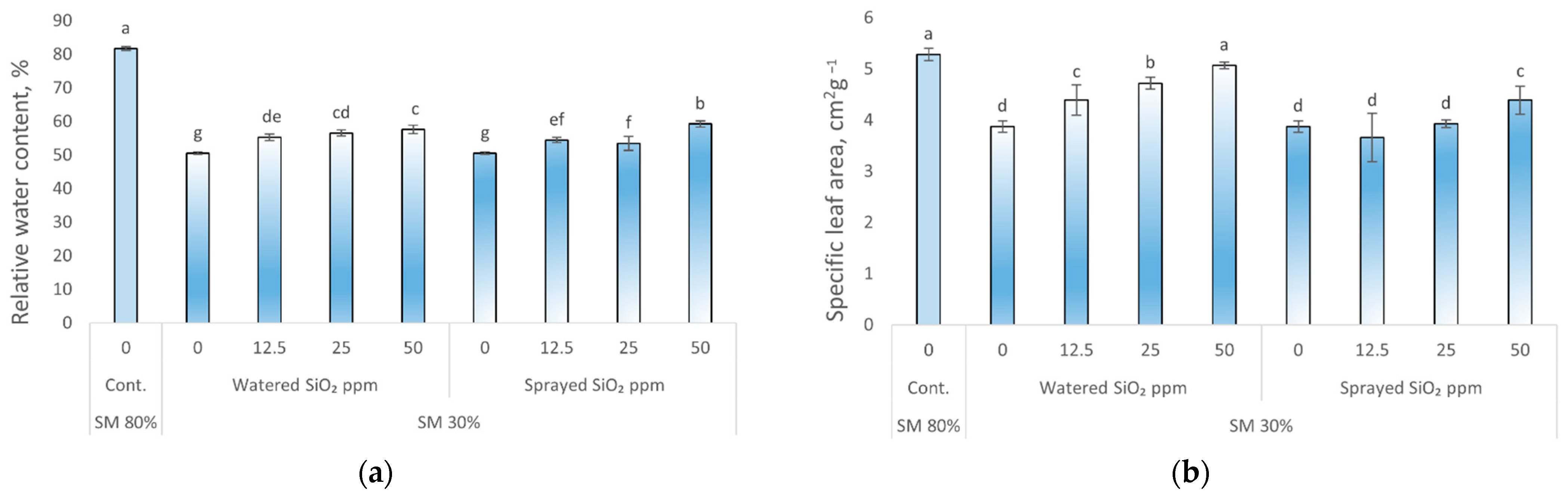

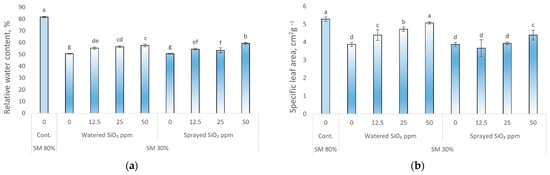

The relative water content (RWC) and specific leaf area (SLA) decreased during drought stress (Figure 1a,b).

Drought stress significantly decreased SLA and RWC (38 and 27%, respectively) compared with control plants. Watering or spraying peas with SiO₂ NPs (50 ppm) increased the values of these two parameters compared to plants watered or sprayed with water. Moreover, watering SiO₂ NPs had a better effect on SLA than spraying at all concentration levels.

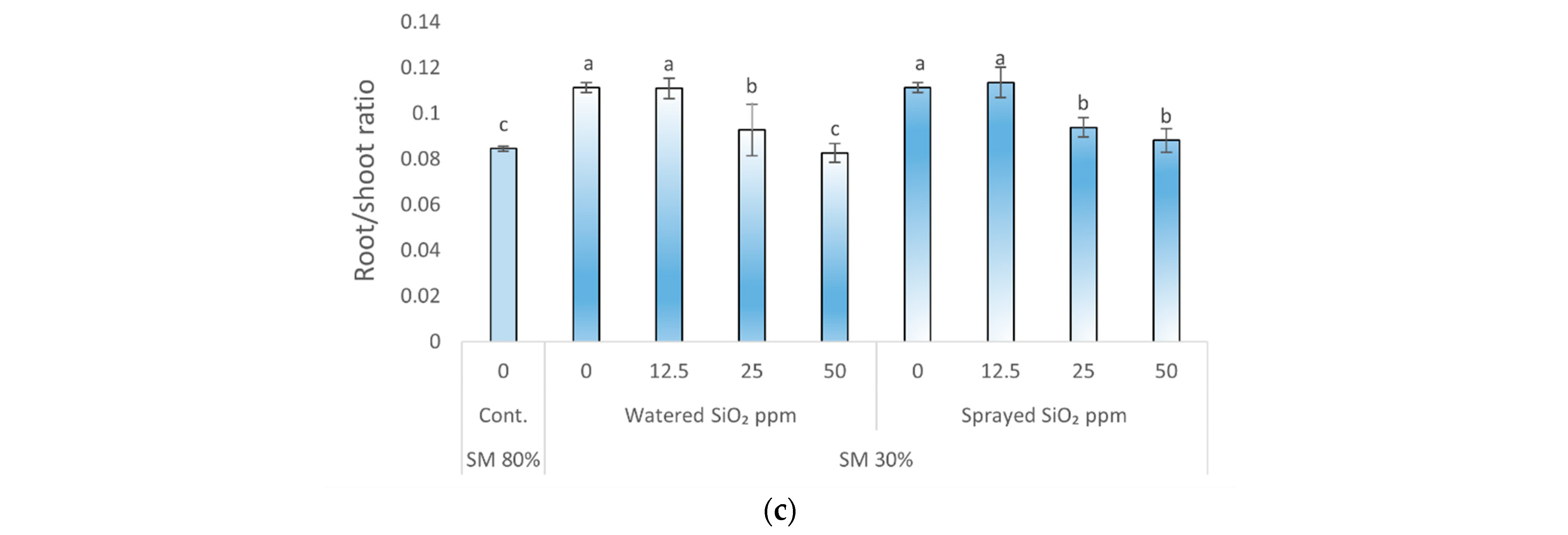

There was a statistically significant increase in the root/shoot ratio (Figure 1c) when comparing drought-affected (0 ppm SiO₂ NPs, SM 30%) and control plants (SM 80%). Comparing the effects of 0 ppm and 12.5 ppm SiO₂ on plant root/shoot ratio when watered or sprayed in drought treatment, no statistically significant difference was found. However, a statistically significant effect on root/shoot ratio was found by watering or spraying peas at a concentration of 25 ppm SiO₂ compared to SiO₂ NPs untreated plants (0 ppm) in drought-affected peas. Meanwhile, the root/shoot ratio of peas grown under drought did not differ significantly from control plants when were watered or sprayed with 50 ppm SiO₂ NPs.

3.2. Influence of Drought Stress and SiO₂ NPs on Lipid Peroxidation and Hydrogen Peroxide

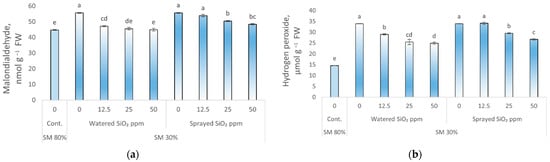

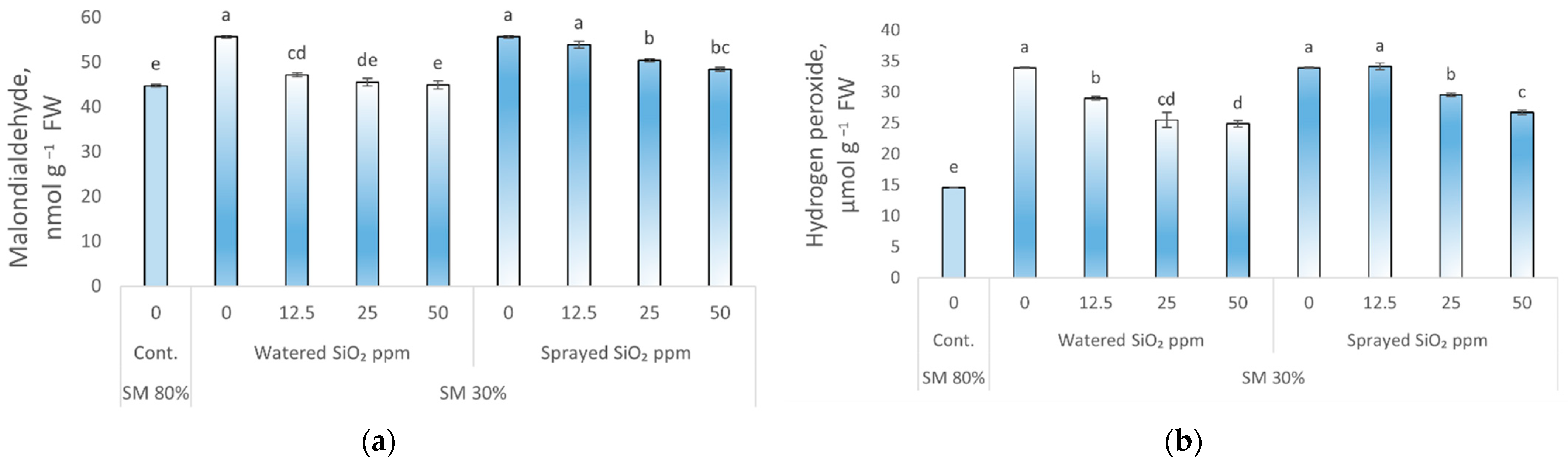

The malondialdehyde (MDA) and hydrogen peroxide (H₂O₂) content in peas increased significantly under drought stress (0 ppm SiO₂ NPs, SM 30%) compared to control plants, i.e., 24 and 132%, respectively (Figure 2a,b).

All applied SiO₂ NPs concentrations significantly reduced the content of MDA and H₂O₂ in peas compared to NPs-untreated (0 ppm SiO₂ NP, SM 30%) plants as they were watered with SiO₂ NPs. However, no statistical reliability was found when comparing MDA levels in plants watered with 25 and 50 ppm SiO₂ NPs concentrations with control plants. Spraying peas with SiO₂ NPs resulted in a statistically significant reduction in MDA and H₂O₂ content at 25 ppm (9 and 13%, respectively) and 50 ppm (13 and 21%, respectively) SiO₂ NPs concentrations compared to NP-untreated plants under drought stress (0 ppm SiO₂ NPs, SM 30%), but still exceeded the level of control plants.

3.3. Effect of Drought Stress and SiO₂ NPs on Antioxidant Activity

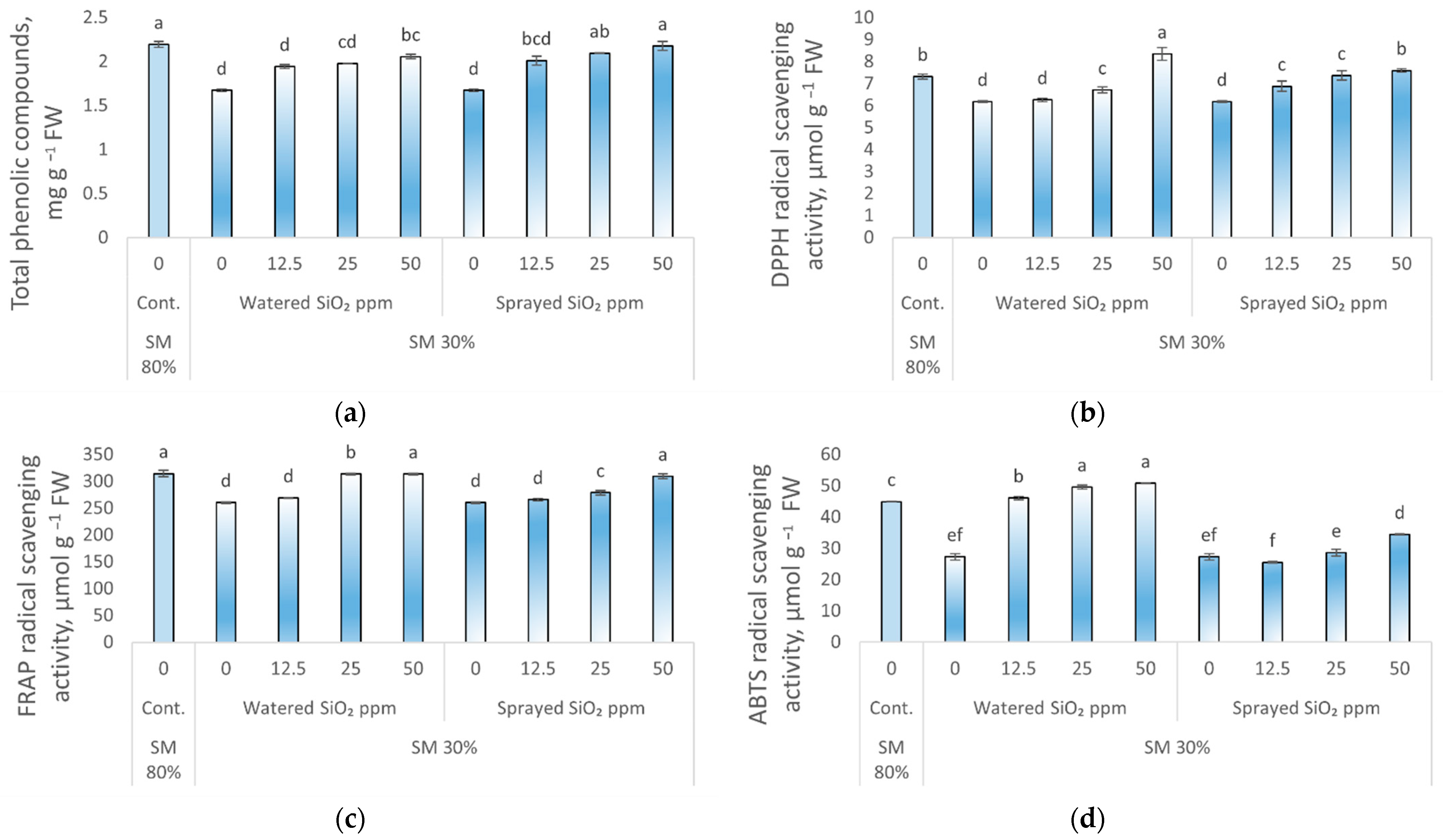

The total phenolic compounds (TPC), DPPH and ABTS free radical scavenging activity, and FRAP antioxidant power in pea leaves were significantly reduced by drought stress (0 ppm SiO₂ NPs, SM 30%) (24, 16, 39, and 17%, respectively) compared to control plants (Figure 3). There were no statistically significant changes in TPC and DPPH value between control plants and peas sprayed with 50 ppm SiO₂ NPs. Moreover, there was no significant effect on FRAP value when peas were watered with 25, 50 ppm and sprayed with 50 ppm SiO₂ NPs as compared to control plants. ABTS free radical scavenging activity in peas sprayed with 12.5 and 25 ppm 50 ppm SiO₂ NPs under drought stress was significantly reduced compared to control plants. However, a statistically significant increase in ABTS value was found in plants watered with 12.5, 25, and 50 ppm SiO₂ NPs under drought exposure.

3.4. Effect of Drought Stress and SiO₂ NPs on Antioxidant Enzymes Activities

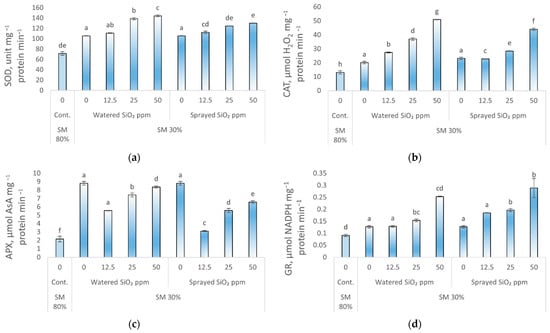

Superoxide dismutase (SOD), catalase (CAT), ascorbate peroxidase (APX), and glutathione reductase (GR) activity increased in peas affected by drought compared with control plants (Figure 4). The most active antioxidants were found when plants were watered with SiO₂ NPs suspensions. SOD activity was most increased by watering plants with 25 ppm (95%) and 50 ppm (103%) or by spraying with 50 ppm (82%) SiO₂ NPs compared with control plants (Figure 4a). Increased CAT activity was observed in both watered and sprayed plants at all applied concentrations but was most pronounced when peas were exposed to 50 ppm SiO₂ NPs suspension (Figure 4b). The activity of the APX enzyme in peas was also increased in drought conditions (Figure 4c) when plants were watered at 0, 12.5, 25, and 50 ppm NPs concentrations, APX activity increased by 158, 244, 288, and 309% respectively, compared to control plants. As with all enzymes tested, GR activity in peas also increased under drought conditions (Figure 4d) when plants were watered at 0, 12.5, 25, and 50 ppm SiO₂ NPs suspension, GR activity increased by 39, 41, 69, and 178%, respectively, compared to control plants.

4. Discussion

This study elucidated the effects of SiO₂ NPs on drought stress in pea plants based on NP concentration and different applications (leaf application and root irrigation) to explain the main physiological, non-enzymatic, and enzymatic antioxidant defense mechanisms. The results of this study showed that SiO₂ NPs can alleviate drought-induced stress in plants. The above-presented research data indicate that the studied defense mechanisms significantly varied in SiO₂ NPs non-treated and treated pea plants under drought stress.

4.1. Effects of Different Applications and Concentration of NPs

Several factors are responsible for the transformation and uptake of NPs in plants: physicochemical properties of NP itself, size, surface charge, concentration in the suspension, potential interaction with plants, and plant physiology. Dissolved bulk silicon (Si) is known to be absorbed by plants in the form of mono-silicic acid (Si(OH)₄) and ultimately polymerizes with the loss of water molecules to form hydrated silica (SiO₂⋅nH₂O) [35]. In plants with a high capacity for metalloid accumulation, it is assisted by one of aquaporin group MIP [36]—Si influx transporters (SiT1 and SiT2) and efflux transporters (SiT6) located in the main and lateral roots, responsible for the transport of Si from the cortical cells to the xylem [35,36,37,38]. The researchers found that pea plants tend to the silicification process using Si transporters [39]. However, NPs can have different properties than their bulk materials [40]. Plants can be affected by NPs in two ways, sprayed through shoots and watered through roots. Spraying—exposure through the leaves can form an additional layer on the leaves [17] to protect plants from increased transpiration and disease [41], but can also allow some NPs to penetrate through the wax layer and diffuse directly into the plant (limited to pore size 5–20 nm) [42]. Considering the composition of the cell wall, which has hydrophobic and hydrophilic components and unequal distribution of fixed negative charges (cellulose fibers and lignin surface potential are −15 and −45 mV, respectively) [9,43], it is noticeable that negatively charged plant cell walls act as an ion exchange surface that potentially promotes the penetration of cationic NPs rather than anionic ones. Considering the effects of irrigation when NPs are reached through the soil, it should be noted that the soil particles are usually negatively charged, and NPs with a higher negative charge, are more agile in such soil [44]. On the contrary, positively charged NPs easily attract negatively charged soil surface particles. In general, NPs mobility decreases as the average soil grain size decreases. The clay content of the soil can act as an anionic adjuvant to prevent NPs accumulation and increase their mobility [45]. Zeta potential measurement is a technique for determining the surface charge in a colloidal solution [46]. NPs with a zeta potential of −10 to +10 mV are approximately neutral, and NPs with a zeta potential greater than +30 mV or less than −30 mV are considered to be strongly cationic and anionic, respectively [47]. The zeta potential of the plasma membrane of various plants can vary from 20 to −39 mV, but the zeta potential of the plasma membrane of pea has not been studied, making it difficult to estimate [48]. In future studies, it would be valuable to evaluate the zeta potential of the pea leaf plasma membrane when grown under normal and drought conditions. However, in our results, the zeta potential of the SiO₂ suspension in distilled water was −20 meaning anion (Table 1). There is another scientific article describing that the application of 10 g kg⁻¹ SiO₂ NPs with a zeta potential of −40 mV through the soil had a positive effect on photosynthesis, yield quality, and increased productivity of maize plants [49]. Moreover, the researchers [50] found that negatively charged Au NPs accumulate less on the root surface but move most efficiently through the root epidermis to plant shoots, especially in rice and ryegrass.

The effect of NPs on plants is highly dependent on their concentration. In this study, the most effective concentration against drought-induced effects in peas was spraying and watering with 50 ppm SiO₂ NPs. The researchers found that spraying strawberries with 125 ppm SiO₂ NPs increased their resistance to drought [14]. Using concentrations of 100, 200, 300, and 400 ppm SiO₂ NPs, a statistically significant effect was found for common bean germination [51]. Other researchers used Si NPs as leaf sprays at concentrations of 0, 5, 10, 20, 30 ppm and found that the Cd-induced negative growth rates of rice were significantly reduced [18]. Previous comparative studies showed that approximately 140 ppm Si NPs were effective in reducing Cr (VI) toxicity in pea (Pisum sativum) [20], arsenate toxicity in maize (Zea mays) [13], and UV-B stress in wheat (Triticum aestivum) [17]. In another experiment with cucumbers [52], SiO₂ NPs concentrations at 100, 200, 300, 400 ppm were used, of which the concentration at 200 ppm caused the greatest positive effect in plants. In addition, researchers [19] sprayed potatoes with SiO₂ NPs concluded that a concentration of 50 ppm had a positive, but a concentration of 100 ppm had a statistically significant negative effect on plants. In contrast, the opposite, negative effect was found for SiO₂ NPs at concentrations 10, 100, 500, and 2000 ppm on Bt-transgenic cotton height and weight [5]. These results confirm that the effects of NPs depend not only on the NPs and applied concentration, but also on their interaction with the plant species.

4.2. Influence of Drought Stress and SiO₂ NPs on Oxidative Stress Markers and Antioxidant Enzymes Activities in Peas

The effects of appropriately selected and studied doses of NPs on plants and the soil ecosystem could address the food insecurity caused by climate change, which is challenging agriculture. In our research, the deficiency of water in soil caused oxidative stress resulting in increased malondialdehyde (MDA) and hydrogen peroxide (H₂O₂) levels in pea plants (Figure 2a,b), but watering or spraying plants with SiO₂ NPs reduced the harmful effects of drought stress. Drought stress increased the activity of antioxidant enzymes, including CAT, APX, SOD, and GR (Figure 4), in the leaves of pea plants compared to control plants grown with insufficient moisture supply, while exposure to SiO₂ NPs further strengthened the activity of these enzymes. Previous studies [53,54] have shown that severe drought causes oxidative stress due to the accumulation of reactive oxidative species (ROS) in plant cells, including superoxide radicals (O₂^•-), alkoxy radicals (RO•) and hydroxyl radicals (OH•), hydrogen peroxide (H₂O₂), and singlet oxygen (¹O₂). However, plants have adapted to eliminate excessive oxidative stress agents using antioxidant defense systems consisting of enzymatic (SOD, CAT, GSH, etc.) and non-enzymatic (ascorbic acid, phenolic compounds, carotenoids, etc.) antioxidants [53,55,56]. As the amount of oxidative stress products in plants increases, the antioxidant system activates, for example, superoxide dismutase converts the superoxide radical to hydrogen peroxide (which is less harmful to the plant) then the peroxide decomposes into the water using antioxidants such as CAT, APX, GPX (using different reaction catalysts) [54]. As can be seen in Figure 3, the application of SiO₂ NPs tends to stimulate a non-enzymatic antioxidant response by increasing TPC, DPPH, FRAP, and most strongly ABTS radical scavenging activity in pea plants exposed to drought stress. The ABTS [57] and FRAP methods show a greater correlation with non-enzymatic hydrophilic antioxidants such as α-tocopherols, flavonoids, and ascorbic acid, and the DPPH method showed a higher correlation with lipophilic antioxidants such as carotenoids [25]. According to the results of ABTS, FRAP, and TPC, it can be stated that peas contain more hydrophilic antioxidants than lipophilic in terms of DPPH results.

In general, increased levels of MDA, H₂O₂, and other antioxidant enzymes have been reported in various plant species under drought stress [14,56,58,59]. In this study, a significant increase in MDA and H₂O₂ in pea leaves (Figure 2) in response to water deficiency caused strong oxidative stress resulting in retarded plant growth, decreased RWC, SLA, and increased root/shoot ratio (Figure 1), indicating that pea plants in the lack of soil moisture encourage root growth. MDA can generally be described as a process in which oxidants, such as free radicals, attack lipids having a carbon–carbon double bond(s), especially polyunsaturated fatty acids (PUFAs) [60]. According to the results obtained by other researchers [61], PUFAs in peas are less than in other plants of the Legumes family. Besides, the amount of PUFAs had a positive correlation with DPPH antioxidants, which in pea plants also had lower activity compared to ABTS (Figure 3b,d). In this study, a very strong increase was found in the activity of enzymatic antioxidants such as SOD, CAT, APX, and GR (Figure 4) when pea plants were watered or sprayed with SiO₂ NPs especially at 50 ppm (enzyme activity increased with increasing SiO₂ NPs concentration). In response to water deficit, due to stomatal closure, low CO₂ availability, and limited fixation, oxygen saturation of ribulose 1,5-bisphosphate (RuBP) is preferred that enhances photorespiration [59] leading to more than 70% of the H₂O₂ generation in plants. Besides, H₂O₂ is formed in the plant when the enzyme SOD performs the monovalent reduction and protonation of the superoxide radical [53]. In this study, significant activation of SOD along with other enzymatic antioxidants activity was observed in pea plants under water deficit. We suppose that, due to this, a significant decrease in H₂O₂ (Figure 2b) was observed in peas as plants were watered with SiO₂ NPs in the presence of a water deficit. As mentioned above, SiO₂ NPs may enter the pea plant through special channels in the roots, then move in a symplastic pathway in the plant and enter the cell cytosol containing most of the enzymatic antioxidants and thus affect plant with abnormal particle surface area, size, and charge. This explains the more efficient watering of SiO₂ NPs than foliar application to plants.

SiO₂ NPs have a very strong relationship with water content in plants; there are just a few published scientific articles specifically on the effects of drought. For instance, in strawberries, spraying with Si NPs during drought stress increased the activity of CAT, APX, SOD, and GR enzymes and decreased the content of MDA and H₂O₂ [14]. The relationship of Si NPs and other abiotic factors such as salinity, exposure to heavy metals, and UV radiation to plants were also explored by researchers. For example, when spraying with 50 ppm SiO₂ NPs suspension in salinity-treated potato seedlings, the researchers found [19] that enzymatic antioxidants such as GPX and SOD were more active compared to potatoes not sprayed with SiO₂ suspension. The negative effects of Cr (VI) were found in peas with increased H₂O₂ and MDA concentrations but spraying them with Si NPs resulted in a clear decrease in oxidative stress biomarkers and activated enzymatic antioxidants such as SOD, CAT, GR, APX [20]. Moreover, when common beans were sprayed with 30 ppm SiO₂ NPs, a statistically positive increase in the activity of antioxidant enzymes and a decrease in the concentration of MDA and H₂O₂ were observed under Cd stress [18]. Similar results were obtained when researchers studied [62] the effects of Cd-, Pb-affected rice and foliar application of SiO₂ NPs, the sprayed plants with 20 ppm SiO₂ NPs accumulated less heavy metals and produced the highest yields. The SiO₂ NPs have been shown [17] to protect wheat seedlings from UV-B stress by stimulating the antioxidant defense system and reducing the negative effects of UV-B stress, such as low fresh weight, chlorophyll content, and tissue damage. Researchers noted that as nitric oxide levels reached a peak after exposure to UV-B and Si NPs, the protection arises from modulating NO levels.

4.3. Effects of Drought Stress and SiO₂ NPs on Peas Specific Leaf Area, Relative Water Content, and Root/Shoot Ratio

In plants, decreased growth parameters may be due to decreased relative water content (RWC) and corresponding cell contraction, decreased meristematic cell division, decreased leaf growth, accelerated aging, blocked leaf production, and leaf fall. Water stress can also directly affect the biochemical processes involved in photosynthesis and indirectly reduce the uptake of carbon dioxide into the stoma, which closes during drought. In this study, relative water content (RWC) (Figure 1a) and specific leaf area (SLA) (Figure 1b) of pea plants significantly decreased during drought stress, but watering or spraying with a suspension containing SiO₂ NPs increased their contents. Plant membranes are the first place in the cell which are influenced under stress conditions and the ability of plants to protect the integrity of membranes under drought stress determines the tolerance of the plants to drought stress [63]. Under drought stress, the water potential of soil decreases, and plants prevent transpiration phenomenon using different mechanisms such as closing stomata, increasing stomatal resistance, and decreasing stomatal conductivity. Scientists showed that the improving effect of Si on the hydration status of plants may help to reduce leaf and stem transpiration or the deposition of phytolith under epidermal cells, resulting in a decreased waste of water from cuticle layers [64]. According to that concentration of 50 ppm, SiO₂ NPs play an important role in increasing RWC in pea plants (Figure 1a) under stressful conditions. Similar RWC results were found in drought-affected strawberries [14], wheat [58], and cucumber [52]. The researchers also found a statistically positive increase in rice height, shoot, and root weight under Cd stress and spraying of SiO₂ NPs [18]. A study by other scientists has shown that drought stress has negatively affected wheat growth rates and yields [58], but the use of SiO₂ NPs, especially through soil application at 30 and 60 ppm, reduced the negative effects of drought stress by reducing transpiration, improving the rate of photosynthesis, increasing chlorophyll content and RWC. Moreover, similar results were found in peas [20], maize [13], and wheat [17] affected by various stressors, with a statistically positive increase in fresh leaf and root biomass, also leaf area using Si NPs.

Previous studies [65] indicate that the root/shoot ratio increases with drought, as plants tend to grow roots and absorb more water over a larger root surface, resulting in reduced shoot growth. This trend was also observed in our study, with a significant increase in root/shoot ratio in drought-affected peas (Figure 1c), but the application of SiO₂ NPs at 50 ppm reduced the negative effects of drought stress on the root/shoot ratio. These results confirm that the application of SiO₂ NPs can strongly affect plant development under drought exposure.

5. Conclusions

In conclusion, watering or foliar spraying solutions containing 50 ppm SiO₂ NPs on pea plants is an efficient way to improve their resistance to drought stress. Favorable effects of SiO₂ NPs on pea growth efficiency under drought conditions have been attributed to the activation of the enzymatic and non-enzymatic antioxidative system to eliminate ROS and enhance relative water content, specific leaf area, and decreased root/shoot level. Based on the results obtained, the use of SiO₂ NPs is recommended for managing the drought stress in pea plants and even in other agricultural plants.
