Article

Monascus Yellow Pigment Production by Coupled Immobilized-Cell Fermentation and Extractive Fermentation in Nonionic Surfactant Micelle Aqueous Solution

1
College of Enology, College of Life Sciences, Northwest A&F University, Xianyang 712100, China
2
School of Bioscience and Bioengineering, South China University of Technology, Guangzhou 510006, China
3
School of Environmental Ecology and Biological Engineering, Wuhan Institute of Technology, Wuhan 430205, China
4
Beijing Engineering and Technology Research Center of Food Additives, Beijing Technology & Business University, Beijing 100048, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Fermentation 2023, 9(2), 168; https://doi.org/10.3390/fermentation9020168
Submission received: 15 January 2023 / Revised: 8 February 2023 / Accepted: 10 February 2023 / Published: 13 February 2023
(This article belongs to the Special Issue Pigment Production in Submerged Fermentation)

Abstract

:
Microbial fermentation with immobilized cells possesses many advantages. However, this fermentation mode is restricted to the production of extracellular products. Our previous study demonstrated that the extractive fermentation of Monascus spp. in nonionic surfactant micelle aqueous solution can export Monascus pigments that are supposed to be mainly intracellular products to extracellular culture broth and, in the meantime, extracellularly enhance the production of yellow pigments at a low pH condition; consequently, this makes the continuous production of yellow pigments with immobilized Monascus cells feasible. In this study, immobilized-cell fermentation and extractive fermentation in Triton X-100 micelle aqueous solution were successfully combined to continuously produce Monascus yellow pigments extracellularly. We examined the effects of cell immobilization and Triton X-100 on cell growth, pigment production, and pigment composition. In the repeated-batch extractive fermentation with immobilized cells, the biomass in Ca-alginate gel beads continued to grow and reached 21.2 g/L after seven batches, and dominant yellow pigments were produced extracellularly and stable for each batch. The mean productivity of the extracellular yellow pigments reached up to 22.31 AU410 nm/day within the first four batches (13 days) and 19.7 AU410 nm/day within the first seven batches (25 days). The results also provide a new strategy for producing such intracellular products continuously and extracellularly.

1. Introduction

Monascus pigments are an azaphilone mixture, generally including red, orange, and yellow components, which have been widely used as natural food colorants with a long history in East and Southeast Asian countries, such as China, Japan, Korea, and so on [1,2]. Unlike synthetic pigments, natural Monascus pigments possess higher security and favorable physiological functions [3,4]. Moreover, compared with other natural pigments from plants and animals, the production process of Monascus pigments is not limited by the vagaries of nature [5]. Solid state fermentation and submerged fermentation are two major conventional methods for producing Monascus pigments. Compared with solid state fermentation, submerged fermentation is more attractive because it allows convenient control of fermentation parameters, is easy to scale up, has a shorter fermentation time, results in lower production costs and leads to higher product quality.
For microbial fermentation, product feedback inhibition is the major problem limiting the yield of targeted products [6]. Therefore, “taking away the aimed products” in the fermentation process is one of the most feasible strategies to overcome this problem. Fermentation using in situ product removal based on resin and water–organic solvent two-phase systems are two common strategies for striping away aimed products during the fermentation process, in order to alleviate feedback inhibition [7,8,9]. After removing the targeted products, the yield of extracellular products can be increased, such as the enhancement of antibiotics (esperamicin A1 and teicoplanin) [10,11] and other natural products (thailandepsin A) [12] production using neutral resin Diaion HP-20, the enhancement of 2-phenylethanol production using resin HZ818 [13], and the enhancement of biobutanol production using a water–organic solvent two-phase system in acetone–butanol–ethanol (ABE) fermentation [7,14]. However, these strategies are more favorable for the production of extracellular products. For those products that are restricted to the intracellular environment or are only excreted extracellularly at very low concentrations, a water–organic solvent two-phase system may enhance product release through permeabilization, but at the cost of low cell viability or cell death [15]; to a great extent, this limits the application for in situ product removal if the used organic solvent cannot possess both good biocompatibility and extraction ability for the aimed products.
Monascus pigments are mainly hydrophobic intracellular products, and solvent extraction with aqueous ethanol is the most common method for their downstream processing. Previous studies have reported that the extractive fermentation of Monascus spp. in nonionic surfactant (such as Triton X-100, Triton X-114, Brij 35 and Tween 80) micelle aqueous solution can promote the export of intracellular pigments to extracellular culture broth through the permeabilization of nonionic surfactant, and they enhance the production of extracellular pigments through the solubilization of pigments in nonionic surfactant micelles [16,17]; this was assimilated to the “milking processing” to alleviate product feedback inhibition. Triton X-100 shows both good biocompatibility and extraction ability for intracellular Monascus pigment. In addition, aqueous Triton X-100 micelles can further prevent the degradation of Monascus pigments in the fermentation broth [18,19]. Moreover, at a certain temperature above the cloud point of the nonionic surfactant micelle aqueous solution, it would form a cloud point system, which consists of a surfactant-rich phase and a dilute phase. Hydrophobic Monascus pigments were concentrated in the surfactant-rich phase, which would further simplify the downstream processes [17]. More interestingly, Monascus yellow pigments were the dominant pigments in extractive fermentation in Triton X-100 micelles aqueous solution, while Monascus orange pigments were the dominant pigments in conventional submerged fermentation at a low pH condition [19,20]. Currently, Monascus yellow pigments have drawn more attention because of the increasing demand for yellow pigments in the food industry.
Immobilized-cell fermentation, which is derived from enzyme immobilization, is attractive due to its many advantages, including the continuous reuse of microbial cells, higher volumetric productivities, shorter fermentation period, ability to endure a more open fermentation process, and consequent lower cost. Moreover, continuous immobilized-cell fermentation can also alleviate the adverse influence caused by the feedback inhibition of products and substrates [21]. However, similar to fermentation using in situ product removal, this fermentation mode is also restricted to the production of extracellular products and cannot be well employed for the production of Monascus pigments, most of which are mainly accumulated intracellularly. Various methods have been tested to solve this problem, such as using Monascus strains that can produce a large number of water-soluble extracellular pigments [22,23], using the fermentation media containing rice flour with a nearly neutral pH [22,24], adding adsorbent resin or active carbon [25,26] to promote the secretion of intracellular pigments, or collecting intracellular pigments from the cells falling from immobilization carriers (the results revealed that the obtained pigments were still intracellular products from the falling cells) [27]. Fortunately, the aforementioned extractive fermentation in Triton X-100 micelle aqueous solution can efficiently export intracellular hydrophobic pigments to extracellular culture broth, providing feasibility for the direct and continuous production of Monascus pigments coupled with immobilized-cell fermentation.
In this study, we attempted to combine extractive fermentation in nonionic surfactant (Triton X-100) micelle aqueous solution and immobilized-cell fermentation for the continuous production of Monascus yellow pigments. The effects of cell immobilization and Triton X-100 on cell growth, as well as on the yield and characteristics of pigments, were examined. Repeated-batch extractive fermentation with immobilized cells was conducted to continuously produce yellow pigments.

2. Materials and Methods

2.1. Microorganism and Cultivation Media

Monascus anka GIM 3.592 (deposited in the publicly accessible culture collection GDMCC/GIMCC, Guangdong Culture Collection Centre of Microbiology, Guangdong, China) was maintained on potato dextrose agar (PDA) medium (potato dextrose 200 g, glucose 20 g and agar 15–20 g, per liter of double-distilled water) and preserved at 4 °C. Sub-culture was carried out at 30 °C for seven days every month.
Seed culture medium consisted of glucose 20 g, (NH4)2SO4 4 g, peptone 10 g, KCl 0.5 g, KH2PO4 4 g and FeSO4·7H2O 0.01 g, per liter of double-distilled water. Conventional fermentation medium consisted of glucose 50 g, (NH4)2SO4 1 g, KH2PO4 1 g, KCl 0.5 g, MnSO4·H2O 0.03 g, ZnSO4·7H2O 0.01 g, MgSO4·7H2O 0.5 g and FeSO4·7H2O 0.01 g, per liter of double-distilled water. Extractive fermentation medium consisted of the same substrates as conventional fermentation medium plus 40 g/L of Triton X-100. The initial pHs of the conventional and extractive fermentation media were adjusted to 4 with 10% (v/v) hydrochloric acid.

2.2. Fermentation

Free-cell fermentation and immobilized-cell fermentation in conventional or extractive fermentation media were conducted according to the procedures shown in Figure 1.

2.2.1. Free-Cell Fermentation

Monascus spores from a seven-day old culture on potato dextrose agar were suspended in sterile 0.9% (w/v) NaCl solution. An amount of 5 mL of the spore suspension (approximate 2 × 105 spores/mL) was inoculated into a 250 mL Erlenmeyer flask containing 50 mL of seed culture medium and incubated for 2 days at 30 °C in an orbital shaker set at 180 rpm. After the seed cultivation, the mycelia were collected by filtration and then transferred to a 250 mL Erlenmeyer flask containing 50 mL of the conventional or extractive fermentation media. The cultivation was conducted at 30 °C in an orbital shaker set at 180 rpm for five days. At the end of fermentation, the biomass and pigments were analyzed.

2.2.2. Immobilized-Cell Fermentation

An amount of 5 mL of spore suspension was mixed with an equal volume of 4% (w/v) sodium alginate solution and then added dropwise to sterile 4% CaCl2 solution using an small peristaltic pump (Longer Pump, Beijing, China). Ca-alginate gel beads containing spores formed, since Na+ was replaced by Ca2+. Approximately 40 beads could be obtained by 2 mL of the mixture. After calcification for 3 h, all the beads (approximate 2.5 mm in diameter) were decanted and repeatedly rinsed with double-distilled water, and then they were transferred to 50 mL seed culture medium. After being cultured at 30 °C and 180 rpm for two days, the collected beads were transferred to a 250 mL Erlenmeyer flask containing 50 mL of the conventional or extractive fermentation medium and cultured at the same conditions with free-cell fermentation.

2.2.3. Repeated-Batch Extractive Fermentation with Immobilized Cells

Extractive fermentation was performed for several consecutive batches by cultivating immobilized cells in extractive fermentation medium. At the end of each batch, the beads were decanted and washed with sterile double-distilled water to remove the loose mycelia, and then transferred into the fresh medium. The first batch started after the seed culture. The first, fifth, sixth, and seventh batches lasted for four days, and the second, third, and fourth batches lasted for three days.

2.3. Analysis Methods

For free-cell fermentation, the fermentation broth was filtered under vacuum through 0.8 µm of mixed cellulose esters membrane. The filtrate was appropriately diluted to determine the residual glucose concentration and extracellular pigment concentration. The mycelia (filter cakes) were soaked in 50 mL of 70% (v/v) ethanol aqueous solution (pH 2.0) for 2 h; then, they were separated from the ethanol extract by filtration and dried to a constant weight at 60 °C to determine DCW (dry cell weight). The ethanol extract was subjected to intracellular pigment concentration determination.
When immobilized cells were used, the Ca-alginate gel beads and free cells (leaked cells from the beads) were separated from the fermentation broth by sequentially filtrating them through a 12-mesh screen (Shangyu Huafeng Hardware Instrument, Shaoxing, China) and filter membrane. The pigments in the immobilized cells (beads) and free cells were extracted as mentioned above and measured, respectively. The immobilized biomass was determined as follows: the beads were dissolved in 5% (w/v) sodium citrate solution, and the mycelia were collected and repeatedly rinsed with double-distilled water; then, the dry weight was determined as described above. In addition, 2 mL of fermentation broth collected from repeated-batch fermentation was subjected to centrifugation at 10,000 rpm for 5 min, and then the supernatant was used for analysis.
Residual glucose was quantified by the standard 3, 5-dinitrosalicylic acid (DNS) method. Pigment concentration was analyzed by a spectrophotometer [28,29]. The absorbance was measured at 410, 470 and 510 nm, corresponding to yellow, orange, and red pigments, respectively. Pigment concentration was calculated by multiplying the absorbance values by the dilution factor. An HPLC analysis was conducted according to the previous method [20] using Alliance e2695 with a 2998 photo-diode array detector (PDA) (Waters, Milford, CT, USA). The detector’s wavelength was set as 210–600 nm. The absorption peak of the spectrum of each pigment was recorded by extracting the spectrum from HPLC data. The HPLC profile of intracellular and extracellular pigments was presented at a 310 nm detection wavelength.

2.4. Statistical Analysis

The results are expressed as the mean of three replicates ± standard deviations. A Student’s t-test and one-way analysis of variance (ANOVA) test were performed to check the significant differences.

3. Results and Discussion

3.1. Effects of Cell Immobilization and Triton X-100 on Cell Growth, Pigment Production and Pigment Composition

As shown in Figure 1, immobilized-cell and free-cell fermentations were conducted in the conventional and extractive fermentation media. In the immobilized-cell fermentation, the mycelia predominantly grew in the outer layer of the Ca-alginate gel beads and formed a “mycelia coat” due to the limitation of nutrients and oxygen transfer [25,30]. Immobilized-cell growth could generate tension on the Ca-alginate gel beads, and K+, Mg2+ and some chelating agents—such as phosphates, lactate, citrate and EDTA—in the medium could gradually rupture the beads [31,32]; this would decrease the mechanical strength of the beads and result in cell leakage. Therefore, free cells normally exist in immobilized-cell fermentation, and these free cells, serving as an indicator of cell leakage, were approximately one seventh of the total cells in biomass (Figure 2). The total biomass in immobilized-cell fermentation, including free cells and immobilized cells, showed no significant difference (immobilized-cell conventional fermentation vs. free-cell conventional fermentation, p = 0.23; immobilized-cell extractive fermentation vs. free-cell extractive fermentation, p = 0.29) with that in the free-cell fermentation, which indicated that the immobilization of Monascus anka by Ca-alginate had no obvious influence on the production of the final biomass. No matter if the cells were immobilized or not, the final biomass in extractive fermentation was lower (immobilized-cell extractive fermentation vs. immobilized-cell conventional fermentation, p = 0.03; free-cell extractive fermentation vs. free-cell conventional fermentation, p = 0.02) than that in conventional fermentation. This suggests that the nonionic surfactant Triton X-100 has a slightly negative effect on the final biomass, which is consistent with previous reports [16].
The effects of cell immobilization and Triton X-100 on the yield of intracellular and extracellular pigments are shown in Figure 3A,B. Compared with free-cell fermentation, immobilized-cell fermentation produced less pigments. This might be caused by oxygen or nutrients insufficiency and/or production inhibition due to the limitation of mass transfer in the immobilized carrier, which is considered a potential drawback of cell immobilization.
In conventional fermentation, pigments were primarily produced intracellularly, and very few were produced extracellularly (Figure 3A,B). The consumption of (NH4)2SO4 could cause the decrease in pH; further, intracellular pigments can only be marginally exported into extracellular culture broth or form water-soluble red pigments through the ammoniophilic reaction between the hydrophobic orange pigments and amino acids at a low pH [33,34], so extracellular pigment concentration is very low. However, the extracellular pigment concentrations in free-cell and immobilized-cell extractive fermentation were very similar, both of which were much higher than that in conventional fermentation. This suggests that the presence of Triton X-100 led to the export of intracellular pigments into extracellular culture broth regardless of immobilized-cell and free-cell fermentation. This has been well explained in previous studies, i.e., that Triton X-100 can modify cell membrane structure to facilitate the export of intracellular pigments to extracellular culture broth [16,35], and its micelles in aqueous solution can solubilize hydrophobic pigments [18].
Extracellular pigment concentration was lower than intracellular pigment concentration in free-cell extractive fermentation, which is inconsistent with previous reports [17,36]. The solubilization of pigments in nonionic surfactant micelles strongly affects the final concentration of extracellular pigments [18]. Since the solubilization of micelles depends on the type of nonionic surfactant, the super-molecule assembly structure of nonionic surfactant in an aqueous solution and the nonionic surfactant concentration [18,37], it is possible that 40 g/L of Triton X-100 was not enough to solubilize the pigments produced by the high-yield Monascus anka strain in this study. However, we did not further increase the concentration of Triton X-100, as this would cause high viscosity of the system, inconvenience in products separation and high production costs.
The effects of cell immobilization and Triton X-100 on the visible spectra and composition of pigments are shown in Figure 3C–F. Based on the fact that the visible spectra of different individual Monascus pigments present the maximum absorption at different wavelengths [38,39], the visible spectra of mixed pigments, which are caused by an overlap of every individual pigment spectrum, are usually used to approximately reflect the pigment composition [19,33,34]. In the meantime, the HPLC profile was also used to further reflect the pigment composition [20]. In this study, using an HPLC analysis, the pigments were also identified and are shown in Table 1 based on the characteristic absorption peaks of the spectra of the individual pigments and the previous results [20,35]. The spectra of intracellular pigments in free-cell extractive fermentation were similar to that in free-cell conventional fermentation, with an absorption peak at approximate 470 nm, in keeping with the previous results (Figure 3C). In addition, the spectra of intracellular pigments in the immobilized cells in immobilized-cell conventional fermentation also showed an absorption peak at approximately 470 nm. This spectrum characteristic suggested that these intracellular pigments consisted of dominant orange pigments (compounds 2 and 4) and a small amount of yellow pigments (compounds 1 and 3), which was further verified by the pigment profile detected by HPLC (Figure 3E). There was a small difference between the intracellular pigment profile of free-cell extractive and conventional fermentation that a trace amount of compounds Y1–Y4 were only found in free-cell extractive fermentation. In the previous study, compounds Y1–Y4—with an absorption peak at approximately 430 nm—turned out to be new yellow pigments that are dominant in extracellular pigments in extractive fermentation and not found in conventional fermentation [20]. Similarly, in this study, yellow pigments Y1–Y4 were dominant in extracellular pigments in the free-cell and immobilized-cell extractive fermentation, but not detected in either extracellular or intracellular pigments in the conventional fermentation (Figure 3E,F). Therefore, the spectra of extracellular pigments in free-cell and immobilized-cell extractive fermentation showed an absorption peak at approximately 430 nm (Figure 3D). The intracellular pigments in the immobilized and free cells in immobilized-cell extractive fermentation also contained a high proportion of yellow pigments (Y1–Y4) and presented spectra with a 430 nm absorption peak. Different from free-cell fermentation, the spectrum of intracellular pigments in the immobilized cells in immobilized-cell conventional fermentation was flat from 410 nm to 470 nm, and the HPLC profile indicated that the intracellular pigments consisted of a relatively high proportion of yellow pigments (compounds 1 and 3) and yellow pigments (compounds Y5 and Y6) with a 420 nm absorption peak, which have not been reported before. In fact, in immobilized-cell fermentation, the microenvironment of immobilized cells was different from that of free cells, which led to some differences in product biosynthesis [40]. The cells entrapped in Ca-alginate gel beads did not have sufficient access to oxygen due to mass transfer limitation. In the biosynthesis of Monascus pigments, the orange pigments (2 and 4) are formed from a precursor by a FAD-dependent oxidoreductase, and the yellow pigments (1 and 3) are formed from the same precursor by a reductase [41]. Interestingly, compared with the pigment composition in the free cells, a relatively high proportion of intracellular yellow pigments (1 and 3) was found in the immobilized cells in both immobilized-cell extractive and conventional fermentation. We speculated that the sufficient oxygen supply for the immobilized cells might have facilitated the formation of a reductive intracellular microenvironment, which then increased the biosynthesis of the yellow pigments (1 and 3).
In free-cell and immobilized-cell conventional fermentation, the absorbance of extracellular pigments in conventional fermentation decreased from 370 nm to 550 nm (Figure 3D). Yellow pigments were the main extracellular pigments produced in both conventional and extractive fermentation; however, the composition and yield of the yellow pigments were very different. Very few hydrophilic yellow pigments were produced extracellularly in conventional fermentation, whereas a large number of hydrophobic yellow pigments (Y1-Y4) were the major components in extractive fermentation (Figure 3F). Extractive fermentation for yellow pigments in Triton X-100 micelle aqueous solution can be well combined with the immobilized-cell system.

3.2. Yellow Pigment Production in Repeated-Batch Extractive Fermentation with Immobilized Cells

As extractive fermentation in Triton X-100 micelle aqueous solution can export intracellular pigments into extracellular culture broth, a combination of extractive and immobilized-cell fermentation provides feasibility to continuously produce Monascus pigments extracellularly, which are supposed to be accumulated intracellularly in conventional fermentation. Moreover, the yield of extracellular pigments was very high (47 AU410 nm) and yellow pigments occupied a large proportion in the immobilized cell extractive fermentation (Figure 2B,D,F). Repeated-batch extractive fermentation was then carried out with immobilized cells for extracellular yellow pigments. For the immobilized cells, the lag phase was long, and the growth rate was slow at the seed culture stage due to mass transfer limitation in immobilization carriers [42]. Hence, we extended the period of seed culture to three days. Repeated-batch extractive fermentation was sustained for at least seven batches. After the seventh batch, the beads began to swell and rupture.
The process of extracellular pigment production in the first five batches showed the same trend (Figure 4A–E). The absorption peak of the spectrum of the extracellular pigments shifted from 470 nm to 410 nm along with the fermentation process (Figure 4F, data of other batches were similar and are not shown), indicating that the proportion of yellow pigments (Y1–Y4) increased during the fermentation process and that yellow pigments became the dominant component after three days in each batch. At the end of each batch, all the spectra of the extracellular pigments showed the same absorption peak at around 430 nm (Figure 5). The color characteristics of the extracellular pigments at the end of each batch are shown in Table 2. The AU410/AU510 values of the extracellular pigments were greater than 2.2; they were approximately 1.2, indicating that the pigments exhibited a yellow hue. The yield and productivity of extracellular pigments in the second to fifth batches were relatively high but gradually decreased after the fifth batch (Table 2). The maximum batch yield (81.3 AU410) and productivity (27.1 AU410 nm/day) were found in the fourth batch. In the seventh batch, the batch yield and productivity only reached approximately 70% and 52% of the maximum (the fourth batch), respectively. This result is consistent with previous reports [23,27] that the capacity of pigments production firstly increased but started to decrease as the fermentation batch continued, even though cell immobilization created a suitable microenvironment. This might be related to the increased biomasses in Ca-alginate gel beads (Figure 6) and the decreased immobilized-cell activities. Glucose was quickly consumed in the first three batches, but the rate of glucose consumption slowed down from the fourth batch. More than 10 g/L of residual glucose remained in the medium at the end of the sixth and seventh batches. Such glucose consumption suggests that the immobilized-cell activities gradually declined, which might be caused by the long-term effects of Triton X-100, oxygen deficiency and an increasing number of dead cells.
Based on the above results, the duration of the total fermentation process should be limited to five or six batches in order to obtain high mean productivity. The highest mean productivity could reach up to 22.31 AU410 nm/day within the fermentation of the first four batches (13 days) and 19.7 AU410 nm/day within that of the first seven batches (25 days), which was significantly higher than that reported previously (Table 3). Although the productivities reported in the literature could not be accurately compared because the calculation methods for pigment concentration in the literature are quite inconsistent, we can be certain that in most previous studies, immobilized Monascus cells mainly produced red pigments, and that in this study, immobilized Monascus cells mainly produced yellow pigments. However, the immobilized-cell system only performed well for a few batches, which might be further improved by optimization of the cell immobilization method and culture conditions.

3.3. Cell Growth and Intracellular Pigments Metabolism in Repeated-Batch Extractive Fermentation with Immobilized Cells

In the process of repeated-batch extractive fermentation, the biomass of immobilized cells continued to grow (Figure 6). The accumulation of biomass in the beads could account for the initial increase in yield and productivity of both extracellular and intracellular pigments (Table 2, Figure 4 and Figure 6). The biomass increase in immobilized cells gradually slowed down, and at the end of the seventh batch the biomass reached 21.2 g/L, which appeared to be the saturated biomass in the beads. The concentration of 40 g/L of Triton X-100 exhibited acceptable biocompatibility in the whole process. The biomass of free cells, which was measured as cell leakage from immobilized carriers, was lower than 2 g/L in the first four batches; however, it increased by nearly three times in the seventh batch due to the saturated space of beads for the growing cells.
The intracellular pigment concentration in the immobilized cells at the end of each batch was relatively stable from the second batch (Figure 6), but the intracellular pigment concentration in the immobilized cells per dry cell weight decreased due to the increase in biomass, which indicated a decline in the immobilized cells’ capacity for pigments production. In the first four batches, yellow pigment concentration in the free cells was less than 3 AU410 nm, whereas in the seventh batch this increased to 18.2 AU410 nm (Figure 6) due to the saturated biomass in the beads and the increasing cell leakage. The distribution ratio between intracellular and extracellular pigments might be influenced by many factors, such as the concentration of Triton X-100, the physiological state of cells and the biomass. Triton X-100 could export and solubilize not only the pigments, but also other intracellular hydrophobic substances, such as lipids, proteins, and so on [37]. These exported substances would increase and then compete with the pigments in Triton X-100 micelles when the biomass became large. The solubilization capacity of triton X-100 was also limited to a great extent by the concentration of Triton X-100, resulting in the intracellular pigments in the free cells possibly not being effectively exported in the later batches.

4. Conclusions

In this study, immobilized cell fermentation and extractive fermentation were successfully combined to continuously produce Monascus yellow pigments extracellularly. This system showed good biocompatibility for Monascus cells. The immobilized cells could be reused for at least seven batches. The biomass in Ca-alginate gel beads continued to increase and finally, reached 21.2 g/L. Most intracellular pigments were exported into extracellular culture broth, and hydrophobic yellow pigments accounted for a large and stable proportion in the extracellular pigments of each batch. The mean productivity reached up to 22.31 AU410 nm/day within the first five batches (13 days) and 19.7 AU410 nm/day within the first seven batches (25 days). Our results also provide a novel strategy to continuously and extracellularly produce such intracellular products.

Author Contributions

Conceptualization, K.S. and C.W.; Methodology, K.S. and Y.Z.; Software, D.S.; Validation, K.S. and G.C.; Formal Analysis, K.S. and D.S.; Investigation, D.S.; Resources, Z.W. and H.G.; Data Curation, Y.Z.; Writing—Original Draft Preparation, K.S. and D.S.; Writing—Review and Editing, H.G. and C.W.; Visualization, Y.Z.; Supervision, Z.W. and H.G.; Project Administration, Z.W. and H.G.; Funding Acquisition, K.S., Z.W., and G.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by grants from the National Natural Science Foundation of China (No. 31901673 and 31901674), the Natural Science Basic Research Plan in Shaanxi Province of China (2019JQ-532), the fund of the Beijing Engineering and Technology Research Center of Food Additives, Beijing Technology & Business University (K4030219142), the Scientific and Technological Innovation and Achievement Transformation Projects of Experimental and Demonstrational Stations of Northwest A&F University (Z2220220046), and the Science Foundation Project of Wuhan Institute of Technology (K201836).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data information is available in this paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chen, W.; He, Y.; Zhou, Y.; Shao, Y.; Feng, Y.; Li, M.; Chen, F. Edible filamentous fungi from the species Monascus: Early traditional fermentations, modern molecular biology, and future genomics. Compr. Rev. Food. Sci. Food Saf. 2015, 14, 555–567. [Google Scholar] [CrossRef]
  2. Feng, Y.; Shao, Y.; Chen, F. Monascus pigments. Appl. Microbiol. Biotechnol. 2012, 96, 1421–1440. [Google Scholar] [CrossRef] [PubMed]
  3. Adin, S.N.; Gupta, I.; Panda, B.P.; Mujeeb, M. Monascin and ankaflavin—Biosynthesis from Monascus purpureus, production methods, pharmacological properties: A review. Biotechnol. Appl. Biochem. 2022, 1–11. [Google Scholar] [CrossRef] [PubMed]
  4. He, J.; Jia, M.; Li, W.; Deng, J.; Ren, J.; Luo, F.; Bai, J.; Liu, J. Toward improvements for enhancement the productivity and color value of Monascus pigments: A critical review with recent updates. Crit. Rev. Food Sci. Nutr. 2021, 62, 7139–7153. [Google Scholar] [CrossRef] [PubMed]
  5. Fabre, C.E.; Santerre, A.L.; Loret, M.O.; Baberian, R.; Pareilleux, A.; Goma, G.; Blanc, P.J. Production and food applications of the red pigments of Monascus ruber. J. Food Sci. 1993, 58, 1099–1102. [Google Scholar] [CrossRef]
  6. Sanchez, S.; Demain, A.L. Metabolic regulation and overproduction of primary metabolites. Microb. Biotechnol. 2008, 1, 283–319. [Google Scholar] [CrossRef]
  7. Stark, D.; von Stockar, U. In situ product removal (ISPR) in whole cell biotechnology during the last twenty years. Adv. Biochem. Eng. Biotechnol. 2003, 80, 149–175. [Google Scholar]
  8. Santos, A.G.; de Albuquerque, T.L.; Ribeiro, B.D.; Coelho, M.A.Z. In situ product recovery techniques aiming to obtain biotechnological products: A glance to current knowledge. Biotechnol. Appl. Biochem. 2021, 68, 1044–1057. [Google Scholar] [CrossRef]
  9. Van Hecke, W.; Kaur, G.; De Wever, H. Advances in in-situ product recovery (ISPR) in whole cell biotechnology during the last decade. Biotechnol. Adv. 2014, 32, 1245–1255. [Google Scholar] [CrossRef]
  10. Lam, K.S.; Gustavson, D.R.; Veitch, J.A.; Forenza, S. The effect of cerulenin on the production of esperamicin A1 by Actinomadura verrucosospora. J. Ind. Microbiol. 1993, 12, 99–102. [Google Scholar] [CrossRef]
  11. Lee, H.B.; Kim, C.J.; Lee, J.C.; Kim, Y.B.; Park, H.R.; Park, D.J. Improved production of teicoplanin using adsorbent resin in fermentations. Lett. Appl. Microbiol. 2003, 37, 196–200. [Google Scholar] [CrossRef]
  12. Bing, L.; Hui, J.; Cheng, Y.Q.; Zhang, X. Extractive fermentation for enhanced production of thailandepsin A from Burkholderia thailandensis E264 using polyaromatic adsorbent resin Diaion HP-20. J. Ind. Microbiol. Biotechnol. 2012, 39, 767–776. [Google Scholar]
  13. Hua, D.; Lin, S.; Li, Y.; Chen, H.; Zhang, Z.; Du, Y.; Zhang, X.; Xu, P. Enhanced 2-phenylethanol production from L-phenylalanine via in situ product adsorption. Biocatal. Biotransform. 2010, 28, 259–266. [Google Scholar] [CrossRef]
  14. Outram, V.; Lalander, C.A.; Lee, J.G.; Davies, E.T.; Harvey, A.P. Applied in situ product recovery in ABE fermentation. Biotechnol. Prog. 2017, 33, 563–579. [Google Scholar] [CrossRef]
  15. Kleinegris, D.M.; Janssen, M.; Brandenburg, W.A.; Wijffels, R.H. Two-phase systems: Potential for in situ extraction of microalgal products. Biotechnol. Adv. 2011, 29, 502–507. [Google Scholar] [CrossRef]
  16. Wang, Y.; Zhang, B.; Lu, L.; Huang, Y.; Xu, G. Enhanced production of pigments by addition of surfactants in submerged fermentation of Monascus purpureus H1102. J. Sci. Food Agric. 2013, 93, 3339–3344. [Google Scholar] [CrossRef]
  17. Hu, Z.; Zhang, X.; Wu, Z.; Qi, H.; Wang, Z. Perstraction of intracellular pigments by submerged cultivation of Monascus in nonionic surfactant micelle aqueous solution. Appl. Microbiol. Biotechnol. 2012, 94, 81–89. [Google Scholar] [CrossRef]
  18. Kang, B.; Zhang, X.; Wu, Z.; Qi, H.; Wang, Z. Solubilization capacity of nonionic surfactant micelles exhibiting strong influence on export of intracellular pigments in Monascus fermentation. Microb. Biotechnol. 2013, 6, 540–550. [Google Scholar] [CrossRef]
  19. Xiong, X.; Zhang, X.; Wu, Z.; Wang, Z. Accumulation of yellow Monascus pigments by extractive fermentation in nonionic surfactant micelle aqueous solution. Appl. Microbiol. Biotechnol. 2014, 99, 1173–1180. [Google Scholar] [CrossRef]
  20. Shi, K.; Tang, R.; Huang, T.; Wang, L.; Wu, Z. Pigment fingerprint profile during extractive fermentation with Monascus anka GIM 3.592. Bmc Biotechnol. 2017, 17, 1–11. [Google Scholar] [CrossRef]
  21. Gao, H.; Lu, J.; Jiang, Y.; Fang, Y.; Tang, Y.; Yu, Z.; Zhang, W.; Xin, F.; Jiang, M. Material-mediated cell immobilization technology in the biological fermentation proces. Biofuels Bioprod. Biorefining 2021, 15, 1160–1173. [Google Scholar] [CrossRef]
  22. Li, C.; Wang, C.; Zhang, H.; Li, T. Study on water-soluble pigment from fermentation of immobilized Monuscus. China Food Addit. 2008, 2, 106–108. [Google Scholar]
  23. Liu, J.; Ren, Y.; Yao, S. Repeated-batch Cultivation of Encapsulated Monascus purpureus by Polyelectrolyte Complex for Natural Pigment Production. Chin. J. Chem. Eng. 2010, 18, 1013–1017. [Google Scholar] [CrossRef]
  24. Yi, X.; Hou, H.; Li, T.; Shao, W. Optimization of fermentation condition for the immobilization of Monascus purpureus cell with RSM. China Brew. 2008, 9, 80–83. [Google Scholar]
  25. Evans, P.J.; Wang, H.Y. Pigment production from immobilized Monascus sp. utilizing polymeric resin adsorption. Appl. Environ. Microbiol. 1984, 47, 1323–1326. [Google Scholar] [CrossRef]
  26. Wang, K.; Zhang, S. Study of production of Monascus pigment by PVA immobilized Monascus cell. J. Yantai Univ. (Nat. Sci. Eng.) 1998, 11, 306–309. [Google Scholar]
  27. Fenice, M.; Federici, F.; Selbmann, L.; Petruccioli, M. Repeated-batch production of pigments by immobilised Monascus purpureus. J. Biotechnol. 2000, 80, 271–276. [Google Scholar] [CrossRef]
  28. Babitha, S.; Soccol, C.R.; Pandey, A. Effect of stress on growth, pigment production and morphology of Monascus sp. in solid cultures. J. Basic Microbiol. 2007, 47, 118–126. [Google Scholar] [CrossRef]
  29. Shi, K.; Chen, G.; Pistolozzi, M.; Xia, F.; Wu, Z. Improved analysis of Monascus pigments based on their pH-sensitive Uv-Vis absorption and reactivity properties. Food Addit. Contam. Part A 2016, 33, 1396–1401. [Google Scholar] [CrossRef]
  30. Pashova, S.; Slokoska, L.; Sheremetska, P.; Krumova, E.; Vasileva, L.; Angelova, M. Physiological aspects of immobilised Aspergillus niger cells producing polymethylgalacturonase. Process Biochem. 1999, 35, 15–19. [Google Scholar] [CrossRef]
  31. Zhu, Y. Immobilized cell fermentation for production of chemicals and fuels. In Bioprocessing for Value-Added Products from Renewable Resources; Yang, S.-T., Ed.; Elsevier: Amsterdam, Netherlands, 2007; pp. 373–396. [Google Scholar]
  32. Bucke, C.; Brown, D.E. Immobilized cells [and discussion]. Philos. Trans. R. Soc. Lond. Ser. B 1983, 300, 369–389. [Google Scholar]
  33. Kang, B.; Zhang, X.; Wu, Z.; Qi, H.; Wang, Z. Effect of pH and nonionic surfactant on profile of intracellular and extracellular Monascus pigments. Process Biochem. 2013, 48, 759. [Google Scholar] [CrossRef]
  34. Shi, K.; Song, D.; Chen, G.; Pistolozzi, M.; Wu, Z.; Quan, L. Controlling composition and color characteristics of Monascus pigments by pH and nitrogen sources in submerged fermentation. J. Biosci. Bioeng. 2015, 120, 145–154. [Google Scholar] [CrossRef]
  35. Chen, G.; Bei, Q.; Huang, T.; Wu, Z. Tracking of pigment accumulation and secretion in extractive fermentation of Monascus anka GIM 3.592. Microb. Cell. Fact. 2017, 16, 1–13. [Google Scholar] [CrossRef]
  36. Hu, Z.; Zhang, X.; Wu, Z.; Qi, H.; Wang, Z. Export of intracellular Monascus pigments by two-stage microbial fermentation in nonionic surfactant micelle aqueous solution. J. Biotechnol. 2012, 162, 202–209. [Google Scholar] [CrossRef]
  37. Chen, G.; Bei, Q.; Shi, K.; Tian, X.; Wu, Z. Saturation effect and transmembrane conversion of Monascus pigment in nonionic surfactant aqueous solution. Amb Express 2017, 7, 1–11. [Google Scholar] [CrossRef] [Green Version]
  38. Zheng, Y.Q.; Xin, Y.W.; Guo, Y.H. Study on the fingerprint profile of Monascus products with HPLC–FD, PAD and MS. Food Chem. 2009, 113, 705–711. [Google Scholar] [CrossRef]
  39. Teng, S.S.; Feldheim, W. Analysis of anka pigments by liquid chromatography with diode array detection and tandem mass spectrometry. Chromatographia 1998, 47, 529–536. [Google Scholar] [CrossRef]
  40. de Alteriis, E.; Zueco, J.; Rico, H.; Sentandreu, R.; Parascandola, P. Electrophoretic mobility of external invertase from free and gel-immobilized yeast cells. Res. Microbiol. 1995, 146, 217–225. [Google Scholar] [CrossRef]
  41. Chen, W.; Feng, Y.; Molnár, I.; Chen, F. Nature and nurture: Confluence of pathway determinism with metabolic and chemical serendipity diversifies Monascus azaphilone pigments. Nat. Prod. Rep. 2019, 36, 561–572. [Google Scholar] [CrossRef]
  42. Junter, G.; Coquet, L.; Vilain, S.; Jouenne, T. Immobilized-cell physiology: Current data and the potentialities of proteomics. Enzyme Microb. Technol. 2002, 31, 201–212. [Google Scholar] [CrossRef]
  43. Liu, J.; Guo, T.; Luo, Y.; Chai, X.; Wu, J.; Zhao, W.; Jiao, P.; Luo, F.; Lin, Q. Enhancement of Monascus pigment productivity via a simultaneous fermentation process and separation system using immobilized-cell fermentation. Bioresour. Technol. 2019, 272, 552–560. [Google Scholar] [CrossRef]
Figure 1. Procedures of free-cell fermentation and immobilized-cell fermentation.
Figure 1. Procedures of free-cell fermentation and immobilized-cell fermentation.
Fermentation 09 00168 g001
Figure 2. Effects of cell immobilization and Triton X-100 on cell growth. Leaked cells from the beads in immobilized-cell fermentation were recorded as free cells.
Figure 2. Effects of cell immobilization and Triton X-100 on cell growth. Leaked cells from the beads in immobilized-cell fermentation were recorded as free cells.
Fermentation 09 00168 g002

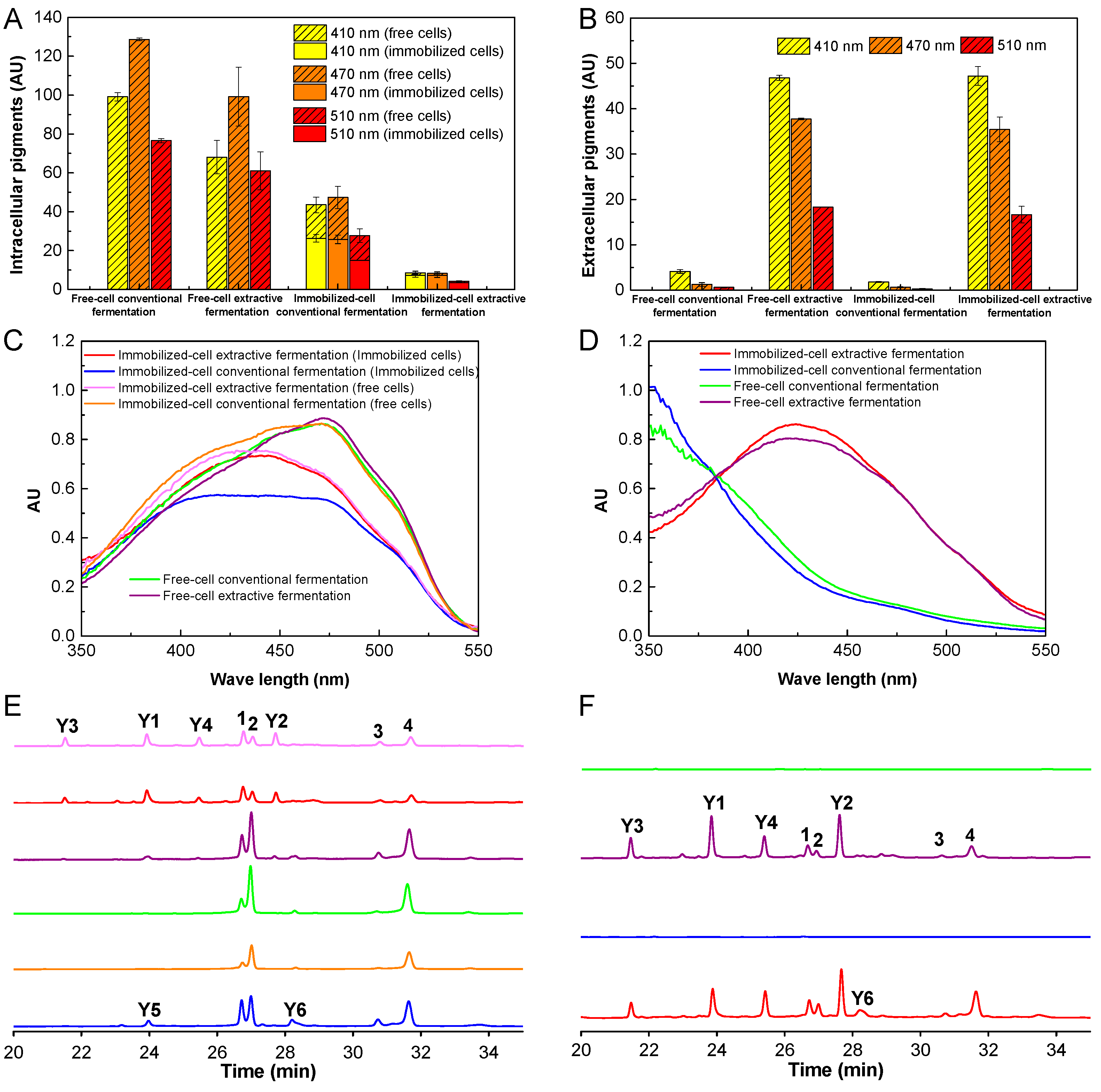

Figure 3. Effects of cell immobilization and Triton X-100 on pigment production. (A): Intracellular pigment concentration; (B): extracellular pigment concentration; (C): visible spectra of intracellular pigments; (D): visible spectra of extracellular pigments; (E): HPLC profile of intracellular pigments (its legend was the same as (C)); (F): HPLC profile of extracellular pigments (its legend was the same as (D)).
Figure 3. Effects of cell immobilization and Triton X-100 on pigment production. (A): Intracellular pigment concentration; (B): extracellular pigment concentration; (C): visible spectra of intracellular pigments; (D): visible spectra of extracellular pigments; (E): HPLC profile of intracellular pigments (its legend was the same as (C)); (F): HPLC profile of extracellular pigments (its legend was the same as (D)).
Fermentation 09 00168 g003

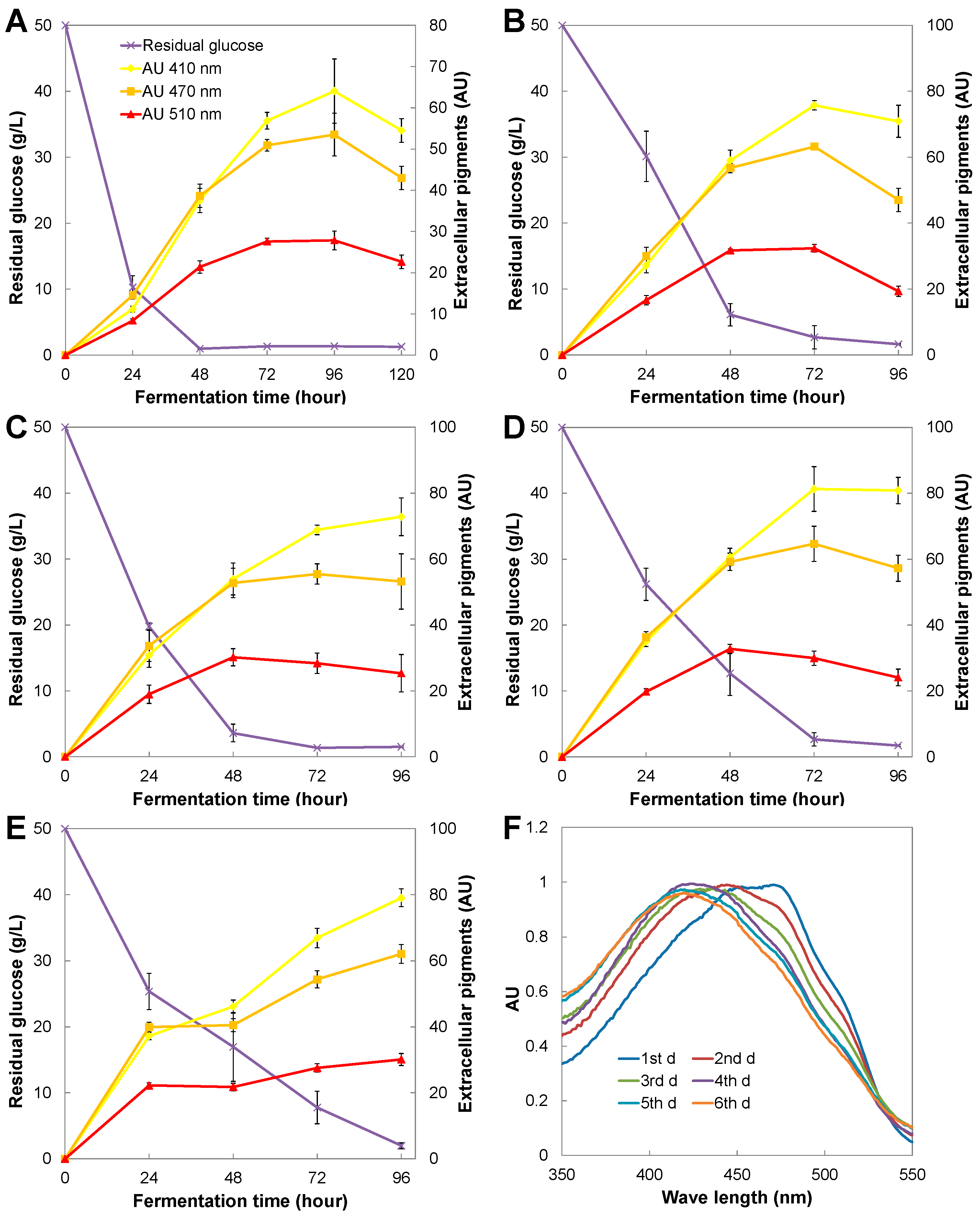

Figure 4. Extracellular pigment production and glucose consumption in repeated-batch extractive fermentation with immobilized cells. (A): First batch; (B): second batch; (C): third batch; (D): fourth batch; (E): fifth batch; (F): visible spectrum shift of extracellular pigments in the process of the first batch.
Figure 4. Extracellular pigment production and glucose consumption in repeated-batch extractive fermentation with immobilized cells. (A): First batch; (B): second batch; (C): third batch; (D): fourth batch; (E): fifth batch; (F): visible spectrum shift of extracellular pigments in the process of the first batch.
Fermentation 09 00168 g004
Figure 5. Spectra of extracellular pigments at the end of each batch in repeated-batch extractive fermentation with immobilized cells.
Figure 5. Spectra of extracellular pigments at the end of each batch in repeated-batch extractive fermentation with immobilized cells.
Fermentation 09 00168 g005

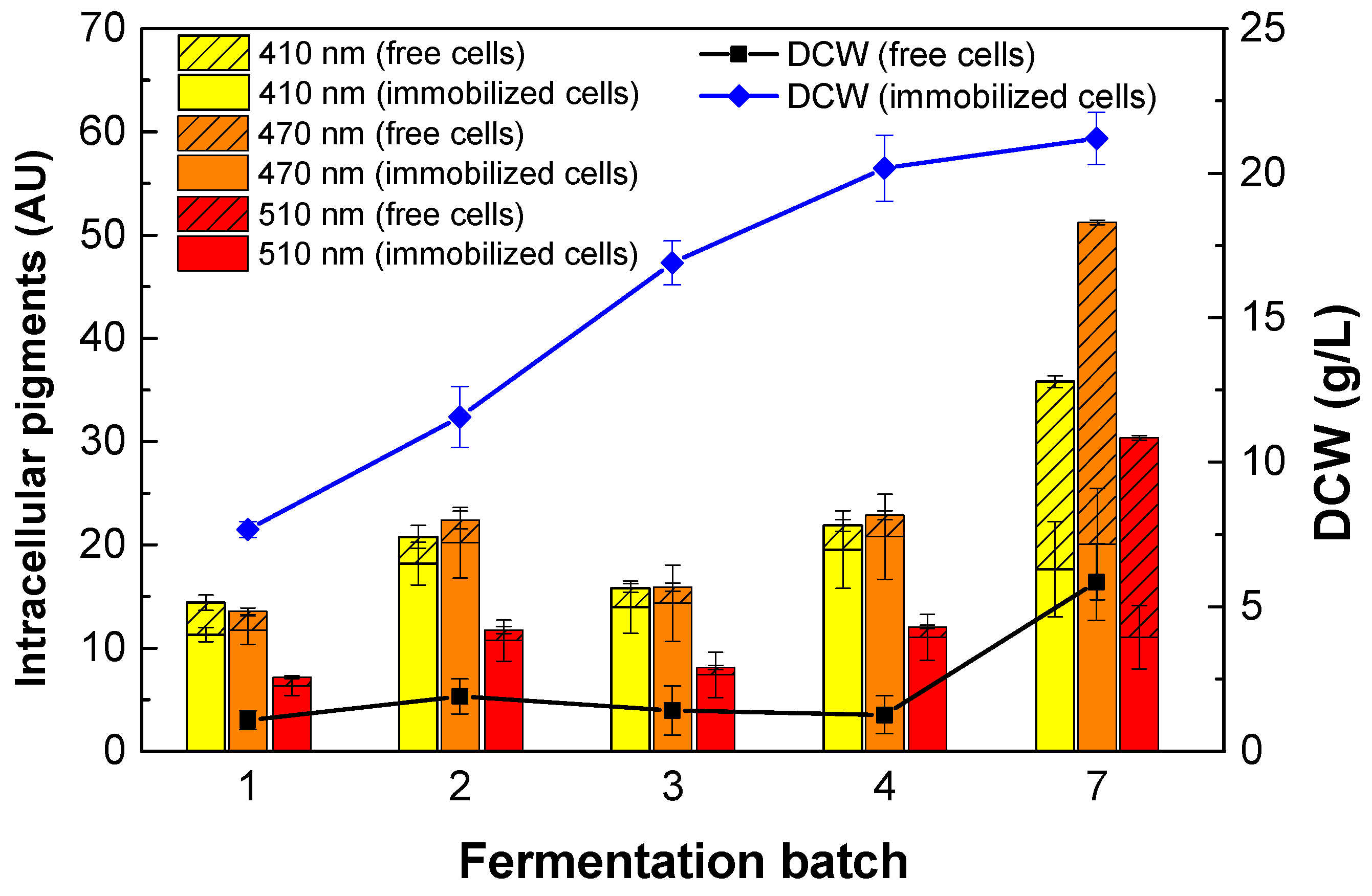

Figure 6. Biomass and intracellular pigment concentration at the end of each batch in repeated-batch extractive fermentation with immobilized cells.
Figure 6. Biomass and intracellular pigment concentration at the end of each batch in repeated-batch extractive fermentation with immobilized cells.
Fermentation 09 00168 g006
Table 1. Individual Monascus pigments detected by HPLC-DAD.
Table 1. Individual Monascus pigments detected by HPLC-DAD.
No.PigmentsHPLC Retention Time (min)Characteristic Absorption Peaks (nm)Molecular Weight a
1Monascin26.68230, 291, 388358
2Rubropunctatin26.94214, 247, 286, 471354
3Ankaflavin30.62230, 293, 388386
4Monascorubrin31.51214, 274, 285, 471382
Y1Not reported23.84219, 310, 430480
Y2Not reported27.62219, 310, 430508
Y3Not reported21.64218, 310, 430467
Y4Not reported25.40218, 310, 430495
Y5Not reported23.98278, 420
Y6Not reported28.20278, 420
a According to the previous report [20].
Table 2. Production of extracellular pigments in repeated-batch extractive fermentation with immobilized cells.
Table 2. Production of extracellular pigments in repeated-batch extractive fermentation with immobilized cells.
BatchCultivation Time (day)Color CharacteristicBatch Yield (AU410 nm)Batch Productivity (AU410 nm/Day)Cumulative Yield (AU410 nm)Mean Productivity (AU410 nm/Day)
AU410 nm/AU510 nmAU410 nm/AU470 nm
142.30 1.2064.0616.0164.0616.02
232.34 1.2075.7725.26139.8219.97
332.43 1.2468.8422.95208.6720.87
432.71 1.2681.3027.10289.9722.31
542.63 1.2779.0819.77369.0521.71
642.26 1.1666.8516.71435.9020.76
742.46 1.2356.6314.16492.5319.70
Table 3. Comparison of repeated-batch fermentation for Monascus pigments with immobilized cells.
Table 3. Comparison of repeated-batch fermentation for Monascus pigments with immobilized cells.
Monascus StainImmobilization CarrierNumber of Batch and TimeMajor PigmentsMean Productivity
M. anka SCUT1123Ca-alginate5 batches, 20 daysYellow15.38 AU410/day (this study)
M. purpureus C322Ca-alginate6 batches, 37 daysOrange4.7 AU470/day [27]
Monascus F4018Ca-alginate12 batches, 36 daysRed (uncertainty) a15~15.33 (AU420 + AU520)/day [22]
M. purpureus AS3.972Ca-alginate5 batches, 20 daysRed (uncertainty) a14.5~15 (AU420 + AU520)/day [24]
Monascus purpureus M183Ca-alginate7 batches, 44 daysuncertainty a4.76 (AU420 + AU470470 + AU505) [43]
M. purpureusPolyelectrolyte complex14 batches, 10.33 daysRed3.79 AU500/day [23]
Monascus M101Polyvinyl alcohol12 batches, 60 daysRed 9.25 AU520/day (without active carbon)36.34 AU520/day (with active carbon) [26]
a There is no clear description about the major pigments in the article, but red components may be the major pigments according to their culture conditions.
