Article

Enhancing Biodegradation of Pyridine with Trehalose Lipid in Rhodococcus pyridinivorans sp. Strain HR-1-Inoculated Microbial Fuel Cell

1
Institute of Environmental Research at Greater Bay Area, Key Laboratory for Water Quality and Conservation of the Pearl River Delta, Ministry of Education, Guangzhou University, Guangzhou 510006, China
2
Department of Civil and Environmental Engineering, University of Alberta, Edmonton, AL T6G 1H9, Canada
3
Department of Biology, Hengshui University, Hengshui 053000, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Fermentation 2023, 9(2), 133; https://doi.org/10.3390/fermentation9020133
Submission received: 24 December 2022 / Revised: 13 January 2023 / Accepted: 27 January 2023 / Published: 30 January 2023

Abstract

:
A Gram-positive exoelectrogen Rhodococcus pyridinivorans sp. strain HR-1 was cultivated from leachate-fed microbial fuel cell (MFC) to study the biodegradation effect of pyridine. In the comparison with mixed cultured MFC, HR-1 presented a remarkable electrical capacity with a maximum output of 4.33 W/m3 under 30 °C in neutral anolyte with 1 g/L acetate as a substrate. Further, HR-1 demonstrated the environmental resistance as a Gram-positive strain. Microbial metabolism was evident at pH between 5–9 and temperature in the range of 20–40 °C, whereas optimal condition for pyridine degradation was observed at 30 °C. This is the first study reporting the degradation of pyridine in the bio-electrochemical system that achieved a 42% ± 5% degradation rate in a full operation cycle at 2 g/L of the concentration. Considering the nonnegligible internal resistance of HR-1-inoculated MFC, trehalose lipid was also introduced as a bio-surfactant to reduce the charge transfer obstacle between the microbes and the electrodes. The surface morphology illustrated that the strain had a plump shape with a high specific area. Accordingly, bio-surfactant addition promoted the anode biomass (1.2 ± 0.1 mg/cm2 to 1.7 ± 0.2 mg/cm2) and achieved a higher degradation rate (68% ± 4%). The feasibility of electrochemical disposal on pyridine and eminent adaptability of strain sp. HR-1 as a Gram-positive exoelectrogen makes MFC a practical approach for real application.

Graphical Abstract

1. Introduction

Treatment of leachate carrying high concentration of pyridine is an emerging but challenging research area in environmental biotechnology [1,2]. Albeit several strategies are tested, a cost-effective and nature-based solution is timely to reclaim the leachate without environmental footprints. Microbial fuel cell (MFCs) is such a technique that employ electrochemically active microbes as anode biocatalysts to transform the chemical energy of contaminants into electricity and decontaminate the source water [3]. Compared to general fuel cells, MFCs have the advantage of mild operating conditions and a wild availability of organic matter, including intractable oilfield-contaminated wastewater, municipal sewage, and industrial pollutants [4,5]. Electrode materials, chamber configuration [6,7], and exoelectrogens are hot topics of MFCs, which have accumulated numerous research experiences.
Exoelectrogen can transfer electrons to extracellular form from the degrading substrates [8]. Currently, numerous exoelectrogens are separated from MFCs based on substrates of activated sludge or humus, which are mostly distributed in the phylum of proteobacteria, firmicutes, acidobacteria, and actinobacteria [9,10,11], including Alpha-proteobacteria, Beta-proteobacteria, Gamma-proteobacteria, Deltapro-teobacteria, Epsilon-proteobacteria [12,13], Clostridia [14,15], Acidobacteria [8,13], and Actinobacteria [15,16]. There are four well-known methods for moving the electrons from an exoelectrogen to an electrode: (1) a direct connection with an electrode allows transfer of electrons via cytochrome (Cyt c) and a membrane-bound protein [17]; (2) via electrically conductive flagellin-like nanowires [18]; (3) using electron shutters, a group of electrochemical active substances [19]; and (4) electro-kinesis, transfer of electrons from an electrode surface by a rapid wave of flagellin [20]. Electron transfer mechanisms vary with each strain and operation condition, to ensure how electrons are transferred to further promote the power production. The electron transfer mechanisms vary with the environment. Nanowires are conductive flagellins which can mediate inaccessible electron transfer, meanwhile, as secondary metabolites, electron shuttles are available for long distance transfer from cell membrane to electrode surface. Biofilm, as the basis of direct contact mechanism, widely existed in the single chamber air-cathode MFC and able to convert electrons from intracellular to the electrode.
Recently, most MFCs are operated under mild conditions, at neutral pH and at room temperature [21,22]. However, when applied in effluent treatment such as leachate, a high pH or temperature will distinctly affect the exoelectrogen’s bioactivity, especially those with weak resistance to the operating condition changes. Thus, to find an adaptable exoelectrogen is becoming urgent. Although most of the exoelectrogen found at present are gram-negative bacteria, the cell membrane structure of the positive bacteria is more compact, which has more advantages in the tolerance to extreme environments and severe influent fluctuation. The dense cell membrane could hinder the transmembrane transmission of electrons. However, the introduction of glycolipid surfactants is capable of reducing the surface tension, thus enhancing the transmission effect of electrons.
Compared to domestic sewage, leachate is more concentrated in organic matter and the quality parameters are more unstable, which makes it difficult to dispose of; the untreated leachate will severely harm the environment. Considering the adaptability of MFC, some research has been done to prove the feasibility of generating electricity with a leachate substrate. Specifically, Damiano et al. [23] reported that a maximum power density of 653 mW/m3 was generated with 16% COD removal rate from landfill leachate in a single-chamber air cathode MFC, and in a membrane-less bio-electrochemical system, Zhang et al. [24] revealed that MFC could generate 260 mW/m3 with a 84% COD removal rate. However, recent research only focuses on the degradation of organic matter in substrates but bacterium in leachate fed MFC have not been cultivated yet. In addition, the degradation of organic matter in leachate is not specific to a certain component, which could lead to the inability of extending the experience of electrochemical treatment on leachate to other fields and explore other potential substrates for bio-electrochemical systems. The current findings illuminate the existence of exoelectrogen in leachate based MFC which spontaneously have the ability to produce electricity in extreme conditions.
According to the component analysis of leachate, pyridine is a common small molecular organic pollutant with strong carcinogenic effects [25,26]. Fenton and microwave-coupled systems are traditional and effective methods for pyridine treatment [27,28,29]. However, considering that the Fenton method has additional strong oxidizing chemical reagents and considering the high energy consumption of the microwave method, how to achieve eco-friendly protection while ensuring the treatment effect is urgent. MFC is capable of disposing of the various organic substrates, such as typical organic dyes [30], due to the presence of anodic microbial catalysts. Pyridine has been demonstrated to be degradable by Rhodococcus pyridinivorans HR-1, which inhibited the potential of degradation feasibility in HR-1-fed MFC.
In this study, a newly isolated strain of Rhodococcus pyridinivorans is separated from Guangzhou landfill refuse. The cultivation was operated on the anode carbon cloth of a leachate fed MFC in a benchtop with sterilized scissors. The single colony obtained by multiple lines is further inoculated into MFC after sequencing to verify the power generation ability. Strain Rhodococcus pyridinivorans HR-1 is finally selected as the target strain through comparison. HR-1 is employed as a biocatalyst in a single-chamber air cathode MFC to evaluate the degradation of pyridine under different conditions. Cyclic voltammetry (CV) analyses are conducted to elucidate the existence of an electron shutter, scanning electron microscope (SEM) is operated to observe how bacteria adhere to an electrode surface, and gas liquid chromatographic (GLC) is conducted to evaluate the degradation effect. The aim of this study is to verify that the available substrates of microorganisms do not differ in the natural state and in the bio-electrochemical system. The results could promote the production of MFCs towards practical application.

2. Materials and Methods

2.1. Separation and Cultivation of Exoelectrogen

The leachate-fed MFC was operated with diluted leachate (1: 10, v/v) sampled from Xingfeng municipal landfill, Guangzhou. After stable operation over 60 days, the anode was screened in a mineral salt solution (component (g/L): NaCl 10 g, MgSO4.7H2O 0.7 g, (NH4)2SO3 1 g, KCl 0.7 g, KH2PO4 2 g, K2HPO4.12H2O 3 g, CaCl2 2 mg, FeCl3.6H2O 0.05 g, MnCl2.4H2O 0.5 mg, CuSO4 0.5 mg, ZnSO4.7H2O 10 mg; and pH 7.5). The suspension was then diluted in a 10× gradient concentration four times and finally inoculated into a LB agar medium for single-strain cultivation.
The initial anolyte medium comprised PBS and substrate (1.0 g/L). PBS constituents were as follows (per liter): 2.93 g of KH2PO4, 0.3 g of FeSO4, 5.87 g of K2HPO4, 2 g of NaCl, 5 g of (NH4)2SO4, 10 mL of trace mineral solution, and 10 mL of trace vitamin. While testing in CV, the vitamin was wiped out to eliminate its electrochemical active interference. LB medium comprised the following components (per liter): 10 g of tryptone, 5 g of yeast extract, and 10 g of NaCl. The media were sterilized at 121 °C for 20 min in an automatic autoclave (Zealway GR60DA, Shanghai, China) to avoid any microbial contamination. Substrate generation in MFC was under anaerobic respiration, whereby filtered N2 was used for 20 min to purge all inoculated medium into MFC.

2.2. Identification of Strain

The 16S r RNA gene of Strain HR-1 was amplified on a thermocycler by using universal primers: 27F (5’-AGAGTTTGATCCTGGCTCAG-3) and 1492R (5’-GGTTACCTTGTTACGACTT-3’) [31,32]. The whole PCR amplification program contained the following procedures: final extension for ten min at 72 °C comes after thirty-five cycles of initial denaturation at 98 °C for five min, denaturation at 95 °C for forty-five sec, annealing at 55 °C for forty-five sec, and extension at 72 °C for ninety sec. The 25 μL PCR reaction system contained the following components: template 0.5 μL, ddH2O 10 μL, forward primer 1 μL, reverse primer 1 μL, DNA cleavage ribozyme (mix buffer) 12.5 μL. Agarose gel electrophoresis (AGE) is conducted to detect the amplicon. Sequencing work is delivered to The Beijing Genomics Institute (BGI, Guangzhou, China) and the sequencing result is submitted to EZbiocloud (http://www.ezbiocloud.net/, accessed on 15 August 2022) to compare homology by BLAST. Mega7 was used to construct the phylogenetic tree.

2.3. MFC Construction and Operation

In this study, plexiglas (L= 5 cm, W = 5 cm, H= 5 cm, and r = 2 cm with 50 mL working volume) was used to construct a single-chamber air cathode MFC (Figure 1). The electrode, which served as the anode, was filled with carbon fabric. The carbon cloth was soaked in acetone for 6 h before use and then rinsed with deionized water. Platinum carbon powder was placed in a membrane cathode and mixed by Nafion (Hesen, Shanghai, China) [33]. To conduct electricity, a wire of titanium was employed between the anode and cathode. In order to ensure the tightness to prevent leakage of anolyte, the chamber was sealed with rubber rings in interfaces and tightened with screws. At 1k Ω of external resistance, MFC was operated at 30 °C (Boxun BSC250, Shanghai, China). As the output voltage was dropped < 20 mV after each cycle, anolyte was replaced with a fresh medium containing 0.1 g/L of acetate.

2.4. Optimal Operation of Substrate Degradation

The activated microbes were suspended in the PBS medium before inoculation. In the substrate availability experiment, the concentration of acetate, glucose, sucrose, and pyridine were 1 g/L, analytically pure (Aladdin, Shanghai, China). The initial pH was set in the range from 5–9 using 1 M NaOH or 1 M HCl. The operation temperature was regulated from 20 °C to 40 °C by the constant incubator.

2.5. Analytical Methods

A Keithley multichannel (2750, Solon, USA) was connected to the external resistance to achieve data collection every 30 min by real-time online monitoring with sample accuracy of 0.001 V. Electricity was determined with I = U/Rext. Prior to that, current (I) and power (P) density data was stabilized with the working area of the electrode. The external resistor was changed in the range of 10–10,000 Ω via a slide rheostat to attain a polarization curve, while the voltage was recorded at each resistance level after the value was stable for at least 2 min.
The electrochemical performances of the MFCs anode were measured through cyclic voltammetry (CV) by using the CHI-1010E analytical system (ChenHua Instruments Co. Ltd., Shanghai, China). Here, the scan rate was 50 mV/s from −0.8 V to 0.8 V. In order to avoid any interference, vitamin was wiped out from the last-fed anolyte for MFC. Pure N2 was purged for 15 min into the chamber to eliminate any residual oxygen. For the experiment, the MFC anode served as an electrode, MFC cathode as a counter electrode, and an Ag/AgCl electrode (MF-2052, BAS) (assumed +197 mV vs. standard hydrogen electrode) as a reference electrode. The experiments were performed at the same temperature (30 °C), and the scanning was repeated thrice.
Before SEM, samples should be preprocessed [34]. Since the bacteria are single-cell organisms with a soft structure, samples were pretreated as per the critical point of the drying method. The anode membrane was fixed with 2.5% glutaraldehyde for 4 h, followed by washing of the sample using 0.1 M PBS 4–6 times and dehydration by various concentrations of alcohol (30 to 100%). Lastly, dehydrated anode membrane was changed by tert butyl alcohol (TBA).
Gas-liquid chromatography (GLC) was used to measure the pyridine degradation rate. Precisely, organic substrate was quantified using a gas chromatograph with a flame ionization detector (GC-FID) equipped with a capillary column (30 m × 250 μm × 0.25 μm) (19091S-433-Agilent HP-5ms). The injector and detector temperatures were kept at 250 °C. Oven temperature was initially set at 40 °C (held for 5 min), then increased to 150 °C at a speed of 20 °C/min with a temperature retention period of 10 min. From there, the temperature was increased again to 250 °C at a rate of 10 °C min, which was then held for another 10 min. The flow rate was 50 mL/ min, and high-purity helium was used as carrier gas.

3. Results and Discussion

3.1. Isolation, Taxonomy, and Characterization of HR-1 from Leachate-Fed MFC

The exoelectrogen was separated from a MFC anode membrane based on leachate from landfill refuse Xingfeng which had been operated stably for over 60 days and named HR-1. After several episodes of scribing and purification, a single bacteria colony was obtained with a diameter of about 2 mm. The strain was rod shape, non-spore forming, non-motile, Gram-positive, and the colonies were light orange and round wrinkles.
After PCR, the whole strain sequence length was 1476 bp; the sequence got an accession number of AF173005 in EZbiocloud. The comparison results in Figure 2 showed that strain HR-1 had a homology of 98.82% with Rhodococcus pyridinivorans PDB9. The phylogenetic tree revealed that HR-1 and PDB9 were in the same branch of a phylogenetic tree. Combined with bacteria colony traits, HR-1 was authenticated as Rhodococcus pyridinivorans.

3.2. Electrical Performance Comparison between Leachate-Fed and HR-1 Inoculated MFC

The performance of MFC inoculated with HR-1 was monitored under the same condition with the leachate-fed MFC to evaluate the electrical capacity. The electrical performances were presented in Figure 3 including generation cycles and polarization curves. In Figure 3A, it was obvious that these MFCs were close in cycle length and maximum output, which the leachate-fed MFC could recover from the substrate exchange earlier. The curves revealed that HR-1 was electrochemically capable in MFC of metabolizing and acted as the dominant microbes in the mixed colony of leachate-fed MFC. Nevertheless, when the polarization curves were compared in Figure 3B,C, the performance presented a gap. The maximum power density of leachate-fed MFC was 6.79 W/m3, which was 1.57 times that of the HR-1-inoculated MFC. Two MFCs were close in maximum voltage but quite different in power density; the results can be explained by Ohm law, since the mixed colony of leachate-fed MFC contributed to a lower internal resistance. Under the synergetic effect of various microorganisms, it was easier to transfer electrons across membranes and to the electrodes [35].
To investigate the existence of electron shutters in extracellular electron transfer, CV was conducted at the initial inoculation and stable operation phase (Figure 3D). When MFC was initially inoculated with anolyte wiped free of vitamins before inoculation, there were no redox peaks observed. After operation with HR-1 inoculation for several cycles, redox peaks appeared at about −0.4 and −0.3 V (vs. Ag/AgCl). These findings are in accordance with the previous studies in which exoelectrogen self-excreted electrochemical active substances to transfer electrons between bacteria and electrodes [36,37,38]. The oxidation and reduction peaks were symmetrical, which implied that the redox reaction of strain HR-1 in MFC might be a reversible reaction. Besides, the PBS solution with organic substrate was refreshed after each cycle, and MFC exhibited a quick strong recovery, suggesting that strain HR-1 in MFC adhered to the anode.

3.3. Optimization of Substrate Degradation Conditions

Figure 4A presented the power output performance in HR-1-inoculated MFCs with different substrates in anolyte under a fixed external resistance of 103 Ω. It was obvious that strain HR-1 could produce electricity from various substrates, especially small-molecule carbohydrates. Acetate was the metabolite of most saccharides; strain HR-1 could output a maximum voltage of 513 mV, which revealed that acetate might be the direct electron donor for the electricity production. Glucose and sucrose were monosaccharides and output a maximum voltage of 493.3 and 473.7 mV, which were a little lower than acetate. Rhodococcus pyridinivorans was named for its ability to degrade pyridine [39]. Although pyridine was a small organic molecule, the electrical performance seemed unobtrusive, and the maximum voltage was 205 mV. However, considering the low solubility of pyridine in PBS solution and the clear anodic solution after degradation, the result was promising if the solubility was promoted by a surfactant addition or orbital incubator.
Optimal temperature and pH were tested with acetate and pyridine as the substrate, respectively. In 1 g/L initially, HR-1-inoculated MFC generated electricity in a wide range of temperature from 20 °C to 40 °C (Figure 4B). In the acetate-fed MFC, when temperature was higher than 30 °C, the output was above 400 mV (445, 435.7, 432.6, and 421 mV, respectively); when temperature was below 30 °C, the output was above 300 mV (332.4, 368.4, 374.4 and 377.5 mV, respectively), which were much lower than at the temperatures higher than 30 °C. With the rapid rise of temperature from 20 °C to 27.5 °C, the output grew slowly. In contrast, when the temperature was over 30 °C, the output voltage declined gradually with the rapid rise of temperature. Since the activity of enzymes determines the metabolism degree of the microorganism, a too high or too low temperature, such as 20 °C or 40 °C, could impact enzyme activity. MFC was a sealed acrylic container full of anolyte; a high temperature could accelerate the velocity of ionic flows in the MFC chamber to transfer the electrons. Based on the above factors, MFC could perform better in higher temperatures. The operation temperature of leachate-based MFC was 30 °C, at which strain HR-1 separated; it was also the optimal temperature for strain HR-1 to generate electricity. The behavior of pyridine under a variety of temperatures was similar to that of acetate. The electrical performance of pyridine as the substrate was weaker than that of acetate and the fluctuation was milder. The comparison revealed that temperature dominated the MFC output by affecting relative enzyme activity.
Figure 4C compared the electrical performance of HR-1-inoculated MFC under different pH with acetate and pyridine as the substrate, respectively. Rhodococcus pyridinivorans in HR-1 could grow under a wide pH range from 6–9 and the optimal pH was 7.5–8.5 [40], while the strain HR-1-based MFC performed favorably as well and output a maximum voltage of 456.5, 513, 491 and 482 mV, respectively. It was obvious that the neutral condition was the most suitable environment to metabolize the HR-1 strain. It can be speculated that HR-1 was more durable to alkalinity, for the pyridine-fed MFC could only output 10 ± 7 mV voltage under a pH of 5. Electricity generation with Gram-positive exoelectrogens under an alkaline environment had been proved in previous studies [41,42,43]. As a novel Gram-positive microbe with electrochemical activity, HR-1 inherited alkalinity endurance while maintaining practical output.
The initial concentration was adjusted as 0.5, 1, 2, 5 and 10 g/L, respectively. Figure 4D presented the downtrend of the acetate degradation rate; it was observed that acetate was the direct electron donor to the extracellular space in anaerobic respiration. At the concentration of 0.5 g/L, the degradation rate of acetate was 100%. Meanwhile, the maximum degradation rate of pyridine occurred at the concentration of 2 g/L, which revealed that the solubility coefficient impeded the biodegradation of pyridine [44].

3.4. Introduction of Trehalose Lipid to Enhance Pyridine Degradation Rate

Although pyridine proved to be biodegradable in HR-1-inoculated MFC, compared to common substrates such as acetate, the degradation rate was unsatisfactory in a full generation cycle. At the hydraulic retention time of 30 h, the maximum degradation rate was only 42%, which presented a greater scientific significance rather than practical value. Due to the dense cell membrane structure of Gram-positive bacteria, the transmembrane transmission of electrons is hindered by non-conductive peptidoglycan and phospho-teichoic acid. Meanwhile, the surface of the cell membrane is a water-soluble phospholipid molecule, while the substrate pyridine is a non-polar substance, the solubility is low when it is transferred into the membrane and metabolized by microorganisms. Surfactants like glycolipid are biocompatible when reducing surface tension, which can effectively increase solubility and promote degradation effect. Trehalose lipid was a glycolipid surfactant with remarkable biocompatibility and had been proved efficient in MFCs [45]. The introduction of biosurfactants could effectively reduce the interfacial tension, enhance the transmembrane exchange of substrates and the firm attachment of microbes on the anode. Figure 5 revealed that adding 20 mg/L of trehalose lipid dramatically promoted the biomass, which reflected the increment of aerobic bacterial count. Besides, the surfactant increased the solubility of pyridine and resulted in the promotion of the degradation rate (42% ± 5% to 68% ± 4%). The treatment is simple, and the enhancement is prominent.
To further explore how trehalose lipid affected the metabolism of HR-1, surface morphology was screened by SEM. Figure 6A illustrated the adhesion of microbes on the anode surface, which demonstrated the existence of a biofilm mechanism [46]. Strain HR-1 was rod-shaped without flagellum and arranged in a single layer due to the surface contact suppression. When treated with trehalose lipid, the cells were plump in Figure 6B, which was higher in specific surface area. The effectively reduced surface tension and better metabolic performance increased the degradation rate of pyridine by 61.9% at length.

4. Conclusions

This study for the first time proved the biodegradation of pyridine in a Rhodococcus pyridinivorans HR-1-inoculated MFC. The initial degradation rate of 2 g/L pyridine was 42% ± 5%; after adding 20 mg/L trehalose lipid, a glycolipid biosurfactant, the degradation rate increased to 68% ± 4%. The evaluation of optimal conditions confirmed the practical application potentials of HR-1 when applied in fluctuated real wastewater. Meanwhile, the degradation of pyridine in MFC expanded the availability of substrates in the bio-electrochemical systems. The results broadened the range of electrochemical active microbes especially in Gram-positive bacteria and provided an alternative way of disposing of the pyridine-containing wastewater.

Author Contributions

P.C.: Conceptualization; Data curation; Formal analysis; Writing–original draft. M.U.: Data curation; Formal analysis; Writing–original draft. M.A.: Formal analysis; Investigation; Methodology. H.S.: Formal analysis; Investigation: Validation. L.Z.: Conceptualization; Data curation; Funding acquisition; Writing–review & editing. M.G.E.-D.: Supervision; Funding acquisition; Project administration; Review & editing. All authors have read and agreed to the published version of the manuscript.

Funding

The authors gratefully acknowledge the financial support from a Natural Sciences and Engineering Research Council of Canada (NSERC) Discovery grant and the University of Alberta’s Future Energy Systems (FES) Initiative, supported by the Canada First Research Excellence Fund. This research was also financially supported by National Natural Science Funds of China (22106163), Natural Science Funds of Guangdong Province (2022A1515010366), the Guangzhou Municipal Science and Technology Project (202102010437), Postdoctoral Science Foundation, China (2020M672866).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Authors would like to thank the University of Alberta and Guangzhou University for their support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ilmasari, D.; Sahabudin, E.; Riyadi, F.A.; Abdullah, N.; Yuzir, A. Future trends and patterns in leachate biological treatment research from a bibliometric perspective. J. Environ. Manag. 2022, 318, 115594. [Google Scholar] [CrossRef] [PubMed]
  2. Elmaadawy, K.; Liu, B.; Hu, J.; Hou, H.; Yang, J. Performance evaluation of microbial fuel cell for landfill leachate treatment: Research updates and synergistic effects of hybrid systems. J. Environ. Sci. 2020, 96, 1–20. [Google Scholar] [CrossRef] [PubMed]
  3. Lovley, D.R. Bug juice: Harvesting electricity with microorganisms. Nat. Rev. Microbiol. 2006, 4, 497–508. [Google Scholar] [CrossRef] [PubMed]
  4. Kumar, S.S.; Kumar, V.; Malyan, S.K.; Sharma, J.; Mathimani, T.; Maskarenj, M.S.; Ghosh, P.C.; Pugazhendhi, A. Microbial fuel cells (MFCs) for bioelectrochemical treatment of different wastewater streams. Fuel 2019, 254, 115526. [Google Scholar] [CrossRef]
  5. Mohammadi, M.; Sedighi, M.; Natarajan, R.; Hassan, S.H.A.; Ghasemi, M. Microbial fuel cell for oilfield produced water treatment and reuse: Modelling and process optimization. Korean J. Chem. Eng. 2021, 38, 72–80. [Google Scholar] [CrossRef]
  6. Kaur, R.; Marwaha, A.; Chhabra, V.A.; Kim, K.-H.; Tripathi, S. Recent developments on functional nanomaterial-based electrodes for microbial fuel cells. Renew. Sust. Energ. Rev. 2020, 119, 109551. [Google Scholar] [CrossRef]
  7. Ghasemi, M.; Halakoo, E.; Sedighi, M.; Alam, J.; Sadeqzadeh, M. Performance comparison of three common proton exchange membranes for sustainable bioenergy production in microbial fuel cell. Procedia Cirp. 2015, 26, 162–166. [Google Scholar] [CrossRef] [Green Version]
  8. Liu, S.-H.; Huang, W.-J.; Lin, C.-W.; Zhu, T.-J. Copper removal and microbial community analysis in a single medium sediment microbial fuel cell. J. Water Process Eng. 2021, 44, 102348. [Google Scholar] [CrossRef]
  9. Logan, B.E.; Regan, J.M. Electricity-producing bacterial communities in microbial fuel cells. Trends Microbiol. 2006, 14, 512–518. [Google Scholar] [CrossRef]
  10. Ren, S.; Usman, M.; Tsang, D.C.W.; O-Thong, S.; Angelidaki, I.; Zhu, X.; Zhang, S.; Luo, G. Hydrochar-facilitated anaerobic digestion: Evidence for direct interspecies electron transfer mediated through surface oxygen-containing functional groups. Environ. Sci. Technol. 2020, 54, 5755–5766. [Google Scholar] [CrossRef]
  11. Usman, M.; Shi, Z.; Ren, S.; Ngo, H.H.; Luo, G.; Zhang, S. Hydrochar promoted anaerobic digestion of hydrothermal liquefaction wastewater: Focusing on the organic degradation and microbial community. Chem. Eng. J. 2020, 399, 125766. [Google Scholar] [CrossRef]
  12. Wu, Y.; Zhou, Z.; Fu, H.; Zhang, P.; Zheng, Y. Metagenomic analysis of microbial community and gene function of anodic biofilm for nonylphenol removal in microbial fuel cells. J. Clean. Prod. 2022, 374, 133895. [Google Scholar] [CrossRef]
  13. Usman, M.; Shi, Z.; Ji, M.; Ren, S.; Luo, G.; Zhang, S. Microbial insights towards understanding the role of hydrochar in alleviating ammonia inhibition during anaerobic digestion. Chem. Eng. J. 2021, 419, 129541. [Google Scholar] [CrossRef]
  14. Liu, M.; Yuan, Y.; Zhang, L.-X.; Zhuang, L.; Zhou, S.-G.; Ni, J.-R. Bioelectricity generation by a Gram-positive Corynebacterium sp. strain MFC03 under alkaline condition in microbial fuel cells. Bioresour. Technol. 2010, 101, 1807–1811. [Google Scholar] [CrossRef]
  15. Usman, M.; Hao, S.; Chen, H.; Ren, S.; Tsang, D.C.; O-Thong, S.; Luo, G.; Zhang, S. Molecular and microbial insights towards understanding the anaerobic digestion of the wastewater from hydrothermal liquefaction of sewage sludge facilitated by granular activated carbon (GAC). Environ. Int. 2019, 133, 105257. [Google Scholar] [CrossRef]
  16. Vargas, I.T.; Albert, I.U.; Regan, J.M. Spatial distribution of bacterial communities on volumetric and planar anodes in single-chamber air-cathode microbial fuel cells. Biotechnol. Bioeng. 2013, 110, 3059–3062. [Google Scholar] [CrossRef]
  17. Lovley, D.R. Extracellular electron transfer: Wires, capacitors, iron lungs, and more. Geobiology 2008, 6, 225–231. [Google Scholar] [CrossRef]
  18. Lovley, D.R.; Malvankar, N.S. Seeing is believing: Novel imaging techniques help clarify microbial nanowire structure and function. Environ. Microbiol 2015, 17, 2209–2215. [Google Scholar] [CrossRef]
  19. Huang, J.; Zhou, R.; Chen, J.; Han, W.; Chen, Y.; Wen, Y.; Tang, J. Volatile fatty acids produced by co-fermentation of waste activated sludge and henna plant biomass. Bioresour. Technol. 2016, 211, 80–86. [Google Scholar] [CrossRef] [Green Version]
  20. Lian, Y.; Yang, Y.; Guo, J.; Wang, Y.; Li, X.; Fang, Y.; Gan, L.; Xu, M. Electron acceptor redox potential globally regulates transcriptomic profiling in Shewanella decolorationis S12. Sci. Rep. 2016, 6, 1–9. [Google Scholar] [CrossRef]
  21. Kumar, R.; Singh, L.; Zularisam, A. Exoelectrogens: Recent advances in molecular drivers involved in extracellular electron transfer and strategies used to improve it for microbial fuel cell applications. Renew. Sust. Energ. Rev. 2016, 56, 1322–1336. [Google Scholar] [CrossRef] [Green Version]
  22. Kokko, M.; Epple, S.; Gescher, J.; Kerzenmacher, S. Effects of wastewater constituents and operational conditions on the composition and dynamics of anodic microbial communities in bioelectrochemical systems. Bioresour. Technol. 2018, 258, 376–389. [Google Scholar] [CrossRef] [PubMed]
  23. Damiano, L.; Jambeck, J.R.; Ringelberg, D.B. Municipal solid waste landfill leachate treatment and electricity production using microbial fuel cells. Appl. Biochem. Biotechnol. 2014, 173, 472–485. [Google Scholar] [CrossRef] [PubMed]
  24. Zhang, G.; Jiao, Y.; Lee, D.-J. Transformation of dissolved organic matters in landfill leachate–bioelectrochemical system. Bioresour. Technol. 2015, 191, 350–354. [Google Scholar] [CrossRef]
  25. Long, J.; Deng, L.; Che, D. Analysis on organic compounds in water leachate from biomass. Renew. Energy 2020, 155, 1070–1078. [Google Scholar] [CrossRef]
  26. Zhang, Q.-Q.; Tian, B.-H.; Zhang, X.; Ghulam, A.; Fang, C.-R.; He, R. Investigation on characteristics of leachate and concentrated leachate in three landfill leachate treatment plants. Waste Manag. 2013, 33, 2277–2286. [Google Scholar] [CrossRef]
  27. Ramírez-Sosa, D.R.; Castillo-Borges, E.R.; Méndez-Novelo, R.I.; Sauri-Riancho, M.R.; Barceló-Quintal, M.; Marrufo-Gómez, J.M. Determination of organic compounds in landfill leachates treated by Fenton–Adsorption. Waste Manag. 2013, 33, 390–395. [Google Scholar] [CrossRef]
  28. Tripathy, B.K.; Kumar, M. Suitability of microwave and microwave-coupled systems for landfill leachate treatment: An overview. J. Environ. Chem. Eng. 2017, 5, 6165–6178. [Google Scholar] [CrossRef]
  29. Reis, B.; Silveira, A.; Lebron, Y.; Moreira, V.; Teixeira, L.; Okuma, A.; Amaral, M.; Lange, L. Comprehensive investigation of landfill leachate treatment by integrated Fenton/microfiltration and aerobic membrane bioreactor with nanofiltration. Process Saf. Environ. Prot. 2020, 143, 121–128. [Google Scholar] [CrossRef]
  30. Li, T.; Song, H.-L.; Xu, H.; Yang, X.-L.; Chen, Q.-L. Biological detoxification and decolorization enhancement of azo dye by introducing natural electron mediators in MFCs. J. Hazard. Mater. 2021, 416, 125864. [Google Scholar] [CrossRef]
  31. Shi, Z.; Campanaro, S.; Usman, M.; Treu, L.; Basile, A.; Angelidaki, I.; Zhang, S.; Luo, G. Genome-centric metatranscriptomics analysis reveals the role of hydrochar in anaerobic digestion of waste activated sludge. Environ. Sci. Technol. 2021, 55, 8351–8361. [Google Scholar] [CrossRef] [PubMed]
  32. Shi, Z.; Usman, M.; He, J.; Chen, H.; Zhang, S.; Luo, G. Combined microbial transcript and metabolic analysis reveals the different roles of hydrochar and biochar in promoting anaerobic digestion of waste activated sludge. Water Res. 2021, 205, 117679. [Google Scholar] [CrossRef] [PubMed]
  33. Zhang, L.; Liu, C.; Zhuang, L.; Li, W.; Zhou, S.; Zhang, J. Manganese dioxide as an alternative cathodic catalyst to platinum in microbial fuel cells. Biosens. Bioelectron. 2009, 24, 2825–2829. [Google Scholar] [CrossRef] [PubMed]
  34. Casella, I.G.; Contursi, M.; Toniolo, R. Anodic electrodeposition of iridium oxide particles on glassy carbon surfaces and their electrochemical/SEM/XPS characterization. J. Electroanal. Chem. 2015, 736, 147–152. [Google Scholar] [CrossRef]
  35. Ardakani, M.N.; Gholikandi, G.B. Microbial fuel cells (MFCs) in integration with anaerobic treatment processes (AnTPs) and membrane bioreactors (MBRs) for simultaneous efficient wastewater/sludge treatment and energy recovery-A state-of-the-art review. Biomass Bioenergy 2020, 141, 105726. [Google Scholar] [CrossRef]
  36. Liu, J.; Qiao, Y.; Guo, C.X.; Lim, S.; Song, H.; Li, C.M. Graphene/carbon cloth anode for high-performance mediatorless microbial fuel cells. Bioresour. Technol. 2012, 114, 275–280. [Google Scholar] [CrossRef]
  37. Okamoto, A.; Hashimoto, K.; Nealson, K.H.; Nakamura, R. Rate enhancement of bacterial extracellular electron transport involves bound flavin semiquinones. Procl. Natl. Acad. Sci. USA 2013, 110, 7856–7861. [Google Scholar] [CrossRef] [Green Version]
  38. Sun, J.; Li, W.; Li, Y.; Hu, Y.; Zhang, Y. Redox mediator enhanced simultaneous decolorization of azo dye and bioelectricity generation in air-cathode microbial fuel cell. Bioresource Technol. 2013, 142, 407–414. [Google Scholar] [CrossRef]
  39. Yoon, J.-H.; Kang, S.S.; Cho, Y.G.; Lee, S.T.; Kho, Y.H.; Kim, C.J.; Park, Y.H. Rhodococcus pyridinivorans sp. nov., a pyridine-degrading bacterium. Int. J. Syst. Evol. Microbiol. 2000, 50, 2173–2180. [Google Scholar] [CrossRef]
  40. Barik, M.; Das, C.P.; Verma, A.K.; Sahoo, S.; Sahoo, N.K. Metabolic profiling of phenol biodegradation by an indigenous Rhodococcus pyridinivorans strain PDB9T N-1 isolated from paper pulp wastewater. Int. Biodeterior. Biodegrad. 2021, 158, 105168. [Google Scholar] [CrossRef]
  41. Geng, Y.-K.; Yuan, L.; Liu, T.; Li, Z.-H.; Zheng, X.; Sheng, G.-P. In-situ alkaline pretreatment of waste activated sludge in microbial fuel cell enhanced power production. J. Power Sources 2021, 491, 229616. [Google Scholar] [CrossRef]
  42. Liao, Q.; Zhang, J.; Li, J.; Ye, D.; Zhu, X.; Zheng, J.; Zhang, B. Electricity generation and COD removal of microbial fuel cells (MFCs) operated with alkaline substrates. Int. J. Hydrogen Energy 2014, 39, 19349–19354. [Google Scholar] [CrossRef]
  43. Kumar, S.S.; Kumar, V.; Gude, V.G.; Malyan, S.K.; Pugazhendhi, A. Alkalinity and salinity favor bioelectricity generation potential of Clostridium, Tetrathiobacter and Desulfovibrio consortium in Microbial Fuel Cells (MFC) treating sulfate-laden wastewater. Bioresource Technol. 2020, 306, 123110. [Google Scholar] [CrossRef] [PubMed]
  44. Li, M.; Liu, J.; Zhou, Q.; Gifford, M.; Westerhoff, P. Effects of pH, soluble organic materials, and hydraulic loading rates on orthophosphate recovery from organic wastes using ion exchange. J. Clean. Prod. 2019, 217, 127–133. [Google Scholar] [CrossRef]
  45. Cheng, P.; Shan, R.; Yuan, H.-R.; Deng, L.-F.; Chen, Y. Enhanced Rhodococcus pyridinivorans HR-1 anode performance by adding trehalose lipid in microbial fuel cell. Bioresource Technol. 2018, 267, 774–777. [Google Scholar] [CrossRef]
  46. Xiao, N.; Wu, R.; Huang, J.J.; Selvaganapathy, P.R. Anode surface modification regulates biofilm community population and the performance of micro-MFC based biochemical oxygen demand sensor. Chem. Eng. Sci. 2020, 221, 115691. [Google Scholar] [CrossRef]
Figure 1. Single-chamber air cathode of microbial fuel cell (MFC). (A) presented the real operation condition in a constant incubator; (B) illuminated the Plexiglas structure of a single chamber air cathode before operation.
Figure 1. Single-chamber air cathode of microbial fuel cell (MFC). (A) presented the real operation condition in a constant incubator; (B) illuminated the Plexiglas structure of a single chamber air cathode before operation.
Fermentation 09 00133 g001

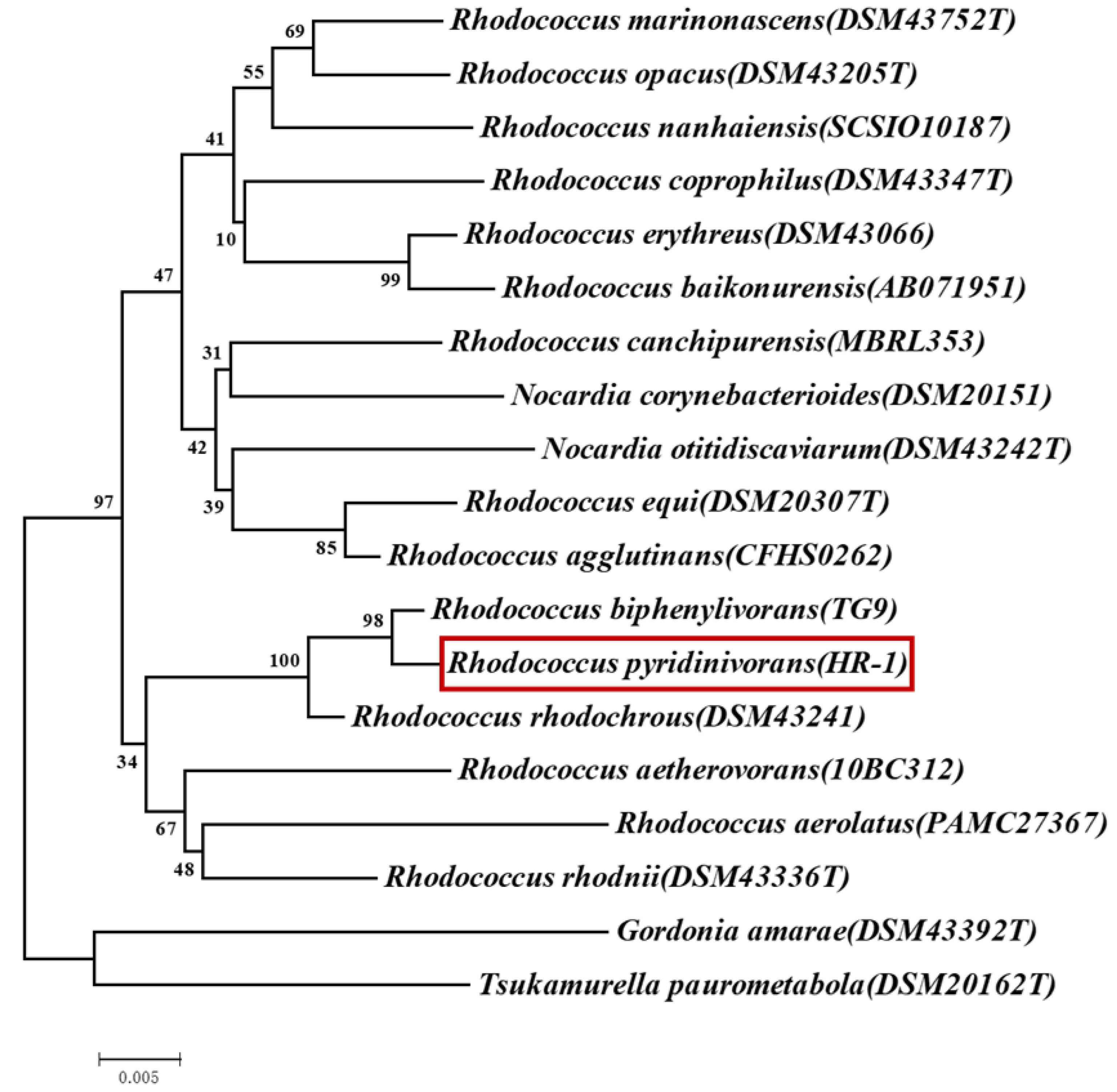

Figure 2. Phylogenetic tree using the 16s rDNA gene sequence to show the links between strain HR-1 and similar species. As an outgroup sequence, the strain Rhodococcus pyridinivorans PDB9 was used. To build the tree, the neighbor-joining technique was used. 1000 replicates were used to obtain the bootstrap values at the nodes (only values greater than 50% are shown).
Figure 2. Phylogenetic tree using the 16s rDNA gene sequence to show the links between strain HR-1 and similar species. As an outgroup sequence, the strain Rhodococcus pyridinivorans PDB9 was used. To build the tree, the neighbor-joining technique was used. 1000 replicates were used to obtain the bootstrap values at the nodes (only values greater than 50% are shown).
Fermentation 09 00133 g002

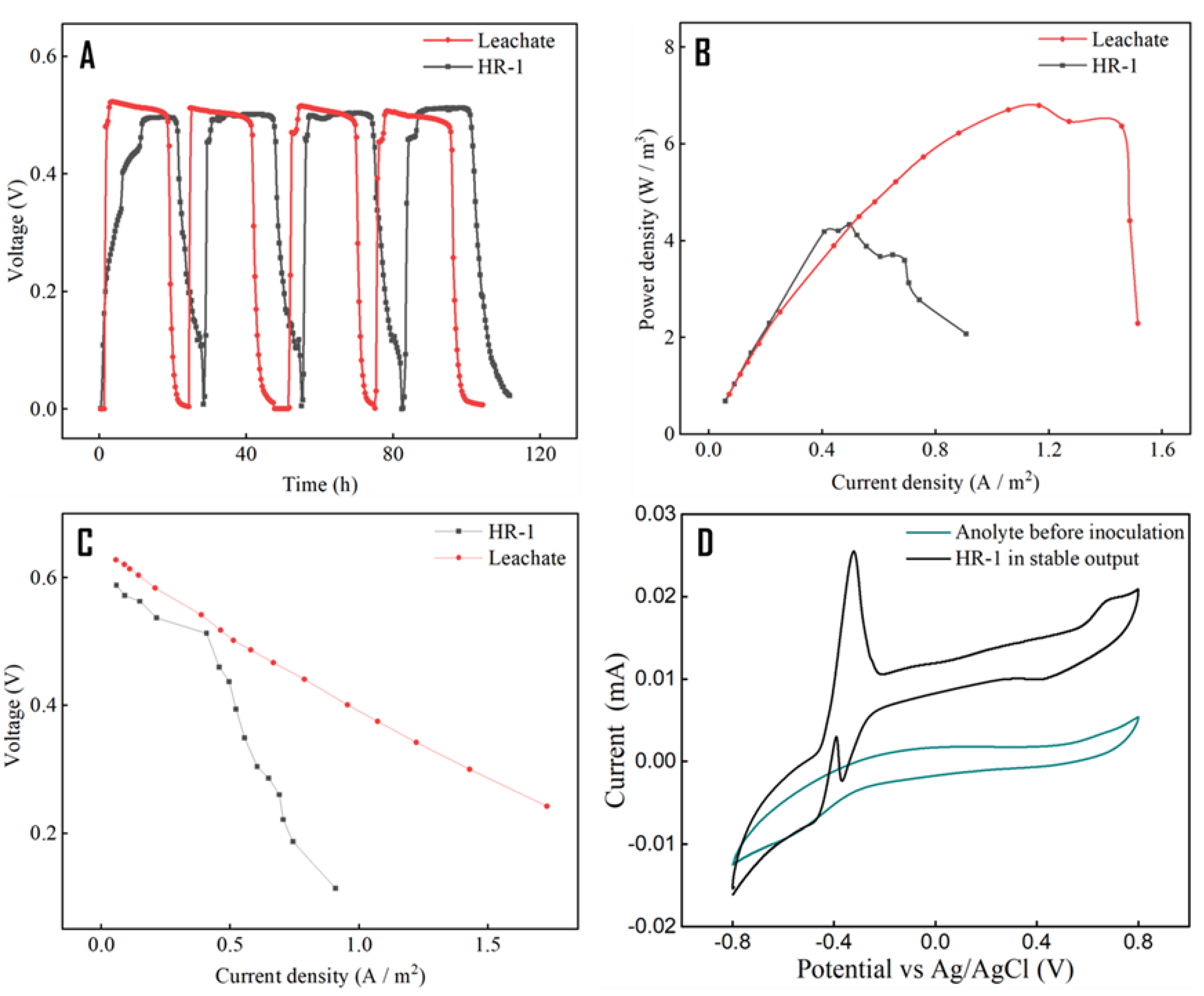

Figure 3. (A) Operation cycles of MFCs; (B,C) Polarization curves of leachate-fed MFC and HR-1-inoculated MFC; (D) CV curves of anolyte before Inoculation and HR-1-inoculated MFC in the stable phase.
Figure 3. (A) Operation cycles of MFCs; (B,C) Polarization curves of leachate-fed MFC and HR-1-inoculated MFC; (D) CV curves of anolyte before Inoculation and HR-1-inoculated MFC in the stable phase.
Fermentation 09 00133 g003

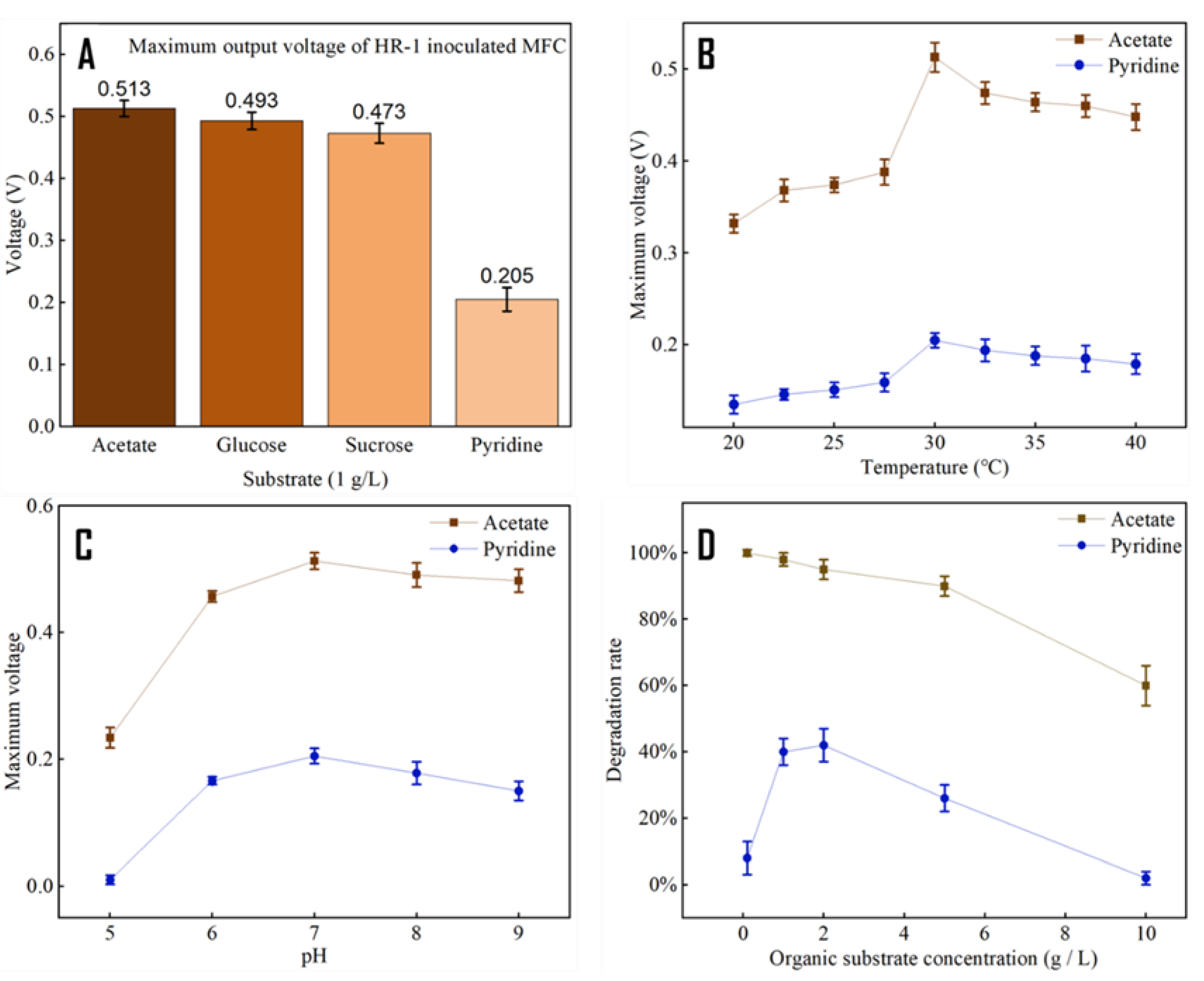

Figure 4. (A) Substrate availability of HR-1-inoculated MFC, the concentration was 1 g/L; (B) Maximum voltage of HR-1-inoculated MFC with acetate and pyrimidine under different temperature, the range was from 20–40 °C, the concentration was 1 g/L; (C) Maximum voltage under different pH, the range was from 5–9, with 1 g/L concentration; (D) Relationship between initial concentration and degradation rate, the operation condition was temperature at 30 °C and neutral.
Figure 4. (A) Substrate availability of HR-1-inoculated MFC, the concentration was 1 g/L; (B) Maximum voltage of HR-1-inoculated MFC with acetate and pyrimidine under different temperature, the range was from 20–40 °C, the concentration was 1 g/L; (C) Maximum voltage under different pH, the range was from 5–9, with 1 g/L concentration; (D) Relationship between initial concentration and degradation rate, the operation condition was temperature at 30 °C and neutral.
Fermentation 09 00133 g004

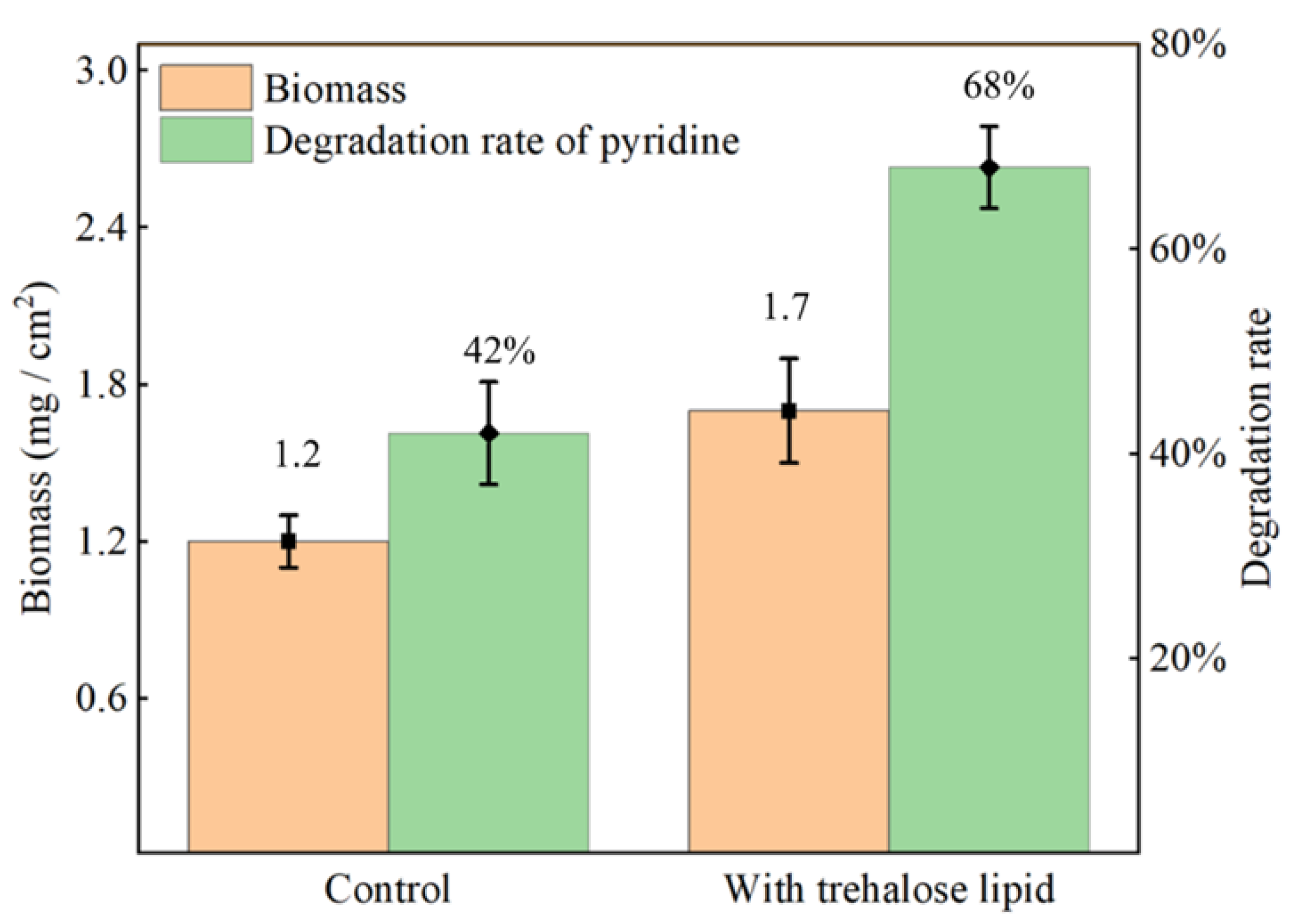

Figure 5. Biomass and degradation rate comparison with and without trehalose lipid; the operation condition was set at 30 °C, neutral and the pyridine concentration was 2 g/L. Biomass was evaluated by protein content; the addition of trehalose lipid was 20 mg/L.
Figure 5. Biomass and degradation rate comparison with and without trehalose lipid; the operation condition was set at 30 °C, neutral and the pyridine concentration was 2 g/L. Biomass was evaluated by protein content; the addition of trehalose lipid was 20 mg/L.
Fermentation 09 00133 g005
Figure 6. (A) Surface morphology of HR-1-inoculated MFC and the bare anode; (B) Plump cells on the anode with trehalose lipid. The plotting scale was 5 μm on anode carbon cloth.
Figure 6. (A) Surface morphology of HR-1-inoculated MFC and the bare anode; (B) Plump cells on the anode with trehalose lipid. The plotting scale was 5 μm on anode carbon cloth.
Fermentation 09 00133 g006
