The Effect of Cell Immobilization by Calcium Alginate on Bacterially Induced Calcium Carbonate Precipitation

Abstract

Microbially induced mineral precipitation is recognized as a widespread phenomenon in nature. A diverse range of minerals including carbonate, sulphides, silicates, and phosphates can be produced through biomineralization. Calcium carbonate (CaCO₃) is one of the most common substances used in various industries and is mostly extracted by mining. In recent years, production of CaCO₃ by bacteria has drawn much attention because it is an environmentally- and health-friendly pathway. Although CaCO₃ can be produced by some genera of bacteria through autotrophic and heterotrophic pathways, the possibility of producing CaCO₃ in different environmental conditions has remained a challenge to determine. In this study, calcium alginate was proposed as a protective carrier to increase the bacterial tolerance to extreme environmental conditions. The model showed that the highest concentration of CaCO₃ is achieved when the bacterial cells are immobilized in the calcium alginate beads fabricated using 1.38% w/v Na-alginate and 0.13 M CaCl₂.

1. Introduction

Calcium carbonate (CaCO₃) comprises more than 4% of the earth’s crust. It can be found throughout the world in natural forms such as marble and limestone. CaCO₃ is used in many industrial applications and mostly extracted by mining or quarrying. However, large scale industrial mining can be a serious risk to the environment. In recent years, microbially induced CaCO₃ precipitation has emerged as an alternative approach to conventional CaCO₃ extraction by mining. Bacterially induced CaCO₃ precipitation has been successfully used for a wide range of applications including strengthening of sand and soil [1,2,3,4], removal of metal contaminants from the soil and groundwater [5], removal of calcium ions and polychlorinated biphenyls [6], remediation of monuments [7], CO₂ sequestration [8], bio-deposition on porous materials such as limestone and brick [9,10], and, more recently, durability improvement of cementitious materials such as concrete [11,12,13].

Concrete is one of the most popular construction materials due to its availability, high compressive strength capacity, and relatively low cost. However, crack formation is the main issue associated with concrete structures. Low tensile strength coupled with internal and external stresses are recognized as the key causes of crack formation. Although the embedment of reinforcement bars limits the rate of crack growth, it cannot stop crack initiation in concrete. The initiated cracks accelerate structure degradation by allowing aggressive chemicals (fluids and gasses) to seep into the matrix [14]. This phenomenon brings about a reduction in concrete service life, increases maintenance costs, and, in severe cases, leads to structural failure. To replace concrete structures that failed due to cracking, more cement must be produced. Cement is the main ingredient of a concrete mixture and its production has a significant impact on the environment. Currently there are different types of techniques to seal the generated cracks. The application of chemical sealants is one of the most frequently used techniques for sealing the detected cracks. However, it has been reported that these materials are not environmentally friendly or permanent, and more importantly, they are applicable only for reachable cracks.

Recently, a biotechnological approach has been proposed as a green and viable approach to heal concrete cracks. In this approach, a bio agent containing bacteria and nutrient is incorporated in the concrete. When a crack occurs, CaCO₃ precipitation is induced as a result of bacterial metabolic activity and the crack is bridged. Although the biotechnological approach seems to have potential for designing self-healing applications, there are a few challenges left to be addressed. One of the main issues with direct incorporation of bacterial cells into the concrete mixture is the high pH of concrete (~12). Our previous investigation showed that the bacterial viability decreases when they are exposed to a high pH environment (concrete pH) [15]. The same observation was noticed by Jonkers et al. [16] when free-floating bacteria were mixed with concrete ingredients. Shear forces on the bacterial cells during concrete mixing and casting, as well as shear and compressive stresses during gradual shrinkage of the concrete, could also damage the bacterial cells and negatively influence the performance of the self-healing mechanism. Water activity is another key stress parameter that may influence the bacterial metabolic activity in the concrete environment. It is known that different genera of bacteria have different water activity limits and solute tolerance [17]. Each bacterium has a very specific and narrow water activity for optimum metabolism and growth [18]. More recent studies show that Bacilli and closely related bacteria are moderately xerotolerant [19,20]. For near future applications of bio self-healing concrete, it is necessary to design a matrix capable of shielding the cells in a concrete environment.

Immobilization of bacterial cells into protective carriers can be a solution to increase the survival of cells in the concrete matrix. The encapsulation of bacterial cells into a polymeric matrix such as calcium alginate (Ca-alginate) is a promising example of this kind of solution. Furthermore, with encapsulation there is potential for the encapsulated bacterial cells to be separated and re-used. However, the concentrations of Na-alginate and CaCl₂ used to form Ca-alginate significantly influence the permeability and the mass transfer capability of the beads and, consequently, the biomineralization of CaCO₃ is affected.

Therefore, this investigation was performed to determine the optimum concentration of Na-alginate and CaCl₂ for enhancing CaCO₃ biosynthesis and its future applications in bio self-healing concrete.

2. Materials and Methods

2.1. Chemicals

In this study, a range of different chemicals were used for bacterial growth and fermentation process. Yeast extract, peptone, and calcium chloride were purchased from Sigma-Aldrich (St. Louis, MO, USA). Sodium alginate (Na-alginate), urea, and glucose were purchased from a domestic supplier.

2.2. Microorganism and Growth Medium

Bacillus species (B. sphaericus NZRM 4381 and B. licheniformis ATCC 9789) were chosen from our previous studies since they showed the highest ability to produce CaCO₃ [15,21]. To rehydrate the isolates, the sterilized growth medium, containing peptone (0.5% w/v), glucose (0.5% w/v), and yeast extract (0.05% w/v) was used. Thereafter, the bacterial strains were grown on nutrient agar plate and a sporulation process was performed to obtain a pure suspension of spores.

2.3. Synthesis of Calcium Alginate and Immobilization Process

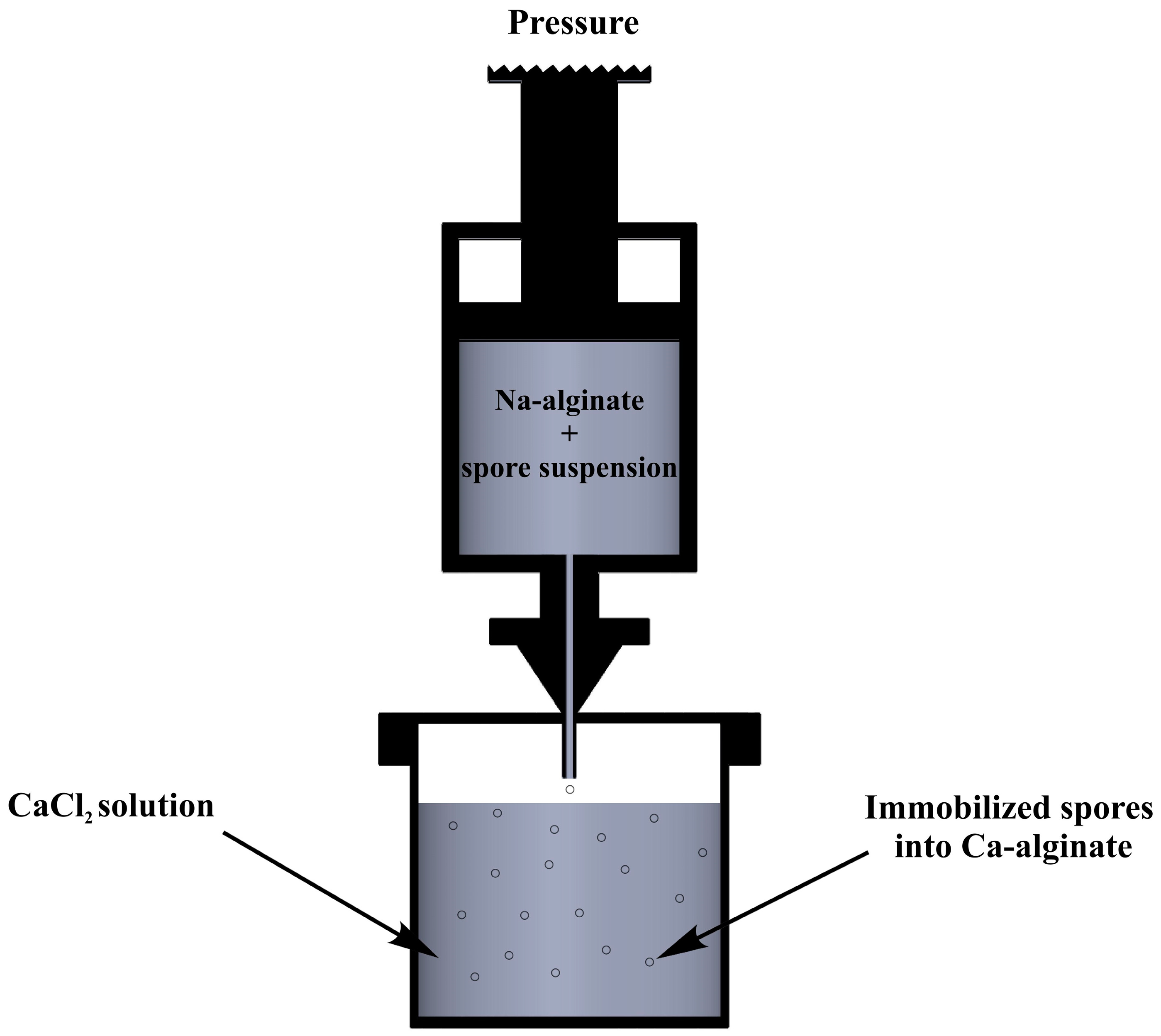

The bacteria cells (4.5% v/v each strain) were dispersed in different concentrations of sterile Na-alginate solution (1–3% w/v). Different concentrations (0.1–0.3 M) of sterile calcium chloride solutions were also prepared. The Na-alginate solution was then polymerized to form a gel. As shown schematically in Figure 1, the cell suspension was extruded through a tube (diameter 0.25 mm) and injected through a nozzle into a sterile solution of calcium chloride at a constant rate, while the solution was continuously shaken. The beads were formed upon injection and the bacterial cells were entrapped accordingly. To increase the structural integrity of the fabricated beads, the mixture of calcium chloride was stirred for 20 min. Afterwards, a strainer was used to harvest the immobilized cells.

2.4. Experimental Design and Fermentation Procedure

Statistical software package (MODDE V11, Umetrics, Umeå, Sweden) was used for the optimization study. Response surface methodology (RSM), along with a central composite face-centered (CCF) design matrix, was used to determine the optimum concentrations of variables. In the optimization study, a total of 11 experiments were performed with three replications at the center point. The second-order polynomial regression model was employed to fit the experimental data for predicting the resulted biosynthesis product (CaCO₃), according to Equation (1):

$$Y={\beta }_0+{{\displaystyle \sum }}^{\text{}}{\beta }_i{X}_i+{{\displaystyle \sum }}^{\text{}}{\beta }_{ij}{X}_i{X}_j+{{\displaystyle \sum }}^{\text{}}{\beta }_{ii}{X}_i^2$$

(1)

where Y is the concentration of CaCO₃ in g/L, β₀ is a constant coefficient, β_i, β_ii, and β_ij represent the coefficients of the linear, quadratic, and synergic effects respectively, and X_i and X_j are the coded values of the significant factors.

In our previous study, the optimum fermentation media and operating conditions to induce the highest concentration of CaCO₃ were determined [21]. In the present study, the fermentations were carried out in shaking flasks containing the optimum medium (40 g/L calcium chloride, 65 g/L urea, and 2 g/L yeast extract). As shown in

Table 1. Level of variables examined in optimization using central composite face (CCF) design.

Experimental Run	Na-Alginate (w/v)	CaCl2 (M)	CaCO3 (g/L)
1	1	0.1	24.93
2	3	0.1	21.32
3	1	0.3	20.17
4	3	0.3	19.27
5	1	0.2	24.99
6	3	0.2	21.37
7	2	0.1	24.69
8	2	0.3	21.52
9	2	0.2	24.59
10	2	0.2	23.96
11	2	0.2	24.62

, the flasks were then inoculated with the immobilized isolates, maintained at 35 °C and 100 rpm for 4.5 days. It is worth noting that the last three experimental runs are the replicates at the center point.

2.5. CaCO₃ Extraction

The soluble calcium contained in the media was determined using a benchtop photometer. The precipitated CaCO₃ was harvested by passing through filter paper (0.2 μm) and washed three times with distilled water. The precipitates were oven dried at 70 °C for 24 h.

2.6. Crystal Characterization and Morphological Observation

Scanning electron microscopy (SEM) was used for morphological characterization of precipitated CaCO₃. The precipitated powder was placed in a carbon tape, and the sample was coated with platinum using a sputter coater (Hitachi E1030, Tokyo, Japan). The sample was mounted into the SEM instrument (Hitachi S-4700, Tokyo, Japan), and crystal observation was performed. The elemental analysis was also performed to analyze the compositions of the mineralization products using energy dispersive X-ray spectroscopy (EDS). SEM imaging and EDS analysis were performed at 5 KeV and 15 KeV, respectively.

The collected dry precipitates were well-crushed using a mortar and pestle for X-ray diffraction (XRD) analysis. The powder was then packed into sample holder and analysis was performed using a Panalytical Empyrean diffractometer (Almelo, The Netherlands) with CuKα radiation. The data were collected for an exploration range, step size, voltage, and current of 15–70° (2θ), 0.0530°, 45 KV, and 40 mA, respectively.

3. Results and Discussion

3.1. Immobilization of Bacterial Cell into Ca-Alginate

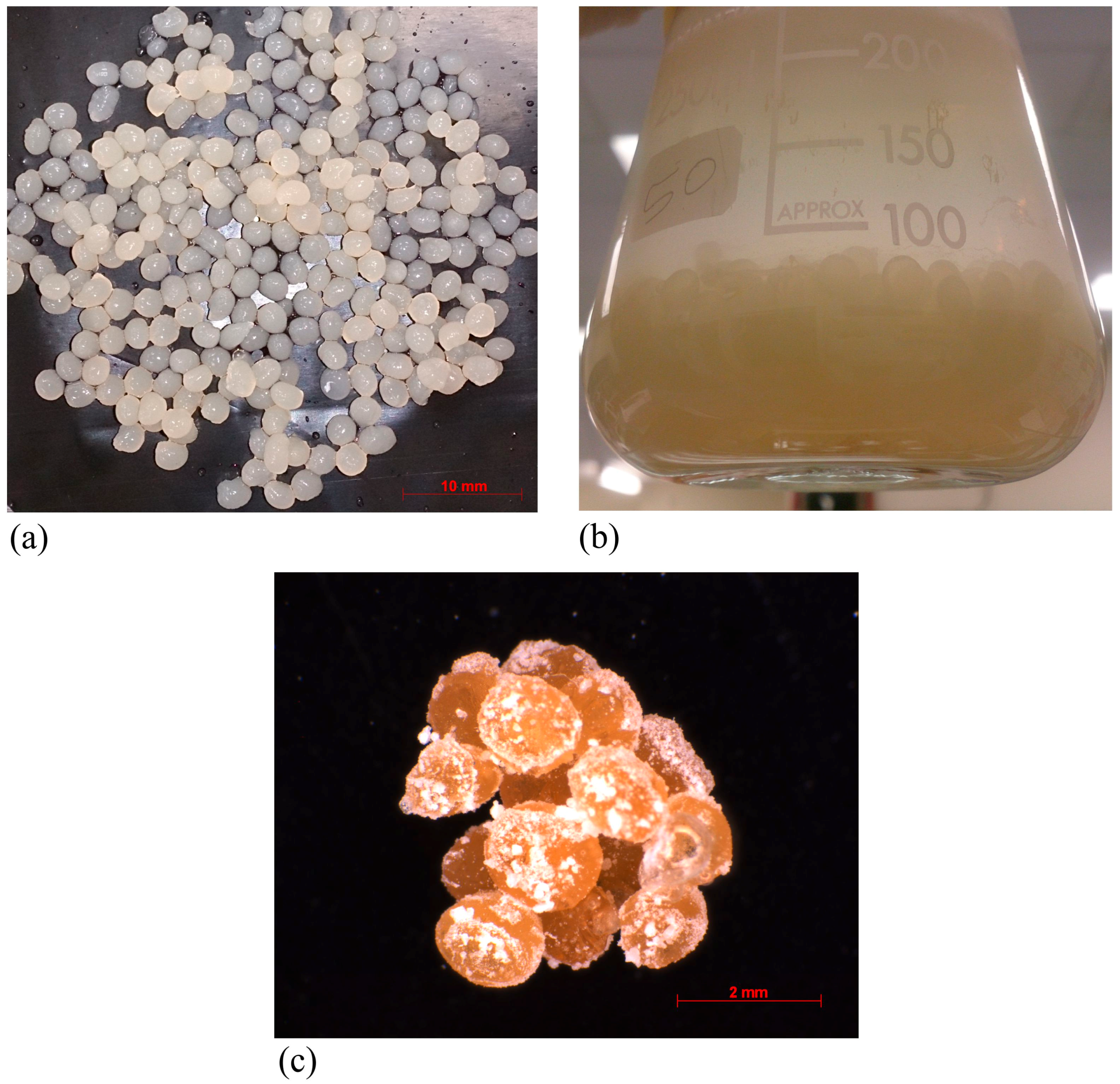

Immobilization of bacteria cells can be achieved through four main categories, namely: (1) attachment or adsorption onto solid carrier surfaces; (2) entrapment within a porous matrix; (3) self-aggregation by flocculation or with crosslinking agents; and (4) cell containment behind barriers [22]. Cell entrapment can be done into polysaccharide gel matrices, such as alginates, agar, and chitosan, or other polymeric matrixes including gelatin. In this study, polysaccharide gel entrapment (Ca-alginate) was used as an efficient immobilization approach to prevent the cells from diffusing into the surroundings. As shown in Figure 2a, the bacterial cells were successfully immobilized into uniformly sized Ca-alginate beads. An ideal immobilization approach must allow the mass transfer of nutrients to facilitate the bioprocess, while protecting the cells from the surrounding environment. The protective mechanism operates via triggering a stress response that produces a more robust cell. This phenomenon has previously been demonstrated at the level of the macromolecule [23]. Figure 2b illustrates the accumulation of bio-precipitates around the Ca-alginate beads in the fermentation media. This shows that that the fabricated Ca-alginate beads with the optimum concentrations of Na-alginate and CaCl₂ were sufficiently permeable to promote the biosynthesis.

3.2. Bacterially Induced CaCO₃ Precipitation

To maximize CaCO₃ precipitation, the immobilization carriers should be permeable, while also being able to prevent cells from diffusing into the fermentation media. As given in Table 1, an optimization study was performed to identify the optimum concentrations of Na-alginate and CaCl₂. Apart from the entrapment of the bacterial cells inside the beads, the immobilization into porous matrix such as polysaccharide gel can result in the bacterial cells moving to the outer surface of the beads. However, the effect the immobilization may influence the water activity, and as consequence metabolism will be affected [24].

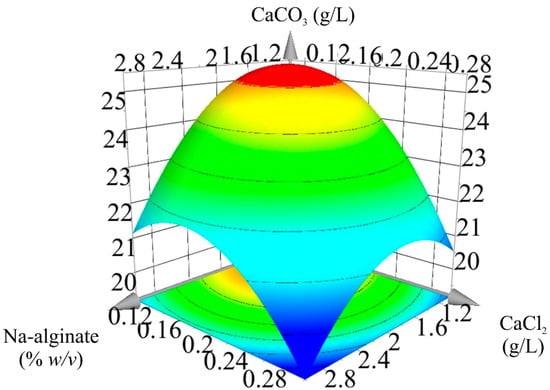

In Figure 3, a 3D response surface plot was constructed to illustrate the synergistic effects of Na-alginate and CaCl₂ concentrations on the response (CaCO₃) and also provide a visual interpretation for the location of the optimal concentrations. The shape of the corresponding plots shows that the mutual interaction between variables is significant, and the response was considerably affected by the concentrations of Na-alginate and CaCl₂.

To investigate the optimum levels of variables on the biosynthesis process, RSM, using a CCF design matrix, was used. The statistical analysis data containing the regression coefficients for the model are given in

Table 2. Statistical analysis from the central composite face-centered (CCF) design experiments for CaCO₃ precipitation.

Terms	Coefficient	Std. Err. *	p-Value
Constant	24.493	0.236	0.000
X1	−1.355	0.187	0.000
X2	−1.663	0.187	0.000
X12	−1.459	0.289	0.004
X22	−1.537	0.289	0.003
X1·X2	0.676	0.230	0.032

* Std. Err. = Standard error, X₁ = Na-alginate, X₂ = CaCl₂, R² = 0.977 and R² (adj.) = 0.954.

. As shown in Equation (2), a quadratic model was regressed for predicting the CaCO₃ precipitation.

$$Y=24.49-1.36X_1-1.67X_2-1.46X_1{}^2-1.54X_2{}^2+0.68X_1{X}_2$$

(2)

where Y, X₁, and X₂ represent the predicted CaCO₃ concentration, Na-alginate concentration, and CaCl₂ concentration, respectively. The statistical analysis of the quadratic regression model shows that the model is significant (p-value < 0.05), with R² value of 0.977. Based on the results, all the single, linear, and quadratic terms are significant on CaCO₃ precipitation. The statistical significance of the quadratic model was checked by F-test, and the results of analysis of variance (ANOVA) are listed in

Table 3. Analysis of variance for CaCO₃ precipitation.

Source of Variation	DF *	SS *	MS (Variance) *	F-Value	p-Value	SD *
Total	11	5793.834	526.712	-	-	-
Constant	1	5747.827	5747.827	-	-	-
Total corrected	10	46.007	4.601	-	-	2.145
Regression	5	44.949	8.990	42.47	0.000	2.998
Residual	5	1.058	0.212	-	-	0.460
Lack of Fit	3	0.780	0.260	1.868	0.367	0.510
Pure error	2	0.278	0.139	-	-	0.373

* DF = Degrees of freedom, SS = Sum of squares, MS = Mean square and SD = Standard error.

. The model was assessed for suitability by examining misfit, which was found insignificant for the model (p-value < 0.05). Lack of fit is used to evaluate the accuracy of the fitted model. When a mathematical model is well-fitted to the experimental results, the mean squared lack of fit reflects only the random errors inherent to the system [25]. According to the ANOVA results, the non-significant lack of fit (p-value < 0.367) and a significant regression (p-value < 0.000) suggest the high accuracy of the fitted model.

To determine the optimum levels of Na-alginate and CaCl₂, the regression equations were solved within the experimental region. Independent fermentation runs were carried out at the conditions predicted by the model to verify the optimization results. The fermented medium was supplemented with the optimum concentrations of variables (1.38% w/v Na-alginate and 0.13 M CaCl₂). The optimization shows that the highest concentration of CaCO₃ (25.48 g/L) is achieved when the optimal concentrations of Na-alginate and CaCl₂ are used.

3.3. Morphological Observation and Crystal Characterization

Calcite, aragonite, and vaterite are three crystalline polymorphs of CaCO₃ found existing naturally. In general, physical and chemical characteristics of CaCO₃ precipitates such as crystal size, specific surface area, morphology, purity, and brightness are the main criteria that are usually considered for industrial applications. Physical properties of CaCO₃, including density, solubility, and hardness, largely depend on the fraction of each polymorph. Bioprecipitation of CaCO₃ may result in the production of multiple different polymorphs. As vaterite has a lower density than calcite, a higher volume can be filled when vaterite particles are induced in a concrete crack, which contributes to enhancing the effectiveness of the self-healing mechanism.

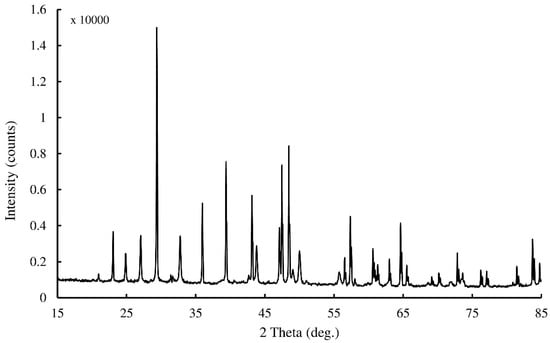

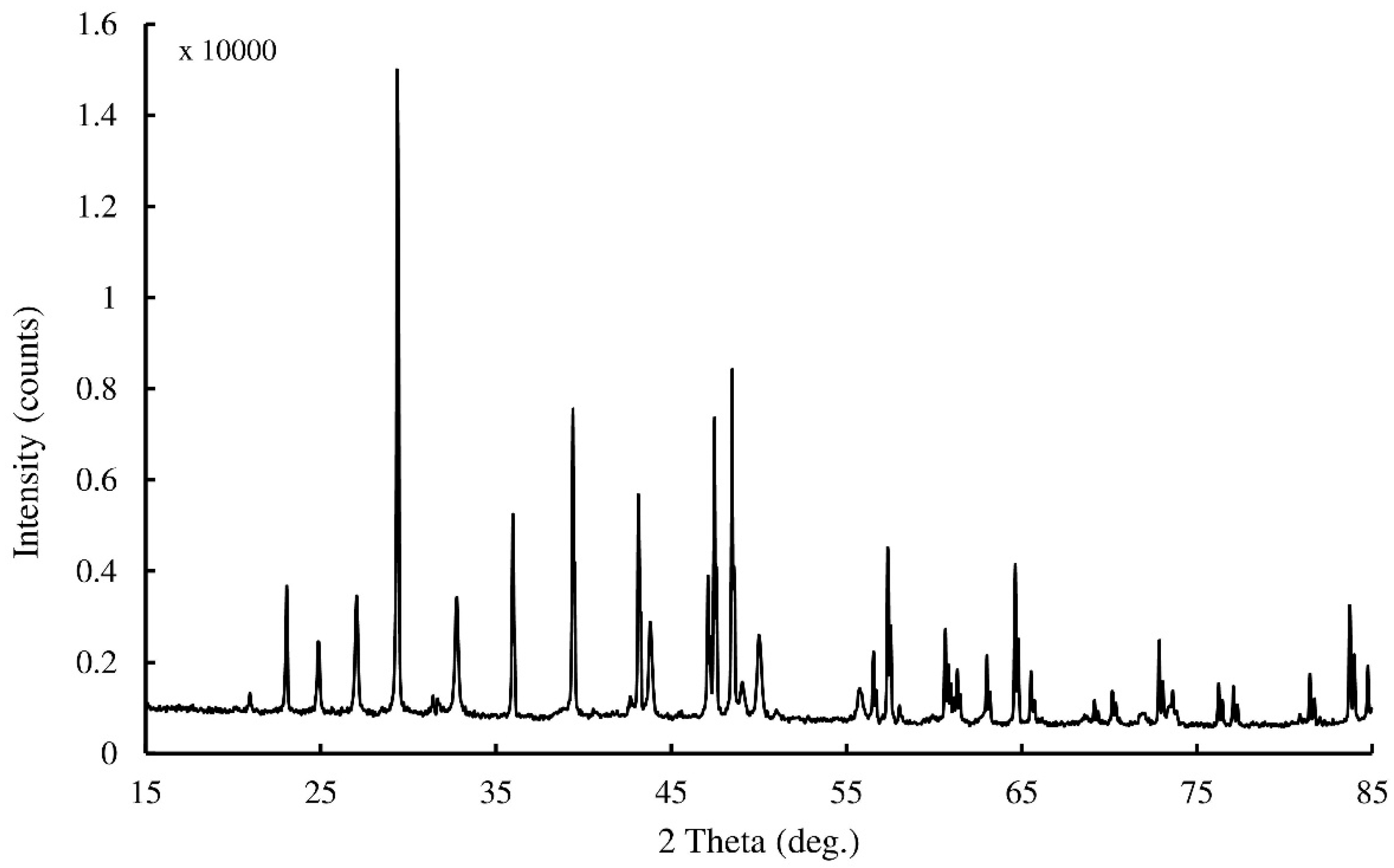

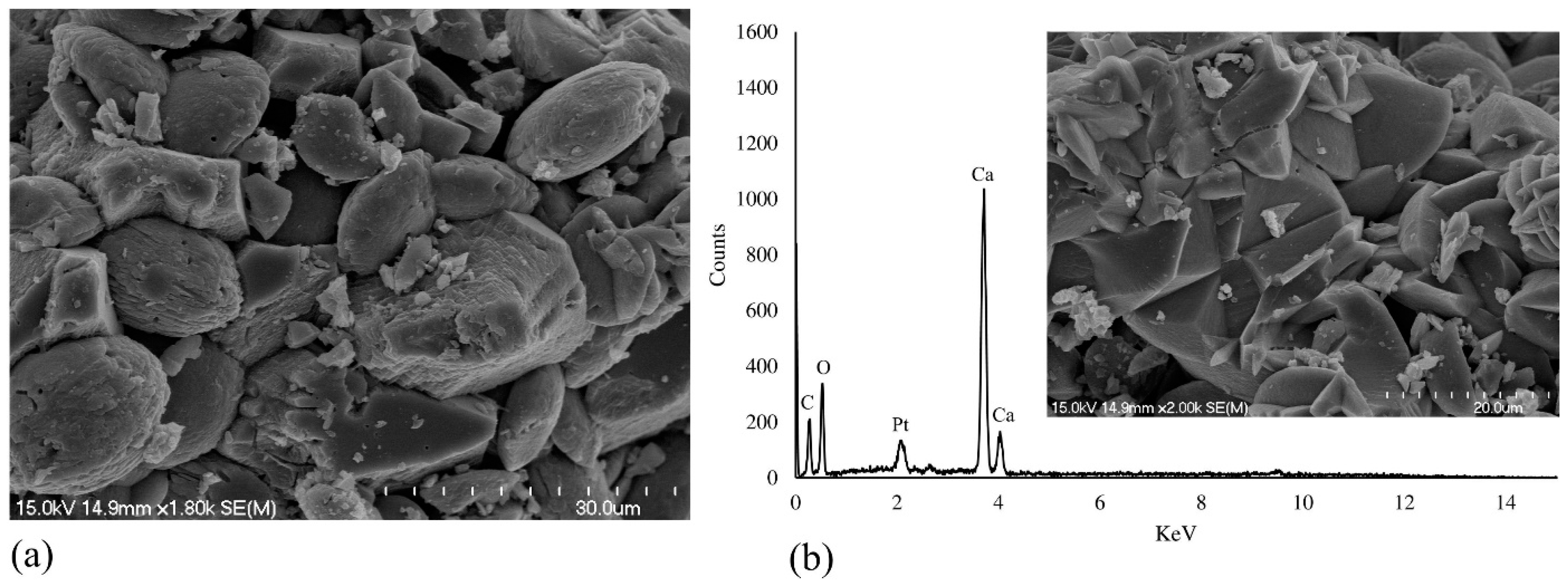

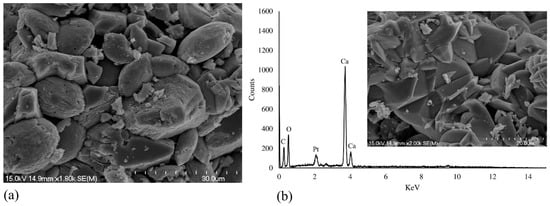

SEM and XRD analysis were used to determine the morphology of precipitated CaCO₃ crystals. Figure 4a presents an assemblage of vaterite particles produced through biomineralization via bacterial cells immobilized in Ca-alginate beads. The elemental compositions of the bioproducts were determined by EDS, and the spectra are given in Figure 4b. The results show that Ca, O, and C are the main elements found in the biominerals. The elemental ratios of the detected elements are very close to the pure CaCO₃, and this confirms that the precipitated crystals are CaCO₃. The XRD spectra for the CaCO₃ crystals produced during fermentation are shown in Figure 5. The XRD spectra indicate that vaterite and calcite were the most predominant polymorphs produced when the media was inoculated with immobilized bacteria cells. The results also demonstrate that the immobilization had no significant effect on CaCO₃ morphology. This means that this approach can be used as a promising tool for protecting bacterial cells in a harsh environment without influencing the metabolic activity.

The reason for the production of different polymorphs during biosynthesis of CaCO₃ is not well established. Different parameters such as media compositions, cell surface characteristics, bacteria metabolic activities, and extracellular polymeric substance (EPS) have been demonstrated to have an effect on the morphology of the precipitated particles [21]. The results obtained in this study show that the immobilization of bacteria in Ca-alginate beads is a promising approach to enhance the cell protection and recovery. This provides a new protocol to address the shortcomings associated with the future application of sustainable bio self-healing concrete.

4. Conclusions

The immobilization of Bacillus species in a polymeric matrix (Ca-alginate) proved a promising technique not only for protecting the bacterial cells from harsh environments but also for ease of separation and recovery. The model indicates that the implementation of the optimal concentrations of Na-alginate (1.38% w/v) and CaCl₂ (0.13 M) results in the highest CaCO₃ precipitation. Moreover, crystal characterization demonstrated that the entrapment of bacterial cells into Ca-alginate has no effect on the CaCO₃ morphology formed. The results of this study can also be used for processing with recycled bacterial capsules by reducing the downstream processes involved.
