Removal of F⁻ from Water Using Templated Mesoporous Carbon Modified with Hydrated Zirconium Oxide

Abstract

Three types of MgO-templated mesoporous carbon possessing different specific surface area and pore size distribution were modified with hydrated zirconium oxide (ZrO₂·xH₂O) to prepare fluoride anion (F⁻) adsorbents. ZrO₂·xH₂O was synthesized through the auto-hydrolysis of zirconium oxychloride (ZrOCl₂) in water under the coexistence of mesoporous carbon. X-ray diffractometry (XRD) and X-ray photoelectron spectroscopy (XPS) indicated that the mesoporous carbon surfaces were coated with mainly amorphous ZrO₂·xH₂O. Capabilities of aqueous F⁻ removal of the prepared adsorbents and the unmodified mesoporous carbons were compared. The F⁻ uptake by the prepared adsorbents was larger than that observed using unmodified carbons, indicating that the F⁻ adsorption capacity was improved through the ZrO₂·xH₂O coating. Moreover, the adsorption capability was found to depend on the pore size of the mesoporous carbons. The F⁻ uptake decreased as pH of F⁻ solution increased. Protonation and deprotonation of ZrO₂ were found to affect the F⁻ adsorption.

1. Introduction

Fluoride anion (F⁻) exists in natural water, but an overdose of F⁻ has been known to cause serious diseases, such as skeletal and dental fluorosis [1]. For example, excess intake of F⁻ from drinking water or toothpaste results in mottled enamel. Although the F⁻ concentration of 1–1.5 mg·L⁻¹ is recommended by the World Health Organization (WHO) as a standard for drinking water, water with higher F⁻ concentrations has been used as drinking water worldwide. For example, the use of drinking water with a high F⁻ concentration is problematic in India and in some states in Mexico [2]. Furthermore, F⁻ is found in groundwater in the United States as well as African and Asian countries [1]. On the other hand, fluorine has important industrial applications in many fields, such as organic materials and medicine. Therefore, it is vital to remove F⁻ from water and find ways to reutilize it.

Various adsorbents for aqueous F⁻ adsorption have been developed and evaluated. Although one common technique for F⁻ removal is precipitation as CaF₂ by adding Ca²⁺ ions, this method is limited by the attainable F⁻ concentration, and therefore it cannot be applied for advanced F⁻ treatment. Other well-known techniques are reverse osmosis and electrodialysis, but they are costly to use for water purification in developing countries. As one of the essential categories of F⁻ adsorbent, inorganic substances containing metal ions and related materials have been extensively investigated, namely, iron oxide and related compounds [3,4,5], iron-loaded zeolite and fiber [6,7], hydroxyapatite [8], and zirconium-containing compounds and materials [9,10,11,12,13,14]. Hydrated zirconium oxide (ZrO₂·xH₂O) effectively adsorbs aqueous F⁻. ZrO₂·xH₂O and is easily prepared through auto-hydrolysis of zirconium oxychloride (ZrOCl₂) represented by the Equation (1) [15].

ZrOCl₂ + (x + 1)H₂O → ZrO₂·xH₂O + 2HCl

(1)

The ZrO₂·xH₂O synthesis can be carried out by simple heating of the aqueous solution of ZrOCl₂. Moreover, ZrO₂·xH₂O is safe and biocompatible; ZrO₂ is widely used as a material of metal-free dental implants and ceramic kitchen tools, among others. Therefore, ZrO₂·xH₂O is a promising candidate to perform the role of environmentally safe F⁻ adsorbent.

Carbon materials such as activated carbon and mesoporous carbon have been widely used as deodorizers and water purifying agents because of their superior adsorption characteristics for various substances. Generally, F⁻ adsorption capacity of unmodified carbon materials is not significant [2,14]. A pristine mesoporous carbon surface mainly consists of a graphitic structure containing only carbon atoms, and therefore its affinity for polar substances is not particularly exceptional. In addition, carbon surface contains oxidized moieties such as the carboxyl group (–COOH or –COO–), the hydroxyl group (–OH), and the carbonyl group (–C=O). These groups are all negatively polarized, and hence the surface functional groups and the anionic species, including F⁻, repel each other. Conversely, mesoporous carbons are good candidates as adsorbent supports because of their high specific surface area and chemical stability. Recently, mesoporous carbons possessing a well-defined pore size and specific surface area were successfully prepared and became commercially available. Their mesopores are introduced through impregnation of a precursor of the mesopore template with organic raw material, pyrolysis for carbonization, and finally the removal of the template [16,17,18]. Such mesoporous carbon is a possible candidate as a novel F⁻ adsorbent support, as aqueous F⁻ solution can infiltrate into the mesopore unlike microporous carbon. If an adsorbent mainly possesses micropore, an aqueous solution would be largely unable to infiltrate deeply into the pore because of its surface tension.

In contrast, the aqueous solution can infiltrate into a relatively larger mesopore. Subsequently, F⁻ adsorption capacity is higher when using templated mesoporous carbons than microporous carbons. By modifying the mesoporous carbon surface with other adsorbents such as ZrO₂·xH₂O mentioned above, the F⁻ adsorption capacity of mesoporous carbon can be markedly improved [9,10]. However, the dependence of the adsorption capacity on the pore size of mesoporous carbon supports has not been examined. Additionally, the infiltration of aqueous F⁻ the solution is affected by the pore size.

In this work, three commercial mesoporous carbons possessing different mesopore size and specific surface area were employed to prepare ZrO₂·xH₂O/carbon adsorbents and to compare their F⁻ adsorption capacity. ZrO₂·xH₂O was synthesized through auto-hydrolysis of ZrOCl₂ in water under the coexistence of one of the mesoporous carbons. The F⁻ adsorption characteristics of the prepared adsorbents and the unmodified mesoporous carbons were compared based on Freundlich adsorption isotherm. The effects of mesopore size and pH on F⁻ uptake were discussed based on experimental results.

2. Materials and Methods

2.1. Materials

The materials used for the preparation of F⁻ adsorbents were mesoporous carbons possessing MgO-templated mesopore with different pore structures (Toyo Tanso, Co. Ltd., Osaka, Japan) and zirconium oxychloride octahydrate (ZrOCl₂·8H₂O, Junsei Chemicals, Co. Ltd., Tokyo, Japan). The product IDs, the specific surface areas, and the mesopore diameters of the mesoporous carbons are listed in

Table 1. Information on the mesoporous carbons used in this study.

Product ID	Specific Surface Area1 /m2 g−1	Mesopore Diameter /nm
MJ(4)010	1100	10
MJ(4)030	800	30
MJ(4)150	300	150

¹ The specific surface area and the mesopore diameter are the nominal values publicized by the manufacturer.

. Numbers contained in the product IDs (010, 030, and 150) stipulate their mesopore diameter in nm. These materials were used without further purification.

Sodium fluoride standard solution (NaF, 1000 mg/L, TOA DKK, Co. Ltd., Tokyo, Japan) and total ionic strength adjusting buffer TISAB-01 (TOA DKK, Co. Ltd., Tokyo, Japan) were used to carry out F⁻ adsorption experiments. To make pH of the sample F⁻ solutions 5–10, buffer solutions prepared using Good’s buffer {2-[4-(2-hydroxyethyl)-1-piperazinyl]ethanesulfonic acid (HEPES) or 2-(N-morpholino)ethanesulfonic acid (MES), Kishida Chemical, Co. Ltd., Osaka, Japan} and sodium hydroxide standard solution (0.1 mol/L, Junsei Chemicals, Co. Ltd., Tokyo, Japan) were used.

2.2. Preparation of Mesoporous Carbons Modified with ZrO₂·xH₂O

An aqueous solution of ZrOCl₂ (0.1 mol/L, 100 mL) was prepared by dissolving ZrOCl₂·8H₂O to distilled water. One of the mesoporous carbons (1 g) was added to the solution, and the mixture was refluxed for three days. The product was filtered using a membrane filter (5 or 0.1 µm mesh), washed with a large amount of water, and dried in air at 70 °C.

2.3. Characterization of the Prepared Adsorbents

X-ray diffraction (XRD) patterns and X-ray photoelectron spectra (XPS) of the prepared adsorbents were recorded using RINT 2000 diffractometer (RIGAKU, Co. Ltd., Tokyo, Japan) and JEOL-JPS9200 spectrometer (JEOL, Co. Ltd., Tokyo, Japan), respectively. X-rays used for the XRD measurements and scan rate were CuK_α and 2°/min. X-ray used for the XPS measurements was MgK_α. Specific surface areas of the adsorbents and the unmodified mesoporous carbons were calculated based on N₂ adsorption isotherms obtained using Autosorb sorption analyzer (Quantachrome Instruments, Co. Ltd., Boynton Beach, FL, USA). Adsorption was performed at −196 °C. The specific surface areas were calculated in terms of the Brunauer–Emmett–Teller (BET) analysis [19]. Scanning electron microscopic (SEM) images of the samples were recorded using a VE-8800 electron microscope (KEYENCE, Co. Ltd., Osaka, Japan).

2.4. F⁻ Adsorption Experiments

The NaF standard solution was diluted with a buffer (0.1 mol/L HEPESaq. for pH 7 and 0.1 mol/L MESaq. for pH 5 and 10; their pH was adjusted by addition of 0.1 mol/L NaOHaq.) to prepare 5–50 mg/L F⁻ solutions. One of the prepared adsorbents or unmodified mesoporous carbons (0.1 g) was then added to each solution (50 mL). The F⁻ adsorption was carried out using a thermostatic shaker for 24 h at 25 °C. The resultant mixtures were centrifuged at 3500 rpm for 15 min, and 20 mL of their supernatants were separated. Each supernatant was mixed with 20 mL of water to create a sufficient volume of solution for the immersion of the electrode. For the pH dependence observations, TISAB-01 was used for the dilution. The F⁻ concentration of the solutions after the adsorption was measured using an ion concentration meter (F-72, Horiba, Co. Ltd., Kyoto, Japan) equipped with an F⁻ selective electrode (6561-10C, Horiba, Co. Ltd., Kyoto, Japan). The equilibrium F⁻ uptake Q_F per unit weight of adsorbent (mg/g) was calculated using Equation (2)

Q_F = (C₀ − C_∞)V/w

(2)

where C₀ (mg/L) is the initial concentration of F⁻ solution before the adsorption, C_∞ (mg/L) is the F⁻ concentration at adsorption equilibrium, V (L) is the solution volume, and w (g) is the weight of adsorbent added. The C_∞ can be obtained by doubling the F⁻ concentration measured for the solution after the dilution.

3. Results and Discussion

3.1. Characterization of Prepared Adsorbents

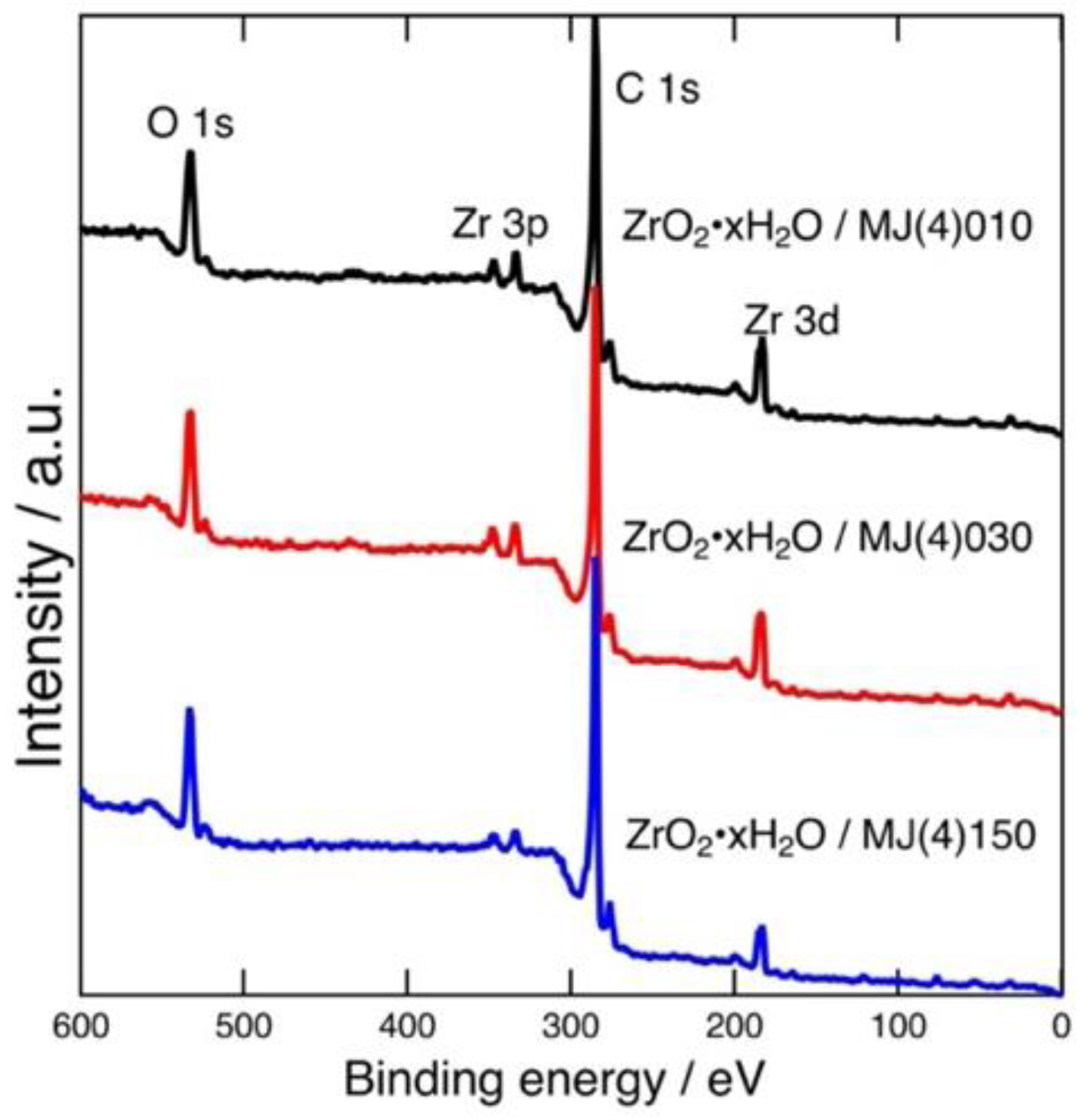

Figure 1 shows the wide-scan XPS of the prepared adsorbents. The spectra indicate that Zr was introduced onto mesoporous carbon. The peaks that appeared at 183 eV corresponded to Zr 3d of ZrO₂·xH₂O [12,20,21]. The two peaks that appeared at 330 eV corresponded to Zr 3p. The molar ratios (Zr:C) of the prepared adsorbents calculated based on peak area were 95:5 for MJ(4)010, 95:5 for MJ(4)030 and 97:3 for MJ(4)150. The Zr content measured in the case of MJ(4)150 was slightly smaller than others; the mesopore of MJ(4)150 may have been too loose to trap ZrO₂·xH₂O fine particles firmly. Note that XPS analysis may not provide a precisely quantitative composition, especially in the case of porous materials. The gravimetric analysis results described below provide the sample compositions.

The weight percent of ZrO₂·xH₂O of the prepared adsorbents can be determined from the sample weights measured before and after the ZrO₂·xH₂O immobilization. They were calculated as follows: 32% for ZrO₂·xH₂O/MJ(4)010, 37% for ZrO₂·xH₂O/MJ(4)030, and 16% for ZrO₂·xH₂O/MJ(4)150. These percentages qualitatively corresponded to the Zr content determined by XPS. Therefore, the amount of ZrO₂·xH₂O immobilized onto MJ(4)150 was found to be less than the amounts determined for the other two mesoporous carbons.

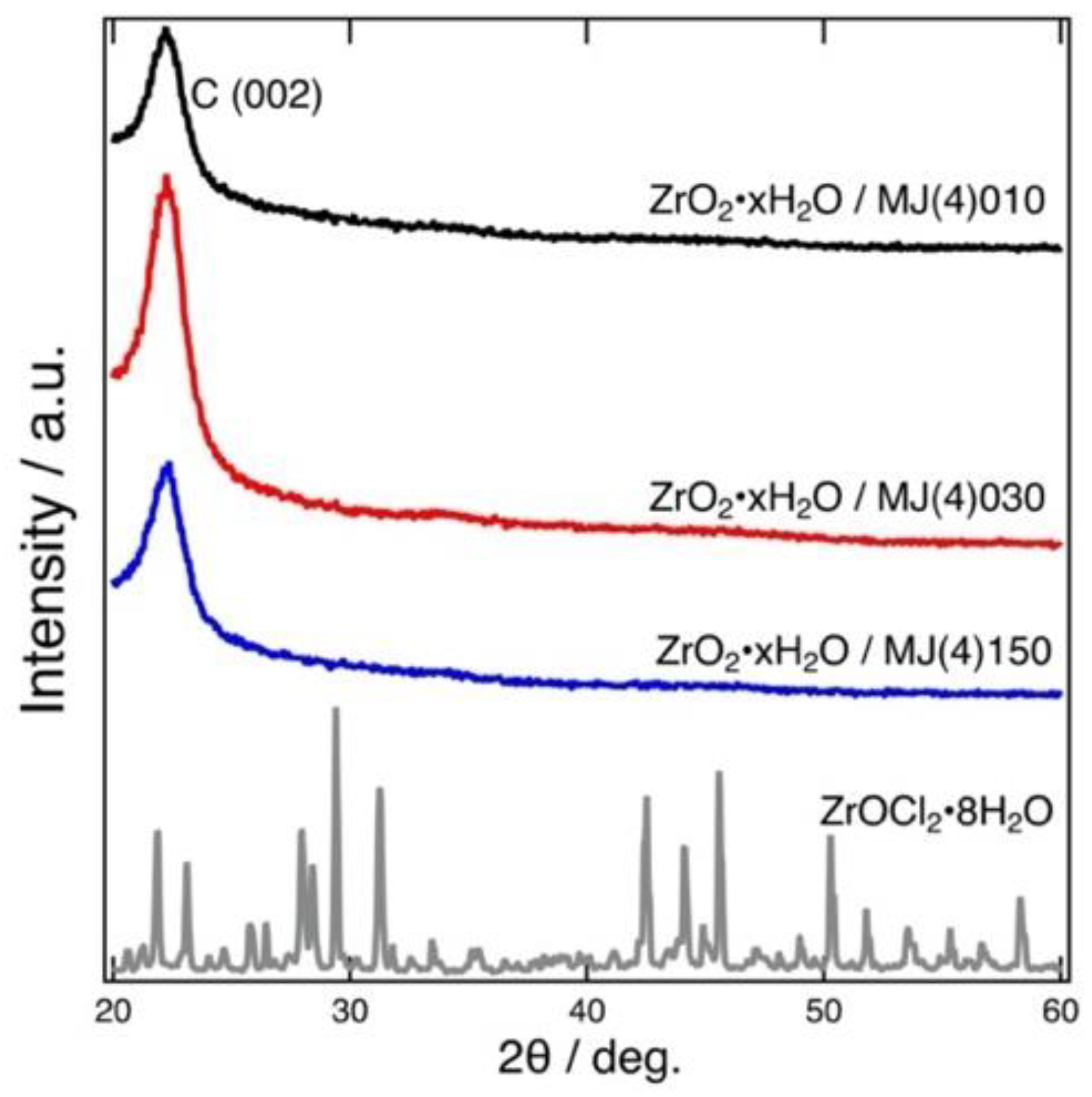

Figure 2 shows the XRD patterns of the prepared adsorbents. No peaks assigned for crystalline ZrO₂·xH₂O were found in the XRD patterns, indicating that the ZrO₂·xH₂O formed was amorphous in nature. A similar result was also reported previously [12].

Specific surface areas of the prepared adsorbents are tabulated in

Table 2. Measured specific surface areas of the prepared adsorbents and the unmodified mesoporous carbons.

Adsorbent	Specific Surface Area/m2 g−1
	Before Modification	After Modification
ZrO2·xH2O/MJ(4)010	1171	824
ZrO2·xH2O/MJ(4)030	807	602
ZrO2·xH2O/MJ(4)150	309	299

. The surface areas decreased by the surface coverage with ZrO₂·xH₂O, while the order of them did not change [MJ(4)010 > MJ(4)030 > MJ(4)150]. This result suggests that the formed ZrO₂·xH₂O particle was quite fine; if the ZrO₂·xH₂O particle was large-sized, the mesopore might have been blocked with the particle, and the surface area might have become distinctly smaller than that of original carbons. In addition, the surface areas reflect the mesopore size change. Although the mesopore sizes after the modification could have become smaller than those of unmodified carbons, the decrement of the surface areas was not severe, and thus the vacancy in the mesopore could be retained, even after the modification. Therefore, an effective surface area for F⁻ adsorption was retained in addition to ZrO₂·xH₂O coverage. Decrement of the specific surface area through the ZrO₂·xH₂O coverage was apparent for ZrO₂·xH₂O/MJ(4)010 and ZrO₂·xH₂O/MJ(4)030, while it was only a little for ZrO₂·xH₂O/MJ(4)150. These results support the presumption on the immobilization of ZrO₂·xH₂O; a relatively small amount of ZrO₂·xH₂O was immobilized onto loose mesopore of MJ(4)150, while the marked amount of ZrO₂·xH₂O was immobilized onto MJ(4)010 and MJ(4)030.

Figure 3 shows the SEM images of the prepared adsorbents and the unmodified carbons. These SEM images are not informative for checking whether the modification definitely occurred. Modification of the carbon particle surface with ZrO₂·xH₂O was not graphically confirmed under the available magnification. These results also imply that the formed ZrO₂·xH₂O was fine. This presumption is supported by the observation that, when the prepared adsorbent was filtered using a membrane filter with a 0.1 µm mesh, the filtrate became cloudy, with small particles having passed through the filter. The formation of very fine particles of ZrO₂·xH₂O could be visually observed.

3.2. Freundlich Isotherms for F⁻ Adsorption

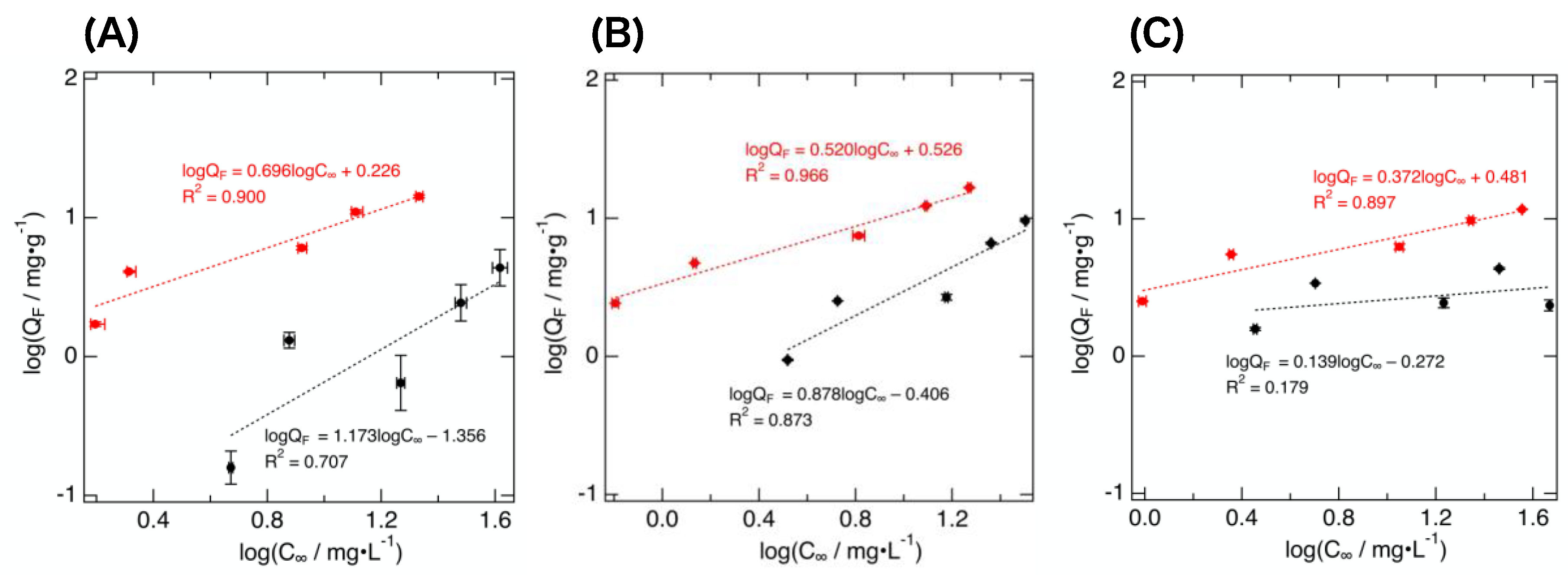

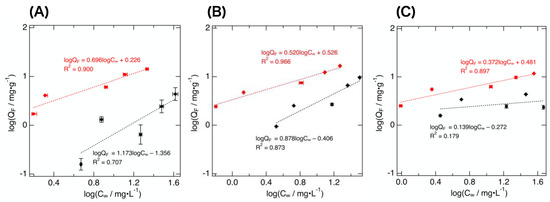

F⁻ adsorption experiments were carried out to compare F⁻ adsorption capacities of the prepared adsorbents and the unmodified mesoporous carbons. Figure 4 shows the adsorption isotherms obtained using the prepared adsorbents and the unmodified carbons. The F⁻ adsorption capacity was improved by the ZrO₂·xH₂O coverage in all cases; the amount of F⁻ adsorbed on ZrO₂-modified carbons was always larger than that adsorbed on the corresponding unmodified carbons. Notably, the increment of adsorbed F⁻ amount observed for MJ(4)010 looked significant. Other adsorbents showed a similar increment, but the difference in the uptake observed before and after the ZrO₂·xH₂O coverage was smaller than that observed for MJ(4)010 (Figure 4).

The adsorption data were fitted with Freundlich isotherm. The fitted functions are also shown in Figure 4. Freundlich isotherm is represented by Equation (3).

Q_F = K_F·C_∞^1/n

(3)

where K_F (in mg^1-1/n g⁻¹ L^1/n) and 1/n represents the F⁻ adsorption capacity and intensity, respectively. Taking the logarithm of both sides, we obtain the Equation (4).

logQ_F = logK_F + (1/n)logC_∞

(4)

The linear equations shown in Figure 4, obtained using unmodified mesoporous carbons, showed less linearity (their correlation coefficients were calculated to be 0.36–0.93) than those obtained for the adsorbents. The unmodified carbons exhibited relatively small Q_F, thus the accuracy of the measured Q_F of unmodified carbons may have been lower than that of the prepared adsorbents. The equations obtained for the prepared adsorbents had correlation coefficients of 0.94–0.98, indicating that the application of the Freundlich isotherm to the data was satisfactory and reasonable. Freundlich isotherm applies to multi-layer adsorption onto the heterogeneous surface in solution, and it is known that Freundlich isotherm reasonably represents the F⁻ adsorption behavior of ZrO₂·xH₂O rather than Langmuir isotherm [12]. The K_F and the 1/n were obtained from the slope and the intercept of the plot of the linearized isotherm (4), respectively. The 1/n represents favorability of the application of Freundlich isotherm; the 1/n between 0.1 and 1 (n = 1–10) indicates that the adsorption condition in this work was suitable. The present data were in this range (1/n = 0.139–0.878) except for the case of MJ(4)010, which exhibited a larger value (1/n = 1.173).

Although K_F and n in Equation (4) are not theoretically derived quantities, it was reported that K_F is related to the adsorption capacity involving adsorbing space size and the adsorbate affinity [22]. Based on this consideration, K_F was employed to compare the F⁻ adsorption capacity of the adsorbents. The values of K_F calculated based on the Freundlich isotherms are listed in

Table 3. F⁻ adsorption capacity K_F of prepared adsorbents and unmodified mesoporous carbons.

Adsorbent	KF/mg1-1/n g−1 L1/n		KF Enhancement After Modification/Times
	Before Modification	After Modification
ZrO2·xH2O/MJ(4)010	0.044	1.68	38
ZrO2·xH2O/MJ(4)030	0.39	3.35	8.6
ZrO2·xH2O/MJ(4)150	0.53	3.03	5.7

.

Judging from the calculated K_F obtained for the unmodified carbons, the order of F⁻ adsorption capacity can be represented as MJ(4)030 ≒ MJ(4)150 > MJ(4)010. The modification with ZrO₂·xH₂O altered the adsorption capacity, and the K_F enhancements by the modification were found to be in the order of MJ(4)010 > MJ(4)030 > MJ(4)150. The F⁻ adsorption capacity change before and after ZrO₂·xH₂O modification of MJ(4)010 was significant.

This marked improvement of the adsorption capacity can be explained based on the change in wettability of adsorbent surface besides the affinity between F⁻ and ZrO₂·xH₂O. If the mesopore size of the carbon was relatively small, F⁻ aqueous solution could not infiltrate into the pore owing to surface tension; coverage of the pore with hydrophilic metal oxide particles could facilitate the infiltration of F⁻ solution into the pore. In contrast, in the cases of MJ(4)030 and MJ(4)150, the F⁻ adsorption capacity increment was moderate. The F⁻ adsorption capacities of MJ(4)030 and MJ(4)150 were larger than that of MJ(4)010. Since F⁻ could infiltrate into the mesopore of MJ(4)030 and MJ(4)150 more smoothly than MJ(4)010, the effect of ZrO₂·xH₂O on F⁻ adsorption capacity improvement may not have been so significant in the case of MJ(4)030 and MJ(4)150. Furthermore, with ZrO₂·xH₂O/MJ(4)150, the smallness of the amount of ZrO₂·xH₂O immobilized would also affect its F⁻ adsorption capacity.

Estimating F⁻ uptake per weight of ZrO₂·xH₂O of the adsorbents will be helpful for gaining an insight into the observed adsorption characteristics. The F⁻ adsorption capacity of ZrO₂·xH₂O may be altered depending on the pore structure of the unmodified carbons. For example, the particle size and the surface area of ZrO₂·xH₂O formed may differ depending on the mesopore size. This estimation can be achieved by assuming that, if the weight of the adsorbents is the sum of the weight of unmodified mesoporous carbons (w_C), and the weight of ZrO₂·xH₂O (w_ZrO2·xH2O), then the Q_F can be represented based on Q_F of unmodified carbon (Q_F(C)) and Q_F of ZrO₂·xH₂O (Q_{F(ZrO2·xH2O)}). Based on this assumption, Q_{F(ZrO2·xH2O)} for the adsorbents can be estimated from the experimentally-measured Q_F and Q_F(C). This assumption is not perfectly appropriate, because the mesoporous carbon surface is partially covered with ZrO₂·xH₂O, and hence the actual Q_F(C) expected for the adsorbents is always smaller than that of the unmodified carbons. Despite this, the order of Q_{F(ZrO2·xH2O)} derived for the three adsorbents can be predicted under this assumption. Until now, however, this treatment has not been applied to the data obtained in this work because the Q_F(C) needed for the calculation should be precisely determined prior to the calculation, and, until now, highly accurate Q_F(C) have not been obtained (Figure 4). This remains an issue for further investigation.

3.3. Effect of pH on F⁻ Adsorption

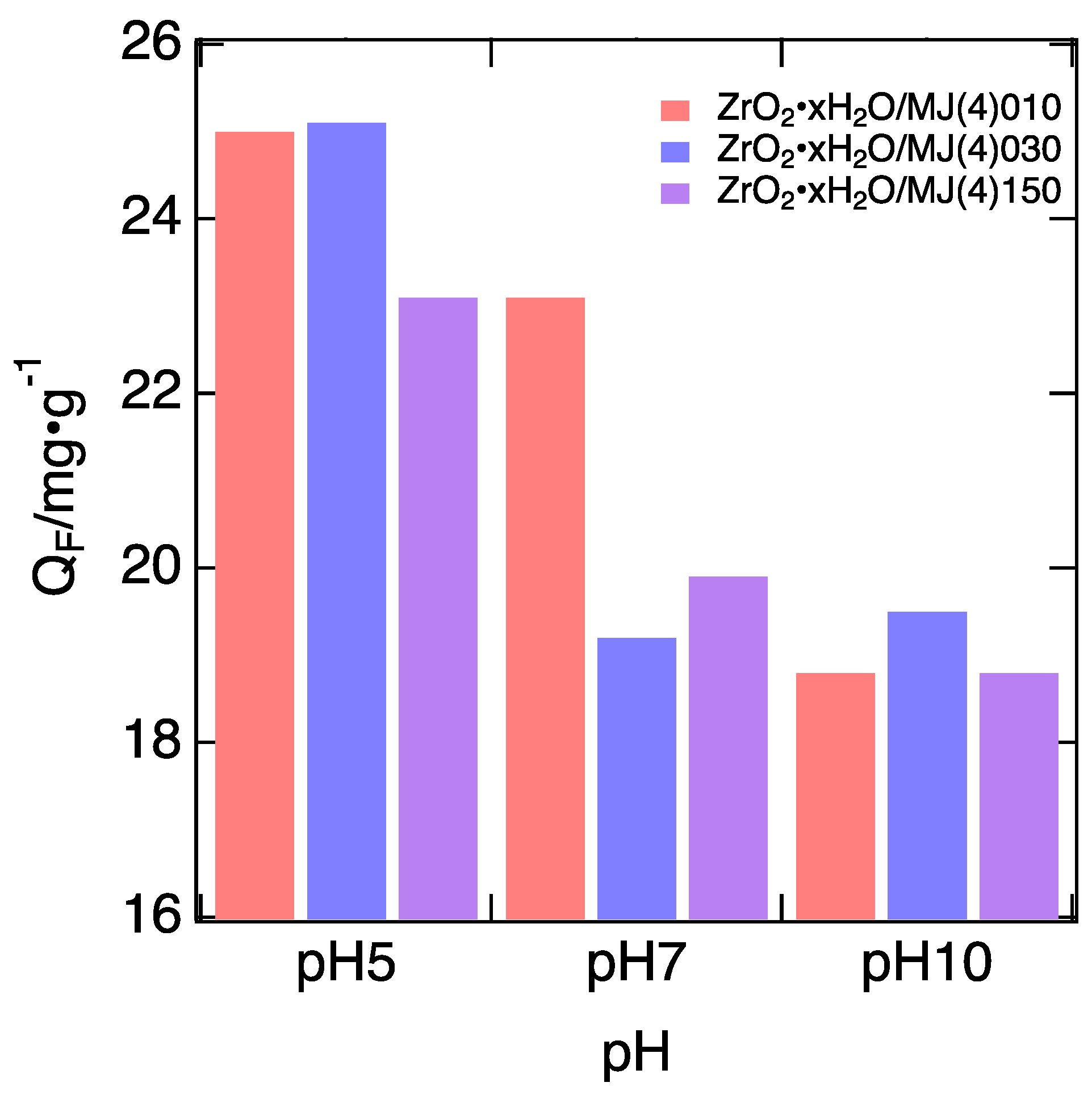

pH affects the F⁻ adsorption onto Zr-impregnated adsorbents [10,12]. Here, the dependence of F⁻ adsorption capacity on pH was examined. Figure 5 shows the dependence of F⁻ uptake observed for the prepared adsorbents. The Q_F represents the equilibrium uptakes measured using 50 mg/L F⁻ solutions. As confirmed, in all cases, the F⁻ uptake markedly decreased as the pH increased.

A preliminary calculation of p-values was attempted to check whether the observed difference in the F⁻ uptake was statistically significant. Here, the measured F⁻ uptakes were grouped into pH 5, 7, and 10. Each group contained the Q_F measured for ZrO₂·xH₂O/MJ(4)010, 030, and 150. This treatment was not completely appropriate, because the Q_F observed for the three adsorbents should differ, but based on this treatment, the overall trend of the pH dependence could be evaluated. For pH 5 and 10, the p-value was calculated to be 0.0015, indicating that the difference in the Q_F under the two pH conditions was sufficiently significant for a significance level of 5%. Conversely, for pH 5 and 7, the p-value was 0.055, and for pH 7 and 10, it was 0.24. These results indicate that the pH-dependent differences in Q_F can be found by comparing Q_F in the wide pH range.

This tendency agrees with that observed in the results reported previously. Therefore, the F⁻ adsorption in the present cases occurs through the mechanism proposed by a previous study. Dou et al. [12] proposed the mechanism of F⁻ adsorption by ZrO₂·xH₂O involving protonation and deprotonation of hydroxyl groups bound to surface Zr. If a hydroxyl group is protonated to give –OH₂⁺ under acidic conditions, F⁻ can smoothly attack Zr to create the Zr–F bond; then, the protonated hydroxyl group is released as water. Conversely, under basic conditions, OH⁻ abstracts H⁺ from the hydroxyl groups to form water, and surface species containing Zr–O⁻ are left as residue. These species possess negative charge, and hence it is difficult for F⁻ to approach Zr. The present results support the proposed mechanism.

If the electric charge of adsorption sites containing both Zr–F and Zr–OH after F⁻ adsorption can be controlled by treatment with OH⁻, it will be possible to retrieve F⁻ from the adsorbent through simple washing of the adsorbent using alkali solution. If F⁻ can be retrieved with high yield, this method is industrially valuable because fluorine is a vital element as a component of glass, medicines, and polymer materials, among others.

4. Conclusions

In this study, F⁻ adsorption characteristics exhibited by the ZrO₂·xH₂O/templated mesoporous carbon adsorbents were examined, and influence of the pore structure of the mesoporous carbons on the F⁻ adsorption was discussed. The mesoporous carbons were successfully modified with ZrO₂·xH₂O generated through the auto-hydrolysis of ZrClO₂ in aqueous solution. The F⁻ adsorption capacity was found to depend on the mesopore size of the unmodified mesoporous carbons. The effect of the size is based on the difference in the immobilized amount and the particle structure (particle size and surface area) of ZrO₂·xH₂O. Currently, direct observation of the immobilized ZrO₂·xH₂O has not been achieved. Subsequently, high-resolution transmission electron microscopy (TEM) may provide clear evidence of the difference in particle structure. This will be a subject for further study.

Moreover, the effect of pH on the F⁻ adsorption was examined. A shift of pH toward basic condition was found to decrease the F⁻ uptake. This can be explained based on the reaction mechanism involving protonation/deprotonation of Zr–OH moieties. Utilizing this dependence, it will be possible to retrieve F⁻ from the used adsorbent and regenerate the adsorbent. These are expected to be realized in future works.
