Sustainable Recycling of Formic Acid by Bio-Catalytic CO₂ Capture and Re-Hydrogenation

Abstract

Formic acid (FA) is a promising reservoir for hydrogen storage and distribution. Its dehydrogenation releases CO₂ as a by-product, which limits its practical application. A proof of concept for a bio-catalytic system that simultaneously combines the dehydrogenation of formic acid for H₂, in-situ capture of CO₂ and its re-hydrogenation to reform formic acid is demonstrated. Enzymatic reactions catalyzed by carbonic anhydrase (CA) and formate dehydrogenase (FDH) under ambient condition are applied for in-situ CO₂ capture and re-hydrogenation, respectively, to develop a sustainable system. Continuous production of FA from stripped CO₂ was achieved at a rate of 40% using FDH combined with sustainable co-factor regeneration achieved by electrochemistry. In this study, the complete cycle of FA dehydrogenation, CO₂ capture, and re-hydrogenation of CO₂ to FA has been demonstrated in a single system. The proposed bio-catalytic system has the potential to reduce emissions of CO₂ during H₂ production from FA by effectively using it to recycle FA for continuous energy supply.

1. Introduction

Hydrogen (H₂) is considered to be a superior energy source because of its high energy retention efficiency [1]. However, the efficient and safe storage and transport of H₂ are major challenges faced by the H₂-based energy industries [2,3,4]. Recently, formic acid (FA) has been proposed as a convenient liquid phase carrier of H₂ due to its stability under ambient conditions and without compromising on the energy efficiency [2,5,6,7]. Although FA can be facilely dehydrogenated into H₂ [7,8,9,10], the emission of the greenhouse gas by-product, CO₂, hinders the sustainability of FA application for this purpose.

An ideal solution is to develop a FA/CO₂ cycle, which is composed of an in-situ CO₂ capture stage and a subsequent re-hydrogenation stage to convert the captured CO₂ into FA. Combining the capture and re-hydrogenation stages within the same cycle avoids the emission of CO₂ and regenerates fresh FA for continuous energy supply without using excessive carbon sources. This concept has been proposed previously as a prospective energy system [5,11,12] without the emphasis of demonstration.

FA dehydrogenation, the first step of this cycle, has been intensively studied with a focus on improving gas release efficiency in the form of an H₂ and CO₂ mixture [5,7]. The use of chemical catalysts still remains the state of art for FA dehydrogenation, with research directed towards improving conversion efficiency and perform reactions at room temperature. Two separate studies have reported the complete conversion of FA at room temperature using CrAuPd catalyst on silica surface and PdAuNi alloy nanoparticles supported by graphene nanosheets which have TOF (Turn Over Frequency) values of 730 mol H₂ mol catalyst⁻¹ h⁻¹ [13] and 1090 mol H₂ mol metal⁻¹ h⁻¹ [14]. Alternatively, metal-free catalysts using dialkyborane derivatives achieve 79% FA conversion with TOF = 4.1 h⁻¹ after 19 h [15]. Recent focus has been on generating low-cost process by using non-precious transition metals (Fe, Co, Ni) immobilized on metal-organic frameworks (MOFs) with 100% H₂ selectivity and a TOF value of 347 h⁻¹ [16]

Separately, several chemical catalytic reactions routes have been demonstrated to convert CO₂ to FA with application in H₂ production [5]. However, the combination of in-situ CO₂ capture from FA dehydrogenation has not been investigated. From previous studies of enzymatic CO₂ capture from the atmosphere [17,18,19], carbonic anhydrase (CA), was demonstrated as a sustainable and efficient biocatalyst for CO₂ capture [20,21,22] with options for reuse and recycling [23]. Conventionally, the captured CO₂ is converted into calcium carbonate in a solid form after capture for easy storage and transport. Previous studies have utilized metal catalysts and extreme conditions such as high temperature, acidic or alkyl conditions, and high pressures for the CO₂ re-hydrogenation into FA [12,21,22,23,24,25,26,27,28]. Recently, formate dehydrogenase (FDH) was demonstrated to be efficient for catalyzing the interconversion between CO₂ and formic acid [29,30]. Also, a combination of CA and FDH have been employed for the capture and conversion of CO₂ to FA [31]. Nevertheless, the utilization of these two enzymes for the sustainable recycling of FA for H₂ production has not been demonstrated.

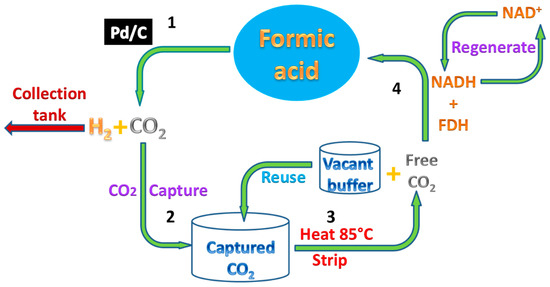

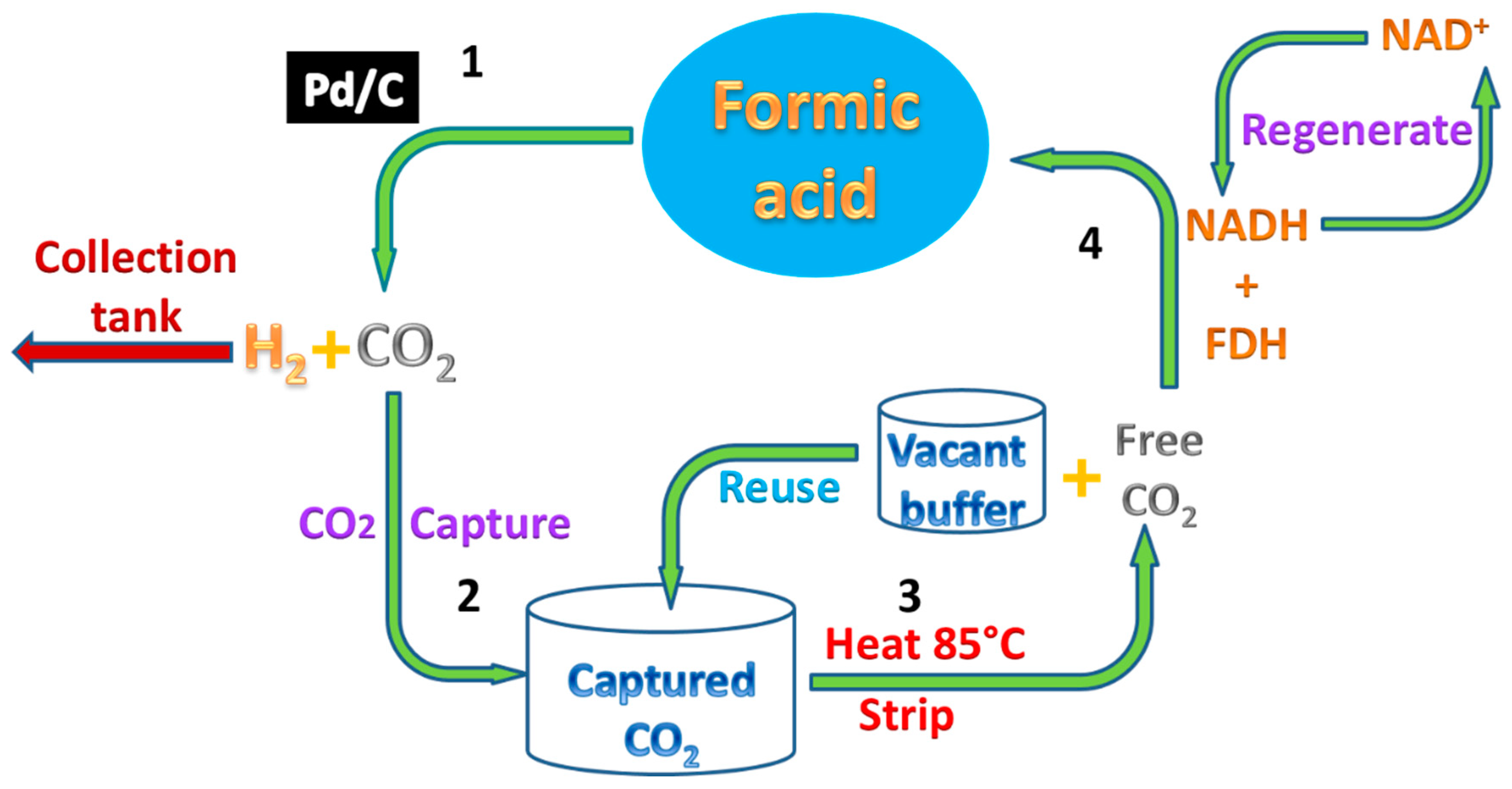

In this study, we demonstrate a proof of concept for the complete FA/CO₂ cycle, including in-situ CO₂ capture and CO₂ re-hydrogenation under ambient conditions using the environmentally-friendly bio-catalytic system, as shown in Scheme 1. In this study, after FA dehydrogenation, the in-situ absorption of the emitted CO₂ catalyzed by CA was investigated. After a heat stripping, the captured CO₂ was directly re-hydrogenated into formic acid by FDH catalyzed the reaction, with regenerated NADH (Nicotinamide adenine dinucleotide) as a cofactor. In addition, the CA influence on CO₂ stripping and the reuse of the absorption buffer were also studied.

2. Materials and Methods

2.1. Materials

Chemicals: All the materials and chemicals were of analytical grade and used as received without further purification. Ethanol amine, sodium carbonate, sodium bicarbonate, Tris-HCl, sodium chloride, imidazole, bromophenol blue, phosphate buffer saline (PBS) tablets, formic acid, Palladium on carbon (Pd/C) (Sigma-Aldrich Sydney, Australia), β-Nicotinamide adenine dinucleotide hydrate (NAD), β-Nicotinamide adenine dinucleotide hydrate reduced salt (NADH), and kanamycin were purchased from Sigma-Aldrich (Sydney, Australia). FDH from Candida boidinii was purchased from Megazyme (Wicklow, Ireland). Enzyme purity was determined using SDS-PAGE 4–12% Bis-Tris Bolt gels and stained with SimplyBlue^TM Safe Stain (LC6060, Thermofisher Scientific, Scoresby, VIC, Australia). The pET28a plasmid harboring the bovine carbonic anhydrase gene was a kind gift from A. Prof. Victoria Haritos, used to express and produce CA in E. coli.

2.2. Expression and Purification of CA

The enzyme bovine carbonic anhydrase (CA) was expressed in E. coli BL21 (DE3) cells using Terrific Broth growth media by the Auto–Induction method with 0.2% (v/v) lactose as inducer [32]. Expression cultures were inoculated with 2% (v/v) of inoculum and initially grown at 37 °C at 200 rpm for 3–4 h; followed by protein expression at 20 °C for 16–18 h. Cells were harvested at 10,000 rpm for 10 min and lysed by sonication in lysis buffer (50 mM Tris-HCl pH 8.0, 50 mM NaCl, 1 mM EDTA (Ethylenediaminetetraacetic acid), 0.5% Triton-X100). Following centrifugation, the supernatant was purified by Immobilized Metal Affinity chromatography (IMAC) (Profinity IMAC, Biorad laboratories, Gladesville, NSW, Australia). CA was eluted using 200 mM imidazole in 50 mM Tris-HCl + 0.5 M NaCl pH 8.0 buffer and the pure protein fractions were buffer exchanged (G25 Sephadex, GE Healthcare) against 50 mM Tris-HCl buffer (pH 8.0). Samples were analyzed using 4–12% Bolt Bis–Tris precast gels at 165 V for 40 min and protein bands were stained using SimplyBlue^TM Safe Stain.

2.3. FA Decomposition and CO₂ Absorption

FA decomposition reaction was conducted by following the method of previous research [33]. The Pd/C catalyst used in this study is a black powder with 10 wt. % Pd loaded on activated carbon, having a boiling point of 2963 °C and a melting point of 1554.69 °C. The Pd/C catalyst (213 mg) was kept in a two-necked round-bottom flask. One neck was connected to a gas-proof cylinder filled with water, and the other was connected to a pressure-equalization funnel to introduce FA aqueous solution (1 M, 10.0 mL). The catalytic reaction was started after the FA solution was added into the flask with magnetic stirring (300 rpm) maintained at ambient temperature (25 °C). The volume of the gas that evolved from the reaction was measured by the reduction of water level in the cylinder. For CO₂ absorption, a glass tube filled with 35 mL different buffers (50 mM NaHCO₃, 50 mM ethanolamine, and 50 mM NaHCO₃ with 3 mL purified CA elution, respectively. The pH of all the buffers were adjusted to 9.5) were added between the flask and the cylinder. Then, the gas was passed through the buffer before collecting into the cylinder. The whole laboratory set-up including FA dehydrogenation and CO₂ absorption units is shown schematically as stage-1 in Figure S1.

2.4. CO₂ Stripping from Buffers

The stripping of CO₂ was conducted by incubating buffers in 85 °C water bath for 15 min with gentle shaking. The volume of stripped gas was measured by a water cylinder, as in Section 2.3. For the stripped CO₂ used for hydrogenation, a balloon was connected with buffer flask to collect the stripped CO₂ and then moved for hydrogenation (stage-2, Figure S1).

2.5. CO₂ Hydrogenation

The CO₂ hydrogenation was conducted by following a previous method [34]. Typically, 200 μL FDH was added into 20 mL PBS buffer (0.1 M pH 7.4) containing 4 mM NADH. Then, the balloon with the collected CO₂ was plugged into the above buffer flask and incubated at room temperature (stage-3, Figure S1). Samples were taken at regular intervals of 5–10 min up to 1 h for spectrophotometric measurements.

2.6. Electrochemical Regeneration of NADH

The electrochemical regeneration of NADH was conducted by following a previous method [34]. The experiment was conducted in a plastic beaker. Platinum wire (2 cm/10 mL) was used as the anode and copper foil (10 mm²/mL buffer) was used as the cathode. Ag/AgCl electrode was used as reference electrode using a potential of 650 mV. The reaction was purged with argon gas for half an hour before the reaction and purged continuously until the complete regeneration of NADH. Then, the samples were taken at 15, 30, 60, 90, 150 min for spectrophotometric measurements.

2.7. Gas Chromatography and Spectrophotometric Measurements

Gas analyses were performed on GC-7820 with thermal conductivity detector (TCD) and HP-MOLESIEVE column. (Detection limit: ~10 ppm). Hydrogen detection was conducted using Nitrogen as the transport gas at a speed of 3 mL/min with a split ratio of 5:1. The CO₂ gas detection was conducted under similar conditions with a split ratio of 4:1. GC analysis of gas samples was performed using two Agilent 7820 Gas Chromatographs with TCD detection. Hydrogen gas was detected on one machine with Agilent HP PLOT Molesieve 26 m × 320 µm × 12 µm column, Nitrogen carrier with a column flow of 2 mL/min. Isothermal condition at 30 degrees C. Inlet in split mode set at 10:1. CO₂ gas was detected on the other GC with a short HP PLOT Molesieve 4 m × 320 µm × 0.12 µm column with Helium carrier at 3 mL/min. The isothermal condition was set at 230 degrees C. Inlet in split mode was set at 4:1.

Gas sampling from the collection balloon was performed with a syringe immediately prior to injection into the GC. The NADH was measured with UV-vis absorption by the following method applied in previous research [34].

3. Results and Discussion

3.1. Evaluation of Simultaneous FA Decomposition and CO₂ Absorption

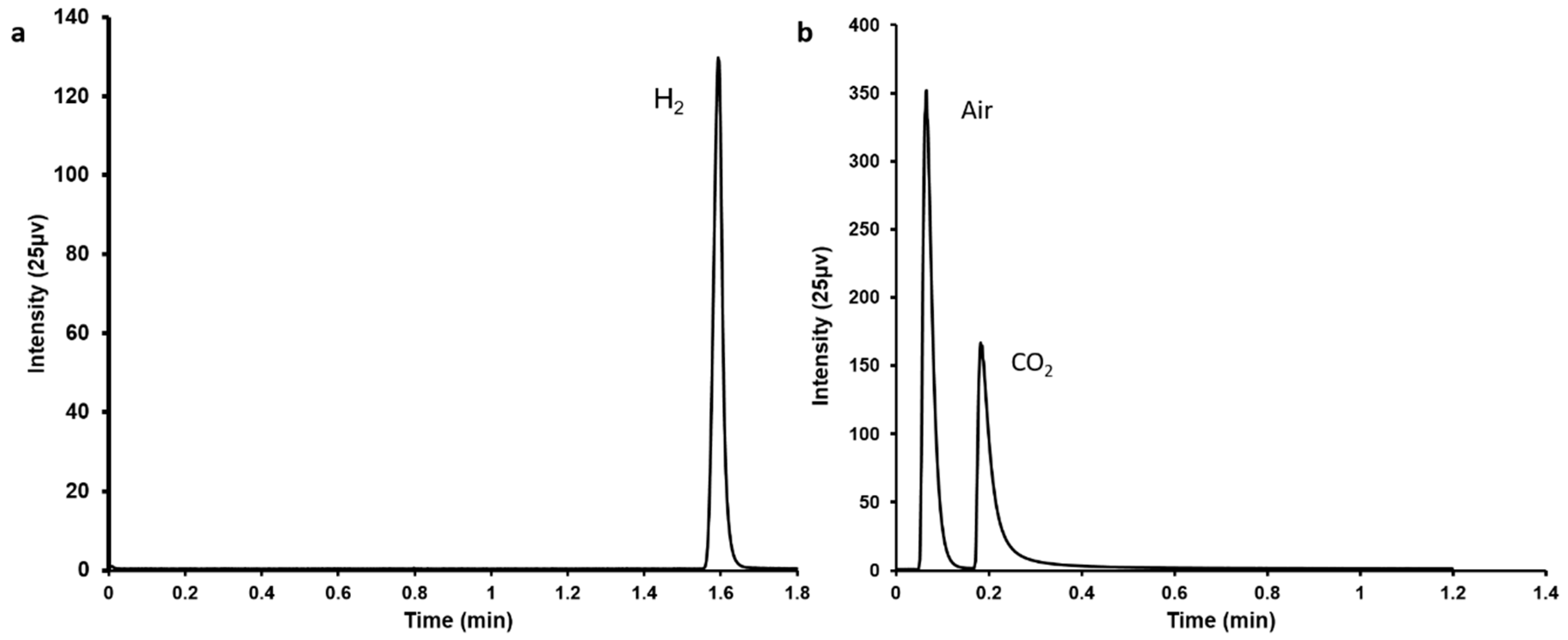

In this study, simultaneous FA decomposition and capture of emitted CO₂ were achieved within a single system. A typical Pd/C catalyst [8] was applied for the FA decomposition resulting in the generation of CO₂ and H₂, which were confirmed by gas chromatography (Figure 1).

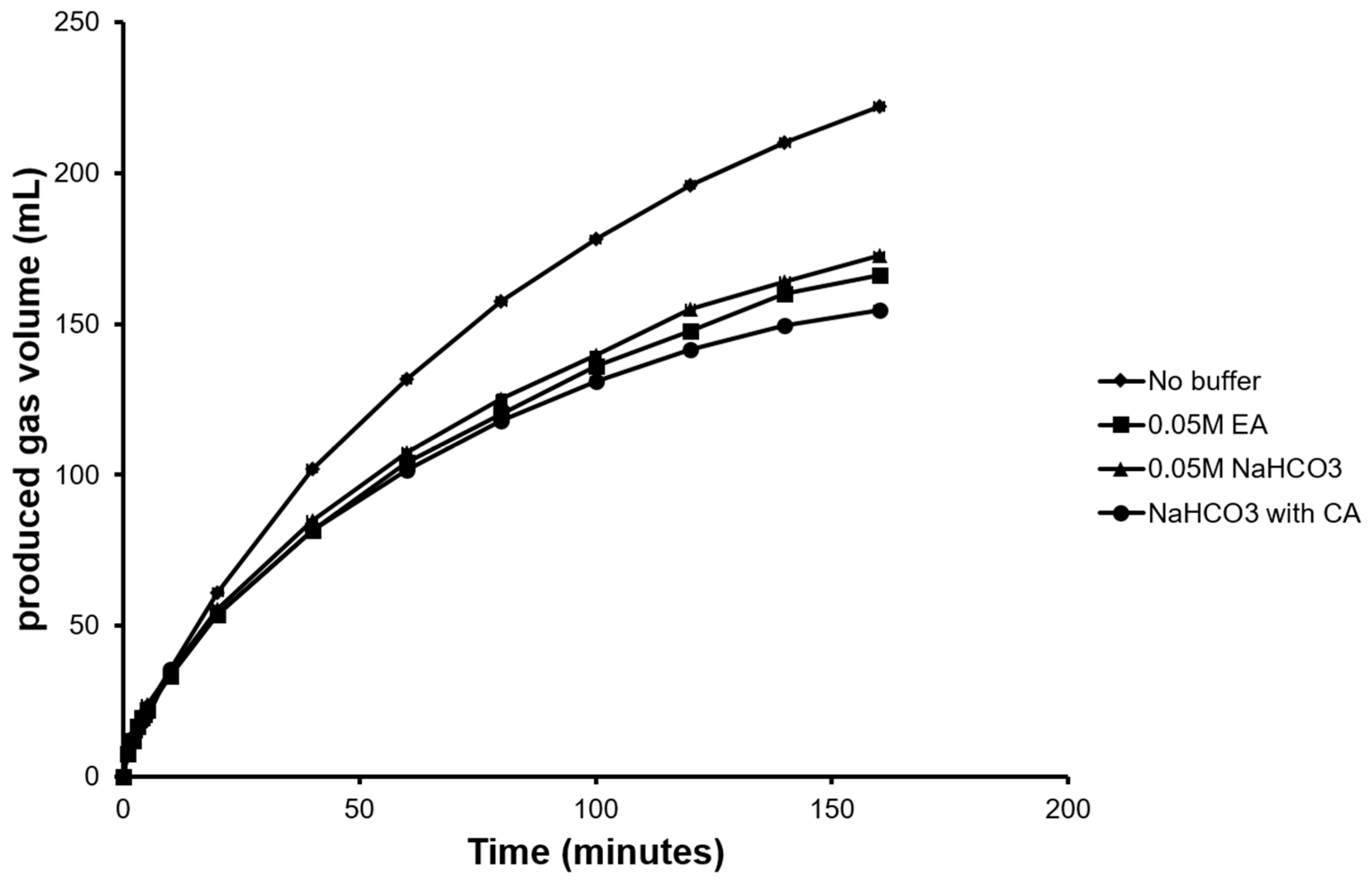

FA decomposition produced a total gas volume (H₂ + CO₂) of 225 mL with 93 mL of CO₂ evolved after a total reaction time of 160 min (Figure 2). To reduce CO₂ emission, various buffers were used to capture CO₂ and their absorption capacities were evaluated. As a conventional approach, ethanolamine buffer was used as one of the capture solvents in our study due to its high absorptive capacity [35] and popularity in power generation industries [36]. To test the enzymatic CO₂ capture, purified CA (Figure S2) dissolved in NaHCO₃ buffer along with NaHCO₃ buffer alone as control were evaluated in separate experiments. Maximum CO₂ capture was achieved when CA in NaHCO₃ was used as capture solvent resulting in 26 mL of emitted CO₂. This was a 40% reduction in emission when compared to using NaHCO₃ buffer alone (emitted CO₂ 44 mL). Though ethanolamine buffer indicated better absorptive capacity than NaHCO₃ buffer alone, the emitted CO₂ was higher (37 mL) than the CA buffer (Figure 2).

By incorporating in-situ enzymatic CO₂ capture along with FA decomposition, almost three quarters of the CO₂ evolved from FA decomposition was captured. The CO₂ capture and temporary storage in ionic buffer state allow easy stripping and reuse to further produce compounds such as solid carbonate [37,38,39] as a traditional approach or value-added bulk and fine chemical compounds [40] and even recycling into FA again, as demonstrated in following sections.

3.2. CO₂ Strip from Different Buffers after Absorption

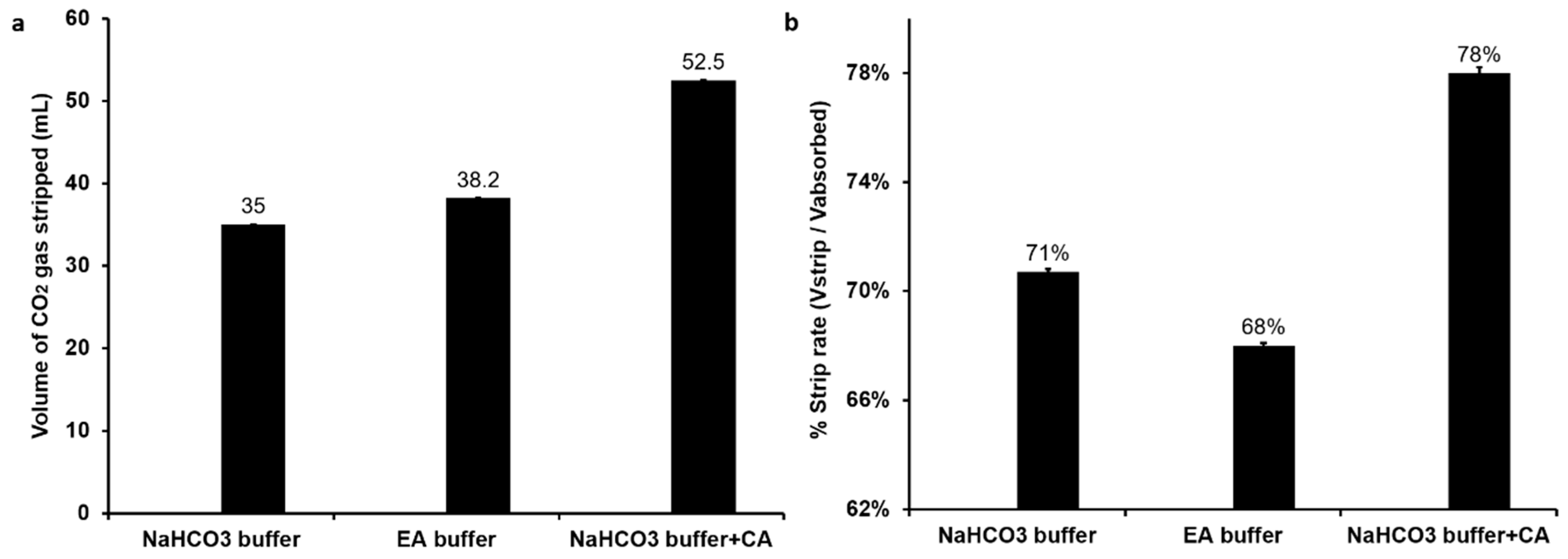

In this study, the CO₂ stripping by simple heating method was performed. As demonstrated by Figure 3a, after heating, there was 52.5 mL CO₂ stripped from the CA buffer, and the strip rate (V_strip/V_absorb) was 78% (Figure 3b). The stripped CO₂ from ethanolamine buffer was a few more than that from NaHCO₃ buffer, with a volume of 38.2 mL and 35 mL, respectively. However, compared with the CA buffer and NaHCO₃ buffer, the strip rate of ethanolamine buffer was the lowest (Figure 3b). After absorption in ethanolamine buffer, CO₂ can react with the primary and secondary amine to form amino carbonate [18]. On the other hand, with CA as biocatalyst, the CO₂ molecule is captured in buffer under equilibrium between CO₂ (aq) molecules and HCO₃⁻ anions. Therefore, the restoration of CO₂ from ethanolamine buffer requires more energy than from CA buffer. Thus, the strip rate of CA buffer was higher than ethanolamine buffer. As results show, the CA buffer not only indicated the best absorptive capacity, but also revealed the best strip rate. Next, we also investigated the reusability of stripped buffers (Figure S3). Although all buffers indicated reasonable reusability, the CA buffer did not show a significant impact compared with the other two buffers. This can be attributed to the denaturation of CA under high temperature (85 °C) during the stripping process. This has been confirmed in an independent experiment where high-temperature conditions of 50 °C and 85 °C showed a reduction of CA activity by 11% and 80%, respectively (Figure S4). This can be overcome by using thermostable enzymes [41] or by immobilization of enzyme onto solid supports to enhance the stability and ease separation of the enzyme prior to stripping [38,39,42]. Under all these CO₂ capture conditions, the production of H₂ gas was not influenced (Figure S5).

3.3. Enzymatic Hydrogenation of CO₂ Using Formate Dehydrogenase

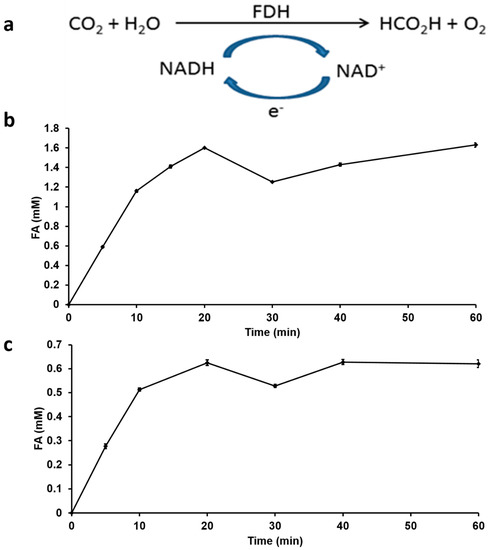

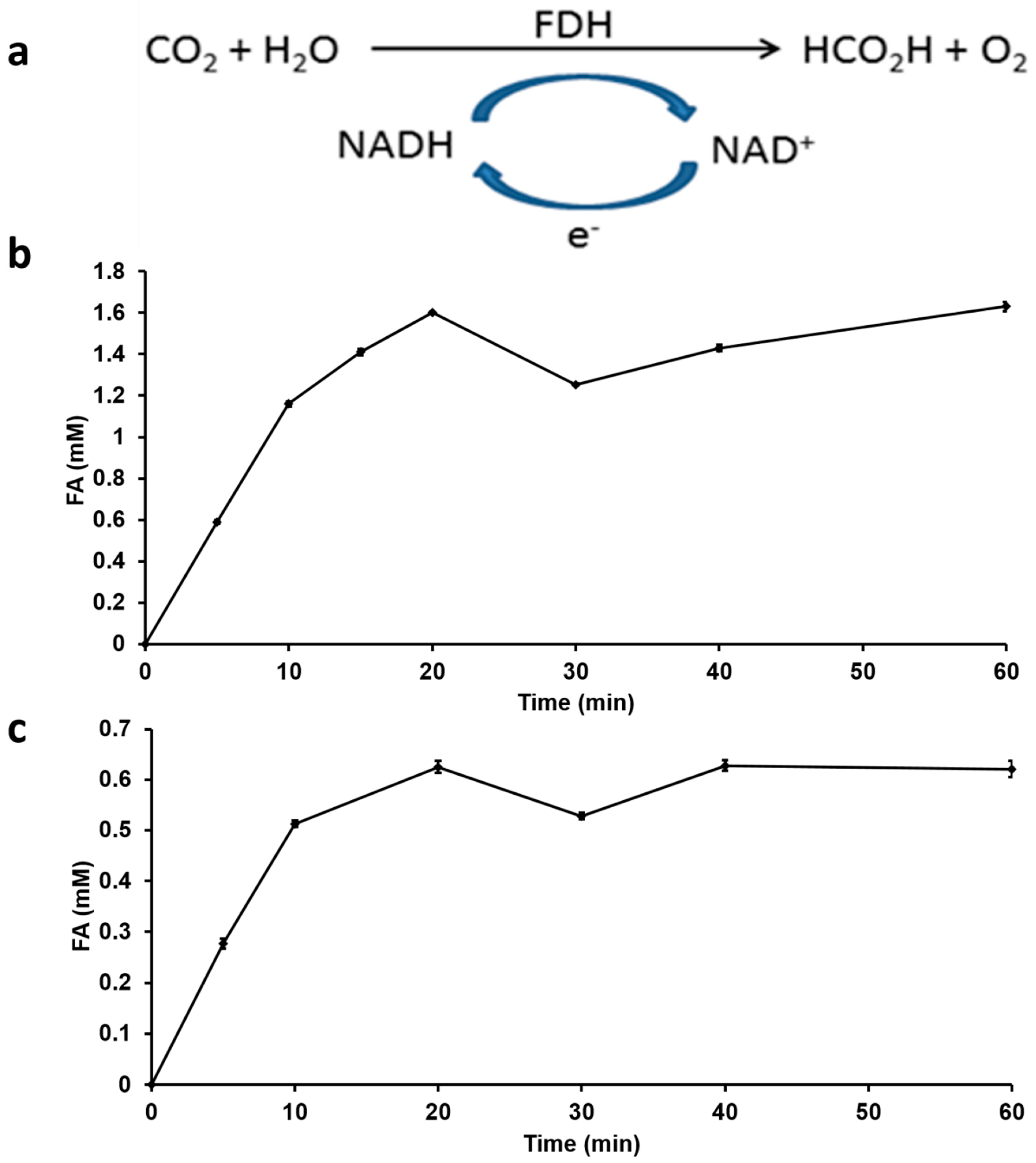

Conventionally, approaches used to convert captured CO₂ to FA use either electrochemical or chemical catalytic processes [43,44]. The direct CO₂ hydrogenation using chemical catalysts like ruthenium and phosphino-based [25] or iron catalysts [7], requires extreme conditions of temperature and pressure (110 °C and 130 bar) [43]. Direct CO₂ hydrogenation to FA also results in the formation of methanol as an additional product [45]. In addition, to the requirement of such extreme conditions, the final FA formed is very dilute and requires additional extraction or distillation steps to obtain pure FA. In nature, formate dehydrogenase enzymes [46] catalyze the reversible interconversion of CO₂ and formate under mild conditions of pH and temperature using water as a solvent. In this study, we use FDH with NADH as co-factor for the hydrogenation of captured CO₂ (Figure 4a). By directly adding 4 mM NADH as an initial concentration into the reaction mixture, FDH was able to convert captured CO₂ into FA with an increase in reaction rate observed during the first 20 min after which it plateaued to a final FA production quantity of 1.6 mM (Figure 4b). For a similar enzymatic CO₂ hydrogenation, typical FA product titers of 0.544 g/L and 0.497 g/L for free FDH and immobilized FDH respectively have been reported [31]. Enzymatic reactions are highly selective with minimal by-product formation, therefore by using FDH to hydrogenate CO₂, the formation of by-products such as methanol has been avoided thereby improving FA yield in this recycling process for H₂ production.

NADH is an essential co-factor for FDH, its efficiency is highly dependent on the NADH concentration as a hydrogen donor. Therefore, its oxidized form (NAD⁺) must be replenished back to NADH in order to have continued FA production. The regeneration of NADH as a separate step using additional enzymes and substrates can add to the process cost. In order to develop a self-sustaining FA production and recycling system, our approach has incorporated an electrochemical method for NADH regeneration step within the CO₂ hydrogenation step. The subsequent reaction releases hydrogen ion by the electrolysis of water using platinum and copper as electrodes using 650 mV of electric potential [34]. It is noteworthy to compare the minimal potential used in our set-up for NADH regeneration as opposed to the conventional requirement of 1.23 V required to produce H₂ gas by electrolysis of water [47]. This can significantly reduce costs when considering the design of the electrochemical set-up that can eventually translate to lower H₂ gas cost. The reaction profile for FA production with regenerated NADH showed a trend of initial rate increase similar to the process using fresh NADH which was followed by steady FA production (Figure 4c).

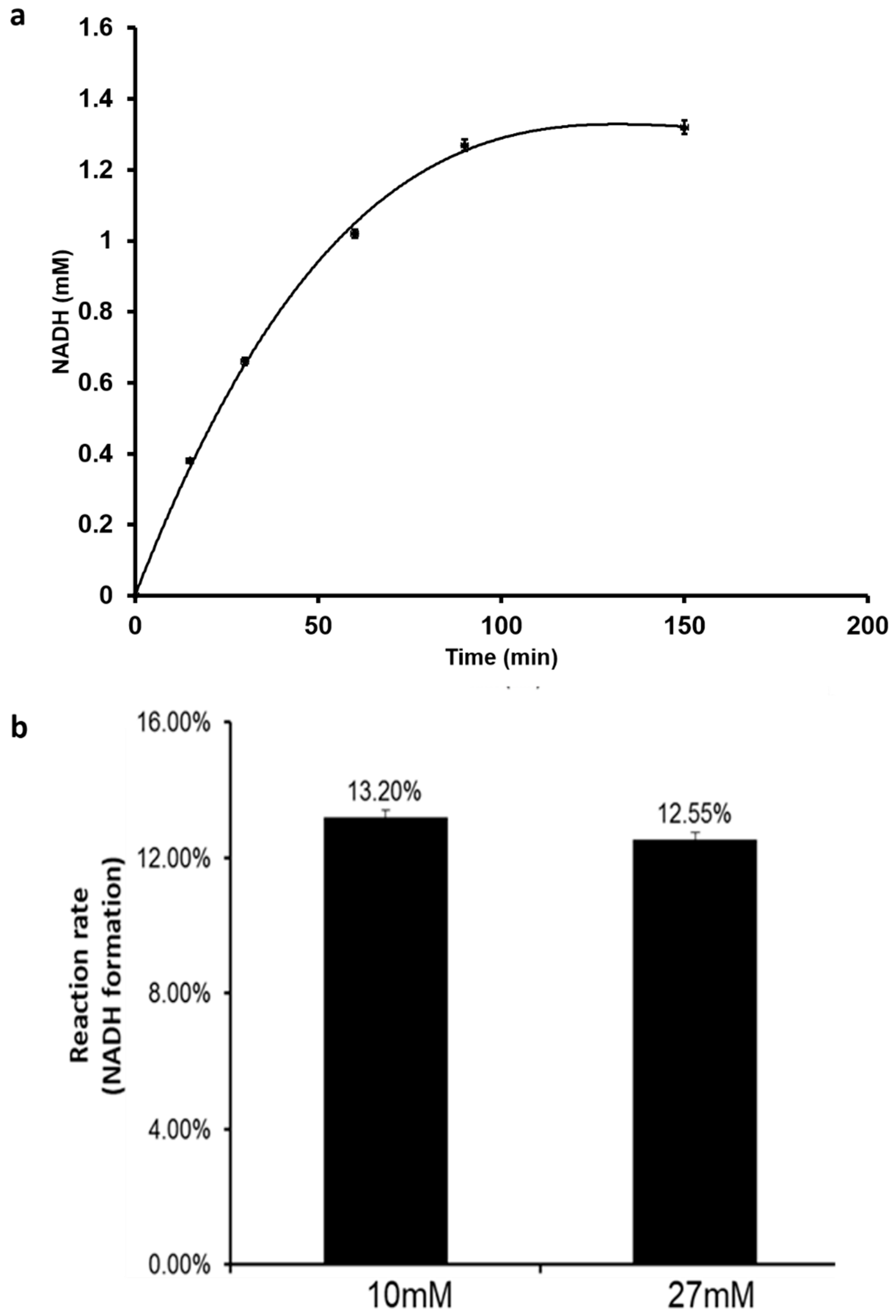

Furthermore, the effect of initial NAD+ concentration on NADH production rate was studied. At NAD+ concentration of 10 mM, the NADH concentration increased continuously until a steady quantity of 1.3 mM was produced (Figure 5a). A further increase of NAD+ initial concentration to 27 mM did not impact the production rate but yielded a higher final NADH concentration of 3.5 mM (Figure 5b). In this way, a constant production rate of NADH can be achieved that continuously feeds FDH for steady FA production. Therefore, by onetime addition of NAD⁺ to the initial electrochemical set-up and coupling with FDH, the system can become self-sufficient with the net reaction driven towards FA production.

4. Conclusions

In this study, we demonstrate the proof of concept for the complete recycling of formic acid for the H₂ gas production process. We have combined chemical, biocatalytic, and electrochemical reactions within a single set-up for efficient formic acid regeneration and reuse. By simultaneous H₂ production with in-situ enzymatic CO₂ capture, 72% of CO₂ produced by formic acid decomposition was efficiently transferred to the next process step. Following heat stripping, 78% of the captured CO₂ was recovered and directly fed for hydrogenation into formic acid by FDH. We have achieved the steady in-situ regeneration of NADH by electrolysis of water to boost the efficiency of FDH, an aspect that has great savings for large-scale practical applications since NADH is a high-cost molecule (bulk price per mole—3000 USD) [48] and the stoichiometric supply is not economically viable. Lastly, the entire process has been designed to work under mild reaction conditions with the exception of the CO₂ stripping step and therefore could translate to low process costs due to reduced energy consumption. In conclusion, the concept of an environmentally friendly, sustainable, low-cost formic acid recycle has been proposed and demonstrated. We believe this process to have the potential to address some of the impending issues around H₂ gas production from FA and to have a positive impact on the economics of H₂ as an energy carrier.
