Next Article in Journal
Novel Tubular Carbon Membranes Prepared from Natural Rattans
Previous Article in Journal
Electrochemical Reaction in Hydrogen Peroxide and Structural Change of Platinum Nanoparticle-Supported Carbon Nanowalls Grown Using Plasma-Enhanced Chemical Vapor Deposition
Open AccessArticle

Effects of Ion Bombardment Energy Flux on Chemical Compositions and Structures of Hydrogenated Amorphous Carbon Films Grown by a Radical-Injection Plasma-Enhanced Chemical Vapor Deposition

1
Graduate School of Engineering, Nagoya University, Furo-cho, Chikusa-ku, Nagoya 464-8603, Japan
2
Institute of Innovation for Future Society, Nagoya University, Furo-cho, Chikusa-ku, Nagoya 464-8603, Japan
*
Author to whom correspondence should be addressed.
Received: 23 December 2018 / Revised: 14 January 2019 / Accepted: 18 January 2019 / Published: 24 January 2019

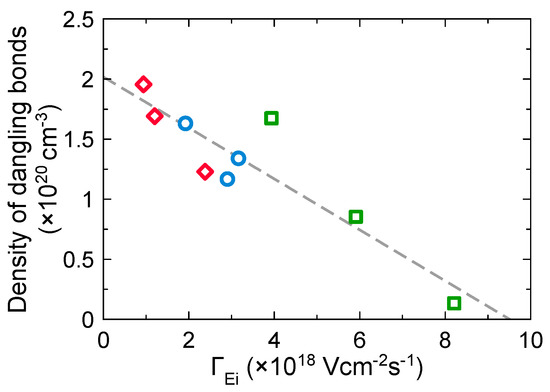

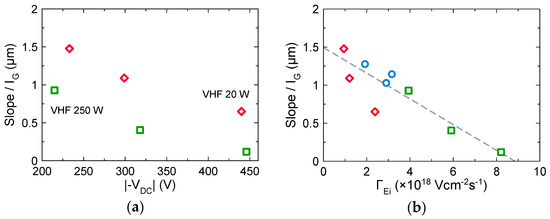

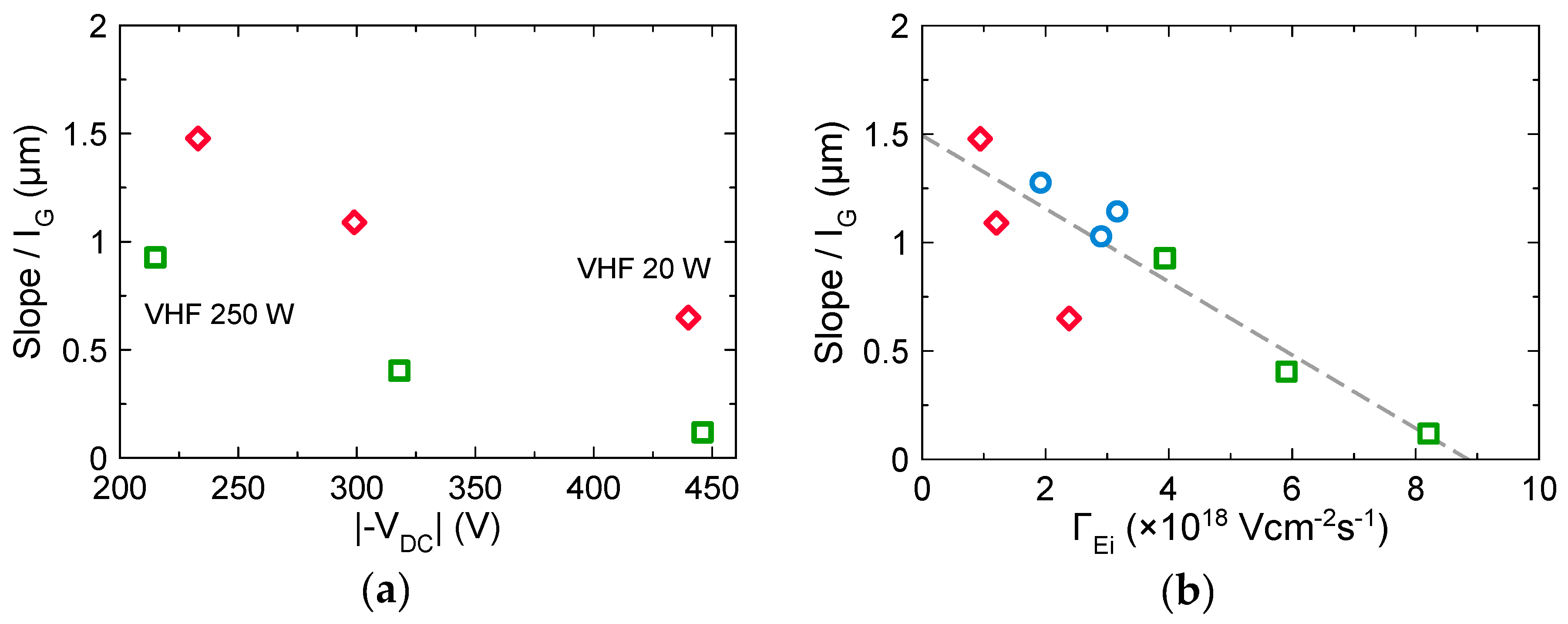

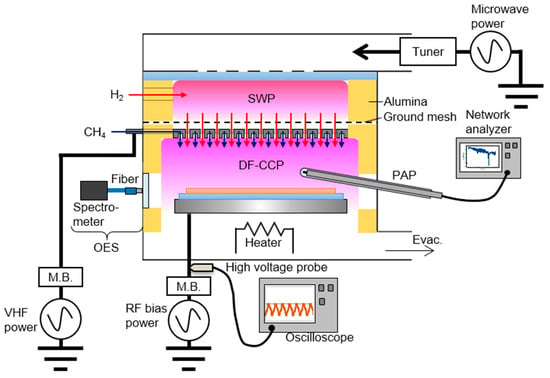

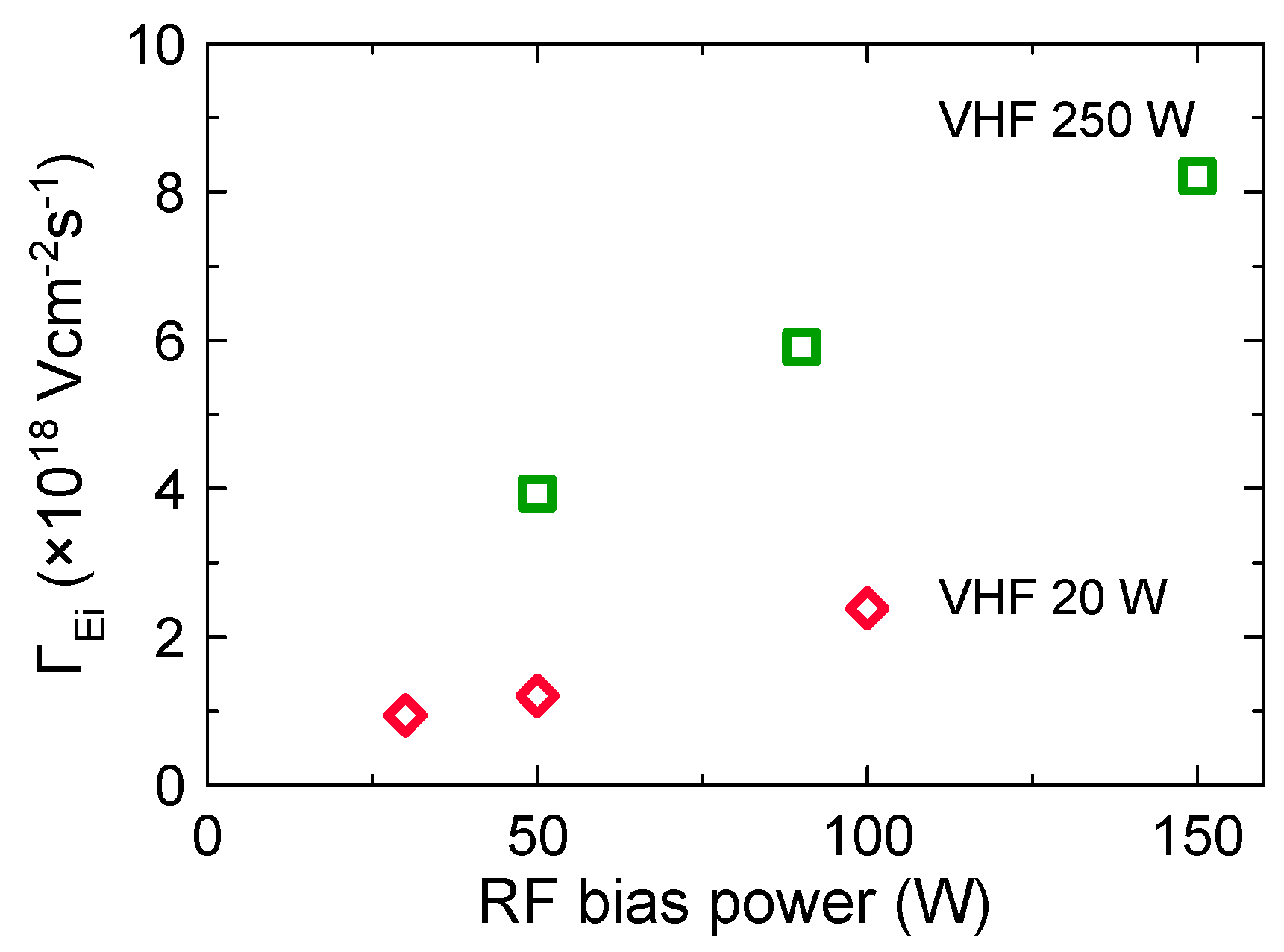

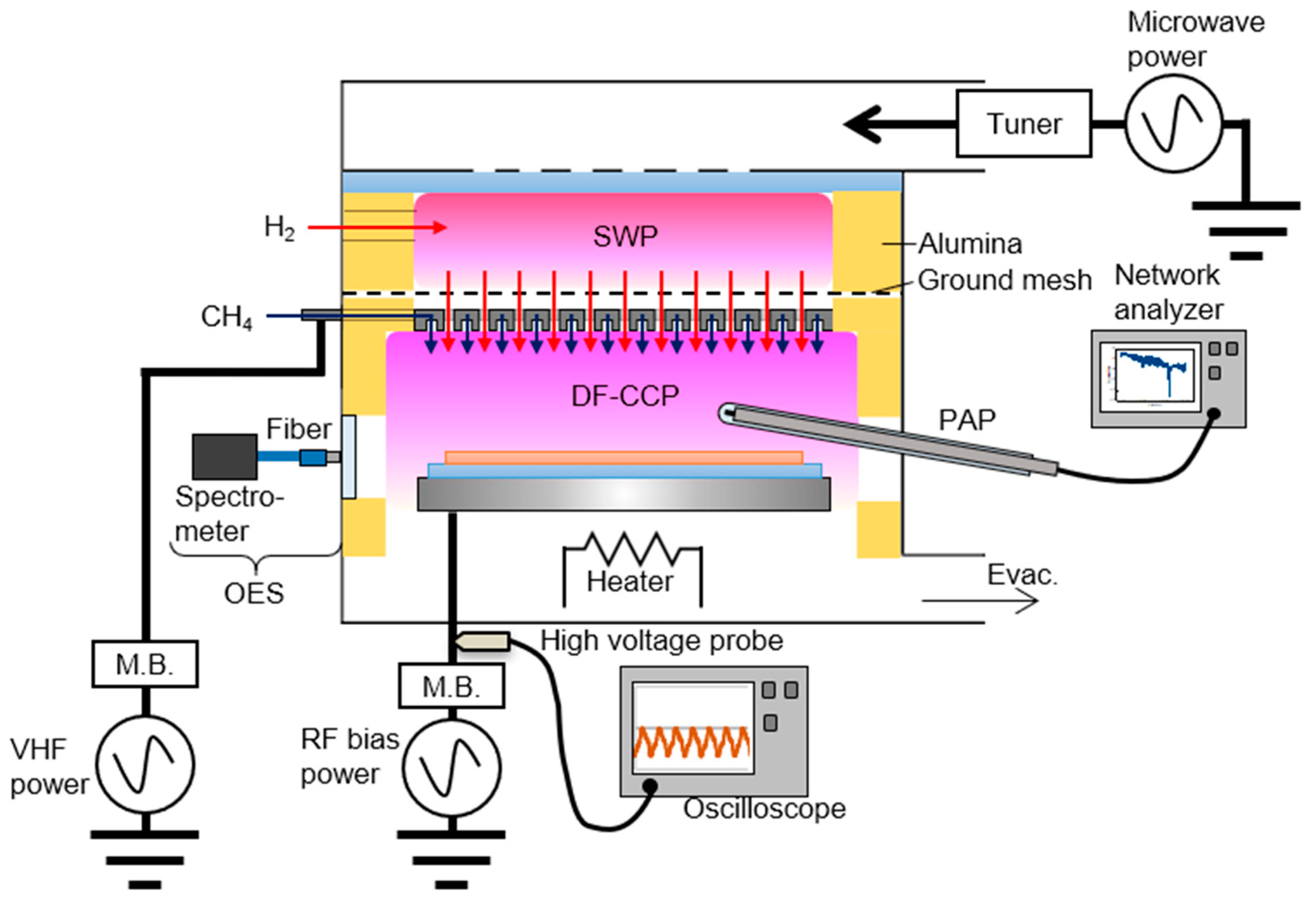

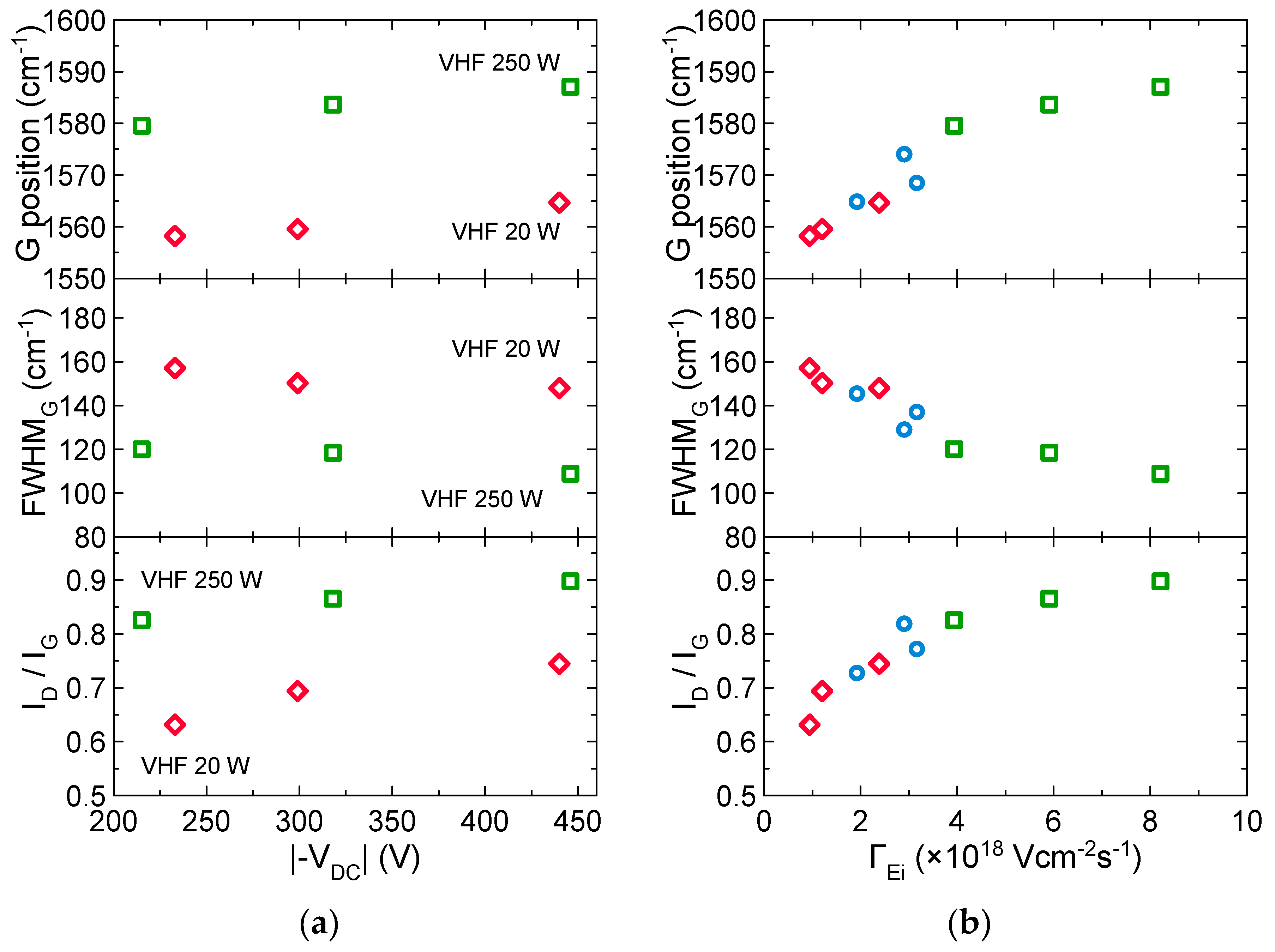

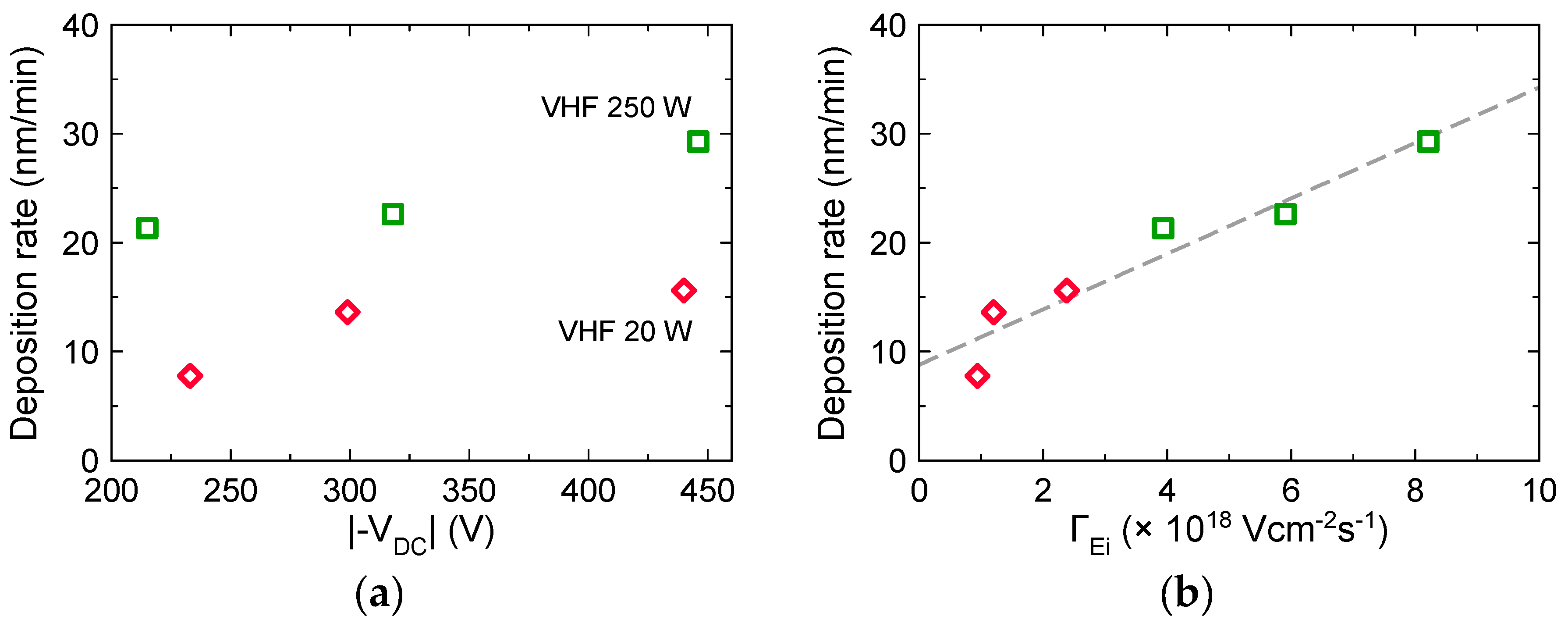

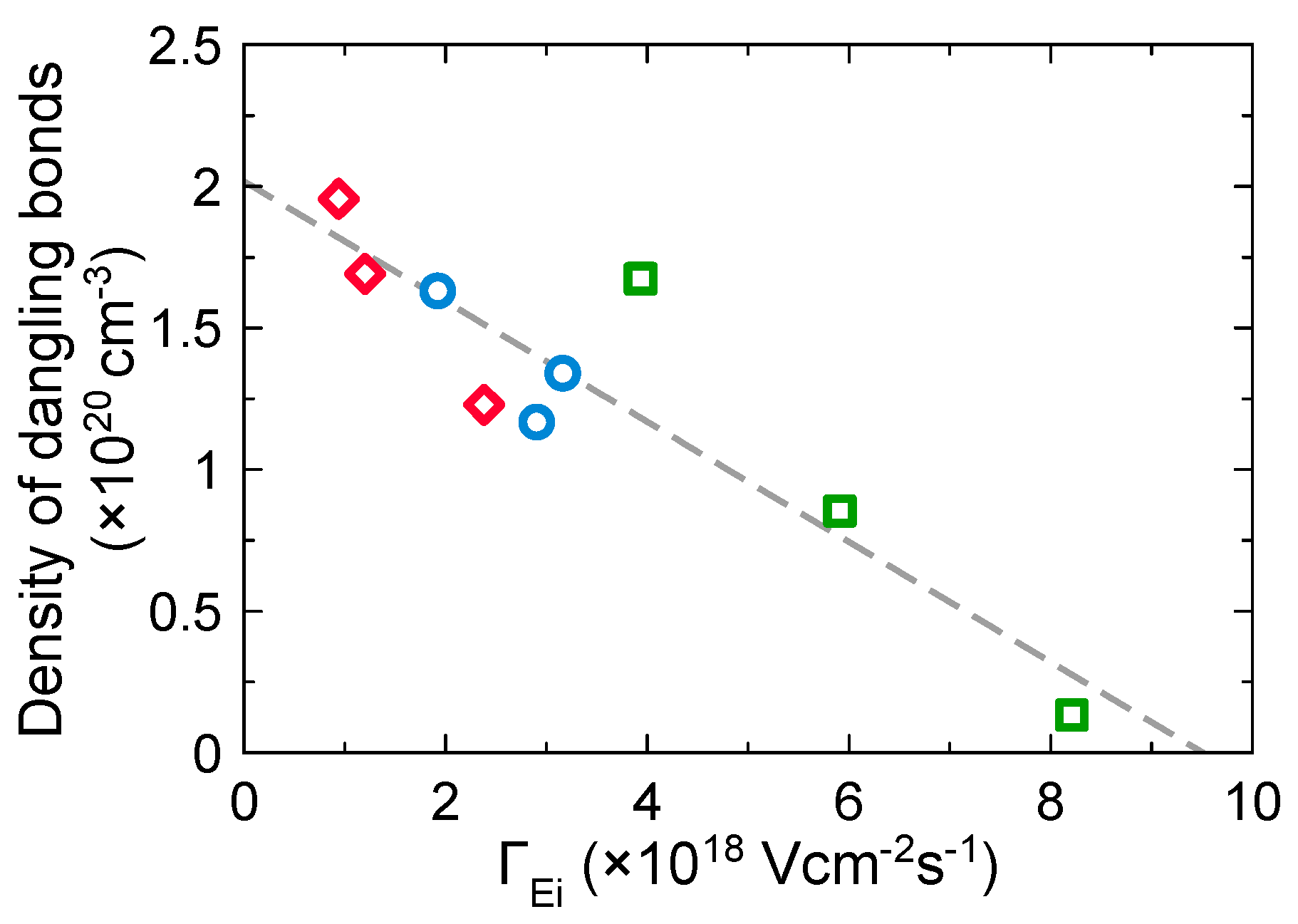

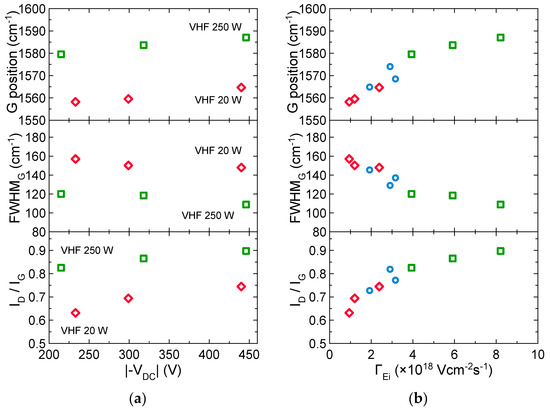

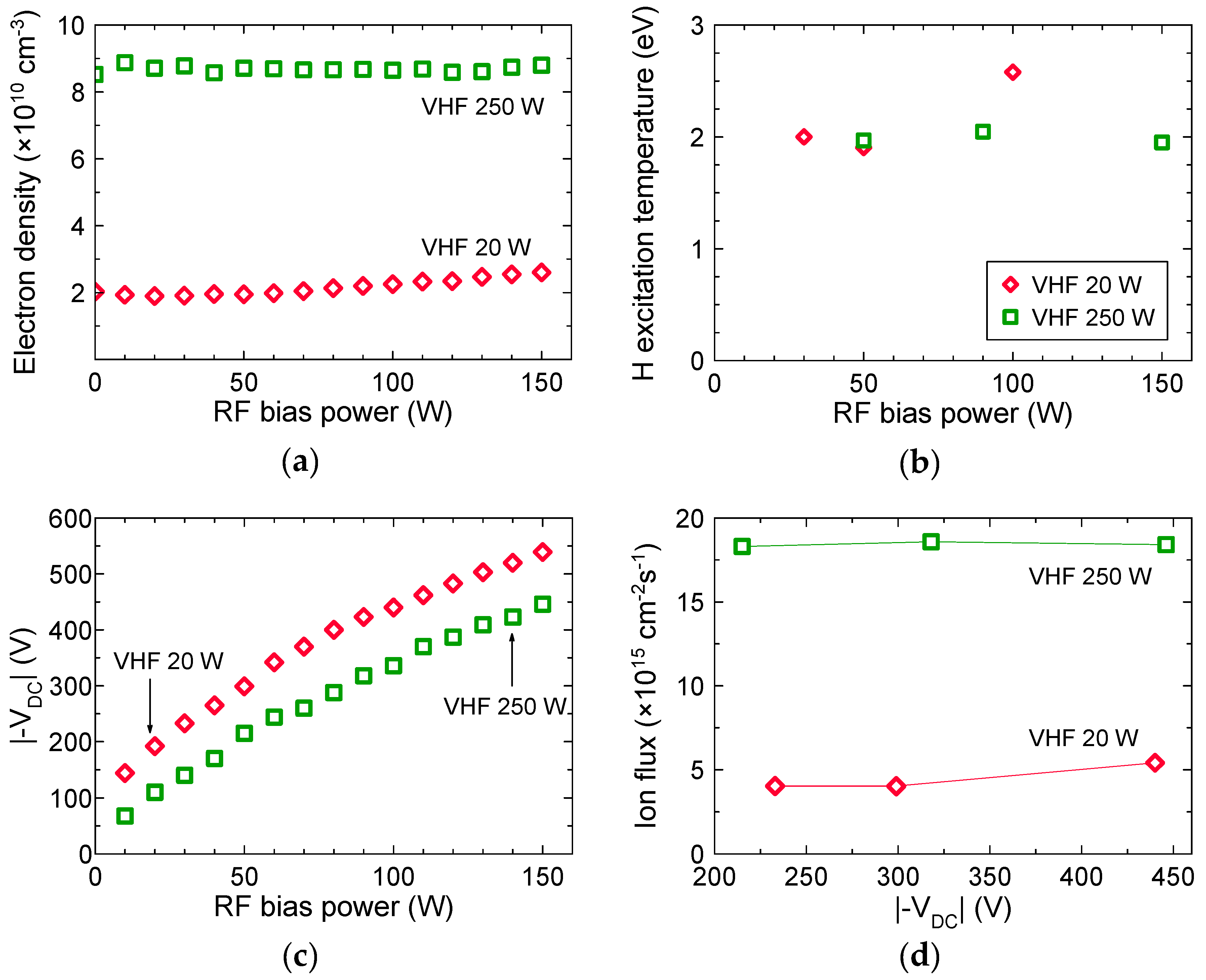

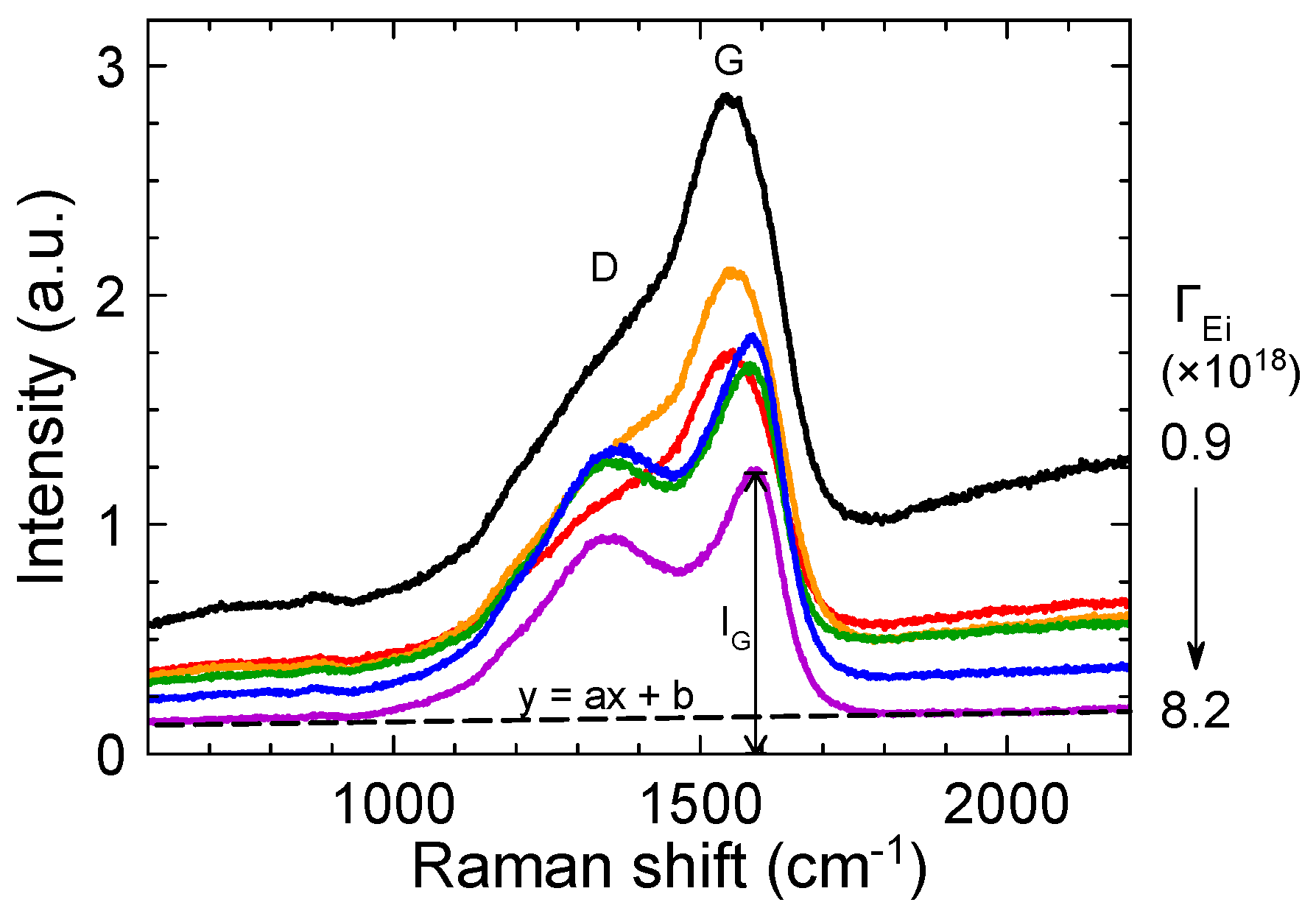

Hydrogenated amorphous carbon (a-C:H) films have attracted much attention, because of their excellent physical and chemical properties, such as high mechanical hardness, chemical robustness, a wide variety of optical bandgaps, and so forth. Although an ion bombardment energy has been regarded as essential in the well-know subplantation model, it alone is inadequate especially in complicated reactions of a plasma-enhanced chemical vapor deposition process. In this study, an ion bombardment energy flux (ΓEi) was proposed as a crucial factor to determine chemical compositions and structures of a-C:H films. To obtain the amounts of ΓEi, electron densities, hydrogen (H) excitation temperatures, and negative direct current (DC) self-bias voltage (-VDC) were measured. The deposition rate increased, and sp2-C clusters incorporation was induced by the ΓEi. With increasing ΓEi, photoluminescence (PL) backgrounds in Raman spectra decreased, while spin densities in electron spin resonance (ESR) measurements increased. These results suggested the H content of a-C:H film decreased depending on the amount of ΓEi. The ΓEi is one of the crucial factors to determine the properties of the a-C:H films. View Full-Text
Keywords: hydrogenated amorphous carbon (a-C:H); plasma enhanced chemical vapor deposition (PECVD); ion bombardment energy flux hydrogenated amorphous carbon (a-C:H); plasma enhanced chemical vapor deposition (PECVD); ion bombardment energy flux
Show Figures

Graphical abstract

MDPI and ACS Style

Sugiura, H.; Kondo, H.; Tsutsumi, T.; Ishikawa, K.; Hori, M. Effects of Ion Bombardment Energy Flux on Chemical Compositions and Structures of Hydrogenated Amorphous Carbon Films Grown by a Radical-Injection Plasma-Enhanced Chemical Vapor Deposition. C 2019, 5, 8.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
