Probing the Catalytic Activity of Tin-Platinum Decorated Graphene; Liquid Phase Oxidation of Cyclohexane

Department of chemistry, University of Malakand, 18800 Chakdara, Pakistan
Department of Chemistry, University of Education, Attock Campus, 43600 Attock, Pakistan
National Center of Excellence in Physical Chemistry, University of Peshawar, 25120 Peshawar, Pakistan
Author to whom correspondence should be addressed.
Submission received: 13 January 2016 / Revised: 4 February 2016 / Accepted: 5 February 2016 / Published: 10 March 2016
(This article belongs to the Special Issue Graphene Nanocomposite for Advanced Applications)


Pt-Sn supported on reduced graphene oxide (Pt-Sn/rGO) was synthesized and characterized by SEM, EDX, and XRD. The catalytic activity of Pt-Sn/rGO was tested for the solvent free liquid phase oxidation of cyclohexane to a mixture of cyclohexanol and cyclohexanone, also called KA oil, under mild reaction conditions. The products were analyzed gravimetrically, by UV spectrophotometer, and GC equipped with FID. The catalyst was found to be fairly active as well as selective for the desired products. The experimental data was analyzed by Freundlich, Temkin, and Langmuir adsorption isotherms. The L-H model was found to give a better fit of the data. The catalyst was fully recyclable and truly heterogeneous.

Graphical Abstract

1. Introduction

The catalytic oxidation of cyclohexane to KA oil (KA oil: cyclohexanol and cyclohexanone) is of immense significance as it has a broad range of industrial applications [1]. It is used in the synthesis of Nylon-6, Nylon-66 and also used as an excellent solvent for coating processes [2]. These products are not only important intermediates in the manufacturing of many drugs, vitamins, and fragrances [3], but are also important as precursors in the synthesis of plasticizers and food additives as well [4]. Other uses of cyclohexanone include their use as starting materials in the synthesis of insecticides, herbicides, and pharmaceuticals [5]. The modern industrial process for oxidation of cyclohexane to a mixture of cyclohexanol and cyclohexanone relies on a cobalt salt as a catalyst, a temperature range of 150 °C–160 °C, and pressure of air around about 1 atm under homogeneous reaction condition that results in the conversion of less than 6% and selectivity of cyclohexanol and cyclohexanone of around 80% [1]. Since, the process is characterized by low % conversion, high operational cost, and a tedious recovery of the catalyst from the reaction mixture, researchers have been exploring various alternatives to overcome these drawbacks. The addition of other homogeneous catalysts have also been reported for the oxidation of cyclohexane, like transition metal salts containing Co2+, Cr2+ or Mn2+, metalloporphyrins, MoO3, WO3, and Cr2O3 [6,7]. When this process is carried out in the presence of anhydrous metaboric acid, 87%–90% selectivity of mixture of cyclohexanol and cyclohexanone at 10%–15% conversion could be achieved [8].
Besides homogenous catalysts, scientists have also tried various heterogeneous catalysts for the selective oxidation of cyclohexane to KA oil. Schuchardt et al. [9,10] have reported improved results for the oxidation of cyclohexane using various metals and metals oxides supported on SiO2 as catalyst, however, leaching of metal was detected. Zhou et al. [11] investigated the catalytic oxidation of cyclohexane with O2 in the presence of nano crystalline Co3O4 catalyst using tert-butyl hydroperoxide as initiator, achieving 7.6 mol % conversions and 89.1% selectivity at 393 K in 6 h. However, in this process, without tert-butyl hydroperoxide (as initiator) the conversion was very low. Gold nanoparticles embedded in amorphous silica have shown a high catalytic activity and selectivity at 150 °C and 14.8 atm O2 for 3 h. However, this system also required tert-butyl hydroperoxide as initiator. Some other catalysts including metals such as Co, Fe, and Mn supported on γ-alumina, and supported pthalocyanines have also been reported to carry high activity and selectivity for the gas phase selective oxidation of C6H6 to KA oil, in the absence of solvents and reducing agents, under 1 atm of air pressure in the temperature range of 300 °C–400 °C [1].
Since reported for the first time in 2004, graphene has gained great attention in the scientific community [12]. Graphene, a two-dimensional material exhibits highly desirable physical characteristics such as a theoretical surface area of 2630 m2/g [13], high electronic and thermal conductivities [14], excellent mechanical properties [15], remarkable optical and electrical properties [16], and excellent chemical stability [17]. The interesting properties of graphene make it very attractive for possible applications in a variety of fields such as nanocomposites, nanoelectronics, batteries, supercapacitors, hydrogen storage, and sensors, etc. [18]. A number of different approaches have been developed for the synthesis of graphene sheets, however, the most efficient and suitable one is the reduction of graphite oxide (GO) to reduce graphene oxide in solution. This method of obtaining reduced graphene oxide is preferable because it is not only economical but also has a scalable, controlled, and reproducible synthetic nature [19]. The surfaces of GO have an abundance of functional groups which could be used as sites for anchoring nanoparticles. It is thus possible to utilize them as a support in the fabrication of hybrids of graphene and nanoparticles. Immobilizing various metal nanoparticles on graphene sheets can afford hybrid composites with admirable properties for a wide range of applications, including specifically catalytic applications [18].
It can be seen from the literature that graphene has a great significance as a heterogeneous catalyst support. Wang et al. [18] reported the catalytic performance of Pt nanoparticles supported on reduced graphene oxide for the electro-oxidation of methanol. Gold-nanoparticles and reduced graphene oxide composite has been reported for the efficient oxidation of benzyl alcohol [20]. Shouheng et al. [21] supported Ni/Pd core/shell nanoparticles on graphene and used the sample as a catalyst in Suzuki-Miyaura cross-coupling reactions. The catalyst was found to be highly stable and efficient, and it provided a high percent conversion. Our group previously reported linear amino acids covalently immobilized on graphene sheet as catalysts for asymmetric aldol reactions between cyclohexanone and various aldehydes. The reactions were found to exhibit high yields as well as excellent ee values [22].
The application of Pt-Sn supported on carbon for the oxidation of ethanol by Tseng et al. [23] and of graphene as a support for various metals in heterogeneous catalysis inspired us to prepare Pt-Sn/reduced graphene oxide composite and evaluate its catalytic performance for the selective oxidation of cyclohexane, which is a hydrocarbon and hence very inert to oxidation. To the best of our knowledge, the use of Pt-Sn/rGO as a catalyst for the liquid phase aerobic oxidation of cyclohexane to cyclohexanone and cyclohexanol has not been previously investigated. This paper describes our study on the catalytic efficiency of Pt-Sn/rGO to selectively oxidize liquid C6H6 to cyclohexanone and cyclohexanol by molecular oxygen, under mild reaction conditions.

2. Results and Discussion

2.1. Characterization of the Catalyst

Figure 1a shows the SEM image of rGO, exhibiting a smooth lamellar structure. Figure 1b through Figure 1e present the SEM images of Pt-Sn/rGO at different magnifications. These images clearly reveal a high yield of Pt-Sn in the form of well-dispersed tiny spheres anchored to the surface of rGO sheets. The average size of the rGO sheet is <20 µm, thickness is 4–20 nm with <30 layers. The size of Pt-Sn nanospheres is estimated by the intercept approach to be about 60–85 nm. EDX spectrum show clear peaks for Pt and Sn in the sample. From the EDX analysis, the sample is found to contain Pt and Sn about 0.173 and 8.088 wt %, respectively. The calculated amounts of Pt and Sn in the sample as based on the stoichiometric calculations are 0.144 ± 0.029 and 7.07 ± 1.01 wt %, respectively. It is quite evident that there is a reasonable agreement between the theoretical calculations and experimental results of the amounts of the metals on the support. Figure 2 shows the XRD patterns of the reduced graphene sheet and Pt-Sn decorated reduced graphene sheet. The diffraction peaks corresponding to Pt were observed at 2θ = 39.8° and 67.5°, while peaks for Sn appeared at 2θ = 33.8° and 51.3°, respectively as reported in the literature [23]. The broad peak for reduced graphene sheet appear was observed at 2θ = 25°. Furthermore, no crystalline impurities were observed.
To discuss the nature of bond between the metallic spheres and the support, we resort to reports in literature. Li et al. [24] argued that rGO bears defects which include defect carbons with dangling bonds of the sp2 type, developed as a result of the conversion of GO to its reduced form. These defect sites provide an effective mean of chemically adhering metals to the rGO. The same argument for the bonding of metal to the reduced grapheme has been made by Chen et al. [19]. This led us to assert that in our case, like in many others as reported in literature, the Pt-Sn nanospheres are anchored by true chemical bond to the rGO.

2.2. Oxidation of Cyclohexane: Effect of Reaction Conditions

The reaction was monitored periodically for about 12 h under a temperature of 343 K, 760 Torr pO2, 50 mg of catalyst, and 10 mL of cyclohexane. Figure 3 presents data obtained for this part of the study in the form of the rate of the reaction as a function of time span of the reaction. The rate was calculated as the number of moles of the target products formed per gram of the catalyst per hour, which is thus an indirect measure of the selectivity to the desired products. It can be seen in the Figure 3 that the selectivity raises very rapidly as the time span of the reaction prolongs, until a maximum is reached in about 3 h. In the last 9 h, a progressive decrease in the selectivity is observed, showing the over-oxidation of the target.
The effect of temperature was investigated in the range of 313–343 K by running the reaction under conditions; time: 3 h, pO2: 760 Torr, catalyst: 50 mg, and C6H6: 10 mL. A linear relation was found to exist between conversion and temperature so that 343 K was chosen to be the optimal temperature for the reaction. Figure 4 shows the Arrhenius plot for the temperature study of the reaction. From the plot, the activation energy of the reaction is calculated to be 58.1 kJ·mol−1. The activation energy value of the reaction suggests that the catalytic reaction is kinetically controlled.
The study of the effect of the pO2 on the reaction under conditions, viz, temperature: 343 K, time: 3 h, catalyst: 50 mg, and cyclohexane: 10 mL showed that pO2 exerted a positive influence on the conversion of the substrate up to about 550 Torr. Above 550 Torr, no effect of the pO2 on conversion was observed. The data is recorded in Figure 5 in the form of rate vs pO2 plot which shows a plateau above 550 Torr. This might be due to the saturation of the surface with oxygen so that it is unable to accommodate additional oxygen resulting from an increase in the pO2.
The effect of stirring speed on the reaction was also included in the study. For the reaction under conditions as optimized thus far, the stirring speed when varied revealed that an increase in the stirring rate could enhance conversion only up to 580 rpm. At all values of stirring rate above 580 rpm, the conversion remained unchanged. This also suggests a kinetically controlled nature of the reaction. Because, were the reaction diffusion controlled, the conversion would increase with stirring speed without reaching a limit.

2.3. Kinetic Analysis of the Data

The data obtained for the solvent free liquid phase oxidation of cyclohexane by oxygen over Pt-Sn/rGO as catalyst was evaluated using Freundlich, Temkin, and Langmuir adsorption isotherms.
According to the modified form of Freundlich adsorption isotherm keeping cyclohexane concentration constant, the rate equation is given as;
R a t e = k r K O 2 [ O 2 ] 1 n
K F = k r K O 2
R a t e = K F [ O 2 ] 1 n
the constants KF and n are two different temperature dependent parameters, where n is greater than one and KF is considered as adsorption binding constant.
Similarly, Temkin adsorption isotherm was tested for the experimental data by putting the data in the modified form of Temkin adsorption isotherm. By keeping the concentration of cyclohexane constant, the rate equation of the Temkin model assumes the form as:
R a t e = k r ( K 1 l n K 2 [ O 2 ] )
However, a satisfactory fit of the data was not obtained with either of the modified Freundlich and Temkin isotherm models. Hence, both Freundlich and Temkin models were excluded.
According to the Langmuir Hinshelwood mechanism the rate can be expressed as:
R a t e = k r K p O 2 1 + K p O 2
where k is the adsorption equilibrium constant of oxygen and kr is the rate constant.
In the linear form, equation (5) becomes:
1 R a t e = 1 k r K p O 2 + 1 K r
It can be further modified as:
p O 2 R a t e = 1 k r K + p O 2 k r
The experimental data was fitted to equation (7) as presented in Figure 6, and a regression value of 0.9853 was obtained. Then the data was subjected to kinetic analysis using nonlinear square fit method, and the rates were calculated using the values of kr and K. The plots of the experimental and calculated rates are given in Figure 7 as the functions of pO2, showing an excellent mutual correlation. Thus to conclude kinetic analysis, L-H adsorption isotherm model explains the kinetics of the catalytic reaction.

3. Experimental Section

3.1. General

The chemicals used in the present study were of high purity and research grade and were used without any further purification. Nitrogen and oxygen were supplied by BOC (Texila, Pakistan) and for their further purification specific filters (C.R.S.Inc.202268 & C.R.S.Inc.202223) were used.

3.2. Synthesis of Pt-Sn Supported on Graphene Oxide (Pt-Sn/rGO)

Graphene oxide (GO) was synthesized from graphite powder using modified Hummer’s method. To a mixture of 1 g of graphite and 0.5 g of sodium nitrate, 23 mL of conc. H2SO4 was added under constant stirring. After 1 h, 3 g of KMnO4 was added slowly while keeping the temperature less than 293 K to prevent overheating and explosion. The mixture was stirred at 308 K for 12 h and the resulting solution was diluted by adding 500 mL of water under vigorous stirring. To ensure the completion of reaction with KMnO4, the suspension was further treated with 30% H2O2 solution (5 mL). The resulting mixture was filtered and washed in turn with HCl and H2O. The mixture was then filtered and dried to get graphene oxide. GO was then reduced to rGO by stirring with hydrazine monohydrate (1 µL for 3 mg of GO) at 353 K for 12 h.
In the next step, rGO was treated with 500 mL solution of SnCl2 (11.3 g) and HCl (13 mL). The mixture was sonicated for 30 min and allow to age for 48 h at 25 °C. Then rGO was separated by centrifugation and decantation and first washed with double distilled water (DDW), and then with N-hexane. Subsequently, the sample was treated with 500 mL solution of PtCl4 (0.25 g) and HCl (13 mL) and the mixture was sonicated for 30 min at room temperature. The same procedure for separation and washing with DDW and N-hexane, as mentioned earlier, was followed again.

3.3. Characterization of the Catalyst

Pt-Sn/rGO was characterized by modern techniques including scanning electron microscopy (SEM, JSM 5910, Jeol, Japan) and energy dispersive X-ray spectroscopy (EDX) of the sample were recorded on EDX detecters (INC200, Oxford, UK). The powder X-ray Diffraction spectrum was recorded on X-ray Diffractometer (XRD) Rigaku D/Max-II, Jeol, Japan.

3.4. Catalytic Test

In a typical catalytic test, under specified conditions of temperature, pressure of oxygen, and stirring speed, oxygen or a mixture of oxygen and nitrogen was bubbled through a suspension of 50 mg of Pt-Sn/rGO in 10 mL of C6H6 while the suspension was stirred by a magnetic stirrer. The flow of gases was regulated by needle valves, and the temperature was maintained by a heating cord and monitored by a K type thermocouple connected to a Digital Temperature Controller (55 rajah crescent, Singapore). The catalyst was recovered by simple filtration. The products were monitored by gravimetric method, Ultraviolet-visible spectrophotometer, and Gas Chromatography fitted with Flame Ionization Detector.

4. Conclusions

Pt-Sn/rGO sheets were prepared and characterized by SEM, EDX, and XRD. The catalytic potential of the sample was tapped for the solvent free liquid phase oxidation of cyclohexane to KA oil, under mild conditions of reaction. The reaction conditions were optimized as; Cyclohexane: 10 mL, Catalyst: 50 mg, Temperature: 343 K, pO2: 550 Torr, and Stirring speed: 580 rpm and obtain 24.1% conversion and 90% selectivity. The sample was recoverable from the reaction mixture simply by filtration, and was found not to experience any appreciable loss in activity for the reaction during four successive runs. Kinetic analysis of the data revealed that the reaction follows the L-H model for non-competitive adsorption.
The study will be extended further to obtain an elaborate comparison of the activity and selectivity of Pt-Sn/GO sheets and Pt-Sn/rGO sheets.


The authors greatly acknowledge financial support from Higher Education Commission of Pakistan, Pakistan Science Foundation, and University of Malakand, Khyber Pakhtunkhwa, Pakistan.

Author Contributions

Mohammad Sadiq, principal investigator and supervisor; Khalid Saeed, prepared the catalyst; Saima Sadiq, preform catalytic activity of the catalyst, Muhammad Sohail Ahmad, characterized the catalyst; Muhammad Ali, write the article; Muhammad Abid Zia and Rahmat Ali, help in the research and writing.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Ebadi, A.; Safari, N.; Peyrovi, M.H. Aerobic oxidation of cyclohexane with γ-alumina supported metallophthalocyanines in the gas phase. Appl. Catal. A Gen. 2007, 321, 135–139. [Google Scholar] [CrossRef]
  2. Chen, L.; Zhou, T.; Chen, L.; Ye, Y.; Qi, Z.; Freund, H.; Sundmacher, K. Selective oxidation of cyclohexanol to cyclohexanone in the ionic liquid 1-octyl-3-methylimidazolium chloride. Chem. Commun. 2011, 47, 9354–9356. [Google Scholar] [CrossRef] [PubMed]
  3. Salavati-Niasari, M.; Zamani, E.; Ganjali, M.R.; Norouzi, P. Synthesis, characterization and liquid phase oxidation of cyclohexanol using tert-butylhydroperoxide over host (zeolite-Y)/guest (copper (II) complexes of 12-and 13-membered diaza dioxa Schiff-base macrocyclic ligand) nanocomposite materials (HGNM). J. Mol. Catal. A Chem. 2007, 261, 196–201. [Google Scholar] [CrossRef]
  4. Yi, Q.; Zhang, J.; Huang, W.; Liu, X. Electrocatalytic oxidation of cyclohexanol on a nickel oxyhydroxide modified nickel electrode in alkaline solutions. Catal. Commun. 2007, 8, 1017–1022. [Google Scholar] [CrossRef]
  5. Sakthivel, A.; Selvam, P. Mesoporous (Cr) MCM-41: A mild and efficient heterogeneous catalyst for selective oxidation of cyclohexane. J. Catal. 2002, 211, 134–143. [Google Scholar] [CrossRef]
  6. Conte, M.; Liu, X.; Murphy, D.M.; Whiston, K.; Hutchings, G.J. Cyclohexane oxidation using Au/MgO: An investigation of the reaction mechanism. Phys. Chem. Chem. Phys. 2012, 14, 16279–16285. [Google Scholar] [CrossRef] [PubMed]
  7. Yu, H.; Peng, F.; Tan, J.; Hu, X.; Wang, H.; Yang, J.; Zheng, W. Selective catalysis of the aerobic oxidation of cyclohexane in the liquid phase by carbon nanotubes. Angew. Chem. Int. Ed. Engl. 2011, 50, 3978–3982. [Google Scholar] [CrossRef] [PubMed]
  8. Maksimchuk, N.V.; Kovalenko, K.A.; Fedin, V.P.; Kholdeeva, O.A. Cyclohexane selective oxidation over metal-organic frameworks of MIL-101 family: Superior catalytic activity and selectivity. Chem. Commun. 2012, 48, 6812–6814. [Google Scholar] [CrossRef] [PubMed]
  9. Schuchardt, U.; Pereira, R.; Krähembühl, C.E.; Rufo, M.; Buffon, R. Synergistic effect of iron and copper oxides supported on silica in the room temperature oxidation of cyclohexane. Appl. Catal. A Gen. 1995, 131, 135–141. [Google Scholar] [CrossRef]
  10. Zhou, L.; Xu, J.; Miao, H.; Wang, F.; Li, X. Catalytic oxidation of cyclohexane to cyclohexanol and cyclohexanone over Co3O4 nanocrystals with molecular oxygen. Appl. Catal. A Gen. 2005, 292, 223–228. [Google Scholar] [CrossRef]
  11. Da Cruz, R.S.; Silva, J.M.D.S.; Arnold, U.; Schuchardt, U. Catalytic activity and stability of a chromium containing silicate in liquid phase cyclohexane oxidation. J. Mol. Catal. A Chem. 2001, 171, 251–257. [Google Scholar] [CrossRef]
  12. Huang, H.; Sun, D.; Wang, X. Pt-Co alloy nanoparticles supported on graphene nanosheets with high performance for methanol oxidation. Chin. Sci. Bull. 2012, 57, 3071–3079. [Google Scholar] [CrossRef]
  13. Bolotin, K.I.; Sikes, K.J.; Jiang, Z.; Klima, M.; Fudenberg, G.; Hone, J.; Stormer, H.L. Ultrahigh electron mobility in suspended graphene. Solid State Commun. 2008, 146, 351–355. [Google Scholar] [CrossRef]
  14. Marinkas, A.; Arena, F.; Mitzel, J.; Prinz, G.M.; Heinzel, A.; Peinecke, V.; Natter, H. Graphene as catalyst support: The influences of carbon additives and catalyst preparation methods on the performance of PEM fuel cells. Carbon 2013, 58, 139–150. [Google Scholar] [CrossRef]
  15. Lee, C.; Wei, X.; Kysar, J.W.; Hone, J. Measurement of the elastic properties and intrinsic strength of monolayer graphene. Science 2008, 321, 385–388. [Google Scholar] [CrossRef] [PubMed]
  16. Ghosh, S.; Calizo, I.; Teweldebrhan, D.; Pokatilov, E.P.; Nika, D.L.; Balandin, A.A.; Lau, C.N. Extremely high thermal conductivity of graphene: Prospects for thermal management applications in nanoelectronic circuits. Appl. Phys. Lett. 2008, 92, 151911. [Google Scholar] [CrossRef]
  17. Metin, Ö.; Kayhan, E.; Özkar, S.; Schneider, J.J. Palladium nanoparticles supported on chemically derived graphene: An efficient and reusable catalyst for the dehydrogenation of ammonia borane. Int. J. Hydrog. Energy 2012, 37, 8161–8169. [Google Scholar] [CrossRef]
  18. Li, Y.; Gao, W.; Ci, L.; Wang, C.; Ajayan, P.M. Catalytic performance of Pt nanoparticles on reduced graphene oxide for methanol electro-oxidation. Carbon 2010, 48, 1124–1130. [Google Scholar] [CrossRef]
  19. Hsu, K.C.; Chen, D.H. Green synthesis and synergistic catalytic effect of Ag/reduced graphene oxide nanocomposite. Nanoscale Res. Lett. 2014, 9, 1–10. [Google Scholar] [CrossRef] [PubMed]
  20. Yu, X.; Huo, Y.; Yang, J.; Chang, S.; Ma, Y.; Huang, W. Reduced graphene oxide supported Au nanoparticles as an efficient catalyst for aerobic oxidation of benzyl alcohol. Appl. Surf. Sci. 2013, 280, 450–455. [Google Scholar] [CrossRef]
  21. Metin, Ö.; Ho, S.F.; Alp, C.; Can, H.; Mankin, M.N.; Gültekin, M.S.; Sun, S. Ni/Pd core/shell nanoparticles supported on graphene as a highly active and reusable catalyst for Suzuki-Miyaura cross-coupling reaction. Nano Res. 2013, 6, 10–18. [Google Scholar] [CrossRef]
  22. Sadiq, M.; Aman, R.; Saeed, K.; Ahmad, M.S.; Zia, M.A. Green and sustainable heterogeneous organo-catalyst for asymmetric aldol reactions. Mod. Res. Catal. 2015, 4, 43. [Google Scholar] [CrossRef]
  23. Su, B.J.; Wang, K.W.; Tseng, C.J.; Wang, C.H.; Hsueh, Y.J. Synthesis and catalytic property of PtSn/C toward the ethanol oxidation reaction. Int. J. Electrochem. Sci. 2012, 7, 5246–5255. [Google Scholar]
  24. Zhang, W.; Li, Y.; Zeng, X.; Peng, S. Synergetic effect of metal nickel and graphene as a cocatalyst for enhanced photocatalytic hydrogen evolution via dye sensitization. Sci. Rep. 2015, 5. [Google Scholar] [CrossRef] [PubMed]
Figure 1. SEM images of (a) reduced graphene sheet, (be) Pt-Sn decorated reduced graphene sheet and (f) EDX of the Pt-Sn decorated reduced graphene sheet.
Figure 1. SEM images of (a) reduced graphene sheet, (be) Pt-Sn decorated reduced graphene sheet and (f) EDX of the Pt-Sn decorated reduced graphene sheet.
Carbon 02 00008 g001

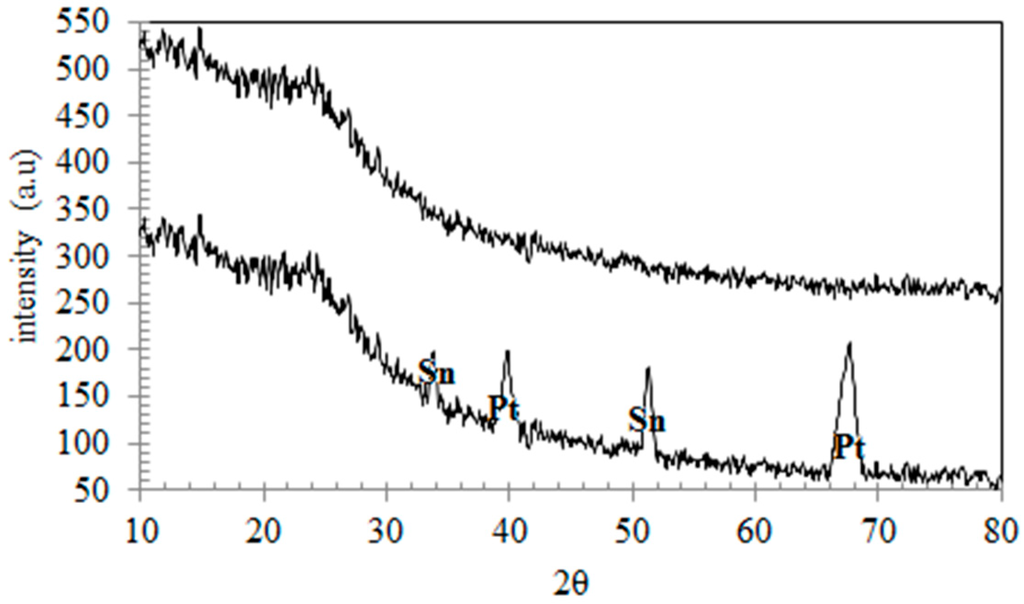

Figure 2. XRD patterns of reduced graphene sheet and Pt-Sn decorated reduced graphene sheet.
Figure 2. XRD patterns of reduced graphene sheet and Pt-Sn decorated reduced graphene sheet.
Carbon 02 00008 g002

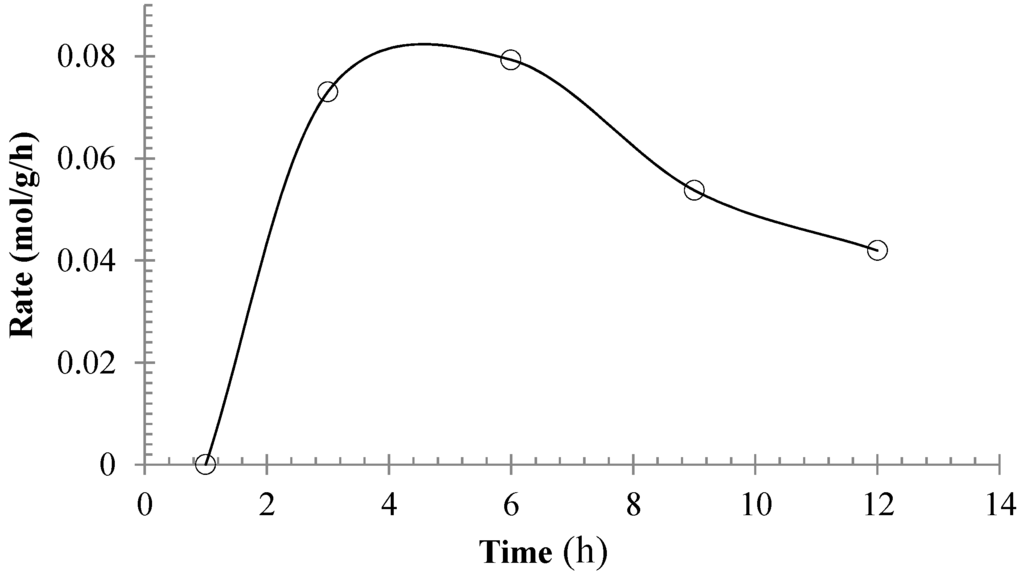

Figure 3. Time profile study of Pt-Sn/rGO sheet catalyzed liquid phase oxidation of cyclohexane to KA oil.
Figure 3. Time profile study of Pt-Sn/rGO sheet catalyzed liquid phase oxidation of cyclohexane to KA oil.
Carbon 02 00008 g003

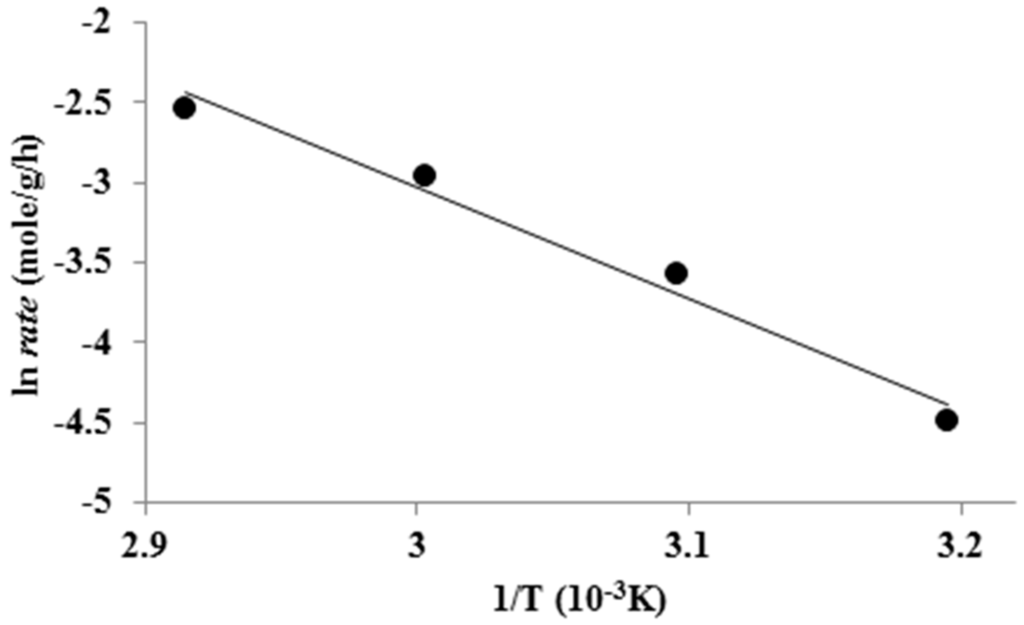

Figure 4. Arrhenius plot for the oxidation of cyclohexane to KA oil catalyzed by Pt-Sn/rGO sheet.
Figure 4. Arrhenius plot for the oxidation of cyclohexane to KA oil catalyzed by Pt-Sn/rGO sheet.
Carbon 02 00008 g004

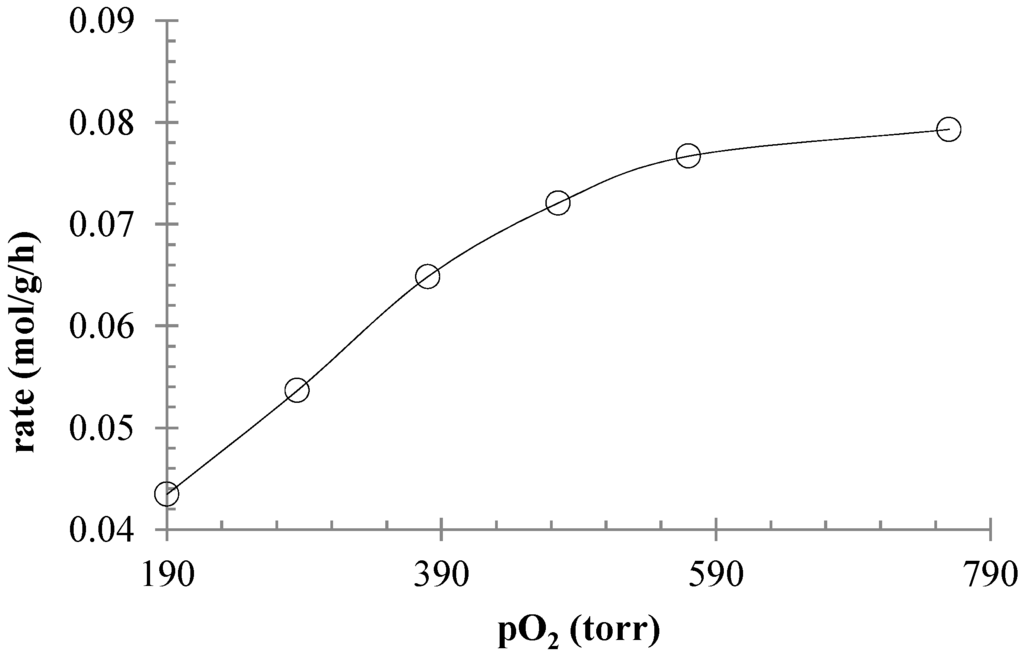

Figure 5. Effect of partial pressure of oxygen on the rate of liquid phase oxidation of cyclohexane catalyzed by Pt-Sn/rGO sheet.
Figure 5. Effect of partial pressure of oxygen on the rate of liquid phase oxidation of cyclohexane catalyzed by Pt-Sn/rGO sheet.
Carbon 02 00008 g005

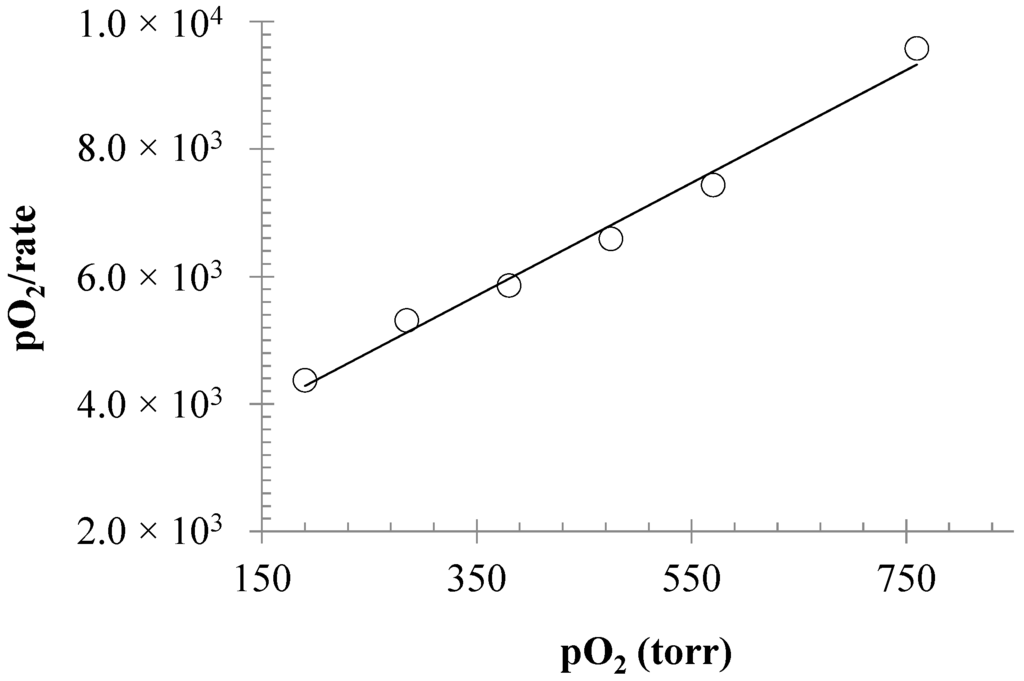

Figure 6. Plot of pO2/rate vs pO2 according to linear form of the Langmuir-Hinshelwood model.
Figure 6. Plot of pO2/rate vs pO2 according to linear form of the Langmuir-Hinshelwood model.
Carbon 02 00008 g006

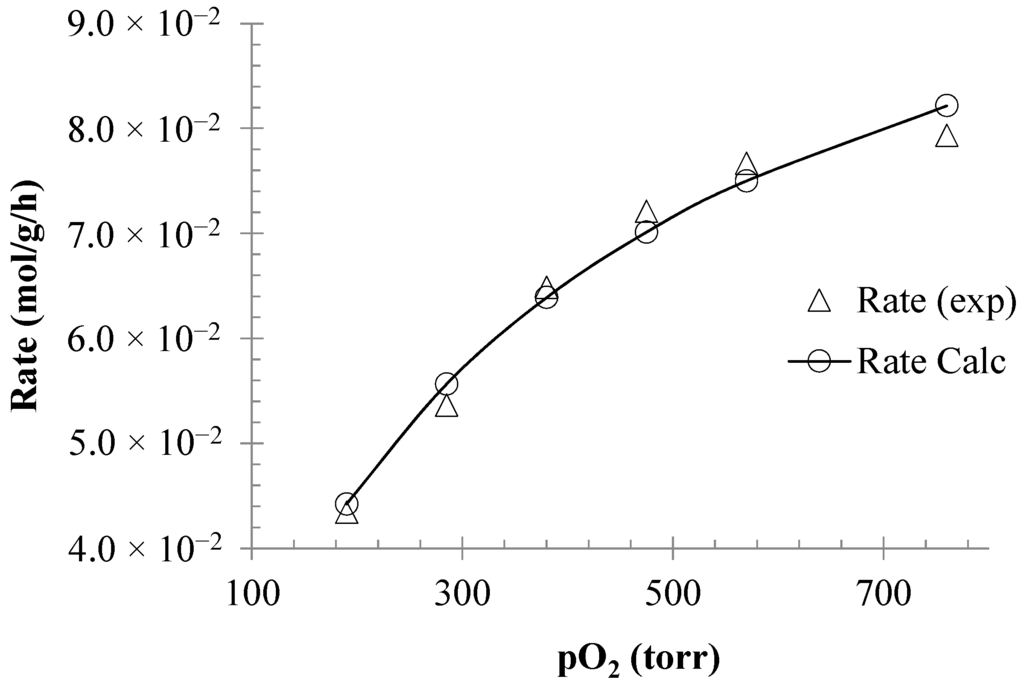

Figure 7. Plot of calculated and experimental rates vs. pO2 according to non-linear square fit (L-H model).
Figure 7. Plot of calculated and experimental rates vs. pO2 according to non-linear square fit (L-H model).
Carbon 02 00008 g007
