The Flower-Shaped Co (II) and Cu (II) Phthalocyanine Polymers as Highly Efficient and Stable Catalysts for Chemical Fixation of CO2 to Cyclic Carbonate

by
Yuyang Zhou
,
Shengyu Shao
,
Xiang Han
,
Baocheng Zhou
*,
Yifeng Han
,
Xiaoping Dong
* and
Sanchuan Yu
Key Laboratory of Surface & Interface Science of Polymer Materials of Zhejiang Province, School of Chemistry and Chemical Engineering, Zhejiang Sci-Tech University, Hangzhou 310018, China
*
Authors to whom correspondence should be addressed.
C 2024, 10(3), 74; https://doi.org/10.3390/c10030074
Submission received: 28 June 2024 / Revised: 13 August 2024 / Accepted: 17 August 2024 / Published: 19 August 2024
(This article belongs to the Section Carbon Cycle, Capture and Storage)
Browse Figures
Versions Notes

Abstract

:
New flower-shaped metallophthalocyanine polymers (THB-4-M, M = Co, Cu) have been synthesized by using 1,3,5-Tri(4-hydroxyphenhyl) benzene (THB) as rigid and contorted units to control the morphology under the solvothermal method. The polymers were characterized using FT-IR, UV-vis, SEM, TGA, and XPS. These polymers were applied as heterogeneous catalysts for the chemical fixation of carbon dioxide (CO2) to cyclic carbonates without solvent. The influence of reaction parameters and different metal centers on the catalytic performance were studied in detail. Under optimal conditions, the catalysts showed high conversion (49.9–99.0%), selectivity (over 85%), and reusability at ambient conditions (at 1 bar CO2).

Graphical Abstract

1. Introduction

Metallophthalocyanines (MPcs) have been a theme of great interest in many areas, such as photovoltaic cells [1,2,3], non-linear optics [4,5], gas sensors [6,7], semiconductors [8,9], and so forth [10]. Metallophthalocyanines (MPcs) have four imino-isoindoline rings with a conjugated 18 π -electron system, and are highly stable synthetic tetrapyrrolic macrocycle compounds [11]. However, MPcs have shown insufficient electrocatalytic activity and poor catalytic performance due to their easy aggregation as they contain a planar-shaped structure [12]. To solve the aforementioned problem, many attempts have been made to prepare MPcs-loaded materials through the use of a nanomaterials, such as carbon nanotubes [13], graphene [14], Ag nanoparticle [15], and so on [16]. In addition, MPcs were suitable units of nanoporous materials due to their comprehensive application as catalysts and their electrocatalytic and non-linear optics characteristics. Covalent organic frameworks (COFs) [17], other nanomaterials [18,19,20], and metal–organic frameworks (MOFs) [21] have employed MPcs as their primary structural unit. Polymers of intrinsic microporosity (PIM) were also synthesized due to the inability of component macromolecules with a rigid and contorted structure, such as MPcs, have been developed over the past decade [22,23,24,25,26,27,28,29]. Such microporous polymers containing MPcs have attracted many researchers to study them as heterogeneous catalysts.
Furthermore, the strategy for introducing rigid and contorted units in polymeric catalyst held great attraction for many researchers. Those polymeric catalysts have shown excellent properties in terms of large specific surface area, high porosity, and strong acid resistance. McKeown et al. reported a new microporous MPcs network polymer synthesized from the interconnection of MPcs units through the rigid and contorted linkers to enhance of catalytic activity of MPcs [30]. Chen’s group designed a 1,3,5-tris (1H-benzo[d]imidazol-2-yl) benzene-linked polymeric-sphere catalyst and showed high conversions and cyclic organic carbonate yields at 298 K and 1 bar of CO2 [31]. It was found that introduction of the rigid and contorted units can enhance the porosity of heterogeneous catalysts [30,31]. Specifically, 1,3,5-Tri(4-hydroxyphenhyl) benzene (THB), as reported by many researchers, was applied, due to its excellent properties in terms of large specific surface area, high porosity, and strong acid resistance [32,33,34,35,36]. However, the network polymers reported were prepared by using high temperatures, a complicated line, and a special method.
In this study, we synthesized two microporous polymers containing MPcs that used 1,3,5-tri(4-hydroxyphenhyl) benzene (THB) as the rigid and contorted units, and investigated the catalytic activity for CO2 fixation (Figure 1).

2. Experimental

2.1. Materials

Silicon tetrachloride (SiCl4, 99.5%), 4-methoxyacetophenone (99.0%), pyridine hydrochloride (98.0%), 4-nitrophthalonitrile (98.0%), potassium carbonate (K2CO3, 98.0%), copric chloride dihydrate (CuCl2·2H2O, AR), cobalt chloride hexahydrate (CoCl2·6H2O, AR), and ethanol (>99.5%, Safe Dry) were acquired from Shanghai Macklin Biochemical Technology Co., Ltd. (China). Dimethylsulfoxide (DMSO, 99.5%), N, N-dimethylformamide (DMF, 99.5%), 1-hexanol (98.0%), 1,8-diazabicyclo [5.4.0] undec-7-ene (DBU, 99%), tetrabutylammonium bromide (TBAB, 99.0%), tetrabutylammonium chlorine (TBAC, 99.0%), tetrabutylammonium iodine (TBAI, 99.0%), benzyltriethylammonium chloride (TEBAC, 98.0%), hexadecyl trimethyl ammonium bromide (CTAB, 99.0%), hexadecyl trimethyl ammonium chloride (CTAC, 99.0%), epichlorohydrin (ECH, 99.5%), styrene oxide (98.0%), cyclohexene oxide (98.0%), 1,2-epoxytetradecane (95.0%), and ethylene glycol diglycidyl ether (95.0%) were acquired from Shanghai Macklin Biochemical Co., Ltd. (Shanghai, China). Deionized water (18.2 MΩ cm) was employed throughout the experiments. The 1,3,5-tri(4-methoxyphenyl) benzene (TMOB) (Scheme S1) and 1,3,5-tri(4-hydroxyphenyl) benzene (THB) (Scheme S2) were obtained according to reference [37], respectively. Cobalt phthalocyanine and copper phthalocyanine were obtained according to reference [24].

2.2. Synthesis of Phthalonitrile

A reaction flask was charged with THB (2.16 g), 4-nitrophthalonitrile (3.12 g), anhydrous K2CO3 (2.50 g), and dry DMSO (20.00 mL), and the reaction mixture was stirred at room temperature under a nitrogen atmosphere. Then, anhydrous K2CO3 (1.25 g) was added in portions every 12 h. After 48 h, the precipitates were obtained after the resulting reaction mixture was poured into water (200.00 mL), and then filtered and further washed with water, and the phthalonitrile was obtained (yield ca. 97%) and marked as THB-4, where “4” represents the 4-substituted. All the above products were confirmed by a series of characterization analyses (ESI*). 1H NMR (400 MHz, DMSO-d6): δ 8.15 (d, J = 8.8 Hz, 3H), 8.08–8.02 (m, 6H), 7.99 (s, 3H), 7.86 (d, J = 2.6 Hz, 3H), 7.48 (dd, J = 8.8 Hz, 2.6 Hz, 3H), 7.38–7.31 (m, 6H). 13C NMR (75 MHz, DMSO-d6, 293 K): δ = 161.4, 154.2, 141.1, 137.9, 136.8, 129.9, 124.8, 123.3, 122.7, 121.2, 117.2, 116.4, 115.9, 108.3. HRMS (TOF-ES): calculated for (C48H25N6O3+), [M+H]+, 733.1983, found 733.1981.

2.3. Synthesis of THB-4-M (M = Co, Cu)

Phthalonitrile (THB-4, 0.66 g), CoCl2·6H2O (0.28 g), DBU (0.60 mL), and dry DMF (5.00 mL) were added to a beaker and stirred to form a solution. After dissolving, 55.00 mL 1-hexanol was added and stirred for 30 min. The mixture was transferred into a hydrothermal reactor, and the reaction temperature was maintained at 160 °C for 24 h. Then, it was cooled to room temperature and washed with ethanol, DMF, acetone, deionized water, and ethanol by the Soxhlet extraction method in sequence. After that, the solid was dried thoroughly, and the product, a bluish-green solid (THB-4-Co), was obtained (0.40 g). THB-4-Cu was prepared following the same synthetic procedure as for THB-4-Co, except that CoCl2·6H2O (0.28 g) was replaced by CuCl2·2H2O (0.17 g) (Figure 2).

2.4. Characterizations

Various analytical techniques were employed to characterize the synthesized THB-4-Co and THB-4-Cu, such as Fourier transform infrared spectroscopy (FTIR), scanning electron microscopy (SEM), energy-dispersive X-ray spectrometry (EDS), and thermogravimetric analysis (TGA). An X-ray diffractometer (XRD, DX-2700) with Cu-Kα radiation (λ = 1.5418 Å) was used to ensure the phase compositions and crystalline structure over a 2θ range of 5–80°. A field emission scanning electron microscope (FE-SEM, Hitachi SU-8100) equipped with an energy dispersive X-ray spectrometer (EDS) was employed to characterize the surface morphologies and micro/nanostructures of the THB-4-M. EDS was recorded at 15 kV and 15.0 mm sample distance at the Z-axis. All the samples were sputtered with platinum before observation. X-ray photoelectron spectra (XPS) were collected using multifunctional electron spectroscopy (Kratos, AXIS, Ultra, DLD) with Al-Kα radiation (hν = 1486.6 eV). The energy resolution during X-ray photoelectron spectra recording was 0.1 eV. All BE values were calibrated by using contaminant carbon on the catalyst with C 1 s at 284.6 eV. Thermal stability analyses were conducted using a PerkinElmer Diamond TG-DTA instrument in a nitrogen atmosphere (15–850 °C; 20 °C/min). To obtain the specific surface area measurements of the THB-4-M, an ASAP-2020 Micromeritics was used in nitrogen physisorption at 77 K. The specific areas of the samples were determined by the Brunauer–Emmett–Teller (BET) procedure using nitrogen adsorption. The quantification of cobalt or copper loading on each sample was performed by inductively coupled plasma (ICP OES 730) emission spectrometry. The UV–VIS absorption spectra was gained using a UV–VIS spectrophotometer (Shimadzu UV-2600). To obtained the IR spectra (KBr pellets), the Nicolet Avatar 370 Fourier transform infrared spectra (FTIR) spectrometer was employed. The nuclear magnetic resonance (NMR) spectra of intermediate products were obtained using a Bruker AVANCE II 400NMR spectrometer. High-resolution mass spectra (HRMS) were recorded on a Waters TOFMS GCT Premier using ESI ionization. Elemental analysis was recorded by an Elementar UNICUBE using a thermal conductivity detector.

3. Results and Discussion

3.1. Characterization of Network Polymers

First, the phthalonitrile monomer was synthesized from 4-nitrophthalonitrile and the twisting rings of 1,3,5-tri(4-hydroxyphenhyl) benzene (THB) (Scheme S3). The monomer was completely confirmed by 1H-NMR (Figure S1), 13C-NMR (Figure S2). Then, we employed this as a component unit of the MPcs network polymers THB-4-Co and THB-4-Cu by coupling the condensation of 4-nitrophthalonitrile with a linker unit (THB) in the presence of metal salts ((CoCl2▪6H2O) or (CuCl2▪2H2O)) by the solvothermal method. Colorful polymers were obtained by the solvothermal reaction, washed, and subsequently purified by Soxhlet extraction (Figure 2).
Figure 3a shows the ultraviolet–visible (UV–VIS) DRS absorption of the complex (CoPc, THB-4-Co, CuPc, THB-4-Cu). The phthalocyanine network polymers showed typical electronic spectra with two absorption bands, which were similar to molecule phthalocyanines. THB-4-Co showed a split Q-band at 678 nm and 626 nm, whereas the CoPc exhibited a Q-band at 599 nm and 657 nm in CH2Cl2 [38,39]; they were ascribed to the Q-band of monomeric and dimeric forms of MPcs. According to the curves, it was obviously above that the monomeric forms were more stabilized than the dimeric forms in CoPc/CH2Cl2 solution; the dimeric forms showed more than the monomeric forms in the polymers, on the contrary. The same curve shape was also observed in the curves of CuPc and THB-4-Cu [28]. On account of being completely insoluble in normal solvent, the UV–VIS spectrum of CuPc in concentrated sulfuric acid revealed two bands: at 701 and 791 nm, which are characteristic of the dimeric and monomeric forms [29]. However, the as-prepared THB-4-Cu showed two bands: at 629 and 691 nm, which were red-shifted by 72 nm and 100 nm with that of CuPc in concentrated sulfuric acid, respectively. Furthermore, the emission maximum of polymer THB-4-Cu was red-shifted nearly 10 nm as compared with that of THB-4-Co, and it is well known that the difference is due to the central ion, as is typical for phthalocyanines. Additionally, a broadened and split Q-band was detected in both polymers due to the aggregation of MPcs, and the aggregate unit showed the high-energy band and the monomer showed the homologous low-energy band [28]. The emission maximum of polymer THB-4-Co was red-shifted nearly 20 nm as compared with that of CoPc, indicating that THB-4-Co had a narrower band gap than CoPc without regard to the solvent effect.
Table 1 summarizes the optical data of the complex (CoPc, THB-4-Co, CuPc, THB-4-Cu). IR peaks appeared in the range of 3068; 2856 cm−1 were attributed to -C=C-H stretching vibrations of the aromatic groups of the phthalocyanines. The peaks at 1610, 1470, and 1390 cm−1 belonged to C=C, C-N, and C=N stretching vibrations, respectively [40,41,42]. Figure 3b shows a similar tendency in both the polymers and the parent monomers. These FTIR spectroscopic data show that the objective product retained the most feature peaks of its corresponding unit. Thus, the above analysis results exactly verified the direct heterogenization of THB-4-Co and THB-4-Cu polymers by the solvothermal reaction to produce very stable and heterogeneous porous polymeric materials.
The thermal stabilities of these complexes (CoPc, THB-4-Co, CuPc, THB-4-Cu) were researched by thermogravimetric analysis to confirm the stability of the polymers. The TG curve of the as-prepared THB-4-M shows a similar trend with CoPc and CuPc, respectively. Additionally, that of the as-prepared THB-4-M was found to be thermally stable up to 400 °C, indicating possible outstanding thermal stability under harsh reaction conditions (Figure 4a inset figure, more details see Figure S8). It was shown that the weight loss of THB-4-Cu and THB-4-Co occurred at slight below 100 °C; we suspected that some solvent molecules were absorbed in the pores of the THB-4-M. The unit of THB was decomposed prior to the ring of phthalocyanine, according to the contrastive analysis. Notably, the weight loss of THB-4-Cu at 443 °C was only 14.5%, and the loss of THB-4-Co at 439 °C was 19.8%, and THB-4-Cu showed more thermostability than THB-4-Co.
Powder X-ray diffraction (PXRD) patterns were employed to assess the crystalline structure of these complexes (CoPc, THB-4-Co, CuPc, THB-4-Cu). As shown in Figure 4b, the diffraction peaks were affirmed as the crystalline structure of CoPc and CuPc [25]. Notably, the as-prepared polymers showed that a broad peak at 2 θ = 19.42° corresponds to the construction of amorphous polymeric material and reveals a non-crystalline character [40,41,42] (Figure 4b). X-ray photoelectron spectroscopy (XPS) was employed to investigate the surface compositions of THB-4-Co and THB-4-Cu. The survey scans of XPS unambiguously verified the peaks attributed to carbon, nitrogen, and cobalt for THB-4-Co and copper for THB-4-Cu (Figure 5). As shown in Figure 5c, the Co (2p) XPS spectrum of THB-4-Co showed two deconvoluted peaks: at 797.0 and 781.2 eV, corresponding to Co (2p1/2) and Co (2p3/2), indicating that Co had coordinated with N to form Co-Nx moieties [43,44,45,46,47]. In the case of THB-4-Cu, the presence of Cu (II) species was confirmed by the appearance of two main peaks: at 953.3 and 933.1 eV, assigned to Cu (2p1/2) and Cu (2p3/2), as shown in Figure 5d. Additionally, the presence of C and N was also studied. Predictably, the C (1s) XPS spectrum of THB-4-Cu showed three deconvoluted peaks: at 284.8, 286.4, and 288.4 eV, attributed to C-C/C=C, C-N, and C-O. The N (1s) XPS spectrum of THB-4-Cu showed two peaks: at 398.5 and 400.1 eV, corresponding to the C-N and N-M (M = Cu, Co), as shown in Figure 6a,c [43,44,45,46,47]. The curves and the peaks were also exhibited in the XPS spectrum of THB-4-Co, as shown in Figure 6b,d [43,44,45,46,47]. Therefore, the Co(2p) XPS analysis of THB-4-Co and the Cu(2p) XPS analysis of THB-4-Cu confirmed successful as-prepared THB-4-M polymers.
To more deeply comprehend the physical structure of the as-prepared THB-4-M polymers, N2-adsorption–desorption, CO2-adsorption–desorption, and scanning electron microscopy (SEM) were employed. The N2 adsorption–desorption isotherm was recorded at 77 K to investigate the porosities of the THB-4-Co and THB-4-Cu. It was found that the THB-4-M polymers showed a typical type-IV isotherm (Figure 7a,c) with a surface area of material of 71.14 m2∙g−1 and 114.25 m2∙g−1 (Table 2). The as-prepared materials were capable of adsorbing obvious amounts of CO2 molecules under the ambient conditions. The corresponding test had been measured to gain the CO2 adsorption isotherms (Figure 7b,d). The CO2 absorption isotherms were carefully tested up to 760 mm Hg. As shown in Table 2, the THB-4-Co showed the uptake capacities 24.14 and 14.17 cm3·g−1 at 273 and 298 K; the THB-4-Cu showed the uptake capacities 25.40 and 9.68 cm3·g−1 at 273 and 298 K, respectively. In this regard, the uptake capacities of THB-4-Co were superior to the uptake capacities of THB-4-Cu at 298 K.
The morphology of CoPc, CuPc, and THB-4-M is displayed in SEM images (Figure 8 and Figure S9). The morphology of CoPc and CuPc were shown as the normal crystalline form, consistent with the performance of the XRD spectra. The morphology of THB-4-M was flower-shaped, with the size of each petal estimated to be ca. 60–80 nm. The morphology of THB-4-Cu was shown to be smoother than that of THB-4-Co (Figure 8b,e). Subsequently, SEM–EDS and SEM-mapping analysis confirmed the complexation of Co and Cu into the polymeric frameworks along with other elements, such as C, N, and O. Therefore, all elements were distributed uniformly over the as-prepared polymers (Figure 9 and Figure S10), and the elemental analysis of the THB-4-M polymers is shown in Table S1. The found data might not be relevant or up to the calculated data because of the impurity of the polymers.

3.2. Cycloaddition of CO2 to Cyclic Carbonate

As mentioned in the introduction, the new flower-shaped catalysts were employed in the cycloaddition of CO2 to epoxides. As shown in Table 3, we applied these network polymers as catalysts in the synthesis of cyclic carbonates. The cycloaddition of pure CO2 (1 bar) with epichlorohydrin (ECH) as substrate and tetrabutylammonium bromide (TBAB) as co-catalyst at certain temperatures in solvent-free conditions was selected as a model reaction to start our research. Surprisingly, both THB-4-Cu and THB-4-Co showed excellent conversion under the above reaction conditions, and exhibited better TON than certain catalysts that contained Cu ion and Co ion.
First, reaction conditions such as the amount of co-catalyst, temperature, and reaction time were screened using epichlorohydrin as the substrate (Table 4). Typically, 1.00 g of epichlorohydrin (ECH), 10 mg of catalyst (THB-4-M, 0.013 mmol MPc), and 50 mg TBAB (the mass ratio of catalyst and co-catalyst was 1:5) were added to a Schlenk tube with a CO2 balloon (1 bar pure CO2) under solvent-free conditions. First, the tube was placed under a vacuum and purged three times, and the pressure of CO2 was set by the CO2 balloon (1 bar pure CO2). The mixture was stirred at the given temperature and time. Similar to the literature [29], TBAB showed low catalytic performance, and the conversion was only 47.3% in our system, but higher than the review. CuPc and CoPc exhibited no catalytic performance and were also confirmed in this system. Remarkably, in our case, the conversion and selectivity of ECH were determined by 1H NMR spectra analysis using 1,3,5-trimethoxybenzene as an internal standard (Figure S11) [55,56].
Quaternary ammonium halides were employed as a co-catalyst in the commercial synthetic process for cyclic carbonates [57]. Table 4 shows that the alkyl group and the counter anion of the quaternary ammonium salt significantly affect the catalytic activity. With regard to different alkyl groups, catalytic activity increased in the following order: TBA+<CTA+<TEBA+ (Table 4, entry 3–5). As expected, Br− showed the best selectivity and highest conversion among the different halide ions [33,58,59,60] (Table 4, entry 1–3). The amount of co-catalyst in the catalytic system also affected the conversion and selectivity of chloropropene carbonate from CO2 and ECH (Table 4, entry 12–14). The conversion and selectivity of ECH increased along with the amount of TBAB. Furthermore, we studied the effect of the reaction time (Table 4, entry 7–10). It was found that the conversion of the ECH increased obviously by the increase in the reaction time. Unfortunately, the selectivity of the corresponding carbonate decreased after 48 h. Notably, high temperatures accelerated both the conversion and selectivity of ECH (Table 4, entry 7–11). In addition, it was found that both the conversion and selectivity increased obviously by an increase in the mass fraction of TBAB in the mass ratio of THB-4-Cu/TBAB (Table 4, entry 12–14).
Under the optimized reaction parameters, we further expanded this catalytic system to synthesis of various cyclic carbonates using THB-4-M as the catalyst (Table 4 and Table S3, entry 15–19). All the provided substrates under the optimized reaction conditions provided medium to good yields and selectivity towards the cyclic carbonates. Unfortunately, the steric effect also caused lower conversion and selectivity, similar to the literature [19,25,37] (Table 4, entry 16). For 1,2-epoxytetradecane, the corresponding carbonate was obtained in a low yield of 65.7% and 62.6% (Table 4 and Table S3, entry 18), presumably due to the flexibility of the aliphatic chain of the tetradecane oxide. It is important to note that the THB-4-Co exhibited the same catalytic performance and selectivity (Table S3).

3.3. Catalyst Recycling Performance

The most important performance for an ideal heterogeneous catalyst was the reusability and stability of the catalysts. A three-cycle test was performed to probe the reusability of THB-4-M in the cycloaddition reactions (ESI*). Additionally, the change of morphology obtained from SEM was also evaluated for the stability of the catalysts. Figure 10 shows the conversion and selectivity of ECH catalyzed by THB-4-M. In contrast, the THB-4-Co and THB-4-Cu showed more stability by analyzing the conversion and the morphology of the catalyst (Figure 10b,c). Unfortunately, the conversion of ECH catalyzed by THB-4-Cu reduced from 90.3% to 86.9%, presumably due to the reduction of the surface area and the CO2 uptake capacities (ESI*). The content of cobalt or copper loading was also an important influencing factor, causing the variation of the conversion and selectivity of ECH. Interestingly, the selectivity of ECH was enhanced from 90.5% to 97.3%. On the contrary, the conversion and selectivity of ECH catalyzed by THB-4-Co reduced observably.

3.4. Possible Reaction Mechanism

Based on previous reports [33,57], a plausible mechanism is proposed for the reaction of epoxide and CO2 into cyclic carbonate catalyzed by THB-4-M in the presence of TBAB as a co-catalyst (Scheme 1). At first, CO2 molecules were adsorbed by THB-4-M (M = Cu, Co) and the coupling reaction by coordination of MPc (M = Cu, Co) as a Lewis acidic site with the O atom of the ECH to form a metal alkoxide intermediate (B). The coordination between the MPc (M = Cu, Co) and ECH was shown as the crucial factor [37]. In the second step, halogen ions, such as Br−, attacked the less-hindered carbon atom of ECH, and the ring of ECH opened. Then, CO2 molecules, which had been adsorbed, interacted with the oxygen anion of the opened epoxy ring to form an intermediate (D). In the end, the formation of cyclic carbonate and regeneration of catalyst THB-4-M were obtained along with the departure of Br−.

4. Conclusions

In summary, new flower-like phthalocyanine polymers have been successfully synthesized by introducing 1,3,5-tri(4-hydroxyphenhyl) benzene (THB) as the rigid and contorted units. Due to their porosity and excellent CO2 capacities, the THB-4-M showed very promising catalytic activities with 146–756 TON in the conversion of CO2 into cyclic carbonates. In addition, the THB-4-M showed high catalytic performance and excellent selectivity toward the cycloaddition reaction under mild conditions. Under optimal reaction conditions, ECH showed 99.0% conversion and 92.6% selectivity. The catalyst THB-4-M was readily separated and effectively recycled for up to three cycles. More importantly, the high stability and reusability of the catalyst benefitted from the flower-like structure of THB-4-M. According to the research results, this opens new ways of thinking about designing more efficient heterogeneous catalysts and fixing CO2 by chemical methods under mild conditions.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/c10030074/s1.

Author Contributions

Investigation, methodology, writing—original draft, Y.Z.; methodology, validation, formal analysis, S.S.; methodology, validation, formal analysis, X.H.; conceptualization, investigation, methodology, writing—original draft, writing—review and editing, B.Z.; supervision, writing—review and editing, Y.H.; supervision, formal analysis, writing—review and editing, X.D.; supervision, formal analysis, writing—review and editing, S.Y. All authors have read and agreed to the published version of the manuscript.

Funding

We are grateful for financial support from the National Key Research and Development Program of China (2017YFE0127400), Zhejiang Special Support Program for High-Level Talents (No. 2023R5229), the Natural Science Foundation of China (51908491), and the Zhejiang Provincial Natural Science Foundation of China (LY20B070001).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Zhang, S.H.; Tian, C.; Jiang, X.W.; Xu, X.; Zhao, H.T.; Sun, J.Y.; Zhang, L.F.; Cheng, Z.P. Synthesis of water-soluble NIR macro-photocatalysts from polymerizable zinc phthalocyanine. Eur. Polym. J. 2023, 196, 112313. [Google Scholar] [CrossRef]
  2. Xu, R.; Li, B.L.; Ding, J.L.; Li, W.; Zhang, Y.H. Donor–acceptor conjugates-functionalized aluminum phthalocyanines: Photophysical and nonlinear optical properties. Eur. Polym. J. 2020, 134, 109813. [Google Scholar] [CrossRef]
  3. Wöhrle, D.; Kreienhoop, L.; Schnurpfeil, G.; Elbe, J.; Tennigkeit, B.; Hiller, S.; Schlettwein, D. Investigations of n/p-junction photovoltaic cells of perylenetetracarboxylic acid diimides and phthalocyanine. J. Mater. Chem. 1995, 5, 1819–1829. [Google Scholar] [CrossRef]
  4. Chen, X.N.; Zhang, J.L.; Wei, W.W.; Jiang, Z.H.; Zhang, Y.H. Synthesis and third-order optical nonlinearities of hyperbranched metal phthalocyanines. Eur. Polym. J. 2014, 53, 58–64. [Google Scholar] [CrossRef]
  5. Diaz Garcia, M.A.; Ledoux, I.; Duro, J.A.; Torres, T.; Agullo-Lopez, F.; Zyss, J. Third-order nonlinear optical properties of soluble octasubstituted metallophthalocyanines. J. Phys. Chem. 1994, 98, 8761–8764. [Google Scholar] [CrossRef]
  6. Li, B.W.; Wei, P.R.; Leon, A.D.; Frey, T.; Pentzer, E. Polymer composites with photo-responsive phthalocyanine for patterning in color and fluorescence. Eur. Polym. J. 2017, 89, 399–405. [Google Scholar] [CrossRef]
  7. Wright, J.D.; Roisin, P.; Rigby, G.P. Crowned and liquid-crystalline phthalocyanines as gas-sensor materials. Sens. Actuators B 1993, 13, 276–280. [Google Scholar] [CrossRef]
  8. Huai, M.M.; Yin, Z.L.; Wei, F.Y.; Wang, G.W.; Xiao, L.; Lu, J.T.; Zhuang, L. Electrochemical CO2 reduction on heterogeneous cobalt phthalocyanine catalysts with different carbon supports. Chem. Phys. Lett. 2020, 754, 137655. [Google Scholar] [CrossRef]
  9. Zhou, R.; Josse, F.; Gopel, W.; Ozturk, Z.Z.; Bekaroğlu, O. Phthalocyanines as Sensitive Materials for Chemical Sensors. Appl. Organomet. Chem. 1996, 10, 557–577. [Google Scholar] [CrossRef]
  10. Mevlüde, C.; Tebello, N. Synthesis, characterization, and photophysical properties of novel ball-type dinuclear and mononuclear containing four 1,1’-binaphthyl-8,8’-diol bridged metallophthalocyanines with long triplet state lifetimes. Dalton Trans. 2011, 40, 5285–5290. [Google Scholar]
  11. Al-Raqa, S.Y.; Ghanem, B.S.; Kaya, E.N.; Durmus, M.; EI-Khouly, M.E. Symmetrical phthalocyanine bearing four triptycene moieties: Synthesis, photophysical and singlet oxygen generation. J. Porphyr. Phthalocyanines 2019, 23, 990–1000. [Google Scholar] [CrossRef]
  12. Li, T.F.; Peng, Y.X.; Li, K.; Zhang, R.; Zheng, L.R.; Xia, D.G.; Zuo, X. Enhanced activity and stability of binuclear iron (III) phthalocyanine on graphene nanosheets for electrocatalytic oxygen reduction in acid. J. Power Sources 2015, 293, 511–518. [Google Scholar] [CrossRef]
  13. Zhang, X.; Wu, Z.S.; Zhang, X.; Li, L.W.; Li, Y.Y.; Xu, H.M.; Li, X.X.; Yu, X.L.; Zhang, Z.S.; Liang, Y.Y.; et al. Highly selective and active CO2 reduction electro-catalysts based on cobalt phthalocyanine/carbon nanotube hybrid structures. Nat. Commun. 2017, 8, 14675. [Google Scholar] [CrossRef] [PubMed]
  14. Guo, J.; Yan, X.M.; Liu, Q.; Li, Q.; Xu, X.; Kang, L.T.; Cao, Z.M.; Chai, G.L.; Chen, J.; Wang, Y.B.; et al. The synthesis and synergistic catalysis of iron phthalocyanine and its graphene-based axial complex for enhanced oxygen reduction. Nano Energy 2018, 46, 347–355. [Google Scholar] [CrossRef]
  15. Costa, Í.A.; Maciel, A.P.; Sales, M.J.A.; Rivera, L.M.R.; Soler, M.A.G.; Pereira-da-Silva, M.A.; Moreira, S.G.C.; Paterno, L.G. Photocatalytic Method for the Simultaneous Synthesis and Immobilization of Ag Nanoparticles onto Solid Substrates. J. Phys. Chem. C 2018, 122, 24110–24119. [Google Scholar] [CrossRef]
  16. Liu, D.; Long, Y.T. Superior catalytic activity of electrochemically reduced graphene oxide supported iron phthalocyanines toward oxygen reduction reaction. ACS Appl. Mater. Interfaces 2015, 7, 24063–24068. [Google Scholar] [CrossRef] [PubMed]
  17. Ding, X.S.; Guo, J.; Feng, X.A.; Honsho, Y.; Guo, J.D.; Seki, S.; Maitarad, P.; Saeki, A.; Nagase, S.; Jiang, D.L. Synthesis of Metallophthalocyanine Covalent Organic Frameworks That Exhibit High Carrier Mobility and Photoconductivity. Angew. Chem. Int. Ed. 2011, 50, 1289–1293. [Google Scholar] [CrossRef]
  18. Bezzu, C.G.; Warren, J.E.; Helliwell, M.; Allan, D.R.; McKeown, N.B. Heme-like coordination chemistry within nanoporous molecular crystals. Science 2010, 327, 1627–1630. [Google Scholar] [CrossRef]
  19. Li, J.T.; Guo, L.M.; Shi, J.L. Stepwise in situ synthesis and characterization of metallophthalocyanines@mesoporous matrix SBA-15 composites. Phys. Chem. Chem. Phys. 2010, 12, 5109–5114. [Google Scholar] [CrossRef]
  20. Lopez-Duarte, I.; Dieu, L.Q.; Dolamic, I.; Martinez-Diaz, M.V.; Torres, T.; Calzaferri, G.; Bruhwiler, D. On the significance of the anchoring group in the design of antenna materials based on phthalocyanine stopcocks and zeolite L. Chem. A Eur. J. 2011, 17, 1855–1862. [Google Scholar] [CrossRef]
  21. Zalomaeva, O.V.; Kovalenko, K.A.; Chesalov, Y.A.; Mel’gunov, M.S.; Zaikovskii, V.I.; Kaichev, V.V.; Sorokin, A.B.; Kholdeeva, O.A.; Fedin, V.P. Iron tetrasulfophthalocyanine immobilized on metal organic framework MIL-101: Synthesis, characterization and catalytic properties. Dalton Trans. 2011, 40, 1441–1444. [Google Scholar] [CrossRef]
  22. McKeown, N.B.; Budd, P.M. Exploitation of Intrinsic Microporosity in Polymer-Based Materials. Macromolecules 2010, 43, 5163–5176. [Google Scholar] [CrossRef]
  23. McKeown, N.B.; Budd, P.M. Polymers of Intrinsic Microporosity (PIMs): Organic Materials for Membrane Separations, Heterogeneous Catalysis and Hydrogen Storage. ChemInform 2006, 35, 675–683. [Google Scholar]
  24. McKeown, N.B.; Makhseed, S.; Budd, P.M. Phthalocyanine-based nanoporous network polymers. Chem. Commun. 2002, 23, 2780–2781. [Google Scholar] [CrossRef]
  25. Maffei, A.V.; Budd, P.M.; McKeown, N.B. Adsorption studies of a microporous phthalocyanine network polymer. Langmuir: ACS J. Surf. Colloids 2006, 22, 4225–4229. [Google Scholar] [CrossRef]
  26. Makhseed, S.; Al-Kharafi, F.; Samuel, J.; Ateya, B. Catalytic oxidation of sulphide ions using a novel microporous cobalt phthalocyanine network polymer in aqueous solution. Catal. Commun. 2009, 10, 1284–1287. [Google Scholar] [CrossRef]
  27. Mackintosh, H.J.; Budd, P.M.; McKeown, N.B. Catalysis by microporous phthalocyanine and porphyrin network polymers. J. Mater. Chem. 2008, 18, 573–578. [Google Scholar] [CrossRef]
  28. Tamura, R.; Kawata, T.; Hattori, Y.; Kobayashi, N.; Kimura, M. Catalytic oxidation of thiols within cavities of phthalocyanine network polymers. Macromolecules 2017, 50, 7978–7983. [Google Scholar] [CrossRef]
  29. Boroujeni, M.B.; Laeini, M.S.; Nazeri, M.T.; Shaabani, A. A novel and green in situ strategy for the synthesis of metallophthalocyanines on chitosan and investigation their catalytic activity in the CO2 fixation. Catal. Lett. 2019, 149, 2089–2097. [Google Scholar] [CrossRef]
  30. Hashem, M.; Bezzu, C.G.; Kariuki, B.M.; McKeown, N.B. Enhancing the rigidity of a network polymer of intrinsic microporosity by the combined use of phthalocyanine and triptycene components. Polym. Chem. 2011, 2, 2190–2193. [Google Scholar] [CrossRef]
  31. Ding, S.M.; Sun, L.; Ma, X.H.; Cheng, D.; Wu, S.H.; Zeng, R.; Deng, S.J.; Chen, C.; Zhang, N. Microporous polymeric spheres as highly efficient and metal-free catalyst for the cycloaddition of CO2 to cyclic organic carbonates at ambient conditions. Catal. Lett. 2020, 150, 2970–2977. [Google Scholar] [CrossRef]
  32. Jiang, Q.Q.; Wang, X.; Wu, Q.; Li, Y.J.; Luo, Q.X.; Mao, X.L.; Cai, Y.J.; Liu, X.; Liang, R.P.; Qiu, J.D. Rapid charge transfer enabled by noncovalent interaction through guest insertion in supercapacitors based on covalent organic frameworks. Angew. Chem. Int. Ed. 2023, 62, e202313970. [Google Scholar] [CrossRef]
  33. Zhang, W.W.; Ping, R.; Lu, X.Y.; Shi, H.B.; Liu, F.S.; Ma, J.J.; Liu, M.S. Rational design of Lewis acid-base bifunctional nanopolymers with high performance on CO2/epoxide cycloaddition without a cocatalyst. Chem. Eng. J. 2023, 451, 138715–138724. [Google Scholar] [CrossRef]
  34. Yan, T.; Liu, H.; Zeng, Z.X.; Pan, W.G. Recent progress of catalysts for synthesis of cyclic carbonates from CO2 and epoxides. J. CO2 Util. 2023, 68, 102355–102370. [Google Scholar] [CrossRef]
  35. Nyokong, T. Coord. Effects of substituents on the photochemical and photophysical properties of main group metal phthalocya-nines. Coord. Chem. Rev. 2007, 251, 1707–1722. [Google Scholar] [CrossRef]
  36. Canlica, M.; Booysen, I.N.; Nyokong, T. Syntheses, electrochemical and spectroelectrochemical properties of novel ball-type and mononuclear Co(II) phthalocyanines substituted at the peripheral and non-peripheral positions with binaphthol groups. Polyhedron 2011, 30, 508–514. [Google Scholar] [CrossRef]
  37. Wagh, G.D.; Akamanchi, K.G. Sulfated tungstate catalyzed synthesis of C3-symmetric 1,3,5-triaryl benzenes under solvent-free condition. Tetrahedron Lett. 2017, 58, 3032–3036. [Google Scholar] [CrossRef]
  38. Sakamoto, K.; Ohno, E. Synthesis of cobalt phthalocyanine derivatives and their cyclic voltammograms. Dye. Pigment. 1997, 35, 375–386. [Google Scholar] [CrossRef]
  39. Achar, B.N.; Lokesh, K.S. Studies on polymorphic modifications of copper phthalocyanine. J. Solid State Chem. 2004, 177, 1987–1993. [Google Scholar] [CrossRef]
  40. Zhang, T.; Wang, X.F.; Huang, X.L.; Liao, Y.N.; Chen, J.Z. Bifunctional catalyst of a metallophthalocyanine-carbon nitride hybrid for chemical fixation of CO2 to cyclic carbonate. RSC Adv. 2016, 6, 2810–2818. [Google Scholar] [CrossRef]
  41. Rabchinskii, M.K.; Ryzhkov, S.A.; Besedina, N.A.; Brzhezinskaya, M.; Malkov, M.N.; Stolyarova, D.y.; Arutyunyan, A.F.; Struchkov, N.S.; Saveliev, S.D.; Diankin, I.D.; et al. Guiding graphene derivatization for covalent immobilization of aptamers. Carbon 2022, 196, 264–279. [Google Scholar] [CrossRef]
  42. Tahir, H.B.; Abdullah, R.M.; Aziz, S.B. The H+ ion transport study in polymer blends incorporated with ammonium nitrate: XRD, FTIR, and electrical characteristics. Results Phys. 2022, 42, 105960. [Google Scholar] [CrossRef]
  43. Zhang, Z.; Dou, M.; Liu, H.; Dai, L.M.; Wang, F. A facile route to bimetal and nitrogen-codoped 3D porous graphitic carbon networks for efficient oxygen reduction. Small 2016, 12, 4193–4199. [Google Scholar] [CrossRef]
  44. Samal, P.P.; Deskshinamoorthy, A.; Arunachalam, S.; Vijayaraghavan, S.; Krishnamurty, S. Free base phthalocyanine coating as a superior corrosion inhibitor for copper surfaces: A combined experimental and theoretical study. Colloids Surf. A Physicochem. Eng. Asp. 2022, 648, 129138. [Google Scholar] [CrossRef]
  45. Ivanco, J.; Toader, T.; Firsov, A.; Brzhezinskaya, M.; Sperling, M.; Braun, W.; Zaha, D.R.Z. Indium on a copper phthalocyanine thin film: Not a reactive system. Phys. Rev. B 2010, 81, 115325. [Google Scholar] [CrossRef]
  46. Shmatko, V.A.; Yalovega, G.E.; Myasiedova, T.N.; Brzhezinskaya, M.M.; Shtekhin, I.E.; Petrov, V.V. Influence of the surface morphology and structure on the gas-sorption properties of SiO2CuOx nanocomposite materials: X-ray spectroscopy investigations. Phys. Solid State 2015, 57, 399. [Google Scholar] [CrossRef]
  47. Yalovega, G.E.; Myasoedova, T.N.; Shmatko, V.A.; Brzhezinskaya, M.M.; Popv, Y.V. Influence of Cu/Sn mixture on the shape and structure of crystallites in copper-containing films: Morphologicaland X-ray spectroscopy studies. Appl. Surf. Sci. 2016, 372, 93–99. [Google Scholar] [CrossRef]
  48. Saptal, V.; Shinde, D.B.; Banerjee, R.; Bhanage, B.M. State-of-the-art catechol porphyrin COF catalyst for chemical fixation of carbon dioxide via cyclic carbonates and oxazolidinones. Catal. Sci. Technol. 2016, 6, 6152–6158. [Google Scholar] [CrossRef]
  49. Guo, D.; Zhang, J.; Liu, G.; Luo, X.; Wu, F. Cobalt phthalocyanine-based nanodots as efficient catalysts for chemical conversion of CO2 under ambient conditions. J. Mater. Sci. 2021, 56, 10990–10999. [Google Scholar] [CrossRef]
  50. Xie, Y.; Wang, T.; Liu, X.; Zou, K.; Deng, W. Capture and conversion of CO2 at ambient conditions by a conjugated microporous polymer. Nat. Commun. 2013, 4, 1960. [Google Scholar] [CrossRef]
  51. He, L.; Natha, J.K.; Lin, Q. Robust multivariate metal-porphyrin frameworks for efficient ambient fixation of CO2 to cyclic carbonates. Chem. Commun. 2019, 55, 412–415. [Google Scholar] [CrossRef] [PubMed]
  52. Zheng, J.; Wu, M.Y.; Jiang, F.L.; Su, W.P.; Hong, M.C. Stable porphyrin Zr and Hf metal–organic frameworks featuring 2.5 nm cages: High surface areas, SCSC transformations and catalyses. Chem. Sci. 2015, 6, 3466–3470. [Google Scholar] [CrossRef] [PubMed]
  53. Gao, W.Y.; Wojtas, L.; Ma, S.Q. A porous metal–metalloporphyrin framework featuring high-density active sites for chemical fixation of CO2 under ambient conditions. Chem. Commun. 2014, 50, 5316–5318. [Google Scholar] [CrossRef]
  54. Gao, W.Y.; Chen, Y.; Niu, Y.H.; Williams, K.; Cash, L.; Perez, P.J.; Wpjtas, L.; Cai, J.F.; Chen, Y.S.; Ma, S.Q. Crystal engineering of an nbo topology metal–organic framework for chemical fixation of CO2 under ambient conditions. Angew. Chem. 2014, 53, 2615–2619. [Google Scholar] [CrossRef]
  55. Ji, D.F.; Lu, X.B.; He, R. Syntheses of cyclic carbonates from carbon dioxide and epoxides with metal phthalocyanines as catalyst. Appl. Catal. A Gen. 2000, 203, 329–333. [Google Scholar] [CrossRef]
  56. Sun, Q.; Aguila, B.; Perman, J.; Nguyen, N.; Ma, S.Q. Flexibility matters: Cooperative active sites in covalent organic framework and threaded ionic polymer. J. Am. Chem. Soc. 2016, 138, 15790–15796. [Google Scholar] [CrossRef]
  57. Martίn, C.; Fiorani, G.; Kleij, A.W. Recent advances in the catalytic preparation of cyclic organic carbonates. ACS Catal. 2015, 5, 1353–1370. [Google Scholar] [CrossRef]
  58. Liang, J.; Huang, Y.B.; Cao, R. Metal–organic frameworks and porous organic polymers for sustainable fixation of carbon dioxide into cyclic carbonates. Coord. Chem. Rev. 2019, 378, 32–65. [Google Scholar] [CrossRef]
  59. Wang, J.Q.; Kun, D.; Cheng, W.G.; Sun, J.; Zhang, S.J. Insights into quaternary ammonium salts-catalyzed fixation carbon dioxide with epoxides. Catal. Sci. Technol. 2012, 2, 1480–1484. [Google Scholar] [CrossRef]
  60. Lan, J.W.; Qu, Y.; Ping, X.; Sun, J.M. Novel HBD-Containing Zn (dobdc) (datz) as efficiently heterogeneous catalyst for CO2 chemical conversion under mild conditions. Green Energy Environ. 2021, 6, 66–74. [Google Scholar] [CrossRef]
Carbon 10 00074 g001

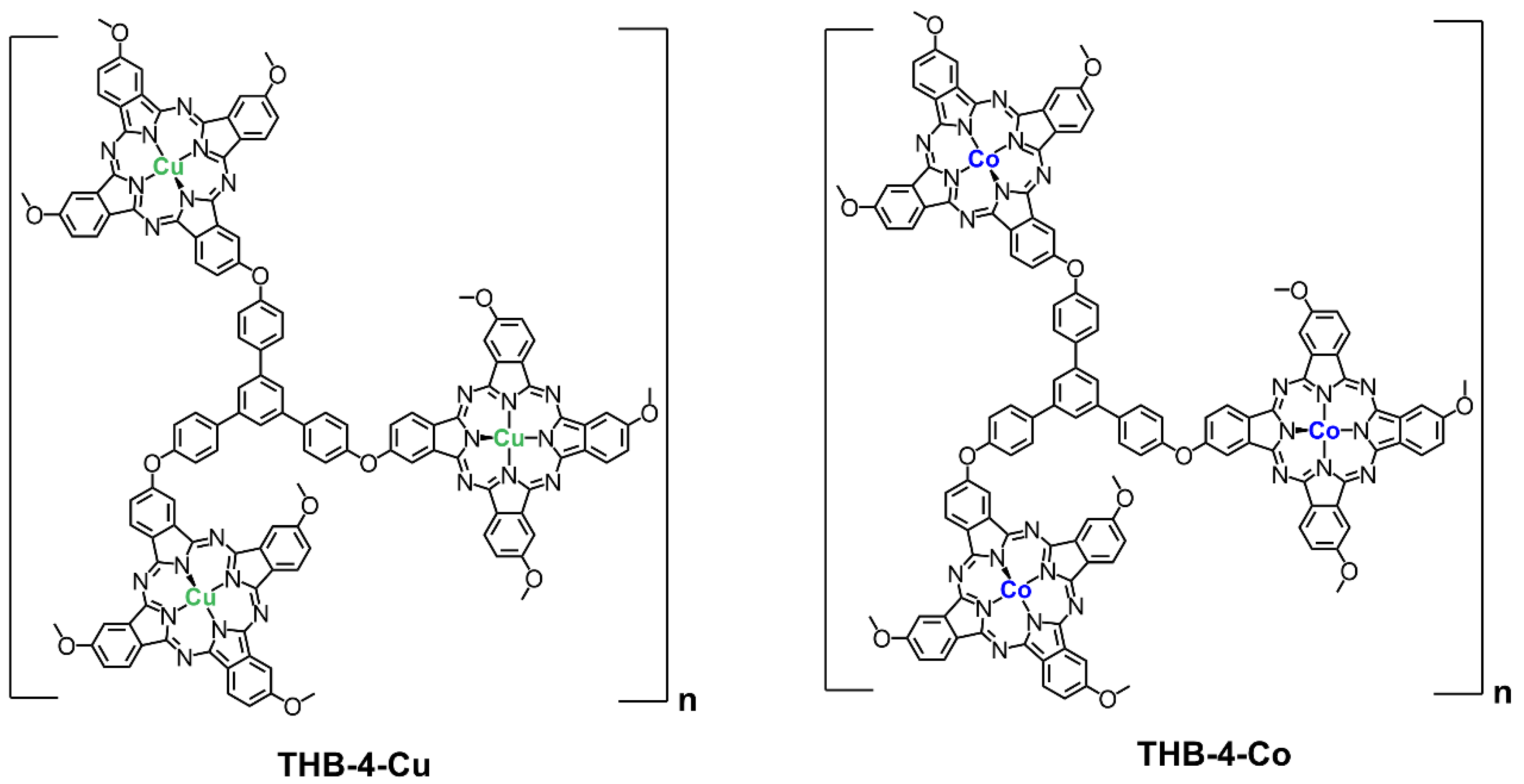

Figure 1. Chemical structure of MPcs network polymers THB-4-Cu and THB-4-Co.
Figure 1. Chemical structure of MPcs network polymers THB-4-Cu and THB-4-Co.
Carbon 10 00074 g001
Carbon 10 00074 g002
Figure 2. Schematic illustration for the synthesis of THB-4-Co and THB-4-Cu.
Figure 2. Schematic illustration for the synthesis of THB-4-Co and THB-4-Cu.
Carbon 10 00074 g002
Carbon 10 00074 g003

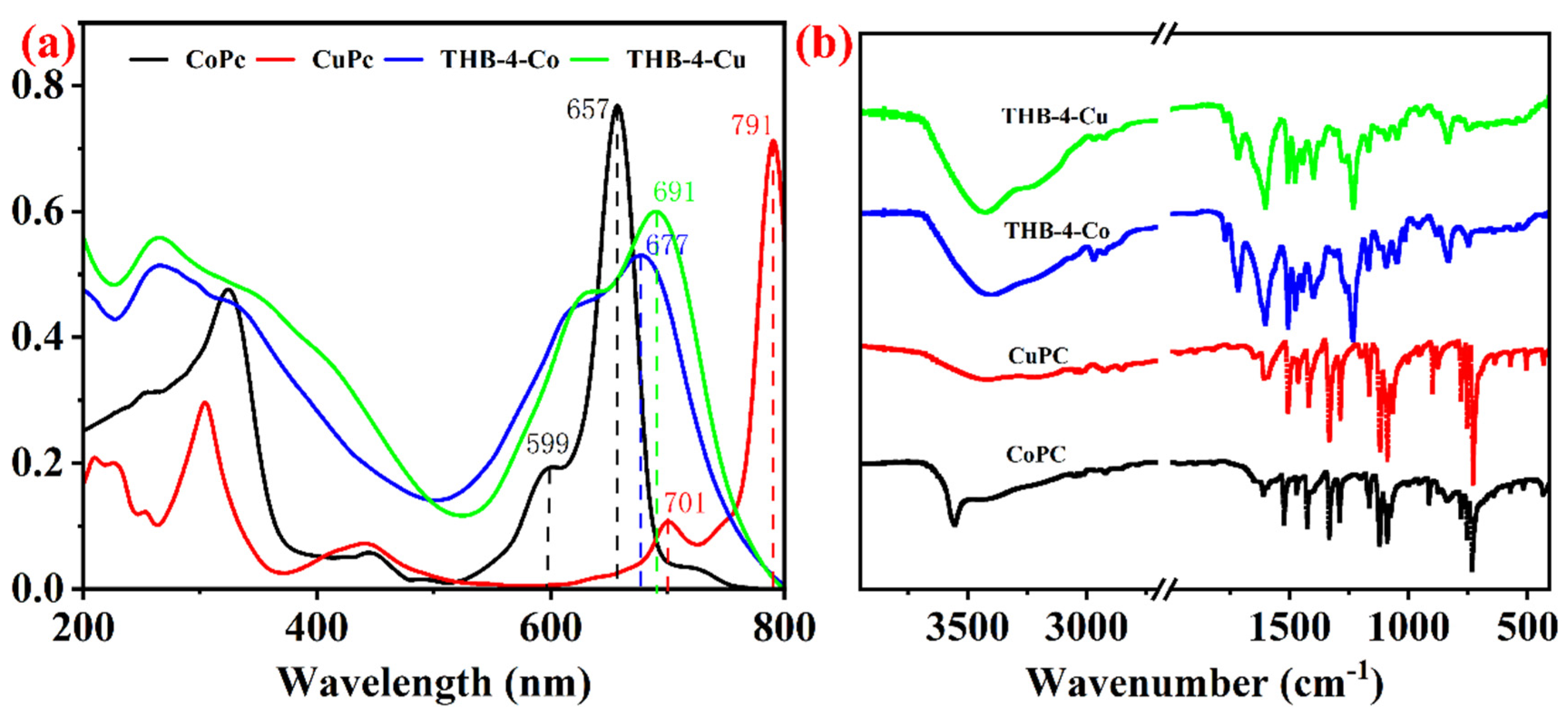

Figure 3. (a) UV–VIS diffuse reflectance spectra (DRS) of THB-4-Co, THB-4-Cu, CoPc, and CuPc. (b) FTIR of THB-4-Co, THB-4-Cu, CoPc, and CuPc.
Figure 3. (a) UV–VIS diffuse reflectance spectra (DRS) of THB-4-Co, THB-4-Cu, CoPc, and CuPc. (b) FTIR of THB-4-Co, THB-4-Cu, CoPc, and CuPc.
Carbon 10 00074 g003
Carbon 10 00074 g004
Figure 4. (a) Thermogravimetric analysis (TGA) of the THB-4-M. (b) The XRD patterns of the THB-4-M.
Figure 4. (a) Thermogravimetric analysis (TGA) of the THB-4-M. (b) The XRD patterns of the THB-4-M.
Carbon 10 00074 g004
Carbon 10 00074 g005

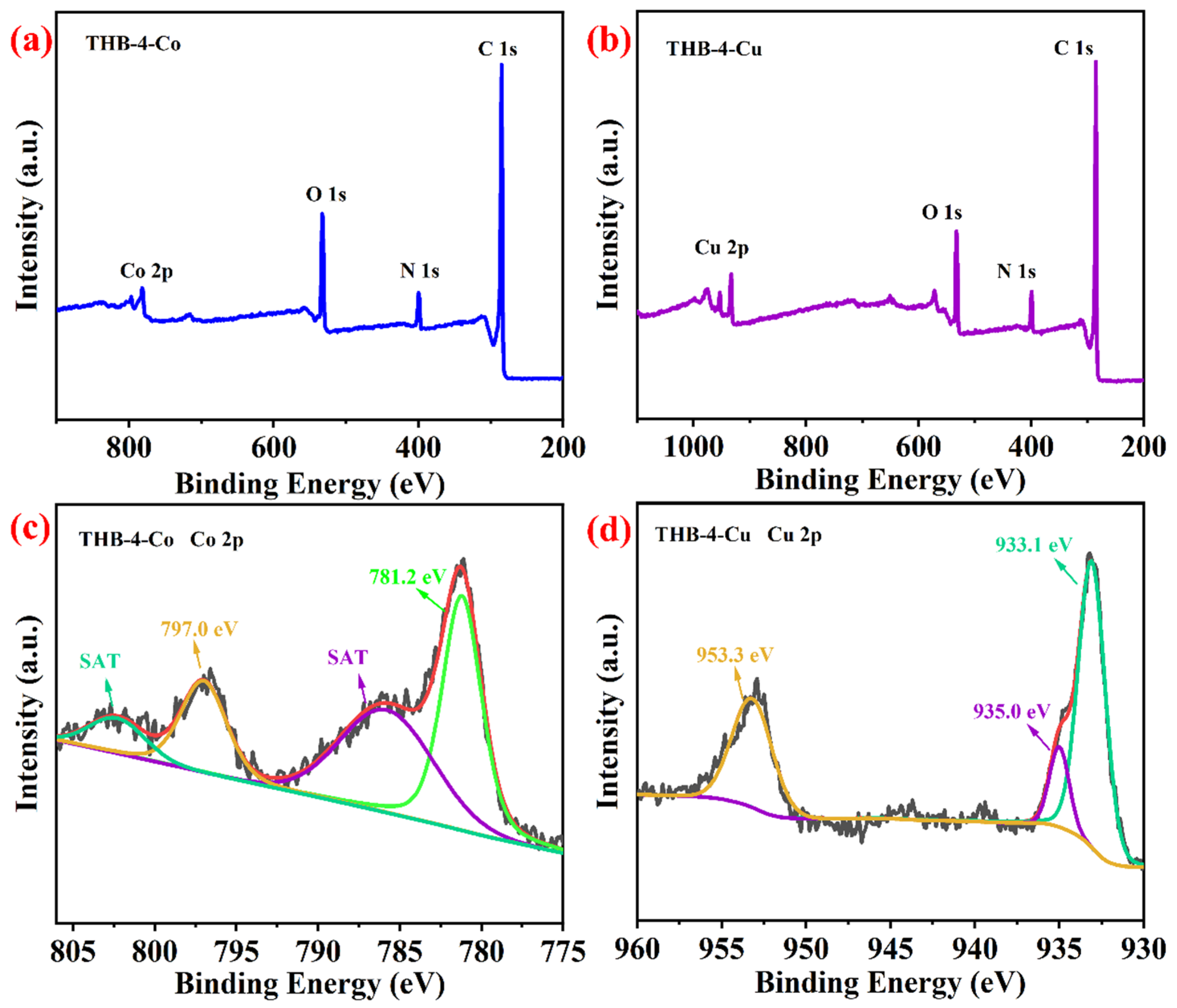

Figure 5. (a) XPS scan spectra for THB-4-Co; (b) XPS spectra for THB-4-Cu; (c) Co(2p) XPS spectra of THB-4-Co; and (d) Cu(2p) XPS spectra of THB-4-Cu.
Figure 5. (a) XPS scan spectra for THB-4-Co; (b) XPS spectra for THB-4-Cu; (c) Co(2p) XPS spectra of THB-4-Co; and (d) Cu(2p) XPS spectra of THB-4-Cu.
Carbon 10 00074 g005
Carbon 10 00074 g006
Figure 6. (a) C(1s) XPS spectra of THB-4-Cu; (b) C(1s) XPS spectra of THB-4-Co; (c) N(1s) XPS spectra of THB-4-Cu; and (d) N(1s) XPS spectra of THB-4-Co.
Figure 6. (a) C(1s) XPS spectra of THB-4-Cu; (b) C(1s) XPS spectra of THB-4-Co; (c) N(1s) XPS spectra of THB-4-Cu; and (d) N(1s) XPS spectra of THB-4-Co.
Carbon 10 00074 g006
Carbon 10 00074 g007

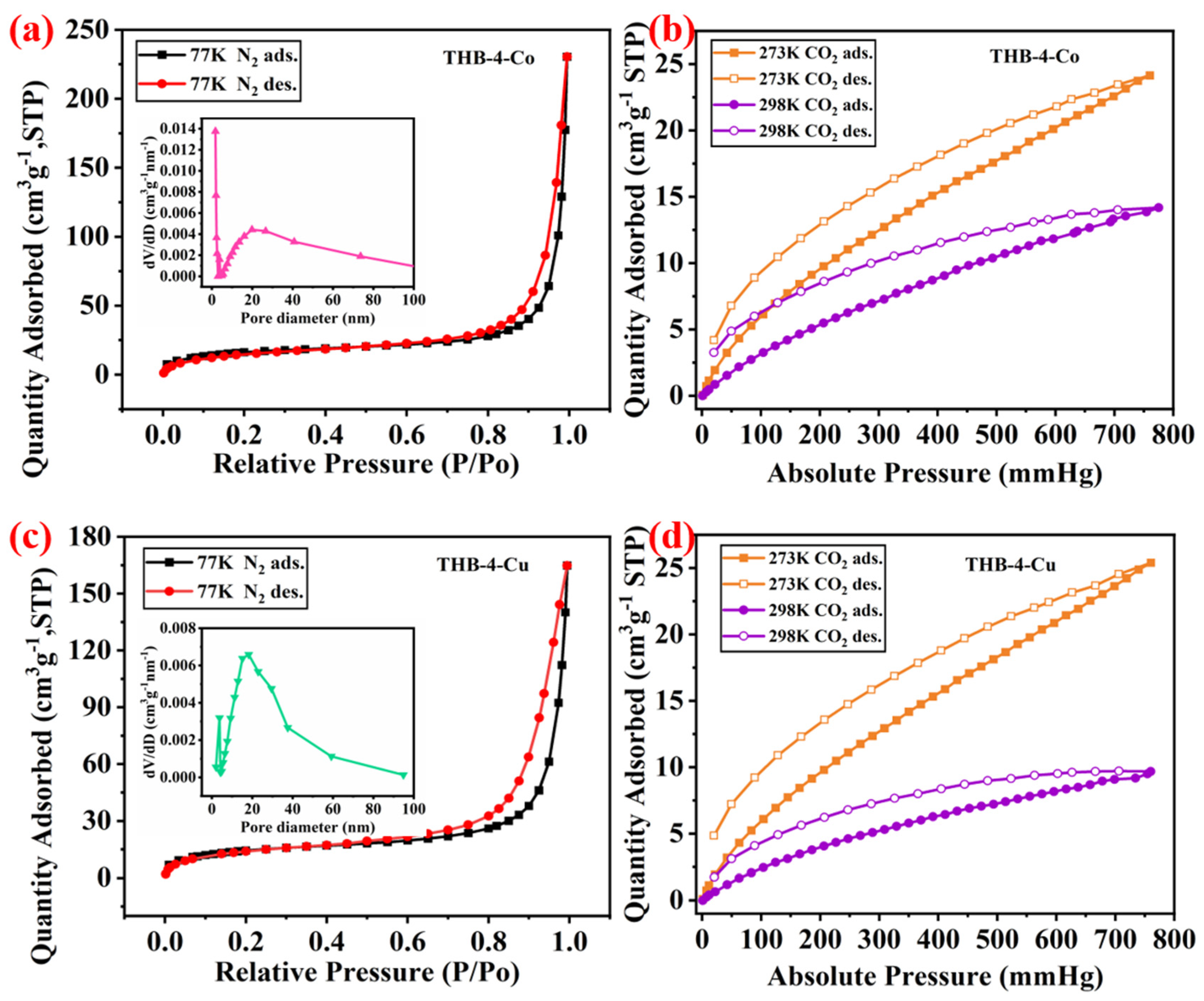

Figure 7. (a) N2 adsorption–desorption isotherms of THB-4-Co. (b) CO2 uptake isotherms of THB-4-Co at both 273 K and 298 K. (c) N2 adsorption–desorption isotherms of THB-4-Cu. (d) CO2 uptake isotherms of THB-4-Cu at both 273 K and 298 K.
Figure 7. (a) N2 adsorption–desorption isotherms of THB-4-Co. (b) CO2 uptake isotherms of THB-4-Co at both 273 K and 298 K. (c) N2 adsorption–desorption isotherms of THB-4-Cu. (d) CO2 uptake isotherms of THB-4-Cu at both 273 K and 298 K.
Carbon 10 00074 g007
Carbon 10 00074 g008
Figure 8. SEM images of as-prepared polymers with different ions: (a–c) was THB-4-Co and (d–f) was THB-4-Cu.
Figure 8. SEM images of as-prepared polymers with different ions: (a–c) was THB-4-Co and (d–f) was THB-4-Cu.
Carbon 10 00074 g008
Carbon 10 00074 g009

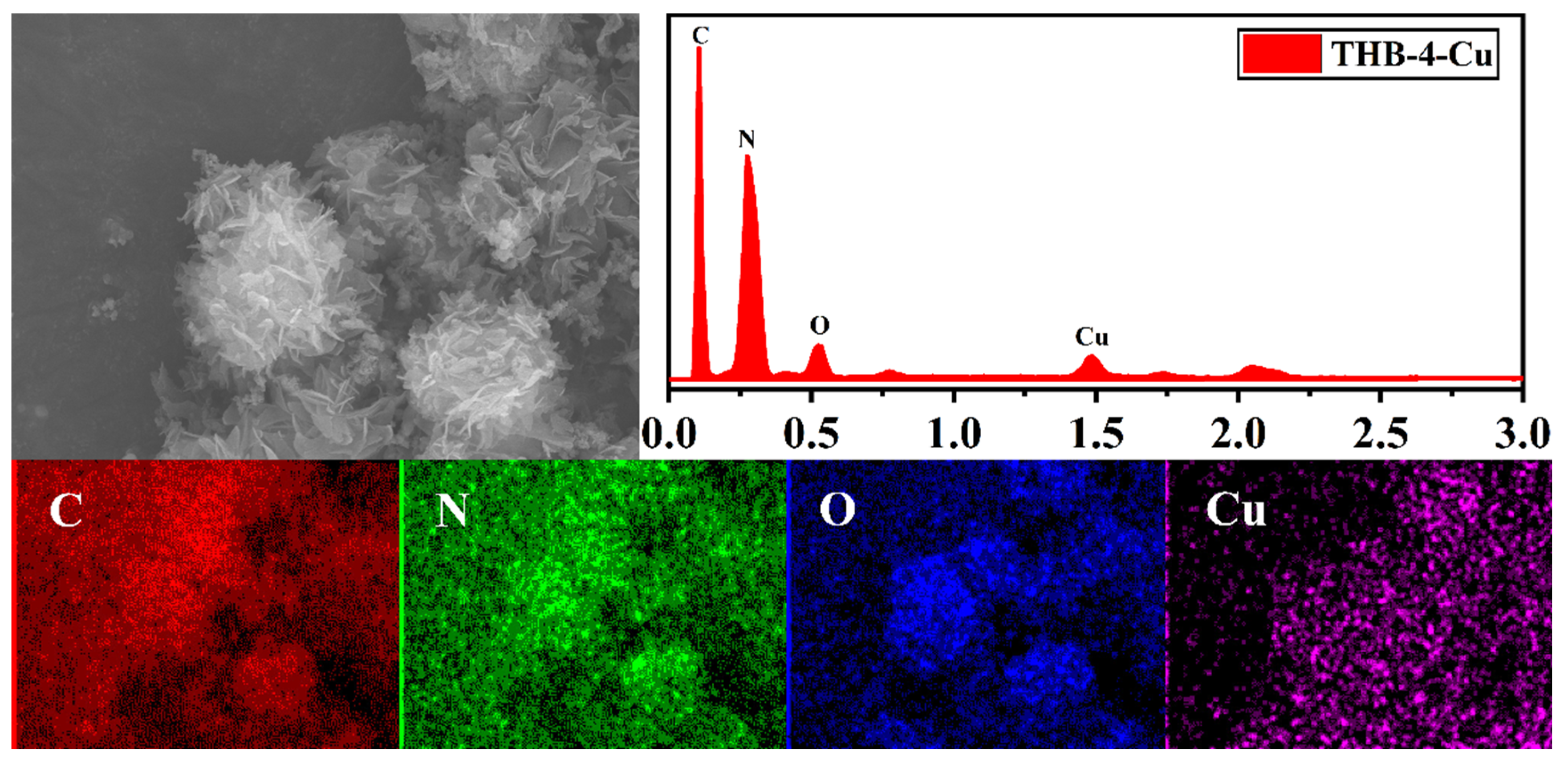

Figure 9. EDS and mapping of THB-4-Cu.
Figure 9. EDS and mapping of THB-4-Cu.
Carbon 10 00074 g009
Carbon 10 00074 g010

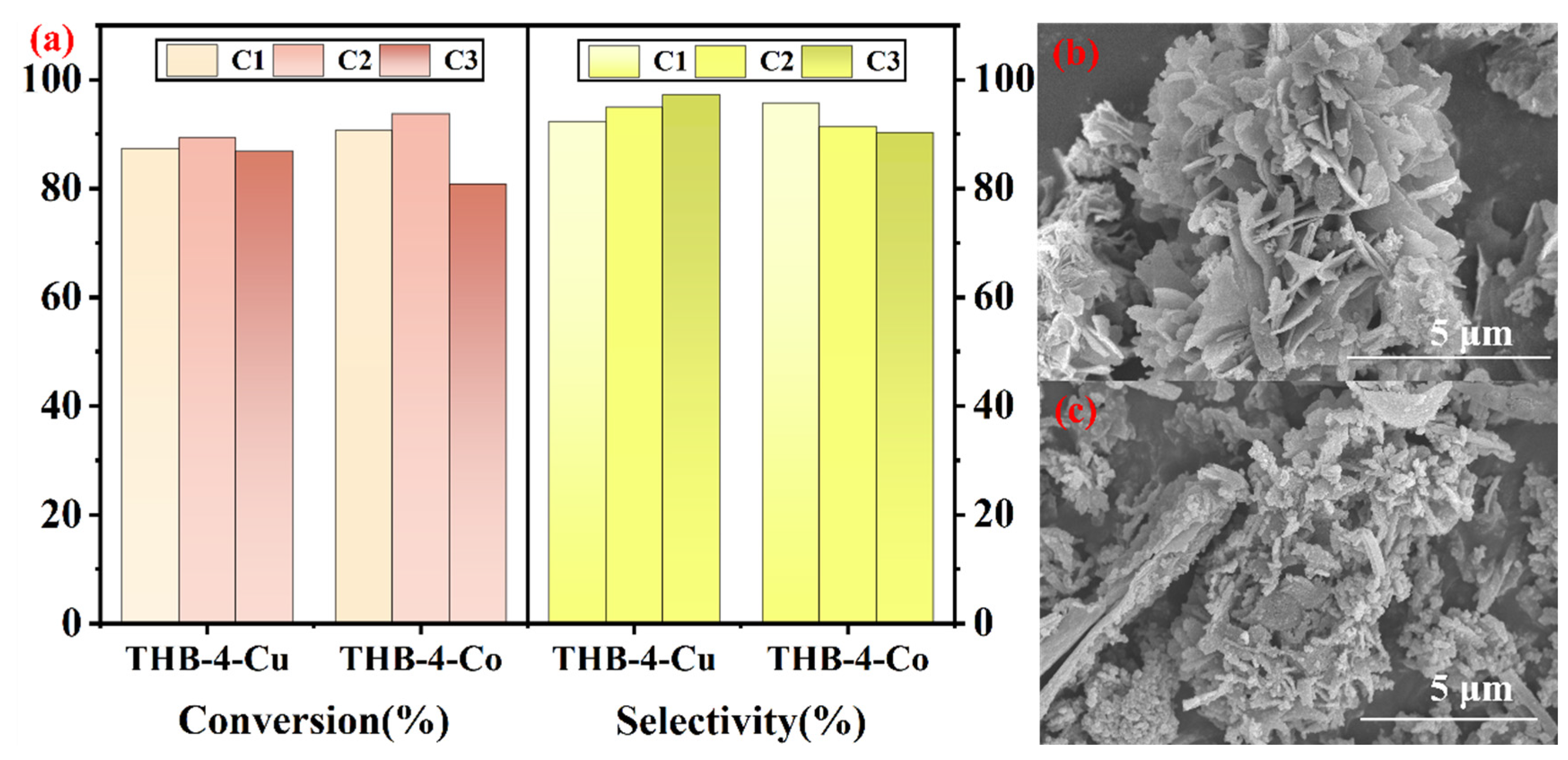

Figure 10. (a) The conversion and selectivity catalyzed by THB-4-M; (b) SEM images of THB-4-Cu after three recycling cycles; (c) SEM images of THB-4-Co after three recycling cycles.
Figure 10. (a) The conversion and selectivity catalyzed by THB-4-M; (b) SEM images of THB-4-Cu after three recycling cycles; (c) SEM images of THB-4-Co after three recycling cycles.
Carbon 10 00074 g010
Carbon 10 00074 sch001

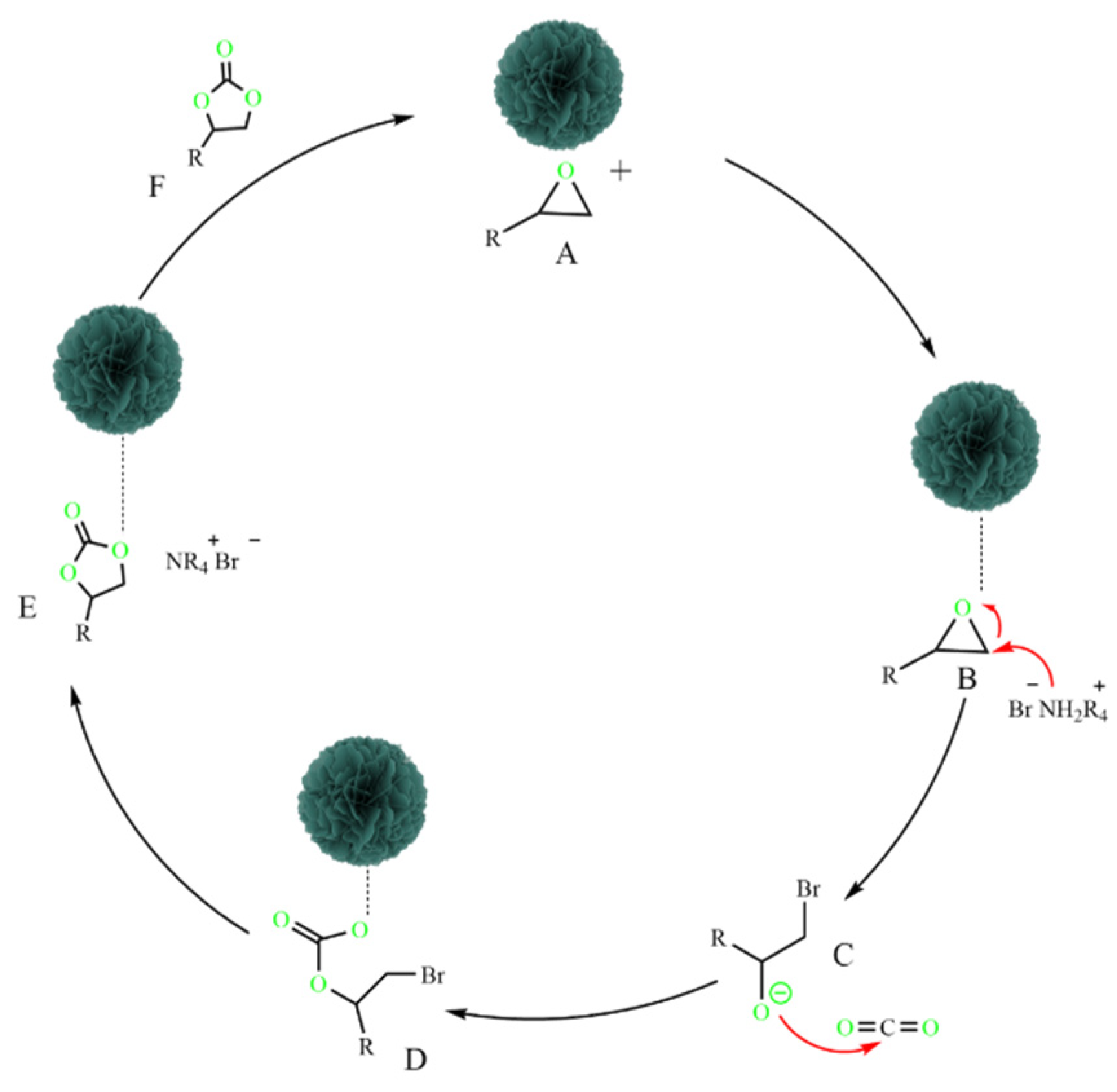

Scheme 1. Proposed mechanism for the coupling of CO2 and ECH promoted by THB-4-M (M = Cu, Co).
Scheme 1. Proposed mechanism for the coupling of CO2 and ECH promoted by THB-4-M (M = Cu, Co).
Carbon 10 00074 sch001
Table 1. The optical data of THB-4-Co and THB-4-Cu.
Table 1. The optical data of THB-4-Co and THB-4-Cu.
EntryMPcsAbsorption/nmIR Peaks/cm−1
1CoPc599, 657 a3068, 2856, 1610, 1470, 1390
2THB-4-Co626, 677
3CuPc701, 791 b
4THB-4-Cu629, 691
a Absorption spectra in CH2Cl2 at a concentration 1.0 × 10−5 mol/L. b Absorption spectra in concentrated sulfuric acid at a concentration of 1.0 × 10−5 mol/L.
Table 2. Characterization data of THB-4-M polymers.
Table 2. Characterization data of THB-4-M polymers.
EntryMPcsSBET (m2·g−1)Vpore
(cm3·g−1)		Dpore
(nm)		CO2 Capacities
(273 K, cm3·g−1)		CO2 Capacities
(298 K, cm3·g−1)		ICP
1THB-4-Co71.140.3624.0724.1414.177.73
2THB-4-Cu114.250.2519.7125.409.688.52

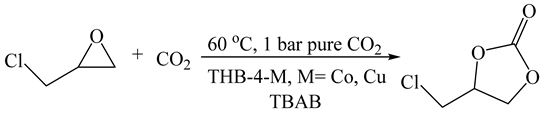

Table 3. The cycloaddition of CO2 with ECH catalyzed by THB-4-M under solvent-free conditions.
Table 3. The cycloaddition of CO2 with ECH catalyzed by THB-4-M under solvent-free conditions.
Carbon 10 00074 i001
EntryCatalystsP CO2 (bar)T (°C)t (h)Conv. (%)TON (a)Ref.
1Co/POP-TPP/TBAB1292495.6442[48]
2CoPc/g-C3N4301302497.6296[40]
3CoPc-NDs/TBAB1252488.01708[49]
4Co-CMP/TBAB3100198.1201[50]
5FTPFs-Cu-Nb-Ni/TBAB1r.t.4893.0186[51]
6CuPc@CS/TBAB1804.595.0270[29]
7FJI-H7(Cu)/TBAB1256066.5332.5[29]
8MMPF-9(Cu)/TBAB1254887.4NM (b)[52]
9MMCF-2(Cu)/TBAB1r.t.4888.5NM[53]
10CoPc/TBAB/ (c)14055.1NM[54]
11THB-4-Co/TBAB1602490.3674This work (d)
12THB-4-Cu/TBAB1602491.6676This work
(a) Turn-over number (mol substrate converted/mol catalysts based on Cu); (b) NM: not mentioned; (c) CO2 360 mmol; (d) Reaction conditions: 1.00 g epichlorohydrin (ECH), 10 mg THB-4-M (0.013 mmol MPc), and 50 mg TBAB (the mass ratio of catalyst: co-catalyst = 1:5) were added to a Schlenk tube with a CO2 balloon (1 bar pure CO2) under solvent-free conditions.
Table 4. Catalytic performance of THB-4-Cu and various epoxides in the thermal cycloaddition of CO2 to epoxides.
Table 4. Catalytic performance of THB-4-Cu and various epoxides in the thermal cycloaddition of CO2 to epoxides.
EntryEpoxideCo-Cat (a)T (°C)t (h)Conv. (%) (b)Selec. (%) (b)TON (c)
1Carbon 10 00074 i002TBAB602490.390.5674
2TBAI89.995.6709
3TBAC78.773.3476
4TEBAC88.070.3510
5CTAC79.069.2451
6CTAB94.981.2635
7Carbon 10 00074 i003TBAB60669.569.3397
81283.990.5626
92490.390.5674
104898.089.1720
11901299.092.6756
12Carbon 10 00074 i004TBAB 50 mg602490.390.5674
13TBAB 30 mg 83.687.3601
14TBAB 10 mg 73.678.4475
15Carbon 10 00074 i005TBAB902482.490.3613
16Carbon 10 00074 i006TBAB902490.192.6697
17Carbon 10 00074 i007TBAB902449.935.5146
18Carbon 10 00074 i008TBAB902465.788.4239
19Carbon 10 00074 i009TBAB602469.750.4142
(a) Reaction conditions: 1.00 g epichlorohydrin (ECH), 10 mg THB-4-Cu (0.013 mmol CuPc), and 50 mg TBAB (the mass ratio of catalyst: co-catalyst = 1:5) were added to a Schlenk tube with CO2 balloon (1 bar pure CO2) under solvent-free conditions; (b) Conversion and selectivity determined by 1H NMR spectra analysis using 1,3,5-trimethoxybenzene as an internal standard; (c) Turn-over number (mol substrate converted/mol catalysts based on Cu).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhou, Y.; Shao, S.; Han, X.; Zhou, B.; Han, Y.; Dong, X.; Yu, S. The Flower-Shaped Co (II) and Cu (II) Phthalocyanine Polymers as Highly Efficient and Stable Catalysts for Chemical Fixation of CO2 to Cyclic Carbonate. C 2024, 10, 74. https://doi.org/10.3390/c10030074

AMA Style

Zhou Y, Shao S, Han X, Zhou B, Han Y, Dong X, Yu S. The Flower-Shaped Co (II) and Cu (II) Phthalocyanine Polymers as Highly Efficient and Stable Catalysts for Chemical Fixation of CO2 to Cyclic Carbonate. C. 2024; 10(3):74. https://doi.org/10.3390/c10030074

Chicago/Turabian Style

Zhou, Yuyang, Shengyu Shao, Xiang Han, Baocheng Zhou, Yifeng Han, Xiaoping Dong, and Sanchuan Yu. 2024. "The Flower-Shaped Co (II) and Cu (II) Phthalocyanine Polymers as Highly Efficient and Stable Catalysts for Chemical Fixation of CO2 to Cyclic Carbonate" C 10, no. 3: 74. https://doi.org/10.3390/c10030074

APA Style

Zhou, Y., Shao, S., Han, X., Zhou, B., Han, Y., Dong, X., & Yu, S. (2024). The Flower-Shaped Co (II) and Cu (II) Phthalocyanine Polymers as Highly Efficient and Stable Catalysts for Chemical Fixation of CO2 to Cyclic Carbonate. C, 10(3), 74. https://doi.org/10.3390/c10030074

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
