# Thermal Convection of an Ellis Fluid Saturating a Porous Layer with Constant Heat Flux Boundary Conditions

^{1}

^{2}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Mathematical Formulation

#### 2.1. Rheological Model

#### 2.2. Modified Darcy’s Law

#### 2.3. Governing Equations

#### 2.4. Basic State

#### 2.5. Linear Stability Analysis

## 3. Asymptotic Analysis for Vanishing Wavenumber

## 4. Results and Discussion

## 5. Conclusions

- There exists a suitable variable transformation that yields a compact representation of the stability eigenvalue problem;
- The critical conditions hold always for $k=0$. The threshold values can be obtained entirely analytically due to an asymptotic analysis performed for $k\to 0$;
- The non-Newtonian character of the fluid plays a destabilizing effect on the convective flow, namely an increasing value of the Ellis number yields a destabilization of the basic flow;
- For $\mathrm{El}\to 0$, the Ellis index a does not affect the stability conditions and the results coincide with those for the limit of Newtonian fluid already available in the literature (${k}_{c}=0$ and ${\mathrm{R}}_{c}=12$);
- For large values of the Ellis number, the power-law behavior is recovered. This means that the critical Rayleigh number tends to zero.

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## References

- Nield, D.A.; Bejan, A. Convection in Porous Media, 5th ed.; Springer: New York, NY, USA, 2017. [Google Scholar]
- Shenoy, A. Non-Newtonian fluid heat transfer in porous media. In Advances in Heat Transfer; Elsevier: Amsterdam, The Netherlands, 1994; Volume 24, pp. 101–190. [Google Scholar]
- Nield, D.A. A note on the onset of convection in a layer of a porous medium saturated by a non-Newtonian nanofluid of power-law type. Transp. Porous Media
**2011**, 87, 121–123. [Google Scholar] [CrossRef] - Nield, D.A. A further note on the onset of convection in a layer of a porous medium saturated by a non-Newtonian fluid of power-law type. Transp. Porous Media
**2011**, 88, 187–191. [Google Scholar] [CrossRef] - Brandão, P.V.; Ouarzazi, M.N. Darcy–Carreau model and nonlinear natural convection for pseudoplastic and dilatant fluids in porous media. Transp. Porous Media
**2021**, 136, 521–539. [Google Scholar] [CrossRef] - Brandão, P.; Ouarzazi, M.; Hirata, S.d.C.; Barletta, A. Darcy–Carreau–Yasuda rheological model and onset of inelastic non-Newtonian mixed convection in porous media. Phys. Fluids
**2021**, 33, 044111. [Google Scholar] [CrossRef] - Celli, M.; Barletta, A.; Brandão, P.V. Rayleigh–Bénard instability of an Ellis fluid saturating a porous medium. Transp. Porous Media
**2021**, 138, 679–692. [Google Scholar] [CrossRef] - Brandão, P.V.; Celli, M.; Barletta, A. Rayleigh–Bénard instability of an Ellis fluid saturated porous channel with an isoflux Boundary. Fluids
**2021**, 6, 450. [Google Scholar] [CrossRef] - Savins, J.G. Non-Newtonian flow through porous media. Ind. Eng. Chem.
**1969**, 61, 18–47. [Google Scholar] [CrossRef] - Horton, C.W.; Rogers, F.T. Convection currents in a porous medium. J. Appl. Phys.
**1945**, 16, 367–370. [Google Scholar] [CrossRef] - Lapwood, E.R. Convection of a fluid in a porous medium. Proc. Camb. Philos. Soc.
**1948**, 44, 508–521. [Google Scholar] [CrossRef] - Prats, M. The effect of horizontal fluid flow on thermally induced convection currents in porous mediums. J. Geophys. Res.
**1966**, 71, 4835–4838. [Google Scholar] [CrossRef] - Sparrow, E.M.; Goldstein, R.J.; Jonsson, V.K. Thermal instability in a horizontal fluid layer: Effect of boundary conditions and non-linear temperature profile. J. Fluid Mech.
**1964**, 18, 513–528. [Google Scholar] [CrossRef] - Park, H.; Sirovich, L. Hydrodynamic stability of Rayleigh-Bénard convection with constant heat flux boundary condition. Q. Appl. Math.
**1991**, 49, 313–332. [Google Scholar] [CrossRef] - Nield, D.A. Onset of thermohaline convection in a porous medium. Water Resour. Res.
**1968**, 4, 553–560. [Google Scholar] [CrossRef] - Jones, M.; Persichetti, J. Convective instability in packed beds with throughflow. AIChE J.
**1986**, 32, 1555–1557. [Google Scholar] [CrossRef] - Sochi, T. Non-Newtonian flow in porous media. Polymer
**2010**, 51, 5007–5023. [Google Scholar] [CrossRef] - Sadowski, T.J.; Bird, R.B. Non-Newtonian flow through porous media. I. Theoretical. Trans. Soc. Rheol.
**1965**, 9, 243–250. [Google Scholar] [CrossRef] - Sadowski, T.J. Non-Newtonian Flow through Porous Media. Ph.D. Thesis, The University of Wisconsin-Madison, Madison, WI, USA, 1963. [Google Scholar]
- Wolfram, S. The Mathematica book (3rd ed.). Assem. Autom.
**1999**, 19, 77. [Google Scholar] [CrossRef]

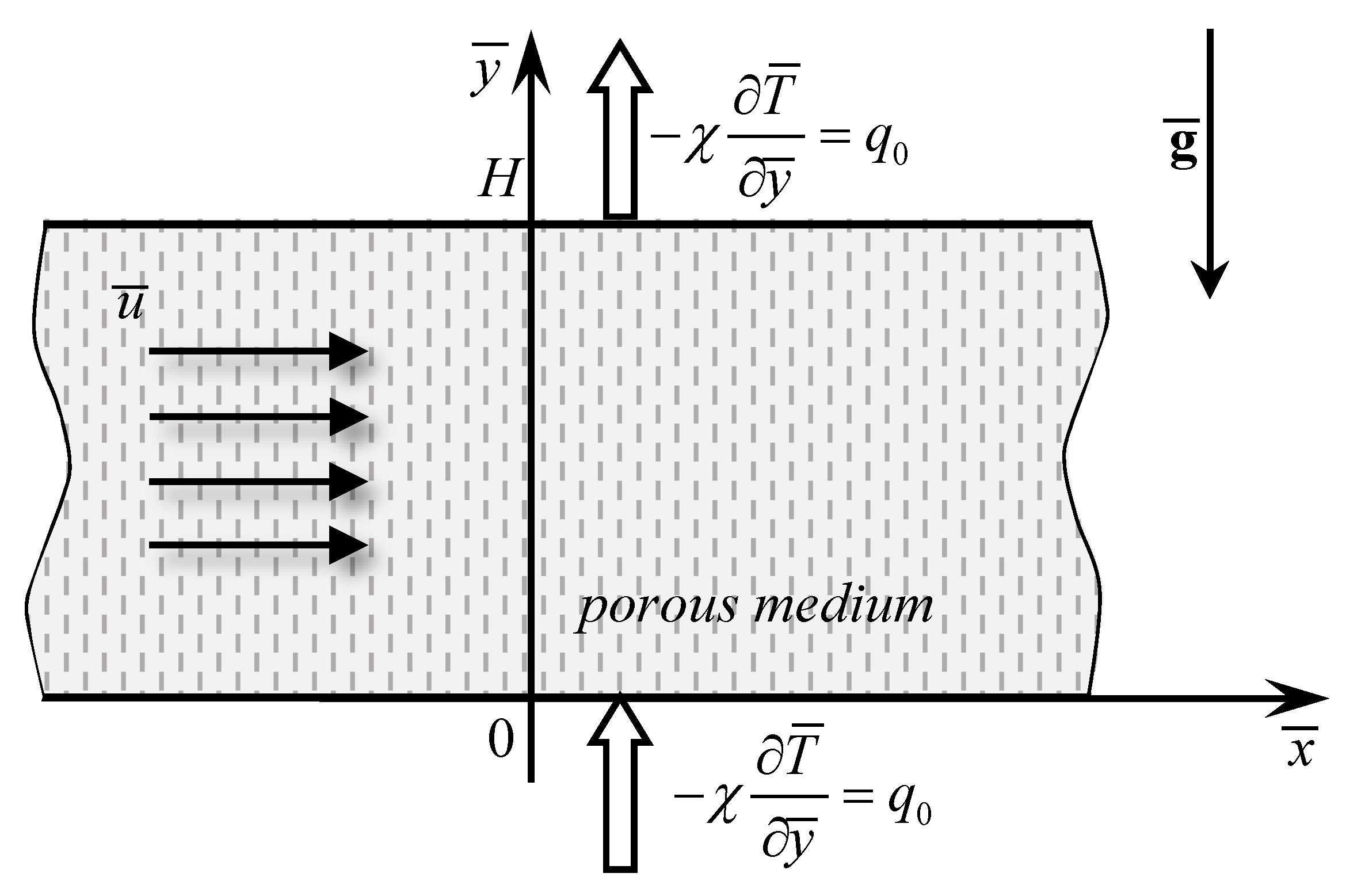

**Figure 1.**Sketch of the porous layer heated from below and cooled from above by equal constant heat fluxes with horizontal throughflow.

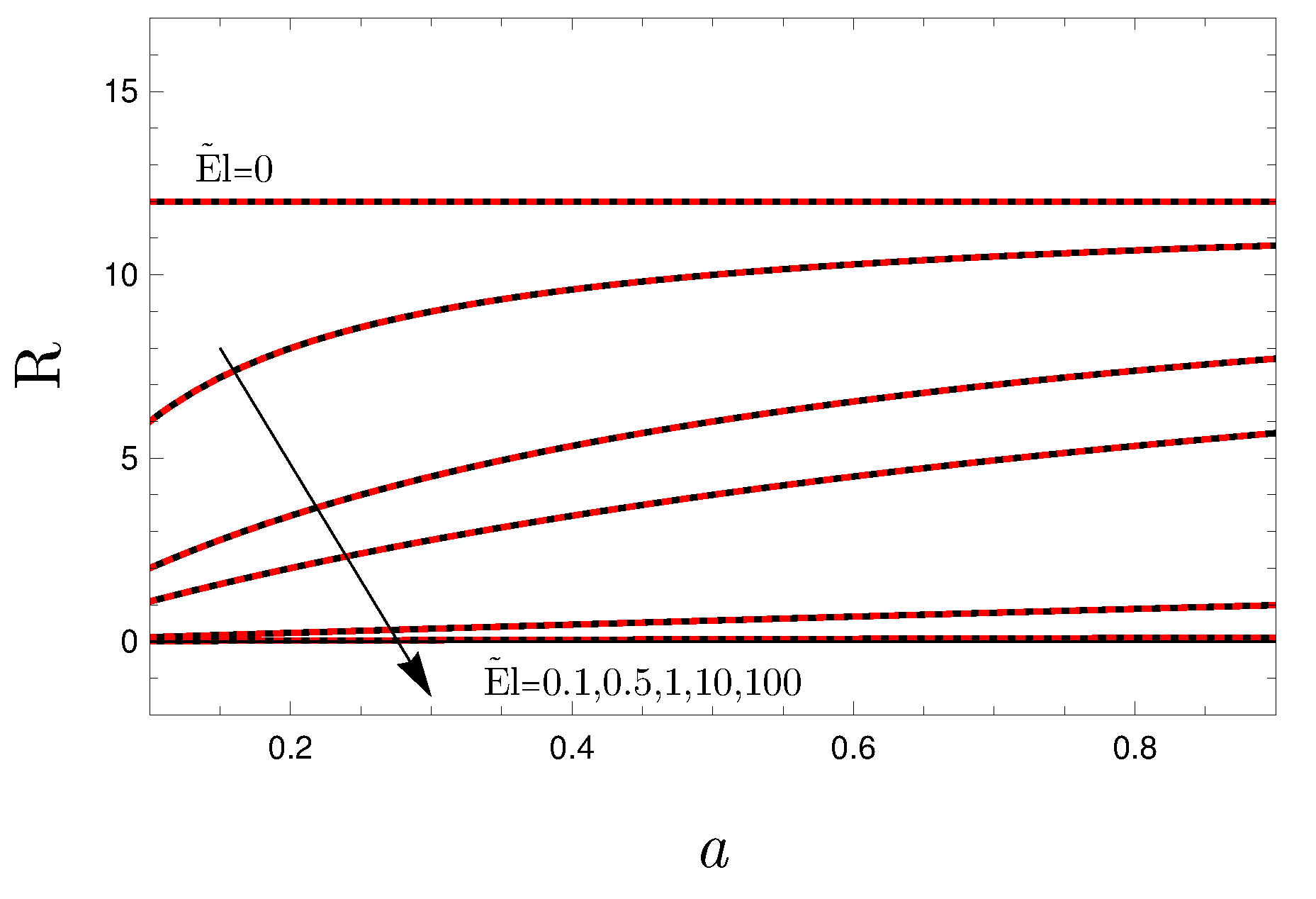

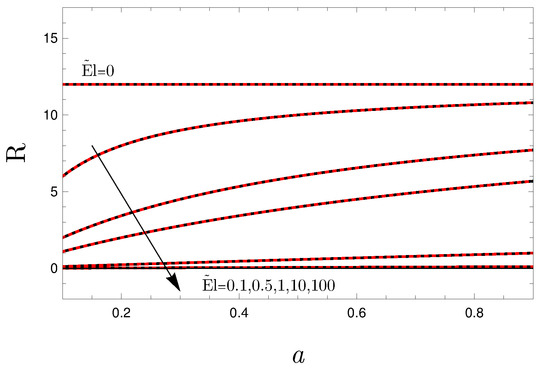

**Figure 3.**Comparison between asymptotic solution for $k\to 0$ (red dashed curves) and the neutral stability condition obtained numerically for $k={10}^{-3}$ (black continuous curves); $\mathrm{R}$ versus a.

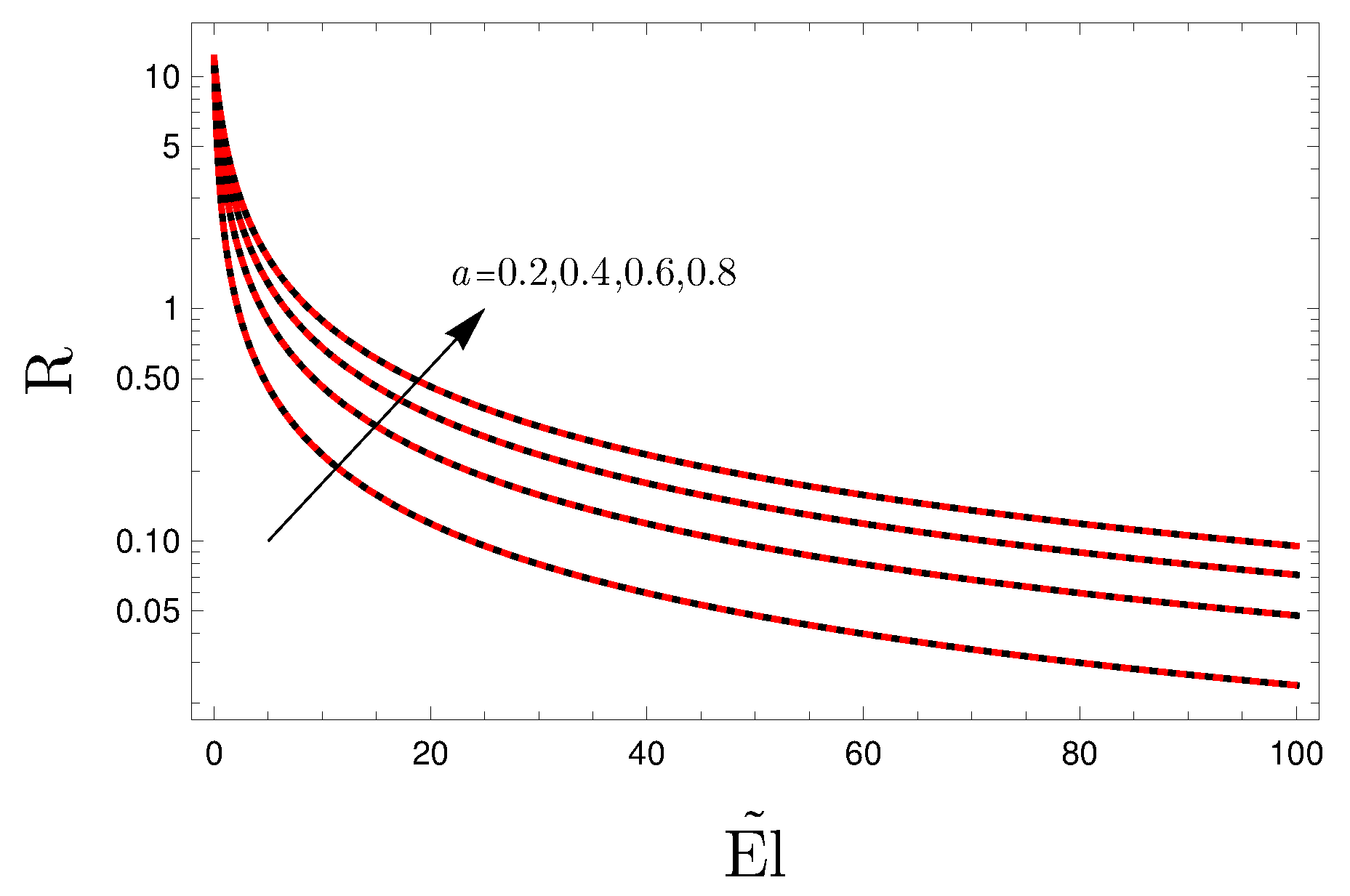

**Figure 4.**Comparison between asymptotic solution for $k\to 0$ (red dashed curves) and the neutral stability condition obtained numerically for $k={10}^{-3}$ (black solid curves); $\mathrm{R}$ versus $\tilde{\mathrm{El}}$.

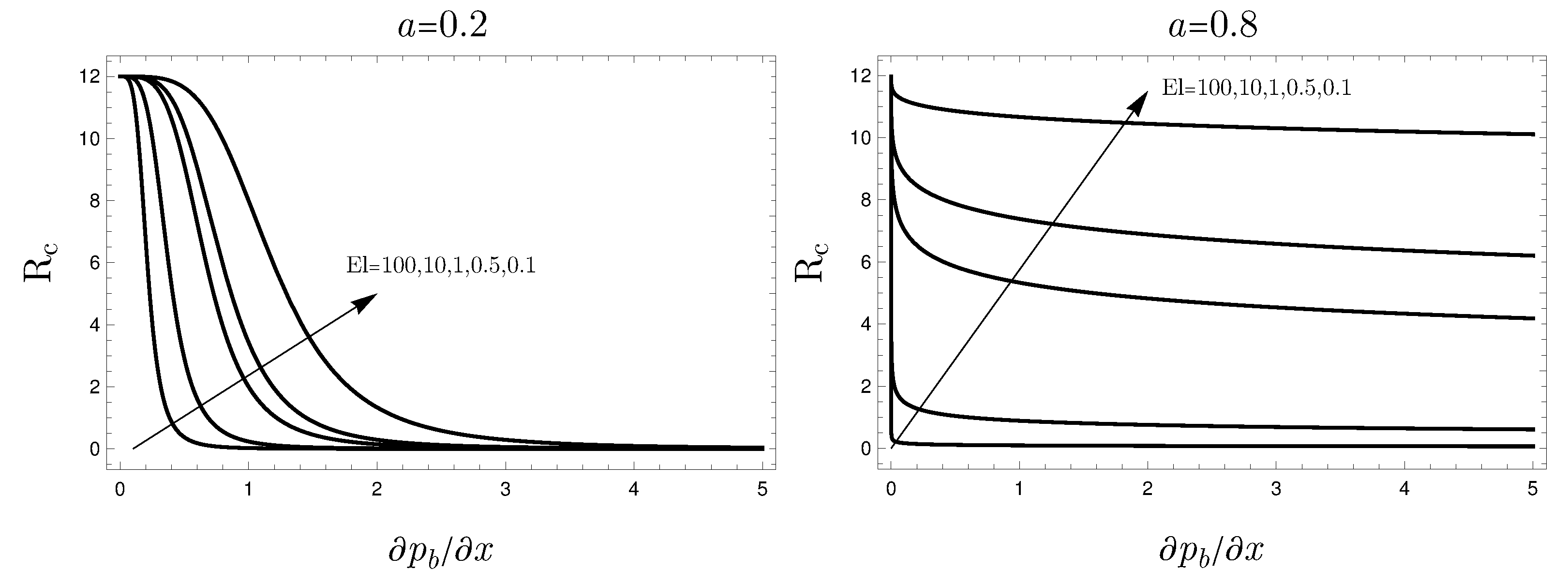

**Figure 5.**Critical $\mathrm{R}$ as a function of the basic pressure gradient for different values of $\mathrm{El}$ for $a=0.2$ and $a=0.8$.

**Table 1.**Neutral stability values of $\mathrm{R}$ for small values of k for the Newtonian limit $\mathrm{El}\to 0$.

k | $\mathbf{R}$ |
---|---|

$0.1$ | 12.0114 |

$0.01$ | 12.0001 |

$0.001$ | 12.0000 |

0 | 12 |

$\tilde{\mathbf{El}}$ | $\mathit{a}=0.8$ | $\mathit{a}=0.6$ | $\mathit{a}=0.4$ | $\mathit{a}=0.2$ |
---|---|---|---|---|

0 | 12 | 12 | 12 | 12 |

$0.1$ | 10.666667 | 10.285714 | 9.6 | 8 |

$0.5$ | 7.3846154 | 6.5454545 | 5.3333333 | 3.4285714 |

1 | 5.3333333 | 4.5 | 3.4285714 | 2 |

10 | 0.88888889 | 0.67924528 | 0.46153846 | 0.23529412 |

100 | 0.095238095 | 0.071570577 | 0.047808765 | 0.023952096 |
