Eutectogels as Delivery Media for Therapeutic Metal Complexes: What Are the Benefits?

by
Varvara O. Veselova
1,*,
Svetlana V. Revtovich
2,
Vitalia V. Kulikova
2,
Arina D. Filippova
1,
Kseniya A. Koshenskova
1,
Nikolay N. Efimov
1,
Irina A. Lutsenko
1 and
Marina A. Uvarova
1
1
Kurnakov Institute of General and Inorganic Chemistry, Russian Academy of Sciences, 119991 Moscow, Russia
2
Engelhardt Institute of Molecular Biology, Russian Academy of Sciences, 119991 Moscow, Russia
*
Author to whom correspondence should be addressed.
Gels 2026, 12(1), 65; https://doi.org/10.3390/gels12010065
Submission received: 1 December 2025 / Revised: 3 January 2026 / Accepted: 5 January 2026 / Published: 11 January 2026
(This article belongs to the Special Issue Current Research on Eutectogels)
Browse Figures
Versions Notes

Abstract

Drugs and drug candidate compounds commonly suffer from poor solubility and permeability. One promising strategy to mediate these drawbacks is use of novel solvents, such as deep eutectic compositions. The present research aims to determine the applicability of this approach for therapeutic metal complexes on the example of [Cu(Fur)2(Phen)] (Fur = furoate-anion, Phen = 1,10-phenantroline) and [Cu(Fur)2(Neoc)(H2O)] (Fur = furoate-anion, Neoc = 2,9-dimetyl-1,10-phenanthroline) with molar weight of appx. 500 Da. Interaction of the metal complexes with the deep eutectic solvent (DES) reline was studied using electron paramagnetic resonance (EPR). Minimal inhibitory concentrations of the complexes dissolved in DES and dimethyl sulfoxide (DMSO) were determined and found to be equivalent in both solvents. That is, use of reline as a solvent did not alter the functional properties of the metal complexes. Changes in the transdermal permeation of the complexes in DMSO and DES were assessed using a Franz diffusion cell. It was discovered that depending on the structure of the complex, the permeability might either increase (from 15 to 30%) or decrease (from 13 to 8%) with changes in the solvent, and this can be used to develop dosing strategies. Therapeutic eutectogels were successfully produced by impregnating SiO2 nanoparticles with the metal complex solution in DES, facilitating convenient topical application.

1. Introduction

The Biopharmaceutics Classification System (BCS) [1] categorizes drugs on the basis of their solubility and permeability. The success of an active pharmaceutical ingredient (API) in pharmaceutical development is largely defined by these two parameters [2,3,4]. Poor solubility of drug candidate compounds in aqueous media is a significant bottleneck in drug development [5]. Poor solubility hampers systemic absorption [6,7] and complicates formulation processes, dosing strategies, and storage stability [8,9]. In 2023, the share of insufficiently soluble drugs in aqueous media was estimated to be 60–70% [10]. One of the types of drugs with poor aqueous solubility are the metal complexes. Platinum complexes, many of which suffer from insufficient water solubility, are extensively used in cancer therapy [11]. Plenty of poorly soluble metal complexes are considered as drug candidates for therapy of anemia [12], cancer [13], tuberculosis [14], etc. For example, copper(II) coordination compounds with oligopyridine ligands show promising antimicrobial properties [15,16], and copper(II) furancarboxylate complexes show promising anti-tuberculosis and antibacterial activity [17,18]. Two complexes were chosen as the model objects in the present study: [Cu(Fur)2(Phen)] (Complex A) [17] and [Cu(Fur)2(Neoc)(H2O)] (Complex B) [18]. The respective structures of these complexes are shown in Figure 1. Both of these complexes are poorly soluble in water and are reported to have pronounced antibacterial activity and potential application as tuberculosis therapy [18].
Various strategies for solubility enhancement have been suggested over the years [19], such as salt formation, co-crystallization, amorphization, nanoformulations, solid dispersions, use of solubilizing agents [20,21,22,23], etc.
One of the emerging strategies that has been recognized as promising is the development of novel solvent systems based on ionic liquids (ILs). However, first generation of IL based on ammonium, imidazolium, phosphonium, pyridinium, and pyrrolidinium cations exhibit acute toxicity and cause skin irritation [24,25] which limits their applications in drug delivery systems. Deep eutectic solvents comprising biocompatible components have allowed us to overcome these limitations and formulate novel solvents with excellent biocompatibility profiles and adequate biodegradation features. Not only do the DESs help to improve solubility of the API, but they also reportedly help to increase bioavailability and perform as penetration enhancers by overcoming tissue barriers [26]. DESs are generally cheaper and easier to prepare compared to first-generation ILs, too. A detailed discussion of ILs and DES differences and similarities as well as formation mechanisms of these solvents can be found elsewhere [27].
Solubility enhancement in DES is associated with their ability to form strong intermolecular interactions, including hydrogen bonding, van der Waals forces, and electrostatic interactions [28]. However, the process of API solvation in DESs is not yet fully understood and remains highly system specific [29]. To date, the researchers’ attention was mainly focused on common APIs such as analgesics (paracetamol [30], ibuprofen [31]), nonsteroidal anti-inflammatory drugs (celecoxib [32], indomethacin [33], etc.), and other small molecules [34,35]. To the best of our knowledge, to date there is little to no data on the speciation of therapeutic metal complexes in DESs, though it has been reported that the DESs components (e.g., urea or chloride anion) might take place in the coordination shell of the metal, as reported in [36,37]. So, the present work aims to establish whether it is possible to use DES to solubilize metal complexes or if decomposition of the original complex will be observed due to interaction with the DES components. For the present research, reline was chosen as DES. This DES comprises choline chloride and urea in a molar ratio of 1:2 and is one of the best-studied DES compositions [38,39]. Reline meets the following requirements: (1) accessibility of components and ease of synthesis; (2) well described properties; (3) pharmacological inactivity; (4) no toxicity; (5) biodegradability; (6) unlimited solubility in water; and (7) has a pH that is relatively close to physiological values [40]. Unlike one of the most popular DESs used for drug delivery, choline geranate (CAGE) [40], reline does not possess intrinsic antimicrobial activity, which would make it possible to evaluate the performance of the target metal complex dissolved in the DES on its own [41]. Additionally, the pH of reline does not change significantly upon the addition of water up to 50 wt.% [42], which makes it more suitable for application on skin.
The goal of the present work is to determine the type of interaction that exists between the metal complex and DES, the effect of this interaction on the therapeutic properties of the metal complex, and whether the DES increases the permeability of the therapeutic complex. The second task is to develop a technique for obtaining a gel containing DES and an antibacterial metal complex to facilitate application to the skin.

2. Results and Discussion

The chosen complexes do not undergo visually observable hydrolysis or decomposition in reline. Solubility of the complexes in reline surpasses 5 mg/g, which is more than enough for therapeutic applications.
However, it is known that Cu(II) ion can be coordinated with components of ionic liquid [43,44] and complexes of copper might undergo ionic exchange with components of ionic liquids [45]. One of the simpler approaches to studying the complexation processes is UV-vis spectroscopy. For example, 1,10-Phenanthroline has typical absorption lines at 220 and 265 nm. The shift of the absorption line from 265 nm to 275 nm is evidence of coordination with copper [46,47]. In this particular case, this method was not applicable, because reline absorbs in the UV-vis region [48] and it was not possible to collect an informative spectrum.
In previous work, it has been shown that interaction of [CuCl4]2− ion with choline chloride lends the solution a bright yellow color [45]. The fact that the color of the complexes’ solutions in DES and DMSO are the same in the present case acts as indirect evidence that the coordination of Cu(II) ion remains unchanged. To additionally assess changes in the copper ion coordination, we have employed EPR spectroscopy.
The EPR spectra (Figure 2) of both complexes in both of the studied solvents confirm that the Cu(II) center is axial. These spectra display a typical copper ion signal with four lines in the parallel region arising from the hyperfine coupling of the electron spin of Cu(II) with its nuclear spin. The obtained spectra are characteristic of an isolated Cu2+ ion with axial symmetry in the form of an octahedron with various tetragonal distortions and localization of the unpaired electron on the 3 d x 2 − y 2 orbital in the equatorial plane [49].
In the case of reline complex solutions, superhyperfine splitting is observed. This is most likely to be caused by an interaction with 14N atoms present in both urea and choline. Ligation of copper complexes with nitrogen-coordinating solvents with high donicity numbers such as pyridine [50,51,52], N,N-dimethylformamide (DMFA), N,N-dimethylacetamide (DMAA) [53], and formation of adducts has been reported in the literature. The donicity number value of reline (DN = 43.4) [54] exceeds that of pyridine (DN = 33.1) and DMFA (DN = 30.9) [55], so interaction between reline and copper ion is quite probable. However, the geometry of complexes remains unchanged and the elongated tetragonal bipyramid (axially distorted octahedral) coordination is preserved.
EPR spectra provide evidence of solvent–solute interactions between the therapeutic complexes and reline. It is important to note that the EPR spectra were acquired from frozen samples at 100 K to achieve better resolution. So, the observed interactions might be less pronounced in liquid solutions. To assess whether these interactions affect functional properties of the complexes, minimal inhibitory concentration (MIC) of complexes in reline, water, and DMSO was determined. Both tested compounds exhibit consistent antibacterial activity against S. aureus regardless of solvent type and the MIC value does not depend on the chosen solvent. That is, reline and the complex–reline interaction did not affect the antibacterial properties of the compounds. Complex B inhibits bacterial growth at a micromolar concentration of 6.3 µM, which is comparable to gentamicin (Table 1). Higher deviation (error value) obtained for the samples dissolved in reline might be caused by higher viscosity of the solution.
To assess the contribution of reline to antibacterial activity, its effect on S. aureus survival was additionally tested. The water stock solutions of tested complexes were prepared in a range of concentrations, as indicated in the Experimental section, at a constant DES concentration (1% of total well volume). The obtained MIC values of such solutions were identical to the MIC values determined in pure DMSO and reline, and the 1% DES solution in water was neither toxic to bacteria nor promoted bacterial growth (Table 1). Thus, any observed antibacterial action can be attributed solely to the activity of the complexes.
A solvent which is used to improve the poor solubility of the drug can at the same time act as a chemical permeation enhancer and a transdermal drug delivery system that can improve the biopharmaceutical performance of the drug across the skin barrier with minimal toxicity and/or irritation. As discussed in the Introduction, permeability of the therapeutic substance through the skin barrier is a key parameter along with solubility. The molecular size of the drug is a major factor that influences permeation because molecules with a weight greater than 500 Da cannot cross the skin by passive diffusion. The chosen model Complexes A and B have molecular weights of 466 and 494 Da, respectively, which is close to the approximate “borderline” value of 500 Da. DESs are known to improve permeation through the skin barrier, so a comparison of the complexes permeation in different solvents was carried out using a Franz cell.
Figure 3a,b shows the wt.% of copper ions released from the initial loading of the complex solution. The complex was released from 400 μL of either DMSO or reline into an acceptor chamber with a volume of 10 mL through a membrane imitating skin and the concentration of copper ions was determined by ICP-OES. The kinetic curves of release through the membrane simulating skin reached a plateau over the studied period of time (2 h).
Surprisingly, despite very similar structures of the tested therapeutic complexes, reline had opposite effect on their permeation rate. Use of Franz cell yielded results with a large error margin, so values of permeation constants could not be determined, but qualitative assessment of permeation remains possible. In case of Complex A, use of reline led to a twofold increase in copper content in the acceptor chamber. The copper concentration reached a plateau at ~15% when DMSO was used as a solvent, and at ~30% in the case of reline solution. A plateau was reached within the initial 20 min of observation, and a high initial release rate can be noted for both solutions.
In the case of complex B, the permeation was overall worse, reaching ~13% in case of DMSO solution. Use of reline caused a decrease in the permeation to ~8%. However, in this case, reline affected the initial permeation rate and the concentration of copper was increasing more steadily. The plateau was achieved in 15 min in the case of DMSO and in 60 min in the case of reline. The observed effect can be used to adjust the dosing to the desired rate.
After ensuring stability and preserved antibacterial activity of the complexes in reline and sufficient penetration of the active component through the skin barrier, the question of the dosage form was addressed. The therapeutic formulation needs to be applied to the target area and sufficiently prolonged treatment duration needs to be ensured. Liquid formulations are not the most convenient for this purpose. Creation of ionogels for medical applications, such as drug delivery and wound healing, has become a more actively researched topic in recent years [56,57]. To date, there are only isolated reports in the literature about the creation of eutectogels and very little research was performed on the possible functional uses of such DES-based materials.
To the best of our knowledge, no synthetic method for production of SiO2-based eutectogels has been reported to date. In general, two main approaches to production of ionic gels can be summarized from literature: gelation “in-situ” using the ionic liquid as the solvent; and impregnation/infusion of silica nanoparticles with the chosen IL [58].
Reportedly, gelation “in situ” yields more consistent and reproducible results in the case of first-generation ILs, so an attempt was made to adapt this approach, in order to produce eutectogels. However, it was quickly discovered that reline is immiscible with the most common silica precursors: TMOS, TEOS, and MTMS. Stirring allowed the production of stable emulsions in some of the tested systems. Gels were successfully obtained in systems TEOS-reline-CH3COOH, TMOS-reline-HCl, and TMOS-reline-CH3COOH (Table 2).
In the pilot experiments (Table 2), 1 mL of silica precursor was mixed with 1 mL of reline and 1 mL of gelation catalyst was added. The three systems listed above in which gel formation was observed were additionally tested with varied quantities of the gelation catalyst. Addition of 0.25 mL of the catalyst proved to be insufficient in all cases and the obtained gels were soft and not monolithic. Increasing the quantity of catalyst to 0.5 mL led to a significant increase in gelation time from 40 h to approximately one month. So, 1 mL of catalyst was chosen as the optimal amount.
In order to produce complex-containing eutectogels, solutions of Complexes A and B in reline with concentration of 5 mg/g were prepared and those solutions were used for the synthesis. However, addition of the catalyst led to visible precipitation and a change in color from blue to green in the case of Complex A and from brown-ish to green in the case of Complex B. Thus, the suggested synthetic route is not fit for production of therapeutic eutectogels containing copper complexes. However, it is still applicable for synthesis of silica-based eutectogels which might be of interest for production of extraction materials, inert synthetic templates, and other materials in the future.
To avoid the introduction of superfluous components, an impregnation route for eutectogel production was tested. Previously for the example of imidazolium-based ionic liquids, it was shown that such hydrophilic silica nanoparticles are preferable for formation of ionogels via the impregnation route [59]. In the present work Aerosil A380, a commercially available hydrophilic pyrogenic silicon oxide with a specific surface area of 380 m2/g, was chosen for preparation of eutectogel. Addition of only 7 wt.% of silica nanoparticles to reline, led to gel formation, as can be seen in Figure 4. Increasing the wt (%) of A380 can be used to adjust viscosity of the gel. Complexes A and B can be introduced into the gel in a wide variety of concentrations without compromising integrity of the complexes.
Reline, as well as SiO2 nanoparticles used for creation of the gel, are intentionally chosen to be inert. They are not intrinsically antibacterial or otherwise pharmaceutically active, which allowed us to easily evaluate the properties of the complexes in these media. In future research, a system comprising three independently therapeutic components—the drug, the solvent, and the gel matrix—can be designed and synergism of the components might be studied. Additionally, release rate of the therapeutic component from the eutectogel with different loading of SiO2 nanoparticles can be studied. The loading of the nanoparticles can be used as another parameter which can help adjust the release rate to the desired value and thus customize the dosing.

3. Conclusions

The main objective of the present work was to determine whether DES can be used for enhancement of solubility and permeability of therapeutic metal complexes. By using EPR study of copper complexes solutions in reline, interaction of the DES with the copper ion was confirmed. But this interaction did not affect the functional properties of the complexes. That is, the minimal inhibitory concentration of both complexes in DES and DMSO was determined and remained equal.
Study of the permeation rate of the complexes through a membrane imitating skin yielded unexpected results and demonstrated that using DES does not universally lead to increased permeation of the therapeutic complex. Based on this data, a careful choice of solvent might be used to adjust the pharmacokinetics to the desired rate. The obtained results confirm that the use of DES for delivery of therapeutic metal complexes is a viable strategy.
Two approaches to production of eutectogels loaded with the therapeutic complexes have been tested. A methodology for gelation of TMOS, TEOS, and MTMS precursors “in situ” using reline as a solvent has been successfully developed and SiO2-based eutectogels have been produced by this route for the first time. However, this synthetic route could not have been used for incorporation of copper complexes, because addition of gelation catalyst caused their decomposition. Thus, a eutectic gel containing antibacterial copper complexes, which can potentially be used as a transdermal antimicrobial material, has been produced via the impregnation route by adding 7 wt.% of hydrophilic silica nanoparticles.

4. Materials and Methods

4.1. Synthesis

Deep euthectic solvent reline was prepared by mixing 5.6 g of Choline Cloride (CAS-No.: 67-48-1, Sigma Aldrich, St. Louis, MO, USA, ≥98%) and 4.8 g of Urea (CAS-No.: 57-13-6, Sigma Aldrich, ≥99.5%) and keeping the mixture at 80 °C for 6 h or until a transparent viscous liquid is formed.
The complexes [Cu(Fur)2(Phen)] (Complex A) [17] and [Cu(Fur)2(Neoc)(H2O)] (Complex B) [18] were synthesized according to the procedures described in the cited sources. Solutions of the complexes in reline were prepared under ultrasound while heating the solution to 80 °C to reduce its viscosity.
For synthesis of eutectogels by gelation “in-situ,” reactants were used as follows: tetraethyl orthosilicate (TEOS, Sigma Aldrich, reagent grade, 98%), tetramethoxysilane (TMOS, 98%, Merck, Rahway, NJ, USA) and methyltrimethoxysilane (MTMS, 98%, Macklin, Shanghai, China), 0.01 M solution of hydrochloric acid (Sigma Tec, extra-pure grade, 36.5%), and acetic acid (Himmed, 99.9%, Moscow, Russia). The synthetic procedure was adapted from [60]. In a typical procedure, 1 mL of reline or complex solution in reline was added to 1 mL of TMOS, MTMS, or TEOS while stirring, and finally 0.25, 0.5, or 1 mL of acid solution was added. The obtained mixtures were observed for 48 h and in the case of gel formation, the gels were aged and observed for a month.
For preparation of eutectogels by the impregnation method, the solution of Complexes A and B in reline was loaded onto hydrophilic A380 silica powder at a chosen mass percentage.

4.2. Cell Culture

Staphylococcus aureus ATCC 29213 strain chosen for antibacterial testing was sourced from the American Type Culture Collection (ATCC; Rockville, MD, USA). The stock suspension of S. aureus was 1 × 108 cells per mL.

4.3. Antibacterial Activity Evaluation

The MIC was determined in accordance with the Clinical and Laboratory Standards Institute (CLSI)-recommended methods M7-A9 [61] and M100-A30 [62]. Three independent experiments with four replicates each were performed to ensure reproducibility. Stock solutions of the complexes [Cu(Fur)2(Phen)] (Complex A) [17] and [Cu(Fur)2(Neoc)(H2O)] (Complex B) [18] were prepared in distilled water, DMSO, and reline. The concentrations of the tested substances in stock solutions were 5 mg/mL for Complex A and 2.5 mg/mL for Complex B. The tested concentration for Complex A ranged from 0.1 to 50 μg/mL; for Complex B the concentrations ranged from 0.05 to 25 μg/mL. Initial solutions of the complexes were diluted to the desired concentrations in the assay medium and 100 μL of the solution was added to the wells of 96-well plates, then 100 μL of bacterial inoculum was added. Rows 11 and 12 were left for the negative control (medium with inoculum without the metal complex) and sterility control. To assess the contribution of DES to antibacterial activity, its effect on the survival of S. aureus was studied separately, without addition of the complexes. Gentamicin (PanEco, Moscow, Russia) was used as a positive control.
The samples were incubated for 24 h. After the incubation period, the MIC endpoints were registered using an iMark microplate absorbance reader (Bio-Rad, Hercules, CA, USA). Absorbance spectra were obtained at λ = 595 nm. The MIC was taken to be the lowest drug concentration that caused complete inhibition of microorganism growth compared to the control.

4.4. Statistics

Calculations were performed using the “Descriptive Statistics” data analysis tool in MS Excel. To reflect the twofold serial dilution method, results are presented as the most frequently occurring values ± 95% confidence interval.

4.5. EPR Experiments

EPR spectra were recorded with a Bruker (Billerica, MA, USA) Elexsys E-680X radio spectrometer operating at X-band frequency ~9.8 GHz at a temperature of 100 K, modulation amplitude of 5 Gs, and microwave power of 2 mW.

4.6. Study of the Transdermal Penetration of the Therapeutic Complex Using a Vertical Franz Diffusion Cell

Franz diffusion cell was used to perform the in vitro permeation studies. The Franz cell was assembled as described in detail in [63] and consisted of donor chamber, acceptor chamber, magnetic stirrer, and a cellulose membrane. Logan’s Permeation-Barrier Membrane (Logan Instruments corp., Somerset, NJ, USA), which is similar in acidity to the human epidermis, was used. A total of 400 mg of the analyzed solution was applied to the donor zone of the membrane. The acceptor chamber was filled with 10 mL of physiological phosphate buffer with pH 7.4. The buffer solution was stirred constantly at 350 rpm and its volume was kept constant; the temperature was maintained at 37 ± 0.5 °C. Sampling was carried out using a syringe with a volume of 1 mL.

4.7. ICP-OES

Simultaneously, a Thermo Scientific™ iCAP™ PRO XP ICP-OES (Thermo Fisher Scientific Inc., Waltham, MA, USA) with a vertical torch, a purged echelle polychromator, and Charge Injection Device (CID) array detector, were used to determine content of copper ions in the samples taken from the Franz cell. A standard sample introduction kit suitable for aqueous samples, consisting of a glass cyclonic spray chamber, SeaSpray glass nebulizer, quartz glass duo torch, and other components was used. Instrumental operating conditions are summarized in Table 3.
High-Purity HNO3 was used in the digestions. Deionized water with a resistivity of 18.2 MΩ cm at 2 °C was used for all dissolutions and dilutions. Aqueous ICP-OES calibration standards in 5% HNO3 were prepared from High-Purity Standards (North Charleston, SC, USA). Argon of 99.996 purity grade was used for ICP-OES measurements.

Author Contributions

Conceptualization, V.O.V.; methodology, V.O.V. and S.V.R.; formal analysis, V.O.V. and S.V.R.; investigation, V.O.V., S.V.R., V.V.K., A.D.F., and N.N.E.; resources, K.A.K. and I.A.L.; writing—original draft preparation, V.O.V.; writing—review and editing, M.A.U.; visualization, V.O.V.; supervision, M.A.U.; project administration, M.A.U.; funding acquisition, M.A.U. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Higher Education and Science of Russian Federation within the framework of the state assignment of the Kurnakov Institute of General and Inorganic Chemistry, Russian Academy of Sciences, in the field of fundamental research.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Any raw data can be acquired upon request from the corresponding author.

Acknowledgments

This research was performed using equipment from the JRC PMR IGIC RAS.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
DES Deep eutectic solvent
EPRElectron paramagnetic resonance
DMSODimethyl sulfoxide
ILIonic liquid
APIActive pharmaceutical ingredient
MICMinimal inhibitory concentration
TMOSTetramethoxysilane
TEOSTetraethyl orthosilicate
MTMSMethyltrimethoxysilane
ICP-OESInductively Coupled Plasma Optical Emission Spectrometer

References

  1. Amidon, G.L.; Lennernäs, H.; Shah, V.P.; Crison, J.R. A Theoretical Basis for a Biopharmaceutic Drug Classification: The Correlation of in Vitro Drug Product Dissolution and in Vivo Bioavailability. Pharm. Res. 1995, 12, 413–420. [Google Scholar] [CrossRef]
  2. Jouyban, A.; Acree, W.E. Pharmaceuticals Solubility Is Still Nowadays Widely Studied Everywhere. Pharm. Sci. 2017, 23, 1–2. [Google Scholar] [CrossRef]
  3. Savjani, K.T.; Gajjar, A.K.; Savjani, J.K. Drug Solubility: Importance and Enhancement Techniques. Int. Sch. Res. Not. 2012, 2012, 195727. [Google Scholar] [CrossRef] [PubMed]
  4. Coltescu, A.-R.; Butnariu, M.; Sarac, I. The Importance of Solubility for New Drug Molecules. Biomed. Pharmacol. J. 2020, 13, 577–583. [Google Scholar] [CrossRef]
  5. Lipinski, C.A. Lead-and Drug-like Compounds: The Rule-of-Five Revolution. Drug Discov. Today Technol. 2004, 1, 337–341. [Google Scholar] [CrossRef] [PubMed]
  6. Khadka, P.; Ro, J.; Kim, H.; Kim, I.; Kim, J.T.; Kim, H.; Cho, J.M.; Yun, G.; Lee, J. Pharmaceutical Particle Technologies: An Approach to Improve Drug Solubility, Dissolution and Bioavailability. Asian J. Pharm. Sci. 2014, 9, 304–316. [Google Scholar] [CrossRef]
  7. Müller, C.E. Prodrug Approaches for Enhancing the Bioavailability of Drugs with Low Solubility. Chem. Biodivers. 2009, 6, 2071–2083. [Google Scholar] [CrossRef]
  8. Das, T.; Mehta, C.H.; Nayak, U.Y. Multiple Approaches for Achieving Drug Solubility: An in Silico Perspective. Drug Discov. Today 2020, 25, 1206–1212. [Google Scholar] [CrossRef]
  9. Tian, Y.; Shi, C.; Sun, Y.; Zhu, C.; Sun, C.C.; Mao, S. Designing Micellar Nanocarriers with Improved Drug Loading and Stability Based on Solubility Parameter. Mol. Pharm. 2015, 12, 816–825. [Google Scholar] [CrossRef]
  10. Sahu, R.K.; Khan, J. Formulation Strategies to Improve the Bioavailability of Poorly Absorbed Drugs. In Advances and Challenges in Pharmaceutical Technology; Elsevier: Amsterdam, The Netherlands, 2021; pp. 229–242. [Google Scholar]
  11. Lucaciu, R.L.; Hangan, A.C.; Sevastre, B.; Oprean, L.S. Metallo-Drugs in Cancer Therapy: Past, Present and Future. Molecules 2022, 27, 6485. [Google Scholar] [CrossRef]
  12. Kontoghiorghes, G.J.; Kolnagou, A.; Demetriou, T.; Neocleous, M.; Kontoghiorghe, C.N. New Era in the Treatment of Iron Deficiency Anaemia Using Trimaltol Iron and Other Lipophilic Iron Chelator Complexes: Historical Perspectives of Discovery and Future Applications. Int. J. Mol. Sci. 2021, 22, 5546. [Google Scholar] [CrossRef]
  13. Rojas, S.; Quartapelle-Procopio, E.; Carmona, F.J.; Romero, M.A.; Navarro, J.A.R.; Barea, E. Biophysical Characterisation, Antitumor Activity and MOF Encapsulation of a Half-Sandwich Ruthenium (II) Mitoxantronato System. J. Mater. Chem. B 2014, 2, 2473–2477. [Google Scholar] [CrossRef]
  14. Scarim, C.B.; Lira de Farias, R.; Vieira de Godoy Netto, A.; Chin, C.M.; Leandro Dos Santos, J.; Pavan, F.R. Recent Advances in Drug Discovery against Mycobacterium Tuberculosis: Metal-Based Complexes. Eur. J. Med. Chem. 2021, 214, 113166. [Google Scholar] [CrossRef] [PubMed]
  15. Viganor, L.; Howe, O.; McCarron, P.; McCann, M.; Devereux, M. The Antibacterial Activity of Metal Complexes Containing 1, 10-Phenanthroline: Potential as Alternative Therapeutics in the Era of Antibiotic Resistance. Curr. Top. Med. Chem. 2017, 17, 1280–1302. [Google Scholar] [CrossRef] [PubMed]
  16. O’Shaughnessy, M.; Hurley, J.; Dillon, S.C.; Herra, C.; McCarron, P.; McCann, M.; Devereux, M.; Howe, O. Antibacterial Activity of Metal–Phenanthroline Complexes against Multidrug-Resistant Irish Clinical Isolates: A Whole Genome Sequencing Approach. JBIC J. Biol. Inorg. Chem. 2023, 28, 153–171. [Google Scholar] [CrossRef] [PubMed]
  17. Lutsenko, I.A.; Baravikov, D.E.; Kiskin, M.A.; Nelyubina, Y.V.; Primakov, P.V.; Bekker, O.B.; Khoroshilov, A.V.; Sidorov, A.A.; Eremenko, I.L. Bioisostere Modifications of Cu2+ and Zn2+ with Pyromucic Acid Anions and N-Donors: Synthesis, Structures, Thermal Properties, and Biological Activity. Russ. J. Coord. Chem./Koord. Khimiya 2020, 46, 411–419. [Google Scholar] [CrossRef]
  18. Lutsenko, I.A.; Baravikov, D.E.; Koshenskova, K.A.; Kiskin, M.A.; Nelyubina, Y.V.; Primakov, P.V.; Voronina, Y.K.; Garaeva, V.V.; Aleshin, D.A.; Aliev, T.M.; et al. What Are the Prospects for Using Complexes of Copper (II) and Zinc (II) to Suppress the Vital Activity of Mycolicibacterium Smegmatis? RSC Adv. 2022, 12, 5173–5183. [Google Scholar] [CrossRef]
  19. Bhalani, D.V.; Nutan, B.; Kumar, A.; Singh Chandel, A.K. Bioavailability Enhancement Techniques for Poorly Aqueous Soluble Drugs and Therapeutics. Biomedicines 2022, 10, 2055. [Google Scholar] [CrossRef]
  20. Seedher, N.; Kanojia, M. Co-Solvent Solubilization of Some Poorly-Soluble Antidiabetic Drugs. Pharm. Dev. Technol. 2009, 14, 185–192. [Google Scholar] [CrossRef]
  21. Korn, C.; Balbach, S. Compound Selection for Development—Is Salt Formation the Ultimate Answer? Experiences with an Extended Concept of the “100 Mg Approach”. Eur. J. Pharm. Sci. 2014, 57, 257–263. [Google Scholar] [CrossRef]
  22. Merisko-Liversidge, E.; Liversidge, G.G. Nanosizing for Oral and Parenteral Drug Delivery: A Perspective on Formulating Poorly-Water Soluble Compounds Using Wet Media Milling Technology. Adv. Drug Deliv. Rev. 2011, 63, 427–440. [Google Scholar] [CrossRef]
  23. Brewster, M.E.; Loftsson, T. Cyclodextrins as Pharmaceutical Solubilizers. Adv. Drug Deliv. Rev. 2007, 59, 645–666. [Google Scholar] [CrossRef]
  24. Hwang, J.; Park, H.; Choi, D.W.; Nam, K.T.; Lim, K.-M. Investigation of Dermal Toxicity of Ionic Liquids in Monolayer-Cultured Skin Cells and 3D Reconstructed Human Skin Models. Toxicol. Vitr. 2018, 46, 194–202. [Google Scholar] [CrossRef]
  25. Ratmanova, N.K.; Posvyatenko, A.V.; Levina, I.I.; Seitkalieva, M.M.; Khrustalev, V.N.; Ermolaev, V.P.; Ivanova, O.A.; Trushkov, I.V.; Egorova, K.S.; Andreev, I.A. Cytotoxicity of Multi-Purpose Protic Ionic Liquids towards Human Dermal Fibroblasts. J. Mol. Liq. 2025, 433, 127948. [Google Scholar] [CrossRef]
  26. Beaven, E.; Kumar, R.; An, J.M.; Mendoza, H.; Sutradhar, S.C.; Choi, W.; Narayan, M.; Lee, Y.k.; Nurunnabi, M. Potentials of Ionic Liquids to Overcome Physical and Biological Barriers. Adv. Drug Deliv. Rev. 2024, 204, 115157. [Google Scholar] [CrossRef]
  27. Kapre, S.; Palakurthi, S.S.; Jain, A.; Palakurthi, S. DES-Igning the Future of Drug Delivery: A Journey from Fundamentals to Drug Delivery Applications. J. Mol. Liq. 2024, 400, 124517. [Google Scholar] [CrossRef]
  28. Florindo, C.; McIntosh, A.J.S.; Welton, T.; Branco, L.C.; Marrucho, I.M. A Closer Look into Deep Eutectic Solvents: Exploring Intermolecular Interactions Using Solvatochromic Probes. Phys. Chem. Chem. Phys. 2018, 20, 206–213. [Google Scholar] [CrossRef] [PubMed]
  29. Mustafa, N.R.; Spelbos, V.S.; Witkamp, G.-J.; Verpoorte, R.; Choi, Y.H. Solubility and Stability of Some Pharmaceuticals in Natural Deep Eutectic Solvents-Based Formulations. Molecules 2021, 26, 2645. [Google Scholar] [CrossRef]
  30. Maji, D.; Biswas, R. Solvation Structure of Paracetamol in ChCl-Based Polyol Deep Eutectic Solvents: Microscopic Insights into Increased Solubility. J. Mol. Liq. 2025, 423, 127042. [Google Scholar] [CrossRef]
  31. Ali, M.d.K.; Moshikur, R.M.; Goto, M.; Moniruzzaman, M. Recent Developments in Ionic Liquid-Assisted Topical and Transdermal Drug Delivery. Pharm. Res. 2022, 39, 2335–2351. [Google Scholar] [CrossRef] [PubMed]
  32. Shekaari, H.; Mokhtarpour, M.; Mokhtarpour, F.; Faraji, S.; Martinez, F.; Zafarani-Moattar, M.T. Significant Increase in the Solubility of Celecoxib in Presence of Some Deep Eutectic Solvents as Novel Sustainable Solvents and the Thermodynamic Analysis of These Systems. Pharm. Sci. 2020, 26, 423–433. [Google Scholar] [CrossRef]
  33. Akbarzadeh Gondoghdi, P.; Khorsandi, M.; Shekaari, H.; Mokhtarpour, M. Solubility Improvement of Indomethacin by Novel Biodegradable Eutectic Solvents Based on Protic Ionic Liquid Monoethanolamine Carboxylate/Ethylene Glycol. J. Drug Deliv. Sci. Technol. 2023, 86, 104564. [Google Scholar] [CrossRef]
  34. Pedro, S.N.; Freire, C.S.R.; Silvestre, A.J.D.; Freire, M.G. The Role of Ionic Liquids in the Pharmaceutical Field: An Overview of Relevant Applications. Int. J. Mol. Sci. 2020, 21, 8298. [Google Scholar] [CrossRef]
  35. Li, X.; Ma, N.; Zhang, L.; Ling, G.; Zhang, P. Applications of Choline-Based Ionic Liquids in Drug Delivery. Int. J. Pharm. 2022, 612, 121366. [Google Scholar] [CrossRef] [PubMed]
  36. Migliorati, V.; Fazio, G.; Pollastri, S.; Gentili, A.; Tomai, P.; Tavani, F.; D’Angelo, P. Solubilization Properties and Structural Characterization of Dissociated HgO and HgCl2 in Deep Eutectic Solvents. J. Mol. Liq. 2021, 329, 115505. [Google Scholar] [CrossRef]
  37. Hartley, J.M.; Ip, C.M.; Forrest, G.C.H.; Singh, K.; Gurman, S.J.; Ryder, K.S.; Abbott, A.P.; Frisch, G. EXAFS Study into the Speciation of Metal Salts Dissolved in Ionic Liquids and Deep Eutectic Solvents. Inorg. Chem. 2014, 53, 6280–6288. [Google Scholar] [CrossRef] [PubMed]
  38. Mjalli, F.S.; Ahmed, O.U. Physical Properties and Intermolecular Interaction of Eutectic Solvents Binary Mixtures: Reline and Ethaline. Asia-Pac. J. Chem. Eng. 2016, 11, 549–557. [Google Scholar] [CrossRef]
  39. Lapeña, D.; Bergua, F.; Lomba, L.; Giner, B.; Lafuente, C. A Comprehensive Study of the Thermophysical Properties of Reline and Hydrated Reline. J. Mol. Liq. 2020, 303, 112679. [Google Scholar] [CrossRef]
  40. Mitragotri, S. Choline Geranate (CAGE): A Multifaceted Ionic Liquid for Drug Delivery. J. Control. Release 2024, 376, 593–600. [Google Scholar] [CrossRef]
  41. Swebocki, T.; Kocot, A.M.; Barras, A.; Arellano, H.; Bonnaud, L.; Haddadi, K.; Fameau, A.L.; Szunerits, S.; Plotka, M.; Boukherroub, R. Comparison of the Antibacterial Activity of Selected Deep Eutectic Solvents (DESs) and Deep Eutectic Solvents Comprising Organic Acids (OA-DESs) Toward Gram-Positive and Gram-Negative Species. Adv. Healthc. Mater. 2024, 13, 2303475. [Google Scholar] [CrossRef]
  42. Panić, M.; Radović, M.; Bubalo, M.C.; Radošević, K.; Coutinho, J.A.P.; Redovniković, I.R.; Tušek, A.J. Prediction of PH Value of Aqueous Acidic and Basic Deep. Molecules 2022, 27, 4489. [Google Scholar] [CrossRef] [PubMed]
  43. Takemura, S.; Kawakami, S.; Harada, M.; Iida, M. Solvation Structure of a Copper(II) Ion in Protic Ionic Liquids Comprising n-Hexylethylenediamine. Inorg. Chem. 2014, 53, 9667–9678. [Google Scholar] [CrossRef]
  44. Nunes, P.; Nagy, N.V.; Alegria, E.C.B.A.; Pombeiro, A.J.L.; Correia, I. The Solvation and Electrochemical Behavior of Copper Acetylacetonate Complexes in Ionic Liquids. J. Mol. Struct. 2014, 1060, 142–149. [Google Scholar] [CrossRef]
  45. De Vreese, P.; Brooks, N.R.; Van Hecke, K.; Van Meervelt, L.; Matthijs, E.; Binnemans, K.; Van Deun, R. Speciation of Copper (II) Complexes in an Ionic Liquid Based on Choline Chloride and in Choline Chloride/Water Mixtures. Inorg. Chem. 2012, 51, 4972–4981. [Google Scholar] [CrossRef]
  46. Dennis, C.R.; Swarts, J.C.; Langner, E.H.G. Nucleophilic Ligand Substitution in Triply Deprotonated Tetrapeptide Complexes of Copper (II) and Nickel (II) with 1, 10-Phenanthroline and 2, 2-Bipyridine. Transit. Met. Chem. 2018, 43, 387–395. [Google Scholar] [CrossRef]
  47. Dalmieda, J.; Zubiarrain-Laserna, A.; Saha, D.; Selvaganapathy, P.R.; Kruse, P. Impact of Surface Adsorption on Metal–Ligand Binding of Phenanthrolines. J. Phys. Chem. C 2021, 125, 21112–21123. [Google Scholar] [CrossRef]
  48. Yue, D.; Jia, Y.; Yao, Y.; Sun, J.; Jing, Y. Structure and Electrochemical Behavior of Ionic Liquid Analogue Based on Choline Chloride and Urea. Electrochim. Acta 2012, 65, 30–36. [Google Scholar] [CrossRef]
  49. Bogushevich, S.E.; Zubreichuk, Z.P.; Muravskii, V.A.; Ugolev, I.I.; Érdman, A.A.; Maier, N.A. Structure of New Bis-Dicarbollyl Derivatives of Transition Metals. J. Appl. Spectrosc. 2003, 70, 252–256. [Google Scholar] [CrossRef]
  50. Naccache, C.; Taarit, Y. Ben ESR Study of Copper (II) Ions in Y Zeolite: Effect of Water, Ammonia and Pyridine Adsorption. Chem. Phys. Lett. 1971, 11, 11–15. [Google Scholar] [CrossRef]
  51. Zhan, R.Y.; Narayana, M.; Kevan, L. Electron Spin Resonance and Electron Spin Echo Modulation Studies of Impregnated Cupric Ion in Silica Gel with Different Adsorbates. J. Phys. Chem. 1985, 89, 831–835. [Google Scholar] [CrossRef]
  52. Jezierska, J.; Jeżowska-Trzebiatowska, B.; Petrova, G. BJe-T Electron Spin Resonance and Electronic Spectral Studies on Ligation of Dimeric Copper (II) Complex by Solvent Molecules. Inorg. Chim. Acta 1981, 50, 153–157. [Google Scholar] [CrossRef]
  53. Adato, I.; Eliezer, I. Effect of the Solvent on the ESR Parameters of Copper Acetylacetonate. J. Chem. Phys. 1971, 54, 1472–1476. [Google Scholar] [CrossRef]
  54. Sanchez, B.; Campodónico, P.R.; Contreras, R. Gutmann’ s Donor and Acceptor Numbers for Ionic Liquids and Deep Eutectic Solvents. Front. Chem. 2022, 10, 861379. [Google Scholar] [CrossRef]
  55. Gutmann, V. Empirical parameters for donor and acceptor properties of solvents. Electrochim. Acta 1976, 21, 661–670. [Google Scholar] [CrossRef]
  56. Gao, Y.; Zhang, W.; Li, L.; Wang, Z.; Shu, Y.; Wang, J. Ionic Liquid-Based Gels for Biomedical Applications. Chem. Eng. J. 2023, 452, 139248. [Google Scholar] [CrossRef]
  57. Pedro, A.Q.; Castro, L.S.; Coutinho, J.A.P.; Freire, M.G. Ionogels as Advanced Materials for Overcoming Challenges in Wound Healing and Drug Delivery. Nano Mater. Sci. 2024, 7, 599–626. [Google Scholar] [CrossRef]
  58. Kottsov, S.Y.; Badulina, A.O.; Baranchikov, A.E.; Kopitsa, G.P.; Volkov, V.V.; Gorshkova, Y.E.; Selivanov, N.A.; Gerashchenko, O.V.; Khoroshilov, A.V.; Kolmakov, A.G. To Gelate or to Impregnate? A Critical Comparison of the Approaches to Preparing Silica Ionogel Monoliths. J. Mol. Liq. 2026, 441, 128979. [Google Scholar] [CrossRef]
  59. Vioux, A.; Viau, L.; Volland, S.; Le Bideau, J. Use of Ionic Liquids in Sol-Gel; Ionogels and Applications. Comptes Rendus Chim. 2010, 13, 242–255. [Google Scholar] [CrossRef]
  60. Dai, S.; Ju, Y.H.; Gao, H.J.; Lin, J.S.; Pennycook, S.J.; Barnes, C.E. Preparation of Silica Aerogel Using Ionic Liquids as Solvents. Chem. Commun. 2000, 243–244. [Google Scholar] [CrossRef]
  61. Methods for Dilution Antimicrobial Susceptibility Tests for Bacteria That Grow Aerobically, 9th ed.; CLSI Document M7-A9; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2012.
  62. Performance Standards for Antimicrobial Susceptibility Testing, 30th ed.; CLSI Document M100-A30; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2020.
  63. Sheferov, I.A.; Emasheva, A.A.; Sheferova, A.A.; Panteleev, D.A.; Mitin, A.V.; Kuz`michev, V.V.; Melnikova, N.B. Study of Xymedone Release from Hydrogels with Zinc Oxide Nanoparticles. J. Drug Deliv. Ther. 2024, 14, 43–48. [Google Scholar] [CrossRef]
Gels 12 00065 g001

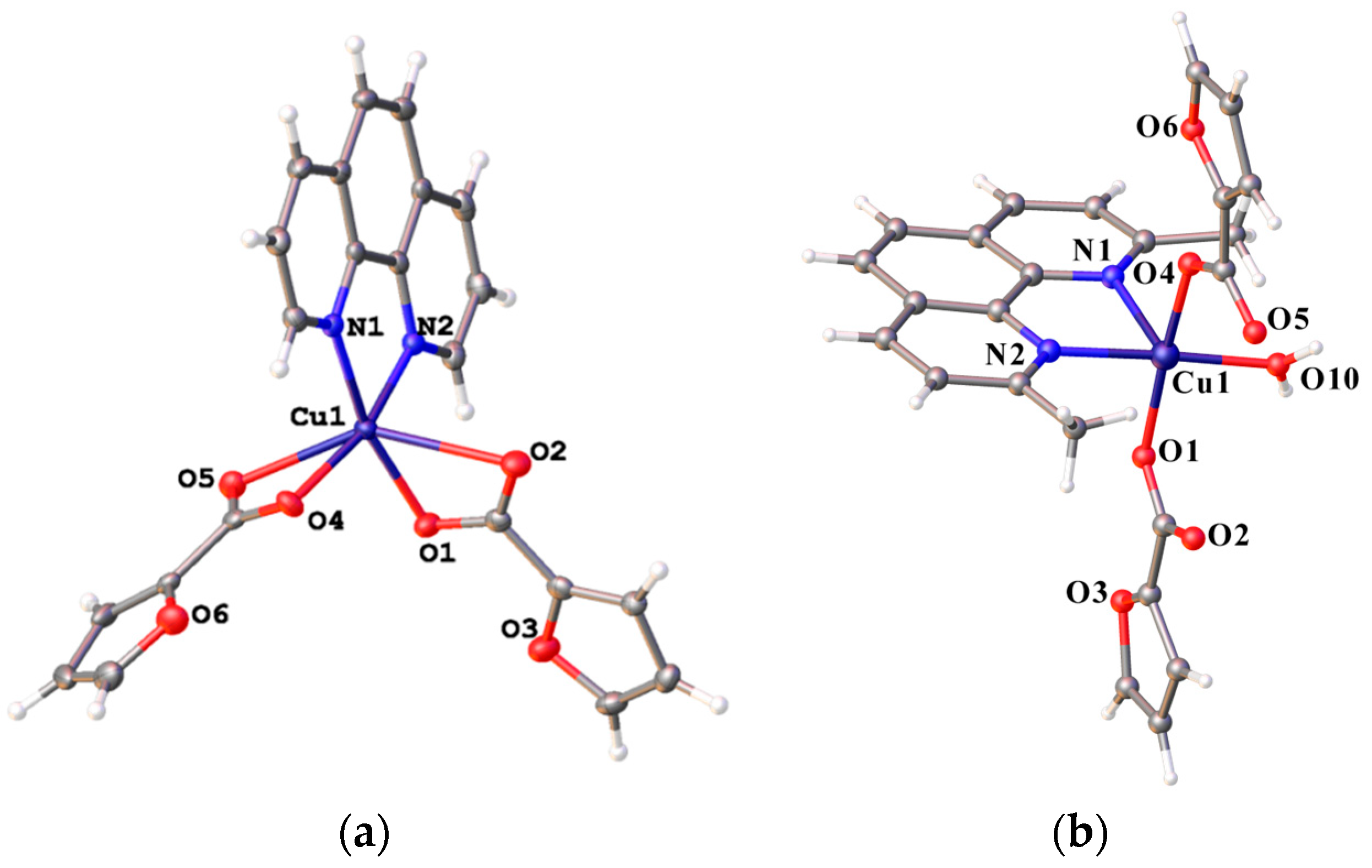

Figure 1. Structure of the antibacterial Complex A (a) and B (b).
Figure 1. Structure of the antibacterial Complex A (a) and B (b).
Gels 12 00065 g001
Gels 12 00065 g002

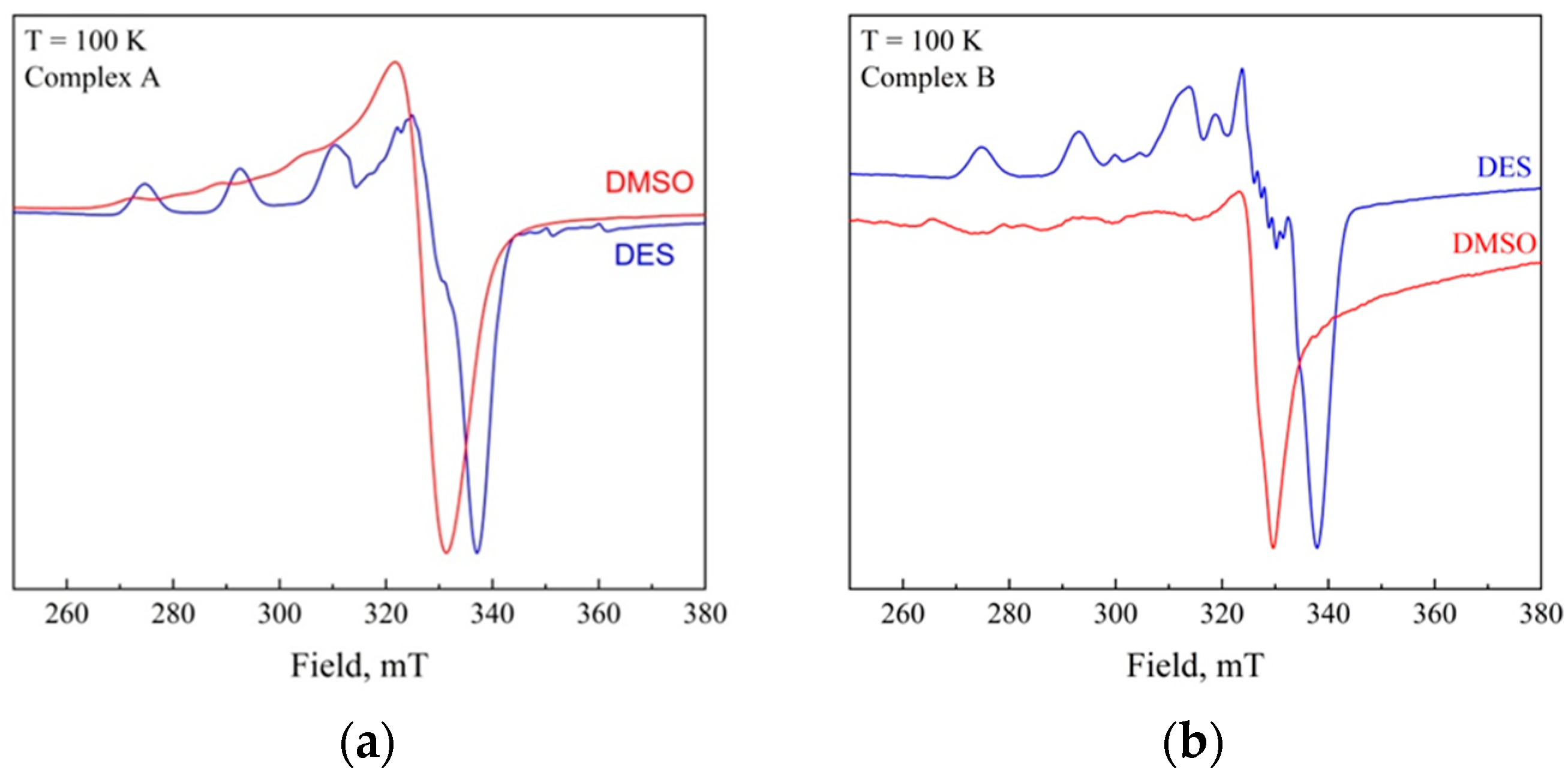

Figure 2. EPR powder spectra of the antibacterial complexes A (a) and B (b) in DMSO and reline at 100 K.
Figure 2. EPR powder spectra of the antibacterial complexes A (a) and B (b) in DMSO and reline at 100 K.
Gels 12 00065 g002
Gels 12 00065 g003

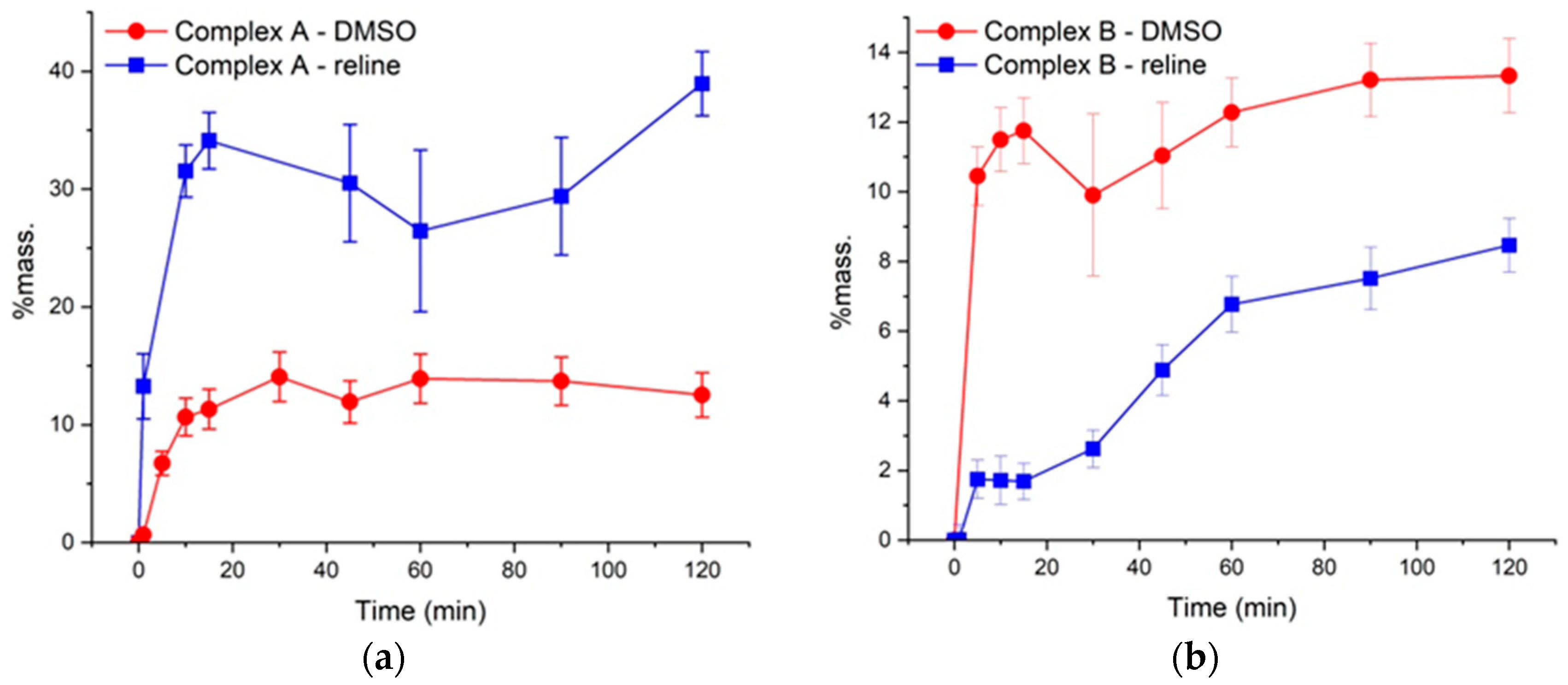

Figure 3. Concentration of Cu(II) relative to the initial loading of Complex A (a) and Complex B (b) in DMSO and reline vs. time in the receiver phase after passing through a Logan’s Permeation-Barrier Membrane at 37.5 °C. The error bars represent the standard deviation of the concentration.
Figure 3. Concentration of Cu(II) relative to the initial loading of Complex A (a) and Complex B (b) in DMSO and reline vs. time in the receiver phase after passing through a Logan’s Permeation-Barrier Membrane at 37.5 °C. The error bars represent the standard deviation of the concentration.
Gels 12 00065 g003
Gels 12 00065 g004

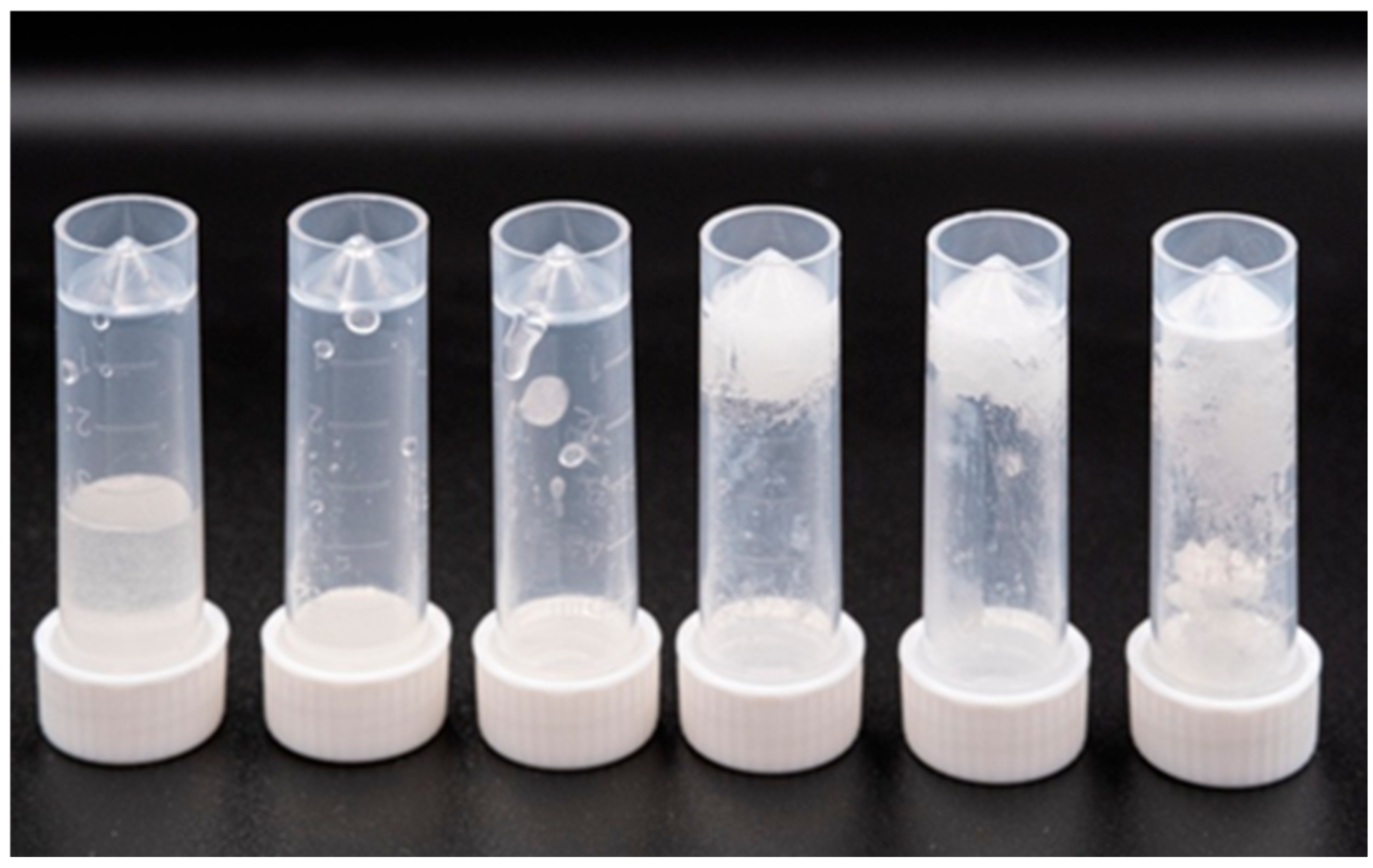

Figure 4. Dispersions of hydrophobic A380 silica nanoparticles in reline with particle concentrations increasing from left to right: 1 wt (%); 3 wt (%); 5 wt (%); 7 wt (%); 10 wt (%); and 12 wt (%).
Figure 4. Dispersions of hydrophobic A380 silica nanoparticles in reline with particle concentrations increasing from left to right: 1 wt (%); 3 wt (%); 5 wt (%); 7 wt (%); 10 wt (%); and 12 wt (%).
Gels 12 00065 g004
Table 1. MICs values of the tested complexes in different solvents against S. aureus.
Table 1. MICs values of the tested complexes in different solvents against S. aureus.
Staphylococcus aureus
MIC ± CI (95%)
AgentSolventµg/mLµM
Complex ADMSO25 ± 053.7 ± 0
water25 ± 053.7 ± 0
DES25 ± 6.4253.7 ± 13.8
Complex BDMSO3.13 ± 06.3 ± 0
water3.13 ± 06.3 ± 0
DES3.13 ± 2.116.3 ± 4.3
Control
Gentamicinwater0.5 ± 0.141.1 ± 0.3
Complex A with 1% DESwater25 ± 053.7 ± 0
Complex B with 1% DESwater3.13 ± 06.3 ± 0
1% DESbroth mediumNon-toxic
Table 2. Synthesis conditions attempted for production of eutectogels by “in situ” gelation.
Table 2. Synthesis conditions attempted for production of eutectogels by “in situ” gelation.
TEOSTMOSMTMS
No added catalystImmiscible,
no stable emulsion.		Immiscible,
no stable emulsion.		Initially immiscible,
but after 40 h, a sol is formed, with no gelling observed after 1 month.
0.01 M HClImmiscible,
no stable emulsion.		Initially immiscible,
but after 40 h a transparent
gel is formed. 		Immiscible,
no stable emulsion.
CH3COOHInitially immiscible,
but after 40 h, a transparent
gel is formed.		Initially miscible,
but after 40 h, a transparent
gel is formed.		Initially miscible, but
after 40 h, a sol is formed, with no gelling observed after 1 month.
Table 3. ICP-OES operating parameter values.
Table 3. ICP-OES operating parameter values.
ICP-OES Operating ParameterParameter Value
Forward power, W1350
Coolant gas flow, L·min−115
Auxiliary gas flow, L·min−10.35
Nebulizer gas flow, L·min−10.65
Pump speed, rpm60
Radial viewing height, mm10
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Veselova, V.O.; Revtovich, S.V.; Kulikova, V.V.; Filippova, A.D.; Koshenskova, K.A.; Efimov, N.N.; Lutsenko, I.A.; Uvarova, M.A. Eutectogels as Delivery Media for Therapeutic Metal Complexes: What Are the Benefits? Gels 2026, 12, 65. https://doi.org/10.3390/gels12010065

AMA Style

Veselova VO, Revtovich SV, Kulikova VV, Filippova AD, Koshenskova KA, Efimov NN, Lutsenko IA, Uvarova MA. Eutectogels as Delivery Media for Therapeutic Metal Complexes: What Are the Benefits? Gels. 2026; 12(1):65. https://doi.org/10.3390/gels12010065

Chicago/Turabian Style

Veselova, Varvara O., Svetlana V. Revtovich, Vitalia V. Kulikova, Arina D. Filippova, Kseniya A. Koshenskova, Nikolay N. Efimov, Irina A. Lutsenko, and Marina A. Uvarova. 2026. "Eutectogels as Delivery Media for Therapeutic Metal Complexes: What Are the Benefits?" Gels 12, no. 1: 65. https://doi.org/10.3390/gels12010065

APA Style

Veselova, V. O., Revtovich, S. V., Kulikova, V. V., Filippova, A. D., Koshenskova, K. A., Efimov, N. N., Lutsenko, I. A., & Uvarova, M. A. (2026). Eutectogels as Delivery Media for Therapeutic Metal Complexes: What Are the Benefits? Gels, 12(1), 65. https://doi.org/10.3390/gels12010065

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
