Sol–Gel-Derived Silica/Alumina Particles for Enhancing the Mechanical Properties of Acrylate Composite Materials

by
Khaled Altwair
1,
Vladisav Tadić
2,
Miloš Petrović
1,
Andrija Savić
3,
Vesna Radojević
1,
Radmila Jančić Heinemann
1 and
Marija M. Vuksanović
3,*
1
Faculty of Technology and Metallurgy, University of Belgrade, 11120 Belgrade, Serbia
2
Institute of Chemistry, Technology and Metallurgy—National Institute of the Republic of Serbia, University of Belgrade, 11000 Belgrade, Serbia
3
Department of Chemical Dynamics and Permanent Education, VINČA Institute of Nuclear Sciences—National Institute of the Republic of Serbia, University of Belgrade, 11351 Belgrade, Serbia
*
Author to whom correspondence should be addressed.
Gels 2025, 11(8), 575; https://doi.org/10.3390/gels11080575
Submission received: 23 June 2025 / Revised: 19 July 2025 / Accepted: 23 July 2025 / Published: 24 July 2025
(This article belongs to the Special Issue Advances in Composite Gels (3rd Edition))
Browse Figures
Versions Notes

Abstract

Silica/alumina composite particles were synthesized via the sol–gel method to promote fine dispersion and homogenous mixing. Aluminum chloride hydroxide served as the alumina precursor, while amorphous silica, obtained from rice husk, was directly incorporated into the alumina sol. Following synthesis, the material was calcined at 1000 °C, yielding an α-cristobalite form of silica and corundum-phase alumina. These hybrid particles were introduced into polymer composites at reinforcement levels of 1 wt.%, 3 wt.%, and 5 wt.%. Mechanical behavior was evaluated through three-point bending tests, Shore D hardness measurements, and controlled-energy impact testing. Among the formulations, the 3 wt.% composite exhibited optimal performance, displaying the highest flexural modulus and strength, along with enhanced impact resistance. Hardness increased with rising particle content. Fractographic analysis revealed that the 3 wt.% loading produced a notably rougher fracture surface, correlating with improved energy absorption. In contrast, the 5 wt.% composite, although harder than the matrix and other composites, exhibited diminished toughness due to particle agglomeration.

1. Introduction

Poly (methyl methacrylate) (PMMA) is widely used across biomedical and structural applications due to its optical transparency, tunable polymerization, mechanical resilience, and biocompatibility with human tissue [1,2,3]. The adoption of PMMA has significantly advanced dental materials, and the development of blended acrylic systems has broadened its use in restorative dentistry [2,4,5]. Moreover, PMMA’s compatibility with bone tissue enables its use in orthopedic bone cements [6,7,8]. However, its intrinsic brittleness and limited toughness remain major challenges, especially in load-bearing applications [9,10]. PMMA was used as the base for shielding composites with bismuth nanoparticles [11,12]. With different additions, PMMA can be the base for different functional composites, including those with antimicrobial properties [13,14], but also for radiative cooling compositions [15], especially those containing two oxide reinforcements.
However, its intrinsic brittleness and limited toughness remain major challenges, especially in load-bearing applications. Silica is commonly used both as a standalone material and as a reinforcement in dental resins [16] for denture base materials [17,18], ballistic materials [19,20], and various functional materials [21]. Silica can be produced in several ways, ranging from standard sources using sol–gel and flame synthesis to CVD methods using various precursors. Very finely dispersed silica is naturally produced by plants such as rice [22] and is especially present in rice husks, which constitute agricultural waste [23]. Bio-based silica offers advantages in sustainability while exhibiting favorable morphology and purity suitable for nanocomposite applications [24].
Alumina as reinforcement in acrylic polymers has several functional benefits. It not only improves the mechanical properties [25] of the composite and the modulus and strength of the material but can also influence the toughness of the composite, and this is very important for this type of material [26]. Ferrous-doped alumina particles, for example, can reduce the residual monomer content in the acrylate matrix [27]. The added alumina particles also influence the surface properties of the polymer matrix composite. The added alumina particles can improve the adhesion properties of the acrylic polymer to the metal substrate. Aluminum has several hydroxides and oxides, and depending on the heat treatment and the method of preparation, it can have a list of possible applications.
Multiphase oxide materials—particularly silica/alumina hybrids—have long been explored for their phase stability and thermal resilience [28,29]. In this study, we synthesized such hybrids via the sol–gel technique, using aluminum chloride hydroxide and bio-based silica from rice husks. The use of rice-derived silica aligns with sustainability goals and offers favorable morphology at the nanoscale, even after calcination [30,31].
Although high-temperature processing at 1000 °C removes surface hydroxyl groups, particularly from the alumina phase, the resulting structure provides enhanced mechanical rigidity and thermal stability to the reinforcement. The retained fine dimensions of silica particles can contribute to strain dissipation, while the dense alumina phase ensures load-bearing reinforcement [32]. Together, this dual-phase filler is hypothesized to improve the mechanical integrity of PMMA composites not through chemical bonding but by optimized dispersion, phase contrast toughening, and crack deflection mechanisms—factors increasingly relevant in structural polymer applications. Selected amounts of reinforcement particles were based on literature coverage [33] as well as our previous experience with similar particles [18].
This approach reflects a strategy shift from interfacial reactivity to morphological and mechanical synergy, offering an alternative path for property enhancement in high-performance, biocompatible composites [34].

2. Results and Discussion

2.1. Morphological Characterization of Particles

The morphological characteristics of the synthesized particles were examined using field emission scanning electron microscopy (FESEM). Although particle agglomeration was observed (Figure 1a), individual particles could still be discerned. Image analysis was employed to determine the particle size distribution, revealing that the primary particle diameter lies within the nanometer range (Figure 1b). While the micrograph clearly displays the particle morphology, it does not allow for differentiation between silica and alumina phases. However, the sol–gel synthesis route appears to facilitate a high degree of mixing between the two components. To confirm the elemental distribution and mixing uniformity, energy-dispersive X-ray spectroscopy (EDS) was utilized.
Energy-dispersive X-ray spectroscopy (EDS) confirms that aluminum, silicon, and oxygen are the predominant elements (Al—33.24 wt.%, Si—12.13 wt.%, and O—54.63 wt.%) within the synthesized material, indicating the successful formation of a mixed-oxide system. Elemental mapping (Figure 2b–e) reveals a high degree of spatial integration between the components, supporting the existence of a well-mixed, dual-phase structure. The silica component originates as fine particles, while the alumina phase forms in situ from a hydroxide precursor that initially coats the silica during the sol–gel process. Upon calcination at elevated temperatures, this hydroxide transforms into thermodynamically stable α-alumina, encapsulating or interspersing around the silica domains. The resulting morphology—characterized by concentrated silica cores surrounded by an alumina-rich matrix—suggests a hierarchical architecture that may influence mechanical performance through particle–matrix interactions, load transfer efficiency, and energy dissipation mechanisms. The EDS spectrum of silica/alumina particles from the sol–gel process is shown in Figure 3.

2.2. Structural Characterization of Synthesized Particles and Composites

The crystallographic structure of the material was analyzed using X-ray diffraction (XRD), as shown in Figure 4. The dominant phase identified was α-alumina (corundum), the thermodynamically stable form of alumina, produced from the precursor obtained via sol–gel synthesis. The sharp, well-defined peaks in the XRD pattern indicate that the sol–gel process effectively promotes the formation of α-alumina even at 1000 °C.
The silica component, derived from plant-based material, initially exhibited a predominantly amorphous structure following calcination at 800 °C [35,36]. Subsequent heat treatment at 1000 °C led to the crystallization of the β-cristobalite phase [37,38]. In the specimen, the α-cristobalite was determined. This structure emerges through an intermediate formation from β-cristobalite obtained during calcination, which, upon cooling below approximately 270 °C, transforms into metastable α-cristobalite. This phase demonstrates promising potential for use in composite reinforcement due to its negative Poisson’s ratio [39], which facilitates stress redistribution under load [39,40]. As a result, the composite material exhibits improved modulus and strength, as observed in epoxy resin systems [41].
The FTIR spectrum (Figure 5) clearly exhibits the characteristic peaks of silica particles at 1088 cm−1, 791 cm−1, and 563 cm−1. The absorption band near 1088 cm−1 is attributed to the antisymmetric stretching vibrations of the Si-O-Si bonds, while the peak at 791 cm−1 corresponds to their symmetric stretching vibrations. Additionally, the bending vibrations of the Si-O-Si linkage are responsible for the absorption observed at 563 cm−1 [42]. In the lower frequency range (1000–400 cm−1), the infrared absorption is predominantly associated with Al-O bond vibrations [43]. A broad, shallow hump appearing in this higher frequency range, without any distinct peak, suggests a minimal presence of physically adsorbed water molecules on the surface. A pronounced broad peak detected at 679 cm−1 is attributed to the stretching vibrations of the Al-O bonds [44], providing strong evidence for the formation of alumina. Additionally, a smaller peak observed at 429 cm−1 is mainly associated with the octahedral coordination environment of AlO6 units [45]. The infrared (IR) spectrum of polymethyl methacrylate (PMMA) reveals several characteristic absorption bands that reflect its molecular structure. A strong peak around 1724 cm−1 corresponds to the stretching vibration of the carbonyl (C=O) group within the ester functionality. Another notable absorption band appears near 1449 cm−1, which is associated with the stretching vibrations of the carbon–oxygen (C-O) bonds. In the higher wavenumber region, two distinct bands at 2988 cm−1 and 2930 cm−1 are observed, both of which are linked to the stretching vibrations of the C-H bonds from methyl (CH3) groups attached to the polymer chain. These features are typical of aliphatic C-H stretches found in organic polymers. The stretching vibration of the ester C-O bond produces a pronounced absorption band at 1142 cm−1. Meanwhile, the vibrations corresponding to carbon–carbon (C-C) bond stretching are identified at 964 cm−1 and 750 cm−1, indicating structural details of the polymer backbone. Altogether, these spectral features are consistent with the known chemical structure of PMMA [46].

2.3. Mechanical Properties Results

The mechanical behavior of the material was investigated using the three-point bending method in compliance with [47] Rectangular bar-shaped specimens measuring 60 × 10 × 2 mm were tested over a support span of 30 mm, with each condition assessed in triplicate. Tests were conducted at temperatures of 20 °C with a cross-head speed of 1 mm/min. The number of specimens conforms to standard [48]. If specimens give stable results within the group prepared under the same conditions, then three specimens can be enough to draw results.
The unreinforced matrix exhibited a lower flexural modulus relative to the composite but demonstrated a higher capacity for deformation. The composite containing 1 wt.% reinforcement displayed mechanical behavior closely resembling the matrix, albeit with reduced deformational capacity. In contrast, the addition of 3 wt.% reinforcement significantly enhanced both the modulus and flexural strength by 9% compared to the matrix. However, increasing the reinforcement content to 5 wt.% did not yield further improvement; while the modulus was improved by 18% compared to the matrix, a reduction in strength was observed (Table 1).
Standard deviations remain low for all tested groups of specimens. This confirms the standardized procedure for specimen preparation and even the distribution of reinforcements, resulting in a homogeneous specimen. To prove this, the analysis of variance was performed with the experimental data, and the obtained value of p was 0.012, which is lower than 0.05, thus indicating that one group can be identified as stronger than the others. The group with 3 wt.% reinforcements differ significantly in values for strength from other groups, with p ≈ 0.048 in comparison with the matrix, p ≈ 0.015 in comparison with specimens with 1 wt.% reinforcement, and a p-value of p ≈ 0.043 in comparison with specimens with 5 wt.% reinforcement. The calculated p-value for modulus measurements is 0.037, and the group with 5 wt.% reinforcement shows significant improvement in modulus value. If groups with 5 wt.% and 3 wt.% reinforcements are compared, then the p-value is 0.049. The difference between those two specimens is marginally significant. Taking all of the statistical analyses into consideration, the specimen with 3 wt.% reinforcement can be regarded as the best performing among all studied groups in flexural testing.
The surface characteristics of the prepared composite were examined by measuring the hardness using the Shore D method and the contact angle with distilled water. The hardness of the composite increases as the content of particles is increased, and it can be concluded that the presence of particles increases the resistance of the material surface to indentation (Figure 6). Shore D is a robust method used for hard plastics, and the indenter considers the average surface under the indenter, so the increase in particle content makes the surface’s resistance to indentation stronger [49]. Increased filler content raises hardness due to restricted polymer chain mobility, reduced surface compliance, and reactions between the surface of the filler and the matrix. The increase up to 3 wt.% fillers is in accordance with the material’s optimal strengths.
The surface energy was compared to distilled water by dropping a 10 µL drop on the surface and measuring the contact angle using a microscope with a magnification of 10×. The addition of particles into the composition of the material increased the contact angle, proving that the material became more hydrophobic with the addition of particles (Figure 7). This characteristic could facilitate the cleaning of the surface as the water interferes less with the surface of the material, thus containing more particles in the composition.
Controlled energy impact testing was conducted to evaluate the material’s behavior under rapid, high-stress loading conditions, thereby assessing its toughness in severe scenarios. The unreinforced matrix exhibited limited impact resistance. However, the incorporation of mixed-oxide particles markedly improved toughness (Figure 8).
The introduction of 1 wt.% reinforcement enhanced the energy absorption capacity relative to the matrix alone. A further increase to 3 wt.% resulted in a substantial improvement—effectively doubling the energy required to fracture the specimen—highlighting the synergistic effect of silica and alumina particles in impeding crack propagation. While the composite containing 5 wt.% reinforcement showed improved toughness compared to the 1 wt.% formulation, it demonstrated lower impact resistance than its 3 wt.% counterpart. Nevertheless, the 5 wt.% composite exhibited performance characteristics well suited to the intended application.
Fractographic analysis was conducted using field-emission scanning electron microscopy (FESEM), with representative images presented in Figure 9. The fracture surface of the unreinforced polymer matrix (Figure 9a) exhibited a smooth morphology with minimal surface features, indicative of brittle fracture behavior typical of glassy resins. The inclusion of reinforcing particles progressively increased surface roughness, as observed with 1 wt.% and 3 wt.% loadings, which produced increasingly coarse fracture morphologies.
This trend corresponds to the enhanced energy absorption observed during both tensile and impact testing, particularly up to 3 wt.% reinforcement. The specimen containing 5 wt.% particles also displayed a roughened fracture surface, suggesting higher energy dissipation compared to the neat resin. However, the presence of observable particle agglomerates in this formulation may have contributed to the reduced toughness relative to the 3 wt.% composite.
In order to quantify the observed trends in fracture surface images, some quantification techniques were used. Image Pro Plus 6.0 [50] image analysis software was used to quantify the observations of the fractographic surface. The program uses gray-level analysis to reconstruct the observed image surface, and it revealed differences that could be observed in a more visible way. The coloring of the higher parts of the specimen appears as red in images, and they represent the parts where the visible roughness in the image is present, as can be seen in Figure 10. To make this observation more visible, we performed line profile analysis, which marks the roughness of the sample, as presented in Figure 11. The matrix shows a relatively fine surface, and the observed irregularities are relatively low. This suggests that the crack propagation went through the material without any opposition. When only 1 wt.% particles are added, the roughness appears on the surface, resulting from the small presence of particles that tend to redirect the crack propagation when the material is subjected to impact. The specimen with 3 wt.% particles had a slightly rougher surface, and the profile image suggests that the propagation of cracks faces more difficulties; the particles prolonged the crack propagation path and the result was the best-performing specimen in impact testing. The specimen with 5 wt.% particles did not profit from all the particles that were added to the specimen, as due to the elevated concentration, particles were prone to agglomeration. The agglomerate was seen in the cross section after testing, and the main roughness was around this agglomeration, while the rest of the material had a lower level of observed roughness in the rest of the surface, and this can also be illustrated in line profile analysis. The agglomerations also diminish the energy absorption during the impact and do not redirect the crack propagation in the same way [51].
Surface roughness analysis of SEM line profiles (Table 2) revealed distinct topographical differences across composite formulations [52,53]. The 3 wt.% SiO2/Al2O3 sample demonstrated elevated roughness parameters (Ra ≈ 1700; Rq ≈ 2100; Rz ≈ 8800) with high peak density and moderately negative skewness, indicating a valley-rich profile conducive to crack blunting and mechanical interlocking. In contrast, the 5 wt.% composite exhibited the highest roughness (Ra ≈ 1920; Rz ≈ 9600) but showed slightly positive skewness, suggesting more peak-dominated features that may hinder toughness despite improved stiffness. The 1 wt.% formulation displayed minimal relief and lower roughness metrics (Ra ≈ 1280; Rz ≈ 6550), correlating with reduced flexural performance as seen in Table 2. These findings align with mechanical data, where the 3 wt.% group achieved the highest flexural strength and strain at break, indicating that surface complexity optimized at moderate filler loading enhances energy dissipation during bending and reinforces filler-matrix synergy. This highlights 3 wt.% as the formulation with the most favorable balance of modulus, strength, and interfacial toughness. More profound conclusions could be obtained once the specimen is able to undergo thermomechanical analysis, which could provide an in-depth analysis of particle–matrix interaction.
The results align with previous literature trends, though direct comparisons are limited by differing methods. In another study, unmodified alumina particles—spherical, whiskers, and bimodal (via electrospinning)—were added to a PMMA denture base. Bimodal particles yielded the best outcome, improving the modulus by 2.3 times. The results obtained for specimens with different alumina modifications and tested in a similar way as in this study have comparable results for strength and modulus [54]. It is possible to influence crack development with modified graphene particles [55].
Silica nanoparticles can influence the storage modulus in a PMMA composite, lowering it under the glass transition temperature and obstructing the movement of polymer chains at higher temperatures. This process is proportional to the content of the silica particles [56]. The storage modulus at room temperature was not considerably influenced by the addition of particles. The use of modified silica particles of up to 1 wt.% improves the storage modulus, as well as disrupting the movement of polymer chains, as shown by using dynamic mechanical analysis [57]. Silica obtained from rice husks can have a fine nanocrystalline structure and be of a submicrometer size. When added to the PMMA denture base material, it improves the polymer’s hardness [58]. In the present publication, the structure derived from rice husk silica transforms into an α-cristobalite structure, and alumina transforms to a corundum structure. Therefore, their properties improve up to 3 wt.% of added particles in terms of modulus and strength, but further addition of particles makes them more susceptible to agglomeration. The interaction between the particles and the matrix is limited due to the crystal structure, limiting the improvement of toughness, contrary to results obtained when the particles were calcinated at lower temperatures. Combined alumina zirconia particles were used in a different ratio as reinforcement of the PMMA matrix for the denture base at an amount of 5 wt.%, and the specimens were tested through two-point bending and tensile testing. The content of particles was higher than in the present study. We obtained optimal results and the materials were comparable but a bit higher in value for strength and modulus [59].

3. Conclusions

Combined particles of silica, mainly with an α-cristobalite structure, and alumina, mainly with a corundum structure, were prepared using the sol–gel technique, and this was observed using an XRD pattern study. The calcination temperature was 1000 °C, which was enough to produce particles that enable noticeable improvement of the mechanical properties of the PMMA matrix composite. The composite was prepared with 1 wt.%, 3 wt.%, and 5 wt.% particles, and it was tested using a three-point bending test, a hardness test, and finally by being exposed to a controlled energy impact test. The composite with 5 wt.% reinforcement presented 18% improvement, the composite with 3 wt.% reinforcement improved the modulus by 9%, and the 1 wt.% addition of particles did not influence the flexural modulus compared to the matrix material. The flexural strengths showed 10% improvement in the specimens with 3 wt.% reinforcement, and the specimens with 5 wt.% reinforcement did not show improved flexural properties at all. Toughness was significantly improved in specimens with 3 wt.% and 5 wt.% reinforcements, showing double the amount of energy needed to break them in controlled energy impact tests. The best performing specimen was the one containing 3 wt.% reinforcement; it produced improved modulus, strength, and toughness compared to the other specimens. Addition of 5 wt.% made the dispersion of particles complicated, and agglomerates formed. Studies of the fracture surface explain those findings as the fracture surface becomes rougher with the addition of particles into the composite. The wettability of the composite is lower compared to the pure matrix, as can be seen from the contact with a water drop. The results show that adding 3 wt.% SiO2/Al2O3 nanoparticles gives the best balance of fracture surface roughness and mechanical properties. This composition achieved optimal topography for strong particle–matrix bonding, resulting in the highest flexural strength and toughness. Higher filler content (5 wt.%) increased fracture surface roughness further but reduced toughness, while lower content (1 wt.%) led to weaker properties. Overall, 3 wt.% is optimal for improved composite performance.

4. Materials and Methods

The matrix was prepared using the standard dental polymer set, which is applied in dentistry for dentures and orthodontics. ORTO poly prepared by Polydent, Renče-Vogrsko, Slovenia, was used for cold polymerization. Particles were prepared using the sol–gel method. The precursor for the alumina component was Al2(OH)5Cl 2.5 H2O; it was purchased as Locron from Degussa company, Berlin, Germany. Silica was used in the form of fine particles obtained from rice husk (Levidiagro, Kočani, North Macedonia). The water used was demineralized water.
Silica particles were derived from rice husk as a sustainable precursor. The rice husk was thoroughly washed with water, oven-dried, and treated with 10% sulfuric acid at 80 °C for 3 h. Following acid treatment, the material was rinsed with distilled water until a neutral pH was achieved and subsequently dried at 50 °C. The resulting black residue, containing residual organic matter, was subjected to open-flame combustion and then heat-treated at 800 °C for 4 h in an oxidative atmosphere. The final white silica-rich powder was used in subsequent synthesis steps [58].
To ensure effective mixing of components, the obtained silica was combined with aluminum chloride hydroxide sol. The mass ratio was designed to yield a calcinated product with a target molar ratio of Al2O3:SiO2 = 3:2. The mixture was allowed to undergo gelation, followed by drying and grinding. The resulting gel-derived composite was then calcined at 1000 °C for 3 h to produce the final oxide blend.
Composites were prepared using synthesized particles and PMMA. The precursor consists of the liquid component and a powder. Building on prior research with individual oxide reinforcements, we selected 1 wt.%, 3 wt.%, and 5 wt.% loadings for the hybrid system, as, within this range, optimal improvements in mechanical performance without compromising processability were achieved—balancing functionality with material constraints typical in dental-grade acrylics. The particles were dispersed in the liquid in an ultrasonic bath for 15 min and then mixed with the powder. As the powder contains the initiator, polymerization took place within 1 h. The concentration of particles was chosen to be 1 wt.%, 3 wt.%, and 5 wt.%, and composites were compared to the matrix material. In the following text, the sample designations are PMMA for the matrix and PMMA + 1 wt.% SiO2/Al2O3, PMMA + 3 wt.% SiO2/Al2O3, and PMMA + 5 wt.% SiO2/Al2O3 for the composites.
The crystal structure underwent XRD testing. The Ultima IV Rigaku (Tokyo, Japan) diffractometer employs the Bragg–Brentano geometry and uses CuKα radiation (λ = 1.5418 A) with a generator voltage of 40.0 kV and a current of 40.0 mA. The crystalline phase of silica/alumina particles was determined using continuous scan mode with a step size of 0.02° and a scan rate of 10°/min, covering a range of 10–80° 2θ. The possible interactions between the reinforcement and matrix were determined using the FTIR technique. FTIR spectroscopy was performed using a Nicolet 6700 spectrometer (Thermo Scientific, Tsuen Wan New Town, China) in attenuated total reflection mode at 4 cm−1. The spectra were acquired in the wavelength range of 4000 to 400 cm−1. The morphology of the particles was visualized using FESEM and the EDS technique to monitor the mixing degree of produced reinforcement. The dispersion of particles in the composite was also monitored using FESEM (Mira3 Tescan, Oxford, UK at 3 kV). Energy-dispersive spectroscopy (EDS) analysis was performed via an INCAx-act LN2-free Analytical Silicon Drift Detector (Oxford Instruments, Oxford, UK), in conjunction with the PentaFET ® Precision and Aztec 4.3 software suite (Oxford Instruments, Oxford, UK), linked to the TESCAN Mira3 XMU. The specimen holder was made of steel, and the conductive carbon-based band was placed on it to hold the specimens. Mechanical testing of the specimens was performed using the three-point bending test and tension test with a Texture Analyzer EZ Test LX (Shimadzu, Kyoto, Japan). The 3-point bending test was performed on specimens of 60 mm × 10 mm × 2 mm, and the specimens for tension testing had 5 cm lengths, 5 mm widths, and 2 mm thicknesses. The employed controlled energy impact testing machine was a Hydroshot HITS-P10 Shimadzu, Kyoto, Japan. The toughness was monitored using the controlled energy impact test on specimens of 60 mm × 60 mm × 2 mm. Hardness was determined with a Shore D durometer (Model HBD 100-0, Sauter, Balingen, Germany). ShoreD is the method for rapidly measuring the hardness of polymer composites using the indentation needle with a calibrated weight load. Wettability was measured using an optical USB microscope (5.0 MP PRO Delta Optical Smart, Warsaw, Poland) with 40× magnification and image analysis software, ImageProPlus 6.0 (Media Cybernetics, Rockville, MD, USA), for contact angle measurement.

Author Contributions

Conceptualization, M.M.V. and R.J.H.; methodology, M.M.V.; software, M.M.V. and M.P.; validation, V.T., M.M.V. and R.J.H.; formal analysis, A.S., V.T. and K.A.; investigation, K.A. and V.T.; resources, R.J.H. and M.M.V.; data curation, A.S. and M.P.; writing—original draft preparation, K.A.; writing—review and editing, V.T., M.P., A.S., V.R., R.J.H. and M.M.V.; visualization, V.T. and M.M.V.; supervision, M.M.V. and R.J.H.; project administration, M.M.V.; funding acquisition, M.M.V. and R.J.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Ministry of Science, Technological Development, and Innovation of the Republic of Serbia (Contract Nos. 451-03-136/2025-03/200135, 451-03-136/2025-03/200026, and 451-03-136/2025-03/200017).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available from the corresponding author or co-authors upon request. The data are not publicly available.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
PMMAPoly (methyl methacrylate)
FTIRFourier Transform Infrared Spectroscopy
SEMScanning electron microscope
EDSEnergy-Dispersive Spectroscopy

References

  1. Pituru, S.M.; Greabu, M.; Totan, A.; Imre, M.; Pantea, M.; Spinu, T.; Tancu, A.M.C.; Popoviciu, N.O.; Stanescu, I.-I.; Ionescu, E. A Review on the Biocompatibility of PMMA-Based Dental Materials for Interim Prosthetic Restorations with a Glimpse into Their Modern Manufacturing Techniques. Materials 2020, 13, 2894. [Google Scholar] [CrossRef]
  2. Zafar, M.S. Prosthodontic Applications of Polymethyl Methacrylate (PMMA): An Update. Polymers 2020, 12, 2299. [Google Scholar] [CrossRef] [PubMed]
  3. Chojnacka, K.; Mikulewicz, M. Cytotoxicity and Endocrine Disruption in Materials Used for Removable Orthodontic Retainers: A Comprehensive Review. Dent. J. 2025, 13, 269. [Google Scholar] [CrossRef] [PubMed]
  4. Díez-Pascual, A.M. PMMA-Based Nanocomposites for Odontology Applications: A State-of-the-Art. Int. J. Mol. Sci. 2022, 23, 10288. [Google Scholar] [CrossRef] [PubMed]
  5. Mazur, M.W.; Grudniak, A.; Szałaj, U.; Szerszeń, M.; Mizeracki, J.; Cierech, M.; Mierzwińska-Nastalska, E.; Kostrzewa-Janicka, J. Antifungal Activity of Newly Formed Polymethylmethacrylate (PMMA) Modification by Zinc Oxide and Zinc Oxide–Silver Hybrid Nanoparticles. Polymers 2024, 16, 3512. [Google Scholar] [CrossRef] [PubMed]
  6. Soleymani Eil Bakhtiari, S.; Bakhsheshi-Rad, H.R.; Karbasi, S.; Tavakoli, M.; Hassanzadeh Tabrizi, S.A.; Ismail, A.F.; Seifalian, A.; RamaKrishna, S.; Berto, F. Poly(Methyl Methacrylate) Bone Cement, Its Rise, Growth, Downfall and Future. Polym. Int. 2021, 70, 1182–1201. [Google Scholar] [CrossRef]
  7. Išljamović, M.; Bonvin, D.; Milojević, M.; Stojanović, S.; Spasić, M.; Stojković, B.; Janošević, P.; Otašević, S.; Ebersold, M.M. Antifungal Effect of Poly(Methyl Methacrylate) with Farnesol and Undecylenic Acid against Candida Albicans Biofilm Formation. Materials 2024, 17, 3936. [Google Scholar] [CrossRef] [PubMed]
  8. Ramanathan, S.; Lin, Y.-C.; Thirumurugan, S.; Hu, C.-C.; Duann, Y.-F.; Chung, R.-J. Poly(Methyl Methacrylate) in Orthopedics: Strategies, Challenges, and Prospects in Bone Tissue Engineering. Polymers 2024, 16, 367. [Google Scholar] [CrossRef] [PubMed]
  9. Alraziqi, Z.N.R.; Mansoor, H.S. Experimental Investigation for Some Properties of PMMA Denture Base Strengthened by Different Nanoadditives. Iraqi J. Sci. 2020, 2913–2925. [Google Scholar] [CrossRef]
  10. Galant, K.; Turosz, N.; Chęcińska, K.; Chęciński, M.; Cholewa-Kowalska, K.; Karwan, S.; Chlubek, D.; Sikora, M. Silver Nanoparticles (AgNPs) Incorporation into Polymethyl Methacrylate (PMMA) for Dental Appliance Fabrication: A Systematic Review and Meta-Analysis of Mechanical Properties. Int. J. Mol. Sci. 2024, 25, 12645. [Google Scholar] [CrossRef] [PubMed]
  11. Marshall, S.K.; Boonpeng, K.; Buapud, N.; Chimhashat, S.; Chuaymuang, J.; Kwandee, P.; Songphum, N. Bismuth Oxide Nanoparticle-Enhanced Poly(Methyl Methacrylate) Composites for I-131 Radiation Shielding: A Combined Simulation and Experimental Investigation. Polymers 2025, 17, 590. [Google Scholar] [CrossRef] [PubMed]
  12. Adaikalam, K.; Vikraman, D.; Lee, D.-H.; Cho, Y.-A.; Kim, H.-S. Optical and UV Shielding Properties of Inorganic Nanoparticles Embedded in Polymethyl Methacrylate Nanocomposite Freestanding Films. Polymers 2024, 16, 1048. [Google Scholar] [CrossRef] [PubMed]
  13. Alkayal, N.S.; Al Ghamdi, M.A. Cross-Linked Poly(Methyl Methacrylate) Nanocomposites’ Synthesis, Characterization, and Antibacterial Effects. Polymers 2025, 17, 269. [Google Scholar] [CrossRef] [PubMed]
  14. Rehner (Costache), A.M.G.; Tudorache, D.-I.; Bîrcă, A.C.; Nicoară, A.I.; Niculescu, A.-G.; Holban, A.M.; Hudiță, A.; Bîclesanu, F.C.; Balaure, P.C.; Pangică, A.M.; et al. Antibacterial Properties of PMMA/ZnO(NanoAg) Coatings for Dental Implant Abutments. Materials 2025, 18, 382. [Google Scholar] [CrossRef] [PubMed]
  15. Putra, D.F.A.; Qazi, U.; Chen, P.-H.; Shih, S.-J. Preparation and Characterization of SiO2-PMMA and TiO2-SiO2-PMMA Composite Thick Films for Radiative Cooling Application. J. Compos. Sci. 2024, 8, 453. [Google Scholar] [CrossRef]
  16. Al-Thobity, A.M.; Gad, M.M. Effect of Silicon Dioxide Nanoparticles on the Flexural Strength of Heat-Polymerized Acrylic Denture Base Material: A Systematic Review and Meta-Analysis. Saudi Dent. J. 2021, 33, 775–783. [Google Scholar] [CrossRef] [PubMed]
  17. Kucukesmen, H.C.; Sarac, M.F. Preparation and Characterization of Fumed Silica Added PMMA Denture Base Materials. Int. J. Polym. Anal. Charact. 2024, 29, 675–684. [Google Scholar] [CrossRef]
  18. Alazreg, A.; Vuksanović, M.M.; Egelja, A.; Mladenović, I.O.; Radovanović, Ž.; Petrović, M.; Marinković, A.; Heinemann, R.J. Mechanical Properties of Acrylate Matrix Composite Reinforced with Manganese-aluminum Layered Double Hydroxide. Polym. Compos. 2023, 44, 6783–6792. [Google Scholar] [CrossRef]
  19. Stojanović, D.B.; Zrilić, M.; Jančić-Heinemann, R.; Živković, I.; Kojović, A.; Uskoković, P.S.; Aleksić, R. Mechanical and Anti-stabbing Properties of Modified Thermoplastic Polymers Impregnated Multiaxial p-aramid Fabrics. Polym. Adv. Technol. 2013, 24, 772–776. [Google Scholar] [CrossRef]
  20. Obradović, V.; Stojanović, D.B.; Jančić-Heinemann, R.; Živković, I.; Radojević, V.; Uskoković, P.S.; Aleksić, R. Ballistic Properties of Hybrid Thermoplastic Composites with Silica Nanoparticles. J. Eng. Fiber. Fabr. 2014, 9, 97–107. [Google Scholar] [CrossRef]
  21. Vuksanović, M.M.; Egelja, A.; Barudžija, T.; Tomić, N.; Petrović, M.; Marinković, A.; Radojević, V.; Heinemann, R.J. Inorganically Modified Particles FeAl-LDH@SiO 2 as Reinforcement in Poly (Methyl) Methacrylate Matrix Composite. R. Soc. Open Sci. 2021, 8. [Google Scholar] [CrossRef] [PubMed]
  22. Dzulhijjah, W.A.; Aprilia, S.; Arahman, N.; Barambu, N.U. Synthesis and Characterization of Nanosilica from Rice Husk Waste Sigupai Varieties Endemic to Aceh. Case Stud. Chem. Environ. Eng. 2025, 11, 101145. [Google Scholar] [CrossRef]
  23. Sharma, R. Prospects of Rice Husk-Derived Nanosilica. Nano Life 2025, 15, 2430009. [Google Scholar] [CrossRef]
  24. Zewide, Y.T.; Yemata, T.A.; Ayalew, A.A.; Kedir, H.J.; Tadesse, A.A.; Fekad, A.Y.; Shibesh, A.K.; Getie, F.A.; Tessema, T.D.; Wubieneh, T.A.; et al. Application of Response Surface Methodology (RSM) for Experimental Optimization in Biogenic Silica Extraction from Rice Husk and Straw Ash. Sci. Rep. 2025, 15, 132. [Google Scholar] [CrossRef] [PubMed]
  25. Ashor, A.A.; Vuksanović, M.M.; Tomić, N.Z.; Petrović, M.; Dojčinović, M.; Husović, T.V.; Radojević, V.; Heinemann, R.J. Optimization of Modifier Deposition on the Alumina Surface to Enhance Mechanical Properties and Cavitation Resistance. Polym. Bull. 2019, 77, 3603–3620. [Google Scholar] [CrossRef]
  26. Alzarrug, F.A.; Dimitrijević, M.M.; Jančić Heinemann, R.M.; Radojević, V.; Stojanović, D.B.; Uskoković, P.S.; Aleksić, R. The Use of Different Alumina Fillers for Improvement of the Mechanical Properties of Hybrid PMMA Composites. Mater. Des. 2015, 86, 575–581. [Google Scholar] [CrossRef]
  27. Lazouzi, G.A.; Vuksanović, M.M.; Tomić, N.; Petrović, M.; Spasojević, P.; Radojević, V.; Jančić Heinemann, R. Dimethyl Itaconate Modified PMMA—Alumina Fillers Composites With Improved Mechanical Properties. Polym. Compos. 2019, 40, 1691–1701. [Google Scholar] [CrossRef]
  28. Hasratiningsih, Z.; Cahyanto, A.; Takarini, V.; Karlina, E.; Djustiana, N.; Febrida, R.; Usri, K.; Faza, Y.; Hardiansyah, A.; Purwasasmita, B.S. Basic Properties of PMMA Reinforced Using Ceramics Particles of ZrO2-Al2O3-SiO2 Coated with Two Types of Coupling Agents. Key Eng. Mater. 2016, 696, 93–98. [Google Scholar] [CrossRef]
  29. Oshida, Y.; Zuccari, A.G. On the Three-Point Flexural Tests of Dental Polymeric Resins. Biomed. Mater. Eng. 1997, 7, 111–119. [Google Scholar] [CrossRef] [PubMed]
  30. Battegazzore, D.; Bocchini, S.; Alongi, J.; Frache, A. Rice Husk as Bio-Source of Silica: Preparation and Characterization of PLA–Silica Bio-Composites. RSC Adv. 2014, 4, 54703–54712. [Google Scholar] [CrossRef]
  31. Ubi, P.A.; Anosike-Francis, E.N.; Agbonko, E.B.; Omoyi, C.O.; Nwigwe, E.E.; Agba, A.I.; Itam, D.H.; Rowland Ana, R. Rice Husk-Derived Silica: A Sustainable Alternative to Traditional Fillers in Elastomeric Composites. In Proceedings of the 2023 2nd International Conference on Multidisciplinary Engineering and Applied Science (ICMEAS), Abuja, Nigeria, 1–3 November 2023; IEEE: New York, NY, USA, 2023; pp. 1–7. [Google Scholar]
  32. Li, J.; Wu, W.; Yang, H.; Wang, X.; Wang, X.; Sun, C.; Hu, Z. Rigid Silica Xerogel/Alumina Fiber Composites and Their Thermal Insulation Properties. J. Porous Mater. 2019, 26, 1177–1184. [Google Scholar] [CrossRef]
  33. Hasan, S.A.B.; Dimitrijević, M.M.; Kojović, A.; Stojanović, D.B.; Obradović-Đuričić, K.; Jančić Heinemann, R.M.; Aleksić, R. The Effect of the Size and Shape of Alumina Nanofillers on the Mechanical Behavior of PMMA Matrix Composites. J. Serbian Chem. Soc. 2014, 79, 1295–1307. [Google Scholar] [CrossRef]
  34. Verma, V.; Sayyed, A.H.M.; Sharma, C.; Shukla, D.K. Tensile and Fracture Properties of Epoxy Alumina Composite: Role of Particle Size and Morphology. J. Polym. Res. 2020, 27, 388. [Google Scholar] [CrossRef]
  35. Munasir; Imam Supardi, Z.A.; Mashadi; Nisa, Z.; Kusumawati, D.H.; Putri, N.P.; Taufiq, A.; Sunaryono; Hidayat, N. Darminto Phase Transition of SiO2 Nanoparticles Prepared from Natural Sand: The Calcination Temperature Effect. J. Phys. Conf. Ser. 2018, 1093, 012025. [Google Scholar] [CrossRef]
  36. Pujiana, N.; Yulianti, E.; Rahmatulloh, A.; Khalifah, S.N.; Istighfarini, V.N. A low-cost adsorbent coconut waste ash activated nacl for methylene blue removal. J. Neutrino 2020, 12, 43–48. [Google Scholar] [CrossRef]
  37. Xue, S.-H.; Xie, H.; Ping, H.; Li, Q.-C.; Su, B.-L.; Fu, Z.-Y. Induced Transformation of Amorphous Silica to Cristobalite on Bacterial Surfaces. RSC Adv. 2015, 5, 71844–71848. [Google Scholar] [CrossRef]
  38. Zhang, S.; Tie, S.; Zhang, F. Cristobalite Formation from the Thermal Treatment of Amorphous Silica Fume Recovered from the Metallurgical Silicon Industry. Micro Nano Lett. 2018, 13, 1465–1468. [Google Scholar] [CrossRef]
  39. Kimizuka, H.; Kaburaki, H.; Kogure, Y. Mechanism for Negative Poisson Ratios over the α-β Transition of Cristobalite, SiO2. Phys. Rev. Lett. 2000, 84, 5548–5551. [Google Scholar] [CrossRef] [PubMed]
  40. Kimizuka, H.; Kaburaki, H.; Shimizu, F.; Kogure, Y. Molecular Dynamics Analysis of Negative Poisson Ratios over the α-β Transition in Cristobalite, SiO2. Prog. Theor. Phys. Suppl. 2000, 138, 229–233. [Google Scholar] [CrossRef]
  41. Güden, M.; Ülker, S.; Movahedi, N. Epoxy Matrix Nano Composites: Modulus, Strength and Ductility Enhancement through Auxeticity of α-Cristobalite Filler. Mater. Lett. 2023, 349, 134759. [Google Scholar] [CrossRef]
  42. Kwon, S.H.; Park, I.H.; Vu, C.M.; Choi, H.J. Fabrication and Electro-Responsive Electrorheological Characteristics of Rice Husk-Based Nanosilica Suspension. J. Taiwan Inst. Chem. Eng. 2019, 95, 432–437. [Google Scholar] [CrossRef]
  43. Romero Toledo, R.; Ruiz Santoyo, V.; Moncada Sánchez, C.D.; Martínes Rosales, M. Effect of Aluminum Precursor on Physicochemical Properties of Al2O3 by Hydrolysis/Precipitation Method. Nov. Sci. 2018, 10, 83–99. [Google Scholar] [CrossRef]
  44. Shrivastava, V.; Singh, A.; Singh, I.B. Effect of Sol–Gel Prepared Nanoalumina Reinforcement Content on the Corrosion Resistances of Al 6061-Al2O3 Nanocomposite in 3.5% NaCl Solution. Mater. Corros. 2017, 68, 1099–1106. [Google Scholar] [CrossRef]
  45. Veeresh Kumar, G.B.; Rao, C.S.P.; Selvaraj, N. Studies on Mechanical and Dry Sliding Wear of Al6061–SiC Composites. Compos. Part B Eng. 2012, 43, 1185–1191. [Google Scholar] [CrossRef]
  46. Ahmad, S.; Ahmad, S.; Agnihotry, S.A. Synthesis and Characterization of in Situ Prepared Poly (Methyl Methacrylate) Nanocomposites. Bull. Mater. Sci. 2007, 30, 31–35. [Google Scholar] [CrossRef]
  47. ASTM D790-07; Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials. ASTM Inernational: West Conshohocken, PA, USA, 2003.
  48. ISO 4049:2019; Dentistry—Polymer-Based Restorative Materials. International Organization for Standardization: Geneva, Switzerland, 2019.
  49. Mustafa, A.; Aloyaydi, B.; Sivasankaran, S.; Al-Mufadi, F.A. Shore Hardness Characterization of FDM Printed PLA/Epoxy/MGFs Composite Material Structure. In Recent Advances in Manufacturing Processes and Systems; Springer: Singapore, 2022; pp. 919–926. [Google Scholar]
  50. Available online: https://Mediacy.Com/Image-pro/ (accessed on 15 June 2025).
  51. Mesgarnejad, A.; Pan, C.; Erb, R.M.; Shefelbine, S.J.; Karma, A. Crack Path Selection in Orientationally Ordered Composites. Phys. Rev. E 2020, 102, 013004. [Google Scholar] [CrossRef] [PubMed]
  52. Vuksanović, M.M.; Tomić, N.Z.; Gajić-Kvaščev, M.; Djokić, V.R.; Dojčinović, M.; Husović, T.V.; Heinemann, R.J. The Influence of Alumina Crystal Structures on the Morphology and Surface Erosion of PMMA Composite Materials Exposed to Cavitation Testing. Wear 2019, 436–437, 203033. [Google Scholar] [CrossRef]
  53. Bharatish, A.; Kumar, A.; Siddhanth, K.S.; Manikant, V.; Jagdish, P.; Sharma, A.; Solaiachari, S. On Optimizing Wettability, Surface Roughness and Swelling Behaviour of Laser-Polished 3D-Printed PETG Polymer for Bio-Medical Implants. Polymer 2025, 330, 128482. [Google Scholar] [CrossRef]
  54. Mahmoudian, M.; Poursattar Marjani, A.; Hasanzadeh, R.; Nozad, E.; Mamaghani Shishavan, S.; Mohamadi, H. Effect of In-Situ Modification of α -Alumina Nanoparticles on Mechanical Properties of Poly(Methyl Methacrylate)-Based Nanocomposites for Biomedical Applications. Mater. Res. Express 2019, 6, 105410. [Google Scholar] [CrossRef]
  55. Yang, B.-H.; Chang, S.-Y.; Zhang, Y.; Yang, F.; Lee, S. Kinetic Analysis of the Cracking Behavior in Methanol-Treated Poly(Methyl Methacrylate)/Functionalized Graphene Composites. J. Compos. Sci. 2025, 9, 84. [Google Scholar] [CrossRef]
  56. Saladino, M.L.; Motaung, T.E.; Luyt, A.S.; Spinella, A.; Nasillo, G.; Caponetti, E. The Effect of Silica Nanoparticles on the Morphology, Mechanical Properties and Thermal Degradation Kinetics of PMMA. Polym. Degrad. Stab. 2012, 97, 452–459. [Google Scholar] [CrossRef]
  57. Topouzi, M.; Kontonasaki, E.; Bikiaris, D.; Papadopoulou, L.; Paraskevopoulos, K.M.; Koidis, P. Reinforcement of a PMMA Resin for Interim Fixed Prostheses with Silica Nanoparticles. J. Mech. Behav. Biomed. Mater. 2017, 69, 213–222. [Google Scholar] [CrossRef] [PubMed]
  58. Vuksanovic, M.; Mladenovic, I.; Tomic, N.; Petrovic, M.; Radojevic, V.; Marinkovic, A.; Jancic-Heinemann, R. Mechanical Properties of Biomass-Derived Silica Nanoparticles Reinforced PMMA Composite Material. Sci. Sinter. 2022, 54, 211–221. [Google Scholar] [CrossRef]
  59. Alhareb, A.O.; Ahmad, Z.A. Effect of Al2O3/ZrO2 Reinforcement on the Mechanical Properties of PMMA Denture Base. J. Reinf. Plast. Compos. 2011, 30, 86–93. [Google Scholar] [CrossRef]
Gels 11 00575 g001

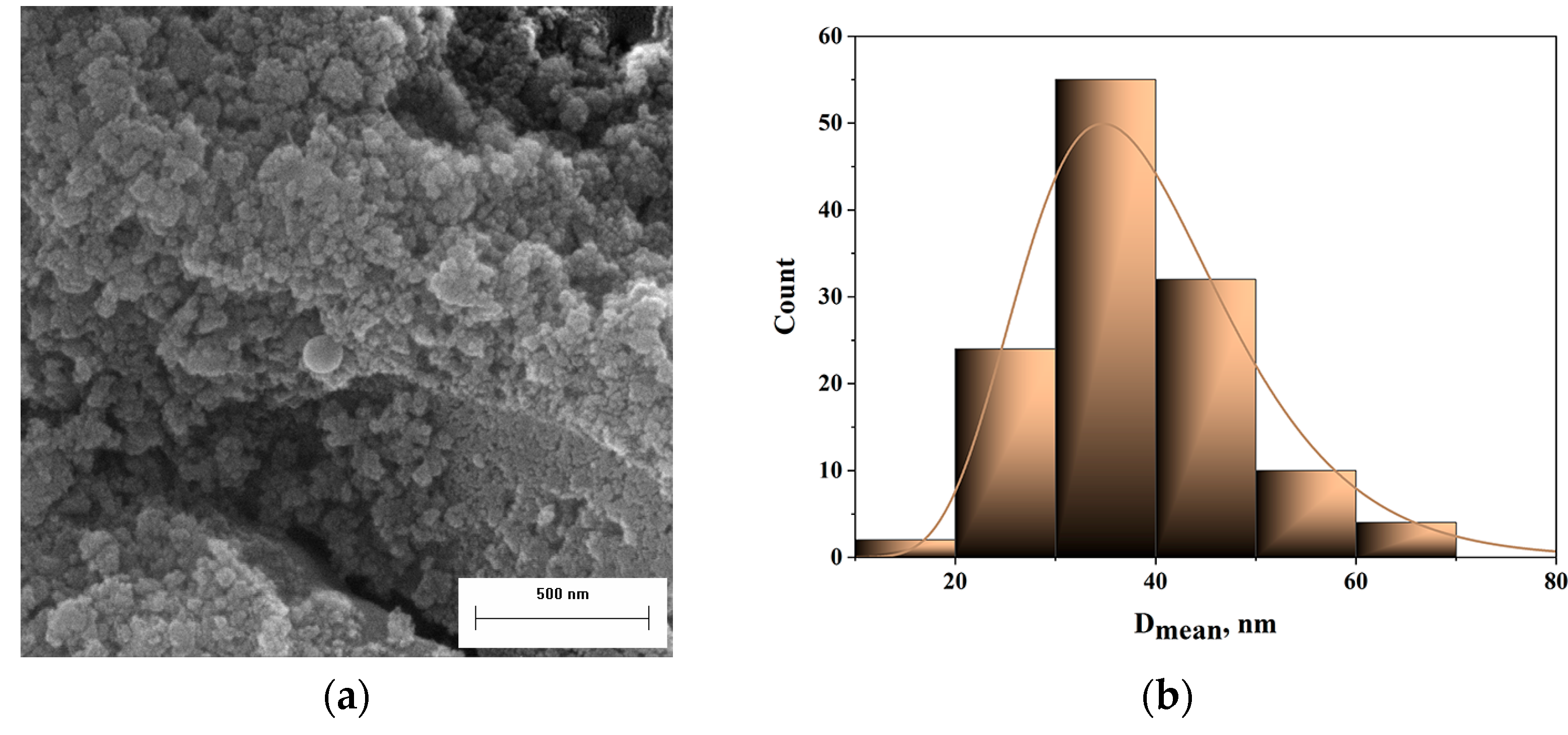

Figure 1. (a) The FESEM image of a synthesized mixture of silica/alumina particles and (b) their corresponding particle size distribution.
Figure 1. (a) The FESEM image of a synthesized mixture of silica/alumina particles and (b) their corresponding particle size distribution.
Gels 11 00575 g001
Gels 11 00575 g002aGels 11 00575 g002b

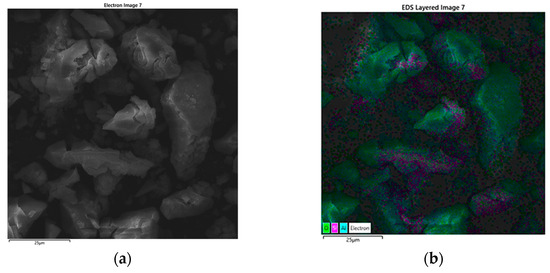

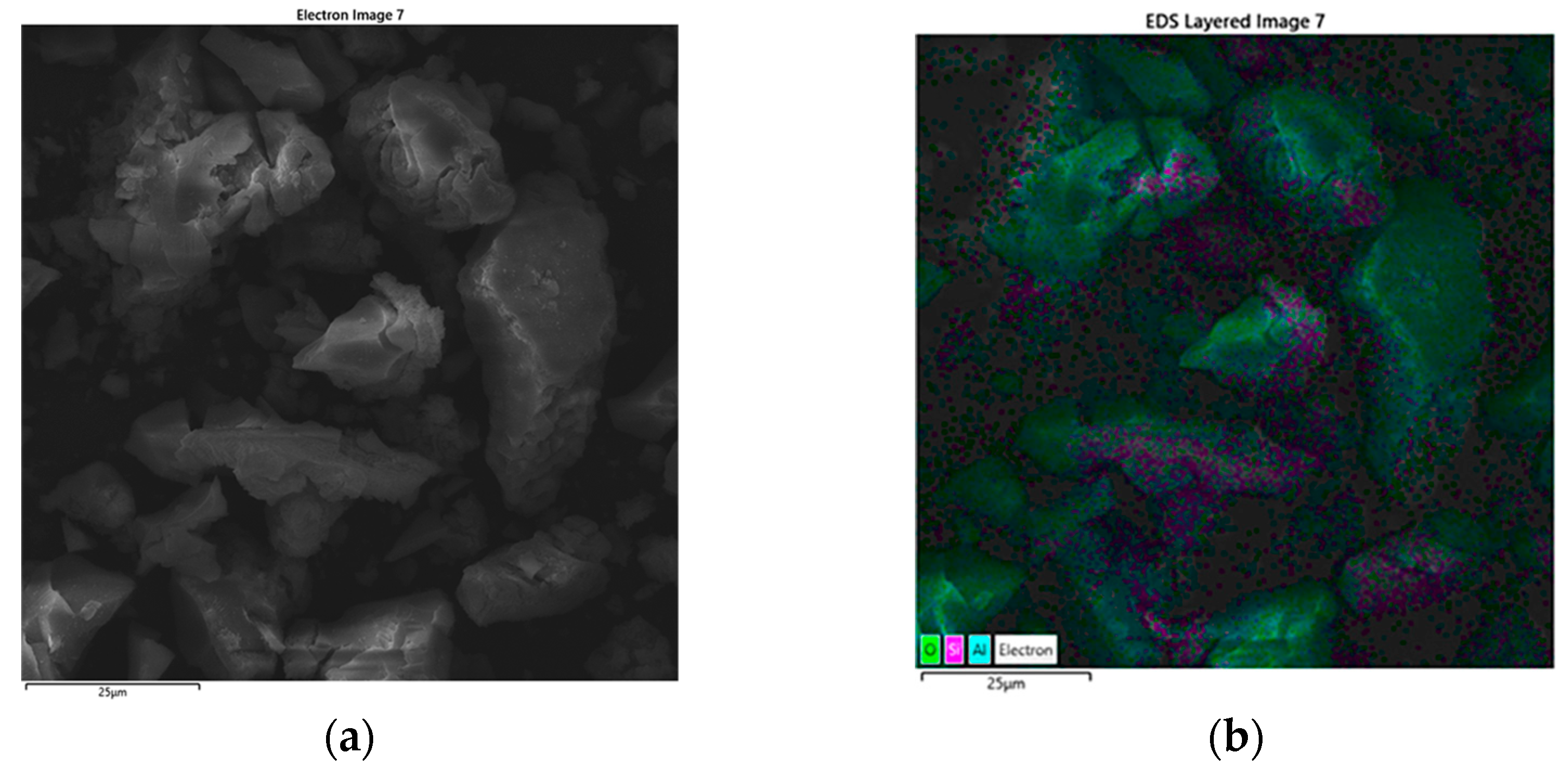

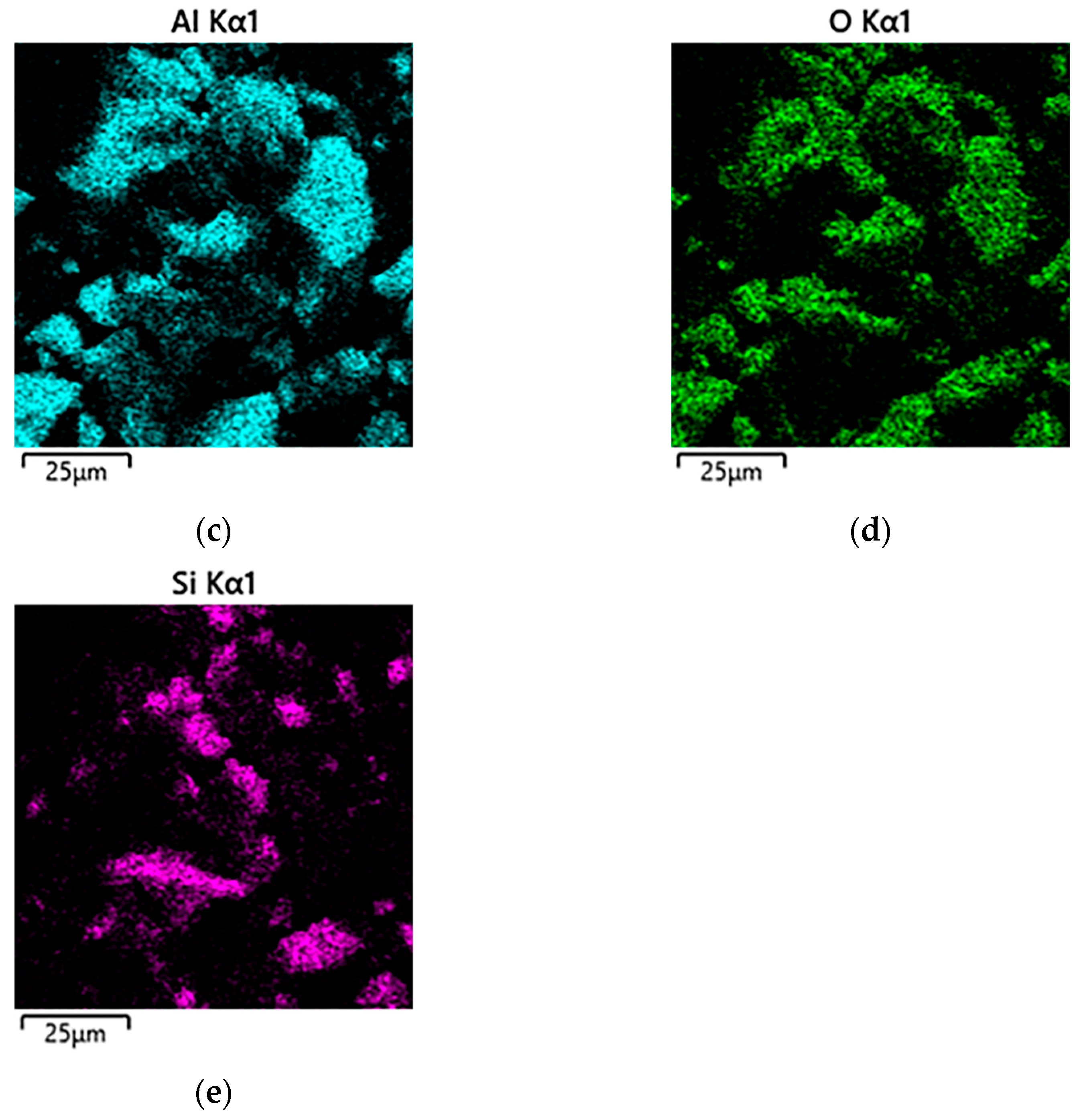

Figure 2. EDS mapping of silica/alumina particles from the sol–gel method: (a) SSEM images, (b) EDS of SEM image, (c) Al, (d) O, and (e) Si.
Figure 2. EDS mapping of silica/alumina particles from the sol–gel method: (a) SSEM images, (b) EDS of SEM image, (c) Al, (d) O, and (e) Si.
Gels 11 00575 g002aGels 11 00575 g002b
Gels 11 00575 g003

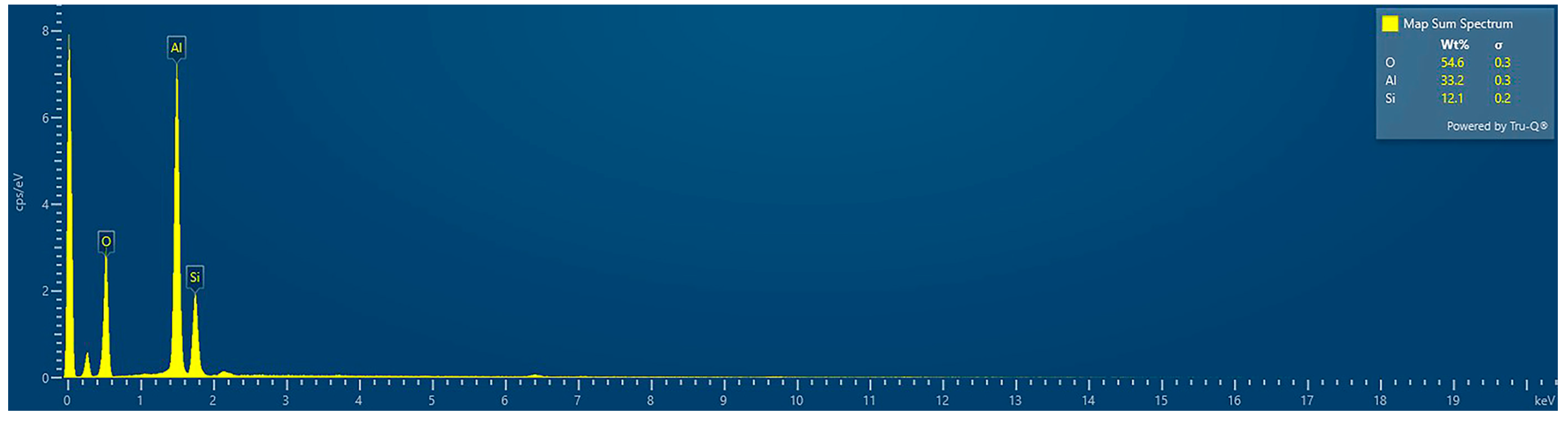

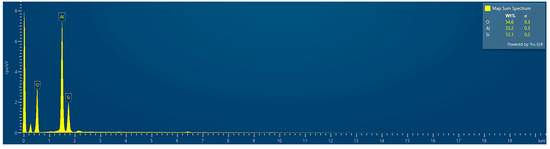

Figure 3. EDS spectrum of silica/alumina particles from the sol–gel process.
Figure 3. EDS spectrum of silica/alumina particles from the sol–gel process.
Gels 11 00575 g003
Gels 11 00575 g004

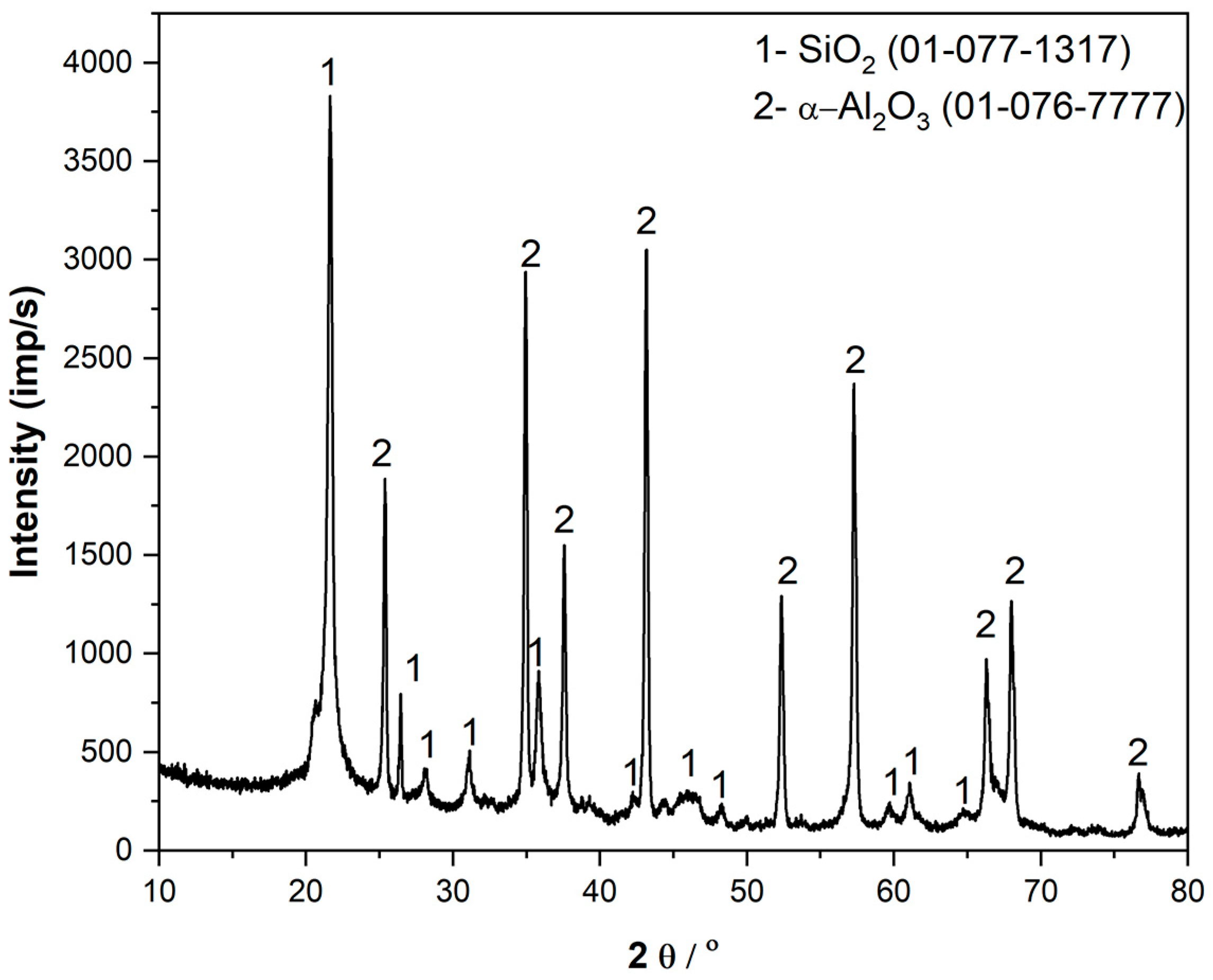

Figure 4. XRD pattern of SiO2/Al2O3 particles from the sol–gel process.
Figure 4. XRD pattern of SiO2/Al2O3 particles from the sol–gel process.
Gels 11 00575 g004
Gels 11 00575 g005

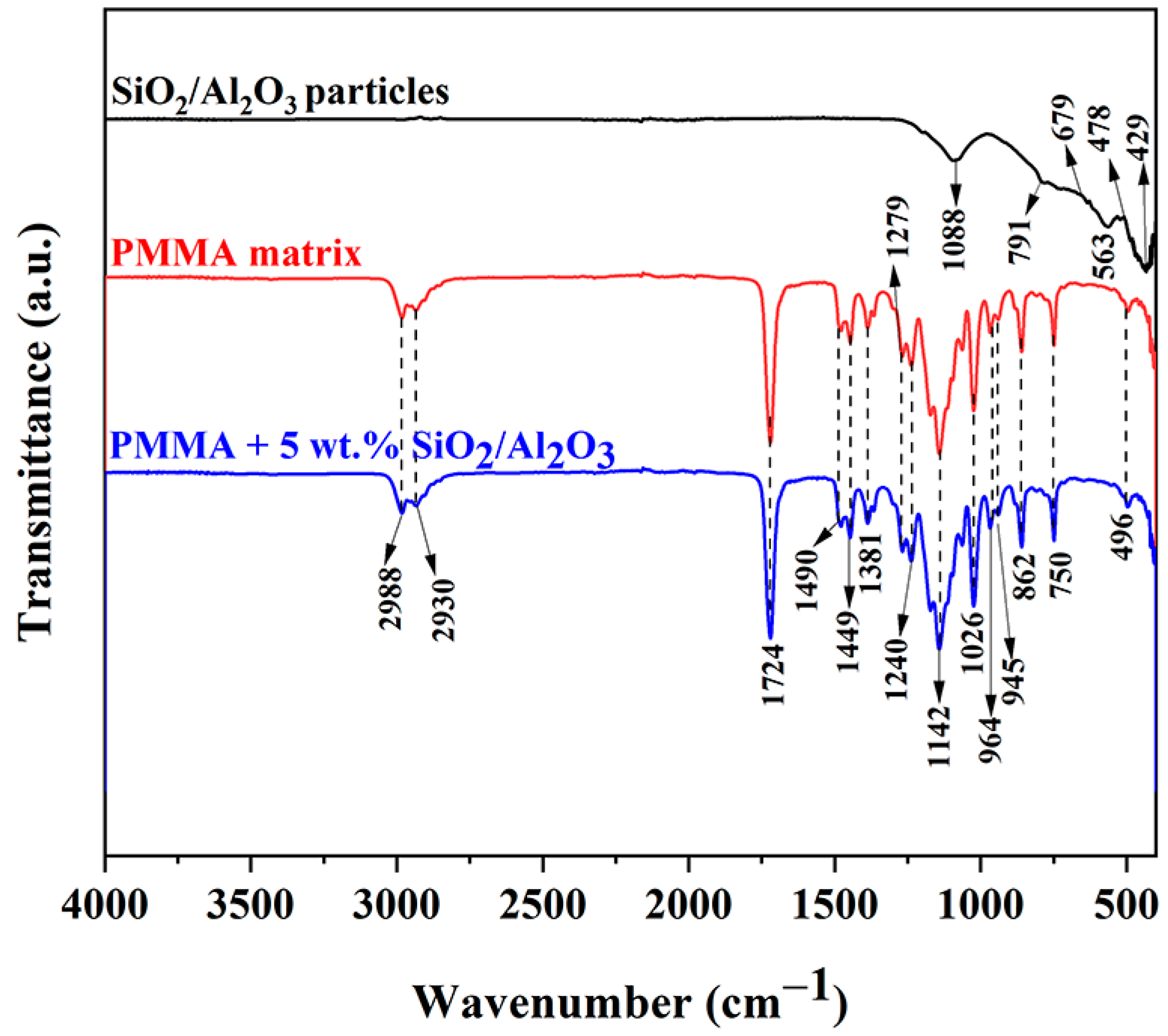

Figure 5. FTIR spectra of SiO2/Al2O3 particles, the PMMA matrix, and PMMA + 5 wt.% of SiO2/Al2O3 particles.
Figure 5. FTIR spectra of SiO2/Al2O3 particles, the PMMA matrix, and PMMA + 5 wt.% of SiO2/Al2O3 particles.
Gels 11 00575 g005
Gels 11 00575 g006

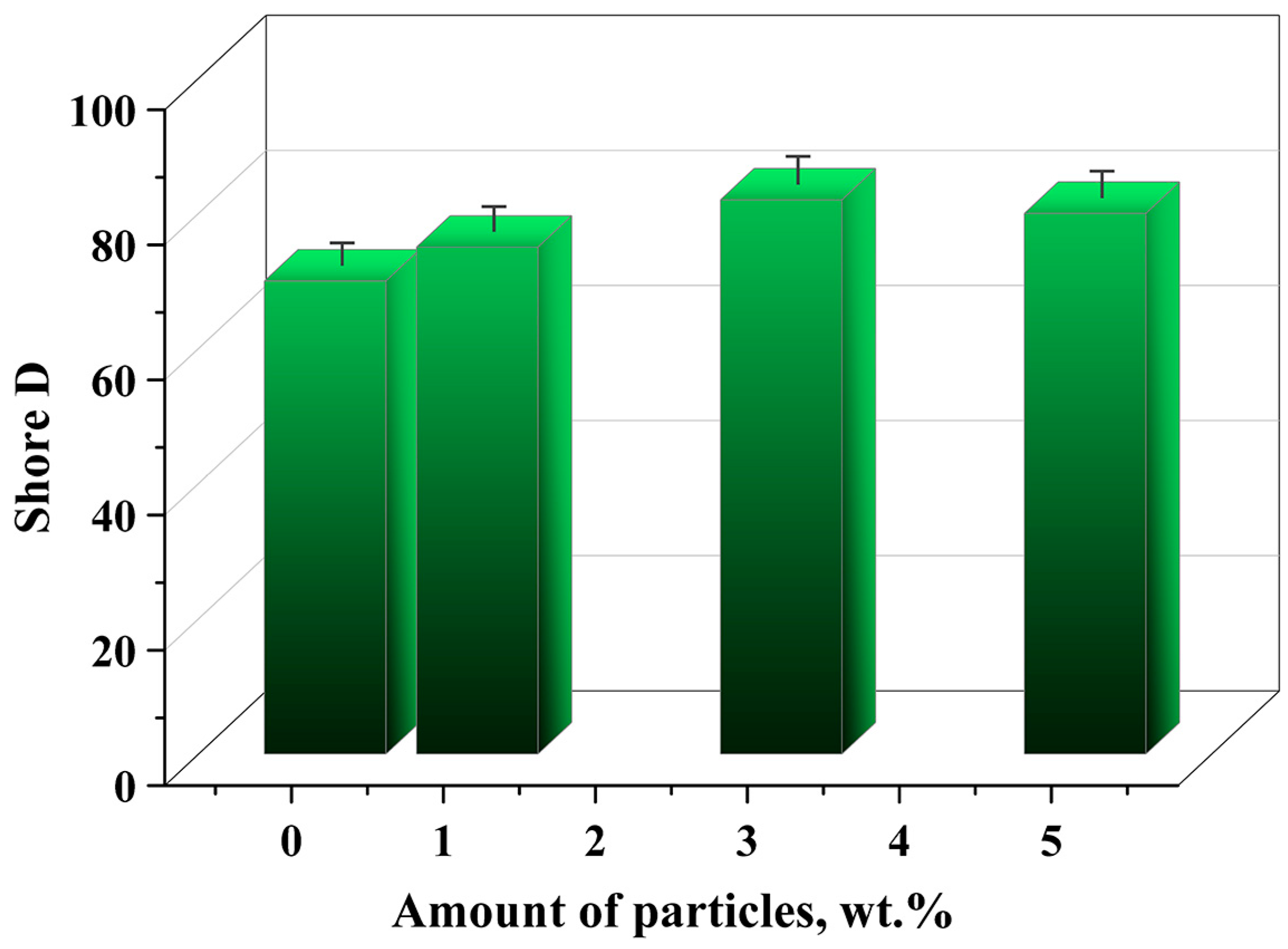

Figure 6. Hardness of composite materials.
Figure 6. Hardness of composite materials.
Gels 11 00575 g006
Gels 11 00575 g007

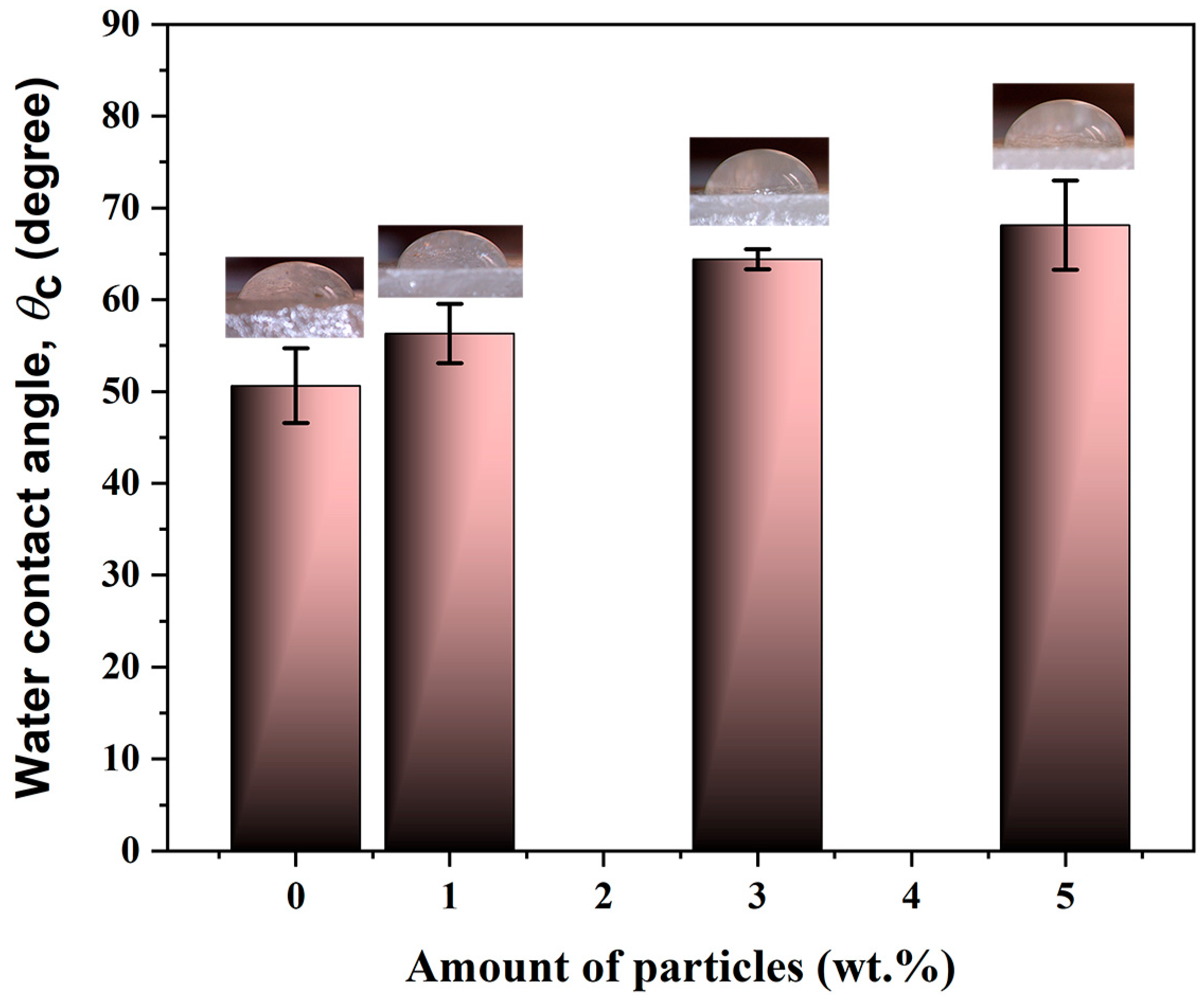

Figure 7. The values of static contact angles measured on the surface of PMMA and the SiO2/Al2O3 composite.
Figure 7. The values of static contact angles measured on the surface of PMMA and the SiO2/Al2O3 composite.
Gels 11 00575 g007
Gels 11 00575 g008

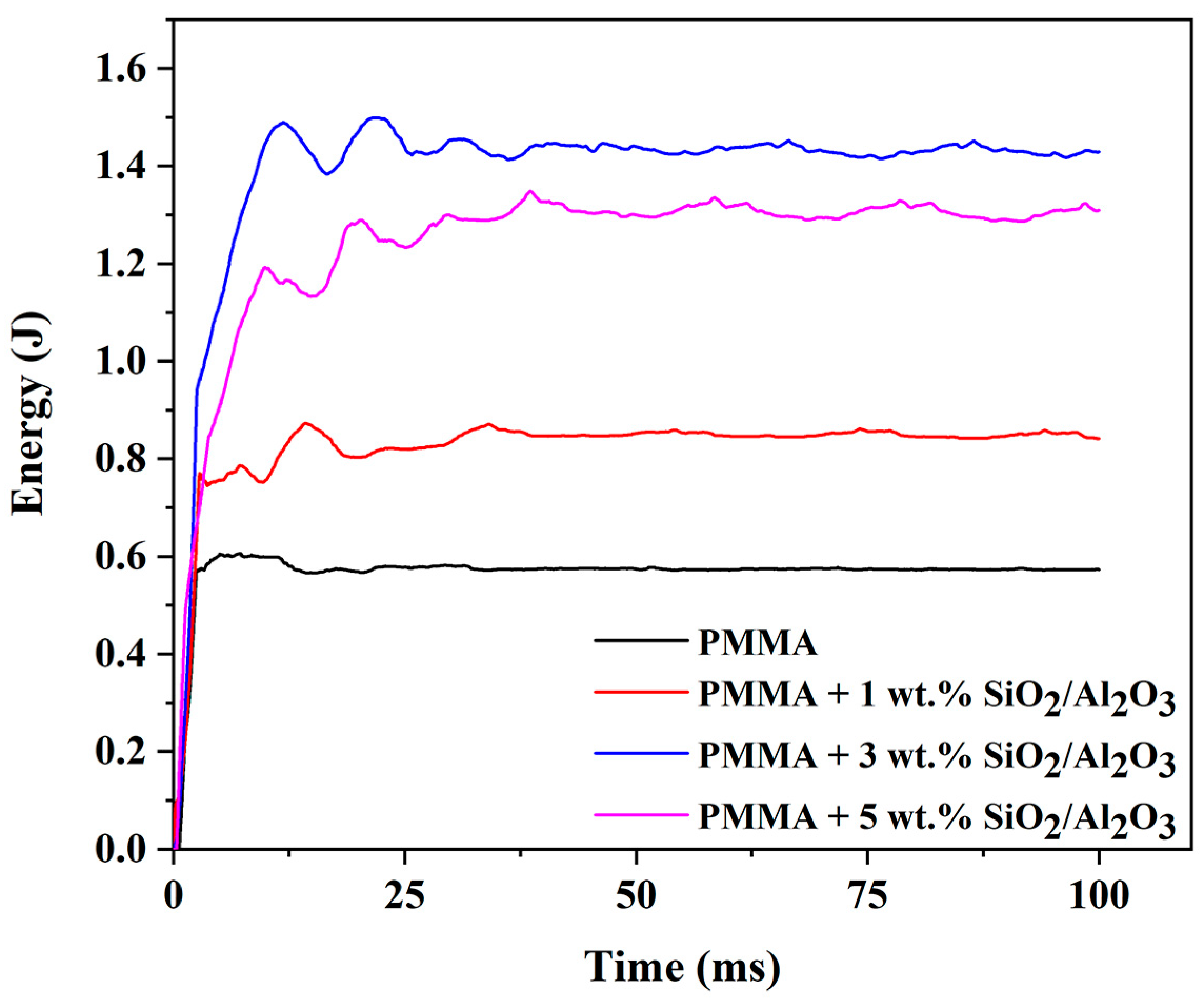

Figure 8. Impact testing of the PMMA matrix and PMMA composites with SiO2/Al2O3 particles.
Figure 8. Impact testing of the PMMA matrix and PMMA composites with SiO2/Al2O3 particles.
Gels 11 00575 g008
Gels 11 00575 g009aGels 11 00575 g009b
Figure 9. SEM images of composite materials: (a) PMMA, (b) 1 wt.% SiO2/Al2O3, (c) 3 wt.% SiO2/Al2O3, and (d) 5 wt.% SiO2/Al2O3.
Figure 9. SEM images of composite materials: (a) PMMA, (b) 1 wt.% SiO2/Al2O3, (c) 3 wt.% SiO2/Al2O3, and (d) 5 wt.% SiO2/Al2O3.
Gels 11 00575 g009aGels 11 00575 g009b
Gels 11 00575 g010aGels 11 00575 g010b

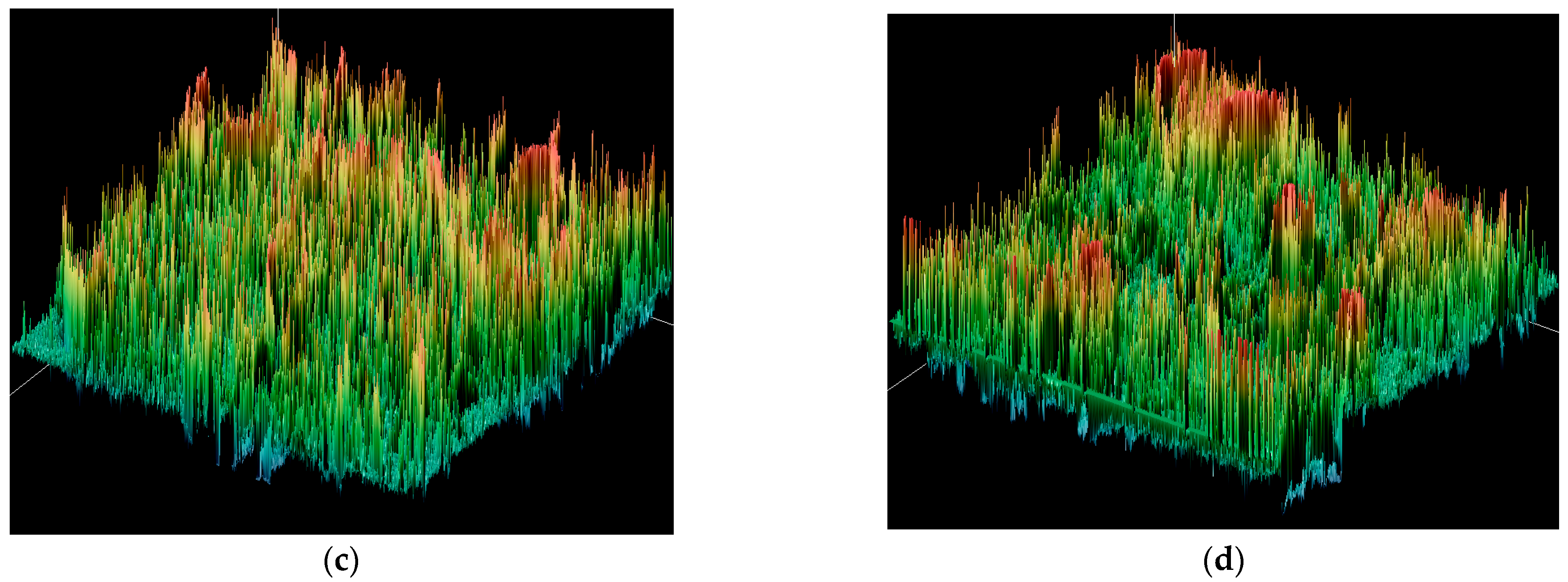

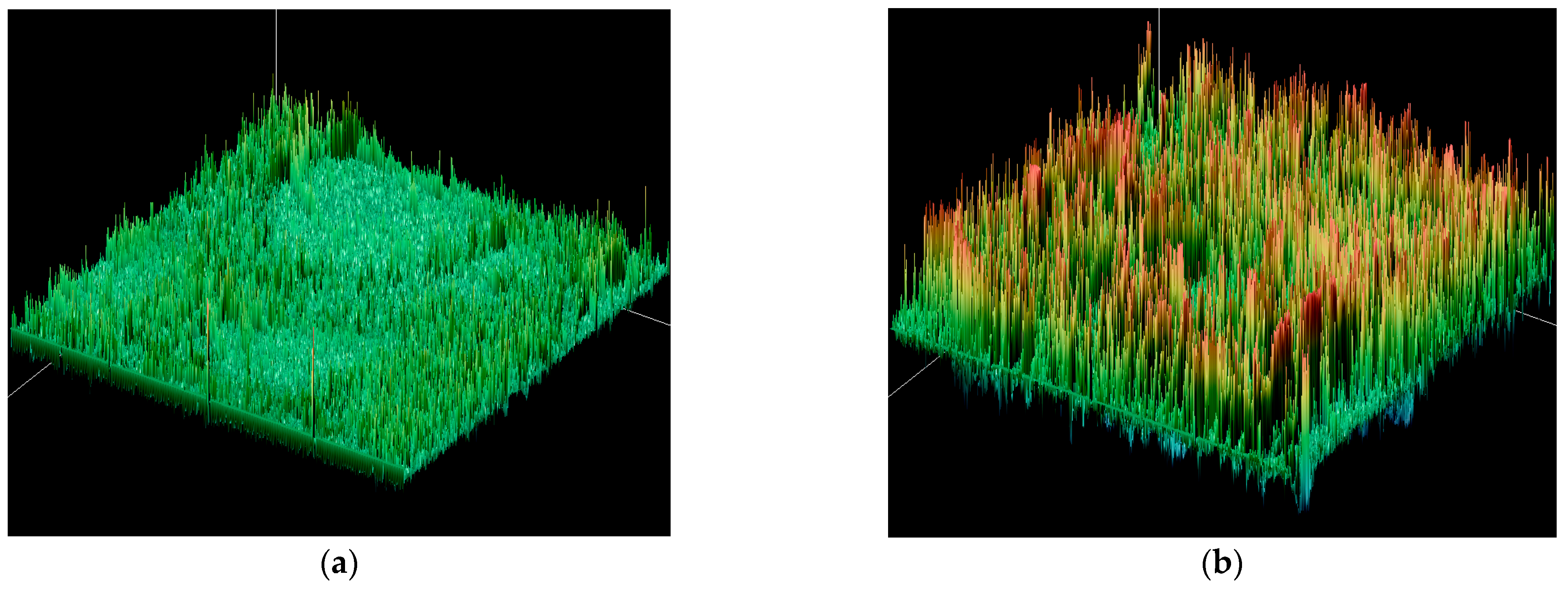

Figure 10. Surface plot of SEM images of the composites: (a) PMMA, (b) 1 wt.% particles, (c) 3 wt.% particles, and (d) 5 wt.% particles.
Figure 10. Surface plot of SEM images of the composites: (a) PMMA, (b) 1 wt.% particles, (c) 3 wt.% particles, and (d) 5 wt.% particles.
Gels 11 00575 g010aGels 11 00575 g010b
Gels 11 00575 g011

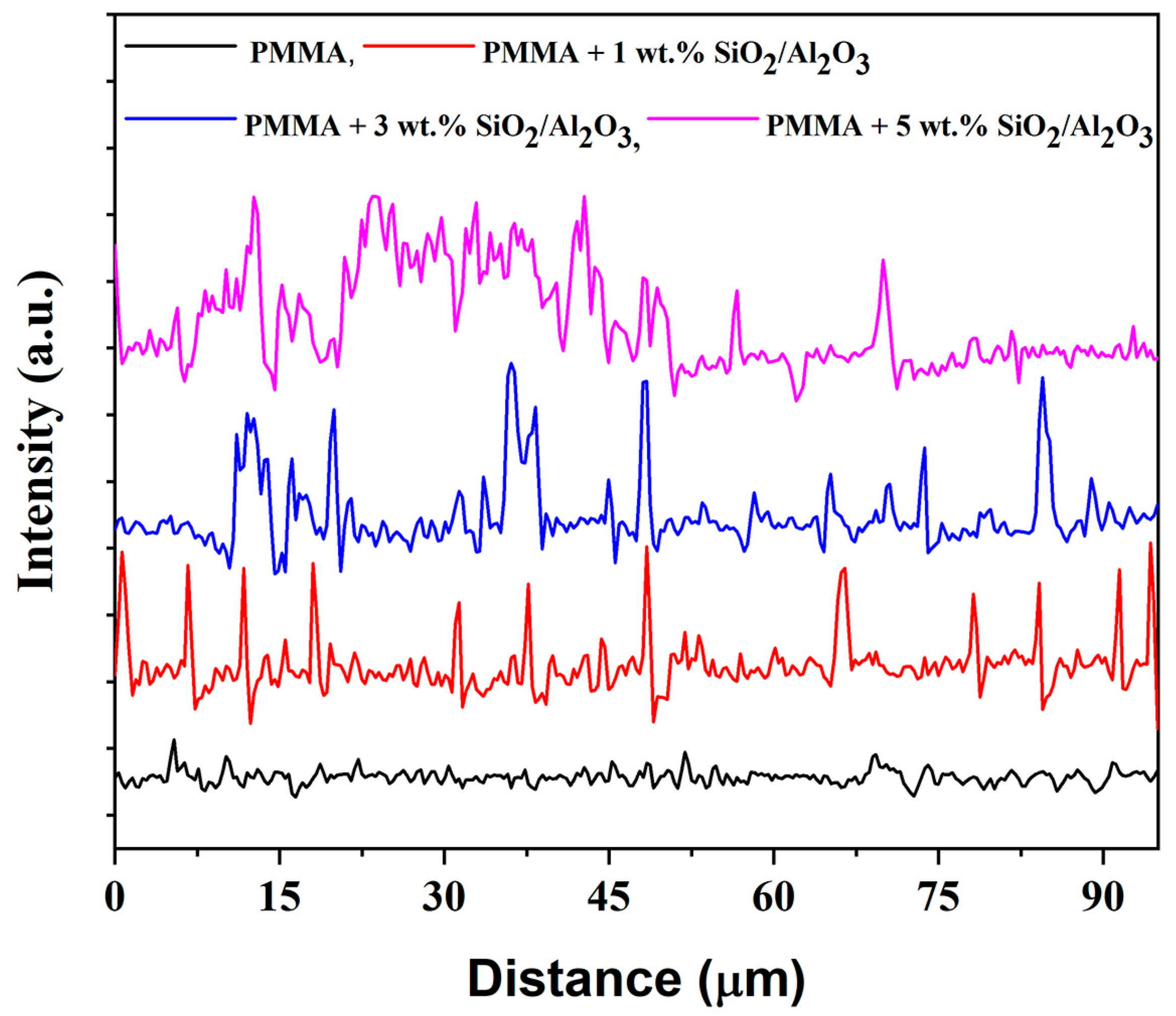

Figure 11. Line profiles of the surface of PMMA and SiO2/Al2O3 composites.
Figure 11. Line profiles of the surface of PMMA and SiO2/Al2O3 composites.
Gels 11 00575 g011
Table 1. Flexural properties of specimens.
Table 1. Flexural properties of specimens.
SpecimenFlexural Modulus, Ef (GPa)Flexural Strength,
σf (MPa)		Flexural Strain at Break, εfM (%)
PMMA matrix only1.62 ± 0.08159.07 ± 2.956.75
PMMA + 1 wt.% SiO2/Al2O31.64 ± 0.08556.91 ± 2.674.74
PMMA + 3 wt.% SiO2/Al2O31.76 ± 0.08964.42 ± 3.165.29
PMMA + 5 wt.% SiO2/Al2O31.92 ± 0.09257.26 ± 2.864.00
Table 2. Summary of data obtained from line profile analysis. Calculations were made according to the SEM images shown in Figure 9.
Table 2. Summary of data obtained from line profile analysis. Calculations were made according to the SEM images shown in Figure 9.
CompositeRa (Units)Rq (Units)Rz (Units)SkewnessFlexural Strength (MPa)Maximum Energy in Impact Test J
PMMA matrix only~1100~1350~5200Negative59.070.6
PMMA + 1 wt.% SiO2/Al2O3~1280~1580~6550Negative56.910.8
PMMA + 3 wt.% SiO2/Al2O3~1700~2100~8800Negative64.421.4
PMMA + 5 wt.% SiO2/Al2O3~1920~2350~9600Positive57.261.3
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Altwair, K.; Tadić, V.; Petrović, M.; Savić, A.; Radojević, V.; Heinemann, R.J.; Vuksanović, M.M. Sol–Gel-Derived Silica/Alumina Particles for Enhancing the Mechanical Properties of Acrylate Composite Materials. Gels 2025, 11, 575. https://doi.org/10.3390/gels11080575

AMA Style

Altwair K, Tadić V, Petrović M, Savić A, Radojević V, Heinemann RJ, Vuksanović MM. Sol–Gel-Derived Silica/Alumina Particles for Enhancing the Mechanical Properties of Acrylate Composite Materials. Gels. 2025; 11(8):575. https://doi.org/10.3390/gels11080575

Chicago/Turabian Style

Altwair, Khaled, Vladisav Tadić, Miloš Petrović, Andrija Savić, Vesna Radojević, Radmila Jančić Heinemann, and Marija M. Vuksanović. 2025. "Sol–Gel-Derived Silica/Alumina Particles for Enhancing the Mechanical Properties of Acrylate Composite Materials" Gels 11, no. 8: 575. https://doi.org/10.3390/gels11080575

APA Style

Altwair, K., Tadić, V., Petrović, M., Savić, A., Radojević, V., Heinemann, R. J., & Vuksanović, M. M. (2025). Sol–Gel-Derived Silica/Alumina Particles for Enhancing the Mechanical Properties of Acrylate Composite Materials. Gels, 11(8), 575. https://doi.org/10.3390/gels11080575

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
