Diversity of Ophiostomatoid Fungi Associated with Dendroctonus armandi Infesting Pinus armandii in Western China

1
Key Laboratory of Forest Protection of National Forestry and Grassland Administration, Institute of Forest Ecology, Environment and Nature Conservation, Chinese Academy of Forestry, Beijing 100091, China
2
Chinese Academy of Forestry, Beijing 100091, China
3
Longcaoping Forestry Bureau of Shaanxi Province, Foping County, Hanzhong 723401, China
4
Mycothèque de l’Université Catholique de Louvain (BCCM/MUCL), Earth and Life Institute, Microbiology, B-1348 Louvain-la-Neuve, Belgium
*
Author to whom correspondence should be addressed.
J. Fungi 2022, 8(3), 214; https://doi.org/10.3390/jof8030214
Received: 30 January 2022 / Revised: 17 February 2022 / Accepted: 19 February 2022 / Published: 22 February 2022
(This article belongs to the Topic Fungal Diversity)

Abstract

:
Pinus armandii (P. armandii) is extensively abundant in western China and, as a pioneer tree, and prominently influences local ecology. However, pine forests in this region have been significantly damaged by Dendroctonus armandi (D. armandi) infestations, in close association with ophiostomatoid fungi. This study aimed to identify the diversity of ophiostomatoid fungi associated with D. armandi infesting P. armandii in western China. A total of 695 ophiostomatoid fungal strains were isolated from 1040 tissue pieces from D. armandi galleries and 89 adult beetles at four sites. In this study, based on multiloci DNA sequence data, as well as morphological and physiological characteristics, seven species belonging to five genera were identified including three known species, Esteyea vermicola, Graphium pseudormiticum and L. wushanense, two novel taxa, Graphilbum parakesiyea and Ophiostoma shennongense, and an unidentified Ophiostoma sp. 1. A neotype of Leptographium qinlingense. Ophiostoma shennongense was the dominant taxon (78.99%) in the ophiostomatoid community. This study provides a valuable scientific theoretical basis for the occurrence and management of D. armandi in the future.

1. Introduction

The ubiquitous yet diverse associations between insects and fungi have long evolved [1,2,3], while the interactions between beetles, microbes, and hosts have been well documented [4,5,6,7,8,9,10], showing a variety of ecological strategies [11,12,13]. The associations among Pinus spp., Dendroctonus spp. (Coleoptera, Curculionidae, Scolytinae), and ophiostomatoid fungi are among of the most significant types of hosts-beetles-mycobiota mutualism.
Pinus armandii (P. armandii) is a native and pioneer coniferous species on the Qinling Mountains in China [14] that has a significant role in local economy and ecology. However, P. armandii has been infested with Dendroctonus armandi (D. armandi) since it was first reported in 1932 [15]. D. armandi is an endemic beetle species that gregariously attacks 20- to 50-year-old healthy, P. armandii mainly in western China [16,17]. To date, in an area spanning more than 4000 ha, approximately half a million P. armandii trees have been decimated by this beetle [18,19].
The bark beetle-associated mycobiota, particularly ophiostomatoid fungi (Ophiostomatales, Microascales, Ascomycota), has been extensively studied due to its diversity, pathogenicity, and mutualism [20,21]. Previous studies have demonstrated that most fungi associated with D. armandi belong to Alternaria, Trichoderma, Verticillium, and ophiostomatoid fungi [18,22,23]. To date, ten species have been assigned to the order Ophiostomatales (Leptographium qinlingensis, L. terebrantis, Leptographium sp., Leptographium sp1., Leptographium sp2., Ophiostoma brevicolle, O. floccosum, O. quercus, and Ophiostoma sp.), and Microascales (Ceratocystis polonica) [18,22,23,24,25]. However, the records of L. terebrantis and C. polonica are uncertain due to the lack of confirmatory molecular analysis reports [22,24]. The former is associated with many bark beetles that are only recorded in North America, while the latter is associated with Ips spp. infesting spruce [26,27,28].
Research on the diversity of ophiostomatoid fungi associated with D. armandi on P. armandii in China remains limited. There are no systematic studies, with only a few sporadic ophiostomatoid fungi reports [23,24,25]. Furthermore, the status of L. qinlingensis has been challenged, due to the absent type specimen, molecular analysis and limited morphological characteristics to prove that L. qinlingensis was a new species [24]. Therefore, the validity of L. qinlingensis should be considered if similar material is obtained from the same vector and host [29].
In this study, we explored the ophiostomatoid communities associated with D. armandi infecting P. armandii ecosystems in western China. Integrated morphological observations and multilocus DNA sequence data were used to analyze these communities. Our results provide insights into the communities of ophiostomatoid fungi associated with D. armandi in western China, which is a basic assignment for the subsequent study on the occurrence and management of D. armandi.

2. Materials and Methods

2.1. Sample Collection and Fungi Isolation

Samples including D. armandi adults and their breeding galleries were collected from infected P. armandii trees at four sites (Table 1) in western China from July to August 2018 and May to July 2019 (Figure 1). All four sites are pure forests of P. armandii with tree ages of approximately 40 years old and diameters of approximately 40 to 60 cm. The trees used in this study showed signs of being dead or dying. The beetles were individually placed in sterilized Eppendorf tubes using tweezers, while their galleries were placed in sterile envelopes using a sterilized knife. Beetles and galleries were returned to the laboratory and stored at 4 °C for isolation within one week.
Beetles were crushed directly without superficial disinfection and transferred to a 2% malt extract agar (MEA: 20 g Biolab malt extract, 20 g Biolab agar, and 1000 mL deionized water). Galleries were cut into smaller tissue sections (5 × 5 mm), disinfected with 1.5% sodium hypochlorite (NaClO) for 60 s, rinsed with sterile water three times, and placed in 9 cm petri dishes, as described by Seifert et al. [30]. All strains were purified using mycelium apex, and cultures were grown in the dark at 25 °C. According to the preliminary analysis of culture characteristics, representative strains of each morphotype were selected for further morphological and molecular studies. All fungal strains obtained in this study were maintained in the culture collection of the Chinese Academy of Forestry (CXY), and representative strains were maintained in the China Forestry Culture Collection Center (CFCC, part of the National Infrastructure of Microbial Resources) (Table 2).

2.2. Morphological and Physiological Characteristics

Pure cultures were incubated in the dark at 25 °C, culture morphology and growth status were observed daily, and the microstructures of reproduction forms were performed on 2% MEA media and incubated for 7 to 30 days. Microscope slides were prepared to observe the length and width of reproductive structures (such as conidiogenous apparatus, stipes cylindrical, conidiophore, and conidia) per strain using a BX51 OLYMPUS microscope with differential interference contrast. In total, 30 measurements were repeated for each morphological feature, and the statistics were presented as (min–) (mean-SD) –(mean + SD) (–max) (mean, average; SD, standard deviation; min, minimum; max, maximum).
For growth rate studies, representative strains were cultured in 90 mm diameter plates in the dark. A total of five replicate plates were included for each strain incubated at 5 °C intervals (5 to 35 °C) for two weeks. The diameter of each colony was measured daily until the mycelium reached the edge of the MEA medium. Colony colors were described according to Rayner’s color chart [31].

2.3. DNA Extraction and Sequencing

Before DNA extraction, the strains were grown on 2% MEA for 1–2 weeks at 25 °C in the dark. The mycelia of purified strains were picked from the 60 mm diameter plates and placed into 2 mL sterile Eppendorf tubes. DNA extraction and purification were performed using the Plant Genomic DNA Kit (Invisorb Spin Plant Mini Kit, DP305, Tiangen, Beijing, China), following the manufacturer’s protocol.
A total of five DNA regions were amplified for sequencing and phylogenetic analyses. The internal transcribed spacer regions (ITS1 and ITS2, including the 5.8S gene) were amplified using the ITS1/ITS4 primer pair [32]; the nuclear ribosomal large subunit region (LSU) was amplified using the LROR/LR5 primer pair [33]; ITS2 and part of the ribosomal large subunit 28S (ITS2-LSU) were amplified using the ITS/LR3 primer pairs [32]; the β-tubulin (TUB2) gene was amplified using the BT2a/BT2b primer pair [34]; and the elongation factor1-α (EF1-α) gene was amplified using the EF1F/EF2R primer pair [35]. PCR reactions were conducted in 25 μL volumes (2.5 mM MgCl2, 1× PCR buffer, 0.2 mM dNTP, 0.2 mM of each primer, and 2.5 U Taq-polymerase enzyme), and PCR amplification was conducted using a thermocycler (Applied Biosystems, Foster City, CA, USA). The reaction conditions for the five DNA regions were similar to those described in the references for primer design. PCR products were cleaned with an MSB Spin PCR Apace Kit (250) following the manufacturer’s instructions. All nucleotides were sequenced in both directions using a CEQ 2000 XL capillary automated sequencer (Beckman Coulter), and MEGA5.0 was used for splicing.

2.4. Phylogenetic Analyses

Preliminary identification of the obtained sequences based on ITS DNA fragments was performed using BLAST searches in the NCBI GenBank database. The related authentic sequences were downloaded for further phylogenetic analyses. Sequence alignment was performed online using MAFFT (http://mafft.cbrc.jp/alignment/server/ accessed on 13 December 2021), implementing the iterative refinement method (FFT-NS-i setting) [36], and edited with MEGA5.0. The gaps were treated as the fifth base. Maximum likelihood (ML), maximum parsimony (MP), and Bayesian inference (BI) were used to assess these aligned sequences in phylogenetic analysis.
ML analyses were conducted using RAxML v. 7.0.3, [37] under the GTR-GAMMA model. Supports for the nodes were estimated from 1000 bootstrap replicates. MP analyses were performed using PAUP*version 4.0b10 [38]. A bootstrap analysis (1000 replicates using the neighbor-joining option) was performed to determine the support levels of the nodes. BI analyses were conducted using MrBayes v. 3.1.2 [39]. A total of four Markov chain Monte Carlo (MCMC) chains were run simultaneously from a random starting tree for five million generations, and samples were taken per 100 generations, resulting in 50,000 trees. Moreover, the first 25% of trees sampled were discarded during burn-in. Posterior probabilities were calculated by the retained trees. The topology of the resulting files was subsequently visualized using Figtree v.1.4.2 and Adobe Illustrator CS6.

3. Results

3.1. Fungal Isolation

In this study, 695 strains of ophiostomatoid fungi were isolated from 1040 tissue pieces from D. armandi galleries and 89 adult beetles at four sites (Table 2 and Table 3). A total of 274 strains (39.42%) and 421 strains (60.58%) were isolated from the beetles and their galleries, respectively. Moreover, 280, 69, and 346 strains were obtained from the Hubei, Gansu, and Shaanxi provinces, respectively (Table 3).
Growth rates, colony characteristics, and ITS sequence BLAST results were used for preliminary sorting and identification. These strains were distributed across five genera (Esteya, Graphilbum, Leptographium, Ophiostoma in the Ophiostomatales, and Graphium in the Microascales) and seven tentative species/groups (Taxon 1 to 7; Table 2). A total of 30 representative strains were selected for subsequent morphological and phylogenetic analyses.

3.2. DNA Sequencing and Phylogenetic Analyses

Phylogenetic analyses of the ITS, ITS2-LSU, LSU, TUB2, and TEF1-α gene regions were used to identify the genera/species and the genetic diversity within ophiostomatoid fungi [29,40,41]. Overall, one to eight strains were selected for each tentative species (Taxa 1–7) to construct the phylogenetic trees. The topologies generated by the ML, MP, and BI analyses were highly concordant, and phylograms obtained by ML were presented for all individual datasets, with branch supports obtained from MP and BI analyses.
Esteya (Taxon 1) and Graphium (Taxon 3) were each represented by a single strain. The two combined datasets (LSU+TUB2 and LSU+TEF1-α) for Taxon 1 and Taxon 3 consisted of 1198 and 1114 characters (including gaps), respectively, grouped with Esteya vermicola and Graphium pseudormiticum (Supplementary Figures S1 and S2).
The remaining 28 representative strains were distributed in three major clades by phylogenetic inferences based on the ITS and ITS-LSU data sets, including Ophiostoma s. str, Leptographium s. l, and Graphilbum s. str.
Taxon 2 was represented by three (Table 2) of the 25 strains (Table 3). It formed a well-supported clade in both ITS and TUB2 based phylogenies, closely related to Graphilbum kesiyea but distinct (Figure 2 and Figure 3); hence its recognition as a distinct species.
Taxon 4 included 62 strains (Table 3), while Taxon 5 included 34 strains (Table 3), with 11 representative strains (Table 2) belonging to the Leptographium lundbergii complex in the ITS2-LSU phylogenetic analyses (Figure 4). Additionally, eight strains (Table 2) of Taxon 4 formed a distinct and well-supported clade based on the TUB2 dataset (Figure 5). However, ITS2-LSU and TEF1-α based phylogenetic inferences revealed that these eight strains clustered together with L. qinlingensis with high support (Figure 4 and Figure 6). There was no TUB2 sequence for L. qinlingensis prior to this. L. qinlingensis is a nom. inval., because of the lack of type specimen.
Taxon 5 grouped with Taxon 4 in the L. lundbergii complex and three representative strains of Taxon 5 grouped with L. wushanense, as defined by Pan et al. [42], based on ITS2-LSU and TUB2 phylogenetic analyses (Figure 4 and Figure 5).

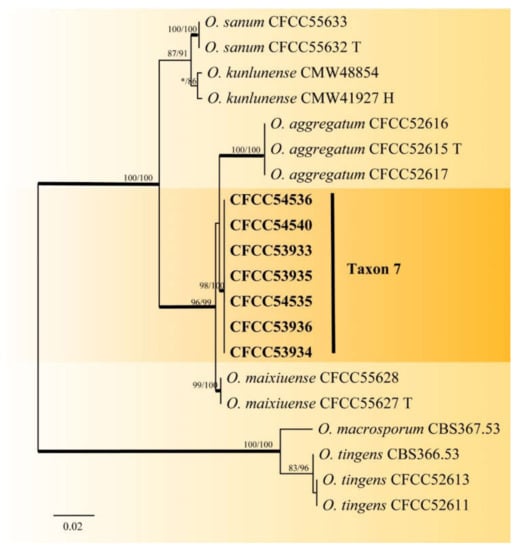

Taxon 6 included 549 strains (Table 3), seven of which (Table 2) were included in the phylogenetic analyses and clustered in the Ophiostoma clavatum complex. A total of seven (Table 2) of the 22 strains (Table 3) of Taxon 7 resided outside any recognized species complexes (Figure 2). The analysis of ITS and TUB2 sequences (Figure 2 and Figure 7) showed that Taxon 6 formed a well-supported clade close to, yet distinct from, the ex-type sequences of O. clavatum. Meanwhile, Taxon 7, nested in the vicinity of O. aggregatum, forming a clade related to, yet distinct in the ITS and TUB2 phylogenetic trees (Figure 2 and Figure 8). Hence, these strains in Taxon 6 and Taxon 7 were interpreted as belonging to two distinct, undescribed Ophiostoma species.

3.3. Morphology and Taxonomy

A total of three of the seven taxa identified in the present study were interpreted as undescribed species. These included one species of Graphilbum (Taxon 2) and two species of Ophiostoma (Taxa 6 and 7). However, no reproductive structures were observed for Taxon 7 on the different media used in this study; thus, we have elected to refrain from describing this taxon at this time. L. qinlingense was recollected during this study, and the name is revalidated by designation of a Neotype.
Taxonomy.
Graphilbum parakesiyea T. Wang & Q. Lu sp. nov. Figure 9.
MycoBank: MB838526.
Etymology: ‘parakesiyea’ (Latin), refers to the phylogenetic affinities to Graphilbum kesiyea.
Type: China, Hubei Province, galleries of Dendroctonus armandi in Pinus armandii, Aug. 2018, TT Wang, holotype CXY2516, ex-type CFCC53924 = CXY2516.
Description: Sexual state not observed.
Asexual morph: hyalorhinocladiella-like. Conidiophores arising directly from the mycelium, simple or loosely branched, reduced to conidiogenous cells; conidiogenous cells aseptate or sparsely septate, thin-walled, with a rounded apex, hyaline (17.8–) 32.2–80 (–116.3) × (1.2–) 1.6–2.3 (–2.8) μm. Conidia hyaline, single-celled, aseptate, smooth, clavate to elliptical with obtuse ends, (4.6–) 4.9–5.6 (–6.2) × (1.9–) 2.0–2.7 (–3.2) μm.
Culture Characteristics: Colonies grew rapidly on 2% MEA, attaining 90 mm days at 30 °C in the dark, while, with appressed hyphae, colonies are white with a smooth margin. The optimum growth temperature is 30 °C; however, it can grow from 5 °C to 35 °C.
Known substrate and hosts: Galleries and adults of Dendroctonus armandi in Pinus armandii.
Known insect vectors: Dendroctonus armandi.
Known distribution: Hubei and Shaanxi provinces, China.
Additional specimens examined: CHINA, Shaanxi Province, Foping country, galleries, and adults of Dendroctonus armandi in Pinus armandii, May to July 2019, TT Wang, CFCC 54514 = CXY2539, CFCC 54515 = CXY2540.
Notes: Graphilbum parakesiyea is characterized by hyalorhinocladiella-like asexual morph. Phylogenetic analysis (Figure 2 and Figure 3) revealed that Gra. parakesiyea is closely related to Gra. kesiyea. Graphilbum parakesiyea can be distinguished from Gra. kesiyea by their conidiogenous cells; conidiogenous cells of Gra. kesiyea are longer than that of Gra. parakesiyea, viz. 38–101.5 μm and 32.2–80 μm, respectively. The two species also differ in their optimal growing temperatures of 25 °C and 30 °C, respectively [43]. Furthermore, Gra. kesiyea was isolated from Pinus kesiya infected by Polygraphus aterrimus and Polygraphus szemaoensis [43], while Gra. parakesiyea was isolated from P. armandii infected with D. armandi.
Leptographium qinlingense (M. Tang) T. Wang & Q. Lu comb. nov. Figure 10.
Ophiostoma qinlingensis Tang, journal of Huazhong Agricultural University 23:5. 2004.
Type: no specified. Neotype: China, Shaanxi Province, galleries of Dendroctonus armandi in Pinus armandii, June 2019, TT Wang, neotype designated here CFCC53941 = CXY2515.
MycoBank: MB838528.
Description: Sexual state not observed.
Asexual morph: leptographium-like and hyalorhinocladiella-like.
Leptographium-like. Conidiophores erect, macronematous, mononematous, arising directly from the mycelium, (100.5–) 115.9–219.1 (–302.8) μm long, differentiated into a stipe and a conidiogenous apparatus. Stipes cylindrical, straight, 1–4 septate, constricted at septa, brown to dark brown, (17.1–) 27.5–109.2 (–203.7) μm long, (1.8–) 3.3–6.3 (–7.8) μm in diameter; conidiogenous apparatus (14.0–) 25.6–66.7 (–104.4) μm long, with 2–3 series of cylindrical branches; primary branch cylindrical, pale brown, smooth, (12.0–) 14.4–35.8 (–46.1) × (2.1–) 3.1–4.7 (–6.1) μm; conidiogenous cells cylindrical, discrete, hyaline, (6.0–) 10.2–22.6 (–32.1) μm in length, (1.5–) 2.1–4.0 (–5.4) μm wide; conidia holoblastic, hyaline, single-celled, aseptate, oblong to obovoid, clavate, (5.3–)7.2–11.7 (–14.7) × (3.3–)3.9–5.9 (–6.8) μm.
Hyalorhinocladiella-like: conidiophores arising directly from the mycelium, simple branched, macronematous, or semi-macronematous, mononematous, the ultimate branched bearing conidiogenous cells; conidiogenous cells septate, hyaline, think-walled, rounded apex, (21.4–) 26.5–78.1 (–105.8) × (1.23–) 1.3–2.7 (–4.5) μm; conidia hyaline, smooth, single-celled, aseptate, elliptical to obovoid with truncate base and rounded apex, (3.2–) 4.5–7.7 (–8.8) × (1.8–) 2.4–4.4 (–5.16) μm.
Culture characteristics: Colonies grew rapidly on 2% MEA, attaining a 90 mm diameter after five days at 25 °C in the dark, accounting for a daily growth rate up to 20 mm. Colonies have a smooth margin, radial hyphae, curved shape, initially hyaline, discoloration progressing to olivaceous from the center of the colonies to the margin. The optimum growth temperature is 25 °C; however, growth can occur from 5 °C to 35 °C.
Known substrate and hosts: Galleries and adults of Dendroctonus armandi in Pinus armandii.
Known insect vectors: Dendroctonus armandi.
Known distribution: Shaanxi, Gansu and Hubei provinces, China.
Additional specimens examined: CHINA, Gansu Province, Dangchun Forest Farm, galleries and adults of Dendroctonus armandi in Pinus armandii, August 2018, TT Wang, CFCC 53937 = CXY2510, CFCC53938 = CXY2511, CFCC 53923 = CXY2512, CFCC 53939 = CXY2513, CFCC 53940 = CXY2514; CHINA, Shaanxi Province, Foping County, galleries and adults of Dendroctonus armandi in Pinus armandii, May to July 2019, TT Wang, CFCC 54521 = CXY2541, CFCC 54516 = CXY2542.
Notes: Leptographium qinlingense was first isolated from D. armandi which infects P. armandii in China [24]. In this study, the strain CFCC53941 was isolated from exactly the same vector and host as the first reported of L. qinlingense. Thus, it was designated as the neotype herein. No differences were observed in the cultures or morphological characteristics between the recently collected neotype and that in the first reported article. Measurements of the asexual structures were consistent with previous descriptions of L. qinlingense (Figure 10).
Leptographium qinlingense is characterized by a leptographium-like and hyalorhinocladiella-like asexual morphs. It is closely related to G. koreana, L. pinicola, and L. truncatum based on ITS2-LSU, TUB2, and TEF1-α genetic phylogeny (Figure 5 and Figure 6). Within the L. lundbergii complex, L. qinlingense is the sole species containing two asexual morphs (Figure 10). Grosmannia koreana is the sole species with a sexual morph [44]. Moreover, the four species differ in terms of the leptographium-like morph spore size. Specifically, the conidia of L. qinlingense (4.5–7.7 μm) are longer than that of L. pinicola, (3–5 μm) and either longer than G. koreana (3–10 μm), yet shorter than L. truncatum (7–11 μm) [44,45,46]. While L. qinlingense is native and endemic to China’s mainland, the remaining three species of the L. lundbergii complex are widely distributed in the North temperate hemisphere (Canada, China, England, Korea, and the USA) and the southern hemisphere (New Zealand and South Africa). Furthermore, these four species are associated with bark beetle infestation of conifers [45,46,47].
Ophiostoma shennongense T. Wang & Q. Lu sp. nov. Figure 11.
MycoBank: MB838527.
Etymology: ‘shennongense’ (Latin), referring to the locality.
Type: China, Hubei Province, galleries of Dendroctonus armandi in Pinus armandii, Aug. 2018, TT Wang, holotype CXY2501, ex-type CFCC53921 = CXY2501.
Description: Sexual state not observed.
Asexual morph: hyalorhinocladiella-like. Conidiophore arising directly from mycelium, simple branched, macronematous or semi-macronematous, mononematous, the ultimate branched bearing numerous conidiogenous cells; conidiogenous cells hyaline, smooth, thin-walled, aseptate, rounded apex, variable in length, (7.1–) 30.0–82.3 (–110.9) × (1.2–) 1.4–2.1 (–2.6) μm; conidia holoblastic, hyaline, single-celled, smooth, aseptate, elliptical to obovoid with truncate base and rounded apex, (4.4–) 5.7–7.4 (–8.0) × (2.0–) 2.2–3.0 (–3.5) μm.
Culture characteristics: Colonies grown on 2% MEA, attaining a 70 mm diameter after eight days at 25 °C in the dark, while, with appressed hyphae, colonies are white with a smooth margin, discoloration progresses to pale olivaceous from the center of the colonies to the margin. The optimal temperature is 30 °C; however, growth can begin from 5 °C to 35 °C.
Known substrate and hosts: Galleries and adults of Dendroctonus armandi in Pinus armandii.
Known insect vectors: Dendroctonus armandi.
Known distribution: Hubei, Shaanxi, and Gansu provinces, China.
Additional specimens examined: CHINA, Hubei Province, Shennongjia Forest Area, galleries and adults of Dendroctonus armandi in Pinus armandii, August 2018, TT Wang, CFCC 53922 = CXY2502; CHINA, Gansu Province, Dangchun Forest Farm, Dendroctonus armandi galleries and adults in Pinus armandii, August 2018, TT Wang, CFCC 53931 = CXY2503, CFCC 54528 = CXY2534; Shaanxi Province, Foping county, galleries and adults of Dendroctonus armandi in Pinus armandii, May to July, 2019, TT Wang, CFCC 53932 = CXY2505; Shaanxi Province, Huoditang Forest Farm, galleries and adults of Dendroctonus armandi in Pinus armandii, May to July, 2019, TT Wang, CFCC 54534 = CXY2535, CFCC 54533 = CXY2536.
Notes: The sole reproductive structure of O. shennongense formed on 2% MEA was a hyalorhinocladiella-like morph. Ophiostoma shennongense belongs to O. clavatum complex (Figure 7) [48]. The sexual stages of this complex were characterized by brown, spirally coiled ostiolar, hyphae, and cylindrical-to-rectangular ascospores. The asexual stages are hyalorhinocladiella-like to pesotum-like. Ophiostoma shennongense is closely related to O. clavatum based on ITS and TUB2 phylogenetic analyses (Figure 2 and Figure 7). These species differ by their colony color and hyalorhinocladiella-like conidial size. The conidia of O. shennongense (5.7–7.4 μm) are larger than in O. clavatum (4–5μm) [48,49]. Ophiostoma shennongense colonies are pale olivaceous, whereas the colonies of O. clavatum are dark brown to almost black [48].

4. Discussion

This study was undertaken to determine the diversity of ophiostomatoid fungi associated with D. armandi infesting P. armandii in the Qinling Mountains of western China. A total of 695 strains of ophiostomatoid fungi were identified from seven species in five genera comprising of four known species, E. vermicola, Gra. pseudormiticum, L. wushanense, and L. qinlingense, as well as a novel neotype strain, as assessed by its type, locality, and combination insect/host (CFCC53941); two novel taxa, Gra. parakesiyea, O. shennongense; and an unidentified Ophiostoma sp. 1.
Among the seven species of ophiostomatoid fungi, O. shennongense was the most frequently isolated species, accounting for an abundance of 78.99%, representing the predominant component of the community associated with D. armandi-P. armandii (Table 3), compared to the second most abundant species, L. qinlingense (8.92%). Leptographium qinlingense was the first ophiostomatoid species reported to be associated with D. armandi, and is currently isolated only from China [24]. This species has previously been shown to exhibit pathogenicity with high virulence [18,25,50]. Due to its common occurrence associated with D. armandi infesting P. armandii, L. qinlingense may have a significant role in the damage observed in D. armandi-infected P. armandii in China [22,50,51,52].
This study is the second report showing that L. wushanense associates with P. armandii; however, P. armandii is infected by D. armandi in Shaanxi Province rather than by Tomicus armandii in Yunnan Province [42]. Before this study, only one strain of L. wushanense has been reported from T. armandii, which showed occasional association with the beetle and pine. In the present study, L. wushanense was also isolated only at Huoditang Forest Farm out of four investigated sites, showing a limited occurrence (Table 3). The species, therefore, are sporadically located throughout southwestern China and loosely associated with the beetle.
Esteya vermicola and Gra. pseudormiticum were each represented by a single strain. Esteya is a unique genus of Ophiostomataceae, with two species: E. vermicola and E. floridanum. Both species exhibit high infectivity toward the pinewood nematode (Bursaphelenchus xylophilus) by their lunate conidia, and are potentially biocontrol agents against this epidemic pine disease [53,54,55,56,57,58]. Esteya vermicola was first isolated from Japanese black pine in Taiwan in 1999, and is associated with the pinewood nematode [53]. Since then, eight strains have been recorded worldwide [53,54,55,56,57,58]. However, although the species appear to be widely distributed, only a single strain was recorded in each of these previous studies. Graphium pseudormiticum was first reported in South Africa and was associated with Orthotomicus erosus [59], subsequently reported in Sweden as associated with Ips typographus, in Austria associated with Tomicus minor [60], and in China associated with Pissodes sp., a mite of Ips acuminatus [43,61].
Although an association between fungi and bark beetles has been observed, the classic theory of reciprocal symbiosis between bark beetles and fungi has been challenged due to the lack of in-depth explanation of the symbiosis mechanism or the existence of contradictory research cases. The present study expanded our knowledge of D. armandi and its associated fungi; however, the symbiosis mechanism between ophiostomatoid fungi and D. armandi warrant further investigations.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/jof8030214/s1, Figure S1: ML tree of Esteya and related taxa (Taxon 1) generated from the combined (LSU+TUB2) sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches; Figure S2: ML tree of Graphium (Taxon 3) generated from the combined (ITS+tEF1-α) sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches.

Author Contributions

Q.L., T.W. and H.W. designed the study; T.W., Y.L. and H.Z. collected the samples; T.W., Y.L. and F.Z. performed DNA extraction and PCR amplification; H.W. analyzed the data and contributed to experiment design; Q.L. and H.W. wrote the manuscript; Q.L., H.W., C.D. and X.Z. reviewed and approved the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the National Natural Science Foundation of China (Project No. 32071769, 31770682).

Institutional Review Board Statement

Not applicable for studies involving humans or animals.

Informed Consent Statement

Not applicable for studies involving humans.

Data Availability Statement

All sequence data are available in NCBI GenBank following the accession numbers in the manuscript.

Acknowledgments

We thank Zhongdong Yu from Northwest A&F University, Jiaxi Yi from Sheng Nong Jia forestry pest natural enemy breeding farm, Hubei and Anmin Li from Xiaolong Mountain Forest Experiment Bureau of Gansu Province, Tianshui for their assistance with insect sample collection.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vega, F.E.; Blackwell, M. Insect-Fungal Associations: Ecology and Evolution; Oxford University Press: New York, NY, USA, 2005. [Google Scholar]
  2. Skelton, J.; Jusino, M.A.; Carlson, P.S.; Smith, K.; Banik, M.T.; Lindner, D.L.; Palmer, M.; Hulcr, J. Relationships among wood-boring beetles, fungi, and the decomposition of forest biomass. Mol. Ecol. 2019, 28, 4971–4986. [Google Scholar] [CrossRef] [PubMed]
  3. Biedermann, P.H.W.; Vega, F.E. Ecology and Evolution of Insect-Fungus Mutualisms. Annu. Rev. Entomol. 2020, 65, 431–455. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Schmidberger, J. Naturgeschichte des Apfelborkenkäfers Apate dispar. Beiträge zur Obstbaumzucht und zur Naturgeschichte der den Obstbäumen Schädlichen Insekten 1836, 4, 213–230. [Google Scholar]
  5. Hartig, T. Ambrosia des Bostrichus dispar. Allg. Forst-Und Jagdztg. 1844, 13, 73. [Google Scholar]
  6. Kile, G.A. Plant diseases caused by species of Ceratocystis sensu stricto and Chalara. In Ceratocystis and Ophiostoma: Taxonomy, Ecology and Pathogenicity; Wingfield, M.J., Seifert, K.A., Webber, J., Eds.; APS Press: St. Paul, MN, USA, 1993; pp. 173–184. [Google Scholar]
  7. Kirisits, T. Fungal associates of European bark beetles with special emphasis on the ophiostomatoid fungi. In Bark and Wood Boring Insects in Living Trees in Europe, A Synthesis; Lieutier, F., Day, K.R., Battisti, A., Gregoire, J.C., Evans, H.F., Eds.; Kluwer Academic Publishers: Dordrecht, The Netherlands, 2004; pp. 181–235. [Google Scholar]
  8. Kirisits, T. Dutch Elm Disease and Other Ophiostoma Diseases; CAB International: Wallingford, UK, 2013; pp. 256–282. [Google Scholar]
  9. Lu, M.; Wingfield, M.J.; Gillette, N.; Sun, J.H. Do novel genotypes drive the success of an invasive bark beetle–fungus complex? Implications for potential reinvasion. Ecology 2011, 92, 2013–2019. [Google Scholar] [CrossRef][Green Version]
  10. Bracewell, R.R.; Vanderpool, D.; Good, J.M.; Six, D. Cascading speciation among mutualists and antagonists in a tree-beetle-fungi interaction. Proc. R. Soc. B 2018, 285, 20180694. [Google Scholar] [CrossRef]
  11. Hulcr, J.; Stelinski, L.L. The Ambrosia Symbiosis: From Evolutionary Ecology to Practical Management. Annu. Rev. Entomol. 2017, 62, 285–303. [Google Scholar] [CrossRef][Green Version]
  12. Biedermann, P.H.W.; Rohlfs, M. Evolutionary feedbacks between insect sociality and microbial management. Curr. Opin. Insect Sci. 2017, 22, 92–100. [Google Scholar] [CrossRef]
  13. Li, H.; Young, S.E.; Poulsen, M.; Currie, C.R. Symbiont-mediated digestion of plant biomass in fungus-farming insects. Annu. Rev. Entomol. 2020, 66, 297–316. [Google Scholar] [CrossRef]
  14. Li, X.J.; Gao, J.M.; Chen, H.; Zhang, A.L. Toxins from a symbiotic fungus, Leptographium qinlingensis associated with Dendroctonus armandi and their in vitro toxicities to Pinus armandii seedlings. Eur. J. Plant Pathol. 2012, 134, 239–247. [Google Scholar] [CrossRef]
  15. Cai, B.H. The distribution characteristics of bark beetles and stem-boring pests in China. Shaanxi For. Sci. Technol. 1980, 1, 1–3. [Google Scholar]
  16. Chen, H.; Tang, M.; Ye, H.M. Niche of bark beetles within Pinus armandii ecosystem in inner Qinling Mountains. Sci. Silvae Sin. 1999, 35, 40–44. [Google Scholar]
  17. Zhang, Z.Y.; Cha, Y.P.; Wang, S.M. Bionomics of Dendroctonus armandi in Shennongjia forestry district. For. Pest Dis. 2015, 34, 1–4. [Google Scholar]
  18. Tang, M.; Chen, H. Effect of symbiotic fungi of Dendroctonus armandi on host trees. Sci. Silvae Sin. 1999, 35, 63–66. [Google Scholar]
  19. Hong, C.; Zeng, B.; Zha, Y.; Hua, X.; Wang, S.; Chen, J. Study on Dendroctonus armandi Diffusion Regular Pattern in Shennongjia Forestry District. Hubei For. Sci. Technol. 2017, 4, 231. [Google Scholar]
  20. Guerrero, R.; Margulis, L.; Berlanga, M. Symbiogenesis: The holobiont as a unit of evolution. Int. Microbiol. 2013, 16, 133–143. [Google Scholar]
  21. Hulcr, J.; Barnes, I.; De Beer, Z.W.; Duong, T.A.; Gazis, R.; Johnson, A.J.; Jusino, M.A.; Kasson, M.T.; Li, Y.; Lynch, S.; et al. Bark beetle mycobiome: Collaboratively defined research priorities on a widespread insect-fungus symbiosis. Symbiosis 2020, 81, 101–113. [Google Scholar] [CrossRef]
  22. Xie, S.A.; Shu, L.J.; Axel, S.; Ding, Y.; Hou, Q.S.; Cai, M. Anatomical characteristics in xylem tissue of Pinus armandii infected by the bark beetle Dendroctonus armandi (Coleoptera: Scolytidae) and its associated blue-stain fungus Ceratocystis polonica. Acta Entomol. Sin. 2008, 51, 1327–1333. [Google Scholar]
  23. Skelton, J.; Jusino, M.A.; Li, Y.; Bateman, C.; Thai, P.H.; Wu, C.X.; Lindner, D.L.; Hulcr, J. Detecting symbioses in complex communities: The Fungal Symbionts of Bark and Ambrosia Beetles Within Asian Pines. Microb. Ecol. 2018, 76, 839–850. [Google Scholar] [CrossRef]
  24. Tang, M.; Chen, H.; Zhao, J.P.; Zhu, C.J. Leptographium qinlingensis sp. nov. associated with Dendroctonus armandi in Pinus armandii. J. Huazhong Central China Agric. Univ. 2004, 23, 5–6. [Google Scholar]
  25. Hu, X.; Li, M.; Chen, H. Community structure of gut fungi during different developmental stages of the Chinese white pine beetle (Dendroctonus armandi). Sci. Rep. 2015, 5, 8411. [Google Scholar] [CrossRef] [PubMed]
  26. Jacobs, K.; Wingfield, M.J. Leptographium Species: Tree Pathogens, Insect Associates and Agents of Blue-Stain; American Phytopathological Society Press: St Paul, MN, USA, 2001; pp. 164–167. [Google Scholar]
  27. Marin, M.; Preisig, O.; Wingfield, B.D.; Kirisits, T.; Wingfield, M.J. Phenotypic and DNA sequence data comparisons reveal three discrete species in the Ceratocystis polonica species complex. Mycol. Res. 2005, 109, 1137–1148. [Google Scholar] [CrossRef] [PubMed][Green Version]
  28. Marincowitz, S.; Duong, T.A.; Taerum, S.J.; de Beer, Z.W.; Wingfield, M.J. Fungal associates of an invasive pine-infesting bark beetle, Dendroctonus valens, including seven new Ophiostomatalean fungi. Pers.—Mol. Phylogeny Evol. Fungi 2020, 45, 177–195. [Google Scholar] [CrossRef] [PubMed]
  29. De Beer, Z.W.; Wingfield, M.J. Emerging lineages in the Ophiostomatales. In The Ophiostomatoid Fungi: Expanding Frontiers; Seifert, K.A., de Beer, Z.W., Wingfield, M.J., Eds.; CBS-KNAW Fungal Biodiversity Centre: Utrecht, The Netherlands, 2013; pp. 21–46. [Google Scholar]
  30. Seifert, K.A.; Webber, J.F.; Wingfield, M.J. Methods for Studying Species of Ophiostoma and Ceratocystis. In Ceratocystis and Ophiostoma: Taxonomy, Ecology and Pathogenicity; The American Phytopathological Society Press: St. Paul, MN, USA, 1993; pp. 255–259. [Google Scholar]
  31. Rayner, R.W. A Mycological Colour Chart; CMI: Egham, UK; British Mycological Society: London, UK, 1970. [Google Scholar]
  32. White, T.J.; Bruns, T.; Lee, S.; Taylor, J. Amplification and direct sequencing of fungal ribosomal RNA genes for phylogenetics. In PCR Protocols: A Guide to Methods and Application; Innis, M.A., Gelfand, D.H., Sninsky, J.J., White, T.J., Eds.; Academic Press: San Diego, CA, USA, 1990; pp. 315–322. [Google Scholar]
  33. Vilgalys, R.; Hester, M. Rapid genetic identification and mapping of enzymatically amplified ribosomal DNA from several Cryptococcus species. J. Bacteriol. 1990, 172, 4238–4246. [Google Scholar] [CrossRef][Green Version]
  34. Glass, N.L.; Donaldson, G.C. Development of primer sets designed for use with the PCR to amplify conserved genes from filamentous ascomycetes. Appl. Environ. Microbiol. 1995, 61, 1323–1330. [Google Scholar]
  35. Jacobs, K.; Bergdahl, D.R.; Wingfield, M.J.; Halik, S.; Seifert, K.A.; Bright, D.E.; Wingfield, B.D. Leptographium wingfieldii introduced into North America and found associated with exotic Tomicus piniperda and native bark beetles. Mycol. Res. 2004, 108, 411–418. [Google Scholar] [CrossRef][Green Version]
  36. Katoh, K.; Standley, D.M. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef][Green Version]
  37. Stamatakis, A. RAxML-VI-HPC: Maximum likelihood-based phylogenetic analyses with thousands of taxa and mixed models. Bioinformatics 2006, 22, 2688–2690. [Google Scholar] [CrossRef]
  38. Swofford, D.L. PAUP*: Phylogenetic Analysis Using Parsimony; Version 4; Sinauer Associates: Sunderland, MA, USA, 2003. [Google Scholar]
  39. Ronquist, F.; Huelsenbeck, J.P. MrBayes 3: Bayesian phylogenetic inference under mixed models. Bioinformatics 2003, 19, 1572–1574. [Google Scholar] [CrossRef][Green Version]
  40. De Beer, Z.W.; Duong, T.A.; Wingfield, M.J. The divorce of Sporothrix and Ophiostoma: Solution to a problematic relationship. Stud. Mycol. 2016, 83, 165–191. [Google Scholar] [CrossRef][Green Version]
  41. De Beer, Z.W.; Seifert, K.A.; Wingfield, M.J. A nomenclator for ophiostomatoid genera and species in the Ophiostomatales and Microascales. In The Ophiostomatoid Fungi: Expanding Frontiers; Seifert, K.A., de Beer, Z.W., Wingfield, M.J., Eds.; CBS-KNAW Fungal Biodiversity Centre: Utrecht, The Netherlands, 2013; pp. 245–322. [Google Scholar]
  42. Pan, Y.; Lu, J.; Zhou, X.D.; Chen, P.; Zhang, H.; Ye, H. Leptographium wushanense sp. nov. associated with Tomicus armandii on Pinus armandii in Southwestern China. Mycoscience 2018, 61, 43–48. [Google Scholar] [CrossRef]
  43. Chang, R.L.; Duong, T.A.; Taerum, S.J.; Wingfield, M.J.; Zhou, X.D.; de Beer, Z.W. Ophiostomatoid fungi associated with conifer-infesting beetles and their phoretic mites in Yunnan, China. MycoKeys 2017, 115, 317–318. [Google Scholar] [CrossRef][Green Version]
  44. Masuya, H.; Kim, J.J.; Wingfield, M.J.; Yamaoka, Y.; Kim, G.H. Discovery and description of a teleomorph for Leptographium koreanum. Mycotaxon 2005, 94, 159–173. [Google Scholar]
  45. Jacobs, K.; Solheim, H.; Wingfield, B.D.; Wingfield, M.J. Taxonomic re-evaluation of Leptographium lundbergii based on DNA sequence comparisons and morphology. Myco. Res. 2005, 109, 1149–1161. [Google Scholar] [CrossRef][Green Version]
  46. Kim, J.J.; Lim, Y.W.; Breuil, C.; Wingfield, M.; Zhou, X.D.; Kim, G.H. A new Leptographium species associated with Tomicus piniperda infesting pine logs in Korea. Mycol. Res. 2005, 109, 275–284. [Google Scholar] [CrossRef][Green Version]
  47. Lu, Q.; Decock, C.; Zhang, X.Y.; Maraite, H. Ophiostomatoid fungi (Ascomycota) associated with Pinus tabuliformis infested by Dendroctonus valens (Coleoptera) in northern China and an assessment of their pathogenicity on mature trees. Antonie Van Leeuwenhoek 2009, 96, 275–293. [Google Scholar] [CrossRef]
  48. Linnakoski, R.; Jankowiak, R.; Villari, C.; Kirisits, T.; Wingfieldet, M.J. The Ophiostoma clavatum species complex: A newly defined group in the Ophiostomatales including three novel taxa. Antonie Van Leeuwenhoek 2016, 109, 987–1018. [Google Scholar] [CrossRef][Green Version]
  49. Mathiesen, A. Einige neue Ophiostoma-arten in Schweden. Sven Bot. Tidskr 1951, 45, 203–232. [Google Scholar]
  50. Chen, H.; Tang, M.; Zhu, C.J.; Hu, J.J. The Enzymes in the Secretions of Dendroctonus armandi (Scolytidae) and Their Symbiotic Fungus of Leptographium qinlingensis. Sci. Silvae Sin. 2004, 40, 123–126. [Google Scholar]
  51. Pu, X.J.; Chen, H.; Wang, S.J. Influences of Leptographium qinglingensis on Metabolism of Pinus armandi. J. Northwest For. Univ. 2008, 23, 109–112. [Google Scholar]
  52. Pham, T.; Chen, H.; Yu, J.; Dai, L.; Zhang, R.; Vu, T.Q.T. The Differential effects of the blue-stain fungus Leptographium qinlingensis on monoterpenes and sesquiterpenes in the stem of Chinese white pine (Pinus armandii) saplings. Forests 2014, 5, 2730–2749. [Google Scholar] [CrossRef][Green Version]
  53. Liou, J.Y.; Shih, J.Y.; Tzean, S.S. Esteya, a new nematophagous genus from Taiwan, attacking the pinewood nematode (Bursaphelenchus xylophilus). Mycol. Res. 1999, 103, 242–248. [Google Scholar] [CrossRef]
  54. Kubátová, A.; Novotný, D.; Prášil, K.; Mrácek, Z. The nematophagous hyphomycete Esteya vermicola found in the Czech Republic. Czech Mycol. 2000, 52, 227–235. [Google Scholar] [CrossRef]
  55. Wang, H.M.; Wang, Z.; Liu, F.; Wu, C.X.; Zhang, S.F.; Kong, X.B.; Decock, C.; Lu, Q.; Zhang, Z. Differential patterns of ophiostomatoid fungal communities associated with three sympatric Tomicus species infesting pines in southwestern China, with description of four new species. MycoKeys 2019, 50, 93–133. [Google Scholar]
  56. Wang, X.; Wang, T.; Wang, J.; Guan, T.; Li, H. Morphological, molecular and biological characterization of Esteya vermicola, a nematophagous fungus isolated from intercepted wood packing materials exported from Brazil. Mycoscience 2014, 55, 367–377. [Google Scholar] [CrossRef]
  57. Wang, C.Y.; Fang, Z.M.; Wang, Z.; Gu, J.; Chang, K.S. High infection activities of two Esteya vermicola isolates against pinewood nematode. Afr. J. Microbiol. Res. 2009, 3, 581–584. [Google Scholar]
  58. Li, Y.; Yu, H.; Araújo, J.P.M.; Zhang, X.; Hulcr, J. Esteya floridanum sp. nov.: An Ophiostomatalean Nematophagous Fungus and its Potential to Control the Pine Wood Nematode. Phytopathology 2020, 111, 304–311. [Google Scholar] [CrossRef]
  59. Mouton, M.; Wingfield, M.J.; Van Wyk, P.S.; Van Wyk, P.W.J. Graphium pseudormiticum sp. nov.: A new hyphomycete with unusual conidiogenesis. Mycol. Res. 1994, 98, 1272–1276. [Google Scholar] [CrossRef]
  60. Lackner, M.; de Hoog, G.S. Parascedosporium and its relatives: Phylogeny and ecological trends. IMA Fungus 2011, 2, 39–48. [Google Scholar] [CrossRef]
  61. Paciura, D.; Zhou, X.D.; De Beer, Z.W.; Jacobs, K.; Ye, H.; Wingfield, M.J. Characterisation of synnematous bark beetle-associated fungi from China, including Graphium carbonarium sp. nov. Fungal Divers. 2010, 40, 75–88. [Google Scholar] [CrossRef][Green Version]

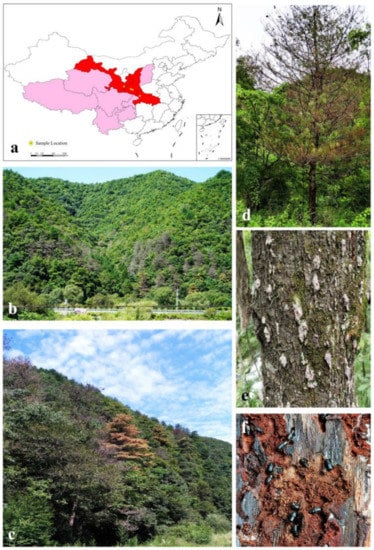

Figure 1. (a) Map showing the distribution of P. armandii and sample locations of D. armandi in China. (be) Disease symptoms of P. armandii infested by D. armandi and ophiostomatoid fungi in the Qinling Mountains of western China. (f) Adult D. armandi in galleries on P. armandii.
Figure 1. (a) Map showing the distribution of P. armandii and sample locations of D. armandi in China. (be) Disease symptoms of P. armandii infested by D. armandi and ophiostomatoid fungi in the Qinling Mountains of western China. (f) Adult D. armandi in galleries on P. armandii.
Jof 08 00214 g001

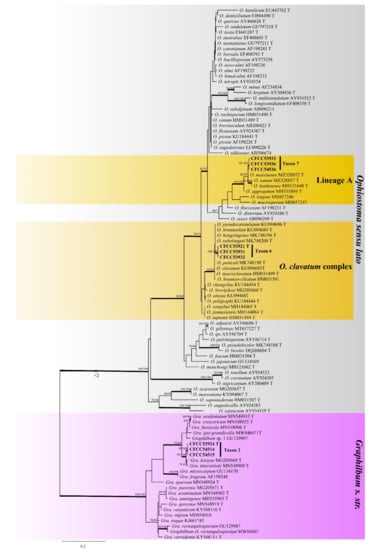

Figure 2. ML tree of Ophiostoma sensu lato and Graphilbum s. str. (Taxa 2, 6, and 7) generated from the ITS sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Figure 2. ML tree of Ophiostoma sensu lato and Graphilbum s. str. (Taxa 2, 6, and 7) generated from the ITS sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Jof 08 00214 g002

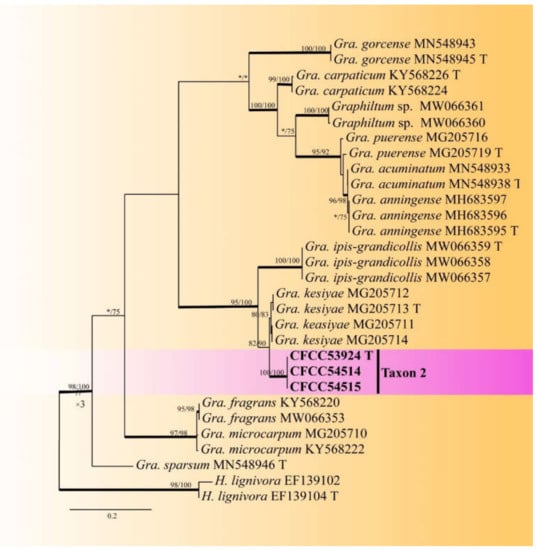

Figure 3. ML tree of Graphilbum s. str. generated from the TUB2 sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Figure 3. ML tree of Graphilbum s. str. generated from the TUB2 sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Jof 08 00214 g003

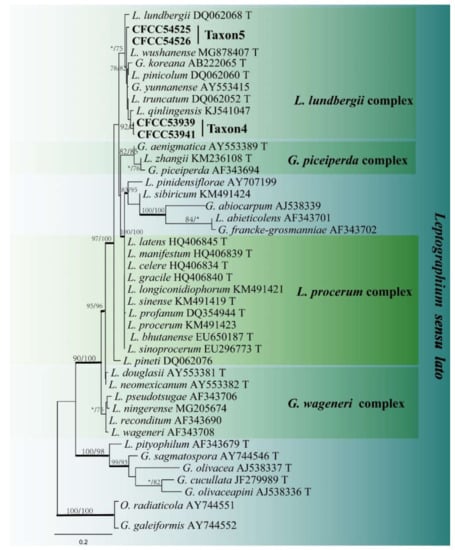

Figure 4. ML tree of Leptographium sensu lato (Taxa 4 and 5) generated from the ITS2-LSU sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Figure 4. ML tree of Leptographium sensu lato (Taxa 4 and 5) generated from the ITS2-LSU sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Jof 08 00214 g004

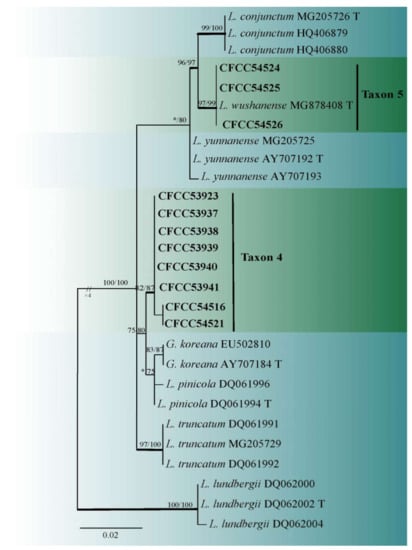

Figure 5. ML tree of L. lundbergii complex (Taxa 4 and 5) generated from the TUB2 sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Figure 5. ML tree of L. lundbergii complex (Taxa 4 and 5) generated from the TUB2 sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Jof 08 00214 g005

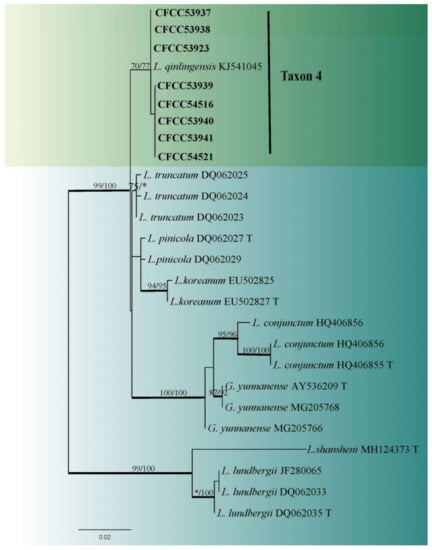

Figure 6. ML tree of L. lundbergii complex (Taxon 4) generated from the TEF1-α sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Figure 6. ML tree of L. lundbergii complex (Taxon 4) generated from the TEF1-α sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Jof 08 00214 g006

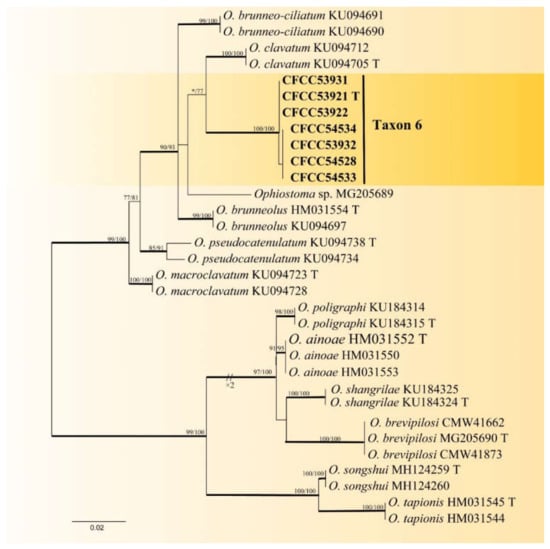

Figure 7. ML tree of O. clavatum complex (Taxon 6) generated from the combined (ITS + TUB2) sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Figure 7. ML tree of O. clavatum complex (Taxon 6) generated from the combined (ITS + TUB2) sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Jof 08 00214 g007
Figure 8. ML tree of Taxon 7 generated from the TUB2 sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Figure 8. ML tree of Taxon 7 generated from the TUB2 sequence data. Novel sequences obtained in this study are presented in bold typeface. Bold branches indicate posterior probability values ≥ 0.9. Bootstrap values ≥ 70% for ML and MP are indicated above branches. Bootstrap values < 70% are indicated by *. Strains representing ex-type sequences are marked with ‘T’.
Jof 08 00214 g008
Figure 9. Morphological characteristics of Graphilbum parakesiyea. (a,b) Upper and reverse cultures on 2% MEA 8 days after inoculation. (cg) Conidiogenous cells of hyalorhinocladiella-like asexual state and conidia. Scale bars: 10 μm (cg).
Figure 9. Morphological characteristics of Graphilbum parakesiyea. (a,b) Upper and reverse cultures on 2% MEA 8 days after inoculation. (cg) Conidiogenous cells of hyalorhinocladiella-like asexual state and conidia. Scale bars: 10 μm (cg).
Jof 08 00214 g009
Figure 10. Morphological characteristics of Leptographium qinlingense. (a,b) Upper and reverse cultures on 2% MEA 5 days after inoculation; (ce) Conidiogenous cells of leptographium-like asexual state and conidia; (f,g) Conidiogenous cells of hyalorhinocladiella-like asexual state and conidia. Scale bars: (d) = 20 μm; (c,eg) = 10 μm.
Figure 10. Morphological characteristics of Leptographium qinlingense. (a,b) Upper and reverse cultures on 2% MEA 5 days after inoculation; (ce) Conidiogenous cells of leptographium-like asexual state and conidia; (f,g) Conidiogenous cells of hyalorhinocladiella-like asexual state and conidia. Scale bars: (d) = 20 μm; (c,eg) = 10 μm.
Jof 08 00214 g010
Figure 11. Morphological characteristics of Ophiostoma shennongense. (a,b) Upper and reverse cultures on 2% MEA 10 days after inoculation. (c,e) Brush-shaped conidiomata. (d,fh) Conidiogenous cells of hyalorhinocladiella-like asexual state and conidia. Scale bars: (c,e) =20μm; (d,fh) =10 μm.
Figure 11. Morphological characteristics of Ophiostoma shennongense. (a,b) Upper and reverse cultures on 2% MEA 10 days after inoculation. (c,e) Brush-shaped conidiomata. (d,fh) Conidiogenous cells of hyalorhinocladiella-like asexual state and conidia. Scale bars: (c,e) =20μm; (d,fh) =10 μm.
Jof 08 00214 g011
Table 1. Basic information on the sample collection plots and samples obtained from P. armandii infested D. armandi in western China.
Table 1. Basic information on the sample collection plots and samples obtained from P. armandii infested D. armandi in western China.
LocationLongitude\LatitudeAltitude\mNo. of HostsNo. of Tissue PiecesNo. of Adult
Beetles/Galleries
Shennongjia Forest Area, Hubei Province31°45′9″ N, 110°28′34″ E1821538130
Dangchuan Forest Farm, Gansu Province34°20′53″ N, 106°7′56″ E1482215810
Foping county, Shaanxi Province33°38′22″ N, 107°58′26″ E1769213112
Huoditang Forest Form, Shaanxi Province33°27′56″ N, 108°28′27″ E2356437037
Table 2. Representative strains of the ophiostomatoid fungi associated with D. armandi used for morphological and phylogenetic analysis and pathogenicity trials in this study.
Table 2. Representative strains of the ophiostomatoid fungi associated with D. armandi used for morphological and phylogenetic analysis and pathogenicity trials in this study.
Group TaxonNameStrain No.LocationGenBank No.
LSU/ITS/ITS2-LSUTUB2TEF1-α
Taxon 1Esteya vermicolaCFCC53942, CXY2518Shennongjia Forest Area, Hubei ProvinceMW465992MW690920-
Taxon 2Graphilbum parakesiyea sp. nov.CFCC53924, CXY2516 TShennongjia Forest Area, Hubei ProvinceMW459985MW770444-
CFCC54514, CXY2539 Foping County, Shaanxi ProvinceMW459986MW770445-
CFCC54515, CXY2540Foping County, Shaanxi ProvinceMW459987MW770446-
Taxon 3Graphium pseudormiticumCFCC53943, CXY2519Shennongjia Forest Area, Hubei ProvinceMW459988-MW690919
Taxon 4Leptographium qinlingenseCFCC53937, CXY2510Dangchuan Forest Farm, Gansu ProvinceMW463377MW723023MW677124
CFCC53938, CXY2511Dangchuan Forest Farm, Gansu ProvinceMW463378MW723024MW677125
CFCC53923, CXY2512Dangchuan Forest Farm, Gansu ProvinceMW463379MW723025MW677126
CFCC53939, CXY2513Dangchuan Forest Farm, Gansu ProvinceMW463380MW723026MW677128
CFCC53940, CXY2514Dangchuan Forest Farm, Gansu ProvinceMW463381MW723027MW677129
CFCC53941, CXY2515 Foping County, Shaanxi ProvinceMW463382MW723028MW677130
CFCC54521, CXY2541Foping County, Shaanxi ProvinceMW463383MW723029MW677131
CFCC54516, CXY2542Foping County, Shaanxi ProvinceMW463384MW723030MW677127
Taxon 5L. wushanenseCFCC54524, CXY2543Huoditang Forest Farm, Shaanxi ProvinceMW463385MW690921-
CFCC54525, CXY2544Huoditang Forest Farm, Shaanxi ProvinceMW463386MW690922-
CFCC54526, CXY2545 Huoditang Forest Farm, Shaanxi ProvinceMW463387MW690923-
Taxon 6Ophiostoma shennongense sp. nov.CFCC53921, CXY2501 TShennongjia Forest Area, Hubei ProvinceMW459989MW741822-
CFCC53922, CXY2502Shennongjia Forest Area, Hubei ProvinceMW459990MW741823-
CFCC53931, CXY2503Dangchuan Forest Farm, Gansu ProvinceMW459991MW741824-
CFCC53932, CXY2505Foping County, Shaanxi ProvinceMW459992MW741825-
CFCC54528, CXY2534Dangchuan Forest Farm, Gansu ProvinceMW459993MW741826-
CFCC54534, CXY2535Huoditang Forest Farm, Shaanxi ProvinceMW459994MW741827-
CFCC54533, CXY2536Huoditang Forest Farm, Shaanxi ProvinceMW459995MW741828-
Taxon 7Ophiostoma sp. 1CFCC53933, CXY2506Shennongjia Forest Area, Hubei ProvinceMW459996MW759042-
CFCC53934, CXY2507Shennongjia Forest Area, Hubei ProvinceMW459997MW759043-
CFCC53935, CXY2508Shennongjia Forest Area, Hubei ProvinceMW459998MW759044-
CFCC53936, CXY2509Shennongjia Forest Area, Hubei ProvinceMW459999MW759045-
CFCC54535, CXY2531Foping County, Shaanxi ProvinceMW460000MW759046-
CFCC54536, CXY2532 Foping County, Shaanxi ProvinceMW460001MW759047-
CFCC54540, CXY2533 Huoditang Forest Farm, Shaanxi ProvinceMW460002MW759048-
CFCC: China Forestry Culture Collection Center, Beijing, China; _CXY (Culture Xingyao): Culture collection of the Research Institute of Forest Ecology, Environment and Protection, Chinese Academy of Forestry. Sequences missing data are indicated by [-]; T = ex-holotype strains.
Table 3. Strain numbers and percentage of various ophiostomatoid fungi isolated from D. armandi and their galleries in western China.
Table 3. Strain numbers and percentage of various ophiostomatoid fungi isolated from D. armandi and their galleries in western China.
TaxonFungi SpeciesNo. of Isolates 2018No. of Isolates 2019Total No. StrainsPercentage(%)
Shennongjia Forest AreaDangchuan Forest FarmFoping CountyHuoditang Forest Farm
Taxon 1Esteyea vermicola100010.14
Taxon 2Graphilbum parakesiyea20158253.60
Taxon 3Graphium pseudormiticum100010.14
Taxon 4Leptographium qinlingensis224315628.92
Taxon 5L. wushanense00034344.89
Taxon 6Ophiostoma shennongensis266422721554978.99
Taxon 7Ophiostoma sp. 16349223.17
Total no. strains2806977269695
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wang, H.; Wang, T.; Liu, Y.; Zeng, F.; Zhang, H.; Decock, C.; Zhang, X.; Lu, Q. Diversity of Ophiostomatoid Fungi Associated with Dendroctonus armandi Infesting Pinus armandii in Western China. J. Fungi 2022, 8, 214. https://doi.org/10.3390/jof8030214

AMA Style

Wang H, Wang T, Liu Y, Zeng F, Zhang H, Decock C, Zhang X, Lu Q. Diversity of Ophiostomatoid Fungi Associated with Dendroctonus armandi Infesting Pinus armandii in Western China. Journal of Fungi. 2022; 8(3):214. https://doi.org/10.3390/jof8030214

Chicago/Turabian Style

Wang, Huimin, Tiantian Wang, Ya Liu, Fanyong Zeng, Haifeng Zhang, Cony Decock, Xingyao Zhang, and Quan Lu. 2022. "Diversity of Ophiostomatoid Fungi Associated with Dendroctonus armandi Infesting Pinus armandii in Western China" Journal of Fungi 8, no. 3: 214. https://doi.org/10.3390/jof8030214

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
