Article

Mycosynthesis of ZnO Nanoparticles Using Trichoderma spp. Isolated from Rhizosphere Soils and Its Synergistic Antibacterial Effect against Xanthomonas oryzae pv. oryzae

1
Department of Microbiology and Biotechnology, Bangalore University, Jnana Bharathi Campus, Bengaluru 560056, India
2
Department of Epidemic Disease Research, Institute for Research and Medical Consultations (IRMC), Imam Abdulrahman Bin Faisal University, Dammam 31441, Saudi Arabia
3
Department of Medical Laboratories, College of Applied Medical Sciences, Qassim University, Qassim, 51431 Saudi Arabia
4
Department of Studies in Biotechnology, University of Mysore, Manasagangotri, Mysore 570006, India
*
Authors to whom correspondence should be addressed.
J. Fungi 2020, 6(3), 181; https://doi.org/10.3390/jof6030181
Received: 28 July 2020 / Revised: 15 September 2020 / Accepted: 17 September 2020 / Published: 20 September 2020
(This article belongs to the Special Issue Fungal Nanotechnology)

Abstract

:
The Plant Growth Promoting Fungi (PGPF) is used as a source of biofertilizers due to their production of secondary metabolites and beneficial effects on plants. The present work is focused on the co-cultivation of Trichoderma spp. (T. harzianum (PGT4), T. reesei (PGT5) and T. reesei (PGT13)) and the production of secondary metabolites from mono and co-culture and mycosynthesis of zinc oxide nanoparticles (ZnO NPs), which were characterized by a UV visible spectrophotometer, Powder X-ray Diffraction (PXRD), Fourier Transform Infrared Spectroscopy (FTIR) and Scanning Electron Microscopy (SEM) with Energy Dispersive Spectroscopy (EDAX) and Transmission Electron Microscope (TEM) and Selected Area (Electron) Diffraction (SAED) patterns. The fungal secondary metabolite crude was extracted from the mono and co-culture of Trichoderma spp. And were analyzed by GC-MS, which was further subjected for antibacterial activity against Xanthomonas oryzae pv. Oryzae, the causative organism for Bacterial Leaf Blight (BLB) in rice. Our results showed that the maximum zone of inhibition was recorded from the co-culture of Trichoderma spp. rather than mono cultures, which indicates that co-cultivation of beneficial fungi can stimulate the synthesis of novel secondary metabolites better than in monocultures. ZnO NPs were synthesized from fungal secondary metabolites of mono cultures of Trichoderma harzianum (PGT4), Trichoderma reesei (PGT5), Trichoderma reesei (PGT13) and co-culture (PGT4 + PGT5 + PGT13). These ZnO NPs were checked for antibacterial activity against Xoo, which was found to be of a dose-dependent manner. In summary, the biosynthesized ZnO NPs and secondary metabolites from co-culture of Trichoderma spp. are ecofriendly and can be used as an alternative for chemical fertilizers in agriculture.

1. Introduction

Rice (Oryzae sativa L.) is one of the most vital and essential nourishment sources for half of the world’s population, it belongs to the family Poaceae, and it is the most widely cultivated food crop in the world [1]. Across the world, annually, about 40% of rice crops are lost due to biotic stresses such as insects, pathogens, pests and weeds [2]. Some of the most important of these diseases are Bacterial Leaf Blight (BLB) caused by (Xanthomonas oryzae pv. oryzae), Blast (Magnaporthe grisea), Sheath Blight (Rhizoctonia solani), Sheath Rot (Sarocladium oryzae) and Tungro virus [3].
Rice’s BLB is one of the most damaging causes of disease, which is caused by Xanthomonas oryzae pv. Oryzae (Xoo) [4]. This bacteria restricts annual production of rice in both tropical and temperate regions of the world [5]. In the tropics, the damage is more severe than in the temperate regions [6]. The BLB disease incidence has been recorded in various parts of Asia, USA, Africa, and northern Australia [7]. Various disease management strategies are used to minimize BLB damage, such as chemical control, host–plant resistance, crop system modification, and biological control [8]. In the 1950s, chemical management of BLB in rice fields started with the preventive application of the Bordeaux mixture, other chemicals such as phenazine oxide, tecloftalam and nickel dimethyl dithiocarbamate directly sprayed on plants [9]. Synthetic organic bactericides were also recommended, such as nickel dimethyl dithiocarbamate, phenazine noxide and dithianon phenazine [10]. Overuse of chemical substances often adversely affects the environment, farmers and consumer health [11]. Biological control is an alternative method, which is ecologically sensitive, cost-effective and sustainable in BLB management [12]. An effective means of managing plant diseases can be by using antagonistic microorganisms [13]. Interaction between plant pathogens and biocontrol agents has been extensively studied, and the use of biocontrol agents is promising in protecting some commercially valuable crops [14]. Plant growth-promoting rhizobacteria (PGPR) are the most widely studied group of plant growth-promoting bacteria (PGPB) and plant growth-promoting fungi (PGPF), which colonize root surfaces and closely adhere to the soil interface—the rhizosphere—and can also be used for plants [15,16]. Species of Trichoderma were identified as potentially environmentally safe biofertilizer and are non-toxigenic [17]. Trichoderma species are effective in agriculture as biological control agents and their frequent addition to soil leads to increased crop yields and control of soil-borne pathogens worldwide [18]. Plant growth-promoting rhizobacteria are root-colonizing, free-living bacteria with beneficial effects on crop plants which work by reducing disease incidence and increasing yields [19]. It contributes to the suppression of disease by various modes of action such as antagonism, space and nutrient rivalry and induction of systemic resistance (ISR) [20]. By eliciting induced systemic resistance, PGPR indirectly mediates biological control in a variety of plant diseases [21].
The co-culture of two or more beneficial fungi can interact, stimulate or enhance the production of secondary metabolites, which are not presented in the mono or single cultures when grown separately in in vitro conditions. The co-culture also triggers certain genes which are not activated in mono or single culture, it can also stimulate various pathways when grown together in in vitro conditions [22].
The introduction of nanotechnology to agricultural science seems to offer promising solutions including the release of modified fertilizers and pesticides [23]. The unique and different properties of nanoparticles such as electrical conductivity, active area, hardness and chemical reactivity can be achieved by reducing the size to nanometers [24].
Biological production of nanoparticles based on natural resources has recently attracted scientific interest. Nanoparticles synthesized using natural resources are called green synthesis or biosynthesis [25]. Nanomaterial biosynthesis has provided a common point between nanotechnology and biotechnology and has led to the development of new materials used in many fields [26]. Fungi have become one of the choices in nanotechnology because of its wide variety of advantages over the bacteria, actinomycetes, plants and other physic-chemical properties. The capability of tolerance and metal bioaccumulation in fungi has made fungi a significant branch in the biosynthesis of nanoparticles [27]. Non-toxic and safe reagents are used in the green synthesis of nanoparticles, which makes them cost effective and environmentally friendly [28].
Surface atomic arrangements influence the antibacterial properties [29]. The specific arrangements of atoms on the surface are selected inorganic oxides and work by a fine-tuning of the morphology. By modifying the conditions and by examining the morphology, synthesis of inorganic oxides can be controlled morphologically [30]. Nano-particles are an alternative method that has gained significant attention in the field of plant defense [31]. In comparison, compared with other metal-NPs, the ZnO NPs have been found to be less harmful to plants and beneficial to soil micro flora [32].
Our study is mainly focused on a biological method for the management of the BLB caused by Xoo, a rice disease using co-culture and monoculture of Trichoderma spp., which is eco-friendly. The studies were carried out in vitro using the biosynthesis of Zinc Oxide Nanoparticles synthesized from Trichoderma spp., which is a new approach in agriculture for the management of the disease. To our best knowledge, this work is reported for the first time.

2. Materials and Methods

2.1. Collection and Isolation of Bacteria from Infected Rice Leaf

The infected leaf samples were collected from different places of Karnataka and were subjected for the isolation of Xoo. The infected parts of the leaves were cut into 0.5 cm2, the surface was sterilized with 1% sodium hypochlorite for one minute followed by 3–4 sterile distilled water washes and was then blot dried. The sterilized leaf segments were inoculated onto an agar medium of yeast extract dextrose calcium carbonate (YDC) incubated at 28 ± 2 °C for 72 h. The plates were observed for convex, mucoid and yellow color [33].

2.2. Identification of Isolated Bacteria by Biochemical and Molecular Characterization

The bacterial isolates were identified based on morphological, microscopic, biochemical and molecular characterization. Biochemical tests such as gram staining, catalase, oxidase test, KOH test, gelatin liquefaction, starch hydrolysis, casein hydrolysis and pectin hydrolysis were carried out as described in [34]. Molecular characterization was carried out to identify the organism at a molecular level. Using a Chromous bacterial genomic DNA isolation kit, the genomic DNA of bacterial samples were isolated following the standard protocol. PCR amplification was carried out using universal 16s rRNA primers. The obtained sequences were deposited in an NCBI GenBank and an accession number was obtained [35]. The GenBank accession numbers are as follows: Xanthomonas oryzae pv. oryzae (MBXoo53) MF787295.1, Xanthomonas oryzae pv. oryzae (MBXoo70) MF787294.1, Xanthomonas oryzae pv. oryzae (MBXoo69) MF579736.1.

2.3. Collection and Isolation of Trichoderma spp. from Rhizosphere Soil

Rhizospheric soil (soil around the root zone) samples of different crops were collected from different parts of Karnataka. Five grams of rhizosphere soil was collected by uprooting the plant with the soil attached to the roots. The collected soil samples were preserved in polythene bags and stored at 4 °C until further use [36]. The collected soil samples of the rhizosphere were diluted into various concentration solutions, were well-vortexed and 0.1 mL of the supernatants were poured onto PDA medium (potato dextrose agar, with chloramphenicol antibiotics) plates and incubated at 28 °C for 7 days. Colonies that appeared on the plates were isolated and reinoculated on a new PDA petri plate. After 7 days of subculturing, single-spore colonies were obtained by incubating the plates at 28 °C, and the fungal colonies were further assayed for morphological and physiological characteristics [37].

2.4. Morphological and Molecular Characterization of Trichoderma spp.

The identification of fungi was carried out based on the cultural and microscopic properties using standard manuals [38]. By using a Chromous genomic DNA isolation kit, the genomic DNA of the microbial sample was isolated following the protocol as described by the manufacturer. PCR amplification was carried using universal 18S primers. The obtained sequences were deposited in NCBI GenBank and an accession number was obtained [39]. The GenBank accession numbers are as follows: Trichoderma harzianum (PGT4) MH429899.1, Trichoderma reesei (PGT5) MH429901.1, Trichoderma reesei (PGT13) MH429900.1.

2.5. In Vitro Screening of Plant Growth-Promoting Fungi (PGPF) Strains of Trichoderma spp. for Its Antibacterial Activity by Agar Plug Method against Xanthomonas oryzae pv. oryzae (Xoo)

The mycelial disc of Trichoderma spp. fungi isolated from rhizosphere soil was screened for its antibacterial activity against plant pathogenic bacterial strain Xanthomonas oryzae pv. oryzae (Xoo) isolated from the infected leaf parts of rice. The different Plant Growth-Promoting Fungi (PGPF) strains of Trichoderma spp. were grown on a PDA petri plate for 5–7 days at 24 ± 2 °C with alternate light and dark periods. From seven-day-old, culture the fungal discs were pierced using a sterile cork borer of 5 mm in diameter. The fungal discs were transferred to a Mueller-Hinton agar (MHA) plate which was previously swabbed with the bacteria Xoo. The MHA plates were kept for incubation at 28 °C for 24 h and after incubation, the results were observed [40].

2.6. Trichoderma–Trichoderma Interactions through Co-Culture

In our study, co-culture was carried out to evaluate the ability of selected Trichoderma spp. cultures to produce secondary metabolites. This was carried out on solid culture medium potato dextrose agar (PDA) for three selected fungi: T. harzianum (PGT4), T. reesei (PGT5) and T. reesei (PGT13) based on its antibacterial activity against Xanthomonas oryzae pv. oryzae. These fungi were cultured on PDA and incubated at 25 °C for 7 days. After incubation, 10 mm of fungal discs were taken from actively growing margins of Trichoderma spp. on PDA plates. Two different Trichoderma spp. cultures of 10 mm were placed on PDA plates at the opposite ends of the petri plates, making a total of 3 dual cultures (pairwise combinations). Triplicates of both dual and monocultures were made and incubated under dark conditions for 9 days at 25 °C [41].

2.7. Production of Secondary Metabolites from Trichoderma spp.

The agar plugs of Trichoderma spp., measuring 7 mm in diameter, were taken from actively growing margins of T. harzianum (PGT4), T. reesei (PGT5) and T. reesei (PGT13) cultures grown on PDA media and were inoculated individually: dual cultures (T. harzianum (PGT4) and T. reesei (PGT5); T. reesei (PGT5) and T. reesei (PGT13) and T. reesei (PGT13) and T. harzianum (PGT4)) and co-culture sample PGTA (T. harzianum, T. reesei and T. reesei) were inoculated into 250 mL Erlenmayer flasks containing 100 mL of potato dextrose broth medium (PDB, HIMEDIA) supplemented with chloramphenicol antibiotics, incubated in static condition for 9 days at 25 °C [42]. After the incubation period, to avoid fragmentation of the mycelium, it was removed using a microbial loop and the cultures were filtered under vacuum through filter paper (Whatman No. 4). The final filtrate was called a crude extract of secondary metabolites. A control assay was performed to ensure an optimum filtration (to check for the absence of conidia and mycelia) procedure by spreading 30 µL of the final filtrate on petri plates under sterile conditions containing PDA medium. The plates were examined for fungal growth [41].

2.8. Extraction and Identification of Secondary Metabolites

The secondary metabolites were extracted by a solvent extraction method from filtrates, where ethyl acetate and filtrate in a ratio of 1:1 (v/v) was used to extract exhaustively. The upper layer of the solvent contains the compounds which were collected separately from the aqueous layer (PDB medium) using a separation funnel. The solvent ethyl acetate was evaporated from the filtrate using a vacuum rotary evaporator at 40 °C, 70 rpm until the extract got reduced to 4 mL; it was maintained at −20 °C in the deep freezer until further use. Ethyl acetate extracts were analyzed by Gas Chromatography Mass Spectroscopy (GC-MS) analysis. The GC-MS analysis was performed using Thermo Scientific, Ceres 800, MS DSQ II (Waltham, MA, USA) and the silica column was packed with Elite-5MS (5% biphenyl 95% dimethylpolysiloxane, 30 m × 0.25 mm ID × 250 μm df). For the separation of components, helium gas was used as a carrier gas, which maintained the constant flow of 1 mL/min. The temperature of the injector was maintained at 260 °C, which was set for the chromatographic run. The sample of 1 μL of extract was injected into the instrument where the temperature of the oven was 60 °C (2 min), followed by 300 °C at the rate of 10 °C·min−1 and 300 °C for 6 min. The conditions for the mass detector were a temperature of 230 °C for the transfer line, a temperature of 230 °C for the ion source, an ionization mode electron impact at 70 eV, a scan time of 0.2 s and a scan interval of 0.1 s. The comparison of spectrum of components were carried out with the database of spectrum of known components stored in the GC-MS NIST (2008) library [43].

2.9. In Vitro Screening of Secondary Metabolites Produced from Mono and Co-Culture of Trichoderma spp. for Its Antibacterial Activity by Agar Well Diffusion Method against Xanthomonas oryzae pv. oryzae (Xoo)

The Xanthomonas oryzae pv. oryzae (Xoo) bacterial cultures were inoculated to 100 mL conical flasks containing nutrient broth and were incubated at 28 °C overnight. The petri plates were swabbed with Xoo cultures whose concentration was adjusted to 108 CFU/mL. The agar petri plates were made with the required number of wells using a sterile cork borer, ensuring the proper distribution of wells in the periphery and one in the center. Tetracycline was used as a positive control and distilled water as a negative control. The secondary metabolite crude extracts were loaded in each well. The plates were incubated at 28 °C for 24 h and after incubation, the plates were observed, and the results were recorded [44].

2.10. Mycoynthesis of Zinc Oxide Nanoparticles (ZnO NPs)

The green synthesis method was used to prepare ZnO NPs using the following fungi: T. harzianum, T. reesei, T. reesei and a co-culture of Trichoderma spp. The zinc nitrate hexahydrate (Zn(NO3)2·6H2O) was utilized within the test without any further purification, which was procured from Sigma-Aldrich analytical grade. The Zn(NO3)2·6H2O taken in 1 g were dissolved in 10 mL of double-distilled water to the above mixture of 2 mL of fungal extract T. harzianum, T. reesei, T. reesei and co-culture of Trichoderma spp. was added and stirred for ~5−10 min using a magnetic stirrer. The mixture obtained was kept in a preheated muffle furnace, which was maintained at 400 ± 10 °C at which temperature the reaction mixture boils, froths, and heat-forming foam dehydrates in less than 3 min. The product obtained was calcinated at 700 °C for 2 h, and the obtained final product was used for further studies [30,45].

2.11. Characterization of Mycosynthesized Zinc Oxide Nanoparticles

The UV-visible spectrophotometer (SL 159 ELICO) was used for recording the UV-visible absorption in the samples. The particles were then characterized by evaluating their chemical composition through FTIR spectroscopy. Powder X-ray diffractometer (Shimadzu) using Cu Kα (1.5418 Å) radiation with a nickel filter was used to examine the phase purity and the crystallinity of the superstructures. The surface morphology of the nanoparticles was examined by SEM (Hitachi Tabletop TM-3000) along with EDAX. Studies were carried out using JEOL JEM 2100 TEM transmission electron microscopy (TEM), high-resolution transmission electron microscopy (HRTEM), and selected area electron diffraction (SAED) [46].

2.12. Antibacterial Activity of Mycosynthesized ZnO NPs against Xanthomonas oryzae

A disc diffusion method was carried out to assess the presence of antibacterial activity of ZnO NPs. A bacterial culture of 0.5 McFarland standard was used to lawn Muller Hinton agar plates evenly using a sterile swab. The discs loaded with ZnO NPs 1 mg/mL (PGT4, PGT5, PGT13 and PGTA) were placed on the Mueller Hinton agar plates. Each test plate had a positive control, a negative control and four treated ZnO NP (PGT4, PGT5, PGT13 and PGTA) discs. The standard tetracycline (0.5 mg/mL) was used as a positive control, and the negative control used was distilled water. The plates were incubated at 28 ± 2 °C for 24 h. After the incubation, the plates were examined and results were recorded in mm [47].
The synthesized ZnO NPs were subjected for antibacterial activity by minimum inhibitory concentration (MIC), which was determined using a broth microdilution method with minor modifications [30]. The desired different concentrations in 100 µg/mL, 50 µg/mL, 25 µg/mL, 12.5 µg/mL and 6.25 µg/mL was obtained by diluting the ZnO NP stock solution (1 mg/mL) with dilution in Mueller Hinton Broth (MHB) medium, which was added to a 96-well sterile microtiter plate. The bacterial suspension measuring 10 µL was added to each well, which were then incubated for 24 h at 28 °C. MHB served as a negative control, the positive control being the tetracycline at the concentration of 100 μg/mL; all these tests were conducted in triplicates. After 24 h of incubation, the addition of 20 μL of iodonitrotetrazolium chloride dye (INT) (0.5 μg/mL) to each well determined the MIC values of the synthesized ZnO NPs. The microtiter plates were incubated for 60 min at 28 °C. MICs determine the lowest concentration of the drug that prevents the change of color from being colorless to red, where colorless tetrazolium salt acts as an electron acceptor and gets reduced to a red-colored formazan product by biologically active organisms [30].

2.13. Statistical Analysis

All data of antibacterial experiments were analyzed statistically, using SPSS software (version 20.0) and Microsoft Excel. The obtained data were further subjected to analysis of variance (ANOVA), and the means were analyzed using Duncan’s new multiple range post test at p ≤ 0.05.

3. Results and Discussion

3.1. Collection and Isolation of Bacteria from Diseased Rice Leaf

The infected leaf samples were collected from different districts of Karnataka like Kolar, Chikkaballapura, Mysuru, Tumkur, Mandya and Bellary; thirty-five bacterial isolates were isolated from samples of 85 different infected samples collected from different rice fields of Karnataka (Table 1). The Xoo was recovered from the samples collected, showing typical Xoo bacterial colony characteristics such as a yellow color and mucoid, convex colonies on plating the samples as explained by Jabeen et al. [33] (Table S1)

3.2. Identification of Isolated Bacteria by Biochemical and Molecular Characterization

Morphologically identified samples were pure cultured and further used for biochemical and physiological identification methods according to [33] for the tests such as Gram’s reaction, oxidase test, catalase test, KOH test, starch hydrolysis test, casein hydrolysis test, gelatin liquefaction test and pectin hydrolysis test. The isolated bacteria were Gram-negative, short rods producing yellow-colored pigment. The bacterial isolates tested were positive for catalase, oxidase, 3% KOH, gelatin liquefaction, starch hydrolysis and pectin hydrolysis. Our results correlate with the results of Arshad et al. [48] The isolates were positive for all the tests except for the Gram’s reaction, which showed it to be negative, indicating that it is a gram-negative organism. The identification of the isolated bacteria was confirmed to be Xanthomonas oryzae pv. oryzae (Xoo) by molecular analysis. The isolates were sub cultured and maintained for further antibacterial studies.

3.3. Collection of Rhizospheric Soil Samples

A total of 180 rhizospheric soil samples were collected from different crop-growing regions of Karnataka districts like Chikkaballapura, Kolar, Ramanagara and Tumkur and are shown in Table S2.

3.4. Isolation and Identification of Selected Trichoderma spp. by Molecular Characterization

The colonies of Trichoderma spp. were grown on PDA plates by incubating for 6–7 days at 28 °C. A total of 35 isolates of Trichoderma spp. were isolated from 197 different rhizosphere soils collected from different parts of Karnataka. Standard techniques were used for DNA isolation, agarose gel electrophoresis and PCR amplification. Three fungal cultures of Trichoderma spp. were identified by molecular identification and were found to be Trichoderma harzianum (PGT4) isolated from Cucumis sativus (cucumber) rhizosphere soil, Trichoderma reesei (PGT5) isolated from Solanum melongena (brinjal) rhizosphere soil and one more strain of Trichoderma reesei (PGT13) isolated from Coriandrum sativum (coriander) rhizosphere soil sample collected from the Chikkaballapura district. These isolates were further confirmed by database searches which were carried out with the BLAST programs available at the National Centre for Biotechnology Information (Bethesda, MD, USA), which showed the identification matching to 99%, 100% and 100%, respectively. Our findings co-related with that of Ru and Di [37], where the isolates were isolated from rhizosphere soil of potato (Table S3).

3.5. In Vitro Screening of PGP Strains of Trichoderma spp. for Its Antibacterial Activity by Agar Plug Method against Xanthomonas oryzae pv. oryzae (Xoo)

The control of a broad range of plant pathogens, including fungal, bacterial and viral diseases, through elicitation of Induced Systemic Resistance (ISR) by Trichoderma spp. or localized resistance has been reported. Some Trichoderma spp. rhizosphere-competent strains have been shown to have direct effects on plants, increasing their growth potential and nutrient uptake, fertilizer use efficiency, percentage and rate of seed germination and stimulation of plant defenses against biotic and abiotic damage by Hermosa et al. [49]. A total of 35 Trichoderma spp. were subjected for preliminary antibacterial activity screening on solid media. The plates were pre swabbed with Xoo and the agar plugs of 7 mm of fungi taken from an actively growing region of 7-day-old culture were placed on the Mueller Hinton agar (MHA). The plates were kept for incubation in the incubator for 24 h at 28 °C. After the incubation period, the plates were observed for zone of inhibition and in each plate, a standard tetracycline was used as a positive control and distilled water was taken as a negative control. All the isolates showed activity against the tested three plant pathogenic bacteria Xoo. The majority of these isolates showed a wide range of inhibition of the Xoo cultures. The zone of inhibition ranged from 11 mm to 25 mm. There are reports of Trichoderma harzianum isolate which showed strong antagonism against fungal species by Leelavathi et al. [50] (Figure S1) (Table 1). Based on the zone of inhibition, three Trichoderma spp. were selected for further analysis.

3.6. Trichoderma–Trichoderma Interactions through Co-Culture

The co-culture of selected Trichoderma spp. isolates showed the production of secondary metabolites on incubation, showing growth compatibility when grown on solid media. However, no dual cultures were found to be incompatible. Our findings co-related with the results of that of the development of secondary metabolites on a laboratory scale; fungal isolates containing the largest areas of secondary metabolite accumulation on mono and dual cultures on semi-solid media were used by Ortuno et al. [41] (Figure 1).

3.7. Identification of Secondary Metabolite Compounds by GC-MS Analysis

The ethyl acetate extract of the monocultures of T. harzianum (PGT4), T. reesei (PGT5) and T. reesei (PGT13) and co-cultures of Sample A (PGT4, PGT5, PGT13) were analyzed by GC-MS and the analysis has led to the identification of different compounds present in mono and co-culture of Trichoderma spp. Co-cultivation of beneficial fungi can stimulate the synthesis of novel secondary metabolites rather than in monocultures. The significant compounds that were found in the ethyl acetate solvent extract for PGT4 (Table 2), PGT5 (Table 3) and PGT13 (Table 4) and Sample A (Table 5). Gas chromatographic (GC) methods are usually done for the determination of volatile fungal metabolites for different fungi such as Aspergillus, Fusarium, Mucor, Penicillium and Trichoderma (Siddiquee et al. [51] (Figure 2)).
Interpretation of Mass Spectrum Gas Chromatography Mass Spectroscopy (GC-MS) was carried out using the database of the National Institute of Standard and Technology (NIST) with more than 62,000 patterns. The unknown spectrum of components was compared with that of the known components contained in the NIST library. The name, molecular weight and structure of the components of the test material were ascertained.

3.8. In Vitro Screening of PGPR Trichoderma spp. Co-Culture Secondary Metabolites for Its Antibacterial Activity by Agar Well Diffusion Method against Xanthomonas oryzae pv. oryzae (Xoo)

In our study, we analyzed the effects of growing the fungal cultures in single cultures or in combination cultures of T. harzianum (PGT4), T. reesei (PGT5) and one more culture of T. reesei (PGT13) for the production of fungal secondary metabolites in liquid media.
The zone of inhibition was found to range from 26 mm to 29 mm in diameter for the co-culture of (PGTA) followed by T. harzianum (PGT4) and T. reesei (PGT13) ranging from 23 mm to 26 mm in diameter, followed by a mono culture of T. reesei (PGT13). The zone of inhibition for T. reesei (PGT5) and T. reesei (PGT13) ranged from 20 mm to 26 mm. The zone of inhibition was found to be highest in the co-culture rather than in the mono cultures. Our findings co-related with the results of T. harzianum M10 and T. pinophilus F36CF on the production of fungal secondary metabolites in the liquid culture both in single and combined treatment by Vinale et al. [22] (Figure 3) (Table 6).

3.9. Characterization of Synthesized Nanoparticles

The UV-visible absorption spectra was observed within the range of 372–374 nm. The obtained results matched with that of the UV–vis spectra of ZnO NPs for olive leaves (Olea europaea), chamomile flower (Matricaria chamomilla L.) and red tomato fruit (Lycopersicon esculentum M.) and showed strong absorption bands at 384, 380 and 386 nm respectively according to Ogunyemi et al. [52] (Figure 4a).
The FTIR spectrum showed the absorption at 400 cm −1 to 600 cm −1 which further confirms the presence and formation of ZnO nanoparticles by using Trichoderma spp. Similar results were observed from nanoparticles synthesized by the biological method using plant extracts Ogunyemi et al. [52] At 700 °C, the obtained fungal secondary metabolites were converted to their respective oxides, leading to the formation of ZnO NPs. This implies that most of the compounds present in the sample do not have a high thermal stability. Hence there were no other vibration modes detected in the FT-IR spectra as shown in (Figure 4b) other than ZnO NPs.
The biosynthesized ZnO NPs PXRD patterns showed noticeable peaks and it was well-matched to JCPDS No. 75-576. Similarly, nanoparticles from Trichoderma spp. are synthesized with ZnO. The biosynthesized ZnO-NPs of the crystalline structure was confirmed by stiff and narrow diffraction peaks with no significant variance in the diffraction peaks, suggesting that the crystalline product was free of impurities. Similarly, Lakshmeesha et al. [30] reported the green synthesis of Nerium oleander ZnO-NPs with no impurities in the obtained crystalline product. The size of the present study’s crystalline particles of green synthesized ZnO-NPs was calculated using Scherrer’s formula, which was within a range of 12–35 nm. Accordingly, Dobrucka and Dlugaszewska [53] reported the biosynthesis of ZnO nanoparticles using Trifolium pratense, with a hexagonal wurtzite shape and the sharp peaks calculated using Scherrer’s formula were 60–70 nm according to Murali et al. [54] (Figure 4c).
The formed shapes of ZnO NPs were displayed in SEM images with different surface morphology. The elements involved in the formation of nanoparticles were subjected for the EDAX analysis to know the qualitative difference as well as the quantitative difference. The analysis revealed the highest proportion of zinc (50.36%) in nanoparticles and oxygen (49.64%) in all the synthesized nanoparticles according to Prasad et al. [55] (Figure 5, Figure 6, Figure 7 and Figure 8).
TEM and SAED patterns correspond to ZnO compounds were obtained. The TEM image shows the agglomerated small particles of ZnO. The high resolution TEM image shows the well-defined crystal planes. The SAED patterns are well matched with the (hkl) values corresponding to the prominent peaks of the PXRD profiles (Figure 9a–d).

3.10. Antibacterial Activity

The antibacterial activity of ZnO NPs has been evaluated by measuring the zone of inhibition around the disc. The antibacterial activity of biosynthesized ZnO NPs was tested by an agar disc diffusion method, which was placed on the pre-swabbed Mueller-Hinton agar plate. The zone of inhibition is represented in Figure S2 and tabulated in Table 7. Further MIC values were determined for the biosynthesized ZnO NPs by the 96 well plate method, which is tabulated in Table 7 and is represented in Figure S3. The pronounced antibacterial activity of ZnO NPs can be due to its relatively small size and high surface-to-volume ratio. The present study clearly signifies the potentiality of ZnO NPs as antibacterial agents against Xoo (Figure S3) (Table 7). Our results correlated with the results of Ogunyemi et al. [52], where the zone of inhibition was recorded and the antibacterial activity of ZnO NPs was checked against Xoo when used in different concentrations.

4. Conclusions

Biological control provides an alternative for chemical fertilizers and reduces costs as well as environmental pollution. Trichoderma spp. are a good source of secondary metabolites. Co-cultivation of these beneficial fungi can stimulate the synthesis of novel secondary metabolites better than in monocultures. These Trichoderma cultures in combination can be used in field trials as they are able to inhibit the growth of the Xanthomonas oryzae pv. oryzae in in vitro conditions. The maximum zone of inhibition was recorded from the co-cultures rather than the monocultures. Biosynthesized ZnO NPs were also able to inhibit the growth of the Xanthomonas oryzae pv. oryzae in in vitro conditions, which was found to be dose-dependent.

Supplementary Materials

The following are available online at https://www.mdpi.com/2309-608X/6/3/181/s1, Figure S1. Screening of fungal discs (Trichoderma spp.) for antibacterial activity against Xanthomonas oryzae pv. oryzae A- MBXoo69, B- MBXoo53 (+- tetracycline - distilled water). Figure S2: Antibacterial activity of zinc oxide nanoparticles (ZnO NPs) against Xanthomonas oryzae pv. oryzae(Xoo) by disc diffusion method (+ ve = tetracycline; − ve = distilled water). Figure S3: Bacterial sensitivity test of biosynthesized zinc oxide nanoparticles from Trichoderma harzianum (PGT4) (MH429899.1), Trichoderma reesei (PGT5) (MH429901.1), Trichoderma reesei (PGT13) (MH429900.1) and co-culture of Trichoderma sp. (PGTA) against different strains of plant pathogen Xanthomonas oryzae pv. oryzae (MF579736.1) (concentration in μg/ml) (a- Trail 1, b- Trail 2, and c- Trail 3). Table S1: Place of collection of infected samples from different crop-growing regions of Karnataka. Table S2: Places of Rhizospheric soil sample collection. Table S3: Morphological and physiology characters of Rhizosphere Trichoderma spp. fungi.

Author Contributions

Conceptualization, T.R.L. and S.C.; Data curation, M.A.A. (Mohammad Azam Ansari), A.A., M.A.A. (Mohammad A. Alzohairy), S.B., R.A. and S.R.N.; Formal analysis, T.R.L., A.A., M.A.A. (Mohammad A. Alzohairy) and S.R.N.; Investigation, B.S. and S.B.; Methodology, B.S.; Resources, T.R.L., M.A.A. (Mohammad Azam Ansari), A.A., M.A.A. (Mohammad A. Alzohairy), S.B. and R.A.; Software, M.A.A. (Mohammad Azam Ansari) and M.A.A. (Mohammad A. Alzohairy); Supervision, S.C.; Visualization, S.B.; Writing—original draft, B.S. and T.R.L.; Writing—review and editing, M.A.A. (Mohammad Azam Ansari), R.A., S.R.N. and S.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by UGC SAP-DRS II program and University Grants Commission (UGC)-New Delhi, India for providing financial support under UGC Rajiv Gandhi National Fellowship for SC (No. 201516-RGNF-2015-17-SC-KAR-19382).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Szareski, V.J.; Carvalho, I.R.; da Rosa, T.C.; Dellagostin, S.M.; de Pelegrin, A.J.; Barbosa, M.H.; Aumonde, T.Z. Oryza Wild Species: An alternative for rice breeding under abiotic stress conditions. Am. J. Plant Sci. 2018, 9, 1093. [Google Scholar] [CrossRef][Green Version]
  2. Seck, P.A.; Diagne, A.; Mohanty, S.; & Wopereis, M.C. Crops that feed the world 7: Rice. Food Sec. 2012, 4, 7–24. [Google Scholar] [CrossRef]
  3. Latif, M.A.; Badsha, M.A.; Tajul, M.I.; Kabir, M.S.; Rafii, M.Y.; Mia, M.A.T. Identification of genotypes resistant to blast, bacterial leaf blight, sheath blight and tungro and efficacy of seed treating fungicides against blast disease of rice. Sci. Res. Essays 2011, 6, 2804–2811. [Google Scholar]
  4. Banerjee, A.; Roy, S.; Bag, M.K.; Bhagat, S.; Kar, M.K.; Mandal, N.P.; Maiti, D. A survey of bacterial blight (Xanthomonas oryzae pv. oryzae) resistance in rice germplasm from eastern and northeastern India using molecular markers. J. Crop Prot. 2018, 112, 168–176. [Google Scholar] [CrossRef]
  5. Jonit, N.Q.; Low, Y.C.; Tan, G.H. Xanthomonas oryzae pv. oryzae, Biochemical Tests, Rice (Oryza sativa), Bacterial Leaf Blight (BLB) Disease, Sekinchan. Appl. Environ. Microbiol. 2016, 4, 63–69. [Google Scholar]
  6. Hoque, M.E.; Mansfield, J.W.; Bennett, M.H. Agrobacterium-mediated transformation of Indica rice genotypes: An assessment of factors affecting the transformation efficiency. Plant Cell Tiss. Org. 2005, 82, 45–55. [Google Scholar] [CrossRef]
  7. Chukwu, S.C.; Rafii, M.Y.; Ramlee, S.I.; Ismail, S.I.; Hasan, M.M.; Oladosu, Y.A.; Olalekan, K.K. Bacterial leaf blight resistance in rice: A review of conventional breeding to molecular approach. Mol. Biol. Rep. 2019, 46, 1519–1532. [Google Scholar] [CrossRef]
  8. Naqvi, S.A.H.; Umar, U.D.; Hasnain, A.; Rehman, A.; Perveen, R. Effect of botanical extracts: A potential biocontrol agent for Xanthomonas oryzae pv. oryzae, causing bacterial leaf blight disease of rice. Pak. J. Agric. Sci. 2018, 32, 59–72. [Google Scholar] [CrossRef]
  9. Nasir, M.; Iqbal, B.; Hussain, M.; Mustafa, A.; Ayub, M. Chemical Management Of Bacterial Leaf Blight Disease In Rice. J. Agric. Res. 2019, 57, 99–103. [Google Scholar]
  10. Gnanamanickam, S.S.; Priyadarisini, V.B.; Narayanan, N.N.; Vasudevan, P.; Kavitha, S. An overview of bacterial blight disease of rice and strategies for its management. Curr. Sci. 1999, 1435–1444. [Google Scholar]
  11. Sattari, S.Z.; Van Ittersum, M.K.; Bouwman, A.F.; Smit, A.L.; Janssen, B.H. Crop yield response to soil fertility and N, P, K inputs in different environments: Testing and improving the QUEFTS model. Field Crops Res. 2014, 157, 35–46. [Google Scholar] [CrossRef]
  12. Naqvi, S.A.H. Bacterial leaf blight of rice: An overview of epidemiology and management with special reference to Indian sub-continent. Pak. J. Agric. Sci. 2019, 32, 359. [Google Scholar] [CrossRef]
  13. Kohl, J.; Kolnaar, R.; Ravensberg, W.J. Mode of action of microbial biological control agents against plant diseases: Relevance beyond efficacy. Front. Plant Sci. 2019, 10, 845. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Shyamala, L.; Sivakumaar, P.K. Integrated control of blast disease of rice using the antagonistic Rhizobacteria Pseudomonas fluorescens and the resistance inducing chemical salicylic acid. Int. J. Res. Pure Appl. Microbiol. 2012, 2, 59–63. [Google Scholar]
  15. Zhang, S.; Gan, Y.; Xu, B. Application of plant-growth-promoting fungi Trichoderma longibrachiatum T6 enhances tolerance of wheat to salt stress through improvement of antioxidative defense system and gene expression. Front. Plant Sci. 2016, 7, 1405. [Google Scholar] [CrossRef][Green Version]
  16. Tariq, M.; Noman, M.; Ahmed, T.; Hameed, A.; Manzoor, N.; Zafar, M. Antagonistic features displayed by plant growth promoting rhizobacteria (PGPR): A review. J. Plant Sci. Phytopathol. 2017, 1, 38–43. [Google Scholar]
  17. Nurfalah, A.; Ayuningrum, N.; Affandi, M.R.; Hastuti, L.D.S. Promoting Growth of Tomato (Solanum lycopersicum L.) by using Trichoderma—Compost—Rice Bran based Biofertilizer. In Proceedings of the IOP Conference Series: Earth and Environmental Science, Medan, Indonesia, 8–9 December 2018; 2019; IOP Publishing: Bristol, UK; p. 012074. [Google Scholar]
  18. Lee, S.; Yap, M.; Behringer, G.; Hung, R.; Bennett, J.W. Volatile organic compounds emitted by Trichoderma species mediate plant growth. Fungal Biol. Biotechnol. 2016, 3, 7. [Google Scholar] [CrossRef][Green Version]
  19. Prasad, R.; Kumar, M.; Varma, A. Role of PGPR in soil fertility and plant health. In Plant-Growth-Promoting Rhizobacteria (PGPR) and Medicinal Plants; Springer: Cham, Germany, 2015; pp. 247–260. [Google Scholar]
  20. Rahman, A.; Korejo, F.; Sultana, V.; Ara, J.; Ehteshamulhaque-Haque, S. Induction of systemic resistance in cotton by the plant growth promoting rhizobacterium and seaweed against charcoal rot disease. Pak. J. Bot. 2017, 49, 347–353. [Google Scholar]
  21. Gouda, S.; Kerry, R.G.; Das, G.; Paramithiotis, S.; Shin, H.S.; Patra, J.K. Revitalization of plant growth promoting rhizobacteria for sustainable development in agriculture. Microbiol. Res. 2018, 206, 131–140. [Google Scholar] [CrossRef]
  22. Vinale, F.; Nicolett, R.; Borrelli, F.; Mangoni, A.; Parisi, O.A.; Marra, R.; Lorito, M. Co-Culture of Plant Beneficial Microbes as Source of Bioactive Metabolites. Sci. Rep. 2017, 7, 14330. [Google Scholar] [CrossRef][Green Version]
  23. Guilger, M.; Pasquoto-Stigliani, T.; Bilesky-Jose, N.; Grillo, R.; Abhilash, P.C.; Fraceto, L.F.; De Lima, R. Biogenic silver nanoparticles based on Trichoderma harzianum: Synthesis, characterization, toxicity evaluation and biological activity. Sci. Rep. 2017, 7, 44421. [Google Scholar] [CrossRef] [PubMed]
  24. Sun, K.G.; Hur, S.H. Highly sensitive non-enzymatic glucose sensor based on Pt nanoparticle decorated graphene oxide hydrogel. Sens. Actuators B Chem. 2015, 210, 618–623. [Google Scholar]
  25. Mazhar, T.; Shrivastava, V.; Tomar, R.S. Green synthesis of bimetallic nanoparticles and its applications: A review. J. Pharm. Sci. Res. 2017, 9, 102. [Google Scholar]
  26. Zare, E.; Pourseyedi, S.; Khatami, M.; Darezereshki, E. Simple biosynthesis of zinc oxide nanoparticles using nature’s source, and it’s in vitro bio-activity. J. Mol. Struct. 2017, 1146, 96–103. [Google Scholar] [CrossRef]
  27. El Sayed, M.T.; El-Sayed, A.S. Tolerance and mycoremediation of silver ions by Fusarium solani. Heliyon 2020, 6, e03866. [Google Scholar] [CrossRef]
  28. Iravani, S.; Varma, R.S. Greener synthesis of lignin nanoparticles and their applications. Green Chem. 2020, 22, 612–636. [Google Scholar] [CrossRef]
  29. Zheng, K.; Setyawati, M.I.; Leong, D.T.; Xie, J. Antimicrobial silver nanomaterials. Coord. Chem. Rev. 2018, 357, 1–17. [Google Scholar] [CrossRef]
  30. Lakshmeesha, T.R.; Sateesh, M.K.; Prasad, B.D.; Sharma, S.C.; Kavyashree, D.; Chandrasekhar, M.; Nagabhushana, H. Reactivity of crystalline ZnO superstructures against fungi and bacterial pathogens: Synthesized using Nerium oleander leaf extract. Cryst. Growth Des. 2014, 14, 4068–4079. [Google Scholar] [CrossRef]
  31. Lahuf, A.A.; Kareem, A.A.; Al-Sweedi, T.M.; Alfarttoosi, H.A. Evaluation the potential of indigenous biocontrol agent Trichoderma harzianum and its interactive effect with nanosized ZnO particles against the sunflower damping-off pathogen, Rhizoctonia solani. In Proceedings of the IOP Conference Series: Earth and Environmental Science, Banda Aceh, Indonesia, 21–21 August 2019; 2019; Volume 365, IOP Publishing: Bristol, UK; p. 012033. [Google Scholar]
  32. Chavali, M.S.; Nikolova, M.P. Metal oxide nanoparticles and their applications in nanotechnology. SN App. Sci. 2019, 1, 607. [Google Scholar] [CrossRef][Green Version]
  33. Jabeen, R.; Iftikhar, T.; Batool, H. Isolation, characterization, preservation and pathogenicity test of Xanthomonas oryzae pv. oryzae causing BLB disease in rice. Pak. J. Bot. 2012, 44, 261–265. [Google Scholar]
  34. Garrity, G.M. Bergey’s manual of Systematic bacteriology. The Proteobacteria, 2nd ed.; In Bergey’s Manual Trust; Department of Microbiology and Molecular Genetics: East Lansing, MI, USA, 2005. [Google Scholar]
  35. Sandhu, A.F.; Khan, J.A.; Ali, S.; Arshad, H.I.; Saleem, K. Molecular Characterization of Xanthomonas oryzae pv. oryzae Isolates and its Resistance Sources in Rice Germplasm. PSM Microbiol. 2018, 3, 55–61. [Google Scholar]
  36. Goswami, D.; Dhandhukia, P.; Patel, P.; Thakker, J.N. Screening of PGPR from saline desert of Kutch: Growth promotion in Arachis hypogea by Bacillus licheniformis A2. Microbiol. Res. 2014, 169, 66–75. [Google Scholar] [CrossRef] [PubMed]
  37. Ru, Z.; Di, W. Trichoderma spp. from rhizosphere soil and their antagonism against Fusarium sambucinum. Afr. J. Biotechnol. 2012, 11, 4180–4186. [Google Scholar]
  38. Barnett, H.L.; Hunter, B.B. Illustrated Genera of Imperfect Fungi; APS Press: St. Paul, MN, USA, 1998; p. 218. [Google Scholar]
  39. Shahid, M.; Singh, A.; Srivastava, M.; Rastogi, S.; Pathak, N. Sequencing of 28SrRNA gene for identification of Trichoderma longibrachiatum 28CP/7444 species in soil sample. Int. J. Biotechnol. Wellness Ind. 2013, 2, 84–90. [Google Scholar] [CrossRef]
  40. Santos, I.P.D.; Silva, L.C.N.D.; Silva, M.V.D.; Araújo, J.M.D.; Cavalcanti, M.D.S.; Lima, V.L.D.M. Antibacterial activity of endophytic fungi from leaves of Indigofera suffruticosa Miller (Fabaceae). Front. Microbiol. 2015, 6, 350. [Google Scholar] [CrossRef]
  41. Ortuno, N.; Castillo, J.A.; Miranda, C.; Claros, M.; Soto, X. The use of secondary metabolites extracted from Trichoderma for plant growth promotion in the Andean highlands. Renew. Agr. Food Syst. 2017, 32, 366–375. [Google Scholar] [CrossRef]
  42. Vinale, F.; Nicoletti, R.; Lacatena, F.; Marra, R.; Sacco, A.; Lombardi, N.; Woo, S.L. Secondary metabolites from the endophytic fungus Talaromyces pinophilus. Nat. Prod. Res. 2017, 31, 1778–1785. [Google Scholar] [CrossRef][Green Version]
  43. Dubey, S.C.; Tripathi, A.; Dureja, P.; Grover, A. Characterization of secondary metabolites and enzymes produced by Trichoderma species and their efficacy against plant pathogenic fungi. Indian J. Agric. Sci. 2011, 81, 455–461. [Google Scholar]
  44. Irshad, S.; Mahmood, M.; Perveen, F. In vitro antibacterial activities of three medicinal plants using agar well diffusion method. Res. J. Biol. Sci. 2012, 2, 1–8. [Google Scholar]
  45. Shelar, G.B.; Chavan, A.M. Myco-synthesis of silver nanoparticles from Trichoderma harzianum and its impact on germination status of oil seed. Biolife 2015, 3, 109–113. [Google Scholar]
  46. Nayak, S.; Bhat, M.P.; Udayashankar, A.C.; Lakshmeesha, T.R.; Geetha, N.; Jogaiah, S. Biosynthesis and characterization of Dillenia indica-mediated silver nanoparticles and their biological activity. Appl. Organomet. Chem. 2020, 34, e5567. [Google Scholar] [CrossRef]
  47. Mohammed, H.A.; Al Fadhil, A.O. Antibacterial activity of Azadirachta indica (Neem) leaf extract against bacterial pathogens in Sudan. Afr. J. Med.Sci. 2017, 3, 246–2512. [Google Scholar]
  48. Arshad, H.M.I.; Naureen, S.; Saleem, K.; Ali, S.; Jabeen, T.; Babar, M.M. Morphological and biochemical characterization of Xanthomonas oryzae pv. oryzae isolates collected from Punjab during 2013. Adv. Life Sci. 2015, 2, 125–130. [Google Scholar]
  49. Hermosa, R.; Viterbo, A.; Chet, I.; Monte, E. Plant-beneficial effects of Trichoderma and of its genes. Microbiology 2012, 158, 17–25. [Google Scholar] [CrossRef] [PubMed][Green Version]
  50. Leelavathi, M.S.; Vani, L.; Reena, P. Antimicrobial activity of Trichoderma harzianum against bacteria and fungi. Int. J. Curr. Microbiol. Appl. Sci. 2014, 3, 96–103. [Google Scholar]
  51. Siddiquee, S.; Cheong, B.E.; Taslima, K.; Kausar, H.; Hasan, M.M. Separation and identification of volatile compounds from liquid cultures of Trichoderma harzianum by GC-MS using three different capillary columns. J. Chromatogr. Sci. 2012, 50, 358–367. [Google Scholar] [CrossRef] [PubMed][Green Version]
  52. Ogunyemi, S.O.; Abdallah, Y.; Zhang, M.; Fouad, H.; Hong, X.; Ibrahim, E.; Li, B. Green synthesis of zinc oxide nanoparticles using different plant extracts and their antibacterial activity against Xanthomonas oryzae pv. oryzae. Artif. Cells Nanomed. Biotechnol. 2019, 47, 341–352. [Google Scholar] [CrossRef][Green Version]
  53. Dobrucka, R.; Długaszewska, J. Biosynthesis and antibacterial activity of ZnO nanoparticles using Trifolium pratense flower extract. Saudi J. Biol. Sci. 2016, 23, 517–523. [Google Scholar] [CrossRef][Green Version]
  54. Murali, M.; Mahendra, C.; Rajashekar, N.; Sudarshana, M.S.; Raveesha, K.A.; Amruthesh, K.N. Antibacterial and antioxidant properties of biosynthesized zinc oxide nanoparticles from Ceropegia candelabrum L.—an endemic species. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2017, 179, 104–109. [Google Scholar] [CrossRef]
  55. Prasad, K.S.; Pathak, D.; Patel, A.; Dalwadi, P.; Prasad, R.; Patel, P.; Selvaraj, K. Biogenic synthesis of silver nanoparticles using Nicotiana tobaccum leaf extract and study of their antibacterial effect. Afr. J. Biotechnol. 2011, 10, 8122–8130. [Google Scholar]
Figure 1. Co-culture of Trichoderma spp. plates showing the compatibility: 4—Trichoderma harzianum, 5—Trichoderma reesei and 13—Trichoderma reesei.
Figure 1. Co-culture of Trichoderma spp. plates showing the compatibility: 4—Trichoderma harzianum, 5—Trichoderma reesei and 13—Trichoderma reesei.
Jof 06 00181 g001

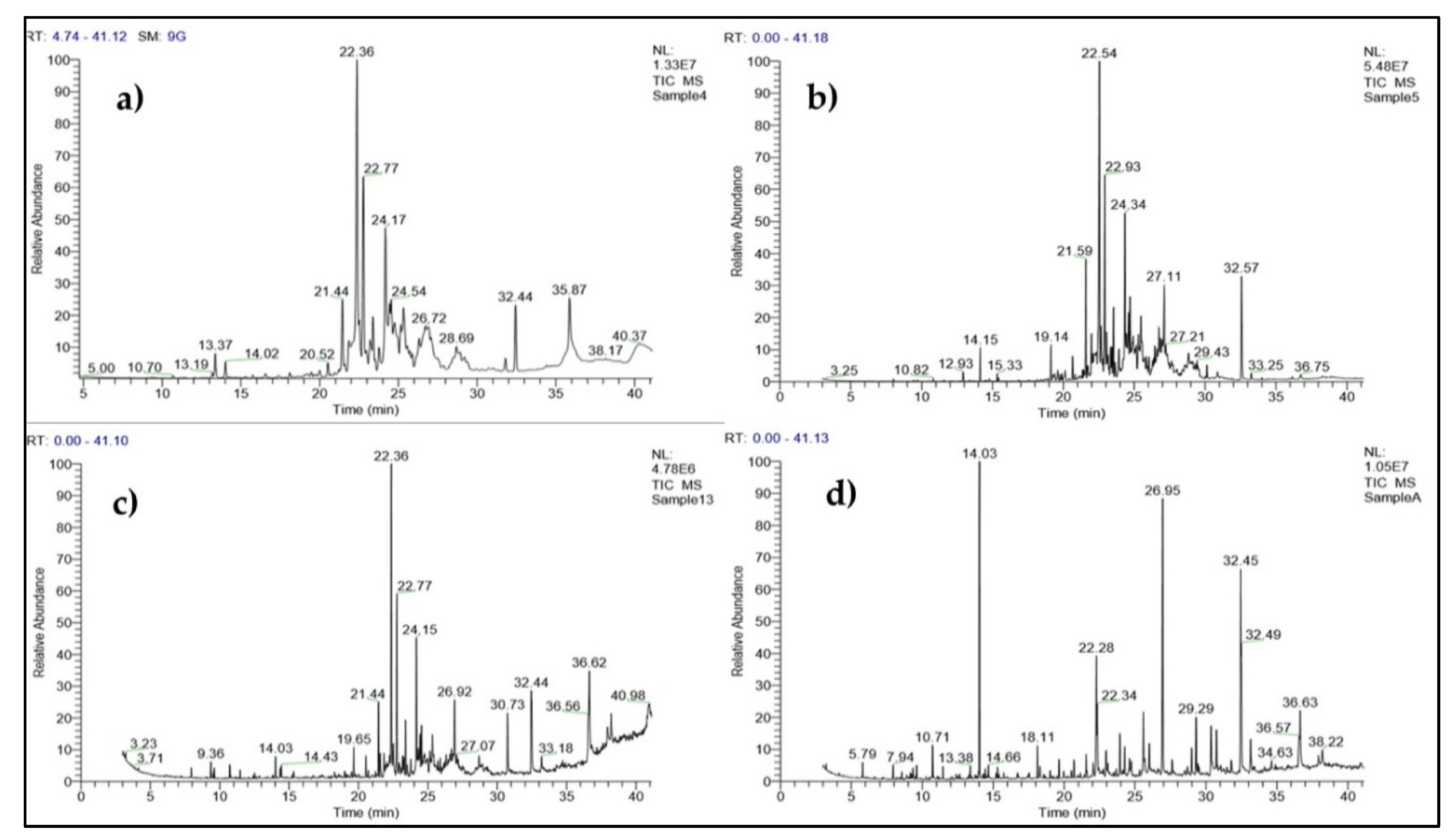

Figure 2. (ad) Gas Chromatography Mass Spectroscopy (GC-MS) of compounds identified from secondary metabolite crude extracts of (a) T. harzianum (PGT4), (b) T. reesei (PGT5), (c) T. reesei (PGT13) and (d) co-culture of Trichoderma spp. (PGTA).
Figure 2. (ad) Gas Chromatography Mass Spectroscopy (GC-MS) of compounds identified from secondary metabolite crude extracts of (a) T. harzianum (PGT4), (b) T. reesei (PGT5), (c) T. reesei (PGT13) and (d) co-culture of Trichoderma spp. (PGTA).
Jof 06 00181 g002
Figure 3. Screening of Trichoderma spp. co-culture secondary metabolites for its antibacterial activity against plant pathogen Xanthomonas oryzae pv. oryzae (Xoo); 8SB, 9SB and 21 represent strains MBXoo69, MBXoo70 and MBXoo53, respectively.
Figure 3. Screening of Trichoderma spp. co-culture secondary metabolites for its antibacterial activity against plant pathogen Xanthomonas oryzae pv. oryzae (Xoo); 8SB, 9SB and 21 represent strains MBXoo69, MBXoo70 and MBXoo53, respectively.
Jof 06 00181 g003

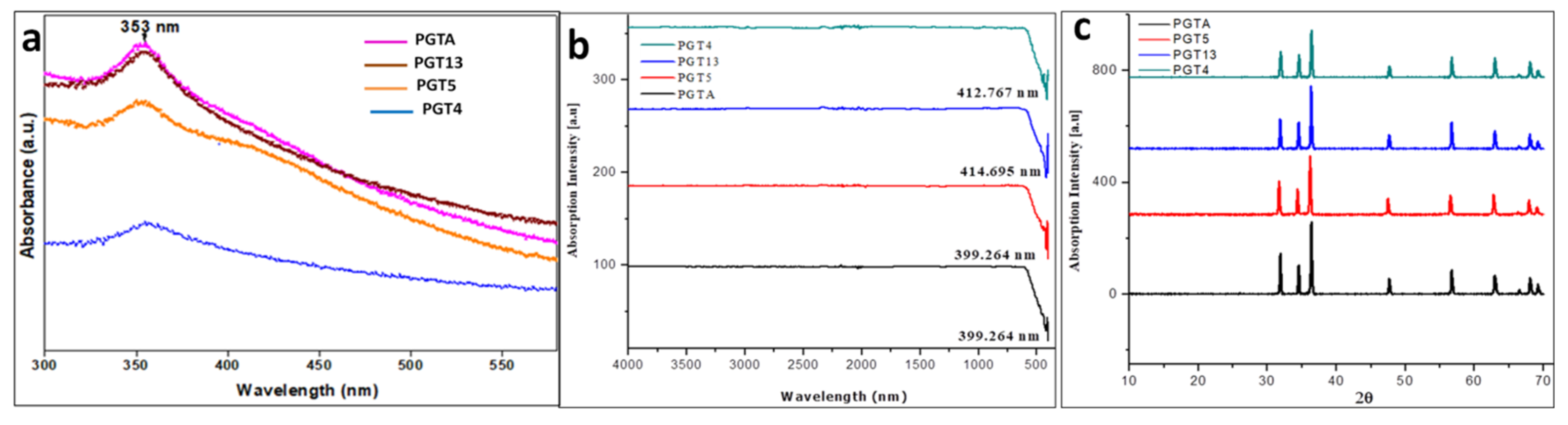

Figure 4. (a). UV−vis spectra of co-culture of Trichoderma sp. (PGTA), Trichoderma reesei (PGT5), Trichoderma reesei (PGT13) and Trichoderma harzianum (PGT4); (b) FT-IR Spectrogram of synthesized ZnO NPs Trichoderma harzianum (PGT4), Trichoderma reesei (PGT13), Trichoderma reesei (PGT5) and co-culture of Trichoderma sp. (PGTA); (c) PXRD patterns of ZnO NPs of Trichoderma spp.; co-culture of Trichoderma spp. (PGTA), Trichoderma reesei (PGT5), Trichoderma reesei (PGT13) and Trichoderma harzianum (PGT4).
Figure 4. (a). UV−vis spectra of co-culture of Trichoderma sp. (PGTA), Trichoderma reesei (PGT5), Trichoderma reesei (PGT13) and Trichoderma harzianum (PGT4); (b) FT-IR Spectrogram of synthesized ZnO NPs Trichoderma harzianum (PGT4), Trichoderma reesei (PGT13), Trichoderma reesei (PGT5) and co-culture of Trichoderma sp. (PGTA); (c) PXRD patterns of ZnO NPs of Trichoderma spp.; co-culture of Trichoderma spp. (PGTA), Trichoderma reesei (PGT5), Trichoderma reesei (PGT13) and Trichoderma harzianum (PGT4).
Jof 06 00181 g004

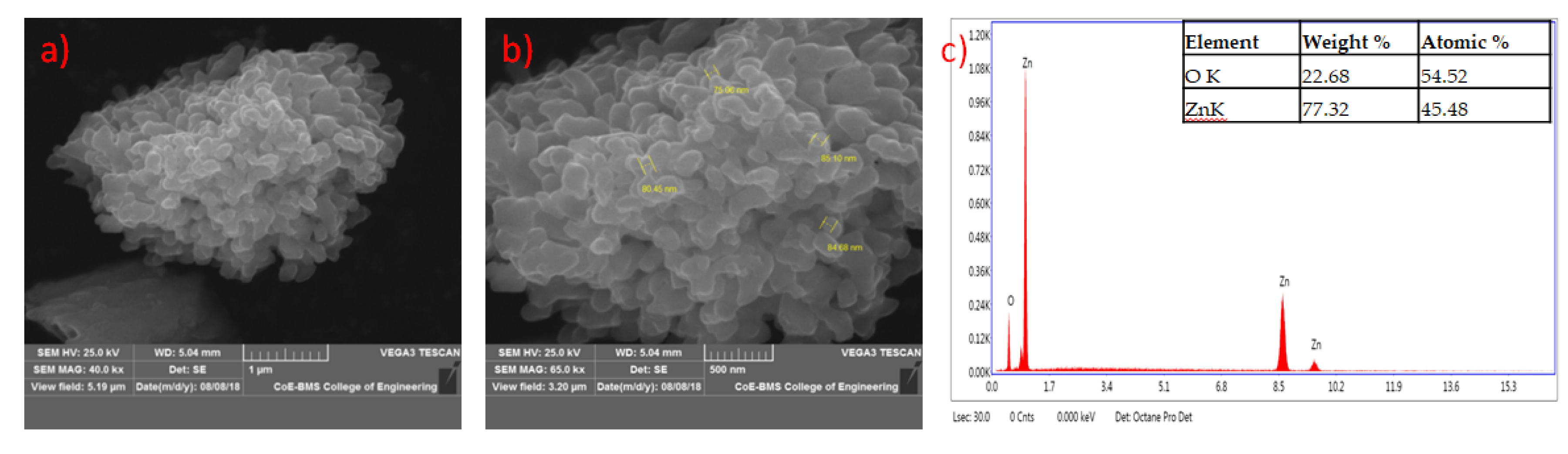

Figure 5. SEM image of zinc oxide nanoparticles synthesized from Trichoderma harzianum (PGT4) at lower (a) and higher magnification (b); (c) represents energy-dispersive X-ray spectroscopy (EDAX) analysis.
Figure 5. SEM image of zinc oxide nanoparticles synthesized from Trichoderma harzianum (PGT4) at lower (a) and higher magnification (b); (c) represents energy-dispersive X-ray spectroscopy (EDAX) analysis.
Jof 06 00181 g005

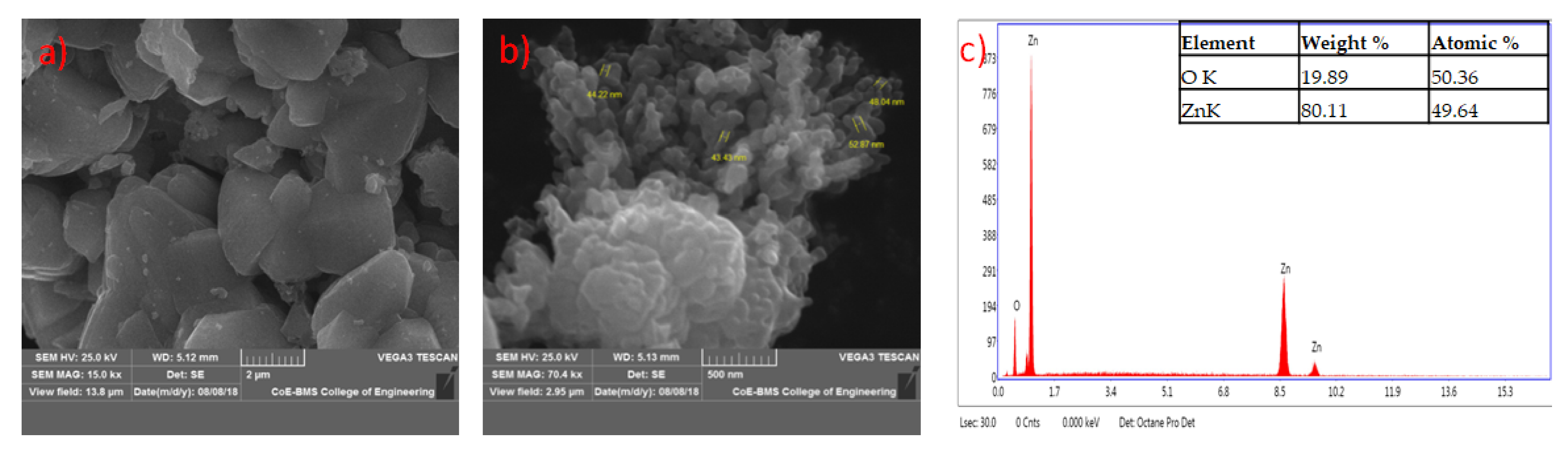

Figure 6. SEM image of zinc oxide nanoparticles synthesized from Trichoderma reesei (PGT5) at lower (a) and higher (b) magnification; (c) represents energy-dispersive X-ray spectroscopy (EDAX) analysis.
Figure 6. SEM image of zinc oxide nanoparticles synthesized from Trichoderma reesei (PGT5) at lower (a) and higher (b) magnification; (c) represents energy-dispersive X-ray spectroscopy (EDAX) analysis.
Jof 06 00181 g006

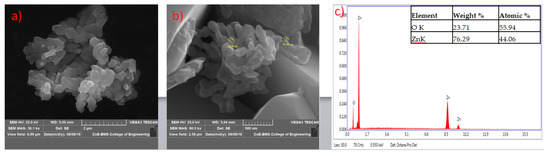

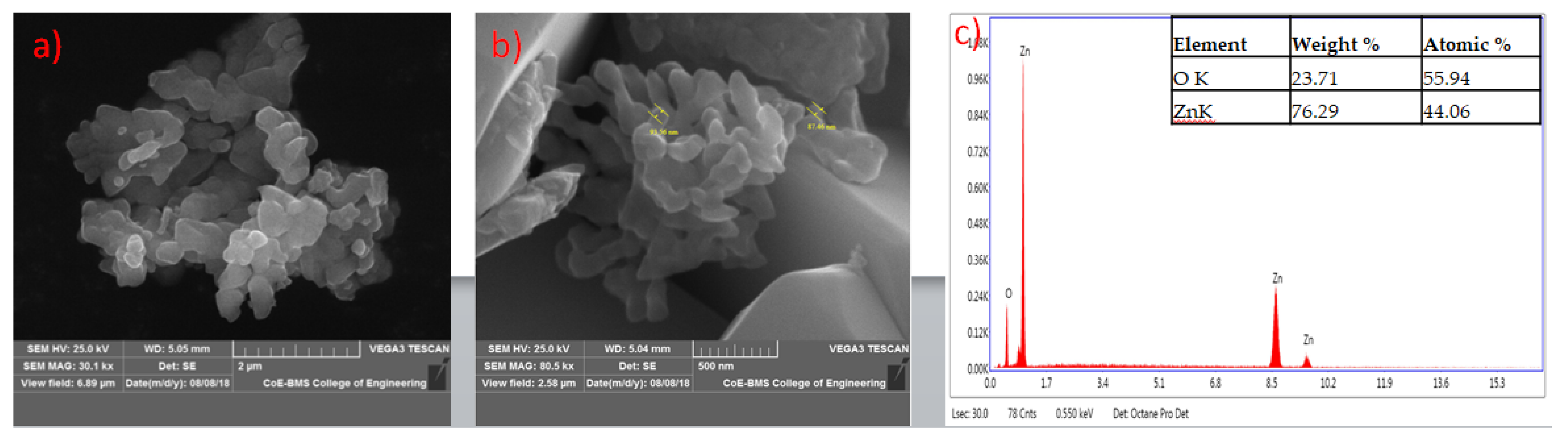

Figure 7. SEM image of zinc oxide nanoparticles synthesized from Trichoderma reesei (PGT13) at lower (a) and higher (b) magnification; (c) represents energy-dispersive X-ray spectroscopy (EDAX) analysis.
Figure 7. SEM image of zinc oxide nanoparticles synthesized from Trichoderma reesei (PGT13) at lower (a) and higher (b) magnification; (c) represents energy-dispersive X-ray spectroscopy (EDAX) analysis.
Jof 06 00181 g007

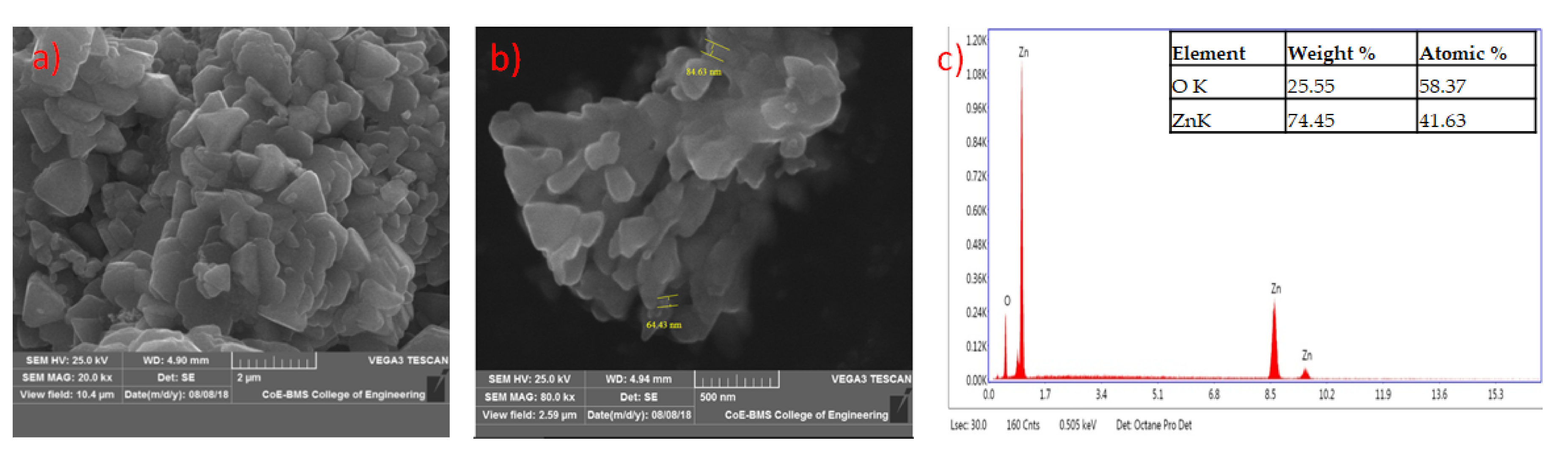

Figure 8. SEM image of zinc oxide nanoparticles synthesized from Trichoderma spp. co-culture of (PGTA) at lower (a) and higher (b) magnification; (c) represents energy-dispersive X-ray spectroscopy (EDAX) analysis.
Figure 8. SEM image of zinc oxide nanoparticles synthesized from Trichoderma spp. co-culture of (PGTA) at lower (a) and higher (b) magnification; (c) represents energy-dispersive X-ray spectroscopy (EDAX) analysis.
Jof 06 00181 g008

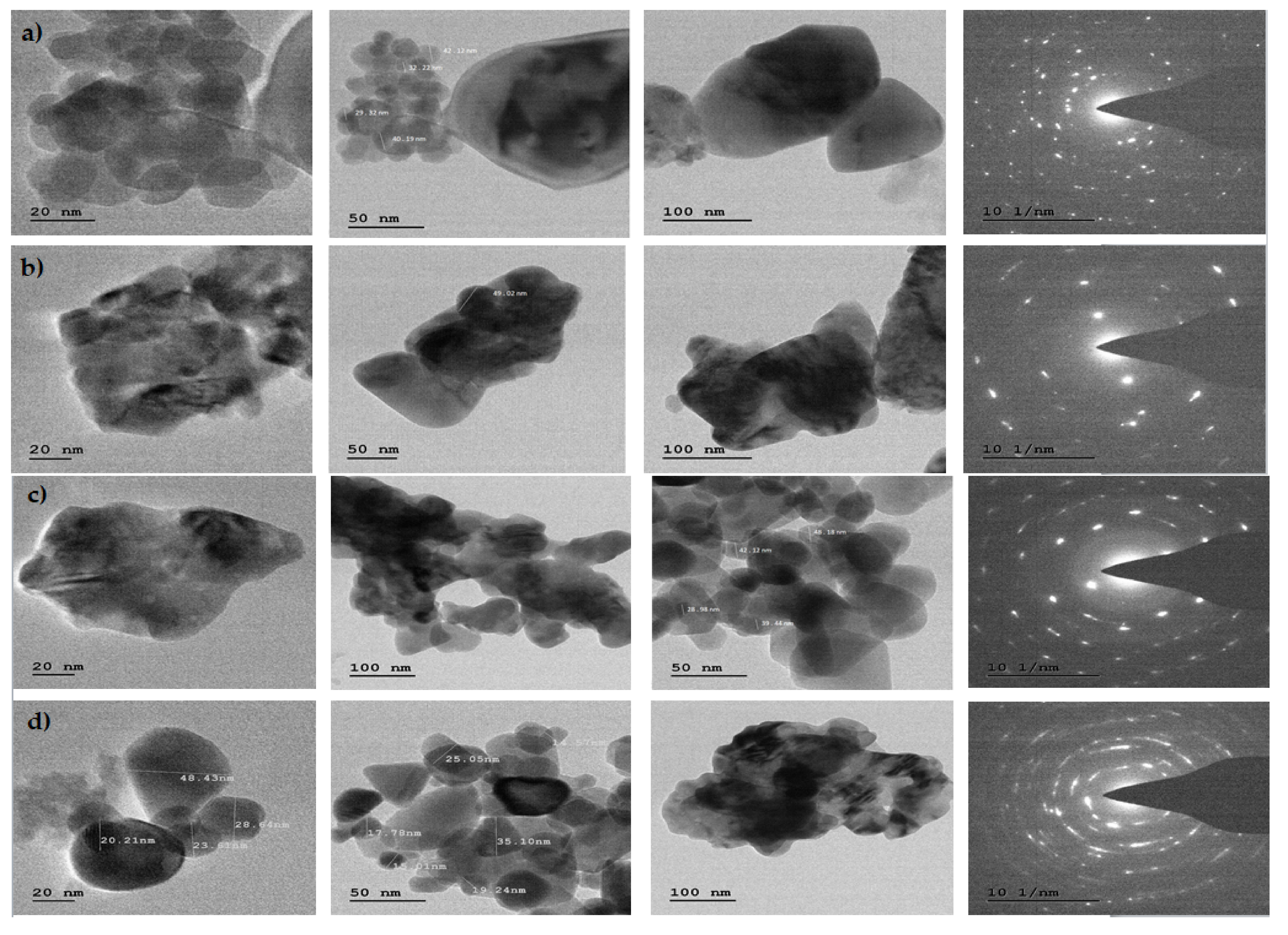

Figure 9. TEM micrographs (at different magnifications) and SAED patterns of Zno NPs synthesized from (a) Trichoderma harzianum (PGT4); (b) Trichoderma reesei (PGT5); (c) Trichoderma reesei (PGT13); and (d) Trichoderma spp. co-culture (PGTA).
Figure 9. TEM micrographs (at different magnifications) and SAED patterns of Zno NPs synthesized from (a) Trichoderma harzianum (PGT4); (b) Trichoderma reesei (PGT5); (c) Trichoderma reesei (PGT13); and (d) Trichoderma spp. co-culture (PGTA).
Jof 06 00181 g009
Table 1. Antibacterial activity of Trichoderma spp. isolated from rhizosphere soil on screening against Xanthomonas oryzae pv. oryzae (Xoo) (Mean ± standard deviation).
Table 1. Antibacterial activity of Trichoderma spp. isolated from rhizosphere soil on screening against Xanthomonas oryzae pv. oryzae (Xoo) (Mean ± standard deviation).
Trichoderma spp. CultureXoo Isolates (Zone of Inhibition)
MBXoo69
(mm in Diameter)
MBXoo70
(mm in Diameter)
MBXoo53
(mm in Diameter)
PGT120.33 mno ± 0.57722.33 qrs ± 0.57719.33 lmn ± 1.155
PGT219.67 lmn ± 0.57721.00 mno ± 1.73219.33 mno ± 1.155
PGT320.00 mnop ± 0.00020.33 lmn ± 1.52819.00 lmn ± 1.000
PGT418.33 jk ± 0.57722.67 pqr ± 1.15524.67 v ± 0.577
PGT519.67 lmn ± 0.57722.00 pq ± 1.00019.67 lmn ± 0.577
PGT619.33 lmn ± 0.57721.33 pq ± 0.57721.33 pqr ± 0.577
PGT719.67 lmn ± 0.57719. 67 lmn ± 0.57720.33 mno ± 0.577
PGT819.67 lmn ± 0.57719.67 lmn ± 0.57719.67 lmn ± 0.577
PGT919.67 lmn ± 0.57719.67 lmn ± 0.57720.00 mno ± 0.000
PGT1019.67 lmn ± 0.57717.67 ijk ± 0.57719.67 lmn ± 0.577
PGT1119.67 lmn ± 0.57721.33 pq ± 0.57719.67 lmn ± 0.577
PGT1219.67 lmn ± 0.57716.67 gh ± 0.57720.00 mno ± 0.000
PGT1320.00 mno ± 0.00021.67 pqr ± 0.57719.67 lmn ± 0.577
PGT1419.67 lmn ± 0.57721.67 pqr ± 0.57719.67 lmn ± 0.577
PGT1516.00 fg ± 0.00018.33 jk ± 0.57720.00 mno ± 0.000
PGT1617.67 ijk ± 0.57718.67 kl ± 0.57719.67 lmn ± 0.577
PGT1719.67 lmn ± 0.57717.00 hi ± 0.00019.33 lm ± 0.577
PGT1817.67 ijk ± 0.57714.67 cd ± 0.57718.33 jk ± 0.577
PGT1919.67 lmn ± 0.57718.33 jk ± 0.57718.00 jk ± 0.000
PGT2019.67 lmn ± o.57718.33 jk ± 0.57719.67 lmn ± 0.577
PGT2117.33 hij ± 0.57718.33 jk ± 0.57718.33 jk ± 0.577
PGT2219.67 lmno ± 0.57721.67 pqr ± 0.57718.33 jk ± 0.577
PGT2318.33 jk ± 0.57719.67 lmno ± 0.57719.67 lmno ± 0.577
PGT2420.67 nop ± 0.57719.67 lmn ± 0.57720.00 mno ± 0.000
PGT2514.00 c ± 0.00021.67 pqr ± 0.57714.67 cd ± 0.577
PGT2612.33 b ± 0.57718.33 jk ± 0.57715.67 ef ± 0.577
PGT2711.00 a ± 0.00018.00 jk ± 0.00015.00 de ± 0.000
PGT2811.00 a ± 0.00018.33 jk ± 0.57715.00 de ± 0.000
PGT2912.33 b ± 0.57717.67 ijk ± 0.57719.67 lmn ± 0.577
PGT3024.67 v ± 0.57724.67 v ± 0.57720.67 nop ± 0.577
PGT3122.67 st ± 0.57723.67 u ± 0.57721.00 opq ± 0.000
PGT3224.67 v ± 0.57725.00 v ± 0.00021.67 pqr ± 0.577
PGT3322.67 st ± 0.57725.33 v ± 0.57723.00 uv ± 0.000
PGT3421.00 opq ± 0.00021.67 pqr ± 0.57719.67 lmno ± 0.577
PGT3522.67 st ± 0.57720.00 mn ± 0.00020.67 nop ± 0.000
Positive25.00 v ± 0.57726.00 v ± 0.00025.00 rs ± 0.000
Negative0 a0 a0 a
The mean values are recorded and the values are not significantly different according to Duncan’s Multiple Range Test indicated by different alphabets in the superscripts at p < 0.05.
Table 2. List of compounds of Trichoderma harzianum (PGT4) detected by Gas Chromatography Mass Spectroscopy (GC-MS). RT—Retention Time.
Table 2. List of compounds of Trichoderma harzianum (PGT4) detected by Gas Chromatography Mass Spectroscopy (GC-MS). RT—Retention Time.
SL. No.RT (mins)Name of the Compound
Trichoderma harzianum (PGT4)
Molecular FormulaMolecular Weight
110.704-PropylbenzaldehydeC10H12O148
213.376-Pentyl-2H-pyran-2-oneC10H14O2166
314.022,4-Di-tert-butylphenolC14H22O206
415.764,6-O-Furylidene-d-glucopyranoseC11H14O7258
516.55Trimethyl-3,4-undecadiene-2,10-dioneC14H22O2222
617.371,5-Diphenyl-3-(3-cyclopentylpropyl)pentaneC25H34334
718.101-[2-Methyl-2-(-4-methyl-3-pentenyl)cyclopropyl]ethanolC12H22O182
821.44Phthalic acid, diisobutyl esterC16H22O4278
922.36Dibutyl phthalateC16H22O4278
1022.77Phthalic acid, butyl 2-pentyl esterC17H24O4292
1123.38Phthalic acid, 6-ethyl-3-octyl butyl esterC22H34O4362
1224.17Dibutyl phthalateC16H22O4278
1331.793-Ethyl-3-hydroxyandrostan-17-oneC21H34O2318
1432.44Mono(2-ethylhexyl) phthalateC16H22O4278
1535.87DigitoxinC41H64O13764
Table 3. List of compounds of Trichoderma reesei (PGT5) detected by GC-MS. RT—Retention Time.
Table 3. List of compounds of Trichoderma reesei (PGT5) detected by GC-MS. RT—Retention Time.
SL. No.RT (mins)Name of the Compound
Trichoderma reesei (PGT5)
Molecular FormulaMolecular Weight
18.02n-NonaldehydeC9H18O142
210.82p-propylbenzaldehydeC10H12O148
312.954-(2-Hydroxyethyl)phenolC8H10O2138
414.13Phenol, 2,4-di-tert-butylC14H22O206
519.14(3E)-3-OctadeceneC18H36252
620.65Phthalic acid, butyl isobutyl esterC16H22O4278
722.52Dibutyl phthalateC16H22O4278
822.93Phthalic acid, butyl 2-pentyl esterC17H24O4292
923.541,2-Benzenecarboxylic acid, bis(2-methylpropyl) esterC16H22O4278
1024.34Dibutyl phthalateC16H22O4278
1127.111-Hydroxy-4-methylanthra-9,10-quinoneC15H10O3238
1228.823-Chloro-6-(phenylsulfsnyl)bicycle(3.1.1)hept-2-eneC13H13CIS236
1332.57Mono(2-ethylhexyl) phthalateC16H22O4278
1433.27(10E)-10-HenicoseneC21H42294
1521.59Phthalic acid, diisobutyl esterC16H22O4278
Table 4. List of compounds of Trichoderma reesei (PGT13) detected by GC-MS. RT—Retention Time.
Table 4. List of compounds of Trichoderma reesei (PGT13) detected by GC-MS. RT—Retention Time.
SL. No.RT (mins)Name of the Compound
Trichoderma reesei (PGT13)
Molecular FormulaMolecular Weight
17.935,6-DimethylundecaneC13H28184
29.361-Methylene-1H-indeneC10H8128
310.72Benzaldehyde, 4-propylC10H12O148
414.03Phenol, 2,4-di-tert-butylC14H22O206
514.35Maleic acid, dibutyl esterC12H20O4228
615.31Phthalic acid, ethyl 2-methylbutyl esterC15H20O4264
719.65Tetradeconic acid, 1-methylethyl esterC17H32O2270
821.44Phthalic acid, butyl isobutyl esterC16H22O4278
922.34Dibutyl phthalateC16H22O4278
1022.77Phthalic acid, butyl 2-pentyl esterC17H24O4292
1124.15Phthalic acid, butyl hexyl esterC18H6O4306
1226.92Anthraquinone, 1-hydroxy-2-methylC15H10O3238
1330.73Cis-4,7,10,13,16,19-Docosahexanoic acid, tert-butyldimethyldilyl esterC28H46O2Si442
1432.469-t-Butyltricyclo[4.2.1.1(2,5)]decane-9-10-diolC14H24O2224
1536.62(5E,7E)-25-[(Trimethylsilyl)oxy]-9, 10-secocholesta-5,7,10-triene-1,3-diolC30H52O3Si488
1638.212,6-Ditert-butyl-4-methylphenyl 2-methylcyclopropanecarboxylateC20H30O2302
Table 5. List of compounds of Trichoderma spp. co-culture (PGTA) detected by GC-MS. RT—Retention Time.
Table 5. List of compounds of Trichoderma spp. co-culture (PGTA) detected by GC-MS. RT—Retention Time.
SL. No.RT (mins)Name of the Compound
Sample A (4,5,13)
Molecular FormulaMolecular Weight
110.71Benzaldehyde, 4-propylC10H12O148
218.111-[2-Methyl-2-(-4-methyl-3-pentenyl)cyclopropyl]ethanolC12H22O182
35.794-Hydroxybenzenephophoric acidC6H7O4P174
47.94NonanalC9H18O142
514.03Phenol, 2,4,-di-tert-butylC14H22O206
621.551-Oxa-spiro[4,5]deca-6,9-diene-2,8-dione, 7,9-di-tert-butylC17H24O3276
722.28Hexadecanoic acidC16H32O2256
823.91Chrysophanic acid anthranolC15H12O3240
925.58Trans-13-Octadecenoic acidC18H34O2282
1026.951-Hydroxy-4-methylanthra-9, 10-quinoneC15H10O3238
1129.2910,12-Pentacosadiynoic acidC25H42O2374
1230.354-(2-Oxiranyl)-9H-fluoren-9-olC15H12O2224
1332.479-t-Butyltricyclo[4.2.1.1(2,5)]decane-9,10-diolC14H24O2224
1433.146,9-Octadecadiynoic acid, methyl esterC19H30O2290
1536.61Ledene oxide-(II)C15H24O220
Table 6. Antibacterial activity of Trichoderma spp. co-culture secondary metabolite against plant pathogen Xoo (Mean ± standard deviation).
Table 6. Antibacterial activity of Trichoderma spp. co-culture secondary metabolite against plant pathogen Xoo (Mean ± standard deviation).
SL. No.Trichoderma spp. Coculture Secondary MetaboliteXoo Isolates (Zone of Inhibition)
MBXoo69 (8SB)
(mm in Diameter)
MBXoo70 (9SB)
(mm in Diameter)
MBXoo53 (21)
(mm in Diameter)
1PGT1324 defgh ± 1.0025.33 gh ± 1.1524.67 fgh ± 0.577
2PGT4,5,1322.33 cde ± 1.52828 i ± 1.0021.67 cd ± 1.528
3PGT4,1322 cd ± 2.00024.67 gh ± 0.57722.00 cd ± 1.000
4PGT415.67 b ± 1.15515.67 b ± 1.15513.33 a ± 1.528
5PGT520.33 c ± 0.57723.33 def ± 1.15524.33 efg ± 0.577
6PGT5,1320.67 c ± 057723.33 def ± 1.52821.67 cd ± 1.528
7PGT4,521.67 cd ± 0.57721.67 cd ± 0.57720.67 c ± 0.577
PositivePositive26.00 gh ± 1.73229.33 hi ± 1.15527.67 i ± 0.577
NegativeNegative0 a0 a0 a
The mean values are recorded and the values are not significantly different according to Duncan’s Multiple Range Test indicated by different alphabets in the superscripts at p < 0.05.
Table 7. Evaluation of the bactericidal activity of biosynthesized zinc oxide nanoparticles from different species of Trichoderma against different strains of Xanthomonas oryzae pv. oryzae (Xoo) (Concentration expressed in μg/mL).
Table 7. Evaluation of the bactericidal activity of biosynthesized zinc oxide nanoparticles from different species of Trichoderma against different strains of Xanthomonas oryzae pv. oryzae (Xoo) (Concentration expressed in μg/mL).
ZnO NPsDisc Diffusion Values (in mm)MIC Values (µg/mL)
PGT 40050
PGT514.33 ± 0.3325
PGT130050
PGTA15.67 ± 0.3325
Positive13.67 ± 0.3325
Negative0000

Share and Cite

MDPI and ACS Style

Shobha, B.; Lakshmeesha, T.R.; Ansari, M.A.; Almatroudi, A.; Alzohairy, M.A.; Basavaraju, S.; Alurappa, R.; Niranjana, S.R.; Chowdappa, S. Mycosynthesis of ZnO Nanoparticles Using Trichoderma spp. Isolated from Rhizosphere Soils and Its Synergistic Antibacterial Effect against Xanthomonas oryzae pv. oryzae. J. Fungi 2020, 6, 181. https://doi.org/10.3390/jof6030181

AMA Style

Shobha B, Lakshmeesha TR, Ansari MA, Almatroudi A, Alzohairy MA, Basavaraju S, Alurappa R, Niranjana SR, Chowdappa S. Mycosynthesis of ZnO Nanoparticles Using Trichoderma spp. Isolated from Rhizosphere Soils and Its Synergistic Antibacterial Effect against Xanthomonas oryzae pv. oryzae. Journal of Fungi. 2020; 6(3):181. https://doi.org/10.3390/jof6030181

Chicago/Turabian Style

Shobha, Balagangadharaswamy, Thimappa Ramachandrappa Lakshmeesha, Mohammad Azam Ansari, Ahmad Almatroudi, Mohammad A. Alzohairy, Sumanth Basavaraju, Ramesha Alurappa, Siddapura Ramachandrappa Niranjana, and Srinivas Chowdappa. 2020. "Mycosynthesis of ZnO Nanoparticles Using Trichoderma spp. Isolated from Rhizosphere Soils and Its Synergistic Antibacterial Effect against Xanthomonas oryzae pv. oryzae" Journal of Fungi 6, no. 3: 181. https://doi.org/10.3390/jof6030181

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
