Article

Genome Analysis of Alternaria alstroemeriae L6 Associated with Black Spot of Strawberry: Secondary Metabolite Biosynthesis and Virulence

by
Li Zhang
1,2,3,
Boyuan Zhang
1,4,
Lizhu Shao
1,3,
Miaomiao Yang
1,3,
Xueling Zhao
5,
Ziyu Wang
5,
Yingjun Zhang
3,
Yuting Li
3,
Yating Wang
1,3,
Yuansen Hu
1,3 and
Peng Li
2,*
1
National Engineering Research Center of Wheat and Corn Further Processing, Henan University of Technology, Zhengzhou 450001, China
2
Institute for Complexity Science, Henan University of Technology, Zhengzhou 450001, China
3
College of Biological Engineering, Henan University of Technology, Zhengzhou 450001, China
4
College of Food Science and Engineering, Henan University of Technology, Zhengzhou 450001, China
5
School of International Education, Henan University of Technology, Zhengzhou 450001, China
*
Author to whom correspondence should be addressed.
J. Fungi 2025, 11(10), 710; https://doi.org/10.3390/jof11100710
Submission received: 21 August 2025 / Revised: 25 September 2025 / Accepted: 29 September 2025 / Published: 30 September 2025
Browse Figures
Versions Notes

Abstract

A pathogenic fungus was isolated from the leaves of strawberry black spot in Zhengzhou China. Based on morphological and phylogenetic analysis, the isolate was identified as Alternaria alstroemeriae. Hybrid sequencing and assembly yielded a high-quality 38.7 Mb genome with 12,781 predicted genes and 99.6% Benchmarking Universal Single-Copy Orthologs (BUSCO) completeness. Functional annotation revealed enrichment in carbohydrate metabolism, secondary metabolite biosynthesis, and virulence-associated genes. Strain L6 harbored 45 biosynthetic gene clusters(BGCs), including 12 clusters for terpenes, 7 for non-ribosomal peptide synthetases, and 7 for polyketide synthases. Six BGCs showed high similarity to known pathways producing alternariol (phytotoxic/mycotoxic compound), alternapyrone (phytotoxin), choline (osmoprotectant), terpestacin (anti-angiogenic agent), clavaric acid (anticancer terpenoid), and betaenone derivatives (phytotoxins). CAZyme analysis identified 596 carbohydrate-active enzymes, aligning with L6’s biotrophic lifestyle. Additionally, 996 secreted proteins were predicted, of which five candidate effectors contained the conserved RxLx [EDQ] host-targeting motif, suggesting potential roles in virulence. This genome resource highlights L6’s exceptional secondary metabolites (SMs) diversity, featuring both plant-pathogenic toxins and pharmacologically valuable compounds, indicating that this endophytic fungus is a potential producer of metabolites meriting further exploration and development.

1. Introduction

Alternaria, a genus of ascomycete fungi, is recorded with 788 species in the Species Fungorum database (https://www.speciesfungorum.org, accessed on 24 April 2025). However, due to the unresolved taxonomy of the genus, only 360 species are formally recognized [1,2]. It is a ubiquitous group growing in diverse ecosystems worldwide, found in both natural and anthropogenic environments. As facultative plant pathogens, more than 95% of Alternaria species infect approximately 400 plant types. The spectrum of diseases they cause, such as root and stem rot, blight, and wilt, frequently targets economically significant crops [3]. Black point is a fungal disease of strawberry, mainly associated with mycotoxigenic Alternaria species, which can also cause strawberry spoilage with consequent mycotoxin accumulation [4]. The diversity of the secondary metabolites (SMs) reflects Alternaria’s wide host range. Some SMs have received attention for their beneficial antimicrobial and pharmaceutical properties, and others for their concern as emerging phytotoxins and cytotoxins. Harmful Alternaria metabolites in food and food products are becoming an increasing environmental concern, but there are no regulations in place to monitor or control them [5]. Information about the genome of Alternaria species causing strawberry black spot is crucial to better understand the different species characteristics and for designing effective management strategies to control this disease.
Extensive studies into Alternaria in recent years have focused on understanding the factors that affect a wide range of SMs biosynthesis and virulence formation. Alternaria strains exhibit ubiquitous presence across plant ecosystems and demonstrate remarkable biosynthetic capacity with over 500 distinct SMs chemically characterized to date, as documented in the Dictionary of Natural Products database (DNP, https://dnp.chemnetbase.com; accessed on 24 April 2025). The SM repertoire of Alternaria encompasses diverse chemical classes, including terpenoids, pyranones, cyclic peptides, nitrogenous compounds, and hybrid derivatives, with broad-spectrum bioactivities such as antimicrobial, phytotoxic, and cytotoxic properties [6,7]. Biosynthesis of these compounds involves conserved enzymatic machineries, including modular polyketide synthases (PKSs), non-ribosomal peptide synthetases (NRPSs), hybrid NRPS-PKS systems, terpene cyclases, and ribosomally synthesized/post-translationally modified peptides (RiPPs) [8,9]. Owing to this biosynthetic complexity, genomic characterization of SMs production capacities in Alternaria species remains underexplored, even though their SMs represent a promising base structure for developing pesticides and drugs [10].
It is interesting that a subset of these SMs exhibit toxicological potential under specific environmental conditions, collectively classified as Alternaria toxins [11]. To date, over 70 structurally distinct mycotoxins with diverse biological activities have been characterized from Alternaria species [12]. These phytotoxic compounds are categorized into two functional classes: (1) host-selective toxins (HSTs), which specifically disrupt physiological processes in susceptible plant hosts; (2) non-host-selective toxins (NHSTs), exerting broad-spectrum cytotoxic effects across plant taxa regardless of host–pathogen compatibility [13]. Mechanistic studies show HSTs to be critical virulence determinants required for pathogen invasion and disease establishment, whereas NHSTs contribute to necrotic symptom development and ecological persistence through non-specific tissue damage [14,15].
During our investigation of fungal pathogens associated with leaf spot disease, an Alternaria strain L6 was isolated from symptomatic leaf tissues of Fragaria × ananassa. To better understand this fungus and explore its SMs biosynthetic potential and virulence, we conducted whole-genome sequencing and assembly using a hybrid approach combining next-generation sequencing (NGS) and using the Illumina HiSeq platform. Gene annotation was extensively predicted using various BLAST databases, including non-redundant (Nr) protein sequences, Swiss-Prot, Gene Ontology (GO), Kyoto Encyclopedia of Genes and Genomes (KEGG), EuKaryotic Orthologous Groups (KOG), and Carbohydrate-Active Enzyme (CAZy) databases. Additionally, the antibiotic and secondary metabolite analysis database tool (antiSMASH) was used to predict the SMs biosynthetic potential and virulence of strain L6.

2. Materials and Methods

2.1. Strain Isolation and Cultivation

Strawberry plants of 8 surveyed fields in Zhengzhou (34°828′ N, 113°545′ E), China, showed 20–30% leaf spot incidence. Leaves displayed many diseased spots ranging in diameter from 0.5 to 2.0 cm, with yellowish-brown discoloration and a noticeable reduction in the thickness of the central leaf area. Symptomatic leaves from six different strawberry plants across three fields were cut into 0.5 × 0.5 cm pieces, surface-sterilized by immersion in 2% sodium hypochlorite for 2 min, followed by 75% ethanol for 30 s, and plated on potato dextrose agar (PDA) in a 28 °C incubator.
To confirm the pathogenicity of the isolate in accordance with Koch’s postulates, spore suspensions (1 × 105 spores/mL) were sprayed on healthy leaves of strawberry plants (three replicate pots in a group repeated three times), and sterile distilled water was sprayed on control plants. Plants inoculated with strawberry plants showed leaf spots, while control plants remained symptomless under incubation at 28 °C and 95% relative humidity.

2.2. Phylogenetic Analysis

Strain L6 was cultured on PDA at 25 °C for 5 d prior to morphological characterization. Genomic DNA was extracted to use the nuclear ribosomal internal transcribed spacer (ITS) amplification and sequencing. The ITS region was amplified by polymerase chain reaction (PCR) with ITS1/ITS4 primer pairs (5′-TCCGTAGGTGAACCTGCGG-3′/5′-TCCTCCGCTTATTGATATGC-3′) under the following conditions: 95 °C for 3 min; 30 cycles of 95 °C for 15 s, 55 °C for 15 s, 72 °C for 30 s; final extension at 72 °C for 5 min. Amplicons were verified by 1% agarose gel electrophoresis, purified using the Magen HiPure Gel Pure DNA Mini Kit (Magen Biotechnology Co., Ltd., Guangzhou, China), and commercially sequenced by Tsingke Biotechnology Co., Ltd. (Beijing, China) using Sanger methodology. The ITS sequence was subjected to Neighbor-Joining (NJ) phylogenetic analysis in MEGA X [16] with 1000 bootstrap replicates, incorporating reference sequences from typical strains in the NCBI database.

2.3. Genome Sequencing and Assembly Methodology

Strain L6 was cultured on PDA at 28 °C for 5 d. Genomic DNA was extracted using the SDS extraction method, and integrity and purity were evaluated by 1% agarose gel electrophoresis. Upon passing quality control, a whole-genome shotgun (WGS) strategy was adopted to construct libraries with different insert sizes [17]. Using the second-generation sequencing technology (Next-Generation Sequencing, NGS) based on the Illumina HiSeq sequencing platform, which resulted in paired-end raw data in FASTQ format, followed by useful quality control and data-filtering features using Fastp (version 0.23.4, https://github.com/OpenGene/fastp, accessed on 30 June 2025). The Unicycler (version 0.4.8) software was used to assemble and construct the scaffold sequence; meanwhile, the SPAdes (version 3.11.1, http://cab.spbu.ru/software/spades/, accessed on 30 June 2025) comprehensively evaluates the assembly results of multiple Kmers and automatically selects the optimal assembly result. Finally, an evaluation of the integrity of the predicted genomes was conducted using pleosporales_odb10 (Pleosporales database) and BUSCO (Benchmarking Universal Single-Copy Orthologs, version 2.0) [18].

2.4. Gene Prediction and Annotation

Gene prediction was conducted through a multi-step computational approach. Ab initio gene modeling was performed using Augustus (version 3.03), GlimmerHMM (version 3.0.1), and SNAP (2006-07-28), generating preliminary gene structure annotations [19,20,21]. Homology-based prediction was implemented using Exonerate (version 2.2.0; http://ftp.ebi.ac.uk/pub/software/vertebrategenomics/exonerate, accessed on 30 June 2025). These predictions were then integrated using EVidenceModeler (2012-07-25) to produce consensus protein-coding gene predictions through evidence-weighted reconciliation [22]. tRNA genes were predicted using tRNAscan-SE (version 1.3.1, https://github.com/UCSC-LoweLab/tRNAscan-SE, accessed on 30 June 2025), and rRNA genes were predicted using Barrnap 0.7 [23]. Long terminal repeat (LTR) sequences and transposable elements were annotated using the Extensive de novo TE Annotator (EDTA, version 6.9.5). Functional annotation of protein-coding genes was performed, including prediction of gene motifs, domains, protein functions, and metabolic pathways. For the functional annotation of putative genes, the following bioinformatics tools were applied: BLAST (version 2.10.1) for annotation against the Nr, Swiss-Prot, and KEGG databases with E-values ≤ 10−5.

2.5. Prediction of Carbohydrate-Active enZymes (CAZymes)

Carbohydrates contain significant biological information, making them valuable for analyzing the metabolic process of strain L6 and the differences between strains. The Hmmscan online annotation software (dbCAN3, https://bcb.unl.edu/dbCAN2/blast.php, accessed on 30 June 2025) was used to predict and annotate carbohydrate-active enzyme (CAZyme)-related genes in strain L6. Additionally, data from 12 other typical Alternaria strains obtained from the NCBI database were also compared with those of strain L6 to further explore the differences in their carbohydrate degradation capacities compared to typical species (Table S1).

2.6. Analysis of Secondary Metabolite Biosynthetic Gene Clusters

The SM biosynthetic gene clusters of strain L6 were predicted using antiSMASH (version 8.0.0, https://fungismash.secondarymetabolites.org/, accessed on 30 June 2025) and further annotated using BlastP analysis.

2.7. Secreted Protein Annotation and Prediction

Putative secreted proteins encoded in the genome of L6 were predicted using SignalPv4.0 (http://www.cbs.dtu.dk/services/SignalP/, accessed on 2 July 2025) and TMHMM-2.0 (http://www.cbs.dtu.dk/services/TMHMM-2.0/, accessed on 2 July 2025). Proteins containing an N-terminal signal peptide were identified with SignalP 4.1. Proteins predicted to contain transmembrane domains were subsequently excluded using TMHMM-2.0.

2.8. Prediction of Proteins with a RxLx [EDQ]

The predicted secreted proteins in strain L6 were screened for the conserved host-targeting motif RxLx [EDQ] using the MEME prediction server (http://meme-suite.org/tools/meme, accessed on 2 July 2025) with default parameters. Structural visualization analysis of protein-coding genes was performed using GSDS 2.0 (https://gsds.gao-lab.org/, accessed on 2 July 2025). Domain analysis and functional enrichment of domains were performed for the unknown proteins using SMART (http://smart.embl.de/, accessed on 2 July 2025) [24].

3. Results

3.1. Morphology and Pathogen Verification of Strain L6

After 4–5 days of incubation at 28 °C, four morphologically similar fungal isolates were obtained and purified. ITS sequencing analysis confirmed that all four isolates belonged to Alternaria alstroemeriae. One representative isolate, designated L6, was selected for further study. Strain L6 developed after culturing on a PDA medium for 3–4 d that its white colonies grew rapidly on the PDA medium at the initial stage, the brown mycelia appeared at the edge of the colony after 5–6 d, and the whole surface of the mycelia was grayish brown after 10 d. Microscopically, the conidial peduncle of the strain was grayish brown, and the mycelia were compartmentalized, 2.1 to 5.0 μm (mean 3.6 μm) wide, with some hyphae exhibiting 1 to 3 branches. Conidia were 16.2–21.1 × 9.4–10.2 μm (mean 18.8 × 9.8 μm), brown, ellipsoid, with 1–3 transverse septa and 0–2 longitudinal septa, constricted at the septa and taupe in color (Figure 1A). The morphological features were consistent with those of A. alstroemeriae [25,26].
All strawberry plants, which were sprayed with spore suspensions of strain L6, showed disease in the leaves. After inoculating strawberry plants that exhibited leaf spot symptoms, the morphology and sequences of re-isolated fungal isolates from the tested plants were the same as the original isolate (Figure 1B).

3.2. Phylogenetic Analysis of Strain L6

Subsequently, a Neighbor-Joining phylogenetic tree was constructed based on the ITS sequence of strain L6 (Genbank accession: PV864789.1). The tree indicated that strain L6 shared the highest ITS sequence homology with A. alstroemeriae strain CBS118809 (GenBank accession: MH863036.1), with 99.80% similarity, and phylogenetically clustered within the same clade as A. alstroemeriae CBS118809. Combined with morphological characteristics, these results confirm that strain L6 belongs to the genus Alternaria and was identified as A. alstroemeriae (Figure 2).

3.3. Results of Genome Sequencing and Assembly

The whole genome sequence of strain L6 has been submitted to NCBI under the accession number JBRANC000000000. The genome assembly of L6 yielded 38.7 Mb with 50.84% GC content and an N50 value of 1,029,672 bp (Table 1). BUSCO assessment revealed 99.6% completeness, indicating high assembly quality (Table S2). The total CDS length was 17,294,764 bp, accounting for 44.00% of the genome.
Comparative genomic analysis with typical Alternaria strains from NCBI showed that strain L6 had a larger genome size and higher gene count (Table S1). Genomic prediction identified 222 tRNAs, 12,559 mRNAs, and 47 rRNAs (Table 2).

3.4. Genome Annotation

Functional annotation of strain L6 genes was performed by aligning putative protein-coding sequences against the NR, KOG, KEGG, Swiss-Prot, and GO databases using BLAST analysis (Table S3). A total of 7555 genes were annotated into three Gene Ontology (GO) categories: cellular component, biological process, and molecular function, encompassing 60 subcategories (Figure 3A). Molecular functions were primarily distributed across catalytic activity, binding activity, and transporter activity. In biological processes, cellular processes, metabolic processes, and biological regulation accounted for the highest proportions. In contrast, molecular functions in Alternaria sp. SPS-2 mainly involved catalytic activity, ion binding, and oxidoreductase activity [27]. Among 24 KOG functional categories, most genes were associated with unknown functions (10.92%), followed by Carbohydrate transport and metabolism (9.96%), Post-translational modification, protein turnover, chaperones (7.78%), Amino acid transport and metabolism (7.40%), and Secondary metabolites biosynthesis, transport and catabolism (7.05%) (Figure 3B). This high proportion of uncharacterized genes highlights the strain’s potential for further genomic exploration. KEGG annotation assigned 7938 genes to 45 pathways (Figure 3C), with carbohydrate metabolism and amino acid metabolism being the most enriched. These abundant metabolic functions suggest high energy conversion efficiency.

3.5. CAZyme Analysis

Carbohydrates, also known as saccharide compounds, are the most abundant and widely distributed organic compounds in nature, serving as the primary energy source for all organisms to sustain life activities. Enzymes acting on carbohydrate complexes, oligosaccharides, and polysaccharides constitute the most structurally diverse protein assemblies on Earth. Fungi exhibit a high degree of substrate metabolic specificity adapted to their habitats by secreting diverse CAZymes. A total of 596 CAZyme family genes were annotated in strain L6, including 267 glycoside hydrolases (GHs), 151 auxiliary activities (AAs), 56 carbohydrate esterases (CEs), 86 glycosyltransferases (GTs), 21 polysaccharide lyases (PLs), and 15 carbohydrate-binding modules (CBMs) (Figure 4; Table S4). Compared to other standard strains in the Alternaria genus, this pathogenic fungus isolated from infected strawberry leaves harbors fewer annotated CAZyme family genes, likely due to its classification as a biotrophic fungus, which inherently possesses fewer CAZymes than other fungi [28]. Subsequent experiments on strain L6 infecting strawberry leaves confirmed its identity as a biotrophic fungus (Figure 1B).

3.6. Analysis of Secondary Metabolite Biosynthetic Potential

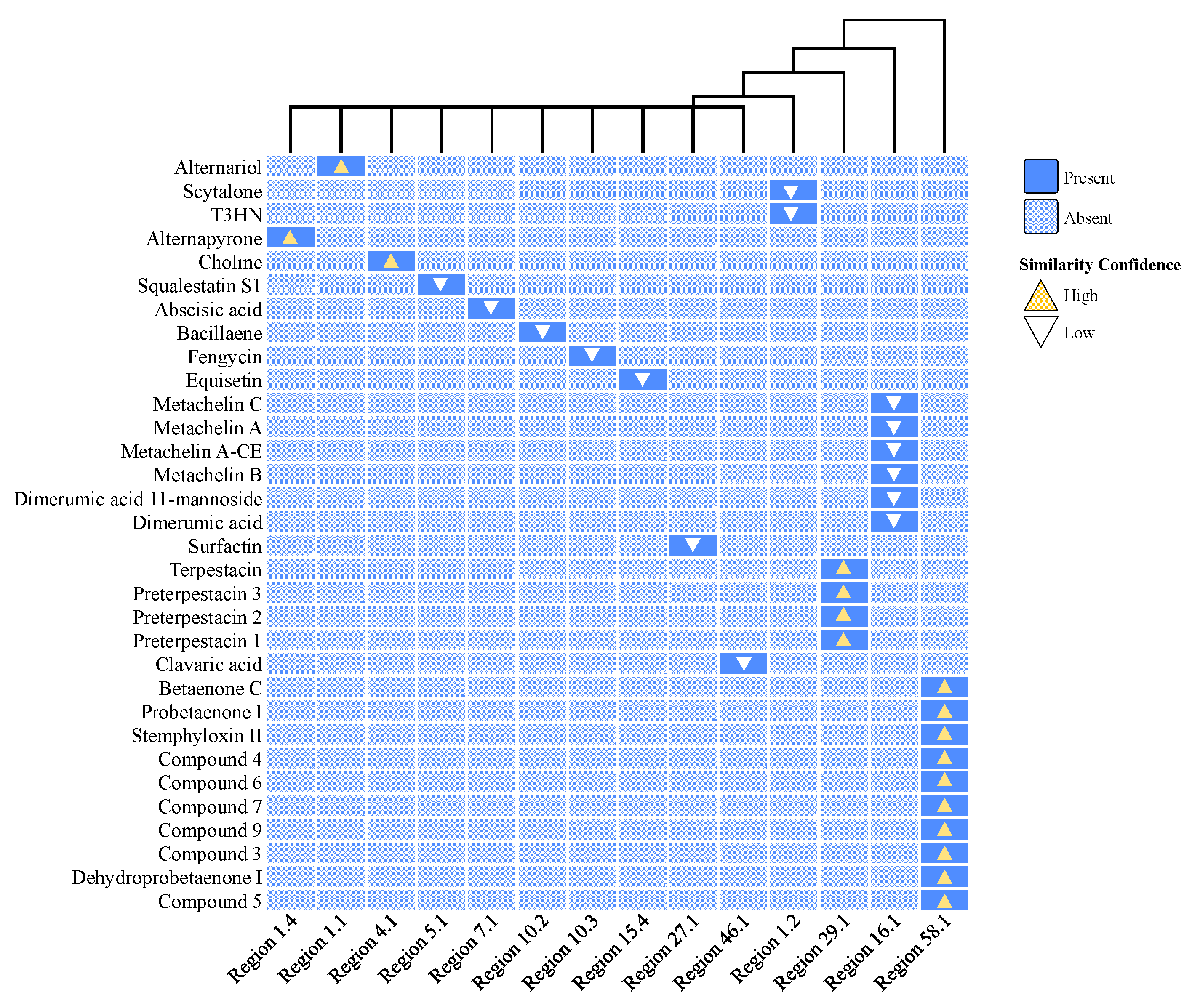

The antiSMASH results indicated that Type I polyketide synthases (T1PKSs) were the most abundant in the biosynthetic gene clusters (BGCs) of secondary metabolites in the annotated strain, followed by terpenes. However, compared to 12 other reference Alternaria strains, strain L6 harbored the highest number of BGCs (Figure 5).
The BGC composition includes 12 terpenes, 7 non-ribosomal peptide synthetases (NRPSs), 7 T1PKSs, 5 NRPS-like fragments, 3 terpene precursors, 2 T1PKS/NRPSs, and one each of other types (e.g., fungal-RiPP and cytokinin). Of these, six BGCs showed high similarity to known functional gene clusters, which are putatively responsible for producing compounds such as alternariol, alternapyrone, choline, terpestacin, clavaric acid, betaenone C, and dehydroprobetaenone I (Figure 6; Table S5). However, the biosynthetic products of the remaining BGCs in strain L6 remain uncharacterized and are yet to be elucidated.

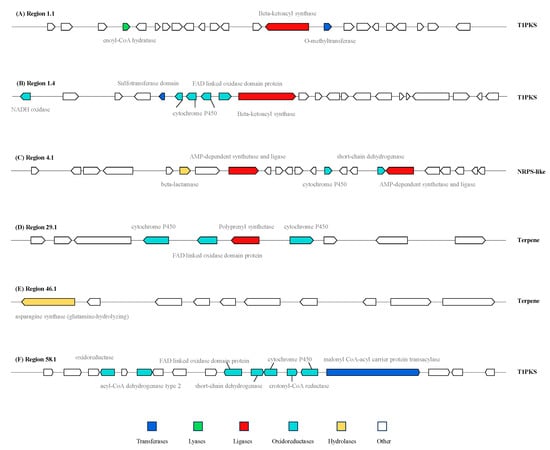

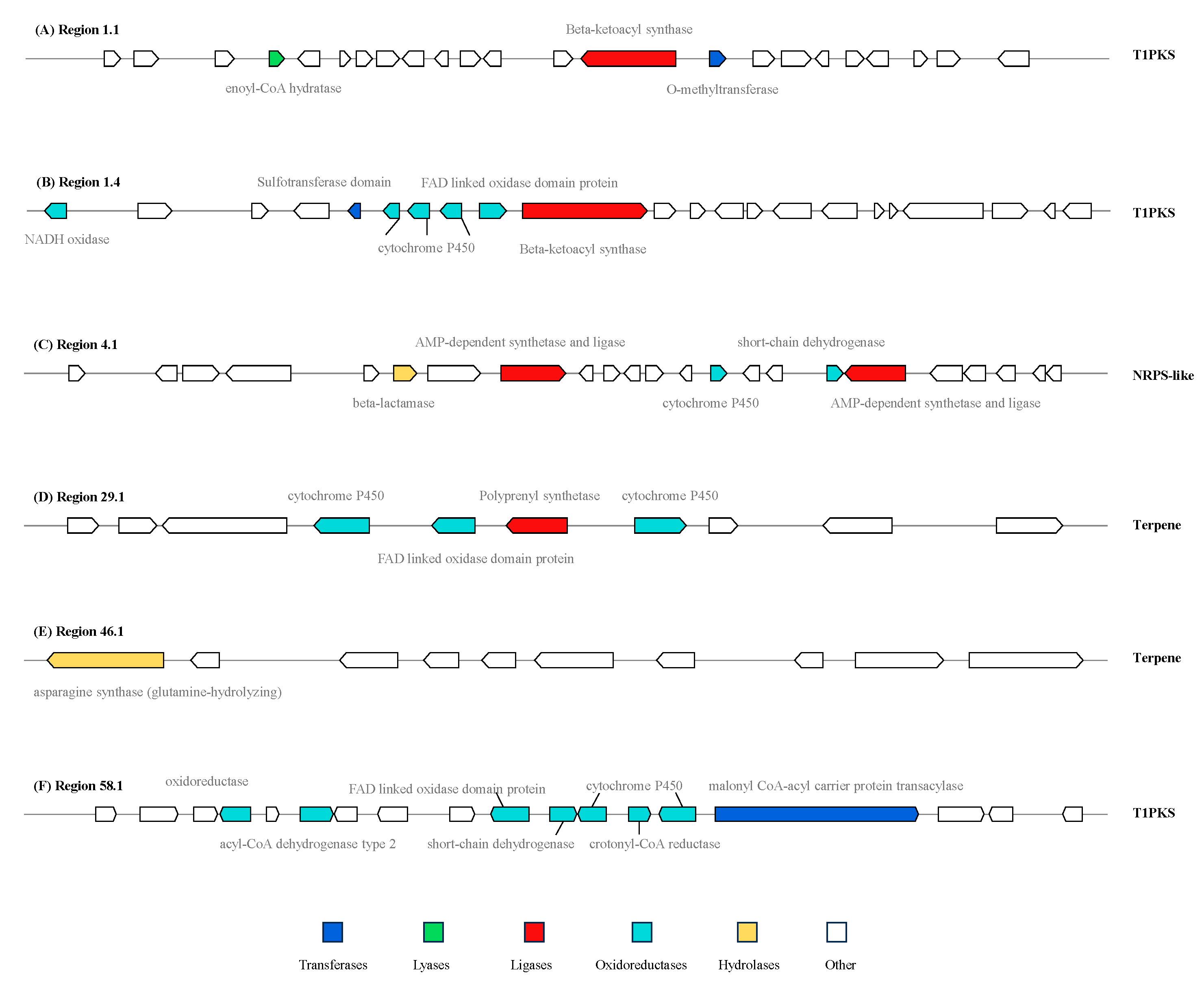

Region 1.1 has been annotated as alternariol (AOH) and displayed high similarity with the BGC of AOH from Parastagonospora nodorum SN15 (GenBank: KP941080.1). The core biosynthetic gene FUN_000234 is a PKS-related enzyme, showing high homology with the key AOH synthesis gene polyketide synthase pksI (JX103644.1). This gene typically co-expresses with O-methyltransferases, FAD-dependent monooxygenases, short-chain dehydrogenases, and other enzymes to produce alternariol derivatives. As a toxic metabolite of Alternaria fungi, AOH exerts its effects by disrupting glutathione metabolism, interfering with redox system-related enzymes, and inducing DNA damage [29]. Interestingly, recent studies have revealed its diverse potential pharmacological activities, including cytotoxic effects mediated by reactive oxygen species (ROS)-induced oxidative stress and mitochondrial dysfunction, anti-inflammatory properties, cell cycle arrest, apoptotic cell death, genotoxicity, mutagenicity, anti-proliferative effects, autophagy modulation, along with estrogenic and clastogenic mechanisms, making it a promising candidate for a chemotherapeutic agent (Figure 7A; Figure S1A) [30].
Region 1.4 exhibits significant similarity with the BGC of alternapyrone in A. solani (GenBank: AB120221.1). The pksC gene (JX103638.1), with 99.96% similarity, is critical for alternapyrone biosynthesis. Alternapyrone is a decaketide synthesized by a type I polyketide synthase in A. solani. Structurally, it is a 2H-pyran-2-one derivative in which the hydrogens at positions 3, 4, 5, and 6 are replaced by a methyl, hydroxy, methyl, and (4E,6E,12E)-4,6,8,12,14-pentamethylhexadeca-4,6,12-trien-2-yl group, respectively. It is classified as an olefinic compound, a 2-pyranone, a heteroaryl hydroxy compound, and a decaketide. Notably, certain compounds in this class exhibit phytotoxic effects on wheat seed germination (Figure 7B; Figure S1B) [31].
Region 4.1 belongs to a BGC of choline containing an NRPS gene (GenBank: AN5318.2), which has been confirmed to participate in the biosynthesis of choline-related secondary metabolites in Aspergillus nidulans [32]. These metabolites serve as essential compounds for filamentous fungal growth, play a crucial role in hyphal morphology regulation, and act as vital micronutrients critical for cellular and organismal homeostasis [33,34]. Studies have shown that the choline-glycine betaine biosynthesis pathway plays a key physiological role in bacterial adaptation to high osmotic stress (Figure 7C; Figure S1C) [35].
Region 46.1 was found to harbor clavaric acid, an anticancer terpenoid compound that also acts as a reversible farnesyltransferase inhibitor with an IC50 of 1.3 μM [36,37]. The core terpene gene in this region exhibits high sequence similarity to EU665687.1 within BGC0001248 (Figure 7E; Figure S1D).
Region 29.1 and Region 58.1 contain biosynthetic gene clusters (BGCs) capable of synthesizing diverse compounds. The BGC in Region 29.1, classified as a terpene cluster (GenBank: KB445573.1), can produce terpestacin, preterpestacin 3, preterpestacin 2, or preterpestacin 1. Terpestacin, a small fungal toxin, exhibits phytotoxic effects but also inhibits tumor angiogenesis by targeting Ubiquinol-Cytochrome C Reductase Binding (UQCRB) of mitochondrial complex III, suppressing hypoxia-induced ROS production, and disrupting cellular oxygen sensing [38]. Among the preterpestacins, preterpestacin 1 has been studied most extensively and is implicated in diverse functions, including cellular metabolism and enzymatic substrate interactions (Figure 7D; Figure S1E) [39].
The BGC in Region 58.1 corresponds to an unidentified polyketide synthase (PKS) cluster, showing similarity to the betaenone C cluster in P. nodorum (GenBank: CH445335.1). In addition to betaenone C, this cluster may generate probetaenone I (a biosynthetic intermediate of the phytotoxin betaenone B), stemphyloxin II (a novel phytotoxic compound), compound 3-5 (unknown structure), and dehydroprobetaenone I (a lead compound for drug discovery) (Figure 7F; Figure S1F) [40,41,42]. The discovery of these biosynthetic clusters provides a robust foundation for identifying metabolites associated with strain L6, while highlighting strain L6 as a significant source of bioactive terpenoids.

3.7. Metabolism of Terpenoids and Polyketides in L6

Based on the antiSMASH database results, L6 was predicted to induce blackening and decay of strawberry leaves primarily by producing phytotoxic metabolites, including terpenoids and polyketides. Five metabolic pathways related to terpenoids and polyketides were annotated in strain L6: Terpenoid backbone biosynthesis, Limonene and pinene degradation, nonribosomal peptide structures, Carotenoid biosynthesis, and Geraniol degradation (Table 3).

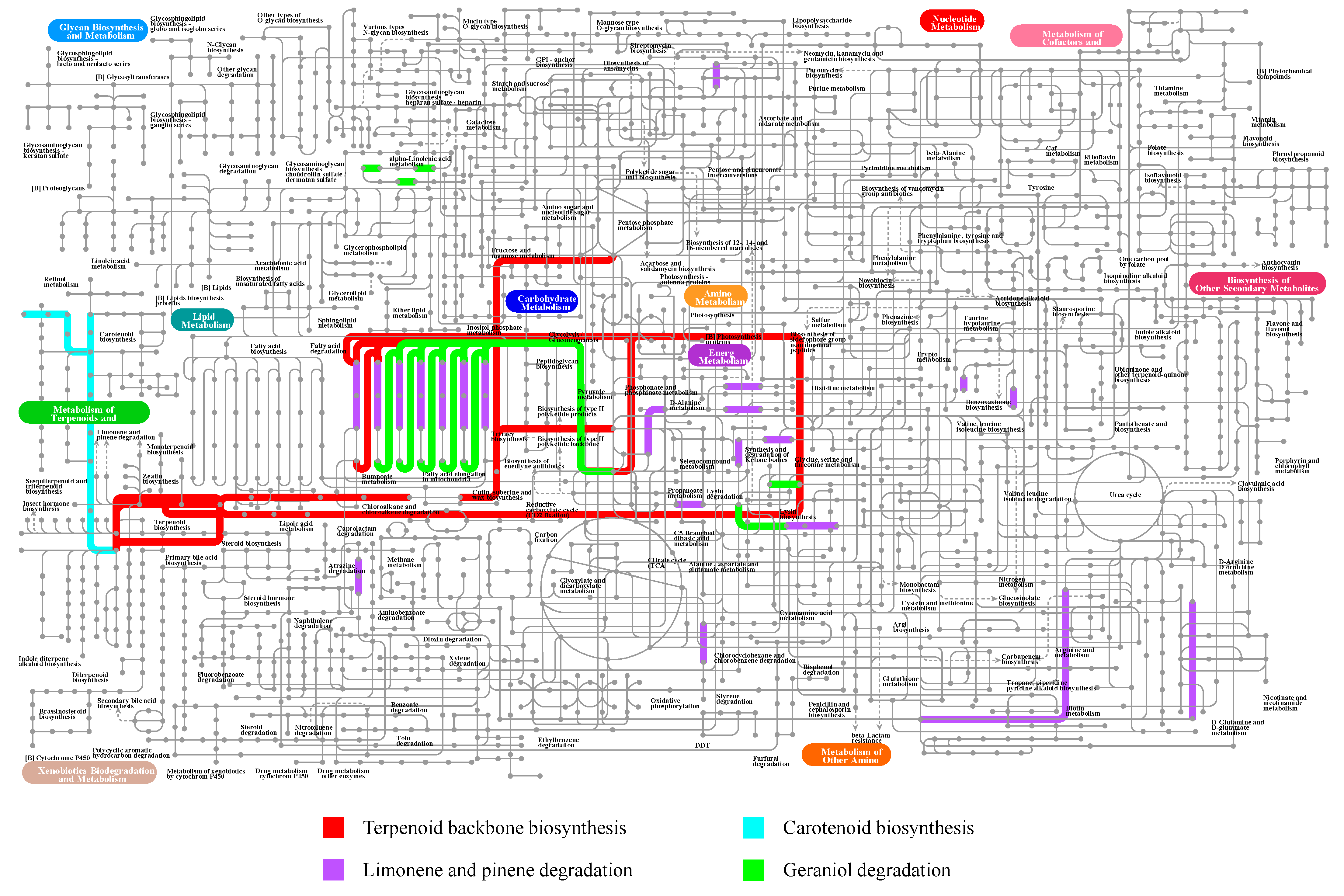

Based on the whole-genome KEGG functional annotation results of strain L6, the annotated metabolic pathways related to terpenoids and polyketides were visualized using the iPath online tool, with the results presented in Figure 8 (The pathway map for nonribosomal peptide structures (ko01054) is shown in Figure S2). Taking the terpenoid backbone biosynthesis pathway as an example, terpenoid synthesis in strain L6 initiates from C5 units, primarily synthesized via the mevalonate pathway. Subsequently, these C5 building blocks undergo condensation catalyzed by prenyltransferases to form longer-chain isoprenoid precursors. The synthesis of C10–C20 isoprenoid compounds occurs predominantly in the cytoplasm and relies on the mevalonate pathway.

3.8. Prediction of Secreted Proteins and RxLx [EDQ] Effector Candidates

Using SignalP V4.1 and TMHMM-2.0 to predict N-terminal signal peptides and transmembrane domains of ORFs, respectively, we screened the genome of strain L6 for secreted protein-coding genes that may serve as effector candidates. A total of 996 secreted protein-coding genes were identified, accounting for 7.8% of the predicted genes.
“The secretome” refers to the collection of proteins containing signal peptides, which are processed via the endoplasmic reticulum and Golgi apparatus before secretion [43]. Secreted proteins are common across organisms from bacteria to humans and serve diverse functions. These functions include roles in the immune system [44], neurotransmitter activity in the nervous system [45], hormone/pheromone signaling [46], nutrient acquisition [47,48,49], cell wall construction and remodeling [50], signal transduction and environmental sensing [51], as well as competition with other organisms [52,53,54,55]. Some secreted proteins in pathogens act as effectors with specialized features to manipulate and/or disrupt host cells. In Plasmodium and Phytophthora species, effectors carry the RXLX [EDQ] or RXLR motif as host-targeting signals. Since strain L6 was pathogenic to strawberry leaves, the 996 secreted proteins identified in L6 were further analyzed, revealing 42 that contained the RxLx [EDQ] motif domain. As cloned effectors interacting with plants in fungi and oomycetes are typically no longer than 300 amino acids, additional screening identified secreted proteins possessing the RxLx [EDQ] motif within 300 amino acids downstream of the N-terminal signal peptide. This process yielded five effector candidate proteins harboring two conserved RxLx [EDQ] domains (Figure 9).

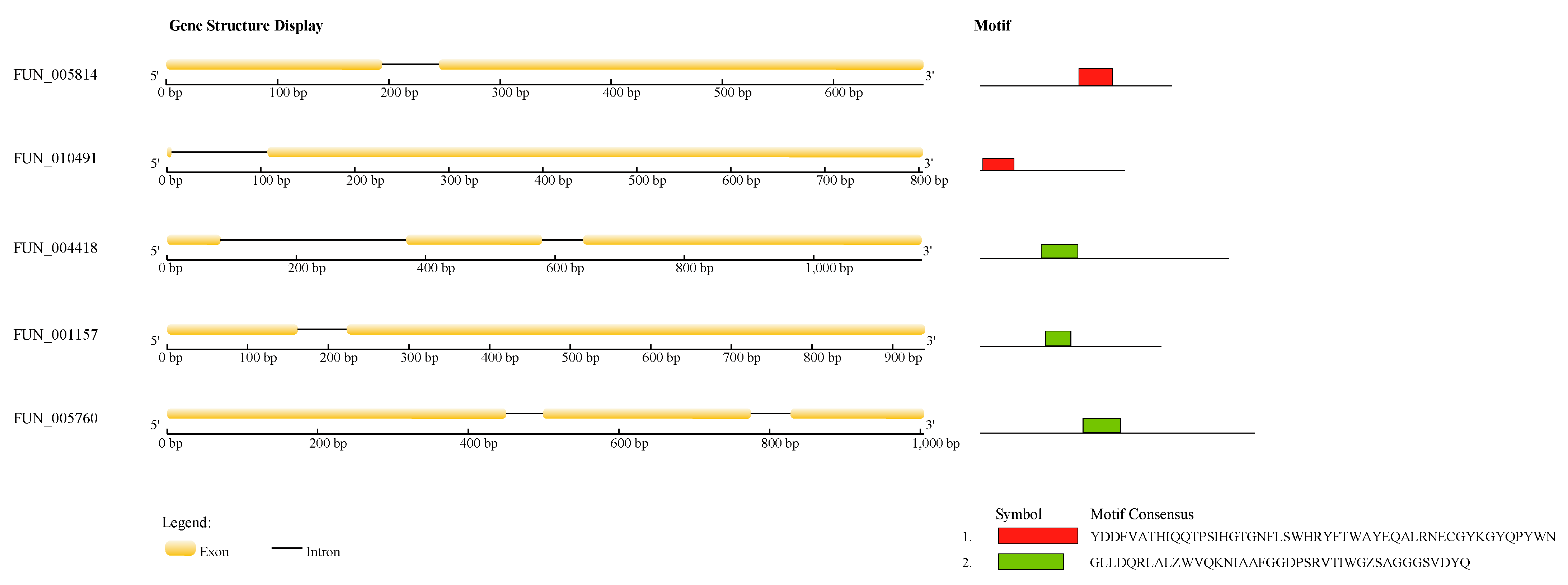

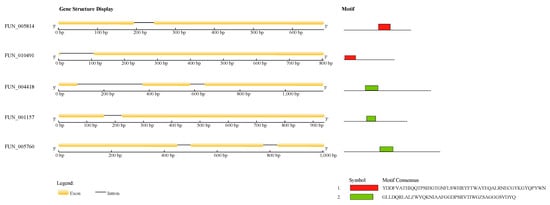

We performed homology analysis of the five effector proteins using the BLASTp (NCBI, default parameters). Results showed that FUN_010491 and FUN_004418 were annotated as hypothetical proteins, while FUN_005814, FUN_001157, and FUN_005760 were annotated as a di-copper center-containing protein, a carbohydrate esterase family 1 protein, and an uncharacterized protein J4E82_008103, respectively. Remarkably, FUN_001157 and FUN_005760 exhibited 100% sequence homology in the alignment (Table 4).
Domain and enrichment analyses revealed no significant association between the domains of these five proteins and pathogenicity. However, given the critical role of RxLR effectors in the pathogenic mechanisms of certain fungi, functional characterization of proteins harboring the RxLx [EDQ] motif in the secretome of L6 will be a key focus of subsequent research [56].

4. Discussion

Alternaria is a common cause of black spot disease, capable of both plant parasitism and saprophytism in the natural environment. As a pathogen, it infects crops like sugar beet (Beta vulgaris) [57] and Labiatae (Ocimum basilicum) [58], commonly causing leaf spot [59]. The Alternaria can also survive in soil and on plant residues, under suitable conditions, it spreads easily between environments and hosts. Therefore, diseases caused by this fungus require serious attention [60]. This study demonstrates that A. alstroemeriae can cause leaf spot disease in strawberries in Zhengzhou, China.
To further explore the pathogenic mechanism, a high-quality de novo genome of A. alstroemeriae L6 was obtained via whole-genome sequencing and assembly. The genome of strain L6 is 38.7 Mb, larger than most sequenced Alternaria strains. It has a high BGCs count (45 clusters), underscores substantial secondary metabolite (SM) potential, dominated by T1PKS, terpene, and NRPS systems. The identification of BGCs for alternariol, alternapyrone, and betaenone derivatives aligns with L6’s role as a strawberry pathogen and holds critical significance for plant pathology research and disease management.
These phytotoxins are inferred to disrupt host physiology through multiple potential mechanisms: alternariol interferes with glutathione metabolism and induces DNA damage [29], alternapyrone inhibits wheat seed germination by targeting early embryonic development [31], and betaenone derivatives cause necrotic tissue damage [40]. The presence of these toxin-encoding gene clusters not only provides molecular markers for rapid pathogen diagnosis but also identifies novel targets for disease control. For example, developing small-molecule inhibitors against the beta-ketoacyl synthase (a core enzyme in T1PKS-mediated alternapyrone synthesis) could block toxin production, reducing the severity of leaf spot without relying on broad-spectrum fungicides—alleviating environmental pressure and delaying the evolution of fungicide resistance.
Notably, the presence of biosynthetic gene clusters for compounds with reported anticancer properties—such as clavaric acid and terpestacin—highlights the potential of strain L6 as a valuable source of bioactive molecules. The identification of the terpene biosynthetic gene cluster responsible for clavaric acid production (Region 46.1) suggests promising opportunities for future biotechnological exploitation. For instance, heterologous expression of this cluster in engineered microbial hosts could facilitate improved production yields, thereby enabling more efficient exploration of its pharmacological properties. Furthermore, clavaric acid is known to irreversibly inhibit β-lactamase activity, enhancing the efficacy of penicillin and cephalosporin antibiotics against enzyme-producing resistant bacteria [61]. Such an approach may eventually provide a more stable and scalable source of clavaric acid for further preclinical drug development. Similarly, terpestacin (encoded by Region 29.1), which has been reported to inhibit tumor angiogenesis through binding to UQCRB in mitochondrial complex III [38], offers promising avenues for future research. Characterization of its gene cluster may support structure–activity relationship (SAR) studies.
The relatively low CAZyme count (596 genes) compared to other typical Alternaria strains, combined with the dominance of GHs and AAs, leads us to postulate that strain L6 employs targeted degradation of plant cell wall components during early invasion. Importantly, this CAZyme profile may synergize with secondary metabolite production: GH-mediated breakdown of strawberry cell wall cellulose and hemicellulose not only creates physical entry points for L6 but also releases oligosaccharide signals that can potentially induce the expression of toxin biosynthetic gene clusters [62]. To further validate this hypothesized mechanism, we plan to conduct integrated metabolomic and transcriptomic analyses to elucidate the precise pathogenic strategies employed by strain L6.
Notably, five secreted proteins harboring the RxLx [EDQ] effector motif were identified. While homology analysis linked two to hypothetical proteins and others to carbohydrate esterases or copper-binding domains, no domains were directly associated with established virulence mechanisms. This suggests L6 may employ novel effectors or that RxLx [EDQ] motifs function synergistically with other uncharacterized domains. The presence of these motifs—analogous to RxLR effectors in oomycetes-hints at conserved strategies for host manipulation, though functional validation is needed.
The A. alstroemeriae can cause plant disease, such as in Nicotiana tabacum L. and Caryota mitis L. [25,63]. In this experiment, we report A. alstroemeriae causing leaf spot on strawberry in China, its growth leads to plant wilting and death, potentially causing economic loss. Additionally, some species within the Alternaria genus produce toxins; future research will focus on their toxin production and control in A. alstroemeriae. In this study, we sequenced and analyzed the genome of strain L6 to assess its plant-pathogenic toxins and pharmacologically valuable compounds, which can provide a reference basis for diagnosing black spot disease caused by A. alstroemeriae on strawberry.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/jof11100710/s1, Table S1: Genome assembly integrity assessment for strain L6; Table S2: Typical strains genomic features of Alternaria available in the NCBI database; Table S3: NR, KOG, KEGG, Swiss-Prot, and GO databases in strain L6; Table S4: CAZyme profiles of strain L6 and other typical Alternaria strains deposited in CAZyme database; Table S5: Secondary metabolite BGCs of strain L6 by antiSMASH analysis; Figure S1: Six identified BGCs with high identity in strain L6 responsible for biosynthesis; Figure S2: The pathway map for nonribosomal peptide structures (ko01054).

Author Contributions

B.Z. and L.S. performed the experiments and analyzed the data. L.Z., B.Z., and L.S. drafted and revised the manuscript. L.Z. and B.Z. performed project management, designed the study, and finalized the manuscript. L.Z. and Y.H. provided the research material and managed the project. X.Z., M.Y., Z.W., Y.Z., Y.L., Y.W., and P.L. performed data collection. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported, in part, by the Open Project Program of the National Engineering Research Center of Wheat and Corn Further Processing, Henan University of Technology (no. NL2023004), the Fund of the Institute of Complexity Science, Henan University of Technology (no. CSKFJJ-2025-35), the Undergraduate Research Training Program of Henan University of Technology, the Cultivation Programme for Young Backbone Teachers in Henan University of Technology (no. 21420168), the Major Science and Technology Project of Henan Province (no. 231100110300, 221100110700).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The whole genome sequencing data for strain L6 have been deposited in the GenBank database under the accession number JBRANC000000000. The original contributions presented in this study are included in the article/Supplementary Material. Further inquiries can be directed to the corresponding author(s).

Conflicts of Interest

The authors declare no conflicts of interest. All the experiments undertaken in this study comply with the current laws of the country where they were performed.

References

  1. Li, J.F.; Jiang, H.B.; Jeewon, R.; Hongsanan, S.; Bhat, S.M.; Tang, S.; Lumyong, P.E.; Mortimer, J.C.; Xu, E.; Camporesi, T.S.; et al. Alternaria: Update on species limits, evolution, multi-locus phylogeny, and classification. Stud. Fungi 2023, 8, 1. [Google Scholar] [CrossRef]
  2. Demers, M. Alternaria alternata as endophyte and pathogen. Microbiology 2022, 168, 001153. [Google Scholar] [CrossRef] [PubMed]
  3. Yang, Y.; Gan, Y.; Xu, W.; Huang, Y.; Xin, T.; Tan, R.; Song, J. Analysis of whole-genome for Alternaria species identification. J. Fungi 2025, 11, 185. [Google Scholar] [CrossRef] [PubMed]
  4. Fu, Y.; Zhang, X.F.; Liu, S.H.; Hu, K.L.; Wu, X.H. Characterization of Alternaria species associated with black spot of strawberry in Beijing municipality of China. Can. J. Plant. Pathol. 2020, 42, 235–242. [Google Scholar] [CrossRef]
  5. Kim, N.E.; Dettman, J.R. Genome mining reveals the distribution of biosynthetic gene clusters in Alternaria and related fungal taxa within the family Pleosporaceae. BMC Genom. 2025, 26, 678. [Google Scholar] [CrossRef]
  6. Saxena, S. Biologically Active Secondary Metabolites from Endophytic Alternaria Species. In Endophytes: Potential Source of Compounds of Commercial and Therapeutic Applications; Patil, R.H., Maheshwari, V.L., Eds.; Springer: Singapore, 2021. [Google Scholar] [CrossRef]
  7. Zhao, S.; Li, J.; Liu, J.; Xiao, S.; Yang, S.; Mei, J.; Ren, M.; Wu, S.; Zhang, H.; Yang, X. Secondary metabolites of Alternaria: A comprehensive review of chemical diversity and pharmacological properties. Front. Microbiol. 2022, 13, 1085666. [Google Scholar] [CrossRef]
  8. Nivina, A.; Yuet, K.P.; Hsu, J.; Khosla, C. Evolution and diversity of assembly-line polyketide synthases. Chem. Rev. 2019, 119, 12524–12547. [Google Scholar] [CrossRef]
  9. Singh, M.; Chaudhary, S.; Sareen, D. Non-ribosomal peptide synthetases: Identifying the cryptic gene clusters and decoding the natural product. J. Biosci. 2017, 42, 175–187. [Google Scholar] [CrossRef]
  10. Korres, N.E.; Burgos, N.R.; Duke, S.O. (Eds.) Weed Control: Sustainability, Hazards, and Risks in Cropping Systems Worldwide, 1st ed.; CRC Press: Boca Raton, FL, USA, 2018. [Google Scholar]
  11. Dall’asta, C.; Cirlini, M.; Falavigna. Chapter Three—Mycotoxins from Alternaria: Toxicological Implications. In Advances in Molecular Toxicology; Fishbein, J.C., Heilman, J.M., Eds.; Elsevier: Amsterdam, The Netherlands, 2014; pp. 107–121. [Google Scholar]
  12. Lou, J.; Fu, L.; Peng, Y.; Zhou, L. Metabolites from Alternaria fungi and their bioactivities. Molecules 2013, 18, 5891–5935. [Google Scholar] [CrossRef]
  13. Takaoka, S.; Kurata, M.; Harimoto, Y.; Hatta, R.; Yamamoto, M.; Akimitsu, K.; Tsuge, T. Complex regulation of secondary metabolism controlling pathogenicity in the phytopathogenic fungus Alternaria alternata. New Phytol. 2014, 202, 1297–1309. [Google Scholar] [CrossRef]
  14. Howlett, B.J. Secondary metabolite toxins and nutrition of plant pathogenic fungi. Curr. Opin. Plant Biol. 2006, 9, 371–375. [Google Scholar] [CrossRef] [PubMed]
  15. Tsuge, T.; Harimoto, Y.; Akimitsu, K.; Ohtani, K.; Kodama, M.; Akagi, Y.; Egusa, M.; Yamamoto, M.; Otani, H. Host-selective toxins produced by the plant pathogenic fungus Alternaria alternata. FEMS Microbiol. Rev. 2013, 37, 44–66. [Google Scholar] [CrossRef]
  16. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular Evolutionary Genetics Analysis across Computing Platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef]
  17. Ng, P.C.; Kirkness, E.F. Whole genome sequencing. Methods Mol. Bio 2010, 628, 215–226. [Google Scholar] [CrossRef]
  18. Waterhouse, R.M.; Seppey, M.; Simão, F.A.; Manni, M.; Ioannidis, P.; Klioutchnikov, G.; Kriventseva, E.V.; Zdobnov, E.M. BUSCO Applications from Quality Assessments to Gene Prediction and Phylogenomics. Mol. Biol. Evol. 2018, 35, 543–548. [Google Scholar] [CrossRef] [PubMed]
  19. Majoros, W.H.; Pertea, M.; Salzberg, S.L. TigrScan and GlimmerHMM: Two open source ab initio eukaryotic gene-finders. Bioinformatics 2004, 20, 2878–2879. [Google Scholar] [CrossRef] [PubMed]
  20. Stanke, M.; Morgenstern, B. AUGUSTUS: A web server for gene prediction in eukaryotes that allows user-defined constraints. Nucleic Acids Res. 2005, 33, W465–W467. [Google Scholar] [CrossRef]
  21. Korf, I. Gene finding in novel genomes. BMC Bioinform. 2004, 5, 59. [Google Scholar] [CrossRef]
  22. Haas, B.J.; Salzberg, S.L.; Zhu, W.; Pertea, M.; Allen, J.E.; Orvis, J.; White, O.; Buell, C.R.; Wortman, J.R. Automated eukaryotic gene structure annotation using EVidenceModeler and the Program to Assemble Spliced Alignments. Genome Biol. 2008, 9, R7. [Google Scholar] [CrossRef]
  23. Lowe, T.M.; Eddy, S.R. tRNAscan-SE: A program for improved detection of transfer RNA genes in genomic sequence. Nucleic Acids Res. 1997, 25, 955–964. [Google Scholar] [CrossRef] [PubMed]
  24. Letunic, I.; Doerks, T.; Bork, P. SMART 7: Recent updates to the protein domain annotation resource. Nucleic Acids Res. 2012, 40, D302–D305. [Google Scholar] [CrossRef]
  25. Zhou, Z.C.; Tang, X.; Hu, S.; Zhu, W.; Wu, X.; Sang, W.J.; Peng, L.; Ding, H. First report of grey spot on tobacco caused by Alternaria alstroemeriae in China. Plant Dis. 2023, 107, 2546. [Google Scholar] [CrossRef]
  26. Yamagishi, N.; Nishikawa, J.; Oshima, Y.; Eguchi, N. Black spot disease of alstroemeria caused by Alternaria alstroemeriae in Japan. J. Gen. Plant Pathol. 2009, 75, 401–403. [Google Scholar] [CrossRef]
  27. Tao, J.; Bai, X.; Zeng, M.; Li, M.; Hu, Z.; Hua, Y.; Zhang, H. Whole-Genome Sequence Analysis of an Endophytic Fungus Alternaria sp. SPS-2 and Its Biosynthetic Potential of Bioactive Secondary Metabolites. Microorganisms 2022, 10, 1789. [Google Scholar] [CrossRef]
  28. Zhao, Z.; Liu, H.; Wang, C.; Xu, J.R. Comparative analysis of fungal genomes reveals different plant cell wall degrading capacity in fungi. BMC Genom. 2013, 14, 274. [Google Scholar] [CrossRef]
  29. Wenderoth, M.; Garganese, F.; Schmidt-Heydt, M.; Soukup, S.T.; Ippolito, A.; Sanzani, S.M.; Fischer, R. Alternariol as virulence and colonization factor of Alternaria alternata during plant infection. Mol. Microbiol. 2019, 112, 131–146. [Google Scholar] [CrossRef] [PubMed]
  30. Islam, M.T.; Martorell, M.; González-Contreras, C.; Villagran, M.; Mardones, L.; Tynybekov, B.; Docea, A.O.; Abdull Razis, A.F.; Modu, B.; Calina, D.; et al. An updated overview of anticancer effects of alternariol and its derivatives: Underlying molecular mechanisms. Front. Pharmacol. 2023, 14, 1099380. [Google Scholar] [CrossRef] [PubMed]
  31. Li, H.; Hu, J.; Wei, H.; Solomon, P.S.; Vuong, D.; Lacey, E.; Stubbs, K.A.; Piggott, A.M.; Chooi, Y.H. Chemical Ecogenomics-Guided Discovery of Phytotoxic α-Pyrones from the Fungal Wheat Pathogen Parastagonospora nodorum. Org. Lett. 2018, 20, 6148–6152. [Google Scholar] [CrossRef]
  32. Hai, Y.; Huang, A.M.; Tang, Y. Structure-guided function discovery of an NRPS-like glycine betaine reductase for choline biosynthesis in fungi. Proc. Natl. Acad. Sci. USA 2019, 116, 10348–10353. [Google Scholar] [CrossRef] [PubMed]
  33. Kenny, T.C.; Scharenberg, S.; Abu-Remaileh, M.; Birsoy, K. Cellular and organismal function of choline metabolism. Nat. Metab. 2025, 7, 35–52. [Google Scholar] [CrossRef]
  34. Markham, P.; Robson, G.D.; Bainbridge, B.W.; Trinci, A.P. Choline: Its role in the growth of filamentous fungi and the regulation of mycelial morphology. FEMS Microbiol. Rev. 1993, 10, 287–300. [Google Scholar] [CrossRef] [PubMed]
  35. Yang, T.; Nian, Y.; Lin, H.; Li, J.; Lin, X.; Li, T.; Wang, R.; Wang, L.; Beattie, G.A.; Zhang, J.; et al. Structure and mechanism of the osmoregulated choline transporter BetT. Sci. Adv. 2024, 10, eado6229. [Google Scholar] [CrossRef] [PubMed]
  36. Lingham, R.B.; Silverman, K.C.; Jayasuriya, H.; Kim, B.M.; Amo, S.E.; Wilson, F.R.; Rew, D.J.; Schaber, M.D.; Bergstrom, J.D.; Koblan, K.S.; et al. Clavaric acid and steroidal analogues as Ras- and FPP-directed inhibitors of human farnesyl-protein transferase. J. Med. Chem. 1998, 41, 4492–4501. [Google Scholar] [CrossRef]
  37. Godio, R.P.; Fouces, R.; Martín, J.F. A squalene epoxidase is involved in biosynthesis of both the antitumor compound clavaric acid and sterols in the basidiomycete H. sublateritium. Chem. Biol. 2007, 14, 1334–1346. [Google Scholar] [CrossRef] [PubMed]
  38. Jung, H.J.; Shim, J.S.; Lee, J.; Song, Y.M.; Park, K.C.; Choi, S.H.; Kim, N.D.; Yoon, J.H.; Mungai, P.T.; Schumacker, P.T.; et al. Terpestacin inhibits tumor angiogenesis by targeting UQCRB of mitochondrial complex III and suppressing hypoxia-induced reactive oxygen species production and cellular oxygen sensing. J. Biol. Chem. 2010, 285, 11584–11595. [Google Scholar] [CrossRef]
  39. Ćeranić, A.; Svoboda, T.; Berthiller, F.; Sulyok, M.; Samson, J.M.; Güldener, U.; Schuhmacher, R.; Adam, G. Identification and Functional Characterization of the Gene Cluster Responsible for Fusaproliferin Biosynthesis in Fusarium proliferatum. Toxins 2021, 13, 468. [Google Scholar] [CrossRef]
  40. Chen, X.; Yu, J.; Zhong, B.; Lu, J.; Lu, J.J.; Li, S.; Lu, Y. Pharmacological activities of dihydrotanshinone I, a natural product from Salvia miltiorrhiza Bunge. Pharmacol. Res. 2019, 145, 104254. [Google Scholar] [CrossRef]
  41. Manulis, S.; Kashman, Y.; Netzert, D.; Barash, I. Phytotoxins from Stemphylium botryosum: Structural determination of stemphyloxin II, production in culture, and interaction with iron. Phytochemistry 1984, 23, 2193–2198. [Google Scholar] [CrossRef]
  42. Oikawa, H.; Ichihara, A.; Sakamura, S. Simple, efficient method for studying biosynthetic oxidation using P-450 inhibitors: Late oxidative modification in betaenone B biosynthesis. J. Chem. Soc. Chem. Commun. 1990, 13, 908–909. [Google Scholar] [CrossRef]
  43. Lippincott-Schwartz, J.; Roberts, T.H.; Hirschberg, K. Secretory protein trafficking and organelle dynamics in living cells. Annu. Rev. Cell Dev. Biol. 2000, 16, 557–589. [Google Scholar] [CrossRef]
  44. Abbas, K.A.; Lichtman, H.A.; Pillai, S. Cellular and Molecular Immunilogy; Saunders: Philadelphia, PA, USA, 2006; p. 6. [Google Scholar]
  45. Cho, W.J.; Jeremic, A.; Rognlien, K.T.; Zhvania, M.G.; Lazrishvili, I.; Tamar, B.; Jena, B.P. Structure, isolation, composition and reconstitution of the neuronal fusion pore. Cell Biol. Int. 2004, 28, 699–708. [Google Scholar] [CrossRef]
  46. Cho, S.J.; Jeftinija, K.; Glavaski, A.; Jeftinija, S.; Jena, B.P.; Anderson, L.L. Structure and dynamics of the fusion pores in live GH-secreting cells revealed using atomic force microscopy. Endocrinology 2002, 143, 1144–1148. [Google Scholar] [CrossRef]
  47. Suárez, M.B.; Sanz, L.; Chamorro, M.I.; Rey, M.; González, F.J.; Llobell, A.; Monte, E. Proteomic analysis of secreted proteins from Trichoderma harzianum. Identification of a fungal cell wall-induced aspartic protease. Fungal Genet. Biol. 2005, 42, 924–934. [Google Scholar] [CrossRef]
  48. Vanden Wymelenberg, A.; Minges, P.; Sabat, G.; Martinez, D.; Aerts, A.; Salamov, A.; Grigoriev, I.; Shapiro, H.; Putnam, N.; Belinky, P.; et al. Computational analysis of the Phanerochaete chrysosporium v2.0 genome database and mass spectrometry identification of peptides in ligninolytic cultures reveal complex mixtures of secreted proteins. Fungal Genet. Biol. 2006, 43, 343–356. [Google Scholar] [CrossRef] [PubMed]
  49. Vinzant, T.B.; Adney, W.S.; Decker, S.R.; Baker, J.O.; Kinter, M.T.; Sherman, N.E.; Fox, J.W.; Himmel, M.E. Fingerprinting Trichoderma reesei hydrolases in a commercial cellulase preparation. Appl. Biochem. Biotechnol. 2001, 91–93, 99–107. [Google Scholar] [CrossRef] [PubMed]
  50. Lesage, G.; Bussey, H. Cell wall assembly in Saccharomyces cerevisiae. Microbiol. Mol. Biol. Rev. 2006, 70, 317–343. [Google Scholar] [CrossRef]
  51. Waters, C.M.; Bassler, B.L. Quorum sensing: Cell-to-cell communication in bacteria. Annu. Rev. Cell Dev. Biol. 2005, 21, 319–346. [Google Scholar] [CrossRef]
  52. Cornelis, G.R.; Van Gijsegem, F. Assembly and function of type III secretory systems. Annu. Rev. Microbiol. 2000, 54, 735–774. [Google Scholar] [CrossRef]
  53. Kamoun, S. A catalogue of the effector secretome of plant pathogenic oomycetes. Annu. Rev. Phytopathol. 2006, 44, 41–60. [Google Scholar] [CrossRef] [PubMed]
  54. Hiller, N.L.; Bhattacharjee, S.; van Ooij, C.; Liolios, K.; Harrison, T.; Lopez-Estraño, C.; Haldar, K. A host-targeting signal in virulence proteins reveals a secretome in malarial infection. Science 2004, 306, 1934–1937. [Google Scholar] [CrossRef] [PubMed]
  55. Marti, M.; Good, R.T.; Rug, M.; Knuepfer, E.; Cowman, A.F. Targeting malaria virulence and remodeling proteins to the host erythrocyte. Science 2004, 306, 1930–1933. [Google Scholar] [CrossRef]
  56. Zhang, D.; He, J.Y.; Haddadi, P.; Zhu, J.H.; Yang, Z.H.; Ma, L. Genome sequence of the potato pathogenic fungus Alternaria solani HWC-168 reveals clues for its conidiation and virulence. BMC Microbiol. 2018, 18, 176. [Google Scholar] [CrossRef]
  57. Khan, M.F.R.; Haque, M.E.; Bloomquist, M.; Bhuiyan, M.Z.R.; Brueggeman, R.; Zhong, S.; Poudel, R.S.; Gross, T.; Hakk, P.; Leng, Y.; et al. First report of Alternaria leaf spot caused by Alternaria tenuissima on sugar beet (Beta vulgaris) in Minnesota, USA. Plant Dis. 2019, 104, 580. [Google Scholar] [CrossRef]
  58. Al-Lami, H.F.D.; You, M.P.; Barbetti, J. Incidence, pathogenicity, and diversity of Alternaria spp. associated with alternaria leaf spot of canola (Brassica napus) in Australia. Plant Pathol. 2019, 68, 492–503. [Google Scholar] [CrossRef]
  59. Toome-Heller, M.; Jeyaseelan, B.; Graham, B.; Alexander, B. First report of apple leaf blotch caused by Alternaria arborescens complex in New Zealand. N. Z. J. Crop Hortic. Sci. 2018, 46, 354–359. [Google Scholar] [CrossRef]
  60. Luo, M.; Jia, W.; Zeng, Y.; Guo, Q.; Liu, J.; Zhang, H.; Jiang, Y. First report of Alternaria arborescens causing white spot disease on Chinese chive in China. Crop. Prot. 2024, 177, 106554. [Google Scholar] [CrossRef]
  61. Lang, P.A.; de Munnik, M.; Oluwole, A.O.; Claridge, T.D.W.; Robinson, C.V.; Brem, J.; Schofield, C.J. How clavulanic acid inhibits serine β-lactamases. Chembiochem 2024, 25, e202400280. [Google Scholar] [CrossRef] [PubMed]
  62. Oka, K.; Akamatsu, H.; Kodama, M.; Nakajima, H.; Otani, H. Host-specific ab-toxin production by germinating spores of alternaria brassicicola is induced by a host-derived oligosaccharide. Physiol. Mol. Plant Pathol. 2005, 66, 12–19. [Google Scholar] [CrossRef]
  63. Ul Haq, I.; Ijaz, S.; Faraz, A.; Sarwar, M.K.; Latif, M.Z.; Khan, N.A. First report of leaf spots in Caryota mitis L. caused by Alternaria alstroemeriae in Pakistan. J. Plant Pathol. 2020, 102, 585. [Google Scholar] [CrossRef]
Jof 11 00710 g001
Figure 1. (A) Colony and spore morphology of Alternaria alstroemeriae L6. (a–c), Extensive onset on Strawberry plants; (d,e), Colonies on PDA above and below. (f–p), Conidia. Scale bars: (f–p) = 10 μm; (B), A. alstroemeriae L6 infects strawberry leaves. (a–c), The infection of strain L6 on strawberry leaves. (d–i) The spore of strain L6 in the leaves of diseased strawberries. Scale bars: (d–i) = 10 μm.
Figure 1. (A) Colony and spore morphology of Alternaria alstroemeriae L6. (a–c), Extensive onset on Strawberry plants; (d,e), Colonies on PDA above and below. (f–p), Conidia. Scale bars: (f–p) = 10 μm; (B), A. alstroemeriae L6 infects strawberry leaves. (a–c), The infection of strain L6 on strawberry leaves. (d–i) The spore of strain L6 in the leaves of diseased strawberries. Scale bars: (d–i) = 10 μm.
Jof 11 00710 g001
Jof 11 00710 g002

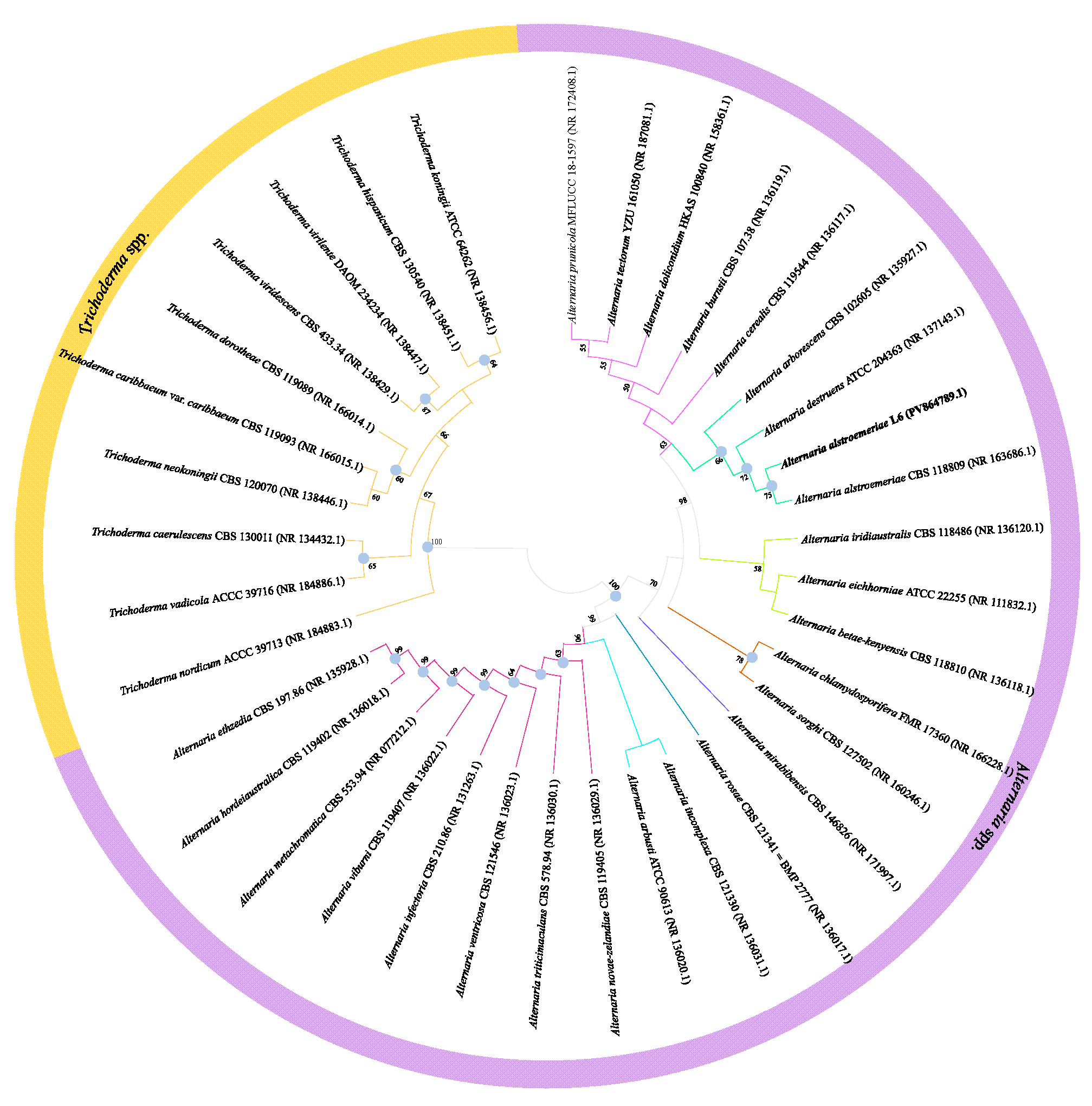

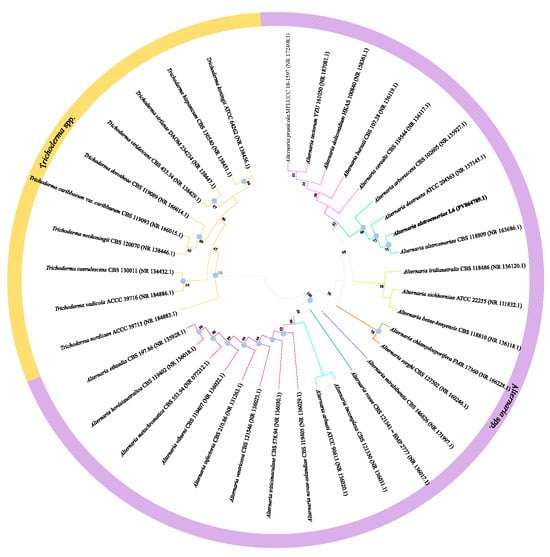

Figure 2. ITS-based Neighbor-Joining phylogenetic tree of strain L6. Filled circles indicate that the corresponding nodes were also recovered by the neighbour-joining and maximum likelihood algorithms. Numbers at nodes are bootstrap percentages >50% (based on 1000 resamplings).
Figure 2. ITS-based Neighbor-Joining phylogenetic tree of strain L6. Filled circles indicate that the corresponding nodes were also recovered by the neighbour-joining and maximum likelihood algorithms. Numbers at nodes are bootstrap percentages >50% (based on 1000 resamplings).
Jof 11 00710 g002
Jof 11 00710 g003

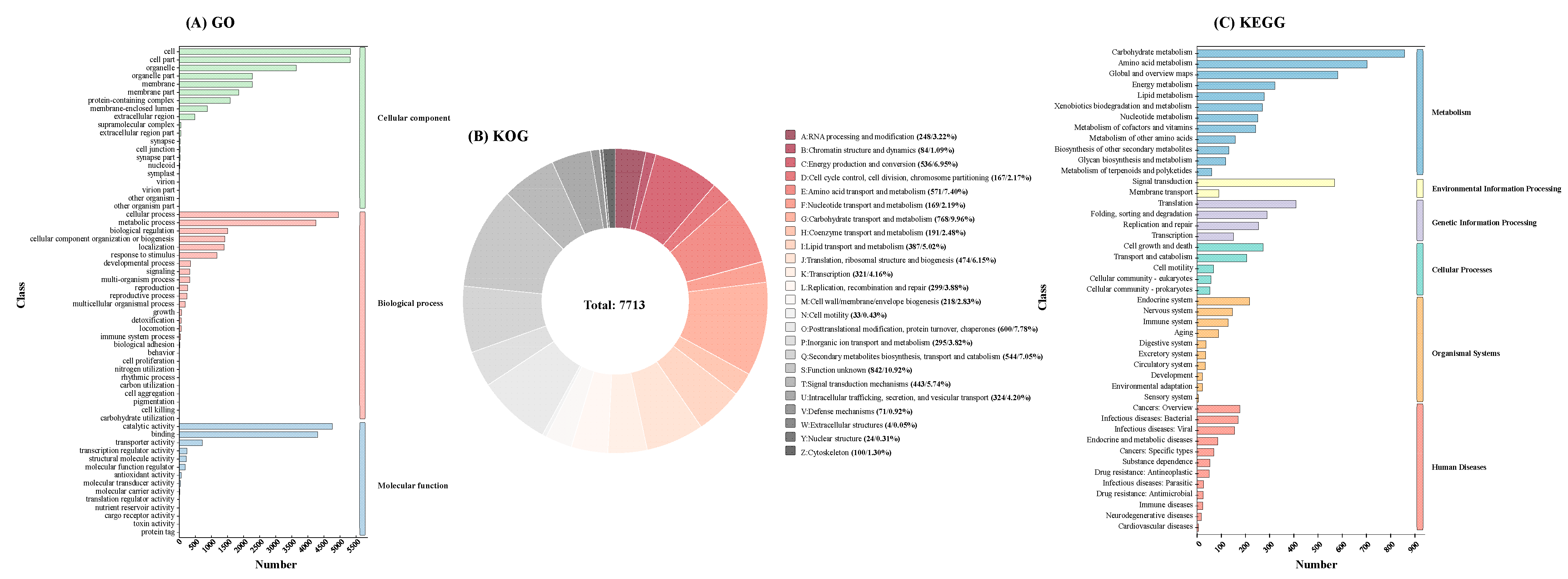

Figure 3. Functional annotation of strain L6 genes encoding the proteins. (A), Gene Ontology (GO) analysis; (B), euKaryotic Orthologous Group (GO); (C), Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis.
Figure 3. Functional annotation of strain L6 genes encoding the proteins. (A), Gene Ontology (GO) analysis; (B), euKaryotic Orthologous Group (GO); (C), Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis.
Jof 11 00710 g003
Jof 11 00710 g004

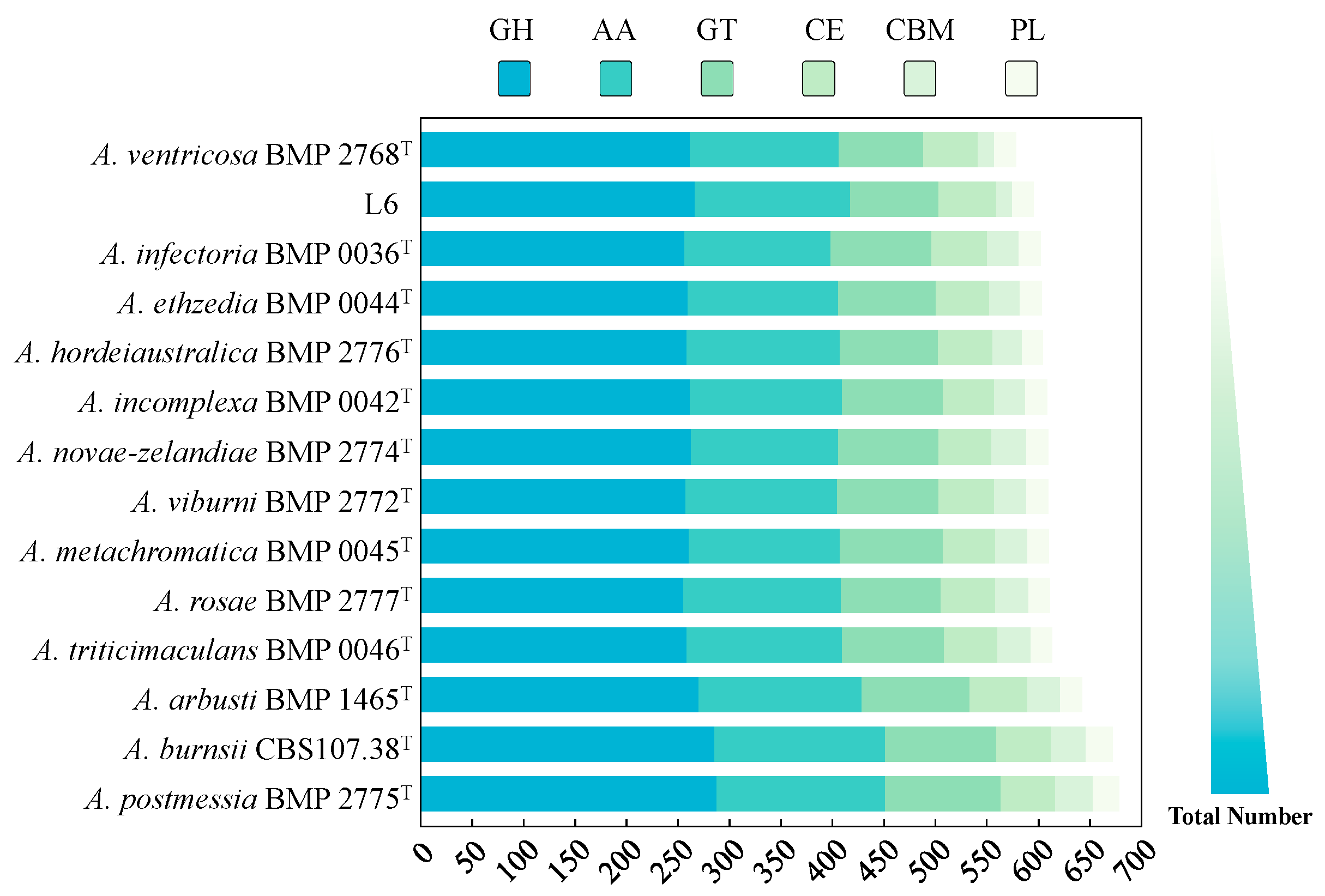

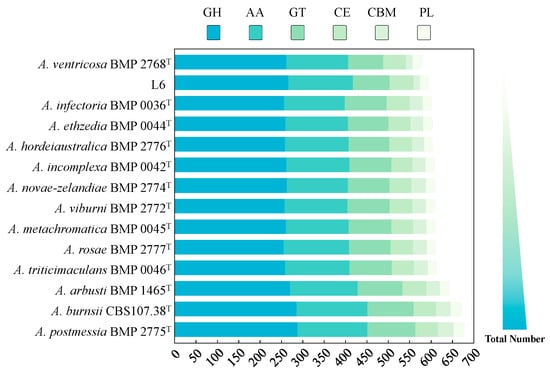

Figure 4. CAZyme profiles of strain L6 and other typical Alternaria strains deposited in CAZyme database.
Figure 4. CAZyme profiles of strain L6 and other typical Alternaria strains deposited in CAZyme database.
Jof 11 00710 g004
Jof 11 00710 g005

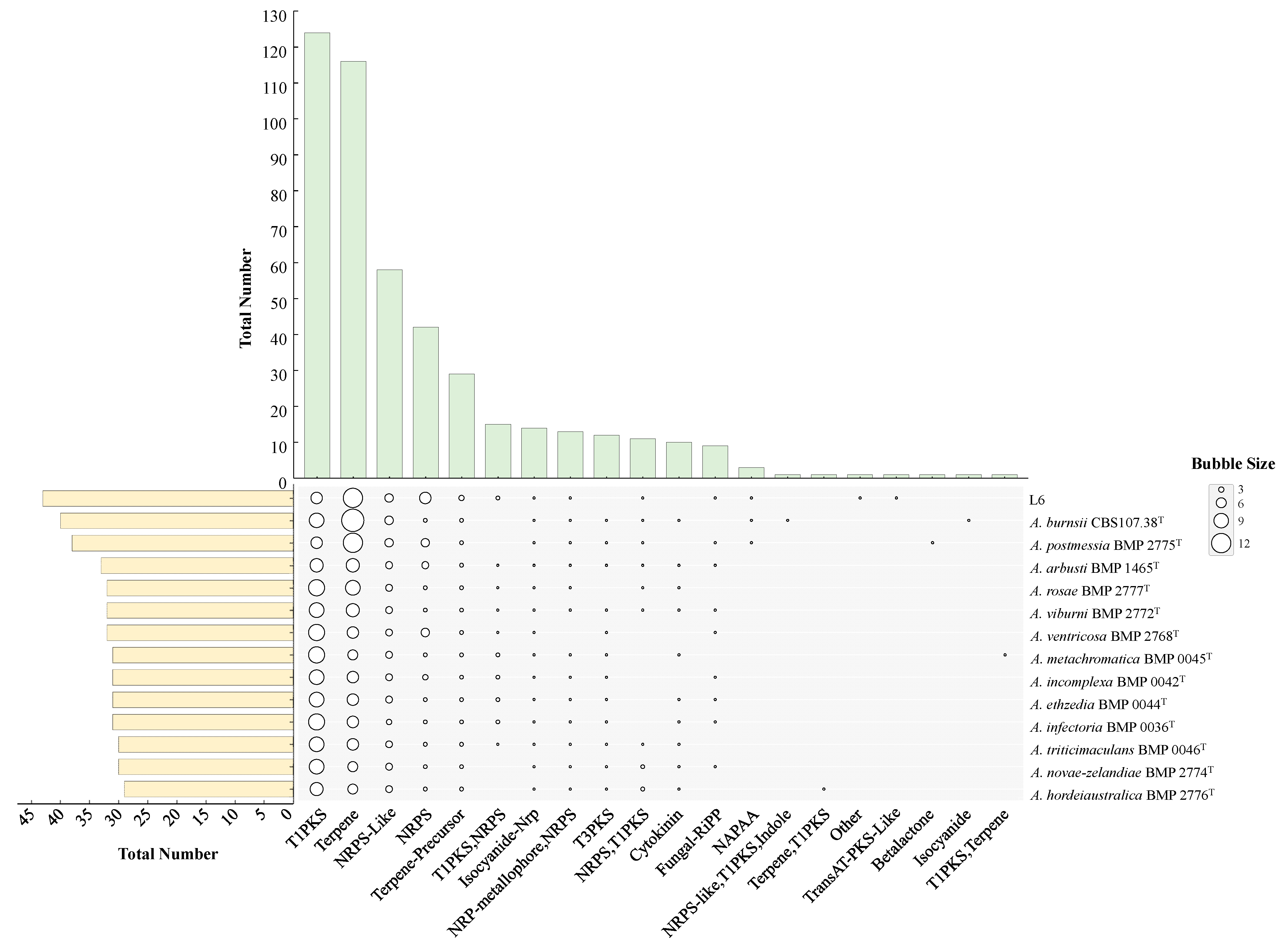

Figure 5. The number and type of secondary metabolite BGCs in strain L6 and other typical Alternaria strains are deposited in the antiSMASH database. Green indicates the number of a specific type of SM across all strains; yellow shows the number of all metabolites in a specific strain.
Figure 5. The number and type of secondary metabolite BGCs in strain L6 and other typical Alternaria strains are deposited in the antiSMASH database. Green indicates the number of a specific type of SM across all strains; yellow shows the number of all metabolites in a specific strain.
Jof 11 00710 g005
Jof 11 00710 g006
Figure 6. The identified secondary metabolite regions in strain L6 and their most similar known cluster are shown in a binary plot. According to the prediction information from the antiSMASH database, light blue indicates that no corresponding product was predicted (Absent), while dark blue indicates that the corresponding product was predicted (Present). The triangle symbols represent similar substances predicted for the relevant gene clusters, with yellow indicating higher similarity and white indicating lower similarity.
Figure 6. The identified secondary metabolite regions in strain L6 and their most similar known cluster are shown in a binary plot. According to the prediction information from the antiSMASH database, light blue indicates that no corresponding product was predicted (Absent), while dark blue indicates that the corresponding product was predicted (Present). The triangle symbols represent similar substances predicted for the relevant gene clusters, with yellow indicating higher similarity and white indicating lower similarity.
Jof 11 00710 g006
Jof 11 00710 g007
Figure 7. Six identified BGCs with high identity in strain L6. (A) Region 1.1: TIPPKS-related gene cluster with malonyl-CoA ligase, beta-ketoacyl synthase, and oxidoreductase; (B) Region 1.4: TIPPKS-related gene cluster including NADH oxidase, Nannochloropsis-derived P450 hydroxylase domain, and beta-ketoacyl synthase; (C) Region 4.1 was an NRPS-like gene cluster; (D) Region 32.1 was a Type I PKS gene cluster; (E) Region 46.1 was a Type I PKS gene cluster; (F) Region 58.1 was a TIPPKS-related gene cluster. Different colors represent different types of enzymes: blue for Transferases, green squares for lyases, red for ligases, turquoise for oxidoreductases, yellow for hydrolases, and white for others.
Figure 7. Six identified BGCs with high identity in strain L6. (A) Region 1.1: TIPPKS-related gene cluster with malonyl-CoA ligase, beta-ketoacyl synthase, and oxidoreductase; (B) Region 1.4: TIPPKS-related gene cluster including NADH oxidase, Nannochloropsis-derived P450 hydroxylase domain, and beta-ketoacyl synthase; (C) Region 4.1 was an NRPS-like gene cluster; (D) Region 32.1 was a Type I PKS gene cluster; (E) Region 46.1 was a Type I PKS gene cluster; (F) Region 58.1 was a TIPPKS-related gene cluster. Different colors represent different types of enzymes: blue for Transferases, green squares for lyases, red for ligases, turquoise for oxidoreductases, yellow for hydrolases, and white for others.
Jof 11 00710 g007
Jof 11 00710 g008
Figure 8. Based on the whole-genome KEGG functional annotation results of strain L6, the iPath online tool was used to visualize the five annotated metabolic pathways related to the metabolism of terpenoids and polyketides.
Figure 8. Based on the whole-genome KEGG functional annotation results of strain L6, the iPath online tool was used to visualize the five annotated metabolic pathways related to the metabolism of terpenoids and polyketides.
Jof 11 00710 g008
Jof 11 00710 g009
Figure 9. Illustration of candidate effector molecules containing 5 RxLx motifs.
Figure 9. Illustration of candidate effector molecules containing 5 RxLx motifs.
Jof 11 00710 g009
Table 1. General genomic features of strain L6.
Table 1. General genomic features of strain L6.
ItemValue
Total length38,715,194
Max length5,489,576
GC content50.84%
N501,029,672
Counts of scaffold number2165
Total genes length18,851,088
Total genes number12,781
Total CDSs length (bp)17,294,764
CDSs percentage of genome44.00%
Total length38,715,194
Max length5,489,576
GC content50.84%
N501,029,672
Sequencing depth161x
Table 2. Genomic assembly and functional annotation of strain L6.
Table 2. Genomic assembly and functional annotation of strain L6.
TypeNumberIn Genome (%)
tRNA2220.05
mRNA12,55948.64
rRNA470.02
LTR Gypsy530.20
LTR Unknown450.12
Transposable Element1610.58
Table 3. KEGG gene annotation of terpenoids and polyketides metabolism in strain L6.
Table 3. KEGG gene annotation of terpenoids and polyketides metabolism in strain L6.
TermIDGene Number
Terpenoid backbone biosynthesisko0090031
Limonene and pinene degradationko009039
Nonribosomal peptide structuresko010548
Carotenoid biosynthesisko009066
Geraniol degradationko002816
Table 4. List of predicted effector candidates carrying the RxLx [EDQ] motif.
Table 4. List of predicted effector candidates carrying the RxLx [EDQ] motif.
NameSize (aa)Start of SequenceAnnotation
FUN_005814209MRFCSLPTAILALASLVESAALQPRDLLQDLQDQALAALKEDi-copper centre-containing protein
FUN_010491233MSAIFASLVVVLVAVILSKKNRGSFLDDTSEHIERMDhypothetical protein
FUN_004418271MFASIAILQVLCAAVASAQLTSKLTEIIPWASLGDEYGFIhypothetical protein
FUN_001157292MHFSTSVLGSIVAFCATANAALTRVNDFGANPSNLQMNIYVcarbohydrate esterase family 1 protein
FUN_005760300MRFLTAVTSFLSVAAAATLGKRAVTPGTLSQVTSFGAAPTKuncharacterized protein J4E82_008103
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, L.; Zhang, B.; Shao, L.; Yang, M.; Zhao, X.; Wang, Z.; Zhang, Y.; Li, Y.; Wang, Y.; Hu, Y.; et al. Genome Analysis of Alternaria alstroemeriae L6 Associated with Black Spot of Strawberry: Secondary Metabolite Biosynthesis and Virulence. J. Fungi 2025, 11, 710. https://doi.org/10.3390/jof11100710

AMA Style

Zhang L, Zhang B, Shao L, Yang M, Zhao X, Wang Z, Zhang Y, Li Y, Wang Y, Hu Y, et al. Genome Analysis of Alternaria alstroemeriae L6 Associated with Black Spot of Strawberry: Secondary Metabolite Biosynthesis and Virulence. Journal of Fungi. 2025; 11(10):710. https://doi.org/10.3390/jof11100710

Chicago/Turabian Style

Zhang, Li, Boyuan Zhang, Lizhu Shao, Miaomiao Yang, Xueling Zhao, Ziyu Wang, Yingjun Zhang, Yuting Li, Yating Wang, Yuansen Hu, and et al. 2025. "Genome Analysis of Alternaria alstroemeriae L6 Associated with Black Spot of Strawberry: Secondary Metabolite Biosynthesis and Virulence" Journal of Fungi 11, no. 10: 710. https://doi.org/10.3390/jof11100710

APA Style

Zhang, L., Zhang, B., Shao, L., Yang, M., Zhao, X., Wang, Z., Zhang, Y., Li, Y., Wang, Y., Hu, Y., & Li, P. (2025). Genome Analysis of Alternaria alstroemeriae L6 Associated with Black Spot of Strawberry: Secondary Metabolite Biosynthesis and Virulence. Journal of Fungi, 11(10), 710. https://doi.org/10.3390/jof11100710

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
