A Cutoff Determination of Real-Time Loop-Mediated Isothermal Amplification (LAMP) for End-Point Detection of Campylobacter jejuni in Chicken Meat

by
Chalita Jainonthee
1,2,
Warangkhana Chaisowwong
1,2,3,
Phakamas Ngamsanga
1,
Anuwat Wiratsudakul
4,
Tongkorn Meeyam
1,2,3 and
Duangporn Pichpol
2,3,*
1
Veterinary Public Health and Food Safety Centre for Asia Pacific (VPHCAP), Faculty of Veterinary Medicine, Chiang Mai University, Chiang Mai 50100, Thailand
2
Center of Excellence in Veterinary Public Health, Faculty of Veterinary Medicine, Chiang Mai University, Chiang Mai 50100, Thailand
3
Department of Veterinary Biosciences and Veterinary Public Health, Faculty of Veterinary Medicine, Chiang Mai University, Chiang Mai 50100, Thailand
4
Department of Clinical Sciences and Public Health and the Monitoring and Surveillance Center for Zoonotic Diseases in Wildlife and Exotic Animals, Faculty of Veterinary Science, Mahidol University, Phutthamonthon, Nakhon Pathom 73170, Thailand
*
Author to whom correspondence should be addressed.
Vet. Sci. 2022, 9(3), 122; https://doi.org/10.3390/vetsci9030122
Submission received: 23 January 2022 / Revised: 22 February 2022 / Accepted: 5 March 2022 / Published: 8 March 2022
Browse Figures
Review Reports Versions Notes

Abstract

:
Campylobacter jejuni is one of the leading causes of foodborne illness worldwide. C. jejuni is commonly found in poultry. It is the most frequent cause of contamination and thus resulting in not only public health concerns but also economic impacts. To test for this bacterial contamination in food processing plants, this study attempted to employ a simple and rapid detection assay called loop-mediated isothermal amplification (LAMP). The best cutoff value for the positive determination of C. jejuni calculated using real-time LAMP quantification cycle (Cq) was derived from the receiver operating characteristic (ROC) curve modeling. The model showed an area under curve (AUC) of 0.936 (95% Wald CI: 0.903–0.970). Based on Youden’s J statistic, the optimal cutoff value which had the highest sensitivity and specificity from the model was calculated as 18.07. The LAMP assay had 96.9% sensitivity, 95.8% specificity, and 93.9 and 97.9% positive and negative predictive values, respectively, compared to a standard culture approach for C. jejuni identification. Among all non-C. jejuni strains, the LAMP assay gave each of 12.5% false-positive results to C. coli and E. coli (1 out of 8 samples). The assay can detect C. jejuni at the lowest concentration of 103 CFU/mL. Our results suggest a preliminary indicator for the application of end-point LAMP assays, such as turbidity and UV fluorescence tests, to detect C. jejuni in field operations. The LAMP assay is an alternative screening test for C. jejuni contamination in food samples. The method provides a rapid detection, which requires only 9 min with a cutoff value of Cq. We performed the extraction of DNA from pure cultures and the detection of C. jejuni using the LAMP assay within 3 h. However, we were not able to reduce the time for the process of enrichment involved in our study. Therefore, we suggest that alternative enrichment media and rapid DNA extraction methods should be considered for further study. Compared to other traditional methods, our proposed assay requires less equipment and time, which is applicable at any processing steps in the food production chain.

1. Introduction

Campylobacteriosis is an infectious disease caused by bacteria belonging to the genus Campylobacter, most notably C. jejuni and C. coli [1]. Campylobacter species are Gram-negative spiral, rod-shaped, or curved bacteria with or without flagellum, depending on the species [2]. Among the Campylobacter strains discovered to date, C. jejuni is one of the most frequently discovered predisposing causes of bacterial foodborne diarrheal disease worldwide and is frequently found causing contamination in food sources, such as poultry meat, unpasteurized milk, and drinking water, or cross-contamination of other foods by these items [3,4,5,6]. It is estimated that Campylobacter spp. cause 500 million infections in the world every year [7]. According to the United States Food-Borne Diseases Active Surveillance Network (2005–2018), Campylobacter infections had the greatest yearly incidence of 19.5 per 100,000 population, followed by Salmonella (18.3), and Shiga toxin-producing Escherichia coli (STEC; 5.9) [8]. It is estimated that in the United States, Campylobacteriosis affects 1.3 million people a year, and in Canada, there are over 200,000 cases reported each year [9,10].
Campylobacter is a common cause of infant diarrhea in developing countries, often associated with contaminated food and water. The true public incidence and the burden of Campylobacteriosis in developing countries continue to be underestimated. The majority of estimates of diarrheal disease incidence in developing countries come from laboratory-based surveillance of diarrheal pathogens [1,3]. In Thailand, Campylobacteriosis is not included in the national disease surveillance program. Studies of the incidence of Campylobacter infections are fewer and not up to date. Campylobacter infections were mostly reported in children with diarrhea. In the study by Samosornsuk et al., 1.7% of C. jejuni was identified among 2500 children and adult diarrheal stool specimens [11]. C. jejuni are distributed in most warm-blooded animals, and therefore the main route of transmission is generally foodborne, via the consumption and handling of meat products, particularly poultry [7,12,13]. The prevalence of Campylobacter spp. was observed to be 97.9% and 59.2% in chicken carcass samples at the prechill step and retail, respectively, in the United States [14], whereas in Thailand from Southeast Asia, the prevalence of C. jejuni was observed 100%, 98.8%, and 89.3% at the prechill step, fresh market, and supermarket, respectively [15,16].
C. jejuni is a microaerophilic species that may be cultivated in an environment containing 3–15% oxygen and supplemented with 2–10% CO2, with a growth temperature range of 30 to 47 °C (optimal growth temperature is 40–42 °C) [13,17]. In culture-dependent methods, single isolated colonies can be subjected to a range of conventional biochemical tests to identify phenotypic traits, including the use of the Hippurate hydrolysis test to phenotypically differentiate between C. jejuni and C. coli [3]. However, the detection of the bacteria by the following conventional method is time-consuming and laborious, requiring up to 7 days for testing [18,19]. Nowadays, a number of molecular identification techniques have been introduced to enhance the efficiency of the diagnosis and to reduce the time of detection. In molecular methods, DNA can be isolated from clinical samples or pure culture. A genetic signature or marker of the organism can then be determined using sequencing techniques or polymerase chain reaction (PCR) amplification of the gene of interest, some of which are capable of detecting more than one species as referred to multiplex PCR (mPCR) assay [18,20,21,22]. In most recent studies, mPCR assay was used as a detection method for C. jejuni and other Campylobacter species due to its distinct advantages over the conventional method, especially in sensitivity, specificity, accuracy, rapidity, and capacity to detect small amounts of target nucleic acid in a sample [11,16,20,21,23,24,25]. Additionally, a real-time PCR (qPCR) is a preferable assay for rapid real-time quantification and identification of this bacteria [25,26,27]. Furthermore, several enzyme immunoassays are also available for the screening of C. jejuni in clinical samples [28,29,30].
In recent past decades, an assay called loop-mediated isothermal amplification (LAMP) of DNA was developed by Notomi et al., which is a simple and rapid DNA amplification technique and simply requires a single temperature for amplification [31]. This method employs a DNA polymerase and a set of four to six specially designed primers that recognize a total of six distinct sequences on the target DNA providing high specificity [31,32]. The LAMP assay has a simpler sample preparation step compared with conventional PCR and real-time PCR [23]. With this assay, DNA amplification can be performed at a single temperature and amplified DNA products can be visually monitored at the same time using basic heating instruments, such as a water bath or heat block [19]. In addition, it can therefore be applied in small laboratories or field operations without the further step of interpretation as a simple PCR assay which requires gel electrophoresis for visualization of the amplified DNA products. However, the condition of the assay needed to be optimized when applying primers from previous studies due to differences of reagents used in each laboratory, as well as when applying primers at higher concentrations than other molecular assays, namely PCR to avoid misinterpretation of false-positive results from non-specific amplification. Longer testing time may also result in false-positive samples for the abovementioned reasons.
In this study, we applied the LAMP assay with an amplification kit to use as a rapid test for C. jejuni detection. This study demonstrated the use of a cutoff determination for interpreting C. jejuni-positive results. The purpose of this study was to determine an optimal cutoff value of quantification cycle (Cq), obtained from the real-time LAMP, using receiver operating characteristic (ROC) curve modeling. The optimal cutoff value from the ROC modeling referred to the number of Cq, which can be calculated to the optimal time spent for the test to discriminate between negative and positive samples. A value acquired from the study may be used as a testing time for further work, for instance, the screening of C. jejuni at food processing facilities using an end-point LAMP assay (turbidity and UV visualization tests) in order to achieve precise test results. Efficacies in terms of sensitivity and specificity were also evaluated in this LAMP assay in comparison to a standard culture method.

2. Materials and Methods

2.1. Bacterial Strains, Culture Conditions, and DNA Preparation

In this study, six bacterial references and one Campylobacter field strain were used for the specificity test. C. jejuni ATCC33291, C. coli ATCC19353, and C. jejuni field strain were cultured in Bolton selective enrichment broth (Oxoid, Hampshire, UK) containing 5% (v/v) laked horse blood (Thermo Scientific, Hampshire, UK) at 37 °C for 6 h, then at 41.5 °C for 42 h. Microaerobic conditions (5% O2, 10% CO2, and 85% N2) were generated with a CampyGen 2.5 L (Oxoid, Hampshire, UK). A single loopful of culture was streaked on a selectively modified charcoal cefoperazone deoxycholate agar (mCCDA; Oxoid, Hampshire, UK) at 41.5 °C for 42 h. Then, a single colony of the bacteria was streaked on the non-selective Columbia blood agar (CBA; Oxoid, Hampshire, UK) supplemented with 5% (v/v) sterile defibrinated sheep blood (Clinag, Bangkok, Thailand) incubated at the microaerobic condition at 41.5 °C for 42 h.
Salmonella ser. Paratyphi A DMST15673, Pseudomonas aeruginosa ATCC27853, Staphylococcus aureus ATCC25923, and Escherichia coli ATCC25922 were cultured at 37 °C for 24 h in LB broth, Miller (Luria-Bertani) (Difco, Rockville, MD, USA). A single loopful of culture was streaked on tryptic soy agar (Merck, Darmstadt, Germany) at 37 °C for 24 h.
In the case of Campylobacter, three isolated colonies from a single sample were transferred to 1 mL phosphate-buffered saline (PBS) to avoid false-negative results by selecting non-Campylobacter colonies. For non-Campylobacter strains, a single colony from tryptic soy agar was transferred to 1 mL PBS. DNA from these pure cultures was extracted using a commercial DNA extraction kit based on the manufacturer’s protocol of NucleoSpin Tissue (Macherey-Nagel, Dueren, Germany). DNA templates were used for the evaluation of modified Yamazaki’s LAMP assay [19].

2.2. Identification of Campylobacter Strains

C. jejuni and C. coli isolates were confirmed with an mPCR assay before being used in the LAMP assay. Isolated colonies on CBA were prepared for DNA extraction to acquire a DNA template. To compare the specificity and sensitivity of the LAMP assay and microbiological standard technique (ISO 10272-1:2006), Campylobacter strains identified with mPCR assay targeting 16S rRNA, mapA, and ceuE genes were used followed by primers and conditions used in a previous study [18]. Briefly, the 15-μL reaction mixture contained 7.5 μL of 2× Quick Taq HS DyeMix (Toyobo, Osaka, Japan), 0.11 μM MD16S1 and MD16S2 primers, 0.42 μM of each MDmapA1, MDmapA2, COL3, and MDCOL2 primers, and 1.5 μL DNA template. The final volume was adjusted to 15 μL with nuclease-free water. The amplification reactions were carried out using a T100 Thermal Cycler (Bio-Rad, Berkeley, CA, USA) with an initial denaturation step at 95 °C for 10 min, 35 cycles each consisting of a denaturation step at 95 °C for 30 s, an annealing step at 59 °C for 1.5 min, and an extension step at 72 °C for 1 min, and a final extension step at 72 °C for 10 min. PCR products were analyzed by 1.5% agarose gel electrophoresis at 110 V for 30 min. Visualization of PCR products was carried out using a GelMax Imager (Analytik Jena US LLC, Upland, CA, USA). The product size of 857 bp and 589 bp was interpreted as C. jejuni positive and the product size of 857 bp and 462 bp was interpreted as C. coli positive.

2.3. LAMP Primers

The LAMP primers used in this study were the primers reported by Yamazaki et al. [19] targeting the cj0414 gene presumed to encode an oxidoreductase from the sequence of AL111168, as shown in Table 1, which were synthesized by Bio Basic, Markham, ON, Canada.

2.4. LAMP Assay and Condition Optimization

The LAMP assay was performed with a LavaLAMP DNA Component Kit (Lucigen, Middleton, WI, USA) using the set of primers discussed earlier. The LAMP assay comprised 2.5 µL of 10× LavaLAMP DNA buffer, 1 µL LavaLAMP DNA enzyme, 25 mM each deoxynucleotide triphosphate (dNTP; SibEnzyme, Novosibirsk, Russia), 100 mM magnesium sulfate, 2 μM F3 and B3, 16 μM FIP and BIP, 8 μM LF and LB, 1× green fluorescent dye (Lucigen, Middleton, WI, USA), and 1 µL DNA template of C. jejuni ATCC33291. The final volume was adjusted to 25 µL. No target control (NTC) and positive control (provided in the kit) were used to find the optimal temperature of the LAMP assay. A reaction with 1 µL nuclease-free water instead of a DNA template served as a NTC in each run.
Temperature optimization of the assay was performed in a CFX96 real-time PCR machine (Bio-Rad, Berkeley, CA, USA) and a gradient step for the temperature was set between 68 °C and 74 °C, to monitor reaction fluorescence using the FAM channel to detect amplified product. The real-time condition was set to 60 min (30 s/cycle). The optimal temperature for the LAMP assay was selected based on high differences between C. jejuni culture-positive samples and NTC mean Cq values.
Real-time LAMP assay optimization with 24 C. jejuni positive, 24 NTC, and 2 positive control samples showed that optimal temperature ranged from 69.2 °C to 71.8 °C (Table 2). A temperature of 70.5 °C was chosen by finding the median ranging from 69 °C to 72 °C and the resulted temperature was repeated for confirmation before being used as the optimal temperature in this study.

2.5. Receiver Operating Characteristic (ROC) Curve Analysis

C. jejuni reference strain and nuclease-free water were used as positive and negative controls, respectively. Cq values from 116 C. jejuni samples and 113 NTC samples obtained from the real-time LAMP were analyzed for the ROC curve using the SAS University Edition program (SAS Institute Inc., Cary, NC, USA). Statistical modeling was designed based on the Cq data from the real-time LAMP to predict cutoff values. The PROC LOGISTIC procedure was performed (Figure S1). The MODEL specified POSITIVE as the dependent variable (left side of the equal sign). By default, SAS modeled the probability of POSITIVE = ‘0’. As a result, an EVENT = ‘1’ option was required, as positive results were defined in the dataset as ‘1’. The CYCLE (Cq) is the continuous independent variable (on the right side of the equal sign) from which the cutoff score for a positive sample was determined. The OUTROC option in the model produced a second dataset called ROCDATA, which contained sensitivity and specificity data. The ROC statement generated a ROC curve, and the ROCCONTRAST command generated a ROC curve significance test. The area under the curve (AUC) of the ROC curve is a statistical measure of a test’s overall ability to differentiate between two outcomes (Figure 1). The OUTROC option was used to construct a new data set, referred to as ROC2. A new variable, LOGIT, was created using a LOG() function and referred to the log of the odds (the probability of success; _prob_) over the probability of failure (1-_prob_). The CUTOFF variable was formed by rearranging the logistic regression model, logit = intercept + slope(Cq), to solve for Cq, as shown in the second part of the analysis (Figure S1). The values of intercept and slope obtained from the PROC LOGISTIC procedure (Table 3) were input into the model for computing each probability cutoff point in the ROCDATA dataset. The fourth and the fifth lines provided sensitivity and specificity of the analysis. The optimal cutoff value was selected based on Youden’s J (YJ) statistic obtained from the model [33]. The YJ is the sum of sensitivity + specificity − 1 and is frequently used as a cutoff value selection criterion. The PROC SORT procedure was used to sort the new ROC2 dataset by YJ in descending order using the DESCENDING option. The last part of the code (PROC PRINT procedure) showed values of cutoff, sensitivity, specificity by the descending sort of YJ. Without regard for biological significance, a value equating to YJ is frequently employed. The Cq value was chosen from the maximum YJ without regard for sensitivity or specificity.

2.6. Determination of Specificity, Sensitivity, and Limit of Detection of LAMP Assay

DNA of pure cultures of the six bacterial reference strains was prepared as described in the section “Bacterial Strains, Culture Conditions, and DNA Preparation”. Eight samples of each non-C. jejuni reference strain were prepared and the total number of non-C. jejuni samples was forty-eight. Additionally, a total number of thirty-two C. jejuni samples was prepared from the reference strain. The DNA templates were used to assess the sensitivity and specificity of the LAMP assay, which was compared with the standard culture procedure. The cutoff value obtained from the model was used to interpret the sample’s test result from the LAMP assay. Cq values less than or equal to the cutoff were interpreted as positive, while values more than the cutoff were interpreted as negative. Sensitivity (SE) and specificity (SP) of the assay were compared with the results from a standard culture procedure using the formula; SE = [TP/(TP + FN)] × 100 and SP = [TN/(TN + FP)] × 100, where the terms true positive (TP) or true negative (TN) were used to express agreement, and false positive (FP) or false negative (FN) were used to indicate disagreement of the two assays.
To perform a limit of detection test, the turbidity of 0.5 McFarland units of C. jejuni pure culture was measured using a DEN-1B McFarland densitometer (Biosan, Riga, Latvia), 108 CFU/mL was prepared corresponding to the initial concentration and this initial concentration was 10-fold serially diluted using 1 mL PBS for DNA extraction. Additionally, 100 µL of pure culture dilutions ranging from 10−2 to 10−4 were used to confirm the amount of C. jejuni by a direct plating method using mCCDA plates with the condition as described above. DNA templates of each dilution were used to assess the detection limit of the LAMP assay, which was compared with an mPCR assay. The cutoff value obtained from the model was used to interpret the sample’s test result from the LAMP assay, as described above. Each experiment for the limit of detection tests was conducted in triplicate, and the detection was based on the number of positives, for instance, if all three samples tested positive, the test would be considered positive.

2.7. Detection of C. jejuni in Chicken Meat Samples

Chicken meat samples were purchased from GMP-certified chicken slaughterhouses where the samples were collected from Campylobacter negative batches and tested negative for C. jejuni. The meat samples were preserved at −18 °C and defrosted at 4 °C overnight before being used.
A pure culture of 0.5 McFarland unit of C. jejuni reference strain was prepared and diluted to a concentration of 106 CFU/mL to be used for contaminating C. jejuni-free chicken meat samples. A 10-fold serial dilution of 10−3 to 10−5 of 0.5 McFarland unit of C. jejuni reference strain was used to quantify the amount of C. jejuni by the direct plating method in which dropping 100 μL of each dilution on mCCDA plates, and then those plates were incubated at 41.5 °C for 42 h. Colony count calculations were performed based on the recommended ISO 10272-2:2006 [34].
Two chicken meat samples were prepared as described and 3 replicates was performed for each sample. A prepared bacterial solution of 106 CFU/mL was spiked on cut chicken meat, sized 12 × 12 × 2.5 cm, weighing 250 g, by spiking 1 mL of the solution on each of the front and the back surfaces of the meat and incubating at room temperature for 15 min. A cut of 25 g of chicken meat was mixed with 225 mL supplemented Bolton broth and homogenized with a BagMixer 400 CC stomacher (Interscience, Saint Nom la Brétèche, France) for 2 min. The sample was then incubated at 37 °C for 6 h, and at 41.5 °C for 42 h in a microaerobic atmosphere as described earlier and followed the standard procedure of ISO 10272-1:2006. A 1 mL of the sample at points 1-8 was kept for further detection of C. jejuni at the following intervals: 6 h, 12 h, 18 h, 24 h, 30 h, 36 h, 42 h, and 48 h after incubation. A 1 mL Bolton broth sample was directly used for DNA extraction. At point 9, a single loopful of the culture was streaked on a mCCDA agar, then incubated at 41.5 °C for 42 h in a microaerobic atmosphere. Three isolated colonies from a sample were transferred to 1 mL PBS for DNA extraction. DNA extraction was performed using a commercial DNA extraction kit as described in Section 2.1.

2.8. Data Analysis

Sensitivity, specificity, and predictive values of the LAMP assay compared with the bacterial culture were analyzed. Additionally, Cohen’s kappa (k) was performed to compare agreement between the LAMP assay and the standard culture using IBM SPSS Statistics version 28.0.1.0 (Armonk, NY, USA).

3. Results

3.1. ROC Curve Analysis

The output of partial logistic regression is shown in Table 3. The intercept and slope values were 2.3689 and −0.0682, respectively, calculated from the logistic regression analysis, which was utilized to generate the model’s cutoff value. The ROC curve from the analysis is shown in Figure 1, with an AUC of 0.936. The AUC was subjected to significance testing in Table 4. The model indicated that the AUC was significant (95% Wald CI: 0.903–0.970), which was confirmed by Chi-square (p < 0.0001).
The logistic regression analysis’s intercept and slope were used to indicate each probability cutoff value in the rocdata dataset. The YJ statistic was employed in the model to sort possible cutoff values with a high degree of sensitivity and specificity. A Cq value of 18.07 was used as the cutoff value in the LAMP assay to differentiate between positive and negative test results in this study based on the model’s highest YJ, sensitivity, and specificity (Table 5).

3.2. Specificity, Sensitivity, and Limit of Detection of LAMP Assay

The specificity test of the LAMP assay using the Cq cutoff value obtained from the model revealed that the cutoff value correctly identified 96.9% (31/32 samples) of positive-C. jejuni samples and 100% negative results were shown for S. Paratyphi, P. aeruginosa, S. aureus, and NTC (0/8 samples). However, the given cutoff value could not classify one of the eight samples of C. coli and E. coli, resulting in a 12.5% false-positive (Table 6). Compared to the mPCR assay, the LAMP assay correctly showed results of positive C. jejuni samples (100%) and negative results with C. coli (0%). However, the primer set used in mPCR cannot differentiate S. Paratyphi, P. aeruginosa, S. aureus, and E. coli (100% false-positive). Compared with a standard culture method, our LAMP assay showed 96.9% sensitivity and 95.8% specificity, and the positive and negative predictive values were 93.9% and 97.9%, respectively (Table S1). The k statistics indicated the agreement between the LAMP assay and the culture method was 0.92 (p < 0.001).
Direct plating of 0.5 McFarland for the initial C. jejuni counts showed that the starting number of C. jejuni was 4.8 × 108 CFU/mL. Comparing the sensitivity of the LAMP with the mPCR assay (Table 7), we could identify a low number of C. jejuni at 103 CFU/mL in the LAMP assay, whereas mPCR detected less than 10 CFU/mL.

3.3. Detection of C. jejuni in Chicken Meat Samples

DNA templates, from chicken meat containing 106 CFU, collected at nine points during the incubation process, demonstrated that the LAMP assay test produced more fluctuating results than the mPCR assay for the detection of C. jejuni. In the LAMP assay, samples obtained at various intervals throughout the incubation period yielded either negative results or only one positive result out of three replications. In the mPCR assay, DNA templates isolated from colonies on mCCDA produced positive results on gel electrophoresis by analyzing all replicating samples (Table 8).

4. Discussion

4.1. LAMP Assay Optimization

The LAMP assay used in the study was modified from Yamazaki et al. [19] by optimizing the reaction temperature to be compatible with the commercial amplification kit. The gradient temperature setting on the real-time instrument was adjusted to the amplification kit manufacturer’s recommended range of 68 to 74 °C. The selection of the optimal temperature was based on the temperature that provided high differences of Cq between C. jejuni positive samples and the NTC. In this experiment, based on the real-time gradient temperature setting, it was found that the temperature range between 69.2 and 71.8 °C was optimal. Thus, the median of the ranged temperature (70.5 °C) was chosen.

4.2. ROC Curve Analysis

This study was the first study that used ROC curve analysis to find the optimal cutoff value of Cq to use in the LAMP assay. The regression output of the ROC model indicated that the quantification cycle was significant (p < 0.001). According to the ROC model, the region in the top left (Figure 1) offered the most beneficial discrimination in terms of a cutoff score. The model’s ROC curve was aligned above the diagonal line, which ran from (0,0) to (1,1), representing the random chance line or line of equality [35]. Values plotted above and to the left of the line of equality represented correctly predictive results and indicated a more sensitive test (greater true positive rate). This implied that the Cq could not differentiate between positive and negative samples by chance. In this study, the AUC of 0.936 indicated that of all potential positive/negative sample pairings generated by the tests, the model with Cq projected a greater anticipated likelihood of being positive for C. jejuni-positive samples than for negative samples (93.6% of the time). The model showed the significance of AUC (95% CI: 0.903–0.970) in terms of the classification of positive samples, making it possible to determine an optimal Cq cutoff value for C. jejuni positives. A Chi-square test also confirmed the significance of the model (p < 0.0001). To summarize, Cq accurately identified 93.6% of the time randomly generated pairs of positive/negative C. jejuni samples.
There is one aspect to consider when the cutoff was chosen based on the model’s highest YJ calculation. A disadvantage of the YJ is that it is incapable of distinguishing between variations in sensitivity and specificity [35]. Although similar YJ was observed from both tests, it is not inferable to the same sensitivity and specificity, as YJ is the sum of sensitivity and specificity minus one. This can result in the two tests performing differently; for example, the first test has a sensitivity and specificity of 0.7 and 0.9, respectively, whereas the second test has a sensitivity and specificity of 0.8 and 0.8, respectively. All three model parameters (YJ, sensitivity, and specificity) are considered for the selection of a cutoff value. In this study, the maximum YJ value served as the cutoff for the prediction model. According to the model, the ideal cutoff value with the highest YJ (0.808) was 18.07, which provided the best combination of sensitivity and specificity. The cutoff value (Cq) of 18.07 indicated that the test required about 9 min to differentiate between positive and negative samples. When interpreting the results using end-point techniques, such as UV light fluorescence, agarose gel, or turbidity test, the cutoff value of Cq relates to the amount of time spent on the test or the duration of incubation time for reactions. Incubation time should not go beyond this point to avoid a false-positive interpretation that can occur from non-specific amplification due to the high concentration of primers commonly used in the assay. Compared with the study of cdtC–gyrA LAMP assay, the mean detection time of the assay in the detection of C. jejuni was 12 min [36].

4.3. Non-Specific Amplification of LAMP Assay

When the number of samples was increased, some negative samples with low Cq values on real-time LAMP were observed, resulting in a low cutoff from the ROC modeling. The low number of Cq obtained from the model indicated a low testing time used in the assay. Compared to other LAMP assays, the general procedure of reaction incubation at a specific temperature was set to 60 min [19,37]. Due to the higher concentration of primers used in LAMP than in traditional PCR methods, non-specific amplification of false positives induced by primer dimers is possible [38]. The LAMP assay required a 10× concentration of the primers, which accounts for 10% of reaction volume, whereas the mPCR assay required a 1× concentration of primers. According to Wang’s study, adding dimethyl sulfoxide (DMSO) at low concentrations to the reaction mix enhances amplification by shortening the time required for detection and inhibits non-specific amplification by suppressing DNA polymerase activity [39]. Wang’s study incorporated a modified method known as Touchdown LAMP by preheating the reaction at 95 °C for 5 min and then gradually decreasing the reaction temperature from high (+6, +4, +2 °C, respectively) to the designated temperature. This method demonstrated increased sensitivity and specificity compared to the conventional LAMP assay [39]. A preliminary evaluation of the effectiveness of Touchdown LAMP was performed in this work to mitigate the effect of non-specific amplification from primer dimers. Nonetheless, no significant result was observed (data not shown). Additionally, the LAMP assay was created for isothermal operation, which necessitated the use of basic equipment, such as a water bath or heat block. Hence, a modification Touchdown LAMP technique does not meet the purpose of the study.
In this study, non-specific amplification of LAMP reactions was unintentionally observed while running the reaction that was left at room temperature without the addition of DNA templates, showing a positive banding pattern on agarose gel (data not shown). Additionally, adding primers immediately before the addition and incubation of the target DNA, as well as directly transferring reactions from ice to a heat block or thermal cycler at the correct reaction temperature, are suggested to avoid the interaction of substances before the specified conditions. Melt curve analysis in a real-time assay was recommended to detect amplified products to determine non-specific amplification [38]. In addition, a restriction fragment analysis of LAMP results was performed in the study by Babu when there is insufficient amplifiable DNA to produce a visible color change in the reaction mixture. It provided a reliable secondary confirmation of the LAMP reaction and clearly distinguished false positives from true positives [40]. After running on an agarose gel, non-specific or background amplification appeared as a smear of DNA fragments with no apparent or identifiable bands. It is possible that DNA contamination occurred as a result of shared reaction preparation and sample loading areas. To avoid contaminating LAMP reactions with target DNA or target amplicons, it is recommended to identify and use a reaction setup area that has never been exposed to target DNA or amplified products [41]. Additionally, it is advisable to use a second location that has never been exposed to amplified material to add template DNA to reactions and to designate a third area for analyzing LAMP reaction products to avoid reaction contamination [42]. Moreover, a cold reaction setup is required for the LAMP assay. The commercial DNA enzyme has been indicated that it retains activity beyond 4 °C, which might result in non-specific background amplification in the subsequent reaction. Furthermore, a closed tube LAMP assay was developed in the study by Karthik et al. with the use of agar dye capsules to avoid product cross-contamination, which might result in false-positive findings [43].

4.4. Campylobacter Species Identification with mPCR Assay

Bacterial culture with a mPCR assay confirmation was employed in this work as a conventional approach for identifying C. jejuni and C. coli. Discrimination between the closely related species C. jejuni and C. coli is phenotypically based only on the Hippurate hydrolysis test [44]. Compared to biochemical testing, a mPCR assay using primers consistently differentiated the two major Campylobacter species: C. jejuni and C. coli (100% specificity). Nevertheless, discriminating of other foodborne pathogens, a mapA gene targeting C. jejuni yielded false-positive results for several non-target strains (Table 6), reducing its specificity (33%). The low performance of a mapA gene-based PCR was also reported in other findings [45]. However, there was no prior report on the mapA gene’s specificity when tested against the non-C. jejuni foodborne bacterial strains that were used in this study. A further study on the effectiveness of a mapA gene-based PCR and the parameters associated with low specificity is highly recommended. In this study, primers specific for the mapA gene provided accurate findings for the identification of two Campylobacter species compared to results validated by microbiological methods. Among the examined foodborne bacterial strains, Campylobacter is the only one that requires particular growth conditions due to its requirement for a microaerobic atmosphere. Consequently, before DNA extraction for the detection of C. jejuni, a culture procedure with specific enrichment and selective media, as recommended by ISO 12072-1:2006, should be performed to identify Campylobacter bacteria, as illustrated in Scheme 1, to avoid false-positive gel electrophoresis results. The study by Kabir et al. suggested using a hipO and ask gene-based PCR assay for high sensitivity and specificity in detecting C. jejuni and C. coli, respectively. However, significant differences in annealing temperature and time required for amplification, as well as the number of cycles should be considered for a mPCR assay [45]. Additionally, a combination of cdt gene-based mPCRs, which is performed using similar PCR conditions, was also recommended due to its efficacy on species identification for both C. jejuni and C. coli [45,46].

4.5. Specificity and Sensitivity of LAMP Assay

A primer set used in the LAMP assay was obtained from the sequence of the cj0414 gene, which encodes putative glucose–methanol–choline oxidoreductase subunits [19,47]. The primer set was chosen based on its high specificity for the identification of C. jejuni, as no previously reported primer set based on the ceuE, hipO, mapA, or 23S rRNA gene has demonstrated 100% accuracy [48]. In this study, using the cutoff determination of the samples resulted in false positives, in some samples of C. coli and E. coli strains. In contrast, no non-Campylobacter bacteria tested positive with the assay in our referent study [19]. Considering only C. jejuni detection, we modified the LAMP assay by optimizing the reaction temperature and using the cutoff value for interpretation, to show higher sensitivity and specificity (96.9% and 95.8%, respectively) in this study, which was compared to the study by Yamazaki et al. (2008) showing 79.3% for sensitivity and 91.8% for specificity [19]. Cohen’s kappa (k) statistics showed an excellent agreement between the LAMP assay and the standard culture procedure (k = 0.92, p < 0.001), indicating the reliability of the assay [49].
From our review, a designed set of primers targeting the rplD gene provided 100% specificity in the detection of Campylobacter (both C. jejuni and C. coli), and the cdtC gene- and gyrA gene-based duplex LAMP provided simultaneous detection of C. jejuni and C. coli, using melting curves for the differentiation with 100% specificity when performed using 62 C. jejuni, 27 C. coli, and 85 non-target species in the study by Kreitlow, 2021 [36]. To date, there are studies that have taken advantage of the LAMP assay’s rapidity and simplicity to develop primers that allow the simultaneous detection of multiple bacterial strains, such as the development of degenerate primers targeting the 16S rRNA sequence for the all-inclusive detection of human pathogenic Campylobacter species (C. jejuni, C. coli, and C. lari) or the development of duplex LAMP assays for the identification of two bacterial strains [36,40,50].

4.6. Limit of Detection of LAMP Assay

The LAMP assay in this study can detect C. jejuni at a lower level of 103 CFU/mL, which is in line with Yamazaki’s (2008) investigation using the same set of primers [19]. The detection limit of the LAMP assay was 100 times higher than the equivalent PCR assay. The studies of Kreitlow and Sridapan also reported the detection limit of 103 CFU/mL in enriched meat samples using the LAMP assays targeting the cdtC–gyrA genes (cdtC primer set for the detection of C. jejuni and gyrA primer set for the detection of C. coli) and 16S rRNA, respectively [36,50]. In another study by Yamazaki, it was reported that Preston enrichment media was used for the growth of C. jejuni contamination in chicken meat samples in combination with a three-step centrifugation procedure, reduced culture time, and increased detection sensitivity [51]. In that study, the three-step centrifugation techniques were used to remove larger debris from chicken samples and components of the Preston enrichment broth that included DNA amplification inhibitors, as well as to concentrate the small number of Campylobacter cells. The results of Yamazaki’s study indicated that C. jejuni had a sensitivity of 8 CFU per LAMP reaction tube, corresponding to 4.8 × 102 CFU/mL [51]. In the study by Quyen, a Loopamp Campylobacter detection kit was used for the detection of Campylobacter in feces [52]. Without enrichment, the assay was able to detect the presence of Campylobacter as low as 50 CFU/mL in fecal samples, which required a testing time of more than 30 min. However, the detection kit has its limitations on specifically identified C. jejuni or C. coli [52].

4.7. Detection of C. jejuni in Chicken Meat Samples

In this study, using the LAMP assay, the cultivation step was omitted for chicken meat samples streaked on mCCDA and CBA, which resulted in negative findings. The viable but non-culturable (VBNC) condition is thought to present one of Campylobacter’s survival mechanisms against harsh environmental stresses, such as nutrient starvation, extreme temperatures, osmotic stress, oxygen availability, and chemicals [53]. The VBNC state is characterized as a dormant condition in which bacterial cells retain active metabolism but are unable to be cultivated on standard bacteriological media [54]. Specialized nutrients and conditions are required for the growth of C. jejuni due to their unique properties, so the process of enrichment was not restricted to minimize the time of testing. However, the study by Petersen demonstrated the induction of VNBC C. jejuni using the osmotic stress with a 7% (w/v) NaCl solution. An assay combining a LAMP and propidium monoazide (PMA-qLAMP) was developed for the elimination of DNA amplification signals from dead bacterial cells. A standard curve of a known concentration was generated for the quantification of VBNC C. jejuni in the spiked chicken breast meat samples, with a range of detection from 3.78 × 102 to 3.78 × 105 CFU/g [54]. The PMA-qLAMP assay may aid in the surveillance of potential C. jejuni in the food production chain coupled with a culture procedure.
Additionally, prolonged stomaching of meat samples was noted to enhance the release of inhibitory factors from chicken meat samples, such as organic and phenolic compounds, glycogen, fats, and calcium ions. Light hand massaging of no more than 30 s is preferable since it results in the low release of inhibitory factors [41,55]. While the LAMP assay aids in reducing testing time, the conventional culture procedure is a necessary step that cannot be omitted due to the assay’s limited sensitivity. The use of Preston enrichment broth, as reported in Yamazaki’s (2009) work, as well as a three-step centrifugation process for DNA extraction, were proposed for further evaluation of the results obtained from the LAMP assay. In addition, the enrichment of samples taken from chicken meat with Bolton broth and the application of a three-step centrifugation procedure for DNA extraction were also mentioned to yield high sensitivity. The preparation of DNA using 1 mL Bolton enrichment culture, followed by three-step centrifugation which yielded 100% specificity and 100% sensitivity was compared with that of the template DNA following the instructions of the manufacturer which yielded 95.2% specificity and 76.2% sensitivity [51]. Detection of this bacteria required more than 4 days for isolation and identification as followed by the standard culture protocol provided in this study (Scheme 1). Rodgers’ study found that Preston broth and Bolton broth were significantly less effective in detecting Campylobacter (C. jejuni and C. coli) compared with other enrichment media for sensitivity and accuracy estimation of C. jejuni incidence in broiler flocks at slaughter from cecal samples [56]. Enrichment in Exeter broth with a resuscitation step was found as the most effective detection method with 95.7% sensitivity to C. jejuni, whereas using adapted Exeter broth (deficient in polymyxin B) with a resuscitation step was 100% sensitive for the detection of the genus Campylobacter.

4.8. Limitations

Sample preparation with an enrichment step is a limitation of this LAMP assay on rapid detection strategies that are aimed to be used for the poultry production chain, as also seen in the study by Kreitlow [36]. The total time from sample preparation to the final result was still too long compared with the kind of sample used, such as feces. There were some studies that were capable of directly extracting the DNA from a prepared sample [52,57]. The initial concentration of the bacteria was suggested to be an important factor that affected the time spent on the sample preparation step. When samples contained a high concentration of C. jejuni, such as feces, enrichment procedures to isolate these bacteria from feces are typically unnecessary [41]. Additionally, characteristics of sample types should be further studied for a better understanding in order to find a proper method of sample preparation that can reduce the time of that step before proceeding to the testing step. According to the experiments in this study, the cost of testing using the LAMP assay was approximately USD 9.28 per reaction, including DNA extraction, and the total cost of the whole process (including enrichment) was USD 36.21 per sample. The cost of each test is a primary concern for the application of the test on-site. Adjusting the reaction volume and optimization of primer concentration were performed and discussed in the study by Quyen. The results demonstrated that there was no effect of the reaction volume on the LAMP efficiency or assay principle [52].
This study was a preliminary study for the application of rapid assay at field operations by optimizing the referenced LAMP assay to be compatible with the commercial amplification kit available. To control the quality of DNA templates, a DNA extraction kit was used, which required at least 1.5 h for the extraction process. DNA extraction methods, such as boiling, treating with NaOH, and other rapid DNA extraction methods are suggested for decreasing the time of DNA template preparation to less than 30 min [51,58]. A limitation of the study was the number of bacterial strains used. To analyze the efficiency of the LAMP assay, it is recommended to increase the number of non-Campylobacter strains as well as the number of Campylobacter field strains for a more precise evaluation of sensitivity and specificity of the assay.

5. Conclusions

This study provided a practical idea of LAMP assay application by optimizing reaction temperature to be compatible with the commercial LAMP reaction kit. Although the cutoff value used in this study resulted in a short time for C. jejuni detection, the LAMP assay with the specified primer set is recommended for a screening test due to the limitation of sensitivity and specificity demonstrated. Confirmation of the positive samples with a standard method or other techniques is required. The advantages of this assay are requiring less time and fewer instruments compared with the standard culture method and a molecular technique, such as PCR. Thus, our proposed assay is applicable at any processing steps in the food production chain, as it takes less than 3 h to give the final result, including the DNA extraction process. Further investigations might concentrate on developing a new primer set for more accuracy in the detection of C. jejuni and reduction in the time used in an enrichment step.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/vetsci9030122/s1, Figure S1: SAS code for the ROC curve analysis, Table S1: A 2 × 2 table for calculation of sensitivity, specificity, and predictive values of the LAMP assay.

Author Contributions

Conceptualization, C.J., W.C. and D.P.; data curation, C.J.; formal analysis, C.J. and A.W.; funding acquisition, W.C. and D.P.; investigation, C.J. and P.N.; methodology, C.J. and D.P.; project administration, C.J., W.C. and D.P.; resources, D.P. and P.N.; software, C.J.; supervision, W.C., D.P., A.W. and T.M.; validation, D.P. and A.W.; visualization, C.J.; writing—original draft, C.J.; writing—review and editing, W.C., A.W., T.M. and D.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Faculty of Veterinary Medicine (Private research funding), grant number CMUMIS: R000022226, the Excellent Center of Veterinary Public Health (R000016652), and the Center of Excellence in Veterinary Public Health (R000029943), Chiang Mai University. The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to institutional privacy policy.

Acknowledgments

The authors are particularly grateful to the Veterinary Public Health and Food Safety Centre for the Asia Pacific and the Center of Excellence in Veterinary Public Health, Faculty of Veterinary Medicine, Chiang Mai University for their support in publication. We thank the Lucigen Corporation for the technical support of the LAMP assay.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Coker, A.O.; Isokpehi, R.D.; Thomas, B.N.; Amisu, K.O.; Obi, C.L. Human campylobacteriosis in developing countries. Emerg. Infect. Dis. 2002, 8, 237–244. [Google Scholar] [CrossRef] [PubMed]
  2. Man, S.M. The clinical importance of emerging Campylobacter species. Nat. Rev. Gastroenterol. Hepatol. 2011, 8, 669–685. [Google Scholar] [CrossRef] [PubMed]
  3. Kaakoush, N.O.; Castaño-Rodríguez, N.; Mitchell, H.M.; Man, S.M. Global epidemiology of Campylobacter infection. Clin. Microbiol. Rev. 2015, 28, 687–720. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Lahti, E.; Rehn, M.; Ockborn, G.; Hansson, I.; Ågren, J.; Engvall, E.O.; Jernberg, C. Outbreak of campylobacteriosis following a dairy farm visit: Confirmation by genotyping. Foodborne Pathog. Dis. 2017, 14, 326–332. [Google Scholar] [CrossRef]
  5. Friedman, C.R.; Hoekstra, R.M.; Samuel, M.; Marcus, R.; Bender, J.; Shiferaw, B.; Reddy, S.; Ahuja, S.D.; Helfrick, D.L.; Hardnett, F.; et al. Risk factors for sporadic Campylobacter infection in the United States: A case-control study in FoodNet sites. Clin. Infect. Dis. 2004, 38, S285–S296. [Google Scholar] [CrossRef] [Green Version]
  6. Bintsis, T. Foodborne pathogens. AIMS Microbiol. 2017, 3, 529–563. [Google Scholar] [CrossRef]
  7. Chlebicz, A.; Śliżewska, K. Campylobacteriosis, salmonellosis, yersiniosis, and listeriosis as zoonotic foodborne diseases: A review. Int. J. Environ. Res. Public Health 2018, 15, 863. [Google Scholar] [CrossRef] [Green Version]
  8. Tack, D.M.; Marder, E.P.; Griffin, P.M.; Cieslak, P.R.; Dunn, J.; Hurd, S.; Scallan, E.; Lathrop, S.; Muse, A.; Ryan, P.; et al. Preliminary incidence and trends of infections with pathogens transmitted commonly through food—Foodborne Diseases Active Surveillance Network, 10 U.S. sites, 2015–2018. MMWR Morb. Mortal. Wkly. Rep. 2019, 68, 369–373. [Google Scholar] [CrossRef] [Green Version]
  9. Rosenberg Goldstein, R.E.; Cruz-Cano, R.; Jiang, C.; Palmer, A.; Blythe, D.; Ryan, P.; Hogan, B.; White, B.; Dunn, J.R.; Libby, T.; et al. Association between community socioeconomic factors, animal feeding operations, and campylobacteriosis incidence rates: Foodborne Diseases Active Surveillance Network (FoodNet), 2004–2010. BMC Infect. Dis. 2016, 16, 354. [Google Scholar] [CrossRef] [Green Version]
  10. Ravel, A.; Pintar, K.; Nesbitt, A.; Pollari, F. Non food-related risk factors of campylobacteriosis in Canada: A matched case-control study. BMC Public Health 2016, 16, 1016. [Google Scholar] [CrossRef] [Green Version]
  11. Samosornsuk, W.; Asakura, M.; Yoshida, E.; Taguchi, T.; Eampokalap, B.; Chaicumpa, W.; Yamasaki, S. Isolation and characterization of Campylobacter strains from diarrheal patients in central and suburban Bangkok, Thailand. Jpn. J. Infect. Dis. 2015, 68, 209–215. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Facciolà, A.; Riso, R.; Avventuroso, E.; Visalli, G.; Delia, S.A.; Laganà, P. Campylobacter: From microbiology to prevention. J. Prev. Med. Hyg. 2017, 58, E79–E92. [Google Scholar] [PubMed]
  13. Gundogdu, O.; Wren, B.W. Microbe profile: Campylobacter jejuni—Survival instincts. Microbiology 2020, 166, 230–232. [Google Scholar] [CrossRef] [PubMed]
  14. Golden, C.E.; Mishra, A. Prevalence of Salmonella and Campylobacter spp. in alternative and conventionally produced chicken in the United States: A systematic review and meta-analysis. J. Food Prot. 2020, 83, 1181–1197. [Google Scholar] [CrossRef]
  15. Osiriphun, S.; Iamtaweejaloen, P.; Kooprasertying, P.; Koetsinchai, W.; Tuitemwong, K.; Erickson, L.E.; Tuitemwong, P. Exposure assessment and process sensitivity analysis of the contamination of Campylobacter in poultry products. Poult. Sci. 2011, 90, 1562–1573. [Google Scholar] [CrossRef]
  16. Saiyudthong, S.; Phusri, K.; Buates, S. Rapid detection of Campylobacter jejuni, Campylobacter coli, and Campylobacter lari in fresh chicken meat and by-products in Bangkok, Thailand, using modified multiplex PCR. J. Food Prot. 2015, 78, 1363–1369. [Google Scholar] [CrossRef]
  17. Snelling, W.J.; Matsuda, M.; Moore, J.E.; Dooley, J.S. Campylobacter jejuni. Lett. Appl. Microbiol. 2005, 41, 297–302. [Google Scholar] [CrossRef]
  18. Denis, M.; Soumet, C.; Rivoal, K.; Ermel, G.; Blivet, D.; Salvat, G.; Colin, P. Development of a m-PCR assay for simultaneous identification of Campylobacter jejuni and C. coli. Lett. Appl. Microbiol. 1999, 29, 406–410. [Google Scholar] [CrossRef]
  19. Yamazaki, W.; Taguchi, M.; Ishibashi, M.; Kitazato, M.; Nukina, M.; Misawa, N.; Inoue, K. Development and evaluation of a loop-mediated isothermal amplification assay for rapid and simple detection of Campylobacter jejuni and Campylobacter coli. J. Med. Microbiol. 2008, 57, 444–451. [Google Scholar] [CrossRef]
  20. Pavlova, M.R.; Dobreva, E.G.; Ivanova, K.I.; Asseva, G.D.; Ivanov, I.N.; Petrov, P.K.; Velev, V.R.; Tomova, I.I.; Tiholova, M.M.; Kantardjiev, T.V. Multiplex PCR assay for identification and differentiation of Campylobacter jejuni and Campylobacter coli isolates. Folia Med. 2016, 58, 95–100. [Google Scholar] [CrossRef] [Green Version]
  21. Banowary, B.; Dang, V.T.; Sarker, S.; Connolly, J.H.; Chenu, J.; Groves, P.; Ayton, M.; Raidal, S.; Devi, A.; Vanniasinkam, T.; et al. Differentiation of Campylobacter jejuni and Campylobacter coli using multiplex-PCR and high resolution melt curve analysis. PLoS ONE 2015, 10, e0138808. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, G.; Clark, C.G.; Taylor, T.M.; Pucknell, C.; Barton, C.; Price, L.; Woodward, D.L.; Rodgers, F.G. Colony multiplex PCR assay for identification and differentiation of Campylobacter jejuni, C. coli, C. lari, C. upsaliensis, and C. fetus subsp. fetus. J. Clin. Microbiol. 2002, 40, 4744–4747. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Umesha, S.; Manukumar, H.M. Advanced molecular diagnostic techniques for detection of food-borne pathogens: Current applications and future challenges. Crit. Rev. Food Sci. Nutr. 2018, 58, 84–104. [Google Scholar] [CrossRef] [PubMed]
  24. Sinulingga, T.S.; Aziz, S.A.; Bitrus, A.A.; Zunita, Z.; Abu, J. Occurrence of Campylobacter species from broiler chickens and chicken meat in Malaysia. Trop. Anim. Health Prod. 2020, 52, 151–157. [Google Scholar] [CrossRef]
  25. Barletta, F.; Mercado, E.H.; Lluque, A.; Ruiz, J.; Cleary, T.G.; Ochoa, T.J. Multiplex real-time PCR for detection of Campylobacter, Salmonella, and Shigella. J. Clin. Microbiol. 2013, 51, 2822–2829. [Google Scholar] [CrossRef] [Green Version]
  26. de Boer, P.; Rahaoui, H.; Leer, R.J.; Montijn, R.C.; van der Vossen, J.M. Real-time PCR detection of Campylobacter spp.: A comparison to classic culturing and enrichment. Food Microbiol. 2015, 51, 96–100. [Google Scholar] [CrossRef]
  27. Josefsen, M.H.; Löfström, C.; Hansen, T.B.; Christensen, L.S.; Olsen, J.E.; Hoorfar, J. Rapid quantification of viable Campylobacter bacteria on chicken carcasses, using real-time PCR and propidium monoazide treatment, as a tool for quantitative risk assessment. Appl. Environ. Microbiol. 2010, 76, 5097–5104. [Google Scholar] [CrossRef] [Green Version]
  28. Regnath, T.; Ignatius, R. Accurate detection of Campylobacter spp. antigens by immunochromatography and enzyme immunoassay in routine microbiological laboratory. Eur. J. Microbiol. Immunol. 2014, 4, 156–158. [Google Scholar] [CrossRef] [Green Version]
  29. Tissari, P.; Rautelin, H. Evaluation of an enzyme immunoassay-based stool antigen test to detect Campylobacter jejuni and Campylobacter coli. Diagn. Microbiol. Infect. Dis. 2007, 58, 171–175. [Google Scholar] [CrossRef]
  30. Granato, P.A.; Chen, L.; Holiday, I.; Rawling, R.A.; Novak-Weekley, S.M.; Quinlan, T.; Musser, K.A. Comparison of premier CAMPY enzyme immunoassay (EIA), ProSpecT Campylobacter EIA, and ImmunoCard STAT! CAMPY tests with culture for laboratory diagnosis of Campylobacter enteric infections. J. Clin. Microbiol. 2010, 48, 4022–4027. [Google Scholar] [CrossRef] [Green Version]
  31. Notomi, T.; Okayama, H.; Masubuchi, H.; Yonekawa, T.; Watanabe, K.; Amino, N.; Hase, T. Loop-mediated isothermal amplification of DNA. Nucleic Acids Res. 2000, 28, E63. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Nagamine, K.; Hase, T.; Notomi, T. Accelerated reaction by loop-mediated isothermal amplification using loop primers. Mol. Cell. Probes 2002, 16, 223–229. [Google Scholar] [CrossRef] [PubMed]
  33. Hart, P.D. Receiver operating characteristic (ROC) curve analysis: A tutorial using body mass index (BMI) as a measure of obesity. J. Phys. Act. Res. 2016, 1, 5–8. [Google Scholar] [CrossRef]
  34. ISO 10272-2; Microbiology of Food and Animal Feeding Stuffs—Horizontal Method for Detection and Enumeration of Campylobacter spp.—Part 2: Colony-Count Technique. International Organization for Standardization: Geneva, Switzerland, 2006.
  35. Carter, J.V.; Pan, J.; Rai, S.N.; Galandiuk, S. ROC-ing along: Evaluation and interpretation of receiver operating characteristic curves. Surgery 2016, 159, 1638–1645. [Google Scholar] [CrossRef]
  36. Kreitlow, A.; Becker, A.; Ahmed, M.F.E.; Kittler, S.; Schotte, U.; Plötz, M.; Abdulmawjood, A. Combined loop-mediated isothermal amplification assays for rapid detection and one-step differentiation of Campylobacter jejuni and Campylobacter coli in meat products. Front. Microbiol. 2021, 12, 668824. [Google Scholar] [CrossRef]
  37. Sabike, I.I.; Uemura, R.; Kirino, Y.; Mekata, H.; Sekiguchi, S.; Okabayashi, T.; Goto, Y.; Yamazaki, W. Use of direct LAMP screening of broiler fecal samples for Campylobacter jejuni and Campylobacter coli in the positive flock identification strategy. Front. Microbiol. 2016, 7, 1582. [Google Scholar] [CrossRef] [Green Version]
  38. Wang, D. Evaluation and improvement of LAMP assays for detection of Escherichia coli serogroups O26, O45, O103, O111, O121, O145, and O157. Afr. Health Sci. 2017, 17, 1011–1021. [Google Scholar] [CrossRef] [Green Version]
  39. Wang, D.G.; Brewster, J.D.; Paul, M.; Tomasula, P.M. Two methods for increased specificity and sensitivity in loop-mediated isothermal amplification. Molecules 2015, 20, 6048–6059. [Google Scholar] [CrossRef] [Green Version]
  40. Babu, U.S.; Harrison, L.M.; Mammel, M.K.; Bigley, E.C., 3rd; Hiett, K.L.; Balan, K.V. A loop-mediated isothermal amplification (LAMP) assay for the consensus detection of human pathogenic Campylobacter species. J. Microbiol. Methods 2020, 176, 106009. [Google Scholar] [CrossRef]
  41. Yamazaki, W. Sensitive and rapid detection of Campylobacter jejuni and Campylobacter coli using loop-mediated isothermal amplification. Methods Mol. Biol. 2013, 943, 267–277. [Google Scholar] [CrossRef]
  42. Wong, Y.P.; Othman, S.; Lau, Y.L.; Radu, S.; Chee, H.Y. Loop-mediated isothermal amplification (LAMP): A versatile technique for detection of micro-organisms. J. Appl. Microbiol. 2018, 124, 626–643. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Karthik, K.; Rathore, R.; Thomas, P.; Arun, T.R.; Viswas, K.N.; Dhama, K.; Agarwal, R.K. New closed tube loop mediated isothermal amplification assay for prevention of product cross-contamination. MethodsX 2014, 1, 137–143. [Google Scholar] [CrossRef] [PubMed]
  44. ISO 10272-1; Microbiology of Food and Animal Feeding Stuffs—Horizontal Method for Detection and Enumeration of Campylobacter spp.—Part 1: Detection Method. International Organization for Standardization: Geneva, Switzerland, 2006.
  45. Kabir, S.M.L.; Chowdhury, N.; Asakura, M.; Shiramaru, S.; Kikuchi, K.; Hinenoya, A.; Neogi, S.B.; Yamasaki, S. Comparison of established PCR assays for accurate identification of Campylobacter jejuni and Campylobacter coli. Jpn. J. Infect. Dis. 2019, 72, 81–87. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Asakura, M.; Samosornsuk, W.; Hinenoya, A.; Misawa, N.; Nishimura, K.; Matsuhisa, A.; Yamasaki, S. Development of a cytolethal distending toxin (cdt) gene-based species-specific multiplex PCR assay for the detection and identification of Campylobacter jejuni, Campylobacter coli and Campylobacter fetus. FEMS Immunol. Med. Microbiol. 2008, 52, 260–266. [Google Scholar] [CrossRef] [Green Version]
  47. Reid, A.N.; Pandey, R.; Palyada, K.; Whitworth, L.; Doukhanine, E.; Stintzi, A. Identification of Campylobacter jejuni genes contributing to acid adaptation by transcriptional profiling and genome-wide mutagenesis. Appl. Environ. Microbiol. 2008, 74, 1598–1612. [Google Scholar] [CrossRef] [Green Version]
  48. On, S.L.; Jordan, P.J. Evaluation of 11 PCR assays for species-level identification of Campylobacter jejuni and Campylobacter coli. J. Clin. Microbiol. 2003, 41, 330–336. [Google Scholar] [CrossRef] [Green Version]
  49. McHugh, M.L. Interrater reliability: The kappa statistic. Biochem. Med. 2012, 22, 276–282. [Google Scholar] [CrossRef]
  50. Sridapan, T.; Tangkawsakul, W.; Janvilisri, T.; Luangtongkum, T.; Kiatpathomchai, W.; Chankhamhaengdecha, S. Rapid and simultaneous detection of Campylobacter spp. and Salmonella spp. in chicken samples by duplex loop-mediated isothermal amplification coupled with a lateral flow biosensor assay. PLoS ONE 2021, 16, e0254029. [Google Scholar] [CrossRef]
  51. Yamazaki, W.; Taguchi, M.; Kawai, T.; Kawatsu, K.; Sakata, J.; Inoue, K.; Misawa, N. Comparison of loop-mediated isothermal amplification assay and conventional culture methods for detection of Campylobacter jejuni and Campylobacter coli in naturally contaminated chicken meat samples. Appl. Environ. Microbiol. 2009, 75, 1597–1603. [Google Scholar] [CrossRef] [Green Version]
  52. Quyen, T.L.; Nordentoft, S.; Vinayaka, A.C.; Ngo, T.A.; Engelsmenn, P.; Sun, Y.; Madsen, M.; Bang, D.D.; Wolff, A. A sensitive, specific and simple loop mediated isothermal amplification method for rapid detection of Campylobacter spp. in broiler production. Front. Microbiol. 2019, 10, 2443. [Google Scholar] [CrossRef]
  53. Lv, R.; Wang, K.; Feng, J.; Heeney, D.D.; Liu, D.; Lu, X. Detection and quantification of viable but non-culturable Campylobacter jejuni. Front. Microbiol. 2020, 10, 2920. [Google Scholar] [CrossRef] [PubMed]
  54. Petersen, M.; Ma, L.; Lu, X. Rapid determination of viable but non-culturable Campylobacter jejuni in food products by loop-mediated isothermal amplification coupling propidium monoazide treatment. Int. J. Food Microbiol. 2021, 351, 109263. [Google Scholar] [CrossRef] [PubMed]
  55. Kanki, M.; Sakata, J.; Taguchi, M.; Kumeda, Y.; Ishibashi, M.; Kawai, T.; Kawatsu, K.; Yamasaki, W.; Inoue, K.; Miyahara, M. Effect of sample preparation and bacterial concentration on Salmonella enterica detection in poultry meat using culture methods and PCR assaying of preenrichment broths. Food Microbiol. 2009, 26, 1–3. [Google Scholar] [CrossRef] [PubMed]
  56. Rodgers, J.D.; Simpkin, E.; Lee, R.; Clifton-Hadley, F.A.; Vidal, A.B. Sensitivity of direct culture, enrichment and PCR for detection of Campylobacter jejuni and C. coli in broiler flocks at slaughter. Zoonoses Public Health 2017, 64, 262–271. [Google Scholar] [CrossRef] [PubMed]
  57. Romero, M.R.; Cook, N. A rapid lamp-based method for screening poultry samples for Campylobacter without enrichment. Front. Microbiol. 2018, 9, 2401. [Google Scholar] [CrossRef]
  58. Sun, Y.; Zhao, L.; Zhao, M.; Zhu, R.; Deng, J.; Wang, F.; Li, F.; Ding, Y.; Tian, R.; Qian, Y. Four DNA extraction methods used in loop-mediated isothermal amplification for rapid adenovirus detection. J. Virol. Methods 2014, 204, 49–52. [Google Scholar] [CrossRef]
Vetsci 09 00122 g001 550

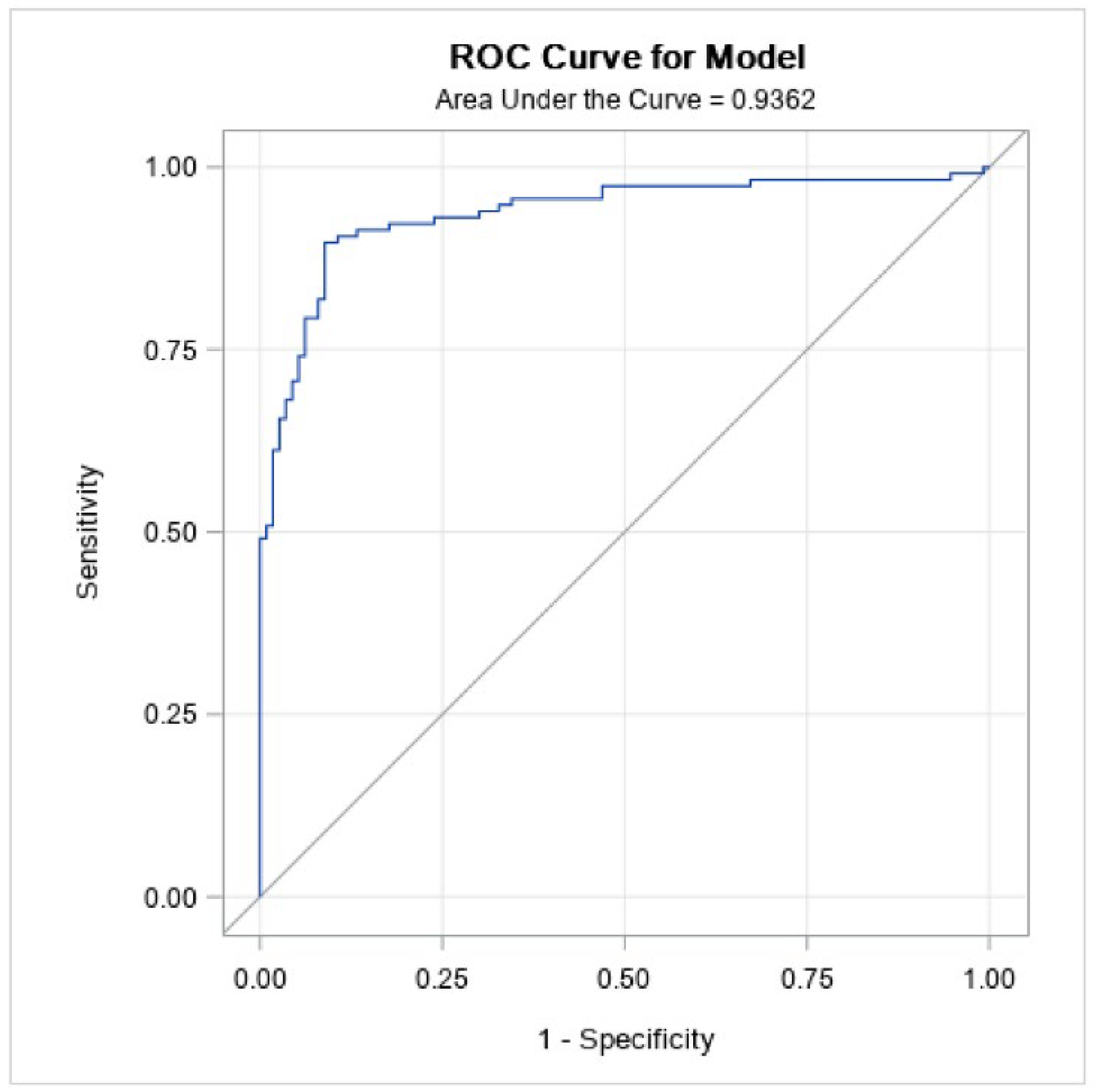

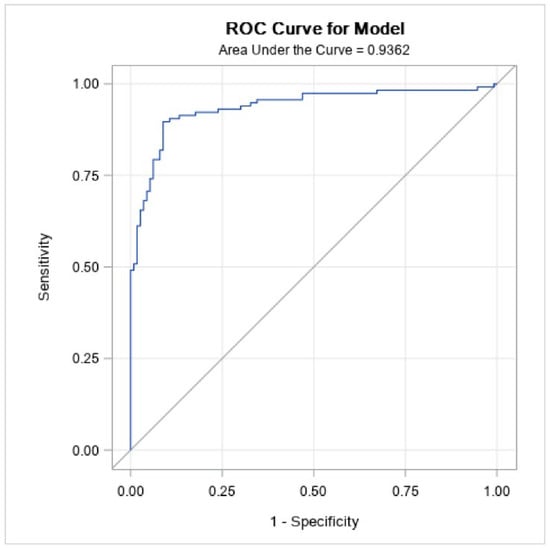

Figure 1. ROC and area under the curve (AUC) from the model.
Figure 1. ROC and area under the curve (AUC) from the model.
Vetsci 09 00122 g001
Vetsci 09 00122 sch001 550

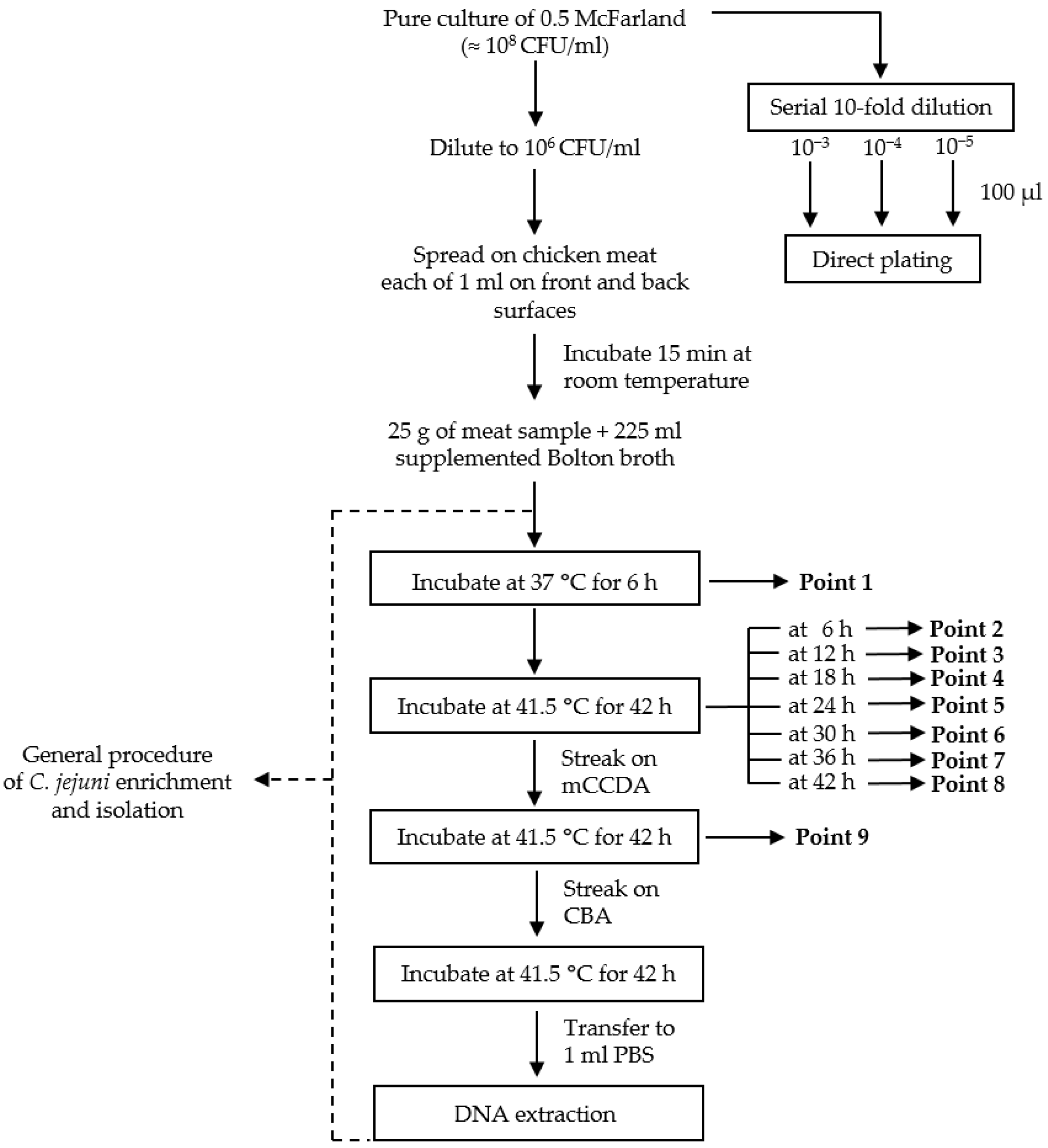

Scheme 1. Procedures of artificial contamination in chicken meat and point of sample collection for DNA extraction.
Scheme 1. Procedures of artificial contamination in chicken meat and point of sample collection for DNA extraction.
Vetsci 09 00122 sch001
Table
Table 1. Loop-mediated isothermal amplification (LAMP) primers used in this study.
Table 1. Loop-mediated isothermal amplification (LAMP) primers used in this study.
Target GeneGenBank
Accession No.		PrimerSequence (5′—3′) *Gene Location (bp)Reference
cj0414AL111168CJ-FIPACAGCACCGCCACCTATAGTAGAAGCTTTTTTAAACTAGGGC (Flc-F2)95–76 (Flc), 25–46 (F2)[19]
CJ-BIPAGGCAGCAGAACTTACGCATTGAGTTTGAAAAAACATTCTACCTCT (B1-B2c)101–121 (B1), 181–157 (B2c)
CJ-F3GCAAGACAATATTATTGATCGC (F3)3–24
CJ-B3CTTTCACAGGCTGCACTT (B3c)218–201
CJ-LFCTAGCTGCTACTACAGAACCAC (LFc)74–53
CJ-LBCATCAAGCTTCACAAGGAAA (LB)124–143
* The direction in which the elongation of the primer in DNA synthesis occurs.
Table
Table 2. LAMP temperature optimization using amplification kit.
Table 2. LAMP temperature optimization using amplification kit.
Gradient Temperature
(°C)		Mean Cq
Sample (C. jejuni)NTC *Positive Control
68.015.6443.99
68.414.4933.74
69.212.9577.28
70.411.3866.96
71.812.8987.60
73.015.4343.73
73.720.6231.69
74.024.3120.8510.43
* No target or negative control.
Table
Table 3. Partial logistic regression output of receiver operating characteristic (ROC) model for cutoff value calculation.
Table 3. Partial logistic regression output of receiver operating characteristic (ROC) model for cutoff value calculation.
Analysis of Maximum Likelihood Estimates
ParameterDFEstimateStandard
Error		Wald
Chi-Square		Pr > ChiSq
Intercept12.36890.302561.3305<0.0001
Cycle1−0.06820.0093153.7099<0.0001
Table
Table 4. AUC significance tests.
Table 4. AUC significance tests.
ROC Association Statistics
ROC ModelMann–WhitneySomers’ DGammaTau-a
AreaStandard
Error		95% Wald
Confidence Limits
Model0.93620.01700.90300.96950.87240.87240.4381
ROC10.500000.50000.500000
ROC Contrast Test Results
ContrastDFChi-SquarePr > ChiSq
Reference = Model1661.9499<0.0001
Table
Table 5. Partial output of real-time LAMP quantification cycle (Cq) cutoff scores with statistics, sorting by highest Youden’s J (YJ).
Table 5. Partial output of real-time LAMP quantification cycle (Cq) cutoff scores with statistics, sorting by highest Youden’s J (YJ).
CutoffSensitivitySpecificityYJ
18.07020.896550.911500.80806
18.06770.887930.911500.79944
18.12870.896550.902650.79921
18.16370.905170.893810.79898
18.06070.879310.911500.79081
18.13390.896550.893810.79036
18.60000.905170.884960.79013
18.04290.870690.911500.78219
19.16010.905170.876110.78128
19.48140.913790.867260.78105
Table
Table 6. Specificity test of LAMP and multiplex PCR (mPCR) assays for detection of C. jejuni and other foodborne bacteria.
Table 6. Specificity test of LAMP and multiplex PCR (mPCR) assays for detection of C. jejuni and other foodborne bacteria.
BacteriaC. jejuni Positives
mPCRLAMP
Campylobacter jejuni32/3231/32
Campylobacter coli0/81/8
Salmonella Paratyphi8/80/8
Pseudomonas aeruginosa8/80/8
Staphylococcus aureus8/80/8
Escherichia coli8/81/8
Negative control0/80/8
Table
Table 7. Sensitivity test of LAMP and mPCR assays at different concentrations of C. jejuni.
Table 7. Sensitivity test of LAMP and mPCR assays at different concentrations of C. jejuni.
Assay *Campylobacter jejuni Concentration (CFU/mL) **
108107106105104103102101
LAMP++++++±−
mPCR++++++++
* LAMP interpretation was based on real-time amplification using the cutoff value of 18.07, mPCR results were acquired from gel electrophoresis. ** (+), positive result of three replicates; (±), positive result of at least one replicate; (−), negative result of three replicates.
Table
Table 8. Detection of C. jejuni in contaminated chicken meat.
Table 8. Detection of C. jejuni in contaminated chicken meat.
MediaTemperature
(°C)		Incubation
Point (h)		C. jejuni Positives (n = 3) *
mPCRLAMP
Sample1Sample2Sample1Sample2
Bolton broth3763300
41.5122110
41.5182200
41.5242101
41.5302200
41.5361101
41.5420010
41.5482100
mCCDA41.5483300
* Number of replications.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jainonthee, C.; Chaisowwong, W.; Ngamsanga, P.; Wiratsudakul, A.; Meeyam, T.; Pichpol, D. A Cutoff Determination of Real-Time Loop-Mediated Isothermal Amplification (LAMP) for End-Point Detection of Campylobacter jejuni in Chicken Meat. Vet. Sci. 2022, 9, 122. https://doi.org/10.3390/vetsci9030122

AMA Style

Jainonthee C, Chaisowwong W, Ngamsanga P, Wiratsudakul A, Meeyam T, Pichpol D. A Cutoff Determination of Real-Time Loop-Mediated Isothermal Amplification (LAMP) for End-Point Detection of Campylobacter jejuni in Chicken Meat. Veterinary Sciences. 2022; 9(3):122. https://doi.org/10.3390/vetsci9030122

Chicago/Turabian Style

Jainonthee, Chalita, Warangkhana Chaisowwong, Phakamas Ngamsanga, Anuwat Wiratsudakul, Tongkorn Meeyam, and Duangporn Pichpol. 2022. "A Cutoff Determination of Real-Time Loop-Mediated Isothermal Amplification (LAMP) for End-Point Detection of Campylobacter jejuni in Chicken Meat" Veterinary Sciences 9, no. 3: 122. https://doi.org/10.3390/vetsci9030122

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
