The major notion for collecting publicly available information in the form of a geographical database arose from the need of our project to deal with (geo)participatory spatial tools utilized in the decision-making processes of local administrations. The project aims to identify and spatially analyze the key factors affecting the successful implementation of public participation processes in participatory planning.
Various participatory/community mapping methods have gained popularity, especially after developing the Local Agenda 21 Planning Guide created during the United Nations Rio Conference on the Environment in 1992, where it was identified as a best practice for locally-based sustainability planning [1
]. Nevertheless, the question of whether digital participation enables a move beyond informing or consulting citizens as part of the planning process has not fully been answered yet [2
]. More evidence is therefore needed to assess the actual value of digital participatory platforms in urban planning, including web-based geoparticipation [3
], especially with the links to the UN Sustainable Development Goals (SDGs) agenda and specifically the Indicator 11.3.2: “Proportion of cities with a direct participation structure of civil society in urban planning and management that operate regularly and democratically”.
Following the lack of data about geoparticipation on the municipal level and research gap in geoparticipation research in Central and Eastern Europe, we have created a vast geodatabase (n = 6258) about Czech municipalities’ local administration and their usage of geoparticipatory tools.
By collecting such a dataset, we can answer spatial questions concerning the whole country, such as:
“What is the spatial distribution of given indicator”?
“Do the municipalities with similar indicators tend to cluster or not”?
Or “Is there a relationship between municipalities’ size and a certain level of (geo)participation”?
The questions above could not be answered using any of the existing data about participatory processes or e-governance at the local administration level in Czechia. In this data description, we do not intend to answer such questions (this is done in other research, e.g., [6
]), but to introduce the unique dataset we collected. On the international level, two global indices are measuring the level of participation or e-government. The first, E-Government Development Index (EGDI), measures three aggregate indices [7
] of e-government: (1) provision of online services (e.g., online availability of authorities); (2) telecommunication connectivity (e.g., number of internet users); and (3) human capacity (e.g., literacy rate) [8
]. The second, E-Participation index, similarly to EGDI, focuses on three composite domains: (1) E-information sharing, (2) E-consultation, and (3) E-decision-making [9
]. Both indices monitor all United Nations member states at a country level. Focusing on Europe, the European Participation Index (EPI) made for cross-national comparison of workers participation includes board-level, establishment-level, and collective bargaining participation [10
]. The EPI is not an index dealing with public participation but rather exploring the relationship between employees and employers. The Better Life Index—created by the Organisation for Economic Co-operation and Development (OECD) and covering most of Europe—includes the Civic Engagement indicator, among others, which takes voter turnout and stakeholder engagement for developing regulations as two main measures since these are relatively easily available for all OECD member countries [12
]. Eurostat as a main statistical body for the European Union provides only a few partial statistics connected to public participation (e.g., formal and informal voluntary activities, communication via social media, or active citizenship). These are mainly collected within European Union Statistics on Income and Living Conditions (EU-SILC) surveys. Probably the most important relevant indicator is active citizenship, defined as “participation in activities related to political groups, associations or parties, including attending any of their meetings or signing a petition” [13
]. However, there is not a comprehensive statistics or index about public participation produced by Eurostat. Narrowing down the geographical scope, public participation at local administration level in Czechia was measured in 2016 using the comprehensive Participation index developed by the former D21 initiative (now renamed to Institute H21, and now running the Participation21 project). The Participation index was composed of 21 indicators grouped into six categories—transparency, communication, involvement/engagement, inclusion, implementation, and evaluation. However, it evaluated only 101 municipalities and city districts with more than 10,000 inhabitants. One of the most important public bodies in the field of participation in Czechia is represented by the association of Healthy Cities of the Czech Republic, comprising 131 members with regional influence on more than 2400 municipalities. The association actively uses and promotes a Pocitovemapy.cz platform (“emotional maps” in English), through which citizens can express their opinion on various topics (e.g., urban planning, development, and site improvements).
Nevertheless, there exists an endless dilemma in geographical research giving us two options. First, if we want to cover large areas by means of data, we usually exploit databases from official data sources, typically statistical offices. However, available indicators are either generic or not available at a finer administrative scale (e.g., municipal level, LAU 2). Second, desired detailed indicators are available, but covering only a small portion of the study area and/or collected as a sample survey, which might not be representative enough for each administrative unit in a country. Acquisition of spatially and thematically detailed data covering large areas—i.e., combining both options mentioned above—would impose highly cost- and time-demanding data collection.
Therefore, as there is no comprehensive and compact dataset dealing with participatory processes or e-governance at the local administration level (LAU 2) in Czechia, we filled the gap by collecting and creating a dataset from publicly available sources using crowdsourcing. We collected a considerable number of indicators about the local administration processes, communication means with local citizens, the openness of (geo)data, and other domains for each municipality (LAU 2) in Czechia. With the help of crowdsourcing, we prepared 55 attributes for 6258 municipalities in Czechia. The attributes are decomposed from the former 24 questions (see Table 1
) to form unique records for better manipulation in GIS and consequent analysis and visualization. Moreover, the dataset presented here was enriched by the authors’ calculation of the Index of Participation with its partial dimensions (see details in [6
]). The added value of the dataset does not lie in the novel use of methods of public surveying or data mining—instead, we used an intuitive and simple online tool for data collection—but in the final open-source database helping to evaluate the (geo)participatory notions of local administrations towards the concept of democracy 2.0 or active citizenship.
2. Data Description
As mentioned in the previous part, we collected a unique set of indicators about (geo)participatory processes and tools that municipalities in Czechia use at the local administration level. The database is cleaned up and ready to be implemented, used, and exploited by other researchers interested in the topic. Moreover, we provide a database about Czech municipalities that is fully integrated with their spatial counterpart. Thus, researchers seeking to search for the geographical or spatial context could use the dataset without additional efforts (in terms of data curation). In this part, we describe the most important characteristics of the dataset, focusing on attribute (tabular) data, its spatial part, and the open geodata portal through which we distribute the dataset. We elaborate more in detail on the methodological aspects of the data collection in the Methods section of this paper.
2.1. Spatial Part of the Dataset
The spatial part of the dataset represents the administrative boundaries of Czech municipalities, i.e., LAU 2 units. In 2019, to which we reference the data, there were 6258 municipalities. The spatial data were acquired from The Czech Office for Surveying, Mapping and Cadastre (ČÚZK). All the spatial data treatment was done in ArcGIS Pro with the use of the Esri File Geodatabase. The final dataset is distributed via the open data portal managed by the Department of Geoinformatics (see Section 2.3
). The dataset is available primarily as Esri Geodatabase, but it is also available in Shapefile format and geospatial services using API (REST, GeoJSON). Moreover, the data is downloadable in textual CSV format and MS Excel table.
The final dataset is in a vector format using polygons as a geometric representation of administrative boundaries with attached data from the survey. The coordinate system set for the data is S-JTSK_Krovak_East_North (EPSG code 5514). Attributes are based on the questions from the survey (Table 1
), but in some cases, answers on survey questions were decomposed for better manipulation (analysis and visualization) in GIS. Moreover, besides fundamental identifiers of municipalities (unique ID codes, municipalities’ names, higher hierarchical units codes, and names), we added a synthetic index—Index of GeoParticipation—derived from primarily collected data from the survey (see more in the methodology section). The list of attributes with their meaning is in Table 2

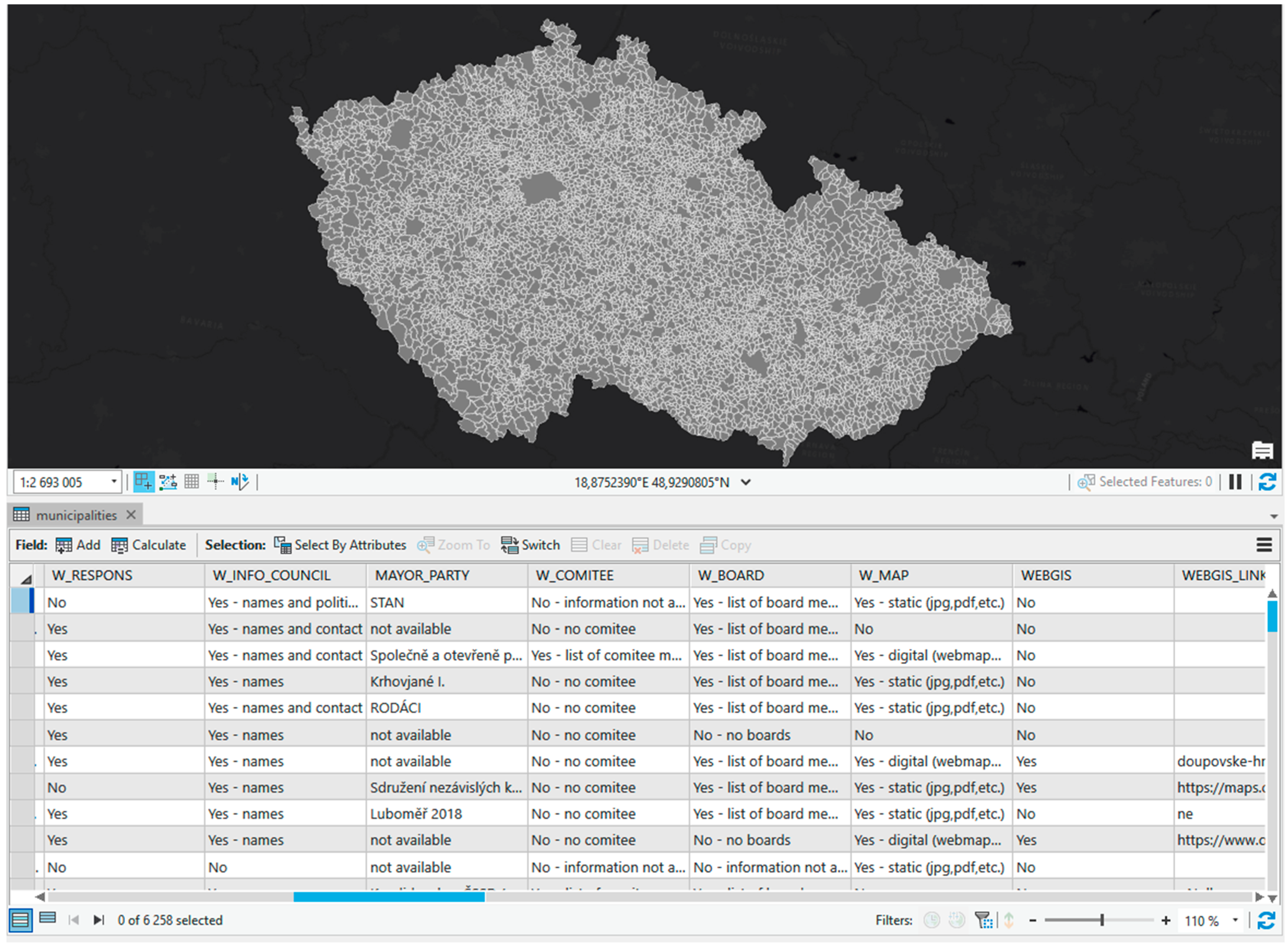

, and the data view in ArcGIS Pro environment in Figure 1
2.2. Attribute Part of the Dataset
The non-spatial part of the dataset resulted from time- and capacity-demanding but crowdsourced manual surveys done by research assistants (students) by exploring individual municipal websites. Original ID codes were provided by The Czech Statistical Office (CZSO).
The list of collected attributes is in Table 2
along with the short description (including related questions from Table 1
) and primary data type. In total, there are 55 attributes (excluding ObjectID), from which nine are number format. Since some of the attributes were derived from one question (e.g., social networks or problem/defect reporting), the textual data type was chosen instead of a binary number (i.e., 0/1). This helps further use of the dataset, as additional data description (decoding table) is not needed. That is why most of the attributes were kept in textual data type, as some questions had multiple answer options. For instance, Question 5 concerning information about the municipal council offered four possible options: (1) Yes-list of board members; (2) Yes-list of boards; (3) No-no boards; and (4) No-information not available. Therefore, the attribute W_BOARD is oftext data type. Analogically with attributes W_COMITEE, W_INFO_COUNCIL, W_MAP, and several others.
Further decomposition of some questions would lead to a rather complex data structure with an overloaded attribute table (in terms of the number of attribute fields). On the other hand, some questions were decomposed into binary variables (e.g., problem/defect reporting attributes such as DEF_REP_FORM, DEF_REP_MAIL, DEF_REP_MAP, and DEF_REP_YN) as authors identify these attributes as useful ones for initial visual analysis. In general, the dataset’s attributes are unified to enable various types of analysis and visualizations.
As indicated earlier, the attributes are generated from answers to questions prepared in SurveyMonkey for research assistants who collected the data from publicly available sources. When controlling the dataset, we identify mistakes or incorrect information in the data. Details about data verification are in Section 3.2

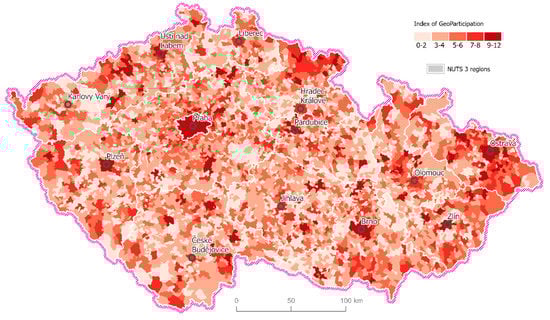

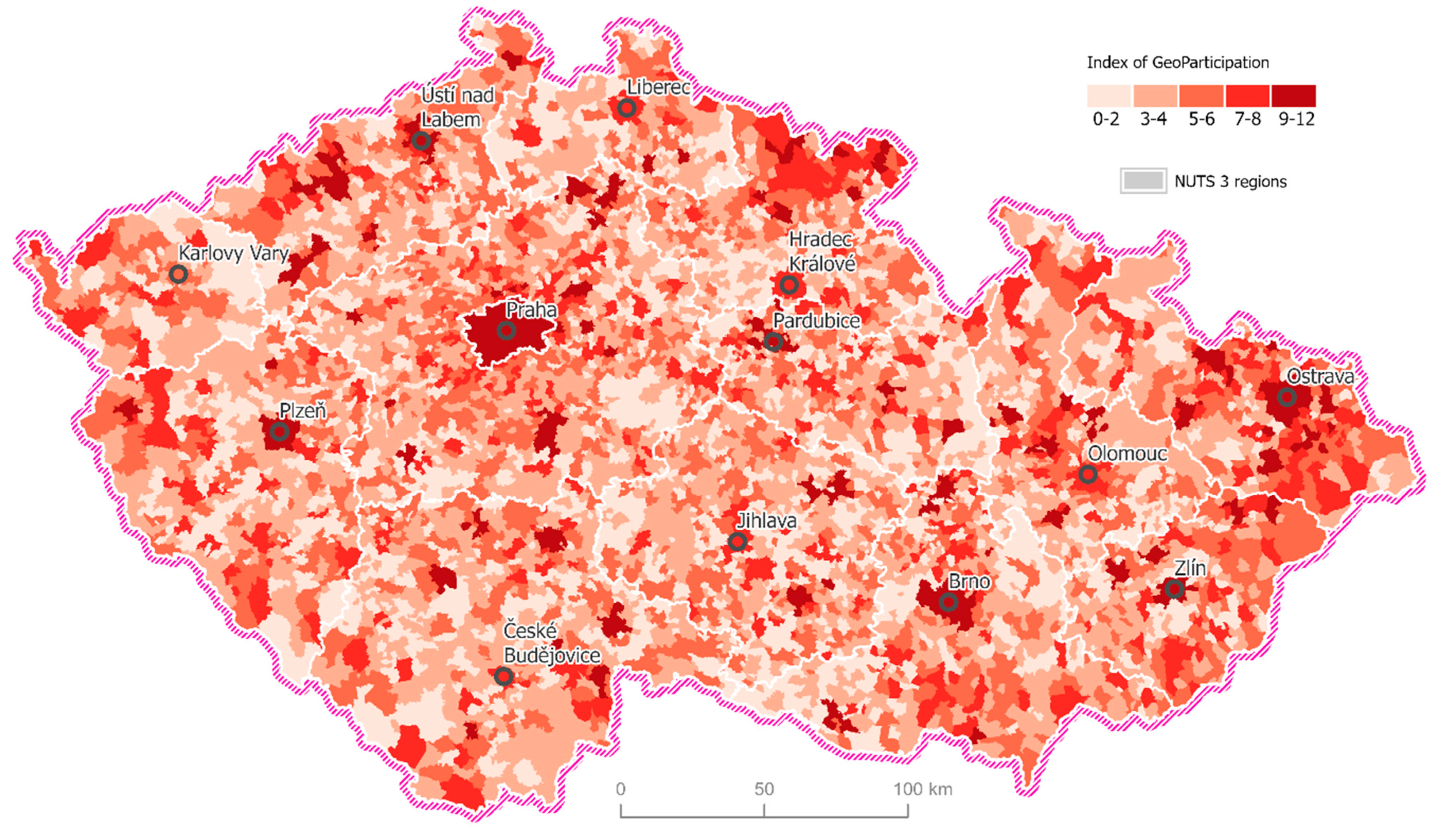

In addition, we also included derived attributes dealing with the Index of GeoParticipation (I_PARTICIP_SUM) and its domains (I_C, I_P, I_T). The synthetic Index of GeoParticipation (Figure 2
) is computed from three domains—communication, participation, and transparency—that follows the concept of public participation proposed [14
]. The Index of GeoParticipation combines the cubed frameworks (theory) with empirical/measurable indicators [6
], which were used from the presented dataset. The communication domain uses answers from Questions 4, 12, 13, and 16; the participation domain includes answers to Questions 12, 18, 21, and 24; and finally, the transparency domain is composed of answers to Questions 5, 15, 17, and 20. Each domain received 0 to 4 points (the answers were used as binary variables); therefore, the overall Index of GeoParticipation ranges from 0 to 12 points. Further details about the index calculation and methodology are presented in [6
]. Index of GeoParticipation represents possible advanced use of the presented dataset, besides individual analytical mapping of selected domains or concrete indicators.
2.3. Open Data Portal
We decided to follow an ‘open data’ concept to offer the dataset as available as possible. According to The Open Knowledge Foundation [16
], open data is “data that can be freely used, shared and built-on by anyone, anywhere, for any purpose”. Based on generally accepted rules, the data should be published via Internet from the primary source with no legislative restriction. Data should be available in several formats following open standards. There should be no technical restrictions during downloading process (no registration). Data should be published to the maximum possible extent (all feature and all attributes).
There exist several tools (data portals) available for publishing and sharing spatially based data like CKAN (Comprehensive Knowledge Archive Network), DKAN (Drupal implementation of CKAN), Socrata Open Data, Junar, Plenar.io, or Esri solutions-ArcGIS Hub, and ArcGIS Enterprise Sites. For our purpose, we used the ArcGIS Enterprise platform, which is an alternative to ArcGIS Hub that allows more sophisticated solutions with better options for data management.

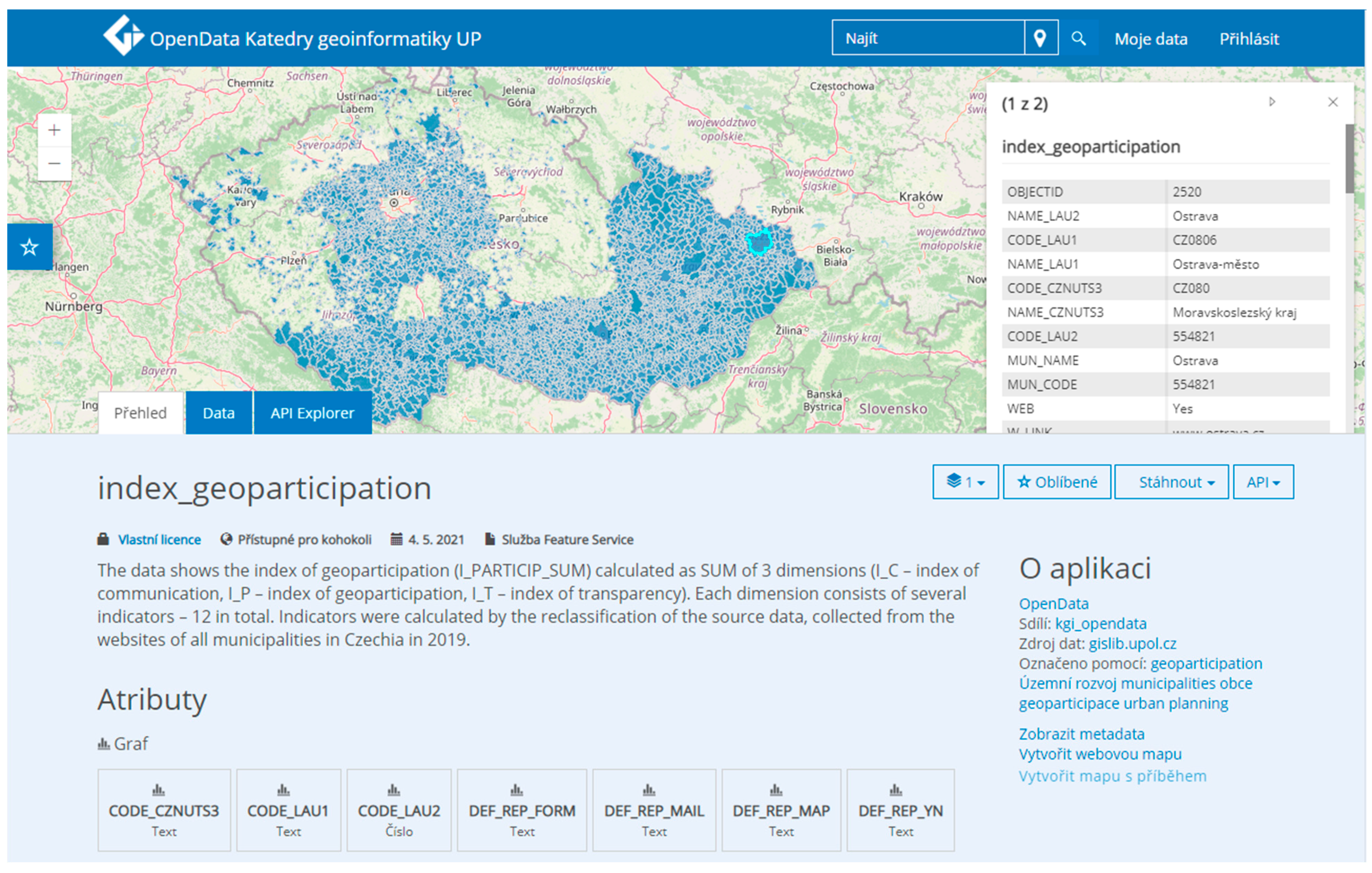

The interface (web page) of the dataset (Figure 3
Portal also allows Esri users to use the published dataset in the custom project within the ArcGIS platform. The layer is directly uploaded by the “Make web map” button in the ArcGIS Online Web Map Viewer, and users can create their interactive web map applications.
This chapter describes the main steps of data curation and publication of the dataset on an open data portal. Firstly, the methodology of the data collection campaign is described, including some of its drawbacks. Secondly, the data verification process is explained in detail; and, lastly, publishing to an open data portal is presented.
3.1. Data Collection Campaign
The intended indicators were inspired by research from [14
], after which we followed the topics from local participatory policies in Czechia covering communication, transparency, and government. In addition, we expertly assessed the relevancy and availability of the information that municipalities provide openly on their websites. This two-fold process resulted in identifying questions (Table 1
), which we planned to collect for a single municipality in the country. Since it was designed to collect publicly available and relevant information for every municipality in Czechia, i.e., for 6258 unique units, and considering the number of desired questions—i.e., 24, it means 150,192 records were gathered manually exploring individual municipalities’ websites. Therefore, we used the principle of crowdsourcing as we asked research assistants (university students enrolled in a GIS course) to help us with the data collection. In total, over 50 people were assigned to collect data about municipalities in two given LAU1 districts (77 in total). The data were collected via the questionnaire prepared in the Survey Monkey tool in the period from March 2019 until May 2020. Before the data collection campaign, all students were instructed on using the questionnaire and what each question meant. They were given the list of municipalities (with their unique codes) to collect the data about.
Moreover, a help button with further explanations for each question in the SurveyMonkey tool was available for collectors. Although we had various meetings and thorough pre-survey training, some research assistants made mistakes in data collection. However, the most common mistakes included mismatched names of the municipality (although unique codes were provided), incorrect municipal email and web addresses, factual mistakes in the attributes (confusion e.g., between mobile apps and webGIS), and others. Therefore, it was needed to assess the quality of the data in the following step of the data curation.
The resulting data collected by research assistants was stored in a tabular form in MS Excel, where the data was cleaned up and formatted for later join with its spatial equivalent in ArcGIS Pro. Since we used unique codes of municipalities, it was quite straightforward to join attributes with its spatial counterpart, i.e., municipal administrative boundaries. This process also helped us identify inconsistencies in data regarding municipality names (as referred to above).
3.2. Data Verification
As mentioned in the previous part, some data quality issues appeared during the data collection that had to be corrected. There exist municipalities with exact names in Czechia, and although we provided research assistants (students) with unique municipal IDs, it happened they mismatched some assigned municipalities with others having the same name. Therefore, we checked manually every single municipality after in order to have the correct dataset. Related to this, we also needed to check factual information filled by research assistants via the survey tool. However, since it was impossible to inspect every single record in the dataset, we focused on finding out the overall error rate of the data collected.
The data verification was conducted on a random sample of 77 municipalities—one per each LAU1 district. The random sample was chosen using a random sampling algorithm in ArcGIS software (ACM collected algorithm 599). The algorithm was incorporated into the ModelBuilder, allowing iterations over each district to avoid selecting multiple municipalities from one district. Six other research assistants collected the same data for each municipality, and the results were compared among each other. This test was designed to eliminate the subjectivity from data collection. Via this approach, we have collected 431 records (not every research assistant managed to collect all 77 municipalities); on average, we had 5.6 records per municipality. For each municipality and each question, a data check was performed to highlight the questions with the highest error value. The general error rate, where at least one assistant collected a different response for the question than the other assistant, was from 3.7% (“Is there information about the municipality’s council”?) to 31.8% (“Does the municipality allow online reporting of problems”?). Suppose we accept the fact that at least one assistant did not really perform well and did not collect the data correctly. In that case, the overall error drops, ranging from 1.4% (“Is there information about the municipality’s council”?) to 28.3% (“Does the municipality allow online reporting of problems”?). The average error in data is 10.3% in our random sample. This may seem high, but the data collected should not be treated as exact evidence on the real state, but merely as the public perception of how the real state is available. The assistants had the instruction that if the data/information was available/searchable quickly/easily on the municipality web page at the verification process, they should mark it as unavailable, as the average user will also not spend extra time searching for the actual data.
3.3. Open-Data Portal and Publishing the Dataset
For the data publication, we decided to use the Open Data Portal (https://gislib.upol.cz/portal/apps/sites/#/opendata
; accessed on 8 July 2021) implemented at the Department of Geoinformatics, Palacký University Olomouc. Portal was created using the ArcGIS Enterprise solution that consists of ArcGIS Server, ArcGIS Enterprise Portal, ArcGIS DataStore, and ArcGIS Web Adaptor [17
]. The main benefit of this high-end solution is more complex data management. Data is not stored in Esri Geospatial Cloud but at the owners hardware that offers more control of data publication, processing, and updates. Portal was designed via ArcGIS Enterprise Sites (part of ArcSGI enterprise Portal), an interface for creating websites to share the data.
Inspired by [18
], after the metadata editing was finished, the publishing phase followed. Publishing is the technical and formal procedure of data publication, finished by visualized and freely available open data for download. From technical point of view, the publication procedure requires sharing data with the public and selecting available data formats for the download option. For our dataset, the following options are available: Esri spatial geodatabase (GDB) as the first option, CSV, Shapefile, GeoJSON, XLSX, and standardized GeoService API.
