Georeferenced Sediment and Surface Water Element Concentrations in the Coastal Liepāja Lake (Latvia), 2024

Abstract

Liepāja Lake, a Natura 2000 protected area and one of the largest coastal freshwater bodies in Latvia, has been historically influenced by urbanization, diffuse agricultural inputs, and legacy contamination from metallurgy and ship-repair industries. Comprehensive, spatially explicit data on its sediment and water chemistry were previously lacking. The dataset used in this study provides an openly accessible record of major and trace element concentrations in surface sediments and surface waters collected during the 2024 field campaign. Sampling sites were distributed across northern, central, and southern zones to capture gradients in anthropogenic pressure and natural variability. Water samples were filtered and acidified following ISO 15587-2:2002, while sediments were homogenized, sieved, and digested following EPA 3051a. Both matrices were analyzed using Inductively Coupled Plasma Mass Spectrometry (ICP-MS, Agilent 8900 ICP-QQQ) with multi-element calibration traceable to NIST standards. The dataset comprises 31 analytes (Li–Bi) with paired standard deviation values, reported in mg kg^–1 (sediments) and µg L^–1 (water). Rigorous validation included certified reference materials, duplicates, blanks, and statistical outlier screening. The resulting data form a reliable geochemical baseline for assessing pollution sources, quantifying spatial heterogeneity, and supporting future monitoring, modeling, and restoration efforts in climate-sensitive Baltic coastal lakes.

Dataset: https://doi.org/10.17632/9wwnmzy7d7.1 and https://doi.org/10.17632/tgn7n436hd.1.

Dataset License: CC BY 4.0

1. Summary

Liepāja Lake, situated in western Latvia, is one of the largest coastal freshwater bodies in the Baltic region and is designated as a Natura 2000 protected area owing to its unique biodiversity and ecological significance. The lake has been historically impacted by industrial activities, urban effluents, and diffuse agricultural pollution, leading to sediment and water contamination by nutrients and trace metals. Despite its environmental importance, comprehensive, georeferenced chemical data for this ecosystem have been scarce.

The presented dataset provides an openly accessible, spatially explicit record of major and trace element concentrations in surface sediments and surface waters collected during the 19 July 2024 field campaign. Sampling locations were selected to represent diverse hydro-morphological and impact zones, including historical discharge areas, inflow sectors, and open-water regions. Each point is documented in both the LKS-92 and WGS84 coordinate systems, ensuring full compatibility with national and international spatial databases.

Analytical data include thirty-one elements (Li, Na, Mg, Al, Fe, Ni, Cu, Zn, As, Cd, Pb, and others) with paired standard deviation values, allowing for quantitative assessment of spatial heterogeneity and data reproducibility. The dataset forms a reference baseline for detecting spatial and temporal changes in contamination patterns and provides a foundation for future environmental monitoring, modeling, and restoration activities in the context of climate-driven hydrological changes.

The study was performed as part of unfunded institutional collaboration promoting sustainable water and sediment management in Latvia. Public dissemination of this dataset is expected to strengthen regional environmental research capacity, support policy implementation under the EU Water Framework Directive, and stimulate further investigations on pollution trends and ecological recovery in Natura 2000 aquatic ecosystems.

2. Data Description

2.1. Overview of Files and Format

The dataset comprises two Microsoft Excel files in .xlsx format:

(1)

Liepaja_Lake_sediments_coord.xlsx—contains element concentration data for surface sediments.

(2)

Liepaja_Lake_water_2025_coord.xlsx—contains element concentration data for surface water.

Each file includes a single worksheet with a consistent tabular structure. All data are numeric (floating-point, float64) except for identifiers and coordinate labels (string type, object). The tables can be read in any spreadsheet or data-analysis environment (e.g., Microsoft Excel, R, Python pandas). All element concentrations are reported in SI-compatible units: (1) mg kg^–1 for sediments (solid phase); (2) µg L^–1 for water (liquid phase). Each analyte has a paired standard deviation column (“SD, mg/kg” or “SD, µg/L”) reflecting replicate analytical uncertainty.

2.2. Sediment Dataset

This file contains 13 sampling records (in point Liepaja_Lake_1 sampling was unsuccessful) and 68 columns. It provides spatially explicit measurements of major and trace elements in surface sediments collected across Liepāja Lake on 19 July 2024.

Table 1. Structure and content of the sediment dataset file.

Column Group	Description	Example Values
Sampling point	Unique site identifier (e.g., Liepaja_Lake_2)	Liepaja_Lake_2
X_lks92_m, Y_lks92_m	Planar coordinates in the Latvian national grid (LKS-92, EPSG: 3059); meters	318,652.3, 262,490.2
lat_WGS84_deg, lon_WGS84_deg	Geographic coordinates in decimal degrees (WGS 84)	56.4719, 21.0558
Lake Sediments sample Nr.	Internal laboratory ID	LS_02
Element columns	Concentrations of 31 elements: Li, B, Na, Mg, Al, P, K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, As, Se, Rb, Sr, Mo, Cd, Sn, Sb, Ba, Hg, Pb, Bi (all in mg kg–1)	e.g., Li = 17.3 mg kg–1
SD columns	Standard deviation for each element	SD(Li) = 0.66 mg kg–1

summarizes the structure of the sediment dataset, listing the key column groups, coordinate fields, and analytical variables with corresponding units and example values. Each record corresponds to a unique sampling station with complete geospatial and chemical metadata, enabling reproducible spatial analysis and cross-comparison with the water dataset.

Spatial coordinates and concentration units allow immediate mapping and statistical evaluation without conversion.

2.3. Water Dataset

This file contains 14 sampling records and 68 columns describing chemical composition of surface-water samples collected at corresponding lake sites on 19 July 2024.

Table 2. Structure and content of the water dataset file.

Column Group	Description	Example Values
Sampling point	Site identifier (e.g., Liepaja_Lake_1)	Liepaja_Lake_1
X_lks92_m, Y_lks92_m	LKS-92 coordinates (m)	318,248.8, 263,351.1
lat_WGS84_deg, lon_WGS84_deg	WGS 84 decimal-degree coordinates	56.4795, 21.0487
Water Sample	Laboratory ID	W_01
Element columns	Concentrations of 31 elements: Li, B, Na, Mg, Al, P, K, Ca, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, Ge, As, Se, Rb, Sr, Mo, Cd, Sn, Sb, Ba, Hg, Pb, Bi reported in µg L–1	e.g., Li = 10.4 µg L–1
SD columns	Standard deviation for each element (µg L–1)	SD(Li) = 0.45 µg L–1

summarizes the structure of the surface-water dataset, indicating the coordinate fields, analytical variables, and example units. Each record represents a single monitoring point with complete spatial referencing and paired concentration precision data, facilitating integration with the sediment dataset for geochemical and hydrological assessments of Liepāja Lake.

All numeric fields can be imported directly for multivariate analysis or visualization. The coordinate fields enable spatial linkage with the sediment dataset or external GIS layers.

2.4. Reading and Interpreting the Data

Each row represents a unique sampling location. Columns are paired variable + SD structures, so statistical users should treat SD columns as measurement-error estimates rather than independent variables. Missing or not detected values are recorded as empty cells (NA) to maintain numerical compatibility. To merge both matrices, the field Sampling point provides the common key.

3. Methods

3.1. Sampling Area

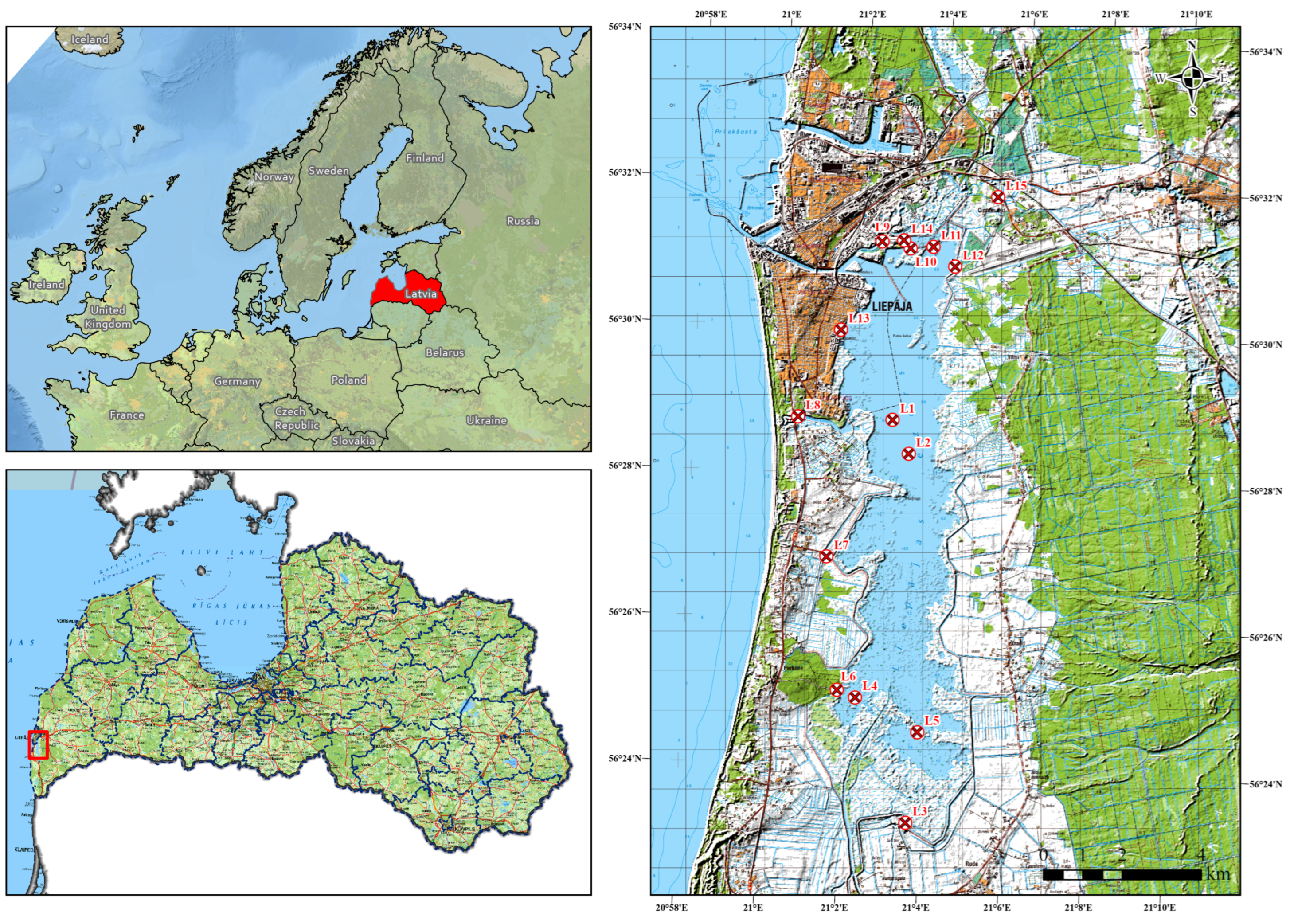

The Liepāja Lake is located in southwestern Latvia (56°23′–56°32′ N, 21°00′–21°06′ E) within the Baltic Lowland (see Figure 1) and forms part of Liepāja Lake Nature Reserve, a Specially Protected Nature Area (Natura 2000 site code LV0507800). The territory is included in the list of internationally important bird areas (IBAs). It is the fifth-largest lake in Latvia, covering approximately 37.2 km² with an average depth of 1.5 m and a maximum depth of around 3.0 m. The lake is a shallow coastal lagoon-type water body, separated from the Baltic Sea by a narrow sandy barrier and hydrologically connected through natural and artificial channels.

The mean annual air temperature in the Liepāja region is approximately +7.0 to +7.5 °C, with January averages around −2 °C and July averages near +17 °C. The frost-free period typically extends from mid-April to late October. Ice formation in the lake usually begins in December and may persist until March, although in recent years, the duration and thickness of ice cover have shown a decreasing trend due to regional climate warming.

The mean annual precipitation is about 700–750 mm, of which approximately 65–70% occurs during the warm season (April–October). Rainfall is evenly distributed, but summer convective events can cause short-term increases in runoff from urban and agricultural areas surrounding the lake. The average annual potential evapotranspiration is estimated at 500–550 mm, resulting in a positive water balance under normal hydrological conditions.

Wind is a major hydrodynamic driver in the shallow lake system. Dominant winds from the southwest and west (average 4–6 m s^–1) induce water-level fluctuations of up to 0.5 m and promote strong mixing and sediment resuspension. These processes influence both the distribution of suspended solids and the vertical gradients of dissolved oxygen and nutrients.

The sampling campaign on 19 July 2024 was conducted under stable summer weather conditions. Air temperature during field operations ranged from 17.4 to 18.5 °C, indicating a cool and thermally stable morning characteristic of the Baltic coastal lowland. Surface-water temperature was between 20.1 and 20.6 °C, reflecting typical midsummer thermal stratification in this shallow lake system. No precipitation occurred (0 mm), providing undisturbed conditions for collecting representative water and sediment samples. Wind speed varied between 2.4 and 4.2 m s^–1, with wind direction consistently from the west to west-southwest (251–267°), which is typical for the region and promotes mild hydrodynamic mixing. Overall, the meteorological and hydrological conditions ensured minimal external disturbance during sampling and supported the acquisition of uncontaminated, representative field samples.

The lake receives inflows primarily from the Bārta River in the south and the Alande River in the north, with additional drainage inputs from surrounding polder systems. Outflow occurs through the Tosmare Channel, which enables limited exchange with the Baltic Sea during periods of elevated water levels or strong westerly winds. Hydrological conditions are strongly influenced by precipitation and wind-induced mixing, which drive high spatial variability in turbidity, oxygen regime, and sediment resuspension.

The 2580 km² catchment area includes agricultural lands, forested areas, and the urban territory of Liepāja City, which hosts residential, port, and industrial zones. Historically, the northern part of the lake was affected by discharges from metallurgy, mechanical engineering, and ship-repair industries. Wastewaters containing heavy metals (Fe, Cu, Zn, Pb, Ni, Cr) and oil-derived pollutants were released through drainage channels and stormwater systems into the northern lake basins. Sediment cores collected in this area indicate accumulated legacy contamination from that period, forming a geochemical imprint distinguishable from natural background concentrations.

Although industrial activities have been significantly reduced since the 1990s, residual contamination persists in some northern sediments, especially near the Alande River inflow, airport drainage channels, and former industrial reservoirs. Ongoing ecological restoration efforts aim to stabilize these sediments, reduce pollutant mobility, and enhance overall ecosystem resilience through improved water level management, nutrient control, and reed bed rehabilitation.

Ecologically, Liepāja Lake supports a mosaic of aquatic and semiaquatic habitats, including EU Habitats Directive type 3140—Hard oligo-mesotrophic waters with benthic vegetation of Chara spp., as well as extensive reed stands (Phragmites australis) and shallow vegetated zones. The lake provides important breeding, feeding, and resting grounds for several bird species of European conservation significance, such as Botaurus stellaris (Eurasian bittern), Larus ridibundus (Black-headed gull) and Porzana porzana (spotted crake).

3.2. Sampling Design

Sampling locations were established in accordance with Natura 2000 conservation priorities and the biodiversity protection objectives. The sampling sites were selected based on the management measures outlined in the area’s nature conservation plan and the identified potential sources of historical pollution. The spatial distribution of the points was designed to encompass the northern, central, and southern zones of the lake, thereby representing distinct hydrological and ecological gradients. This layout ensures coverage of both anthropogenically influenced areas (e.g., river inflows, polder outlets, recreational zones) and reference sites with minimal human impact, thus capturing the full range of natural variability and potential contaminant inputs across the lake system.

Table 3. Description of monitoring and sampling points in Liepāja Lake.

Point ID	Lake Zone	Environmental Context	Ecological/Management Notes
L1	South	Inflow zone of the Bārta River	Dynamic hydrological area with fine suspended sediments; low organic content, transitional between freshwater inflow and brackish influence.
L2	Central	Central basin near the national surface-water monitoring point	Represents open-water conditions with minimal shoreline disturbance; used for long-term hydrochemical calibration.
L3	South	Rumba polder pumping station area	Southern boundary of the Natura 2000 site; subject to periodic pumping operations influencing sediment resuspension.
L4	South-West	Border of EU Habitat 3140	Seasonal access restriction; expected natural background composition of chemical elements.
L5	South-East	Inner bay section with restricted access	Represents minimally impacted conditions; reference point for natural sediment geochemistry.
L6	South-West	Periphery near boating cooperative	Anthropogenic influence from local boating activities and small drainage inflows.
L7	West	Western boundary of the protected area, near Reina polder pumping station	Seasonal restriction; potential minor impact from polder drainage.
L8	West	Outside protected area, recreational zone	Anthropogenic influence dominated by boating, fishing, and stormwater runoff.
L9	North-West	Within boating cooperative near industrial park	Rainwater inflow from adjacent industrial areas; moderate anthropogenic pressure.
L10	North	Northern boundary of EU Habitat 3140	Historical contamination zone; influence from legacy industrial activities.
L11	North	Alande River inflow zone	Active inflow bringing suspended matter and historical pollutants from upstream catchment.
L12	North-East	Drainage channel in front of Liepāja Airport	Area influenced by airport runoff; potential for trace-metal enrichment.
L13	North-West	Near northern urban shoreline	Exposed to diffuse urban runoff; local enrichment by surface inflows and sediments.
L14	North-West	Former industrial freshwater reservoirs	Historical infrastructure with low current flow; sediments represent past industrial activity.
L15	North-East	Alande River upstream of protected area	Reference inflow site characterizing background water composition prior to entering the lake.

summarizes the spatial distribution and ecological characteristics of 15 monitoring points across Liepāja Lake, covering both protected and anthropogenically influenced areas.

Long term pH information from the Latvian Environment, Geology and Meteorology Centre (LVĢMC) was used to characterize the acid base regime of the lake areas corresponding to the southern and central basins, as direct pH measurements were not collected during the 2024 campaign. In the southern lake area adjacent to point L4 (56°25′15.6″ N, 21°03′05.3″ E), surface-water pH values recorded from 2001 to 2022 ranged between 5.98 and 9.18, while sediment pH measured from 2013 to 2022 exhibited consistently slightly alkaline conditions (7.5–8.2). In the central area near point L2 (56°28′02.1″ N, 21°03′34.6″ E), surface-water pH values ranged from 5.69 to 8.46, and sediment pH values from 7.5 to 8.5 over corresponding monitoring periods.

3.3. Sample Collection and Handling

At each sampling station, surface water samples were collected prior to sediment sampling to prevent resuspension of bottom material and eliminate cross-contamination between matrices. All field operations were conducted under the quality management system of an ISO/IEC 17025 accredited laboratory [1], following the procedures defined in ISO 5667-4:2016 [2] for surface water and ISO 5667-12:2017 [3] for sediment sampling in lakes.

Water was sampled from the upper 0.3–0.5 m layer using precleaned high density polyethylene bottles, previously rinsed with 10% HNO₃ (Suprapur^® grade) and deionized water (18.2 MΩ cm). Prior to filling, each bottle was triple rinsed with the ambient water at the site.

Following water collection, surface sediments (0–20 cm depth) were sampled using a plastic piston-type coring system or Ekman grab sampler designed for fine-grained materials [4]. The uppermost 20 cm was targeted because, in shallow and wind-exposed coastal Latvian lakes such as Liepāja, the surficial layer is commonly well mixed, sandy, and characterized by low organic matter accumulation. Sediment samples were carefully transferred with acid-washed plastic spatulas into airtight polyethylene bags, sealed, and stored in a cool box maintained at 4 ± 2 °C. Metallic tools were strictly avoided to prevent trace metal contamination.

All samples were clearly labeled with unique station identifiers, sampling date and time, operator initials, and coordinates recorded in both WGS 84 (EPSG: 4326) and LKS-92/TM (EPSG: 3059) coordinate systems. Positioning accuracy was verified using a calibrated GNSS receiver (±3 m). Chain-of-custody documentation accompanied each sample batch from field to laboratory to ensure traceability.

Upon arrival at the laboratory, samples were inspected for integrity, logged into the Laboratory Information Management System, and stored under controlled temperature conditions until further pre-treatment and analysis.

3.4. Laboratory Preparation and Analysis

All laboratory work was performed under the quality system of an ISO/IEC 17025-accredited laboratory, following internal standard operating procedures harmonized with EPA 3051a [5] for acid digestion of sediments and ISO 17294-2:2016 [6] for element determination by ICP-MS.

Upon receipt, sediment samples were inspected for container integrity and logged into the Laboratory Information Management System (LIMS). Samples were then air-dried at room temperature (20–25 °C) in a contamination controlled environment, homogenized, and sieved through a 2 mm stainless steel mesh to isolate the fine fraction (<2 mm). Approximately 0.50 ± 0.01 g of dry, homogenized sediment was accurately weighed into Teflon digestion vessels. Each sample was subjected to microwave-assisted acid digestion using a mixture of concentrated HNO₃ and HCl (9 mL + 3 mL) in accordance with ISO 15587-2:2002. The digestion was performed in a closed-vessel system (Milestone START E, or equivalent) at 180 °C for 45 min to ensure complete mineralization of the matrix. After cooling, digestates were quantitatively transferred to volumetric flasks and diluted to 50 mL with deionized water (18.2 MΩ cm).

Water samples were filtered through 0.45 µm membrane filters (cellulose-acetate, pre-rinsed with sample water) using a portable filtration unit operated in a contamination-free environment. The filtrates were acidified in the field to pH < 2 using ultrapure nitric acid (HNO₃, trace-metal grade) to stabilize dissolved metals. Filtered and acidified water samples required no additional digestion. Prior to instrumental analysis, samples were equilibrated to room temperature and mixed thoroughly.

Both sediment and water samples were analyzed using Inductively Coupled Plasma–Mass Spectrometry (ICP-MS, Agilent 8900 ICP-QQQ, Santa Clara, CA, USA) equipped with a Micro-Mist nebulizer and operated in helium collision/reaction mode to reduce polyatomic interferences. Calibration curves were established using multi-element standards traceable to NIST covering the expected concentration range for each analyte. Internal standards (Sc, Ge, Rh, Ir, and Bi) were automatically introduced via online addition to correct for matrix effects and instrumental drift.

Instrument performance was verified at the start of each analytical sequence through calibration verification standards, and analytical blanks were measured every ten samples to confirm absence of carry-over. The limit of detection (LOD) for each element was calculated as three times the standard deviation of procedural blanks.

Concentrations were reported as mg kg^–1 for sediments (dry weight basis) and µg L^–1 for water samples. Analytical precision, expressed as standard deviation (SD) for each analyte, is included in the published dataset.

3.5. Validation and Quality Control

Analytical quality assurance was implemented under the framework of the laboratory’s ISO/IEC 17025:2017 accreditation and in compliance with ISO 17294-2:2016 for the determination of trace elements by ICP-MS. Comprehensive validation and control procedures were applied to ensure the accuracy, precision, and comparability of analytical results across both sediment and water matrices.

Each analytical batch included procedural blanks, duplicate samples, and Certified Reference Materials (CRMs) matched to the sample matrix (e.g., IAEA-336, LGC6016 Trace Elements in Natural Water). These controls were used to assess contamination, recovery efficiency, and instrument stability. Analytical precision was calculated for each element and expressed as the standard deviation (SD), which is reported in the dataset as a separate companion column.

Method detection limits (MDLs) were determined as three times the standard deviation of the procedural blanks (3σ rule), while limits of quantification (LOQs) were defined as ten times this value. Calibration linearity (R² ≥ 0.999) was verified for all analytes, and drift was monitored using internal standards introduced continuously during measurement.

Approximately 10% of all samples were analyzed in randomized replicates to estimate within-batch repeatability. Inter-matrix comparisons between water and sediment datasets were conducted to evaluate potential systematic bias in concentration trends and to confirm data coherence.

All measurement results were reviewed by a senior analyst prior to approval and release. Instrument performance, calibration validity, and blank responses were documented in the laboratory’s quality records to ensure traceability and reproducibility of the analytical process.

3.6. Data Curation and Validation

Raw analytical data generated by the ICP-MS system were automatically exported from the instrument software (Agilent MassHunter 4.6) into structured tabular format (.csv). The exported files were subjected to a multi-stage verification and cleaning process designed to ensure analytical integrity, traceability, and full reproducibility of the dataset.

All results were first screened for outliers, non-detects, and instrumental noise using control limits derived from quality control samples and procedural blanks. Values below the respective method detection limits (MDLs) were replaced by the symbolic flag <LOD (limit of detection). Geospatial coordinates recorded in both WGS 84 (EPSG:4326) and LKS-92/TM (EPSG:3059) systems were checked for internal consistency and verified against the official Liepāja Lake Management Plan GIS layers to ensure positional accuracy.

All concentration fields were harmonized to uniform units—µg L^–1 for water and mg kg^–1 (dry weight) for sediment data. The dataset was further validated through a series of logical consistency tests, including verification that:

(i)

all paired standard-deviation (SD) values were non-negative;

(ii)

no missing coordinate pairs occurred; and

(iii)

analyte totals and ratios were within plausible environmental ranges.

Quality controlled data were then compared against reference background concentrations for Baltic lowland lakes to identify potential anomalies or anthropogenic enrichments. Statistical screening employed box-plot analysis, interquartile-range (IQR) filters, and z-score normalization to detect extreme outliers, which were reviewed manually but not removed unless justified by analytical documentation.

The final curated dataset was validated through visual inspection of spatial distributions in GIS to confirm geographic coherence of sampling points. Once all checks were completed, the verified dataset was archived in machine-readable format and deposited in the open repository under a Creative Commons Attribution (CC BY 4.0) license to enable unrestricted reuse, citation, and integration into future hydrological or geochemical studies.
