Channel Aperture Characteristics of Carbonate Apatite Honeycomb Scaffolds Affect Ingrowths of Bone and Fibrous Tissues in Vertical Bone Augmentation

by
Koichiro Hayashi
*,
Ryo Kishida
,
Akira Tsuchiya
and
Kunio Ishikawa
Department of Biomaterials, Faculty of Dental Science, Kyushu University, Fukuoka 812-8582, Japan
*
Author to whom correspondence should be addressed.
Bioengineering 2022, 9(11), 627; https://doi.org/10.3390/bioengineering9110627
Submission received: 3 October 2022 / Revised: 21 October 2022 / Accepted: 27 October 2022 / Published: 31 October 2022
(This article belongs to the Section Regenerative Engineering)
Browse Figures
Versions Notes

Abstract

:
Synthetic scaffolds with the ability to prevent fibrous tissue penetration and promote bone augmentation may realize guided bone regeneration without the use of a barrier membrane for dental implantation. Here, we fabricated two types of honeycomb scaffolds of carbonate apatite, a bone mineral analog, whose channel apertures were square (HC-S) and rectangular (HC-R). The side lengths of the HC-Ss and HC-Rs were 265.8 ± 8.9; 817.7 ± 2.4 and 267.1 ± 5.2 μm, respectively. We placed cylindrical HC-Ss and HC-Rs on the rabbit calvaria. At 4 weeks post-implantation, the HC-Ss prevented fibrous tissue penetration from the top face via the channels, which allowed the new bone to reach the top of the scaffold from the bottom face or the calvarium. In contrast, in the HC-Rs, fibrous tissues filled the channels in the top region. At 12 weeks post-implantation, the HC-Ss were partially replaced with new bone. In the top region of the HC-Rs, although new bone had formed, fibrous tissue remained. According to the findings here and in our previous study, the longer side length rather than the shorter side length of a rectangular scaffold channel aperture is the dominant factor that affects fibrous tissue penetration and new bone augmentation. Furthermore, even though channel aperture areas are similar, bone and fibrous tissue ingrowths are different when the aperture shapes are different.

1. Introduction

Dental implantation is becoming increasingly important with the aging of the global population [1,2,3,4]. When the volume of the alveolar bone is insufficient for implant placement, bone augmentation is required [1,2,3,4]. Notably, vertical bone augmentation is the most difficult treatment among bone augmentations for various bone loss configurations [5,6,7,8].
Guided bone regeneration (GBR) is a common technique for bone augmentation [5,6,7,8,9,10,11,12,13,14,15,16,17,18]. In GBR, a barrier membrane is placed between fibrous tissues and the bone defect to prevent the undesirous incursions of fibrous tissues into the bone defect, thereby allowing the regeneration of bone. However, handling the barrier membrane is difficult, and therefore failures, such as fibrous tissue penetration and barrier membrane exposure, and complications, such as infection, frequently occur [5,6,7,8,9,10,11,12,13,14,15,16,17,18]. Furthermore, when non-resorbable barrier membranes are used, secondary surgery for removing the barrier membrane is required [5,8,16,17]. In contrast, resorbable barrier membranes are resorbed faster than bone formation, providing insufficient bone volume and mechanical strength [11,18]. Considering the above problems in the use of barrier membranes, GBR with only bone substitute materials and without a barrier membrane, namely membrane-free GBR, is considered an ideal treatment.
As bone substitute materials, autologous bone is commonly used [14,15]. However, autogenous bone grafts have several drawbacks, such as donor site morbidity, soft tissue and nerve injuries, post-surgery pain, limited harvest quantity, and increased surgical operating time [19,20,21,22,23]. Therefore, the development of alternative scaffolds to autologous bone is necessary [24,25,26,27,28,29,30,31].
So far, we have developed several types of porous calcium phosphate scaffolds and demonstrated the effects of scaffold composition [32,33], shape [34], and pore structure at the macro- [35,36,37,38,39,40,41,42,43,44,45,46], micro- [44,45,46,47], and nanoscale [48] on osteogenesis and angiogenesis. Regarding scaffold composition, carbonate apatite (CAp) bone mineral was resorbed by osteoclasts and showed superior osteoconductivity to hydroxyapatite (HAp) and β-tricalcium phosphate (β-TCP) [32,33]. As for pore structure, uniaxial through-channels, such as square channels in a honeycomb (HC) filter for exhaust gas purification, promoted ingrowths of bone and blood vessels [32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48]. HC channels that uniaxially penetrate the scaffold from the bottom surface to the top are considered to prevent fibrous tissue penetration from the scaffold side surface, although scaffolds with three-dimensional porous structures may not. Additionally, in vertical bone augmentation, the contact region of the scaffold with the bone is limited to the scaffold’s bottom surface. From this perspective as well, HC seems to be a suitable structure for vertical bone augmentation. Furthermore, the side length of the square channel aperture affected the penetration of fibrous tissues into the scaffold [41]: channels with aperture side lengths of 200–300 μm prevented fibrous tissue penetration, whereas channels with aperture side lengths > 400 μm could not [41]. These results indicated that controlling the characteristics of the channel aperture may achieve membrane-free GBR.
Although we previously demonstrated the effects of square channels with four equal sides on bone formation and the prevention of fibrous tissue penetration, we did not investigate the effects of rectangular channels with adjacent sides of different lengths. Therefore, in rectangular channels where one side length is effective for preventing fibrous tissue penetration, i.e., 200–300 μm, and the other side length is not effective, i.e., >400 μm, it is unclear which will be dominant—the shorter or longer length. Here, we explore the answer to this question. Furthermore, we discuss the channel aperture parameters affecting bone augmentation and fibrous tissue penetration.

2. Materials and Methods

2.1. Fabrication of HC Scaffolds with Square and Rectangular Channels

HC scaffolds with square channels (HC-S) were fabricated by the method described in our previous paper [35,41]. In brief, HC green bodies were prepared by the extrusion molding of a mixture of CaCO3 (Sakai Chemical Industry Co., Ltd., Osaka, Japan) and methylcellulose-based binder (Matsumoto Yushi-Seiyaku, Osaka, Japan) using an extruder (V-30 [II]; Universe, Saga, Japan) equipped with a die with square slits of 300 μm × 300 μm. The HC green bodies were subjected to debinding by heat treatment at 600 °C for 24 h, resulting in the formation of CaCO3 HC materials. Then, the CaCO3 HC materials were phosphatized by immersion in a 1 mol/L Na2HPO4 aqueous solution at 80 °C for 7 d. As a result, the composition of HC materials changed from CaCO3 to CAp. Finally, the obtained CAp HC materials were washed five times with distilled water and used as HC-Ss.
HC scaffolds with rectangular channels (HC-R) were also fabricated by extrusion molding, debinding, and phosphatization. Only the design of the die used in the extrusion molding was different from that of HC-S (rectangular slits of 300 μm × 900 μm). The debinding and phosphatization procedures for fabricating HC-Rs were the same as those for HC-Ss.
For animal experiments, HC-Rs and HC-S were shaped into cylinders (6 mm in diameter and 4 mm in height) using a three-dimensional (3D) milling machine (SRM-20; Roland DG, Shizuoka, Japan). The shaped scaffolds were subjected to dry-heat sterilization at 170 °C for 3 h.

2.2. Characterization of the HC Scaffold Structures and Compositions

The structures of HC-S and HC-R were characterized using micro-computerized tomography (μ-CT; SkyScan, Bruker, MA, USA) and scanning electron microscopy (SEM; S3400N; Hitachi High-Technologies, Tokyo, Japan).
The crystal phases of HC-S and HC-R were analyzed using X-ray diffraction (XRD; D8 Advance, Bruker AXS GmbH, Karlsruhe, Germany). Commercial CAp (Cytrans; GC, Tokyo, Japan) was used as the reference.
The functional groups in HC-S and HC-R were analyzed using Fourier transform infrared (FT-IR) spectroscopy (FT/IR-6200; JASCO, Inc., Tokyo, Japan). HAp powder was used as the reference.

2.3. Approval for Animal Experiments and Animal Rearing

The animal experiments were approved by the Animal Care and Use Committee of Kyushu University (No. A22-086-0). Japanese white rabbits (18 weeks old, male, body weight 3.0–3.5 kg) were purchased from Japan SLC (Shizuoka, Japan). The rabbits were housed in the Center of Biomedical Research, Research Center for Human Disease Modeling, Graduate School of Medical Sciences, Kyushu University. The rabbits were maintained on a standard diet (LRC4; Oriental Yeast, Tokyo, Japan) and were provided with water ad libitum.

2.4. Surgical Procedure

The rabbits were anesthetized via intramuscular injection of a mixture of xylazine (5.0 mg/kg; Elanco, IN, USA) and ketamine (30 mg/kg; Daiichi-Sankyo, Tokyo, Japan). The fur of the rabbit parietal region was shaved, disinfected with 10% w/v povidone-iodine (Meiji Seika Pharma, Tokyo, Japan), and subjected to subcutaneous injection of local anesthesia (Lidocain; Dentsply Sirona, NC, USA). The skin of the parietal region was incised to expose the calvarium. Then, the periosteum was separated from the bone. Two scaffolds (HC-R and HC-S) were randomly placed on the calvarium in each animal. The fasciae were sutured on the top surfaces of the scaffolds. Finally, the incised skin was sutured, and an antibacterial agent (gentamicin; Takata Pharmaceutical, Saitama, Japan) was peritoneally injected. The rabbits were allowed unrestrained movement in their cages after they recovered from the anesthesia.

2.5. Histological Analysis

The rabbits were euthanized in batches at 4 and 12 weeks after implantation of the HC-S and HC-R. The calvarium was harvested (n = 5 per group) and fixed with 10% formalin solution (Fujifilm Wako, Osaka, Japan) at 4 °C for 48 h. The specimens were dehydrated using a graded series of alcohol solutions and embedded in polymethyl methacrylate histological resin (Technovit 9100; Heraeus Kulzer, Wehrheim, Germany). All specimens were cut into longitudinal sections throughout the cylindrical scaffold, and hematoxylin and eosin (H&E)-staining was performed. The histological analysis of H&E-stained tissue sections was performed using a biological fluorescence microscope (BZ-X; Keyence Corporation, Osaka, Japan) with digital analysis software (BZ-X; Keyence Corporation). The area percentage of newly formed bone in HC-S and HC-R was calculated as new bone area per the whole area of the scaffold, including channels and struts. Furthermore, area percentages of new bone and fibrous tissues in each channel were calculated.

2.6. Statistical Analysis

All data are presented as the mean ± standard deviation. Results with p < 0.05 were considered statistically significant. Comparisons between groups were performed using Student’s t-test.

3. Results

3.1. Characterization of Scaffold Structures and Composition

The μ-CT cross-section images showed that HC-S (Figure 1a) and HC-R (Figure 1b) possessed square and rectangular channels, respectively. These channels uniaxially penetrated the scaffolds. The SEM image of HC-S (Figure 1c) showed that the side length of the square channel aperture was 265.8 ± 8.9 μm. In HC-R (Figure 1d), the longer and shorter side lengths of the rectangular channel aperture were 817.7 ± 2.4 and 267.1 ± 5.2 μm, respectively. Thus, the shorter side length of the HC-R channels was almost equal to the side length of the HC-S channels, whereas the longer side of the HC-R channels was three times as long. The strut lengths of the HC-Ss (Figure 1c) and HC-Rs (Figure 1d) were 282.7 ± 9.4 and 278.3 ± 6.4 μm, respectively; thus, the HC-S struts were almost equal in size to the HC-R struts. Furthermore, in the struts of both HC-Ss (Figure 1e) and HC-Rs (Figure 1f), micropores were present between the spherical aggregates consisting of scale-like crystals. Many researchers previously demonstrated that micropores improved osteogenesis [47,48,49,50,51,52,53,54,55,56,57]. Therefore, the micropores in the HC-Ss and HC-Rs may also contribute to bone regeneration.
The X-ray diffraction patterns of HC-S and HC-R corresponded to those of the CAp reference (Figure 2a). The FTIR spectra of HC-S and HC-R confirmed the absorption bands identified as PO43− group in apatite crystal (Figure 2b) [58,59]. Although the band identified as the OH− group was present in the spectrum of HAp [58,59], it was absent in the spectra of HC-S and HC-R. Furthermore, A-type CO32− that substituted OH− and B-type CO32− that substituted PO43− were confirmed in the spectra of HC-S and HC-R [58,59]. In contrast, no CO32−bands were detected in the HAp spectrum. These results demonstrated that HC-S and HC-R were composed of CAp and that CO32− had replaced both PO43− and OH− groups in HAp.

3.2. In Vivo Evaluations of Bone Formation and Fibrous Tissue Invasion

Bone formation and fibrous tissue invasion were visualized by analyzing the H&E stained sections of HC-S and HC-R. At 4 weeks after implantation, in both the HC-Ss (Figure 3a) and HC-Rs (Figure 3b), tissues penetrated the scaffold channels. In the HC-Ss, new bone formed on the struts and reached the top region of the scaffold (Figure 3c). In contrast, in HC-R, fibrous tissues filled the channels in the top region (Figure 3d). High-magnification images of the top regions demonstrated that osteoblasts lined the new bone formed on the struts and blood vessels formed in the central regions of channels (Figure 3e). In the HC-Rs, multinuclear cells were present on the struts (Figure 3f). In the bottom regions of the scaffolds, new bone predominated in the HC-Ss (Figure 3g), whereas adipose tissue rather than bone was dominant in the HC-Rs (Figure 3h). High-magnification images of the bottom regions showed that osteoblasts were present on the new bone, and multinuclear cells were detected near the struts in both the HC-Ss (Figure 3i) and HC-Rs (Figure 3j). New bone also formed on the outer surfaces of HC-Ss and HC-Rs, and collagen tissues were present around the outside of the new bone (Figure 3k,l).
At 12 weeks post-implantation, in both the HC-Ss (Figure 4a) and HC-Rs (Figure 4b), the struts were partly resorbed. In the top region of the HC-Ss (Figure 4c), the area of new bone increased from that at 4 weeks post-implantation. In the top region of the HC-Rs (Figure 4d), bone was newly formed, although it was not observed at 4 weeks post-implantation. Nevertheless, fibrous tissues remained. High-magnification images of the top regions showed that the resorbed regions of the struts were replaced by new bone in both the HC-Ss (Figure 4e) and HC-Rs (Figure 4f). Likewise, in the bottom regions of the HC-Ss (Figure 4g) and HC-Rs (Figure 4h), the struts were partly replaced by new bone. Furthermore, osteoblasts were found on the surface of the new bone (Figure 4i,j). Furthermore, collagen tissues were present around the outside of the new bone formed on the HC-S and HC-R outer surfaces (Figure 4k,l).
New bone and fibrous tissues formed in the scaffolds were analyzed using the histological sections (Figure 5). The area percentage of new bone formed in the whole of HC-Ss (8.9 ± 1.1%) was significantly higher than that in the whole of HC-Rs (6.1 ± 1.1%) at 4 weeks after implantation (p = 0.002, Figure 5a). New bone percentages in the whole of HC-Ss and HC-Rs significantly increased during the 8 weeks between 4 weeks and 12 weeks post-implantation (p = 5.2 × 10–5 and 0.04, respectively). Nevertheless, the increase during the 8 weeks in the HC-Ss (75%) was higher than that in the HC-Rs (26%). Consequently, the new bone percentage in HC-S (15.5 ± 1.4%) was two-fold higher than that in HC-R (7.7 ± 1.5%) at 12 weeks post-implantation. The heights of bone newly formed in the HC-Ss and HC-Rs were 3.9 ± 0.1 and 2.2 ± 0.4 mm at 4 weeks post-implantation and 3.9 ± 0.1 and 3.3 ± 0.4 mm at 12 weeks post-implantation, respectively (Figure 5b). Thus, the new bone had already reached the top of the HC-Ss at 4 weeks, and the new bone height remained at 12 weeks. In contrast, in the HC-Rs, the new bone height was merely half that of the scaffold height at 4 weeks and was significantly inferior to that in HC-S even at 12 weeks (p = 2.9 × 10–4). The penetration depth of fibrous tissues in HC-S and HC-R were 0.1 ± 0.1 and 1.6 ± 0.2 mm at 4 weeks post-implantation and 0.0 ± 0.0 and 1.2 ± 0.6 mm at 12 weeks post-implantation, respectively (Figure 5c). The percentages of new bone in each channel of HC-Ss and HC-Rs were 33.1 ± 10.4 and 12.3 ± 7.4% at 4 weeks post-implantation and 47.6 ± 14.9 and 16.8 ± 9.7% at 12 weeks post-implantation, respectively (Figure 5d). Area percentages of fibrous tissues in each channel of HC-Ss and HC-Rs were 11.0 ± 1.5 and 43.3 ± 16.0% at 4 weeks post-implantation and 4.1 ± 0.7 and 24.7 ± 5.7% at 12 weeks post-implantation, respectively (Figure 5e). Thus, the dominant tissue in the channels was bone for HC-Ss, and fibrous tissues for HC-Rs. The above results demonstrate that HC-S could prevent the penetration of fibrous tissues, whereas HC-R could not. Furthermore, most of the fibrous tissues that penetrated HC-R remained at 12 weeks. These findings demonstrate that once fibrous tissue penetrates the scaffold, it is difficult for them to be replaced by bone, and therefore, the prevention of fibrous tissue penetration is important. The percentages of remaining materials for HC-Ss and HC-Rs were 64.1 ± 9.2 and 48.1 ± 6.7% at 4 weeks post-implantation and 50.1 ± 10.3 and 29.9 ± 5.7% at 12 weeks post-implantation, respectively (Figure 5f).

4. Discussion

We previously compared the bone formation and fibrous tissue penetration capability of CAp HC scaffolds with square channels of side lengths 230, 460, and 630 μm in the same animal experimental system as this study [41]. The scaffolds were named HC230, HC460, and HC630, respectively. In the previous study, HC230 could prevent the penetration of fibrous tissues into the scaffold, whereas HC460 and HC630 could not. In the present study, the side length of the square channels in the HC-Ss was ~265 μm, which is almost equal to that of HC230. Thus, the finding that HC-Ss can prevent the penetration of fibrous tissues is in accordance with our previous findings. The shorter and longer side lengths of the rectangular channel in HC-R were ~265 and ~820 μm, respectively. Thus, the shorter side length coincides with the side length that is effective for preventing fibrous tissue penetration, and the longer side length does not. Considering that HC-R could not prevent fibrous tissue penetration, it can be concluded that fibrous tissue penetration is influenced by the longer side length rather than the shorter side length.
The channel aperture areas of HC-S, HC-R, HC230, HC460, and HC630 were 0.07, 0.22, 0.05, 0.21, and 0.40 mm2, respectively (Figure 6) [41]. Thus, the HC-S and HC-R possessed aperture areas similar to those of HC230 and HC460, respectively. In our previous study, the percent areas of new bone in each channel for HC230, HC460, and HC630 were as follows: 29.2 ± 7.9%, 13.5 ± 7.9%, and 7.5 ± 4.2% at 4 weeks post-implantation and 42.4 ± 8.6%, 26.8 ± 7.1%, and 14.0 ± 4.7% at 12 weeks post-implantation, respectively (Figure 6) [41]. Furthermore, the percent area of fibrous tissues in each channel for HC230, HC460, and HC630 were as follows: 19.4 ± 75.4%, 47.1 ± 10.5%, and 60.0 ± 9.3% at 4 weeks post-implantation and 5.7 ± 2.5%, 13.8 ± 6.2%, and 30.1 ± 10.7% at 12 weeks post-implantation, respectively (Figure 6) [41]. Thus, at 4 and 12 weeks post-implantation, HC-S showed percent areas of new bone and fibrous tissues in each channel similar to those of HC230. These results demonstrate that when the channel aperture shape is square, scaffolds with similar channel aperture areas show similar behaviors of bone and fibrous tissue ingrowths. In contrast, although the percent areas of new bone and fibrous tissues in each channel for HC-R at 4 weeks post-implantation was similar to that for HC460, the percent area at 12 weeks post-implantation was closer to that for HC630 rather than HC460. Thus, when the channel aperture shape is rectangular, at 12 weeks post-implantation, the longer length of the channel aperture rather than the aperture area has greater effects on bone and fibrous tissue ingrowths. Therefore, we should design the pore structure of scaffolds with consideration for the aperture shape and area.
Previously, we demonstrated the relationship between the strut thickness of the HC scaffold and the resorption rate [35]. HC scaffolds of strut thicknesses 100, 200, and 300 μm named HC100, HC200, and HC300, respectively, were studied. The scaffolds possessed channels with square aperture side lengths of 230–260 μm. The remaining material percentages of HC100, HC200, and HC300 were 26.7 ± 6.4%, 58.0 ± 4.4%, and 73.7 ± 2.6% at 4 weeks post-implantation and 18.7 ± 3.0%, 39.2 ± 8.5%, and 68.1 ± 0.7% at 12 weeks post-implantation, respectively. In this study, the strut thickness of HC-S was 282.7 ± 9.4 μm, which is intermediate between that of HC200 and HC300. The remaining material percentages of HC-S at 4 and 12 weeks were 64.1 ± 9.2 and 50.1 ± 10.3%, respectively, which are also intermediate between those of HC200 and HC300. Thus, the results on material resorption in this study are consistent with those in our previous study. Furthermore, the histological sections at 12 weeks post-implantation in this study show that the resorbed regions in HC-S were filled with new bone, which may contribute to maintaining the continuity of the struts. In contrast, in HC-R, the resorbed regions were not completely replaced with new bone; consequently, HC-Rs lost strut continuity. Thus, the resorption speed of HC-S seems to coincide with new bone formation, whereas that of HC-R seems to be faster than new bone formation.
At present, clinical treatment involves implantation of autologous bone block grafts (BGs) or synthetic granular grafts (GGs), such as HAp and β-TCP, for bone augmentation. Autologous bone BGs can be configured to correspond with the bone defect configuration. However, the implantation of autologous bone BGs perforce causes donor site morbidity and frequently produces faster or slower resorption of the BGs than expected due to individual differences and BG conditions [14]. Synthetic GGs contribute to resolving these problems of autologous bone implantation. However, when synthetic GGs are implanted, a titanium mesh is often used to hold the GGs and generate desired configuration and volume of bone. Unfortunately, titanium mesh exposure occurs in 24% of patients, resulting in partial or complete graft loss and dental implant failure [60]. Furthermore, when titanium mesh is used, secondary surgery to remove it is necessary [60]. Synthetic BGs that can be configured to correspond with bone defect configuration can eliminate the use of titanium mesh, alleviate donor site morbidity, and produce expected outcomes. Thus, synthetic BGs may resolve the disadvantages of autologous bone BGs and synthetic GGs. Nevertheless, synthetic BGs demand the introduction of macropores or channels to promote bone augmentation, resulting in the need to use barrier membranes to prevent fibrous tissue penetration. In contrast to general porous synthetic BGs, HC-S has the function of preventing fibrous tissue penetration. Thus, HC-S combines the advantages of synthetic BGs with their ability to prevent fibrous tissue penetration, owing to which, HC-S may be used in the same manner as autologous bone BGs, without concern for complications and unexpected results.
Recent research evaluated the vertical bone augmentation abilities of synthetic BGs and GGs using a similar approach, i.e., vertical augmentation in the rabbit calvarium. Sheikh et al. evaluated the vertical bone augmentation abilities of anabolic conjugate (C3)-containing brushite and monetite dense BGs (a cylinder with a diameter of 9.5 mm and height of 4 mm). The new bone height 12 weeks after implantation of the C3-containing brushite and monetite-dense BGs were 1.8 and 2.7 mm, respectively [61]. Thus, even at 12 weeks post-implantation, the new bone did not form in the upper regions of C3-containing brushite and monetite BG. Furthermore, Kim et al. reported the vertical bone augmentation abilities of calcium sulfate GGs combined with small molecules for promoting bone formation (sodium butyrate and dimethyloxalylglycine) [62]. They filled the GGs in a plastic cylinder: the bottom face of the cylinder was open and the GGs were directly attached to the rabbit calvarium, while the cylinder top face was closed with a plastic lid. The spaces generated between the GGs acted as 3D pores. The new bone heights at 2 and 8 weeks post-implantation were ~1 and ~3 mm, respectively. Furthermore, ~90% of the interior of the plastic cylinder was occupied by tissues, and not bone, even at 8 weeks post-implantation. In the present study, the heights of newly formed bone in the HC-Ss and HC-Rs were 3.9 ± 0.1 and 2.2 ± 0.4 mm at 4 weeks post-implantation and 3.9 ± 0.1 and 3.3 ± 0.4 mm at 12 weeks post-implantation, respectively. These findings indicate that HC scaffolds have higher vertical bone augmentation ability than previously reported scaffolds, including supplements for promoting bone formation. Furthermore, the uniaxial channels of HC scaffolds seem to be more effective for vertical bone augmentation than 3D pores generated between GGs, although the scaffold composition and micro- and nanopores also affect it.
Xu et al., evaluated the in vitro effects of pore shape on cell attachment, proliferation, and ALP activity of osteoblast-like cells (MC3T3) using β-TCP scaffolds with square, triangular, and parallelogram-shaped pores; the pore aperture areas were approximately 0.9, 0.3, and 2.5 mm2, respectively [63]. The authors did not report significant differences in cell attachment, proliferation, or ALP activity between these three scaffolds. However, the following tendency was observed: square > triangle > parallelogram for cell attachment and proliferation; square = triangle > parallelogram for ALP activity. These results suggest that pore aperture shape has a stronger impact on cell attachment, proliferation, and ALP activity than pore aperture area, which is consistent with the findings of our study. Furthermore, Shao et al. evaluated in vivo bone formation ability of calcium silicate scaffolds with pores of ~130 and ~320 μm in the Z axial direction; the scaffolds possessed equal-sized pores (~300 μm) in the XY axial direction [64]. Although the scaffold with smaller-sized pores (~130 μm in the Z axial direction) formed a larger volume of bone at 4 weeks post-implantation, the scaffold with larger-sized pores (~320 μm in the Z axial direction) formed a larger volume of bone at 8 and 12 weeks post-implantation. Given the findings of Shao et al. and our present and previous studies [41], pores of approximately 300 μm is appropriate for long-term bone formation.
The results of our study contribute to the development of scaffolds for orthopedic bone reconstruction. Owing to uniaxial channels, HC scaffolds can form new bone, bridging the stumps of separated bones and reconstructing segmental bone defects [37,42]. The reconstruction ability of HC scaffolds is higher than other porous scaffolds [65,66]. Scaffolds cannot always have surface contact with the cross-section surfaces of bone stumps. Thus, a space forms between the scaffold and the bone stump frequently, often promoting fibrous tissue penetration into the scaffolds. The findings of our study suggest that control of the channel or pore aperture characteristics allows the prevention of fibrous tissue penetration in orthopedic bone reconstruction as well as dental bone augmentation.

5. Conclusions

We evaluated the effects of channel aperture characteristics on the ingrowths of bone and fibrous tissues by histologically analyzing the vertical bone augmentation in HC-R and HC-S implanted on the rabbit calvarium. The HC-S prevented the penetration of fibrous tissues into the scaffold via the channels; consequently, the new bone became dominant in the space within scaffold channels. In contrast, HC-R could not prevent the fibrous tissue penetration, resulting in lower bone augmentation than HC-S. The collective results from our current and previous studies demonstrate that the longer side length rather than the shorter side length of a rectangular channel aperture profoundly impacts fibrous tissue penetration which affects bone augmentation. Furthermore, scaffolds with different channel aperture shapes provide different results on fibrous tissue penetration and bone augmentation, even though the channel aperture areas of the scaffolds are similar.

Author Contributions

Conceptualization, K.H.; methodology, K.H.; validation, K.H. and K.I.; formal analysis, K.H., R.K. and A.T.; investigation, K.H., R.K. and A.T.; resources, K.H.; data curation, K.H., R.K. and A.T.; writing—original draft preparation, K.H.; writing—review and editing, K.H. and K.I.; visualization, K.H.; supervision, K.H.; project administration, K.H.; funding acquisition, K.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by Japan Agency for Medical Research and Development (AMED), grant numbers JP22ym0126098h0001 and JP21lm0203123h0001 and Japan Society for the Promotion of Science (JSPS) KAKENHI grant number JP22H03954.

Institutional Review Board Statement

The animal study protocol was approved by the Animal Care and Use Committee of Kyushu University (No. A22-086-0, 17 February 2022).

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kandavalli, S.R.; Wang, Q.; Ebrahimi, M.; Gode, C.; Djavanroodi, F.; Attarilar, S.; Liu, S. A Brief Review on the Evolution of Metallic Dental Implants: History, Design, and Application. Front. Mater. 2021, 8, 646383. [Google Scholar] [CrossRef]
  2. Jayachandran, S.; Hill, K.; Walmsley, A.D. A Critical Review of Qualitative Research Publications in Dental Implants from 2006 to 2020. Clin. Oral Impl. Res. 2021, 32, 659–671. [Google Scholar] [CrossRef]
  3. Müller, F.; Srinivasan, M.; Krause, K.; Schimmel, M. Periodontitis and Peri-implantitis in Elderly People Experiencing Institutional and Hospital Confinement. Periodontology 2000 2022, 90, 138–145. [Google Scholar] [CrossRef]
  4. Ducommun, J.; El Kholy, K.; Rahman, L.; Schimmel, M.; Chappuis, V.; Buser, D. Analysis of Trends in Implant Therapy at a Surgical Specialty Clinic: Patient Pool, Indications, Surgical Procedures, and Rate of Early Failures—A 15-year Retrospective Analysis. Clin. Oral Impl. Res. 2019, 30, 1097–1106. [Google Scholar] [CrossRef]
  5. Tay, J.R.H.; Lu, X.J.; Lai, W.M.C.; Fu, J.-H. Clinical and Histological Sequelae of Surgical Complications in Horizontal Guided Bone Regeneration: A Systematic Review and Proposal for Management. Int. J. Implant Dent. 2020, 6, 76. [Google Scholar] [CrossRef]
  6. Rachmiel, A.; Shilo, D.; Aizenbud, D.; Emodi, O. Vertical Alveolar Distraction Osteogenesis of the Atrophic Posterior Mandible Before Dental Implant Insertion. J. Oral Maxillofac. Surg. 2017, 75, 1164–1175. [Google Scholar] [CrossRef] [Green Version]
  7. Urban, I.A.; Montero, E.; Monje, A.; Sanz-Sánchez, I. Effectiveness of Vertical Ridge Augmentation Interventions: A Systematic Review and Meta-Analysis. J. Clin. Periodontol. 2019, 46, 319–339. [Google Scholar] [CrossRef] [Green Version]
  8. Lim, G.; Lin, G.-H.; Monje, A.; Chan, H.-L.; Wang, H.-L. Wound Healing Complications Following Guided Bone Regeneration for Ridge Augmentation: A Systematic Review and Meta-Analysis. Int. J. Oral Maxillofac. Implant. 2018, 33, 41–50. [Google Scholar] [CrossRef] [PubMed]
  9. Kim, C.-S.; Choi, S.-H.; Chai, J.-K.; Cho, K.-S.; Moon, I.-S.; Wikesjö, U.M.E.; Kim, C.-K. Periodontal Repair in Surgically Created Intrabony Defects in Dogs: Influence of the Number of Bone Walls on Healing Response. J. Periodont. 2004, 75, 229–235. [Google Scholar] [CrossRef] [PubMed]
  10. Esposito, M.; Grusovin, M.G.; Coulthard, P.; Worthington, H.V. The Efficacy of Various Bone Augmentation Procedures for Dental Implants: A Cochrane Systematic Review of Randomized Controlled Clinical Trials. Int. J. Oral Maxillofac. Implant. 2006, 21, 696–710. [Google Scholar]
  11. Toledano, M.; Asady, S.; Toledano-Osorio, M.; García-Godoy, F.; Serrera-Figallo, M.-A.; Benítez-García, J.A.; Osorio, R. Differential Biodegradation Kinetics of Collagen Membranes for Bone Regeneration. Polymers 2020, 12, 1290. [Google Scholar] [CrossRef] [PubMed]
  12. Kang, D.-W.; Kim, S.-H.; Choi, Y.-H.; Kim, Y.-K. Repeated Failure of Implants at the Same Site: A Retrospective Clinical Study. Maxillofac. Plast. Reconstr. Surg. 2019, 41, 27. [Google Scholar] [CrossRef] [PubMed]
  13. Tay, J.R.H.; Ng, E.; Lu, X.J.; Lai, W.M.C. Healing Complications and Their Detrimental Effects on Bone Gain in Vertical-guided Bone Regeneration: A Systematic Review and Meta-analysis. Clin. Implant. Dent. Rel. Res. 2022, 24, 43–71. [Google Scholar] [CrossRef] [PubMed]
  14. Sakkas, A.; Wilde, F.; Heufelder, M.; Winter, K.; Schramm, A. Autogenous Bone Grafts in Oral Implantology—Is It Still a “Gold Standard”? A Consecutive Review of 279 Patients with 456 Clinical Procedures. Int. J. Implant Dent. 2017, 3, 23. [Google Scholar] [CrossRef]
  15. Chatelet, M.; Afota, F.; Savoldelli, C. Review of Bone Graft and Implant Survival Rate: A Comparison between Autogenous Bone Block versus Guided Bone Regeneration. J. Stomatol. Oral Maxillofac. Surg. 2022, 123, 222–227. [Google Scholar] [CrossRef]
  16. Garcia, J.; Dodge, A.; Luepke, P.; Wang, H.-L.; Kapila, Y.; Lin, G.-H. Effect of Membrane Exposure on Guided Bone Regeneration: A Systematic Review and Meta-Analysis. Clin. Oral Impl. Res. 2018, 29, 328–338. [Google Scholar] [CrossRef] [Green Version]
  17. Jiménez Garcia, J.; Berghezan, S.; Caramês, J.M.M.; Dard, M.M.; Marques, D.N.S. Effect of Cross-Linked vs Non-Cross-Linked Collagen Membranes on Bone: A Systematic Review. J. Periodont. Res. 2017, 52, 955–964. [Google Scholar] [CrossRef] [Green Version]
  18. Liu, J.; Kerns, D.G. Mechanisms of Guided Bone Regeneration: A Review. Open Dent. J. 2014, 8, 56–65. [Google Scholar] [CrossRef] [Green Version]
  19. Myeroff, C.; Archdeacon, M. Autogenous Bone Graft: Donor Sites and Techniques. J. Bone Joint Surg. 2011, 93, 2227–2236. [Google Scholar] [CrossRef]
  20. Chiapasco, M.; Zaniboni, M.; Rimondini, L. Autogenous Onlay Bone Grafts vs. Alveolar Distraction Osteogenesis for the Correction of Vertically Deficient Edentulous Ridges: A 2–4-Year Prospective Study on Humans. Clin. Oral Implant. Res. 2007, 18, 432–440. [Google Scholar] [CrossRef]
  21. Felice, P.; Pellegrino, G.; Checchi, L.; Pistilli, R.; Esposito, M. Vertical Augmentation with Interpositional Blocks of Anorganic Bovine Bone vs. 7-mm-Long Implants in Posterior Mandibles: 1-Year Results of a Randomized Clinical Trial: Vertical Augmentation vs. 7-Mm-Long Implants. Clin. Oral Implant. Res. 2010, 21, 1394–1403. [Google Scholar] [CrossRef] [PubMed]
  22. Zerbo, I.R.; De lange, G.L.; Joldersma, M.; Bronckers, A.L.J.J.; Burger, E.H. Fate of Monocortical Bone Blocks Grafted in the Human Maxilla: A Histological and Histomorphometric Study: Monocortical Bone Block in Human Jaw. Clin. Oral Implant. Res. 2003, 14, 759–766. [Google Scholar] [CrossRef] [PubMed]
  23. Waasdorp, J.; Reynolds, M.A. Allogeneic Bone Onlay Grafts for Alveolar Ridge Augmentation: A Systematic Review. Int. J. Oral Maxillofac. Implant. 2010, 25, 525–531. [Google Scholar]
  24. Bose, S.; Sarkar, N.; Banerjee, D. Natural Medicine Delivery from Biomedical Devices to Treat Bone Disorders: A Review. Acta Biomater. 2021, 126, 63–91. [Google Scholar] [CrossRef] [PubMed]
  25. Batool, F.; Özçelik, H.; Stutz, C.; Gegout, P.-Y.; Benkirane-Jessel, N.; Petit, C.; Huck, O. Modulation of Immune-Inflammatory Responses through Surface Modifications of Biomaterials to Promote Bone Healing and Regeneration. J. Tissue Eng. 2021, 12, 204173142110414. [Google Scholar] [CrossRef] [PubMed]
  26. Banerjee, K.; Radhakrishnan, J.; Ayyadurai, N.; Ganesan, P.; Kamini, N.R. Advances in Neoteric Modular Tissue Engineering Strategies for Regenerative Dentistry. J. Sci. Adv. Mater. Dev. 2022, 7, 100491. [Google Scholar] [CrossRef]
  27. Daghrery, A.; Bottino, M.C. Advanced Biomaterials for Periodontal Tissue Regeneration. Genesis 2022, 60, e23501. [Google Scholar] [CrossRef]
  28. Namanloo, R.A.; Ommani, M.; Abbasi, K.; Alam, M.; Badkoobeh, A.; Rahbar, M.; Arasteh, H.K.; Hajmohammadi, E.; Soufdoost, R.S.; Mosaddad, S.A. Biomaterials in Guided Bone and Tissue Regenerations: An Update. Adv. Mater. Sci. Eng. 2022, 2022, 2489399. [Google Scholar] [CrossRef]
  29. Kunrath, M.F.; Dahlin, C. The Impact of Early Saliva Interaction on Dental Implants and Biomaterials for Oral Regeneration: An Overview. Int. J. Mol. Sci. 2022, 23, 2024. [Google Scholar] [CrossRef]
  30. Roca-Millan, E.; Jané-Salas, E.; Marí-Roig, A.; Jiménez-Guerra, Á.; Ortiz-García, I.; Velasco-Ortega, E.; López-López, J.; Monsalve-Guil, L. The Application of Beta-Tricalcium Phosphate in Implant Dentistry: A Systematic Evaluation of Clinical Studies. Materials 2022, 15, 655. [Google Scholar] [CrossRef]
  31. Oliveira, C.S.; Leeuwenburgh, S.; Mano, J.F. New Insights into the Biomimetic Design and Biomedical Applications of Bioengineered Bone Microenvironments. APL Bioeng. 2021, 5, 041507. [Google Scholar] [CrossRef] [PubMed]
  32. Hayashi, K.; Kishida, R.; Tsuchiya, A.; Ishikawa, K. Honeycomb Blocks Composed of Carbonate Apatite, β-Tricalcium Phosphate, and Hydroxyapatite for Bone Regeneration: Effects of Composition on Biological Responses. Mater. Today Bio. 2019, 4, 100031. [Google Scholar] [CrossRef] [PubMed]
  33. Hayashi, K.; Kishida, R.; Tsuchiya, A.; Ishikawa, K. Granular Honeycombs Composed of Carbonate Apatite, Hydroxyapatite, and β-Tricalcium Phosphate as Bone Graft Substitutes: Effects of Composition on Bone Formation and Maturation. ACS Appl. Bio Mater. 2020, 3, 1787–1795. [Google Scholar] [CrossRef]
  34. Hayashi, K.; Yanagisawa, T.; Kishida, R.; Ishikawa, K. Effects of Scaffold Shape on Bone Regeneration: Tiny Shape Differences Affect the Entire System. ACS Nano 2022, 16, 11755–11768. [Google Scholar] [CrossRef] [PubMed]
  35. Hayashi, K.; Shimabukuro, M.; Kishida, R.; Tsuchiya, A.; Ishikawa, K. Structurally Optimized Honeycomb Scaffolds with Outstanding Ability for Vertical Bone Augmentation. J. Adv. Res. 2022, S2090123221002630. [Google Scholar] [CrossRef]
  36. Hayashi, K.; Yanagisawa, T.; Shimabukuro, M.; Kishida, R.; Ishikawa, K. Granular Honeycomb Scaffolds Composed of Carbonate Apatite for Simultaneous Intra- and Inter-Granular Osteogenesis and Angiogenesis. Mater. Today Bio. 2022, 14, 100247. [Google Scholar] [CrossRef]
  37. Shibahara, K.; Hayashi, K.; Nakashima, Y.; Ishikawa, K. Effects of Channels and Micropores in Honeycomb Scaffolds on the Reconstruction of Segmental Bone Defects. Front. Bioeng. Biotechnol. 2022, 10, 825831. [Google Scholar] [CrossRef]
  38. Hayashi, K.; Tsuchiya, A.; Shimabukuro, M.; Ishikawa, K. Multiscale Porous Scaffolds Constructed of Carbonate Apatite Honeycomb Granules for Bone Regeneration. Mater. Des. 2022, 215, 110468. [Google Scholar] [CrossRef]
  39. Hayashi, K.; Shimabukuro, M.; Ishikawa, K. Antibacterial Honeycomb Scaffolds for Achieving Infection Prevention and Bone Regeneration. ACS Appl. Mater. Interfaces 2022, 14, 3762–3772. [Google Scholar] [CrossRef]
  40. Hayashi, K.; Ishikawa, K. Honeycomb Scaffolds Capable of Ectopic Osteogenesis: Histological Evaluation of Osteoinduction Mechanism. Nano Select 2022, 3, 60–77. [Google Scholar] [CrossRef]
  41. Hayashi, K.; Shimabukuro, M.; Kishida, R.; Tsuchiya, A.; Ishikawa, K. Honeycomb Scaffolds Capable of Achieving Barrier Membrane-Free Guided Bone Regeneration. Mater. Adv. 2021, 2, 7638–7649. [Google Scholar] [CrossRef]
  42. Shibahara, K.; Hayashi, K.; Nakashima, Y.; Ishikawa, K. Honeycomb Scaffold-Guided Bone Reconstruction of Critical-Sized Defects in Rabbit Ulnar Shafts. ACS Appl. Bio. Mater. 2021, 4, 6821–6831. [Google Scholar] [CrossRef] [PubMed]
  43. Hayashi, K.; Kato, N.; Kato, M.; Ishikawa, K. Impacts of Channel Direction on Bone Tissue Engineering in 3D-Printed Carbonate Apatite Scaffolds. Mater. Des. 2021, 204, 109686. [Google Scholar] [CrossRef]
  44. Hayashi, K.; Ishikawa, K. Honeycomb Scaffolds Fabricated Using Extrusion Molding and the Sphere-Packing Theory for Bone Regeneration. ACS Appl. Bio. Mater. 2021, 4, 721–730. [Google Scholar] [CrossRef]
  45. Hayashi, K.; Munar, M.L.; Ishikawa, K. Effects of Macropore Size in Carbonate Apatite Honeycomb Scaffolds on Bone Regeneration. Mater. Sci. Eng. C-Mater. Biol. Appl. 2020, 111, 110848. [Google Scholar] [CrossRef]
  46. Hayashi, K.; Munar, M.L.; Ishikawa, K. Carbonate Apatite Granules with Uniformly Sized Pores That Arrange Regularly and Penetrate Straight through Granules in One Direction for Bone Regeneration. Ceram. Int. 2019, 45, 15429–15434. [Google Scholar] [CrossRef]
  47. Hayashi, K.; Kishida, R.; Tsuchiya, A.; Ishikawa, K. Carbonate Apatite Micro-Honeycombed Blocks Generate Bone Marrow-Like Tissues as well as Bone. Adv. Biosys. 2019, 3, 1900140. [Google Scholar] [CrossRef]
  48. Hayashi, K.; Ishikawa, K. Effects of Nanopores on the Mechanical Strength, Osteoclastogenesis, and Osteogenesis in Honeycomb Scaffolds. J. Mater. Chem. B 2020, 8, 8536–8545. [Google Scholar] [CrossRef]
  49. Li, X.; Wang, Y.; Chen, F.; Chen, X.; Xiao, Y.; Zhang, X. Design of Macropore Structure and Micro-Nano Topography to Promote the Early Neovascularization and Osteoinductivity of Biphasic Calcium Phosphate Bioceramics. Mater. Des. 2022, 216, 110581. [Google Scholar] [CrossRef]
  50. Ho, W.-F.; Lee, M.-H.; Thomas, J.L.; Li, J.-A.; Wu, S.-C.; Hsu, H.-C.; Lin, H.-Y. Porous Biphasic Calcium Phosphate Granules from Oyster Shell Promote the Differentiation of Induced Pluripotent Stem Cells. Int. J. Mol. Sci. 2021, 22, 9444. [Google Scholar] [CrossRef]
  51. Wähnert, D.; Koettnitz, J.; Merten, M.; Kronenberg, D.; Stange, R.; Greiner, J.F.W.; Kaltschmidt, C.; Vordemvenne, T.; Kaltschmidt, B. Spongostan™ Leads to Increased Regeneration of a Rat Calvarial Critical Size Defect Compared to NanoBone® and Actifuse. Materials 2021, 14, 1961. [Google Scholar] [CrossRef] [PubMed]
  52. Vallejos Baier, R.; Benjumeda Wijnhoven, I.; Irribarra del Valle, V.; Millán Giovanetti, C.; Vivanco, J.F. Microporosity Clustering Assessment in Calcium Phosphate Bioceramic Particles. Front. Bioeng. Biotechnol. 2019, 7, 281. [Google Scholar] [CrossRef] [PubMed]
  53. Alister, J.P.; Uribe, F.; Vásquez, B.; Fariña, R.; Olate, S.; Alister, J.P.; Uribe, F.; Vásquez, B.; Fariña, R.; Olate, S. Characterization of Bone Substitute β-TCP Block for Maxillofacial Reconstruction. Int. J. Morphol. 2019, 37, 82–86. [Google Scholar] [CrossRef] [Green Version]
  54. Rustom, L.E.; Poellmann, M.J.; Wagoner Johnson, A.J. Mineralization in Micropores of Calcium Phosphate Scaffolds. Acta Biomater. 2019, 83, 435–455. [Google Scholar] [CrossRef] [PubMed]
  55. He, F.; Tian, Y.; Fang, X.; Lu, T.; Li, J.; Shi, X.; Wu, S.; Zuo, F.; Ye, J. Fabrication of Β-tricalcium Phosphate Composite Ceramic Scaffolds Based on Spheres Prepared by Extrusion-spheronization. J. Am. Ceram Soc. 2018, 101, 5811–5826. [Google Scholar] [CrossRef]
  56. Deng, Y.; Liu, M.; Chen, X.; Wang, M.; Li, X.; Xiao, Y.; Zhang, X. Enhanced Osteoinductivity of Porous Biphasic Calcium Phosphate Ceramic Beads with High Content of Strontium-Incorporated Calcium-Deficient Hydroxyapatite. J. Mater. Chem. B 2018, 6, 6572–6584. [Google Scholar] [CrossRef]
  57. Fu, J.; Zhuang, C.; Qiu, J.; Ke, X.; Yang, X.; Jin, Z.; Zhang, L.; Yang, G.; Xie, L.; Xu, S.; et al. Core–Shell Biphasic Microspheres with Tunable Density of Shell Micropores Providing Tailorable Bone Regeneration. Tissue Eng. Part A 2019, 25, 588–602. [Google Scholar] [CrossRef]
  58. Madupalli, H.; Pavan, B.; Tecklenburg, M.M.J. Carbonate Substitution in the Mineral Component of Bone: Discriminating the Structural Changes, Simultaneously Imposed by Carbonate in A and B Sites of Apatite. J. Solid State Chem. 2017, 255, 27–35. [Google Scholar] [CrossRef]
  59. Theophanides, T. Research of Calcium Phosphates Using Fourier Transform Infrared Spectroscopy. In Infrared Spectroscopy—Materials Science, Engineering and Technology; InTech: London, UK, 2012. [Google Scholar] [CrossRef] [Green Version]
  60. Zita Gomes, R.; Paraud Freixas, A.; Han, C.-H.; Bechara, S.; Tawil, I. Alveolar Ridge Reconstruction with Titanium Meshes and Simultaneous Implant Placement: A Retrospective, Multicenter Clinical Study. BioMed Res. Int. 2016, 2016, 5126838. [Google Scholar] [CrossRef]
  61. Sheikh, Z.; Chen, G.; Thévenin, M.; Young, R.; Grynpas, M.; Glogauer, M. A Novel Anabolic Conjugate (C3) in the Matrix of Dicalcium Phosphate Onlay Block Grafts for Achieving Vertical Bone Augmentation: An Experimental Study on Rabbit Calvaria. Int. J. Oral Maxillofac. Implant. 2019, 34, e51–e63. [Google Scholar] [CrossRef]
  62. Kim, D.H.; Cha, J.; Song, Y.W.; Woo, K.M.; Jung, U. Bone Augmentation Using Small Molecules with Biodegradable Calcium Sulfate Particles in a Vertical Onlay Graft Model in the Rabbit Calvarium. J. Biomed. Mater. Res. 2020, 108, 1343–1350. [Google Scholar] [CrossRef] [PubMed]
  63. Xu, M.; Zhai, D.; Chang, J.; Wu, C. In vitro assessment of three-dimensionally plotted nagelschmidtite bioceramic scaffolds with varied macropore morphologies. Acta Biomater. 2014, 10, 463–476. [Google Scholar] [CrossRef] [PubMed]
  64. Shao, H.; Ke, X.; Liu, A.; Sun, M.; He, Y.; Yang, X.; Fu, J.; Liu, Y.; Zhang, L.; Yang, G.; et al. Bone Regeneration in 3D Printing Bioactive Ceramic Scaffolds with Improved Tissue/Material Interface Pore Architecture in Thin-Wall Bone Defect. Biofabrication 2017, 9, 025003. [Google Scholar] [CrossRef] [PubMed]
  65. Rathbone, C.R.; Guda, T.; Singleton, B.M.; Oh, D.S.; Appleford, M.R.; Ong, J.L.; Wenke, J.C. Effect of cell-seeded hydroxyapatite scaffolds on rabbit radius bone regeneration. J. Biomed. Mater. Res. Part A 2014, 102A, 1458–1466. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Zhang, W.; Feng, C.; Yang, G.; Li, G.; Ding, X.; Wang, S.; Dou, Y.; Zhang, Z.; Chang, J.; Wu, C.; et al. 3D-printed scaffolds with synergistic effect of hollow-pipe structure and bioactive ions for vascularized bone regeneration. Biomaterials 2017, 135, 85–95. [Google Scholar] [CrossRef] [PubMed]
Bioengineering 09 00627 g001 550

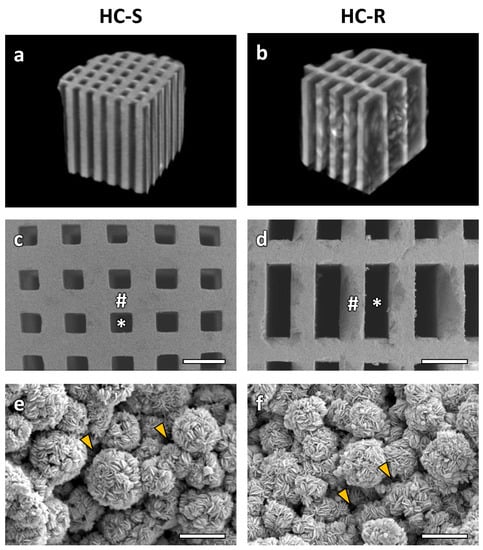

Figure 1. Micro-computerized tomography (μ-CT) cross-section images of honeycomb scaffolds with square channels (HC-S) (a) and honeycomb scaffolds with rectangle channels (HC-R) (b). Scanning electron microscopy (SEM) images of HC-S (c) and HC-R (d). Scale bars, 500 μm. # and * indicate struts and channels, respectively. Higher magnification SEM images of the struts in HC-S (e) and HC-R (f). Scale bars, 5 μm. Yellow arrowheads indicate micropores between carbonate apatite (CAp) spheres.
Figure 1. Micro-computerized tomography (μ-CT) cross-section images of honeycomb scaffolds with square channels (HC-S) (a) and honeycomb scaffolds with rectangle channels (HC-R) (b). Scanning electron microscopy (SEM) images of HC-S (c) and HC-R (d). Scale bars, 500 μm. # and * indicate struts and channels, respectively. Higher magnification SEM images of the struts in HC-S (e) and HC-R (f). Scale bars, 5 μm. Yellow arrowheads indicate micropores between carbonate apatite (CAp) spheres.
Bioengineering 09 00627 g001
Bioengineering 09 00627 g002 550

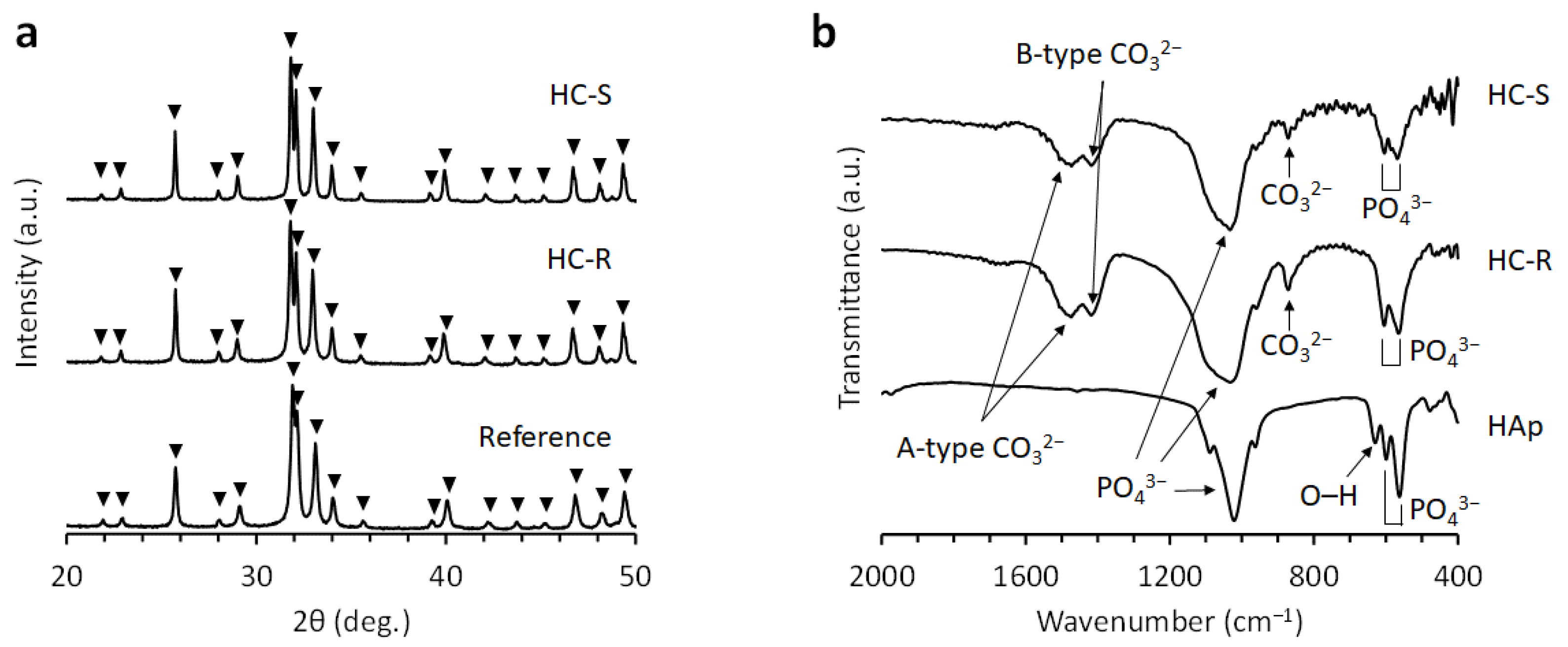

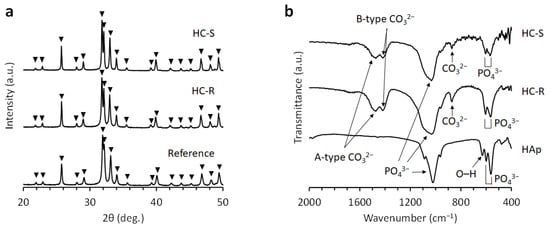

Figure 2. (a) X-ray diffraction patterns of honeycomb scaffolds with square channels (HC-S) and honeycomb scaffolds with rectangle channels (HC-R). Commercial carbonate apatite was used as a reference. (b) Fourier transform infrared (FT-IR) spectra of HC-S, HC-R, and hydroxyapatite (HAp).
Figure 2. (a) X-ray diffraction patterns of honeycomb scaffolds with square channels (HC-S) and honeycomb scaffolds with rectangle channels (HC-R). Commercial carbonate apatite was used as a reference. (b) Fourier transform infrared (FT-IR) spectra of HC-S, HC-R, and hydroxyapatite (HAp).
Bioengineering 09 00627 g002
Bioengineering 09 00627 g003 550

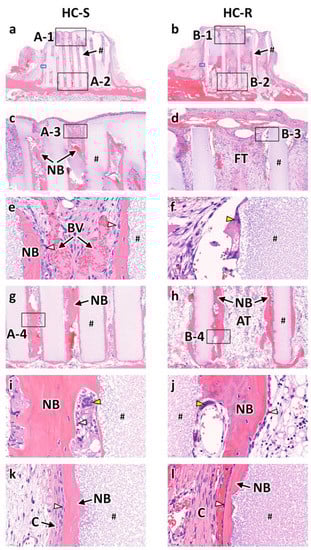

Figure 3. Hematoxylin and eosin (H&E)-stained sections at 4 weeks after implantation of honeycomb scaffolds with square channels (HC-S) (a) and honeycomb scaffolds with rectangle channels (HC-R) (b) on the rabbit calvaria. High magnification images of regions A-1 (c), B-1 (d), A-3 (e), B-3 (f), A-2 (g), B-2 (h), A-4 (i), and B-4 (j). High magnification images of regions enclosed in blue squares in Figure 3a (a) and Figure 3b (b). #, NB, FT, BV, AT, and C indicate scaffold strut, new bone, fibrous tissue, blood vessel, adipose tissue, and collagen fiber, respectively. White and yellow arrowheads indicate osteoblasts and osteoclasts, respectively.
Figure 3. Hematoxylin and eosin (H&E)-stained sections at 4 weeks after implantation of honeycomb scaffolds with square channels (HC-S) (a) and honeycomb scaffolds with rectangle channels (HC-R) (b) on the rabbit calvaria. High magnification images of regions A-1 (c), B-1 (d), A-3 (e), B-3 (f), A-2 (g), B-2 (h), A-4 (i), and B-4 (j). High magnification images of regions enclosed in blue squares in Figure 3a (a) and Figure 3b (b). #, NB, FT, BV, AT, and C indicate scaffold strut, new bone, fibrous tissue, blood vessel, adipose tissue, and collagen fiber, respectively. White and yellow arrowheads indicate osteoblasts and osteoclasts, respectively.
Bioengineering 09 00627 g003
Bioengineering 09 00627 g004 550

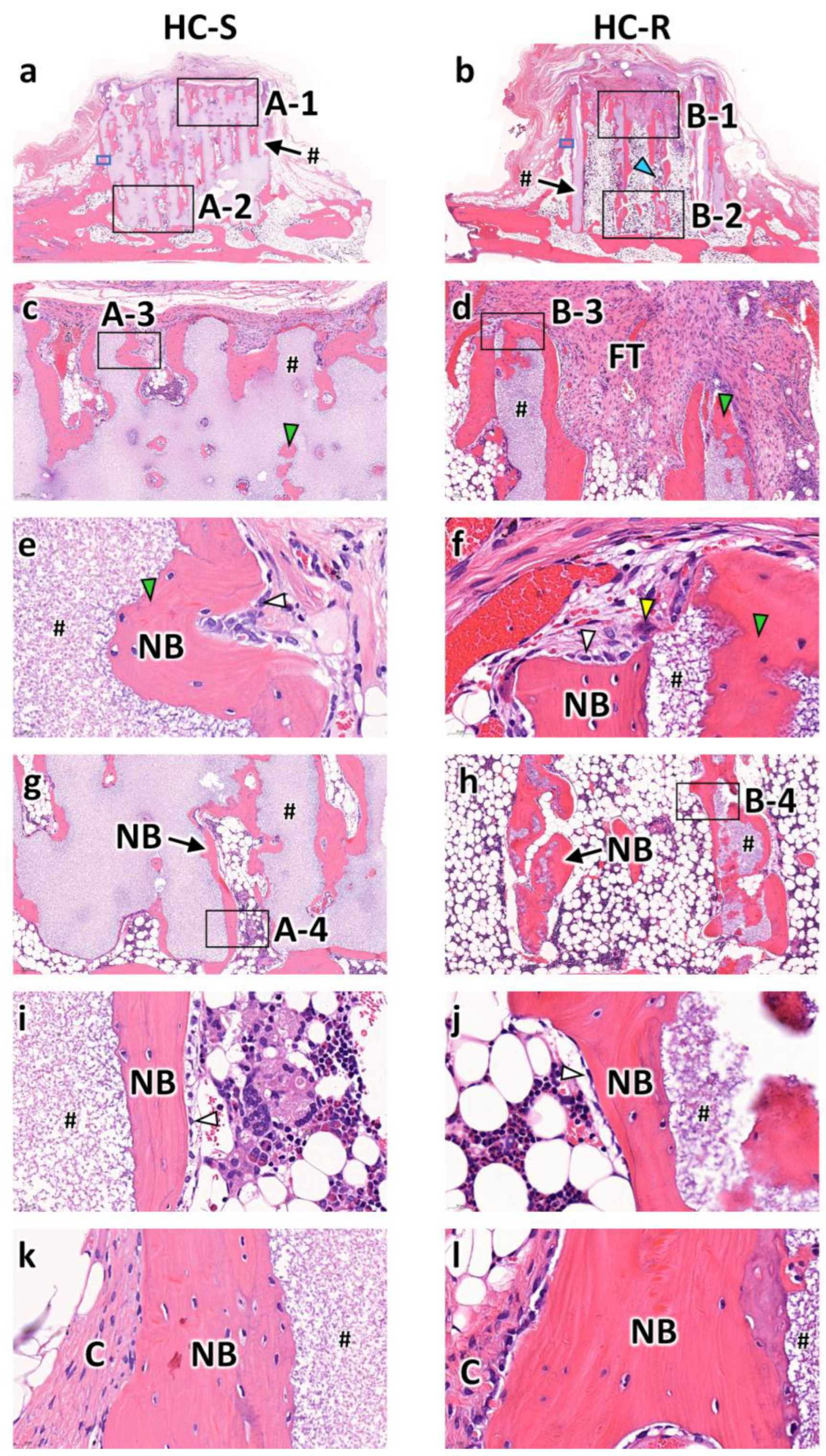

Figure 4. Hematoxylin and eosin (H&E)-stained sections at 12 weeks after implantation of honeycomb scaffolds with square channels (HC-S) (a) and honeycomb scaffolds with rectangle channels (HC-R) (b) on the rabbit calvaria. High magnification images of regions A-1 (c), B-1 (d), A-3 (e), B-3 (f), A-2 (g), B-2 (h), A-4 (i), and B-4 (j). High magnification images of regions enclosed in blue squares in Figure 4a (a) and Figure 4b (b). #, NB, FT, and C indicate scaffold struts, new bones, fibrous tissue, and collagen fiber, respectively. White, yellow, blue, and green arrowheads indicate osteoblasts, osteoclasts, resorbed part of the strut, and new bone formed in the resorbed strut part, respectively.
Figure 4. Hematoxylin and eosin (H&E)-stained sections at 12 weeks after implantation of honeycomb scaffolds with square channels (HC-S) (a) and honeycomb scaffolds with rectangle channels (HC-R) (b) on the rabbit calvaria. High magnification images of regions A-1 (c), B-1 (d), A-3 (e), B-3 (f), A-2 (g), B-2 (h), A-4 (i), and B-4 (j). High magnification images of regions enclosed in blue squares in Figure 4a (a) and Figure 4b (b). #, NB, FT, and C indicate scaffold struts, new bones, fibrous tissue, and collagen fiber, respectively. White, yellow, blue, and green arrowheads indicate osteoblasts, osteoclasts, resorbed part of the strut, and new bone formed in the resorbed strut part, respectively.
Bioengineering 09 00627 g004
Bioengineering 09 00627 g005 550

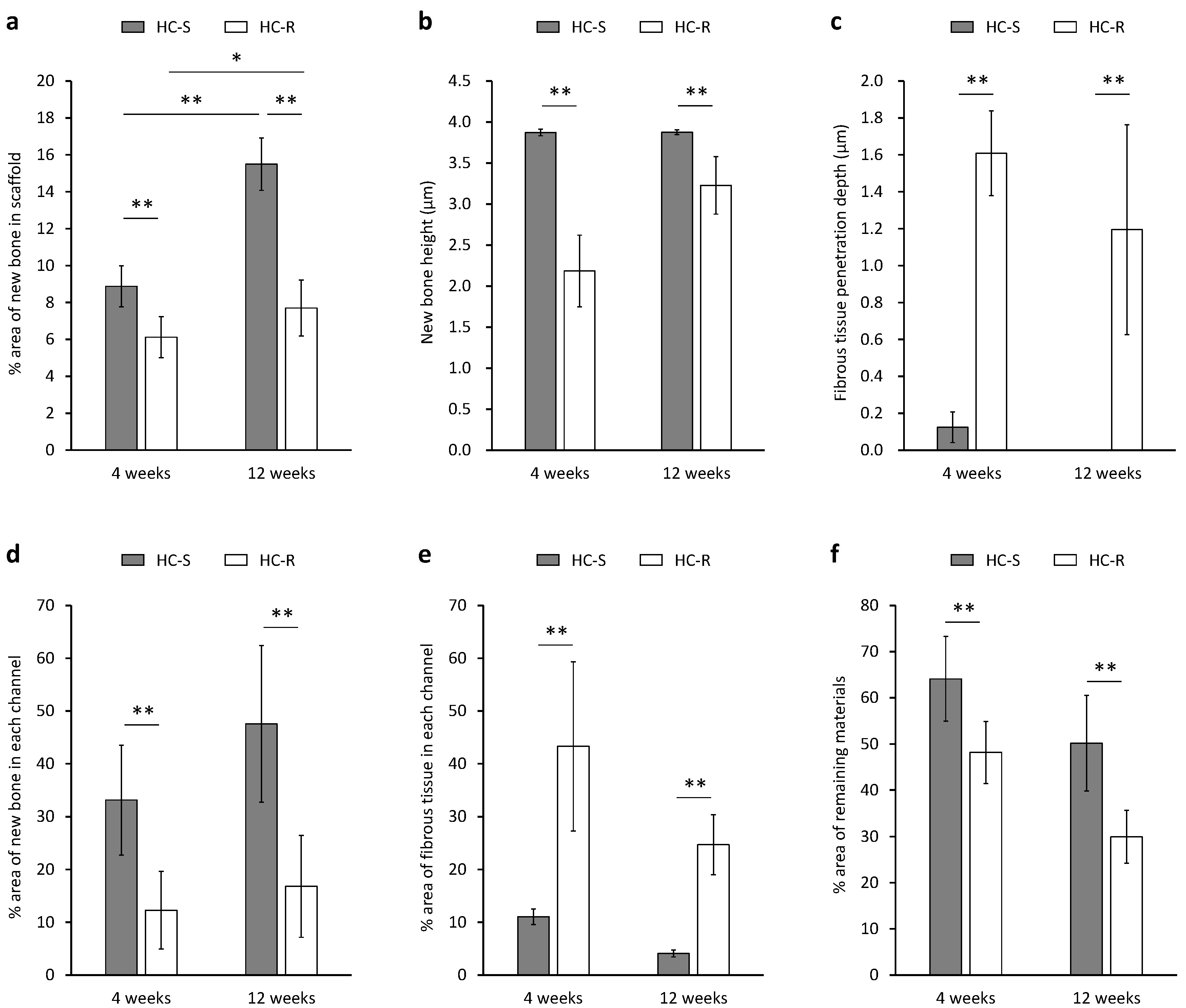

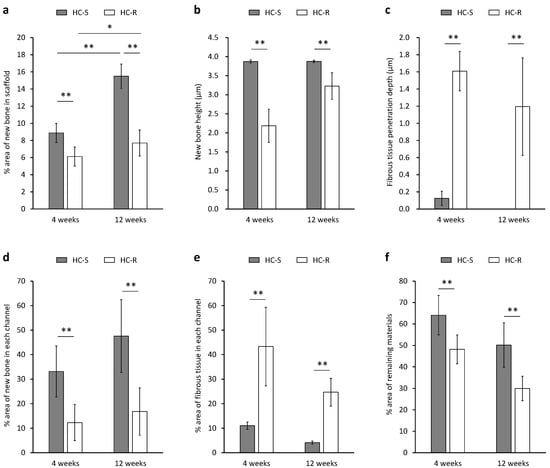

Figure 5. Area percentage (a) and height (b) of bone newly formed in honeycomb scaffolds with square channels (HC-S) and honeycomb scaffolds with rectangle channels (HC-R). The penetration depth of fibrous tissue from the scaffold top face (c). Area percentages of new bone (d) and fibrous tissues (e) in each channel of HC-S and HC-R. Area percentages of remaining materials in HC-S and HC-R (f). * p < 0.05 and ** p < 0.01. n = 5 per group.
Figure 5. Area percentage (a) and height (b) of bone newly formed in honeycomb scaffolds with square channels (HC-S) and honeycomb scaffolds with rectangle channels (HC-R). The penetration depth of fibrous tissue from the scaffold top face (c). Area percentages of new bone (d) and fibrous tissues (e) in each channel of HC-S and HC-R. Area percentages of remaining materials in HC-S and HC-R (f). * p < 0.05 and ** p < 0.01. n = 5 per group.
Bioengineering 09 00627 g005
Bioengineering 09 00627 g006 550

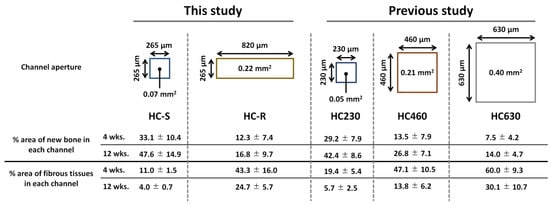

Figure 6. Channel aperture characteristics and the percent areas of new bone and fibrous tissues in each channel of honeycomb scaffolds with square channels (HC-S), with rectangle channels (HC-R), and with square channels of side lengths 230 (HC230), 460 (HC460), and 630 μm (HC630) [41].
Figure 6. Channel aperture characteristics and the percent areas of new bone and fibrous tissues in each channel of honeycomb scaffolds with square channels (HC-S), with rectangle channels (HC-R), and with square channels of side lengths 230 (HC230), 460 (HC460), and 630 μm (HC630) [41].
